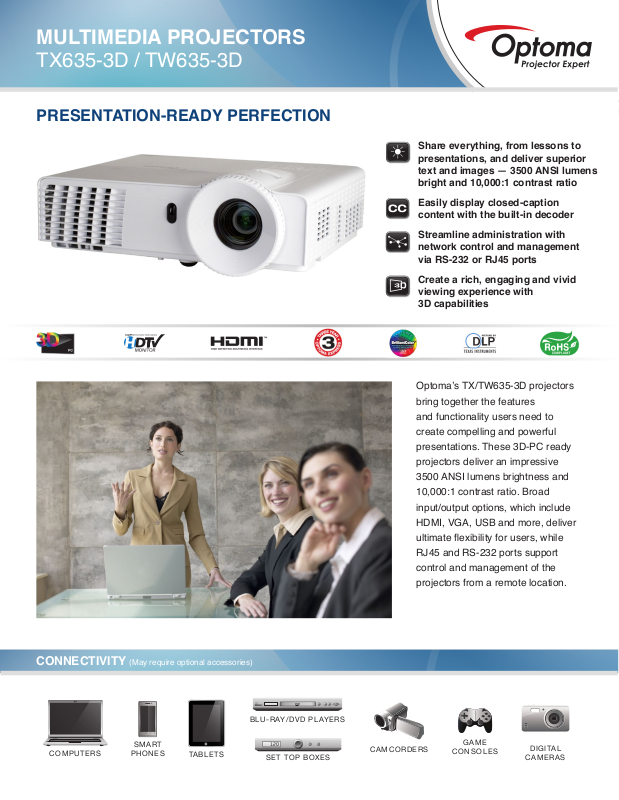

MULTIMEDIA PROJECTORS
TX635-3D / TW635-3D
PRESENTATION-READY PERFECTION
Share everything, from lessons to
presentations, and deliver superior
text and images — 3500 ANSI lumens
bright and 10,000:1 contrast ratio
Easily display closed-caption
content with the built-in decoder
Streamline administration with
network control and management
via RS-232 or RJ45 ports
Create a rich, engaging and vivid
viewing experience with
3D capabilities
CONNECTIVITY (May require optional accessories)
Optoma’s TX/TW635-3D projectors
bring together the features
and functionality users need to
create compelling and powerful
presentations. These 3D-PC ready
projectors deliver an impressive
3500 ANSI lumens brightness and
10,000:1 contrast ratio. Broad
input/output options, which include
HDMI, VGA, USB and more, deliver
ultimate exibility for users, while
RJ45 and RS-232 ports support
control and management of the
projectors from a remote location.
COMPUTERS
SMART
PHONES
TABLETS
BLU-RAY/DVD PLAYERS
SET TOP BOXES
CAMCORDERS
GAME
CONSOLES
DIGITAL
CAMERAS
MULTIMEDIA PROJECTORS — TX635-3D, TW635-3D
OPTICAL/TECHNICAL SPECIFICATIONS
Display Technology TX– Single 0.55” DC3 DMD DLP
TW– Single 0.65” DC3 DMD DLP
Native Resolution TX– XGA (1024 x 768)
TW– WXGA (1280 x 800)
Brightness 3500 ANSI lumens
Contrast Ratio 10,000:1 (full on/full off)
Displayable Colors 1.07 Billion
Lamp Life and Type* 6000/5000/3000 hours (Eco+/Eco/Normal)
240W
Projection Method Front, rear, upright, inverted
Keystone +/- 40 Vertical
Uniformity > 85%
Aspect Ratio: TX– 4:3 Native; 16:9 and 16:10 compatible
TW– 16:10 Native; 4:3 and 16:9 compatible
Throw Ratio TX– 1.6 - 1.92
TW– 1.28 - 1.536
Projection Distance 3.92’ to 32.8’
Image Size (Diagonal) TX– 30” to 307”
TW– 36.3” to 362”
Projection Lens F= 2.4 to 2.66, f=18.2 to 21.8mm,
1.2X manual focus
Offset TX–115%
TW– 112%
Audio 10-Watt speaker
Noise Level 28dB/30dB
Remote Control IR remote mouse with laser
Operating Temperature 41° to 113°F (5° to 45°C)
Power Supply AC input 100-240V, 50-60Hz,
auto-switching
Power Consumption 328W Max (normal), 247W (eco),
<0.5W (standby)
COMPATIBILITY SPECIFICATIONS
Computer Compatibility UXGA, WXGA, SXGA+, SXGA, XGA,
SVGA, VGA resized, VESA, PC and
Macintosh compatible
Video Input Compatibility NTSC, PAL, SECAM, SDTV (480i),
EDTV (480p), HDTV (720p, 1080i/p)
3D Compatibility** 720p, XGA, SVGA
120Hz frame sequential
Closed Captioning Supported
Vertical Scan Rate 24 to 85 Hz, 120Hz
Horizontal Scan Rate 15.3 to 91.1 KHz
User Controls Complete on-screen menu
I/O Connection Ports HDMI 1.3, two VGA-in, VGA-out, composite
video, two Audio-in, Audio-out, Mic-in, RS232, USB Type B for mouse, USB Type A
for wireless or thumb drive, RJ45, mini-USB
Type B for display
Loop Through (Audio, VGA) Monitor: D-Sub 15-pin VGA output
Audio stereo mini-jack output (functional
in both normal and standby modes)
PHYSICAL SPECIFICATIONS
Security Kensington® lock port, security bar and
keypad lock
Weight 4.4 lbs
Dimensions (W x D x H) 11.3" x 3.0" x 8.6"
*Lamp life is dependent upon many factors, including lamp mode, display mode,
usage, environmental conditions and more. Lamp brightness can decrease over time.
**3D source, 3D content & 3D glasses are required for 3D viewing.
8.6”
11.3”
3”
HDMI VGA-out
RS-232CUSB-B
USBPower VGA2-in/
Mini-USB-B
RJ45
Power/standby
Source
Left click
Enter
Page up
Laser
Keystone correction
Brightness
HDMI
VGA2
ECO+
VGA1
USB
Warranty
Three-year Optoma Express Replacement Service, One-year on lamp
What Comes in the Box
AC power cord, VGA to VGA cable, remote control, batteries for remote
control, carrying case, lens cap, CD-ROM users manual, quick start card and
warranty card
Optional Accessories
Ceiling mount, mini USB WiFi dongle, HDMI cable, VGA to component cable,
DLP Link 3D glasses, RS-232 cable and Optoma screens
Part Numbers
Lamp: BL-FP240B Remote: BR-5039L Case: BK-4023
UPC
TX635-3D: 796435 41 786 4
TW635-3D: 796435 41 785 7
VG A1-i n/
YPbPr
YPbPr
Video Audio-out
MIC
Audio1-in
Kensington
Lock Por t
Switch
Re-Sync
Right click
Four directional select keys
for mouse emulation
Page down
Volume
Menu
Zoom
AV mute
Video
3D
Freeze
Audio2-in
www.OptomaUSA.com
Copyright © 2012 Optoma Technology, Inc. DLP® and the DLP logo are registered trademarks of
Texas Instruments. All other trademarks are the property of their respective owners.
All specications subject to change at any time.
