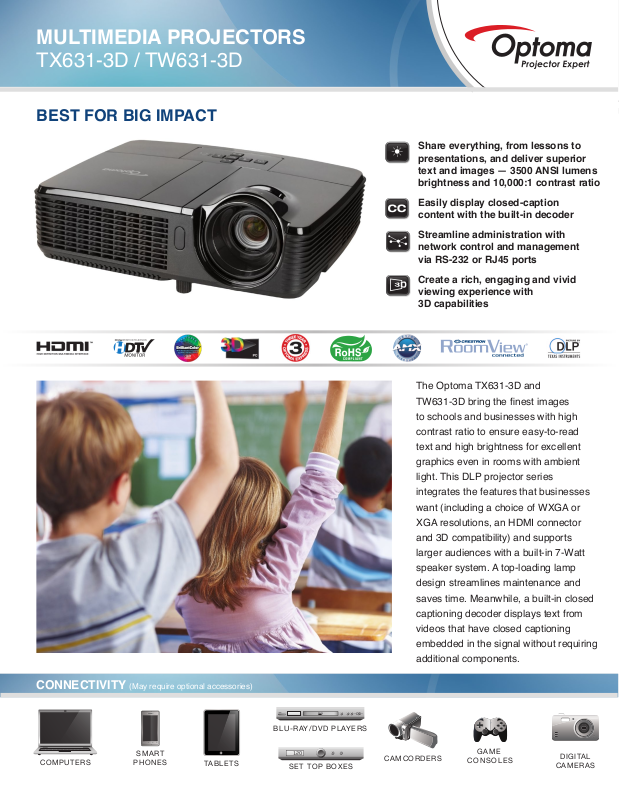

Optoma TX631-3D, TW631-3D Product Sheet
MULTIMEDIA PROJECTORS
TX631-3D / TW631-3D
BEST FOR BIG IMPACT
Share everything, from lessons to
presentations, and deliver superior
text and images — 3500 ANSI lumens
brightness and 10,000:1 contrast ratio
Easily display closed-caption
content with the built-in decoder
Streamline administration with
network control and management
via RS-232 or RJ45 ports
Create a rich, engaging and vivid
viewing experience with
3D capabilities
The Optoma TX631-3D and
TW631-3D bring the nest images
to schools and businesses with high
contrast ratio to ensure easy-to-read
text and high brightness for excellent
graphics even in rooms with ambient
light. This DLP projector series
integrates the features that businesses
want (including a choice of WXGA or
XGA resolutions, an HDMI connector
and 3D compatibility) and supports
larger audiences with a built-in 7-Watt
speaker system. A top-loading lamp
design streamlines maintenance and
saves time. Meanwhile, a built-in closed
captioning decoder displays text from
videos that have closed captioning
embedded in the signal without requiring
additional components.
CONNECTIVITY (May require optional accessories)
COMPUTERS
SMART
PHONES
TABLETS
BLU-RAY/DVD PLAYERS
SET TOP BOXES
CAMCORDERS
GAME
CONSOLES
DIGITAL
CAMERAS
MULTIMEDIA PROJECTORS — TX631-3D, TW631-3D
OPTICAL/TECHNICAL SPECIFICATIONS
Display Technology TX– Single 0.55” DC3 DMD DLP
TW– Single 0.65” DC3 DMD DLP
Native Resolution TX– XGA (1024 x 768)
TW– WXGA (1280 x 800)
Brightness 3500 ANSI lumens
Contrast Ratio 10,000:1 (full on/full off)
Displayable Colors 1.07 Billion
Lamp Life* and Type 6000/5000/3500 Hours (ECO+/ECO/normal)
Projection Method Front, rear, upright, inverted
Keystone +/- 40 Vertical
Uniformity > 85%
Aspect Ratio TX– 4:3 Native; 16:9 and 16:10 compatible
TW– 16:10 Native; 4:3 and 16:9 compatible
Throw Ratio (Distance/Width) TX– 1.97 ~ 2.17
TW– 1.47 ~ 1.81
Projection Distance TX– 3.93’ to 32.8’ (1.2 to 10 m)
TW– 3.2’ to 32.8 (1.0 to 10 m)
Image Size (Diagonal) 30” ~ 300” (0.76 to 7.62 m)
Projection Lens TX– F= 2.51 ~ 2.69, f=21.95 ~ 24.18 mm,
1.1x manual zoom and focus
TW– F= 2.57 ~ 2.84, f=21 ~ 25.6 mm,
1.2x manual zoom and focus
Offset TX– 115%
TW– 112%
Audio 7-Watt speaker
Noise Level 28dB/30dB
Remote Control Fully featured IR remote with mouse and
Operating Temperature 41° to 104° F (5° to 40° C)
Power Supply AC input 100-240V, 50-60Hz, auto-switching
Power Consumption 300W max (normal), 230W (eco),
<1W (standby)
240W P-VIP
laser pointer
COMPATIBILITY SPECIFICATIONS
Computer Compatibility UXGA, WXGA, SXGA+, SXGA, XGA,
Video Input Compatibility NTSC, PAL, SECAM, SDTV (480i),
3D Compatibility 120Hz Frame sequential 3D for resolutions
Closed Captioning Supported
Vertical Scan Rate 24 to 85 Hz, 120 Hz
Horizontal Scan Rate 15.3 to 91.1 KHz
User Controls Complete on-screen menu in 23 languages
I/O Connection Ports HDMI 1.3, two VGA-in, VGA-out, S-video
Loop Through (Audio, VGA) Monitor: D-Sub 15-pin VGA output
Audio: Stereo mini-jack output (functional in
SVGA, VGA resized, VESA, PC and
Macintosh compatible
EDTV (480p), HDTV (720p, 1080i/p)
up to 720p, 60Hz eld sequential 3D for
resolutions up to 480i
composite video, audio-in, audio-out, RJ45,
RS-232, mini USB
both normal and standby modes)
PHYSICAL SPECIFICATIONS
Security Kensington® lock port, security bar and
Weight 4.9 lbs (2.2 kg)
Dimensions 11” x 3.08” x 9.06” (280 x 78.4 x 230 mm)
*
Lamp life is dependent upon many factors, including lamp mode, display mode,
usage, environmental conditions and more. Lamp brightness can decrease over time.
keypad lock
9.06”
11”
3.08”
Audio-in
Audio-out
Warranty
Three-year Optoma Express Replacement Service, One-year on lamp
What Comes in the Box
AC power cord, VGA to VGA cable, remote control, batteries for remote,
carrying case, CD-ROM user’s manual, quick start card and warranty card
Optional Accessories
USB cable, ceiling mount, VGA to component cable, RS-232 cable, DLP Link
3D glasses and Optoma screens
Part Numbers
Lamp: BL-FP240A Remote: BR-3057L Case: BK-4023
UPC
TX631-3D: 796435 41 762 8
TW631-3D: 796435 41 763 5
HDMI
Power/
Standby
Enter
Left click
Page up
Source
Page down
Keystone
Correction
Brightness
HDMI
S-video
Freeze
VGA
S-video mini USB
Video VGA-out
VG A1- in
VGA2-in
RS-232 LAN
Kensington
lock port
Laser
Four directional select keys
for mouse emulation
Right click
Re-Sync
Mouse on/off switch
Volume
3D
AV mute
Video
Menu
www.OptomaUSA.com
Copyright © 2012 Optoma Technology, Inc. DLP® and the DLP logo are registered trademarks of
Texas Instruments. All other trademarks are the property of their respective owners.
All specications subject to change at any time.
