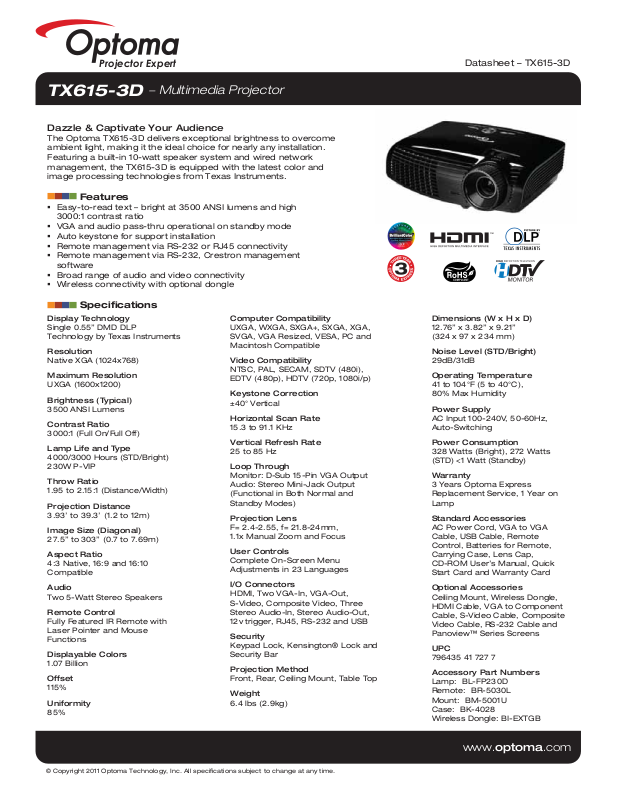

Datasheet – TX615-3D
TX615-3D
− Multimedia Projector
Dazzle & Captivate Your Audience
The Optoma TX615-3D delivers exceptional brightness to overcome
ambient light, making it the ideal choice for nearly any installation.
Featuring a built-in 10-watt speaker system and wired network
management, the TX615-3D is equipped with the latest color and
image processing technologies from Texas Instruments.
Easy-to-read text – bright at 3500 ANSI lumens and high
VGA and audio pass-thru operational on standby mode
Auto keystone for support installation
Remote management via RS-232 or RJ45 connectivity
Remote management via RS-232, Crestron management
Broad range of audio and video connectivity
Wireless connectivity with optional dongle
Display Technology
Single 0.55” DMD DLP
Technology by Texas Instruments
Resolution
Native XGA (1024x768)
Maximum Resolution
UXGA (1600x1200)
Brightness (Typical)
3500 ANSI Lumens
Contrast Ratio
3000:1 (Full On/Full Off)
Lamp Life and Type
4000/3000 Hours (STD/Bright)
230W P-VIP
Throw Ratio
1.95 to 2.15:1 (Distance/Width)
Projection Distance
3.93’ to 39.3’ (1.2 to 12m)
Image Size (Diagonal)
27.5” to 303” (0.7 to 7.69m)
Aspect Ratio
4:3 Native, 16:9 and 16:10
Compatible
Audio
Two 5-Watt Stereo Speakers
Remote Control
Fully Featured IR Remote with
Laser Pointer and Mouse
Functions
Displayable Colors
1.07 Billion
Offset
115%
Uniformity
85%
Features
3000:1 contrast ratio
software
Specifications
Computer Compatibility
UXGA, WXGA, SXGA+, SXGA, XGA,
SVGA, VGA Resized, VESA, PC and
Macintosh Compatible
Video Compatibility
NTSC, PAL, SECAM, SDTV (480i),
EDTV (480p), HDTV (720p, 1080i/p)
Keystone Correction
±40° Vertical
Horizontal Scan Rate
15.3 to 91.1 KHz
Vertical Refresh Rate
25 to 85 Hz
Loop Through
Monitor: D-Sub 15-Pin VGA Output
Audio: Stereo Mini-Jack Output
(Functional in Both Normal and
Standby Modes)
Projection Lens
F= 2.4-2.55, f= 21.8-24mm,
1.1x Manual Zoom and Focus
User Controls
Complete On-Screen Menu
Adjustments in 23 Languages
I/O Connectors
HDMI, Two VGA-In, VGA-Out,
S-Video, Composite Video, Three
Stereo Audio-In, Stereo Audio-Out,
12v trigger, RJ45, RS-232 and USB
Security
Keypad Lock, Kensington® Lock and
Security Bar
Projection Method
Front, Rear, Ceiling Mount, Table Top
Weight
6.4 lbs (2.9kg)
Dimensions (W x H x D)
12.76” x 3.82” x 9.21”
(324 x 97 x 234 mm)
Noise Level (STD/Bright)
29dB/31dB
Operating Temperature
41 to 104°F (5 to 40°C),
80% Max Humidity
Power Supply
AC Input 100-240V, 50-60Hz,
Auto-Switching
Power Consumption
328 Watts (Bright), 272 Watts
(STD) <1 Watt (Standby)
Warranty
3 Years Optoma Express
Replacement Service, 1 Year on
Lamp
Standard Accessories
AC Power Cord, VGA to VGA
Cable, USB Cable, Remote
Control, Batteries for Remote,
Carrying Case, Lens Cap,
CD-ROM User’s Manual, Quick
Start Card and Warranty Card
Optional Accessories
Ceiling Mount, Wireless Dongle,
HDMI Cable, VGA to Component
Cable, S-Video Cable, Composite
Video Cable, RS-232 Cable and
Panoview™ Series Screens
UPC
796435 41 727 7
Accessory Part Numbers
Lamp: BL-FP230D
Remote: BR-5030L
Mount: BM-5001U
Case: BK-4028
Wireless Dongle: BI-EXTGB
© Copyright 2011 Optoma Technology, Inc. All specifications subject to change at any time.
