Optoma Technology TX615 User Manual

Download
Page 1

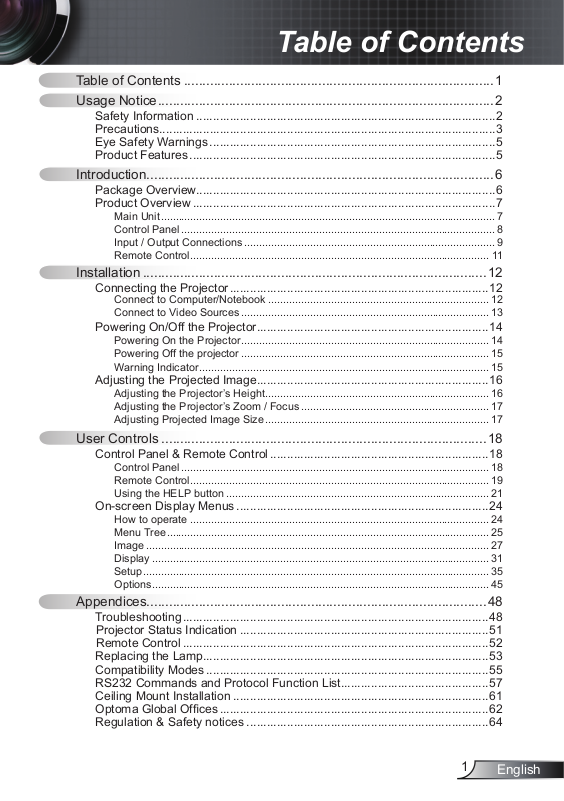

Table of Contents
Table of Contents ...................................................................................1
Usage Notice ..........................................................................................2
Safety Information .........................................................................................2
Precautions....................................................................................................3
Eye Safety Warnings .....................................................................................5
Product Features ...........................................................................................5
Introduction.............................................................................................6
Package Overview.........................................................................................6
Product Overview ..........................................................................................7
Main Unit ................................................................................................................ 7
Control Panel ......................................................................................................... 8
Input / Output Connections .................................................................................... 9
Remote Control .................................................................................................... 11
Installation ............................................................................................12
Connecting the Projector .............................................................................12
Powering On/Off the Projector .....................................................................14
Warning Indicator ................................................................................................. 15
Adjusting the Projected Image.....................................................................16
Adjusting the Projector’s Height ........................................................................... 16
Adjusting the Projector’s Zoom / Focus ............................................................... 17
User Controls .......................................................................................18
Control Panel & Remote Control .................................................................18
Remote Control .................................................................................................... 19

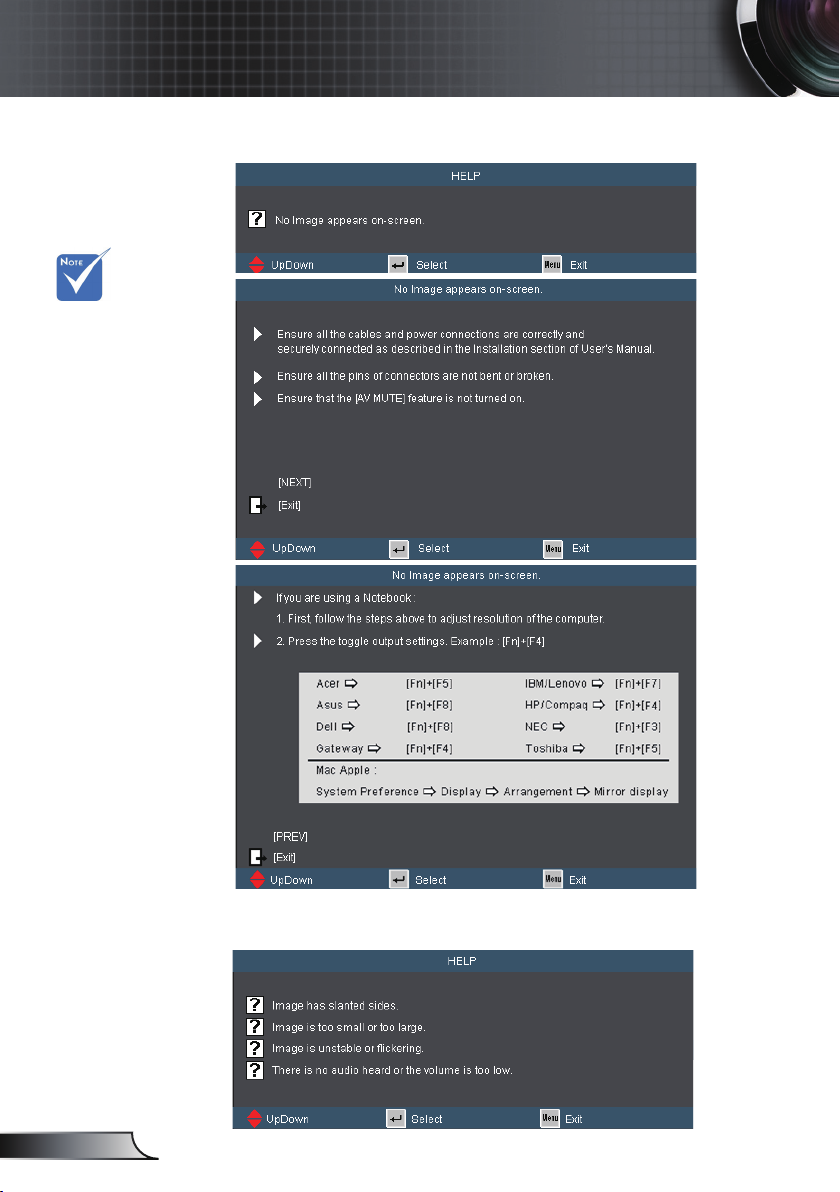

Using the HELP button ........................................................................................21
On-screen Display Menus ...........................................................................24
How to operate .................................................................................................... 24

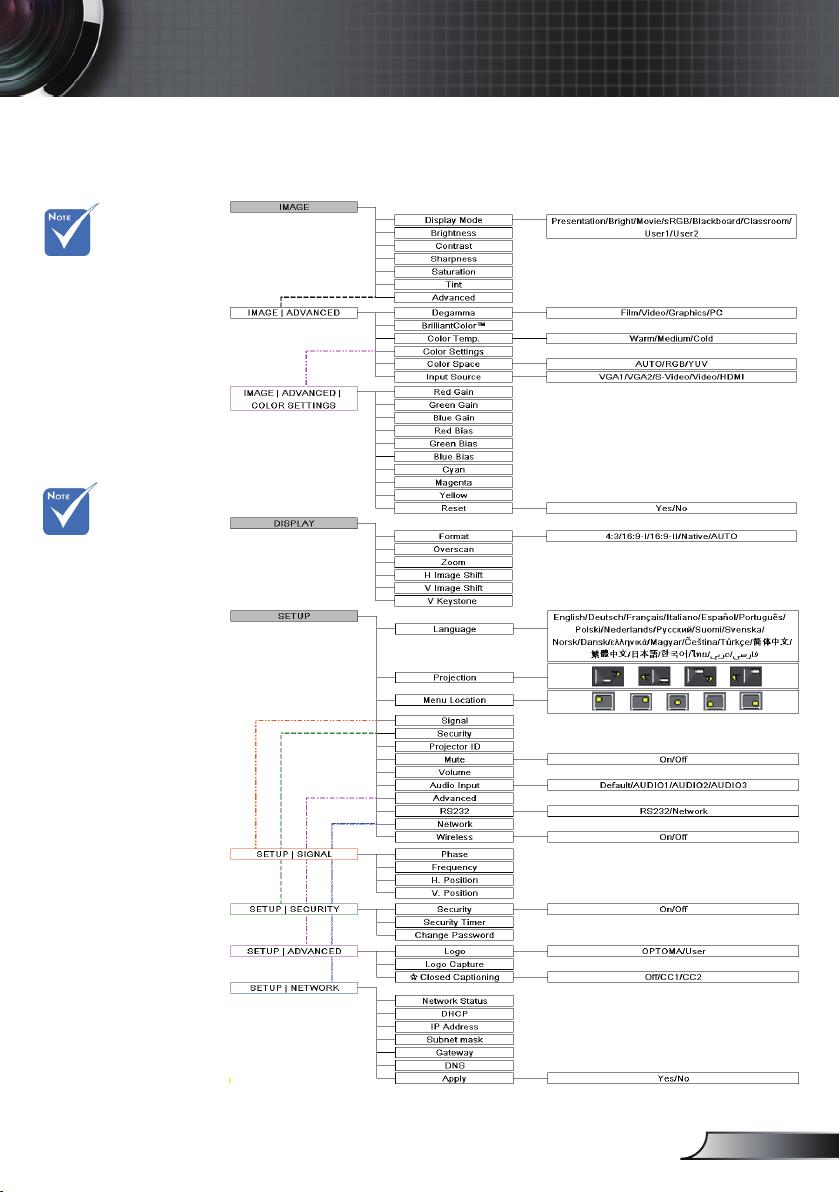

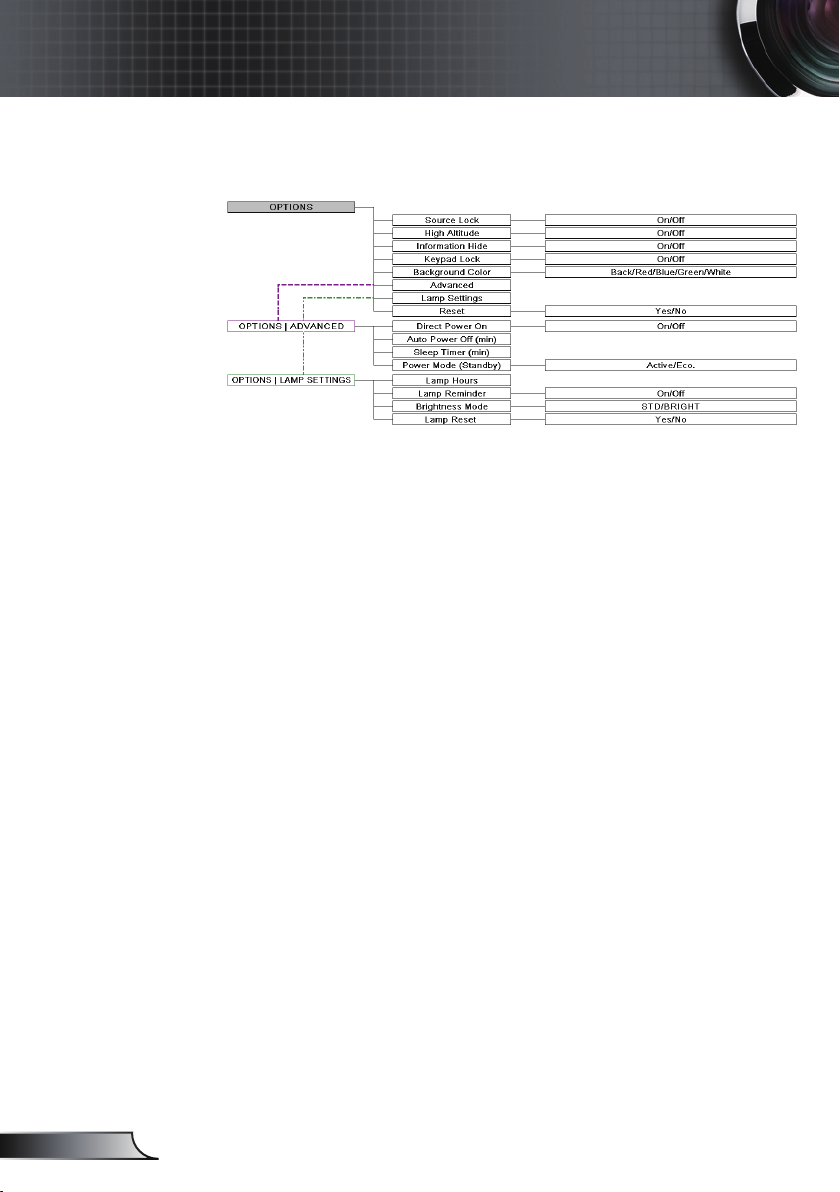

Menu Tree ............................................................................................................ 25
Image ................................................................................................................... 27

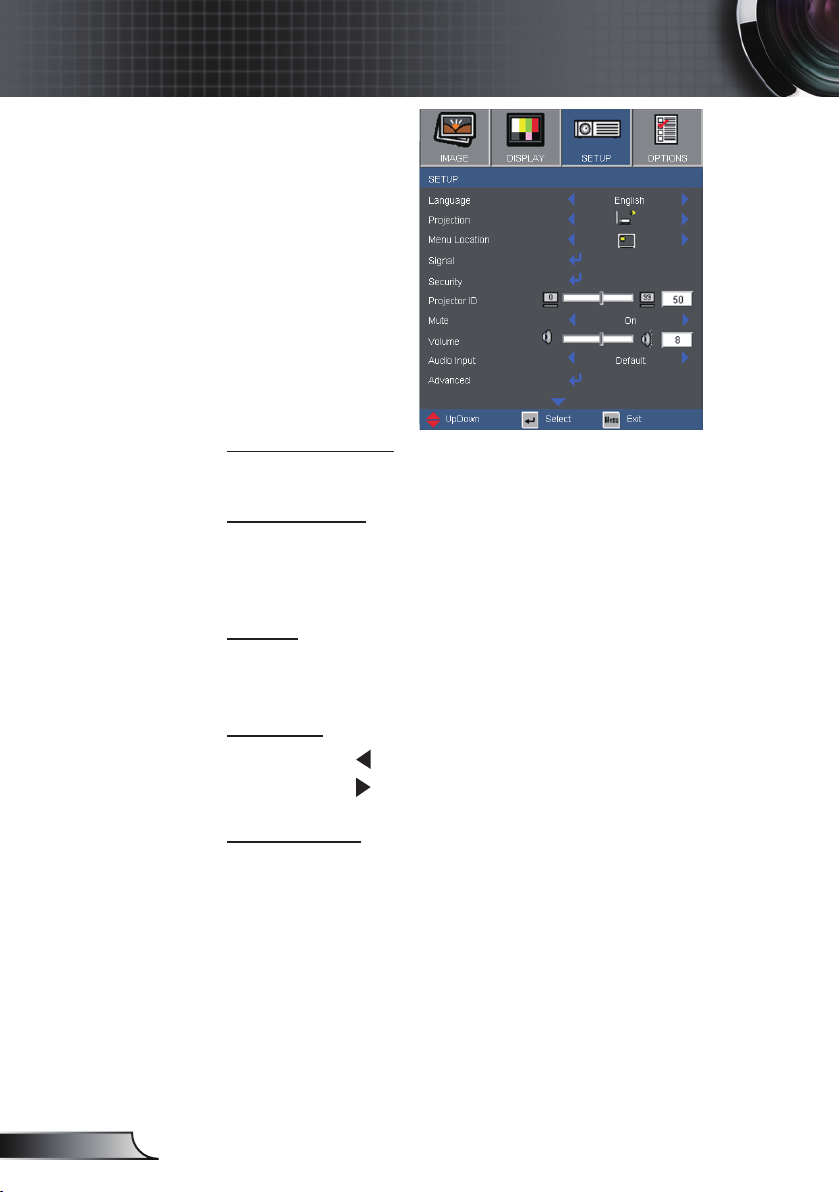

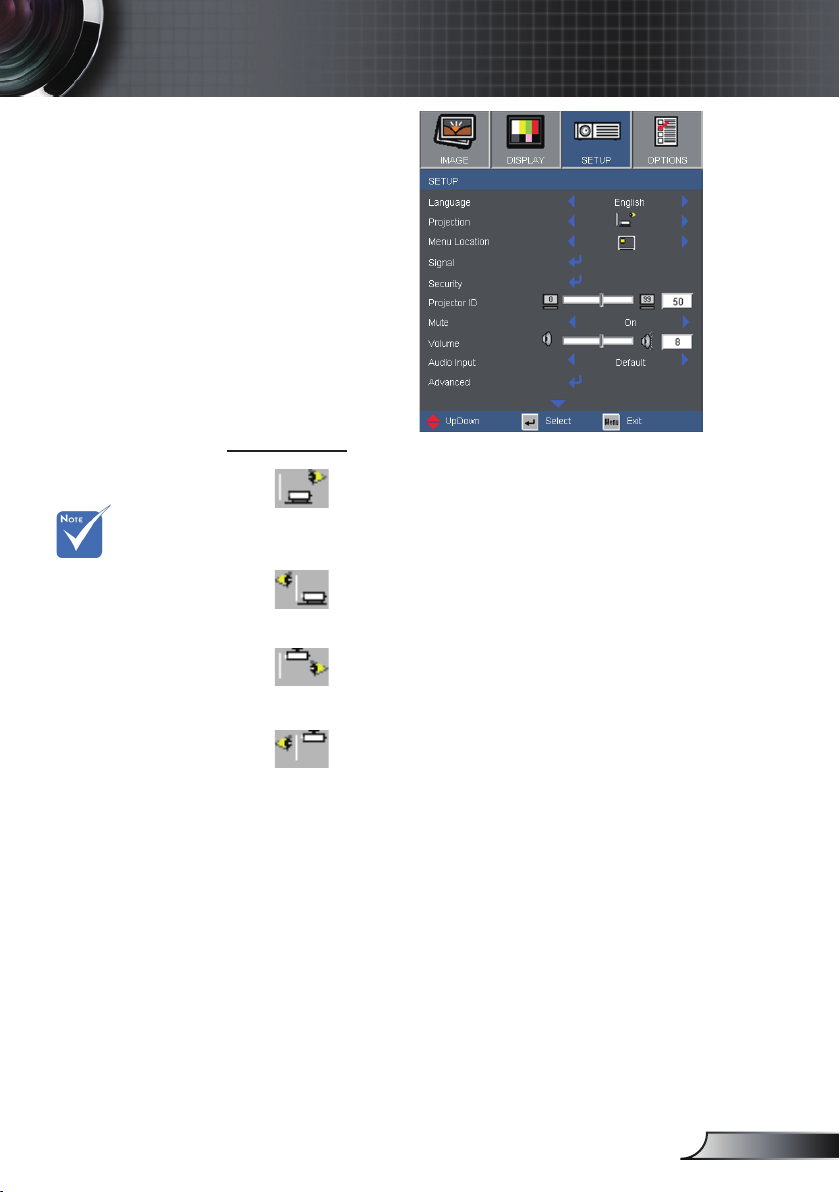

Setup .................................................................................................................... 35

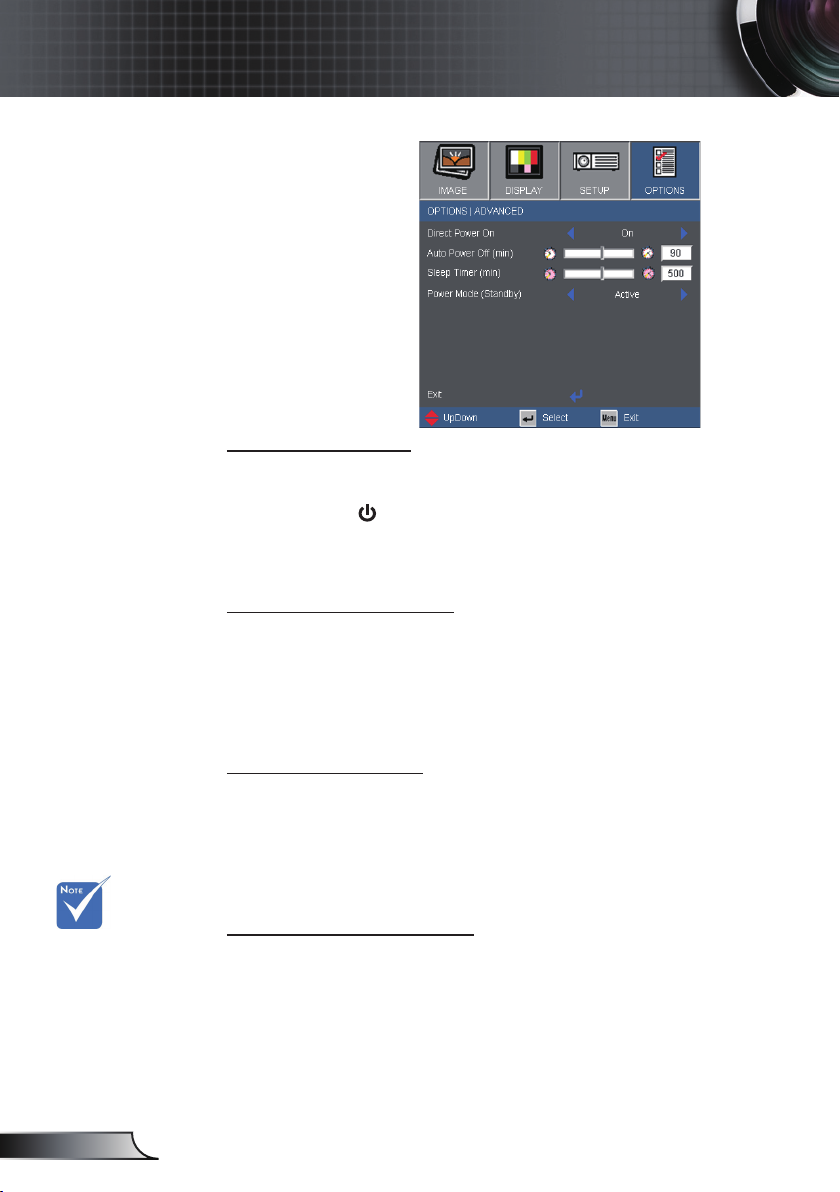

Options ................................................................................................................. 45
Appendices...........................................................................................48
Troubleshooting ...........................................................................................48
Projector Status Indication ..........................................................................51
Remote Control ...........................................................................................52

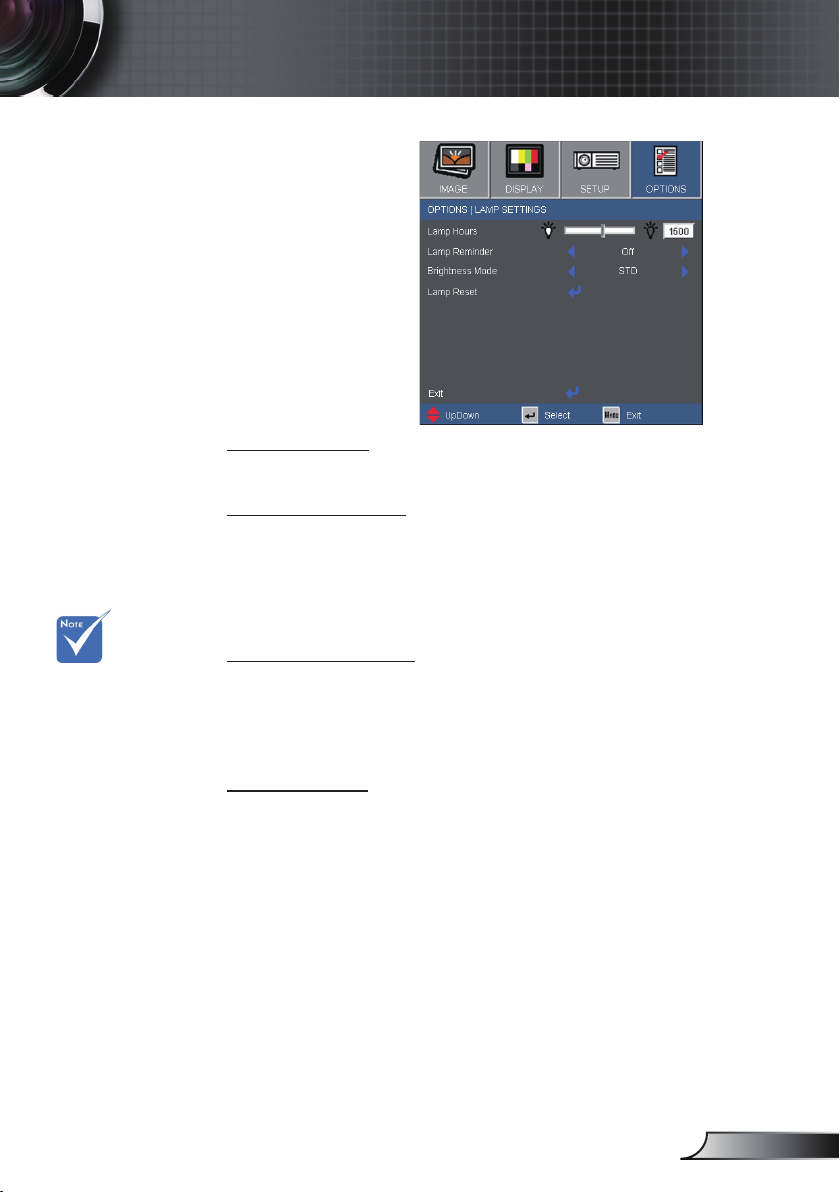

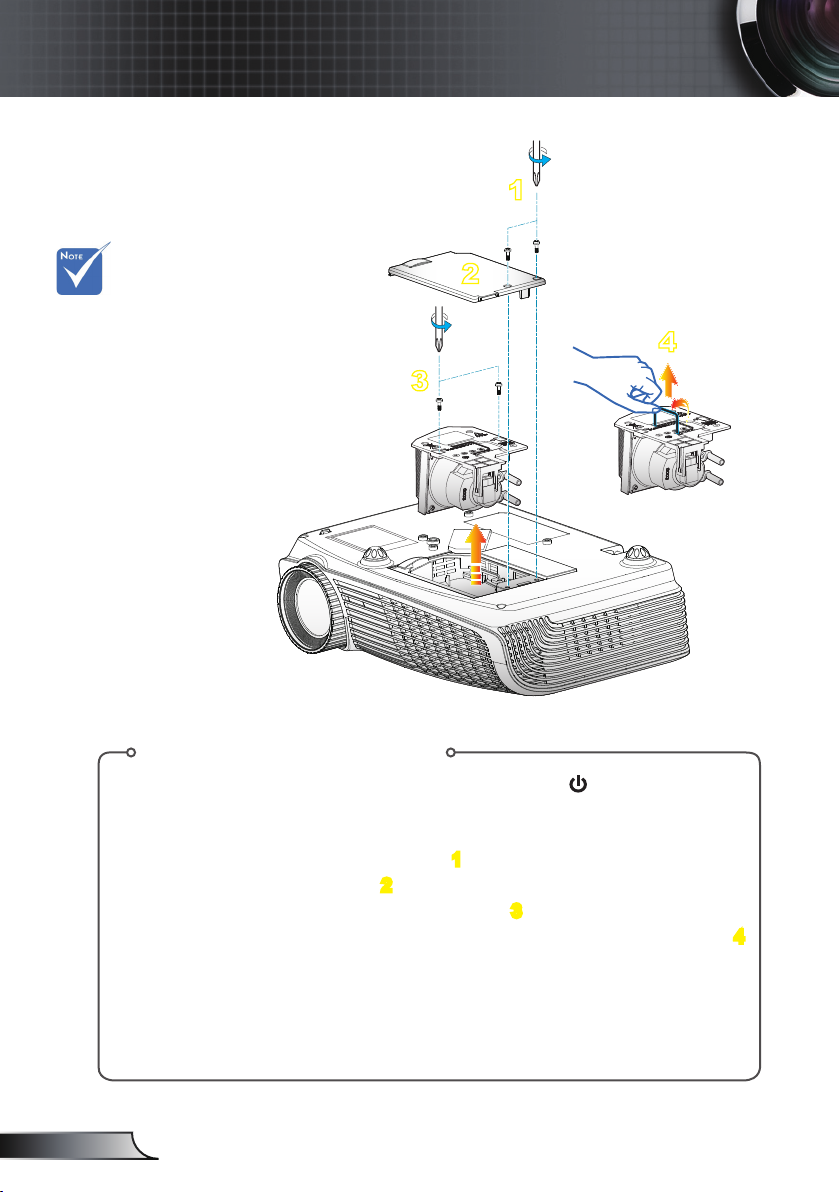

Replacing the Lamp.....................................................................................53
Compatibility Modes ....................................................................................55

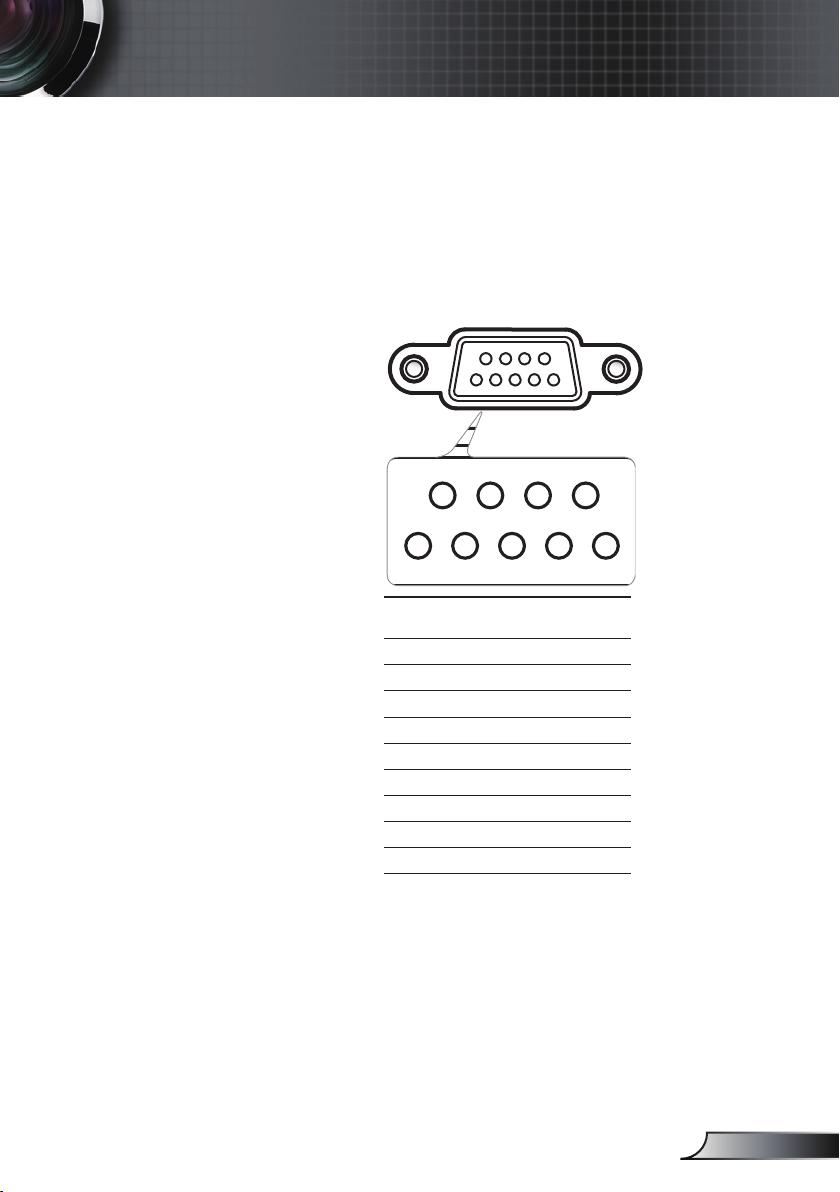

RS232 Commands and Protocol Function List............................................57

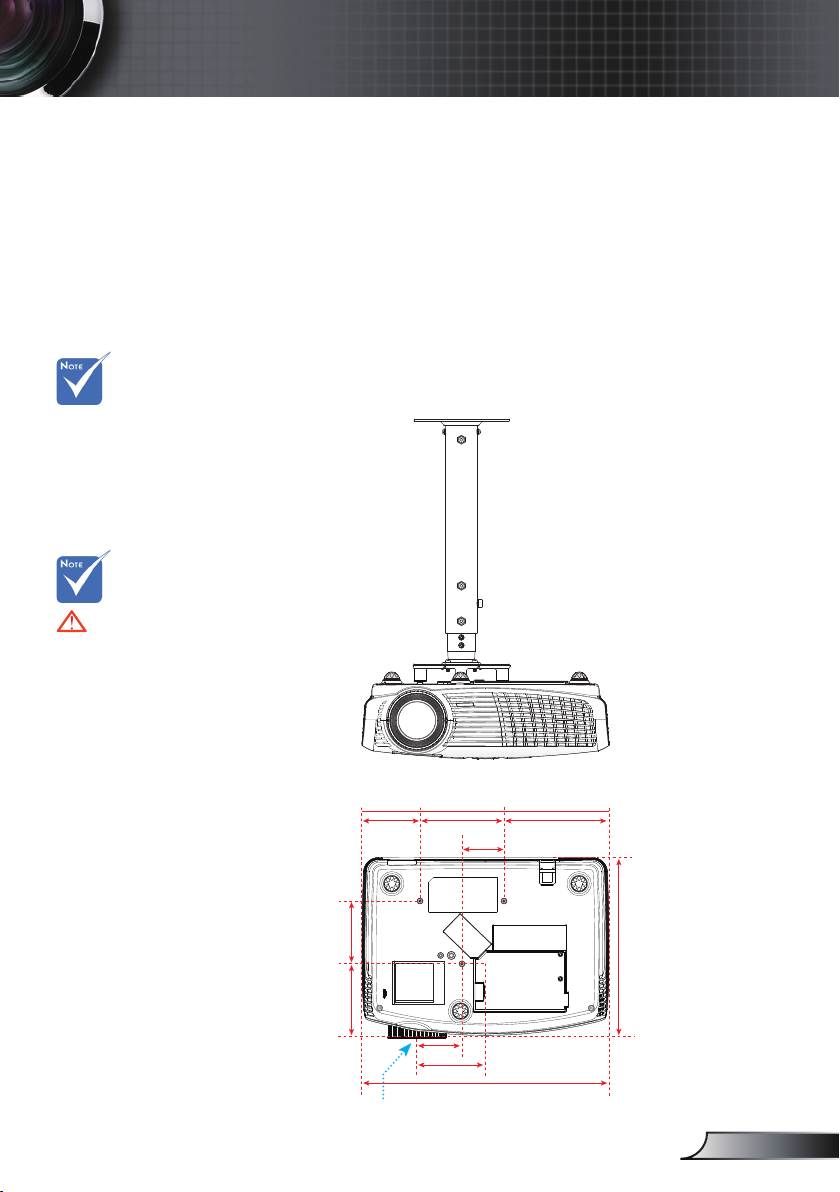

Ceiling Mount Installation ............................................................................61
Optoma Global Ofces ................................................................................62
Regulation & Safety notices ........................................................................64
1
English
Page 2
2
English
Usage Notice
Safety Information
The lightning  ash with arrow head within an equilateral triangle is
intended to alert the user to the presence of uninsulated “dangerous
voltage” within the product’s enclosure that may be of suf cient
magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert
the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT
EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. DANGEROUS HIGH VOLTAGES ARE PRESENT INSIDE THE ENCLOSURE. DO NOT OPEN THE CABINET. REFER SERVICING TO QUALIFIED PERSONNEL ONLY.
Class B emissions limits
This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations.
Important Safety Instruction
1. Do not block any ventilation openings. To ensure reliable operation of the projector and to protect from over heating, it is recommended to install the projector in a location that does not block ventilation. As an example, do not place the projector on a crowded coffee table, sofa, bed, etc. Do not put the projector in an enclosure such as a book case
or a cabinet that restricts air  ow.
2. Do not use the projector near water or moisture. To reduce the risk
of  re and/or electric shock, do not expose the projector to rain or
moisture.
3. Do not install near heat sources such as radiators, heaters, stoves or
any other apparatus such as ampli ers that emits heat.
4. Clean only with dry cloth.
5. Only use attachments/accessories speci ed by the manufacturer.
6. Do not use the unit if it has been physically damaged or abused. Physical damage/abuse would be (but not limited to):
Unit has been dropped.Power supply cord or plug has been damaged.Liquid has been spilled on to the projector.Projector has been exposed to rain or moisture.Something has fallen in the projector or something is loose inside.
Do not attempt to service the unit yourself. Opening or removing covers may expose you to dangerous voltages or other hazards. Please call Optoma before you send the unit for repair.
7. Do not let objects or liquids enter the projector. They may touch dangerous voltage points and short out parts that could result in  re or
electric shock.
8. See projector enclosure for safety related markings.
9. The unit should only be repaired by appropriate service personnel.
Page 3
3
English
Usage Notice
When the lamp
reaches the end of its life, the projector will not turn back on until the lamp module has been replaced. To replace the lamp, follow the procedures listed under “Replacing the Lamp” section on pages 53-54.
Precautions
Please follow all warnings, precautions and maintenance as recommended in this user’s guide.
▀■ Warning- Do not look into the projector’s lens when the lamp is
on. The bright light may hurt and damage your eyes.
▀■ Warning- To reduce the risk of  re or electric shock, do not
expose this projector to rain or moisture.
▀■ Warning- Please do not open or disassemble the projector as
this may cause electric shock.
▀■ Warning- When replacing the lamp, please allow the unit to
cool down. Follow instructions as described on pages 53-54.
▀■ Warning- This projector will detect the life of the lamp itself.
Please be sure to change the lamp when it shows warning messages.
▀■ Warning- Reset the “Lamp Reset” function from the on-screen
display “Options|Lamp Settings” menu after replacing the lamp module (refer to page 47).
▀■ Warning- When switching the projector off, please ensure
the cooling cycle has been completed before disconnecting power. Allow 90 seconds for the projector to cool down.
▀■ Warning- Do not use lens cap when projector is in operation.

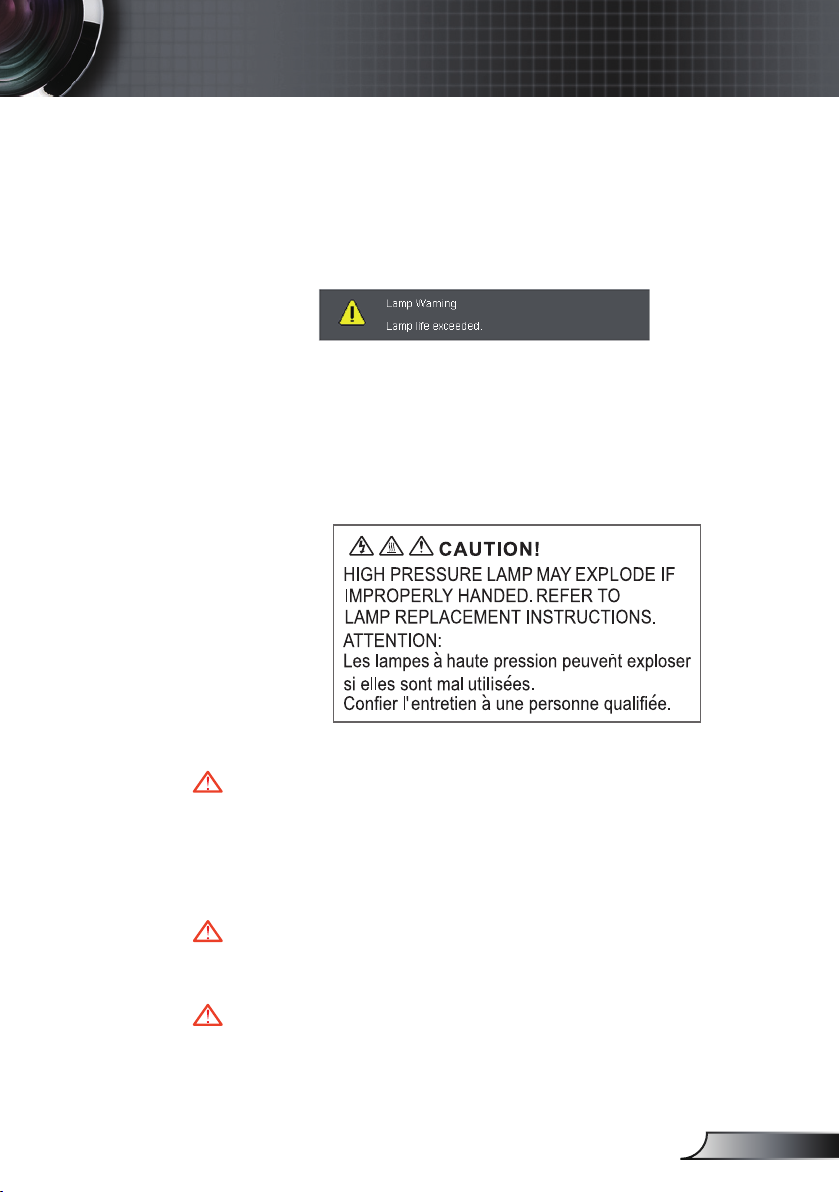

▀■ Warning- When the lamp is approaching the end of its lifetime,
the message “Lamp Warning: Lamp life exceeded.” will show on the screen. Please contact your local reseller or service center to change the lamp as soon as possible.
▀■ Warning- Do not look into or point the laser pointer on your
remote control into your or someone’s eyes. Laser pointer can cause permanent damage to eyesight.
Page 4
Usage Notice
Do:
Turn off and unplug the power plug from the AC outlet before
cleaning the product.
Use a soft dry cloth with mild detergent to clean the display
housing.
Disconnect the power plug from AC outlet if the product is
not being used for a long period of time.
Do not:
Block the slots and openings on the unit provided for
ventilation.
Use abrasive cleaners, waxes or solvents to clean the unit.
Use under the following conditions:
- In extremely hot, cold or humid environments.
Ensure that the ambient room temperature is within
5 - 35°C.
Relative Humidity is 5 - 35°C, 80% (Max.),
non-condensing.
-
- Near any appliance generating a strong magnetic eld.
- In direct sunlight.
In areas susceptible to excessive dust and dirt.
English
4
Page 5
Usage Notice
Eye Safety Warnings
▀■ Avoid staring/facing directly into the projector beam at all
times. Keep your back to the beam as much as possible.
▀■ When projector is used in a classroom, adequately supervise
students when they are asked to point out something on the screen.
▀■ In order to minimize the lamp power, use room blinds to
reduce ambient light levels.
Product Features
▀■ XGA (1024x768) Native resolution
▀■ HD compatible – 1080p supported
▀■ VGA monitor loop through
(works on standby mode > 1W)
▀■ BrilliantColorTM Technology
▀■ Security Bar and Kensington Lock
▀■ RS232 control
▀■ Rapid shutdown
▀■ Built-in speaker ▀■ Network support (on specic models)
5
English
Page 6
6
English
Introduction
Due to different
applications in each Country, some regions may have different accessories.
Power Cord 1.8m
IR Remote Control
Package Overview
Unpack and inspect the box contents to ensure all parts listed below are in the box. If something is missing, please contact your nearest customer service center.
Documentation :

User’s Manual

Warranty Card

Quick Start Card

WEEE Card (for EMEA only)
2 × AAA Batteries
Projector with lens cap
POWER
?
/?
VGA Cable 1.8m
Page 7
7
English
Introduction
Product Overview
1. Control Panel
2. Zoom Ring
3. Focus Ring
4. Zoom Lens
5. IR Receivers
6. Tilt-Adjustment Feet
7. Security Bar
8. Input / Output Connections
9. Power Socket
VGA1-IN / YPbPr
/
VGA2-IN
/ SCART
/ YPbPr
VGA-OUT
S-VIDEO
VIDEO
AUDIO-OUT
VGA 1
AUDIO1-IN
RS232
USB
VGA 2
AUDIO2-IN
HDMI
RJ45
S-VIDEO/VIDEO
AUDIO3-IN
12V OUT
?
POWER
7
8
6
POWER
?
2
6
5
3
4
1
5
9
Page 8
8
English
Introduction
Control Panel
POWER
?
8
62 4 53
7
11
10
9
1
1. Help
2. Menu
3. Source
4. Enter
5. Re-Sync
6. Power
7. Keystone Correction
8. Four Directional Select Keys
9. On/Standby LED
10. Lamp Fail LED
11. Temp LED
12. IR Receiver
12
Page 9
9
English
Introduction
Input / Output Connections
1. RJ45 Networking Connector
2. USB Connector (Connect to PC for Remote Mouse function)
3. HDMI Connector
4. VGA1-In/YPbPr/” ” Connector (PC Analog Signal/Component Video Input/HDTV/YPbPr/ Wireless Dongle)
5. VGA-Out Connector (Monitor Loop-through Output from
VGA1-In)
6. S-Video Input Connector
7. Composite Video Input Connector
8. Audio Output Connector (3.5mm Mini Jack)
7. Power Socket
9. VGA2-In/SCART/YPbPr Connector (PC Analog Signal/Component Video Input/HDTV/SCART/ YPbPr)
10. RS-232 Connector (9-pin)
VGA1-IN / YPbPr/
VGA2-IN /SCART / YPbPr
VGA-OUT
S-VIDEO VIDEO
AUDIO-OUT
VGA 1
AUDIO1-IN
RS232
USB
VGA 2
AUDIO2-IN
HDMI
RJ45
S-VIDEO/VIDEO
AUDIO3-IN
12V OUT
5
9
87642
10 13
14 15
7
1 3 16
1211
Page 10
10
English
Introduction
VGA1-IN / YPbPr/
VGA2-IN /SCART / YPbPr
VGA-OUT
S-VIDEO VIDEO
AUDIO-OUT
VGA 1
AUDIO1-IN
RS232
USB
VGA 2
AUDIO2-IN
HDMI
RJ45
S-VIDEO/VIDEO
AUDIO3-IN
12V OUT
5
9
87642
10 13
14 15
7
1 3 16
1211
11. Audio 3 Input connector (3.5mm mini jack) (for S-video / Video)
12. Audio 2 Input connector (3.5mm mini jack) (for VGA 2)
13. Audio 1 Input connector (3.5mm mini jack) (for VGA 1)
14. KensingtonTM Lock Port
15. Security Bar
The item below is only present on speci c models.
16. 12V Trigger Relay Connector
Page 11
11
English
Introduction
Remote Control
1. LED Indicator
2. Power On/Off
3. Page Up
4. Mouse Right Click
5. Four Directional
Select Keys
6. Re-Sync
7. Page Down
8. Volume +/-
9. Zoom
10. AV mute
11. Video
12. VGA
13. Freeze
14. S-Video
15. HDMI
16. Brightness
17. Menu
18. Keystone +/-
19. Source
20. Enter/Help
21. Mouse Left Click
22. PC/Mouse control
23. Numbered keypad (for password input)
24. Laser Pointer
/?
1
9
10
1213
22
14
15
16
20
17
8
11
23
19
6
4
2
18
3
7
5
21
24
Page 12
12
English
Installation
Connecting the Projector
Connect to Computer/Notebook
1....................................................................................................Power Cord
2.....................................................................................................VGA Cable
3..............................................................................................*Network Cable
4....................................................................................................*USB Cable
5...........................................................................................*DVI/HDMI Cable
6................................................................................................*RS232 Cable
7.........................................................................................*Audio Input Cable
8........................................................................................*VGA Output Cable
9......................................................................................*Audio Output Cable
VGA1-IN / YPbPr/
VGA2-IN/SCART /YPbPr
VGA-OUT
S-VIDEO VIDEO
AUDIO-OUT
VGA 1
AUDIO1-IN
RS232
USB
VGA 2
AUDIO2-IN
HDMI
RJ45
S-VIDEO/VIDEO
AUDIO3-IN
12V OUT
E62405SP
R
MOLEX
1
4
2
3
7
6
5
+ 12V Output
8
9
I/O con guration
depends on models.
Due to the
difference in applications for each country, some regions may have different accessories.
(*) Optional
accessory
Page 13
13
English
Installation
VGA1-IN / YPbPr/
VGA2-IN/SCART /YPbPr
VGA-OUT
S-VIDEO VIDEO
AUDIO-OUT
VGA 1
AUDIO1-IN
RS232
USB
VGA 2
AUDIO2-IN
HDMI
RJ45
S-VIDEO/VIDEO
AUDIO3-IN
12V OUT
E62405SP
R
Connect to Video Sources
1....................................................................................................Power Cord
2.....................................................................................................VGA Cable
3................................................................................*Composite Video Cable
4.............................................................................................. *S-Video Cable
5................................................*15-Pin to 3 RCA Component/HDTV Adaptor
6.............................................................................*3 RCA Component Cable
7................................................................................... *SCART/VGA Adaptor
8.................................................................................*Audio Cable Jack/RCA
9..................................................................................................*HDMI Cable
10............................................................................................*Network Cable
Composite Video Output
DVD Player, Set-top Box,
HDTV receiver
S-Video Output
1
3
4
6
2
7
5
8
8
8
9
10
DVD Player, Set-top Box,
HDTV receiver
+ 12V Output
I/O con guration
depends on models
Due to the
difference in applications for each country, some regions may have different accessories.
(*) Optional
accessory
Page 14
14
English
Installation
Powering On/Off the Projector
Turn on the
projector  rst and
then select the signal sources.
Powering On the Projector
1. Remove the lens cap.
2. Securely connect the power cord and signal cable. When
connected, the ON/STANDBY LED will turn Amber.
3. Turn on the lamp by pressing “ ” button either on the top of
the projector or on the remote. The ON/STANDBY LED will now turn Green.
The startup screen will display in approximately 10 seconds.
The  rst time you use the projector, you will be asked to
select the preferred language and power saving mode.(*)
4. Turn on and connect the source that you want to display
on the screen (computer, notebook, video player, etc). The projector will detect the source automatically. If not, push menu button and go to “OPTIONS”. Make sure that the “Source Lock” has been set to “Off”.
If you connect multiple sources at the same time, press the
“SOURCE” button on the control panel or direct source keys on the remote control to switch between inputs.
POWER
POWER
?
Lens Cap
1
Power
2
(*) When power
saving mode is enabled, the VGA & Audio pass-through, RS-232 and RJ45 will be de-activated during standby mode.
Page 15
Installation
Powering Off the Projector
1. Press the “ ” button on the remote control or
on the control panel to turn off the projector. The following message will be displayed on the screen.
Press the “ ” button again to conrm otherwise the
message will disappear after 15 seconds. When you press the “ ” button for the second time, the projector will display countdown timer and will shut down.
2. The cooling fans continue to operate for about 10 seconds
for cooling cycle and the ON/STANDBY LED will Flash Green. When the ON/STANDBY LED lights solid Amber, the projector has entered standby mode.
If you wish to turn the projector back on, you must wait
until the projector has completed the cooling cycle and has entered standby mode. Once in standby mode, simply press “ ” button to restart the projector.
3. Disconnect the power cord from the electrical outlet and
the projector.
4. Do not turn on the projector immediately following a power
off procedure.
Contact the

nearest service center if the projector displays these symptoms. See pages 61-62 for more information.
Warning Indicator
When the warning indicators (see below) come on,
the projector will automatically shutdown:
“LAMP” LED indicator is lit red and if “On/Standby” indicator
ashes amber.
“TEMP” LED indicator is lit red and if “On/Standby”
indicator ashes amber. This indicates the projector has
overheated. Under normal conditions, the projector can be switched back on.
“TEMP” LED indicator ashes red and if “On/Standby”
indicator ashes amber.
Unplug the power cord from the projector, wait for 30 seconds
and try again. If the warning indicator light up again, please contact your nearest service center for assistance.
15
English
Page 16
16
English
Installation
Adjusting the Projected Image
Adjusting the Projector’s Height
The projector is equipped with elevator feet for adjusting the image height.
1. Locate the adjustable foot you wish to modify on the underside of the projector.
2. Rotate the adjustable rings clockwise/anticlockwise to lower or raise the projector. Repeat with the remaining feet as needed.
Tilt-Adjustment Feet
Tilt-Adjustment Ring
Page 17
17
English
Installation
Adjusting the Projector’s Zoom / Focus
You may turn the zoom lever to zoom in or out. To focus the image, rotate the focus ring until the image is clear.
1.2x Zoom series will focus at distances from 4.92 to 32.81 feet (1.50 to 10.00 meters).
POWER
?
Focus Ring
Zoom Ring
Adjusting Projection Image Size
Hd
64.1"
(162.8cm)
83.3"
(211.6cm)
128.2"
(325.5cm)
205.1"
(520.8cm)
307.6"
(781.3cm)
46.1"
(117.2cm)
76.9"
(195.3cm)
100.0"
(253.9cm)
153.8"
(390.6cm)
246.1"
(625.0cm)
256.3"
(651.0cm)
38.4"
(97.7cm)
4.92'
(1.50m)
32.81'(10.00m)
26.25'(8.00m)
16.40'(5.00m)
10.66'(3.25m)
8.20'(2.50m)
Width
Height
Diagonal
This table is for user’s reference only.
Screen
(Diagonal)
Max.
46.1” (117.2cm) 76.9” (195.3cm)100.0” (253.9cm) 153.8” (390.6cm)246.1” (625.0cm)307.6” (781.3cm)
Min.
38.4” (97.7cm) 64.1” (162.8cm) 83.3” (211.6cm) 128.2” (325.5cm)205.1” (520.8cm) 256.3” (651.0cm)
Screen
Size
Max.
(WxH)
36.9” x 27.7”
93.8 x 70.3cm
61.5” x 46.1”
156.3 x 117.2cm
80.0” x 60.0”
203.1 x 152.3cm
123.0” x 92.3”
312.5 x 234.4cm
196.9” x 147.6”
500.0 x 375.0cm
246.1” x 184.5”
625.0 x 468.8cm
Min.
(WxH)
30.8” x 23.1”
78.1 x 58.6cm
51.3” x 38.4”
130.2 x 97.7cm
66.6” x 50.0”
169.3 x 127.0cm
102.5” x 76.9”
260.4 x 195.3cm
164.0” x 123.0”
416.7 x 312.5cm
205.1” x 153.8”
520.8 x 390.6cm
Hd
Max.
4.15” (10.55cm) 6.92” (17.58cm) 9.00” (22.85cm) 13.84” (35.16cm)22.15” (56.25cm) 27.68” (70.31cm)
Min.
3.46” (8.79cm) 5.77” (14.65cm) 7.50” (19.04cm) 11.53” (29.3cm) 18.45” (46.88cm) 23.07” (58.59cm)
Distance
4.92’ (1.50m) 8.20’ (2.50m) 10.66’ (3.25m) 16.40’ (5.00m) 26.25’ (8.00m) 32.81’ (10.00m)
Page 18
18
English
User Controls
Control Panel
Control Panel & Remote Control
Using the Control Panel
Power
Refer to the “Power On/Off the Projector” section on pages 14-15.
RE-SYNC
Automatically synchronize the projector to the input source.
Enter
Con rm your item selection.
SOURCE
Press “SOURCE” to select an input signal.
Menu
Press “Menu” to launch the on-screen display (OSD) menu. To exit OSD, Press “Menu” again.
?
HELP
Help Menu (refer to page 21).
Four Directional Select Keys
Use to select items or make adjust­ments to your selection.
Keystone
Use to adjust image distortion caused by tilting the projector. (±40 degrees)
Lamp LED Indicate the projector’s lamp status.
Temp LED Indicate the projector’s temperature status.
ON/STANDBY LED Indicate the projector’s status.
POWER
?
Page 19
19
English
User Controls
Remote Control
Using the Remote Control
Power
Refer to the “Power On/Off the Projector” section on pages 14-15.
Laser
Press to use laser pointer.
L Button
Mouse left click.
R Button
Mouse right click.
Page +
Use this button to page up.
Page -
Use this button to page down.
Enter/Help
Con rm your item selection.
? Help Menu (refer to page 21).
Source
Press “Source” to select an input signal.
Re-SYNC
Automatically synchronizes the projector to the input source.
Four Directional Select Keys
Use to select items or make adjustments to your selection.
Keystone +/-
Adjust image distortion caused by tilting the projector.
Volume +/-
Adjust to increase / decrease the volume.
Brightness
Adjust the brightness of the image.
Menu
Press “Menu” to launch the on-screen display (OSD) menu. To exit OSD, press “Menu” again.
ZOOM
Zoom in on an image. Press buttons to alter zoom.
/?
Page 20
20
English
User Controls
Remote Control
Using the Remote Control
HDMI
Press “HDMI” to choose HDMI source.
Freeze
Press “Freeze” to pause the screen image. Press this button again to unlock.
AV mute
Momentarily turns off/on the audio and video.
S-Video Press “S-Video” to choose S-Video source.
VGA
Press “VGA” to choose VGA sources.
Video
Press “Video” to choose Composite video source.
/?
Page 21
21
English
User Controls

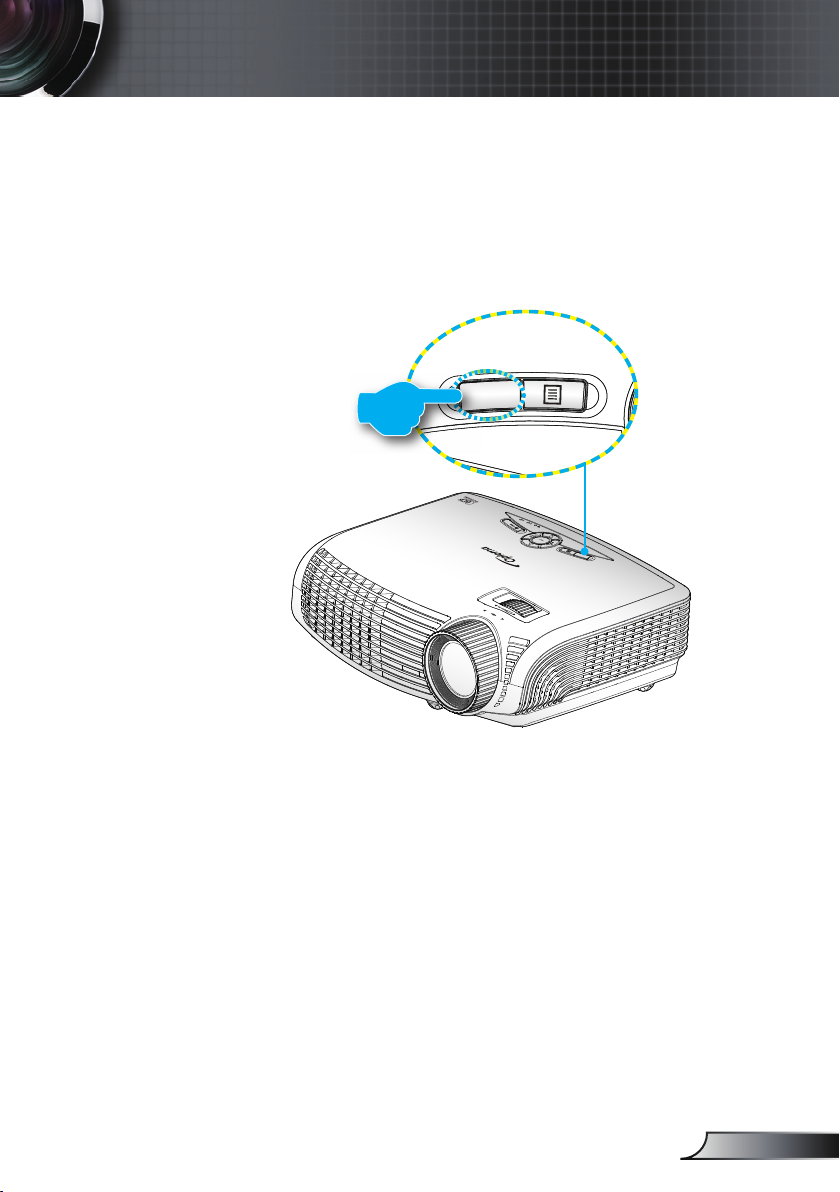

Using the HELP button
The HELP function ensures easy setup and operation.
Press the “?” button on the control panel to open the Help
Menu.
POWER
?
POWER
?
Page 22
User Controls
Help menu button functions only when no input source
is detected.
Please refer to the
“Troubleshooting”
section on pages
48-51 for more
details.
.
English
22

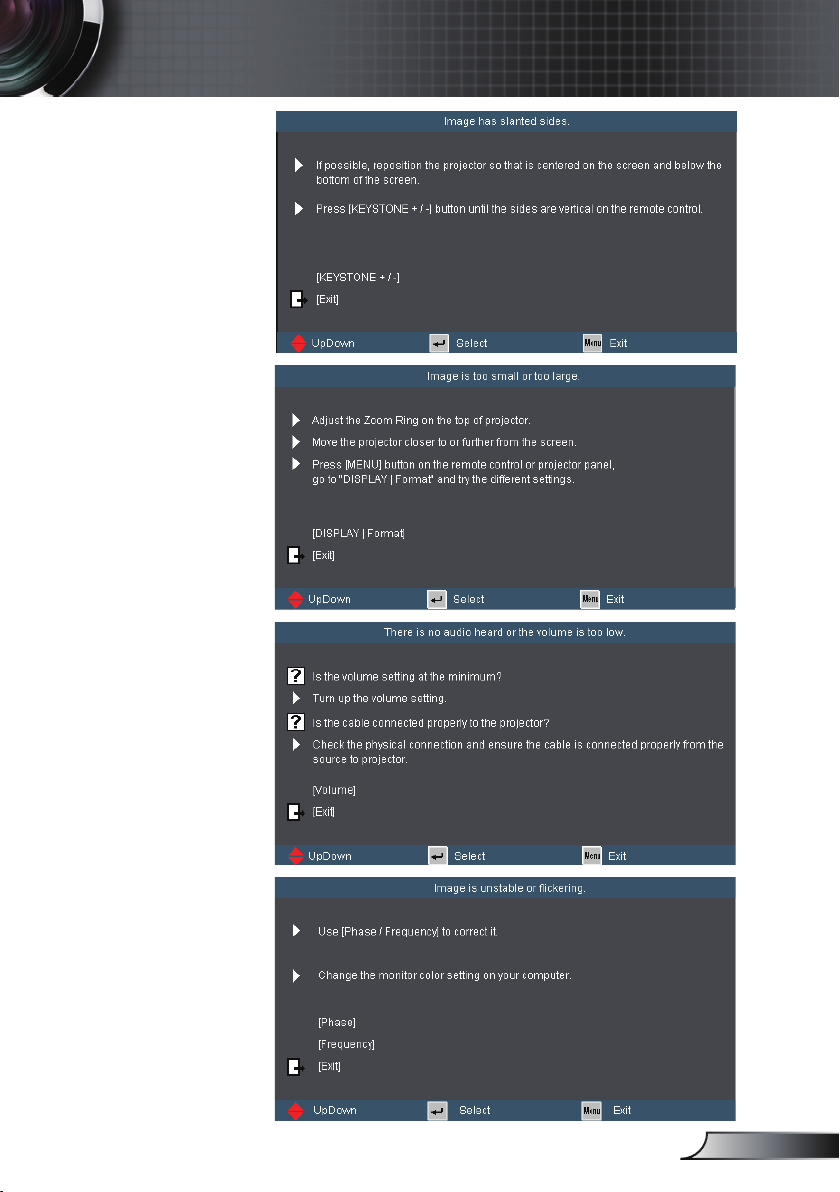

If input source is detected and help button is pressed, the
following pages will appear to help diagnose any problems.
Page 23
User Controls
23
English
Page 24
24
English
User Controls

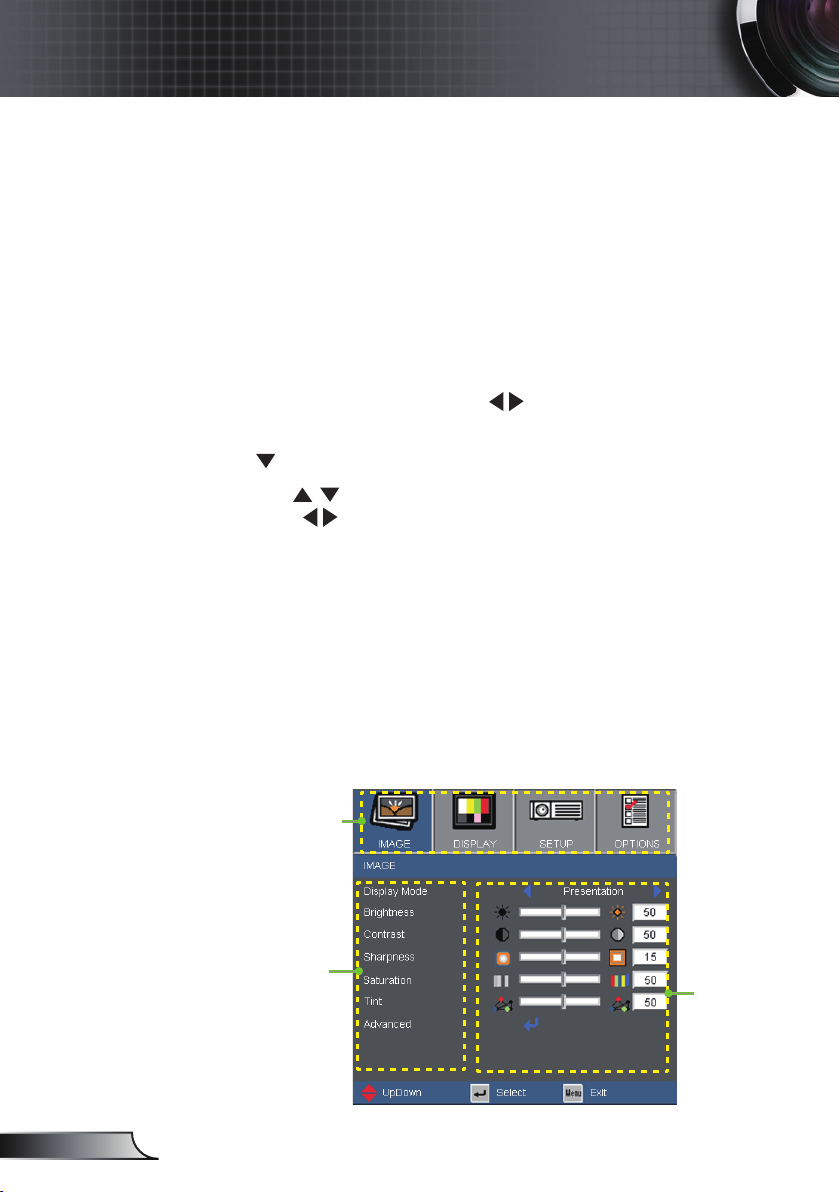

The Projector has multilingual On-screen Display menus that allow you to make image adjustments and change a variety of
settings. The projector will automatically detect the source.
How to operate
1. To open the OSD menu, press “Menu” on the Remote Control or
Projector Keypad.
2 When OSD is displayed, use
keys to select any item in the
main menu. While making a selection on a particular page, press
or “Enter” key to enter sub menu.
3. Use
keys to select the desired item and adjust the settings
using key.
4. Select the next item to be adjusted in the sub menu and adjust as
described above.
5. Press “Enter” to con rm, and the screen will return to the main
menu.
6. To exit, press “MENU” again. The OSD menu will close and the
projector will automatically save the new settings.
On-screen Display Menus
Main Menu
Sub Menu
Settings
Page 25
Menu Tree
User Controls
(#) “Saturation”
and “Tint” are only supported in Video mode.
(*) “Signal” is only
supported in Analog VGA (RGB) signal.
The item below is only
present on specic
models.
(☆) “Closed
Captioning”
#
#
*
25
English
Page 26
User Controls
Menu Tree
English
26
Page 27
27
English
User Controls

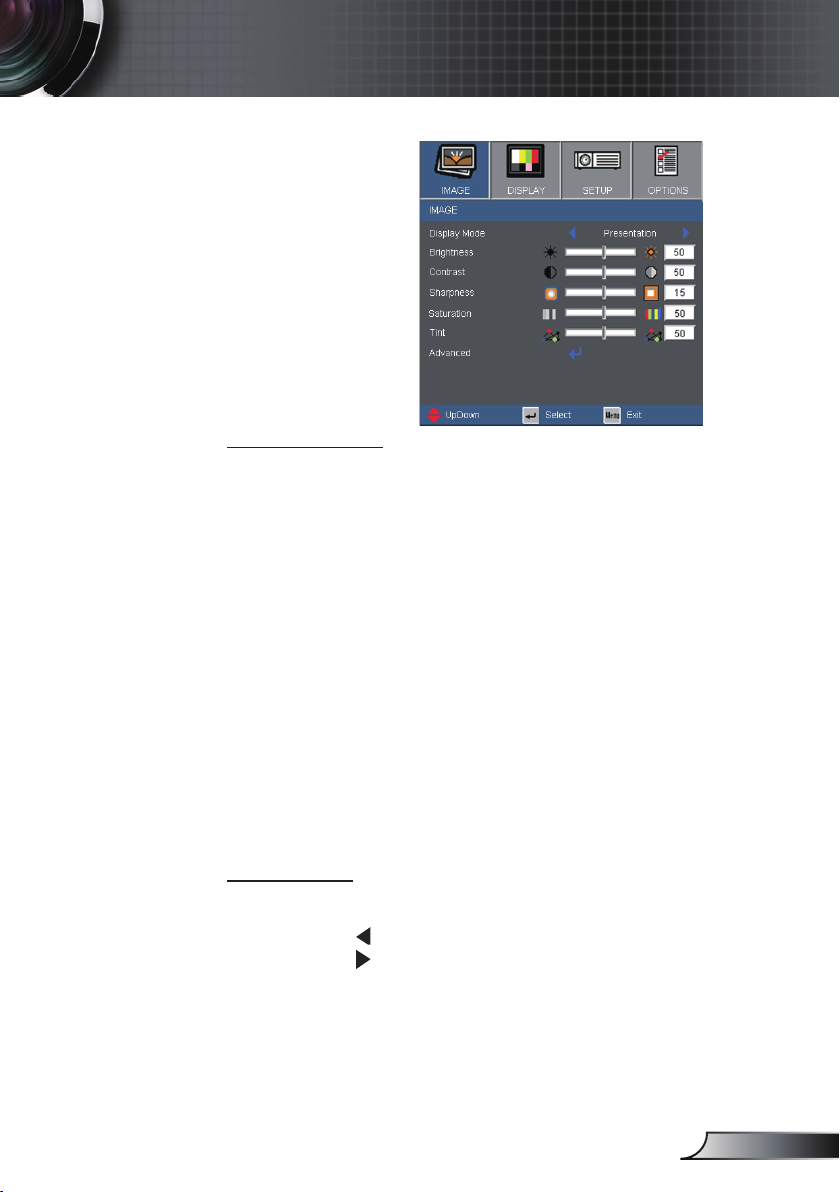

Display Mode
There are many factory presets optimized for various types of images.
Presentation: Good color and brightness from PC input.
Bright: Maximum brightness from PC input.
Movie: For home theater.
sRGB: Standardised accurate color.
Blackboard: This mode should be selected to achieve optimum
color settings when projecting onto a blackboard (green).
Classroom: This mode is recommended for projecting in a
classroom.
User1: User’s settings.
User2: The initial default settings of this mode is from Movie
mode. Any further adjustments by the user in User2 will be saved in this mode for future use.
Brightness
Adjust the brightness of the image.
Press the to darken image.
Press the to lighten the image.
Page 28
28
English
User Controls
Contrast
The contrast controls the degree of difference between the lightest and darkest parts of the picture.
Press the to decrease the contrast.
Press the to increase the contrast.
Sharpness
Adjust the sharpness of the image.
Press the to decrease the sharpness.
Press the to increase the sharpness.
Saturation
Adjust a video image from black and white to fully saturated color.
Press the to decrease the amount of saturation in the image.
Press the to increase the amount of saturation in the image.
Tint
Adjust the color balance of red and green.
Press the to increase the amount of green in the image.
Press the to increase the amount of red in the image.
“Saturation” and
“Tint” functions are only supported under Video mode.
Page 29

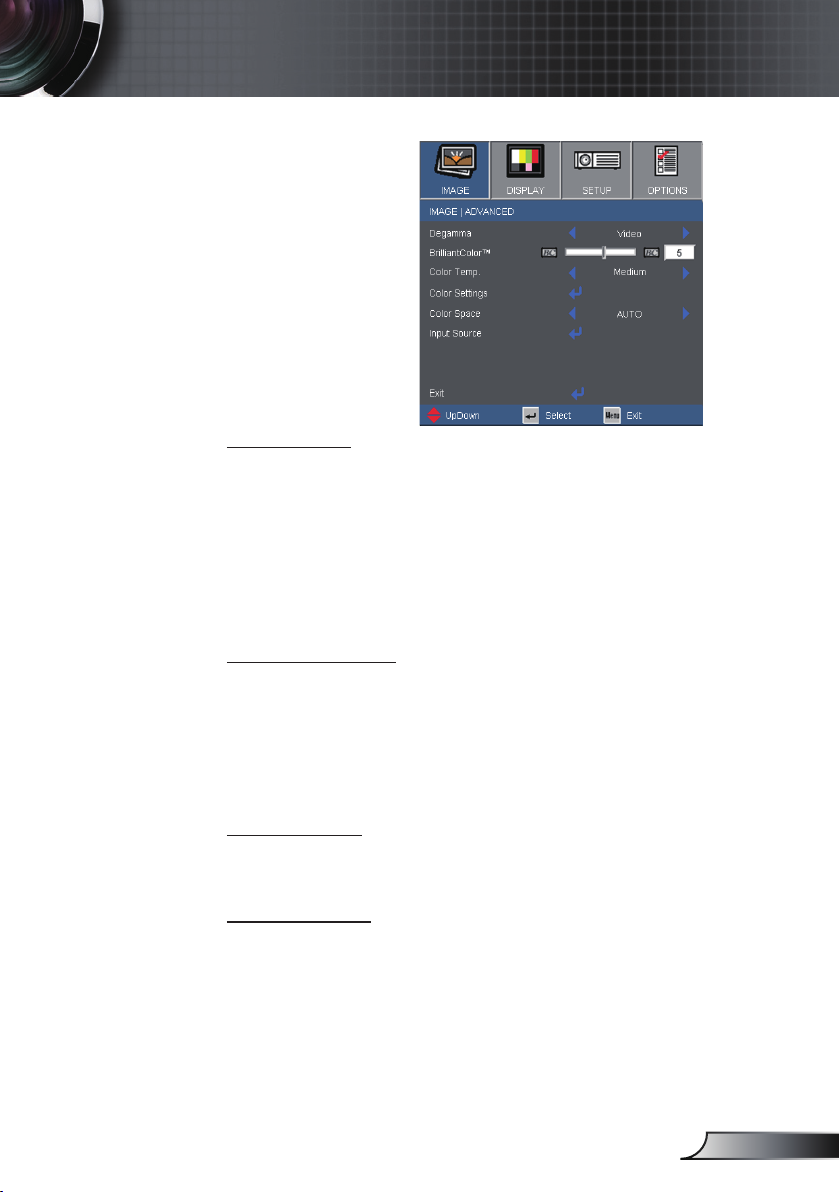

IMAGE | Advanced
Degamma
This allows you to choose a degamma table that has been
ne-tuned to bring out the best image quality for the input.
 Film: for home theater.
Video: for video or TV source.
Graphics: for image source.
 PC: for PC or computer source.
User Controls
BrilliantColor™
This adjustable item utilizes a new color-processing algorithm and system level enhancements to enable higher brightness while providing true, more vibrant colors in picture. The range is from “0” to “10”. If you prefer a stronger enhanced image, adjust toward the maximum setting. For a smoother, more natural image, adjust toward the minimum setting.
Color Temp
Adjust the color temperature. With cold temperature, the screen looks colder; with warm temperature, the screen looks warmer.
Color Space
Select an appropriate color matrix type from AUTO, RGB or YUV.
29
English
Page 30
User Controls
Advanced |

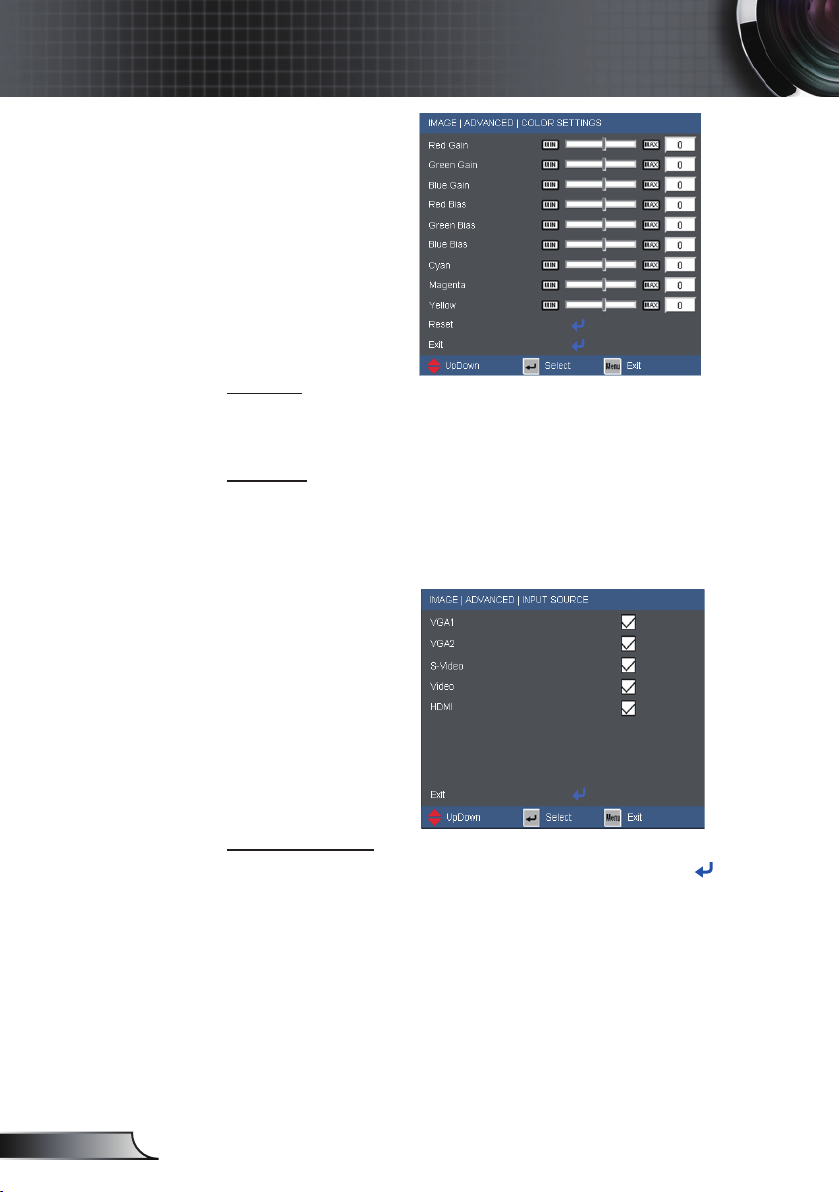

Color Setting
Color
Use these settings for advanced adjustment of the individual Red, Green, Blue, Cyan, Magenta and Yellow Colors.
Reset
Choose “Yes” to return the factory default settings for color adjustments.
English
Advanced |
Input Source
Input Source
Use this option to enable / disable input sources. Press to enter
the sub menu and select which sources you require. Press “Enter”
to finalize the selection. The projector will not search for inputs that are not selected.
30
Page 31
User Controls

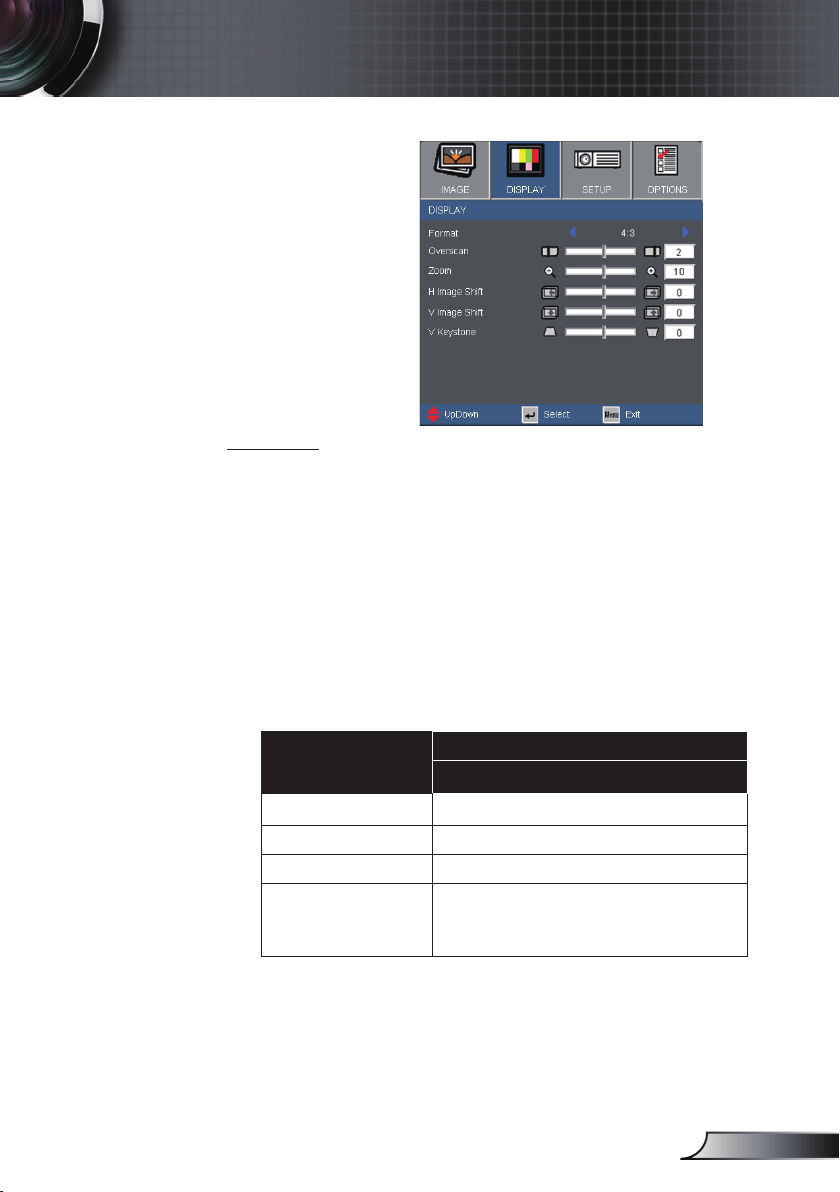

DISPLAY
Format
Use this function to choose your desired aspect ratio.
4:3: This format is for 4×3 input sources.
16:9-I: This format is for 16×9 input sources, like HDTV and
DVD enhanced for Wide screen TV. (576i/p)
16:9-II: This format is for 16×9 input sources, like HDTV and
DVD enhanced for Wide screen TV. (480i/p)
Native: This format displays the original image without any
scaling.
AUTO: Automatically selects the appropriate display format.
Aspect ratio
(source detected)
4:3 1024 x 768 center
16:9-I 1024 x 576 center
16:9-II
Resize image of native change
Native
to above description not pixels resolution.
Resize image
XGA model
854 x 480 center
31
English
Page 32
32
English
User Controls

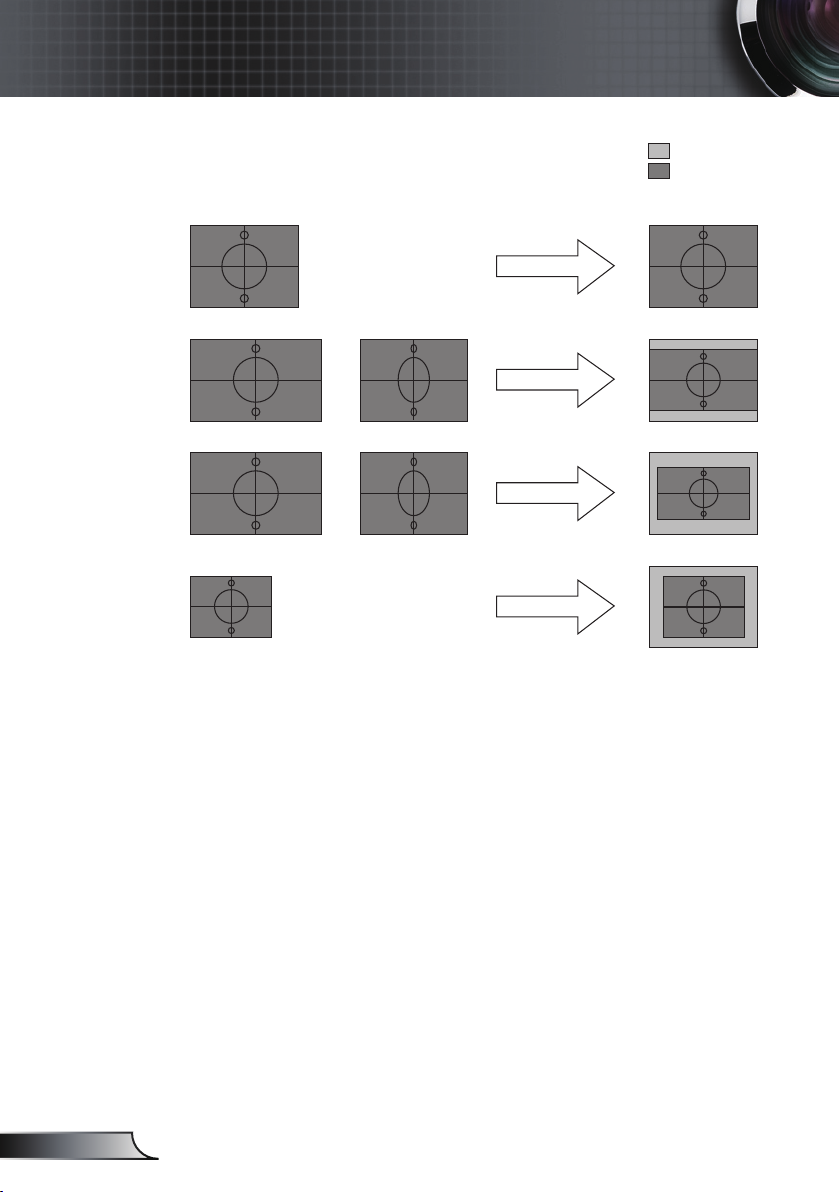

Native format
16 : 9-I format
or
or
16 : 9-II format
4 : 3 format
Input Signal
Display area Picture area
Display on Screen
Page 33
33
English
User Controls

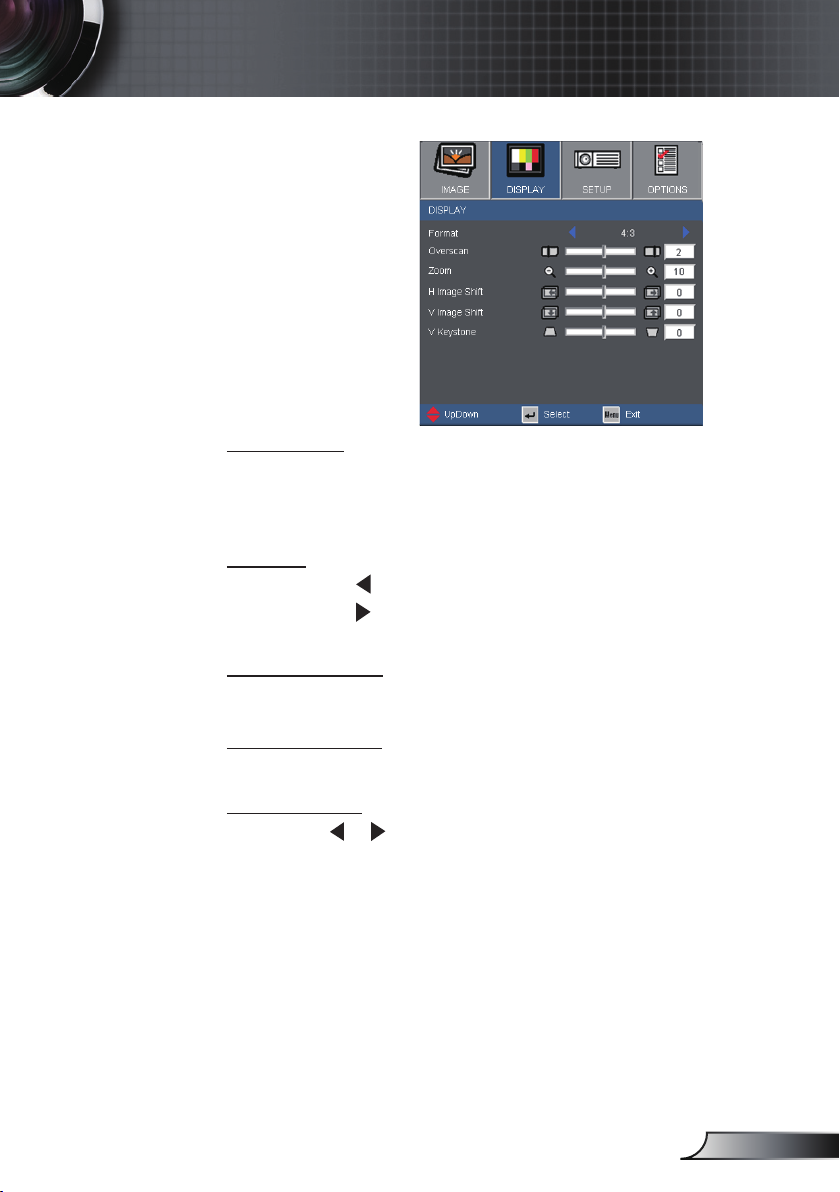

Overscan
Overscan function removes the noise in a video image. Overscan the image to remove video encoding noise on the edge of video source.
Zoom
 Press the to reduce the size of an image.
 Press the to magnify an image on the projection screen.
H Image Shift
Shift the projected image position horizontally.
V Image Shift
Shift the projected image position vertically.
V Keystone
Press the or to adjust image distortion vertically. If the image looks trapezoidal, this option can help make the image rectangular.
DISPLAY
Page 34
34
English
User Controls

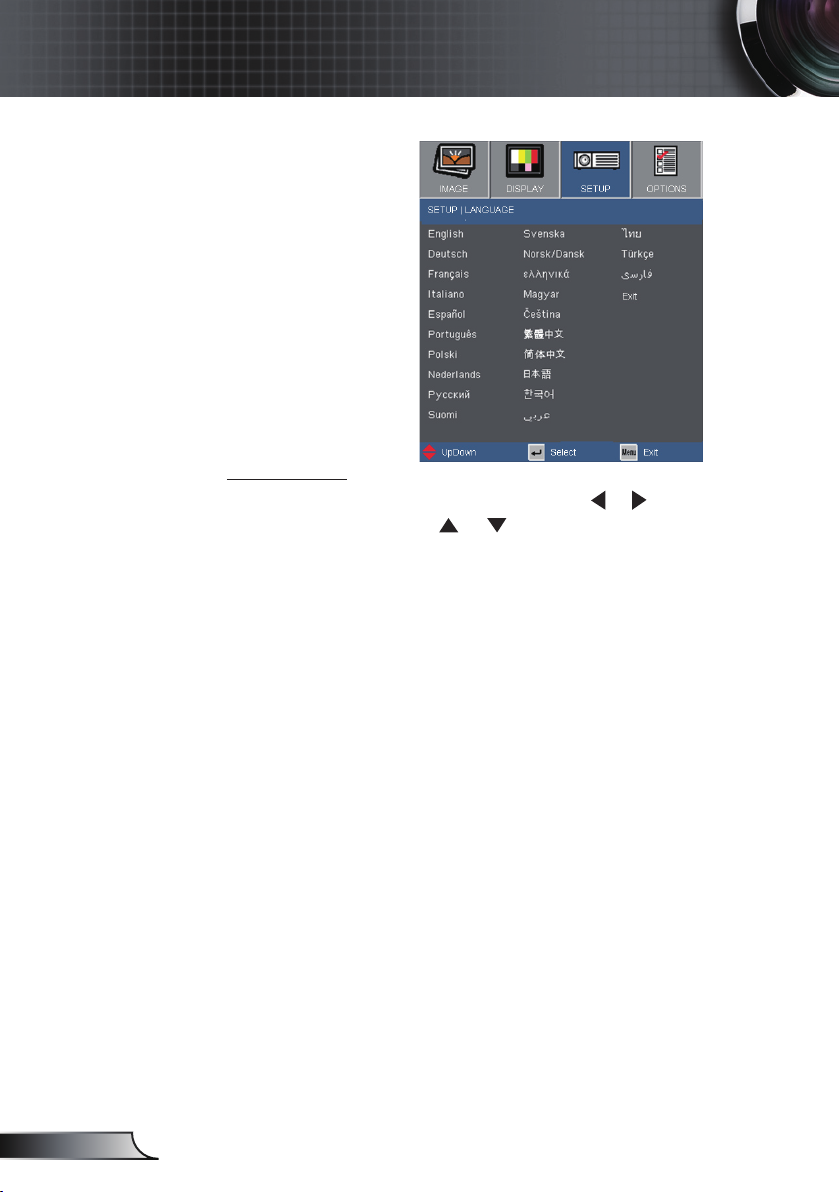

Language
Choose the multilingual OSD menu. Press or into the sub menu and then use the or key to select your preferred
language. Press “Enter” to  nalize the selection.
SETUP | Language
Page 35
Rear-Desktop and
Rear-Ceiling are to be used with a translucent screen.
User Controls
SETUP
Projection
Front-Desktop
This is the default selection. The image is projected straight on the screen.
Rear-Desktop
When selected, the image will appear reversed.
Front-Ceiling
When selected, the image will turn upside down.
Rear-Ceiling
When selected, the image will appear reversed in upside down position.
35
English
Page 36
36
English
User Controls
SETUP
Menu Location
Choose the menu location on the display screen.
Projector ID
ID de nition can be set up by menu (range 0~99), and allow
user control an individual projector by RS232. Refer to page 58 for the complete list of RS232 commands.
Mute
Choose the “On” to turn mute on.
Choose the “Off” to turn mute off.
Volume
 Press the to decrease the volume.
Press the to increase the volume.
Audio Input
The default audio settings are on the back panel of the projector. Use this option to reassign any of the Audio Inputs (1, 2 or 3) to the current image source. Each Audio input can be assigned to more than one video source.
AUDIO1: VGA1
AUDIO2: VGA2
AUDIO3: S-VIDEO / VIDEO
Page 37
37
English
User Controls

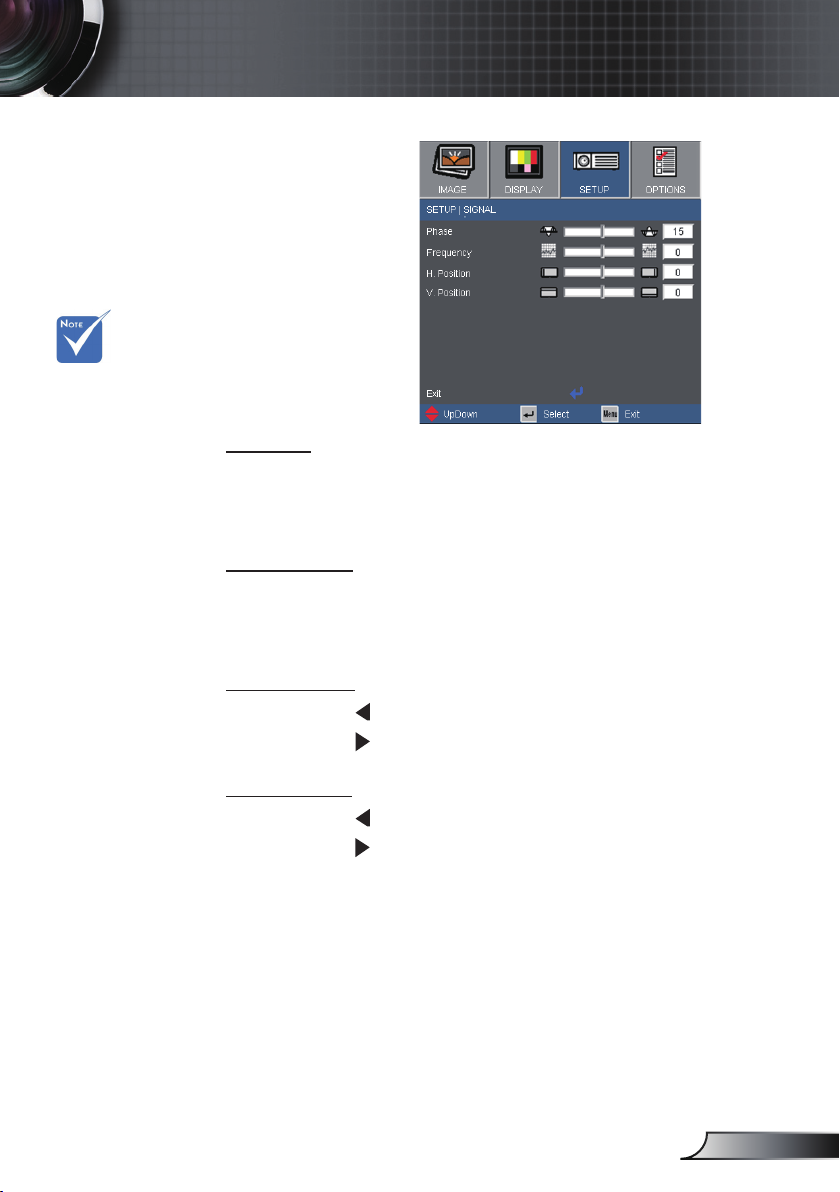

SETUP | Signal
Phase
Synchronize the signal timing of the display with the graphic card.
If the image appears to be unstable or  ickers, use this function to
correct it.
Frequency
Change the display data frequency to match the frequency of
your computer’s graphic card. Use this function only if the image
appears to  icker vertically.
H. Position
Press the to move the image left.
Press the to move the image right.
V. Position
Press the to move the image down.
Press the to move the image up.
“Signal” is only
supported in Analog VGA (RGB) signal.
Page 38
User Controls

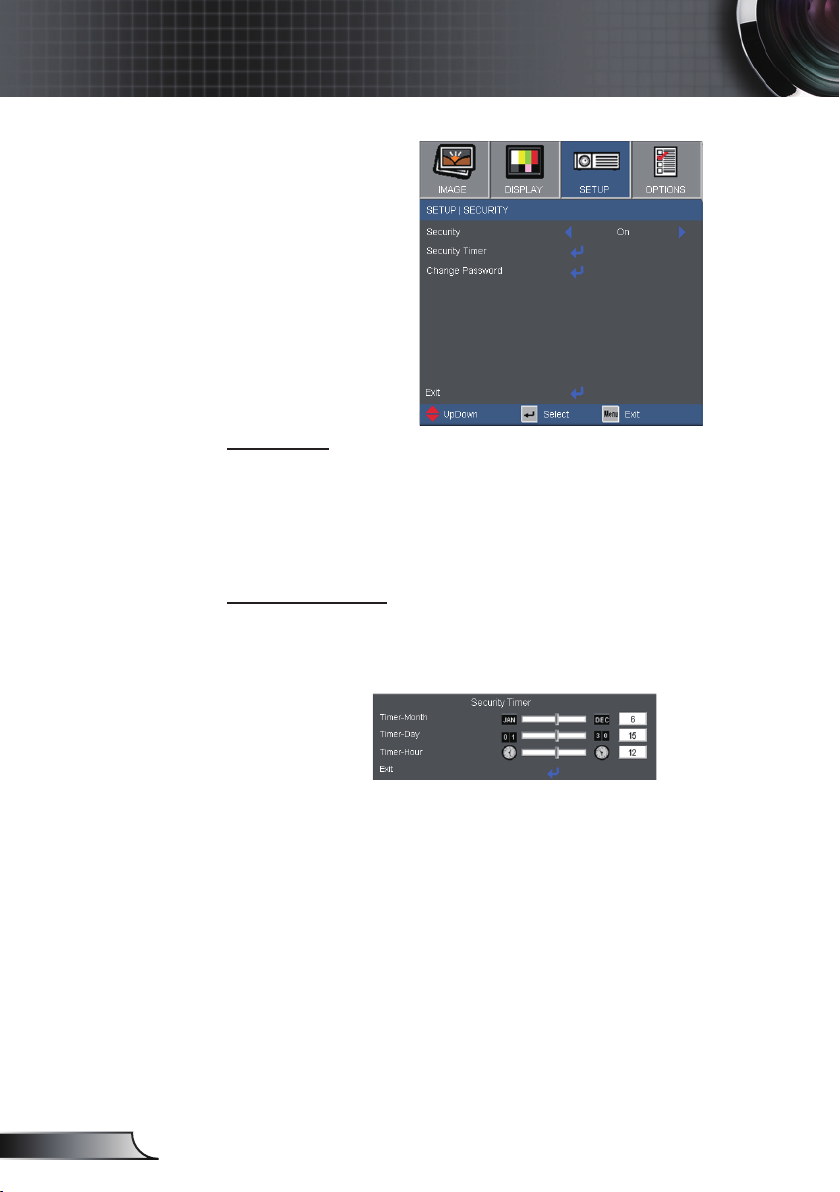

SETUP | Security
Security
On: Choose “On” to use security verication when the turning
Security Timer
on the projector.
Off: Choose “Off” to be able to switch on the projector without
password verication.
Can be select the time (Month/Day/Hour) function to set the number of hours the projector can be used. Once this time has
elapsed you will be requested to enter your password again.
English
38
Page 39

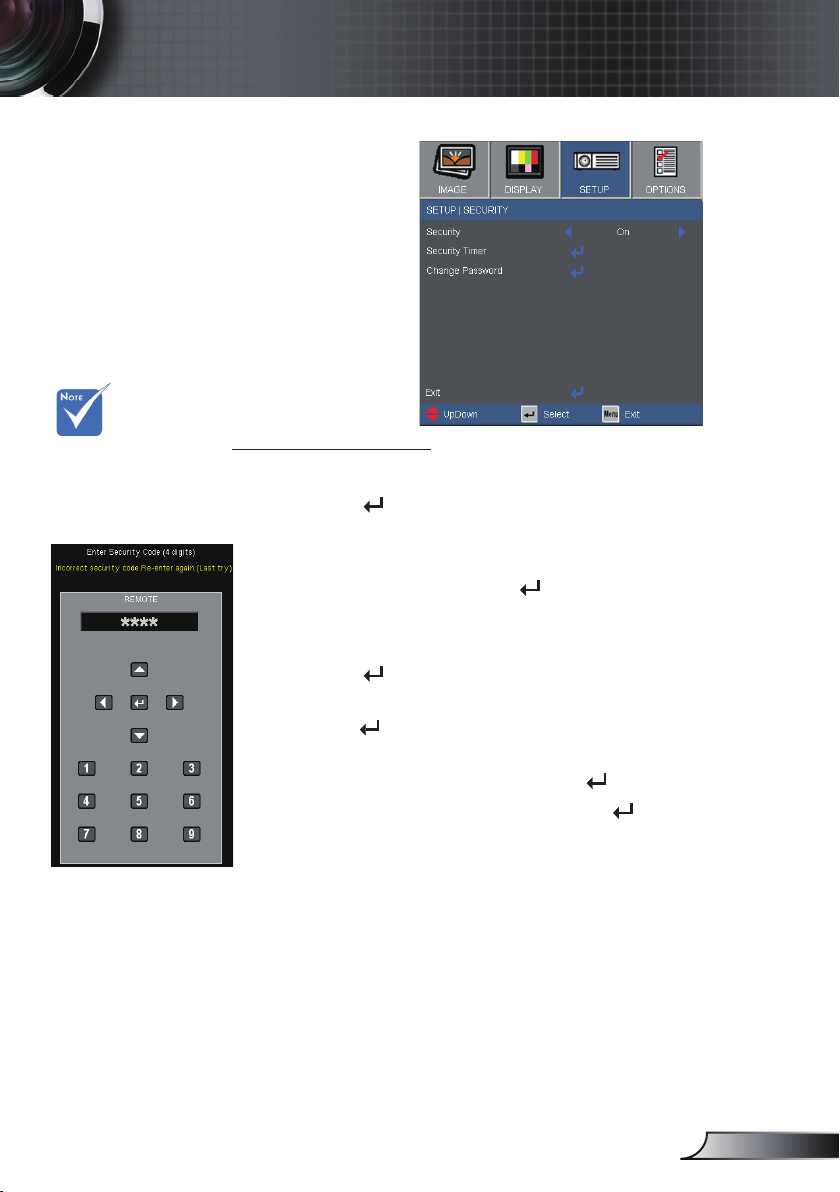

SETUP | Security
User Controls
Pass-code default
value is “1234”
(rst time).
Change Password
First time:
1. Press “ ” to set the password.
2. The password has to be 4 digits.
3. Use number button on the remote to enter your new password and then press “ ” key to conrm your password.
Change Password:
1. Press “ ” to input old password.
2. Use number button to enter current password and then
press “ ” to conrm.
3. Enter new password (4 digits in length) using the number
buttons on the remote, then press “ ” to conrm.
4. Enter new password again and press “ ” to conrm.
If the incorrect password is entered 3 times, the projector will
automatically shut down.
If you have forgotten your password, please contact your local
ofce for support.
39
English
Page 40
40
English
User Controls
SETUP

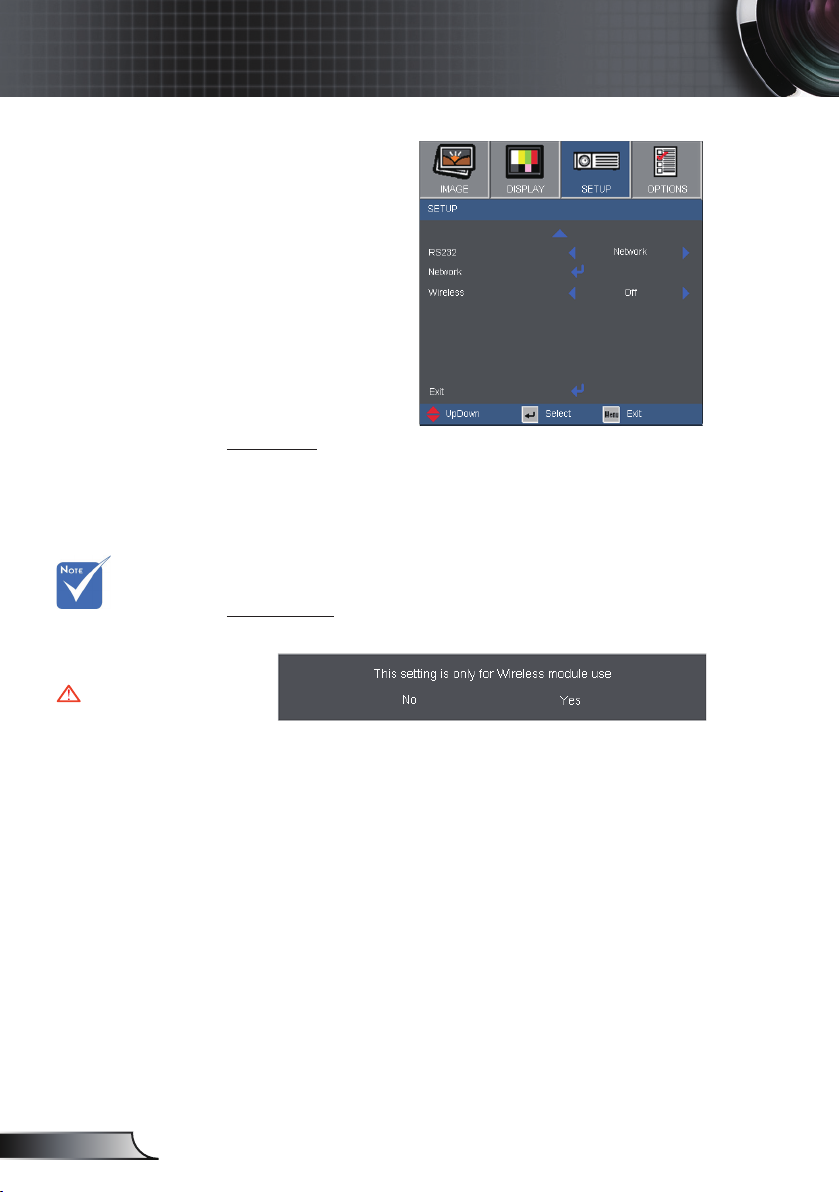

RS232
RS232: Allow RS232 control of an individual projector.
(Default setting)
Network: Allow projector control via web browser (Internet
Explorer) using the network.
Wireless
Choose the “On” to turn on the Wireless.
“Wireless” is only
functional with VGA1 connector
Warning:
Wired VGA will not function and the projector maybe shut down if Wireless is turned on.
Page 41

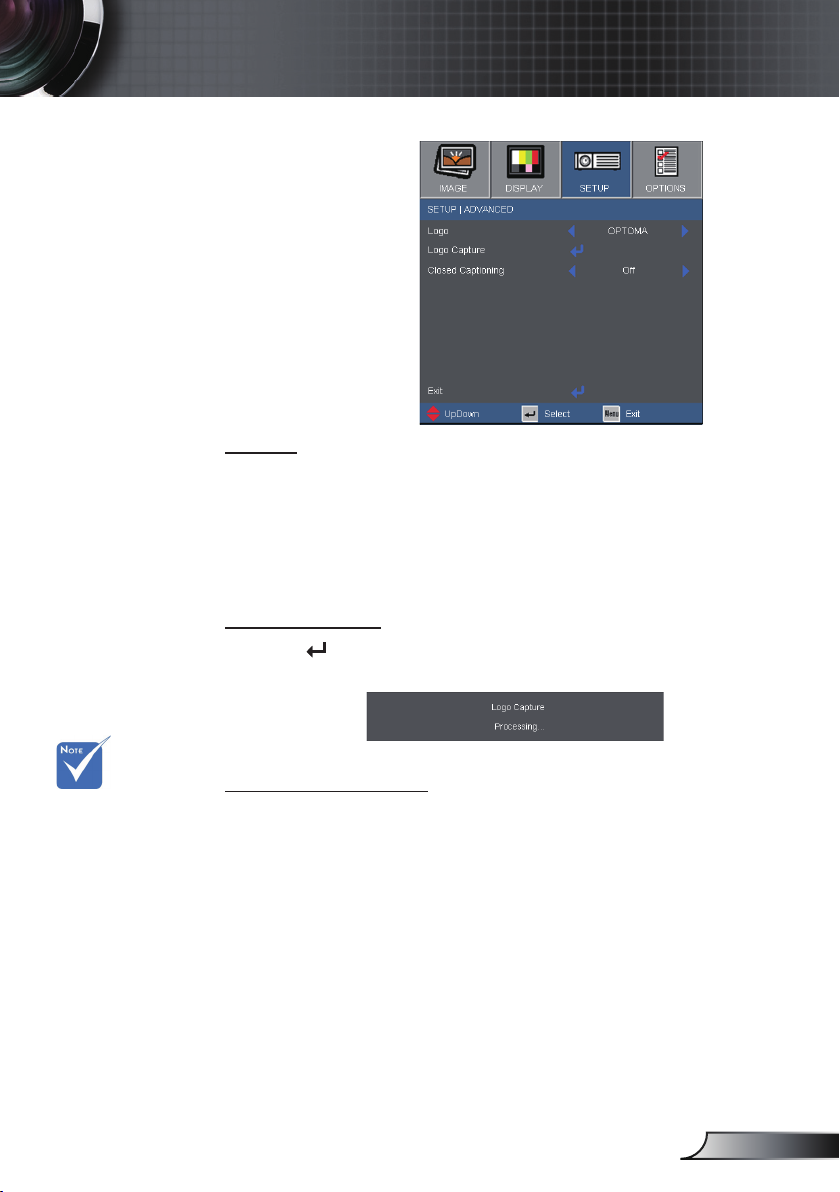

SETUP | Advanced
Logo
Use this function to set the desired startup screen. If changes are made they will take effect the next time the projector is powered on.
OPTOMA: The default startup screen.
User: Use memorize picture from “Logo Capture” function.
Logo Capture
Press “ ” to immediately capture an image of the picture currently displayed on screen.
User Controls
“Closed Captioning”:
on specic models
Closed Captioning
Off: select “off” to turn off the closed captioning feature.
CC1: CC1 language: American English.
CC2: CC2 language (depending on the TV channel of the user):
Spanish, French, Portuguese, German, Danish.
41
English
Page 42
User Controls

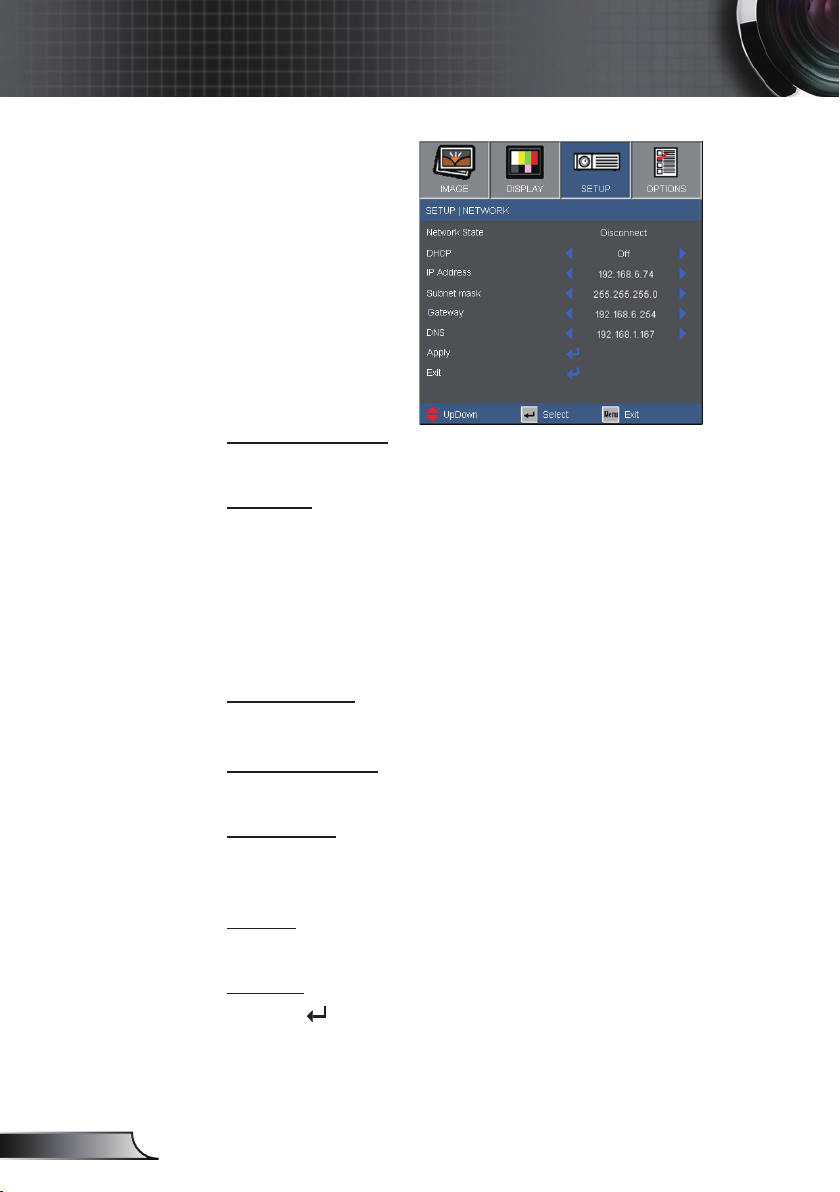

SETUP | Network
Network State
Display the network connection status.
DHCP
Use this function to select your desired startup screen. If you change the setting from one to another, when you exit the OSD menu, the new setting will take effect on next open.
On: Assign an IP address to the projector from an external
DHCP server automatically.
Off: Assign an IP address manually.
IP Address
Select an IP address.
English
Subnet Mask
Select subnet mask number.
Gateway
Select the default gateway of the network connected to the
projector.
DNS
Select DNS number.
Apply
Press “ ” and then choose “Yes” to apply the selection.
42
Page 43
43
English
User Controls

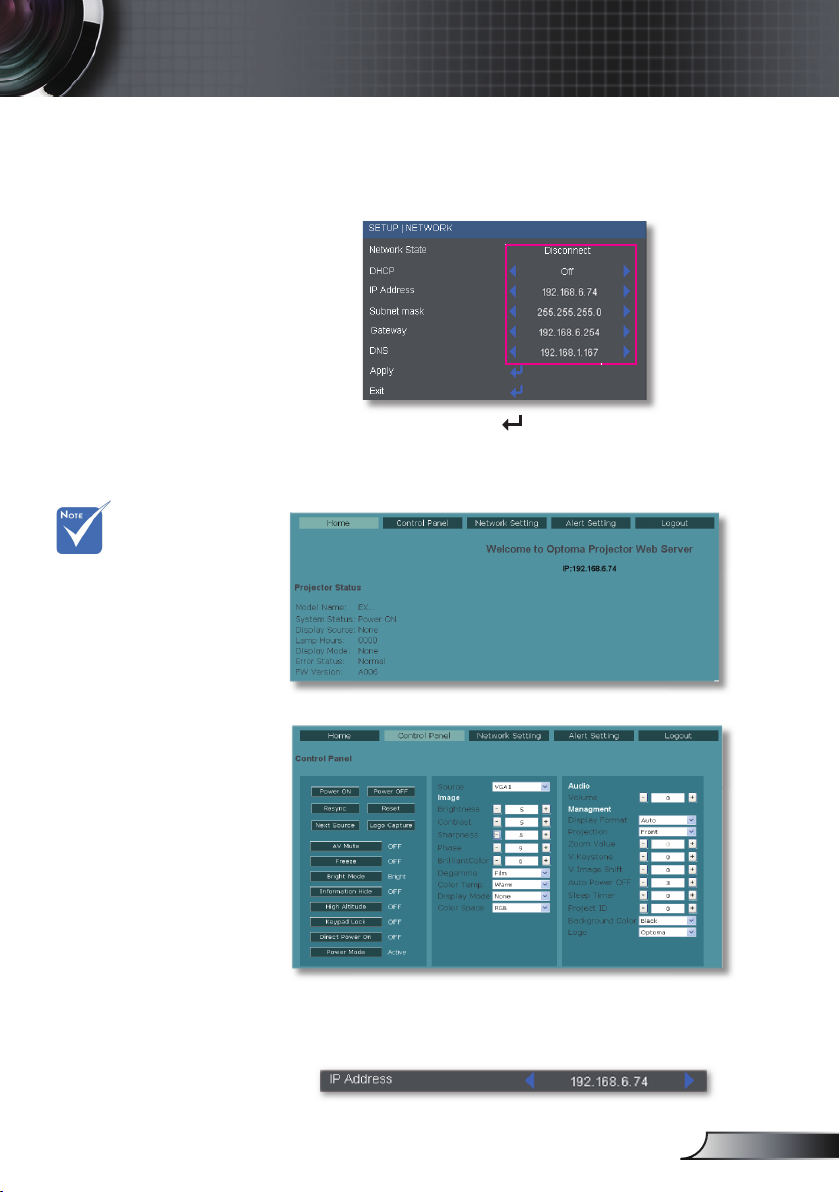

1. Turn on DHCP to allow the DHCP server to automatically assign
an IP, or manually enter the required network information.
2. Then choose apply and press “ ” button to complete the
con guration process.
3. Open your web browser and type in from the OSD LAN screen then the web page will display as below:
4. Open “Control Panel” to control your projector.
When making a direct connection from your computer to the
projector
Step 1: Find an IP Address (192.168.6.74) from LAN function of
projector.
How to use web browser to control your projector
When you used
the projector IP address, you will can not link to your service server.
Page 44
44
English
User Controls

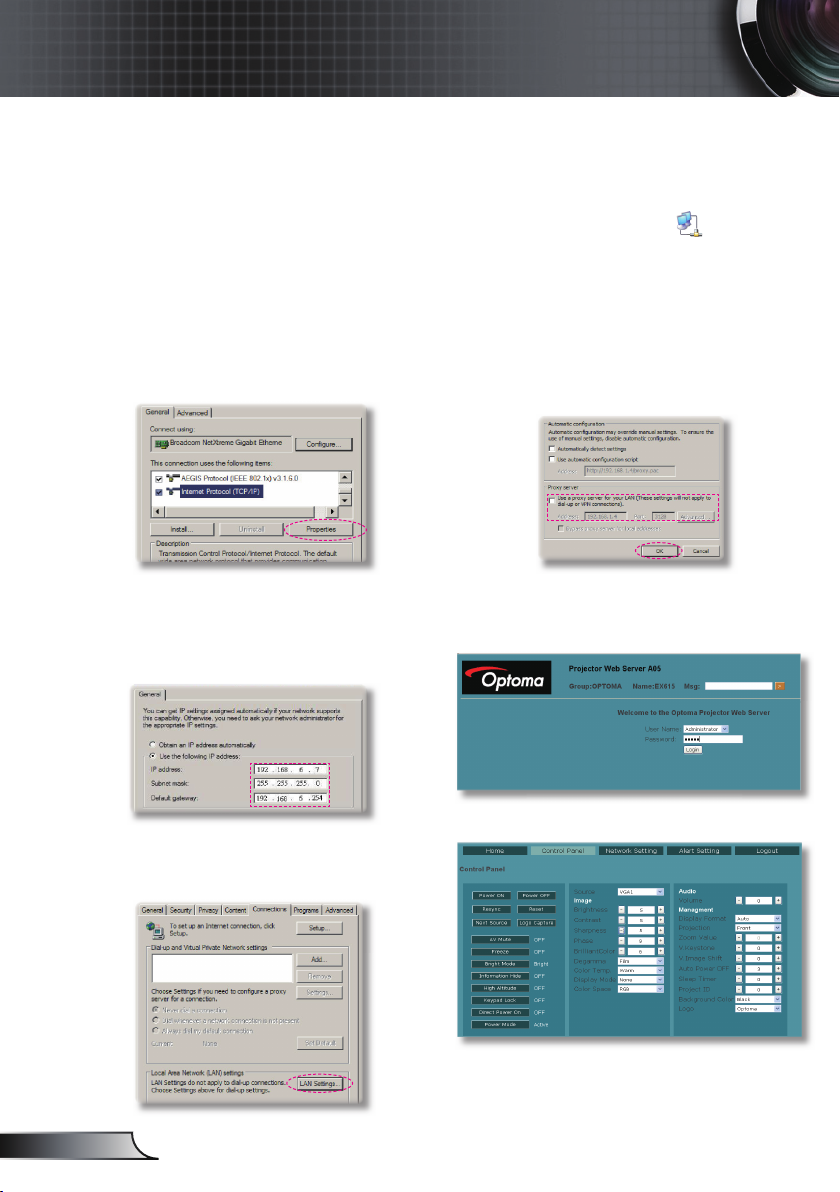

Step 2: Select apply and press “Enter” button to submit function or press “menu” key to
exit.
Step 3: To open Network Connections, click Start, click Control Panel, click Network
and Internet Connections, and then click Network Connections. Click the
connection you want to con gure, and then, under Network Tasks , click Change settings of this connection.
Step 4: On the General tab, under
This connection uses the following items, click Internet Protocol (TCP/IP), and then click
“Properties.”
Step 5: Click Use the following IP
address, and type in as below:
1) IP address: 192.168.6.XXX
2) Subnet mask: 255.255.0.0
3) Default gateway:192.168.6.254
Step 6: To open Internet Options, click
IE web browser, click Internet Options, click the Connections tab and click “LAN Settings...”
Step 7: The Local Area Network (LAN)
Setting dialog box appears, In the Proxy Server area, cancel the Use a proxy server for your LAN check box., then click “OK” button
twice.
Step 8: Open your IE and type in the IP
address of 192.168.6.74 in the URL then press “Enter” key. The web page will display as below:
Step 9: Open “Control Panel” to control
your projector.
Page 45
User Controls

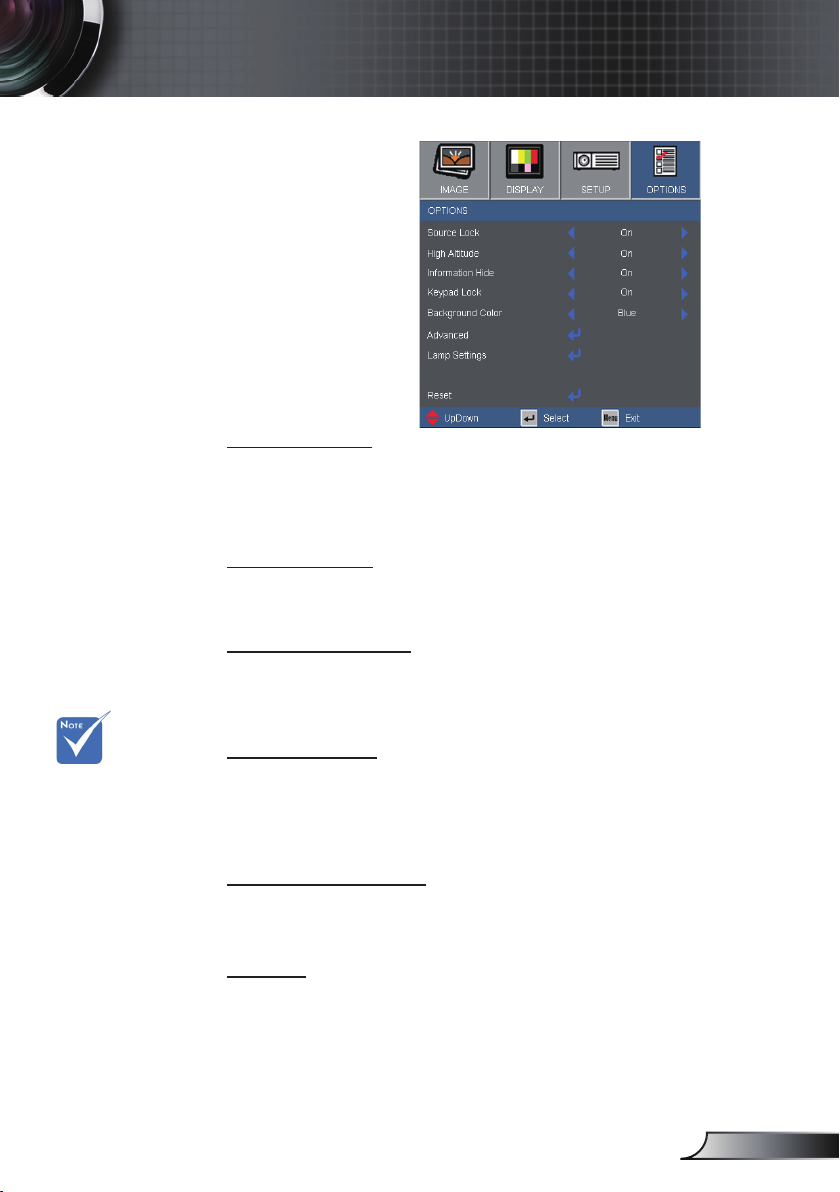

OPTIONS
Source Lock
On: The projector will only search current input connection.
Off: The projector will search for other signals if the current
High Altitude
When “On” is selected, the fans will spin faster. This feature is useful in high altitude areas where the air is thin.
Information Hide
 
input signal is lost.
On: Choose “On” to hide the info message.
Off: Choose “Off” to show the “searching” message.
To turn off the
keypad lock, press and hold “Enter” key on top of the projector for 5 seconds.
Keypad Lock
When the keypad lock function is “On”, the control panel will be locked however, the projector can be operated by the remote control. By selecting “Off”, you will be able to reuse the control panel.
Background Color
Use this feature to display a “Black”, “Red”, “Blue”, “Green” or “White”, screen when no signal is available.
Reset
Choose “Yes” to return the display parameters on all menus to the factory default settings.
45
English
Page 46
User Controls
OPTIONS |
Advanced
Direct Power On
Choose “On” to activate Direct Power mode. The projector will automatically power on when AC power is supplied, without pressing the “ ” key on the projector control panel or on the remote control.
Auto Power Off (min)
Sets the countdown timer interval. The countdown timer will start, when there is no signal being sent to the projector. The projector
will automatically power off when the countdown has nished (in
minutes).
This disables VGA
out and RJ45 control when the projector is in Power Mode (Standby) as Eco..
English
46
Sleep Timer (min)
Sets the countdown timer interval. The countdown timer will start, with or without a signal being sent to the projector. The projector
will automatically power off when the countdown has nished (in
minutes).
Power Mode (Standby)
Eco.: Choose “Eco.” to save power dissipation further < 1W.
Active: Choose “Active” to return to normal standby and the
VGA out port will be enabled.
Page 47
OPTIONS |
Lamp Settings
Lamp Hours
Display the projection time.
Lamp Reminder
Choose this function to show or to hide the warning message when the changing lamp message is displayed. The message will appear 30 hours before suggested replacement
of lamp.
User Controls
When ambient
temperature is over 35°C in operating, the projector will switch to STD automatically.
Brightness Mode
STD: Choose “STD” to dim the projector lamp which will lower
power consumption and extend the lamp life.
BRIGHT: Choose “BRIGHT” to increase the brightness.
Lamp Reset
Reset the lamp hour counter after replacing the lamp.
47
English
Page 48
Appendices
Troubleshooting
If you experience a problem with your projector,
please refer to the following information. If a problem persists, please contact your local reseller or service center.
No image appears on-screen
Ensure all the cables and power connections are correctly and
securely connected as described in the “Installation” section.
Ensure all the pins of connectors are not bent or broken.
Check if the projection lamp has been securely installed. Please
refer to the “Replacing the lamp” section.
Make sure you have removed the lens cap and the projector is
switched on.
Ensure that the “AV mute” feature is not turned on.
Partial, scrolling or incorrectly displayed image
Press “Re-SYNC” on the remote.
If you are using a PC:
For Windows 95, 98, 2000, XP:
1. Open the “My Computer” icon, the “Control Panel” folder, and
then double click on the “Display” icon.
2. Select the “Settings” tab.
3. Verify that your display resolution setting is lower than or equal
to UXGA (1600 × 1200).
4. Click on the “Advanced Properties” button.
English
If the projector is still not projecting the whole image, you will also need to change the monitor display you are using. Refer to the following steps.
5. Verify the resolution setting is lower than or equal to UXGA
(1600 × 1200).
6. Select the “Change” button under the “Monitor” tab.
48
Page 49
Appendices
7. Click on “Show all devices”. Next, select “Standard monitor
types” under the SP box; choose the resolution mode you need under the “Models” box.
8. Verify that the resolution setting of the monitor display is lower
than or equal to UXGA (1600 × 1200).
If you are using a Notebook:
1. First, follow the steps above to adjust resolution of the
computer.
2. Press the appropriate keys listed below for your notebook
manufacturer to send signal out from notebook to projector. Example: [Fn]+[F4]
Acer
[Fn]+[F5]
Asus [Fn]+[F8] Dell [Fn]+[F8] Gateway  [Fn]+[F4]
Mac Apple: System Preference Display Arrangement Mirror display
If you experience difculty changing resolutions or your monitor
freezes, restart all equipment including the projector.
The screen of the Notebook or PowerBook computer is not
IBM/Lenovo [Fn]+[F7] HP/Compaq  [Fn]+[F4] NEC [Fn]+[F3] Toshiba [Fn]+[F5]
displaying your presentation
If you are using a Notebook PC
Some Notebook PCs may deactivate their own screens when a second display device is in use. Each has a different way to be reactivated. Refer to your computer’s manual for detailed information.
Image is unstable or ickering
Use “Phase” to correct it. See page 37 for more information.
Change the monitor color setting on your computer.
Image has vertical ickering bar
Use “Frequency” to make an adjustment. See page 37 for more
information.
Check and recongure the display mode of your graphic card to
make it compatible with the projector.
49
English
Page 50
Appendices
Image is out of focus
Make sure the lens cap is removed.
Adjust the Focus Ring on the projector lens.
Make sure the projection screen is between the required distance.
See page 17.
The image is stretched when displaying 16:9 DVD title
When you play anamorphic DVD or 16:9 DVD, the projector will
show the best image when the projector display mode is set to 16:9 in the OSD.
If you play 4:3 format DVD titles, please change the format to 4:3
in the projector OSD.
If the image is still stretched, you will also need to adjust the
aspect ratio by referring to the following:
Please setup the display format as 16:9 (wide) aspect ratio type
on your DVD player.
Image is too small or too large
Adjust the Zoom Ring on the top of the projector.
Move the projector closer to or further from the screen.
Press “Menu” button on the remote control or projector panel, go
to “Display  Format” and try the different settings.
Use of Keystone is
not recommended.
English
50
Image has slanted sides
If possible, reposition the projector so that it is horizontally
centered on the screen and below the bottom of the screen.
Press “Keystone +/-” button on the remote control or press
“ / ” on the projector panel, until the sides are vertical.
Image is reversed
Select “SETUP  Projection” from the OSD and adjust the
projection direction.
Page 51
51
English
Appendices
The projector stops responding to all controls
If possible, turn off the projector, then unplug the power cord and
wait at least 60 seconds before reconnecting power.
Check that “Keypad Lock” is not activated by trying to control the
projector with the remote control.
Lamp burns out or makes a popping sound
When the lamp reaches its end of life, it will burn out and may
make a loud popping sound. If this happens, the projector will not turn on until the lamp module has been replaced. To replace the lamp, follow the procedures in the “Replacing the Lamp” section on pages 53-54.
Projector Status Indication
LED lighting message
Steady light 
No light 
Message
ON/STANDBY
LED
Temp-LED Lamp-LED
(Green/Amber) (Red) (Red)
Standby State (Input power cord)
Amber
Power on (Warming)
Flashing
Green
Lamp lighting Green
Power off (Cooling)
Flashing
Green
Error (Over Temp.)
Flashing
Amber
Error (Fan fail)
Flashing
Amber
Flashing
Error (Lamp fail)
Flashing
Amber
＊ ON/STANDBY LED be ON when OSD appears, be OFF when OSD disappears.
Page 52
Appendices

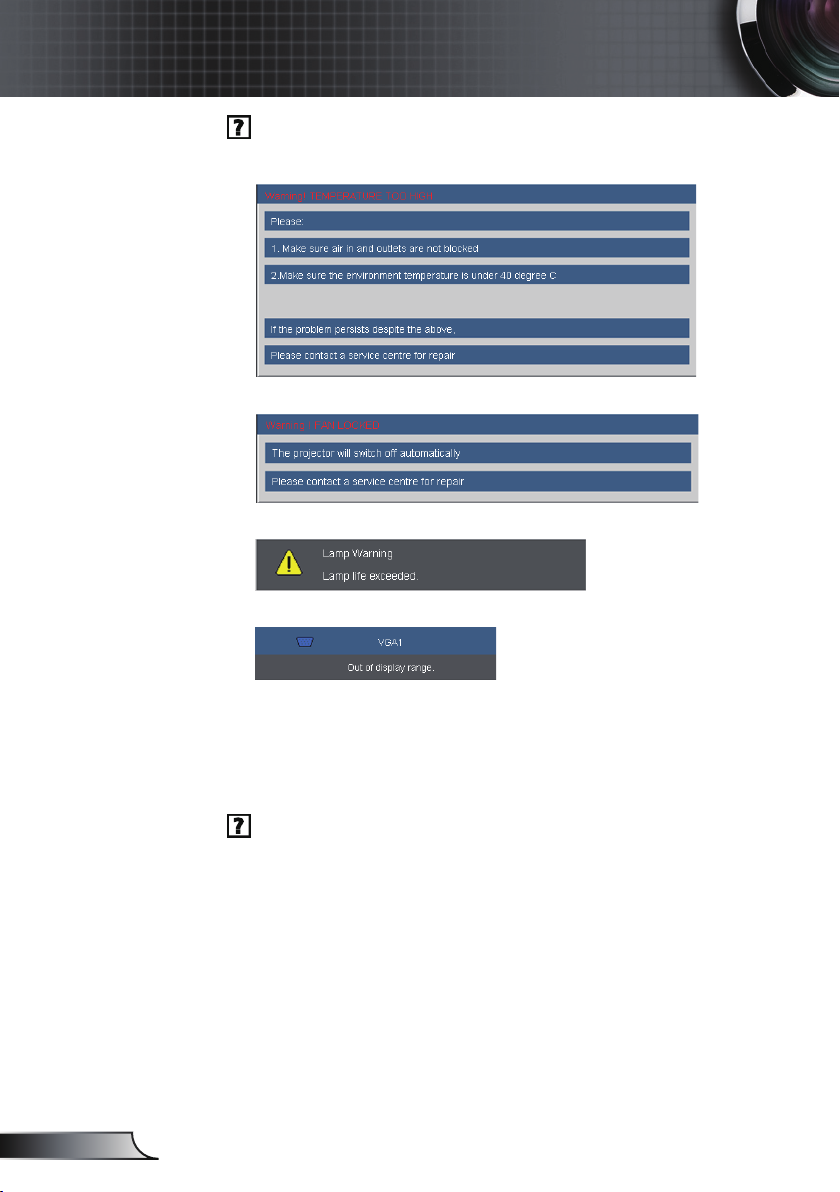

On Screen Messages
Temperature warning:
Fan failed:
Lamp warming:
Out of display range:
English
52
Remote Control
If the remote control does not work
Check the operating angle of the remote control is within ±15°
both horizontally and vertically of one of the IR receivers on the projector.
Make sure there are not any obstructions between the remote
control and the projector. Move to within 7 m (±0°) of the projector.
Make sure the batteries are inserted correctly.
Replace batteries if they are exhausted.
Page 53
53
English
Appendices
Replacing the lamp
The projector automatically detects the lamp life. When the lamp life is nearing the end of use, you will receive a warning message.
When you see this message, please contact your local reseller or service center to change the lamp as soon as possible. Make sure the projector has been cooled down for at least 30 minutes before changing the lamp.
Warning: Lamp compartment may be hot! Allow it to cool down
before changing the lamp!
Warning: To reduce the risk of personal injury, do not drop the
lamp module or touch the lamp bulb. The bulb may shatter and cause injury if it is dropped.
Warning: If ceiling mounted, please use caution when
opening the lamp access panel. It is recommended to wear safety glasses if changing the bulb when ceiling mounted. “Caution must be used to prevent any loose parts from falling out of projector.”
Page 54
54
English
Appendices
Lamp Replacement Procedure:
1. Switch off the power to the projector by pressing the “ ” button.
2. Allow the projector to cool down for at least 30 minutes.
3. Disconnect the power cord.
4. Unscrew the two screws on the cover. 1
5. Lift up and remove the cover. 2
6. Unscrew the two screws on the lamp module. 3
7. Lift up the lamp handle and remove the lamp module slowly and carefully. 4
To replace the lamp module, reverse the previous steps.
8. Turn on the projector and use “Lamp Reset” after the lamp module is replaced.
Lamp Reset: (i) Press “Menu” (ii) Select “OPTIONS” (iii) Select
“Lamp Settings”  (iv) Select “Lamp Reset”  (v) Select “Yes”.
1
2
3
4
The screws on the
lamp cover and the lamp cannot be removed.
The projector
cannot be turned on if the lamp cover has not been placed back on the projector.
Do not touch the
glass area of the lamp. Hand oil can cause the lamp to shatter. Use a dry cloth to clean the lamp module if it was accidentally touched.
Page 55
For widescreen
resolution (WXGA), the compatibility support is dependent on Notebook/PC models.
Appendices
Compatibility Modes
Computer Compatibility
Mode Resolution
VGA 640 × 350 70 70 31.50 31.50
VGA 640 × 350 85 85 37.90 37.90
VGA 640 × 400 85 85 37.90 37.90
VGA 640 × 480 60 60 31.50 31.50
VGA 640 × 480 72 72 37.90 37.90
VGA 640 × 480 75 75 37.50 37.50
VGA 640 × 480 85 85 43.30 43.30
VGA 720 × 400 70 70 31.50 31.50
VGA 720 × 400 85 85 37.90 37.90
SVGA 800 × 600 56 56 35.20 35.20
SVGA 800 × 600 60 60 37.90 37.90
SVGA 800 × 600 72 72 48.10 48.10
SVGA 800 × 600 75 75 46.90 46.90
SVGA 800 × 600 85 85 53.70 53.70
XGA 1024 × 768 60 60 48.40 48.40
XGA 1024 × 768 70 70 56.50 56.50
XGA 1024 × 768 75 75 60.00 60.00
XGA 1024 × 768 85 85 68.70 68.70
WXGA 1280 × 768 60 60,75,85 47.80 47.80
WXGA 1280 × 768 75 - 60.30 -
WXGA 1280 × 720 60 - 45.00 -
WXGA 1280 × 800 60 60 49.68 49.64
SXGA 1152 × 864 60 60 53.50 53.50
SXGA 1152 × 864 70 70 63.80 63.80
SXGA 1152 × 864 75 75 67.50 67.50
SXGA 1152 × 864 85 85 77.10 77.10
SXGA 1280 × 1024 60 60 63.98 63.98
SXGA 1280 × 1024 75 75 79.98 79.98
SXGA 1280 × 1024 85 85 91.10 91.10
SXGA 1280 × 960 60 - 60.00 -
SXGA+ 1400 × 1050 60 60 63.98 63.98
UXGA 1600 × 1200 60 60 75.00 75.00
V-Sync (Hz) H-Sync (KHz)
Anglog Digital Anglog Digital
55
English
Page 56
Appendices
Computer Compatibility
Mode Resolution V-Sync (Hz) H-Sync (KHz)
MAC LC 13” 640 × 480 66.66 34.98
MAC II 13” 640 × 480 66.68 35.00
MAC 16” 832 × 624 74.55 49.73
MAC 19” 1024 × 768 75 60.24
MAC 1152 × 870 75.06 68.68
MAC G4 640 × 480 60 31.35
i MAC DV 1024 × 768 75 60.00
i MAC DV 1152 × 870 75 68.49
i MAC DV 1280 × 960 75 75.00
Video Compatibility
NTSC M (3.58MHz), 4.43 MHz
PAL B, D, G, H, I, M, N
SECAM B, D, G, K, K1, L
SDTV/HDTV 480i/p, 576i/p, 720p@50Hz/60Hz, 1080i/p@50Hz/60Hz
English
56
Page 57
57
English
Appendices
RS232 Pin Assignments
Pin no.
Spec.
(from projector side)
1 N/A
2 RXD
3 TXD
4 N/A
5 GND
6 N/A
7 N/A
8 N/A
9 N/A
12345
6789
RS232 Commands and Protocol Function List
Page 58
Appendices
Optoma EX615/EX542 RS232 Command Table
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Baud Rate : 9600 Note : There is a <CR> after all ASCII commands Data Bits: 8 0D is the HEX code for <CR> in ASCII code Parity: None Stop Bits: 1 Flow Control : None UART16550 FIFO: Disable Projector Return (Pass): P Projector Return (Fail): F XX=01ˀ99, projector's ID, XX=00 is for all projectors
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
SEND to projector
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
232 ASCII Code HEX Code Function Description
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- ~XX00 1 7E 30 30 30 30 20 31 0D Power ON ~XX00 0 7E 30 30 30 30 20 30 0D Power OFF (0/2 for backward compatible) ~XX00 1 ~nnnn 7E 30 30 30 30 20 31 20 a 0D Power ON with Password ~nnnn = ~0000 (a=7E 30 30 30 30) - ~9999(a=7E 39 39 39 39)
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- ---------------------------------- ~XX01 1 7E 30 30 30 31 20 31 0D Resync ~XX02 1 7E 30 30 30 32 20 31 0D AV Mute On ~XX02 0 7E 30 30 30 32 20 30 0D Off (0/2 for backward compatible) ~XX03 1 7E 30 30 30 33 20 31 0D Mute On ~XX03 0 7E 30 30 30 33 20 30 0D Off (0/2 for backward compatible) ~XX04 1 7E 30 30 30 34 20 31 0D Freeze ~XX04 0 7E 30 30 30 34 20 30 0D Unfreeze (0/2 for backward compatible) ~XX05 1 7E 30 30 30 35 20 31 0D Zoom Plus ~XX06 1 7E 30 30 30 36 20 31 0D Zoom Minus ~XX07 1 7E 30 30 30 37 20 31 0D Up (Pan under zoom) ~XX08 1 7E 30 30 30 38 20 31 0D Down (Pan under zoom) ~XX09 1 7E 30 30 30 39 20 31 0D Left (Pan under zoom) ~XX10 1 7E 30 30 31 30 20 31 0D Right (Pan under zoom) ~XX12 1 7E 30 30 31 32 20 31 0D Direct Source Commands HDMI ~XX12 5 7E 30 30 31 32 20 35 0D VGA 1 ~XX12 6 7E 30 30 31 32 20 36 0D VGA 2 ~XX12 8 7E 30 30 31 32 20 38 0D VGA 1 Component ~XX12 9 7E 30 30 31 32 20 39 0D S-Video ~XX12 10 7E 30 30 31 32 20 31 30 0D Video ~XX12 12 7E 30 30 31 32 20 31 33 0D VGA 2 SCART ~XX12 13 7E 30 30 31 32 20 31 33 0D VGA 2 Component
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- ---------------------------------- ~XX20 1 7E 30 30 32 30 20 31 0D Display Mode Presentation ~XX20 2 7E 30 30 32 30 20 32 0D Bright ~XX20 3 7E 30 30 32 30 20 33 0D Movie ~XX20 4 7E 30 30 32 30 20 34 0D sRGB ~XX20 5 7E 30 30 32 30 20 35 0D User1 ~XX20 6 7E 30 30 32 30 20 36 0D User2 ~XX20 7 7E 30 30 32 30 20 37 0D Blackboard ~XX20 8 7E 30 30 32 30 20 38 0D Classroom
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- ---------------------------------- ~XX21 n 7E 30 30 32 31 20 a 0D Brightness n = 0 (a=30) ~ 100 (a=31 30 30) ~XX22 n 7E 30 30 32 32 20 a 0D Contrast n = 0 (a=30) ~ 100 (a=31 30 30) ~XX23 n 7E 30 30 32 33 20 a 0D Sharpness n = 0 (a=30) ~ 31 (a=33 31)
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- ~XX24 n 7E 30 30 32 34 20 a 0D Color Settings Red Gain n = -50 (a=2D 35 30) ~ 50 (a=35 30) ~XX25 n 7E 30 30 32 35 20 a 0D Green Gain n = -50 (a=2D 35 30) ~ 50 (a=35 30) ~XX26 n 7E 30 30 32 36 20 a 0D Blue Gain n = -50 (a=2D 35 30) ~ 50 (a=35 30) ~XX27 n 7E 30 30 32 37 20 a 0D Red Bias n = -50 (a=2D 35 30) ~ 50 (a=35 30) ~XX28 n 7E 30 30 32 38 20 a 0D Green Bias n = -50 (a=2D 35 30) ~ 50 (a=35 30) ~XX29 n 7E 30 30 32 39 20 a 0D Blue Bias n = -50 (a=2D 35 30) ~ 50 (a=35 30) ~XX30 n 7E 30 30 33 30 20 a 0D Cyan n = -50 (a=2D 35 30) ~ 50 (a=35 30) ~XX31 n 7E 30 30 33 31 20 a 0D Yellow n = -50 (a=2D 35 30) ~ 50 (a=35 30) ~XX32 n 7E 30 30 33 32 20 a 0D Magenta n = -50 (a=2D 35 30) ~ 50 (a=35 30) ~XX33 1 7E 30 30 33 33 20 31 0D Reset
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- ---------------------------------- ~XX34 n 7E 30 30 33 34 20 a 0D BrilliantColor
TM
n = 0 (a=30) ~ 10 (a=31 30) ~XX35 1 7E 30 30 33 35 20 31 0D Degamma Film ~XX35 2 7E 30 30 33 35 20 32 0D Video ~XX35 3 7E 30 30 33 35 20 33 0D Graphics ~XX35 4 7E 30 30 33 35 20 34 0D PC
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- ---------------------------------- ~XX36 1 7E 30 30 33 36 20 31 0D Color Temp. Warm ~XX36 2 7E 30 30 33 36 20 32 0D Medium ~XX36 3 7E 30 30 33 36 20 33 0D Cold ~XX37 1 7E 30 30 33 37 20 31 0D Color Space Auto ~XX37 2 7E 30 30 33 37 20 32 0D RGB ~XX37 3 7E 30 30 33 37 20 33 0D YUV
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- ---------------------------------- ~XX44 n 7E 30 30 34 34 20 a 0D Color (Saturation) n = 0 (a=30) ~ 100 (a=31 30 30) ~XX45 n 7E 30 30 34 35 20 a 0D Tint n = 0 (a=30) ~ 100 (a=31 30 30)
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
RS232 Protocol Function List
English
58
Page 59
Appendices
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- ~XX60 1 7E 30 30 36 30 20 31 0D Format 4:3 ~XX60 2 7E 30 30 36 30 20 32 0D 16:9-l ~XX60 3 7E 30 30 36 30 20 33 0D 16:9-ll ~XX60 6 7E 30 30 36 30 20 36 0D Native ~XX60 7 7E 30 30 36 30 20 37 0D Auto
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- ~XX61 n 7E 30 30 36 31 20 a 0D Overscan n = 0 (a=30) ~ 10 (a=31 30) ~XX62 n 7E 30 30 36 32 20 a 0D Zoom n = -5 (a=2D 35) ~ 25 (a=32 35) ~XX63 n 7E 30 30 36 33 20 a 0D H Image Shift n = -50 (a=2D 35 30) ~ +50 (a=35 30) ~XX64 n 7E 30 30 36 34 20 a 0D V Image Shift n = -50 (a=2D 35 30) ~ +50 (a=35 30) ~XX66 n 7E 30 30 36 36 20 a 0D V Keystone n = -40 (a=2D 34 30) ~ 40 (a=34 30)
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- ~XX70 1 7E 30 30 37 30 20 31 0D Language English ~XX70 2 7E 30 30 37 30 20 32 0D German ~XX70 3 7E 30 30 37 30 20 33 0D French ~XX70 4 7E 30 30 37 30 20 34 0D Italian ~XX70 5 7E 30 30 37 30 20 35 0D Spanish ~XX70 6 7E 30 30 37 30 20 36 0D Portuguese ~XX70 7 7E 30 30 37 30 20 37 0D Polish ~XX70 8 7E 30 30 37 30 20 38 0D Dutch ~XX70 9 7E 30 30 37 30 20 39 0D Swedish ~XX70 10 7 E 30 30 37 30 20 31 30 0D Norwegian/Danish ~XX70 11 7 E 30 30 37 30 20 31 31 0D Finnish ~XX70 12 7 E 30 30 37 30 20 31 32 0D Greek ~XX70 13 7 E 30 30 37 30 20 31 33 0D Traditional Chinese ~XX70 14 7 E 30 30 37 30 20 31 34 0D Simplified Chinese ~XX70 15 7 E 30 30 37 30 20 31 35 0D Japanese ~XX70 16 7 E 30 30 37 30 20 31 36 0D Korean ~XX70 17 7 E 30 30 37 30 20 31 37 0D Russian ~XX70 18 7 E 30 30 37 30 20 31 38 0D Hungarian ~XX70 19 7 E 30 30 37 30 20 31 39 0D Czechoslovak ~XX70 20 7 E 30 30 37 30 20 32 30 0D Arabic ~XX70 21 7 E 30 30 37 30 20 32 31 0D Thai ~XX70 22 7 E 30 30 37 30 20 32 32 0D Turkish ~XX70 23 7 E 30 30 37 30 20 32 33 0D Farsi
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- ~XX71 1 7E 30 30 37 31 20 31 0D Projection Front-Desktop ~XX71 2 7E 30 30 37 31 20 32 0D Rear-Desktop ~XX71 3 7E 30 30 37 31 20 33 0D Front-Ceiling ~XX71 4 7E 30 30 37 31 20 34 0D Rear-Ceiling
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- ~XX72 1 7E 30 30 37 32 20 31 0D Menu Location Top Left ~XX72 2 7E 30 30 37 32 20 32 0D Top Right ~XX72 3 7E 30 30 37 32 20 33 0D Centre ~XX72 4 7E 30 30 37 32 20 34 0D Bottom Left ~XX72 5 7E 30 30 37 32 20 35 0D Bottom Right
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- ~XX73 n 7E 30 30 37 33 20 a 0D Signal Frequency n = -5 (a=2D 35) ~ 5 (a=35) By signal ~XX74 n 7E 30 30 37 34 20 a 0D Phase n = 0 (a=30) ~ 31 (a=33 31) By signal ~XX75 n 7E 30 30 37 35 20 a 0D H. Position n = -5 (a=2D 35) ~ 5 (a=35) By timing ~XX76 n 7E 30 30 37 36 20 a 0D V. Position n = -5 (a=2D 35) ~ 5 (a=35) By timing
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- ~XX77 n 7E 30 30 37 37 20 aabbcc 0D Security Security Timer Month/Day/Hour n = mm/dd/hh mm = 00 (aa=30 30) ~ 12 (aa=31 32) dd = 00 (bb=30 30) ~ 30 (bb=33 30) hh = 00 (cc=30 30) ~ 24 (cc=32 34) ~XX78 1 7E 30 30 37 38 20 31 0D Security Settings Enable ~XX78 2 7E 30 30 37 38 20 32 0D Disable
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- ~XX79 n 7E 30 30 37 39 20 a 0D Projector ID n = 00 (a=30 30) ~ 99 (a=39 39)
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- ~XX80 1 7E 30 30 38 30 20 31 0D Mute On ~XX80 0 7E 30 30 38 30 20 30 0D Off (0/2 for backward compatible) ~XX81 n 7E 30 30 38 31 20 a 0D Volume n = 0 (a=30) ~ 10 (a=31 30)
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- ~XX82 1 7E 30 30 38 32 20 31 0D Logo Optoma ~XX82 2 7E 30 30 38 32 20 32 0D User ~XX83 1 7E 30 30 38 33 20 31 0D Logo Capture (Option)
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- ~XX88 0 7E 30 30 38 38 20 30 0D Closed Captioning Off Only for EX542 ~XX88 1 7E 30 30 38 38 20 31 0D cc1 Only for EX542 ~XX88 2 7E 30 30 38 38 20 32 0D cc2 Only for EX542
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- ~XX100 1 7 E 30 30 31 30 30 20 31 0D So urce Lock On ~XX100 0 7 E 30 30 31 30 30 20 30 0D Off (0/2 for backward compatible) ~XX100 3 7 E 30 30 31 30 30 20 33 0D Next Source ~XX101 1 7 E 30 30 31 30 31 20 31 0D High Altitude On ~XX101 0 7 E 30 30 31 30 31 20 30 0D Off (0/2 for backward compatible) ~XX102 1 7 E 30 30 31 30 32 20 31 0D In formation Hide On ~XX102 0 7 E 30 30 31 30 32 20 30 0D Off (0/2 for backward compatible) ~XX103 1 7 E 30 30 31 30 33 20 31 0D Keypad Lock On ~XX103 0 7 E 30 30 31 30 33 20 30 0D Off (0/2 for backward compatible)
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- ~XX104 1 7 E 30 30 31 30 34 20 31 0D Background Color Blue ~XX104 2 7 E 30 30 31 30 34 20 32 0D Black ~XX104 3 7 E 30 30 31 30 34 20 33 0D Red ~XX104 4 7 E 30 30 31 30 34 20 34 0D Green ~XX104 5 7E 30 30 31 30 34 20 35 0D White
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
59
English
Page 60
Appendices
~XX105 1 7E 30 30 31 30 35 20 31 0D Advanced Direct Power On On ~XX105 0 7E 30 30 31 30 35 20 30 0D Off (0/2 for backward compatible) ~XX106 n 7E 30 30 31 30 36 20 a 0D Auto Power Off (min) n = 0 (a=30) ~ 180 (a=31 38 30) step:5 ~XX107 n 7E 30 30 31 30 37 20 a 0D Sleep Timer (min) n = 0 (a =30) ~ 995 (a=39 39 39) step:5 ~XX114 1 7E 30 30 31 31 34 20 31 0D Power Mode(Standby) Eco.(<=1W) ~XX114 0 7E 30 30 31 31 34 20 30 0D Active (0/2 for backward compatible)
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- ~XX109 1 7E 30 30 31 30 39 20 31 0D Lamp Reminder On ~XX109 0 7E 30 30 31 30 39 20 30 0D Off (0/2 for backward compatible) ~XX110 1 7E 30 30 31 31 30 20 31 0D Brightness Mode Bright ~XX110 0 7E 30 30 31 31 30 20 30 0D STD (0/2 for backward compatible) ~XX111 1 7E 30 30 31 31 31 20 31 0D Lamp Reset Yes ~XX111 0 7E 30 30 31 31 31 20 30 0D No (0/2 for backward compatible)
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- ~XX112 1 7E 30 30 31 31 32 20 31 0D Reset Yes
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- ~XX99 1 7E 30 30 39 39 20 31 0D RS232 Alert Reset Reset System Alert ~XX210 n 7E 30 30 32 30 30 20 n 0D Display message on the OSD n: 1-30 characters
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
SEND to emulate Remote
~XX140 1 7E 30 30 31 34 30 20 31 0D Power ~XX140 3 7E 30 30 31 34 30 20 33 0D Remote Mouse Up ~XX140 4 7E 30 30 31 34 30 20 34 0D Remote Mouse Left ~XX140 5 7E 30 30 31 34 30 20 35 0D Remote Mouse Enter ~XX140 6 7E 30 30 31 34 30 20 36 0D Remote Mouse Right ~XX140 7 7E 30 30 31 34 30 20 37 0D Remote Mouse Down ~XX140 8 7E 30 30 31 34 30 20 38 0D Mouse Left Click ~XX140 9 7E 30 30 31 34 30 20 39 0D Mouse Right Click ~XX140 10 7E 30 30 31 34 30 20 31 30 0D Up/Page + ~XX140 11 7E 30 30 31 34 30 20 31 31 0D Left/Source ~XX140 12 7E 30 30 31 34 30 20 31 32 0D Enter (for projection MENU) ~XX140 13 7E 30 30 31 34 30 20 31 33 0D Right/Re-SYNC ~XX140 14 7E 30 30 31 34 30 20 31 34 0D Down/Page - ~XX140 15 7E 30 30 31 34 30 20 31 35 0D Keystone + ~XX140 16 7E 30 30 31 34 30 20 31 36 0D Keystone - ~XX140 17 7E 30 30 31 34 30 20 31 37 0D Volume - ~XX140 18 7E 30 30 31 34 30 20 31 38 0D Volume + ~XX140 19 7E 30 30 31 34 30 20 31 39 0D Brightness (1) ~XX140 20 7E 30 30 31 34 30 20 32 30 0D Menu (2) ~XX140 21 7E 30 30 31 34 30 20 32 31 0D Zoom (3) ~XX140 22 7E 30 30 31 34 30 20 32 32 0D HDMI (4) ~XX140 23 7E 30 30 31 34 30 20 32 33 0D Freeze (5) ~XX140 24 7E 30 30 31 34 30 20 32 34 0D AV Mute (6) ~XX140 25 7E 30 30 31 34 30 20 32 35 0D S-Video (7) ~XX140 26 7E 30 30 31 34 30 20 32 36 0D VGA1/2 toggle (8) ~XX140 27 7E 30 30 31 34 30 20 32 37 0D Vi deo (9)
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
SEND from projector automatically
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
232 ASCII Code HEX Code Function Projector Return Description
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------­when Standby/Warming/Cooling/Out of Range/Lamp fail/ INFOn n : 1/2/3/4/5/6/7/8/9 = Standby/Warming/Cooling/Out of Range/Lamp fail/ Fan Lock/Over Temperature/Lamp Hours Running Out/Lamp Cover Open Fan Lock/Over Temperature/Lamp Hours Running Out/Lamp Cover Open
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
READ from projector
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
232 ASCII Code HEX Code Function Projector Return Description
~XX121 1 7E 30 30 31 32 31 20 31 0D Input Source Commands OKn n : 0/1/2/3/4/5 = None/VGA1/VGA2/S-Video/Video/HDMI ~XX122 1 7E 30 30 31 32 32 20 31 0D Sofware Version OKdddd dddd: FW version ~XX123 1 7E 30 30 31 32 33 20 31 0D Display Mode OKn n : 0/1/2/3/4/5/6/7/8 = None/Presentation/Bright/Movie/sRGB/User1/User2/ Blackboard/Classroom ~XX124 1 7E 30 30 31 32 34 20 31 0D Power State OKn n : 0/1 = Off/On ~XX125 1 7E 30 30 31 32 35 20 31 0D Brightness OKn ~XX126 1 7E 30 30 31 32 36 20 31 0D Contrast OKn ~XX127 1 7E 30 30 31 32 37 20 31 0D Aspect Ratio OKn n : 0/1/2/3/4 = 4:3/16:9-l/16:9-ll/
Native/AUTO ~XX128 1 7E 30 30 31 32 38 20 31 0D Color Temperature OKn n : 0/1/2 = Warm/Medium/Cold ~XX129 1 7E 30 30 31 32 39 20 31 0D Projection Mode OKn n : 0/1/2/3 = Front-Desktop/ Rear-Desktop/ Front-Ceiling/ Rear-Ceiling
~XX150 1 7E 30 30 31 35 30 20 31 0D Information OKabbbbccdddde a : 0/1 = Off/On bbbb: LampHour cc: source 00/01/02/03/04/05 = None/VGA1/VGA2/S-Video/Video/HDMI dddd: FW version e : Display mode 0/1/2/3/4/5/6/7/8 None/Presentation/Bright/Movie/sRGB/User1/User2/ Blackboard/Classroom
~XX151 1 7E 30 30 31 35 31 20 31 0D Model name OKn n:1/2=EX615,EX542 ~XX108 1 7E 30 30 31 30 38 20 31 0D Lamp Hours OKbbbb bbbb: LampHour ~XX108 2 7E 30 30 31 30 38 20 31 0D Cumulative Lamp Hours OKbbbbb bbbbb: (5 digits) Total Lamp Hours
English
60
Page 61
61
English
Appendices
Please note that
damage resulting from incorrect installation will invalidate the warranty.
Ceiling Mount Installation
1. To prevent damage to your projector, please use the Optoma ceiling mount.
2. If you wish to use a third party ceiling mount kit, please ensure the screws used to attach a mount to the projector
meet the following specifications:
Screw type: M3*3
Maximum screw length: 10mm
 Minimum screw length: 7.5mm
Warning:
1. If you buy a ceiling mount from another company, please be sure to use the correct screw size. Screw size will vary depending on the thickness of the mounting plate.
2. Be sure to keep at least 10 cm gap between the ceiling and the bottom of the projector.
3. Avoid installing the projector near a heat source.
Lens
82.3093.60
110.00 137.2076.40
55.00
323.60
233.30
59.01
89.75
Unit: mm
Page 62
Appendices
Optoma Global Ofces
For service or support please contact your local ofce.
USA
715 Sycamore Drive Tel : 408-383-3700 Milpitas, CA 95035, USA Fax: 408-383-3702 www.optomausa.com Service : [email protected]
Canada
5630 Kennedy Road, Mississauga, Tel : 905-361-2582 ON, L4Z 2A9, Canada Fax: 905-361-2581 www.optoma.ca Service : [email protected]
Europe
42 Caxton Way, The Watford Business Park Watford, Hertfordshire, WD18 8QZ, UK Tel : +44 (0) 1923 691 800 www.optoma.eu Fax: +44 (0) 1923 691 888 Service Tel : +44 (0)1923 691865 Service : [email protected]
France
Bâtiment E Tel : +33 1 41 46 12 20 81-83 avenue Edouard Vaillant Fax: +33 1 41 46 94 35 92100 Boulogne Billancourt, France Service : [email protected]
Spain
C/ José Hierro,36 Of. 1C Tel : +34 91 499 06 06 28529 Rivas VaciaMadrid, Fax: +34 91 670 08 32 Spain
English
Deutschland
Werftstrasse 25 Tel : +49 (0) 211 506 6670 D40549 Düsseldorf, Fax: +49 (0) 211 506 66799 Germany Service : [email protected]
Scandinavia
Grev Wedels Plass 2 Tel : +47 32 26 89 90 3015 Drammen Fax: +47 32 83 78 98 Norway Service : [email protected]
Latin America
715 Sycamore Drive Tel : 408-383-3700 Milpitas, CA 95035, USA Fax: 408-383-3702 www.optoma.com.br www.optoma.com.mx
62
Page 63
Appendices
Korea
WOOMI TECH.CO.,LTD. 4F,Minu Bldg.33-14, Kangnam-Ku, Tel : +82+2+34430004 seoul,135-815, KOREA Fax: +82+2+34430005
Japan
東京都足立区綾瀬3-25-18 株式会社オーエスエム E-mail : [email protected] サポートセンター:0120-46-5040 www.os-worldwide.com
Taiwan
5F., No. 108, Minchiuan Rd. Tel : +886-2-2218-2360 Shindian City, Fax: +886-2-2218-2313 Taipei Taiwan 231, R.O.C. Service : [email protected] www.optoma.com.tw asia.optoma.com
Hong Kong
Unit A, 27/F Dragon Centre, 79 Wing Hong Street, Tel : +852-2396-8968 Cheung Sha Wan, Fax: +852-2370-1222 Kowloon, Hong Kong www.optoma.com.hk
China
5F, No. 1205, Kaixuan Rd., Tel : +86-21-62947376 Changning District Fax: +86-21-62947375 Shanghai, 200052, China www.optoma.com.cn
63
English
Page 64
Appendices
Regulation & Safety notices
This appendix lists the general notices of your projector.
FCC notice
This device has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This device generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this device does cause harmful interference to radio or television reception, which can be determined by turning the device off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the device and receiver.
• Connect the device into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/television technician for help.
English
Notice: Shielded cables
All connections to other computing devices must be made using shielded cables to maintain compliance with FCC regulations.
Caution
Changes or modications not expressly approved by the
manufacturer could void the user’s authority, which is granted by the Federal Communications Commission, to operate this projector.
64
Page 65
65
English
Appendices
Operation conditions
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
1. This device may not cause harmful interference and
2. This device must accept any interference received,
including interference that may cause undesired operation.
Notice: Canadian users
This Class B digital apparatus complies with Canadian ICES-003.
Remarque à l’intention des utilisateurs canadiens
Cet appareil numerique de la classe B est conforme a la
norme
NMB-003 du Canada.
Declaration of Conformity for EU countries
• EMC Directive 2004/108/EC (including amendments)
• Low Voltage Directive 2006/95/EC
• R & TTE Directive 1999/5/EC (if product has RF function)
Disposal instructions
Do not throw this electronic device into the trash when discarding. To minimize pollution and ensure utmost protection of the global environment, please recycle it.
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
