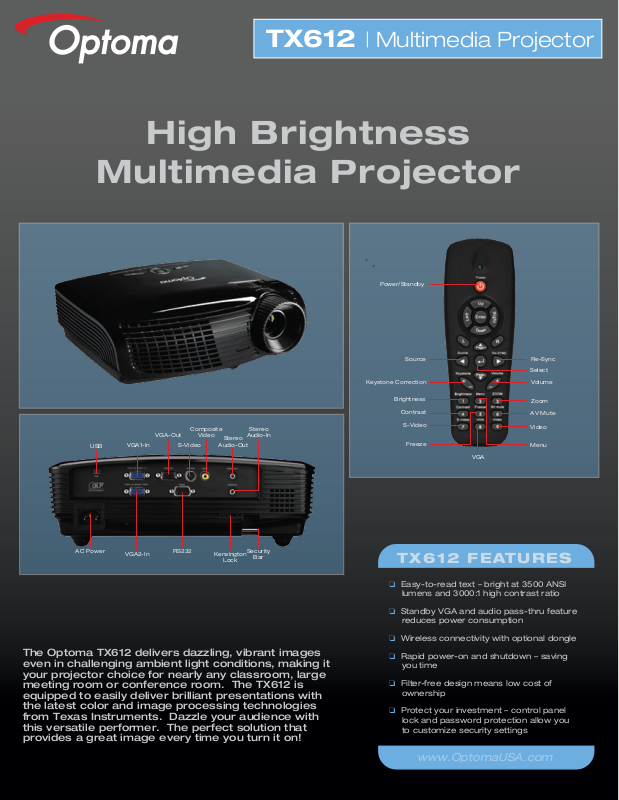

Optoma Technology TX612 User Manual

TX612 | Multimedia Projector

www.OptomaUSA.com

High Brightness

Multimedia Projector

Power/Standby

USB

AC Power

VGA1-In

VGA2-In

VGA-Out

RS232

Composite

S-Video

Video

Audio-Out

Kensington

Stereo

Lock

Stereo

Audio-In

Security

Bar

The Optoma TX612 delivers dazzling, vibrant images even in challenging ambient light conditions, making it your projector choice for nearly any classroom, large meeting room or conference room. The TX612 is equipped to easily deliver brilliant presentations with the latest color and image processing technologies from Texas Instruments. Dazzle your audience with this versatile performer. The perfect solution that provides a great image every time you turn it on!

Source

Keystone Correction

Brightness

Contrast

S-Video

Freeze

VGA

TX612 FEATURES

❏ Easy-to-read text – bright at 3500 ANSI

lumens and 3000:1 high contrast ratio

❏ Standby VGA and audio pass-thru feature

reduces power consumption

❏ Wireless connectivity with optional dongle

❏ Rapid power-on and shutdown – saving

you time

❏ Filter-free design means low cost of

ownership

❏ Protect your investment – control panel

lock and password protection allow you to customize security settings

Re-Sync

Select

Volume

Zoom

AV Mute

Video

TX612 | Multimedia Projector

Power/ Standby

Lamp

LED

Select

Re-Sync

Source

Temp LED

Four

Directional

Keys

Help

Power

LED

Keystone +

Keystone -

www.OptomaUSA.com

Specifications

Projection Distance/Image Size

Projection Distance

(Feet)

Maximum Diagonal

(Inches)

108

123

138

Control Panel

Optional Accessories

Lamp:

Remote:

Power Cord (1m):

Power Cord (11m):

S-Video Cable (1.8m):

Composite Cable (1.8m):

VGA Cable (5m):

VGA to Component Cable (5m):

VGA to Component Adapter:

Ceiling Mount:

Carrying Case:

100” Matte White 4:3 Manual Pull-Down Screen:

Minimum Diagonal

(Inches)

112

126

BL-FP230E

BR-5030L

BC-PUPIXY01

BC-PUPIXY11

BC-SVSVXX02

BC-COCOXX02

BC-VGVGXX05

BC-VGCRXX05

BC-VGCRXY00

BM-5001U

BK-4028

DS-3100PM

Display Technology:

Resolution:

Maximum Resolution:

Brightness (Typical):

Contrast Ratio:

Lamp Type:

Lamp Life (STD/Bright):

Throw Ratio:

Image Size (Diagonal):

Projection Distance:

Noise Level (STD/Bright):

Remote Control:

Computer Compatibility:

Video Compatibility:

Aspect Ratio:

Projection Lens:

Offset:

Loop Through:

User Controls:

Audio:

Keystone Correction:

Vertical Refresh Rate:

Horizontal Scan Rate:

Power Supply:

Power Consumption:

Weight:

Dimensions (W x H x D):

Operating Temperature:

Displayable Colors:

Projection Method:

Uniformity:

Security:

I/O Connectors:

Standard Accessories:

Optional Accessories:

Warranty:

UPC:

Single 0.55” DMD DLP

Technology by Texas Instruments

Native XGA (1024 x 768)

UXGA (1600 x 1200)

3500 ANSI Lumens

3000:1 (Full On/Full Off)

230W P-VIP

Estimated at 4000/3000 Hours

1.95 to 2.15:1 (Distance/Width)

27.5” to 303” (0.7 to 7.69 m)

3.93’ to 39.3’ (1.2 to 12 m)

29dB/34dB

IR Remote Control

UXGA, WXGA, SXGA+, SXGA, XGA, SVGA, VGA Resized, VESA, PC and Macintosh Compatible

NTSC, PAL, SECAM, SDTV (480i), EDTV (480p), HDTV (720p, 1080i/p)

4:3 Native, 16:9 & 16:10 Compatible

F=2.4~2.55, f=21.8~24 mm, 1.1x Zoom & Focus

115%

Monitor: D-Sub 15-Pin VGA Output

Audio: Stereo Mini-Jack Output (Functional in Both Normal and Standby Modes)

Complete On-Screen Menu Adjustments in 23 Languages

2-Watt Speaker

± 40° Vertical

25 to 85 Hz

15.3 to 91.1 KHz

AC Input 100-240V, 50-60 Hz, Auto-Switching

328 Watts (Bright), 272 Watts (STD) <1 Watt (Standby)

6.4 lbs (2.9 kg)

12.76” x 3.82” x 9.21” (324 x 97 x 234 mm)

41° to 104°F (5° to 40°C), 80% Max Humidity, Adjustable Fan Speed for High Altitude Application

1.07 Billion

Front, Rear, Ceiling Mount, Table Top

85%

Kensington® Lock, Keypad Lock and Security Bar

Two VGA-In, VGA-Out, S-Video, Composite Video, Stereo Audio-In, Stereo Audio-Out, RS-232 and USB

AC Power Cord, VGA to VGA Cable, Remote Control, Batteries for Remote, Carrying Case, Lens Cap, Quick Start Card, CD-ROM User’s Manual and Warranty Card

Wireless Dongle, Ceiling Mount, VGA to Component Cable, S-Video Cable, Composite Video Cable, RS-232 Cable and Panoview™ Series Screens

3 Years Limited Parts and Labor, Up to 1 Year on Lamp

796435 41 144 2

Data-TX612-001-0809

NO FILTER REQUIRED

All Specifications are subject to change without notice. ©2009 Optoma Technology, Inc. DLP® and the DLP logo are registered trademarks of Texas Instraments. All other names mentioned herein are property of their respective owners.
