Optoma TW695UT 3D, TX565UT 3D User Guide

1
English

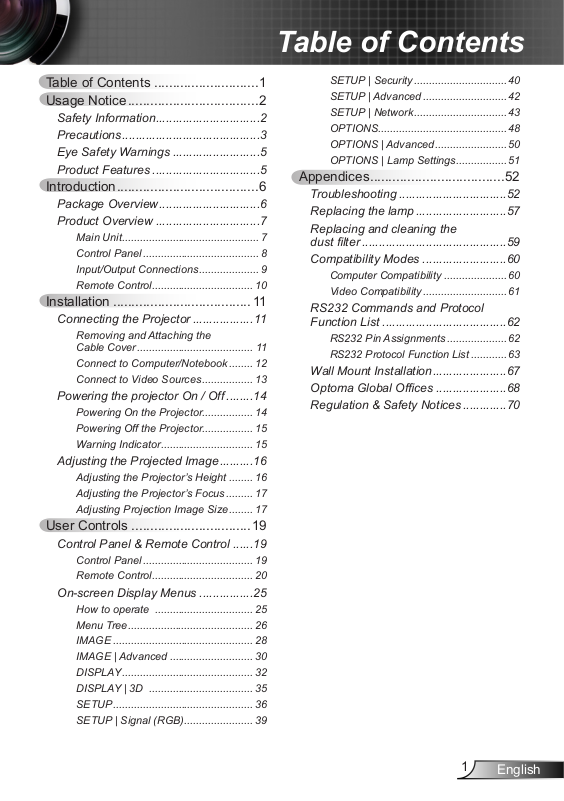

Table of Contents

Table of Contents ............................1
Usage Notice ...................................2
Safety Information ...............................2
Precautions .........................................3
Eye Safety Warnings ..........................5
Product Features ................................5
Introduction ......................................6
Package Overview ..............................6
Product Overview ...............................7
Main Unit ..............................................7
Control Panel ....................................... 8
Input/Output Connections .................... 9
Remote Control ..................................10
Installation ..................................... 11
Connecting the Projector .................. 11
Removing and Attaching the
Cable Cover ....................................... 11
Connect to Computer/Notebook ........ 12
Connect to Video Sources ................. 13
Powering the projector On / Off ........14
Powering On the Projector .................14
Powering Off the Projector .................15
Warning Indicator ...............................15
Adjusting the Projected Image ..........16
Adjusting the Projector’s Height ........ 16
Adjusting the Projector’s Focus ......... 17
Adjusting Projection Image Size ........ 17
User Controls ................................19
Control Panel & Remote Control ......19
Control Panel ..................................... 19
Remote Control ..................................20
On-screen Display Menus ................25
How to operate .................................25
Menu Tree .......................................... 26

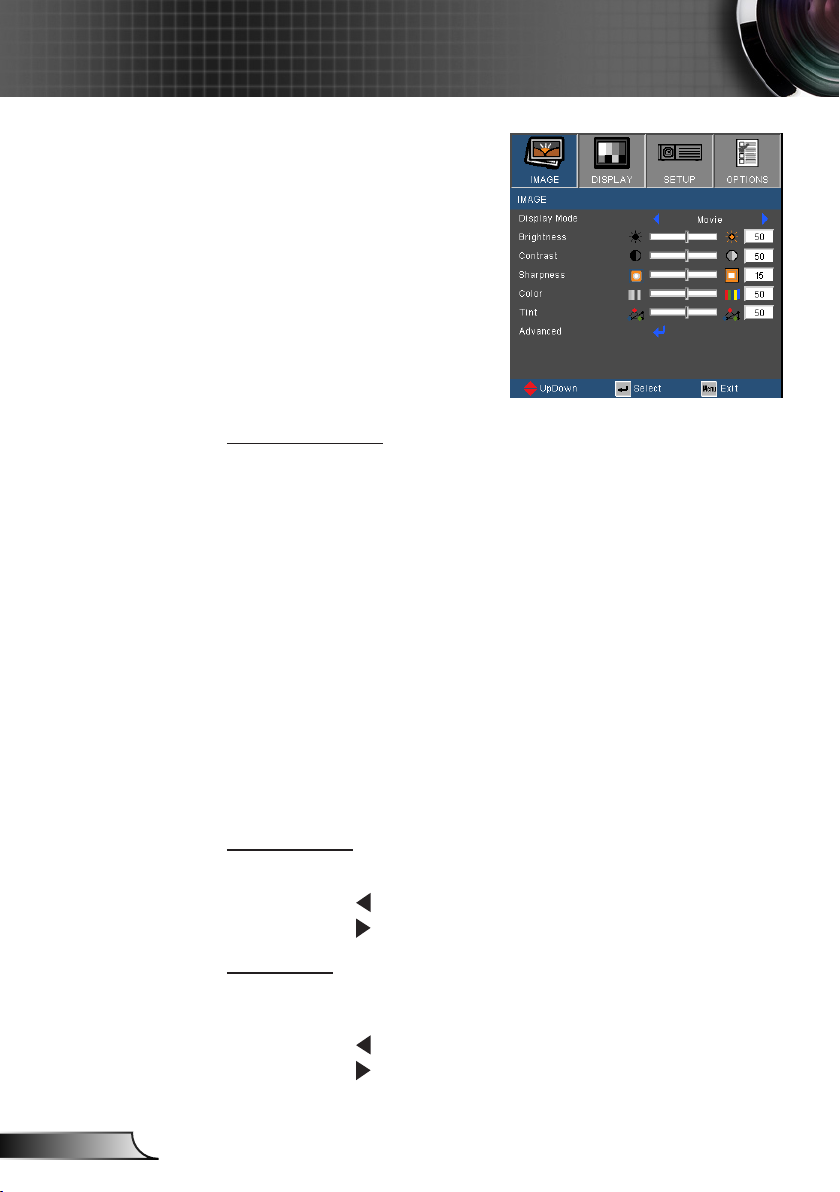

IMAGE ............................................... 28

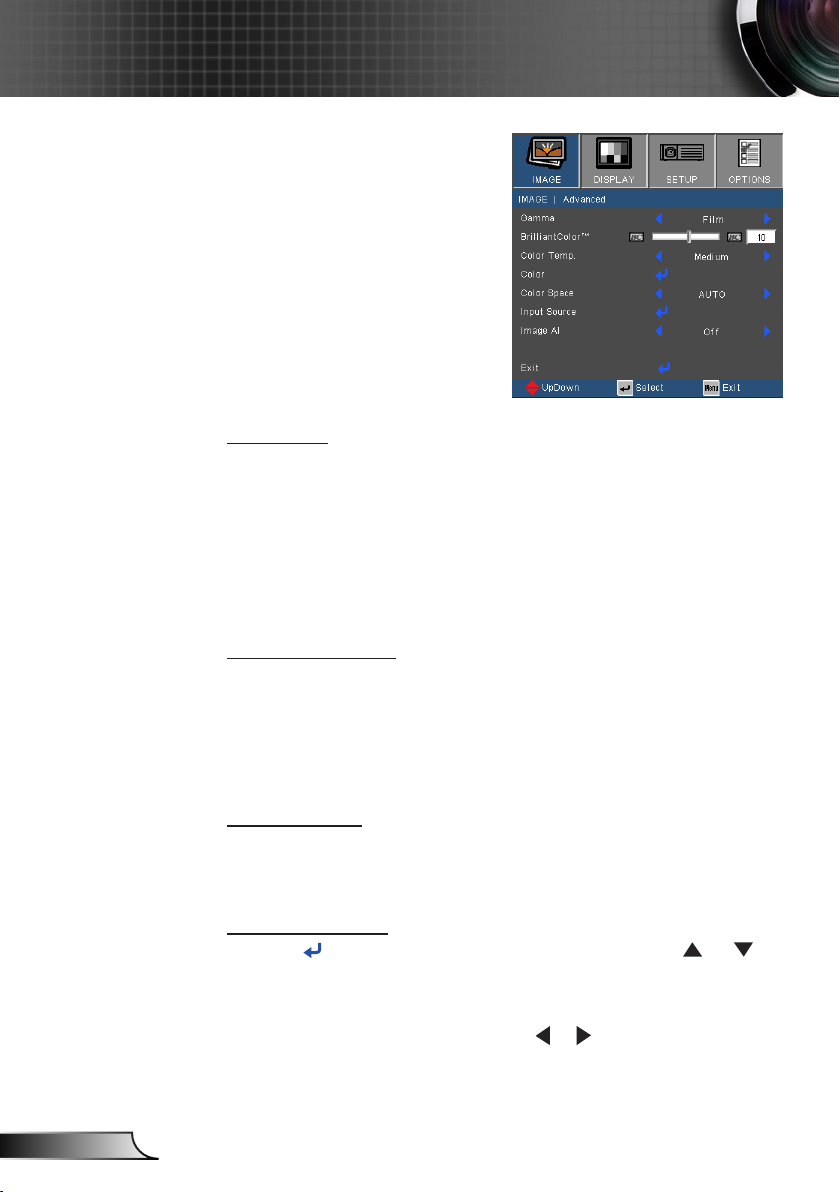

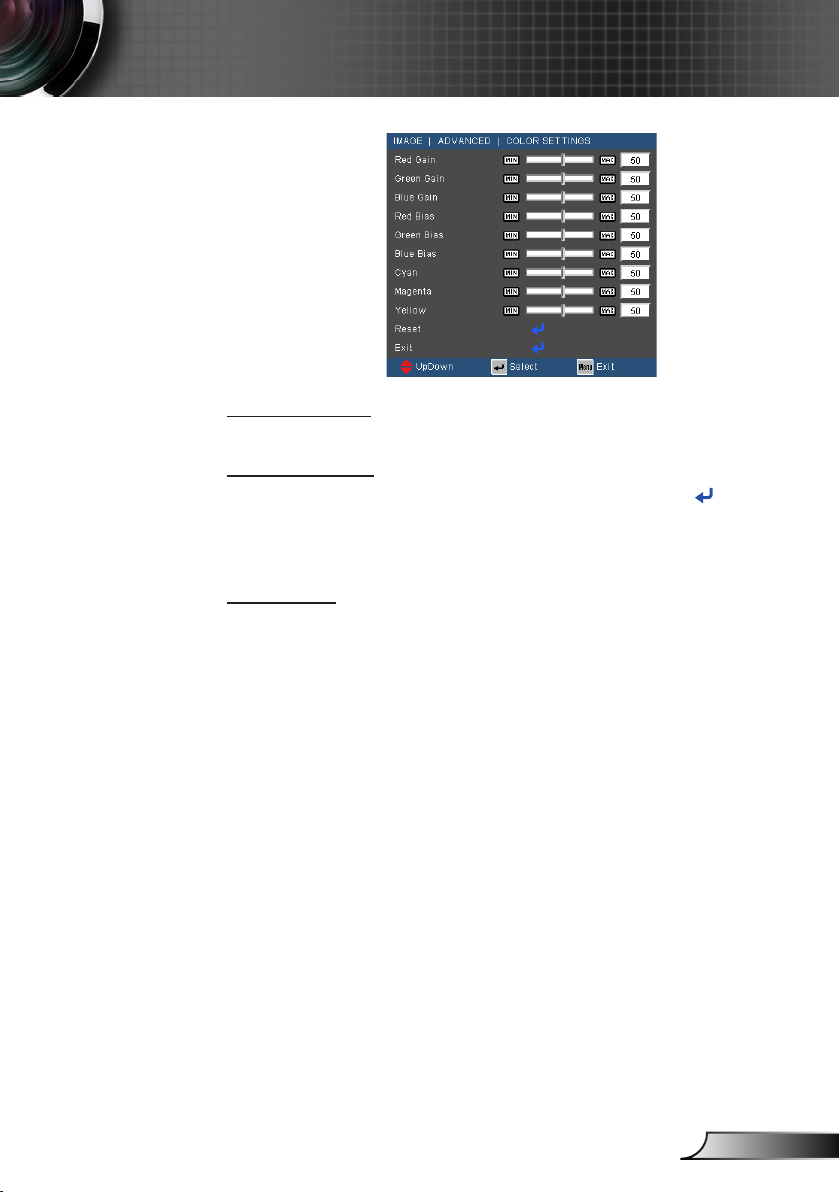

IMAGE | Advanced ............................ 30

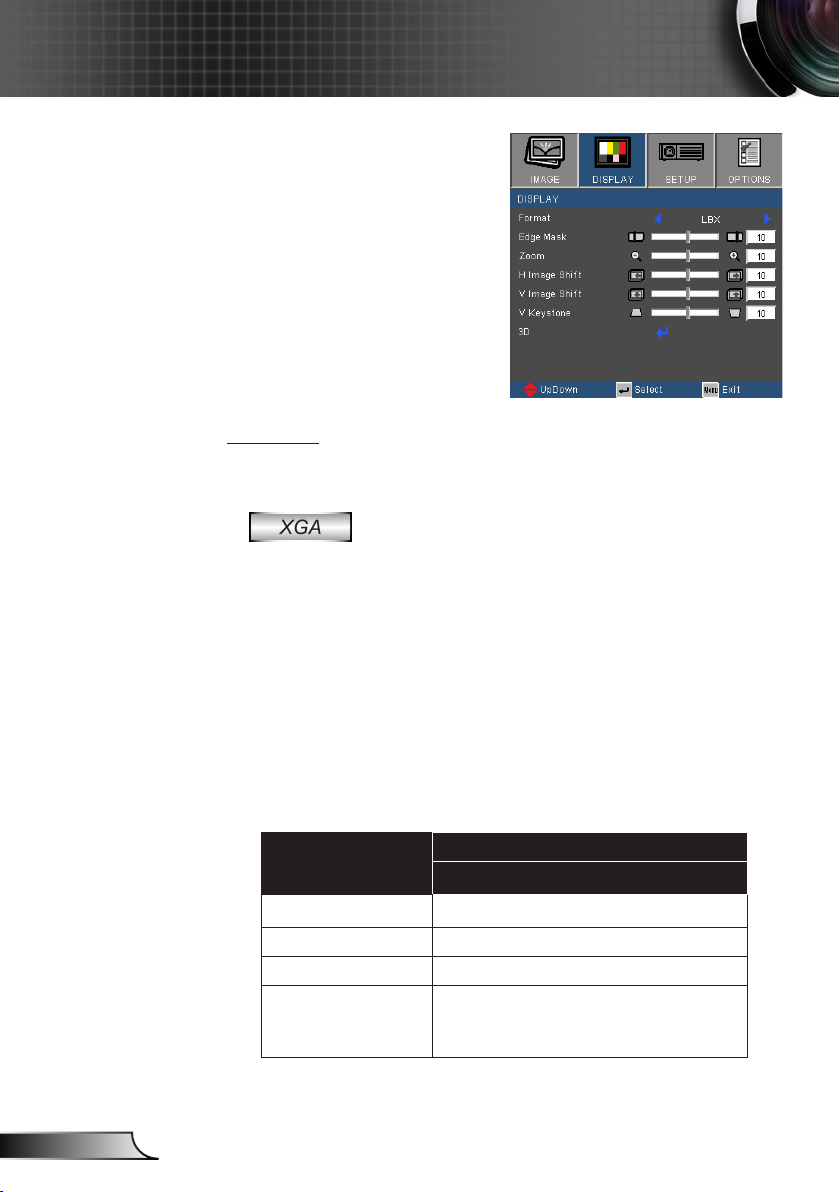

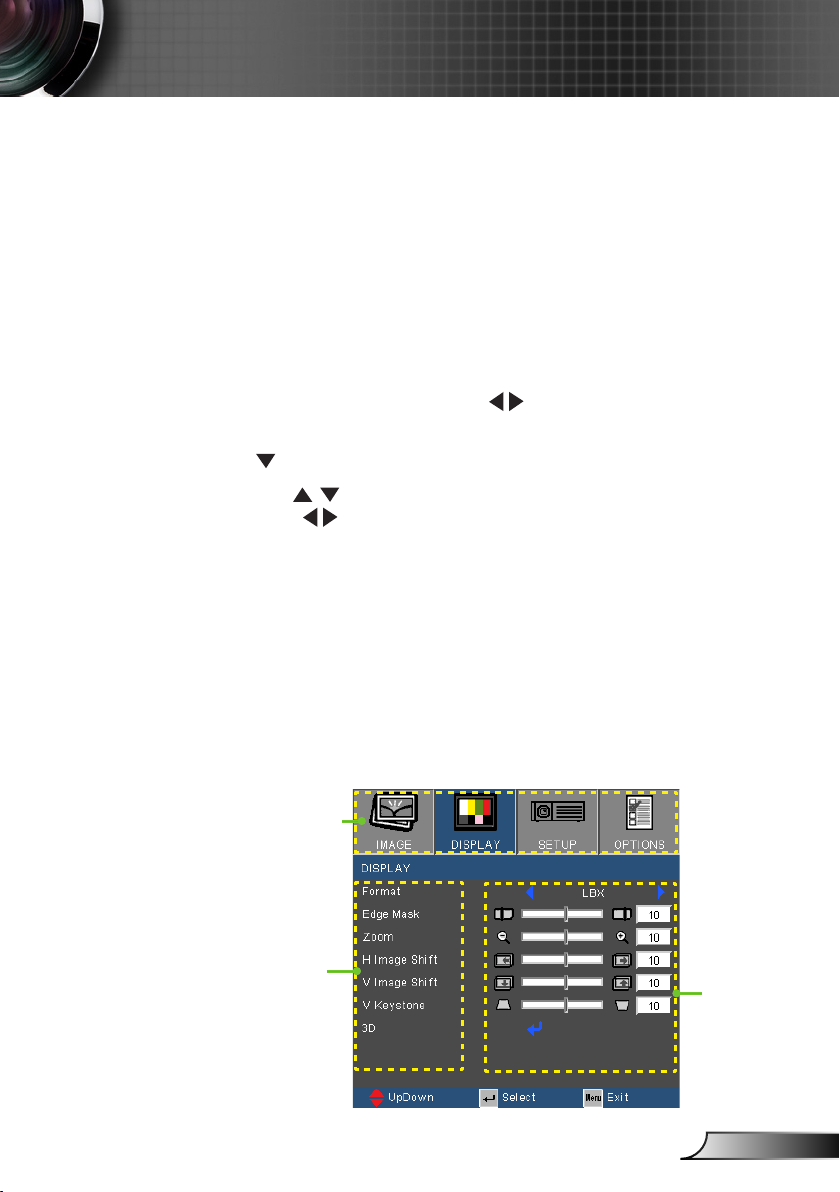

DISPLAY ............................................ 32

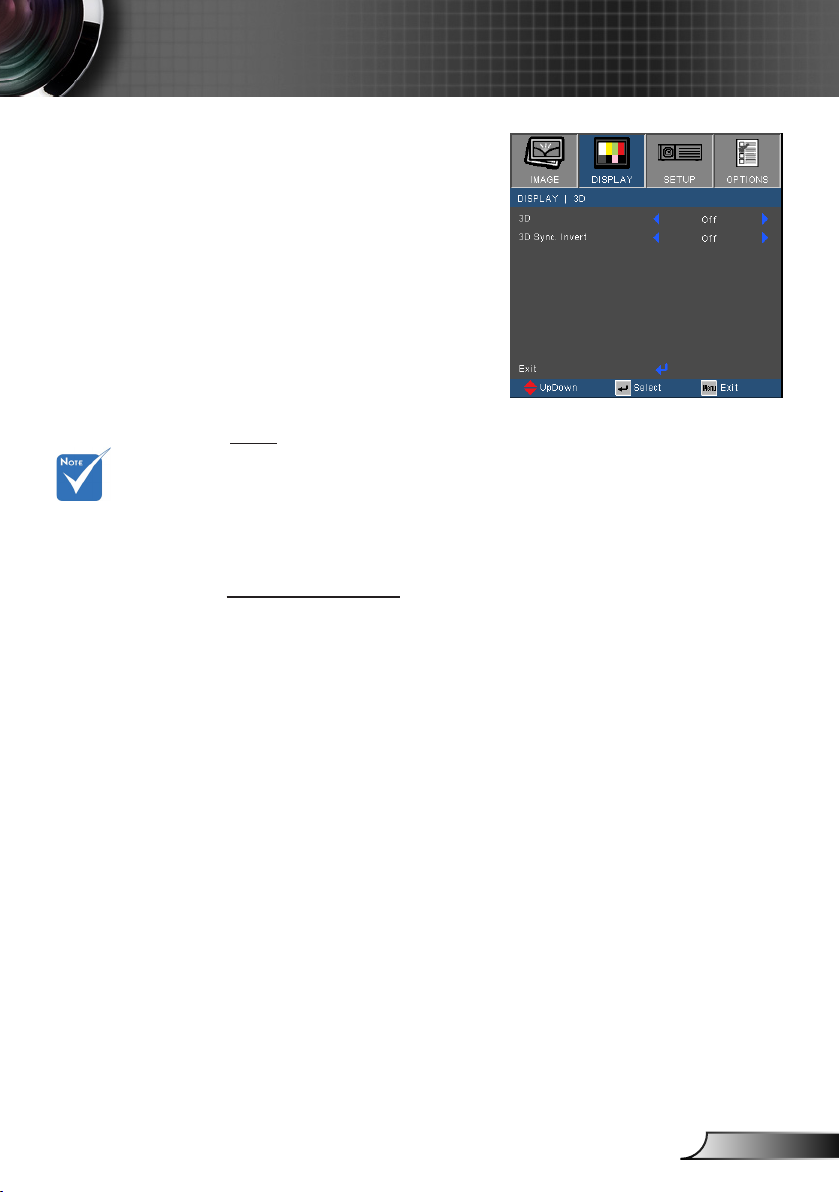

DISPLAY | 3D ................................... 35

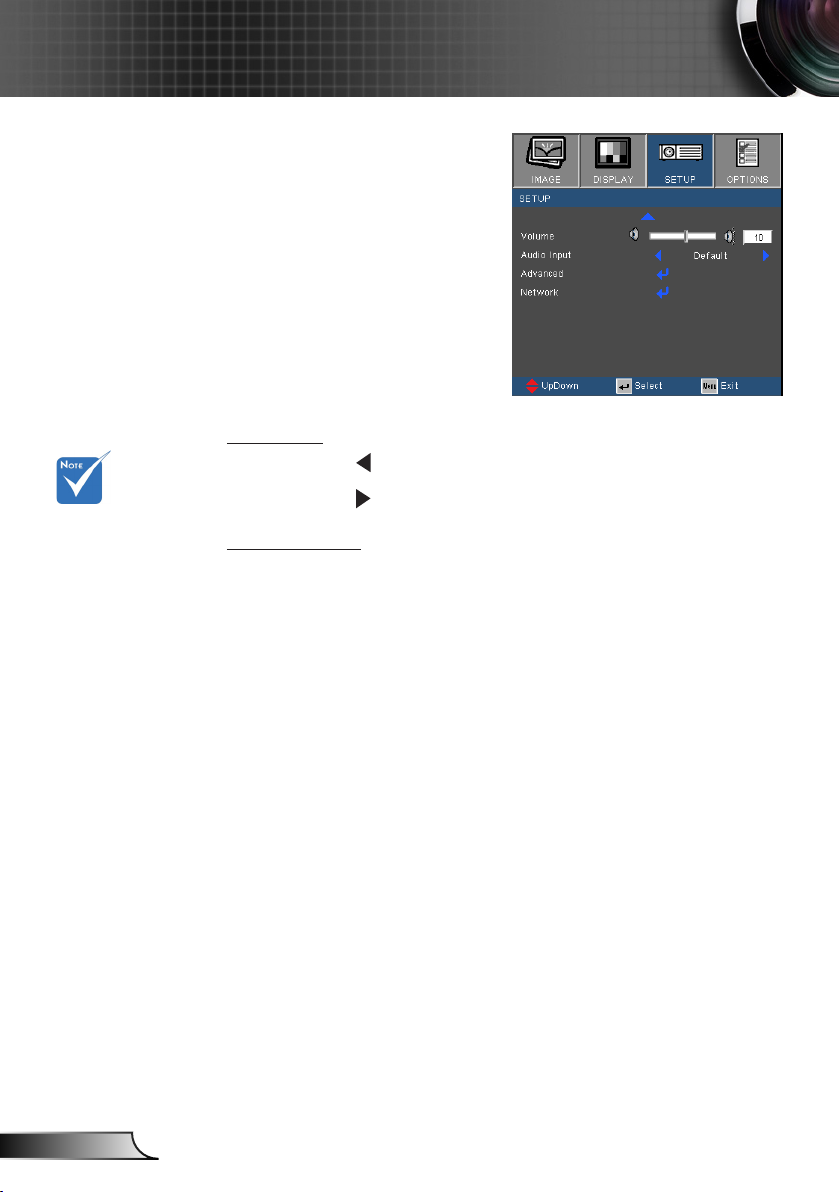

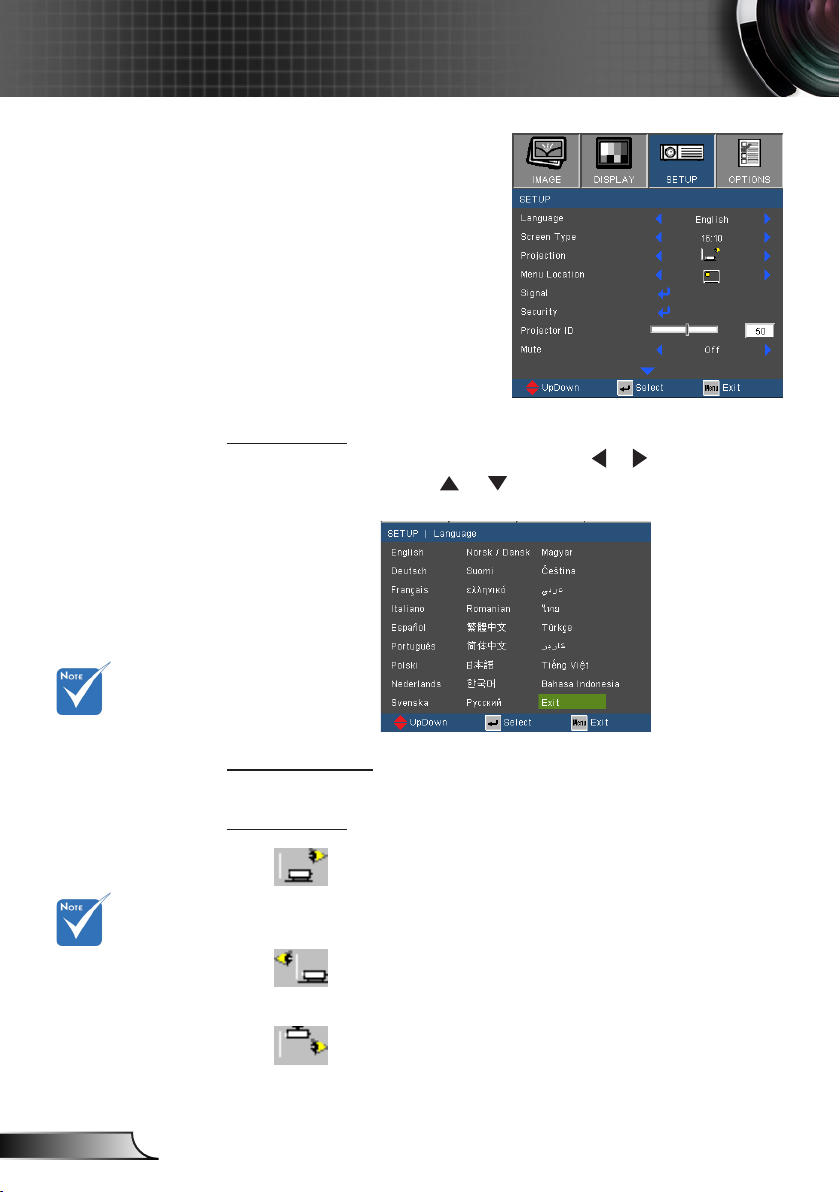

SETUP ............................................... 36

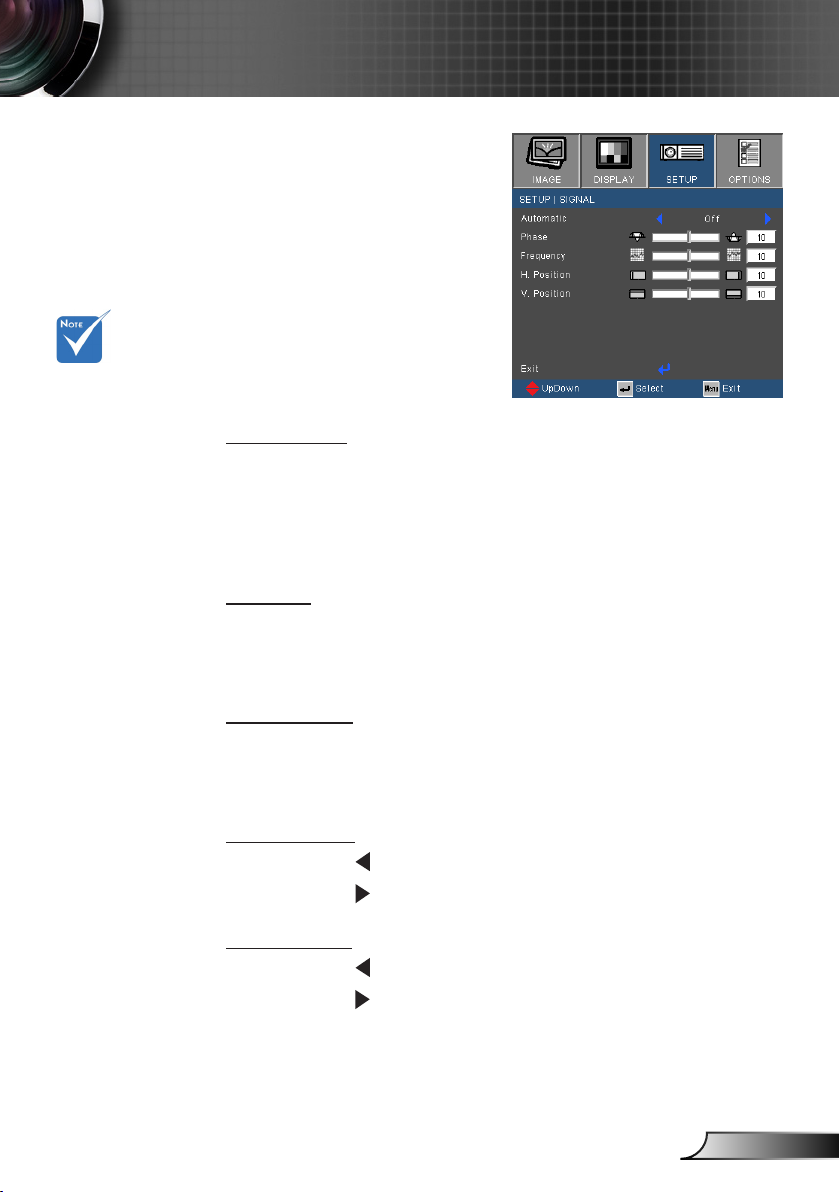

SETUP | Signal (RGB) ....................... 39

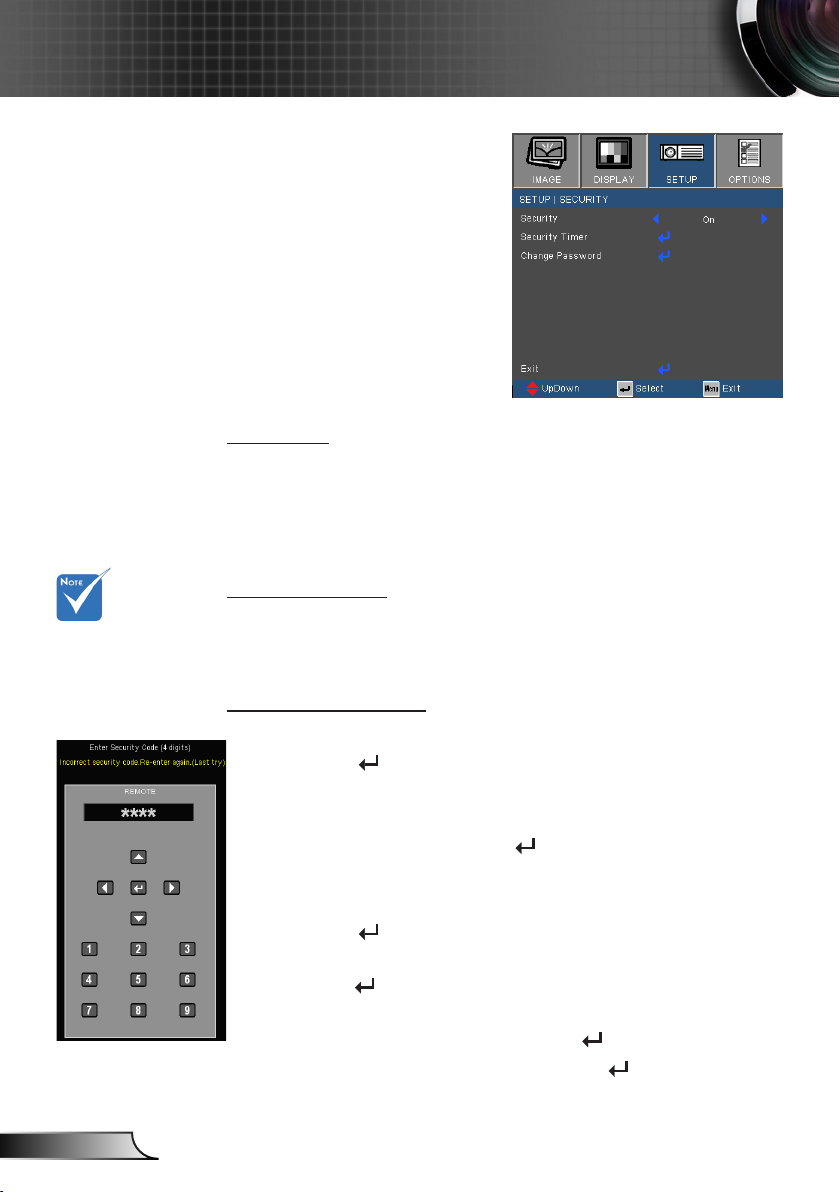

SETUP | Security ............................... 40

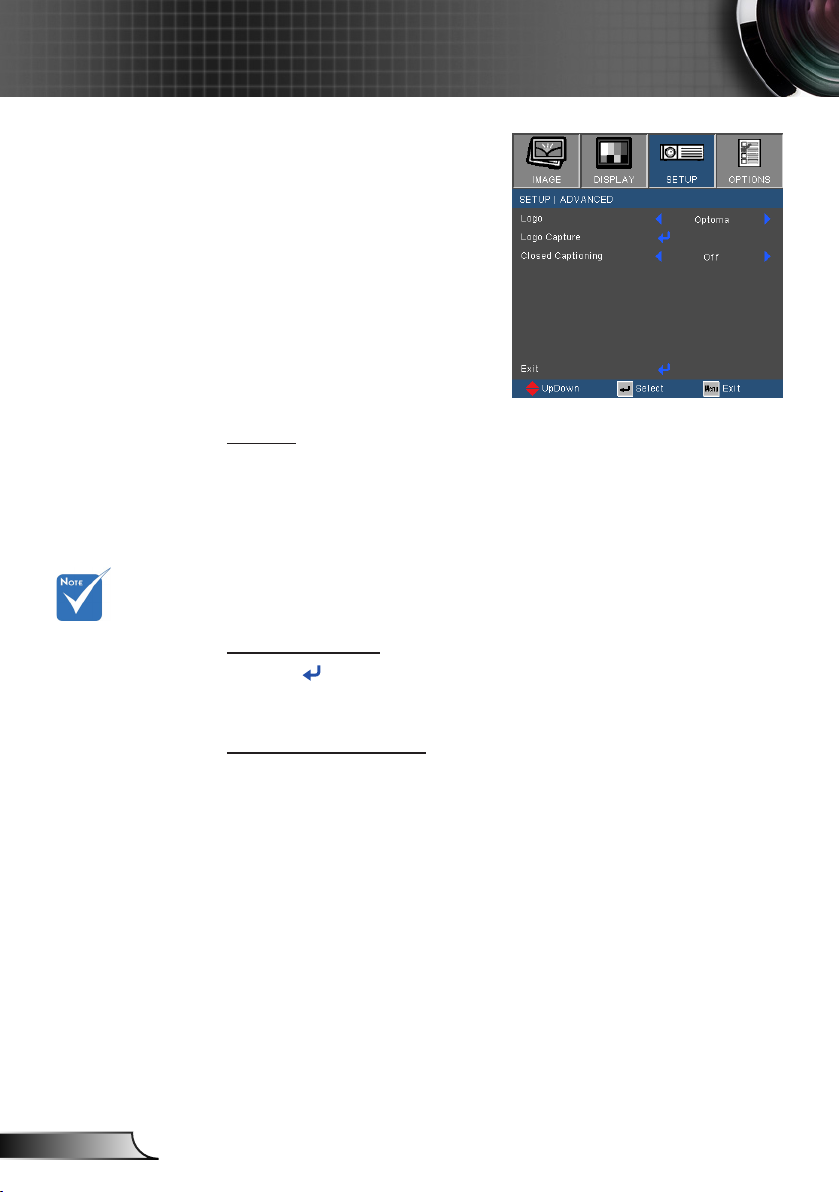

SETUP | Advanced ............................ 42

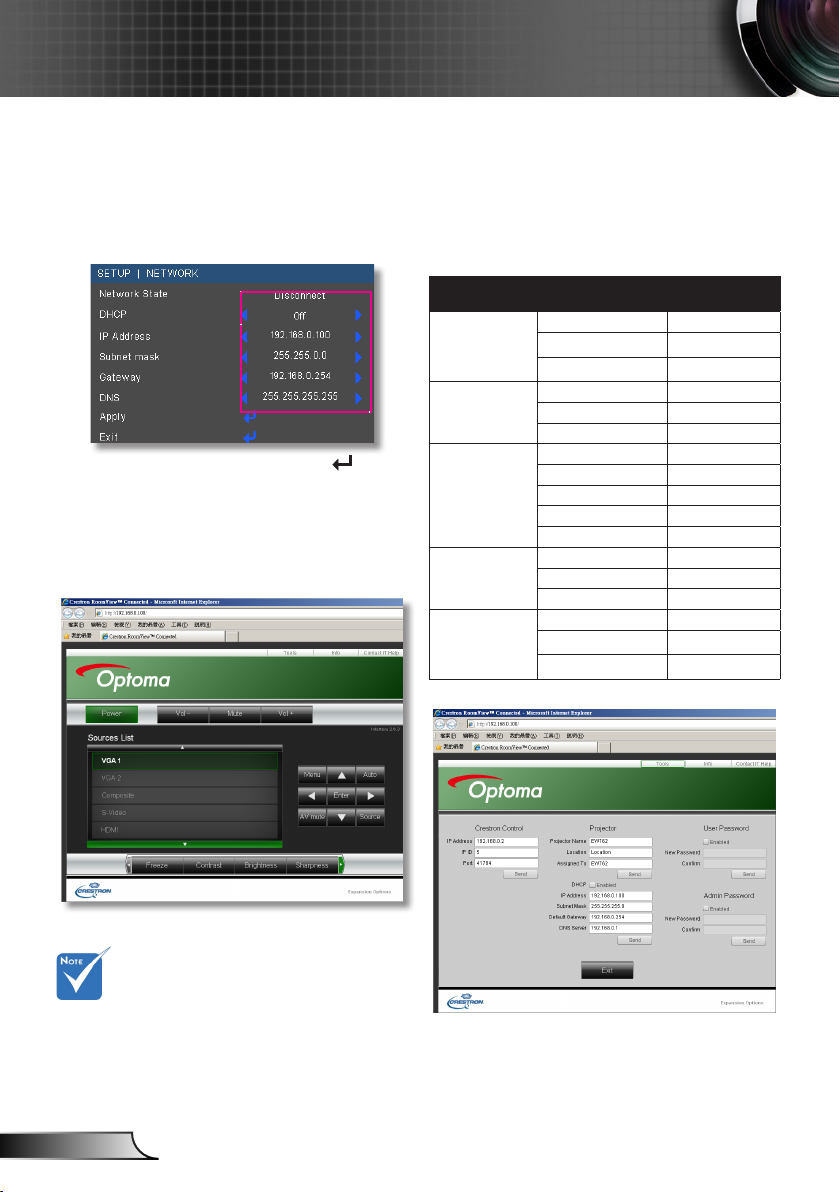

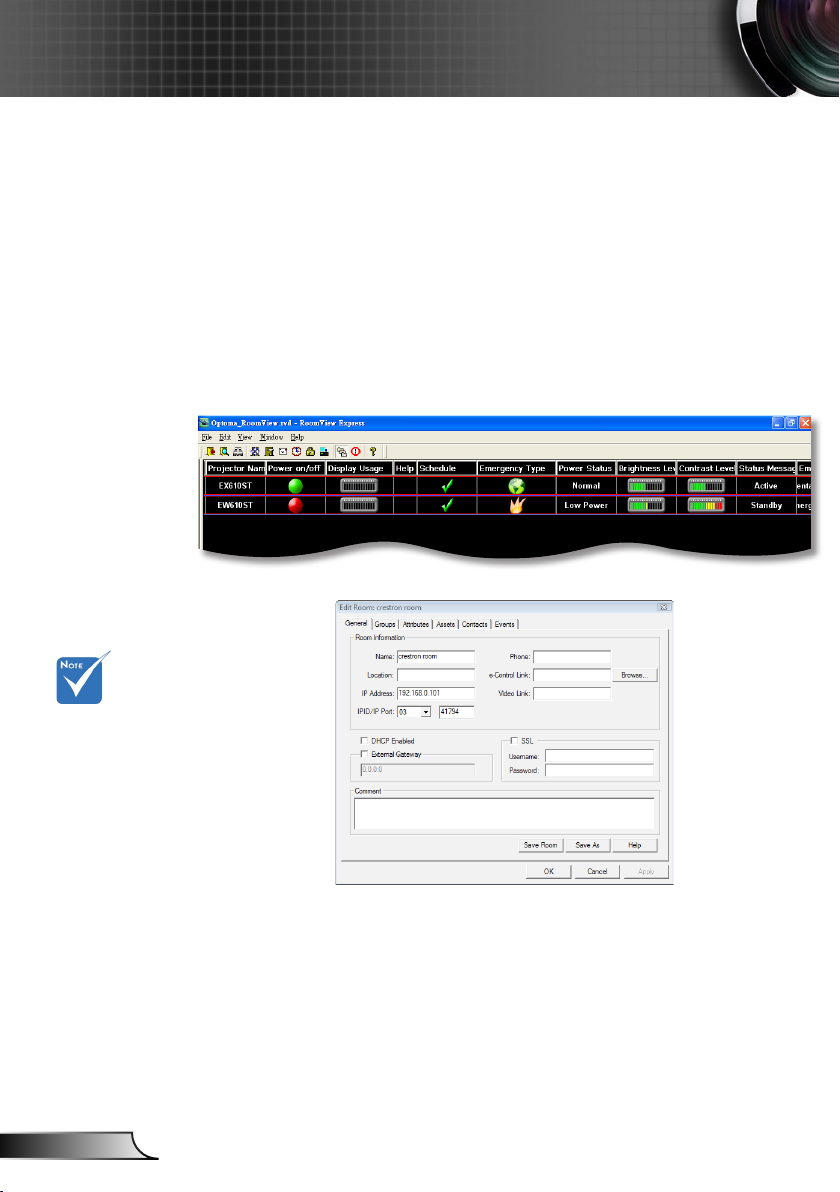

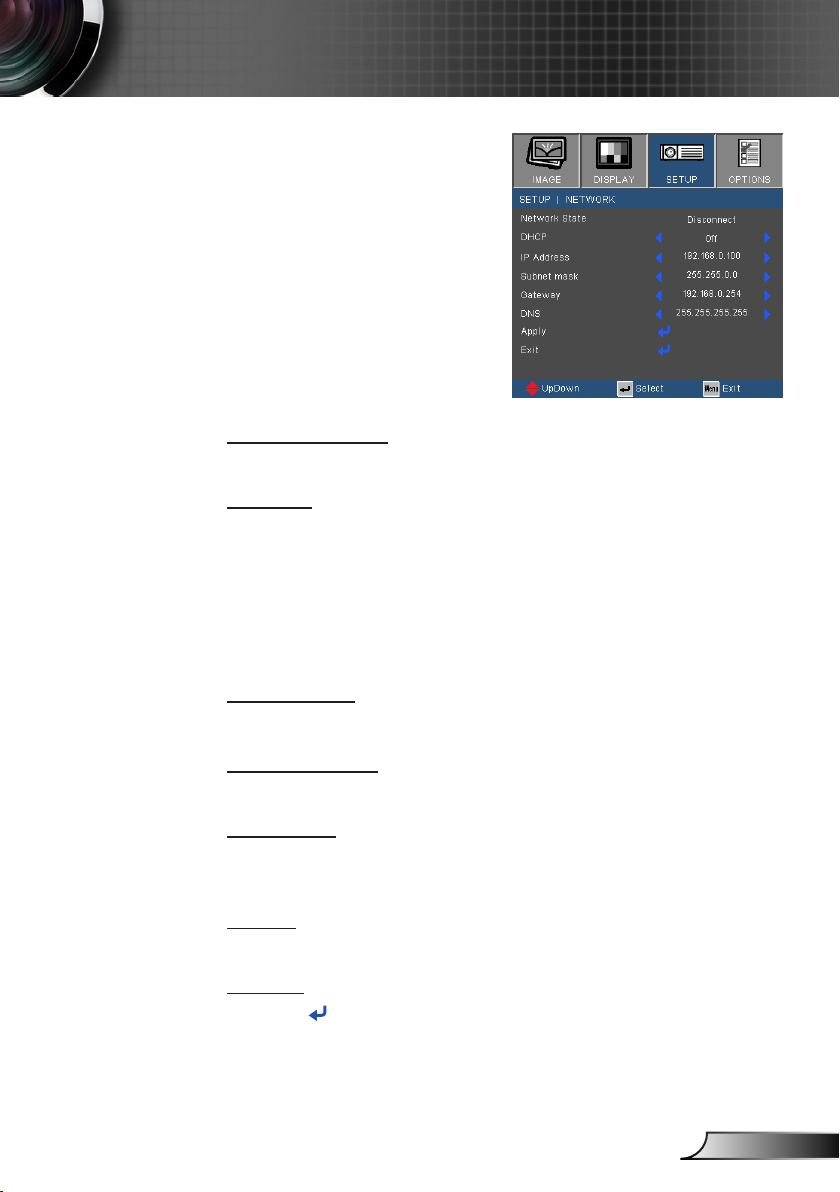

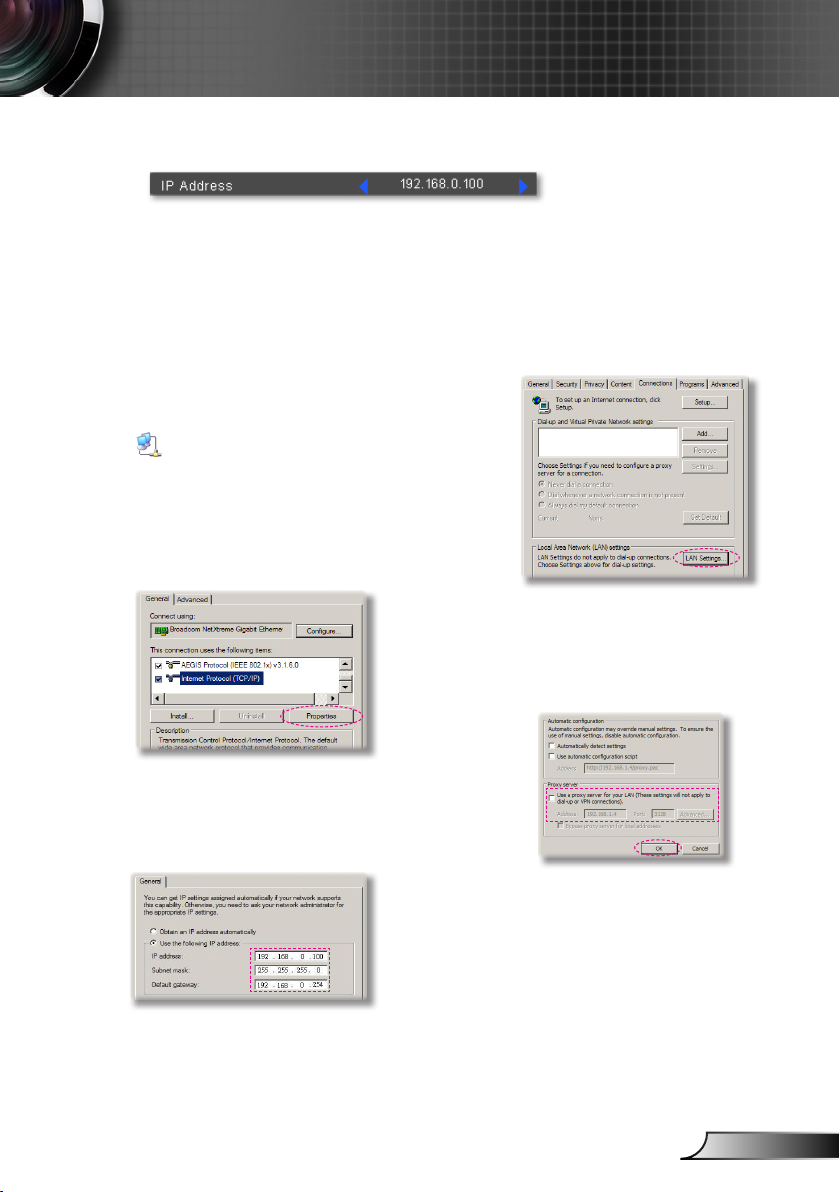

SETUP | Network ............................... 43

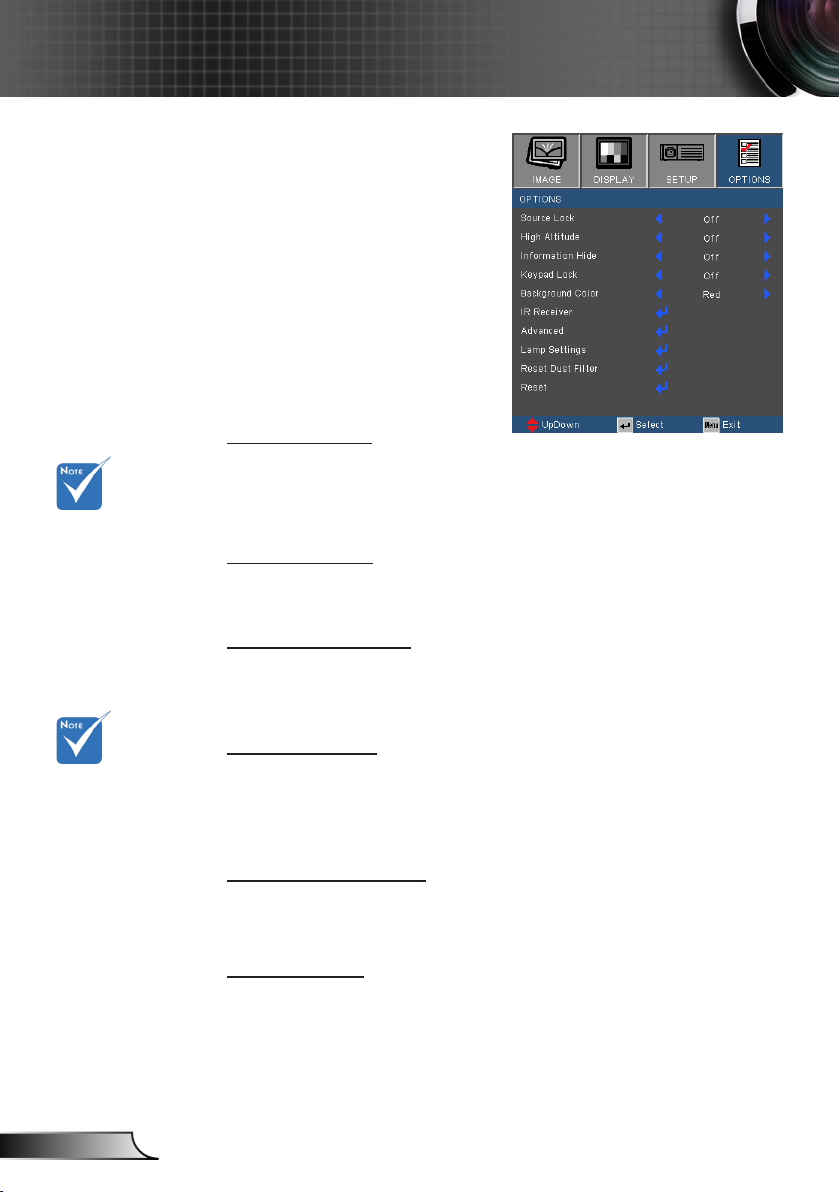

OPTIONS ........................................... 48

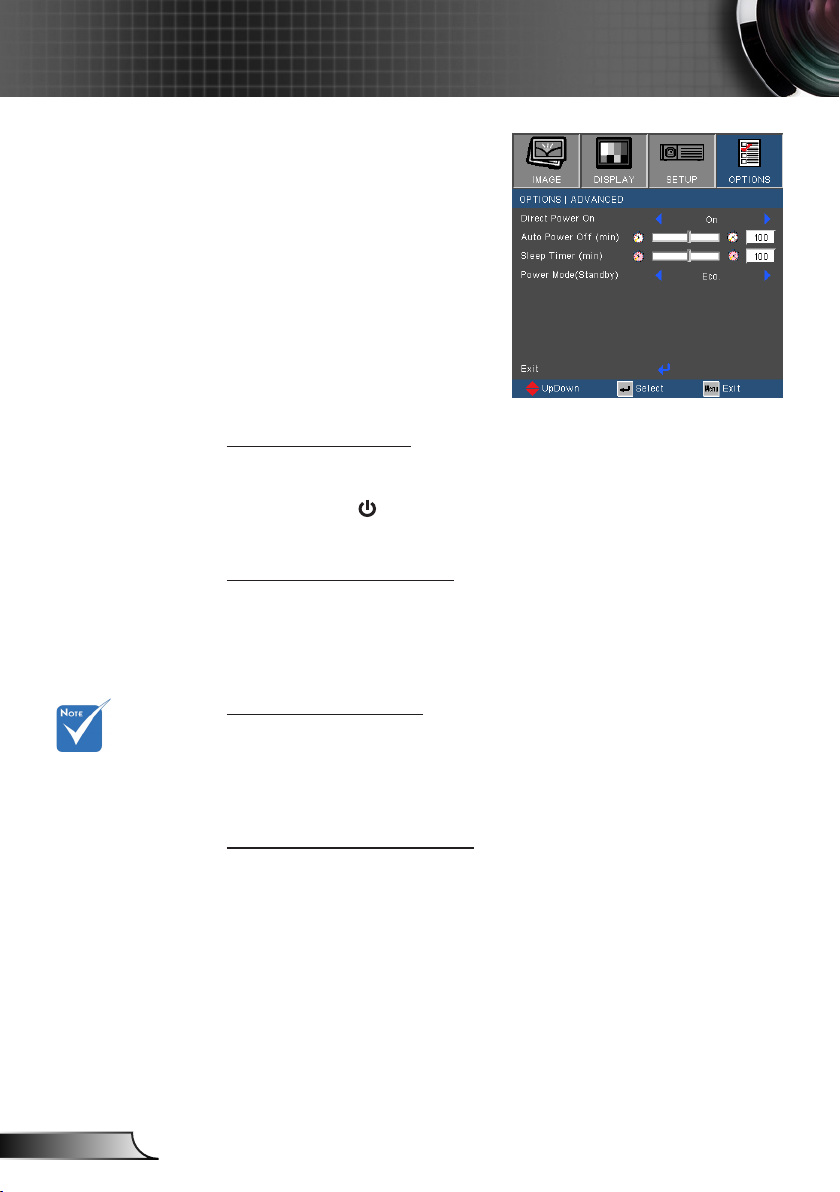

OPTIONS | Advanced ........................ 50

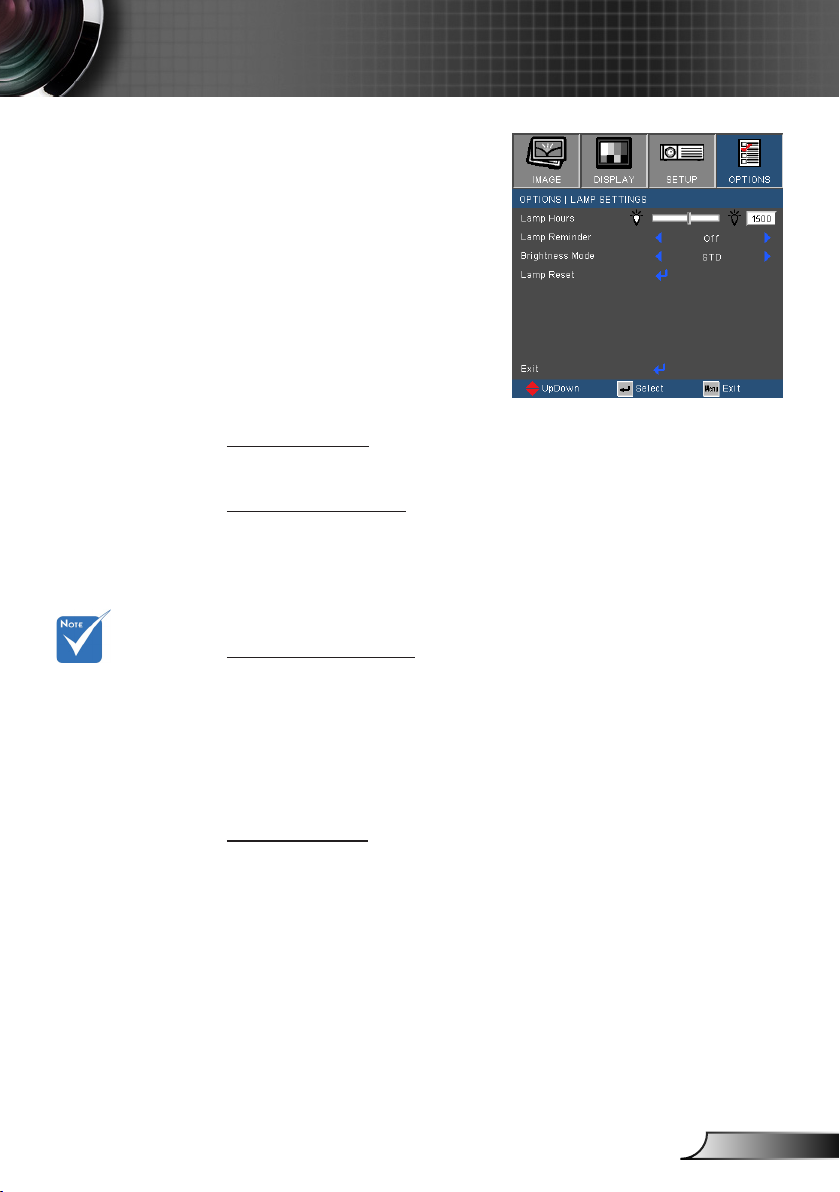

OPTIONS | Lamp Settings ................. 51
Appendices ....................................52
Replacing and cleaning the
Computer Compatibility .....................60
Video Compatibility ............................ 61
RS232 Commands and Protocol
Function List .....................................62

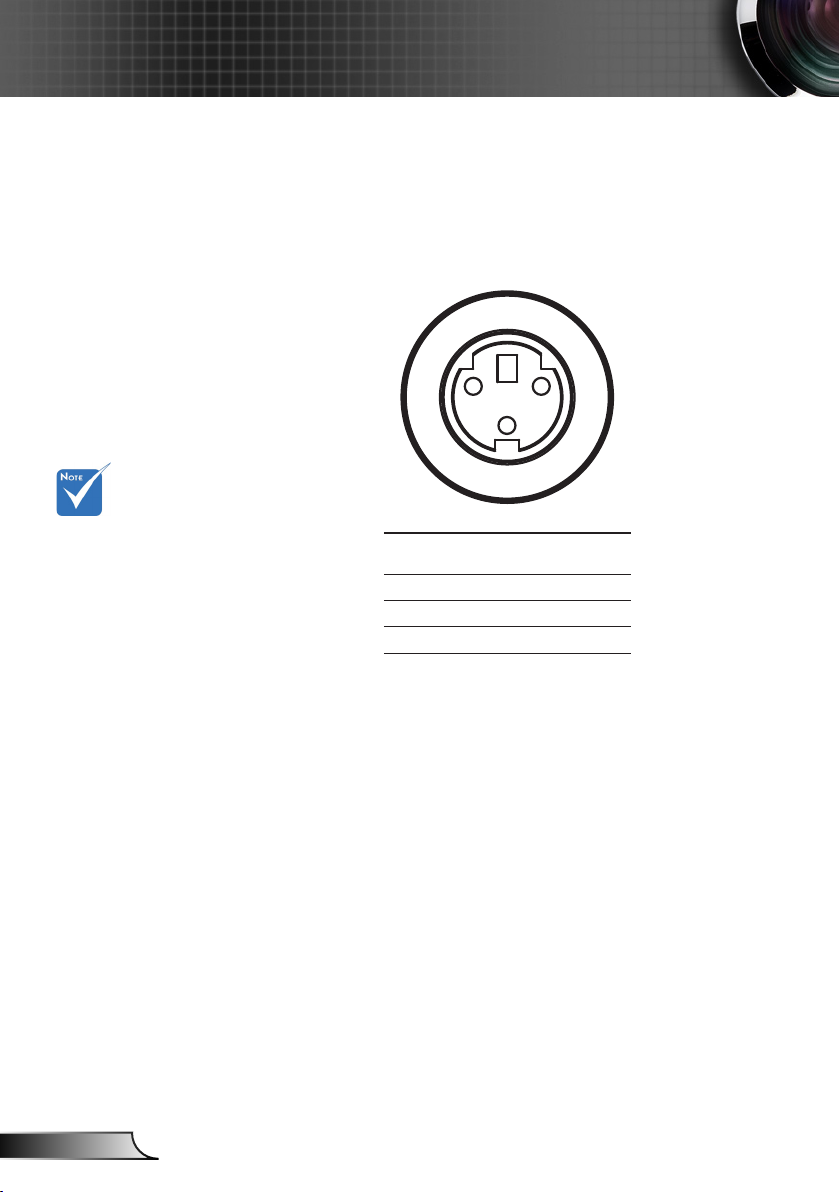

RS232 Pin Assignments .................... 62
RS232 Protocol Function List ............ 63
2
English

Usage Notice

Safety Information

The lightning ash with arrow head within an equilateral triangle is
intended to alert the user to the presence of uninsulated “dangerous
voltage” within the product’s enclosure that may be of sufcient magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT
EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. DANGEROUS HIGH VOLTAGES ARE PRESENT INSIDE THE ENCLOSURE. DO NOT OPEN THE CABINET. REFER SERVICING TO QUALIFIED PERSONNEL ONLY.
Class B emissions limits
This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations.
Important Safety Instruction
1. Do not block any ventilation openings. To ensure reliable operation of the projector and to protect from over heating, it is recommended to install the projector in a location that does not block ventilation. As an example, do not place the projector on a crowded coffee table, sofa, bed, etc. Do not put the projector in an enclosure such as a book case or a cabinet that restricts air ow.
2. Do not use the projector near water or moisture. To reduce the risk of re and/or electric shock, do not expose the projector to rain or moisture.
3. Do not install near heat sources such as radiators, heaters, stoves or
any other apparatus such as ampliers that emits heat.
4. Clean only with dry cloth.
5. Only use attachments/accessories specied by the manufacturer.
6. Do not use the unit if it has been physically damaged or abused. Physical damage/abuse would be (but not limited to):
Unit has been dropped.Power supply cord or plug has been damaged.Liquid has been spilled on to the projector.Projector has been exposed to rain or moisture.Something has fallen in the projector or something is loose inside.
Do not attempt to service the unit yourself. Opening or removing covers may expose you to dangerous voltages or other hazards. Please call Optoma before you send the unit for repair.
7. Do not let objects or liquids enter the projector. They may touch dangerous voltage points and short out parts that could result in re or electric shock.
8. See projector enclosure for safety related markings.
9. The unit should only be repaired by appropriate service personnel.
3
English
Usage Notice

Precautions

Please follow all warnings, precautions and maintenance as recommended in this user’s guide.
▀■ Warning- Do not look into the projector’s lens when the lamp is
on. The bright light may hurt and damage your eyes.
▀■ Warning- To reduce the risk of re or electric shock, do not
expose this projector to rain or moisture.
▀■ Warning- Please do not open or disassemble the projector as
this may cause electric shock.

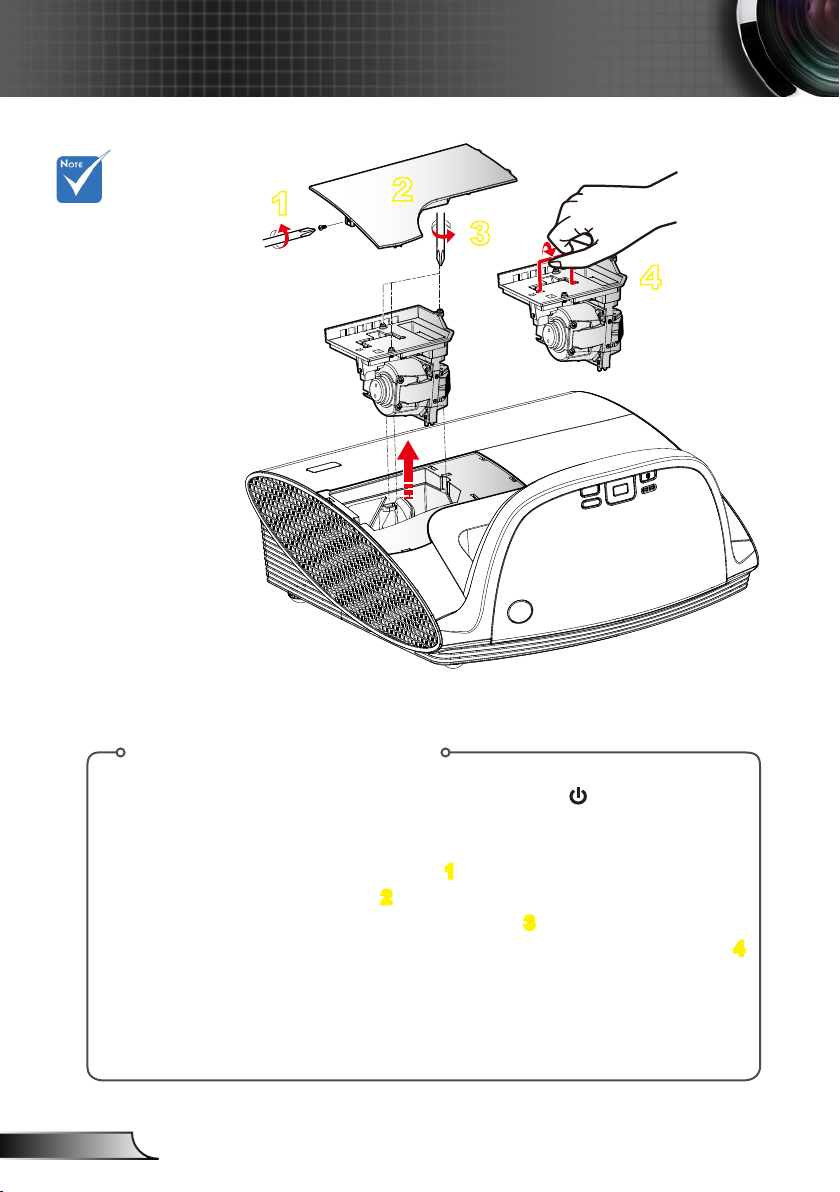

▀■ Warning- When replacing the lamp, please allow the unit to
cool down. Follow instructions as described on pages
57-58.
▀■ Warning- This projector will detect the life of the lamp itself.
Please be sure to change the lamp when it shows warning messages.
▀■ Warning- Reset the “Lamp Reset” function from the on-screen
display “OPTIONS | Lamp Settings” menu after replacing the lamp module (refer to page 51).
When the lamp
reaches the end of its life, the pro-
jector will not turn back on until the lamp module has
been replaced. To replace the
lamp, follow the
procedures listed under “Replacing
the Lamp” section
on pages 57-58.
▀■ Warning- When switching the projector off, please ensure
the cooling cycle has been completed before disconnecting power. Allow 90 seconds for the projector to cool down.
▀■ Warning- Do not use lens cap when projector is in operation.

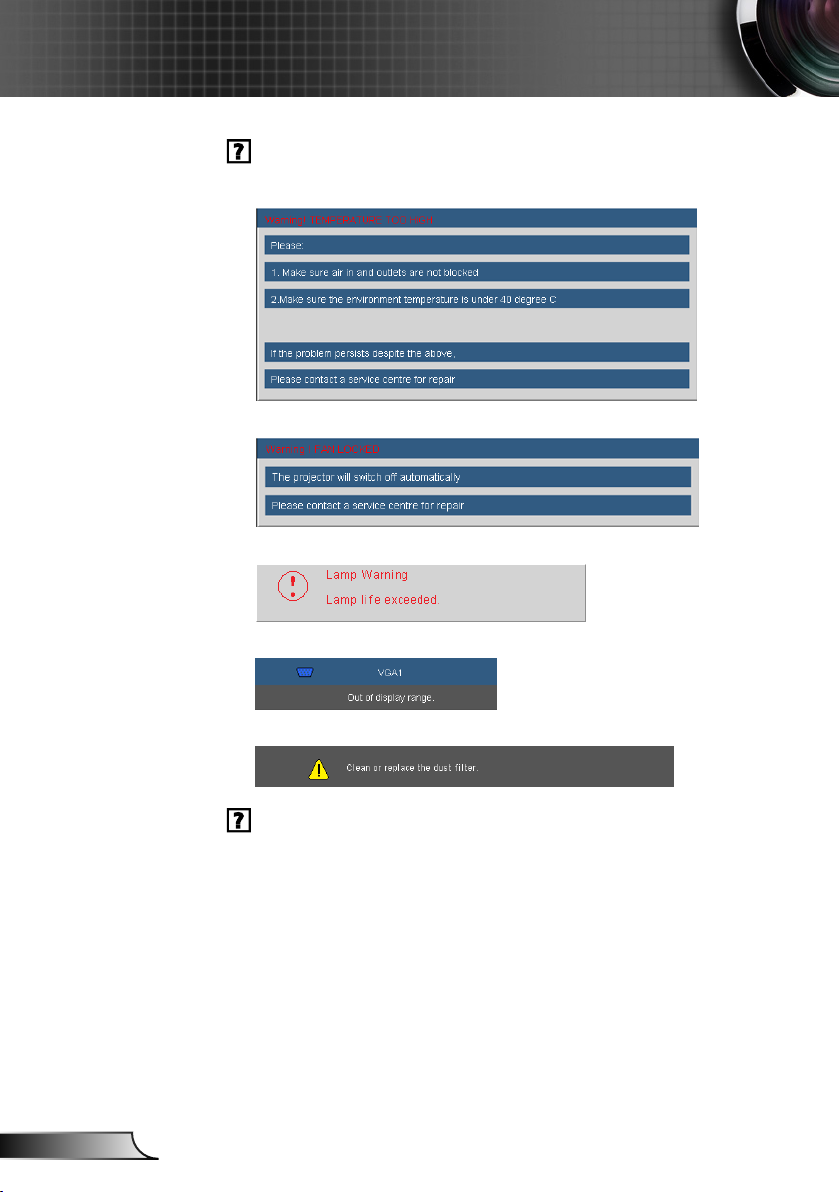

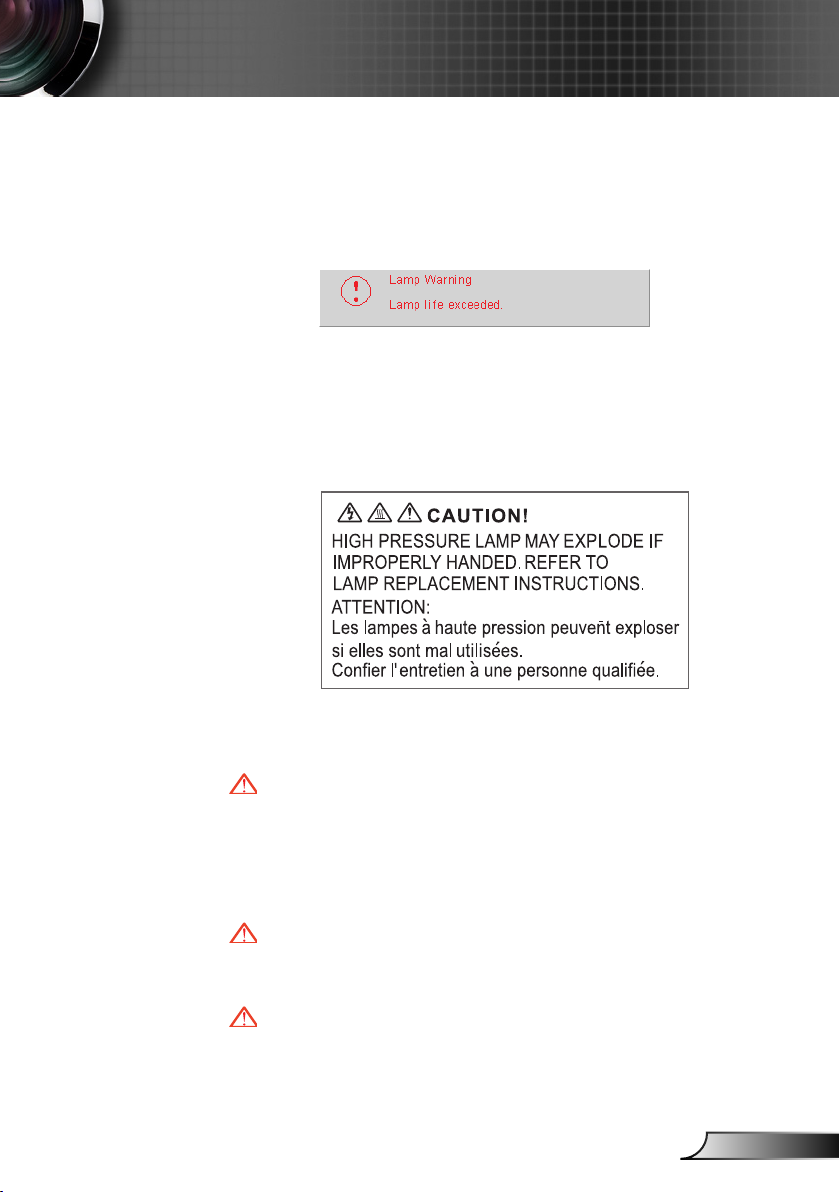

▀■ Warning- When the lamp is approaching the end of its lifetime,
the message “Lamp Warning: Lamp life exceeded.” will show on the screen. Please contact your local reseller or service center to change the lamp as soon
as possible.
▀■ Warning- Do not look into or point the laser pointer on your
remote control into your or someone’s eyes. Laser pointer can cause permanent damage to eyesight.
4
English
Usage Notice
Do:
Turn off and unplug the power plug from the AC outlet before
cleaning the product.
Use a soft dry cloth with mild detergent to clean the display
housing.
Disconnect the power plug from AC outlet if the product is
not being used for a long period of time.
Do not:
Block the slots and openings on the unit provided for
ventilation.
Use abrasive cleaners, waxes or solvents to clean the unit.
Use under the following conditions:
- In extremely hot, cold or humid environments.
Ensure that the ambient room temperature is within
5 - 35°C.
Relative Humidity is 5 - 35°C, 80% (Max.),
non-condensing.
- In areas susceptible to excessive dust and dirt.
- Near any appliance generating a strong magnetic eld.
- In direct sunlight.
5
English
Usage Notice

Eye Safety Warnings

▀■ Avoid staring/facing directly into the projector beam at all
times. Keep your back to the beam as much as possible.
▀■ When projector is used in a classroom, adequately supervise
students when they are asked to point out something on the
screen.
▀■ In order to minimize the lamp power, use room blinds to
reduce ambient light levels.

Product Features

Monitor loop
through only sup­port in VGA1-In/ SCART/YPbPr.
▀■ XGA (1024x768) Native resolution /
WXGA (1280x800) Native resolution
▀■ HD compatible – 1080p supported
▀■ VGA monitor loop through
(works on standby mode > 1W)
▀■ BrilliantColorTM Technology
▀■ Security Bar and Kensington Lock
▀■ RS232 control
▀■ Rapid shutdown ▀■ Built-in speakers ▀■ Network support
6
English

Introduction

Package Overview

Unpack and inspect the box contents to ensure all parts listed below are in the box. If something is missing, please contact your nearest customer service center.
Due to different
applications in
each country, some regions may have
different accessories.
Projector with lens cap
2 × AAA Batteries
Documentation :
User’s Manual

Warranty Card

Quick Start Card

WEEE Card

(for EMEA only)
Power Cord 1.8m
IR Remote Control
VGA Cable 1.8m
7
English
Introduction
RS-232 S-VIDEO VIDEO
AUDIO1-IN
AUDIO OUT
(VGA1/VGA2)
12V OUT
MIC
L R
AUDIO2-IN (S-VIDEO/VIDEO)
VGA1-IN / SCART / YPbPr
VGA2-IN / YPbPr
VGA-OUT
HDMI
SERVICE
RJ-45

Product Overview

Main Unit

3
11112
2
7
6
5 5
9
8
10
2
1413
1. Control Panel
2. IR Receivers
3. Cable Cover
4. Speaker
5. Tilt-Adjustment Feet
6. Mirror Cover
7. Input / Output Connections 8 Power Socket
9. Focus Lever
10. Lens
11. Ventilation (inlet)
12. Ventilation (outlet)
13. KensingtonTM Lock Port
14. Security Bar
15. Dust lter
4
5
15
8
English
Introduction

Control Panel

3 41
6
1. Lamp LED
2. Temp LED
3. Source
4. Re-Sync
5. Help
6. Power/Standby button and LED
7. Enter
8. Keystone Correction
9. Four Directional Select Keys
10. Menu
8
52
9
107
9
English
Introduction
RS-232 S-VIDEO VIDEO
AUDIO1-IN
AUDIO OUT
(VGA1/VGA2)
12V OUT
MIC
L R
AUDIO2-IN (S-VIDEO/VIDEO)
VGA1-IN / SCART / YPbPr
VGA2-IN / YPbPr
VGA-OUT
HDMI
SERVICE
RJ-45
12V OUT

Input/Output Connections

Monitor loop
through only sup­port in VGA1-In/ SCART/YPbPr.
5431 2
10
11
12
13
6
14
1. 12V Trigger Relay (12V, 250mA)
2. 3.5mm Mini Jack Audio1 Input for VGA1/VGA2
3. 3pin Mini-din RS232
4. Composite Video Input
5. S-Video Input
6. VGA1/SCART/YPbPr Input
7. VGA-Out (monitor loop through)
8. HDMI v1.3 Input
9. 5pin Mini-USB for rmware upgrade
10. 3.5mm Audio Output (Variable)
11. 3.5mm Microphone Input
12. Left/Right RCA Audio2 Input
13. Power Socket
14. VGA2/YPbPr Input
15. RJ45
7 8
9
15
10
English
Introduction
1
2
12
13
The interface
is subject to model’s speci­cations.
14
15
16
17
18
19
20

Remote Control

21
2322
1. LED Indicator
2. Power On/Off
3. Four Directional
Select Keys
4. Mouse Right Click
24
5. Page Up
6. Re-Sync
7. Page Down
3
8. Volume +/-
9. 3D
4
10. AV mute
5
11. Video
6
12. PC/Mouse control
13. Mouse Left Click
7
14. Enter/Help
8
15. Source
16. Keystone +/-
9
17. Menu
10
18. Brightness
19. HDMI
11
20. S-Video
21. Numbered keypad (for password input)
22. Freeze
23. VGA
24. Laser Pointer
11
English

Installation

1
2

Connecting the Projector

Removing and Attaching the Cable Cover

Cable Cover
Procedure for Removing and Attaching the Cable Cover:
1. Unscrew the screw on the cable cover. 1
2. Lift up and remove the cable cover. 2 Install the cable cover by reversing the previous steps.
12
English
Installation
RS-232 S-VIDEO VIDEO
AUDIO1-IN
AUDIO OUT
(VGA1/VGA2)
12V OUT
MIC
L R
AUDIO2-IN (S-VIDEO/VIDEO)
VGA1-IN / SCART / YPbPr
VGA2-IN / YPbPr
VGA-OUT
HDMI
SERVICE
RJ-45
mol ex
MOLEX
E62405SP
R

Connect to Computer/Notebook

Due to the
difference in applications for each
country, some regions may
have different accessories.
(*) Optional
accessory
+12V Output
3
4
Audio Output
10
5
6
7
2
1
8
9
1....................................................................................................Power Cord
2......................................................................................*Audio Output Cable
3.........................................................................................*Audio Input Cable
4................................................................................................*RS232 Cable
5.....................................................................................................VGA Cable
6..................................................................................................*HDMI Cable
7....................................................................................................*USB Cable
8..............................................................................................*Network Cable
9........................................................................................*VGA Output Cable
10.............................................................................................. *12V DC Plug
13
English
Installation
RS-232 S-VIDEO VIDEO
AUDIO1-IN
AUDIO OUT
(VGA1/VGA2)
12V OUT
MIC
L R
AUDIO2-IN (S-VIDEO/VIDEO)
VGA1-IN / SCART / YPbPr
VGA2-IN / YPbPr
VGA-OUT
HDMI
SERVICE
RJ-45
E62405SP
R

Connect to Video Sources

S-Video Output
Composite Video Output
Due to the
difference in applications for each
country, some regions may
have different accessories.
(*) Optional
accessory
1
4
+12V Output
12
Audio Output
DVD Player, Set-top Box,
HDTV receiver
5
6
7
8
3
2
10
DVD Player,
Set-top Box,
HDTV receiver
11
1.................................................................................*Audio Cable RCA/RCA
2........................................................................................ *Microphone Cable
3.................................................................................*Audio Cable Jack/RCA
4................................................................................*Composite Video Cable
5.............................................................................................. *S-Video Cable
6................................................................................... *SCART/VGA Adaptor
7.....................................................................................................VGA Cable
8..................................................................................................*HDMI Cable
9....................................................................................................Power Cord
10..............................................*15-Pin to 3 RCA Component/HDTV Adaptor
11. .......................................................................... *3 RCA Component Cable
12.............................................................................................. *12V DC Plug
9
14
English
Installation
When Power mode
(Standby) is set
to Eco (<1W), the VGA output, Audio pass-through
and RJ45 will be deactivated when
the projector is in
standby.

Powering the projector On / Off

Powering On the Projector

1. Securely connect the power cord and signal cable. When connected, the POWER/STANDBY LED will turn Amber.
2. Turn on the lamp by pressing “ ” button either on the top of the projector or on the remote. The POWER/STANDBY LED will now turn Green.
The startup screen will display in approximately 10 seconds.
The rst time you use the projector, you will be asked to select the preferred language and power saving mode.
3. Turn on and connect the source that you want to display on the screen (computer, notebook, video player, etc). The projector will detect the source automatically. If not, push menu button and go to “OPTIONS”. Make sure that the “Source Lock” has been set to “Off”.
If you connect multiple sources at the same time, press the
“SOURCE” button on the control panel or direct source keys on the remote control to switch between inputs.
Turn on the
projector rst and
then select the signal sources.
or
15
English
Installation

Powering Off the Projector

1. Press the “ ” button on the remote control or on the control panel to turn off the projector.
The following message will be displayed on the screen.
Press the “ ” button again to conrm otherwise the
message will disappear after 15 seconds. When you press the “ ” button for the second time, the projector will display countdown timer and will shut down.
2. The cooling fans continue to operate for about 10 seconds for cooling cycle and the POWER/STANDBY LED will Flash Green. When the POWER/STANDBY LED lights solid Amber, the projector has entered standby mode.
If you wish to turn the projector back on, you must wait
until the projector has completed the cooling cycle and has entered standby mode. Once in standby mode, simply
press “ ” button to restart the projector.
3. Disconnect the power cord from the electrical outlet and
the projector.
4. Do not turn on the projector immediately following a power
off procedure.
Contact the

nearest service center if the
projector displays these symptoms.
See pages
68-69 for more information.

Warning Indicator

When the warning indicators (see below) come on,
the projector will automatically shutdown:
“LAMP” LED indicator is lit red and if “POWER/STANDBY”
indicator ashes amber.
“TEMP” LED indicator is lit red and if “POWER/STANDBY”
indicator ashes amber. This indicates the projector has overheated. Under normal conditions, the projector can be switched back on.
“TEMP” LED indicator ashes red and if “POWER/STAND-
BY” indicator ashes amber.
Unplug the power cord from the projector, wait for 30 seconds
and try again. If the warning indicator light up again, please contact your nearest service center for assistance.
16
English
Installation

Adjusting the Projected Image

Adjusting the Projector’s Height

The projector is equipped with elevator feet for adjusting the image height.
1. Locate the adjustable foot you wish to modify on the
underside of the projector.
2. Rotate the adjustable ring clockwise to raise the projector or counter clockwise to lower it. Repeat with the remaining
feet as needed.
Tilt-Adjustment Feet
Tilt-Adjustment Ring
17
English
Installation
FOCUS

Adjusting the Projector’s Focus

To focus the image, rotate the focus ring until the image is clear.
XGA series: The projector will focus at distances from 1.58
to 2.17 feet (475 to 662 mm).
WXGA series: The projector will focus at distances from 1.58
to 2.17 feet (495 to 661 mm).
Focus Ring

Adjusting Projection Image Size

XGA series: Projection Image Size from 63” to 85” (1.60 to
2.16 meters).
WXGA series: Projection Image Size from 77” to 100” (1.96
to 2.54 meters).
18
English
Installation
(W)
(H)
(B)
(D)
(C)
Screen Diagonal
Lens Center
Screen Center
Throw Angle (α)
(E)
B=> Vertical distance between lens
center and screen center C,E=> Throw distance D=> Vertical distance between lens
center and bottom of screen (top of screen for ceiling mount)
α=>Throwangle
XGA
Diagonal Width (W) Height (H)
Screen Size
inch mm inch mm inch mm inch mm inch mm inch mm inch mm degree
63 1600 50 1280 38 960 29 749 5 133 11 269 19 475 55.3
65 1651 52 1321 39 991 30 773 6 150 11 277 19 492 55.3
70 1778 56 1422 42 1067 33 832 8 192 12 299 21 534 55.3
75 1905 60 1524 45 1143 35 892 9 235 13 320 23 577 55.3
77 1956 62 1565 46 1173 36 915 10 251 13 329 23 594 55.3
80 2032 64 1626 48 1219 37 951 11 277 13 341 24 619 55.3
85 2159 68 1727 51 1295 40 1010 13 320 14 363 26 662 55.3
(B) (C) (D) (E)
(α)
WXGA
Screen Size
Diagonal Width (W) Height (H)
inch mm inch mm inch mm inch mm inch mm inch mm inch mm degree
77 1956 65 1659 41 1037 31 777 6 153 10 259 19 495 55.3
80 2032 68 1723 42 1077 32 808 7 174 11 269 20 516 55.3
85 2159 72 1831 45 1144 34 858 8 214 11 286 22 568 55.3
87.2 2215 74 1878 46 1174 35 880 9 226 12 293 22 569 55.3
90 2286 76 1939 48 1212 36 909 10 246 12 303 23 588 55.3
95 2413 81 2046 50 1279 38 959 11 283 13 320 25 625 55.3
100 2540 85 2154 53 1346 40 1010 13 319 13 337 26 661 55.3
This table is for user’s reference only.
(B) (C) (D) (E)
(α)
19
English

User Controls

Control Panel & Remote Control

Control Panel

Using the Control Panel
Power/ Standby but-
ton and LED
RE-SYNC
Enter
SOURCE
Menu
Four Directional
Select Keys
Keystone
HELP
Lamp LED
Temp LED
Refer to the “Power On/Off the Projector” section on
pages 14-15.
Indicate the projector’s status.
Automatically synchronize the projector to the input
source.
Conrm your item selection.
Press “SOURCE” to select an input signal.
Press “Menu” to launch the on-screen display (OSD) menu. To exit OSD, Press “Menu” again.
Use to select items or make adjust­ments to your selection.
Use to adjust image distortion caused by tilting the projector. (±40 degrees)
Help Menu (refer to page 22).
Indicate the projector’s lamp status.
Indicate the projector’s temperature status.
20
English
User Controls

Remote Control

Using the Remote Control
Power
L Button
R Button
Page +
Page -
Enter / Help
Source
Re-SYNC
Four Directional
Select Keys
Keystone +/-
Volume +/-
Brightness
Refer to the “Power On/Off the Projector”
section on pages 14-15.
Mouse left click.
Mouse right click.
Use this button to page up.
Use this button to page down.
Conrm your item selection.
Help Menu (refer to page 22).
Press “Source” to select an input signal.
Automatically synchronizes the projector to
the input source.
Use to select items or make
adjustments to your selection.
Adjust image distortion caused by tilting the
projector.
Adjust to increase / decrease the volume.
Adjust the brightness of the image.
3D
Menu
HDMI
Freeze
Press the “3D” to turn the 3D OSD menu on/off.
Press “Menu” to launch the on-screen
display (OSD) menu. To exit OSD, press
“Menu” again.
Press “HDMI” to choose HDMI source.
Press “Freeze” to pause the screen image. Press this button again to unlock.
21
English
User Controls
Using the Remote Control
AV mute
S-Video Press “S-Video” to choose S-Video source.
VGA
Video
Momentarily turns off/on the audio and
video.
Press “VGA” to choose VGA sources.
Press “Video” to choose Composite video
source.
22
English
User Controls

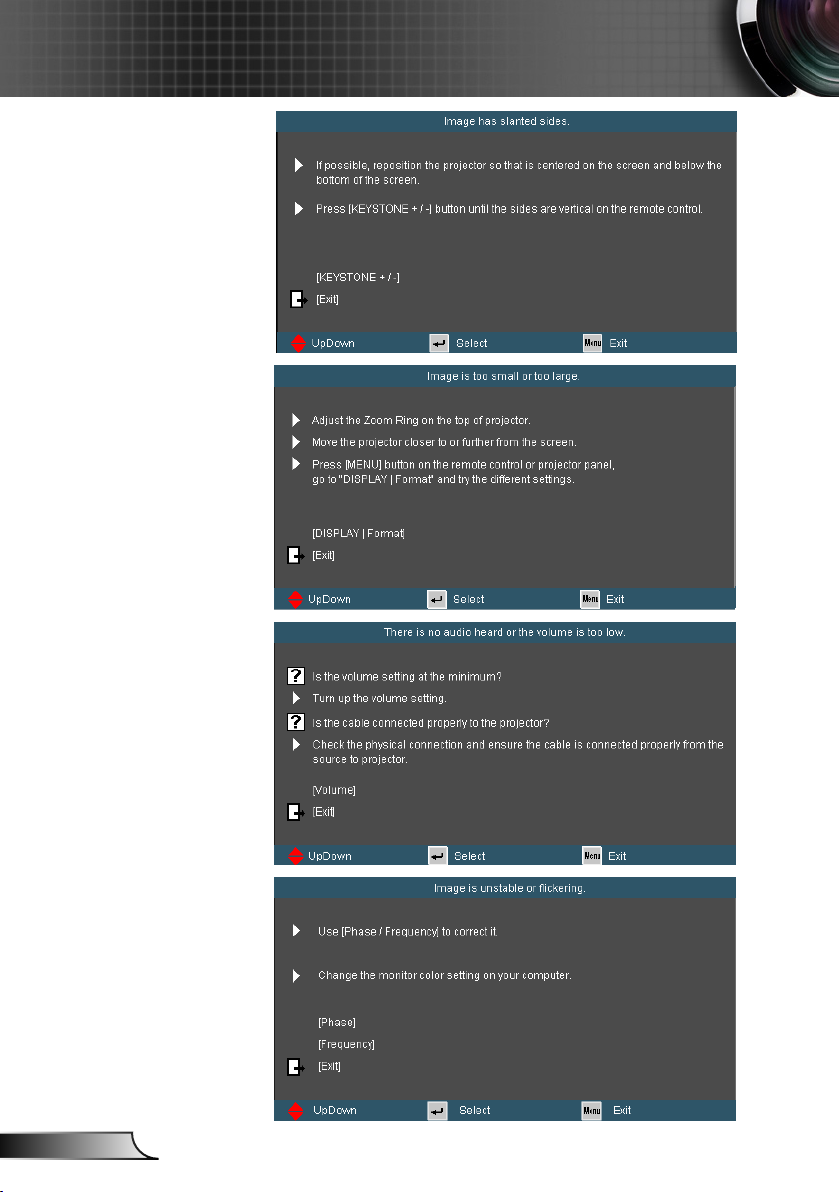

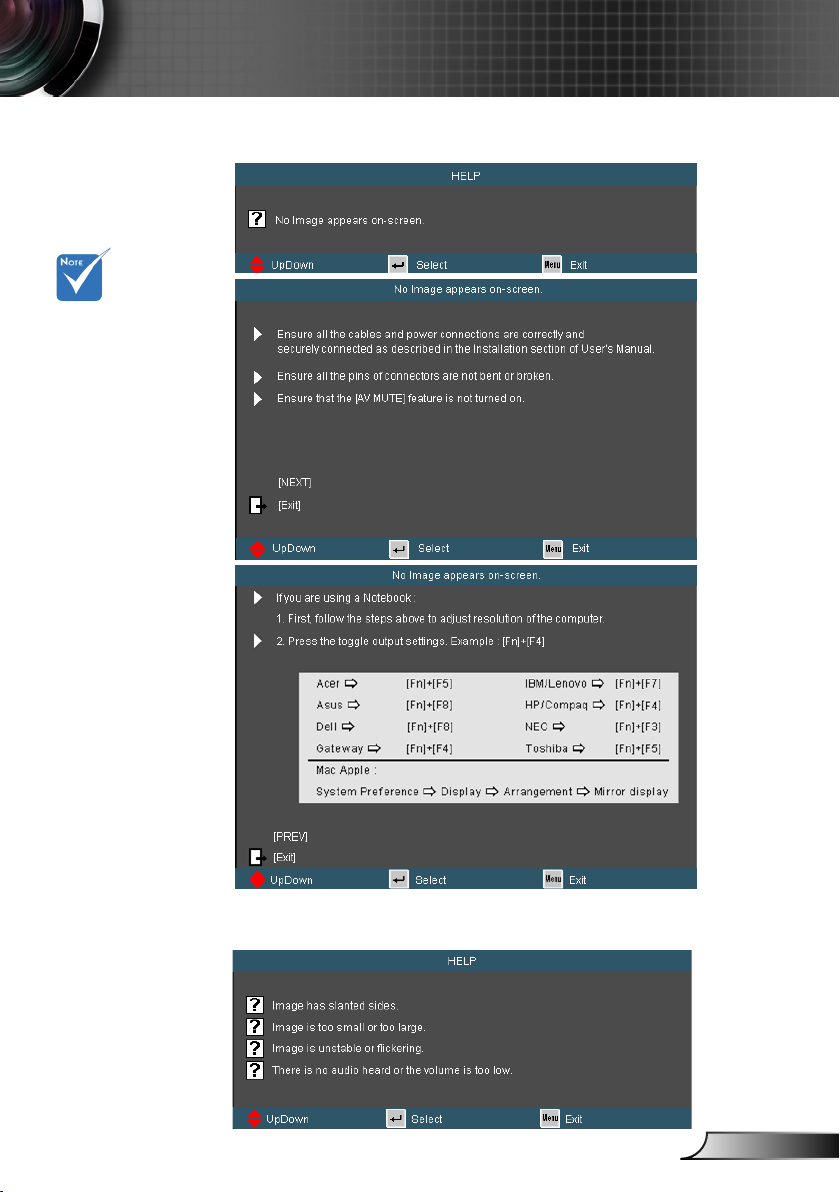

Using the HELP button
The HELP function ensures easy setup and operation.
Press the “?” button on the remote control or press the
“HELP” button on the control panel to open the Help Menu.
Loading...
+ 49 hidden pages
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
