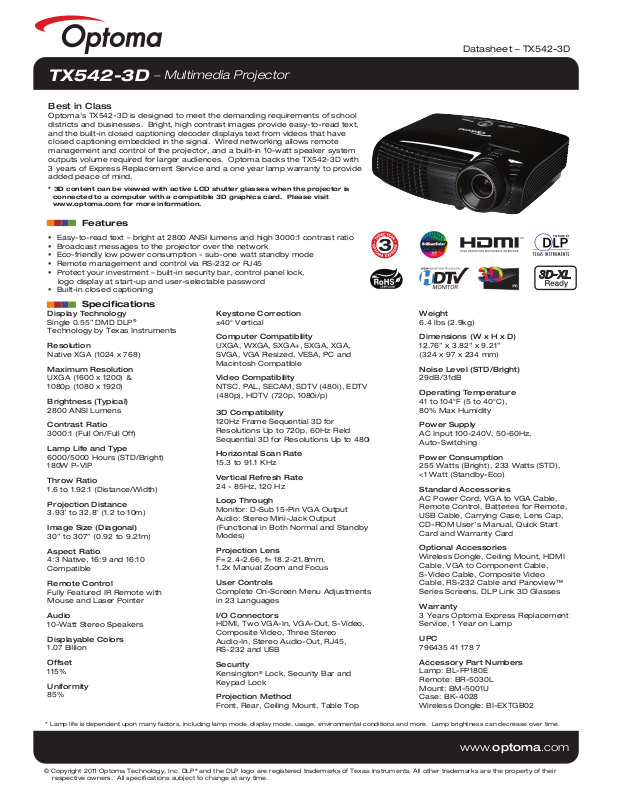

Optoma TX542-3D Product Sheet
Datasheet – TX542-3D
TX542-3D
− Multimedia Projector
Best in Class
Optoma’s TX542-3D is designed to meet the demanding requirements of school
districts and businesses. Bright, high contrast images provide easy-to-read text,
and the built-in closed captioning decoder displays text from videos that have
closed captioning embedded in the signal. Wired networking allows remote
management and control of the projector, and a built-in 10-watt speaker system
outputs volume required for larger audiences. Optoma backs the TX542-3D with
3 years of Express Replacement Service and a one year lamp warranty to provide
added peace of mind.
* 3D content can be viewed with active LCD shutter glasses when the projector is
connected to a computer with a compatible 3D graphics card. Please visit
www.optoma.com for more information.
Easy-to-read text – bright at 2800 ANSI lumens and high 3000:1 contrast ratio
Broadcast messages to the projector over the network
Eco-friendly low power consumption - sub-one watt standby mode
Remote management and control via RS-232 or RJ45
Protect your investment – built-in security bar, control panel lock,
Built-in closed captioning
Display Technology
Single 0.55” DMD DLP
Technology by Texas Instruments
Resolution
Native XGA (1024 x 768)
Maximum Resolution
UXGA (1600 x 1200) &
1080p (1080 x 1920)
Brightness (Typical)
2800 ANSI Lumens
Contrast Ratio
3000:1 (Full On/Full Off)
Lamp Life and Type
6000/5000 Hours (STD/Bright)
180W P-VIP
Throw Ratio
1.6 to 1.92:1 (Distance/Width)
Projection Distance
3.93’ to 32.8’ (1.2 to 10m)
Image Size (Diagonal)
30” to 307” (0.92 to 9.21m)
Aspect Ratio
4:3 Native, 16:9 and 16:10
Compatible
Remote Control
Fully Featured IR Remote with
Mouse and Laser Pointer
Audio
10-Watt Stereo Speakers
Displayable Colors
1.07 Billion
Offset
115%
Uniformity
85%
Features
logo display at start-up and user-selectable password
Specifications
®
Keystone Correction
±40° Vertical
Computer Compatibility
UXGA, WXGA, SXGA+, SXGA, XGA,
SVGA, VGA Resized, VESA, PC and
Macintosh Compatible
Video Compatibility
NTSC, PAL, SECAM, SDTV (480i), EDTV
(480p), HDTV (720p, 1080i/p)
3D Compatibility
120Hz Frame Sequential 3D for
Resolutions Up to 720p, 60Hz Field
Sequential 3D for Resolutions Up to 480i
Horizontal Scan Rate
15.3 to 91.1 KHz
Vertical Refresh Rate
24 - 85Hz, 120 Hz
Loop Through
Monitor: D-Sub 15-Pin VGA Output
Audio: Stereo Mini-Jack Output
(Functional in Both Normal and Standby
Modes)
Projection Lens
F= 2.4-2.66, f= 18.2-21.8mm,
1.2x Manual Zoom and Focus
User Controls
Complete On-Screen Menu Adjustments
in 23 Languages
I/O Connectors
HDMI, Two VGA-In, VGA-Out, S-Video,
Composite Video, Three Stereo
Audio-In, Stereo Audio-Out, RJ45,
RS-232 and USB
Security
Kensington
Keypad Lock
Projection Method
Front, Rear, Ceiling Mount, Table Top
®
Lock, Security Bar and
Weight
6.4 lbs (2.9kg)
Dimensions (W x H x D)
12.76” x 3.82” x 9.21”
(324 x 97 x 234 mm)
Noise Level (STD/Bright)
29dB/31dB
Operating Temperature
41 to 104°F (5 to 40°C),
80% Max Humidity
Power Supply
AC Input 100-240V, 50-60Hz,
Auto-Switching
Power Consumption
255 Watts (Bright), 233 Watts (STD),
<1 Watt (Standby-Eco)
Standard Accessories
AC Power Cord, VGA to VGA Cable,
Remote Control, Batteries for Remote,
USB Cable, Carrying Case, Lens Cap,
CD-ROM User’s Manual, Quick Start
Card and Warranty Card
Optional Accessories
Wireless Dongle, Ceiling Mount, HDMI
Cable, VGA to Component Cable,
S-Video Cable, Composite Video
Cable, RS-232 Cable and Panoview™
Series Screens, DLP Link 3D Glasses
Warranty
3 Years Optoma Express Replacement
Service, 1 Year on Lamp
UPC
796435 41 178 7
Accessory Part Numbers
Lamp: BL-FP180E
Remote: BR-5030L
Mount: BM-5001U
Case: BK-4028
Wireless Dongle: BI-EXTGB02
* Lamp life is dependent upon many factors, including lamp mode, display mode, usage, environmental conditions and more. Lamp brightness can decrease over time.
www.optoma.com
© Copyright 2011 Optoma Technology, Inc. DLP® and the DLP logo are registered trademarks of Texas Instruments. All other trademarks are the property of their
respective owners. All specifications subject to change at any time.
