Optoma TW6000, TW775, TX7000, TX785 User Guide

Table of Contents
Usage Notice ...................................................................................................................... 2
Safety Information ........................................................................................................................2
Class B emissions limits ................................................................................................................................................................ 2
Important Safety Instruction ........................................................................................................................................................ 2
Precautions .....................................................................................................................................4
Eye Safety Warnings .....................................................................................................................6
Introduction ....................................................................................................................... 7
Product Features ...........................................................................................................................7
Package Overview ........................................................................................................................8
Product Overview .........................................................................................................................9
Main Unit ........................................................................................................................................................................................9
Control Panel ................................................................................................................................................................................ 10
Rear View ......................................................................................................................................................................................11
Remote Control ............................................................................................................................................................................12
Installation ........................................................................................................................ 13
Connecting the Projector ............................................................................................................13
Connect to Computer / Notebook ............................................................................................................................................ 13
Connect to Video Sources ........................................................................................................................................................... 14
Installing or Removing the Optional Lens ..............................................................................15
Removing the Existing Lens From the Projector .....................................................................................................................15
Installing the New Lens .............................................................................................................................................................. 16
Powering On/Off the Projector ................................................................................................17
Powering On the Projector .........................................................................................................................................................17
See Security Setting on page 43 if security lock is enabled. ..................................................................................................18
Powering Off the Projector ......................................................................................................................................................... 19
Warning Indicator........................................................................................................................................................................19
Adjusting the Projected Image ..................................................................................................20
Adjusting the Projector’s Height ...............................................................................................................................................20
Adjusting Projected Image Position Using PureShift ............................................................20
Adjusting the vertical image position .......................................................................................................................................21
Adjusting the horizontal image position ..................................................................................................................................22
PureShift Range Diagram ........................................................................................................................................................... 22
Adjusting the Zoom / Focus ...................................................................................................................................................... 23
Adjusting Projection Image Size (XGA) ...................................................................................................................................24
Adjusting Projection Image Size (WXGA) ...............................................................................................................................25
User Controls ................................................................................................................... 26
Control Panel ...............................................................................................................................26
Remote Control ...........................................................................................................................27
On-screen Display Menus ..........................................................................................................29
How to operate .............................................................................................................................................................................29
Menu Tree ..................................................................................................................................................................................... 30
Image ............................................................................................................................................31
Display ..........................................................................................................................................37
Setup .............................................................................................................................................39
Options .........................................................................................................................................50

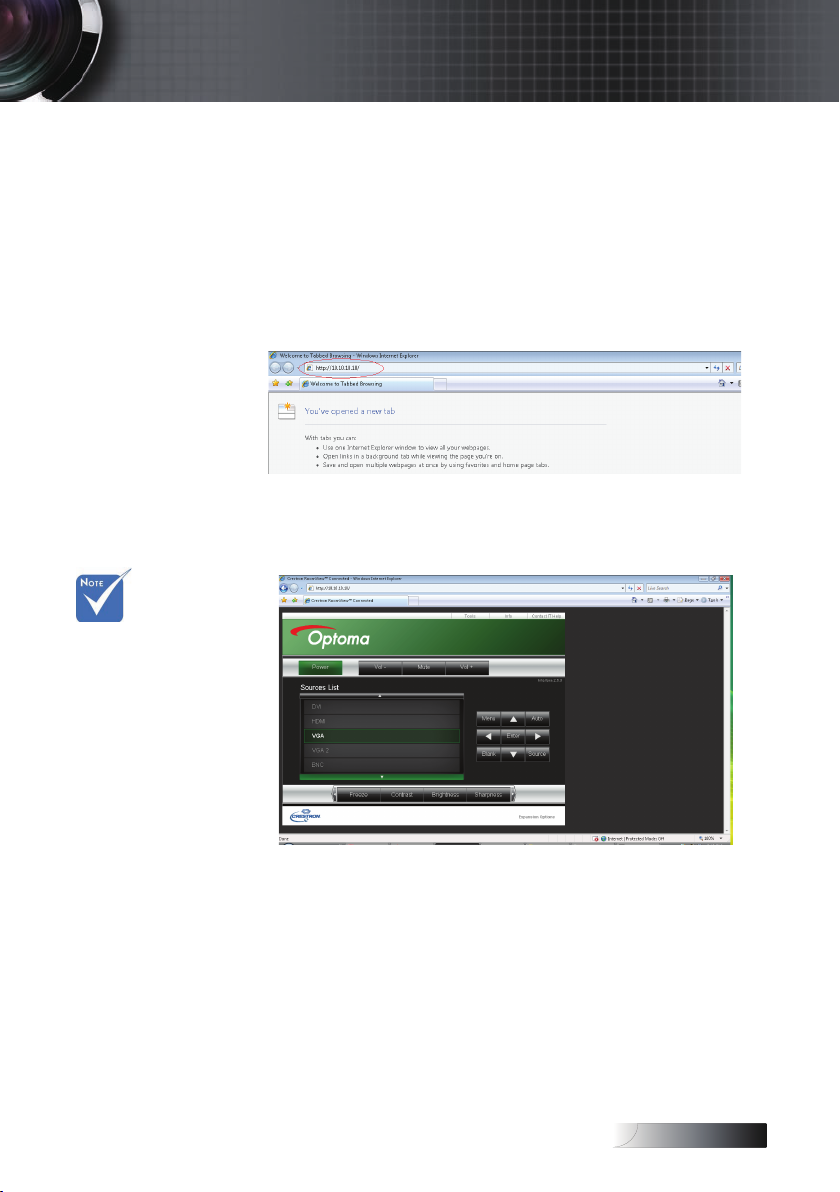

LAN_RJ45 .....................................................................................................................................55
Appendices ...................................................................................................................... 58
Troubleshooting/Help On-screen Display Menu ..................................................................58
Image Problems............................................................................................................................................................................58
Intermission Problems ................................................................................................................................................................63
HDMI Q & A ................................................................................................................................................................................64
Projector Status Indication..........................................................................................................................................................65
LED Error Code Messages ..........................................................................................................................................................66
Remote Control Problems ..........................................................................................................................................................67
Audio Problems ...........................................................................................................................................................................68
Replacing the Lamp .....................................................................................................................................................................69
Cleaning the Projector ................................................................................................................71
Cleaning the Lens ........................................................................................................................71
Cleaning the Case ........................................................................................................................................................................71
Compatibility Modes ...................................................................................................................................................................72
RS232 Commands .......................................................................................................................74
RS232 Protocol Function List .....................................................................................................75
Ceiling Installation ......................................................................................................................82
Optoma Global Ofces ...............................................................................................................83
Regulation & Safety notices .......................................................................................................85
Operation conditions ..................................................................................................................86
English
2

Usage Notice

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THE PROJECTOR TO RAIN OR MOISTURE. DANGEROUS HIGH VOLTAGES ARE PRESENT INSIDE THE ENCLOSURE. DO NOT OPEN THE CABINET.
REFER SERVICING TO QUALIFIED PERSONNEL ONLY.

Class B emissions limits

This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations.

Important Safety Instruction

1. Read these instructions –before using this projector.
2. Keep these instructions –for future reference.
3. Follow all instructions.
4. Install in accordance with the manufacturer’s instructions :
A. Do not block any ventilation openings. To ensure reliable
operation of the projector and to protect it from overheating, put the projector in a position and location that will not interfere with its proper ventilation. For example, do not place the projector on a bed, sofa, carpet, or similar surface that may block the ventilation openings. Do not put it in an enclosure, such as a bookcase or a cabinet that may keep air
from owing through its ventilation openings.
B. Do not use this projector near water or moisture. To reduce
the risk of re or electric shock, do not expose the projector to
rain or moisture.
C. Do not install near any heat sources, such as radiators, heaters,
stoves or other apparatus (including ampliers) that produce heat.
5. Clean only with a dry cloth.
6. Only use attachments/accessories specied by the manufacturer.
7. Refer all servicing to qualied service personnel. Servicing is required
when the projector has been damaged in any way, such as:
r Power supply cord or plug is damaged. r Liquids have spilled or objects have fallen into the apparatus. r The projector has been exposed to rain or moisture, does not
operate normally, or has been dropped.
The lightning ash with arrow head within an equilateral triangle is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufcient magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert
the user to the presence of import operating and maintenance (servicing) instructions in the literature accompanying the appliance.
English
Usage Notice
Do not attempt to service this projector yourself. Opening or removing covers may expose you to dangerous voltages or other hazards. Please call Optoma to be referred to an authorized service center near you.
8. Do not let objects or liquids enter the projector as they may touch
dangerous voltage points or short-out parts that could result in a
re or electric shock.
9. See projector enclosure for safety related markings.
10. The projector should not be adjusted or repaired by anyone
except properly qualied service personnel.
3
English
4
Usage Notice

Precautions

Warning - Do not look into the projector’s lens when the lamp is
Warning - To reduce the risk of re or electric shock, do not
Warning - Please do not open or disassemble the projector as this
Warning - When replacing the lamp, please allow unit to cool down,
Please follow all warnings, precautions and maintenance as recommended in this user’s guide.
on. The bright light may damage your eyes.
expose this projector to rain or moisture.
may cause electric shock.
and follow all replacement instructions. See pages 69.
When the
v
lamp reaches the end of its life, the projector will not turn back on until the lamp module has been replaced. To replace the lamp, follow the procedures listed under “Replacing the Lamp” section on page 69.
Warning - This projector will detect the life of the lamp itself. Please
be sure to change the lamp when it shows warning messages.

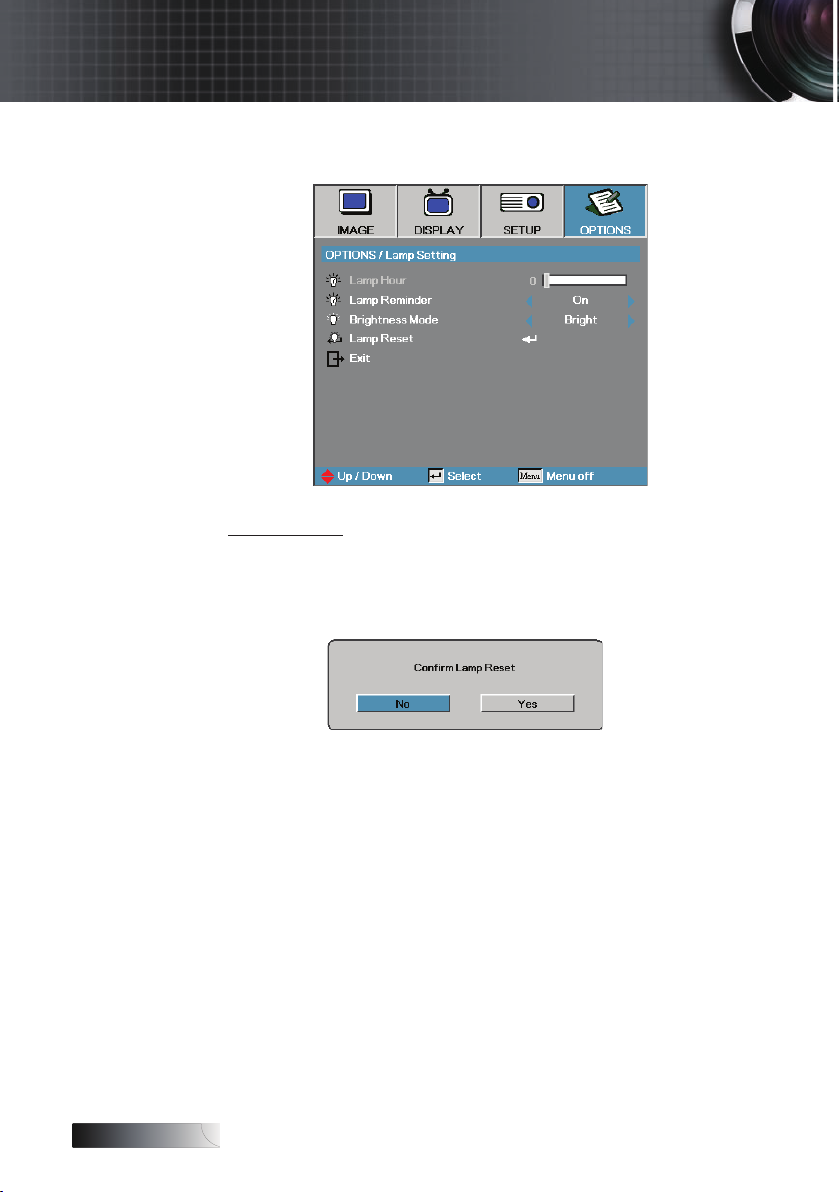

Warning - Use the “Lamp Reset” function from the on-screen display
“Options|Lamp Setting” menu after replacing the lamp module (see page 53).
Warning - When switching the projector off, please ensure the
cooling cycle has been completed before disconnecting the power. Allow 90 seconds for the projector to cool down.
Warning - Do not use the lens cap when projector is in operation.

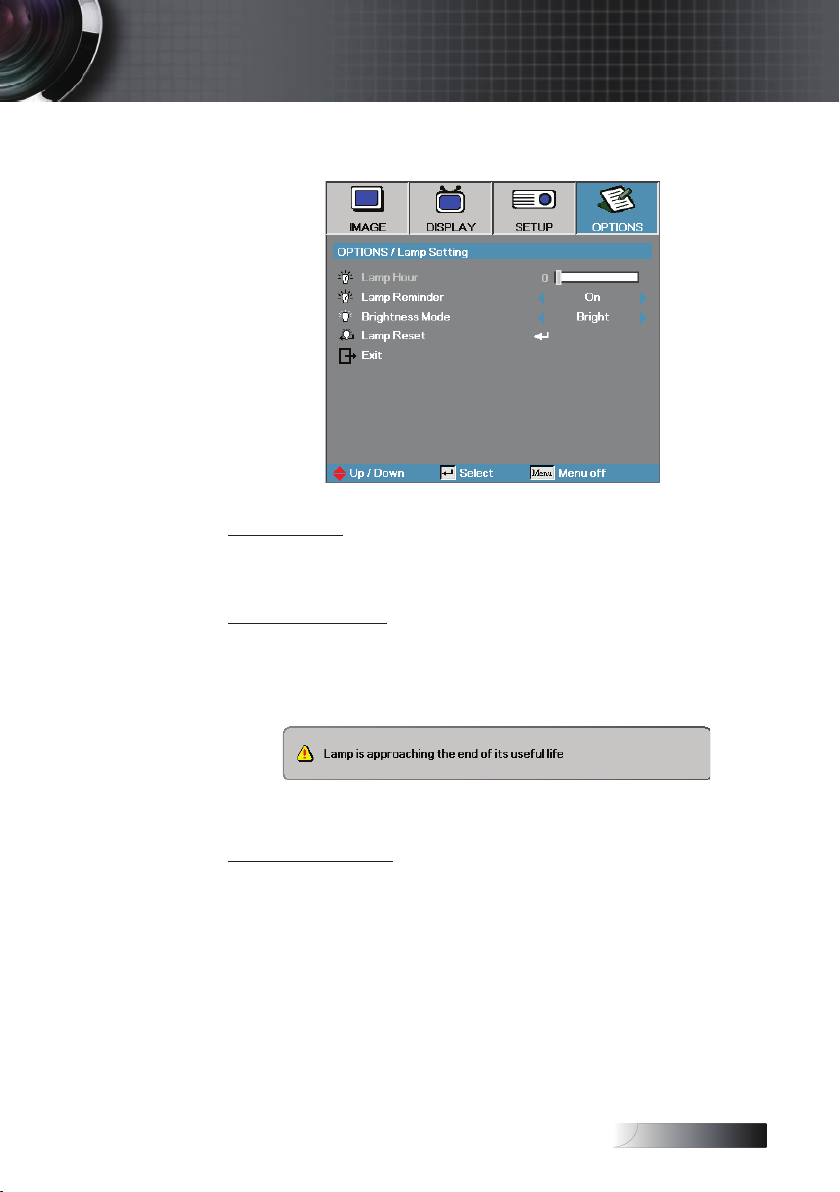

Warning - When the lamp is approaching the end of its life, the
message “Lamp is approaching the end of its useful life” displays on the screen. Please contact your local reseller or service center to change the lamp as soon as possible.
Warning - To reduce the risk of injury to the eyes, do not look directly
into the laser beam on the remote control and do not point the laser beam into anyone’s eyes. This remote control is
equipped with a Class II laser that emits radiation.
English
Usage Notice
Do:
v Turn off the product before cleaning. v Use a soft cloth moistened with a mild detergent to clean the
display housing.
v Disconnect the power plug from the AC outlet if the product
is not being used for a long period of time.
Do not:
v Block the ventilation slots and openings on the unit. v Use abrasive cleaners, waxes or solvents to clean the unit. v Use under the following conditions:
- In extremely hot, cold or humid environments. Ensure that the ambient room temperature is within 5-40 °C and relative humidity is 10-85% (max.), non-condensing.
- In areas susceptible to excessive dust and dirt.
- Near any appliance that generates a strong magnetic eld.
- In direct sunlight.
5
English
6
Usage Notice

Eye Safety Warnings

Avoid staring directly into the projector’s beam of light at all times.
Minimize standing facing into the beam. Keep your back to the
beam as much as possible.
Using a stick or laser pointer is recommended to avoid the need
for the presenter to enter the beam.
Ensure that projectors are located out of the line of sight from
the screen to the audience; this ensures that, when presenters look at the audience, they do not also have to stare at the projector lamp. The best way to achieve this is by ceiling-
mounting the projector rather than placing it on oor or table
top.
When projector is used in a classroom, adequately supervise
students when they are asked to point out something on the screen.
In order to minimize the lamp power needed, use room blinds
to reduce ambient light levels.
English

Introduction

Product Features

This product is a single chip 0.7” XGA and 0.65” WXGA series
®
DLP
projector. Outstanding features include:
u Texas Instruments Single chip DLP® Technology u Computer Compatibility:
Apple Macintosh, iMac, and VESA Standards: UXGA, SXGA+, SXGA, WXGA, XGA, SVGA, VGA
u Video Compatibility:
NTSC, NTSC4.43
PAL/PAL-M/PAL-N/SECAM
SDTV and EDTV compatible
HDTV compatible (720p, 1080i, 1080p)
u Auto source detection with user denable settings u
Fully featured IR remote control with laser pointer and
mouse control
u User friendly multilingual On Screen Menu u Advanced digital keystone correction and high
quality full screen image re-scaling
u User friendly control panel u Macintosh and PC compatible u HDMI 1.3 compatible u Instant On Screen Help u Closed Captioning equipped
7
English
8
1
3
4
Pg
Pg
Format
HDMI
Source
Component
DIV BNC VGA-1
VGA-2
S-Video
Video
Menu
Display
Volume
2
5
6 7
8 9 0
Enter/Help
Brightness
Introduction

Package Overview

This projector comes with all the items shown below. Check to make sure your unit is complete. Contact your dealer immediately if anything is missing.
v
Due to the difference in applications for each country, some regions may have different accessories.
Option Lens
(Standard lens/
Long throw lens/
Short throw lens)
VGA Cable 1.8m
Documentation:
User’s Manual
þ
Warranty Card
þ
Quick Start Card
þ
WEEE Card
þ
Projector with lens cap
Composite Cable
1.8m
(Not available in
European Version)
USB Cable
(A to B) 1.8m
(optional)
IR Remote Control
(with 2 x AA Batteries)
Power Cord 1.8m
SCART to RGB &
S-Video Adapter
(optional)
English

Product Overview

2
1
7
69 8
11 10
5
4
3
12 13
19 18
17
16
14
15

Main Unit

Introduction
Front IR Receiver
1.
Top Cover 11.
2.
Lens Release Button
3.
Vertical and Horizontal Lens 13. LED Indicators
4.
Shift Adjustment Controls 14. Input/Output Connections
Control Panel 15. Back IR Receiver
5.
Lamp Cover 16. Main Power Switch
6.
Tilt-Adjustment foot 17. Power Socket
7.
Zoom 18. Security Bar
8.
Lens 19. Kensington™ Lock
9.
10. Focus
Lens CAP
12. Power Button
9
English
10
2 31 4
6 5
Introduction

Control Panel

1. Source / ◄
2. Keystone + / ▲
3. Re-Sync / ►
4. Menu
5.
6. Keystone - / ▼
Enter / Help (See page 58 Appendices for help function.)
English
18
19
1
2
3
5
6
7
4
1617
8
9
10
11
12
13
14
15
20
21
22
23
24
25
26
Introduction

Rear View

1. Temp LED 14. 12V OUT A/B Connector
2. Lamp LED 15. AUDIO IN L/R RCA (YPbPr) Connectors
3. DVI-D Connector 16. AUDIO IN L/R RCA (Video/ S-Video) Connectors
4. VGA 2/ YPbPr Connector 17. VIDEO Connector
5. HDMI Connector 18. S-VIDEO Connector
6. USB Connector 19. YPbPr Connectors
7. RJ-45 Connector 20. BNC Connectors
8. AUDIO IN (VGA2) Connector 21. Power Socket
9. VGA OUT 22. Main Power Switch
10. AUDIO OUT 3.5mm Jack 23. AUDIO IN (VGA1) Connector
11. Back IR Receiver 24. VGA 1/ SCART/ YPbPr Connector
12. AUDIO IN (BNC) Connector 25. Power Button
13. RS-232 Connector 26. Power LED
11
English
12
Pg
Pg
Form at
HDMI
Sour ce
Compon ent
D IV BNC VG A-1
VGA- 2
S-Vid eo
Video
Menu
Disp lay
Volum e
1
2
3
4
5
6 7
8 9 0
Enter/Help
Brightness
10
6
2
3
5
7
4
9
23
1819
26
27
28
29
16
15
17
20
21
22
11
12
13
24
25
14
8
1
Introduction
v
Due to the difference in applications for each country, some regions may have different accessories.

Remote Control

1. AV Mute
2. Power On/Off
3. Re-Sync
4. Freeze
5. Keystone
6. Page Up
7. Volume +/-
8. Page Down
9. PC/Mouse control
10. Mouse Right Click
11. Enter/Help
12. Four Directional Select Keys
13. Format/1 (Number Button for password input)
14. Source/4
15. Component/3
16. VGA-1/7
17. VGA-2/0
18. S-Video/9
19. BNC/6
20. Video/8
21. DVI/5
22. HDMI/2
23. Brightness
24. Menu
25. Mouse Left Click
26. Zoom Out
27. Zoom In
28. Display
29. Laser Pointer
English
v Due to the
4
1
5
283
10
9
7
6
11
difference in applications for each country, some regions may have different accessories.
Installation

Connecting the Projector

Connect to Computer / Notebook

1. Power Cord
2. VGA2 Cable
3. VGA1 Cable
4. Audio-in Cable
5. DVI-D Cable (Optional)
6. HDMI Cable (Optional)
7. USB Cable
8. VGA-out Cable (Available for VGA1 VGA signal loop through)
9. Audio-out (Optional RCA to 3.5mm jack cable)
10. RS-232 Cable (Optional)
11. BNC Cable
13
English
14
4
DVD Player, Set-top Box,
HDTV receiver
DVD Player, Set-top Box,
HDTV receiver
4
1
2 3 4
7
9
9
11
8
5
6
Video Output
12
10
2
Installation

Connect to Video Sources

v
Due to the difference in applications for each country, some regions may have different accessories.
10.
11.
12.
1. Power Cord
2. Component Cable (Optional)
3. DVI-D Cable (Optional)
4. HDMI Cable (Optional)
5. BNC Cable (Optional)
6. Audio-in Cable
7. Audio-in Cable
8. Video Cable (Optional)
9. S-Video Cable (Optional)
VGA Cable
SCART to RGB & S-Video Adapter (Optional)
RGB to Component Adapter (Optional)
English
Installation

Installing or Removing the Optional Lens

Caution
• Do not shake or place excessive pressure on the projector or the lens components as the projector and lens components contain precision parts.
• Before removing or installing the lens, be sure to turn off the projector, wait until the cooling fans stop, and turn off the main power switch.
• Do not touch the lens surface when removing or installing the lens.
• Keep ngerprints, dust or oil off the lens surface. Do not scratch
the lens surface.
• Work on a level surface with a soft cloth under it to avoid scratching.
• If you remove and store the lens, attach the lens cap to the projector to keep off dust and dirt.

Removing the Existing Lens From the Projector

1. Push down and release the top cover to open.
2. Push the LENSE RELEASE button to the unlock position.
3. Grasp the lens.
4. Rotate the lens counterclockwise. The existing lens will be disengaged.
15
English
16
Installation
5. Pull out the existing
lens slowly.

Installing the New Lens

1. Align the notches and
correctly position the
v Pin of IRIS
should be in the direction as shown in the picture.
electrical contact pad as shown in the picture.
Pin of IRIS
2. Rotate the lens
clockwise until you feel it click into place.
English
v Turn on the
projector rst
and then select the signal sources. First time to turn on the projector: Remember to select the type of lens you have installed. Detail see page
51.
Installation

Powering On/Off the Projector

Powering On the Projector

1. Remove the lens cover.
2. Connect the power cord to the projector.
3. Turn On the connected devices.
4. Ensure the Power LED turns amber and then press the power button to turn On the projector. The Power LED will now ash blue.
The startup screen will display in approximately 30 seconds. The rst time you use the projector, you can select your preferred lan­guage and Power Mode setup after the startup screen display.
If the connected device is a PC, press the appropriate keys on the computer keyboard to switch the display output to the projector. (Check the user manual of the PC to determine the appropriate Fn key combination to change display output.)
17
English
18
Installation
See Security Setting on page 43 if security lock is enabled.
5. If more than one input device is connected, press the “Source”
button sequentially to switch between devices. For direct source selection, see page 28.
English
Installation

Powering Off the Projector

1. Press POWER to turn off the projector lamp, a message displays on the
projector’s screen.
2. Press POWER again to conrm, otherwise the message disappears after 15 seconds.
3.
The cooling fans continue to operate for about 10 seconds for cooling cycle
and the Power Led will turn blue. When the light is solid amber, the projector has entered standby mode. (If you wish to turn the projector back on, you must wait until the projector has completed the cooling cycle and has entered standby mode. Once in standby mode, simply press POWER to restart the projector.)
4. Turn off the main power switch. Disconnect the power cord from the electrical outlet and the projector.
5. Do not turn on the projector immediately following a power off procedure.

Warning Indicator

v When the LAMP LED indicator lights red, the projector will
automatically shut itself down. Please contact your local reseller or service center. See pages 65-67.
v When the TEMP LED is on a steady (not ashing) red, the
projector will automatically shut itself down. Under normal conditions, the projector can be switched on again after it has cooled down. If the problem persists, you should contact your local dealer or our service center. See pages 65-67.
v When the TEMP LED ashes red, it indicates the fan has failed.
Please contact your local dealer or our service center. See pages 65-67.
19
English
20
1 1
Installation
Adjusting the Projected Image
Adjusting the Projector’s Height
The projector is equipped with elevator foot for adjusting the image height.
To raise the image:
Use screw in foot u to rise the image to the desired height angle
and ne-tune the display angle.
To lower the image:
Use screw in foot u to lower the image to the desired height angle
and to ne-tune the display angle.

Adjusting Projected Image Position Using PureShift

Lens Release
Horizontal Lens Shift Lever
Vertical Lens Shift Lever
English
Screen Height
(H)
100%
H x 5%
H x 35%
H x 15%
H x 55%
Distance
(L)
WXGA
Screen
Installation
Screen Height
(H)
100%
H x 40%
H x 10%
H x 50%
Distance
(L)
XGA
Screen
The PureShift function can be used to adjust the position of the projected image either horizontally or vertically within the range detailed below.

Adjusting the vertical image position

The vertical image height can be adjusted between 100% and -10% for XGA, 105% and -15% for WXGA of image height. Note that the maximum vertical image height adjustment can be limited by the horizontal image position. For example it is not possible to achieve the maximum vertical image position height detailed above if the horizontal image position is at maximum. Please consult the
PureShift Range diagram below for further clarication.
21
English
22
Left Side
(W/2) x 10% (W/2) x 10%
Right Side
Screen Width
(W)
Installation
W
Wx5%
WXGA
Hx105%
Wx5%
Max W image shift=Wx5%
Max H image shift=Hx105%
When Hx105%, Max image shift=Wx0%
When Wx5%, Max image shift=Hx100%
Hx100%
Hx15%
H=Image Height
W
Wx5%
XGA
Hx100%
Wx5%
Max W image shift=Wx5%
Max H image shift=Hx100%
When Hx100%, Max image shift=Wx0%
When Wx5%, Max image shift=Hx100%
Hx10%
H=Image Height

Adjusting the horizontal image position

With the lens in the center position the horizontal image position can be adjusted to the left or right by up to a maximum of 5% of the image width. Note that the maximum horizontal image height adjustment can be limited by the vertical image position. For example it is not possible to achieve the maximum hori­zontal image position if the vertical image position is at maximum. Please consult the PureShift Range diagram below for
further clarication.

PureShift Range Diagram

English
Pg
Pg
Forma t
HDMI
Source
Compone nt
D IV BNC VGA-1
VGA-2
S-Vide o
Video
EnterMenu
IP module
Displa y
Volume
Ε
Ε
Ε
Ε
1
2
3
4
5
6 7
8 9 0
Installation

Adjusting the Zoom / Focus

You may turn the zoom ring to zoom in or out. To focus the image, rotate the focus ring until the image is clear. The projector will focus at distances. See pages 24-25.
Use the keystone buttons to correct image distortion. They can be found on the remote control and on the projector’s control panel.
23
English
24
Height
Diagonal
Width
HdHd
4.9' ( 1.50m)
8.9' ( 2.72m)
14.4' (4.40m)
20.2' (6.16m)
26.2' (8.00m)
32.0' (9.76m)
6.6' ( 2.00m)
18.4' (5.60m)
30.2' (9.20m)
42.0' (12.80m)
53.8' (16.40m)
65.6' (20.00m)
1.6' ( 0.50m)
3.3' ( 1.00m)
4.9' (1.50m)
6.6' ( 2.00m)
8.2' ( 2.50m)
9.8' (3.00m)
Installation

Adjusting Projection Image Size (XGA)

STD lens: offset=100%
Screen
(Diagonal)
Screen size
Max.
Min.
Max
(WxH).
Min.
(WxH)
Distance
46.1’’
(117.2cm)
36.9’’
(93.8cm)
36.9’’x27.7’’
93.8x70.3cm
29.5’’ x22.1’’
75.0 x56.3cm
4.9’ (1.50m) 8.9’ (2.72m) 14.4’ (4.40m) 20.2’ (6.16m) 26.2’ (8.00m) 32.0’ (9.76m)
83.7’’
(212.5cm)
66.9’’
(170.0cm)
66.9’’x50.2’’
170.0 x127.5cm
53.5’’x40.2’’
136.0 x102.0cm
135.3’’
(343.8cm)
108.3’’
(275.0cm)
108.3’’x81.2’’
275.0 x206.3cm
86.6’’x65.0’’
220.0 x165.0cm
189.5’’
(481.3cm)
151.6’’
(385.0cm)
151.6’’ x113.7’’
385.0 x288.8cm
121.3’’x90.9’’
308.0 x231.0cm
246.1’’
(625.0cm)
196.9’’
(500.0cm)
196.9’’ x147.6’’
500.0 x375.0cm
157.5’’x118.1’’
400.0 x300.0cm
300.2’’
(762.5cm)
240.2’’
(610.0cm)
240.2’’ x180.1’’
610.0 x457.5cm
192.1’’ x144.1’’
488.0 x366.0cm
Long lens: offset=100%
Screen
(Diagonal)
Screen size
Distance
Short lens: offset=100%
Screen (Diagonal)
Screen size
Distance
Max.
Min.
Max
(WxH).
Min.
(WxH)
49.2’’
(125.0cm)
32.8’’
(83.3cm)
39.4’’x29.5’’
100.0x75.0cm
26.2’’x19.7’’
66.7x50.0cm
6.6’(2.00m) 18.4’(5.60m) 30.2’(9.20m) 42.0’(12.80m) 53.8’(16.40m) 65.6’(20.00m)
137.8’’
(350.0cm)
91.9’’
(233.3cm)
110.2’’x82.7’’
280.0x210.0cm
73.5’’x55.1’’
186.7x140.0cm
226.4’’
(575.0cm)
150.9’’
(383.3cm)
181.1’’x135.8’’
460.0x345.0cm
120.7’’x90.6’’
306.7x230.0cm
315.0’’
(800.0cm)
210.0’’
(533.3cm)
252.0’’x189.0’’
640.0x480.0cm
168.0’’x126.0’’
426.7x320.0cm
403.5’’
(1025.0cm)
269.0’’
(683.3cm)
322.8’’x242.1’’
820.0x615.0cm
215.2’’x161.4’’
546.7x410.0cm
30.8’’
(78.1cm)
24.6’’x18.5’’
62.5x46.9cm
1.6’ (0.50m) 3.3’ (1.00m) 4.9’ (1.50m) 6.6’ (2.00m) 8.2’ (2.50m) 9.8’ (3.00m)
61.5’’
(156.3cm)
49.2’’x36.9’’
125.0x93.8cm
92.3’’
(234.4cm)
73.8’’x55.4’’
187.5x140.6cm
123.0’’
(312.5cm)
98.4’’x73.8’’
250.0x187.5cm
153.8’’
(390.6cm)
123.0’’x92.3’’
312.5x234.4cm
492.1’’
(1250.0cm)
328.1’’
(833.3cm)
393.7’’x295.3’’
1000.0x750.0cm
262.5’’x196.9’’
666.7x500.0cm
184.5’’
(468.8cm)
147.6’’x110.7’’
375.0x281.3cm
English
Height
Diagonal
Width
HdHd
4.9' ( 1.50m)
9.6' ( 2.92m)
15.5' (4.72m)
21.7' (6.61m)
28.2' (8.59m)
34.4' (10.47m)
6.6' ( 2.00m)
18.4' (5.60m)
30.2' (9.20m)
42.0' (12.80m)
53.8' (16.40m)
65.6' (20.00m)
1.6' ( 0.50m)
3.3' ( 1.00m)
4.9' (1.50m)
6.6' ( 2.00m)
8.2' ( 2.50m)
9.8' (3.00m)
Installation

Adjusting Projection Image Size (WXGA)

STD lens: offset=110%
Screen
(Diagonal)
Screen size
Hd
Max.
Min.
Max
(WxH).
Min.
(WxH)
Max.
Min.
Distance
Long lens: offset=110%
Distance
Screen size
Hd
Distance
Max.
Min.
Max
(WxH).
Min.
(WxH)
Max.
Min.
Screen
(Diagonal)
Screen size
Hd
Short lens: offset=110%
Screen (Diagonal)
43.0’’
(109.2cm)
34.3’’
(87.1cm)
36.5’’x22.8’’
92.6x57.9cm
29.1’’x18.2’’
73.9x46.2cm
1.1’’ (2.9cm) 2.2’’ (5.6cm) 3.6’’ (9.1cm) 5.0’’ (12.8cm) 6.5’’ (16.6cm) 8.0’’ (20.2cm)
0.9’’ (2.3cm) 1.8’’ (4.5cm) 2.9’’ (7.3cm) 4.0’’ (10.2cm) 5.2’’ (13.2cm) 6.3’’ (16.1cm)
4.9’ (1.50m) 9.6’ (2.92m) 15.5’ (4.72m) 21.7’ (6.61m) 28.2’ (8.59m) 34.4’ (10.47m)
45.7’’
(116.2cm)
30.4’’
(77.3cm)
38.8’’x24.2’’
98.5x61.6cm
25.8’’x16.1’’
65.6x41.0cm
1.2’’ (3.1cm) 3.4’’ (8.6cm) 5.6’’ (14.2cm) 7.8’’ (19.7cm) 9.9’’ (25.2cm) 12.1’’ (30.8cm)
0.8’’ (2.0cm) 2.3’’ (5.7cm) 3.7’’ (9.4cm) 5.2’’ (13.1cm) 6.6’’ (16.8cm) 8.1’’ (20.5cm)
6.6’ (2.00m) 18.4’ (5.60m) 30.2’ (9.20m) 42.0’ (12.80m) 53.8’ (16.40m) 65.6’ (20.00m)
28.7’’ (72.8cm) 57.3’’ (145.6cm) 86.0’’ (218.4cm) 114.6’’ (291.2cm) 143.3’’ (364.0cm) 172.0’’ (436.8cm)
24.3’’x15.2’’
61.7x38.6cm
0.8’’ (1.9cm) 1.5’’ (3.9cm) 2.3’’ (5.8cm) 3.0’’ (7.7cm) 3.8’’ (9.6cm) 4.6’’ (11.6cm)
1.6’ (0.50m) 3.3’ (1.00m) 4.9’ (1.50m) 6.6’ (2.00m) 8.2’ (2.50m) 9.8’ (3.00m)
83.7’’
(212.6cm)
66.8’’
(169.6cm)
71.0’’x44.4’’
180.2x112.7cm
56.6’’x35.4’’
143.8x89.9cm
128.1’’
(325.3cm)
85.2’’
(216.5cm)
108.6’’x67.9’’
275.9x172.4cm
72.3’’x45.2’’
183.6x114.8cm
48.6’’x30.4’’
123.5x77.2cm
135.3’’
(343.6cm)
107.9’’
(274.2cm)
114.7’’x71.7’’
291.4x182.1cm
91.5’’x57.2’’
232.5x145.3cm
210.4’’
(534.4cm)
140.0’’
(355.7cm)
178.4’’x111.5’’
453.2x283.3cm
118.8’’x74.2’’
301.6x188.5cm
72.9’’x45.6’’
185.2x115.7cm
189.4’’
(481.2cm)
151.2’’
(384.0cm)
160.6’’x100.4’’
408.0x255.0cm
128.2’’x80.1’’
325.6x203.5cm
292.7’’
(743.6cm)
194.8’’
(494.9cm)
248.2’’x155.2’’
630.5x394.1cm
165.2’’x103.3’’
419.7x262.3cm
97.2’’x60.8’’
246.9x154.3cm
246.2’’
(625.3cm)
196.5’’
(499.0cm)
208.8’’x130.5’’
530.2x331.4cm
166.6’’x104.1’’
423.2x264.5cm
375.1’’
(952.7cm)
249.6’’
(634.1cm)
318.1’’x198.8’’
807.9x504.9cm
211.7’’x132.3’’
537.7x336.1cm
121.5’’x75.9’’
308.6x192.9cm
300.1’’
(762.1cm)
239.5’’
(608.2cm)
254.4’’x159.0’’
646.3x403.9cm
203.1’’x126.9’’
515.8x322.4cm
457.4’’
(1161.8cm)
304.4’’
(773.3cm)
387.9’’x242.4’’98
5.2x615.8cm
258.2’’x161.4’’65
5.7x409.8cm
145.8’’x91.1’’
370.4x231.5cm
25
English
26

User Controls

Control Panel

Using the Control Panel
▲/Keystone+ (Up arrow)
◄/Source (Left arrow)
Enter / Help
►/
Re-Sync
(Right arrow)
Menu
•Adjust the image Keystone positively.
Navigates and changes settings in the OSD.
Press Source to select an input signal.
Navigates and changes settings in the OSD.
Conrm your item selection./
Press to activate Help function (disabled in OSD menus). See page 58 Appendices for help function.
•Automatically synchronizes the projector to the input source.
Navigates and changes settings in the OSD.
Press Menu to launch the on-screen display (OSD) menu. To exit OSD, Press Menu again.
English
1
3
4
Pg
Pg
Forma t
HDMI
Source
Componen t
D IV B NC VGA- 1
VGA-2
S-Vide o
Video
Menu
Displa y
Volume
Ε
Ε
Ε
Ε
2
5
6 7
8 9 0
Enter/Help
Brightness
Pg
Pg
Ε
Ε
Ε
Ε
User Controls

Remote Control

Using the Remote Control
Power
Laser
AV Mute
Re-Sync
Display
Freeze Press Freeze to pause the screen image.
Keystone
Refer to the “Power On/Off the Projector” section on page 17.
Aim the remote at the viewing screen, press and hold this button to activate the laser pointer.
Momentarily turns off/on the audio and video.
Automatically synchronizes the projector to the input source.
Press Display to selece a Display mode.
Adjusts image distortion caused by tilting the projector. (±30 degrees)
v
Due to the difference in applications for each country, some regions may have different accessories.
Zoom+
Volume +/-
Press
Adjusts to increase/decrease the volume.
to zoom in of an image.
Page + Use this button to page up.
Zoom-
Press
to zoom out of an image.
Page - Use this button to page down.
The PC/Mouse control can be used to
PC / Mouse control
control mouse movement. The mouse function is enabled using the USB cable to connect your computer and the projector.
L Button Mouse left click.
R Button Mouse right click.
Press Menu to launch the on-screen dis-
Menu
play (OSD) menu. To exit OSD, Press Menu again.
27
English
28
1
3
4
Pg
Pg
Forma t
HDMI
Source
Compone nt
D IV BNC VGA-1
VGA-2
S-Vide o
Video
Menu
Displa y
Volume
Ε
Ε
Ε
Ε
2
5
6 7
8 9 0
Enter/Help
Brightness
User Controls
v
Due to the difference in applications for each country, some regions may have different accessories.
Using the Remote Control
Four Directional Select Keys
Use ▲▼◄► to select items or make
adjustments to your selection.
Brightness Adjust the brightness of the image.
Format
Press Format to select the image ratio.
HDMI Press HDMI to choose HDMI source.
Component
Press Component to choose Component source.
Source Press Source to select an input signal.
DVI
Press DVI to choose source from DVI-D connector.
BNC Press BNC to choose BNC source.
VGA-1
Video
S-Video
VGA-2
Press VGA-1 to choose source from VGA- IN connector.
Press Video to choose Composite video source.
Press S-Video to choose S-Video source.
Press VGA-2 to choose source from VGA- IN connector.
English
Main Menu
Sub Menu
Setting
User Controls

On-screen Display Menus

The Projector has multilingual On-screen Display menus that allow you to make image adjustments and change a variety of settings. The projector will
automatically detect the source.

How to operate

1. To open the OSD menu, press Menu on the Remote Control or
Projector Keypad.
2. When OSD is displayed, use ◄► keys to select any item in the
main menu. While making a selection on a particular page, press
▼ or Enter to enter sub menu.
3. Use ▲▼ keys to select the desired item and adjust the settings by ◄► key.
4. Select the next item to be adjusted in the sub menu and adjust as described above.
5. Press Enter to conrm, and the screen will return to the main menu.
6. To exit, press Menu again. The OSD menu back to last level projector will automatically save the new settings.
29
English
30
Display Mode
Sharpness
Brightness
Advanced
Tint
Saturation
IMAGE | ADVANCED
BrilliantColor
TM
Degamma
Color Temp.
Color Space Input Source De-Interlace
Exit
3D
3D Sync invert
SETUP | Security Security Timer
Change Password
Security Setting
Exit
Auto/RGB/YUV
Warm/Medium/Cold
Film/Video/Graphics/PC
Presentation/Bright/Movie/sRGB/Blackboard/Classroom/User 1/User 2
HDMI/DVI-D/BNC/VGA 1/VGA 2/Component/S-Video/Video/Exit
On/Off
Format
Overscan
Zoom
H Image Shift
V Image Shift (16:9)
V Keystone
DISPLAY
4:3/16:9 I/16:9 II/Native/Auto (XGA)
4:3/16:9 /16:10 /Native/Auto (WXGA)
Off/DLP-Link
On/Off
LanguageSETUP
Projection
Menu Location
Signal
Security
Projector ID
English/Deutsch/Français/Italiano/Español/Português/Polski/ Nederlands/Svenska/Norsk/Dansk /Suomi/Ελληνικά/繁體中文/ 简体中文/日本語/한국어/Русский/Magyar/Čeština/ ﻋﺮﺑﻲ /ไทย/Türkçe
Audio
Advanced
Frequency/Phase/H. Position/V. Position/Exit
Month/Day/Hour/Exit
Enable/Disable
Network Network/DHCP/IP Address/Subnet Mask/Gateway/DNS/Apply/Exit
SETUP | Audio Mute
Volume
Exit
On/Off
SETUP | Advanced Logo
Logo Capture
Closed Captioning
Exit
Optoma/User
CC1/CC2/Off
OPTIONS Source Lock
High Altitude
Information Hide
Keypad Lock
Background Color
Advanced
On/Off
Blue/Black/Red/Green/White
Lamp Setting
Reset Yes/No
On/Off On/Off On/Off
OPTIONS | Advanced Direct Power On
Auto Power Off (min)
Sleep Timer (min)
On/Off
Power Mode (Standby)
Exit
ECO Mode/Active Mode
OPTIONS | Lamp Setting Lamp Hour
Lamp Reminder
Brightness Mode Bright/STD
Lamp Reset
Exit
Yes/No
On/Off
Contrast
Color Settings Red/Green/Blue/Cyan/Yellow/Magenta/Reset/Exit
RS232 RS232/Network
Lens Type STD/Short/Long
User Controls

Menu Tree

English
User Controls


Display Mode
There are many factory presets optimized for various types of images.
Presentation: Good color and brightness from PC input.
4
Bright: Maximum brightness from PC input.
4
Movie: For home theater.
4
sRGB: Standardised accurate color.
4
Blackboard: Tuned for blackboard usage.
4
Classroom: Recommended settings for classroom.
4
User1: User’s own settings.
4
User2: User’s own settings.
4
The initial default settings of this mode is from Movie mode. Any further adjustments by the user in User1/2 will be saved in this mode for future use.
Brightness
Adjust the brightness of the image.
Press ◄ to darken image.
4
Press ► to lighten the image.
4
Contrast
The contrast controls the degree of difference between the lightest and darkest parts of the picture.
Press ◄ to decrease the contrast.
4
Press ► to increase the contrast.
4
Sharpness
Adjusts the sharpness of the image.
Press ◄ to decrease the sharpness.
4
Press ► to increase the sharpness.
4
31
English
32
User Controls
Saturation
Adjusts a video image from black and white to full color saturation.
Press ◄ to decrease the amount of saturation in the image.
4
Press ► to increase the amount of saturation in the image.
4
Tint
Adjusts the color balance of red and green.
Press ◄ to increase the amount of green in the image.
4
Press ► to increase the amount of red in the image.
4
Color Setting
Enter the Color Setting menu. Select the Red/Green/Blue Gain for brightness adjustments and Bias for contrast adjustments for the whole picture. Individual color adjustments for Cyan, Magenta, Yellow can also be adjusted. See page 33 for more details.
Advanced
Enter the Advanced menu. Select advanced display options such as BrilliantColorTM, Degamma, Color Temp., Color Space, Input Source, De-Interlace, and Exit. See page 35 for more information.
English
User Controls
Image | Color Setting
Red
Increase or decrease the color value for red.
Green
Increase or decrease the color value for green.
Blue
Increase or decrease the color value for blue.
Cyan
Increase or decrease the color value for cyan.
Yellow
Increase or decrease the color value for yellow.
Magenta
Increase or decrease the color value for magenta.
Reset
Reset all Color Setting values to the factory default.
33
English
34
User Controls
Image | Color Setting / HSG
Hue
Adjust the color balance of red and green.
Press ◄ to increase the amount of green in the image.
4
Press ► to increase the amount of red in the image.
4
Saturation
Adjusts a video image from black and white to full color saturation.
Press ◄ to decrease the amount of saturation in the image.
4
Press ► to increase the amount of saturation in the image.
4
Gain
Set Red Gain to adjust the Brightness:
Increase or decrease the gain value for red.
4
v
Green, Blue, Cyan,Yellow, Magenta can be separate adjust by each color HSG.
English
Image | Advanced
User Controls
v
De-interlace only support 480i/576i/ 1080i signal via Component/ S-video/ Video.
BrilliantColor
This adjustable item utilizes a new color-processing algorithm and system level enhancements to enable higher brightness while providing true, more vibrant colors in picture. The range is from 0 to 10. If you prefer a stronger enhanced image, adjust toward the maximum setting. For a smoother, more natural image, adjust toward the minimum setting.
TM
Degamma
This allows you to choose a degamma table that has been ne-tuned to bring out the best image quality for the input.
Film—for home theater.
4
Video—for video or TV source.
4
Graphics—for image source.
4
PC—for PC or computer source.
4
Color Temp
Adjust the color temperature. Cold temperature, the screen looks colder; with Warm temperature, the screen looks warmer.
Color Space
Select an appropriate color matrix type from AUTO, RGB, YUV.
Input Source
Enter the Input Source submenu. Select the sources to scan for at startup. See page 36 for more information.
De-interlace
Press the cursor ◄ or ► button to select different De-interlace modes. This
function converts an interlaced video signal into progressive signal.
On: Use this mode for Films.
4
Off: Use this mode for Video or TV sources.
4
35
English
36
User Controls

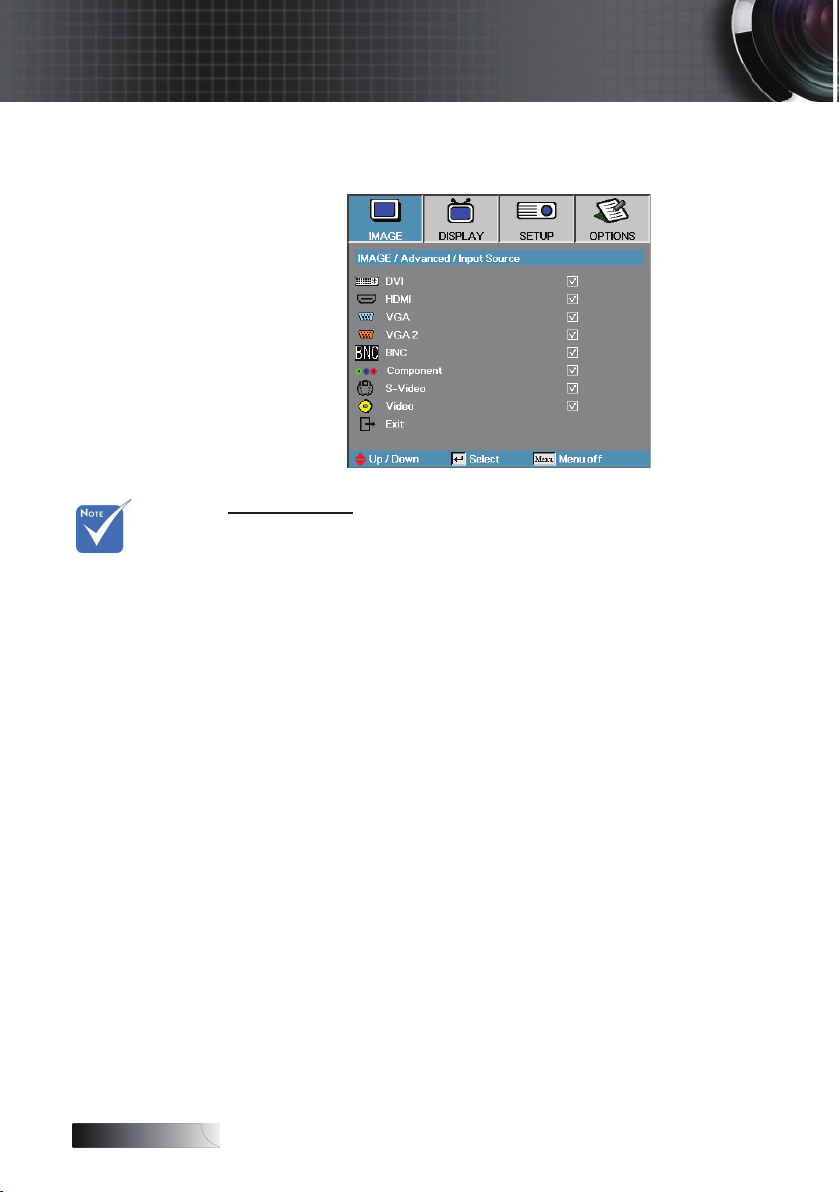

Image | Advanced | Input Source
Input Source
Use this option to enable / disable input sources. Press ▲ or ▼ to select
v If all sources
are deselected, the projector cannot display any images. Always leave at least one source selected.
a source, then press ◄ or ► to enable / disable it. Press Enter to nalize
the selection. The projector will not search inputs that are de-selected.
English
User Controls

Display

Format
Use this function to choose your desired aspect ratio.
4:3: This format is for 4x3 input sources not enhanced for Wide screen TV.
4
16:9 I (XGA) | 16:9 (WXGA): This format is for 16x9 input sources,
4
like HDTV and DVD enhanced for Wide screen TV.
16:9 II (XGA) | 16:10 (WXGA): The non-standard wide-screen
4
display format of the projector. Part of the original image will be cut if the image aspect ratio is less than 1.67:1.
Native: Depends on the resolution of the input source – No scaling is
4
performed.
Auto: Automatically selects the appropriate format.
4
XGA WXGA
37
English
38
User Controls
Display
Overscan
Overscan function removes the noise in a video image. Overscan the image to remove video encoding noise on the edge of video source.
Zoom
Press to reduce the size of the image.
4
Press to magnify an image on the projected screen.
4
H Image Shift
Shifts the projected image position horizontally.
Press to move the image left on the projected screen.
4
Press to move the image right on the projected screen.
4
V Image Shift (16:9 only)
Shifts the projected image position vertically (in 16:9 format only).
Press to move the image up on the projected screen.
4
Press to move the image down on the projected screen.
4
V Keystone
Press ◄ or ► to compensate for vertical images distortion when the projector is positioned at an angle to the screen.
3D
Press ◄ or ► to enable or disable the 3D function. When the 3D function is enabled, the current picture mode adjustment will be disabled.
3D Sync invert
Press ◄ or ► to enable or disable the 3D Sync invert function to invert images.
English
User Controls

Setup

Language
Enter the Language menu. Select the multilingual OSD menu. See page 41 for more information.
Projection
Select projection method:
Front Desktop
4
The factory default setting.
Rear Desktop
4
When you select this function, the projector reverses the image so you can project from behind a translucent screen.
Front Ceiling
4
When you select this function, the projector turns the image upside down for ceiling-mounted projection.
Rear Ceiling
4
When you select this function, the projector reverses and turns the image upside down at same time. You can project from behind a translucent screen with ceiling mounted projection.
Menu Location
Choose the menu location on the display screen.
39
English
40
User Controls
Setup
Signal
Enter the Signal menu. Set projector signal properties. See page 42 for more information.
Security
Enter the Security menu. Access the projector’s security features. See page 43 for more information.
Projector ID
Select a two digit projector ID from 0 through 99.
Audio
Enter the Audio menu. Set audio level properties. See page 46 for more information.
RS232
Allows RS232 control of an individual projector.
Lens Type
Used to set the lens type that has been tted. This is to ensure
correct operation of the lens iris.
Network
Allows LAN via web browser (Internet Explore) to control of projector. See pages 49 for more information.
Advanced
Enter the Advanced menu. Select the screen display during startup. See page 47 for more information.
English
User Controls
Setup | Language
Language
Choose the multilingual OSD menu. Press ENTER ( ) into the sub menu and then use the Left () or Right () key to select your preferred language.
41
English
42
User Controls
Setup | Signal
Frequency
Change the display data frequency to match the frequency of your computer’s graphics card. If you experience a vertical ickering bar, use
this function to make an adjustment.
Phase
Phase synchronizes the signal timing of the display with the graphics
card. If you experience an unstable or ickering image, use this function
to correct it.
H. Position
Press ◄ to move the image left.
4
Press ► to move the image right.
4
V. Position
Press ◄ to move the image down.
4
Press ► to move the image up.
4
English
Setup | Security
Security Timer
Enter the Security Timer sub menu.
User Controls
v No password
is required to
access Setup | Security unless the Security Timer or Security Setting are enabled.
Enter the Months, Days, and hours that the projector can be used without entering the password. Exiting to the Setup menu activates the Security Timer.
Once activated, the projector requires a password on the specied dates
and times to allow power on and access to the security menu. If the projector is in use and the Security Timer is active, the following
screen displays 60 seconds before the password is required.
43
English
44
User Controls
Setup | Security
Change Password
v If the incorrect
password is entered three times, the device auto shutdowns after 10 seconds.
Use this submenu to change the security password for the projector.
1. Select Change Password from the Security submenu. The Conrm
Change Password dialog box displays.
2. Select Yes.
v If the new
passwords do not match, the password screen redisplays.
3. Enter the default password <1> <2> <3> <4> <5>. A second password screen displays.
4. Enter the new password twice for verication.
English
User Controls
Setup | Security
Security Setting
Enable or disable the security password.
Enabled—the current password is required to power on the projector
4
and access the Security menu.
Disabled—no password is required for any function.
4
When security is enabled, the following screen displays at startup and before access to the Security menu is allowed:
45
English
46
User Controls
Setup | Audio
Volume
Press to decrease the volume of voice. Press to increase the volume of voice.
Mute
Toggle the audio on or off.
Off—the speaker volume is turned on.
4
On–the speaker volume is turned off.
4
English
User Controls
Setup | Advanced
Logo
Select the screen to display during startup.
Optoma—the supplied default startup screen.
4
User—customized screen capture using the Logo Capture function.
4
Logo Capture
v Only one
startup screen can be saved at once.
Subsequent
captures overwrite
previous les
limited in 1280 x 800.
Capture a displayed screen to use as the startup screen.
1. Display the desired screen on the projector.
2. Select Logo Capture from the Advanced menu.
A conrmation screen displays.
3. Select OK. Screen capture in progress will display.
When nished, Screen capture Succeeded will display.
The captured screen is saved as User in the logo menu.
Closed Captioning
Select the screen to display closed captioning
Off–the supplied default setting.
4
CC1 I CC2–closed captioning type select.
4
47
English
48
User Controls
Setup | RS232
RS232
Press Enter to enter the RS232 sub menu and use the Left () or Right () key to select your preferred RS232 control.
When selecting Network, a message displays as below:
English
User Controls
Setup | Network
Network
Press Enter to apply Network settings. If the connection is successful, the OSD display will show the following dialogue box.
Network State—to display network information.
4
DHCP:
4
On: Assign an IP address to the projector from the DHCP server
automatically.
Off: Assign an IP address manually.
IP Address—Select an IP address
4
Subnet Mask—Select subnet mask number.
4
Gateway—Select the default gateway of the network connected to the
4
projector.
DNS—Select DNS number.
4
Apply—Press Enter to apply the selection.
4
49
English
50
User Controls

Options

Source Lock
Lock the current source as the only available source, even if the cable is unplugged.
On—only the current source is recognized as an input source.
4
Off—all sources selected in Image | Advanced | Input Source are
4
recognized as an input source.
High Altitude
Adjust the fan speed to reect the environment.
On—increases fan speed for high temperature, humidity, or altitude.
4
Off—regular fan speed for normal conditions.
4
Information Hide
Suppress informational messages on the projected screen.
On—no status messages appear on screen during operation.
4
Off— status messages appear as normal on screen during operation.
4
Keypad Lock
Lock the buttons on the projector top panel.
On—a warning message displays to conrm keypad lock.
4
Off—projector keypad functions as normal.
4
English
User Controls
Options
Background Color
Select the desired background color for the projected image when no source is detected.
Advanced
Enter the Advanced menu. See page 52 for more details.
Lamp Setting
Enter the Lamp Setting menu. See pages 53-54 for more details.
Reset
Reset all Options to default factory settings.
51
English
52
User Controls
Options | Advanced
Direct Power On
Enable or disable Direct Power On.
On—the projector powers on automatically when AC power is supplied.
4
Off— the projector must be powered on as normal.
4
Auto Power Off
Set the Auto Power Off interval. The projector powers off the lamp after 30 minutes of no signal by default. The following warning is displayed 60 seconds before power off.
v When Power
mode (Standby) is set to Eco, the VGA & Audio pass-through, RS232 and RJ45 will be deacti­vated when the projector is in standby.
Sleep Timer
Set the Sleep Timer interval. The projector powers off after the specied
time period of inactivity (regardless of signal). The following warning is displayed 60 seconds before power off.
Power Mode (Standby)
Eco.: Choose “Eco.” to save power dissipation further < 1W.
4
Active: Choose “Active” to return to normal standby and the VGA
4
out port will be enabled.
English
User Controls
Options | Lamp Setting
Lamp Hour
Displays the number of hours the lamp has been active. This item is for display only.
Lamp Reminder
Enable or disable the lamp life span reminder.
On—a warning message displays when remaining lamp life is less
4
than 30 hours.
Off—no warning message displays.
4
Brightness Mode
Select the lamp brightness mode.
Bright—the default setting.
4
STD—lower brightness setting to conserve lamp life.
4
53
English
54
User Controls
Options | Lamp Setting
Lamp Reset
After replacing the lamp, reset the lamp counter to accurately reect the
new lamp’s life span.
1. Select Lamp Reset.
A conrmation screen displays.
2. Select Yes to reset the lamp counter to zero.
English
v Projector
connects to LAN, please use Ethernet Normal Cable.
v Peer-to-peer
(PC connects to Projector directly), please use Ethernet Crossover Cable.
User Controls

LAN_RJ45

For simplicity and ease of operation, the Optoma projector provides di­verse networking and remote management features. The LAN/RJ45 function of the projector through a network, such as re­motely manage: Power On/Off, Brightness and Contrast settings. Also, projector status information, such as: Video-Source, Sound-Mute, etc.
LAN_RJ45
1.
Connect an RJ45 cable to RJ45 ports on the projector and the PC (Laptop).
2.
On the PC (Laptop), select Start -> Control Panel-> Network Connections.
55
English
56
User Controls
3. Right Click on your Local Area Connection, and select Property.
4. In the Properties window, select the General tab, and select Internet Protocol (TCP/IP).
5. Click Properties.
6. Fill in the IP address and Subnet mask, then press OK.
English
v For more
information, please visit http://www. crestron.com
User Controls
7. Press the Menu button on the projector.
8. Select OSD-> SETUP-> Network-> Enabled.
9. Input the following:
IP Address: 10.10.10.10
4
Subnet Mask: 255.255.255.0
4
Gateway: 0.0.0.0
4
DNS: 0.0.0.0
4
10. Press Apply (Enter) to conrm settings.
11. Open a web browser (ex, Microsoft Internet Explorer with Adobe Flash Player 9.0 or higher).
12. In the Address bar, input the IP address: 10.10.10.10.
13. Press Apply. The projector is setup for remote management. The LAN/RJ45 function displays as follows.
57
English
58

Appendices

Troubleshooting/ Help On-screen Display Menu

If you experience a problem with your projector, please refer to the following information. If a problem persists, please contact your local reseller or service center.

Image Problems

No image appears on-screen
Ensure all the cables and power connections are correctly and
4
securely connected as described in the Installation section.
Ensure all the pins of connectors are not bent or broken.
4
English
Appendices
Check if the projection lamp has been securely installed. Please
4
refer to the Replacing the lamp section.
Make sure you have removed the lens cap and the projector is
4
switched on.
Partial, scrolling or incorrectly displayed image
Press “Re-Sync” on the remote.
4
If you are using a PC:
4
For Windows 95, 98, 2000, XP:
1. Open the My Computer icon, the Control Panel folder, and then double click on the Display icon.
2. Select the Settings tab.
3. Verify that your display resolution setting is lower than or
equal to UXGA (1600 x 1200).
4. Click on the Advanced Properties button.
If the projector is still not projecting the whole image, you will also need to change the monitor display you are using. Refer to the following steps.
5. Verify the resolution setting is lower than or equal to UXGA (1600 x 1200).
6. Select the Change button under the Monitor tab.
7. Click on Show all devices. Next, select Standard monitor types under the SP box; choose the resolution mode you need under the “Models” box.
8. Verify that the resolution setting of the monitor display is
lower than or equal to UXGA (1600 x 1200). (*)
59
English
60
Acer
[Fn]+[F5] Asus [Fn]+[F8] Dell
[Fn]+[F8]
Gateway [Fn]+[F4]
Mac Apple: System Preference Display Arrangement Mirror display
IBM/Lenovo �[Fn]+[F7]
[Fn]+[F4]
HP/Compaq NEC [Fn]+[F3] Toshiba [Fn]+[F5]
Appendices
4
If you are using a Notebook:
1. First, follow the steps above to adjust resolution of the computer.
2. Press the toggle output settings. Example: [Fn]+[F4]
If you experience difculty changing resolutions or your monitor freezes, restart all equipment including the projector.
English
Appendices
The screen of the Notebook or PowerBook computer is not displaying your presentation
If you are using a Notebook:
4
Some Notebooks may deactivate their own screens when a second display device is in use. Each has a different way to be reactivated. Refer to your computer’s manual for detailed information.
Image is unstable or ickering
Use Phase to correct it. See page 42 for more information.
4
Change the monitor color setting on your computer.
4
61
English
62
Appendices
Image has vertical ickering bar
4
4
Image is out of focus
4 4 4
The image is stretched when displaying 16:9 DVD title
When you play anamorphic DVD or 16:9 DVD, the projector will show the best image in 16:9 format in OSD. If you play 4:3 format DVD title, please change the format as 4:3 in projector OSD. If the image is still stretched, you will also need to adjust the aspect ratio by referring to the following:
4
Image is too small or too large
Use Frequency to make an adjustment. See page 42 for more
information.
Check and recongure the display mode of your graphic card
to make it compatible with the projector.
Make sure the lens cap is removed.
Adjusts the Focus Ring on the projector lens. Make sure the projection screen is between the required
distances from the projector. See pages 24-25 for more information.
Please setup the display format as 16:9 (wide) aspect ratio type
on your DVD player.
Adjust the Zoom Ring on the top of the projector.
4
Move the projector closer to or further from the screen.
4
Press [Menu] button on the remote control or projector panel,
4
go to Display | Format and try the different settings.
English
Appendices
Image has slanted sides
If possible, reposition the projector so that it is centered on the
4
screen and below the bottom of the screen.
Press [Keystone +/-] on the remote control until the sides are
4
vertical.
Image is reversed
Select Setup | Projection from the OSD and adjust the
4
projection direction.

Intermission Problems

The projector stops responding to all controls
If possible, turn off the projector, then unplug the power cord
4
and wait at least 60 seconds before reconnecting power.
Lamp burns out or makes a popping sound
When the lamp reaches its end of life, it will burn out and
4
may make a loud popping sound. If this happens, the projector will not turn on until the lamp module has been replaced. To replace the lamp, follow the procedures in Replacing the Lamp on page 60.
63
English
64
Appendices
HDMI Q & A
What is the difference between a “Standard” HDMI cable and a “High-Speed” HDMI cable?
Recently, HDMI Licensing, LLC announced that cables would be tested as Standard or High-Speed cables.
4
4
How do I run HDMI cables longer than 10 meters?
4
Standard (or “category 1”) HDMI cables have been tested to
perform at speeds of 75Mhz or up to 2.25Gbps, which is the
equivalent of a 720p/1080i signal.
High Speed (or “category 2”) HDMI cables have been tested
to perform at speeds of 340Mhz or up to 10.2Gbps, which is the highest bandwidth currently available over an HDMI cable and can successfully handle 1080p signals including those at increased color depths and/or increased refresh rates from the Source. High-Speed cables are also able to accommodate higher resolution displays, such as WQXGA cinema monitors (resolution of 2560 x 1600).
There are many HDMI Adopters working on HDMI solutions
that extend a cable’s effective distance from the typical 10 meter range to much longer lengths. These companies manufacture a variety of solutions that include active cables (active electronics built into cables that boost and extend the
cable’s signal), repeaters, ampliers as well as CAT5/6 and ber solutions.
How can I tell if a cable is an HDMI certied cable?
All HDMI products are required to be certied by the
4
manufacturer as part of the HDMI Compliance Test
Specication. However, there may be instances where cables
bearing the HDMI logo are available but have not been properly tested. HDMI Licensing, LLC actively investigates these instances to ensure that the HDMI trademark is properly used in the market. We recommend that consumers buy their cables from a reputable source and a company that is trusted.
For more detail information check:
http://www.hdmi.org/learningcenter/faq.aspx#49
English
Projector Status Indication
Steady light
No light
Power LED Power LED Temp LED Lamp LED
Message
(Blue) (Amber) (Red) (Red)
Standby State (Input power cord)
Standby State (Burn in Mode)
Power on with OSD (Press power button)
Power on without OSD
Over Temperature
Flashing
*
Appendices
Fan Fail
Lamp error
Power off (Cooling)
Flashing
* Power LED will be ON when OSD appears and OFF when OSD
disappears.
The digit represents the number of led blinks.
65
English
66
Appendices
LED Error Code Messages
Error Code Message
T1 temperature over temperature 3 0
Thermal Break 4 0
G794 fail 4 4
T1 fail 4 5
Lamp error 5 0
Ballast Over Temperature 5 1
Ballast shot circuit in output detected 5 2
End of lamp lift detected 5 3
Ballast lamp did not ignite 5 4
Lamp extinguished during normal opera­tion
Lamp extinguished during run-up phase 5 6
Fan1 error (Lamp Fan) 6 1
Power LED Lamp LED
(Blink) (Blink)
5 5
Fan2 error (Ballast Fan) 6 2
Fan3 error (Burner Fan) 6 3
Fan4 error (Power Fan) 6 4
Lamp door open 7 0
DMD error 8 0
Color wheel error 9 0
English
Appendices
Message Reminders
Replacing the lamp:
4
Out of range: (see the following for more information)
4
Remote Control Problems
If the remote control does not work
Check the operating angle for the remote control is
4
approximately ±15°.
Make sure there are no obstructions between the remote control
4
and the projector. Move to within 7m (23 ft) of the projector.
Make sure the batteries are inserted correctly.
4
Replace weak batteries in the remote control.
4
67
English
68
Appendices
Audio Problems
There is no sound
4 4 4 4 4
The sound is distorted
Adjust the volume on the remote control.
Adjust the volume of the audio source.
Check the audio cable connection.
Test the source audio output with other speakers.
Have the projector serviced.
Check the audio cable connection.
4
Test the source audio output with other speakers.
4
Have the projector serviced.
4
English
Appendices
Replacing the Lamp
The projection lamp should be replaced when it burns out. It should only be replaced with a certied replacement part, which you can order from your local dealer.
Important:
The lamp contains a certain amount of mercury and should be
4
disposed of according to local ordinance regulations.
Avoid touching the glass surface of the new lamp, doing so
4
may shorten its operation life.
Warning:
Be sure to turn off and unplug the projector at least an hour before
4
replacing the lamp. Failure to do so could result in a severe burn.
1
2
3
69
English
70
Appendices
4
1. Switch off the power to the projector by pressing the Power button.
2. Allow the projector to cool down at least 30 minutes.
3. Disconnect the power cord.
4. Unlock the lamp cover.
5. Pull up and remove the cover.
6. Use a screwdriver to remove the screws from the lamp module.
7. Pull out the lamp module. To replace the lamp module, reverse the previous steps. After replacing the lamp, the lamp hours counter must be reset. See
page 54 for more information.
English
Appendices

Cleaning the Projector

Cleaning the projector to remove dust and grime will help ensure trouble-free operation.
Warning:
Be sure to turn off and unplug the projector at least an hour before
4
cleaning. Failure to do so could result in a severe burn.
Use only a dampened cloth when cleaning. Do not allow water to
4
enter the ventilation openings on the projector.
If a little water gets into the projector interior while cleaning, leave
4
unplugged in a well-ventilated room for several hours before using.
If a lot of water gets into the projector interior when cleaning, have
4
the projector serviced.

Cleaning the Lens

You can purchase optic lens cleaner from most camera stores. Refer to the following to clean the pro-jector lens.
1. Apply a little optic lens cleaner to a clean soft cloth. (Do not apply the cleaner directly to the lens.)
2. Lightly wipe the lens in a circular motion.
Caution:
Do not use abrasive cleaners or solvents.
4
To prevent discoloration or fading, avoid getting cleaner on the
4
projector case.

Cleaning the Case

Refer to the following to clean the projector case.
1. Wipe off dust with a clean dampened cloth.
2. Moisten the cloth with warm water and mild detergent (such as used to wash dishes), and then wipe the case.
3. Rinse all detergent from the cloth and wipe the projector again.
Caution:
To prevent discoloration or fading of the case, do not use abrasive alcohol-based cleaners.
71
English
72
Appendices

Compatibility Modes

Computer Compatibility
PAL/SECAM - 50
WXGA-800 1280 x 800 60
Signal Resolution Refresh Rate (Hz)
NTSC - 60
VESA 640 x 350 70.1/ 85.1
640 x 400 70.1 / 85.1
720 x 350 70
720 x 400 70/ 85
720 x 576 50/ 60
VGA 640 x 480 60/ 67/ 72.8/ 75/ 85
SVGA 800 x 600 56.3/ 60.3/ 75/ 72.2/ 80/ 85.1
832 x 624 72/ 75
1024 x 576 50/ 60
XGA 1024 x 768 60/ 70.1/ 72/ 75/ 85
1152 x 864 60/ 70/ 75/85
HD720 1280 x 720 50/ 60/ 75/ 85
WXGA 1280 x 768 60/ 70/ 75/ 85
SXGA 1280 x 1024 60/ 75/85
SXGA+ 1400 x 1050 60
UXGA 1600 x 1200 60
1600 x 1050 60
HDTV 1920 x 1080 25/30
1920 x 1080i 50/ 60
1920 x 1080p 24/25/30/50/ 60
1280 x 720 60
1280 x 720p 50/ 60
SDTV 720 x 576 50
720 x 576i 50
720 x 576p 50
720 x 480 60
English
Appendices
Signal Resolution Refresh Rate (Hz)
720 x 480i 60
720 x 480p 60
Apple Mac Compatibility
v For wide
screen resolution (WXGA), the compatibility support is dependent on Notebook/PC models.
Resolution Macbook
Hz- Analog Analog Analog Analog
800x600 60 o o - -
800x600 72 o o o o
800x600 75 o o o o
800x600 85 o o o o
1024x768 60 o o o o
1024x768 70 o o o o
1024x768 75 o o o o
1024x768 85 o o o o
1280x720 60 o o o o
1280x720 75 o o - o
1280x720 85 o o - o
1280x768 60 o o - o
1280x768 75 o o o o
1280x768 85 o o - o
1280x800 60 o o o o
1280x1024
1280x1024
1680x1050
1920x1200
60 - o o o
75 - o o -
60 o o - -
60 o o - -
Macbook Pro
(Intel)
Power Mac G5Power Mac
G4
73
English
74
9 8 7 6
5 4 3 2 1
Appendices

RS232 Commands

RS232 Connector
Pin No Specication
1 N/A
2 RXD
3 TXD
4 DTR
5 GND
6 DSR
7 RTS
8 CTS
9 N/A
English

RS232 Protocol Function List

Baud Rate 9600 Data Bits 8 Parity Check None Stop Bits 1 Flow Control None UART16550 FIFO Disable
Lead Code Projector ID Command ID space variable carriage return
~ X X X X X n CR
Fix code One Digit
Set in OSD 00~99 Two Digit 00 is for universal use
Defined by Optoma 2 or 3 Digit See the Follow content
One Digit
Per item Definition
Fix code One Digit
Keypad Command
Function ASCII Pass Fail
Power On/Off n=1/n=2 & 0 ~XX00 n P F Power On with Password ~XX00 1nnnn P F Resync n=1 ~XX01 n P F AV Mute On/Off n=1/n=2 & 0 ~XX02 n P F Mute On/Off n=1/n=2 & 0 ~XX03 n P F Freeze n=1 ~XX04 n P F Unfreeze n=2 IR Function On/Off n=1/n=2 & 0 ~XX11 n P F Direct Source Selection ~XX12 n P F
HDMI n=1 DVI-D n=2 BNC n=4 VGA 1 n=5 VGA 2 n=6 VGA 1 SCART n=7 VGA 1 Component n=8 S-Video n=9 Video n=10 VGA 2 SCART n=12 VGA 2 Component n=13 Component RCA n=14
OSD/Image
Function ASCII Pass Fail
Presentation ʳ n=1 ~XX20 n P F Bright ʳ n=2 ʳ Movie ʳ n=3 ʳ sRGB ʳ n=4 ʳ Classroom n=7 Blackboard n=8 User 1 ʳ n=5 ʳ
Display Mode
3D ʳ n=
11 ʳ Brightness ʳ ʳ n= -50 - +50 ~XX21 n P F Contrast ʳ ʳ n= -50 - +50 ~XX22 n P F Sharpness ʳ ʳ n= -15 - +15 ~XX23 n P F
RS232 Commands
v
Due to the difference application for each model. Function is dependent on the model purchased.
Appendices
75
English
76
Function
ASCII
Pass
Fail
Saturation n= -50 - +50 ~XX45 n P F Tint n= -50 - +50 ~XX44 n P F
BrilliantColor
TM 1
ʳ n= 0 - 10 ~XX34 n P F Film n=1 ~XX35 n P F Video n=2 Graphics n=3 ʳ
Degamma
PC n=
4 ʳ Warm n=1 ~XX36 n P F Medium n=2 ʳ
Color Temp.
Cold n=
3 ʳ
Hue n=-50 ~ 50 ~XX170 n P F Saturation n=-50 ~ 50 ~XX171 n P F
Red
Gain n=-50 ~ 50 ~XX27 n P
F
Hue n=-50 ~ 50 ~XX172 n P F
Saturation n=-50 ~ 50 ~XX173 n P F
Green
Gain n=-50 ~ 50 ~XX28 n P
F Hue n=-50 ~ 50 ~XX174 n P F Saturation n=-50 ~ 50 ~XX175 n P F
Blue
Gain n=-50 ~ 50 ~XX29 n P
F Hue n=-50 ~ 50 ~XX176 n P F Saturation n=-50 ~ 50 ~XX177 n P F
Cyan
Gain n=-50 ~ 50 ~XX30 n P
F
Hue n=-50 ~ 50 ~XX178 n P F Saturation n=-50 ~ 50 ~XX179 n P F
Yellow
Gain n=-50 ~ 50 ~XX31 n P
F Hue n=-50 ~ 50 ~XX180 n P F
Saturation n=-50 ~ 50 ~XX181 n P F
Magenta
Gain n=-50 ~ 50 ~XX32 n P
F
Color Settings
ʳ Reset n=
1 ~XX33 n P F
Auto n=1 ~XX37 n P F
RGB n=2 ʳ
IMAGE /Advanced
Color Space
YUV n=
3 ʳ HDMI n=1 ~XX39 n P F DVI-D n=2 ʳ
BNC n=4 VGA 1 n=5 VGA 2 n=6 RCA Component n=8
S-Video n=9 ʳ
IMAGE /Advanced
Input Source Filters
Video n=
10 ʳ On n=1 ~XX40 n P F
IMAGE /Advanced
De-Interlace
Off n=2 & 0 ʳ
1
If no patent issue, the term will be modified to BrilliantColorTM.
Appendices
English
OSD/Display
Function ASCII Pass Fail
4:3 n=1 ~XX60 n P F 16:9 I/16:9 n=2 ʳ 16:9 II / 16:10 n=3 Native n=6 ʳ
Format
Auto n=
7 ʳ Overscan ʳ n=0-10 ~XX61 n P F Zoom ʳ n= -30 - +100 ~XX62 n P F H Image Shift ʳ n= -50 - +50 ~XX63 n P F V Image Shift (16:9) ʳ n= -24 - +24 ~XX64 n P F V Keystone ʳ n= -30 - +30 ~XX66 n P F 3D Off/DLP-Link n=2&0, n=1 ~XX230 n P F 3D Sync Invert On/Off n=1/n=2 &0 ~XX231 n P F
OSD/Setup
Function ASCII Pass Fail
English ʳ n=1 ~XX70 n P F German ʳ n=2 ʳ French ʳ n=3 ʳ Italian ʳ n=4 ʳ Spanish ʳ n=5 ʳ Portuguese ʳ n=6 ʳ Polish ʳ n=7 ʳ Dutch ʳ n=8 ʳ Swedish ʳ n=9 ʳ Norwegian/Danish ʳ n=10 ʳ Finnish ʳ n=11 ʳ Greek ʳ n=12 ʳ Traditional Chinese ʳ n=13 ʳ Simplified Chinese ʳ n=14 ʳ Japanese ʳ n=15 ʳ Korean ʳ n=16 ʳ Russian ʳ n=17 ʳ Hungarian ʳ n=18 ʳ Czechoslovak ʳ n=19 ʳ Arabic ʳ n=20 ʳ Thai ʳ n=21
Language
Turkish ʳ n=
22 ʳ Front-Desktop ʳ n=1 ~XX71 n P F Rear-Desktop ʳ n=2 ʳ Front-Ceiling ʳ n=3 ʳ
Projection
Rear-Ceiling ʳ n=
4 ʳ Top Left ʳ n=1 ~XX72 n P F Top Right ʳ n=2 ʳ Centre ʳ n=3 ʳ Bottom Left ʳ n=4 ʳ
Menu Location
Bottom Right ʳ n=
5 ʳ
Signal
Frequency ʳ n=
0~31 ~XX73 n P F
Appendices
77
English
78
Appendices
Function ASCII Pass Fail
Phase ʳ n= -5 - +5 ~XX74 n P F H. Position ʳ n= -5 - +5 ~XX75 n P F V. Position ʳ n= -5 - +5 ~XX76 n P F Security Timer Hour/Day/Month nnnnnn ~XX77 n P F
Change Password
ʳ ʳ
send back the
password to
confirm
Security
Security Settings Enable/Disable n=1/n=2 &0 ~XX78 n P
F
Projector ID ʳ ʳ n=00-99 ~XX79 n P F
Mute On/Off n=1/n=2 &0 ~XX80 n P F
Audio
Volume ʳ n=0-10 ~XX81 n P F Logo Optoma/User n=1/n=2 ~XX82 n P F Logo Capture ʳ n=1 ~XX83 n P F
Advanced
Closed Captioning On/Off n=1/n=2 &0 ~XX88 n P
F
RS232 n=1 ~XX86 n P F
RS232 ʳ
Network n=2 ʳ P F
OSD/Option
Function ASCII Pass Fail
Source Lock ʳ On/Off n=1/n=2 &0 ~XX100 n P F High Altitude ʳ On/Off n=1/n=2 &0 ~XX101 n P F Information Hide ʳ On/Off n=1/n=2 &0 ~XX102 n P F Keypad Lock ʳ On/Off n=1/n=2 &0 ~XX103 n P F
Blue ʳ n=1 ~XX104 n P F Black ʳ n=2 ʳ Red ʳ n=3 ʳ Green ʳ n=4 ʳ
Background Color
White ʳ n=
5 ʳ Direct Power On On/Off n=1/n=2 &0 ~XX105 n P F Signal Power On On/Off n=1/n=2 &0 ~XX113 n P F
Auto Power Off (min) ʳ n=0-180 ~XX106 n P F Sleep Timer (min) ʳ n=000-995 ~XX107 n P F
Advanced
Power Mode(Standby)
ECO mode/Active Mode
n=1/n=2 &0 ~XX114 n P
F
Lamp Hour ʳ n=1 ~XX108 n nnnn F Lamp Reminder On/Off n=1/n=2 &0 ~XX109 n P F Brightness Mode Bright/STD n=1/n=2 ~XX110 n P F
Yes n=1 ~XX111 n P F
Lamp Setting
Lamp Reset
No n=2 ʳ Yes n=1 ~XX112 n P F
Reset ʳ
No n=2 ʳ
Note: To also include AMX beacon signal in RS232 protocol In basic terms, AMX controllers will issue a poll periodically to detect 3rd party devices connected to the RS232 port (in this case Optoma). The poll is "AMX" in ASCII followed by a carriage return '\r'.
On recognition of the poll, the Optoma projector will respond with a beacon string (in ASCII) identifying your device. The AMX controller (Branded NetLinx) can then download the interface from the amx website to control your device. An example beacon string for Optoma could be:
AMXB<-SDKClass=VideoProjector><-Make=Optoma><-Model=EX???><-Revision=1.0.0>
The beacon needs to be terminated by a carriage return (‘\r’, 0x0D)
Revision will indicate the firmware version that is running on the Optoma projector. Device discovery is also supported over IP if control protocol works across it (most manufacturers take their RS232 command set and also use it for IP on a dedicated application port)
English
Information Format: INFOa
Status Code Definition
Standby Mode a=0 Warming up a=1 Cooling Down a=2 Out of Range a=3 Lamp Fail a=4 Thermal Switch Error a=5 Fan Lock a=6 Over Temperature a=7 Lamp Hour Running Out a=8
Information display:
Function ASCII Display Format Fail
Information n=1 ~XX150 n Okabbbbccdddde F
Format Definition Code Definition
a = Power State On a=1 Off a=0 b = Lamp Hour ʳ bbbb c = Input Source None c=0 HDMI c=1 DVI-D c=2 BNC c=3 VGA 1 c=4 VGA 2 c=5 Component RCA c=6 S-Video c=7 Video c=8 d = Firmware Version ʳ dddd e = Display mode None e=0
ʳ Presentation e=1 ʳ Bright e=2 ʳ Movie e=3 ʳ sRGB e=4
User1 e=5 User2 e=6 ʳ Classroom e=7 Blackboard e=8
Note: The command ~XX150 n MUST work when projector is in standby mode
Model Name
Function ASCII Display Depends Fail
Model Name n=1 ~XX151 n Oka
a=1/2/ 1=EX785, 2=EW775
F
RS232 Version No
Function ASCII Display Depends Fail
RS232 Version No n=1 ~XX152 n Oka a=?? F
Input Source Display
Function ACCII Display Fail
Input Source n=1 ~XX121 n Oka F Note: The command ~XX121 n MUST work when projector is in standby mode
Appendices
79
English
80
Appendices
Status Code Definition
None c=0 HDMI c=1 DVI-D c=2 BNC c=3 VGA 1 c=4 VGA 2 c=5 Component RCA c=6 S-Video c=7 Video c=8
Software Version
Function ACCII Display Fail
Software Version n=1 ~XX122 n Okdddd F
Display Mode
Function ACCII Display Fail
Display Mode n=1 ~XX123 n Oka F
Status Code Definition
Presentation a=0 Bright a=1 Movie a=2 sRGB a=3 User 1 a=4 User 2 a=5 Classroom a=6 Blackboard a=7
Power State
Function ACCII Display Fail
Power State n=1 ~XX124 n Oka F
Note: The command ~XX124 n MUST work when projector is in standby mode
Status Code Definition
On a=1 Off a=0
Brightness
Function ACCII Display Fail
Brightness n=1 ~XX125 n Oka F
Contrast
Function ACCII Display Fail
Contrast n=1 ~XX126 n Oka F
Aspect Ratio
Function ACCII Display Fail
Aspect Ratio n=1 ~XX127 n Oka F
Status Code Definition
4:3 a=0
16:9 I a=1
16:9 II / 16:10 a=2
Native a=3
Auto a=4
English
Appendices
Color Temperature
Function ASCII Display Fail
Color Temperature n=1 ~XX128 n Oka F
Status Code Definition
Warm a=0
Medium a=1
Cold a=2
Projection Mode
Function ASCII Display Fail
Projection Mode n=1 ~XX129 n Oka F
Status Code Definition
Front-Desktop a=0
Rear-Desktop a=1
Front-Ceiling a=2 Rear-Ceiling a=3
Remote control Customer code : 0x32CD
Item Key Definition ASCII Pass Fail
1 Power n=1 ~XX140 n P F 2 Resync n=2 P F 3 Keystone n=3 ʳ P F 4 AV Mute n=4 ʳ P F 5 Freeze n=5 ʳ P F 6 Display n=6 ʳ P F 7 Zoom in n=7 ʳ P F 8 Zoom out n=8 ʳ P F
9 Volume + n=9 ʳ P F 10 Volume - n=10 ʳ P F 11 Enter (for projection MENU) n=11 ʳ P F 12 Menu n=12 ʳ P F 13 Left n=13 ʳ P F 14 Up n=14 ʳ P F 15 Right n=15 ʳ P F 16 Down n=16 ʳ P F 17 Brightness n=17 ʳ P F 18 Format/1 n=18 ʳ P F 19 HDMI/2 n=19 ʳ P F 20 YPbPr/3 n=20 ʳ P F 21 Source/4 n=21 ʳ P F 22 DVI/5 n=22 P F 23 BNC/6 n=23 ʳ P F 24 VGA-1/7 n=24 ʳ P F 25 Video/8 n=25 ʳ P F 26 Video/9 n=26 ʳ P F 27 VGA-2/0 n=27 ʳ P F
81
English
82
Appendices
68.50
100.00
160.50
141.50
141.50
88.00
26.50
165.00
354.41
85.49
20.00
130.00
240.00
260.00
430.97
( 1.024" )
( 1.697" )
( 0.945" )
( 0.512" )
( 0.079" )
( 0.337" )
( 0.557" )
( 0.632" )
160.50
( 0.632" )
( 0.557" )
( 0.270" ) ( 0.394" )
( 0.650" )
( 1.395" )
( 0.104" )
( 0.346" )

Ceiling Installation

To prevent damage to your projector please use the recommended mounting package for installation.
v Damage to the
projector as a result of incorrect installation voids the warranty.
To ensure compliance, only use a UL Listed ceiling mount and
screws that meet the following specications:
Screw Type: M4
4
Maximum screw length: 11 mm
4
Minimum screw length: 9 mm
4
Refer to the following diagram to ceiling mount the projector.
v Ensure at least
v Avoid locating
10cm clearance between the ceiling and the underside of the projector.
the projector near heat sources such as air conditioning and heaters. Excess heat may cause the projector to power off.
English
Appendices
Optoma Global Ofces
For service or support please contact your local ofce.
USA
715 Sycamore Drive Milpitas, CA 95035, USA Tel : 408-383-3700 Fax : 408-383-3702 www.optomausa.com Service : services@optoma.com
Canada
5630 Kennedy Road, Mississauga, ON, L4Z 2A9, Canada Tel : 905-361-2582 Fax : 905-361-2581 www.optoma.ca Service :
Europe
42 Caxton Way, The Watford Business Park Watford, Hertfordshire, WD18 8QZ, UK Tel : +44 (0) 1923 691 800 Fax : +44 (0) 1923 691 888 www.optoma.eu Service Tel : +44 (0)1923 691865 Service : service@tsc-europe.com
canadacsragent@optoma.com
France
Bâtiment E 81-83 avenue Edouard Vaillant 92100 Boulogne Billancourt, France Tel.: +33 1 41 46 12 20 Fax : +33 1 41 46 94 35
Service : savoptoma@optoma.fr
Spain
C/ José Hierro,36 Of. 1C 28522 Rivas VaciaMadrid, Spain Tel.: +34 91 499 06 06 Fax : +34 91 670 08 32
Deutschland
Werftstrasse 25 D40549 Düsseldorf, Germany Tel : +49 (0) 211 506 6670 Fax : +49 (0) 211 506 66799 Service : info@optoma.de
83
English
84
Appendices
Scandinavia
Optoma Scandinavia AS Lerpeveien 25 3040 Drammen Norway
PO.BOX 9515 3038 Drammen Norway Tel : +4732988990 Service : info@optoma.no
Latin America
715 Sycamore Drive Milpitas, CA 95035, USA Tel : 408-383-3700 www.optoma.com.br www.optoma.com.mx
Korea
WOOMI TECH.CO.,LTD 4F,Minu Bldg.3.tw3-14, Kangnam-Ku, seoul,135-815, KOREA Tel : +82+2+34430004
Japan
東京都足立区綾瀬3-25-18 株式会社オーエスエム サポートセンター:0120-46-5040
E-mail : info@osscreen.com www.os-worldwide.com
Fax : +4732988999
Fax : 408-383-3702
Fax : +82+2+34430005
Taiwan
5F., No. 108, Minchiuan Rd., Shindian City, Taipei Taiwan 231, R.O.C. Tel : +886-2-2218-2360 www.optoma.com.tw asia.optoma.com Service : services@optoma.com.tw
Fax : +886-2-2218-2313
Hong Kong
Unit A, 27/F Dragon Centre, 79 Wing Hong Street, Cheung Sha Wan, Kowloon, Hong Kong Tel : +852-2396-8968 www.optoma.com.hk
Fax : +852-2370-1222
China
5F, No. 1205, Kaixuan Rd., Changning District Shanghai, 200052, China Tel : +86-21-62947376 www.optoma.com.cn
Fax : +86-21-62947375
English
Notice: Shielded cables
All connections to other computing devices must be made using shielded cables to maintain compliance with FCC regulations.
Caution
Changes or modifi cations not expressly approved by the manufacturer could void the user’s authority, which is granted by the Federal Communications Commission,
to operate this projector.
Appendices

Regulation & Safety notices

This appendix lists the general notices of your projector.
FCC notice
This device has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This device
generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this device does cause harmful interference to radio or television reception, which can be determined by turning the device off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
4
Increase the separation between the device and receiver.
4
Connect the device into an outlet on a circuit different from that
4
to which the receiver is connected.
Consult the dealer or an experienced radio/television technician
4
for help.
85
English
Disposal instructions
Do not throw this electronic device into the trash when discarding. To minimize pollution and ensure utmost protection of the global environment, please recycle it.
Appendices

Operation conditions

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause undesired operation.
Notice: Canadian users
This Class B digital apparatus complies with Canadian ICES-003.
Remarque à l’intention des utilisateurs canadiens
Cet appareil numerique de la classe B est conforme a la norme
NMB-003 du Canada.
Declaration of Conformity for EU countries
EMC Directive 2004/108/EC (including amendments)
4
Low Voltage Directive 2006/95/EC
4
R & TTE Directive 1999/5/EC (if product has RF function)
4
86
Loading...
