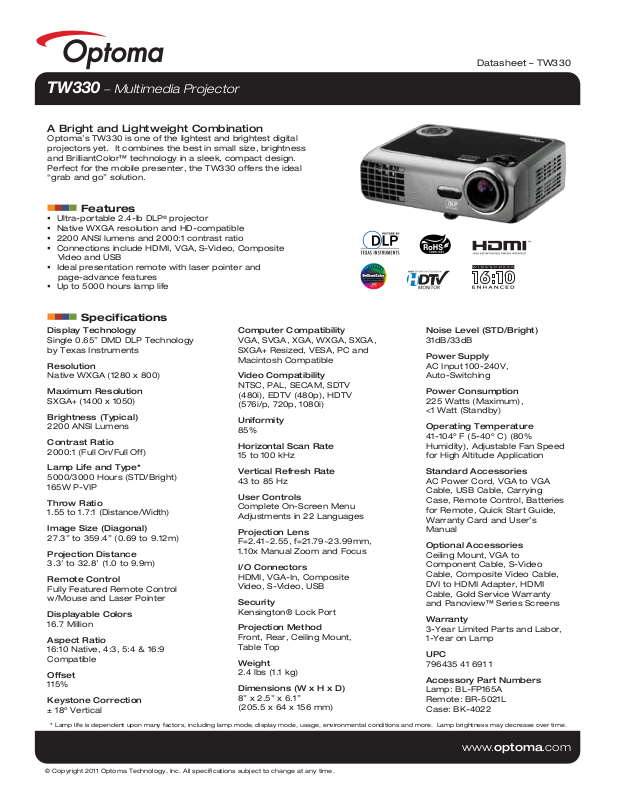

Datasheet – TW330
TW330 − Multimedia Projector
A Bright and Lightweight Combination
Optoma’s TW330 is one of the lightest and brightest digital
projectors yet. It combines the best in small size, brightness
and BrilliantColor™ technology in a sleek, compact design.
Perfect for the mobile presenter, the TW330 offers the ideal
“grab and go” solution.
Features
Ultra-portable 2.4-lb DLP® projector
Native WXGA resolution and HD-compatible
2200 ANSI lumens and 2000:1 contrast ratio
Connections include HDMI, VGA, S-Video, Composite
Video and USB
Ideal presentation remote with laser pointer and
page-advance features
Up to 5000 hours lamp life
Specifications
Display Technology
Single 0.65” DMD DLP Technology
by Texas Instruments
Resolution
Native WXGA (1280 x 800)
Maximum Resolution
SXGA+ (1400 x 1050)
Brightness (Typical)
2200 ANSI Lumens
Contrast Ratio
2000:1 (Full On/Full Off)
Lamp Life and Type*
5000/3000 Hours (STD/Bright)
165W P-VIP
Throw Ratio
1.55 to 1.7:1 (Distance/Width)
Image Size (Diagonal)
27.3” to 359.4” (0.69 to 9.12m)
Projection Distance
3.3’ to 32.8’ (1.0 to 9.9m)
Remote Control
Fully Featured Remote Control
w/Mouse and Laser Pointer
Displayable Colors
16.7 Million
Aspect Ratio
16:10 Native, 4:3, 5:4 & 16:9
Compatible
Offset
115%
Keystone Correction
± 18º Vertical
* Lamp life is dependent upon many factors, including lamp mode, display mode, usage, environmental conditions and more. Lamp brightness may decrease over time.
Computer Compatibility
VGA, SVGA, XGA, WXGA, SXGA,
SXGA+ Resized, VESA, PC and
Macintosh Compatible
Video Compatibility
NTSC, PAL, SECAM, SDTV
(480i), EDTV (480p), HDTV
(576i/p, 720p, 1080i)
Uniformity
85%
Horizontal Scan Rate
15 to 100 kHz
Vertical Refresh Rate
43 to 85 Hz
User Controls
Complete On-Screen Menu
Adjustments in 22 Languages
Projection Lens
F=2.41~2.55, f=21.79~23.99mm,
1.10x Manual Zoom and Focus
I/O Connectors
HDMI, VGA-In, Composite
Video, S-Video, USB
Security
Kensington® Lock Port
Projection Method
Front, Rear, Ceiling Mount,
Table Top
Weight
2.4 lbs (1.1 kg)
Dimensions (W x H x D)
8” x 2.5” x 6.1”
(205.5 x 64 x 156 mm)
Noise Level (STD/Bright)
31dB/33dB
Power Supply
AC Input 100-240V,
Auto-Switching
Power Consumption
225 Watts (Maximum),
<1 Watt (Standby)
Operating Temperature
41-104º F (5-40º C) (80%
Humidity), Adjustable Fan Speed
for High Altitude Application
Standard Accessories
AC Power Cord, VGA to VGA
Cable, USB Cable, Carrying
Case, Remote Control, Batteries
for Remote, Quick Start Guide,
Warranty Card and User’s
Manual
Optional Accessories
Ceiling Mount, VGA to
Component Cable, S-Video
Cable, Composite Video Cable,
DVI to HDMI Adapter, HDMI
Cable, Gold Service Warranty
and Panoview™ Series Screens
Warranty
3-Year Limited Parts and Labor,
1-Year on Lamp
UPC
796435 41 691 1
Accessory Part Numbers
Lamp: BL-FP165A
Remote: BR-5021L
Case: BK-4022
© Copyright 2011 Optoma Technology, Inc. All specifications subject to change at any time.
www.optoma.com
