Optoma ThemeScene H30 Advanced Installation Manual

H30 Advanced

“Seriously, if ThemeScene™ keeps turning out budget models this good, the high-end
of the market could be out of business” John Archer - What Video & Widescreen

Designed for European Widescreen Home Cinema the
ThemeScene™ H30 Advanced presents breathtaking
image quality, near silent operation and unrivalled
ease of use.

True native widescreen, a bright 850 lumens of video optimised light
output and 3000:1 contrast ratio gives sparkling, crystal clear images
with fantastic detail.

Effortlessly connect to HDMI, DVI, Component Progressive and
SCART RGB sources for the highest possible image quality from your
DVD player, Digital TV box, Digital Recorder, High Definition system
or Games Console.

Videophile Quality

Image quality previously available only from professional Digital
Cinema Projectors. Enabled by ThemeScene™ expert engineering,
DarkChip2™ DLP™, 3000:1 Contrast Ratio, 850 Lumens and
a 6 segment, 4x colour wheel.

Whisper Quiet - Less than 26dB at 2 metres.

Digital Projection System

DLP™ technology is the only digital projection technology. The best
Digital Cinemas around the world use DLP™ technology, that same
technology is used in the H30 Advanced. With a digital HDMI or DVI
signal you can create a true digital projection system that produces a
spectacular Cinematic experience in your own home.

The Big Picture

Up to a huge 8.38m diagonal image size,

2.78m image size from only 4m, 2.0m image
size from only 3m.

John Archer - What Video & Widescreen

HIGH DEFINITION

COMP

ATIBLE

HD

Ultimate Connectivity

You can connect your digital source (DVD or set-top box) directly to the DVI or HDMI input
and still have a component progressive input free, for other high quality analogue sources.

DVD Player

RGB SCART Socket

SCART

Adapter

Standard VGA Cable

Up to 20m

Total Control

• Digital Lens shift with 2 positional memories

• No more black bars top and bottom
with Multiple Quick Zoom Presets

1.85:1, 1.66:1, 2.35:1, 4:3 to 16:9

• Get the picture exactly right with 5
separate user adjustable memory settings

• Red Green and Blue Brightness and
Contrast settings for image calibration

• Advanced High Definition scaling
enhancement technology for
superior HD reproduction

• Edge Mask to maintain 1:1 pixel
mapping with NTSC interlaced sources

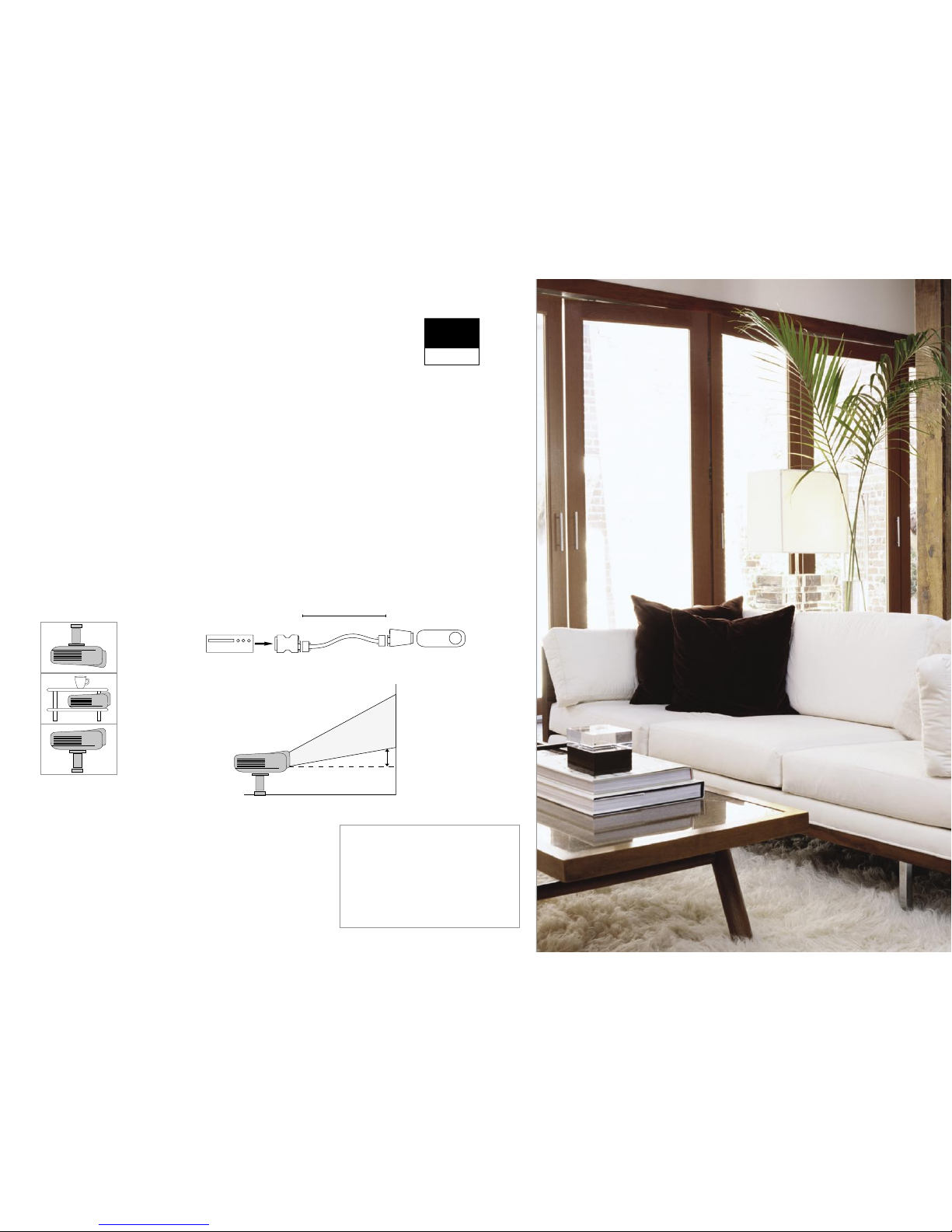

SCART RGB Adaptor

The unique SCART RGB adaptor supplied enables very high quality, inexpensive computer monitor
VGA cables to be used to connect easily to your DVD player, Digital TV or games console. These
cables can be up to 20m long making it easy and inexpensive to position the H30 Advanced exactly
where you want it.

Ceiling
Mount

Coffee
Table

Tripod

Flexible positioning

Getting a big image in your room has never been simpler. Easy to
position anywhere, you can either place it on a coffee table or use the
¼” camera tripod style fixing to attach to a floor or table top stand.
The high image offset of the H30 Advanced enables ceiling mounting
to be unobtrusively close to the ceiling whilst coffee table mounting
can be close to the floor hidden underneath the main table surface.

OFFSET


H30 Advanced

“Colours look fabulously vibrant too,
benefiting immensly from the H30A’s
extra brightness and contrast. Arguably
even more impressive than their
sheer richness..”

VGA to

DVI Adapter

Optoma Europe Ltd

42 Caxton Way
Watford Business Park
Watford, Her tfordshire,
UK, WD18 8QZ

For your local reseller
please contact:

Tel: [phone]
Fax: [phone]
www.themescene.tv

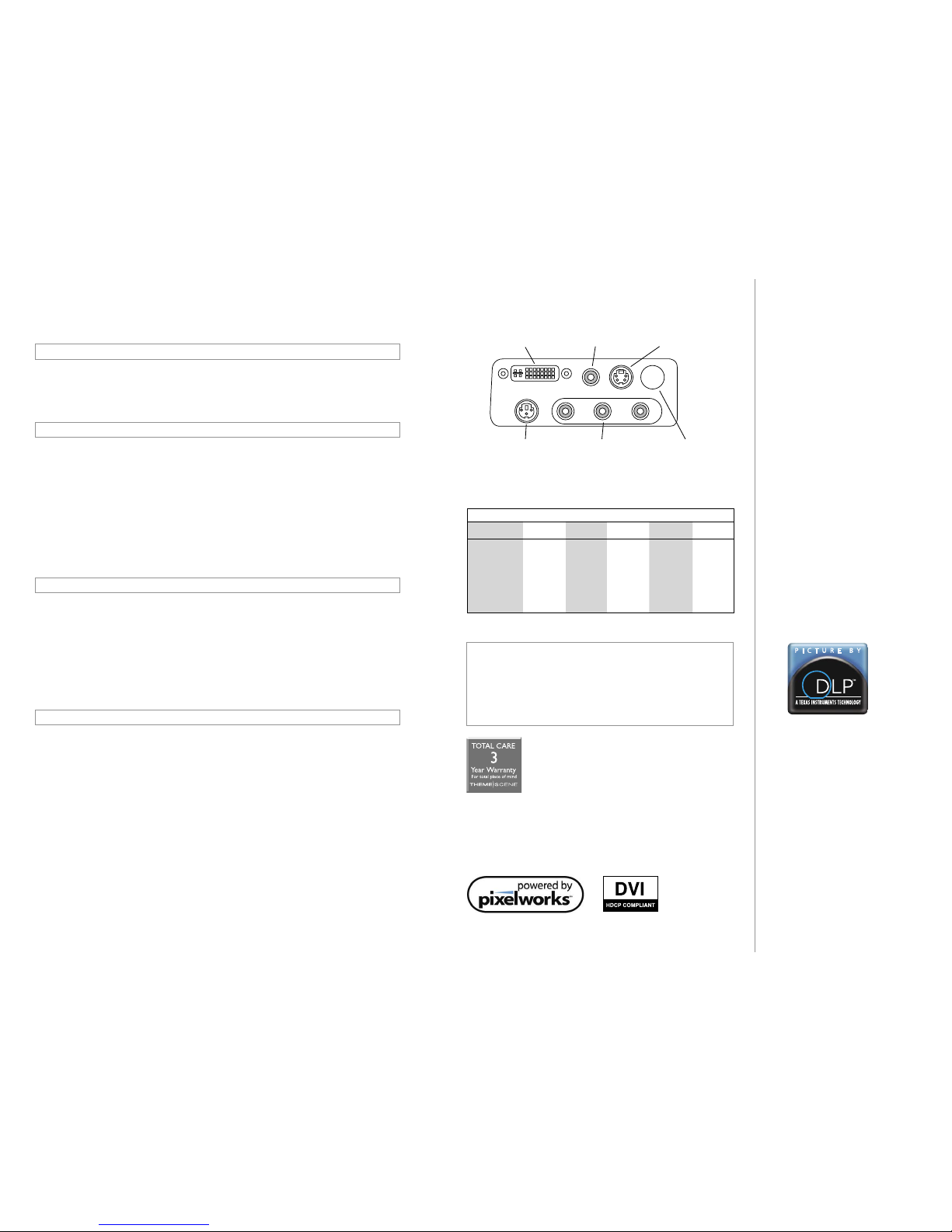

Technical Specifications

ThemeScene™ is a registered trademark of Optoma Europe Ltd. All other product names and company names used herein are for identifications purposes
only and may be trademarks or registered trademarks of their respective owners. Errors and omissions excepted, all specifications are subject to change without
notice. Digital Light Processing, DLP and the DLP medallion are trademarks of Texas Instruments.

Highlights

Aspect Ratio Widescreen (16:9)
Contrast 3000:1
Audible Noise 26dB @ 2m Normal mode, 29dB @ 2m Brite™ mode
Brightness 850 Video Optimised Lumens

Connections

Video Inputs Connector Type
HDMI DVI-I via optional adaptor
DVI DVI-I
SCART RGB DVI-I via supplied adaptor
Component I/P 1. 3 x RCA

2. DVI-I via supplied adaptor
S-Video Mini DIN
Composite Video RCA
Computer DVI-D DVI-I
VGA 15 Pin D-Sub DVI-I via supplied adaptor
Video Compatibility PAL, SECAM (576i/p), NTSC (480i/p), HDTV (1080i, 720p)

Display

Display Technology 0.54” DarkChip2™ (Native 854 x 480)
Colour Wheel 4 x speed 6 Segment (RGBRGB)
Throw Ratio 1.65-2.0 (Projection Distance/Image Width) Manual zoom
Projection Distance 1.4m – 12m
Image Size 0.81m to 8.38m (16:9 Diagonal)
Keystone Correction Vertical ±16 degrees
Projection Types Front, Ceiling, Rear, Rear ceiling
Lamp Type 200 watt P-VIP
Lamp Life Normal mode 3000 hours

General

Dimensions 272mm x 210mm x 86mm W x D x H
Weight 2.2 kg
Power Consumption 270W Max, 5 watts standby
Operating Temperature 10 - 40°C Max, 80% Humidity
Mounting Ceiling mount points and ¼’ screw mount for camera style tripod
Warranty Three (3) years limited warranty 90 days for lamp
Menu Languages 10 Languages including: English, French, German, Italian,
Spanish, Portuguese and Russian
Supplied accessories AC power cord, Composite video cable, S-video cable
3 x RCA component to DVI-I adaptor, VGA 15 Pin D-Sub to DVI-I adaptor,
SCART RGB to VGA 15 Pin D-Sub adaptor, Remote control with backlight
Batteries for Remote control, Lens cap, Users guide, RS-232 Cable
Optional accessories Ceiling Mount Kit, HDMI to DVI adaptor

Reseller Stamp

2.00

3.00

4.00

5.00

6.00

7.00

8.00

9.00

10.00

Distanza

Proiezione(m)

Max. Diagonale

Immagine(m)

Min. Larghezza

Immagine(m)

Max. Larghezza

Immagine(m)

Min. Offse

t

Immagine(m)

Max. Offset

Immagine(m)

1.39

2.08

2.79

3.48

4.16

4.88

5.56

6.25

6.96

1.00

1.50

2.00

2.50

3.00

3.50

4.00

4.50

5.00

1.21

1.82

2.42

3.03

3.64

4.24

4.85

5.45

6.06

H30 Advanced Distanza Proiezione/Dimensione Immagine

0.23

0.34

0.45

0.58

0.68

0.79

0.90

1.02

1.13

0.27

0.41

0.55

0.68

0.82

0.96

1.10

1.23

1.37

2.00

3.00

4.00

5.00

6.00

7.00

8.00

9.00

10.00

Projection

Distance(m)

Max. Diagonal
Image Size(m)

Min. Horizontal
Image Width(m)

Max. Horizontal
Image Width(m)

Min. Imag

e

Offset(m

)

Max. Image

Offset(m)

1.39

2.08

2.79

3.48

4.16

4.88

5.56

6.25

6.96

1.00

1.50

2.00

2.50

3.00

3.50

4.00

4.50

5.00

1.21

1.82

2.42

3.03

3.64

4.24

4.85

5.45

6.06

H30 Advanced Projection Distance/Image Size

0.23

0.34

0.45

0.58

0.68

0.79

0.90

1.02

1.13

0.27

0.41

0.55

0.68

0.82

0.96

1.10

1.23

1.37

2.00

3.00

4.00

5.00

6.00

7.00

8.00

9.00

10.00

Distance de

projection(m)

Taille de l’image

(Max-Diag-m)

Taille de l’image

(Largeur-min-m)

Taille de l’image
(Largeur-max-m)

Décalage min.
de l’image-(m)

Décalage max.
de l’image-(m)

1.39

2.08

2.79

3.48

4.16

4.88

5.56

6.25

6.96

1.00

1.50

2.00

2.50

3.00

3.50

4.00

4.50

5.00

1.21

1.82

2.42

3.03

3.64

4.24

4.85

5.45

6.06

H30 Advanced Distance de projection/Taille d’image projetée

0.23

0.34

0.45

0.58

0.68

0.79

0.90

1.02

1.13

0.27

0.41

0.55

0.68

0.82

0.96

1.10

1.23

1.37

For guide purposes only

(UK Only) In the unlikely event of your projector
requiring attention within 3 years of purchase, we will
collect it on a next day collection service, repair and then
returned to you. If you require a projector during the
repair we will loan you a replacement unit.*

*The loan unit may not be the same model or have the same features as the unit being repaired. The Total Care
warranty applies to the UK mainland only.

Composite

IR Remote Sensor

RS232

S-Video

Component I/P

DVI (HDCP)

*

*

SCART RGB & Component I/P (via supplied adapter)

HDMI (via optional adapter)
