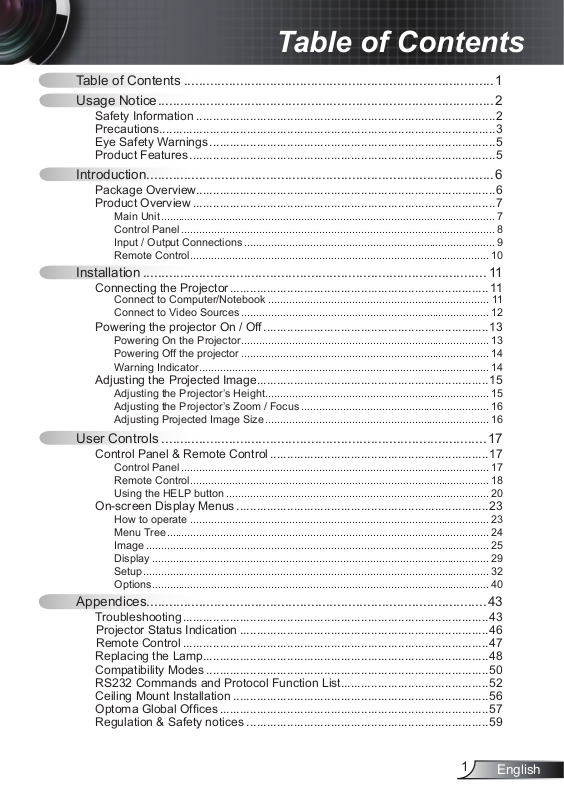

Table of Contents
Table of Contents ...................................................................................1
Usage Notice ..........................................................................................2
Safety Information .........................................................................................2
Precautions....................................................................................................3
Eye Safety Warnings .....................................................................................5
Product Features ...........................................................................................5
Introduction.............................................................................................6
Package Overview.........................................................................................6
Product Overview ..........................................................................................7
Main Unit ................................................................................................................ 7
Control Panel ......................................................................................................... 8
Input / Output Connections .................................................................................... 9
Remote Control .................................................................................................... 10
Installation ............................................................................................ 11
Connecting the Projector .............................................................................11
Connect to Computer/Notebook .......................................................................... 11
Connect to Video Sources ................................................................................... 12
Powering the projector On / Off ...................................................................13
Powering On the Projector ................................................................................... 13
Powering Off the projector ................................................................................... 14
Warning Indicator ................................................................................................. 14
Adjusting the Projected Image.....................................................................15
Adjusting the Projector’s Height ........................................................................... 15
Adjusting the Projector’s Zoom / Focus ............................................................... 16
Adjusting Projected Image Size ........................................................................... 16
User Controls .......................................................................................17
Control Panel & Remote Control .................................................................17
Control Panel ....................................................................................................... 17
Remote Control .................................................................................................... 18
Using the HELP button ........................................................................................20
On-screen Display Menus ...........................................................................23
How to operate .................................................................................................... 23
Menu Tree ............................................................................................................ 24
Image ................................................................................................................... 25
Display ................................................................................................................. 29
Setup .................................................................................................................... 32
Options ................................................................................................................. 40
Appendices...........................................................................................43
Troubleshooting ...........................................................................................43
Projector Status Indication ..........................................................................46
Remote Control ...........................................................................................47
Replacing the Lamp.....................................................................................48
Compatibility Modes ....................................................................................50
RS232 Commands and Protocol Function List............................................52
Ceiling Mount Installation ............................................................................56
Optoma Global Ofces ................................................................................57
Regulation & Safety notices ........................................................................59
1
English
2
English
Usage Notice
Safety Information
The lightning ash with arrow head within an equilateral triangle is
intended to alert the user to the presence of uninsulated “dangerous
voltage” within the product’s enclosure that may be of suf cient
magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert
the user to the presence of important operating and maintenance
(servicing) instructions in the literature accompanying the appliance.
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT
EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. DANGEROUS HIGH
VOLTAGES ARE PRESENT INSIDE THE ENCLOSURE. DO NOT OPEN THE
CABINET. REFER SERVICING TO QUALIFIED PERSONNEL ONLY.
Class B emissions limits
This Class B digital apparatus meets all requirements of the Canadian
Interference-Causing Equipment Regulations.
Important Safety Instruction
1. Do not block any ventilation openings. To ensure reliable operation of
the projector and to protect from over heating, it is recommended to
install the projector in a location that does not block ventilation. As an
example, do not place the projector on a crowded coffee table, sofa,
bed, etc. Do not put the projector in an enclosure such as a book case
or a cabinet that restricts air ow.
2. Do not use the projector near water or moisture. To reduce the risk
of re and/or electric shock, do not expose the projector to rain or
moisture.
3. Do not install near heat sources such as radiators, heaters, stoves or
any other apparatus such as ampli ers that emits heat.
4. Clean only with dry cloth.
5. Only use attachments/accessories speci ed by the manufacturer.
6. Do not use the unit if it has been physically damaged or abused.
Physical damage/abuse would be (but not limited to):
Unit has been dropped.
Power supply cord or plug has been damaged.
Liquid has been spilled on to the projector.
Projector has been exposed to rain or moisture.
Something has fallen in the projector or something is loose inside.
Do not attempt to service the unit yourself. Opening or removing covers
may expose you to dangerous voltages or other hazards. Please call
Optoma before you send the unit for repair.
7. Do not let objects or liquids enter the projector. They may touch
dangerous voltage points and short out parts that could result in re or
electric shock.
8. See projector enclosure for safety related markings.
9. The unit should only be repaired by appropriate service personnel.
3
English
Usage Notice
When the lamp
reaches the end
of its life, the
projector will
not turn back on
until the lamp
module has
been replaced.
To replace the
lamp, follow
the procedures
listed under
“Replacing the
Lamp” section
on pages 48-49.
Precautions
Please follow all warnings, precautions and
maintenance as recommended in this user’s
guide.
▀■ Warning- Do not look into the projector’s lens when the lamp is
on. The bright light may hurt and damage your eyes.
▀■ Warning- To reduce the risk of re or electric shock, do not
expose this projector to rain or moisture.
▀■ Warning- Please do not open or disassemble the projector as
this may cause electric shock.
▀■ Warning- When replacing the lamp, please allow the unit to
cool down. Follow instructions as described on pages
48-49.
▀■ Warning- This projector will detect the life of the lamp itself.
Please be sure to change the lamp when it shows
warning messages.
▀■ Warning- Reset the “Lamp Reset” function from the on-screen
display “Options|Lamp Settings” menu after replacing
the lamp module (refer to page 42).
▀■ Warning- When switching the projector off, please ensure
the cooling cycle has been completed before
disconnecting power. Allow 90 seconds for the
projector to cool down.
▀■ Warning- Do not use lens cap when projector is in operation.
▀■ Warning- When the lamp is approaching the end of its lifetime,
the message “Lamp Warning: Lamp life exceeded.”
will show on the screen. Please contact your local
reseller or service center to change the lamp as soon
as possible.
▀■ Warning- Do not look into or point the laser pointer on your
remote control into your or someone’s eyes. Laser
pointer can cause permanent damage to eyesight.
Usage Notice
Do:
Turn off and unplug the power plug from the AC outlet before
cleaning the product.
Use a soft dry cloth with mild detergent to clean the display
housing.
Disconnect the power plug from AC outlet if the product is
not being used for a long period of time.
Do not:
Block the slots and openings on the unit provided for
ventilation.
Use abrasive cleaners, waxes or solvents to clean the unit.
Use under the following conditions:
- In extremely hot, cold or humid environments.
Ensure that the ambient room temperature is within
5 - 35°C.
Relative Humidity is 5 - 35°C, 80% (Max.),
non-condensing.
-
- Near any appliance generating a strong magnetic eld.
- In direct sunlight.
In areas susceptible to excessive dust and dirt.
English
4
Usage Notice
Eye Safety Warnings
▀■ Avoid staring/facing directly into the projector beam at all
times. Keep your back to the beam as much as possible.
▀■ When projector is used in a classroom, adequately supervise
students when they are asked to point out something on the
screen.
▀■ In order to minimize the lamp power, use room blinds to
reduce ambient light levels.
Product Features
Monitor loop
through only
support in
VGA-IN.
▀■ 1920 x 1080 Native Resolution
▀■ Full HD compatible – 1080p supported
▀■ VGA monitor loop through
▀■ BrilliantColorTM Technology
▀■ Security Bar and Kensington Lock
▀■ RS232 control
▀■ Rapid shutdown
▀■ Built-in speaker
5
English
6
English
Introduction
Due to different
applications in
each Country,
some regions
may have
different
accessories.
Power Cord 1.8m
IR Remote Control
Package Overview
Unpack and inspect the box contents to ensure
all parts listed below are in the box. If something
is missing, please contact your nearest customer
service center.
Documentation :
User’s Manual
Warranty Card
Quick Start Card
WEEE Card
(for EMEA only)
2 × AAA Batteries
Projector with lens cap
POWER
?
/?
VGA Cable 1.8m
7
English
Introduction
Product Overview
1. Control Panel
2. Zoom Ring
3. Focus Ring
4. Zoom Lens
5. IR Receivers
6. Tilt-Adjustment Feet
7. Security Bar
8. Input / Output
Connections
9. Power Socket
USB
S-VIDEO
VIDEO
AUDIO-OUT
RS-232
AUDIO-IN-L
12V OUT
AUDIO-IN
AUDIO-IN-R
VGA-OUT
SCART
/
YPbPr
/
VGA-IN
HDMI
(VGA)
(
S-VIDEO/VIDEO
)
(
S-VIDEO/VIDEO
)
?
POWER
7
8
6
POWER
?
2
6
5
3
4
1
5
9
Main Unit
8
English
Introduction
Control Panel
POWER
?
8
62 4 53
7
11
10
9
1
1. Help
2. Menu
3. Source
4. Enter
5. Re-Sync
6. Power
7. Keystone Correction
8. Four Directional Select Keys
9. On/Standby LED
10. Lamp Fail LED
11. Temp LED
12. IR Receiver
12
9
English
Introduction
Input / Output Connections
1. USB Connector (Connect to PC for Remote Mouse function)
2. VGA-Out Connector
(Monitor Loop-through Output from VGA-In)
3. VGA-In/YPbPr/” ” Connector
(PC Analog Signal/Component Video Input/HDTV/YPbPr/
Wireless Dongle)
4. HDMI Connector
5. S-Video Input Connector
6. Composite Video Input Connector
7. Audio Output Connector (3.5mm Mini Jack)
8. RS-232 Connector (3-pin)
9. 12V Trigger Relay Connector
10. Audio Input connector (VGA) (3.5mm mini jack)
11. Audio Input L/R (S-Video/Video)
12. Power Socket
13. KensingtonTM Lock Port
14. Security Bar
VGA-OUT
S-VIDEO
VIDEO
AUDIO-OUT
RS-232
USB
AUDIO-IN-L
HDMI
AUDIO-IN
12V OUT
SCART / YPbPr /
VGA-IN
AUDIO-IN-R
(VGA)
(S-VIDEO/VIDEO) (S-VIDEO/VIDEO)
4 76532
13 14
12
1
10
8 9
11
10
English
Introduction
Remote Control
1. LED Indicator
2. Power On/Off
3. Page Up
4. Mouse Right Click
5. Four Directional
Select Keys
6. Re-Sync
7. Page Down
8. Volume +/-
9. Zoom
10. AV mute
11. Video
12. VGA
13. Freeze
14. S-Video
15. HDMI
16. Brightness
17. Menu
18. Keystone +/-
19. Source
20. Enter/Help
21. Mouse Left Click
22. PC/Mouse control
23. Numbered keypad
(for password input)
24. Laser Pointer
/?
1
9
10
1213
22
14
15
16
20
17
8
11
23
19
6
4
2
18
3
7
5
21
24
11
English
Installation
Connecting the Projector
Connect to Computer/Notebook
1....................................................................................................Power Cord
2....................................................................................................*USB Cable
3.....................................................................................................VGA Cable
4...........................................................................................*DVI/HDMI Cable
5.........................................................................................*Audio Input Cable
6......................................................................................*Audio Output Cable
7................................................................................................*RS232 Cable
8........................................................................................*VGA Output Cable
VGA-OUT
S-VIDEO
VIDEO
AUDIO-OUT
RS-232
USB
AUDIO-IN-L
HDMI
AUDIO-IN
12V OUT
SCART / YPbPr /
VGA-IN
AUDIO-IN-R
(VGA)
(S-VIDEO/VIDEO)(S-VIDEO/VIDEO)
E62405SP
R
MOLEX
1
2 3
5
4
+ 12V Output
7
6
I/O con guration
depends on
models.
Due to the
difference in
applications for
each country,
some regions may
have different
accessories.
(*) Optional
accessory
8
12
English
Installation
VGA-OUT
S-VIDEO
VIDEO
AUDIO-OUT
RS-232
USB
AUDIO-IN-L
HDMI
AUDIO-IN
12V OUT
SCART / YPbPr /
VGA-IN
AUDIO-IN-R
(VGA)
(S-VIDEO/VIDEO)(S-VIDEO/VIDEO)
E62405SP
R
Connect to Video Sources
1....................................................................................................Power Cord
2................................................................................*Composite Video Cable
3.............................................................................................. *S-Video Cable
4................................................*15-Pin to 3 RCA Component/HDTV Adaptor
5.............................................................................*3 RCA Component Cable
6......................................................................................... *Audio Cable RCA
7..................................................................................................*HDMI Cable
Composite Video Output
DVD Player, Set-top Box,
HDTV receiver
S-Video Output
1
3
4
5
2
7
6
DVD Player, Set-top Box,
HDTV receiver
+ 12V Output
I/O con guration
depends on
models
Due to the
difference in
applications for
each country,
some regions may
have different
accessories.
(*) Optional
accessory
13
English
Installation
Powering the projector On / Off
Turn on the
projector rst and
then select the
signal sources.
Powering On the Projector
1. Remove the lens cap.
2. Securely connect the power cord and signal cable. When
connected, the ON/STANDBY LED will turn Amber.
3. Turn on the lamp by pressing “ ” button either on the top of
the projector or on the remote. The ON/STANDBY LED will
now turn Green.
The startup screen will display in approximately 10 seconds.
The rst time you use the projector, you will be asked to
select the preferred language and power saving mode.(*)
4. Turn on and connect the source that you want to display
on the screen (computer, notebook, video player, etc). The
projector will detect the source automatically. If not, push
menu button and go to “OPTIONS”.
Make sure that the “Source Lock” has been set to “Off”.
If you connect multiple sources at the same time, press the
“SOURCE” button on the control panel or direct source keys
on the remote control to switch between inputs.
POWER
POWER
?
Lens Cap
1
Power
2
(*) When Power
mode (Standby)
is set to Eco.,
the VGA & Audio
pass-through and
RS-232 will be
deactivated when
the projector is in
standby.
Installation
Powering Off the Projector
1. Press the “ ” button on the remote control or
on the control panel to turn off the projector.
The following message will be displayed on the screen.
Press the “ ” button again to conrm the shut down. If the
button is not pressed, the message will disappear after 15
seconds.
2. The cooling fans continue to operate for about 10 seconds
for cooling cycle and the ON/STANDBY LED will Flash
Green. When the ON/STANDBY LED lights solid Amber,
the projector has entered standby mode.
If you wish to turn the projector back on, you must wait
until the projector has completed the cooling cycle and
has entered standby mode. Once in standby mode, simply
press “ ” button to restart the projector.
3. Disconnect the power cord from the electrical outlet and
the projector.
4. Do not turn on the projector immediately following a power
off procedure.
Contact the
nearest service
center if the
projector displays
these symptoms.
See pages
57-58 for more
information.
English
14
Warning Indicator
When the warning indicators (see below) come on,
the projector will automatically shutdown:
“LAMP” LED indicator is lit red and if “On/Standby” indicator
ashes amber.
“TEMP” LED indicator is lit red and if “On/Standby”
indicator ashes amber. This indicates the projector has
overheated. Under normal conditions, the projector can be
switched back on.
“TEMP” LED indicator ashes red and if “On/Standby”
indicator ashes amber.
Unplug the power cord from the projector, wait for 30 seconds
and try again. If the warning indicator light up again, please
contact your nearest service center for assistance.
15
English
Installation
Adjusting the Projected Image
Adjusting the Projector’s Height
The projector is equipped with elevator feet for adjusting
the image height.
1. Locate the adjustable foot you wish to modify on the
underside of the projector.
2. Rotate the adjustable ring counter clockwise to raise
the projector or clockwise to lower it. Repeat with the
remaining feet as needed.
Tilt-Adjustment Feet
Tilt-Adjustment Ring
16
English
Installation
Adjusting the Projector’s Zoom / Focus
You may turn the zoom lever to zoom in or out. To focus the
image, rotate the focus ring until the image is clear.
1.2x Zoom series will focus at distances from 4.92 to 32.81
feet (1.50 to 10.00 meters).
POWER
?
Focus Ring
Zoom Ring
Adjusting Projection Image Size
Hd
62.7"
(159.3cm)
81.5"
(207.1cm)
125.4"
(318.6cm)
200.8"
(510.0cm)
301.2"
(764.9cm)
45.2"
(114.7cm)
75.3"
(191.2cm)
97.8"
(248.5cm)
150.5"
(382.4cm)
240.9"
(612.0cm)
251.0"
(637.4cm)
37.6"
(95.6cm)
4.92'
(1.50m)
32.81'(10.00m)
26.25'(8.00m)
16.40'(5.00m)
10.66'(3.25m)
8.20'(2.50m)
Width
Height
Diagonal
This table is for user’s reference only.
Screen
(Diagonal)
Max.
45.2” (114.7cm) 75.3” (191.2cm) 97.8” (248.5cm) 150.5” (382.4cm)240.9” (612.0cm)301.2” (764.9cm)
Min.
37.6” (95.6cm) 62.7” (159.3cm) 81.5” (207.1cm) 125.4” (318.6cm) 200.8” (510.0cm)251.0” (637.4cm)
Screen
Size
Max.
(WxH)
39.4” x 22.1”
100.0 x 56.2cm
65.6” x 36.9”
166.6 x 93.7cm
85.3” x 48.0”
216.6 x 121.8cm
131.2” x 73.8”
333.2 x 187.5cm
210.0” x 118.1”
533.4 x 300.0cm
262.5” x 147.6”
666.7 x 375.0cm
Min.
(WxH)
32.8” x 18.5”
83.3 x 46.9cm
54.7” x 30.8”
138.9 x 78.1cm
71.1” x 40.0”
180.5 x 101.5cm
109.3” x 61.5”
277.7 x 156.2cm
175.0” x 98.4”
444.5 x 250.0cm
218.7” x 123.0”
555.6 x 312.5cm
Hd
Max.
3.54” (9.00cm) 5.90” (15.00cm) 7.68” (19.50cm) 11.81” (29.99cm) 18.90” (48.01cm)23.62” (60.00cm)
Min.
2.95” (7.50cm) 4.92” (12.50cm) 6.40” (16.25cm) 9.84” (24.99cm) 15.75” (40.01cm) 19.69” (50.00cm)
Distance
4.92’ (1.50m) 8.20’ (2.50m) 10.66’ (3.25m) 16.40’ (5.00m) 26.25’ (8.00m) 32.81’ (10.00m)
17
English
User Controls
Control Panel
Control Panel & Remote Control
Using the Control Panel
Power
Refer to the “Power On/Off the Projector” section on
pages 13-14.
RE-SYNC
Automatically synchronize the projector to the input
source.
Enter
Con rm your item selection.
SOURCE
Press “SOURCE” to select an input signal.
Menu
Press “Menu” to launch the on-screen display
(OSD) menu. To exit OSD, Press “Menu” again.
?
HELP
Help Menu (refer to page 20).
Four Directional
Select Keys
Use to select items or make
adjustments to your selection.
Keystone
Use to adjust image distortion caused
by tilting the projector. (±40 degrees)
Lamp LED Indicate the projector’s lamp status.
Temp LED Indicate the projector’s temperature status.
ON/STANDBY LED Indicate the projector’s status.
POWER
?
18
English
User Controls
Remote Control
Using the Remote Control
Power
Refer to the “Power On/Off the Projector”
section on pages 13-14.
Laser
Press to use laser pointer.
L Button
Mouse left click.
R Button
Mouse right click.
Page +
Use this button to page up.
Page -
Use this button to page down.
Enter/Help
Con rm your item selection.
? Help Menu (refer to page 20).
Source
Press “Source” to select an input signal.
Re-SYNC
Automatically synchronizes the projector to
the input source.
Four Directional
Select Keys
Use to select items or make
adjustments to your selection.
Keystone +/-
Adjust image distortion caused by tilting the
projector.
Volume +/-
Adjust to increase / decrease the volume.
Brightness
Adjust the brightness of the image.
Menu
Press “Menu” to launch the on-screen
display (OSD) menu. To exit OSD, press
“Menu” again.
ZOOM
Zoom in on an image.
Press buttons to alter zoom.
/?
19
English
User Controls
Remote Control
Using the Remote Control
HDMI
Press “HDMI” to choose HDMI source.
Freeze
Press “Freeze” to pause the screen image.
Press this button again to unlock.
AV mute
Momentarily turns off/on the audio and
video.
S-Video Press “S-Video” to choose S-Video source.
VGA
Press “VGA” to choose VGA sources.
Video
Press “Video” to choose Composite video
source.
/?
20
English
User Controls
Using the HELP button
The HELP function ensures easy setup and operation.
Press the “?” button on the control panel to open the Help
Menu.
POWER
?
POWER
?
Please refer to the
“Troubleshooting”
section on pages
43-46 for more
details.
.
User Controls
Help menu button functions only when no input source
is detected.
21
English
User Controls
If input source is detected and help button is pressed, the
following pages will appear to help diagnose any problems.
English
22
23
English
User Controls
The Projector has multilingual On-screen Display menus that
allow you to make image adjustments and change a variety of
settings. The projector will automatically detect the source.
How to operate
1. To open the OSD menu, press “Menu” on the Remote Control or
Projector Keypad.
2 When OSD is displayed, use
keys to select any item in the
main menu. While making a selection on a particular page, press
or “Enter” key to enter sub menu.
3. Use
keys to select the desired item and adjust the settings
using key.
4. Select the next item to be adjusted in the sub menu and adjust as
described above.
5. Press “Enter” to con rm, and the screen will return to the main
menu.
6. To exit, press “MENU” again. The OSD menu will close and the
projector will automatically save the new settings.
On-screen Display Menus
Main Menu
Sub Menu
Settings
User Controls
Menu Tree
(#) “Saturation”
and “Tint” are only
supported in Video
mode.
(*) “Signal” is only
supported in Analog
VGA (RGB) signal.
(**) “IRE” is only
supported in NTSC
signal.
#
#
*
RGB
Video
English
24
25
English
User Controls
Display Mode
There are many factory presets optimized for various types of
images.
Presentation: Good color and brightness from PC input.
Bright: Maximum brightness from PC input.
Movie: For home theater.
sRGB: Standardised accurate color.
Blackboard: This mode should be selected to achieve optimum
color settings when projecting onto a blackboard (green).
Classroom: This mode is recommended for projecting in a
classroom.
User1: User’s settings.
User2: The initial default settings of this mode is from Movie
mode. Any further adjustments by the user in User2 will be
saved in this mode for future use.
Brightness
Adjust the brightness of the image.
Press the to darken image.
Press the to lighten the image.
26
English
User Controls
Contrast
The contrast controls the degree of difference between the lightest
and darkest parts of the picture.
Press the to decrease the contrast.
Press the to increase the contrast.
Sharpness
Adjust the sharpness of the image.
Press the to decrease the sharpness.
Press the to increase the sharpness.
Saturation
Adjust a video image from black and white to fully saturated color.
Press the to decrease the amount of saturation in the image.
Press the to increase the amount of saturation in the image.
Tint
Adjust the color balance of red and green.
Press the to increase the amount of green in the image.
Press the to increase the amount of red in the image.
“Saturation” and
“Tint” functions
are only supported
under Video mode.
IMAGE | Advanced
Noise Reduction
The motion Adaptive Noise Reduction reduces the amount of visible noise interlaced signals. The range is from “0” to “10”. (0: Off)
Gamma
This allows you to choose a gamma table that has been
ne-tuned to bring out the best image quality for the input.
Film: for home theater.
Video: for video or TV source.
Graphics: for image source.
Standard: for standardized setting.
User Controls
Color Temp.
Adjust the color temperature. With cold temperature, the screen
looks colder; with warm temperature, the screen looks warmer.
Color Space
Select an appropriate color matrix type from AUTO, RGB or
YCbCr.
27
English
User Controls
Advanced |
Color Settings
Color Settings
Use these settings for advanced adjustment of the individual Red,
Green and Blue Colors.
Reset
Choose “Yes” to return the factory default settings for color
adjustments.
English
Advanced |
Input Source
Input Source
Use this option to enable / disable input sources. Press to enter
the sub menu and select which sources you require. Press “Enter”
to finalize the selection. The projector will not search for inputs that
are not selected.
28
User Controls
DISPLAY
Format
Use this function to choose your desired aspect ratio.
4:3: This format is for 4×3 input sources.
16:9: This format is for 16×9 input sources, like HDTV and DVD
enhanced for Wide screen TV.
LBX: This format is for non-16x9, letterbox source and for users
who use external anamorphic lens to display 2.35:1 aspect ratio
using full resolution.
Native: This format displays the original image without any
scaling.
AUTO: Automatically selects the appropriate display format.
29
English
User Controls
Detail informations about LBX mode :
1. Some Letter-Box DVDs are not enhanced for 16x9 TVs. In
this situation, the image will not look right when displayed in
16:9 mode.
In this situation, please try to using the 4:3 mode to view the
DVD.
If the content is not 4:3, there will be black bars around the
image in 16:9 display. For this type of content, you can use
LBX mode to ll the image on the 16:9 display.
2. If you use an external anamorphic lens, this LBX mode also
allows you to watch a 2.35:1 content (include Anamorphic
DVD and HDTV lm source) that support anamorphic wide is
enhanced for 16x9 Display in a wide 2.35:1 image.
In this case, there are no black bars. Lamp power and
vertical resolution are fully utilized.
Input Signal
Display area
Picture area
Display on Screen
English
30
4:3 format
16:9
format
LBX format
Native format
31
English
User Controls
Zoom
Press the to reduce the size of an image.
Press the to magnify an image on the projection screen.
Overscan
Overscan function removes the noise in a video image. Overscan
the image to remove video encoding noise on the edge of video
source.
H Image Shift
Shift the projected image position horizontally.
V Image Shift
Shift the projected image position vertically.
V Keystone
Press the or to adjust image distortion vertically. If the image
looks trapezoidal, this option can help make the image rectangular.
DISPLAY
32
English
User Controls
Language
Choose the multilingual OSD menu. Press or into the sub
menu and then use the or key to select your preferred
language. Press “Enter” to nalize the selection.
SETUP | Language
Rear-Desktop and
Rear-Ceiling are
to be used with a
translucent screen.
User Controls
SETUP
Menu Location
Choose the menu location on the display screen.
Projection
Front-Desktop
This is the default selection. The image is projected straight on
the screen.
Rear-Desktop
When selected, the image will appear reversed.
Front-Ceiling
When selected, the image will turn upside down.
Rear-Ceiling
When selected, the image will appear reversed in upside down
position.
33
English
34
English
User Controls
SETUP
Mute
Choose the “On” to turn mute on.
Choose the “Off” to turn mute off.
Audio Input
The default audio settings are on the back panel of the
projector. Use this option to reassign any of the Audio Inputs
(1, or 2) to the current image source. Each Audio input can be
assigned to more than one video source.
AUDIO1: Audio Input
AUDIO2: Audio Input L/R
Volume
Press the to decrease the volume.
Press the to increase the volume.
Wireless
Choose the “On” to turn on the Wireless.
“Wireless” is only
functional with
VGA connector
Warning:
Wired VGA will
not function and
the projector
maybe shut
down if Wireless
is turned on.
SETUP | Security
Security
On: Choose “On” to use security verication when the turning
Timer-Month/Day/Hour
on the projector.
Off: Choose “Off” to be able to switch on the projector without
password verication.
Use this function to set the how long (Month/Day/Hour) the
projector can be used. Once this time has elapsed you will be
requested to enter your password again.
User Controls
35
English
User Controls
SETUP | Security
Change Password
Password default
value is “1234”
(rst time).
First time:
1. Press “ ” to set the password.
2. The password has to be 4 digits.
3. Use number button on the remote to enter your new
Change Password:
1. Press “ ” to input old password.
2. Use number button to enter current password and then
3. Enter new password (4 digits in length) using the number
4. Enter new password again and press “ ” to conrm.
If the incorrect password is entered 3 times, the projector will
automatically shut down.
If you have forgotten your password, please contact your local
ofce for support.
password and then press “ ” key to conrm your
password.
press “ ” to conrm.
buttons on the remote, then press “ ” to conrm.
English
36
37
English
User Controls
Phase
Synchronize the signal timing of the display with the graphic card.
If the image appears to be unstable or ickers, use this function to
correct it.
Frequency
Change the display data frequency to match the frequency of
your computer’s graphic card. Use this function only if the image
appears to icker vertically.
H. Position
Press the to move the image left.
Press the to move the image right.
V. Position
Press the to move the image down.
Press the to move the image up.
SETUP | Signal
-
RGB Source
“Signal” is not
supported when the
source is HDMI or
DVI-D.
User Controls
SETUP | Signal
Video Source
-
“Signal” is not
supported when the
source is HDMI or
DVI-D.
“IRE” is only
supported in NTSC
signal.
White Level
Allow user adjust White Level when inputting S-Video or Video/
CVBS signals.
Black Level
Allow user adjust Black Level when inputting S-Video or Video/
CVBS signals.
Saturation
Adjust a video image from black and white to fully saturated color.
Press the to decrease the amount of color in the image.
Press the to increase the amount of color in the image.
Hue
Adjust the color balance of red and green.
Press the to increase the amount of green in the image.
Press the to increase the amount of red in the image.
IRE
Adjust measurement of composite video signals.
English
38
SETUP | Advanced
Logo
Use this function to set the desired startup screen. If changes are
made they will take effect the next time the projector is powered
on.
Optoma: The default startup screen.
User: Use stored picture from “Logo Capture” function.
Logo Capture
The maximum
resolution of logo
image that can
be captured is
1920x1080.
Press “ ” to capture an image of the picture currently displayed
on screen.
User Controls
39
English
User Controls

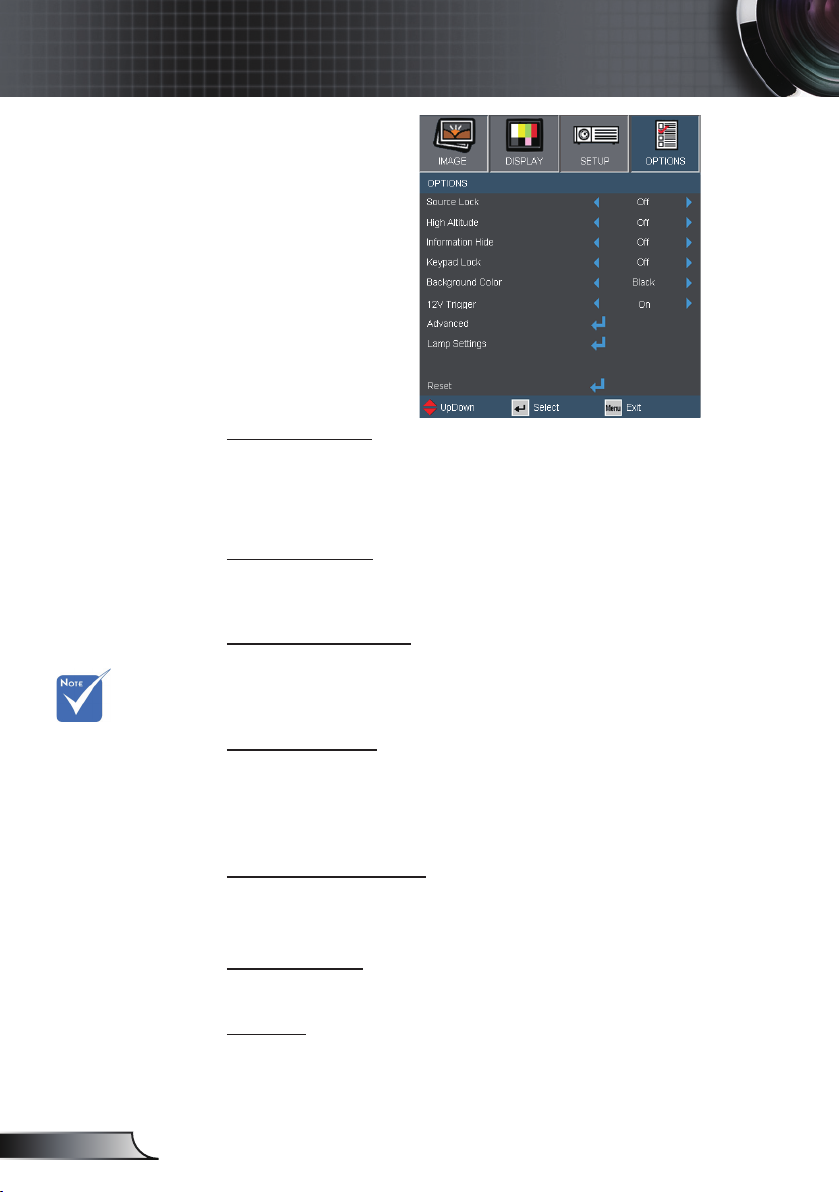

OPTIONS
Source Lock
On: The projector will only search current input connection.
Off: The projector will search for other signals if the current
High Altitude
When “On” is selected, the fans will spin faster. This feature is
useful in high altitude areas where the air is thin.
Information Hide
On: Choose “On” to hide the info message.
Off: Choose “Off” to show the “searching” message.
To turn off the
keypad lock,
press and hold
“Enter” key on top
of the projector
for 5 seconds.
“12V OUT” is only
for trigger control.
Not a power
supplier port.
“12V OUT” is
activated when the
projector is turned
on and continues
to stay on till
you turn off the
projector.
Keypad Lock
When the keypad lock function is “On”, the control panel will be
locked however, the projector can be operated by the remote
control. By selecting “Off”, you will be able to reuse the control
panel.
Background Color
Use this feature to display a “Black”, “Red”, “Blue”, “Green” or
“White”, screen when no signal is available.
12V Trigger
12V trigger provides a standard trigger for motorized screens.
Reset
Choose “Yes” to return the display parameters on all menus to the
factory default settings.
input signal is lost.
English
40
User Controls
OPTIONS |

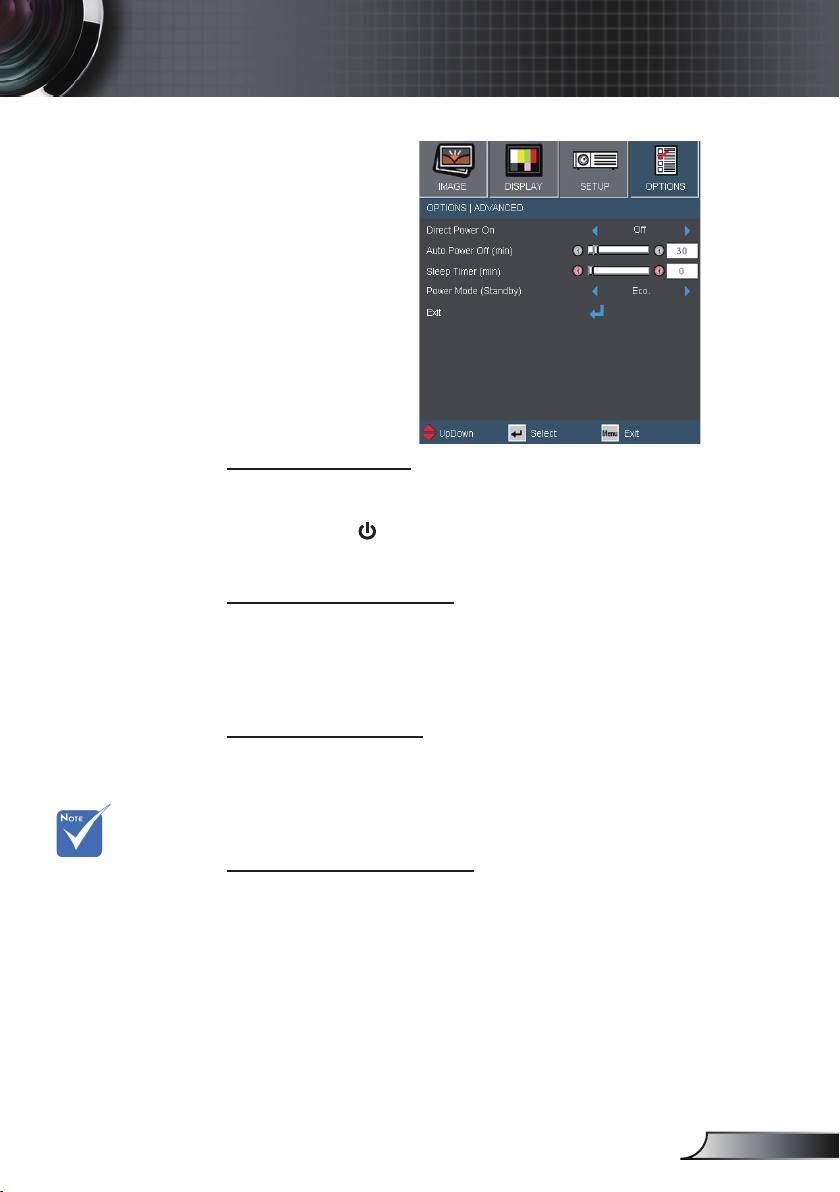

Advanced
Direct Power On
Choose “On” to activate Direct Power mode. The projector will
automatically power on when AC power is supplied, without
pressing the “ ” key on the projector control panel or on the
remote control.
Auto Power Off (min)
Sets the countdown timer interval. The countdown timer will start,
when there is no signal being sent to the projector. The projector
will automatically power off when the countdown has nished (in
minutes).
Eco (<1W) mode
will disable the
VGA-out function
when the projector
is in standby.
Sleep Timer (min)
Sets the countdown timer interval. The countdown timer will start,
with or without a signal being sent to the projector. The projector
will automatically power off when the countdown has nished (in
minutes).
Power Mode (Standby)
Eco.: Choose “Eco.” to save power dissipation further < 1W.
Active: Choose “Active” to return to normal standby and the
VGA out port will be enabled.
41
English
User Controls
OPTIONS |

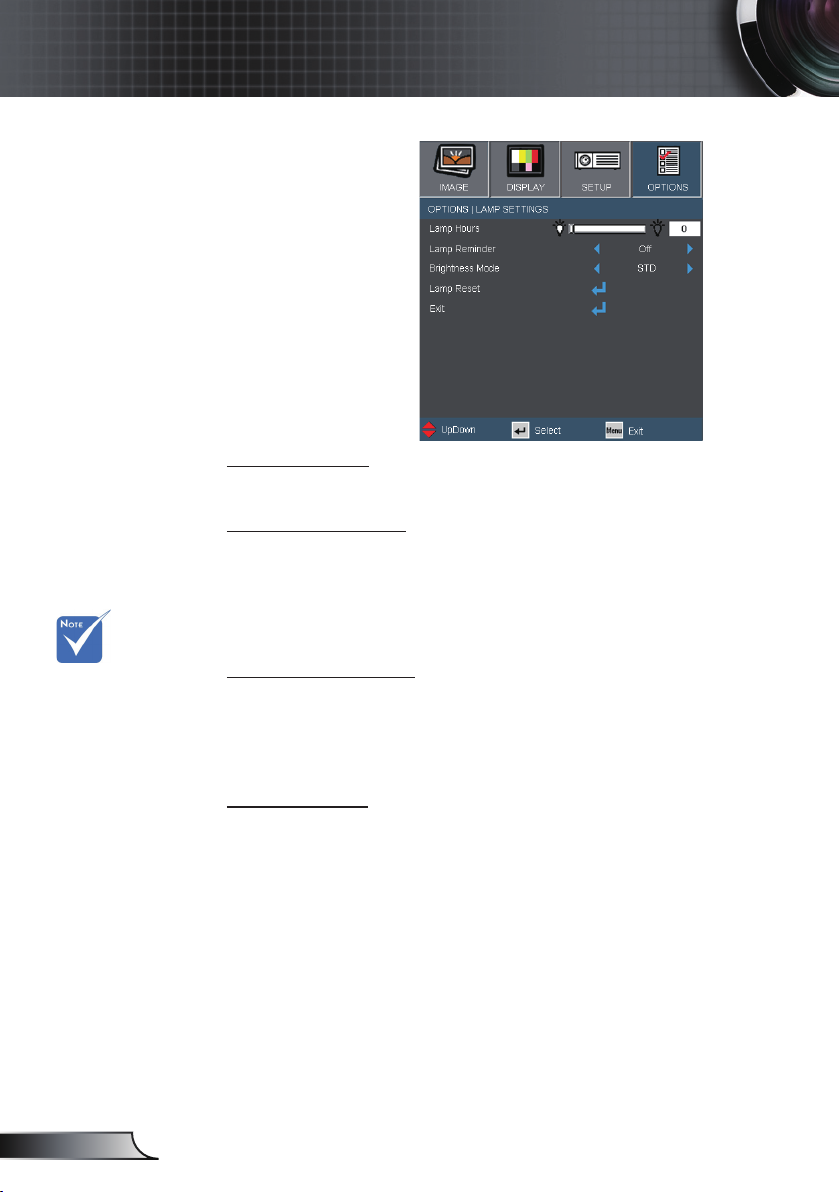

Lamp Settings
Lamp Hours
Display the projection time.
Lamp Reminder
Choose this function to show or to hide the warning message
when the changing lamp message is displayed.
The message will appear 30 hours before suggested replacement
of lamp.
When ambient
temperature is
over 35°C in
operating, the
projector will
switch to STD
automatically.
English
42
Brightness Mode
STD: Choose “STD” to dim the projector lamp which will lower
power consumption and extend the lamp life.
BRIGHT: Choose “BRIGHT” to increase the brightness.
Lamp Reset
Reset the lamp hour counter after replacing the lamp.
Appendices
Troubleshooting
If you experience a problem with your projector,
please refer to the following information. If a
problem persists, please contact your local
reseller or service center.
No image appears on-screen
Ensure all the cables and power connections are correctly and
securely connected as described in the “Installation” section.
Ensure all the pins of connectors are not bent or broken.
Check if the projection lamp has been securely installed. Please
refer to the “Replacing the lamp” section.
Make sure you have removed the lens cap and the projector is
switched on.
Ensure that the “AV mute” feature is not turned on.
Partial, scrolling or incorrectly displayed image
Press “Re-SYNC” on the remote.
If you are using a PC:
For Windows 95, 98, 2000, XP:
1. Open the “My Computer” icon, the “Control Panel” folder, and
then double click on the “Display” icon.
2. Select the “Settings” tab.
3. Verify that your display resolution setting is lower than or equal
to 1920 × 1080.
4. Click on the “Advanced Properties” button.
If the projector is still not projecting the whole image, you will also
need to change the monitor display you are using. Refer to the
following steps.
5. Verify the resolution setting is lower than or equal to 1920 ×
1080.
6. Select the “Change” button under the “Monitor” tab.
43
English
Appendices
7. Click on “Show all devices”. Next, select “Standard monitor
types” under the SP box; choose the resolution mode you need
under the “Models” box.
8. Verify that the resolution setting of the monitor display is lower
than or equal to 1920 × 1080.
If you are using a Notebook:
1. First, follow the steps above to adjust resolution of the
computer.
2. Press the appropriate keys listed below for your notebook
manufacturer to send signal out from notebook to projector.
Example: [Fn]+[F4]
Acer
[Fn]+[F5]
Asus [Fn]+[F8]
Dell [Fn]+[F8]
Gateway [Fn]+[F4]
Mac Apple:
System Preference Display Arrangement Mirror
display
If you experience difculty changing resolutions or your monitor
freezes, restart all equipment including the projector.
The screen of the Notebook or PowerBook computer is not
IBM/Lenovo [Fn]+[F7]
HP/Compaq [Fn]+[F4]
NEC [Fn]+[F3]
Toshiba [Fn]+[F5]
displaying your presentation
If you are using a Notebook PC
Some Notebook PCs may deactivate their own screens when a
second display device is in use. Each has a different way to be
reactivated. Refer to your computer’s manual for detailed
information.
Image is unstable or ickering
Use “Phase” to correct it. See page 37 for more information.
Change the monitor color setting on your computer.
Image has vertical ickering bar
Use “Frequency” to make an adjustment. See page 37 for more
information.
Check and recongure the display mode of your graphic card to
make it compatible with the projector.
English
44
Appendices
Image is out of focus
Make sure the lens cap is removed.
Adjust the Focus Ring on the projector lens.
Make sure the projection screen is between the required distance.
See page 16.
The image is stretched when displaying 16:9 DVD title
When you play anamorphic DVD or 16:9 DVD, the projector will
show the best image when the projector display mode is set to
16:9 in the OSD.
If you play the LBX format DVD title, please change the format as
LBX in projector OSD.
If you play 4:3 format DVD titles, please change the format to 4:3
in the projector OSD.
If the image is still stretched, you will also need to adjust the
aspect ratio by referring to the following:
Please setup the display format as 16:9 (wide) aspect ratio type
on your DVD player.
Use of Keystone is
not recommended.
Image is too small or too large
Adjust the Zoom Ring on the top of the projector.
Move the projector closer to or further from the screen.
Press “Menu” button on the remote control or projector panel, go
to “Display Format” and try the different settings.
Image has slanted sides
If possible, reposition the projector so that it is horizontally
centered on the screen and below the bottom of the screen.
Press “Keystone +/-” button on the remote control or press
“ / ” on the projector panel, until the sides are vertical.
Image is reversed
Select “SETUP Projection” from the OSD and adjust the
projection direction.
45
English
46
English
Appendices
The projector stops responding to all controls
If possible, turn off the projector, then unplug the power cord and
wait at least 60 seconds before reconnecting power.
Check that “Keypad Lock” is not activated by trying to control the
projector with the remote control.
Lamp burns out or makes a popping sound
When the lamp reaches its end of life, it will burn out and may
make a loud popping sound. If this happens, the projector will not
turn on until the lamp module has been replaced. To replace the
lamp, follow the procedures in the “Replacing the Lamp” section on
pages 48-49.
Projector Status Indication
LED lighting message
Steady light
No light
Message
ON/STANDBY
LED
Temp-LED Lamp-LED
(Green/Amber) (Red) (Red)
Standby State
(Input power cord)
Amber
Power on (Warming)
Flashing
Green
Lamp lighting Green
Power off (Cooling)
Flashing
Green
Error (Over Temp.)
Flashing
Amber
Error (Fan fail)
Flashing
Amber
Flashing
Error (Lamp fail)
Flashing
Amber
＊ ON/STANDBY LED be ON when OSD appears, be OFF when OSD disappears.
On Screen Messages
Temperature warning:
Fan failed:
Lamp warming:
Out of display range:
Appendices
Remote Control
If the remote control does not work
Check the operating angle of the remote control is within ±15°
both horizontally and vertically of one of the IR receivers on the
projector.
Make sure there are not any obstructions between the remote
control and the projector. Move to within 7 m (±0°) of the projector.
Make sure the batteries are inserted correctly.
Replace batteries if they are exhausted.
47
English
48
English
Appendices
Replacing the lamp
The projector automatically detects the lamp life. When the
lamp life is nearing the end of use, you will receive a warning
message.
When you see this message, please contact your local reseller
or service center to change the lamp as soon as possible.
Make sure the projector has been cooled down for at least 30
minutes before changing the lamp.
Warning: Lamp compartment may be hot! Allow it to cool down
before changing the lamp!
Warning: To reduce the risk of personal injury, do not drop the
lamp module or touch the lamp bulb. The bulb may shatter and
cause injury if it is dropped.
Warning: If ceiling mounted, please use caution when
opening the lamp access panel. It is recommended to wear
safety glasses if changing the bulb when ceiling mounted.
“Caution must be used to prevent any loose parts from falling
out of projector.”
49
English
Appendices
Lamp Replacement Procedure:
1. Switch off the power to the projector by pressing the “ ” button.
2. Allow the projector to cool down for at least 30 minutes.
3. Disconnect the power cord.
4. Unscrew the two screws on the cover. 1
5. Lift up and remove the cover. 2
6. Unscrew the two screws on the lamp module. 3
7. Lift up the lamp handle and remove the lamp module slowly and carefully. 4
To replace the lamp module, reverse the previous steps.
8. Turn on the projector and use “Lamp Reset” after the lamp module is
replaced.
Lamp Reset: (i) Press “Menu” (ii) Select “OPTIONS” (iii) Select
“Lamp Settings” (iv) Select “Lamp Reset” (v) Select “Yes”.
1
2
3
4
The screws on the
lamp cover and the
lamp cannot be
removed.
The projector
cannot be turned
on if the lamp
cover has not been
placed back on the
projector.
Do not touch the
glass area of the
lamp. Hand oil can
cause the lamp to
shatter. Use a dry
cloth to clean the
lamp module if it
was accidentally
touched.
Appendices
Compatibility Modes
Computer Compatibility
For widescreen
resolution (WXGA),
the compatibility
support is
dependent on
Notebook/PC
models.
Mode Resolution
800 x 600 56
800 x 600 60
SVGA
XGA
WXGA
HD
SXGA+
UXGA 1600 x 1200 60
Power Book G4
SVGA
XGA
WXGA 1280 x 768 60
HD
SXGA+ 1400 x 1050 60
UXGA 1600 x 1200 60
iMAC
XGA 1024 x 768 60
800 x 600 72
800 x 600 75
800 x 600 85
1024 x 768
1024 x 768 70
1024 x 768 75
1024 x 768 85
1280 x 768
1280 x 800 60
1280 x 720
1280 x 1024 60
1280 x 1024 75
1920 x 1080 24
1920 x 1080 60
1400 x 1050
1440 x 900 60
800 x 600 60
800 x 600 75
800 x 600 85
1024 x 768
1024 x 768 70
1024 x 768 75
1024 x 768 85
1280 x 720
1280 x 1024 60
1280 x 1024 75
V.Frequency
(Hz)
60
60
60
60
60
60
AAnalog Digital
English
50
Appendices
Video Compatibility
NTSC M (3.58MHz), 4.43 MHz
PAL B, D, G, H, I, M, N
SECAM B, D, G, K, K1, L
SDTV/HDTV 480i/p, 576i/p, 720p@50Hz/60Hz, 1080i/p@50Hz/60Hz
51
English
52
English
Appendices
RS232 Pin Assignments
Pin no.
Spec.
(from projector side)
1 N/A
2 RXD
3 TXD
4 N/A
5 GND
6 N/A
7 N/A
8 N/A
9 N/A
12345
6789
RS232 Commands and Protocol
Function List
Pin no. Name
I/O (From
Projector Side)
1 TXD OUT
2 RXD IN
3 GND GND
1
2
3
Appendices
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Baud Rate : 9600 Note : There is a <CR> after all ASCII commands
Data Bits: 8 0 D is the HEX code for <CR> in ASCII code
Parity: None
Stop Bits: 1
Flow Control : None
UART16550 FIFO: Disable
Projector Return (Pass): P
Projector Return (Fail): F XX=01ˀ99, projector's ID, XX=00 is for all projectors
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
SEND to projector
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
232 ASCII Code HEX Code Function Description
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
~XX00 1 7E 30 30 30 30 20 31 0D Po wer ON
~XX00 0 7E 30 30 30 30 20 30 0D Power OFF (0/2 for backward compatible)
~XX00 1 ~nnnn 7E 30 30 30 30 20 31 20 a 0D Po wer ON with Password ~nnnn = ~0000 (a=7E 30 30 30 30) - ~9999(a=7E 39 39 39 39)
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- ----------------------------------
~XX01 1 7E 30 30 30 31 20 31 0D Resync
~XX02 1 7E 30 30 30 32 20 31 0D AV Mute On
~XX02 0 7E 30 30 30 32 20 30 0D Off (0/2 for backward compatible)
~XX03 1 7E 30 30 30 33 20 31 0D Mute On
~XX03 0 7E 30 30 30 33 20 30 0D Off (0/2 for backward compatible)
~XX04 1 7E 30 30 30 34 20 31 0D Freeze
~XX04 0 7E 30 30 30 34 20 30 0D Unfreeze (0/2 for backward compatible)
~XX05 1 7E 30 30 30 35 20 31 0D Zoom Plus
~XX06 1 7E 30 30 30 36 20 31 0D Zoom Minus
~XX07 1 7E 30 30 30 37 20 31 0D Up (Pan under zoom)
~XX08 1 7E 30 30 30 38 20 31 0D Down (Pan under zoom)
~XX09 1 7E 30 30 30 39 20 31 0D Left (Pan under zoom)
~XX10 1 7E 30 30 31 30 20 31 0D Right (Pan under zoom)
~XX12 1 7E 30 30 31 32 20 31 0D Direct Source Commands HDMI
~XX12 5 7E 30 30 31 32 20 35 0D VGA 1
~XX12 7 7E 30 30 31 32 20 35 0D VGA 1 SCART
~XX12 8 7E 30 30 31 32 20 38 0D VGA 1 Component
~XX12 9 7E 30 30 31 32 20 39 0D S-Video
~XX12 10 7E 30 30 31 32 20 31 30 0D Video
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- ----------------------------------
~XX20 1 7E 30 30 32 30 20 31 0D Display Mode Presentation
~XX20 2 7E 30 30 32 30 20 32 0D Bright
~XX20 3 7E 30 30 32 30 20 33 0D Mov ie
~XX20 4 7E 30 30 32 30 20 34 0D sRGB
~XX20 5 7E 30 30 32 30 20 35 0D User1
~XX20 6 7E 30 30 32 30 20 36 0D User2
~XX20 7 7E 30 30 32 30 20 37 0D Blackboard
~XX20 8 7E 30 30 32 30 20 38 0D Classroom
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- ----------------------------------
~XX21 n 7E 30 30 32 31 20 a 0D Brightness n = 0 (a=30) ~ 100 (a=31 30 30)
~XX22 n 7E 30 30 32 32 20 a 0D Contrast n = 0 (a=30) ~ 100 (a=31 30 30)
~XX23 n 7E 30 30 32 33 20 a 0D Sharpness n = 0 (a=30) ~ 31 (a=33 31)
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
~XX24 n 7E 30 30 32 34 20 a 0D Color Settings Red Gain n = -50 (a=2D 35 30) ~ 50 (a=35 30)
~XX25 n 7E 30 30 32 35 20 a 0D Green Gain n = -50 (a=2D 35 30) ~ 50 (a=35 30)
~XX26 n 7E 30 30 32 36 20 a 0D Blue Gain n = -50 (a=2D 35 30) ~ 50 (a=35 30)
~XX27 n 7E 30 30 32 37 20 a 0D Red Bias n = -50 (a=2D 35 30) ~ 50 (a=35 30)
~XX28 n 7E 30 30 32 38 20 a 0D Green Bias n = -50 (a=2D 35 30) ~ 50 (a=35 30)
~XX29 n 7E 30 30 32 39 20 a 0D Blue Bias n = -50 (a=2D 35 30) ~ 50 (a=35 30)
~XX33 1 7E 30 30 33 33 20 31 0D Reset
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- ----------------------------------
~XX196 n 7E 30 30 31 39 36 20 a 0D Noise Reduction n = 0 (a=30) ~ 10 (a=31 30)
~XX35 1 7E 30 30 33 35 20 31 0D Gamma Film
~XX35 2 7E 30 30 33 35 20 32 0D Video
~XX35 3 7E 30 30 33 35 20 33 0D Graphics
~XX35 4 7E 30 30 33 35 20 34 0D PC
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- ----------------------------------
~XX36 1 7E 30 30 33 36 20 31 0D Color Temp. Warm
~XX36 2 7E 30 30 33 36 20 32 0D Medium
~XX36 3 7E 30 30 33 36 20 33 0D Cold
~XX37 1 7E 30 30 33 37 20 31 0D Color Space Auto
~XX37 2 7E 30 30 33 37 20 32 0D RGB
~XX37 3 7E 30 30 33 37 20 33 0D YUV
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- ----------------------------------
~XX44 n 7E 30 30 34 34 20 a 0D Color (Saturation) n = 0 (a=30) ~ 100 (a=31 30 30)
~XX45 n 7E 30 30 34 35 20 a 0D Tint n = 0 (a=30) ~ 100 (a=31 30 30)
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
RS232 Protocol Function List
53
English
Appendices
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
~XX60 1 7 E 30 30 36 30 20 31 0D Format 4:3
~XX60 2 7 E 30 30 36 30 20 32 0D 16:9
~XX60 5 7 E 30 30 36 30 20 33 0D LBX
~XX60 6 7 E 30 30 36 30 20 36 0D Native
~XX60 7 7 E 30 30 36 30 20 37 0D Auto
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
~XX61 n 7 E 30 30 36 31 20 a 0D Overscan n = 0 (a=30) ~ 10 (a=31 30)
~XX62 n 7 E 30 30 36 32 20 a 0D Zoom n = 0 (a=30) ~ 25 (a=32 35)
~XX63 n 7 E 30 30 36 33 20 a 0D H Image Shift n = -50 (a=2D 35 30) ~ +50 (a=35 30)
~XX64 n 7 E 30 30 36 34 20 a 0D V Image Shift n = -50 (a=2D 35 30) ~ +50 (a=35 30)
~XX66 n 7 E 30 30 36 36 20 a 0D V Keystone n = -40 (a=2D 34 30) ~ 40 (a=34 30)
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
~XX70 1 7 E 30 30 37 30 20 31 0D Language English
~XX70 2 7 E 30 30 37 30 20 32 0D German
~XX70 3 7 E 30 30 37 30 20 33 0D French
~XX70 4 7 E 30 30 37 30 20 34 0D Italian
~XX70 5 7 E 30 30 37 30 20 35 0D Spanish
~XX70 6 7 E 30 30 37 30 20 36 0D Portuguese
~XX70 7 7 E 30 30 37 30 20 37 0D Polish
~XX70 8 7 E 30 30 37 30 20 38 0D Dutch
~XX70 9 7 E 30 30 37 30 20 39 0D Swedish
~XX70 10 7 E 30 30 37 30 20 31 30 0D Norwegian/Danish
~XX70 11 7 E 30 30 37 30 20 31 31 0D Finnish
~XX70 12 7 E 30 30 37 30 20 31 32 0D Greek
~XX70 13 7 E 30 30 37 30 20 31 33 0D Traditional Chinese
~XX70 14 7 E 30 30 37 30 20 31 34 0D Simplified Chinese
~XX70 15 7 E 30 30 37 30 20 31 35 0D Japanese
~XX70 16 7 E 30 30 37 30 20 31 36 0D Korean
~XX70 17 7 E 30 30 37 30 20 31 37 0D Russian
~XX70 18 7 E 30 30 37 30 20 31 38 0D Hungarian
~XX70 19 7 E 30 30 37 30 20 31 39 0D Czechoslovak
~XX70 20 7 E 30 30 37 30 20 32 30 0D Arabic
~XX70 21 7 E 30 30 37 30 20 32 31 0D Thai
~XX70 22 7 E 30 30 37 30 20 32 32 0D Turkish
~XX70 23 7 E 30 30 37 30 20 32 33 0D Farsi
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
~XX71 1 7 E 30 30 37 31 20 31 0D Projection Front-Desktop
~XX71 2 7 E 30 30 37 31 20 32 0D Rear-Desktop
~XX71 3 7 E 30 30 37 31 20 33 0D Front-Ceiling
~XX71 4 7 E 30 30 37 31 20 34 0D Rear-Ceiling
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
~XX72 1 7 E 30 30 37 32 20 31 0D Menu Location Top Left
~XX72 2 7 E 30 30 37 32 20 32 0D Top Right
~XX72 3 7 E 30 30 37 32 20 33 0D Centre
~XX72 4 7 E 30 30 37 32 20 34 0D Bottom Left
~XX72 5 7 E 30 30 37 32 20 35 0D Bottom Right
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
~XX73 n 7 E 30 30 37 33 20 a 0D Signal Frequency n = -5 (a=2D 35) ~ 5 (a=35) By signal
~XX74 n 7 E 30 30 37 34 20 a 0D Phase n = 0 (a=30) ~ 31 (a=33 31) By signal
~XX75 n 7 E 30 30 37 35 20 a 0D H. Position n = -5 (a=2D 35) ~ 5 (a=35) By timing
~XX76 n 7E 30 30 37 36 20 a 0D V. Position n = -5 (a=2D 35) ~ 5 (a=35) By timing
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
~XX77 n 7 E 30 30 37 37 20 aabbcc 0D Security Security Timer Month/Day/Hour n = mm/dd/hh
mm = 00 (aa=30 30) ~ 12 (aa=31 32)
dd = 00 (bb=30 30) ~ 30 (bb=33 30)
hh = 00 (cc=30 30) ~ 24 (cc=32 34)
~XX78 1 7 E 30 30 37 38 20 31 0D Security Settings Enable
~XX78 2 7 E 30 30 37 38 20 32 0D Disable
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
~XX79 n 7 E 30 30 37 39 20 a 0D Projector ID n = 00 (a=30 30) ~ 99 (a=39 39)
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
~XX80 1 7 E 30 30 38 30 20 31 0D Mute On
~XX80 0 7 E 30 30 38 30 20 30 0D Off (0/2 for backward compatible)
~XX81 n 7 E 30 30 38 31 20 a 0D Volume n = 0 (a=30) ~ 10 (a=31 30)
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
~XX82 1 7 E 30 30 38 32 20 31 0D Logo Optoma
~XX82 2 7 E 30 30 38 32 20 32 0D User
~XX83 1 7 E 30 30 38 33 20 31 0D Logo Capture
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
~XX100 1 7 E 30 30 31 30 30 20 31 0D Source Lock On
~XX100 0 7 E 30 30 31 30 30 20 30 0D Off (0/2 for backward compatible)
~XX100 3 7 E 30 30 31 30 30 20 33 0D Next Source
~XX101 1 7 E 30 30 31 30 31 20 31 0D High Altitude On
~XX101 0 7 E 30 30 31 30 31 20 30 0D Off (0/2 for backward compatible)
~XX102 1 7 E 30 30 31 30 32 20 31 0D Information Hide On
~XX102 0 7 E 30 30 31 30 32 20 30 0D Off (0/2 for backward compatible)
~XX103 1 7 E 30 30 31 30 33 20 31 0D Keypad Lock On
~XX103 0 7 E 30 30 31 30 33 20 30 0D Off (0/2 for backward compatible)
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
~XX104 1 7 E 30 30 31 30 34 20 31 0D Background Color Blue
~XX104 2 7 E 30 30 31 30 34 20 32 0D Black
~XX104 3 7 E 30 30 31 30 34 20 33 0D Red
~XX104 4 7 E 30 30 31 30 34 20 34 0D Green
~XX104 5 7E 30 30 31 30 34 20 35 0D White
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
English
54
Appendices
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
~XX192 1 7E 30 30 31 39 32 20 31 0D 12V Trigger On
~XX192 0 7E 30 30 31 39 32 20 30 0D Of f (0/2 for backward compatible)
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------~XX105 1 7E 30 30 31 30 35 20 31 0D Advanced Direct Power On On
~XX105 0 7E 30 30 31 30 35 20 30 0D Of f (0/2 for backward compatible)
~XX106 n 7E 30 30 31 30 36 20 a 0D Auto Power Off (min) n = 0 (a=30) ~ 180 (a=31 38 30) step:5
~XX107 n 7E 30 30 31 30 37 20 a 0D Sleep Timer (min) n = 0 (a =30) ~ 995 (a=39 39 39) step:5
~XX114 1 7E 30 30 31 31 34 20 31 0D Power Mode(Standby) Eco.(<=1W)
~XX114 0 7E 30 30 31 31 34 20 30 0D Active (0/2 for backward compatible)
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
~XX109 1 7E 30 30 31 30 39 20 31 0D Lamp Reminder On
~XX109 0 7E 30 30 31 30 39 20 30 0D Off (0/2 for backward compatible)
~XX110 1 7E 30 30 31 31 30 20 31 0D Brightness Mode Bright
~XX110 0 7E 30 30 31 31 30 20 30 0D STD (0/2 for backward compatible)
~XX111 1 7E 30 30 31 31 31 20 31 0D Lamp Reset Yes
~XX111 0 7E 30 30 31 31 31 20 30 0D No (0/2 for backward compatible)
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
~XX112 1 7E 30 30 31 31 32 20 31 0D Reset Yes
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
~XX99 1 7E 30 30 39 39 20 31 0D RS232 Alert Reset Reset System Alert
~XX210 n 7E 30 30 32 30 30 20 n 0D Display message on the OSD n: 1-30 characters
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
SEND to emulate Remote
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------~XX140 1 7E 30 30 31 34 30 20 31 0D Power
~XX140 3 7E 30 30 31 34 30 20 33 0D Remote Mouse Up
~XX140 4 7E 30 30 31 34 30 20 34 0D Remote Mouse Left
~XX140 5 7E 30 30 31 34 30 20 35 0D Remote Mouse Enter
~XX140 6 7E 30 30 31 34 30 20 36 0D Remote Mouse Right
~XX140 7 7E 30 30 31 34 30 20 37 0D Remote Mouse Down
~XX140 8 7E 30 30 31 34 30 20 38 0D Mouse Left Click
~XX140 9 7E 30 30 31 34 30 20 39 0D Mouse Right Click
~XX140 10 7E 30 30 31 34 30 20 31 30 0D Up/Page +
~XX140 11 7E 30 30 31 34 30 20 31 31 0D Left/Source
~XX140 12 7E 30 30 31 34 30 20 31 32 0D Enter (for projection MENU)
~XX140 13 7E 30 30 31 34 30 20 31 33 0D Right/Re-SYNC
~XX140 14 7E 30 30 31 34 30 20 31 34 0D Down/Page -
~XX140 15 7E 30 30 31 34 30 20 31 35 0D Keystone +
~XX140 16 7E 30 30 31 34 30 20 31 36 0D Keystone -
~XX140 17 7E 30 30 31 34 30 20 31 37 0D Volume -
~XX140 18 7E 30 30 31 34 30 20 31 38 0D Volume +
~XX140 19 7E 30 30 31 34 30 20 31 39 0D Brightness (1)
~XX140 20 7E 30 30 31 34 30 20 32 30 0D Menu (2)
~XX140 21 7E 30 30 31 34 30 20 32 31 0D Zoom (3)
~XX140 22 7E 30 30 31 34 30 20 32 32 0D HDMI (4)
~XX140 23 7E 30 30 31 34 30 20 32 33 0D Freeze (5)
~XX140 24 7E 30 30 31 34 30 20 32 34 0D AV Mute (6)
~XX140 25 7E 30 30 31 34 30 20 32 35 0D S-Video (7)
~XX140 26 7E 30 30 31 34 30 20 32 36 0D VGA (8)
~XX140 27 7E 30 30 31 34 30 20 32 37 0D Video (9)
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
SEND from projector automatically
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
232 ASCII Code HEX Code Function Projector Return Description
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------when Standby/Warming/Cooling/Out of Range/Lamp fail/ INFOn n : 0/1/2/3/4/6/7/8/9 = Standby/Warming/Cooling/Out of Range/Lamp fail/
Fan Lock/Over Temperature/Lamp Hours Running Out/Cover Open Fan Lock/Over Temperature/Lamp Hours Running Out/Cover Open
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
READ from projector
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
232 ASCII Code HEX Code Function Projector Return Description
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------~XX121 1 7E 30 30 31 32 31 20 31 0D Input Source Commands OKn n : 0/1/2/3/4 =
None/VGA1/S-Video/Video/HDMI
~XX122 1 7E 30 30 31 32 32 20 31 0D Sofware Version OKdddd dddd: FW version
~XX123 1 7E 30 30 31 32 33 20 31 0D Display Mode OKn n : 0/1/2/3/4/5/6/7/8 = None/Presentation/Bright/Movie/sRGB/User1/User2/
Blackboard/Classroom
~XX124 1 7E 30 30 31 32 34 20 31 0D Power State OKn n : 0/1 = Off/On
~XX125 1 7E 30 30 31 32 35 20 31 0D Brightness OKn
~XX126 1 7E 30 30 31 32 36 20 31 0D Contrast OKn
~XX127 1 7E 30 30 31 32 37 20 31 0D Aspect Ratio OKn n : 0/1/2/3/4 = 4:3/16:9/LBX/
Native/AUTO
~XX128 1 7E 30 30 31 32 38 20 31 0D Color Temperature OKn n : 0/1/2 = Warm/Medium/Cold
~XX129 1 7E 30 30 31 32 39 20 31 0D Projection Mode OKn n : 0/1/2/3 = Front-Desktop/ Rear-Desktop/ Front-Ceiling/ Rear-Ceiling
~XX150 1 7E 30 30 31 35 30 20 31 0D Information OKabbbbccdddde
a : 0/1 = Off/On
bbbb: LampHour
cc: source 00/01/02/03/04 = None/VGA1 /S-Video/Video/HDMI
dddd: FW version
e : Display mode 0/1/2/3/4/5/6/7/8
None/Presentation/Bright/Movie/sRGB/User1/User2/
Blackboard/Classroom
~XX151 1 7E 30 30 31 35 31 20 31 0D Model name OKn n:1=EH1020
~XX108 1 7E 30 30 31 30 38 20 31 0D Lamp Hours OKbbbb bbbb: LampHour
~XX108 2 7E 30 30 31 30 38 20 31 0D Cumulative Lamp Hours OKbbbbb bbbbb: (5 digits) Total Lamp Hours
55
English
56
English
Appendices
Please note that
damage resulting
from incorrect
installation will
invalidate the
warranty.
Ceiling Mount Installation
1. To prevent damage to your projector, please use the
Optoma ceiling mount.
2. If you wish to use a third party ceiling mount kit, please
ensure the screws used to attach a mount to the projector
meet the following specifications:
Screw type: M3*3
Maximum screw length: 10mm
Minimum screw length: 7.5mm
Warning:
1. If you buy a ceiling
mount from another
company, please
be sure to use the
correct screw size.
Screw size will vary
depending on the
thickness of the
mounting plate.
2. Be sure to keep
at least 10 cm gap
between the ceiling
and the bottom of the
projector.
3. Avoid installing the
projector near a heat
source.
Lens
82.3093.60
110.00 137.2076.40
55.00
323.60
233.30
59.01
89.75
Unit: mm
Appendices
Optoma Global Ofces
For service or support please contact your local ofce.
USA
715 Sycamore Drive Tel : 408-383-3700
Milpitas, CA 95035, USA Fax: 408-383-3702
www.optomausa.com Service : services@optoma.com
Canada
5630 Kennedy Road, Mississauga, Tel : 905-361-2582
ON, L4Z 2A9, Canada Fax: 905-361-2581
www.optoma.ca Service : canadacsragent@optoma.com
Europe
42 Caxton Way, The Watford Business Park
Watford, Hertfordshire,
WD18 8QZ, UK Tel : +44 (0) 1923 691 800
www.optoma.eu Fax: +44 (0) 1923 691 888
Service Tel : +44 (0)1923 691865 Service :
France
Bâtiment E Tel : +33 1 41 46 12 20
81-83 avenue Edouard Vaillant Fax: +33 1 41 46 94 35
92100 Boulogne Billancourt, France Service :
Spain
C/ José Hierro,36 Of. 1C Tel : +34 91 499 06 06
28529 Rivas VaciaMadrid, Fax: +34 91 670 08 32
Spain
service@tsc-europe.com
savoptoma@optoma.fr
Deutschland
Werftstrasse 25 Tel : +49 (0) 211 506 6670
D40549 Düsseldorf, Fax: +49 (0) 211 506 66799
Germany Service : info@optoma.de
Scandinavia
Grev Wedels Plass 2 Tel : +47 32 26 89 90
3015 Drammen Fax: +47 32 83 78 98
Norway Service : info@optoma.no
Latin America
715 Sycamore Drive Tel : 408-383-3700
Milpitas, CA 95035, USA Fax: 408-383-3702
www.optoma.com.br www.optoma.com.mx
57
English
Appendices
Korea
WOOMI TECH.CO.,LTD.
4F,Minu Bldg.33-14, Kangnam-Ku, Tel : +82+2+34430004
seoul,135-815, KOREA Fax: +82+2+34430005
Japan
東京都足立区綾瀬3-25-18
株式会社オーエスエム E-mail : info@osscreen.com
サポートセンター:0120-46-5040 www.os-worldwide.com
Taiwan
5F., No. 108, Minchiuan Rd. Tel : +886-2-2218-2360
Shindian City, Fax: +886-2-2218-2313
Taipei Taiwan 231, R.O.C. Service : services@optoma.com.tw
www.optoma.com.tw asia.optoma.com
Hong Kong
Unit A, 27/F Dragon Centre,
79 Wing Hong Street, Tel : +852-2396-8968
Cheung Sha Wan, Fax: +852-2370-1222
Kowloon, Hong Kong www.optoma.com.hk
English
China
5F, No. 1205, Kaixuan Rd., Tel : +86-21-62947376
Changning District Fax: +86-21-62947375
Shanghai, 200052, China www.optoma.com.cn
58
Appendices
Regulation & Safety notices
This appendix lists the general notices of your projector.
FCC notice
This device has been tested and found to comply with the
limits for a Class B digital device pursuant to Part 15 of the
FCC rules. These limits are designed to provide reasonable
protection against harmful interference in a residential
installation. This device generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio
communications.
However, there is no guarantee that interference will not
occur in a particular installation. If this device does cause
harmful interference to radio or television reception, which can
be determined by turning the device off and on, the user is
encouraged to try to correct the interference by one or more of
the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the device and receiver.
• Connect the device into an outlet on a circuit different
from that to which the receiver is connected.
• Consult the dealer or an experienced radio/television
technician for help.
Notice: Shielded cables
All connections to other computing devices must be
made using shielded cables to maintain compliance with
FCC regulations.
Caution
Changes or modications not expressly approved by the
manufacturer could void the user’s authority, which is
granted by the Federal Communications Commission, to
operate this projector.
59
English
60
English
Appendices
Operation conditions
This device complies with Part 15 of the FCC Rules. Operation
is subject to the following two conditions:
1. This device may not cause harmful interference and
2. This device must accept any interference received,
including interference that may cause undesired
operation.
Notice: Canadian users
This Class B digital apparatus complies with Canadian
ICES-003.
Remarque à l’intention des utilisateurs
canadiens
Cet appareil numerique de la classe B est conforme a la
norme
NMB-003 du Canada.
Declaration of Conformity for EU
countries
• EMC Directive 2004/108/EC (including amendments)
• Low Voltage Directive 2006/95/EC
• R & TTE Directive 1999/5/EC (if product has RF function)
Disposal instructions
Do not throw this electronic device into the
trash when discarding. To minimize pollution
and ensure utmost protection of the global
environment, please recycle it.
Loading...
