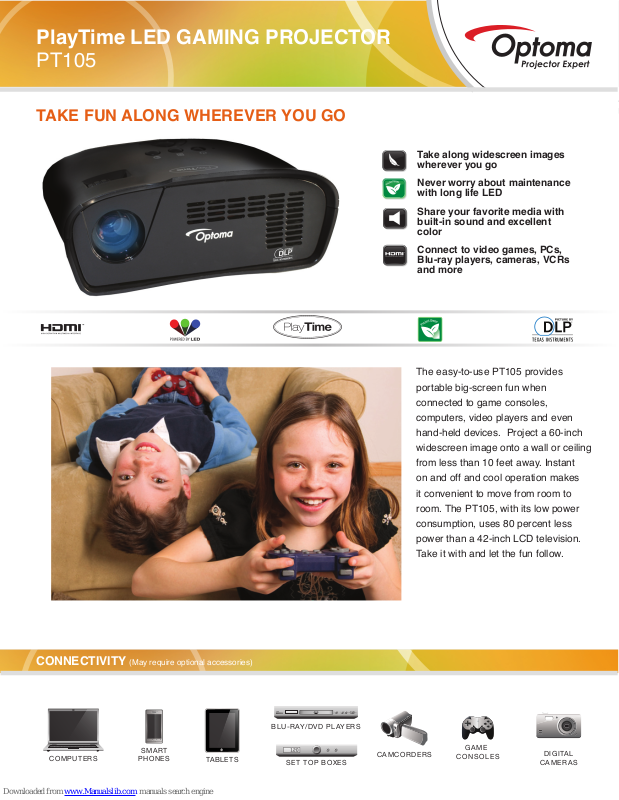

Page 1
PlayTime LED GAMING PROJECTOR
PT105
TAKE FUN ALONG WHEREVER YOU GO
Take along widescreen images
wherever you go
Never worry about maintenance
with long life LED
Share your favorite media with
built-in sound and excellent
color
Connect to video games, PCs,
Blu-ray players, cameras, VCRs
and more
CONNECTIVITY (May require optional accessories)
The easy-to-use PT105 provides
portable big-screen fun when
connected to game consoles,
computers, video players and even
hand-held devices. Project a 60-inch
widescreen image onto a wall or ceiling
from less than 10 feet away. Instant
on and off and cool operation makes
it convenient to move from room to
room. The PT105, with its low power
consumption, uses 80 percent less
power than a 42-inch LCD television.
Take it with and let the fun follow.
COMPUTERS
SMART
PHONES
TABLETS
BLU-RAY/DVD PLAYERS
SET TOP BOXES
CAMCORDERS
GAME
CONSOLES
DIGITAL
CAMERAS
Page 2
PlayTime LED GAMING PROJECTOR — PT105
OPTICAL/TeChnICAL sPeCIfICATIOns
Display Technology DLP®
Native Resolution WVGA (854 x 480)
Maximum Resolution XGA (1024 x 768) through VGA; HD (1080p
60Hz) through HDMI
Brightness 75 LED lumens
Contrast Ratio 1000:1 (full on/full off)
Lamp Life and Type LED (RGB) estimated life of over 20,000 hours
Projection Method Front
Throw Ratio 2.1:1 (distance/width)
Projection Distance 18” to 256”
Image Size (Diagonal) 10” to 140” (25 to 356cm)
Audio One 1.5-watt speaker
Operating Temperature 41° to 95°F (5° to 35°C) at sea level and
80% max humidity
Power Supply Input: 100-240V ~ 50-60Hz, 1.1A
Output: 12V ~ DC, 2.5A
Power Consumption 30 Watts
COmPATIbILITy sPeCIfICATIOns
Computer Compatibility XGA, SVGA, VGA, VESA, PC and
Macintosh compatible
Video Input Compatibility HD (720p, 1080i/p), EDTV (480p), SDTV
(480i), NTSC, PAL
User Controls Complete on-screen menu adjustments in
ve languages
I/O Connection Ports HDMI, VGA-in, composite video, audio-in
(L/R RCA), DC input
PhysICAL sPeCIfICATIOns
Weight 1.9 lbs (770g)
Dimensions 7.8” x 3.2” x 7.8”
(197mm x 80mm x 7.84”)
Powe
r
Video-In
Warranty
90-day limited parts and labor
What Comes in the Box
Power adapter, composite RCA cable, user’s manual, warranty card
UPC: 796435 81 144 0
Stereo RCA
Audio-In
DC-In
VGA-In
HDMI
www.optomausa.com
© Copyright 2012 Optoma Technology, Inc. DLP® and the DLP logo are registered trademarks of
Texas Instruments. All other trademarks are the property of their respective owners. All specications subject to change at any time.
