Optoma FHDQ130 Datasheet

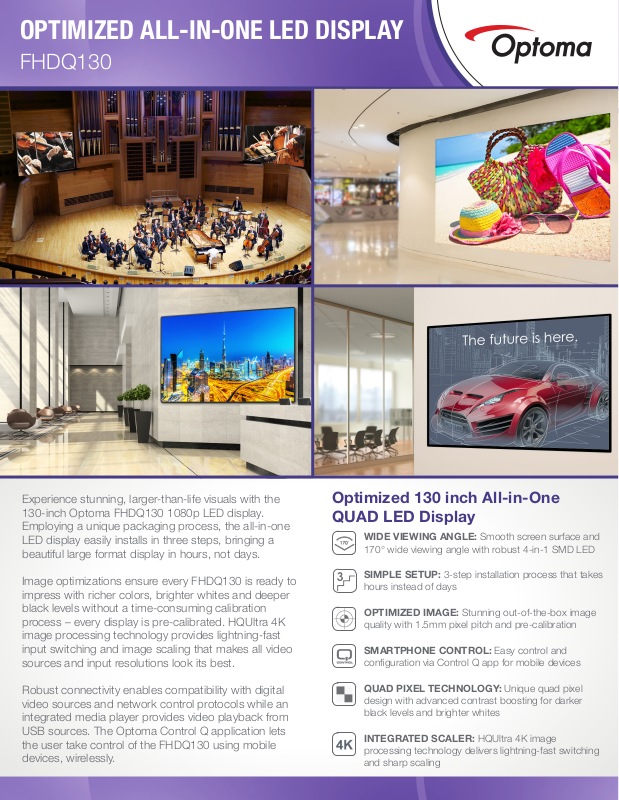

OPTIMIZED ALL-IN-ONE LED DISPLAY

FHDQ130

Experience stunning, larger-than-life visuals with the 130-inch Optoma FHDQ130 1080p LED display. Employing a unique packaging process, the all-in-one LED display easily installs in three steps, bringing a beautiful large format display in hours, not days. 

Image optimizations ensure every FHDQ130 is ready to impress with richer colors, brighter whites and deeper black levels without a time-consuming calibration process – every display is pre-calibrated. HQUltra 4K image processing technology provides lightning-fast input switching and image scaling that makes all video sources and input resolutions look its best.

Robust connectivity enables compatibility with digital video sources and network control protocols while an integrated media player provides video playback from USB sources. The Optoma Control Q application lets the user take control of the FHDQ130 using mobile devices, wirelessly.

Optimized 130 inch All-in-One QUAD LED Display

WIDE VIEWING ANGLE: Smooth screen surface and

170° wide viewing angle with robust 4-in-1 SMD LED

SIMPLE SETUP: 3-step installation process that takes hours instead of days

OPTIMIZED IMAGE: Stunning out-of-the-box image quality with 1.5mm pixel pitch and pre-calibration

SMARTPHONE CONTROL: Easy control and conﬁguration via Control Q app for mobile devices

QUAD PIXEL TECHNOLOGY: Unique quad pixel design with advanced contrast boosting for darker black levels and brighter whites

INTEGRATED SCALER: HQUltra 4K image processing technology delivers lightning-fast switching and sharp scaling

FHDQ130 - OPTIMIZED ALL-IN-ONE LED DISPLAY

3-Step Installation Process - takes hours, not days

1). Assemble panels

3). Attach LED tiles

2). Mount LED display

SPECIFICATIONS

DISPLAY

NATIVE RESOLUTION 1080p Full HD (1920 x 1080)

MAXIMUM INPUT RESOLUTION 4K UHD (3840 x 2160) @ 60Hz

SCREEN SIZE

MINIMUM VIEWING DISTANCE 4.9'

BRIGHTNESS 600 nits (calibrated)

BRIGHTNESS CONTROL LEVELS 0 to 100% steps

CONTRAST 5,000:1

VIEWING ANGLE 170°/170° (vertical/horizontal)

INGRESS PROTECTION (IP CERTIFICATION)

FRAME COLOR Black

LED TILES Front access

COLOR

GREYSCALE PROCESSING DEPTH 16-bit

COLORS 281 trillion

REFRESH RATE >3000Hz

IMAGE PROCESSING

VIDEO PROCESSOR

SENDER Integrated sender

LED TILES

PIXEL PITCH (H X V) 1.5 mm

LEDS PER PIXEL 3

PIXEL CONFIGURATION Quad SMD

LED COLOR (OFF) Black

LED SIZE SMD1010

PIXEL RESOLUTION 160 pixels (width) / 90 pixels (height)

PIXELS PER AREA 40,960 pixels/m2

130" (diagonal), 114.9" x 65.3"

(WxH)

IP40 (front), IP20 (back)

Integrated image scaler and

switching

Easy Mobility

The optional motorized stand places the display on wheels and adds 20-inches of height adjustment at the push of a button, making it ideal for rental and staging scenarios demanding ﬂexibility and mobility.

SPECIFICATIONS

CONNECTIVITY

2x HDMI 2.0 (HDCP 2.2), 1x

HDBaseT, 1x 3D-SDI, 1x VGA, 1x

INPUTS

FILE COMPATIBILITY

NETWORK CONNECTIVITY RJ45, Wi-Fi

CONTROL Optoma Control Q App

PHYSICAL SPECIFICATIONS

WEIGHT 275.6 lbs.

DIMENSIONS (W X H X D) 114" x 65.3" x 2.8"

STORAGE TEMPERATURE RANGE 14°F - 140°F (-10°C - 60°C)

"OPERATING TEMPERATURE (MAX)"

INPUT VOLTAGE 200-240 VAC

INPUT POWER (MAX) 3,000 watts

POWER (STANDBY) <0.5 watts

LIFESPAN >100,000 hrs

Warranty

3 year limited warranty

What’s in the Box

FHDQ130, remote, wireless antenna, tile removal tool, 3x spare LED tiles, wall mount, USB Wi-Fi adapter

Optional Accessories

Motorized stand: ODM01MFS Wi-Fi adapter: WUSB (replacement)

UPC 796435 69 012 0

USB 3.0 (1.5A power, ﬁrmware

upgrade), 2x USB 2.0 (Wi-Fi adapter,

USB storage), 1x USB-B (ﬁrmware

upgrade), 1x RJ45, 1x RS232, 1x

audio out

.ts .mp4 .avi .mkv .mov .bmp .jpg

.png .jpeg

104°F

Optoma.com

All specications subject to change at any time. 06082019
