Page 1
FCC Notice
This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to
Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference
in a residential installation.
Trademarks
Trademarks are the rights of their respective owners.
Page 2
Table of Contents
-- Usage Notice
------- Precautions ...........................................................................................2
Introduction
------- Product Features ...................................................................................3
------- Package Overview .................................................................................4
------- Product Overview ...................................................................................5
+
------- Main Unit ..........................................................................................5
------- Panel Control ....................................................................................6
------- Connection Ports ..............................................................................6
------- Remote Control with Mouse Function and La ser Pointer ....................7
------- Laser Pointer Caution........................................................................7
English
Installation
------- Connecting the Projector........................................................................8
------- Powering On/Off the Projector................................................................9
+
------- Power On the Projector .....................................................................9
------- Power Off the Projector.....................................................................10
------- Adjusting the Projected Image ...............................................................11
+
------- Adjusting the Projector Height...........................................................1 1
------- Adjusting the Projector Zoom/Focus.................................................12

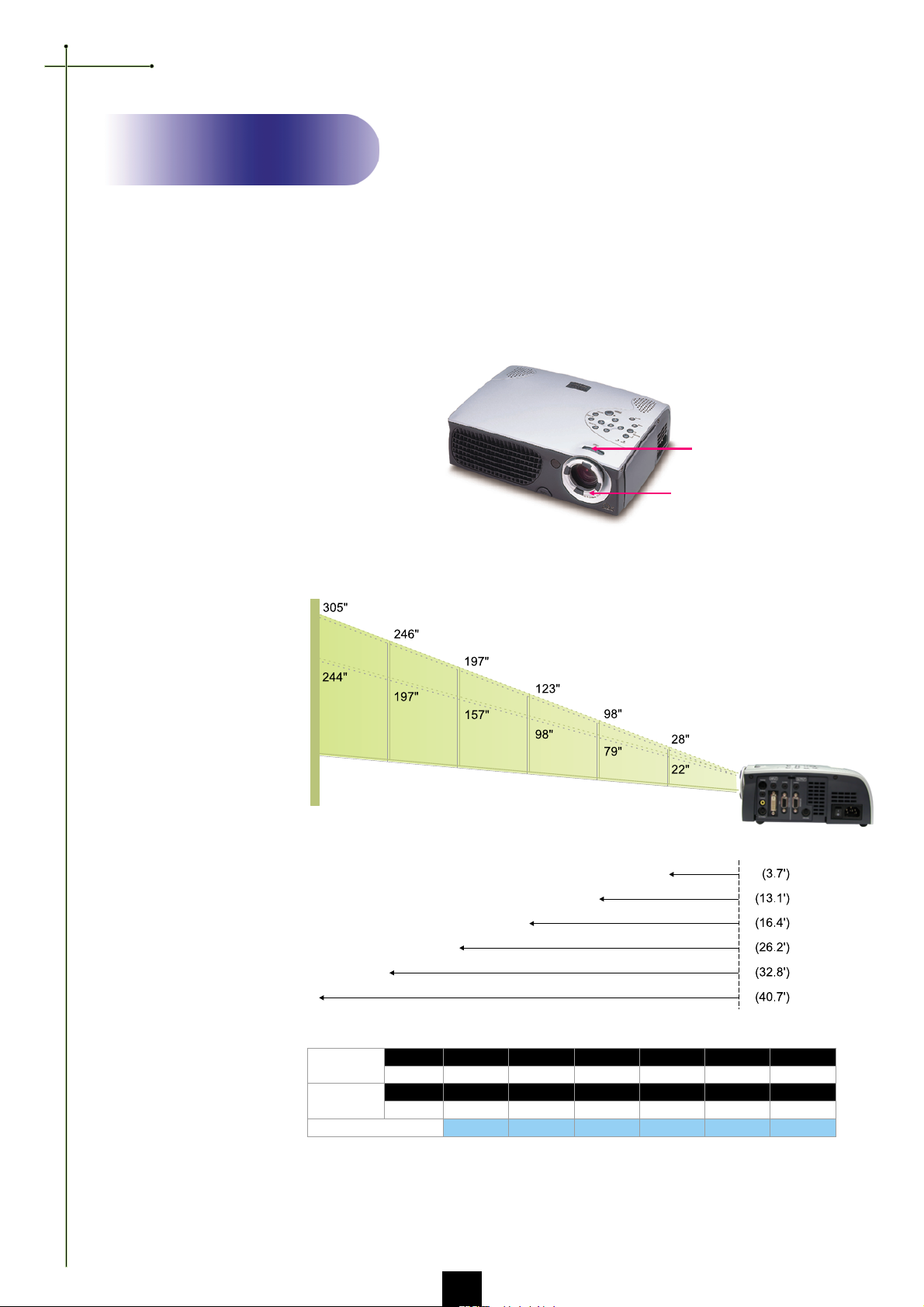

------- Adjusting Projection Image Size .......................................................12
User Controls

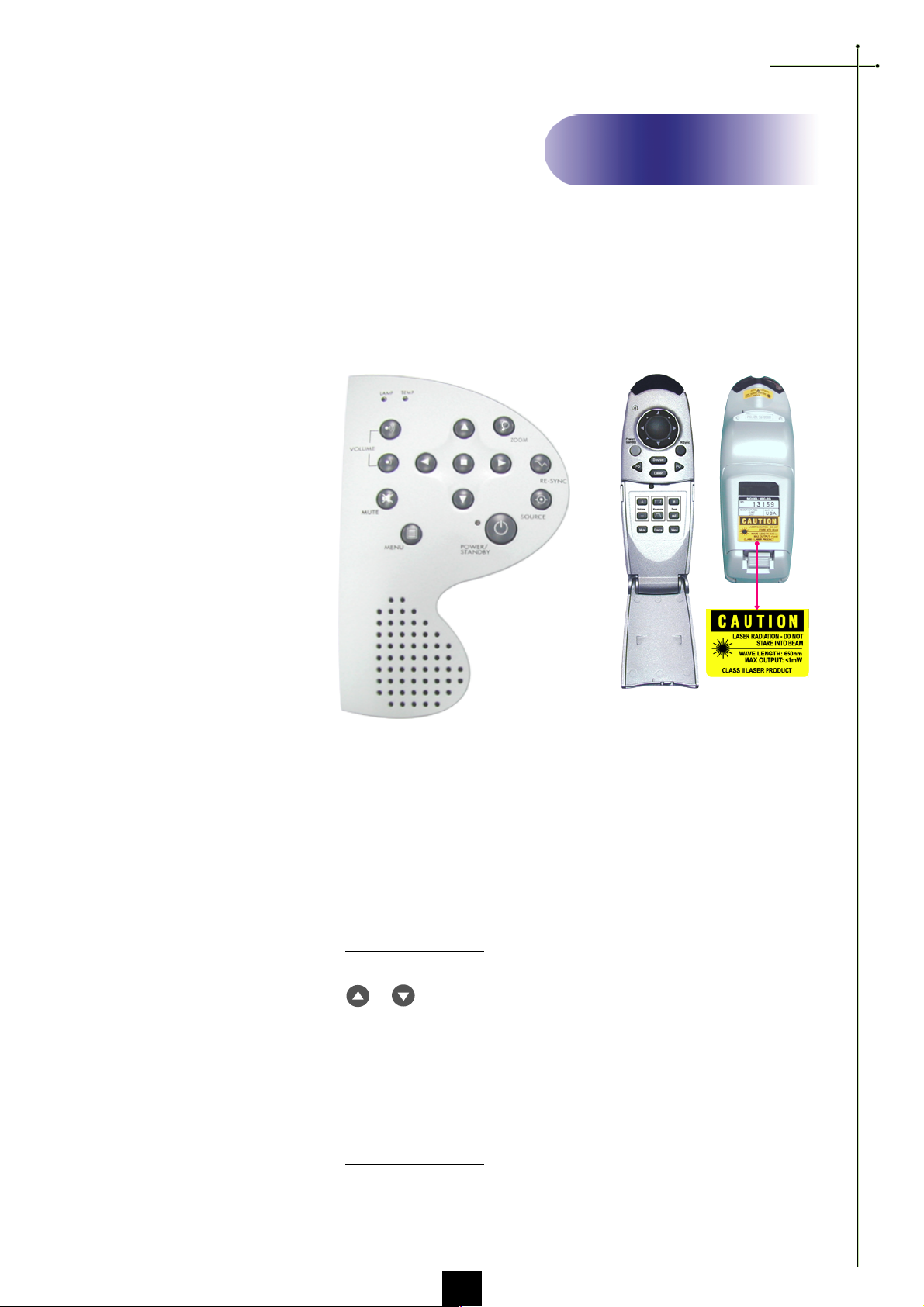

------- Panel Control & Remote Control.............................................................13

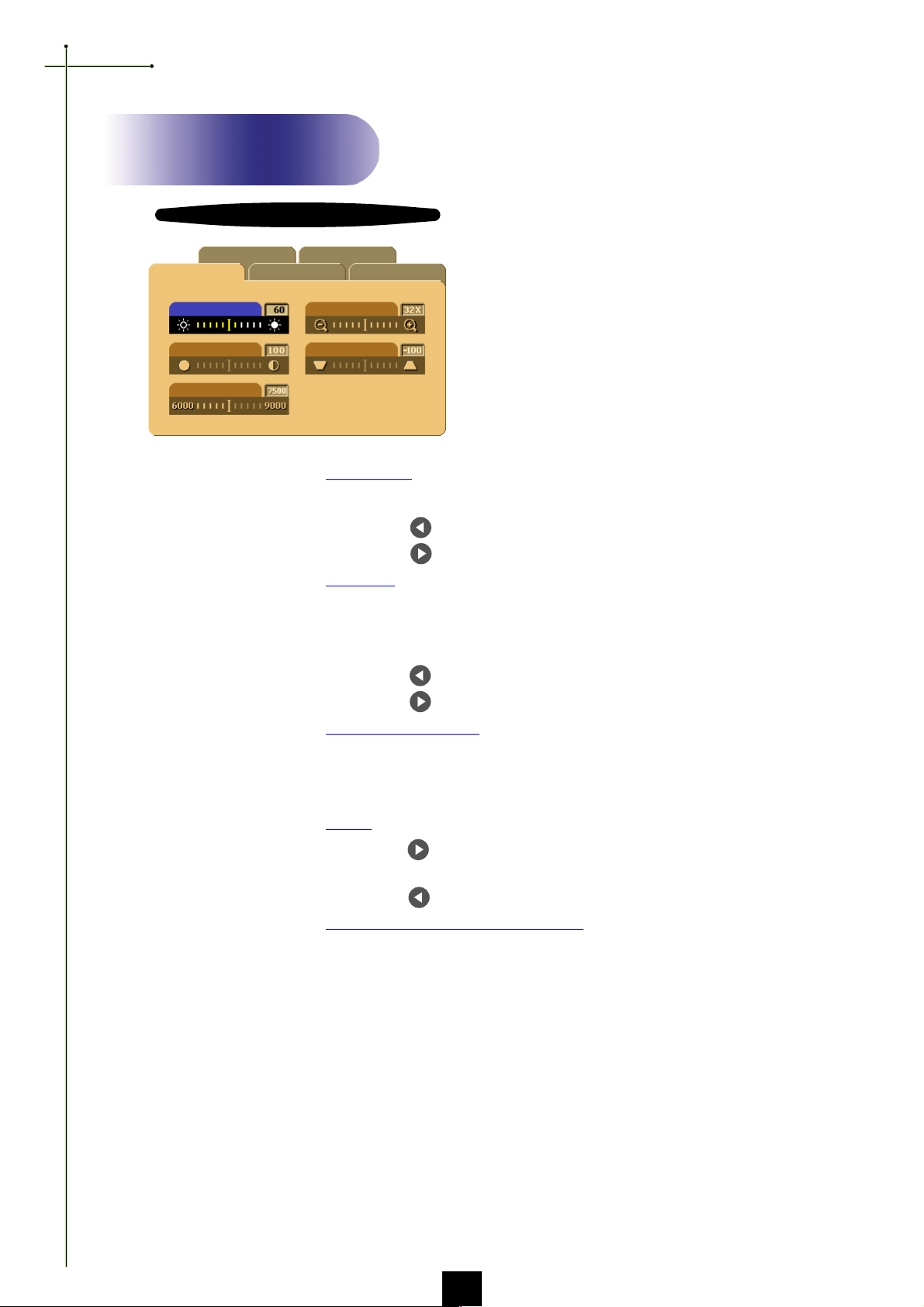

------- On-Screen Display Menus .....................................................................15
+
------- How to Operate .................................................................................15
------- Image-I (Computer mode) .................................................................16
------- Image-I (Video mode) .......................................................................17
------- Image-II (Computer mode) ................................................................18
------- Image-II (Video mode) ...................................................................... 19
------- Audio ................................................................................................20
------- Language ..........................................................................................20
------- Management .....................................................................................21
Appendices
------- Troubleshooting .....................................................................................22

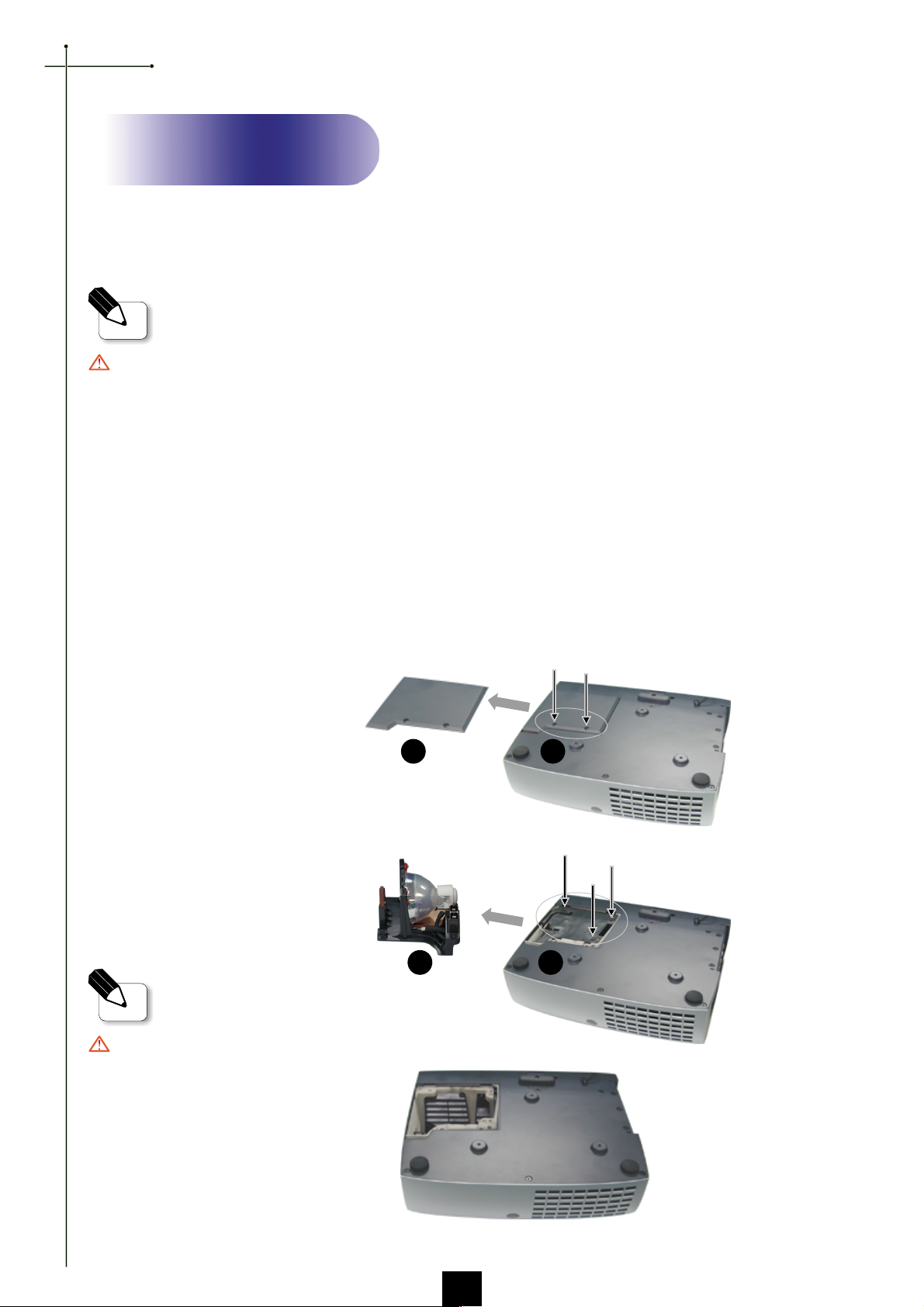

------- Changing the Lamp ................................................................................24
------- Specifications ........................................................................................25
------- Compatibility Modes...............................................................................26
1
Page 3
English
Usage Notice
Warning- Do not look into the lens. The bright light may hurt your eyes.
Warning- To reduce the risk of fire or electric shock, do not expose this
product to rain or moisture.
Warning- Please do not open or disassemble the product as this may cause
electric shock.
Warning- When changing the lamp, please allow unit to cool down, and follow
all changing instructions.
Warning- This product will detect the life of the lamp itself. Please be sure to
change the lamp when it shows warning messages.
Warning- After changing a new lamp, please reset the lamp life from OSD
menu.
Warning- Before switching off the product, please keep the cooling fan
running for a few minutes.
Warning- When connecting the projector to computer, please turn on the
projector first.
Warning- To reduce the risk of injury to the eyes, do not look directly into the
laser light on the remote control and do not point the laser light into
anyone’s eyes. This remote control is equipped with a Class II laser
that emits radiation.
Warning- When the lamp reaches the end of its life, it will burn out and may
make a loud popping sound. If this happens, the projector will not
turn back on until the lamp module has been replaced. To replace the
lamp, follow the procedures listed under “Changing the Lamp”.
Precautions
Follow all warnings, precautions and maintenance as recommended in
this user’s guide to maximize the life of your unit.
Do:
v Turn off the product before cleaning.
v Use a soft cloth moistened with mild detergent to clean the display
housing.
v Disconnect the power plug from AC outlet if the product is not being
used for a long period of time.
Don’t:
v Block the slots and openings on the unit provided for ventilation.
v Use abrasive cleaners, waxes or solvents for your cleaning.
v Use under the following conditions:
- Extremely hot, cold or humid environment.
- In areas susceptible to excessive dust and dirt.
- Near any appliance generating a strong magnetic field.
- Place in direct sunlight.
2
Page 4
Introduction
Product Features
This product is an XGA single chip 0.7” DLPTM projector. The
outstanding features of it are listed as follows:
u True XGA, 1024 x 768 addressable pixels
u 6.4 lbs (2.9 kgs) compact design
English
u Single chip DLP
u SXGA compression and VGA, SVGA re-sizing
u 200 Watts user replaceable UHP lamp
u Mac/NEC PC-98/FM Towns compatible
u NTSC/NTSC4.43/PAL/PAL-M/PAL-N/SECAM and
HDTV compatible
u Full function remote with mouse control and laser
pointer
u High-tech DVI Connection for digital and analog video
connectivity
u High definition TV compatibility
u User friendly Multilingual on-screen display menu
u Advanced electronic keystone correction
u User friendly control panel
u Luxurious carrying case included
TM
technology
3
Page 5
English
Introduction
Package Overview
This projector comes with all the items shown below. Check to make sure
your unit is complete. Contact your dealer immediately if anything is
missing.
Projector with lens cap
3
S-Video Cable
6
DVI to D-Sub Cable
1
Power Cord
4 5
Audio Cable Jack/RCA
7
Remote Mouse Y Cable
2
VGA Cable
Composite Video Cable
Remote Control with Mouse
Function and Laser Pointer
User’s Guide
Carrying Case
Quick Start Card
Battery x 2
Warranty Card
4
Page 6
Product Overview
Main Unit
English
Introduction
7
1
2
6
3
45
8
9 10
1. Panel Control
2. Power Connector & Power Switch
3. Connection Ports
4. Focus Ring
5. Zoom Lens
6. Zoom Ring
7. Speaker
8. Remote Control Receiver
9. Elevator Button
10. Elevator Foot
5
Page 7
English
Introduction
Panel Control
1. Lamp Warning LED
2. Temperature Warning LED
3. Volume
4. Mute
5. Menu (On/Off)
6. Four Directional Select Keys
7. Enter
8. Zoom
9. Re-sync
10. Source
11. Power /Standby
2
6
1
8
3
9
4
5
7
10
11
Connection Ports
5
7
9
1
2
3
4
8
10 11
6
1 RS232 Input Connector (RS232 is for after service purpose only)
2. Audio Input for Video
3. Composite Video Input Connector
4. S-Video Input Connector
5. Audio Input for DVI
6. DVI Input Connecter
7. Audio Input for Computer
8. PC Analog Signal/HDTV/Component Video Connector
9. Audio Output Connector
10. Monitor Loop-through Connector
11. Remote Mouse Input Connector
12. Power Switch
13. Power Connector
12
13
6
Page 8
Introduction
Remote Control with Mouse Function & Laser Pointer
LED
Multi-Directional Selector
Power / Standby
Page Down
Laser Pointer
Re-sync
Source
Page Up
Keystone Correction
English
Volume ( + / - )
Mute
Freeze
Laser Pointer Caution
Enter Key
Zoom In / Zoom Out
Menu
Caution : To reduce the risk
of injury to the eyes, do not look
directly into the laser light on the
remote control and do not point
the laser light into anyone’s eyes.
This remote control is equipped
with a Class II laser that emits
radiation.
7
Page 9
English
Installation
Connecting the Projector
Digital Tuner Output
Video Output
1. Power Cord
2. VGA Cable
3. S-Video Cable
4. Audio Cable Jack/RCA
5. Composite Video Cable
6. DVI to D-Sub Cable
7. Remote Mouse Y Cable
8. D-Sub to RCA Cable for
HDTV/Component (optional)
5
4
3
S-Video Output
RS232
AUDIO
VIDEO
S-VIDEO
INPUT
AUDIO
6
OUTPUT
AUDIO
AUDIO
DVI
COMPUTER
MONITOR
MOUSE
RS232
1
7
RGB
USB
2
8
Antenna
Digital Tuner Output
v To ensure the projector works well with your computer, please configure the
display mode of your graphic card to make it less than or equal to 1024 X 768
resolution. Make sure timing of the display mode is compatible with the projector.
Refer to the “Compatibility Modes” section on page 26.
8
Page 10
English
Installation

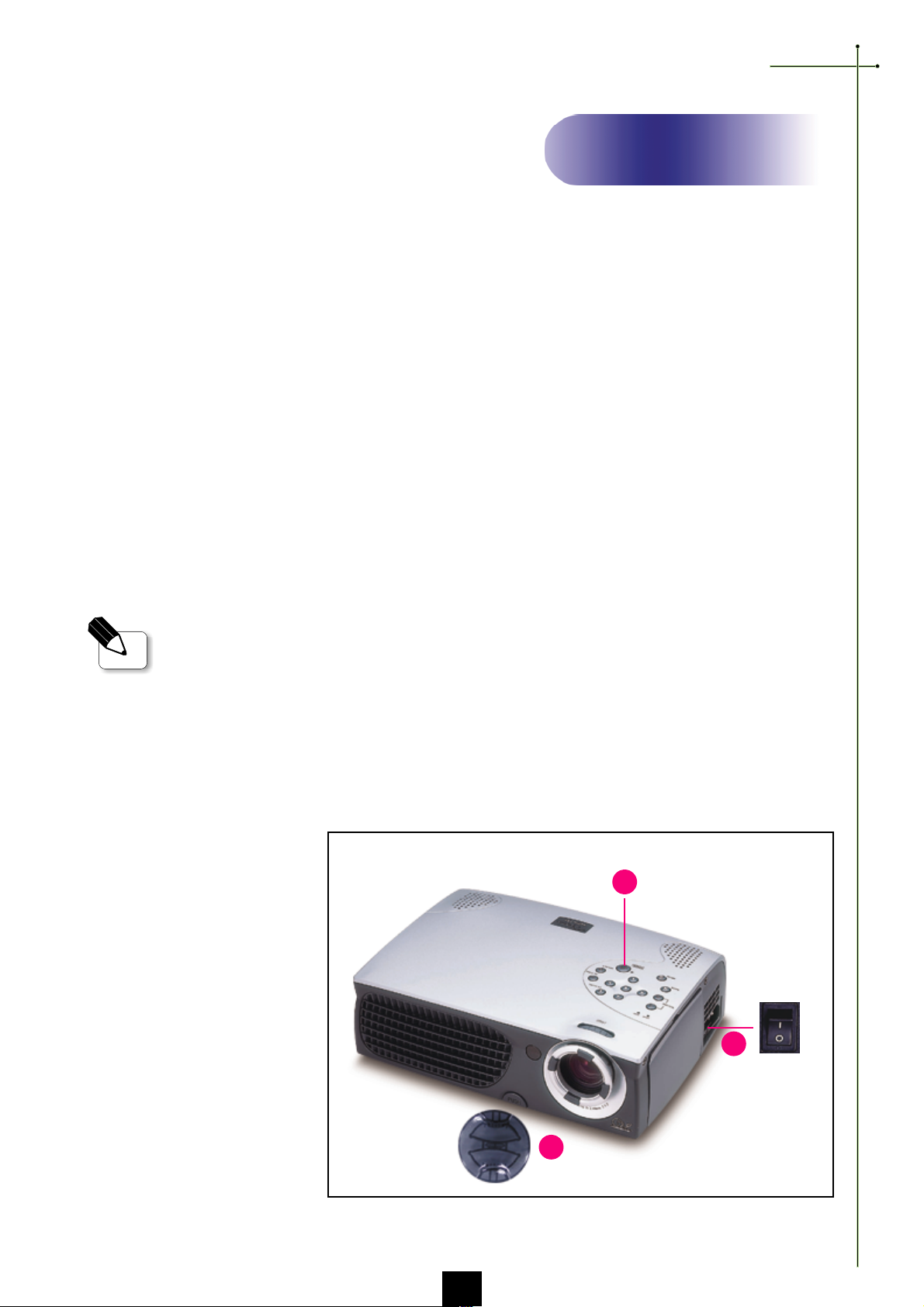

Power On/Off the Projector
Powering On the Projector
1. Remove the lens cap.
2. Ensure that the power cord and signal cable are securely connected.
3. Turn on the main power switch on the side of the projector and allow the
projector to warm up for 1-2 minutes.
4. Turn on the lamp by pressing “Power/Standby” button on the panel
control.
The startup screen will display and count down for 20 seconds and the
Power/Standby indicator will light solid amber.
The “LAMP” LED indicator will light solid green.
5. Turn on your source (computer, notebook, or video player ,etc.). The
projector will detect your source automatically.
vTurn on the projector first and
then the computer.
v If the screen displays “No Signal” , please make sure the signal cables are securely
connected.
v If you connect multiple sources at the same time, use the “Source” button on the
Remote Control or Panel Control to switch.
Power / Standby
3
2
Power Switch
Lens cap
1
9
Page 11
English
Installation
Powering Off the Projector
1. Press the “Power/Standby” button to turn off the projector lamp.
2. After pressing the “Power/Standby” button, you will see a message
“Power off the lamp?” on the on-screen display. Press the “Power/
Standby” button again to confirm. Otherwise the message will disappear
after 5 seconds.
3. “Power/Standby” LED indicator will light solid amber for about 30
seconds. After the “Power/Standby” indicator starts flashing, you can
turn off the main power switch on the side of the projector.
If you want to turn on the pojector, you must press the “Power/Standby”
button within 90 seconds from indicator flashed.
4. Disconnect the power cord from the electrical outlet and the projector.
v When the “LAMP” indicator will flash green for about 10 seconds, you will see a
message “Fan Fail” on the on-screen display. Please contact your local dealer or
our service center.
v When the “TEMP” indicator lights solid orange, it indicates the projector
has been overheated. You will see a message “Over Temperature” on the on-screen
display. The display will automatically shut itself down.
Under normal conditions, the display can be switched on again for your
presentation. If the problem persists, you should contact your local dealer or
our service center.
10
Page 12
English
Installation

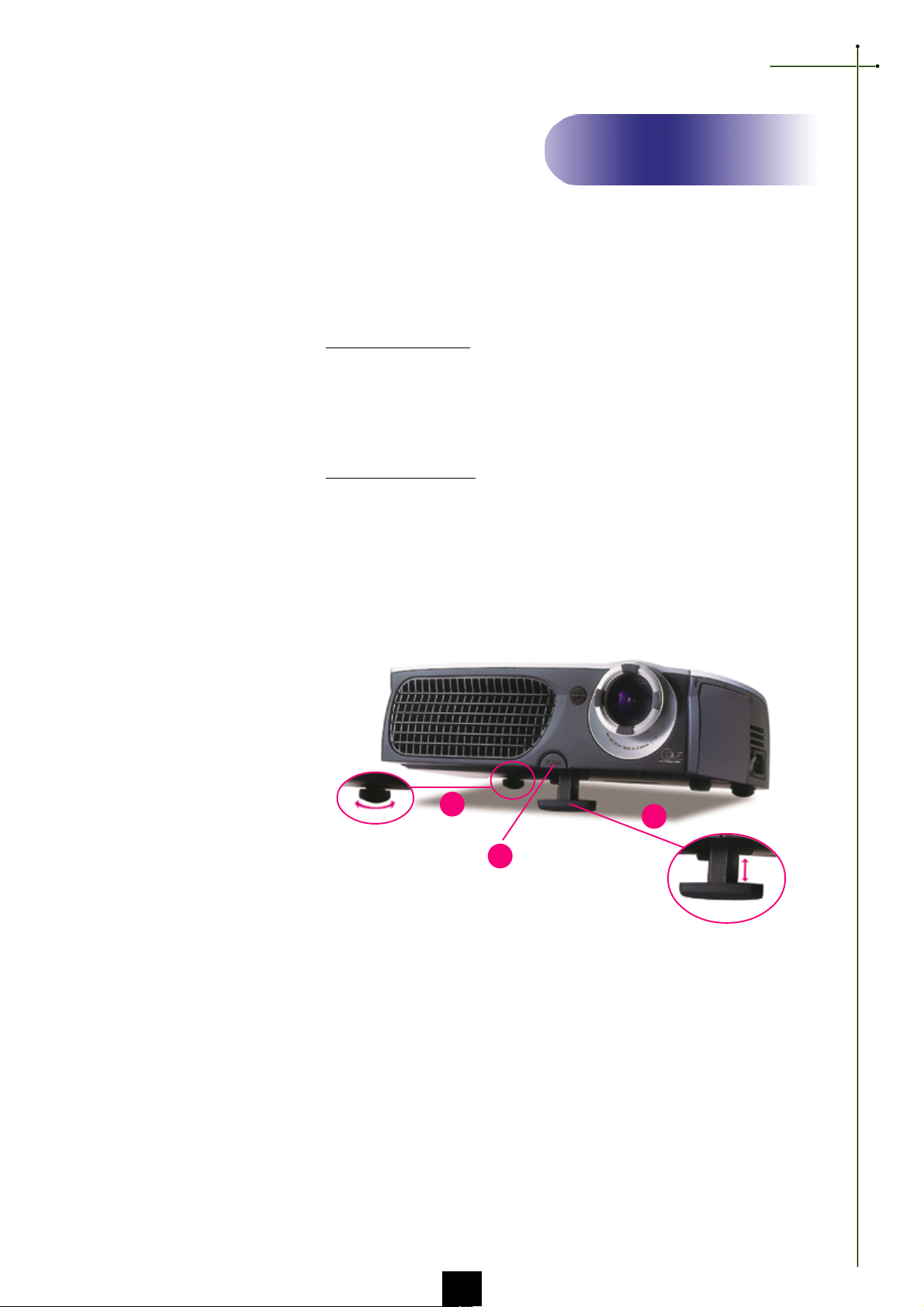

Adjusting the Projected Image
Adjusting the Projector Height
The projector is equipped with an elevator foot for adjusting the projector
height.
To raise the projector:
1. Press the elevator button .
2. Raise the projector to the desired display angle , then release the button to
lock the elevator foot into position.
3. Use to fine-tune height adjustment.
To lower the projector:
1. Press the elevator button.
2. Lower down the projector, then release the button to lock the elevator foot
into position.
3. Use to fine-tune height adjustment.
3
Elevator Button
1
Elevator Foot
2
11
Page 13
English
Installation
Adjusting the Projector Zoom / Focus
You may adjust zoom ring to zoom in / out. Rotate the zoom ring counterclockwise to zoom in and clockwise to zoom out. To focus the image, rotate the
focus ring until the image is clear. The projector will focus at distances from 3.7
feet to 40.7 feet (1.1m to 12.4m).
Zoom Ring
Focus Ring
Adjusting Projection Image Size
Screen
(Diagonal)
Screen
Size
Distance
v This graph is for user’s reference only.
.xaM "82 "89 "321 "791 "642 "503
.niM"22"87"89"751"791"442
)HxW(.xaM "8.61x"4.22 "8.85x"4.87 "8.37x"4.89 "2.811x"6.751 "6.741x"8.691 "0.381x"0.442
)HxW(.niM"2.31x"6.71"8.64x"4.26"8.85x"4.87"2.49x"6.521"2.811x"6.751"4.641x"2.591
'7.3 '1.31 '4.61 '2.62 '8.23 '7.04
12
Page 14
English
User Controls
Panel Control & Remote Control
There are two ways for you to control the functions: Remote Control and
Panel Control.
Remote ControlPanel Control
Power / Standby
Refer to the “Power On/Off the Projector” section on page 9~10.
4
Source
Press “Source” to choose RGB, DVI-Digital, DVI-Analog, S-Video, Composite,
4
Component and HDTV sources.
Zoom
Use the Panel Control
When you press “Zoom” button, the zoom icon appears in the screen. Press
4
or button to zoom in or zoom out of the image.
Re-Sync
Use the Remote Control
Automatically synchronizes the projector to the input source, when you press
4
this button while the remote control cover is opened.
If the remote control cover is closed, the Mouse/Re-Sync button functions
4
like the right mouse button.
Use the Panel Control
Automatically synchronizes the projector to the input source.
4
13
Page 15
English
User Controls
vPage Up / Page Down : Under
remote mouse connected status
only.
Four Directional Select Keys
When you close the cover of remote control, this key can be used as a mouse
4
to control direction.
v The above function is only enabled with the connection between computer
and projector by remote mouse Y cable.
When the cover of remote control is opened, this key can be used for the
4
operation for OSD display.
Page Up (Computer mode only)
Use this button to page up.
4
Page Down (Computer mode only)
Use this button to page down.
4
Laser
Aim the remote at the viewing screen, press and hold this button to activate
4
the laser pointer.
Menu
Press “Menu” to open the on-screen display (OSD) menus and press
4
key to select main menu . To exit OSD, press the “Menu” button again. The
projector will save any change you made automatically.
Freeze
Press the “Freeze” button to still the screen image.
4
Mute
Use to mute sound.
4
Volume + / -
Increases/decreases speaker volume.
4
Keystone + / -
Adjust image distortion caused by tilting the projector. (±16 degrees)
4
Zoom In / Out (Computer mode only)
Magnifies an image up to a factor of 32 times on the projection screen.
4
Diminishes the zoom in image.
4
Enter
Use the Remote Control
Confirm your selection of items, when you open the front cover of remote
4
control.
If the remote control cover is closed, the Enter button functions like the left
4
mouse button.
Use the Panel Control
Confirm your selection of items.
4
14
Page 16
User Controls
On-Screen Display Menus
How to operate
The Projector has a multilingual On-Screen Display(OSD) menus that allow you
4
to make image adjustments and change a variety of settings. In computer
source, the OSD will be the “Computer OSD”. In video source, the OSD will be
the “ Video OSD”. The projector will detect the source automatically.
To open the OSD menu, press the “Menu” button on the Remote Control or
4
Panel Control.
When OSD is displayed, press key to select main menu.
4
E.g.: Image-Ig Image-IIg Audiog Languageg Managementg Image-I...
English
While making selection on a particular page, press “Enter” key to go into submenu.
Press key to select the required item and adjust the settings by
4
key. When a specified item is selected, the color of the item will change
from yellowish brown to blue.
E.g.
: Brightnessg Contrastg Color Temp.g Zoomg Keystoneg
Brightness...
While using key to adjust the parameter or required function in the
4
items of the submenu, confirm all the functions of the main menu by pushing
“Enter” button after all/part of the items have been modified. Press “Enter”
button to confirm, and the screen will be back to the main menu at once. Only
key is enabled now.
To exit the OSD, press the “Menu” button again.
4
15
Page 17
English
User Controls
Computer mode
Language Management
AudioImage-I Image-II
Brightness
Contrast
Color Temp.
Zoom
Keystone
Image-I (Computer mode)
Brightness
Adjusting the brightness of the image.
Press the to darken the image.
4
Press the to lighten the image.
4
Contrast
The contrast controls the degree of difference between the lightest and darkest
parts of the picture. Adjusting the contrast changes the amount of black and
white in the image.
Press the to decrease the contrast.
4
Press the to increase the contrast.
4
Color Temperature
Adjust the color temperature. The range is from 6000K to 9000K . The factory
default is 7500K. With the higher temperature, the screen looks colder; with the
lower temperature, the screen looks warmer.
Zoom
Press the to Magnify an image up to a factor of 32 times on the projection
4
screen.
Press the to Diminish the zoom in image.
4
Keystone (Keystone Correction)
Adjust image distortion caused by tilting projection. (±16 degrees)
16
Page 18

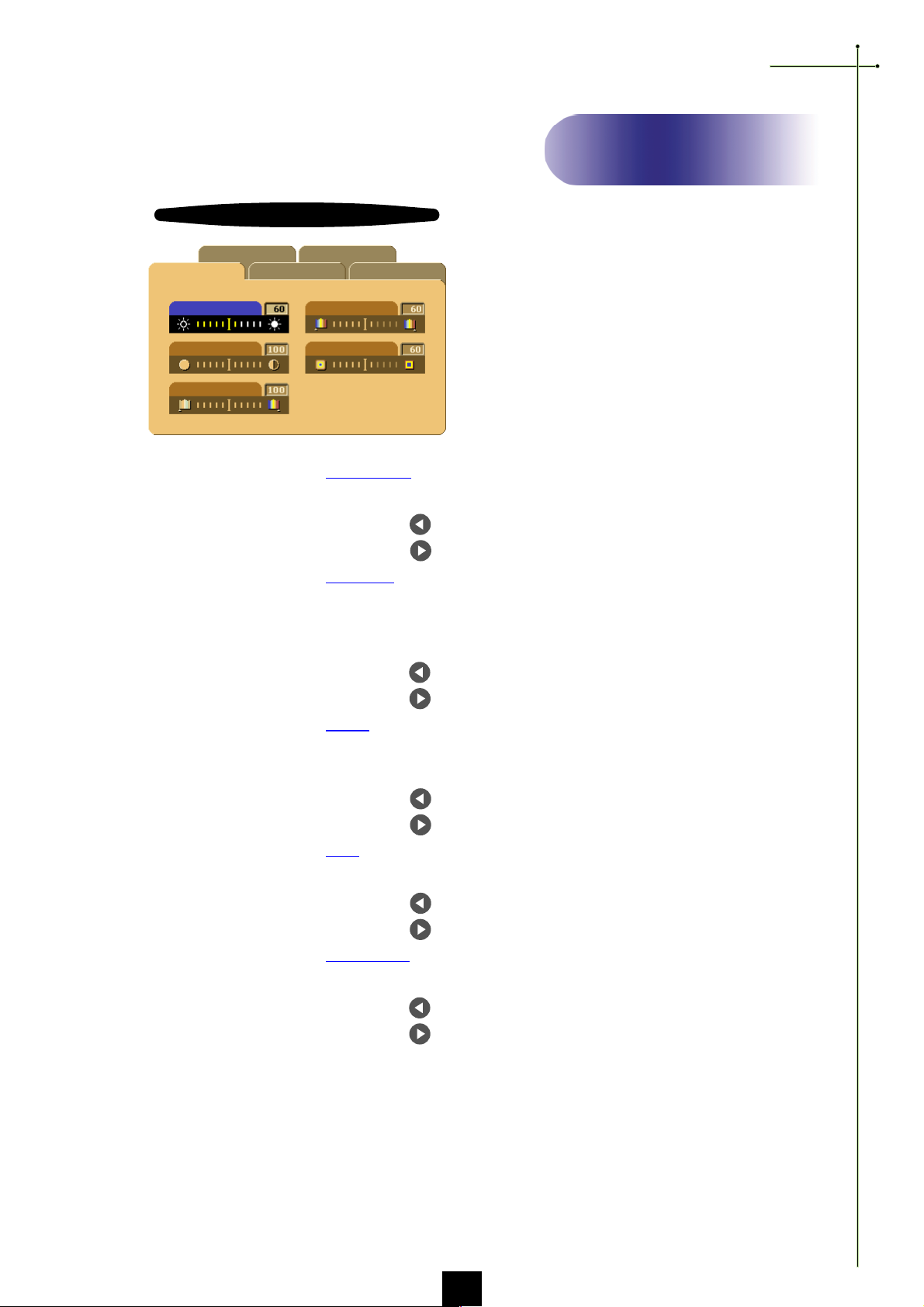

Video mode
Language Management
English
User Controls
AudioImage-I Image-II
Brightness
Contrast
Color
Tint
Sharpness
Image-I (Video mode)
Brightness
Adjusting the brightness of the image.
Press the to darken the image.
4
Press the to lighten the image.
4
Contrast
The contrast controls the degree of difference between the lightest and darkest
parts of the picture. Adjusting the contrast changes the amount of black and
white in the image.
Press the to decrease the contrast.
4
Press the to increase the contrast.
4
Color
The color setting adjusts a video image from black and white to fully saturated
color.
Press the to decrease the amount of color in the image.
4
Press the to increase the amount of color in the image.
4
Tint
The tint adjusts the color balance of red and green.
Press the to increase the amount of green in the image.
4
Press the to increase the amount of red in the image.
4
Sharpness
Adjusting the sharpness of the image.
Press the to decrease the sharpness.
4
Press the to increase the sharpness.
4
17
Page 19
English
User Controls
Computer mode
Language Management
AudioImage-I Image-II
Frequency
Tracking
16:9 / 4:3
H. Position
V. Position
Reset
Yes No

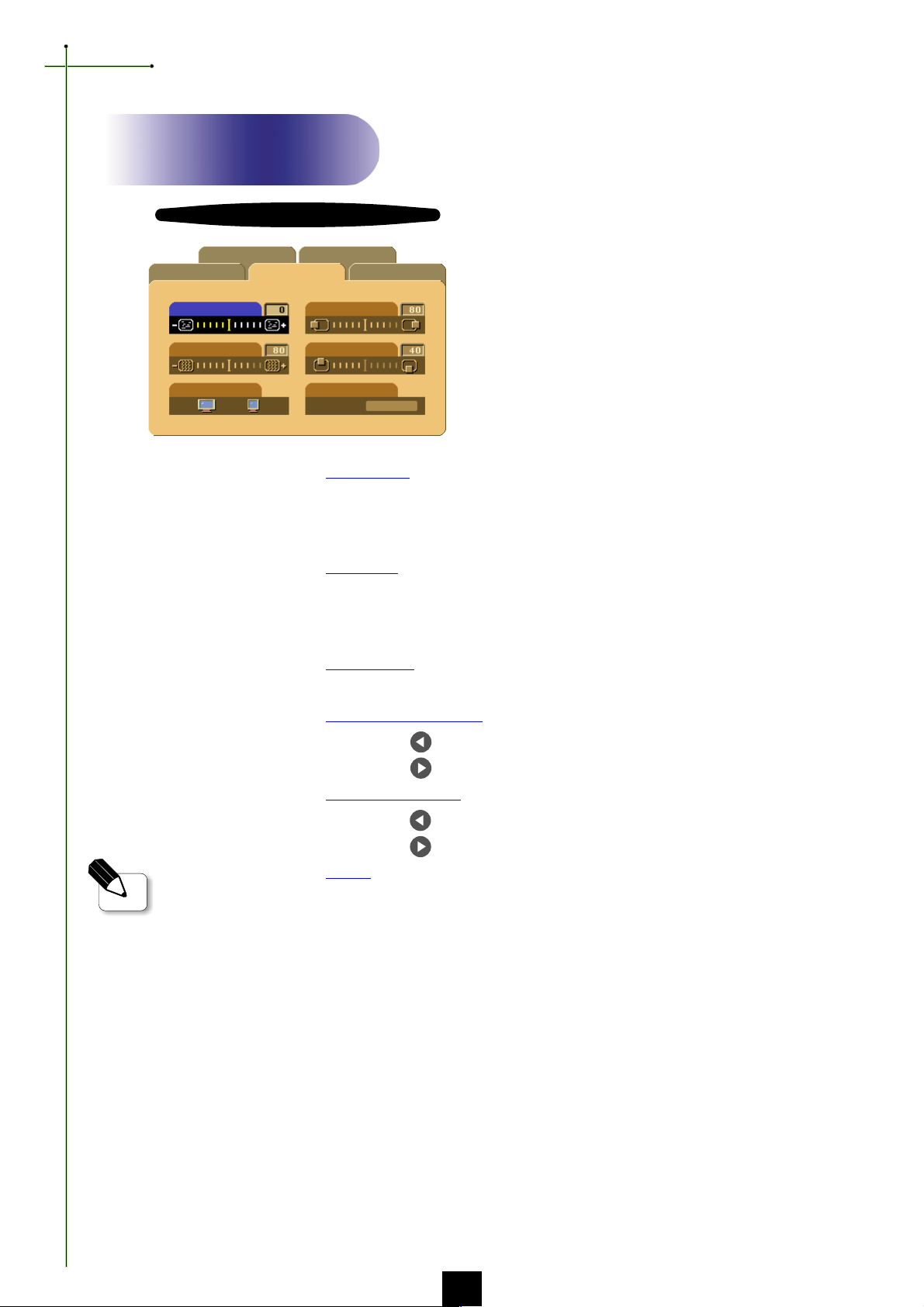

Image-II (Computer mode)
Frequency
“Frequency” is for changing the display data frequency to match the frequency
of your computer’s graphic card. When you experience a vertical flickering bar,
use this function to make an adjustment.
Tracking
Choose “Tracking” item to synchronize the signal timing of the display with
that of the graphic card. When you experience an unstable or flickering image,
use this function to correct it.
16 : 9 / 4 : 3
You can select this function to fit your desired aspect ratio type.
Horizontal Position
Press the to move the image left.
4
Press the to move the image right.
4
Vertical Position
Press the to move the image up.
4
Press the to move the image down.
4
Reset
vReset : Reset items include both
Image-I and Image-II settings.
Choose “Yes” to return the display parameters of the current mode to its factory
default settings.
18
Page 20
Video mode
Language Management
English
User Controls
AudioImage-I Image-II
Keystone
16:9 / 4:3
vReset : Reset items include both
Image-I and Image-II settings.
Color T emp.
Reset
Yes No
Image-II (Video mode)
Keystone Correction
Adjust image distortion caused by tilting the projector. (±16 degrees)
16 : 9 / 4 : 3
You can select this function to fit your desired aspect ratio type.
Color Temperature
Adjust the color temperature. The range is from 6000K to 9000K . The factory
default is 7500K. With the higher temperature, the screen looks colder; with the
lower temperature, the screen looks warmer.
Reset
Choose “Yes” to return the display parameters of the current mode to its factory
default settings.
19
Page 21
English
User Controls

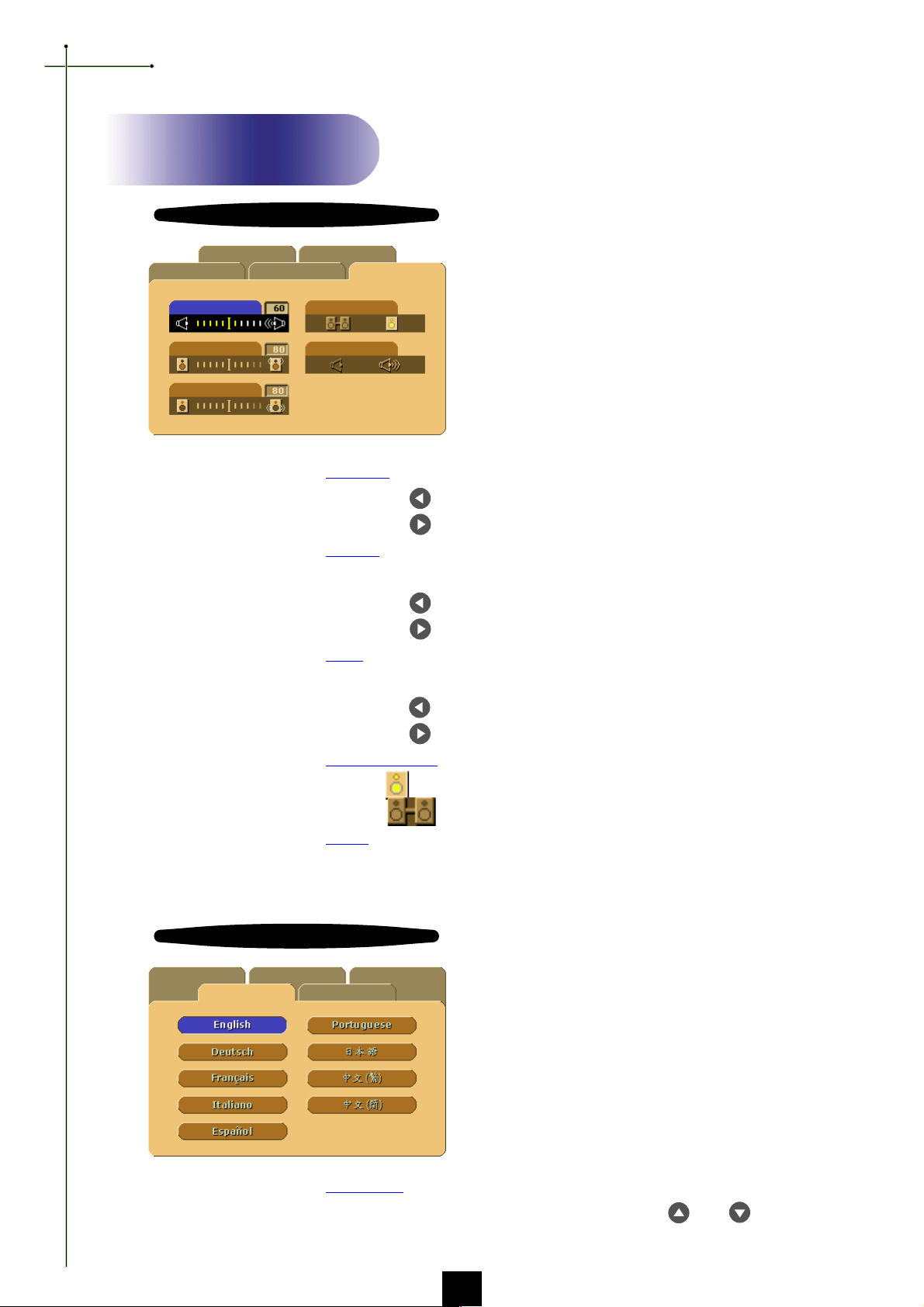

Computer / Video mode
Language Management
AudioImage-I Image-II
Volume
Treble
Bass
Stereo / Mono
Mute
Audio
Volume
Press the to decrease the volume.
4
Press the to increase the volume.
4
Treble
The treble setting controls the higher frequencies of your audio source.
Press the to decrease the treble.
4
Press the to increase the treble.
4
Bass
The Bass setting controls the lower frequencies of your audio source.
Press the to decrease the bass.
4
Press the to increase the bass.
4
Stereo / Mono
Mono : Mono sound effect.
4
Stereo : Stereo sound effect.
4
Mute
Choose the left icon to make the volume function ineffective.
4
Choose the right icon to make the volume function effective.
4

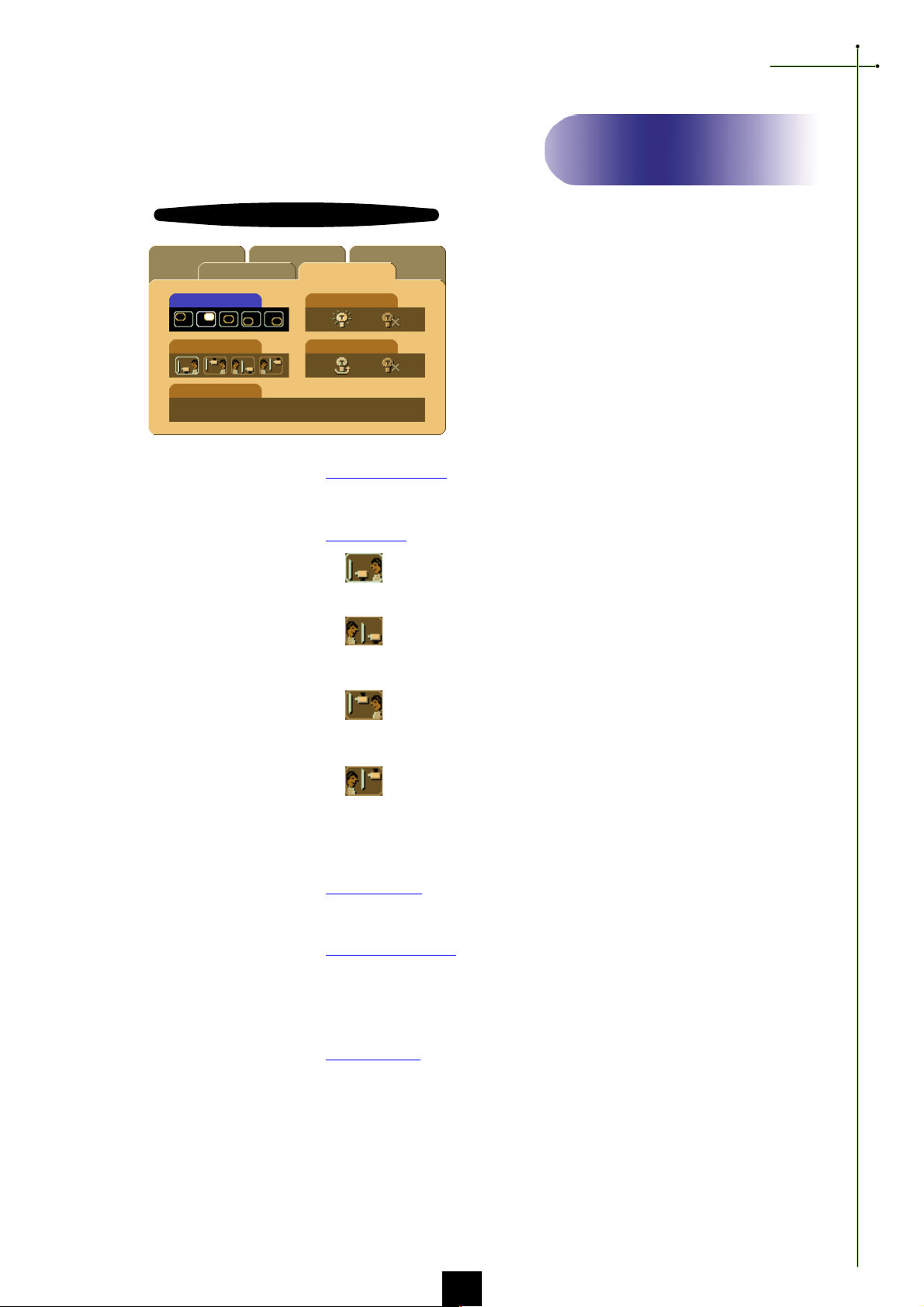

Computer / Video mode
AudioImage-I Image-II
Language Management
Language
You can display the multilingual OSD menu . Use the and key to select
the language you prefer.
Language
20
Page 22
Computer / Video mode
AudioImage-I Image-II
Language Management
English
User Controls
Menu Location
Projection
Signal Type
RGB HDTVComponent
Lamp Reminder
Lamp Reset
Management
Menu Location
Choose the Menu location on the display screen.
Projection
4
The factory default setting.
4
When you select this function, the projector reverses the image so you can
project behind a translucent screen.
4
When you select this function, the projector turns the image upside down for
ceiling-mounted projection.
Front-Desktop
Rear-Desktop
Front-Ceiling
4
When you select this function, the projector reverses and turns the image
upside down at same time. You can project from behind a translucent screen
with ceiling mounted projection.
Rear-Ceiling
Signal Type
Select signal type between RGB, HDTV and Component video sources.
Lamp Reminder
Choose this function to show or hide the warning message when the changing
lamp message is displayed. The message will show up 30 hours before end of
life.
Lamp Reset
Reset the lamp setting only when the new lamp is replaced.
21
Page 23
English
Appendices
Troubleshooting
If you are experiencing trouble with the projector, refer to the
following. If the problem persists, please contact your local dealer or
our service center.
Problem : No image appears on screen.
Ensure all the cables and power connections are correctly and securely
4
connected as described in the “Installation” section.
Ensure the pins of connectors are not crooked or broken.
4
Check if the projection lamp has been securely installed. Please refer to the
4
“Changing the lamp” section.
Make sure you have removed the lens cap and the projector is switched on.
4
Problem : Partial, scrolling or incorrectly displayed image.
Press the “Re-Sync” button on the Remote Control.
4
If you are using a PC:
4
If the resolution of your computer is higher than 1024 x 768. Follow the steps
outlined below to reset the resolution.
For Windows 3.x:
1. In the Windows Program Manager, click the “Windows Setup” icon in the
Main group.
2. Verify that your display resolution setting is less than or equal to 1024 x 768.
For Windows 95:
1. Open “My Computer” icon, the “Control Panel” folder, and then double click
the “Display” icon.
2. Select the “Setting” tab.
3. In the “Desktop Area” you will find the resolution setting. Verify that the
resolution setting is less than or equal to 1024 x 768 resolution.
If the projector is still not projecting the whole image, you will need
to also change the monitor display you are using. Refer to the following steps.
4. Follow above steps 1~2. Click on the “Advanced Properties” button.
5. Select the “Change” button under the “Monitor” tab .
6. Click on “Show all devices”. Then select “Standard monitor types” under
the “Manufactures” box ; choose the resolution mode you need under the
“Models” box.
7. Verify that the resolution setting of the monitor display is less than or equal
to 1024 x 768.
If you are using a Notebook PC:
4
1. You are required to implement above steps of resolution setting of computer
first.
2. Switch the Notebook PC display to the “external display only” or “CRT
only” mode.
If you are experiencing difficulty in changing resolutions or your monitor
4
freezes, restart all the equipment and the projector.
22
Page 24
Appendices
Problem : The screen of the Notebook or PowerBook computer is not
displaying your presentation.
If you are using Notebook PC:
4
Some Notebook PCs may deactivate their own computers’ screen when a
second display device is in use. Each of them has different way to be reactivated.
Refer to your computer’s documentation for detailed information.
If you are using an Apple PowerBook:
4
In Control Panels, open the PowerBook Display to select Video Mirroring “On”.
Problem : Image is unstable or flickering
Use “Tracking” to correct it.
4
Change the monitor color setting from your computer.
4
Problem : Image has vertical flickering bar
Use “Frequency” to make an adjustment.
4
Check and reconfigure the display mode of your graphic card to make it
4
compatible with the product.
English
Problem : Image is out of focus
Adjust the Focus Ring on the projector lens.
4
Make sure the projection screen is between the required distance 3.7ft.(1.1m)~
4
40.7ft.(12.4m) from the projector.
Problem : The screen is outstretched when displaying 16:9 DVD.
The projector itself will automatically detect 16:9 DVD and adjust the aspect ratio
by digitization to full screen with 4:3 default setting.
If the projector is still outstretched, you will also need to adjust the aspect ratio by
referring to the following:
Please select 4:3 aspect ratio type on your DVD player if you are playing a 16:9
4
DVD.
If you can not select 4:3 aspect ratio type on your DVD player, please select 4:3
4
On Screen-Display(OSD) function of the projector for your display.
Problem : Image is reversed.
To open “Menu” then select “Management” to adjust the projection.
4
Problem : Lamp burns out or makes a popping sound
When the lamp reaches its end of life, it will burn out and may make a loud
4
popping sound. If this happens, the projector will not turn back on until the
lamp module has been replaced. To replace the lamp, follow the procedures in
the “Changing the Lamp”.
23
Page 25
English
Appendices
Warning : Lamp compart-
ment is hot! Allow it to cool
down before changing lamp!
Changing the lamp
The projector will detect the lamp life itself. It will show you a
warning message “Lamp is running out of standard lifetime. Be
sure to replace the lamp as soon as possible.” When you see this
message, change the lamp as soon as possible.
Make sure the projector has been cooled down for at least 30
minutes before changing the lamp.
Lamp Changing Procedure:
4
1. Turn off the power to the projector by pressing the Power/Standby button.
2. Allow the projector to cool down at least 30 minutes.
3. Turn off the main power switch.
4. Disconnect the power cord.
5. Use screwdriver to remove the screw from the cover.
6. Remove the cover.
7. Remove the 3 screws from the lamp module.
8. Pull out the lamp module.
To replace the lamp module, reverse the previous steps.
Warning : To reduce the risk
of personal injury, do not drop the
lamp module or touch the lamp
bulb. The bulb may shatter and
cause injury if it is dropped.
2
4
1
3
24
Page 26
Appendices
Specifications
Light Valve - Single Chip DLPTM Technology
Contrast Ratio - 600:1 (Full On / Full Off)
Lamp - 200W User Replaceable UHP Lamp
Number of Pixels - 1024 pixels(H) X 768 lines(V)
Displayable Color - 16.7M colors
Projection Lens - F/2.44~2.69 f=28.8~34.5mm with 1.2 x zoom &
focus
Projection Screen Size - 22”~305” Diagonal
Projection Distance - 3.7~40.7 ft (1.1m~12.4m)
Video Compatibility - NTSC/NTSC 4.43/PAL/PAL-M/PAL-N/
SECAM and HDTV compatible
- Composite video & S-Video capability
H. Frequency - 15kHz~100kHz horizontal scan
V. Frequency - 43Hz~120Hz vertical refresh
Multimedia Audio - Two internal speakers with 3 watts output
Power Supply - Universal AC input 100~240V ;
Input Frequency 50-60Hz
Power Consumption - 350 watts when 200 watts UHP lamp at normal
operation
Uniformity - 9 0 %
I/O Connectors - Power: AC power input socket
- Computer Input:
One 30-pin DVI for DVI signal
One 15-pin D-sub for analog/component and
HDTV signal
One RS232 input
- Computer Output: One 15-pin D-sub computer
output
- Video Input:
One Composite video RCA input
One S-Video input
- Audio Input: One phone jack for audio input
- Audio Output: One phone jack for audio
output
- Mouse Output: One 8-pin connector for remote
mouse output (USB & RS232)
Weight - 6.4 lbs / 2.9 kgs
Dimensions (W x H x D) - 10.9 x 8.9 x 3.3 inches / 277 x 225 x 85 mm
Environmental - Operating Temperature:
Safety Regulation - FCC Class B,BSMI,CE Class B,VCCI-II,UL,
o
C~ 40oC/32oF~104oF
0
Humidity: 80% maximum
- Storage Temperature:
o
C~60oC/ 14oF~140oF
-10
Humidity: 80% maximum
CUL,TÜV
English
25
Page 27
English
Appendices
Compatibility Modes
Mode
AGVASEV 053X046 58 9.73 58 9.73
AGVASEV 004X046 07 5.13 07 5.13
AGVASEV 004X046 58 9.73 58 9.73
AGVASEV 084X046 06 5.13 06 5.13
AGVASEV 084X046 27 9.13 27 9.13
AGVASEV 084X046 57 5.73 57 5.73
AGVASEV 084X046 58 3.34 58 3.34
AGVASEV 004X027 58 9.73 58 9.73
AGVS 006X008 65 2.53 65 2.53
AGVS 006X008 06 9.73 06 9.73
AGVS 006X008 27 1.84 27 1.84
AGVS 006X008 57 9.64 57 9.64
AGVS 006X008 58 7.35 58 7.35
AGXASEV 867X4201 34 5.53 34 5.53
AGXASEV 867X4201 06 4.84 06 4.84
AGXASEV 867X4201 07 5.65 07 5.65
AGXASEV 867X4201 57 0.06 57 0.06
AGXASEV 867X4201 58 7.86 58 7.86
AGXSASEV* 4201X0821 06 89.36 06 89.36
AGXSASEV* 4201X0821 57 89.97 - -
ASEV* 468X2511 57 5.76 - -
ASEV* 096X0821 06 06 - -
ASEV* 096X0821 58 9.58 - -
"31CLCAM 084X046 66.66 89.43 - -
"31IICAM 084X046 86.66 53 - -
"61CAM 426X238 55.47 527.94 - -
"91CAM 867X4201 57 42.06 - -
CAM* 078X2511 60.57 86.86 - -
4GCAM 084X046 06 53.13 - -
4GCAM 084X046 021 30.86 - -
4GCAM 867X4201 021 90.79 - -
VDCAMI 084X046 711 06 - -
VDCAMI 006X008 59 06 - -
VDCAMI 867X4201 57 06 - -
VDCAMI* 078X2511 57 49.86 - -
VDCAMI* 069X0821 57 57 - -
Resolution
SEIRES89-CPCEN 004X046 24.65 38.42 - -
SEIRES89-CPCEN 084X046 07 5.13 - -
SEIRES89-CPCEN 084X046 06 5.13 - -
NWOT-MFUSTIJUF 084X046 73.55 73.42 - -
NWOT-MFUSTIJUF 084X046 06 5.13 - -
V.Frequency
(Hz)
H.Frequency
(kHz)
V.Frequency
(Hz)
(ANALOG) (DIGITAL)
H.Frequency
(kHz)
Remark : “*” compression
computer image.
26
Loading...
