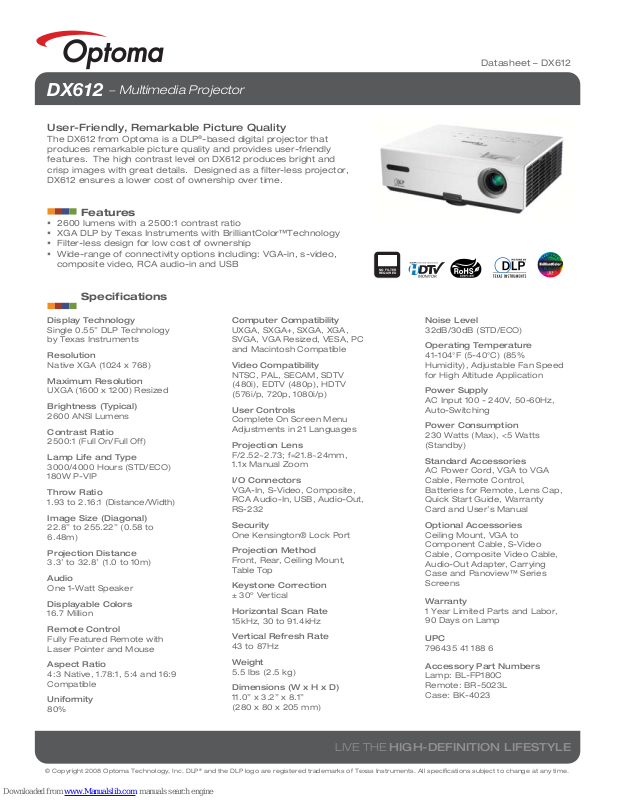

Datasheet – DX612
DX612
− Multimedia Projector
User-Friendly, Remarkable Picture Quality
The DX612 from Optoma is a DLP®-based digital projector that
produces remarkable picture quality and provides user-friendly
features. The high contrast level on DX612 produces bright and
crisp images with great details. Designed as a filter-less projector,
DX612 ensures a lower cost of ownership over time.
Features
2600 lumens with a 2500:1 contrast ratio
XGA DLP by Texas Instruments with BrilliantColor™Technology
Filter-less design for low cost of ownership
Wide-range of connectivity options including: VGA-in, s-video,
composite video, RCA audio-in and USB
Specifications
Display Technology
Single 0.55” DLP Technology
by Texas Instruments
Resolution
Native XGA (1024 x 768)
Maximum Resolution
UXGA (1600 x 1200) Resized
Brightness (Typical)
2600 ANSI Lumens
Contrast Ratio
2500:1 (Full On/Full Off)
Lamp Life and Type
3000/4000 Hours (STD/ECO)
180W P-VIP
Throw Ratio
1.93 to 2.16:1 (Distance/Width)
Image Size (Diagonal)
22.8” to 255.22” (0.58 to
6.48m)
Projection Distance
3.3’ to 32.8’ (1.0 to 10m)
Audio
One 1-Watt Speaker
Displayable Colors
16.7 Million
Remote Control
Fully Featured Remote with
Laser Pointer and Mouse
Aspect Ratio
4:3 Native, 1.78:1, 5:4 and 16:9
Compatible
Uniformity
80%
Computer Compatibility
UXGA, SXGA+, SXGA, XGA,
SVGA, VGA Resized, VESA, PC
and Macintosh Compatible
Video Compatibility
NTSC, PAL, SECAM, SDTV
(480i), EDTV (480p), HDTV
(576i/p, 720p, 1080i/p)
User Controls
Complete On Screen Menu
Adjustments in 21 Languages
Projection Lens
F/2.52~2.73; f=21.8~24mm,
1.1x Manual Zoom
I/O Connectors
VGA-In, S-Video, Composite,
RCA Audio-In, USB, Audio-Out,
RS-232
Security
One Kensington® Lock Port
Projection Method
Front, Rear, Ceiling Mount,
Table Top
Keystone Correction
± 30º Vertical
Horizontal Scan Rate
15kHz, 30 to 91.4kHz
Vertical Refresh Rate
43 to 87Hz
Weight
5.5 lbs (2.5 kg)
Dimensions (W x H x D)
11.0” x 3.2” x 8.1”
(280 x 80 x 205 mm)
NO FILTER
REQUIRED
Noise Level
32dB/30dB (STD/ECO)
Operating Temperature
41-104°F (5-40°C) (85%
Humidity), Adjustable Fan Speed
for High Altitude Application
Power Supply
AC Input 100 - 240V, 50-60Hz,
Auto-Switching
Power Consumption
230 Watts (Max), <5 Watts
(Standby)
Standard Accessories
AC Power Cord, VGA to VGA
Cable, Remote Control,
Batteries for Remote, Lens Cap,
Quick Start Guide, Warranty
Card and User’s Manual
Optional Accessories
Ceiling Mount, VGA to
Component Cable, S-Video
Cable, Composite Video Cable,
Audio-Out Adapter, Carrying
Case and Panoview™ Series
Screens
Warranty
1 Year Limited Parts and Labor,
90 Days on Lamp
UPC
796435 41 188 6
Accessory Part Numbers
Lamp: BL-FP180C
Remote: BR-5023L
Case: BK-4023
© Copyright 2008 Optoma Technology, Inc. DLP® and the DLP logo are registered trademarks of Texas Instruments. All specifications subject to change at any time.
