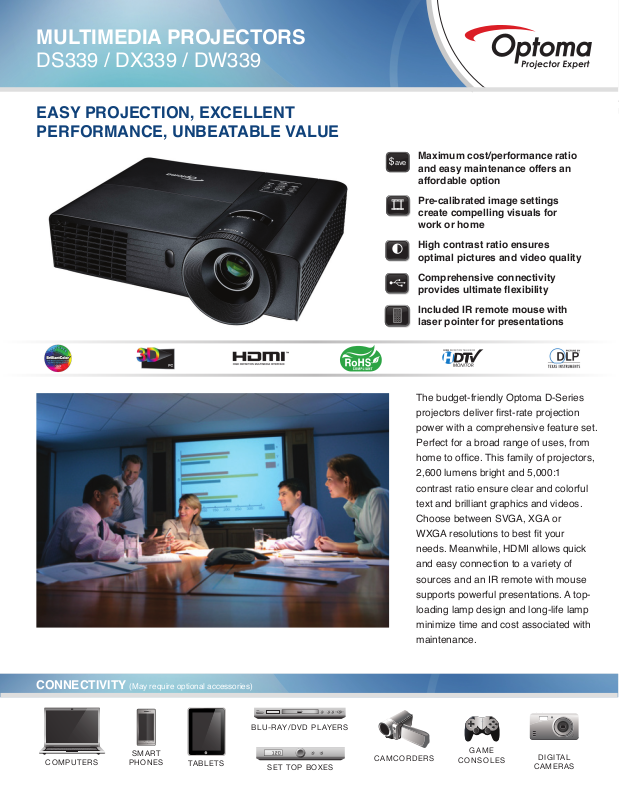

MULTIMEDIA PROJECTORS
DS339 / DX339 / DW339
EASY PROJECTION, EXCELLENT
PERFORMANCE, UNBEATABLE VALUE
Maximum cost/performance ratio
ave
and easy maintenance offers an
affordable option
Pre-calibrated image settings
create compelling visuals for
work or home
High contrast ratio ensures
optimal pictures and video quality
Comprehensive connectivity
provides ultimate exibility
Included IR remote mouse with
laser pointer for presentations
CONNECTIVITY (May require optional accessories)
The budget-friendly Optoma D-Series
projectors deliver rst-rate projection
power with a comprehensive feature set.
Perfect for a broad range of uses, from
home to ofce. This family of projectors,
2,600 lumens bright and 5,000:1
contrast ratio ensure clear and colorful
text and brilliant graphics and videos.
Choose between SVGA, XGA or
WXGA resolutions to best t your
needs. Meanwhile, HDMI allows quick
and easy connection to a variety of
sources and an IR remote with mouse
supports powerful presentations. A top-
loading lamp design and long-life lamp
minimize time and cost associated with
maintenance.
COMPUTERS
SMART
PHONES
TABLETS
BLU-RAY/DVD PLAYERS
SET TOP BOXES
CAMCORDERS
GAME
CONSOLES
DIGITAL
CAMERAS
MULTIMEDIA PROJECTORS — DS339/DX339/DW339
OPTICAL/TeChnICAL sPeCIfICATIOns
Display Technology DS & DX – Single 0.55” DC3 DMD DLP
Native Resolution DS – SVGA (800 x 600)
Maximum Resolution UXGA (1600 x 1200) & 1080p (1920 x 1080)
Brightness 2600 ANSI lumens
Contrast Ratio 5,000:1 (full on/full off)
Displayable Colors 1.07 Billion
Lamp Life and Type* 6500/5000/4500 Hours (ECO+/ECO/normal)
Projection Method Front, rear, ceiling mount, table top
Keystone ±40° Vertical
Uniformity > 85%
Aspect Ratio DS & DX – 4:3 Native, 16:9 & 16:10 compatible
DW – 16:10 Native, 16:9 and 4:3 compatible
Throw Ratio (Distance/Width) DS & DX – 1.95 to 2.15 (distance/width)
DW – 1.55 to 1.7 (distance/width)
Projection Distance 3.3’ to 39.4’ (1 to 12 m)
Image Size (Diagonal) DS & DX – 22.9” to 300” (0.58 to 7.62m)
DW – 27.2” to 301” (0.7 to 7.64 m)
Projection Lens DS & DX – F=2.41~2.55, f=21.8~23.98mm
Offset DS & DX – 115%, DW – 112%
Audio 2-Watt speaker
Noise Level 32dB/34dB
Remote Control IR remote with mouse control and laser
Operating Temperature 41 to 113° F (5 to 45° C), 85% max humidity
Power Supply AC Input 100-240V, 50-60 Hz, auto-switching
Power Consumption Max 263W (Normal), 200W (ECO+)
<0.5W (standby-ECO)
DW – Single 0.65” DMD DLP
(Technology by Texas Instruments)
DX – XGA (1024 x 768)
DW – WXGA (1280 x 800)
190W Philips
DW – F=2.5 ~ 2.67, f=21.8 ~ 23.98 mm
(1.1x manual zoom and focus)
COmPATIbILITy sPeCIfICATIOns
Computer Compatibility UXGA, WXGA, SXGA+, SXGA, XGA,
Video Input Compatibility NTSC, PAL, SECAM, SDTV (480i),
3D Compatibility** 120Hz frame sequential 3D for resolutions
Vertical Scan Rate 24 to 85 Hz, 120 Hz
Horizontal Scan Rate 15.3 to 91.1 KHz
User Controls Complete on-screen menu in 27 languages
I/O Connection Ports HDMI v1.3, two VGA-in, VGA-out, S-video,
Loop Through (Audio, VGA) Monitor: D-Sub 15 pin VGA output
(functional in normal and standby modes)
SVGA, VGA Resized, VESA, PC and
Macintosh compatible
EDTV (480p), HDTV (720p, 1080i/p)
up to 720p, 60Hz eld sequential 3D for
resolutions up to 480i
composite video, audio-in, audio-out,
RS-232, USB-B
PhysICAL sPeCIfICATIOns
Security Kensington® lock port, security bar and
Weight 5 lbs (2.27 kg)
Dimensions (W x H x D) 11.3” x 3.5” x 9.3” (287 x 88.9 x 236.2mm)
*
Lamp life is dependent upon many factors, including lamp mode, display mode,
usage, environmental conditions and more. Lamp brightness can decrease over time.
**3D content can be viewed with active LCD shutter glasses or RF glasses when
projector is used with compatible 3D player. Please visit www.optoma.com for more
information.
keypad lock
11. 3”
9.3”
3.5”
USB-B
for mouse
emulation
HDMI
Video
Power/standby
Keystone correction
S-video
Source
Left click
Enter
Page up
Mode
Brightness
HDMI
S-video
ECO
VGA
VGA-out
VG A1-i n
VGA2-in
Audio-in
Audio-out
RS232
Kensington
lock port
Mouse on/off
Re-Sync
Right click
Four directional select keys
for mouse emulation
Page down
Volume
Menu
Zoom
AV mute
Video
3D
Freeze
Warranty
One-year parts and labor, 90 days on lamp
What Comes in the Box
AC power cord, VGA to VGA cable, remote control, batteries for remote,
carrying case, multilingual CD-ROM user’s manual, quick start card and
warranty card
Optional Accessories
HDMI cable, ceiling mount, VGA to component cable, DLP Link glasses,
composite video cable, RS-232 cable and Optoma screens
Part Numbers
Lamp: BL-FU190A Remote: BR-5041L
UPC
DS339 – 796435 41 772 7
DX339 – 796435 41 776 5
DW339 – 796435 41 778 9
