Optoma DW326E, DX326, H180X User Guide

1

English

Usage Notice

Safety Information

The lightning ash with arrow head within an equilateral triangle is

intended to alert the user to the presence of uninsulated “dangerous

voltage” within the product’s enclosure that may be of sufcient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT

EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. DANGEROUS HIGH VOLTAGES ARE PRESENT INSIDE THE ENCLOSURE. DO NOT OPEN THE CABINET. REFER SERVICING TO QUALIFIED PERSONNEL ONLY.

Class B emissions limits

This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations.

Important Safety Instruction

1. Do not block any ventilation openings. To ensure reliable operation of the projector and to protect from over heating, it is recommended to install the projector in a location that does not block ventilation. As an example, do not place the projector on a crowded coffee table, sofa, bed, etc. Do not put the projector in an enclosure such as a book case or a cabinet that restricts air ow.

2. Do not use the projector near water or moisture. To reduce the risk of re and/or electric shock, do not expose the projector to rain or moisture.

3. Do not install near heat sources such as radiators, heaters, stoves or

any other apparatus such as ampliers that emits heat.

4. Clean only with dry cloth.

5. Only use attachments/accessories specied by the manufacturer.

6. Do not use the unit if it has been physically damaged or abused. Physical damage/abuse would be (but not limited to):

 Unit has been dropped.  Power supply cord or plug has been damaged.  Liquid has been spilled on to the projector.  Projector has been exposed to rain or moisture.  Something has fallen in the projector or something is loose inside.

Do not attempt to service the unit yourself. Opening or removing covers may expose you to dangerous voltages or other hazards. Please call Optoma before you send the unit for repair.

7. Do not let objects or liquids enter the projector. They may touch dangerous voltage points and short out parts that could result in re or electric shock.

8. See projector enclosure for safety related markings.

9. The unit should only be repaired by appropriate service personnel.

3

English

Usage Notice

Precautions

Please follow all warnings, precautions and maintenance as recommended in this user’s guide.

▀■ Warning- Do not look into the projector’s lens when the lamp is

on. The bright light may hurt and damage your eyes.

▀■ Warning- To reduce the risk of re or electric shock, do not

expose this projector to rain or moisture.

▀■ Warning- Please do not open or disassemble the projector as

this may cause electric shock.

▀■ Warning- When replacing the lamp, please allow the unit to

cool down. Follow instructions as described on pages

46-47.

▀■ Warning- This projector will detect the life of the lamp itself.

Please be sure to change the lamp when it shows warning messages.

▀■ Warning- Reset the “Lamp Reset” function from the on-screen

display “OPTIONS | Lamp Settings” menu after replacing the lamp module (refer to page 39).

When the lamp

reaches the end of its life, the pro-

jector will not turn back on until the lamp module has

been replaced. To replace the

lamp, follow the

procedures listed under “Replacing

the Lamp” section

on pages 46-47.

▀■ Warning- When switching the projector off, please ensure

the cooling cycle has been completed before disconnecting power. Allow 90 seconds for the projector to cool down.

▀■ Warning- Do not use lens cap when projector is in operation.

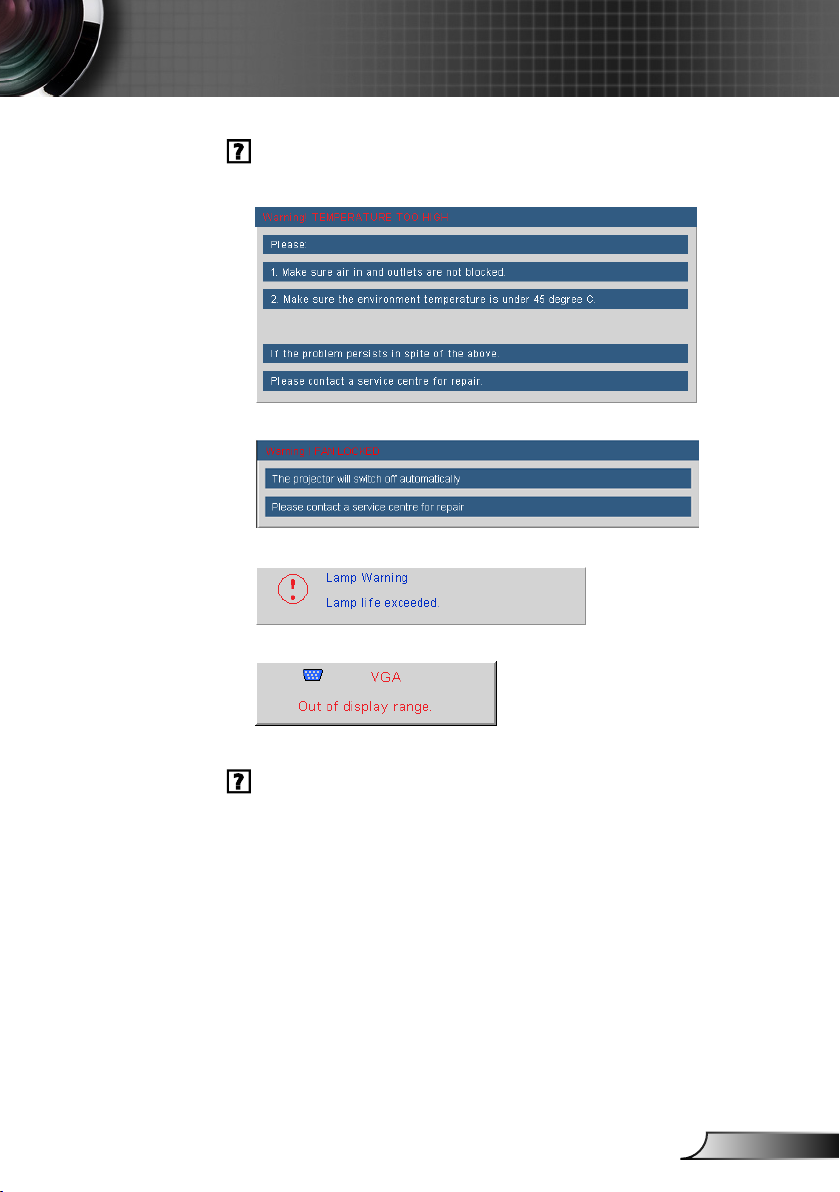

▀■ Warning- When the lamp is approaching the end of its lifetime,

the message “Lamp Warning: Lamp life exceeded.” will show on the screen. Please contact your local reseller or service center to change the lamp as soon

as possible.

▀■ Warning- Do not look into or point the laser pointer on your

remote control into your or someone’s eyes. Laser pointer can cause permanent damage to eyesight.

4

English

Usage Notice

Do:

  Turn off and unplug the power plug from the AC outlet before

cleaning the product.

  Use a soft dry cloth with mild detergent to clean the display

housing.

  Disconnect the power plug from AC outlet if the product is

not being used for a long period of time.

Do not:

  Block the slots and openings on the unit provided for

ventilation.

 Use abrasive cleaners, waxes or solvents to clean the unit.

 Use under the following conditions:

- In extremely hot, cold or humid environments.

Ensure that the ambient room temperature is within



5 - 40°C.

Relative Humidity is 5 - 40°C, 80% (Max.),



non-condensing.

- In areas susceptible to excessive dust and dirt.

- Near any appliance generating a strong magnetic eld.

- In direct sunlight.

5

English

Usage Notice

Eye Safety Warnings

▀■ Avoid staring/facing directly into the projector beam at all

times. Keep your back to the beam as much as possible.

▀■ When projector is used in a classroom, adequately supervise

students when they are asked to point out something on the

screen.

▀■ In order to minimize the lamp power, use room blinds to

reduce ambient light levels.

Product Features

▀■ SVGA (800x600) / XGA (1024x768) / WXGA

(1280X800) Native resolution

▀■ HD compatible – 720p and 1080p supported

▀■ BrilliantColorTM Technology

▀■ Kensington Lock

▀■ RS232 control

▀■ Rapid shutdown

▀■ Full 3D (See page 50)

▀■ The Product Features shall be congured by the manu-

facturer as per practical conditions.

6

English

Introduction

Menu

Package Overview

Unpack and inspect the box contents to ensure all parts listed below are in the box. If something is missing, please contact your nearest customer service center.

Due to different

applications in

each Country, some regions may have

different accessories.

Projector

2 × AAA Batteries

Documentation :

User’s Manual



Warranty Card



Quick Start Card



WEEE Card



(for EMEA only)

Power Cord 1.8m

IR Remote Control

7

English

Introduction

Product Overview

Main Unit

The interface

is subject to model’s specications.

Do not block

projector in/out

air vents.

7 2

6

5

9

8

1

4

3

7

POWER button and 1. LED indicator Ventilation (inlet)2. Zoom Ring3. Focus Ring4.

2

Zoom Lens5. IR Receiver6. Ventilation (outlet)7.

Input / Output Connections8. Power Socket9.

8

English

Introduction

VGA- IN / SCART

S-VIDEO VIDEO RS232

AUDIO-IN

AUDIO-OUT

VGA-OUT

HDMI

Input/Output Connections

The interface

is subject to model’s specications.

21 93 4 5 6 7 8

10

Power Socket1. HDMI Connector2.

VGA-In/SCART Connector 3. (PC Analog Signal/Component Video Input/HDTV/YPbPr/

SCART) S-Video Input Connector4.

Composite Video Input Connector5. RS-232 Connector (3-pin DIN Type)6.

VGA-Out Connector (Monitor Loop-through Output)7.

Audio Input connector (3.5mm mini jack)8. Audio Output Connector (3.5mm Mini Jack)9.

Kensington10.

TM

Lock Port

9

English

Introduction

Remote Control

Menu

The interface is

subject to model’s specications.

1

2

3

4 9

5

6

19

20

21

22

23

24

26

25

10

11

12

13

14

15

16

17

18

IR LED Indicator1.

7

8

Power On/Off2. Source3. Mouse Left Click4. Enter5. Four Directional Select 6.

Keys / Mouse control Mouse on/off7. Re-Sync8. Mouse Right Click9.

Mode10. Page Up11. Volume +/-12. Menu13.

Zoom14. AV mute15.

Video 16. 3D17. VGA18.

Page Down19. Keystone +/-20.

Brightness21. HDMI22. S-Video23.

Eco+24. Numbered keypad 25. (for password input) Freeze26.

10

English

Installation

VGA- IN / SCART

S-VIDEO VIDEO RS232

AUDIO-IN

AUDIO-OUT

VGA-OUT

HDMI

E62405SP

R

Connecting the Projector

Connect to Computer/Notebook

2 3

Audio Output

4 5

Due to the

difference in applications for

each country, some regions may

have different accessories.

(*) Optional

accessory

The interface is

subject to model’s specications .

1

Monitor Output

1....................................................................................................Power Cord

2...........................................................................................*DVI/HDMI Cable

3................................................................................................... *VGA Cable

7

4................................................................................................*RS232 Cable

5.........................................................................................*Audio Input Cable

6......................................................................................*Audio Output Cable

7.............................................................................................*VGA Out Cable

6

11

English

Installation

VGA- IN / SCART

S-VIDEO VIDEO RS232

AUDIO-IN

AUDIO-OUT

VGA-OUT

HDMI

E62405SP

R

Connect to Video Sources

Due to the

difference in applications for

each country, some regions may

have different accessories.

(*) Optional

accessory

The interface is

subject to model’s specications .

DVD Player, Set-top Box,

HDTV receiver

5

2 3

6

7

1

4

8

9

S-Video Output Composite Video Output

1....................................................................................................Power Cord

2..................................................................................................*HDMI Cable

3.............................................................................*3 RCA Component Cable

Audio Output

4................................................*15-Pin to 3 RCA Component/HDTV Adaptor

5................................................................................... *SCART/VGA Adaptor

6................................................................................................... *VGA Cable

7.........................................................................................*Audio Input Cable

8.............................................................................................. *S-Video Cable

9................................................................................*Composite Video Cable

10....................................................................................*Audio Output Cable

10

12

English

Installation

When Power mode

(Standby) is set to

Eco (<0.5W), the VGA output and Audio pass-through

will be deactivated when the projector is in standby.

Powering the projector On / Off

Powering On the Projector

1. Securely connect the power cord and signal cable. When connected, the Power LED will turn Red.

2. Turn on the lamp by pressing “POWER” button either on the top of the projector or on the remote. The Power LED will now turn Blue. 

The startup screen will display in approximately 10 seconds.

The rst time you use the projector, you can select your preferred language from quick menu after the startup screen displays.

3. Turn on and connect the source that you want to display on the screen (computer, notebook, video player, etc). The projector will detect the source automatically. If not, push menu button and go to “OPTIONS”. Make sure that the “Source Lock” has been set to “Off”.

If you connect multiple sources at the same time, press the

“SOURCE” button or direct source keys on the remote control to switch between inputs.

Turn on the

projector rst and

then select the signal sources.

Power

1

13

English

Installation

Powering off the projector

1. Press the “POWER” button to turn off the projector lamp. The following message will be displayed on the screen.

Press the “POWER” button again to conrm, otherwise

the message will disappear after 15 seconds. When you press the “POWER” button a second time, the system will show the countdown timer on the screen.

2. The cooling fans continue to operate for about 10 seconds

for cooling cycle. When the Power LED turns Red, the projector has entered standby mode.

If you wish to turn the projector back on, you must wait

until the projector has completed the cooling cycle and has entered standby mode. Once in standby mode, simply

press “POWER” button to restart the projector.

3. Disconnect the power cord from the electrical outlet and

the projector.

4. Do not turn on the projector immediately following a power

off procedure.

Contact the



nearest service center if the

projector displays these symptoms.

See pages

56-57 for more information.

Warning Indicator

 When the “POWER” indicator ashes red (0.5 sec off, 0.5

sec on), the projector will automatically shut down. Please call the nearest Optoma facility for assistance.

 When the “POWER” indicator ashes red (1.0 sec off, 1.0

sec on), it indicates the projector has overheated. The pro-

jector will shut down automatically.

Under normal conditions, the projector can be switched on

again after it has cooled down.

 When the “POWER” indicator ashes red (0.5 sec off, 2.0

sec on), it indicates the fan has failed.

14

English

Installation

Adjusting the Projected Image

Adjusting the Projector’s Height

The projector is equipped with elevator feet for adjusting the image height.

1. Locate the adjustable foot you wish to modify on the

underside of the projector.

2. Rotate the adjustable ring clockwise to raise the projector or counter clockwise to lower it. Repeat with the remaining

feet as needed.

Tilt-Adjustment Feet

Tilt-Adjustment Ring

15

English

Installation

Width

Height

Diagonal

Top View

Side View

Projection Distance (D)

Screen

Screen (W)

Screen (H)

Offset (Hd)

Adjusting the Projector’s Zoom / Focus

You may turn the zoom ring to zoom in or out. To focus the image, rotate the focus ring until the image is clear.

SVGA/XGA series: The projector will focus at distances from



3.28 to 39.4 feet (1.0 to 12.0 meters).

WXGA series: The projector will focus at distances from 3.28



to 39.4 feet (1.0 to 12.0 meters).

Zoom Ring

Focus Ring

Adjusting Projection Image Size

SVGA/XGA series: Projection Image Size from 22.9” to



300.0” (0.58 to 7.62 meters).

WXGA series: Projection Image Size from 27.2” to 301.0”



(0.69 to 7.65 meters).

16

English

Installation

SVGA/XGA

Diagonal length

(inch) size of

4:3 Screen

30.00 0.61 0.46 24.00 18.00 1.19 1.31 3.90 4.30 0.07 2.70

40.00 0.81 0.61 32.00 24.00 1.58 1.75 5.20 5.73 0.09 3.60

60.00 1.22 0.91 48.00 36.00 2.38 2.62 7.80 8.60 0.14 5.40

70.00 1.42 1.07 56.00 42.00 2.77 3.06 9.10 10.03 0.16 6.30

80.00 1.63 1.22 64.00 48.00 3.17 3.50 10.40 11.46 0.18 7.20

90.00 1.83 1.37 72.00 54.00 3.57 3.93 11.70 12.90 0.21 8.10

100.00 2.03 1.52 80.00 60.00 3.96 4.37 13.00 14.33 0.23 9.00

120.00 2.44 1.83 96.00 72.00 4.75 5.24 15.60 17.20 0.27 10.80

150.00 3.05 2.29 120.00 90.00 5.94 6.55 19.50 21.49 0.34 13.50

200.00 4.06 3.05 160.00 120.00 7.92 8.74 25.99 28.66 0.46 18.00

250.00 5.08 3.81 200.00 150.00 9.91 10.92 32.49 35.82 0.57 22.49

300.00 6.10 4.57 240.00 180.00 11.89 13.11 38.99 42.99 0.69 26.99

Screen Size W x H Projection Distance (D)

(m) (inch) (m) (feet)

Width Height Width Height wide tele wide tele (m) (inch)

Offset (Hd)

WXGA

Diagonal length

(inch) size of

16:10 Screen

30.00 0.65 0.40 25.44 15.90 1.00 1.10 3.29 3.60 0.05 1.97

40.00 0.86 0.54 33.92 21.20 1.34 1.46 4.38 4.80 0.07 2.63

60.00 1.29 0.81 50.88 31.80 2.00 2.20 6.57 7.21 0.10 3.94

70.00 1.51 0.94 59.36 37.10 2.34 2.56 7.67 8.41 0.12 4.60

80.00 1.72 1.08 67.84 42.40 2.67 2.93 8.76 9.61 0.13 5.26

90.00 1.94 1.21 76.32 47.70 3.00 3.30 9.86 10.81 0.15 5.91

100.00 2.15 1.35 84.80 53.00 3.34 3.66 10.95 12.01 0.17 6.57

120.00 2.58 1.62 101.76 63.60 4.01 4.39 13.14 14.41 0.20 7.88

150.00 3.23 2.02 127.20 79.50 5.01 5.49 16.43 18.02 0.25 9.86

200.00 4.31 2.69 169.60 106.00 6.68 7.32 21.90 24.02 0.33 13.14

250.00 5.38 3.37 212.00 132.50 8.35 9.15 27.38 30.03 0.42 16.43

300.00 6.46 4.04 254.40 159.00 10.02 10.98 32.85 36.03 0.50 19.71

Screen Size W x H Projection Distance (D)

(m) (inch) (m) (feet)

Width Height Width Height wide tele wide tele (m) (inch)

Offset (Hd)

 This table is for user’s reference only.

17

English

User Controls

Menu

Remote Control

Using the Remote Control

Power

L Button

R Button

Page +

Page -

Enter

Source

Re-Sync

Four Directional

Select Keys

PC/Mouse Control

Keystone +/-

Refer to the “Power On/Off the Projector”

section on pages 12-13.

Mouse left click.

Mouse right click.

Use this button to page up.

Use this button to page down.

Conrm your item selection.

Press “Source” to select an input signal.

Automatically synchronizes the projector to

the input source.

Use to select items or make

adjustments to your selection.

Use for emulation of USB mouse via USB when you press “Switch”

button.

Adjust image distortion caused by tilting the

projector.

The interface

is subject to model’s specications.

Volume +/-

Brightness

3D

Menu

HDMI

Adjust to increase / decrease the volume.

Adjust the brightness of the image.

Press the “3D” to turn the 3D OSD menu on/off.

Press “Menu” to launch the on-screen

display (OSD) menu. To exit OSD, press

“Menu” again.

Press “HDMI” to choose HDMI source.

18

English

User Controls

Menu

Using the Remote Control

AV mute: Save



up to 70% of the lamp power when AV mute is ap-

plied.

Freeze

AV mute

Press “Freeze” to pause the screen image. Press this button again to unlock.

Momentarily turns off/on the audio and

video.

S-Video Press “S-Video” to choose S-Video source.

VGA

Video

Mouse on/off

Mode

Zoom

Eco+

Press “VGA” to choose VGA sources.

Press “Video” to choose Composite video

source.

USB mouse switch.

Select the display mode from Presentation,

Bright, Movie, sRGB, Blackboard, Classroom, User and 3D.

Zoom in on an image.

Press buttons to alter zoom.

When Eco+ mode is activated, the brightness level of the content is automatically detected to signicantly reduced lamp power consumption (up to 70%) during periods of inactivity.

19

English

User Controls

On-screen Display Menus

The Projector has multilingual On-screen Display menus that allow you to make image adjustments and change a variety of

settings. The projector will automatically detect the source.

How to operate

1. To open the OSD menu, press “Menu” on the Remote Control or

Projector Keypad.

2 When OSD is displayed, use

main menu. While making a selection on a particular page, press

or “Enter” key to enter sub menu.

3. Use

using key.

4. Select the next item to be adjusted in the sub menu and adjust as

described above.

5. Press “Enter” to conrm, and the screen will return to the main

menu.

6. To exit, press “MENU” again. The OSD menu will close and the

projector will automatically save the new settings.

keys to select the desired item and adjust the settings

keys to select any item in the

Main Menu

Sub Menu

Settings

20

English

User Controls

Main Menu Sub Menu

Display Mode Presentation / Bright / Movie / sRGB /

Blackboard / User / 3D

Brightness -50~50

Contrast -50~50

Sharpness 1~15

#1

Color -50~50

#1

Tint -50~50

Advanced Gamma Film / Video / Graphics / Standard

Brillian tColor™ 1~10

Color Temp. Warm / Medium / Cold

Colo r S etti ngs Red / Gree n /

Blue / Cyan / Mag enta / Y ellow /

Hue / Satur atio n / Gain

White R / G / B

Res et

Exit

Color Space AUTO / RGB / YUV

#3

AUTO / RGB (0-255) / RGB (16-235) /

YUV

#2

Signal Automatic On / Off

Phase (VGA) 0~31

Frequency (VG A) -5~5

H. Position (VGA) -5~5

V. Position (VGA) -5~5

Exit

Res et

For mat

#4

4:3 / 16:9 / Native / AUTO

#5

4:3 / 16:9 or 16:10 / Native / AUTO

Edge Mask 0~10

Zoom -5~25 ( 80%~200%)

Image Shift H Image Shift -100~100

V Image Shift -100~100

V Keystone -40~40

3D 3D Mode Off / DLP-Link / IR

#6

3D Format Auto / SBS / Top and Bottom / Frame

Sequential

#6

3D Sync. Invert On / Off

Exit

Language English / Deutsch / Français / Italiano

/ Español / Português / Svenska / Nederlands / Norsk/Dansk / Polski / Suomi / Ɋɭɫɫɤɢɣ / İȜȜȘȞȚțȐ / Magyar / ýeština / γέΎϓ / ϲΑήϋ /᜗

᧯խ֮ʳ/

亞

󰪠խ֮ʳ/ ֲء፿!0䚐ạ 㛨ʳ/ ࡷࡎ ࡙/

Türkçe / ViӋt / Bahasa Indonesia / Română

Pr ojec tion

Men u Loc atio n

#5

Screen Type 16:10 / 16:9

Settings


Display

Setup

Menu Tree

21

English

User Controls

Main Menu Sub Menu

Settings

Security Security On / Off

Security Timer Month / Day / Hour

Cha nge P ass word

ʳ

Exit

Pr ojec tor ID 0~9 9

Audio Settings Internal Speaker On / Off

Mute On / Off

Volume 0~10

Adv anced Log o D efaul t / Neu tral

Closed Captioning Off / CC1 / CC2

Exit

Input Source VGA / Video / S- Video / H DMI

Source Lock On / Off

High Altitude On / Off

Information Hide On / Off

Tes t P atter n Non e / Grid / Wh ite Patt ern

Background Color Black / Red / Blue / Green / W hite

Advanced Direct Power On On / Off

Auto Power Off (min.) 0~180

Quick Resume On / Off

Sleep Timer (min.) 0~990

Power Mode (Standby) Active / Eco

Exit

Lamp Settings Lamp Hours

Lamp Reminder On / Of f

Brightness Mode Bright / Eco / Eco+

Lam p Re set Yes / No

Exit

#7

Optional Filter Installed Yes / No

Filter Usage Hour s 0~9999

Fil ter Remi nder

Off / 300hr / 500hr / 800hr / 1000hr

Filter Reset Yes / No

Exit

Res et Yes / No

Setup

Options

Optional Filter Settings

Please note that the on-screen display (OSD) menus vary according to the

signal type selected and the projector model you are using.

(#1) “Color” and “Tint” are only supported in Video mode.

(#2) “Signal” is only supported in Analog VGA (RGB) signal.

(#3) For HDMI Source only.

(#4) For XGA model only.

(#5) For WXGA model only. 16:9 or 16:10 depend on “Screen Type” setting.

(#6) “3D Sync Invert” is only available when 3D is enabled and this mode

3D is for DLP link glass only.

(#7) “Optional Filter Settings” is not available for this model.

22

English

User Controls


Display Mode

There are many factory presets optimized for various types of images.

Presentation: Good color and brightness from PC input.



Bright: Maximum brightness from PC input.



Movie: For home theater.



sRGB: Standardised accurate color.



Blackboard: This mode should be selected to achieve optimum



color settings when projecting onto a blackboard (green).

User: User’s settings.



3D: Recommend setting for 3D mode enabled. Any further ad-



justments by the user in 3D will be saved in this mode for further

use.

Brightness

Adjust the brightness of the image.

Press the to darken image.



Press the to lighten the image.



Contrast

The contrast controls the degree of difference between the lightest and darkest parts of the picture.

 Press the to decrease the contrast.

Press the to increase the contrast.



23

English

User Controls

“Color” and “Tint”

functions are only

supported under

Video mode.

Sharpness

Adjust the sharpness of the image.

 Press the to decrease the sharpness.  Press the to increase the sharpness.

Color

Adjust a video image from black and white to fully saturated color.

 Press the to decrease the amount of saturation in the image.  Press the to increase the amount of saturation in the image.

Tint

Adjust the color balance of red and green.

 Press the to increase the amount of green in the image.  Press the to increase the amount of red in the image.

24

English

User Controls

IMAGE | Advanced

Gamma

This allows you to choose a degamma table that has been ne-tuned to bring out the best image quality for the input.

 Film: for home theater.

Video: for video or TV source.



Graphics: for image source.



 Standard: for PC or computer source.

BrilliantColor™

This adjustable item utilizes a new color-processing algorithm and system level enhancements to enable higher brightness while providing true, more vibrant colors in picture. The range is from “0” to “10”. If you prefer a stronger enhanced image, adjust toward the maximum setting. For a smoother, more natural image, adjust toward the minimum setting.

Color Temp

If set to cold temperature, the image looks more blue. (cold image) If set to warm temperature, the image looks more red.

(warm image)

Color Settings

Press into the next menu as below and then use or to

select item.

25

English

User Controls

 Red/Green/Blue/Cyan/Magenta/Yellow: Use or to select

Hue, Saturation and Gain Colors.

 White: Use or to select Red, Green and Blue Colors.

(*) For HDMI only.

 Reset: Choose “Yes” to return the factory default settings for

color adjustments.

Color Space

Select an appropriate color matrix type from AUTO, RGB,

RGB(0-255)

(*)

, RGB(16-235)

(*)

or YUV.

Reset

Choose “Yes” to return the display parameters on all menus to the factory default settings.

26

English

User Controls

IMAGE | Advanced

| Signal (RGB)

“Signal” is only

supported in Analog VGA (RGB) signal.

Automatic

Automatically selects the singal. If you use this function, the Phase, frequency items are grayed out, and if Signal is not automatic, the phase, frequency items will appear for user to manually tune and saved in settings after that for next time projector turns

off and on again.

Phase

Synchronize the signal timing of the display with the graphic card. If the image appears to be unstable or ickers, use this function to

correct it.

Frequency

Change the display data frequency to match the frequency of your computer’s graphic card. Use this function only if the image appears to icker vertically.

H. Position

Press the to move the image left.



Press the to move the image right.



V. Position

Press the to move the image down.



Press the to move the image up.



27

English

User Controls

DISPLAY

Format

Use this function to choose your desired aspect ratio.

SVGA/XGA

4:3: This format is for 4×3 input sources.



16:9: This format is for 16×9 input sources, like HDTV and DVD



enhanced for Wide screen TV.

Native: This format displays the original image without any



scaling.

AUTO: Automatically selects the appropriate display format.



Auto

4:3

Wide

Laptop

SDTV

HDTV

Input resolution

H V H V H V

640 480 800 600 1024 768

800 600 800 600 1024 768

1024 768 800 600 1024 768

1280 1024 800 600 1024 768

1400 1050 800 600 1024 768

1600 1200 800 600 1024 768

1280 720 800 450 1024 576

1280 768 800 480 1024 614

1280 800 800 500 1024 640

720 576 800 450 1024 576

720 480 800 450 1024 576

1280 720 800 450 1024 576

1920 1080 800 450 1024 576

Auto/Scale

(SVGA)

Auto/Scale

(XGA)

28

English

User Controls

16:9 or 16:10

depend on “Screen

Type” setting.

Aspect ratio

(source detected)

4:3 800 x 600 center 1024 x 768 center

16:9 800 x 450 center 1024 x 576 center

Native

Resize image (SVGA) Resize image (XGA)

No resize image, 1:1 mapping and

centered. This format shows the

original image without scaling.

WXGA

4:3: This format is for 4×3 input sources.



16:9: This format is for 16×9 input sources, like HDTV and DVD



enhanced for Wide screen TV.

16:10: This format is for 16×10 input sources, like widescreen



laptops.

Native: This format displays the original image without any



scaling.

AUTO: Automatically selects the appropriate display format.



Screen Type = 16:10 Screen Type = 16:9

Auto/Scale Auto/Scale

Auto

4:3

Wide

Laptop

SDTV

HDTV

Input resolution

H V H V H V

640 480 1066 800 960 720

800 600 1066 800 960 720

1024 768 1066 800 960 720

1280 1024 1066 800 960 720

1400 1050 1066 800 960 720

1600 1200 1066 800 960 720

1280 720 1280 720 1280 720

1280 768 1280 768 1200 768

1280 800 1280 800 1152 800

720 576 1280 720 1280 720

720 480 1280 720 1280 720

1280 720 1280 720 1280 720

1920 1080 1280 720 1280 720

29

English

User Controls

Each I/O has

different setting of

“Edge Mask”.

“Edge Mask” and

“Zoom” can’t work at same time.

16:10 Screen 480i/p 576i/p 1080i/p 720p PC

4:3 1066 x 800 center

16:10 1280 x 800 center

Native

16:9 Screen 480i/p 576i/p 1080i/p 720p PC

4:3 960 x 720 center

16:9 1280 x 720 center

Native

1:1 mapping

centered.

1:1 mapping

centered.

1:1 map-

ping (960 x

540) display

1280 x 800

1:1 map-

ping (960 x

540) display

1280 x 720

center

1280 x 720

center

Edge Mask

Edge mask function removes the noise in a video image. Edge mask the image to remove video encoding noise on the edge of

video source.

Zoom

 Press the to reduce the size of an image.

 Press the to magnify an image on the projection screen.

Image Shift

Press into the next menu as below and then use or to

select item.

1:1

mapping

centered.

1:1

mapping

centered.

 H: Use or to shift the projected image position horizontally.

 V: Use or to Shift the projected image position vertically.

V Keystone

Press the or to adjust image distortion vertically. If the image looks trapezoidal, this option can help make the image rectangular.

30

English

User Controls

DISPLAY | 3D

3D Mode

Off: Select “Off” to turn 3D settings off for 3D images.



DLP Link: Select “DLP Link” to use optimized settings for DLP



“IR” options may

vary according to model.

“3D Sync Invert” is

only available when

3D is enabled and

this mode 3D is for DLP link glass only.

Compatible 3D

source, 3D content and active shutter

glasses are required for 3D viewing.

See page 50 for

supported 3D

formats.

Link 3D images.

IR: Select “IR” to use optimized settings for IR-based 3D



images.

3D Format

Auto : When a 3D identication signal is detected, the 3D



format is selected automatically.

SBS: Use this mode for “Side-by-side” format 3D content.



Top and Bottom: Use this mode for “Top and Bottom” format 3D



content.

Frame Sequential: Use this mode for “Frame Sequential”



format 3D content.

3D Sync. Invert

Press the “On” to invert left and right frame contents.



Press the “Off” for default frame contents.



31

English

User Controls

SETUP

Language

Choose the multilingual OSD menu. Press or into the sub menu and then use the or key to select your preferred

language. Press “Enter” to nalize the selection.

Rear-Desktop and

Rear-Ceiling are

to be used with a

translucent screen.

Projection

 Front-Desktop

This is the default selection. The image is projected straight on

the screen.

 Rear-Desktop

When selected, the image will appear reversed.

 Front-Ceiling

When selected, the image will turn upside down.



Rear-Ceiling

When selected, the image will appear reversed in upside down

position.

32

English

User Controls

Menu Location

Choose the menu location on the display screen.

Screen Type

Choose the screen type from16:10 or 16:9.

Projector ID

ID denition can be set up by menu (range 0-99), and allow user

“Screen Type” is for

WXGA only.

control an individual projector by RS232. Refer to page 51-54 for the complete list of RS232 commands.

33

English

User Controls

SETUP | Security

Password default

value is “1234” (rst time).

Security

On: Choose “On” to use security verication when the turning



Security Timer

Change Password



on the projector.

Off: Choose “Off” to be able to switch on the projector without

password verication.

Use this function to set the how long (Month/Day/Hour) the projector can be used. Once this time has elapsed you will be requested to enter your password again.

First time:

1. Press “ ” to set the password.

2. The password has to be 4 digits.

3. Use number button on the remote to enter your new password and then press “ ” key to conrm your password.

Change Password:

1. Press “ ” to input old password.

2. Use number button to enter current password and then

press “ ” to conrm.

3. Enter new password (4 digits in length) using the number

buttons on the remote, then press “ ” to conrm.

4. Enter new password again and press “ ” to conrm.

34

English

User Controls

If the incorrect password is entered 3 times, the projector will



automatically shut down.

If you have forgotten your password, please contact your local



ofce for support.

35

English

User Controls

SETUP |

Audio Settings

Internal Speaker

Choose the “On” or “Off” to turn on or off the internal speaker.

Mute

Choose the “On” to turn mute on.



Choose the “Off” to turn mute off.



Volume

Press the to decrease the volume.



Press the to increase the volume.



36

English

User Controls

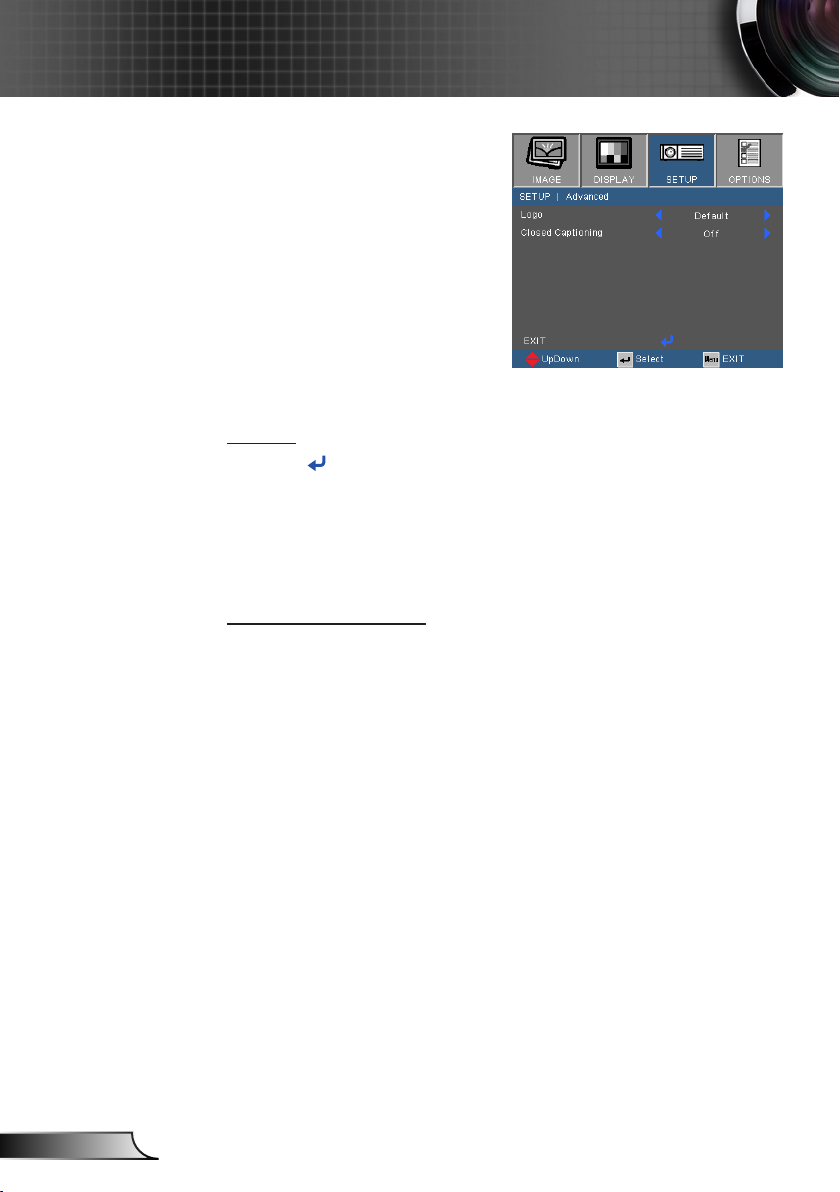

SETUP | Advanced

Logo

Press to capture an image of the picture currently displayed

on screen. If changes are made they will take effect the next time the projector is powered on.

Default: The default startup screen.



Neutral: Logo is not displayed on startup screen.



Closed Captioning

Use this function to set the desired startup screen. If changes are

made they will take effect the next time the projector is powered

on.

Off: select “Off” to turn off the closed captioning feature.



CC1:CC1 language: American English.



CC2:CC2 language (depending on the TV channel of the



user):Spanish, French, Portuguese, German, Danish.

37

English

User Controls

OPTIONS

Input Source

Use this option to enable / disable input sources. Press to enter the sub menu and select which sources you require. Press “Enter” to finalize the selection. The projector will not search for inputs that

are not selected.

Source Lock

On: The projector will only search current input connection.



Off: The projector will search for other signals if the current



input signal is lost.

High Altitude

When “On” is selected, the fans will spin faster. This feature is useful in high altitude areas where the air is thin.

Information Hide

On: Choose “On” to hide the info message.



Off: Choose “Off” to show the “searching” message.



Test Pattern

Display a test pattern. There are Grid, White pattern and None.

Background Color

Use this feature to display a “Black”, “Red”, “Blue”, “Green” or “White”, screen when no signal is available.

Reset

Choose “Yes” to return the display parameters on all menus to the factory default settings.

38

English

User Controls

OPTIONS |

Advanced

Direct Power On

Choose “On” to activate Direct Power mode. The projector will automatically power on when AC power is supplied, without pressing the “ ” key on the projector control panel or on the remote control.

Auto Power Off (min)

Sets the countdown timer interval. The countdown timer will start, when there is no signal being sent to the projector. The projector will automatically power off when the countdown has nished (in

When Power mode

(Standby) is set to

Eco (<0.5W), the VGA output and Audio pass-through

will be deactivated when the projector is in standby.

minutes).

Sleep Timer (min)

Sets the countdown timer interval. The countdown timer will start, with or without a signal being sent to the projector. The projector will automatically power off when the countdown has nished (in minutes).

Quick Resume

On: If the projector is accidentally turned off, this feature allows



Off: The fan will start cooling the system immediately when user



the projector to be instantly powered on again, if selected within a period of 100 seconds.

turns off the projector.

Power Mode (Standby)

Eco.: Choose “Eco.” to save power dissipation further < 0.5W.



Active: Choose “Active” to return to normal standby and the



VGA out port will be enabled.

39

English

User Controls

Lamp Settings

When ambient tem-

perature is over 40°C in operating, the

projector will switch to Eco automatically.

OPTIONS |

Lamp Hours

Display the projection time.

Lamp Reminder

Choose this function to show or to hide the warning message when the changing lamp message is displayed. The message will appear 30 hours before suggested replacement

of lamp.

Brightness Mode

Eco.: Choose “Eco.” to dim the projector lamp which will lower



power consumption and extend the lamp life.

BRIGHT: Choose “BRIGHT” to increase the brightness.



Eco+: When Eco+ mode is activated, the brightness level of the



content is automatically detected to signicantly reduced lamp power consumption (up to 70%) during periods of

inactivity.

Lamp Reset

Reset the lamp hour counter after replacing the lamp.

40

English

User Controls

OPTIONS |

Optional Filter

Settings

Optional Filter Installed

Select “Yes” to display warning message after 500 hours of use.

“Optional Filter Set-

tings” is not avail-

able for this model.

Select “No” to turn off warning message.

Filter Usage Hours

Display the lter time.

Filter Reminder

Choose this function to show or hide the warning massage when the changing lter message is displayed. (Factory default setting:

500 hours)

Filter Reset

Reset the dust lter counter after replacing or cleaning the dust

lter.

41

English

Appendices

Troubleshooting

If you experience a problem with your projector,

please refer to the following information. If a problem persists, please contact your local reseller or service center.

No image appears on-screen

Ensure all the cables and power connections are correctly and



securely connected as described in the “Installation” section.

Ensure all the pins of connectors are not bent or broken.



Check if the projection lamp has been securely installed. Please



refer to the “Replacing the lamp” section.

Ensure that the “AV mute” feature is not turned on.



Partial, scrolling or incorrectly displayed image



Press “Re-SYNC” on the remote.

If you are using a PC:



For Windows 95, 98, 2000, XP, Windows 7:

1. Open the “My Computer” icon, the “Control Panel” folder, and then double click on the “Display” icon.

2. Select the “Settings” tab.

3. Verify that your display resolution setting is lower than or equal

to UXGA (1600 × 1200).

4. Click on the “Advanced Properties” button.

If the projector is still not projecting the whole image, you will also need to change the monitor display you are using. Refer to the following steps.

5. Verify the resolution setting is lower than or equal to UXGA

(1600 × 1200).

6. Select the “Change” button under the “Monitor” tab.

42

English

Appendices

7. Click on “Show all devices”. Next, select “Standard monitor types” under the SP box; choose the resolution mode you need

under the “Models” box.

8. Verify that the resolution setting of the monitor display is lower than or equal to UXGA (1600 × 1200).

If you are using a Notebook:



1. First, follow the steps above to adjust resolution of the computer.

2. Press the appropriate keys listed below for your notebook manufacturer to send signal out from notebook to projector. Example: [Fn]+[F4]

Acer  [Fn]+[F5] Asus  [Fn]+[F8] Dell  [Fn]+[F8]

Gateway  [Fn]+[F4]

Mac Apple: System Preference  Display  Arrangement  Mirror display

If you experience difculty changing resolutions or your monitor



freezes, restart all equipment including the projector.

The screen of the Notebook or PowerBook computer is not

IBM/Lenovo  [Fn]+[F7] HP/Compaq  [Fn]+[F4]

NEC  [Fn]+[F3] Toshiba  [Fn]+[F5]

displaying your presentation

If you are using a Notebook PC



Some Notebook PCs may deactivate their own screens when a second display device is in use. Each has a different way to be reactivated. Refer to your computer’s manual for detailed information.

Image is unstable or ickering

Use “Phase” to correct it. See page 26 for more information.



Change the monitor color setting on your computer.



Image has vertical ickering bar

Use “Frequency” to make an adjustment. See page 26 for more



information.

Check and re-congure the display mode of your graphic card to



make it compatible with the projector.

43

English

Appendices

Image is out of focus

Adjust the Focus Ring on the projector lens.



Make sure the projection screen is between the required distance.



See pages 15-16.

The image is stretched when displaying 16:9 DVD title

When you play anamorphic DVD or 16:9 DVD, the projector will



show the best image when the projector display mode is set to 16:9 in the OSD.

If you play 4:3 format DVD titles, please change the format to 4:3



in the projector OSD.

If the image is still stretched, you will also need to adjust the



aspect ratio by referring to the following:

Please setup the display format as 16:9 (wide) aspect ratio type



on your DVD player.

Image is too small or too large

Adjust the Zoom Ring on the top of the projector.



Move the projector closer to or further from the screen.



Press “Menu” button on the remote control, go to “Display 



Format” and try the different settings.

Use of Keystone

is not recommended.

Image has slanted sides

If possible, reposition the projector so that it is horizontally



centered on the screen and below the bottom of the screen.

Press “Keystone +/-” button on the remote control until the sides



are vertical.

Image is reversed

Select “SETUP  Projection” from the OSD and adjust the



projection direction.

44

English

Appendices

The projector stops responding to all controls

If possible, turn off the projector, then unplug the power cord and



wait at least 60 seconds before reconnecting power.

Lamp burns out or makes a popping sound

When the lamp reaches its end of life, it will burn out and may



make a loud popping sound. If this happens, the projector will not turn on until the lamp module has been replaced. To replace the lamp, follow the procedures in the “Replacing the Lamp” section on

pages 46-47.

LED lighting message

Steady light 

No light 

Message

Standby State (Input power cord)

Power on (Warming)

Lamp lighting

Power off (Cooling)

Error (Over Temp.)

Error (Fan fail)

Error (Lamp fail)

Power LED Power LED

(Red) (Blue)

Flashing

(0.5 sec off, 0.5 sec on)

Flashing

(1 sec off, 1 sec on)

<10 sec to off

Flashing

(1 sec off, 1 sec on)

Flashing

(0.5 sec off, 2.0 sec on)

Flashing

(0.5 sec off, 0.5 sec on)

45

English

Appendices

On Screen Messages

Temperature warning:



Fan failed:



Lamp warning:



Out of display range:



If the remote control does not work

Check the operating angle of the remote control is within ±15°



both horizontally and vertically of one of the IR receivers on the

projector.

Make sure there are not any obstructions between the remote



control and the projector. Move to within 7 m (±0°) of the projector.

Make sure the batteries are inserted correctly.



Replace batteries if they are exhausted.



46

English

Appendices

Replacing the lamp

The projector automatically detects the lamp life. When the lamp life is nearing the end of use, you will receive a warning message.

When you see this message, please contact your local reseller or service center to change the lamp as soon as possible. Make sure the projector has been cooled down for at least 30 minutes before changing the lamp.

Warning: If ceiling mounted, please use caution when

opening the lamp access panel. It is recommended to wear safety glasses if changing the bulb when ceiling mounted. “Caution must be used to prevent any loose parts from fall-

ing out of projector.”

Warning: Lamp compartment may be hot! Allow it to cool

down before changing the lamp!

Warning: To reduce the risk of personal injury, do not drop

the lamp module or touch the lamp bulb. The bulb may shatter and cause injury if it is dropped.

47

English

Appendices

The screws on the

1

2

3

4

lamp cover and the lamp cannot be removed.

The projector

cannot be turned

on if the lamp

cover has not been

placed back on the

projector.

Do not touch the

glass area of the

lamp. Hand oil can cause the lamp to shatter. Use a dry

cloth to clean the

lamp module if it was accidentally

touched.

Lamp Replacement Procedure:

1. Switch off the power to the projector by pressing the “ ” button.

2. Allow the projector to cool down for at least 30 minutes.

3. Disconnect the power cord.

4. Unscrew the two screws on the cover. 1

5. Lift up and remove the cover. 2

6. Unscrew the two screws on the lamp module. 3

7. Lift up the lamp handle and remove the lamp module slowly and carefully. 4

To replace the lamp module, reverse the previous steps.

8. Turn on the projector and reset the lamp timer. Lamp Reset: (i) Press “Menu”  (ii) Select “OPTIONS”  (iii) Select

“Lamp Settings”  (iv) Select “Lamp Reset”  (v) Select “Yes”.

48

English

Appendices

For widescreen

resolution (WXGA), the compatibility support is dependent

on Notebook/PC models.

Please note that

using resolutions other than native 800 x 600 (SVGA), 1024 x 768 (XGA

model), 1280

x 800 (WXGA

model) may result in some loss of image clarity.

Compatibility Modes

Computer Compatibility



Mode Resolution

VGA 640 × 350 70 31.50

VGA 640 × 350 85 37.90

VGA 640 × 400 85 37.90

VGA 640 × 480 60 31.50

VGA 640 × 480 67 -

VGA 640 × 480 72 37.90

VGA 640 × 480 75 37.50

VGA 720 × 350 70 31.50

SVGA 800 × 600 56 35.20

SVGA 800 × 600 60 37.90

SVGA 800 × 600 72 48.10

SVGA 800 × 600 75 46.90

SVGA 800 × 600 85 53.70

XGA 1024 × 768 60 48.40

XGA 1024 × 768 70 56.50

XGA 1024 × 768 75 60.00

XGA 1024 × 768 85 68.70

1152 × 870 75 -

HD 1280 x 720 50 -

HD 1280 x 720 60 45.00

WXGA-800 1280 x 800 60 -

SXGA 1280 x 1024 60 64.00

SXGA+ 1400 x 1050 60 -

UXGA 1600 × 1200 60 75.00

Anglog/Digital

V-Sync (Hz) H-Sync (KHz)

49

English

Appendices

Computer Compatibility (Mac)



Resolution

800x600 60 O O X X

800x600 72 O O O O

800x600 75 O O O O

800x600 85 O O O O

1024x768 60 O O O O

1024x768 70 O O O O

1024x768 75 O O O O

1024x768 85 O O O O

1280x720 60 O O O O

1280x720 75 O O X O

1280x720 85 O O X O

1280x768 60 O O X O

1280x768 75 O O O O

1280x768 85 O O X O

1280x800 60 O O O O

1280x1024 60 X O O O

1280x1024 75 X O O X

1680x1050 60 X O O X

V.Frequency

[Hz]

Macbook Macbook Pro Power Mac G5 Power Mac G4

Video Compatibility



NTSC M (3.58MHz), 4.43 MHz

PAL B, D, G, H, I, M, N

SECAM B, D, G, K, K1, L

SDTV 480i/p@60Hz, 576i/p@50Hz

HDTV 720p@50Hz/60Hz, 1080i@50Hz/60Hz,

1080p@24Hz/25Hz/30Hz/50Hz/60Hz

50

English

Appendices

3D input Compatibility



HDMI 1.4a 3D timing

Formats Modes Resolution

Frame Sequential

Top and Bottom

Side by Side (half)

HDMI 1.3 3D timing

Formats Modes Resolution

Side by Side (half)

Top and Bottom

HQFS

V.Frequency

720p 1280x720 50 75 148.5

720p 1280x720 60 90 148.5

1080p 1920x1080 24 54 148.5

720p 1280x720 50 37.5 74.25

720p 1280x720 60 45 74.25

1080p 1920x1080 24 27 74.25

1080i 1920x1080 50(25) 33.75 74.25

1080i 1920x1080 60(30) 33.75 74.25

V.Frequency

720p 1280x720 50 37.5 74.25

720p 1280x720 60 45 74.25

1080i 1920x1080 50(25) 33.75 74.25

1080i 1920x1080 60(30) 33.75 74.25

720p 1280x720 50 37.5 74.25

720p 1280x720 60 45 74.25

1080i 1920x1080 50(25) 33.75 74.25

1080i 1920x1080 60(30) 33.75 74.25

480i 720x480 60

576i 720x576 50

[Hz]

H.Frequency

[KHz]

H.Frequency

[KHz]

Pixel Rate

[MHz]

Pixel Rate

[MHz]

VGA 1.3 3D timing

Formats Modes Resolution

Frame Sequential

Side by Side (half) or

Top and Bottom

Composite/S-Video

Formats Modes Resolution

HQFS

V.Frequency

SVGA 800x600 120 76.3 73.25

XGA 1024x768 120 97.6 115.5

720p 1280x720 120

SVGA 800x600 60

XGA 1024x768 60

720p 1280x720 60

V.Frequency

NTSC 720x480 60 15.73

PAL 720x576 50 15.63

[Hz]

H.Frequency

[KHz]

H.Frequency

[KHz]

Pixel Rate

[MHz]

Pixel Rate

[MHz]

51

English

Appendices

3

1 2

RS232 Commands and Protocol Function List

RS232 Pin Assignments

RS232 shell is

grounded.

Pin no.

1 TXD

2 RXD

3 GND

Spec.

(from projector side)

52

English

Appendices

Optoma X301/W301 Command Table.

--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Baud Rate : 9600 Note : There is a <CR> after all ASCII commands Data Bits: 8 0D is the HEX code for <CR> in ASCII code Parity: None Stop Bits: 1 Flow Control : None UART16550 FIFO: Disable Projector Return (Pass): P Projector Return (Fail): F XX=01ˀ99, projector's ID, XX=00 is for all projectors

---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

SEND to projector

---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

232 ASCII Code HEX Code Function Description

--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------~XX00 1 7E 30 30 30 30 20 31 0D Power ON ~XX00 0 7E 30 30 30 30 20 30 0D Power OFF (0/2 for backward compatible) ~XX00 1 ~nnnn 7E 30 30 30 30 20 31 20 a 0D Power ON with Password ~nnnn = ~0000 (a=7E 30 30 30 30) ~9999 (a=7E 39 39 39 39)

----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- ---------------------------------~XX01 1 7E 30 30 30 31 20 31 0D Resync ~XX02 1 7E 30 30 30 32 20 31 0D AV Mute On ~XX02 0 7E 30 30 30 32 20 30 0D Off (0/2 for backward compatibl e) ~XX03 1 7E 30 30 30 33 20 31 0D Mute On ~XX03 0 7E 30 30 30 33 20 30 0D Off (0/2 for backward compatibl e) ~XX04 1 7E 30 30 30 34 20 31 0D Freeze ~XX04 0 7E 30 30 30 34 20 30 0D Unfreeze (0/2 for backward compatible) ~XX05 1 7E 30 30 30 35 20 31 0D Zoom Plus ~XX06 1 7E 30 30 30 36 20 31 0D Zoom Minus ~XX12 5 7E 30 30 31 32 20 35 0D VGA ~XX12 7 7E 30 30 31 32 20 37 0D VGA SCART ~XX12 8 7E 30 30 31 32 20 38 0D VGA Component ~XX12 10 7E 30 30 31 32 20 31 30 0D Video

----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- ---------------------------------~XX20 1 7E 30 30 32 30 20 31 0D Display Mode Presentation ~XX20 2 7E 30 30 32 30 20 32 0D Bright ~XX20 3 7E 30 30 32 30 20 33 0D Movie ~XX20 4 7E 30 30 32 30 20 34 0D sRGB ~XX20 5 7E 30 30 32 30 20 35 0D User ~XX20 7 7E 30 30 32 30 20 37 0D Blackboard ~XX20 8 7E 30 30 32 30 20 39 0D 3D

----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- ---------------------------------~XX21 n 7E 30 30 32 31 20 a 0D Brightness n = -50 (a=2D 35 30) ~ 50 (a=35 30) ~XX22 n 7E 30 30 32 32 20 a 0D Contrast n = -50 (a=2D 35 30) ~ 50 (a=35 30) ~XX23 n 7E 30 30 32 33 20 a 0D Sharpness n = 1 (a=31) ~ 15 (a=31 35)

--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- ~XX24 n 7E 30 30 32 34 20 a 0D Color Settings Red Gain n = -50 (a=2D 35 30) ~ 50 (a=35 30) ~XX25 n 7E 30 30 32 35 20 a 0D Green Gain n = -50 (a=2D 35 30) ~ 50 (a=35 30) ~XX26 n 7E 30 30 32 36 20 a 0D Blue Gain n = -50 (a=2D 35 30) ~ 50 (a=35 30) ~XX27 n 7E 30 30 32 37 20 a 0D Red Bias n = -50 (a=2D 35 30) ~ 50 (a=35 30) ~XX28 n 7E 30 30 32 38 20 a 0D Green Bias n = -50 (a=2D 35 30) ~ 50 (a=35 30) ~XX29 n 7E 30 30 32 39 20 a 0D Blue Bias n = -50 (a=2D 35 30) ~ 50 (a=35 30) ~XX30 n 7E 30 30 33 30 20 a 0D Cyan n = -50 (a=2D 35 30) ~ 50 (a=35 30) ~XX31 n 7E 30 30 33 31 20 a 0D Yellow n = -50 (a=2D 35 30) ~ 50 (a=35 30) ~XX32 n 7E 30 30 33 32 20 a 0D Magenta n = -50 (a=2D 35 30) ~ 50 (a=35 30) ~XX33 1 7E 30 30 33 33 20 31 0D Reset

----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- ---------------------------------~XX34 n 7E 30 30 33 34 20 a 0D BrilliantColorTM n = 1 (a=30) ~ 10 (a=31 30) ~XX35 1 7E 30 30 33 35 20 31 0D Gamma Film ~XX35 2 7E 30 30 33 35 20 32 0D Video ~XX35 3 7E 30 30 33 35 20 33 0D Graphics ~XX35 4 7E 30 30 33 35 20 34 0D Standard

----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- ---------------------------------~XX36 1 7E 30 30 33 36 20 31 0D Color Temp. Warm ~XX36 2 7E 30 30 33 36 20 32 0D Medium ~XX36 3 7E 30 30 33 36 20 33 0D Cold ~XX37 1 7E 30 30 33 37 20 31 0D Color Space Auto ~XX37 2 7E 30 30 33 37 20 32 0D RGB ~XX37 3 7E 30 30 33 37 20 33 0D YUV

----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- ---------------------------------~XX45 n 7E 30 30 34 34 20 a 0D Color (Saturation) n = -50 (a=30) ~ 50 (a=31 30 30) ~XX44 n 7E 30 30 34 35 20 a 0D Tint n = -50 (a=30) ~ 50 (a=31 30 30)

---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

RS232 Protocol Function List

XX=00-99, projector's ID, XX=00 is for all projectors

1. There is a <CR> after

all ASCII commands.

2. 0D is the HEX code for <CR> in ASCII code.

Baud Rate : 9600 Data Bits: 8 Parity: None Stop Bits: 1 Flow Control : None UART16550 FIFO: Disable Projector Return (Pass): P Projector Return (Fail): F

53

English

Appendices

--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------~XX60 1 7E 30 30 36 30 20 31 0D Format 4:3 ~XX60 2 7E 30 30 36 30 20 32 0D 16:9 (XGA/WXGA) or 16:10(WXGA) ~XX60 6 7E 30 30 36 30 20 36 0D Native ~XX60 7 7E 30 30 36 30 20 37 0D Auto

--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- ~XX61 n 7E 30 30 36 31 20 a 0D Edge mask n = 0 (a=30) ~ 10 (a=31 30) ~XX62 n 7E 30 30 36 32 20 a 0D Zoom n = -5 (a=2D 35) ~ 25 (a=32 35) ~XX63 n 7E 30 30 36 33 20 a 0D H Image Shift n = -100 (a=2D 31 30 30) ~ 100 (a=31 30 30) ~XX64 n 7E 30 30 36 34 20 a 0D V Image Shift n = -100 (a=2D 31 30 30) ~ 100 (a=31 30 30) ~XX66 n 7E 30 30 36 36 20 a 0D V Keystone n = -40 (a=2D 34 30) ~ 40 (a=34 30) ~XX230 3 7E 30 30 32 33 30 20 33 0D 3D Mode Off ~XX230 1 7E 30 30 32 33 30 20 31 0D DLP-Link ~XX230 2 7E 30 30 32 33 30 20 32 0D IR ~XX405 0 7E 30 30 34 30 35 20 30 0D 3D format Auto ~XX405 1 7E 30 30 34 30 35 20 31 0D SBS ~XX405 2 7E 30 30 34 30 35 20 32 0D Top and Bottom ~XX405 3 7E 30 30 34 30 35 20 33 0D Frame Sequential ~XX231 1 7E 30 30 32 33 31 20 31 0D 3D Sync Invert On ~XX231 0 7E 30 30 32 33 31 20 30 0D Off (0/2 for backward compatible)

--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- ~XX70 1 7E 30 30 37 30 20 31 0D Language English ~XX70 2 7E 30 30 37 30 20 32 0D German ~XX70 3 7E 30 30 37 30 20 33 0D French ~XX70 4 7E 30 30 37 30 20 34 0D Italian ~XX70 5 7E 30 30 37 30 20 35 0D Spanish ~XX70 6 7E 30 30 37 30 20 36 0D Portuguese ~XX70 7 7E 30 30 37 30 20 37 0D Polish ~XX70 8 7E 30 30 37 30 20 38 0D Dutch ~XX70 9 7E 30 30 37 30 20 39 0D Swedish ~XX70 10 7E 30 30 37 30 20 31 30 0D Norwegian/Danish ~XX70 11 7E 30 30 37 30 20 31 31 0D Finnish ~XX70 12 7E 30 30 37 30 20 31 32 0D Greek ~XX70 13 7E 30 30 37 30 20 31 33 0D Traditional Chinese ~XX70 14 7E 30 30 37 30 20 31 34 0D Simplified Chinese ~XX70 15 7E 30 30 37 30 20 31 35 0D Japanese ~XX70 16 7E 30 30 37 30 20 31 36 0D Korean ~XX70 17 7E 30 30 37 30 20 31 37 0D Russian ~XX70 18 7E 30 30 37 30 20 31 38 0D Hungarian ~XX70 19 7E 30 30 37 30 20 31 39 0D Czechoslovak ~XX70 20 7E 30 30 37 30 20 32 30 0D Arabic ~XX70 21 7E 30 30 37 30 20 32 31 0D Thai ~XX70 22 7E 30 30 37 30 20 32 32 0D Turkish ~XX70 23 7E 30 30 37 30 20 32 33 0D Farsi ~XX70 25 7E 30 30 37 30 20 32 33 0D Vietn amese ~XX70 26 7E 30 30 37 30 20 32 33 0D Indonesian ~XX70 27 7E 30 30 37 30 20 32 33 0D Romanian

--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- ~XX71 1 7E 30 30 37 31 20 31 0D Projection Front-Desktop ~XX71 2 7E 30 30 37 31 20 32 0D Rear-Desktop ~XX71 3 7E 30 30 37 31 20 33 0D Front-Ceiling ~XX71 4 7E 30 30 37 31 20 34 0D Rear-Ceiling

--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- ~XX72 1 7E 30 30 37 32 20 31 0D Menu Location Top Left ~XX72 2 7E 30 30 37 32 20 32 0D Top Right ~XX72 3 7E 30 30 37 32 20 33 0D Centre ~XX72 4 7E 30 30 37 32 20 34 0D Bottom Left ~XX72 5 7E 30 30 37 32 20 35 0D Bottom Right

--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------~XX73 n 7E 30 30 37 33 20 a 0D Signal Frequency n = -5 (a=2D 35) ~ 5 (a=35) By signal ~XX91 n 7E 30 30 39 31 20 a 0D Automatic n = 0 disable; n = 1 enable ~XX74 n 7E 30 30 37 34 20 a 0D Phase n = 0 (a=30) ~ 31 (a=33 31) By signal ~XX75 n 7E 30 30 37 35 20 a 0D H. Position n = -5 (a=2D 35) ~ 5 (a=35) By timing ~XX76 n 7E 30 30 37 36 20 a 0D V. Position n = -5 (a=2D 35) ~ 5 (a=35) By timing

--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------~XX77 n 7E 30 30 37 37 20 aabbcc 0D Security Security Timer Month/Day/Hour n = mm/dd/hh mm= 00 (aa=30 30) ~ 12 (aa=31 32) dd = 00 (bb=30 30) ~ 30 (bb=33 30) hh= 00 (cc=30 30) ~ 24 (cc= 32 34) ~XX78 1 7E 30 30 37 38 20 31 0D Security Settings Enable ~XX78 0 ~nnnn 7E 30 30 37 38 20 32 20 a 0D Disable(0/2 for backward compatible) ~nnnn = ~0000 (a=7E 30 30 30 30) ~9999 (a=7E 39 39 39 39)

--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- ~XX79 n 7E 30 30 37 39 20 a 0D Projector ID n = 00 (a=30 30) ~ 99 (a=39 39)

--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- ~XX80 1 7E 30 30 38 30 20 31 0D Mute On ~XX80 0 7E 30 30 38 30 20 30 0D Off (0/2 for backward compatibl e) ~XX81 n 7E 30 30 38 31 20 a 0D Volume n = 0 (a=30) ~ 10 (a=31 30)

--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------~XX82 1 7E 30 30 38 32 20 31 0D Logo Default ~XX82 3 7E 30 30 38 32 20 32 0D Neutral ~XX88 0 7E 30 30 38 38 20 30 0D Closed Captioning Off ~XX88 1 7E 30 30 38 38 20 31 0D cc1 ~XX88 2 7E 30 30 38 38 20 32 0D cc2

-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- (WXGA only) ~XX90 1 7E 30 30 39 30 20 31 0D Screen type 16:9 ~XX90 2 7E 30 30 39 30 20 32 0D 16:10

---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

54

English

Appendices

--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------~XX100 1 7E 30 30 31 30 30 20 31 0D Source Lock On ~XX100 0 7E 30 30 31 30 30 20 30 0D Off (0/2 for backward compatible) ~XX101 1 7E 30 30 31 30 31 20 31 0D High Altitude On ~XX101 0 7E 30 30 31 30 31 20 30 0D Off (0/2 for backward compatible) ~XX102 1 7E 30 30 31 30 32 20 31 0D Information Hide On ~XX102 0 7E 30 30 31 30 32 20 30 0D Off (0/2 for backward compatible) ~XX195 0 7E 30 30 31 39 35 20 30 0D Test Pattern None ~XX195 1 7E 30 30 31 39 35 20 31 0D Grid ~XX195 2 7E 30 30 31 39 35 20 32 0D White Pattern

--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------~XX104 1 7E 30 30 31 30 34 20 31 0D Background Color Blue ~XX104 2 7E 30 30 3 1 30 34 20 32 0D Black ~XX104 3 7E 30 30 31 30 34 20 33 0D Red ~XX104 4 7E 30 30 31 30 34 20 34 0D Green ~XX104 5 7E 30 30 3 1 30 34 20 35 0D White ~XX105 1 7E 30 30 31 30 35 20 31 0D Advanced Direct Power On On ~XX105 0 7E 30 30 31 30 35 20 30 0D Off (0/2 for backward compatible) ~XX106 n 7E 30 30 31 30 36 20 a 0D Auto Power Off (min) n = 0 (a=30) ~ 180 (a=31 38 30) step:5 ~XX107 n 7E 30 30 31 30 37 20 a 0D Sleep Timer (min) n = 0 (a=30) ~ 995 (a=39 39 39) step:5 ~XX114 1 7E 30 30 31 31 34 20 31 0D Power Mode(Standby) Eco.(<=0.5W) ~XX114 0 7E 30 30 31 31 34 20 30 0D Active (0/2 for backward compatible) ~XX115 1 7E 30 30 31 31 35 20 31 0D Quick Resume On ~XX115 0 7E 30 30 31 31 35 20 30 0D Off (0/2 for backward compatible)

--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- ~XX109 1 7E 30 30 31 30 39 20 31 0D Lamp Reminder On ~XX109 0 7E 30 30 31 30 39 20 30 0D Off (0/2 for backward compatible) ~XX110 1 7E 30 30 31 31 30 20 31 0D Brightness Mode Bright ~XX110 0 7E 30 30 31 31 30 20 30 0D Eco (0/2 for backward compatible) ~XX110 2 7E 30 30 31 31 30 20 32 0D Eco+ ~XX111 1 7E 30 30 31 31 31 20 31 0D Lamp Reset Yes ~XX111 0 7E 30 30 31 31 31 20 30 0D No (0/2 for backward compatible)

--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- ~XX112 1 7E 30 30 31 31 32 20 31 0D Reset Yes

--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------~XX99 1 7E 30 30 39 39 20 31 0D RS232 Alert Reset Reset System Alert ~XX210 n 7E 30 30 32 30 30 20 n 0D Display message on the OSD n: 1-30 characters

---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

SEND to emulate Remote

-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------~XX140 10 7E 30 30 31 34 30 20 31 30 0D Up ~XX140 11 7E 30 30 31 34 30 20 31 31 0D Left ~XX140 12 7E 30 30 31 34 30 20 31 32 0D Enter (for projection MENU) ~XX140 13 7E 30 30 31 34 30 20 31 33 0D Right ~XX140 14 7E 30 30 31 34 30 20 31 34 0D Down ~XX140 15 7E 30 30 31 34 30 20 31 35 0D Keystone + ~XX140 16 7E 30 30 31 34 30 20 31 36 0D Keystone – ~XX140 17 7E 30 30 31 34 30 20 31 37 0D Volume – ~XX140 18 7E 30 30 31 34 30 20 31 38 0D Volume + ~XX140 19 7E 30 30 31 34 30 20 31 39 0D Brightness ~XX140 20 7E 30 30 31 34 30 20 32 30 0D Menu ~XX140 21 7E 30 30 31 34 30 20 32 31 0D Zoom

---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

SEND from projector automatica lly

---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

232 ASCII Code HEX Code Function Projector Return Description

-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- System status INFOn n : 0/1/2/3/4/6/7/8/9 = Standby/Warming/Cooling/Out of Range/ Lamp fail/Fan Lock/Over Temperature/Lamp Hours Running Out

---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

READ from projector

----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

232 ASCII Code HEX Code Function Projector Return Description

--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------~XX121 1 7E 30 30 31 32 31 20 31 0D Input Source Commands OKn n: 0/1/2/3/4 = None/VGA/S-Video/Video/HDMI ~XX122 1 7E 30 30 31 32 32 20 31 0D Sofware Version OKdddd dddd: FW version ~XX123 1 7E 30 30 31 32 33 20 31 0D Display Mode OKn n : 0/1/2/3/4/5/7/9 None/Presentation/Brigh t/Movie/sRGB/User/Blackbo ard/3D ~XX124 1 7E 30 30 31 32 34 20 31 0D Power State OKn n : 0/1 = Off/On ~XX125 1 7E 30 30 31 32 35 20 31 0D Brightness OKn ~XX126 1 7E 30 30 31 32 36 20 31 0D Contrast OKn ~XX127 1 7E 30 30 31 32 37 20 31 0D Aspect Ratio OKn n : 0/1/2/3 = 4:3/16:9/Native/AUTO (XGA) n: 0/1/2/3 = 4:3/16:9 or 16:10/Native/AUTO (WXGA) ~XX128 1 7E 30 30 31 32 38 20 31 0D Color Temperature OKn n : 0/1/2 = Warm/Medium/Cold ~XX129 1 7E 30 30 31 32 39 20 31 0D Projection Mode OKn n : 0/1/2/3 = Front-Desktop/Rear-Desktop/Front-Ceiling/Rear-Ceiling ~XX150 1 7E 30 30 31 35 30 20 31 0D Information OKabbbbccdddde a : 0/1 = Off/On bbbb: Lamp Hour cc: source n: 0/1/2/3/4 = None/VGA/S-Video/Video/HDMI dddd: FW version e : Display mode 0/1/2/3/4/5/7/9 None/Presentation/Bright/Movie/sRGB/User/Blackboard/3D ~XX151 1 7E 30 30 31 35 31 20 31 0D Model name OKn n:1/2/3 ~XX108 1 7E 30 30 31 30 38 20 31 0D Lamp Hours OKbbbb b bbb: Lamp Hour ~XX108 2 7E 30 30 31 30 38 20 31 0D Cumulative Lamp Hours OKbbbbb bbbbb: (5 digits) Total Lamp Hours

----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

55

English

Appendices

Please note that

82.30

110.00

55.00

118.65

286.31

192.00

77.75

167.66

63.00

97.00

84.00

87.50

42.40

damage resulting from incorrect installation will void the warranty.

Warning:

1. If you buy a ceiling mount from another company, please

be sure to use the

correct screw size. Screw size will vary

depending on the

thickness of the mounting plate.

2. Be sure to keep at least 10 cm gap between the ceiling and the bottom of the

projector.

3. Avoid installing the projector near a heat source.

Wall Mount Installation

1. To prevent damage to your projector, please use the Optoma ceiling mount.

2. If you wish to use a third party ceiling mount kit, please ensure the screws used to attach a mount to the projector

meet the following specifications:

Screw type: M3*3



Maximum screw length: 10mm



 Minimum screw length: 7.5mm

Lens

Unit: mm

56

English

Appendices

Optoma Global Ofces

For service or support please contact your local ofce.

USA

3178 Laurelview Ct. 888-289-6786 Fremont, CA 94538, USA 510-897-8601 www.optomausa.com [email protected]

Canada

3178 Laurelview Ct. 888-289-6786 Fremont, CA 94538, USA 510-897-8601 www.optomausa.com [email protected]

Latin America

3178 Laurelview Ct. 888-289-6786 Fremont, CA 94538, USA 510-897-8601 www.optomausa.com [email protected]

Europe

42 Caxton Way, The Watford Business Park

Watford, Hertfordshire, WD18 8QZ, UK +44 (0) 1923 691 800

www.optoma.eu +44 (0) 1923 691 888 Service Tel : +44 (0)1923 691865 [email protected]

Benelux BV

Randstad 22-123 +31 (0) 36 820 0253 1316 BW Almere +31 (0) 36 548 9052

The Netherlands

www.optoma.nl

France

Bâtiment E +33 1 41 46 12 20

81-83 avenue Edouard Vaillant +33 1 41 46 94 35 92100 Boulogne Billancourt, France [email protected]

Spain

C/ José Hierro,36 Of. 1C +34 91 499 06 06

28522 Rivas VaciaMadrid, +34 91 670 08 32 Spain

57

English

Appendices

Deutschland

Wiesenstrasse 21 W +49 (0) 211 506 6670 D40549 Düsseldorf, +49 (0) 211 506 66799 Germany [email protected]

Scandinavia

Lerpeveien 25 +47 32 98 89 90 3040 Drammen +47 32 98 89 99 Norway [email protected]

PO.BOX 9515

3038 Drammen Norway

Korea

WOOMI TECH.CO.,LTD.

4F,Minu Bldg.33-14, Kangnam-Ku, +82+2+34430004 seoul,135-815, KOREA +82+2+34430005

Japan

東京都足立区綾瀬3-25-18 株式会社オーエス [email protected] コンタクトセンター:0120-380-495 www.os-worldwide.com

Taiwan

12F., No.215, Sec. 3, Beixin Rd., +886-2-8911-8600 Xindian Dist., New Taipei City 231, +886-2-8911-6550 Taiwan, R.O.C. [email protected] www.optoma.com.tw asia.optoma.com

Hong Kong

Unit A, 27/F Dragon Centre,

79 Wing Hong Street, +852-2396-8968 Cheung Sha Wan, +852-2370-1222

Kowloon, Hong Kong www.optoma.com.hk

China

5F, No. 1205, Kaixuan Rd., +86-21-62947376 Changning District +86-21-62947375

Shanghai, 200052, China www.optoma.com.cn

58

English

Appendices

Regulation & Safety Notices

This appendix lists the general notices of your projector.

FCC notice

This device has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential

installation. This device generates, uses and can radiate radio

frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not

occur in a particular installation. If this device does cause

harmful interference to radio or television reception, which can be determined by turning the device off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the device and receiver.

• Connect the device into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/television

technician for help.

Notice: Shielded cables

All connections to other computing devices must be made using shielded cables to maintain compliance with

FCC regulations.

Caution

Changes or modications not expressly approved by the manufacturer could void the user’s authority, which is granted by the Federal Communications Commission, to

operate this projector.

59

English

Appendices

Operation conditions

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference and

2. This device must accept any interference received,

including interference that may cause undesired

operation.

Notice: Canadian users

This Class B digital apparatus complies with Canadian

ICES-003.

Remarque à l’intention des utilisateurs canadiens

Cet appareil numerique de la classe B est conforme a la norme

NMB-003 du Canada.

Declaration of Conformity for EU countries

• EMC Directive 2004/108/EC (including amendments)

• Low Voltage Directive 2006/95/EC

• R & TTE Directive 1999/5/EC (if product has RF function)

Disposal instructions

Do not throw this electronic device into the trash when discarding. To minimize pollution and ensure utmost protection of the global environment, please recycle it.

Optoma DW326E, DX326, H180X User Guide

Table of Contents

Usage Notice

Safety Information

Precautions

Eye Safety Warnings

Product Features

Introduction

Package Overview

Product Overview

Main Unit

Input/Output Connections

Remote Control

Installation

Connecting the Projector

Connect to Computer/Notebook

Connect to Video Sources

Powering the projector On / Off

Powering On the Projector

Powering off the projector

Warning Indicator

Adjusting the Projected Image

Adjusting the Projector’s Height

Adjusting the Projector’s Zoom / Focus

Adjusting Projection Image Size

User Controls

Remote Control

On-screen Display Menus

How to operate

Menu Tree


IMAGE | Advanced

DISPLAY

DISPLAY | 3D

SETUP

SETUP | Security

SETUP | Advanced

OPTIONS

Appendices

Troubleshooting

Replacing the lamp

Compatibility Modes

Computer Compatibility

Video Compatibility

3D input Compatibility

RS232 Commands and Protocol Function List

RS232 Pin Assignments

RS232 Protocol Function List

Wall Mount Installation

Regulation & Safety Notices
