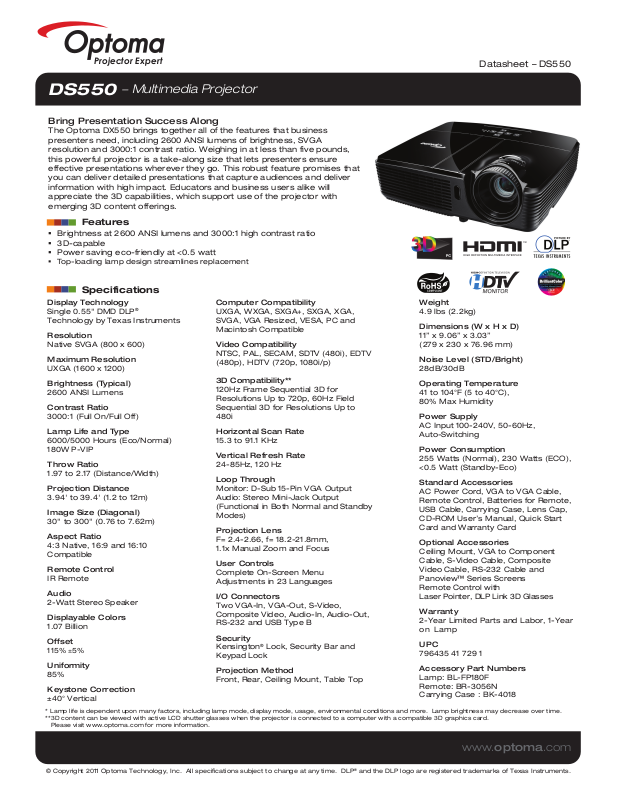

Datasheet – DS550

DS550

− Multimedia Projector

Bring Presentation Success Along

The Optoma DX550 brings together all of the features that business presenters need, including 2600 ANSI lumens of brightness, SVGA resolution and 3000:1 contrast ratio. Weighing in at less than five pounds, this powerful projector is a take-along size that lets presenters ensure effective presentations wherever they go. This robust feature promises that you can deliver detailed presentations that capture audiences and deliver information with high impact. Educators and business users alike will appreciate the 3D capabilities, which support use of the projector with emerging 3D content offerings.

Features

 Brightness at 2600 ANSI lumens and 3000:1 high contrast ratio  3D-capable  Power saving eco-friendly at <0.5 watt

 Top-loading lamp design streamlines replacement

Specifications

Display Technology

Single 0.55" DMD DLP Technology by Texas Instruments

Resolution

Native SVGA (800 x 600)

Maximum Resolution

UXGA (1600 x 1200)

Brightness (Typical)

2600 ANSI Lumens

Contrast Ratio

3000:1 (Full On/Full Off)

Lamp Life and Type

6000/5000 Hours (Eco/Normal) 180W P-VIP

Throw Ratio

1.97 to 2.17 (Distance/Width)

Projection Distance

3.94' to 39.4' (1.2 to 12m)

Image Size (Diagonal)

30" to 300" (0.76 to 7.62m)

Aspect Ratio

4:3 Native, 16:9 and 16:10 Compatible

Remote Control

IR Remote

Audio

2-Watt Stereo Speaker

Displayable Colors

1.07 Billion

Offset

115% ±5%

Uniformity

85%

Keystone Correction

±40° Vertical

* Lamp life is dependent upon many factors, including lamp mode, display mode, usage, environmental conditions and more. Lamp brightness may decrease over time. **3D content can be viewed with active LCD shutter glasses when the projector is connected to a computer with a compatible 3D graphics card.

Please visit www.optoma.com for more information.

Computer Compatibility

UXGA, WXGA, SXGA+, SXGA, XGA, SVGA, VGA Resized, VESA, PC and Macintosh Compatible

Video Compatibility

NTSC, PAL, SECAM, SDTV (480i), EDTV (480p), HDTV (720p, 1080i/p)

3D Compatibility**

120Hz Frame Sequential 3D for Resolutions Up to 720p, 60Hz Field Sequential 3D for Resolutions Up to 480i

Horizontal Scan Rate

15.3 to 91.1 KHz

Vertical Refresh Rate

24-85Hz, 120 Hz

Loop Through

Monitor: D-Sub 15-Pin VGA Output Audio: Stereo Mini-Jack Output (Functional in Both Normal and Standby Modes)

Projection Lens

F= 2.4-2.66, f= 18.2-21.8mm,

1.1x Manual Zoom and Focus

User Controls

Complete On-Screen Menu Adjustments in 23 Languages

I/O Connectors

Two VGA-In, VGA-Out, S-Video, Composite Video, Audio-In, Audio-Out, RS-232 and USB Type B

Security

Kensington Keypad Lock

Projection Method

Front, Rear, Ceiling Mount, Table Top

Lock, Security Bar and

Weight

4.9 lbs (2.2kg)

Dimensions (W x H x D)

11” x 9.06” x 3.03” (279 x 230 x 76.96 mm)

Noise Level (STD/Bright)

28dB/30dB

Operating Temperature

41 to 104°F (5 to 40°C), 80% Max Humidity

Power Supply

AC Input 100-240V, 50-60Hz, Auto-Switching

Power Consumption

255 Watts (Normal), 230 Watts (ECO), <0.5 Watt (Standby-Eco)

Standard Accessories

AC Power Cord, VGA to VGA Cable, Remote Control, Batteries for Remote, USB Cable, Carrying Case, Lens Cap, CD-ROM User’s Manual, Quick Start Card and Warranty Card

Optional Accessories

Ceiling Mount, VGA to Component Cable, S-Video Cable, Composite Video Cable, RS-232 Cable and Panoview™ Series Screens Remote Control with Laser Pointer, DLP Link 3D Glasses

Warranty

2-Year Limited Parts and Labor, 1-Year on Lamp

UPC

796435 41 729 1

Accessory Part Numbers

Lamp: BL-FP180F Remote: BR-3056N Carrying Case : BK-4018
