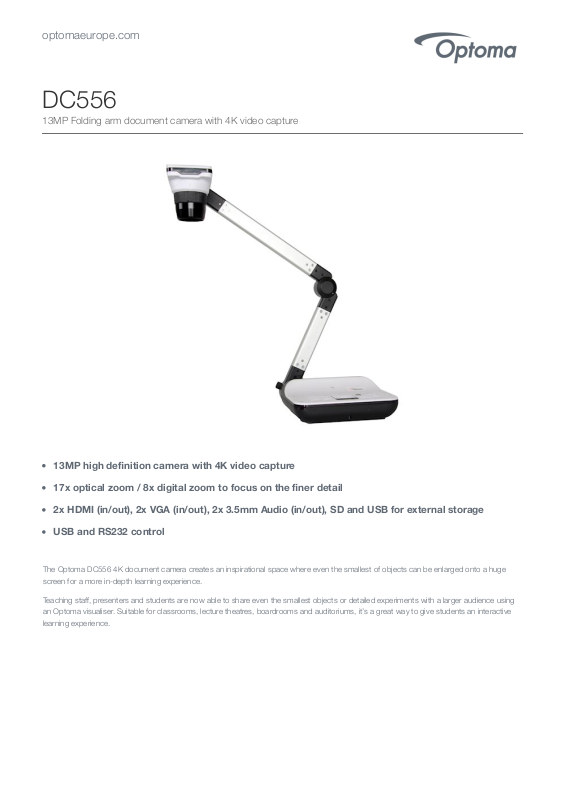

DC556

13MP Folding arm document camera with 4K video capture

13MP high deﬁnition camera with 4K video capture

17x optical zoom / 8x digital zoom to focus on the ﬁner detail

2x HDMI (in/out), 2x VGA (in/out), 2x 3.5mm Audio (in/out), SD and USB for external storage

USB and RS232 control

The Optoma DC556 4K document camera creates an inspirational space where even the smallest of objects can be enlarged onto a huge screen for a more in-depth learning experience.

Teaching staﬀ, presenters and students are now able to share even the smallest objects or detailed experiments with a larger audience using an Optoma visualiser. Suitable for classrooms, lecture theatres, boardrooms and auditoriums, it’s a great way to give students an interactive learning experience.

Speciﬁcations

Camera

Sensor

13M pixels

General

Frame rate

Up to 30fps

Shooting area

A3 landscape (297 x 420 mm) (11.7 x 16.5 ins)

Output resolution

3840 x 2160

Focus

Auto/Manual

Image capture

Yes

Video recording

Yes

Light source

3 Stage LED

Security

Kensington Lock

USB2

Yes

Power

Power supply

DC 5V, 100-240V, 50-60Hz

Weight and Dimensions

Net weight

2.48kg

Dimensions (W x D x H) mm

180 x 540 x 400

In the box

Power cord (UK/EU), Power Adapter, HDMI Cable, VGA Cable, USB/2 Cable, Microscope Adapters (Ø28mm ,Ø31mm, Ø33mm, and Ø34mm eyepieces), Remote Control, CD User Manual/Software

Connections

Inputs

1 x HDMI, 1 x VGA, 1 x Audio 3.5mm

Outputs

1 x HDMI, 1 x VGA, 1 x USB-A, 1 x USB-B, 1 x

Audio 3.5mm, 1 x SD card

Control

1 x RS232

herein are for identiﬁcation purposes only and may be trademarks or registered trademarks of their respective owners.Errors and omissions excepted, all speciﬁcations are subject to change without notice.All

images are for representation purposes only and may be simulated. 28102020031650
