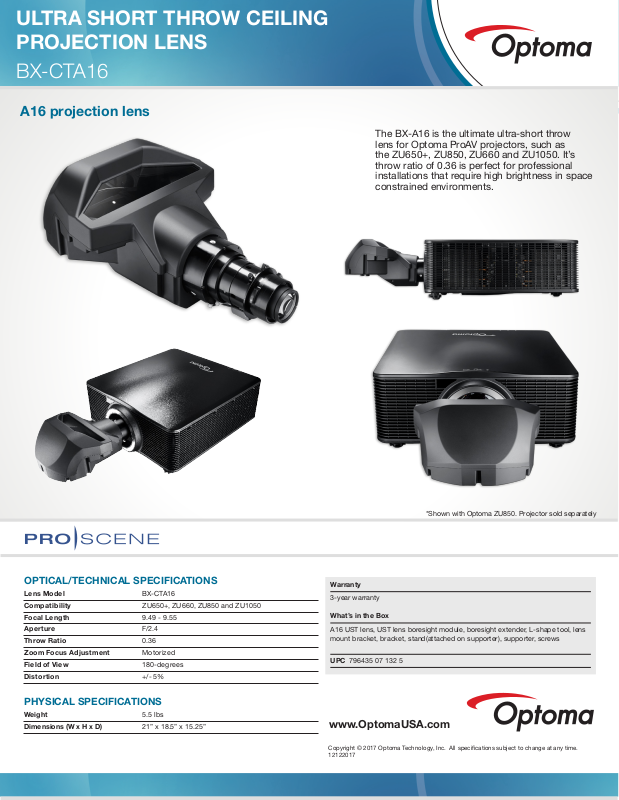

Optoma BX-CTA16 Datasheet

ULTRA SHORT THROW CEILING PROJECTION LENS

BX-CTA16

A16 projection lens

The BX-A16 is the ultimate ultra-short throw lens for Optoma ProAV projectors, such as the ZU650+, ZU850, ZU660 and ZU1050. It’s throw ratio of 0.36 is perfect for professional installations that require high brightness in space constrained environments.

OPTICAL/TECHNICAL SPECIFICATIONS

Lens Model BX - CTA16

Compatibility ZU650+, ZU660, ZU850 and ZU1050

Focal Length 9.49 - 9.55

Aperture F/2.4

Throw Ratio 0.36

Zoom Foc us Adjust ment Motorized

Field of View 180-degrees

Distortion +/- 5%

PHYSICAL SPECIFICATIONS

Weight 5.5 lbs

Dimensions (W x H x D) 21” x 18.5” x 15.25”

*Shown with Optoma ZU850. Projector sold separately

Warranty

3-year warranty

What’s in the Box

A16 UST lens, UST lens boresight module, boresight extender, L-shape tool, lens mount bracket, bracket, stand(attached on supporter), supporter, screws

UPC 796435 07 132 5

www.OptomaUSA.com
