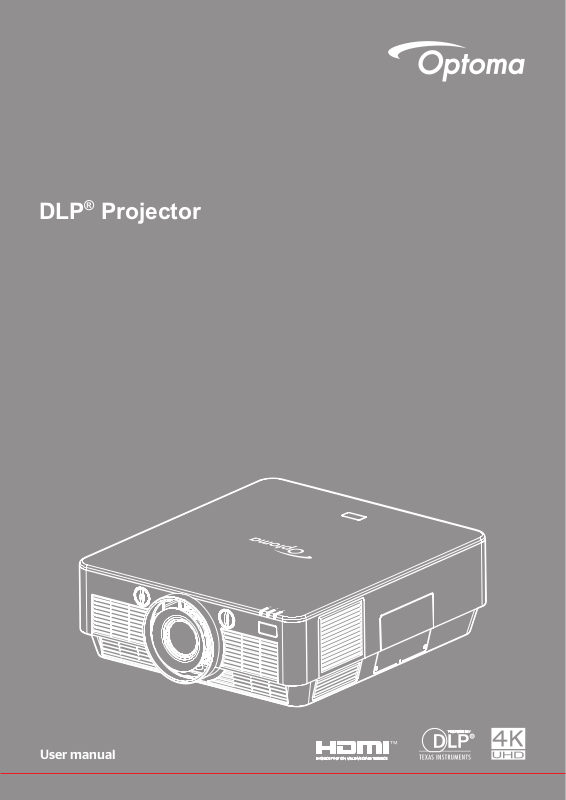

Optoma 4K500 User Manual

DLP® Projector
User manual
TABLE OF CONTENTS
SAFETY ............................................................................................... 4
INTRODUCTION .................................................................................. 8
Connections.............................................................................................................................. 10
Keypad ..................................................................................................................................... 11
LED status indicators................................................................................................................ 11
Remote control ......................................................................................................................... 12
SETUP AND INSTALLATION ............................................................. 14
Installing the projector .............................................................................................................. 14
Connecting sources to the projector ......................................................................................... 15
Adjusting the projector image ................................................................................................... 16
Remote setup ........................................................................................................................... 17
USING THE PROJECTOR .................................................................. 19
Powering on / off the projector.................................................................................................. 19
Selecting an input source ......................................................................................................... 20
Menu navigation and features .................................................................................................. 21
OSD Menu tree......................................................................................................................... 22
Display image settings menu.................................................................................................... 30
Display aspect ratio menu ........................................................................................................ 32
Display edge mask menu ......................................................................................................... 33
Display digital zoom menu........................................................................................................ 33
Display image shift menu ......................................................................................................... 33
Setup projection menu.............................................................................................................. 34
Setup lamp settings menu ........................................................................................................ 34
Setup lter settings menu ......................................................................................................... 34
Setup lens function menu ......................................................................................................... 34
Setup power settings menu ...................................................................................................... 35
Setup security menu ................................................................................................................. 35
Setup test pattern menu ........................................................................................................... 35
Setup remote settings menu..................................................................................................... 35
2
English
Setup projector ID menu........................................................................................................... 36
Setup 12V trigger menu............................................................................................................ 36
Setup options menu.................................................................................................................. 36
Setup reset menu ..................................................................................................................... 37
Network LAN menu .................................................................................................................. 37
Network control menu............................................................................................................... 38
Setup network control settings menu ....................................................................................... 39
Info menu.................................................................................................................................. 44
MAINTENANCE .................................................................................. 45
Replacing the lamp ................................................................................................................... 45
Installing and cleaning the dust lter ........................................................................................ 47
ADDITIONAL INFORMATION ............................................................ 48
Compatible resolutions ............................................................................................................. 48
Image size and projection distance .......................................................................................... 49
Projector dimensions and ceiling mount installation ................................................................. 51
IR remote control codes ........................................................................................................... 52
Troubleshooting ........................................................................................................................ 54
Warning indicators .................................................................................................................... 55
Specications ........................................................................................................................... 58
Optoma global ofces ............................................................................................................... 59
English
3

SAFETY

The lightning ash with arrow head within an equilateral triangle is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufcient magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.
Please follow all warnings, precautions and maintenance as recommended in this user's guide.

Important Safety Instruction

Do not block any ventilation openings. To ensure reliable operation of the projector and to protect from
over heating, it is recommended to install the projector in a location that does not block ventilation. As an example, do not place the projector on a crowded coffee table, sofa, bed, etc. Do not put the projector in an enclosure such as a book case or a cabinet that restricts air ow.
To reduce the risk of re and/or electric shock, do not expose the projector to rain or moisture. Do not
install near heat sources such as radiators, heaters, stoves or any other apparatus such as ampliers that emits heat.
Do not let objects or liquids enter the projector. They may touch dangerous voltage points and short
out parts that could result in re or electric shock.
Do not use under the following conditions:
± In extremely hot, cold or humid environments.
(i) Ensure that the ambient room temperature is within 5°C ~ 40°C
(ii) Relative humidity is 10% ~ 85%
± In areas susceptible to excessive dust and dirt.
± Near any appliance generating a strong magnetic eld.
± In direct sunlight.
Do not use the projector in places where ammable gases or explosives gases may be present in the
atmosphere. The lamp inside the projector becomes very hot during operation and the gases may ignite and result in a re.
Do not use the unit if it has been physically damaged or abused. Physical damage/abuse would be
(but not limited to):
± Unit has been dropped.
± Power supply cord or plug has been damaged.
± Liquid has been spilled on to the projector.
± Projector has been exposed to rain or moisture.
4
± Something has fallen in the projector or something is loose inside.
Do not place the projector on an unstable surface. The projector may fall over resulting in injury or the
projector may become damaged.
Do not block the light coming out of the projector lens when in operation. The light will heat the object
and my melt, cause burns or start a re.
Please do not open or disassemble the projector as this may cause electric shock.
Do not attempt to service the unit yourself. Opening or removing covers may expose you to dangerous
voltages or other hazards. Please call Optoma before you send the unit for repair.
See projector enclosure for safety related markings.
The unit should only be repaired by appropriate service personnel.
English
Only use attachments/accessories specied by the manufacturer.
Do not look into straight into the projector lens during operation. The bright light may harm your eyes.
When replacing the lamp, please allow the unit to cool down. Follow instructions as described on
pages 45-46.
This projector will detect the life of the lamp itself. Please be sure to change the lamp when it shows
warning messages.
Reset the "Lamp Reset" function from the on-screen display "Setup lamp settings" menu after
replacing the lamp module.
When switching the projector off, please ensure the cooling cycle has been completed before
disconnecting power. Allow 90 seconds for the projector to cool down.
When the lamp is approaching to the end of its life time, the message "Lamp life exceeded." will show
on the screen. Please contact your local reseller or service center to change the lamp as soon as possible.
Turn off and unplug the power plug from the AC outlet before cleaning the product.
Use a soft dry cloth with mild detergent to clean the display housing. Do not use abrasive cleaners,
waxes or solvents to clean the unit.
Disconnect the power plug from AC outlet if the product is not being used for a long period of time.
Note: When the lamp reaches the end of its life, the projector will not turn back on until the lamp module has been
replaced. To replace the lamp, follow the procedures listed under “Replacing the Lamp” section on pages 45-46.
Do not setup the projector in places where it might be subjected to vibration or shock.
Do not touch the lens with bare hands
Remove battery/batteries from remote control before storage. If the battery/batteries are left in the
remote for long periods, they may leak.
Do not use or store the projector in places where smoke from oil or cigarettes may be present, as it
can adversely affect the quality of the projector performance.
Please follow the correct projector orientation installation as non standard installation may affect the
projector performance.
Use a power strip and or surge protector. As power outages and brown-outs can KILL devices.

Copyright

This publication, including all photographs, illustrations and software, is protected under international copyright laws, with all rights reserved. Neither this manual, nor any of the material contained herein, may be reproduced without written consent of the author.
© Copyright 2017

Disclaimer

The information in this document is subject to change without notice. The manufacturer makes no representations or warranties with respect to the contents hereof and specically disclaims any implied warranties of merchantability or tness for any particular purpose. The manufacturer reserves the right to revise this publication and to make changes from time to time in the content hereof without obligation of the manufacturer to notify any person of such revision or changes.
English
5

Trademark Recognition

Kensington is a U.S. registered trademark of ACCO Brand Corporation with issued registrations and pending applications in other countries throughout the world.
HDMI, the HDMI Logo, and High-Denition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.
DLP®, DLP Link and the DLP logo are registered trademarks of Texas Instruments and BrilliantColorTM is a
trademark of Texas Instruments.
All other product names used in this manual are the properties of their respective owners and are Acknowledged.
DARBEE is a trademark by Darbee Products, Inc.
MHL, Mobile High-Denition Link and the MHL Logo are trademarks or registered trademarks of MHL Licensing, LLC.
FCC
This device has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This device generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this device does cause harmful interference to radio or television reception, which can be determined by turning the device off and on is encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the device and receiver.
Connect the device into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/television technician for help.
Notice: Shielded cables
All connections to other computing devices must be made using shielded cables to maintain compliance with FCC regulations.
Caution
Changes or modications not expressly approved by the manufacturer could void the user's authority, which is granted by the Federal Communications Commission, to operate this projector.
Operation Conditions
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
1. This device may not cause harmful interference and
2. This device must accept any interference received, including interference that may cause undesired operation.
Notice: Canadian users
This Class B digital apparatus complies with Canadian ICES-003.
Remarque à l'intention des utilisateurs canadiens
Cet appareil numerique de la classe B est conforme a la norme NMB-003 du Canada.
English
6

Declaration of Conformity for EU countries

EMC Directive 2014/30/EC (including amendments)
Low Voltage Directive 2014/35/EC
R & TTE Directive 1999/5/EC (if product has RF function)

WEEE

Disposal instructions
Do not throw this electronic device into the trash when discarding. To minimize pollution and ensure utmost protection of the global environment, please recycle it.
English
7

INTRODUCTION

Package overview

Carefully unpack and verify that you have the items listed below under standard accessories. Some of the items under optional accessories may not be available depending on the model, specication and your region of purchase. Please check with your place of purchase. Some accessories may vary from region to region.
The warranty card is only supplied in some specic regions. Please consult your dealer for detailed information.

Standard accessories

On
Off
Geometric
Correction PIP/PBP
F1 F2
AV Mute
Mode
ENTER
Info.
Source
Volume D Zoom
Menu
FormatFreeze Remote
VGA1S-Video2HDMI13HDMI2
HDBaseT4Video5DVI
BNC7YPbPr8DisplayPort93D
Re-Sync
F3
ID All
HDMI3
6
0
CD User Manual

Warranty Card*(1)

Basic User Manual

Projector Power lead *(2)
Note:
The remote control is shipped with the battery.
*(1) For European warranty information please visit www.optomaeurope.com.
*(2) Power lead is depending on the region.

Optional accessories

VGA cable
Remote control
Documentation
Note: Optional accessories vary depending on model, specication and region.
English
8
INTRODUCTION

Product overview

12
1
2
5
3
4
6
11
8910 7
Note: Keep a minimum distance of 20 cm between the "inlet" and "outlet" labels.
No Item No Item
1. Lens 7. Keypad
IR Receiver
2.
Kensington
8.
TM
Lock Port
3. Lamp Cover 9. Security Bar
4. Tilt-Adjustment Feet 10. Power Socket
5. LED Status Indicators 11. Ventilation (outlet)
6. Ventilation (inlet) 12. Input / Output
English
9
INTRODUCTION

Connections

101 2 3 4 5 6 7 8 9
USB Power
Out(5V-1.5A)
Service
HDMI 1 HDMI 2
RS-232
12V OutA12V Out
B
(HDCP2.2)
HDMI 3 HDMI Out
VGA/YPbPr
DisplayPort
No Item No Item
1. USB Power Out (5V 1.5A)/Service
8. VGA/YPbPr Connector
Connector
2. RS-232 Connector 9. RJ-45 Connector
3. 12V Out A Connector 10. Wired Remote Connector
4. 12V Out B Connector 11. Power Socket
5. HDMI 1 Connector 12. HDMI Out Connector
6. HDMI 2 (HDCP2.2) Connector(*) 13. HDMI 3 Connector
7. DisplayPort
RJ-45
Wired Remote
111213
Note:
Remote mouse requires special remote control.
This model supports mouse / service capability.
(*)Only HDMI 2 (HDCP2.2) connector supports 4K (Ultra HD) at 60Hz refresh rate.
10
English
INTRODUCTION

Keypad

LED status indicators

1 2
3 4
5
6
9
8
7
101112
No Item No Item
1. Power 7. Information
2.
Re-Sync
Four Directional Select Keys
8.
3. Enter 9. Menu
4. Source 10. On/Standby LED
5. Zoom 11. Temp LED
6. Focus 12. Lamp LED
English
11
INTRODUCTION
On
Geometric
Mode
Correction PIP/PBP
Off
F1 F2
AV Mute
ENTER
Source
Volume D Zoom
Info.
F3
VGA1S-Video2HDMI13HDMI2
HDMI3
Format Freeze Remote
ID All
HDBaseT4Video5DVI
6
BNC7YPbPr8DisplayPort93D
0
Re-Sync
Menu

Remote control

1
2
3
4
17
18
19
20
5
21
6
22
23
7
8
9
24
25
10
11
12
13
14
15
16
26
27
28
29
30
31
32
3334
12
English
INTRODUCTION
No Item No Item
1. Power on 18. PIP/PBP
Geometric Correction 19. Function button (F2) (Assignable)
2.
3. Function button (F1) (Assignable) 20. AV mute
4. Mode 21. Enter
5. Four directional select keys 22. Laser
6. Information 23. Function button (F3) (Assignable)
7. Source 24. Re-sync
8. Menu 25. D (Digital) Zoom
9. Volume - / + 26. Remote ID / Remote all
10. Freeze 27. HDMI2
11. Format (Aspect Ratio) 28. HDMI1
12. VGA 29. HDMI3
13. S-Video 30. DVI
14. HDBaseT 31. 3D
15. BNC 32. DisplayPort
16. YPbPr 33. Numeric keypad (0-9)
17. Power off 34. Video
Note:
Some keys may have no function for models that do not support these features.
English
13

SETUP AND INSTALLATION

Installing the projector

Your projector is designed to be installed in one of four possible positions.
Your room layout or personal preference will dictate which installation location you select. Take into consideration the size and position of your screen, the location of a suitable power outlet, as well as the location and distance between the projector and the rest of your equipment.
Table mount front Ceiling mount front
Table mount rear Ceiling mount rear
Projector should be placed at on a surface and 90 degrees / perpendicular to the screen.
How to determine projector location for a given screen size, please refer to distance table on page
49.
How to determine screen size for a given distance, please refer to distance table on pages 49.
Note: The further away the projector is placed from the screen the projected image size increases and vertical
offset also increases proportionally.
IMPORTANT!
Do not operate the projector in any orientation other that table top or ceiling mount. The projector should be horizontal and not tilted either forwards/backwards or left/right. Any other orientation will invalidate the warranty and may shorten the lifetime of the projector lamp or the projector itself. For non-standard installation advise please contact Optoma.
14
English
SETUP AND INSTALLATION

Connecting sources to the projector

5
4
3
6
1
2
7
HDMI 1HDMI 2
(HDCP2.2)
RS-232
USB Power
Out(5V-1.5A)
MOLEX
12V OutA12V Out
Service
B
DisplayPort
HDMI 3HDMI Out
RJ-45
VGA/YPbPr
Wired Remote
13
MOLEX
10
12
11
89
No Item No Item
1. USB Power Cable 8. Power Cord
HDMI Stick 9. HDMI Cable
2.
3. DisplayPort Cable 10. HDMI Cable(*)
4. VGA In Cable 11. 12V DC Jack
5. RCA Component Cable 12. RS232 Cable
6. RJ-45 Cable 13. USB Cable
7. Wired Remote Control Cable
Note: (*)The HDMI 2 (HDCP2.2) connector supports 4K (Ultra HD) at 60Hz refresh rate.
English
15
SETUP AND INSTALLATION

Adjusting the projector image

Image height
The projector is equipped with elevator feet for adjusting the image height.
1. Locate the adjustable foot you wish to adjust on the underside of the projector.
2. Rotate the adjustable foot clockwise or counterclockwise to raise or lower the projector.
Zoom and focus
Use the Zoom button to resize the projected image and screen size.
Use the Focus button to sharpen the projected image.
Tilt-Adjustment Feet
Tilt-Adjustment Ring
1
2
1
2
16
English
SETUP AND INSTALLATION

Remote setup

Installing / replacing the batteries
Two AAA size batteries are supplied for the remote control.
1. Remove the battery cover on the back of the remote control.
2. Insert AAA batteries in the battery compartment as illustrated.
3. Replace back cover on remote control.
Note: Replace only with the same or equivalent type batteries.
CAUTION
Improper use of batteries can result in chemical leakage or explosion. Be sure to follow the instructions below.
Do not mix batteries of different types. Different types of batteries have different characteristics.
Do not mix old and new batteries. Mixing old and new batteries can shorten the life of new batteries or
cause chemical leakage in old batteries.
Remove batteries as soon as they are depleted. Chemicals that leak from batteries that come in
contact with skin can cause a rash. If you nd any chemical leakage, wipe thoroughly with a cloth.
The batteries supplied with this product may have a shorter life expectancy due to storage conditions.
If you will not be using the remote control for an extended period of time, remove the batteries.
When you dispose of the batteries, you must obey the law in the relative area or country.
Effective range
Infra-Red (IR) remote control sensor is located on the top side and on the front side of the projector. Ensure to hold the remote control at an angle within 30 degrees perpendicular to the projector's front IR remote control sensor and 20 degrees perpendicular to the projector's top IR remote control sensor to function correctly. The distance between the remote control and the sensor should not be longer than 7 meters (~ 23 feet).
Make sure that there are no obstacles between the remote control and the IR sensor on the projector
that might obstruct the infra-red beam.
Make sure the IR transmitter of the remote control is not being shined by sunlight or uorescent lamps
directly.
Please keep the remote controller away from uorescent lamps for over 2 meters or the remote
controller might become malfunction.
If the remote control is closed to Inverter-Type uorescent lamps, it might become ineffective from time
to time.
If the remote control and the projector are within a very short distance, the remote control might
become ineffective.
When you aim at the screen, the effective distance is less than 10 m from the remote control to the
screen and reecting the IR beams back to the projector. However, the effective range might change according to screens.
English
17
SETUP AND INSTALLATION
0
BNC7YPbPr8DisplayPort93D
6
HDMI3
HDBaseT4Video5DVI
VGA1S-Video2HDMI13HDMI2
ID All
FormatFreeze Remote
Menu
Volume D Zoom
F3
Source
Re-Sync
Info.
ENTER
AV Mute
Mode
F1 F2
Correction PIP/PBP
Geometric
Off
On
Approx. 15°
Volume D Zoom
Format
Menu
Freeze
VGA
1
HDBaseT
S-Video
Remote
4
2
ID
BNC
Video
HDMI1
7
5
3
All
YPbPr
HDMI2
DVI
8
6
DisplayPort
HDMI3
9
3D
0
Approx.
On
Geometric
Correction PIP/PBP
Off
Mode
F1 F2
AV Mute
ENTER
Info.
Source
F3
Re-Sync
15°
Wired Remote Control
Your projector supports also wired remote control connection. Wired remote control helps you to work outside of the operating range (7m/ ~23 feet). Connect the remote control to the projector with the remote control cable (not supplied). The remote control cable maximum length depends on the wired cable quality as follows:
5.0V≥VIH≥2.0V (High-level input voltage)
0.6V≥VIL≥0V (Low-level input voltage)
Note: If the remote control is connected to the projector using a cable, then the remote control does not emit
wireless signal.
English
18
Loading...
+ 42 hidden pages
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
