Optoma 4K500 Product Sheet

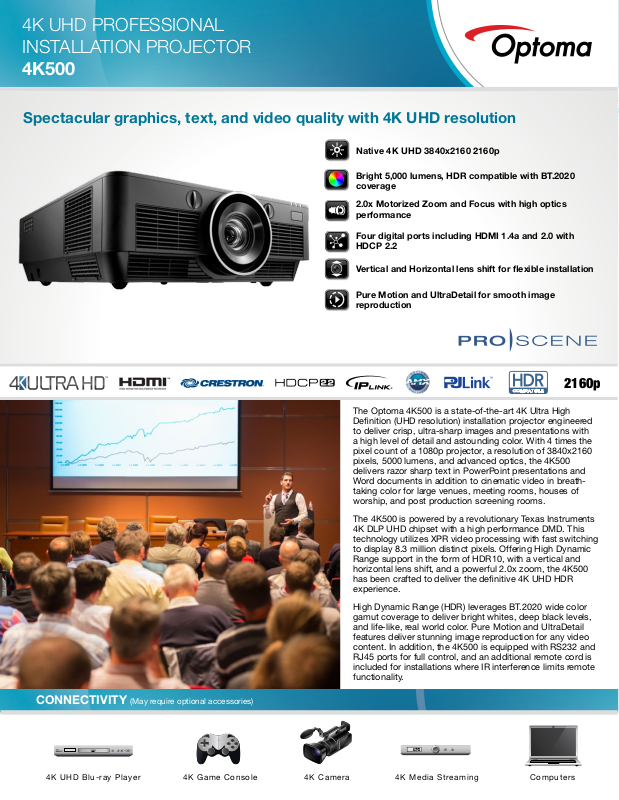

4K UHD PROFESSIONAL

INSTALLATION PROJECTOR 4K500

Spectacular graphics, text, and video quality with 4K UHD resolution

Native 4K UHD 3840x2160 2160p

Bright 5,000 lumens, HDR compatible with BT.2020 coverage

2.0x Motorized Zoom and Focus with high optics performance

Four digital ports including HDMI 1.4a and 2.0 with HDCP 2.2

Vertical and Horizontal lens shift for ﬂexible installation

Pure Motion and UltraDetail for smooth image reproduction

2160p

The Optoma 4K500 is a state-of-the-art 4K Ultra High Denition (UHD resolution) installation projector engineered to deliver crisp, ultra-sharp images and presentations with a high level of detail and astounding color. With 4 times the pixel count of a 1080p projector, a resolution of 3840x2160 pixels, 5000 lumens, and advanced optics, the 4K500 delivers razor sharp text in PowerPoint presentations and Word documents in addition to cinematic video in breathtaking color for large venues, meeting rooms, houses of worship, and post production screening rooms.

The 4K500 is powered by a revolutionary Texas Instruments 4K DLP UHD chipset with a high performance DMD. This technology utilizes XPR video processing with fast switching to display 8.3 million distinct pixels. Offering High Dynamic Range support in the form of HDR10, with a vertical and horizontal lens shift, and a powerful 2.0x zoom, the 4K500 has been crafted to deliver the denitive 4K UHD HDR experience.

High Dynamic Range (HDR) leverages BT.2020 wide color gamut coverage to deliver bright whites, deep black levels, and life-like, real world color. Pure Motion and UltraDetail features deliver stunning image reproduction for any video content. In addition, the 4K500 is equipped with RS232 and RJ45 ports for full control, and an additional remote cord is included for installations where IR interference limits remote functionality.

CONNECTIVITY (May require optional accessories)

4K Camera 4K Media Streaming

Computers4K UHD Blu-ray Player 4K Game Console

4K UHD PROFESSIONAL INSTALLATION PROJECTOR - 4K500

OPTICAL/TECHNICAL SPECIFICATIONS

Display Technology “Single 0.66” TRP S610 4K UHD DMD DLP® Technology by

Native Resolution 4K UHD 3840x2160 @ 60Hz with XPR Technology

Maximum Resolution 4K 4096x2160 @ 60Hz with XPR Technology

Brightness 5000

Contrast Ratio 5000:1

REC.709 Color Gamut REC.709 color gamut provides rich accurate (non-HDR content) color based on the HDTV Broadcast

Specication. REC.709 will be used with all non-HDR content.

HDR (High Dynamic Range) HDR Compatible (decode HDR10 metadata) / 4 Picture Modes

REC.2020 HDR color gamuts REC.2020 will be used anytime the source

content contains HDR metadata.

HDR Compatibility HDR Source: 4K UHD Blu-Ray Player (such as the Samsung UBD-K8500 Ultra or Oppo UDP-203), 4K UHD Streaming Media Device (such as the Roku 4K Ultra), Xbox One S (4K UHD Blu-ray, 4K Media Streaming, & Games), or PS4 Pro (4K Media Streaming and Games only) HDR Content: HDR 4K UHD Blu-ray Disc, HDR Xbox One S Game, HDR PS4 Pro Game, or 4K HDR Media Streaming Service such as Amazon 4K UHD HDR Video, Netix 4K UHD HDR Video, or Hulu 4K UHD HDR Video

SDR to HDR (HDR Emulation, HDR Effects for non-HDR Content / 4 Effects apply HDR to non-HDR content)

UltraDetail Enhances image quality by improving image depth and clarity.

3 levels to choose from.

Color Depth 3840x2160 @30Hz YUV 4:4:4 (8bit, 10bit, 12bit), YUV 4:2:2 (8bit, 10bit, 12bit), YUV 4:2:0 (8bit, 10bit, 12bit) 3840x2160 @60Hz YUV 4:4:4 (8bit), YUV 4:2:2 (8bit), YUV 4:2:0 (8bit, 10bit, 12bit)

Lamp Life and Type* 2000/3000 (Bright/ECO)

Projection Method Front, rear, ceiling mount, table top

Horizontal Lens Shift 35% offset (with tolerance +/- 5%)

Vertical Lens Shift 80% offset (with tolerance +/- 5%)

Uniformity 85%

Aspect Ratio 16:9 (native), 4:3, Auto, LBX (2160p and 1080p)

Throw Ratio 1.35 - 2.63 (with tolerance +/- 5%)

Image Size 84” - 300”

Projection Distance 8.2ft - 30ft

Projection Lens F/2.5 - 2.67; F=19.975 - 39.811mm with Iris

Optical Zoom 2.0x

Digital Zoom 0.95x - 1.25x

Noise Level 32/35 dB (ECO/Bright) normal

Remote Control IR Full Size Full Function Backlit Remote Control and Wired

Remote

Operating Temperature 41–104°F (5–40°C), 85% max humidity

Power Supply AC input 100–240V, 50–60Hz, auto-switching

Power Consumption 600W Typical (Bright mode), 660W Max (Bright mode), 480W

Typical (Eco+ mode), 528W Max (Eco+ mode)

High Altitude Operating Temp @ Sea Level to 10000 feet = 23C (max); must manually switch to high altitude mode @ 5000 feet & above (using OSD)

Texas Instruments™

COMPATIBILITY SPECIFICATIONS

Computer Compatibility UHD 2160p, WUXGA, HDTV 1080p, UXGA, SXGA, WXGA+,

Video Compatibility UHD 2160p (24/50/60Hz), 1080p (24/50/60Hz), 1080i

(50/60Hz), 720p (50/60Hz), 480i/p, 576i/p

Vertical Scan Rate 24Hz to 120Hz

Horizontal Scan Rate 31.0 to 135.0KHz

User Controls Complete on-screen menu adjustment in 10 languages

I/O Connection Ports 2xHDMI 1.4a, 1xHDMI 2.0 (w/ HDCP 2.2 and Full 18Gbps),

HDMI-Out, Display Port, VGA-In, USB-A Power, RJ45, Remote In (3.5mm), RS232C, 2x 12V Trigger, Jack 3.5mm

WXGA (1366x768), WXGA, HDTV (720p), XGA, SVGA, VGA, PC and Mac compatible

PHYSICAL SPECIFICATIONS

Security Kensington® lock port, password (OSD)

Weight 36 lbs

Dimensions (W x H x D) 19.5” x 7.5” x 22.5” (with feet)

1 5 6

3 4

1. USB (Power)

2. RS-232C

3. 12V Out

4. HDMI 1

5. HDMI 2 (HDCP 2.2)

6. Display Port

19.5"

7. VGA (YPbPr)

8. RJ-45

9. HDMI 3

10. HDMI Out

11. Wired Remote

12. Power

22.5"

7.5 "

Power On

F1: Zoom

Display Mode

Enter

Information

Input source selection

Volume Control -/+

Remote Cable Port

*Buttons without description are not applicable to this model.

Freeze

Format

VGA

Power Off

F2: Focus

AV Mute Four Directional

Select Keys

Laser F3: Lens Iris Re-Sync

Digital Z oom -/+

Remote ID / Remote all HDMI1 HDMI2

HDMI3 Display Port

Warranty

3 Year Optoma Express Warranty/1Year Lamp

What’s in the Box (Standard Accessories)

4K500, lens cap, AC power cord, IR wireless remote control, remote cord (wired option), batteries for remote, multilingual CD-ROM, user’s manual, quick start card, and warranty card

Optional Accessories

Universal ceiling mount, IR/Wired Remote, Lamp

Accessory Part Numbers

Lamp: BL-FU465A Remote: BR-3075W Ceiling mount: BM-9004U

UPC 796435 44 059 6

*Lamp life is dependent on many factors, including lamp mode, display mode, usage,

environmental conditions and more. Lamp brightness can decrease over time.
