Optoma 0.7"" Dlp projector, 0.7 User Manual

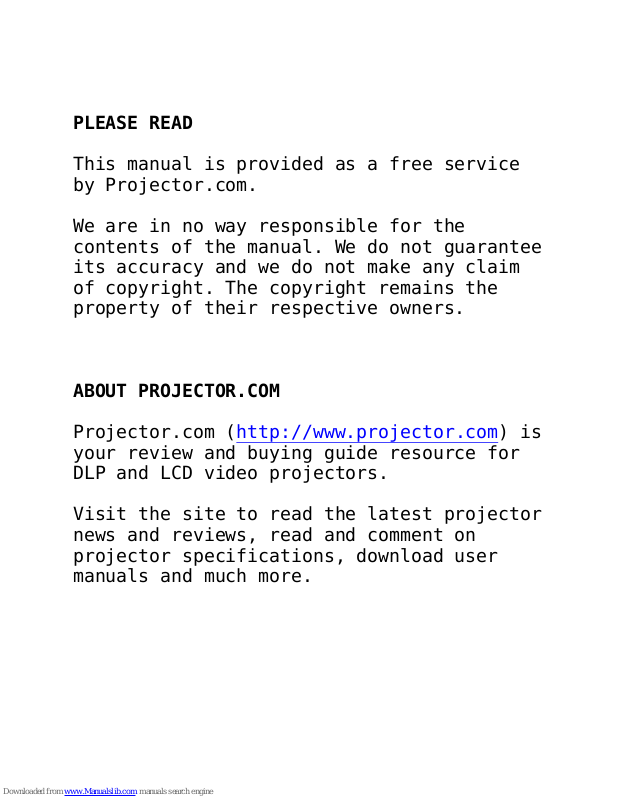

PLEASE READ

This manual is provided as a free service
by Projector.com.

We are in no way responsible for the
contents of the manual. We do not guarantee
its accuracy and we do not make any claim
of copyright. The copyright remains the
property of their respective owners.

ABOUT PROJECTOR.COM

Projector.com (http://www.projector.com) is
your review and buying guide resource for
DLP and LCD video projectors.

Visit the site to read the latest projector
news and reviews, read and comment on
projector specifications, download user
manuals and much more.

1

English

Table of Contents

Table of Contents ...................................................................................... 1

Usage Notice .............................................................................................. 2

Precautions ......................................................................................................... 2

Introduction ............................................................................................... 4

Product Features ................................................................................................. 4

Package Overview............................................................................................... 5

Product Overview ................................................................................................ 6

Main Unit......................................................................................................................... 6

Panel Control .................................................................................................................. 7

Connection Ports ............................................................................................................ 7

Remote Control ............................................................................................................... 8

Installation .................................................................................................. 9

Connecting the Projector ..................................................................................... 9

Powering On/Off the Projector............................................................................ 10

Powering On the Projector ............................................................................................ 10

Powering off the projector ............................................................................................. 11

Warning Indicator ......................................................................................................... 11

Adjusting the Projected Image ........................................................................... 12

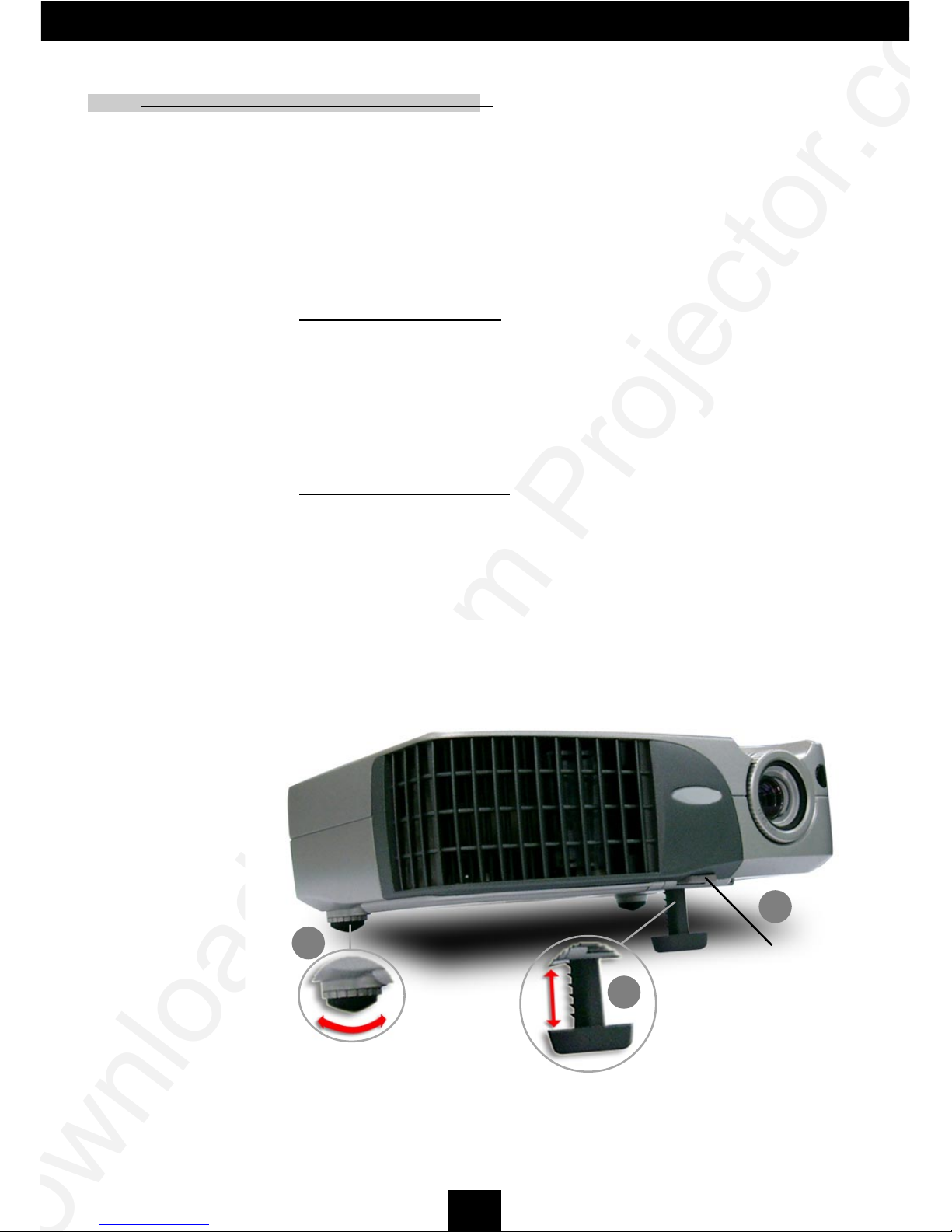

Adjusting the Projector Height ...................................................................................... 12

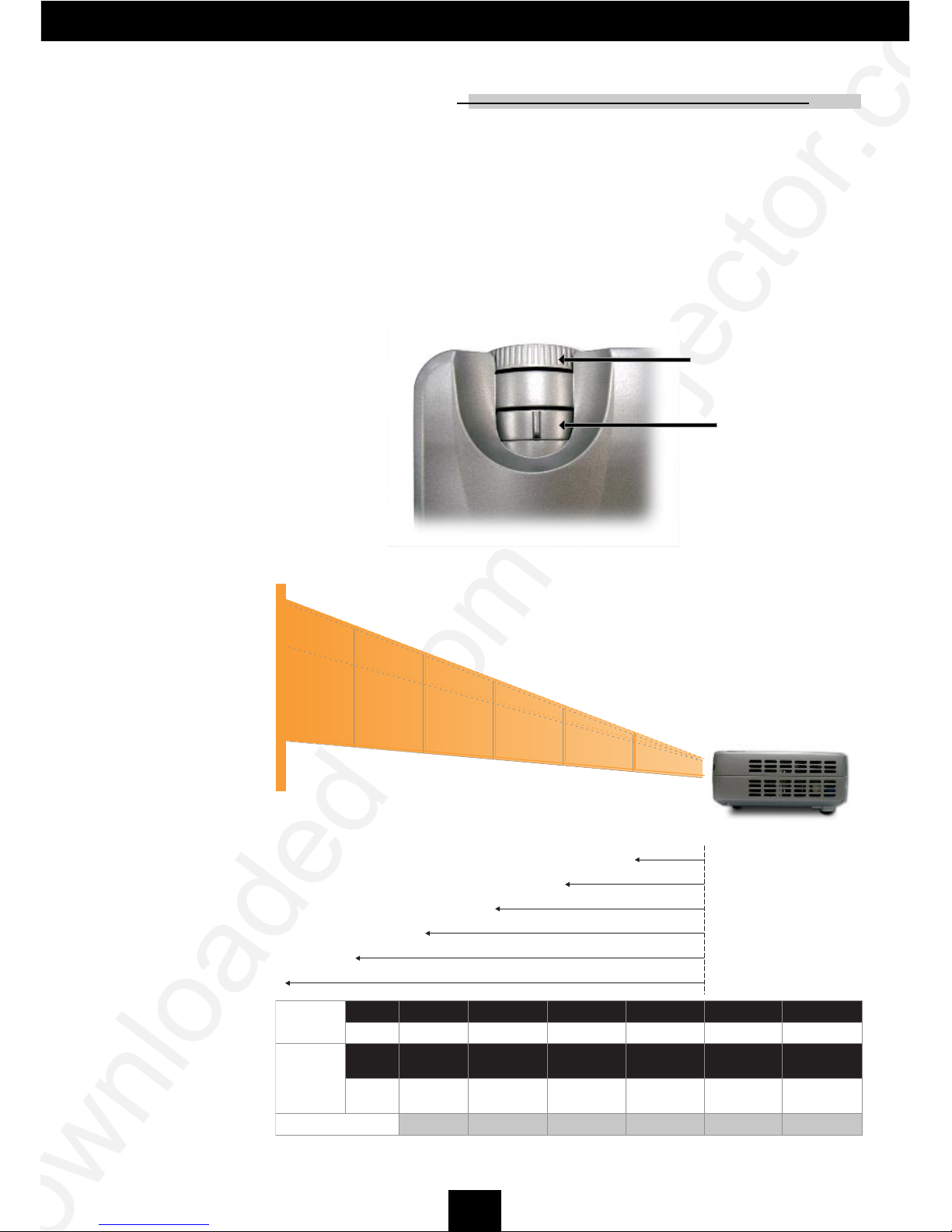

Adjusting the Projector Zoom / Focus .......................................................................... 13

Adjusting Projection Image Size................................................................................... 13

User Controls .......................................................................................... 14

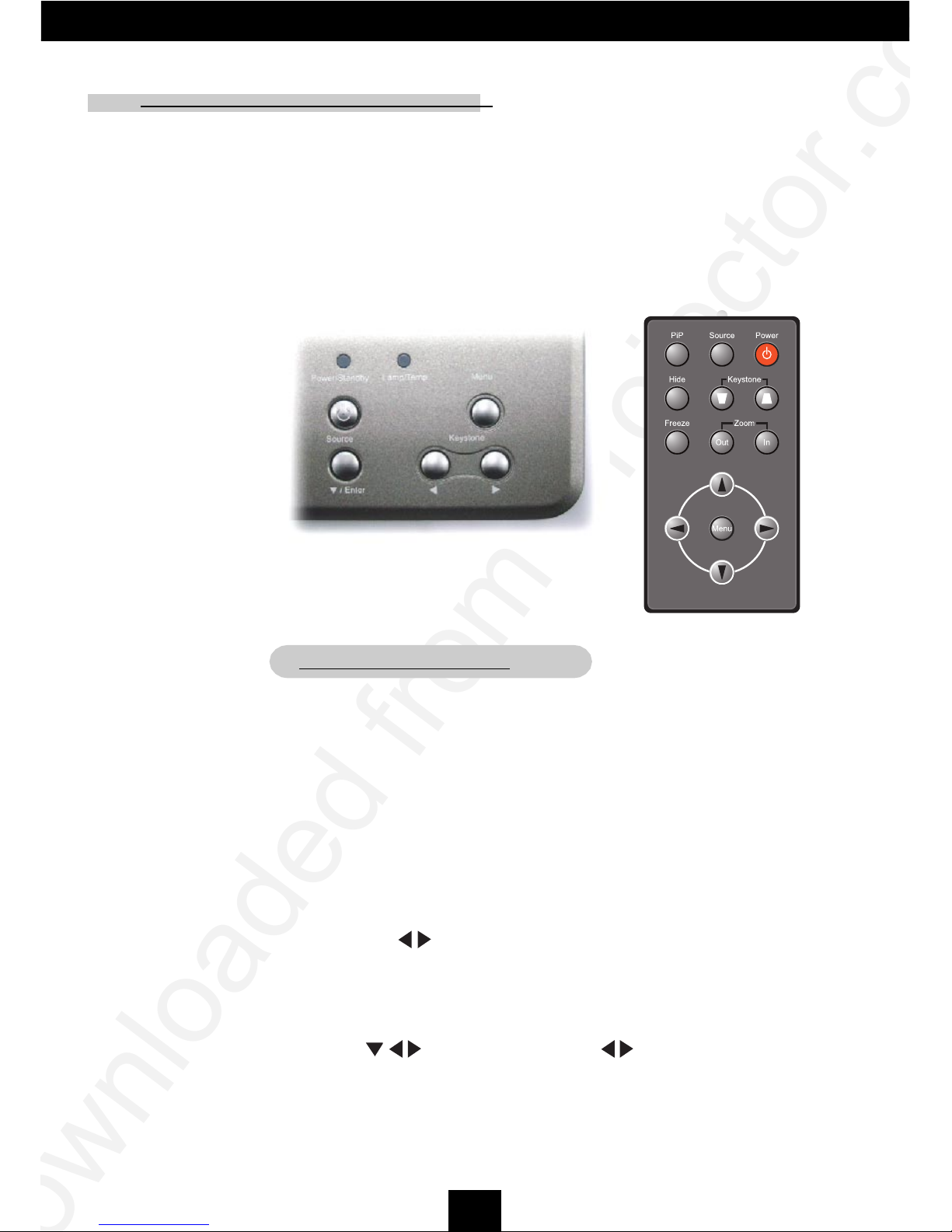

Panel Control & Remote Control ........................................................................ 14

On-Screen Display Menus ................................................................................. 16

How to operate .............................................................................................................. 16

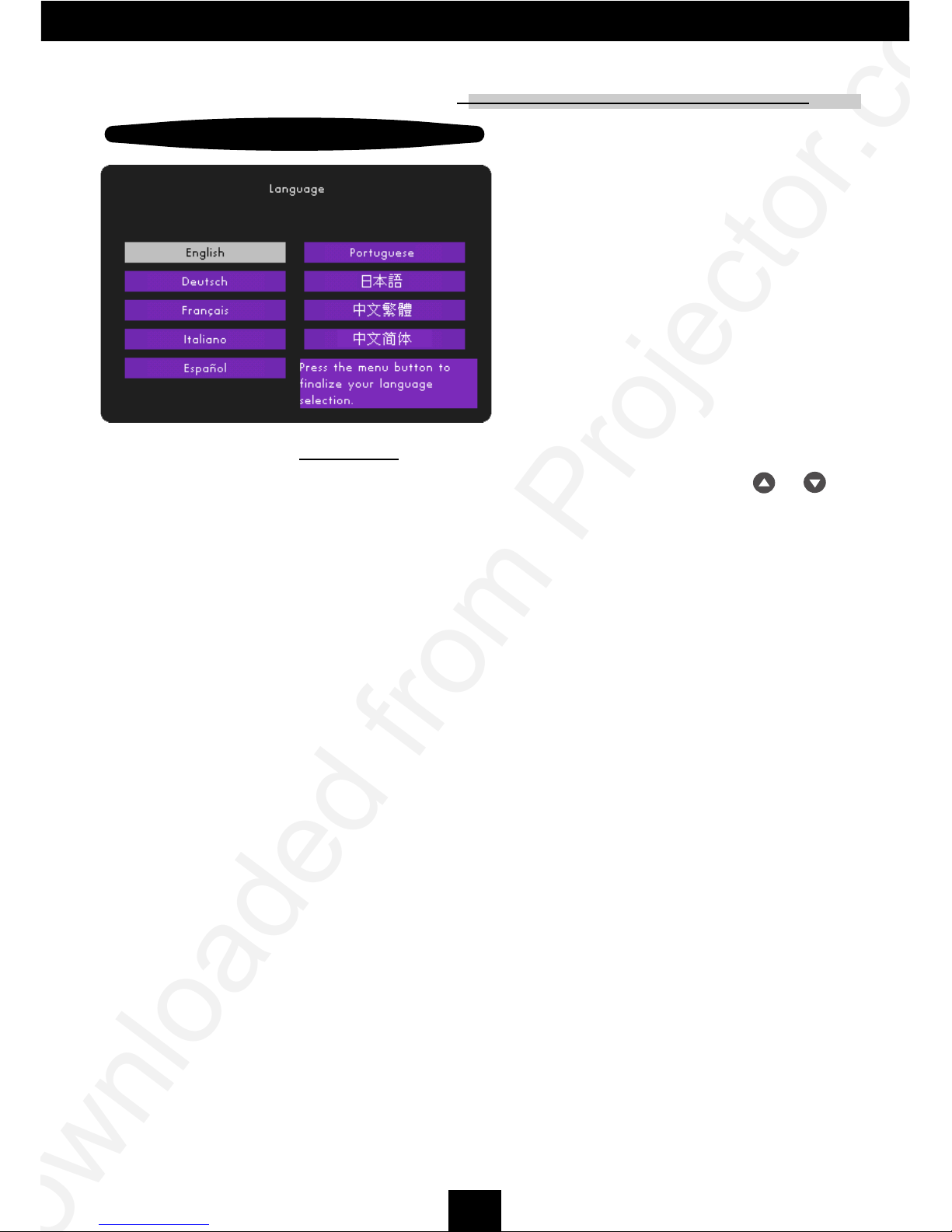

Language ...................................................................................................................... 17

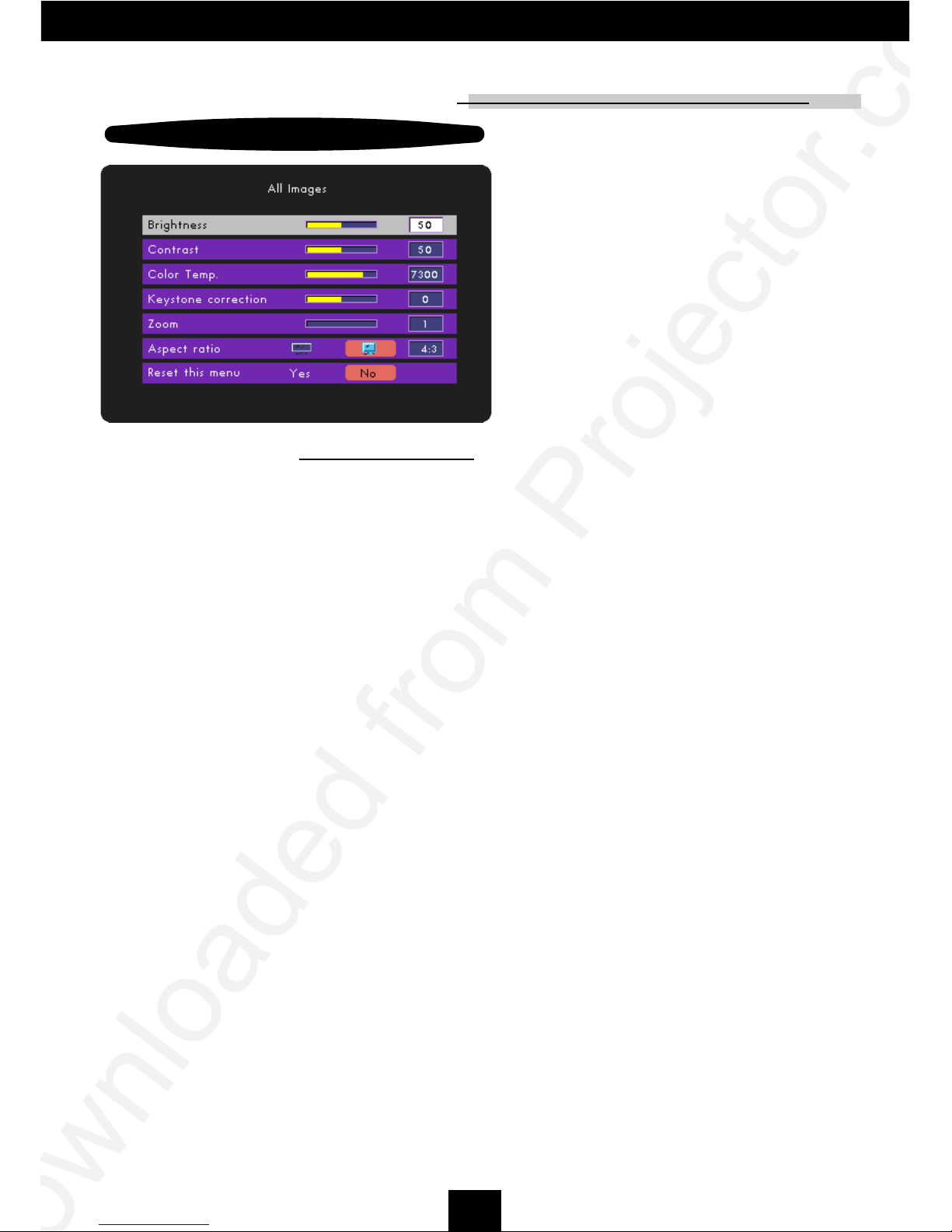

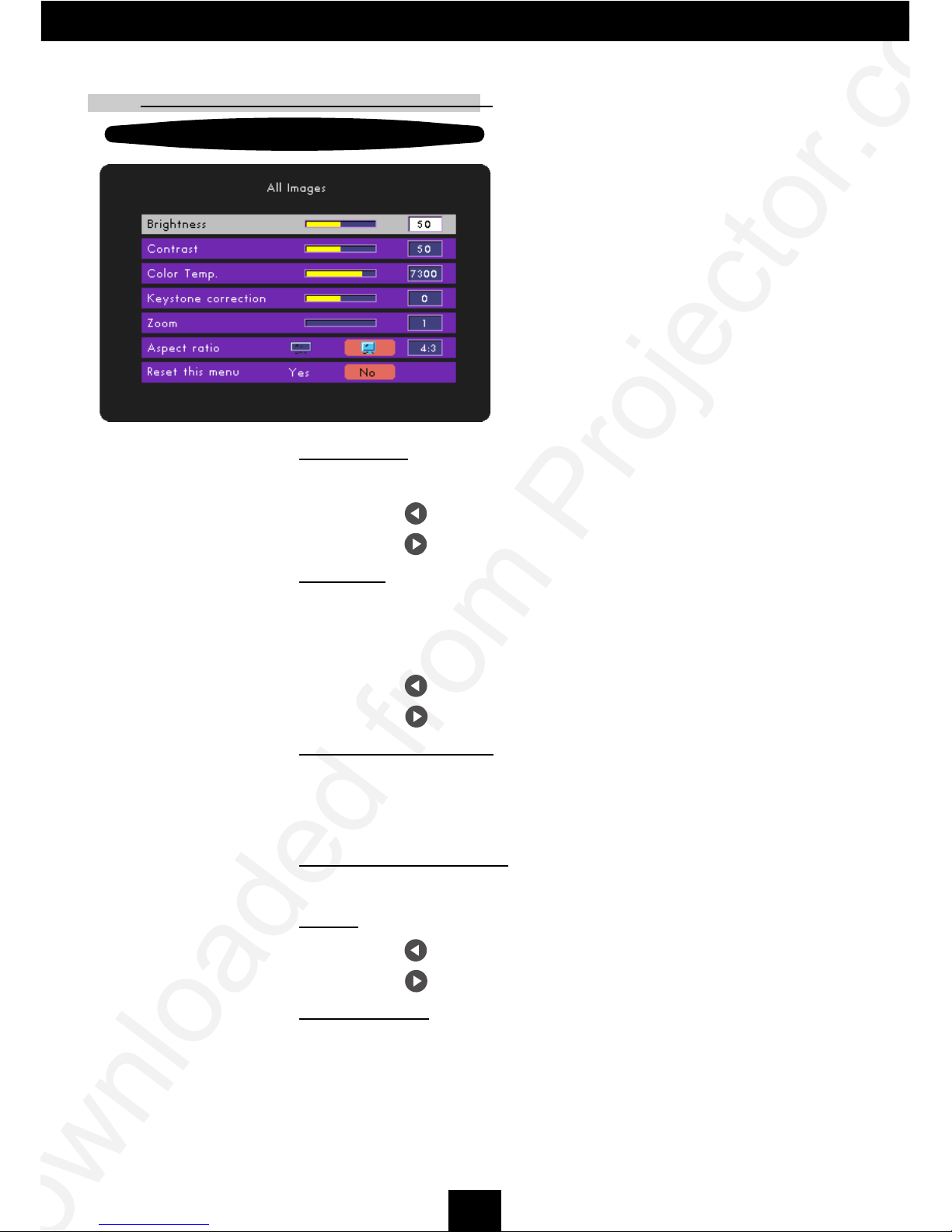

All Images .................................................................................................................... 18

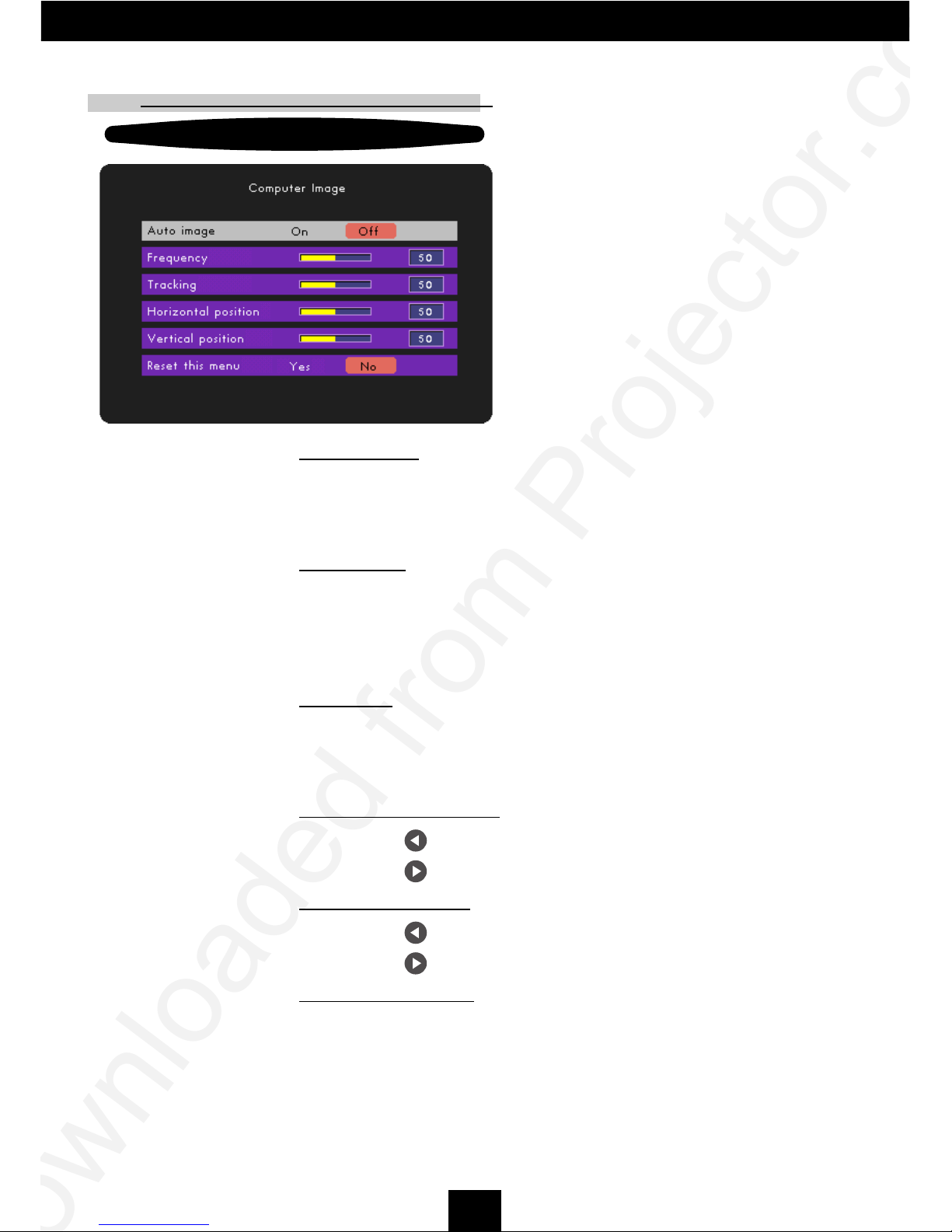

Computer Image ........................................................................................................... 20

Video Image ................................................................................................................. 21

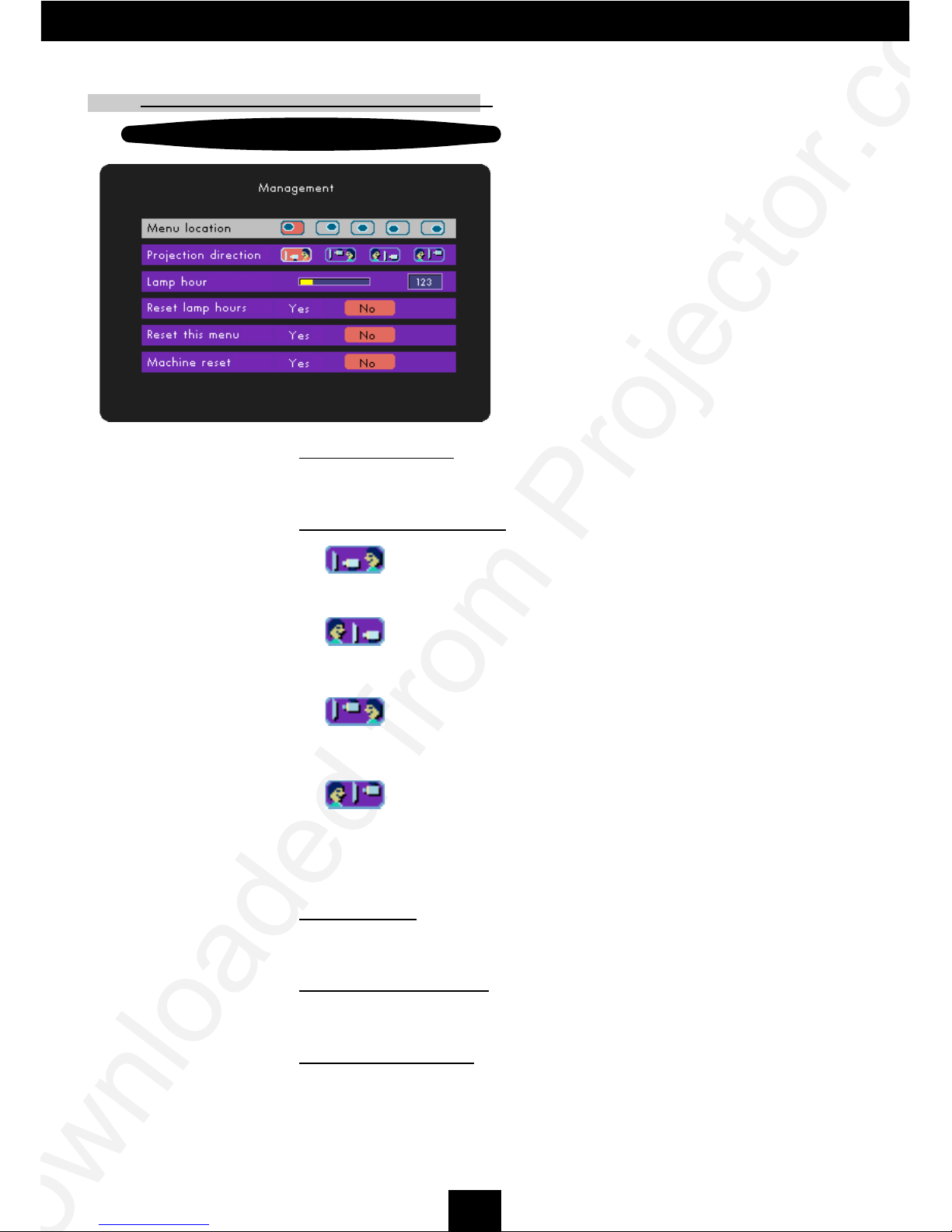

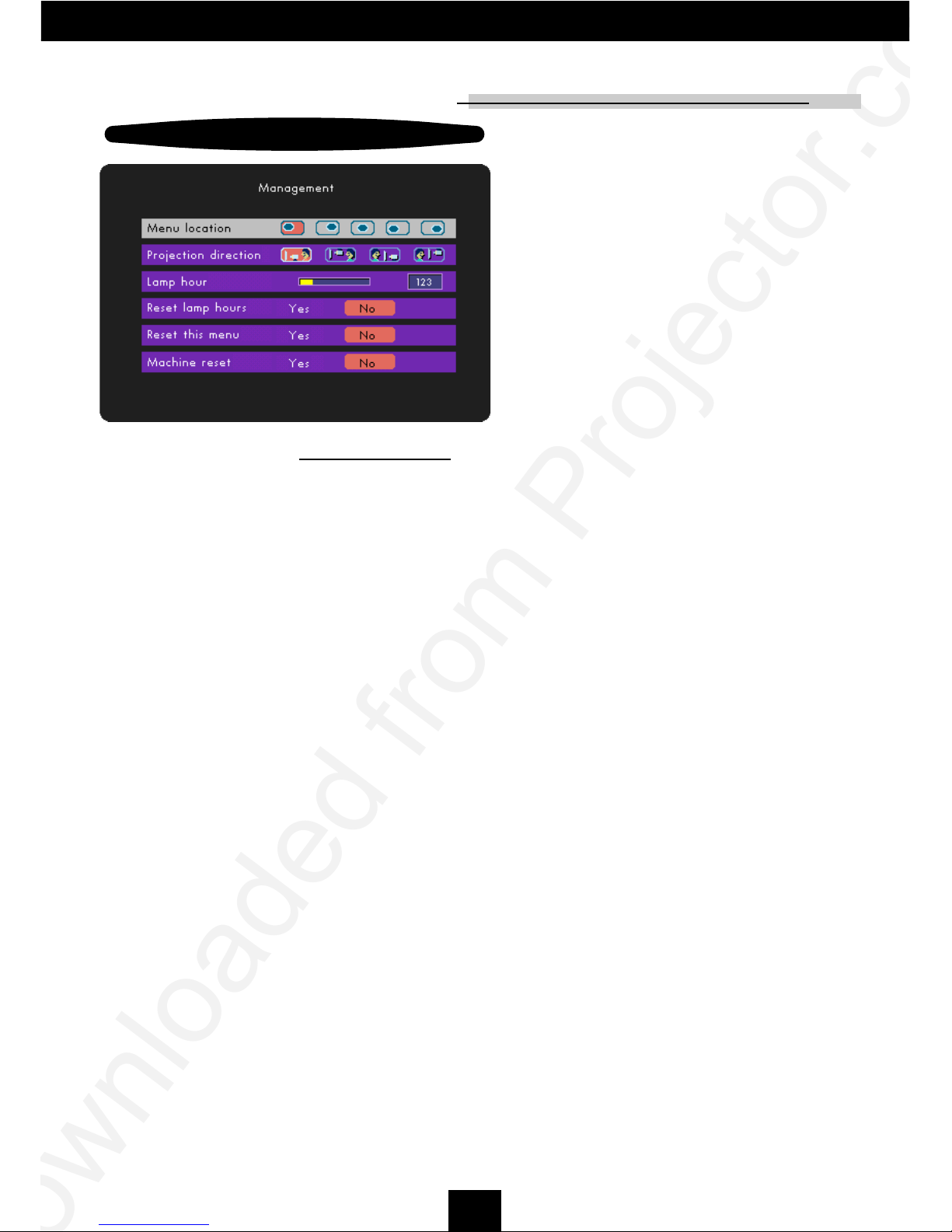

Management ................................................................................................................. 22

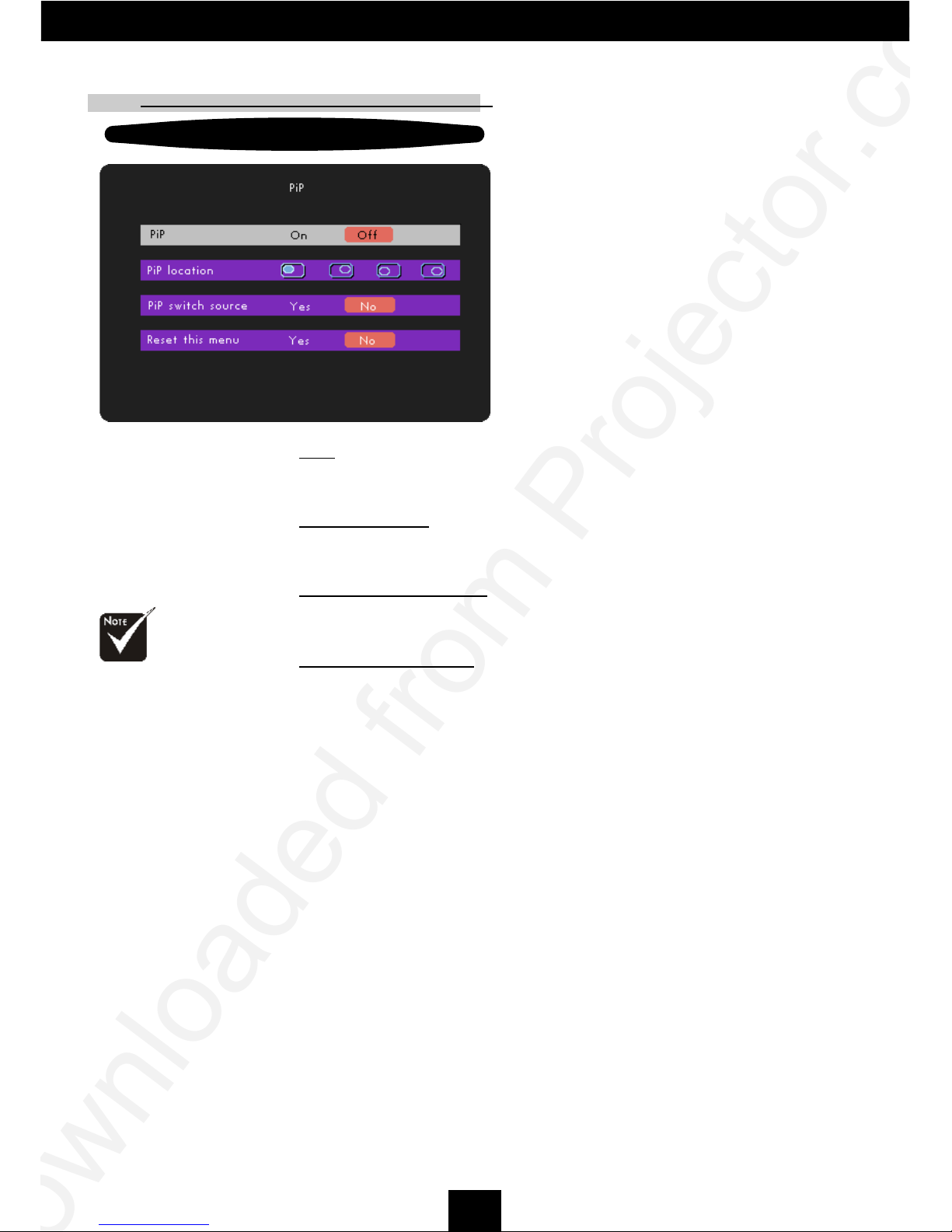

PIP ............................................................................................................................... 24

Appendices ............................................................................................... 25

Troubleshooting ................................................................................................. 25

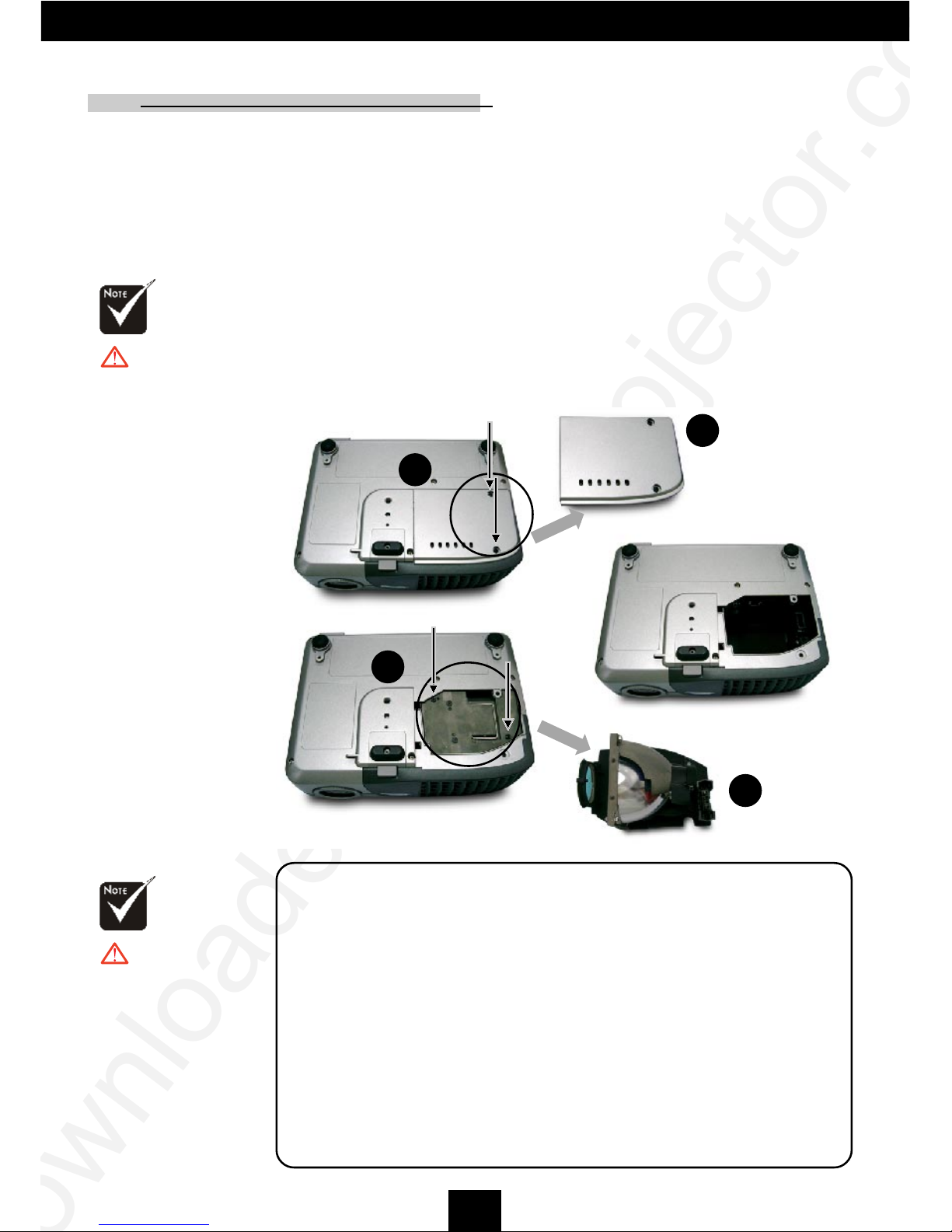

Changing the lamp ............................................................................................. 28

Specifications .................................................................................................... 29

Compatibility Modes .......................................................................................... 30

2

English

Usage Notice

Precautions

Follow all warnings, precautions and maintenance as recom­mended in this users guide to maximize the life of your unit.

Warning- Do not look into the projectors lens when the lamp is

on. The bright light may hurt your eyes.

Warning- To reduce the risk of fire or electric shock, do not

expose this product to rain or moisture.

Warning- Please do not open or disassemble the product as this

may cause electric shock.

Warning- When changing the lamp, please allow unit to cool

down, and follow all changing instructions.

Warning- This product will detect the life of the lamp itself.

Please be sure to change the lamp when it shows
warning messages.

Warning- Reset the Reset Lamp Hours function from the On

Screen Display Management menu after replacing
the lamp module (refer to page 22).

Warning- When switching the projector off, please ensure the

projector completes its cooling cycle before
disconnecting power.

Warning- Turn on the projector first and then the signal sources.

Warning- When the lamp reaches the end of its life, it will burn

out and may make a loud popping sound. If this
happens, the projector will not turn back on until the
lamp module has been replaced. To replace the
lamp, follow the procedures listed under Changing
the Lamp.

3

English

Do:

v Turn off the product before cleaning.
v Use a soft cloth moistened with mild detergent to clean the

display housing.

v Disconnect the power plug from AC outlet if the product is not

being used for a long period of time.

Dont:

v Block the slots and openings on the unit provided for

ventilation.

v Use abrasive cleaners, waxes or solvents to clean the unit.
v Use under the following conditions:

- Extremely hot, cold or humid environment.

- In areas susceptible to excessive dust and dirt.

- Near any appliance generating a strong magnetic field.

- Place in direct sunlight.

Usage Notice

4

English

Product Features

This product is an XGA single chip 0.7 DLPTM projector. The
outstanding features of it are listed as follows:

u True XGA, 1024 x 768 addressable pixels

u 2.1 lbs (0.95 kgs) compact design

u Single chip DLPTM technology

u NTSC/NTSC4.43/PAL/PAL-M/PAL-N/SECAM and

HDTV compatible

u Full function remote controller

u User friendly multilingual on-screen display menu

u Advanced electronic keystone correction and high

quality full screen re-scaling image

u User friendly control panel

u SXGA compression and VGA, SVGA re-sizing

u 120 Watts user replaceable P-VIP lamp

u Mac compatible

Introduction

5

English

Power Cord

S-Video Cable

VGA Cable

Remote Control

Battery

Users Guide

Introduction

Composite Video Cable

Projector with lens cap

Package Overview

This projector comes with all the items shown below. Check to
make sure your unit is complete. Contact your dealer immedi­ately if anything is missing.

Carrying Case

Quick Start Card Warranty Card

6

English

Introduction

Main Unit

Product Overview

1. Focus Ring

2. Zoom Ring

3. Elevator Button

4. Zoom Lens

5. Remote Control Receiver

6. Connection Ports

7. Power Connector

8. Panel Control

1

5

8

4

3

5

2

6

7

7

English

Panel Control

Introduction

1. Power/Standby Indicator

2. Warning Indicator

3. Power

4. Source

5. Directional Select and Enter Keys

6. Keystone Correction

7. Menu (On/Off)

1

3

4

7

2

6

5

Connection Ports

1. Power Connector
2 PC Analog Signal/HDTV/Component Video Connector

3. Composite Video Input Connector

4. S-Video Input Connector

5. Remote Control Receiver

6. Keysington

TM

Lock Hole

2

1

4

5

3

6

8

English

Remote Control

Introduction

1

2
3

4

5

6
7

8

9

10

1. Transmit Indicator Light

2. Power

3. Source

4. Keystone Correction

5. Zoom In/Zoom Out

6. Four Directional Select Keys

7. Menu Keys

8. Picture In Picture

9. Hide

10. Freeze

9

English

1. Power Cord

2. VGA Cable

3. S-Video Cable

4. Composite Video Cable

Connecting the Projector

v To ensure the projector works well with your computer, please

configure the display mode of your graphic card to make it less
than or equal to 1024 X 768 resolution. Make sure timing of the
display mode is compatible with the projector. Refer to the
Compatibility Modes section on page 30.

S-Video Output

Video Output

1

2

3

4

Installation
