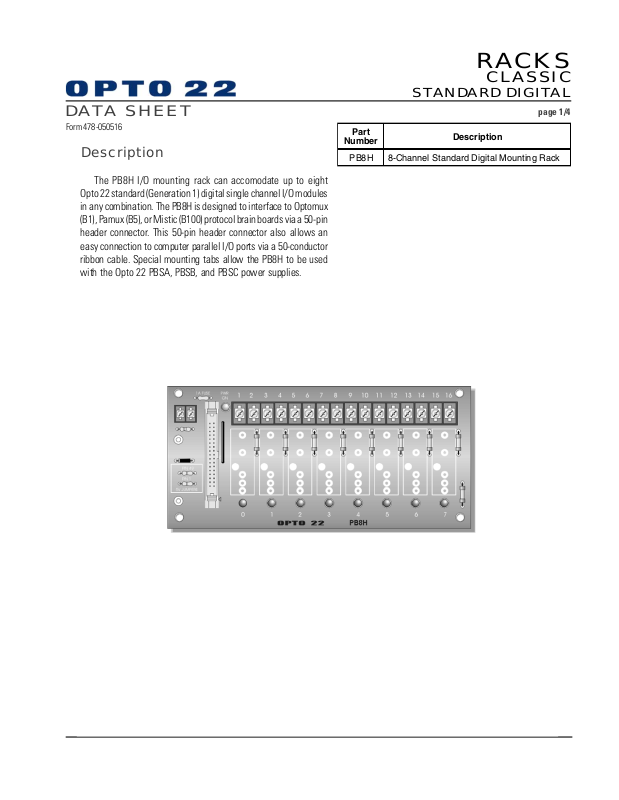

RACKS
CLASSIC
ST ANDARD DIGIT AL
DAT A SHEET
Form 478-050516
Description
The PB8H I/O mounting rack can accomodate up to eight
Opto 22 standard (Generation 1) digital single channel I/O modules
in any combination. The PB8H is designed to interface to Optomux
(B1), Pamux (B5), or Mistic (B100) protocol brain boards via a 50-pin
header connector. This 50-pin header connector also allows an
easy connection to computer parallel I/O ports via a 50-conductor
ribbon cable. Special mounting tabs allow the PB8H to be used
with the Opto 22 PBSA, PBSB, and PBSC power supplies.
page 1/4
Part
Number
PB8H 8-Channel Standard Digital Mounting Rack
Description
RACKS
CLASSIC
ST ANDARD DIGIT AL
DAT A SHEET
Form 478-050516
Specifications
General Specification
Operating Temperature
Interface Connectors
Field
Control
Power
Compatible I/O Module
Family
Dimensions
page 2/4
0° to 70° C,
95% Relative Humidity
Non-condensing
6-32 Screw Terminals
50-conductor Header
Connector
2-position Screw Terminal
or Opto 22 PBSA/B/C
Power Supply
Standard (Generation 1)
Digital 5-volt logic
PB8H DIMENSIONS
RACKS
CLASSIC
ST ANDARD DIGIT AL
DAT A SHEET
Form 478-050516
Connections
PB8H Connections
Module
Position
0471 & 2
1453 & 4
2435 & 6
3417 & 8
4399 & 10
5 37 11 & 12
63513 & 14
73315 & 16
1. Even pins on control connector are connected by etch to
common.
2. +VCC and return connected to two point terminal strips
3. At each module position on the field terminal strip, the
lower number is always connected to pin 1 of the I/O
module.
Control
(Header
Connector)
Field
(Terminal
Strip)
page 3/4
RACKS
CLASSIC
ST ANDARD DIGIT AL
DAT A SHEET
Form 478-050516
Schematics
page 4/4
PB8H SCHEMATIC
© 1991–2005 Opto 22. All rights reserved. All trademarks, trade names, logos, and service marks referenced herein belong to their respective companies.
