Opto 22 PB8AH Data Sheet
RACKS
CLASSIC/STANDARD
8-CHANNEL ANALOG
DATA SHEET
Form 483-010131
Description

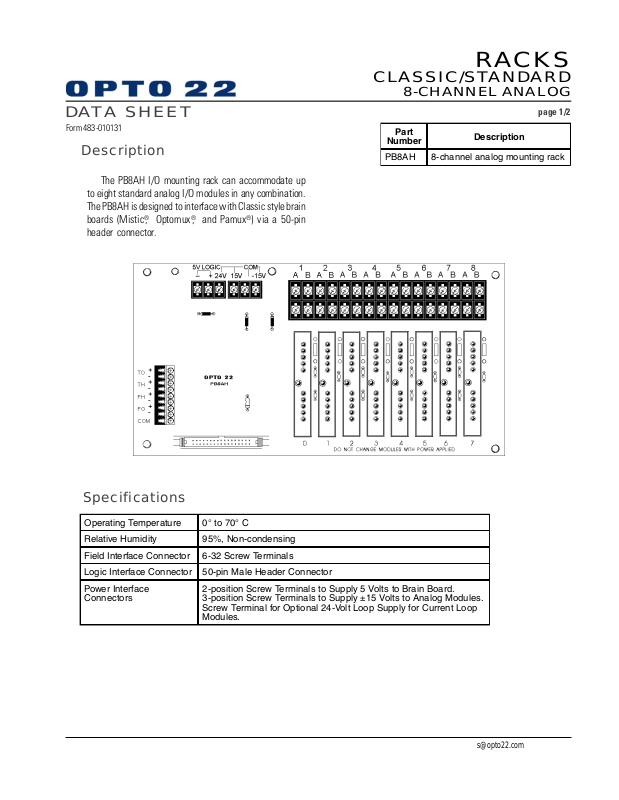

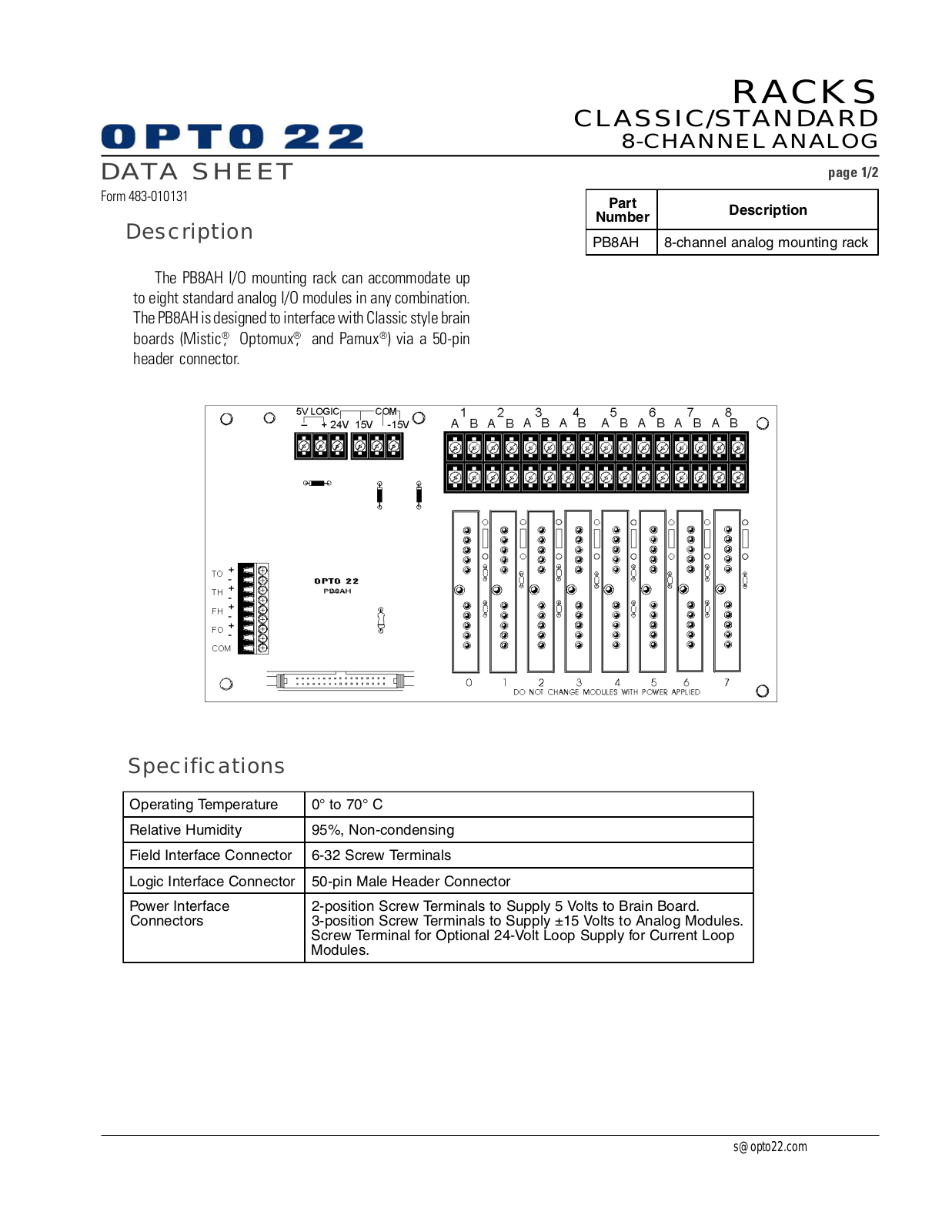

The PB8AH I/O mounting rack can accommodate up
to eight standard analog I/O modules in any combination.
The PB8AH is designed to interface with Classic style brain
boards (Mistic
header connector.
®
, Optomux®, and Pamux®) via a 50-pin
page 1/2
Part
Number
PB8AH 8-channel analog mounting rack
Description
Specifications
Operating Temperature 0° to 70° C
Relative Humidity 95%, Non-condensing
Field Interface Connector 6-32 Screw Terminals
Logic Interface Connector 50-pin Male Header Connector
Power Interface
Connectors
2-position Screw Terminals to Supply 5 Volts to Brain Board.
3-position Screw Terminals to Supply ±15 Volts to Analog Modules.
Screw Terminal for Optional 24-Volt Loop Supply for Current Loop
Modules.
s@opto22.com
RACKS
CLASSIC/STANDARD
8-CHANNEL ANALOG
DATA SHEET
Form 483-010131

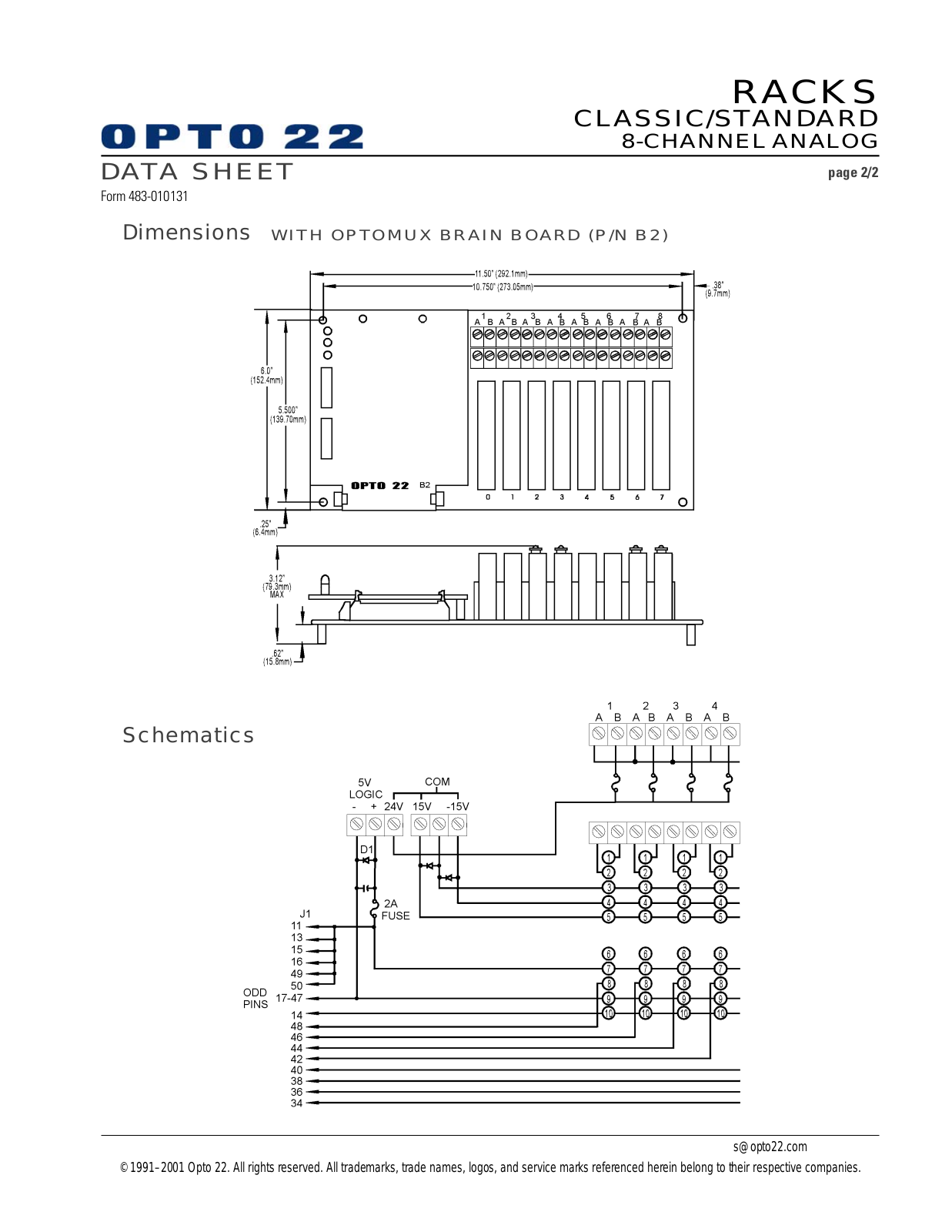

Dimensions
page 2/2
WITH OPTOMUX BRAIN BOARD (P/N B2)
Schematics
