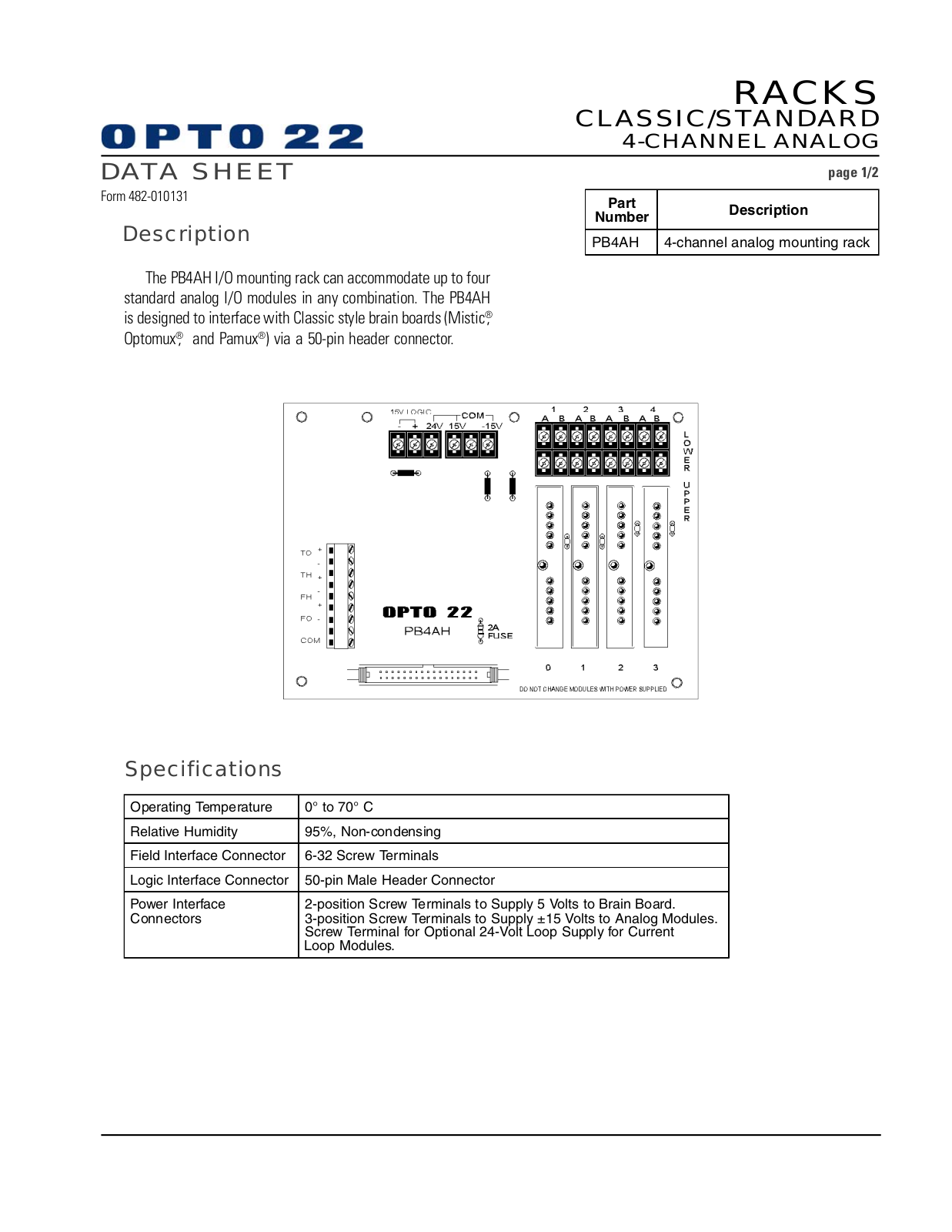

Opto 22 PB4AH Data Sheet

RACKS

CLASSIC/STANDARD

4-CHANNEL ANALOG

DAT A SHEET

Form 482-010131

Description

The PB4AH I/O mounting rack can accommodate up to four
standard analog I/O modules in any combination. The PB4AH
is designed to interface with Classic style brain boards (Mistic
Optomux

®

, and Pamux®) via a 50-pin header connector.

page 1/2

Part

Number

PB4AH 4-channel analog mounting rack

®

,

Description

Specifications

Operating Temperature 0° to 70° C

Relative Humidity 95%, Non-condensing

Field Interface Connector 6-32 Screw Terminals

Logic Interface Connector 50-pin Male Header Connector

Power Interface
Connectors

2-position Screw Terminals to Supply 5 Volts to Brain Board.
3-position Screw Terminals to Supply ±15 Volts to Analog Modules.
Screw Terminal for Optional 24-Volt Loop Supply for Current
Loop Modules.

RACKS

CLASSIC/STANDARD

4-CHANNEL ANALOG

DAT A SHEET

Form 482-010131

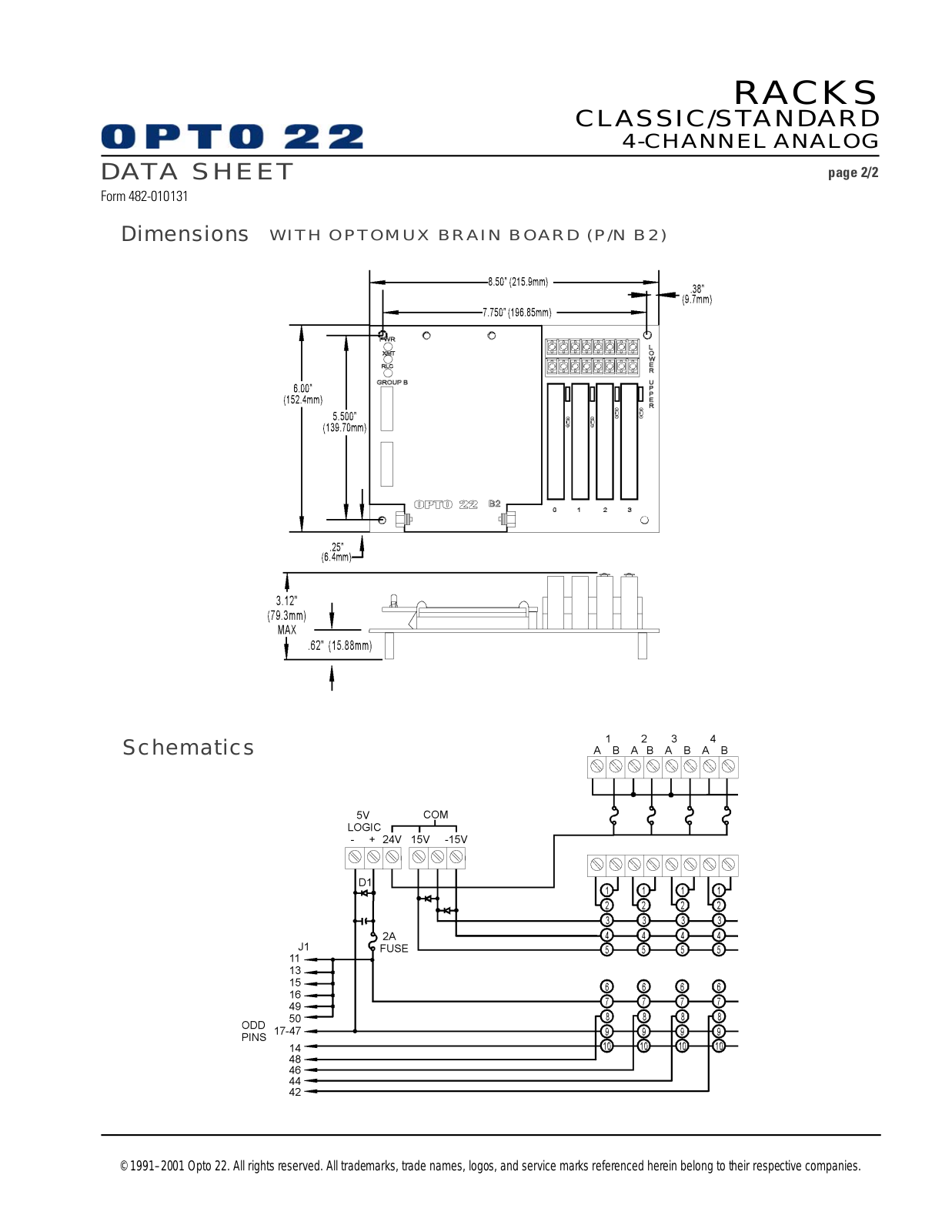

Dimensions

page 2/2

WITH OPTOMUX BRAIN BOARD (P/N B2)

Schematics

© 1991–2001 Opto 22. All rights reserved. All trademarks, trade names, logos, and service marks referenced herein belong to their respective companies.
