Opto 22 PB4 Data Sheet

RACKS

CLASSIC

STANDARD DIGITAL

DATA SHEET

Form 510-060519

Description

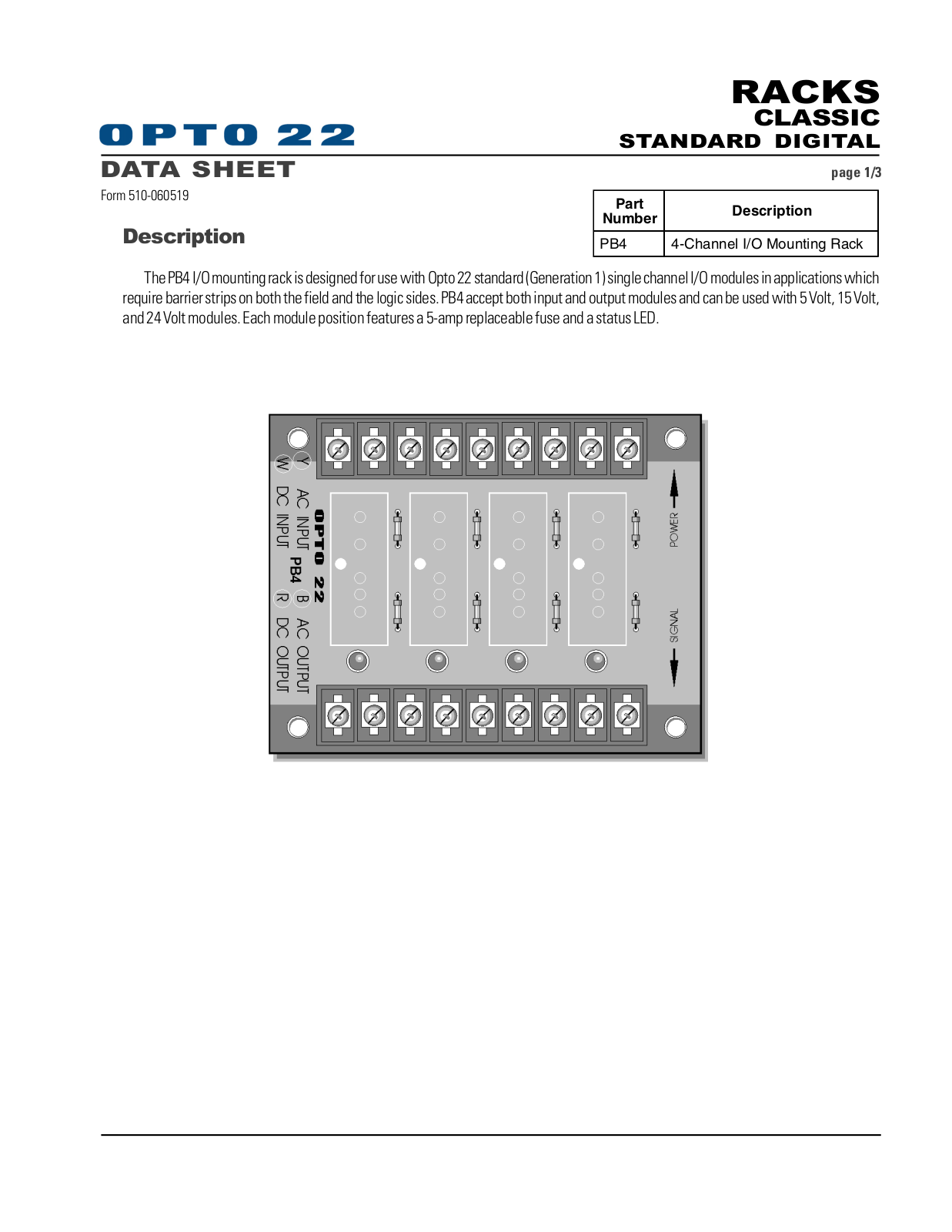

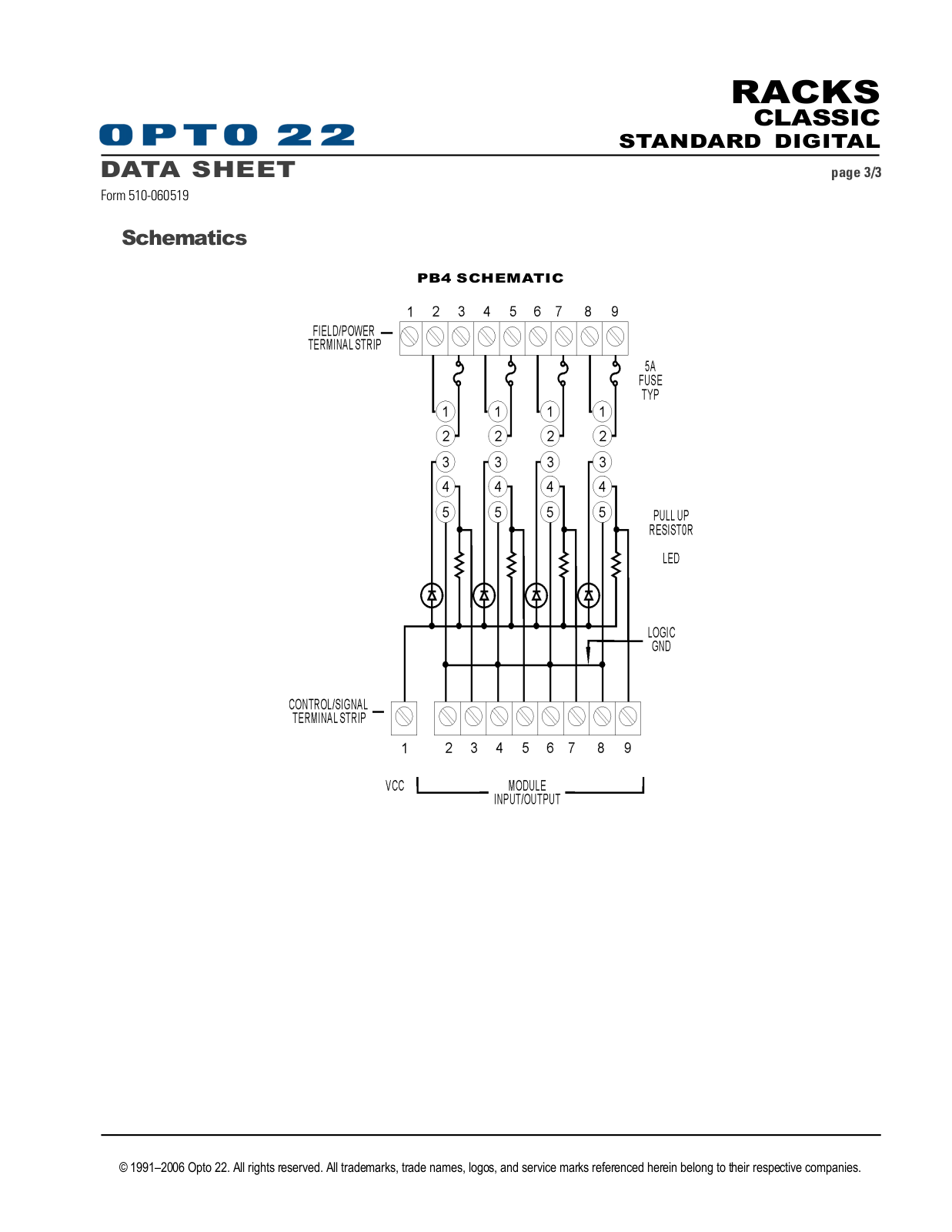

The PB4 I/O mounting rack is designed for use with Opto 22 standard (Generation 1) single channel I/O modules in applications which
require barrier strips on both the field and the logic sides. PB4 accept both input and output modules and can be used with 5 Volt, 15 Volt,
and 24 Volt modules. Each module position features a 5-amp replaceable fuse and a status LED.

Part

Number

PB4 4-Channel I/O Mounting Rack

Description

page 1/3

RACKS

CLASSIC

STANDARD DIGITAL

DATA SHEET

Form 510-060519

Specifications

General Specification

Operating Temperature

Interface Connector Field 6-32 Screw Terminals

Logic 6-32 Screw Terminals

Compatible I/O Module
Family

Dimensions

0° to 70° C
95% Relative Humidity
Non-condensing

Standard (Generation 1)

page 2/3

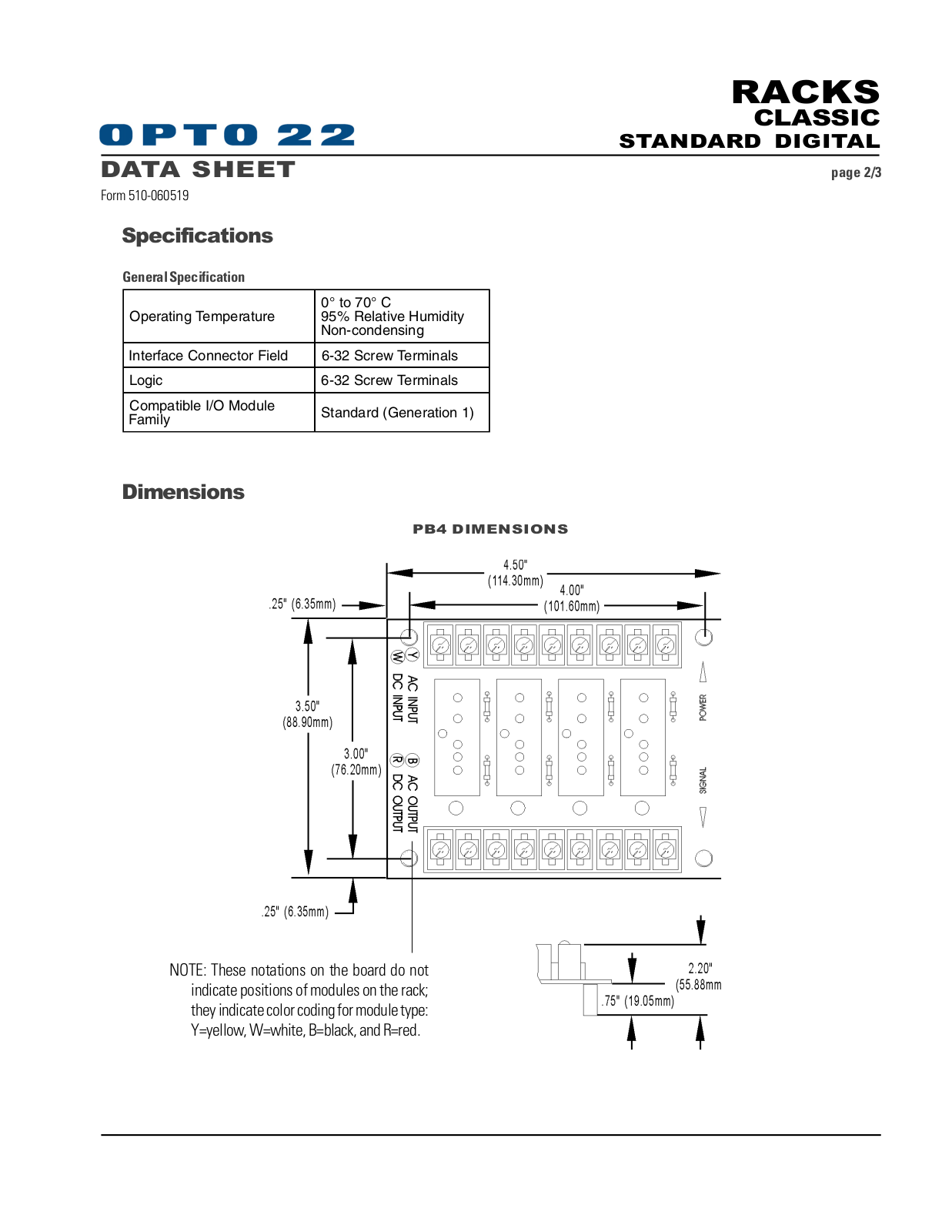

PB4 DIMENSIONS

NOTE: These notations on the board do not

indicate positions of modules on the rack;
they indicate color coding for module type:
Y=yellow, W=white, B=black, and R=red.
