RACKS
QUAD
DIGITAL
DA TA SHEET
Form 529-140320
Description

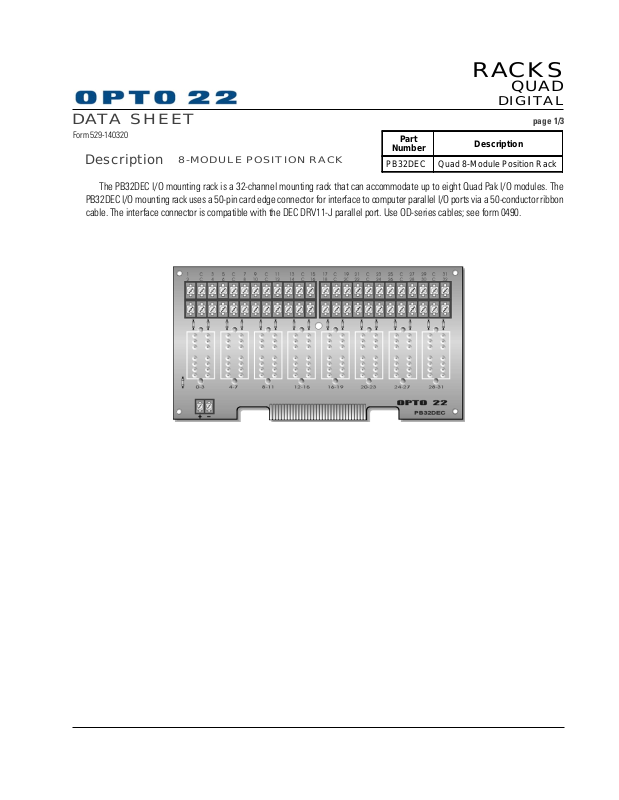

The PB32DEC I/O mounting rack is a 32-channel mounting rack that can accommodate up to eight Quad Pak I/O modules. The
PB32DEC I/O mounting rack uses a 50-pin card edge connector for interface to computer parallel I/O ports via a 50-conductor ribbon
cable. The interface connector is compatible with the DEC DRV11-J parallel port. Use OD-series cables; see form 0490.
8-MODULE POSITION RACK
Part
Number
PB32DEC Quad 8-Module Position Rack
Description
page 1/3
RACKS
QUAD
DIGITAL
DA TA SHEET
Form 529-140320
Specifications
Operating Temp eratur e
Interface Connector
Field
Logic
Dimensions
page 2/3
0° to 70° C
95% relative humidity
Non-condensing
6-32 screw termi nals
50-conductor card edge
connector
RACKS
QUAD
DIGITAL
DA TA SHEET
Form 529-140320
Schematics
page 3/3
