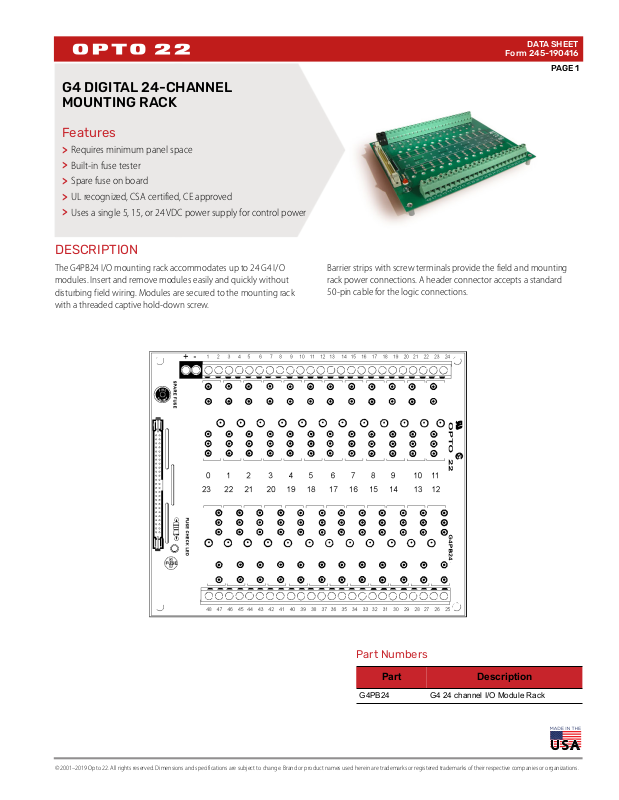

Opto 22 G4PB24 Data Sheet

G4 DIGITAL 24-CHANNEL
MOUNTING RACK

Features

Requires minimum panel space

>

Built-in fuse tester

>

Spare fuse on board

>

UL recognized, CSA certified, CE approved

>

Uses a single 5, 15, or 24 VDC power supply for control power

>

DESCRIPTION

The G4PB24 I/O mounting rack accommodates up to 24 G4 I/O
modules. Insert and remove modules easily and quickly without
disturbing field wiring. Modules are secured to the mounting rack
with a threaded captive hold-down screw.

DATA SHEET

Form 245-190416

PAGE 1

SNAP I/O Racks

Barrier strips with screw terminals provide the field and mounting
rack power connections. A header connector accepts a standard
50-pin cable for the logic connections.

Part Numbers

Part Description

G4PB24 G4 24 channel I/O Module Rack

© 2001–2019 Opto 22. All rights reserved. Dimensions and specifications are subject to change. Brand or product names used herein are trademarks or registered trademarks of their respective companies or organizations.

SPECIFICATIONS

DATA SHEET

Form 245-190416

PAGE 2

Operating
temperature:

Interface connector:
Field:
Control:

Field connector screws Torque: 5.5 in-lb (0.62 N-m)

0 to 70 °C
95 percent relative humidity, non-condensing

Screw-type barrier strip accommodates up to 10 AWG wire
50-conductor header connector

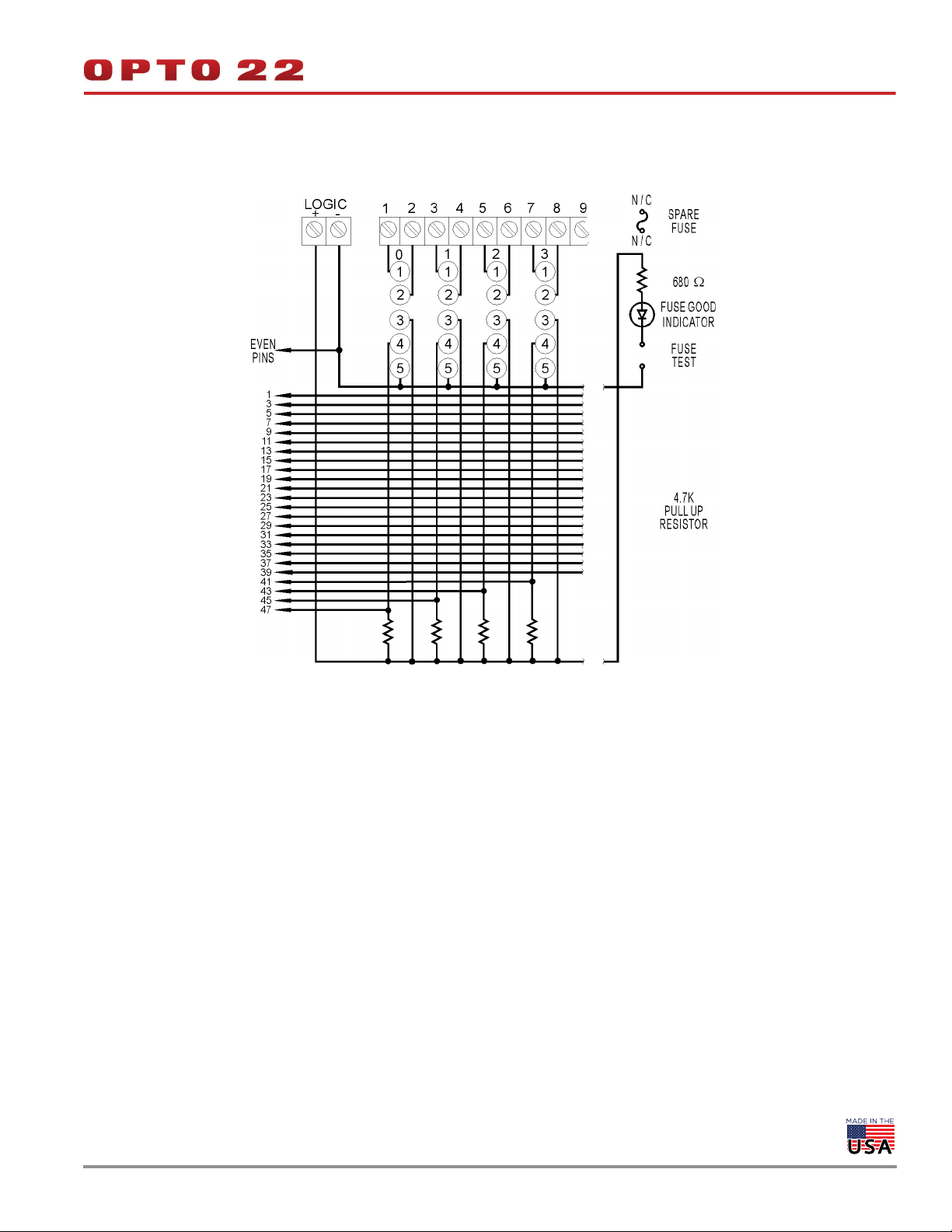

DIMENSIONS
