RACKS
CLASSIC G4
16-CHANNEL
DAT A SHEET
Form 246-040823

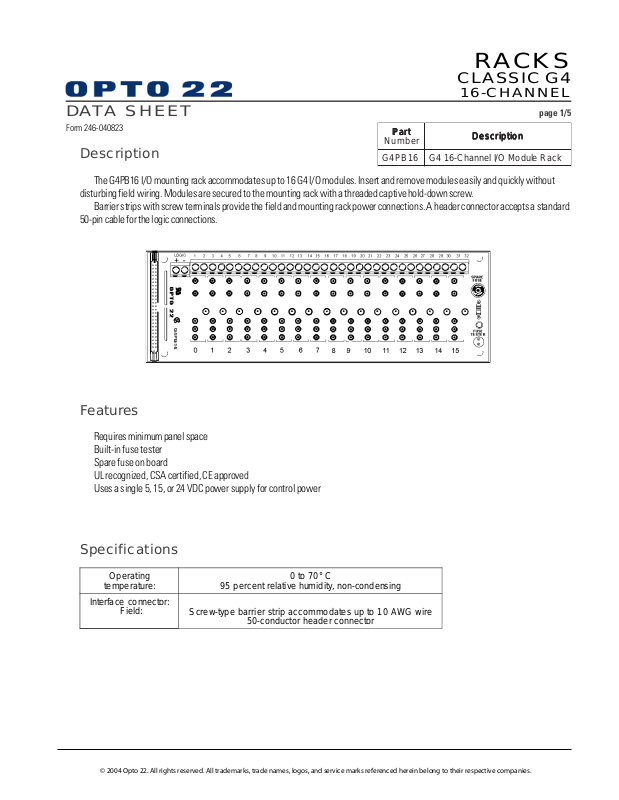

Description
The G4PB16 I/O mounting rack accommodates up to 16 G4 I/O modules. Insert and remove modules easily and quickly without
disturbing field wiring. Modules are secured to the mounting rack with a threaded captive hold-down screw.
Barrier strips with screw terminals provide the field and mounting rack power connections. A header connector accepts a standard
50-pin cable for the logic connections.
traPtraP
traPtraP
traP
rebmuN
61BP4GkcaReludoMO/IlennahC-614G
noitpircseDnoitpircseD
noitpircseDnoitpircseD
noitpircseD
page 1/5
Features
Requires minimum panel space
Built-in fuse tester
Spare fuse on board
UL recognized, CSA certified, CE approved
Uses a single 5, 15, or 24 VDC power supply for control power
Specifications
Operating
temperature:
Interface connector:
Field:
Screw-type barrier strip accommodates up to 10 AWG wire
95 percent rel ative humidit y, no n- condensi ng
50-conductor header connector
0 to 70° C
© 2004 Opto 22. All rights reserved. All trademarks, trade names, logos, and service marks referenced herein belong to their respective companies.
RACKS
CLASSIC G4
16-CHANNEL
DAT A SHEET
Form 246-040823
Dimensions
page 2/5
© 2004 Opto 22. All rights reserved. All trademarks, trade names, logos, and service marks referenced herein belong to their respective companies.
RACKS
CLASSIC G4
16-CHANNEL
DAT A SHEET
Form 246-040823
Connections
page 3/5
© 2004 Opto 22. All rights reserved. All trademarks, trade names, logos, and service marks referenced herein belong to their respective companies.
RACKS
CLASSIC G4
16-CHANNEL
DAT A SHEET
Form 246-040823
Connections
Module
Position
0 47 1 and 2
1 45 3 and 4
2 43 5 and 6
3 41 7 and 8
4 3 9 9 and 10
5 37 11 and 12
6 35 13 and 14
7 33 15 and 16
8 31 17 and 18
9 29 19 and 20
10 27 21 and 22
11 25 23 and 24
12 23 25 and 26
13 21 27 and 28
14 19 29 and 30
15 17 31 and 32
Control
(Header
Connector)
(CONT.)
Field
(Terminal
Strip)
page 4/5
Notes:
1. Even pins on control connector are
connected by etch to common.
2. +VCC and return connected to terminals
marked LOGIC + and –.
3. At each module position on the field
terminal strip, the lower number is always
connected to pin 1 of the I/O module.
© 2004 Opto 22. All rights reserved. All trademarks, trade names, logos, and service marks referenced herein belong to their respective companies.
