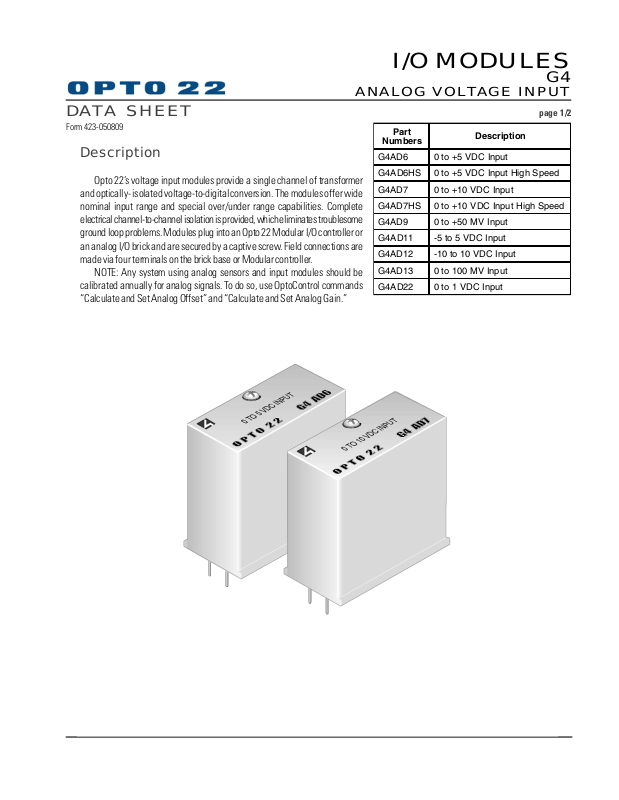

Opto 22 G4AD6, G4AD6HS, G4AD7, G4AD7HS, G4AD9 Data Sheet

I/O MODULES

G4

ANALOG VOLTAGE INPUT

DAT A SHEET

Form 423-050809

Description

Opto 22’s voltage input modules provide a single channel of transformer
and optically- isolated voltage-to-digital conversion. The modules offer wide
nominal input range and special over/under range capabilities. Complete
electrical channel-to-channel isolation is provided, which eliminates troublesome
ground loop problems. Modules plug into an Opto 22 Modular I/O controller or
an analog I/O brick and are secured by a captive screw. Field connections are
made via four terminals on the brick base or Modular controller.

NOTE: Any system using analog sensors and input modules should be
calibrated annually for analog signals. To do so, use OptoControl commands
“Calculate and Set Analog Offset” and “Calculate and Set Analog Gain.”

page 1/2

Part

Numbers

G4AD6 0 to +5 VDC Input

G4AD6HS 0 to +5 VDC Input High Speed

G4AD7 0 to +10 VDC Input

G4AD7HS 0 to +10 VDC Input High Speed

G4AD9 0 to +50 MV Input

G4AD11 -5 to 5 VDC Input

G4AD12 -10 to 10 VDC Input

G4AD13 0 to 100 MV Input

G4AD22 0 to 1 VDC Input

Description

I/O MODULES

G4

ANALOG VOLTAGE INPUT

DAT A SHEET

Form 423-050809

Specifications

Part

Numbers

G4AD6 0 to 5 VDC -0.3 to 11 VDC ± 5 mV 8.4 msec 165 msec

G4AD6HS 0 to 5 VDC -0.3 to 11 VDC ± 5 mV < 3 msec < 3 msec

G4AD7 0 to 10 VDC -0.6 to 22 VDC ± 10 mV 8.4 msec 165 msec

G4AD7HS 0 to 10 VDC -0.6 to 22 VDC ± 10 mV < 3 msec < 3 msec

G4AD9 0 to 50 mV -3.0 to 110 mV ± 100 µV 2 msec 36 msec

G4AD11 -5 to +5 VDC -5.6 to 21 VDC ± 10 mV 8.4 msec 165 msec

G4AD12 -10 to +10 VDC -11.2 to 42 VDC ± 20 mV 8.4 msec 165 msec

G4AD13 0 to 100 mV -6 to 220 mV ± 100 µV 2 msec 36 msec

G4AD22 0 to 1 VDC -60 mV to 2.2 VDC ± 1 mV < 3 msec < 10 msec

* Accuracy figure requires use of gain and offset commands.

Resolution 12 bits

Isolation (Transient)
Input-to-output
Input-to-analog supply

Ambient Temperature
Operating
Storage

Nominal

Voltage Input

Over/Under

4,000 Vrms
4,000 Vrms

-30° to 70° C

-40° to 85° C

Range

Accuracy*

Response Time

% Of Scale Change

5% 63%

page 2/2

Connections
