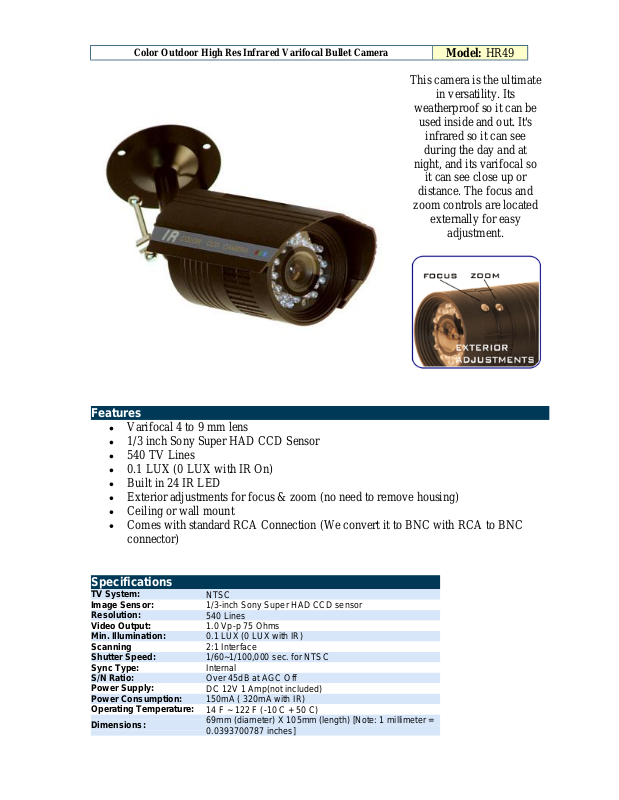

Optiview HR49 User Manual

Features

Varifocal 4 to 9 mm lens
1/3 inch Sony Super HAD CCD Sensor
540 TV Lines

0.1 LUX (0 LUX with IR On)
Built in 24 IR LED
Exterior adjustments for focus & zoom (no need to remove housing)
Ceiling or wall mount
Comes with standard RCA Connection (We convert it to BNC with RCA to BNC

connector)

Specifications

TV System:

NTSC

Image Sensor:

1/3-inch Sony Super HAD CCD sensor

Resolution:

540 Lines

Video Output:

1.0 Vp-p 75 Ohms

Min. Illumination:

0.1 LUX (0 LUX with IR)

Scanning

2:1 Interface

Shutter Speed:

1/60~1/100,000 sec. for NTSC

Sync Type:

Internal

S/N Ratio:

Over 45dB at AGC Off

Power Supply:

DC 12V 1 Amp(not included)

Power Consumption:

150mA ( 320mA with IR)

Operating Temperature:

14 F ~ 122 F (-10 C + 50 C)

Dimensions:

69mm (diameter) X 105mm (length) [Note: 1 millimeter =

0.0393700787 inches]

Color Outdoor High Res Infrared Varifocal Bullet Camera

Model: HR49

This camera is the ultimate

in versatility. Its

weatherproof so it can be

used inside and out. It's

infrared so it can see

during the day and at

night, and its varifocal so

it can see close up or

distance. The focus and

zoom controls are located

externally for easy

adjustment.
