OPERATION MANUAL (REV 2.2)

Safety precautions

 Install this equipment avoiding a direct ray of light, heats and moistures.

-Doing not, can result in lowering efficiency, electric shock or fire.

 Do not pull electric wire or do not touch power plug with wet hands.

-Can result in electric shock or fire.

 Do not bend the power cable forcedly or do not press it with heavy materials.

-Can result in electric shock or fire.

 Do not use damaged power cord or loose outlet plug.

-Can result in electric shock or fire.

 Do not use the outlet fully.

-Can result in electronic shock or fire.

 Do not disassemble, repair or convert this product without permission.

-Can result in electric shock or fire. When repair is required, contact the service center.

 Do not open the cover of the product at your convenience or do not insert inductive stick

into the ventilation hole.

-Especially, SMPS is open, so only professional technicians are allowed to work on.

Failure to follow these instructions could result in serious personal injury or death. Failure to follow these instructions could result in personal injury or property damage. Notifies user of references to use conveniently.

 Do not place equipment on the inclined or uneven plane.

-Can cause lowering of efficiency or malfunction.

 Do not vibrate or shock in operation.

-Can cause out of order with equipment and hard disk (HDD).

 be caution that do not cover the ventilation hole of HDD or put liquid into the equipment.

-may cause out of order of equipment and hard disk drive (HDD)

 Battery Caution : “Risk of Explosion if Battery is replaced by an Incorrect Type.

Dispose of Used Batteries According to the Instructions.”

Contents

DVR Mainframe

(TT Pro)

Remote Controller

(option)

Power Cord Set

USB Mouse (option)

Software CD

Operation Manual

Open the box at the clean and even place. And read operation manual thoroughly before you install.

Check the items supplied with your DVR system. Refer to the picture above

and contact your dealer if you find anything is missing or damaged.

The specification and appearance may be changed without prior notice.

DC Power Adapter

(Only TT)

DVR Mainframe

(TT)

Rack Mount

(Only TT Pro)

Index

Chapter I. System overview

System Specification ------------------------------------ -------------------------------------- 7, 8 System Characteristics ---------------------------------------------------------------------- 9, 10

Chapter II. H/W description

System Appearance ---------------------------------------------------------------- -------- 12, 13 DVR Rear Panel --------------------------------------------------------------------------- 14 ~ 17 System Rear Connection detail ------------------------------------------------------- 18 ~ 23 System Front Description --------------------------------------------------------- -------- 24, 25

Remote Control Description ------------------------------------------------------------------- 26

Installation Guide for HDD & ODD devices ---------------------------------------- 27 ~ 28 System on / shutdown -------------------------------------------------------------------------- 29

Chapter III. Monitoring Screen

Monitoring Screen -------------------------------------------------------------------------------- 31 Screen split, login -------------------------------------------------------------------------------- 32 Menu – Display ----------------------------------------------------------------------------------- 33 Menu – Spot, PTZ, Alarm ---------------------------------------------------------------------- 34 Menu – Status ------------------------------------------------------------------------------------- 35 Menu – Record, Camera, Color, OSD --------------------------------- --------------------- 36 Menu – Backup ----------------------------------------------------------------------------------- 37 Menu – Mute, Logout --------------------------------------------------------------------------- 38

Chapter IV. Setup

System ---------------------------------------------------------------------------------------------- 40

System – Information -------------------------------------------------------------------------- 41 System – Date/Time --------------------------------------------------------------------------- 42 System – Disk ----------------------------------------------------------------------------------- 43 System – User ----------------------------------------------------------------------------------- 44 System – Log, Logout, Shutdown ------------------------------------------------------- -- 45

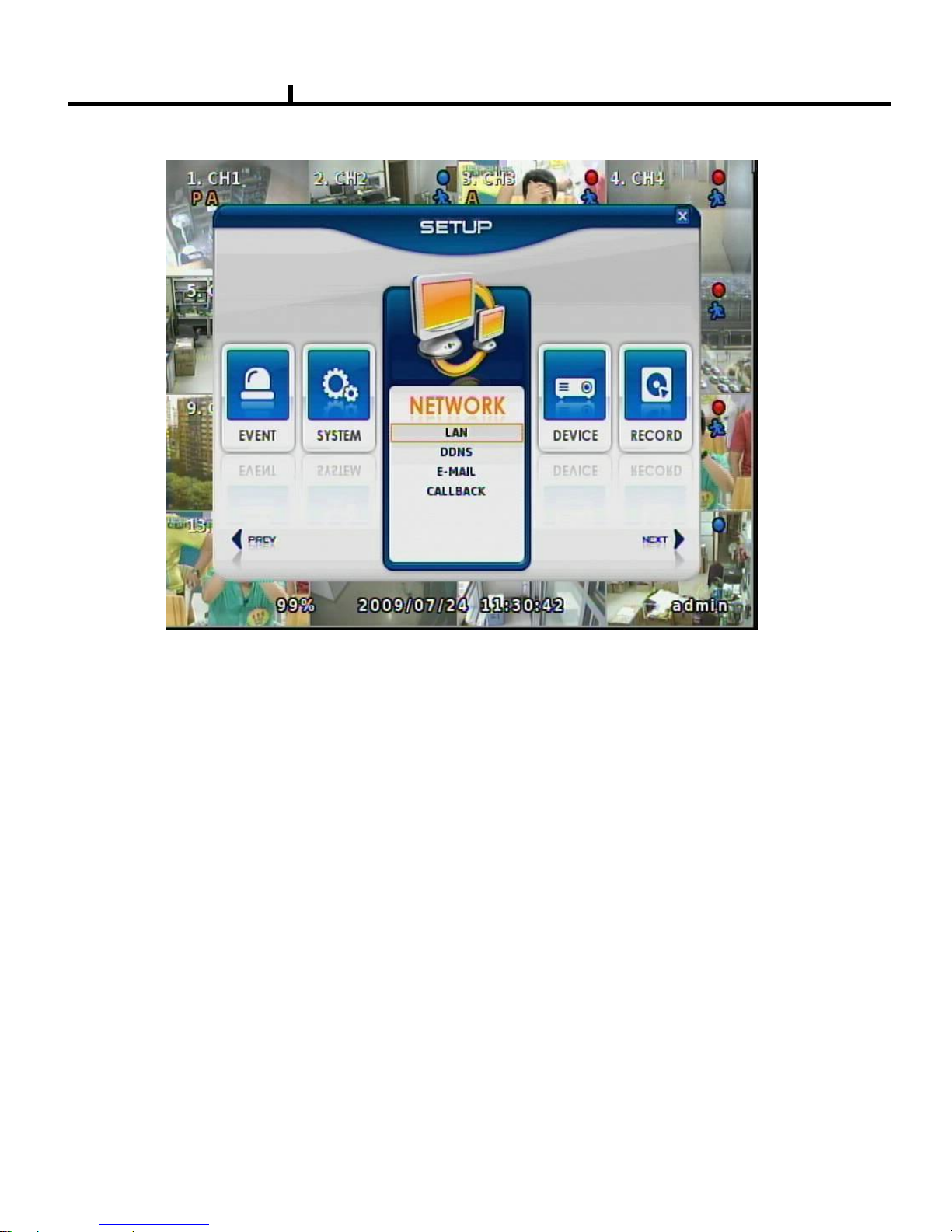

Network --------------------------------------------------------------------------------------------- 46

Network – LAN ---------------------------------------------------------------------------------- 47 Network – DDNS ------------------------------------------------------------------------------- 48 Network – Email -------------------------------------------------------------------------------- 49 Network – Callback ---------------------------------------------------------------------------- 50

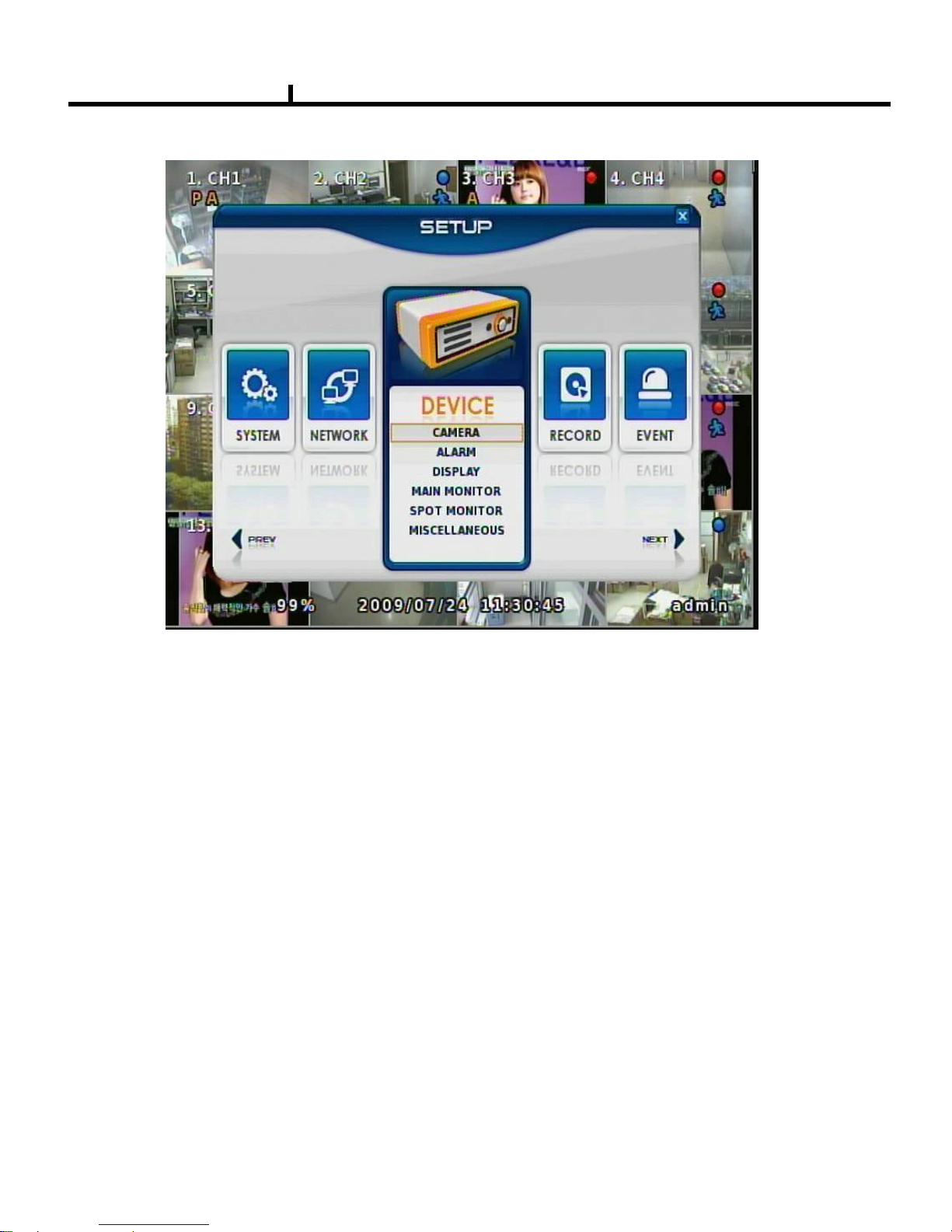

Device ----------------------------------------------------------------------------------------------- 51

Device – Camera ------------------------------------------------------------------------------- 52 Device – Alarm / Display -------------------------------------------------------- ------------- 53 Device– Main Monitor / Spot Monitor ----------------------------------------------------- 54 Device – Miscellaneous ----------------------------------------------------------------------- 55

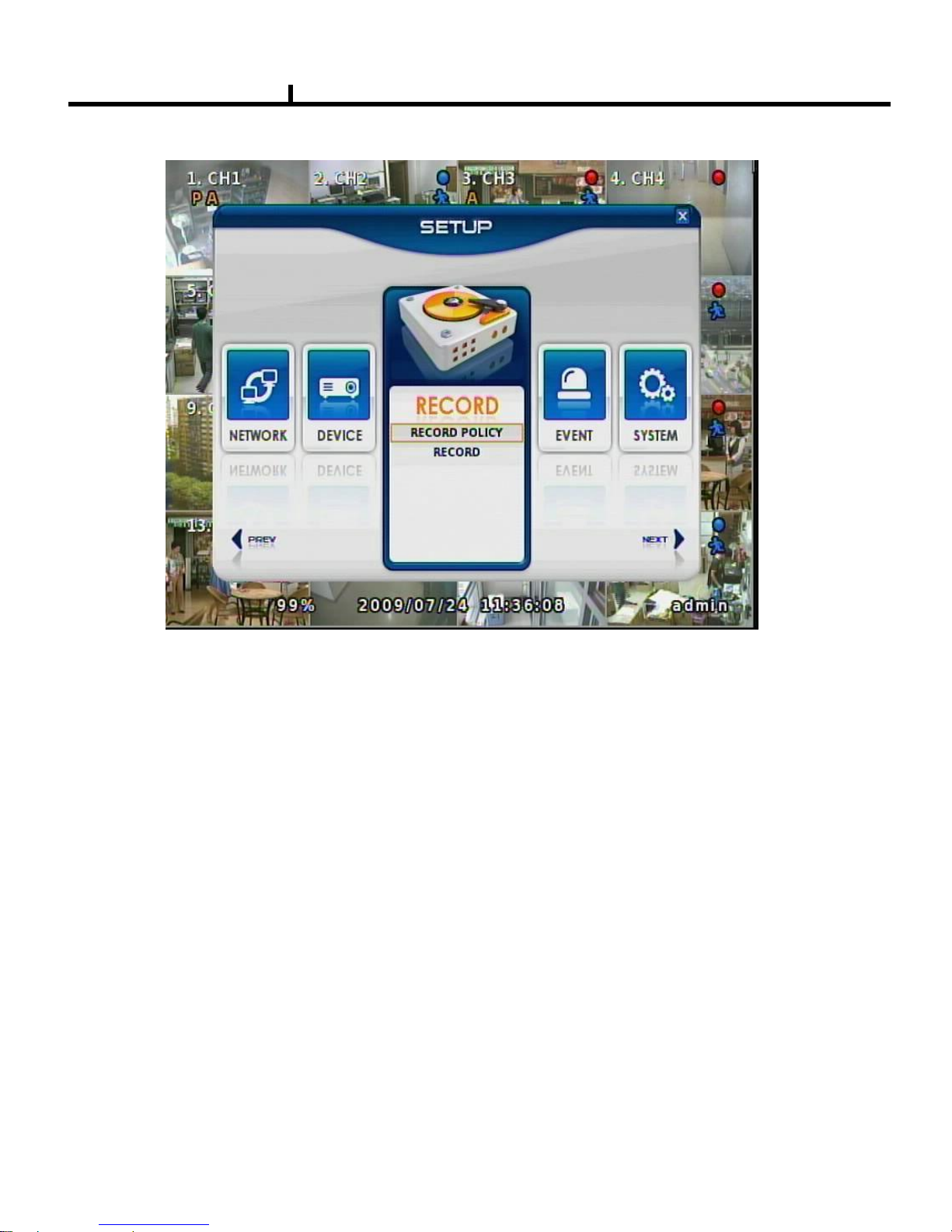

Record ----------------------------------------------- ------------------------------------------------ 56

Record – Record policy / Data Retention ---------------------------------- -------------- 57

Record – Record Setup ----------------------------------------------------------------------- 58

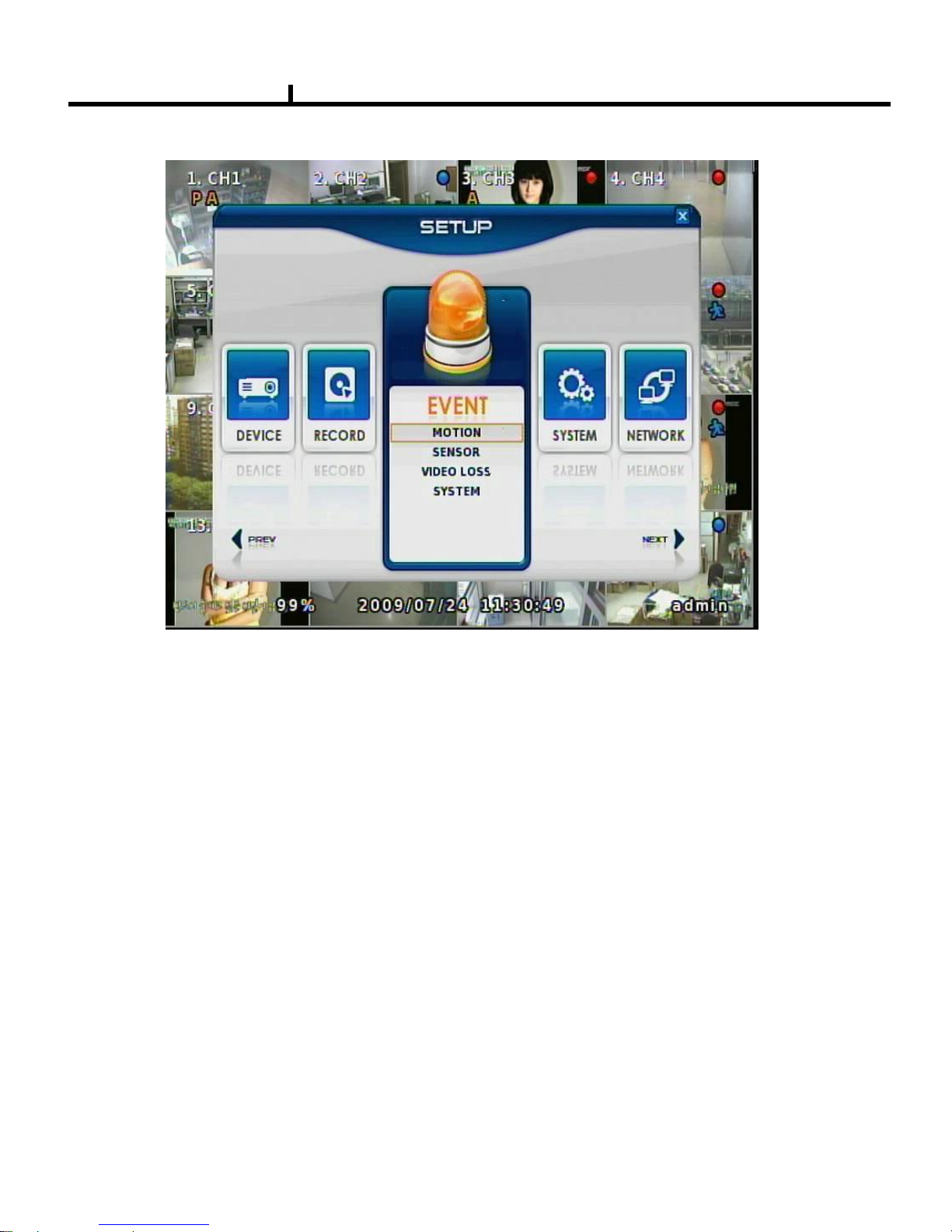

Event ------------------------------------------------------------------------------------------------- 59

Event – Motion ---------------------------------------------------------------------------------- 60 Event – Sensor ---------------------------------------------------------------------------------- 61 Event – Video loss ----------------------------------------------------------------------------- 62 Event – System --------------------------------------------------------------------------------- 63

Index

Chapter V. Search

Search screen ------------------------------------------------------------------------------------- 65 Menu – Display / Calendar search ---------------------------------------------------------- 66 Menu – Section / Event search --------------------------------------------------------------- 67 Menu – Date / Time search / First, Last, Bookmark ----------------------------------- 68 Menu – Advance Playback / Local device ------------------------------------------------ 69 Menu – Backup device ------------------------------------------------------------------------- 70

Chapter VI. Client program

REMOTE ------------------------------------------------------------------------------------------- 72

Connection Info / Button ----------------------------------------------- ------------------------ 73 Program Info & Setup --------------------------------------------------------------------------- 74 Icon Adjustment ---------------------------------------------------------------------------------- 75 Remote search execute & setup ------------------------------------------------------------- 76 Menu – Remote setup (Camera) ------------------------------------------------------------- 77 Menu – Remote setup (Alarm) --------------------------------------------------------------- 78 Menu – Remote setup (Main Monitor) ------------------------------------------------------ 79 Menu – Remote setup (Spot Monitor) ------------------------------------------------------ 80 Menu – Remote setup (Record) -------------------------------------------------------------- 81 Menu – Remote setup (Record table) ------------------------------------------------------ 82 Menu – Remote setup (Record policy) ----------------------------------------------------- 83 Menu – Remote setup (Motion) -------------------------------------------------------------- 84 Menu – Remote setup (Motion link) --------------------------------------------------------- 85 Menu – Remote setup (Sensor) -------------------------------------------------------------- 86 Menu – Remote setup (Sensor link) -------------------------------------------------------- 87 Menu – Remote setup (Video loss) --------------------------------------------------------- 88 Menu – Remote setup (Video loss link) ---------------------------------------------------- 89 Menu – Remote setup (Disk full / Disk full link) ------------------------------------------ 90 Menu – Remote setup (S.M.A.R.T / S.M.A.R.T link) ----------------------------------- 91 Menu – Remote setup (DDNS) --------------------------------------------------------------- 92

Menu – Remote setup (E-Mail) --------------------------------------------------------------- 93

Menu – Remote setup (Callback) ------------------------------------------------------------ 94 Menu – Remote setup (LAN) ----------------------------------------------------------------- 95 Play & Pause / Audio transmission / Mouse click to right ---------------------------- 96 Channel button/Layout change button ----------------------------------------------------- 97 PTZ operation --------------------------------------------------------------------- ---------------- 98 Remote search (Image playback screen / Section) ------------------------------------ 99 Remote search (Hotkey & Event search) ------------------------------------------------ 100 Remote search (Connection info / button / playback button) ----------------------- 101 Remote search (Split screen change / Audio / Image control button) ----------- 102 Remote search (Saving related button) -------------------------------- ------------------ 103 Remote search (Preview) -------------------------------------------------------------------- 104 Remote search (Mouse click to right) ----------------------------------------------------- 105 Remote search (Time table) ----------------------------------------------------------------- 106 Backup playback -------------------------------------------------------------------------------- 107

PLAYER ---------------------------------------------------------------------------------- 108 ~ 110

Chapter VII. APPENDIX

Front Key ------------------------------------------------------------------- ---------------- 112, 113 Hot Key -------------------------------------------------------------------------------- ------------ 114 Product Warranty ------------------------------------------------------------------------------- 115

Chapter-I. System Overview

'9577352 '9577352 '9577352

Video IN / Loop Out 4/4 9/9 16/16

Video Display 1, 4 1, 4, 9 1, 4, 9, 16

Monitor Out 1ch Composite / 1ch S-Video

VGA Out 1ch

Spot Out 2ch

Audio In/Out 4 in / 1 out

Audio Compression G.723

Display Resolution 720x480

Recording Resolution 720x480, 720x240, 360x240

Video Compression H.264

Display Frame

NTSC 120fps 270fps 480fps

PAL 100fps 225fps 400fps

Record Frame

NTSC D1 120fps CIF 480fps CIF 480fps

PAL D1 100fps CIF 400fps CIF 400fps

Playback Frame

NTSC D1 120fps CIF 480fps CIF 480fps

PAL D1 100fps CIF 400fps CIF 400fps

OS Embedded Linux

Network 10/100 Base-T (1EA)

USB USB2.0 (Front 2EA, Rear 1EA)

HDD SATA 4ch (Max 4EA HDD)

Console RS232C

PTZ RS485

Alarm Function (In/Out) 4/4 8/4 16/4

Front Key 34 Key, Jog/Shuttle

Remote controller ID Remote controller

Watchdog / Power monitor Yes

LCD 16X1 Line green back LCD

Front LED Power, Network, HDD

Dimension 435(W) x 425(D) x 87(H) mm

Operation temp. 0~45℃

Operation humidity 5~85%

Weight 7kg (Without CDRW, HDD)

Power Micro ATX 115/230VAC, 60/50Hz, 6/3A

Chapter I

System Specification (DVRTT Pro SERIES)

Chapter I

System Specification (DVRTT SERIES)

'9577 '9577 '9577

Video IN / Loop Out 4/0 9/0 16/0

Video Display 1, 4 1, 4, 9 1, 4, 9, 16

Monitor Out 1ch Composite

VGA Out 1ch

Spot Out 1ch

Audio In/Out 4 in / 1 out

Audio Compression G.723

Display Resolution 720x480

Recording Resolution 720x480, 720x240, 360x240

Video Compression H.264

Display Frame

NTSC 120fps 270fps 480fps

PAL 100fps 225fps 400fps

Record Frame

NTSC D1 120fps CIF 480fps CIF 480fps

PAL D1 100fps CIF 400fps CIF 400fps

Playback Frame

NTSC D1 120fps CIF 480fps CIF 480fps

PAL D1 100fps CIF 400fps CIF 400fps

OS Embedded Linux

Network 10/100 Base-T (1EA)

USB USB2.0 (Front 1EA, Rear 1EA)

HDD SATA 4ch (Max 3EA HDD)

Console RS232C

PTZ RS485

Alarm Function (In/Out) 4/1

Front Key 33 Key

Remote controller ID Remote controller

Watchdog / Power monitor Yes

LCD None

Front LED Power, Network, HDD

Dimension 395(W) x 390(D) x 70(H) mm

Operation temp. 0~45℃

Operation humidity 5~70%

Weight 3.5kg (Without CDRW, HDD)

Power

Adapter DC 12V, 50/60Hz , 5A

Adapter DC 12V, 50/60Hz, 7A

System Characteristics (DVRTT PRO SERIES)

 480FPS real-time recording – 16ch / CIF(360*240 at NTSC) standard

 High level specification with elegance design and jog/shuttle, easy UI with LCD  Control recording resolution, quality, frame rate by each camera  USB mouse supported  LIVE screen editing, Digital zoom, SPOT monitor supported  Event / Panic / Schedule record, optimized record mode supported  Diversified search by Time, Calendar, Event supported  Diversified backup by USB2.0 and DVD-RW supported  Convenient backup by AVI , Mini viewer etc  10/100 Base-T network  DDNS, NTP, E-MAIL, CALLBACK functions  DISK ID, S.M.A.R.T functions, real-time disk health check  Multi-language supported  Intensive security function by chosen AUTHORITY  Diversified network program by LIVE, SEARCH, CMS, AGENT

Chapter I

System Characteristics (DVRTT SERIES)

 D1(720*480) real-time recording at 4CH (Only DVRTT)

 HD1(720*480) real-time recording at 4CH (Only DVRTT4)  High level specification with elegance design and jog/shuttle, easy UI with LCD  Control recording resolution, quality, frame rate by each camera  USB mouse supported  LIVE screen editing, Digital zoom, SPOT monitor supported  Event / Panic / Schedule record, optimized record mode supported  Diversified search by Time, Calendar, Event supported  Diversified backup by USB2.0 and DVD-RW supported  Convenient backup by AVI , Mini viewer etc  10/100 Base-T network  DDNS, NTP, E-MAIL, CALLBACK functions  DISK ID, S.M.A.R.T functions, real-time disk health check  Multi-language supported  Intensive security function by chosen AUTHORITY  Diversified network program by LIVE, SEARCH, CMS, AGENT

Chapter I

Chapter-II. H/W Description

1) Front View

2) Side View

3) Top View

Chapter II

System appearance (DVRTT PRO SERIES)

1) Front View

2) Side View

3) Top View

Chapter II

System appearance (DVRTT SERIES)

DVR rear panel (DVRTT PRO SERIES)

Video input(4CH)

Video out

Alarm input

Alarm output

Network port

USB port

RS232 port

VGA port

S-VHS out

Factory reset switch

NT/PAL switch

Audio in/out

SPOT output

Power

AC115V~230V

switch

Power switch

Ground

bolt

1) 4CH Rear Panel

Chapter II

Video input(9CH)

Video out

Alarm input

Alarm output

Network port

USB port

RS232 port

VGA port

S-VHS out

Factory reset switch

NT/PAL switch

Audio in/out

SPOT output

Power

AC115V~230V

switch

Power switch

Ground

bolt

2) 9CH Rear Panel

Video input(16CH)

3) 16CH Rear Panel

Chapter II

Video out

Alarm input

Alarm output

Network port

USB port

RS232 port

VGA port

S-VHS out

Factory reset switch

NT/PAL switch

Audio in/out

SPOT output

Power

AC115V~230V

switch

Power switch

Ground

bolt

DVR rear panel (DVRTT SERIES)

Chapter II

Video Input (4CH)

Video

Output

Power Input

DC12V

Alarm

In/Out

Network Port

USB Port

RS232

Port

VGA

Port

FAN

NT/PAL

switch

Audio In/Out

RS485

Power switch

1) 4CH Rear Panel

2) 9CH Rear Panel

FAN

Power switch

Video

Output

Video Input (9CH)

Audio In/Out

Power Input

DC12V

NT/PAL

switch

VGA

Port

Spot

Output

USB Port

Network Port

RS232

Port

Alarm

In/Out

RS485

Chapter II

3) 16CH Rear Panel

FAN

Power switch

Video

Output

Video Input (9CH)

Audio In/Out

Power Input

DC12V

NT/PAL

switch

VGA

Port

Spot

Output

USB Port

Network Port

RS232

Port

Alarm

In/Out

RS485

2) LOOP OUT Connection

3) Monitor Connection

It connects audio source (mic) to audio input of RCA and connects speaker to audio output.

It supports 10/100 BaseT, connects Cat5 cable with RJ-45

System rear connection detail (DVRTT PRO SERIES)

1) Video Source Connection

It connects video sources (camera image) to BNC connector via cable.

BNC connector of LOOP OUT can be used other device‟s input.

Caution : It may cause low quality of picture when connecting unconnected cable from any device

to LOOP OUT BNC.

CVBS OUT/SPOT : It connects normal CCTV CRT monitor.

S-VHS : It connects monitor that supports S-VHS(S-VIDEO)

VGA : It connects PC monitor or LCD monitor (not supporting DVI) ** Default of video output is designated to CVBS OUT + VGA OUT.

For screen out's conversion, It convert to CVBS OUT only if you press front panel's DISPLAY button for more then 3 second. The CVBS OUT's quality will be better If you use CVBS OUT only.

4) Audio Connection 5) Network Connection

Chapter II

6) RS232 port Connection.

RS232 port is connected to PC and other devices for specific function and After Sales purpose.

It consists of 2 USB (Front), 1 USB (Rear), its supported devices are such as USB mouse, USB external HDD and USB memory stick

* Alarm output 1~4CH It can be on/off for buzzer, headlamp etc. Alarm input mode consists of NORMAL OPEN and NORMAL CLOSE.

Ref : The spec. Max24V/2A

7) USB port Connection

8) ALARM IN(SENSOR) Connection

It consists of ALARM IN(SENSOR) and SIGNAL+G(GND).

Ref : The spec. is Max 6V/50mA

9) ALARM OUT Connection

Chapter II

front rear

9) Ground (Field GND) Connection

It connects bolt with wire to the Ground to protect DVR and user‟s safety from surge,

static electricity and noise

The factory reset switch located at the left side of NTSC/PAL switch is used to return to factory default setup values.

When you need to shift NTSC/PAL mode, turn off the DVR before shift switch, then restart the DVR.

Power Supply is Micro ATX 115/230VAC , 60/50Hz , 6/3A 115/230VAC is changeable with shift switch. Main power can be turned on/off by switch.

10) Factory Reset Switch and NTSC/PAL Shift Switch

Factory Reset Switch

NTSC/PAL Shift Switch

11) Power Connection <Power cord connector, AC 115V/230 switch, Power switch>

Chapter II

System rear connection detail (DVRTT SERIES)

2) Monitor Connection

1)Video Source Connection

It connects video sources (camera image) to BNC connector via cable.

CVBS/ SPOT OUT : It connects normal CCTV CRT monitor. VGA : It connects PC monitor or LCD monitor (not supporting DVI)

3) Audio Connection

4) Network Connection

It connects audio source (mic) to audio

input (4CH) of RCA and connects speaker to audio output.

It supports 10/100 BaseT, connects Cat5 cable with RJ-45

Chapter II

* Alarm Input 1~4CH

When an event happens DVR operates by using external device. Sensor, Switch signal (Signal GND) are connected terminal block. Ref : Spec. Max 6V/50mA

* Alarm Output 1CH

It can be on/off external device as buzzer, headlamp etc. Alarm input mode consists of NORMAL OPEN and NORMAL CLOSE. Ref : Spec. Max24V/2A

* RS485

Through Half-duplex serial communication, remote controlling is available using control system as external device, control keyboard. In addition, it is available to control PTZ (Pan/Tilt/Zoom) camera. it is connected RS485 +,- of DVR.

5) RS232 port Connection.

RS232 port is connected to PC and other devices for specific function and After Sales purpose.

It consists of 1 USB (Front), 1 USB (Rear), its supported devices are such as USB mouse, USB external HDD and USB memory stick

6) USB port Connection

7) ALARM IN/OUT(SENSOR) Connection

Chapter II

Adaptor is DC12V /5A input and Main Power can turn on/off DVR on Switch.

8) NTSC/PAL Shift Switch

NTSC/PAL Shift Switch

9)Power Connection

The factory reset switch located at the left side of NTSC/PAL switch is used to return to factory default setup values. When you need to shift NTSC/PAL mode, turn off the DVR before shift switch, then restart the DVR.

REMOVABLE HDD RACK

CD_RW,DVD_RW

Jog / Shuttle

Power

Direction

Remote control IR sensor

USB2.0 port

Playback

Number

(1~0)

System Front Description (DVRTT PRO SERIES)

POWER/HDD/NETWORK LED

Chapter II

System Front Description (DVRTT SERIES)

Chapter II

REMOVABLE HDD RACK CD_RW,DVD_RW

Power LED

HDD LED

Network LED

Direction

IR sensor

Operating

USB2.0

Playback

Number

ESC

 Menu Button : it shows menu in live, search display (same function as right click of mouse)  Direction Button : It is used for movement, changing set-up, PTZ move, etc in menu.

(Basic function- left, right : Movement / up, down : Changing set-up / Enter : confirmation

 Number Button : It is used for Changing to 1CH screen, direct input in set-up.  Operating Button : It is used for operating function as Setup, Backup etc in DVR.  ESC Button : It is used for exit from menu/mode, withdrawing from execution.  LED : It shows status of Power, HDD, Network.  IR sensor : it receives a signal of remote controller (remote controller is optional)  Playback Button : It is used for when search, playback, Pause, FF, REW.

(It comes to live screen out of playback screen when stop button is pressed)

○ How to change remote controller ID

A) Enter 'ID' button for 3seconds B) Power LED is lightened. C) Enter 2 letters of digit. (00 ~ 99) – In case 00, means no ID function

- ID set is available from 01 to 99. D) Save setting value, then LED is off. E) It enables to communicate the same ID DVR F) LED is ON every time data is transferred.

Remote controller Description (Optional)

Chapter II

ICON HOT KEY

LATEST SEARCH

TO LIVE

FIRST SEARCH

LAST SEARCH

CALENDAR SEARCH

EVENT SEARCH

RECORD

SETUP

BACKUP

COLOR

STATUS

ENTER

DIRECTION

ESCAPE

DISPLAY

SEQUENCE

FREEZE

ZOOM

REWIND

FAST FORWORD

STEP REVERSE

STEP FORWORD

FUNCTION

POWER ON/OFF

PLAYBACK & PAUSE

STOP

||▶

■

◀◀

▶▶

◀|

|▶T▲◀▶

▼

◀

▶

Chapter II

Installation Guide for HDD & ODD devices (DVRTT PRO SERIES)

Description

SATA 1 : HDD#1 SATA 2 : HDD#2

SATA 3 : HDD#3 SATA 4 : ODD(CD/DVD)

1. ODD(CD-RW/DVD-RW) devices should be installed as “SATA 4”.

2. HDD for system needs to be installed as “SATA 1”.

Installed HDD

HDD

System

ODD(CD-RW/DVD-RW)

Devices

Connector Connector

HDD x 1 HDD#1 SATA 1 SYSTEM

SATA 4

HDD x 2

HDD#1 SATA 1 SYSTEM

HDD#2 SAAT 2

HDD x 3

HDD#1 SATA 1 SYSTEM

HDD#2 SATA 2

HDD#3 SATA 3

Guide Chart for installing several HDDs

Chapter II

Installation Guide for HDD & ODD devices (DVRTT SERIES)

Description

Installed HDD HDD Position System

ODD(CD-RW/DVD-RW)

Device

HDD x 1 HDD#1 SATA 1 SYSTEM

SATA 4

HDD x 2

HDD#1 SATA 1 SYSTEM

HDD#2 SATA 2

1. ODD(CD-RW/DVD-RW) devices should be installed as “SATA 4”.

2. HDD for system needs to be installed as “SATA 1”.

Guide Chart for installing several HDDs

SATA1 : HDD#1 SATA2 : HDD#2

SATA3 or SATA4 : ODD(CD/DVD)

ODD

MAIN

BOARD

HDD

Chapter II

System On

• Put the power to the DVR.

• Turn on the power switch at the rear power button .

• It takes about 2minutes to boot (It may take more when network cable isn‟t connected)

System Shutdown

•Select [SETUP > SYSTEM > SYSTEM SHUTDOWN] to shutdown system at login status

• Press “OK” button to confirm “Power off the system”, then turn off power switch in the rear.

Chapter-III. Monitoring Screen

Monitoring screen : it monitors each channel. <Screen Indication>

Left Up : Camera Name

P – Pan/tilt A – Audio

Right Up : Record mode (Blue-Normal, Red-Event)

Motion status

Central : Video Loss, Hidden Camera

Status Bar : DVR status Indication

(Backup, HDD usage, Current Time, SEQUENCE, FREEZE, Login info. etc)

Monitoring Screen

Chapter III

It is recommended to change ID and PW for your safety.

Chapter III

Screen Split

Press DISPLAY button or mouse menu: changed on 1 -> 4 -> 9 -> 16 by turn

Direct Channel

1) Press channel No. on the remote control or front panel.

2) Click the screen to watch specific channel using mouse. ** Pressing No.1 button responds a bit delayed to wait a possible signal input of

No.10~16 (approx 2.5 seconds)

CAMERA ALLOCATION function (changing camera display position)

Ex) Switching camera No 4 and 12.

1) Press Enter in the monitoring screen, then box is selected at No.1 camera.

2) Locate the box to the camera No. you want to move using direction buttons.

3) Enter the camera number to switch

4) Then, selected camera is switched with the

Camera number you pressed.

5) To exit, press ESC or Enter

Menu Bar * Click MENU button or right button of mouse

ZOOM

1 Full Live screen available only. Select Zoom : Press zoom button and locate the box to magnify using direction keys

Move Zoom : It can be moved using direction key after press Enter.

Zoom screen may provide low quality or be shaken as formatted digitally.

Chapter III

SEQUENCE

Sequence camera group regularly

FREEZE

Pause the screen

MISCELLANUEOUS

DISPLAY

1, 4, 9, 16 : Split screen change (the same as DISPLAY button)

Chapter III

PTZ

Pan Tilt/Zoom/Focus/Iris Preset setting and moving functions are supported. Each function can be different from each PTZ protocol.

ALARM

Control Alarm output function.

SPOT

1 spot monitors are supported and sequence / fix mode can be selected. Select the Spot monitor in SETUP>DEVICE>SPOT MONITOR.

STATUS

RECORD

Displays current recording status

EVENT

Displays current event information (motion/alarm).

DISK

Displays current Disk information Bad Block Status

NETWORK

Displays current network information. Also displays current connected client information.

Chapter III

PANIC RECORD

Set recording mode in an emergency situation. Press SETUP>RECORD> EVENT RECORD>FPS/QUALITY

SETUP

Select to enter into SETUP menu

CAMERA COLOR

Changes camera screen color

OSD

Changes OSD (On Screen Display)‟s position.

Select to enter into SEARCH menu

Chapter III

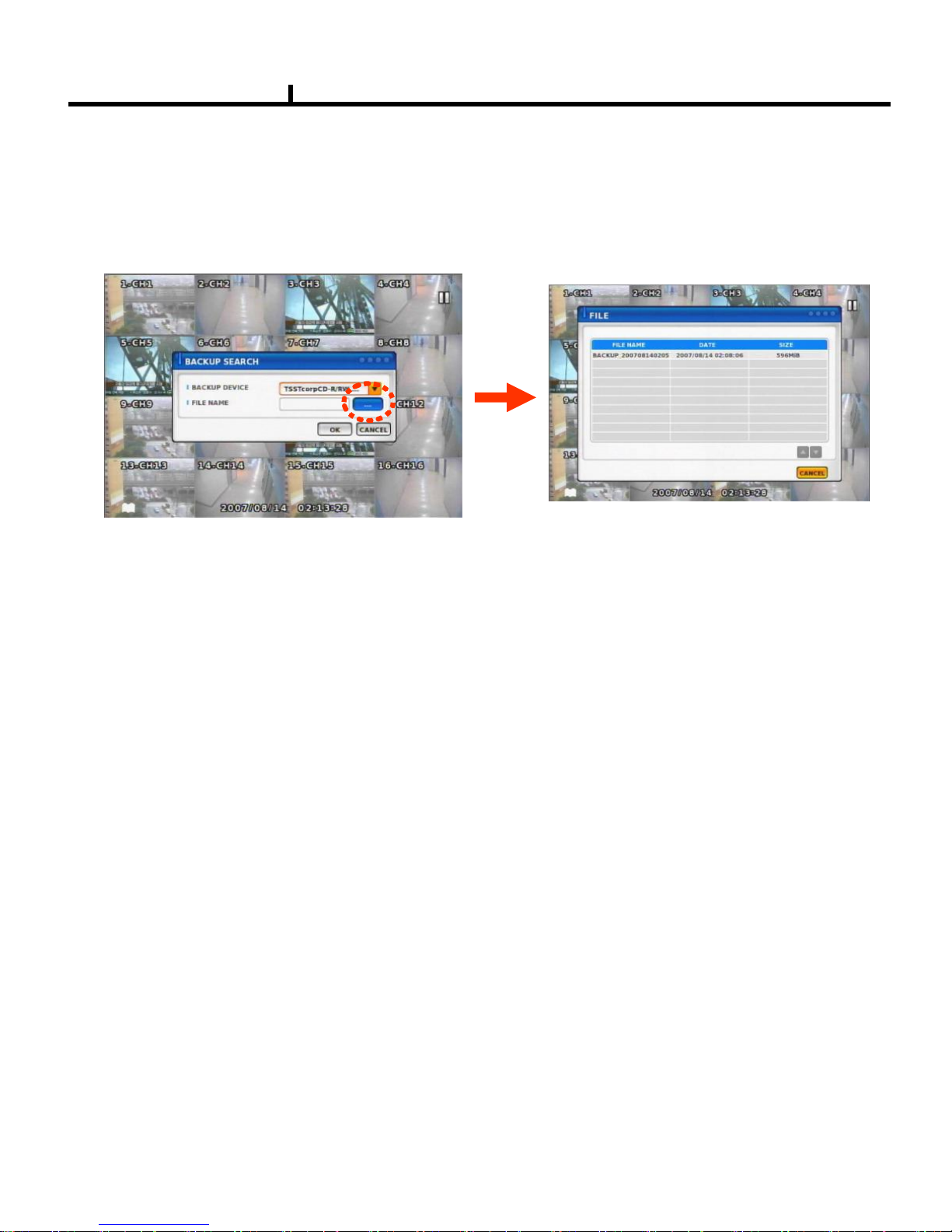

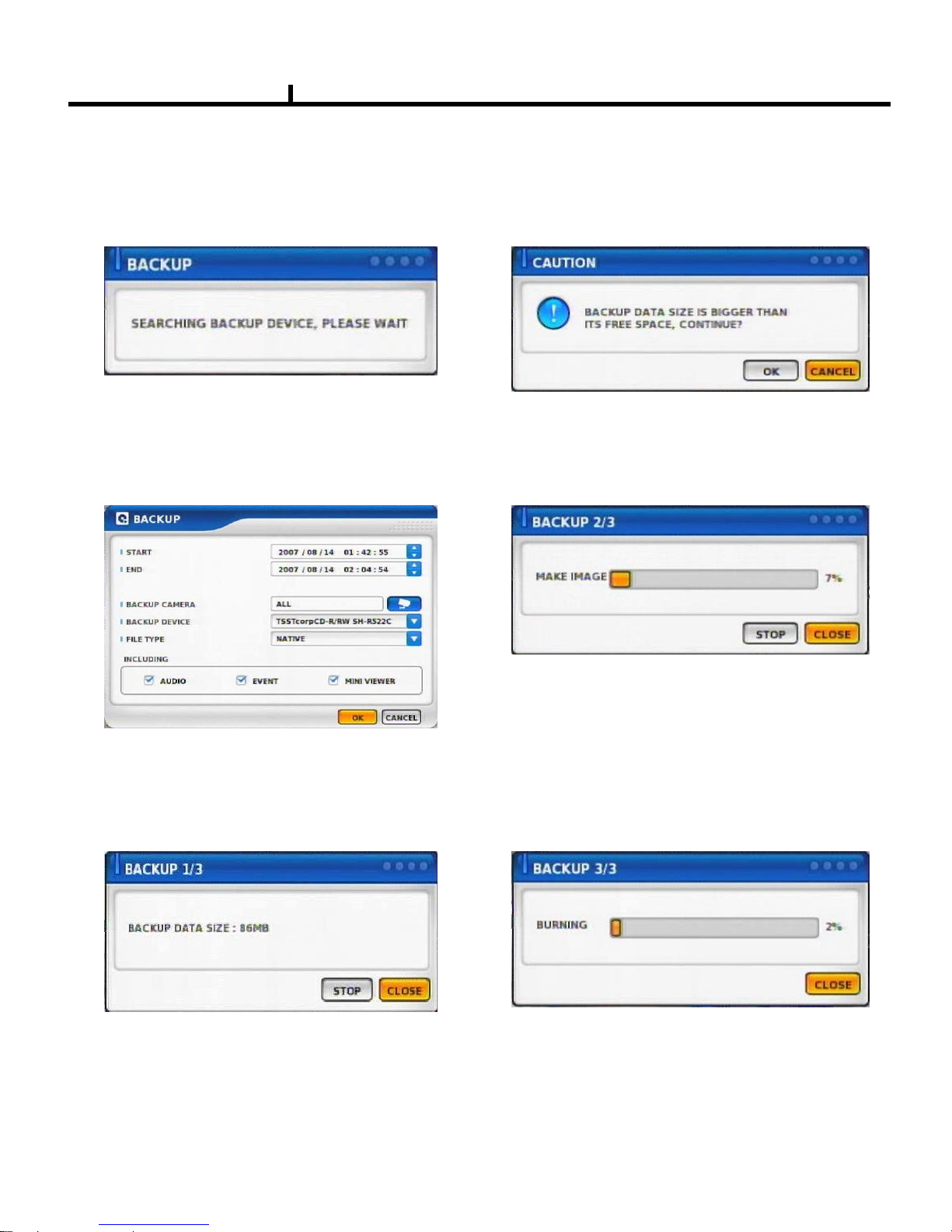

BACKUP

Select to backup recorded data.

1) Backup Device Search

2) Select data to backup

3) Calculate data size

4) Warning when data size is over

5) Make Image after pressing OK.

6) Burning to CD

Chapter III

MUTE

Sound off

LOGOUT

Press SETUP>SYSTEM>USER

Chapter III

Chapter-IV. SETUP

SYSTEM

Set up various system related items.

INFORMATION DATE/TIME DISK USER LOG LOGOUT SYSTEM SHUTDOWN

SETUP SCREEN

Chapter IV

INFORMATION

DEVICE NAME: User can change the DVR name on his own. LANGUAGE : Select language. VERSION : Shows S/W version info. (With UPGRADE button, you can upgrade the newest S/W version)

INFORMATION

Contact manufacturer or distributors for upgraded version.

CONFIGURATION IMPORT : You can read setup values saved in USB or Initialize the setup values

CONFIGURATION EXPORT : You can record setup values in USB equipment.

Chapter IV

Can‟t upgrade when DVR‟s power is on .

DATE/TIME

Set date, time & Time zone of System.

When you use it for the first time Set these items in advance .

TIME SYN

Synchronize time with internet time server.

Set the GMT on the DATE/TIME list and Adjust TIME SYNC.

HOLIDAY

In the schedule record setup , it automatically converts normal date to holiday schedule.

It works when record is setup as schedule mode.

Chapter IV

Check “NO” of enable in the TIME SYNC

menu, user can change DATE/TIME

DISK

DISK TABLE

Shows current disk information connected to system.

IMPORTED : DISK installed

RECORD : RECORD possible SYSTEM : DISK allotted for SYSTEM

TOTAL DISK FORMAT

Format all connected HDD disks. (When you select info column of connected DISK separately, You can format DISK one by one.

One of DISKS should be a system disk for recording system logs & ODD Back-up & other TEMP file issuing purposes.

Chapter IV

Backup devices such as CD-RW/DVD-RW need to be installed as Secondary Slave. (JF 4 Connector. – Slave jumper setting)

USER

Shows currently registered user lists. User accounts can be added or deleted.

+ add account with this button.

X Delete account with this button.

USER ADD

Possible to add user account according to authority.

CONFIRM LOGIN

When YES selected, LOGIN needs to be confirmed every time to enter into setup / system menu.

AUTO LOGOUT ENABLE

LOGOUT automatically after a certain period of time.

AUTO LOGOUT TIME

Set idle time to LOGOUT

Chapter IV

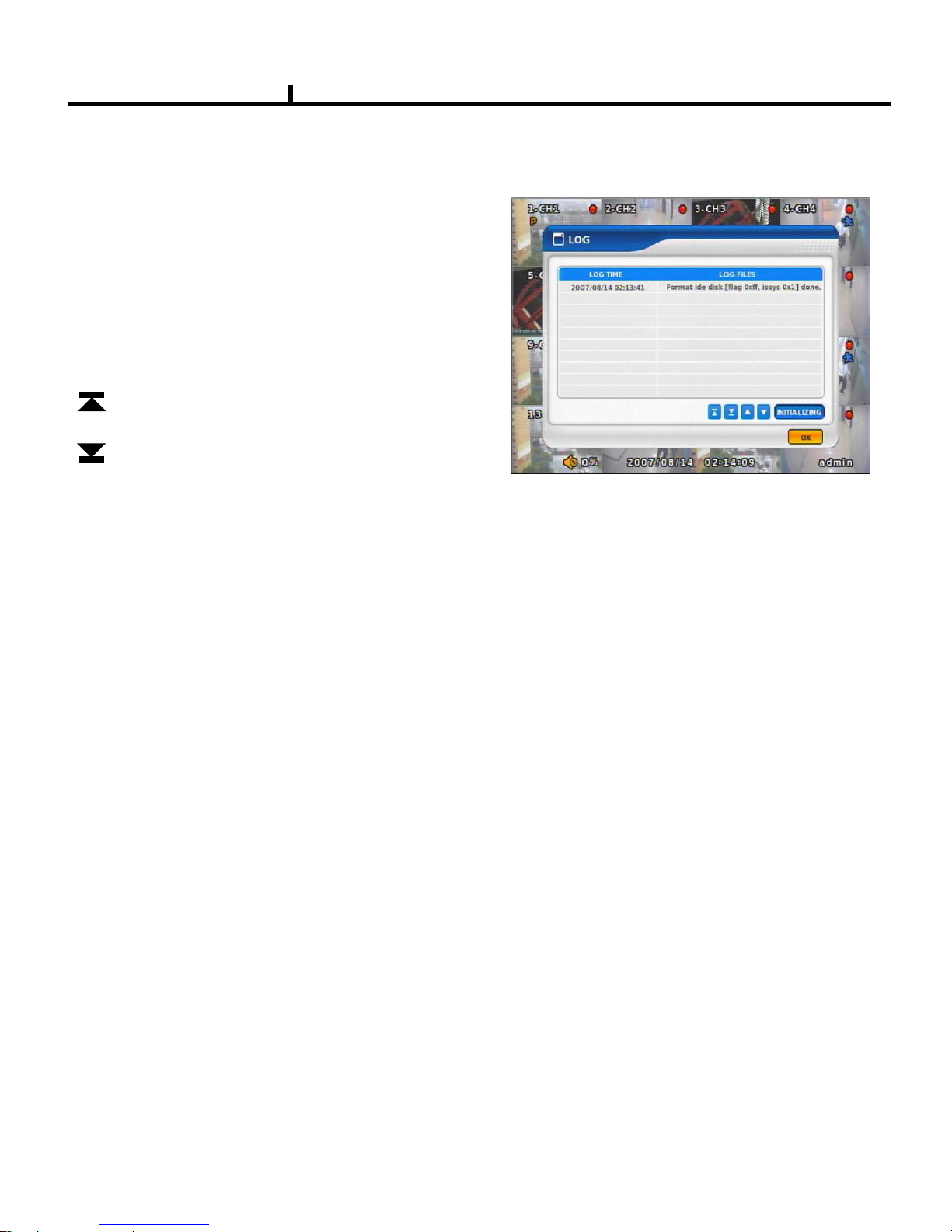

LOG

Shows all log infos on SYSTEM and other events CLEAR : Remove all log info. UP/DOWN button : Move to next/previous log info

page by page .

Move to first part of LOG info.

Move to Last part of LOG info.

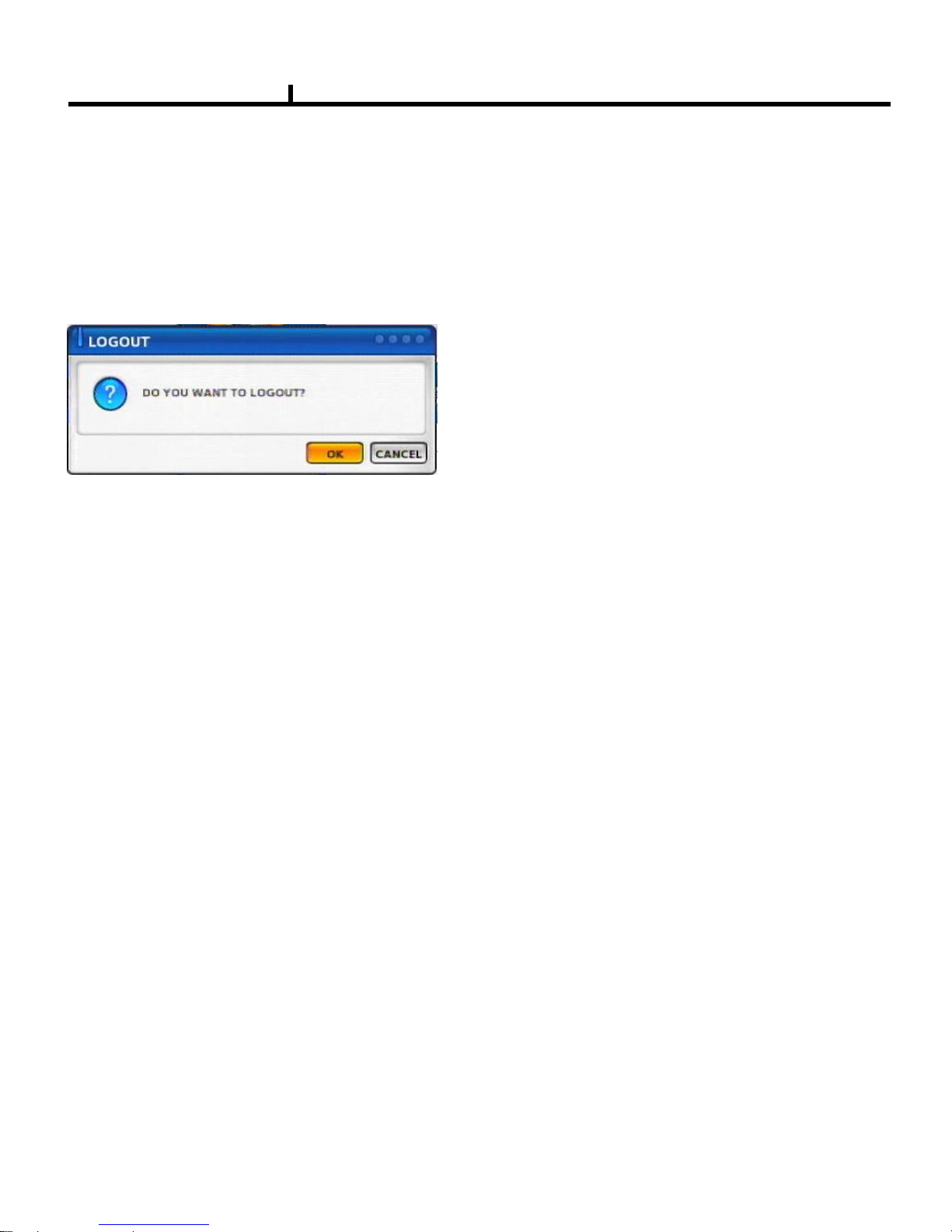

LOGOUT

LOGOUT function when exiting set up

SYSTEM SHUTDOWN

SYSTEM ends. The same as POWER OFF button of front or remote control.

Chapter IV

NETWORK

Set up various NETWORK items

LAN DDNS E-MAIL CALLBACK

NETWORK

Chapter IV

LAN

STATIC TYPE

Select in case of STATIC IP. All setting values of IP, GATEWAY, NETMASK Need to be set manually.

MAX CONNECTION

Shows maximum numbers of Connectable users. (Up to 4)

DHCP TYPE

Select during automatic DHCP IP.

User set DNS only.

(under the situation of DHCP server operating mode)

ADSL TYPE

In case USER ID, P/W are needed to input

such as PPPoE of ADSL line

Chapter IV

DDNS(DYNAMIC DNS)

ENABLE

Select if you want DDNS This is under the situation of Dynamic IP

Network.

SERVER

Select DDNS server EZDDNS : Specialized DDNS server operated by Ma

nufacturer  www.ezddns.com DYNDNS: DDNS common server

Recommended to use EZDDNS Server rather than DYNDNS as DYNDNS is not optimized The system.

In order to use DDNS service Account & HOSTNAME should be registered in the server first.

HOSTNAME

User name of IP ADDRESS ON Dynamic IP circumstance. It is the same name as registered on DDNS server.

USERNAME / PASSWORD

Type the user name & pas word registered on DDNS service.

ROUTER

Check if NETWORK is through ROUTER or IP sharer .

Chapter IV

E-MAIL

ENABLE

Select when you need E-MAIL transmission.

ALL event information is sent to admin‟s

E-mails.

SMTP SERVER

Write the MAIL sending SMTP server name.

AUTH ENABLE

Check when you need account

authority.

ID / PASSWORD

Input account & password .

Chapter IV

SENDER

Write the mail account of sender.

CALLBACK

ENABLE

Check to use CALLBACK function . All event or specific information are sent to

“Agent” Program which is installed on P.C

CALLBACK ADD

Chapter IV

DEVICE

These are item lists for the control of CAMERA, ALARM .

CAMERA ALARM DISPLAY MAIN MONITOR SPOT MONITOR MISCELLANEOUS

Chapter IV

CAMERA

ENABLE

Check if you want to use current camera

TITLE

Can change the camera name.

HIDDEN

Doesn‟t show the screen on live mode Even though it records and runs normally.

PTZ ENABLE

Check if you want to use PTZ function.

PTZ PROTOCOL

Select PTZ PROTOCOL. Various of protocol information including PELCO-D are implemented. If you can not find one, please contact manufacturer

PTZ ADDRESS

When you use many of same PTZ equipments You can name on these PTZ sites. Site numbers can be from 0 to 255.

PTZ PORT

Adjustable related protocol BAUDRATE, DATA BIT.

Chapter IV

ALARM

ENABLE

Check if you use specific ALARM.

TITLE

Changes connected ALARM names.

ALARM TYPE

Select specific ALARM TYPE. (NORMAL OPEN, NORMAL CLOSE)

Chapter IV

DISPLAY

Shows all OSD display details.

CAMERA INFOMATION

Selects the display of CAMERA NO, TITLE

EVENT INFOMATION

Select OSD display for the EVENT.

STATUS INFORMATION

Shows various status of OSD.

SPOT MONITOR

Set up functions of SPOT MONITOR.

SPOT NUMBER

Select SPOT output numbers.

SPOT SEQUENCE ENABLE

Select SPOT switching channel.

FIXED CAMERA

Select the camera number not to switch .

SEQUENCE CAMERA

Select which camera to switch.

SEQUENCE DWELL

Adjust switching times .

Chapter IV

MAIN MONITOR

Set up SEQUENCE, EVENT POPUP of main monitor.

SEQUENCE

Set up the screen switching times.

EVENT POPUP

Check if you want event pop up function.

MISCELLANEOUS

Control of remote controller/key related functions.

REMOTE CONTROLLER ID

Designate remote control ID. It is useful when many DVRs installed at the same place .

KEY TONE ENABLE

Select button volume on the front panel.

Chapter IV

External Controller Use

Choose whether External Controller use or not.

External Controller Protocol

Choose the protocol of external controller. Remarks: Please ask manufacture if there is

no protocol for your device.

External Controller ID

When you use several external controller

device, you can designate the address for each device so you can adjust it to each one them. The address is from 0 to 255.

External Controller Port

Can adjust the detailed option such as Protocol‟s BAUDRATE, Data BIT and so on.

RECORD

These are control lists of recording related functions.

RECORD POLICY RECORD

RECORD

Chapter IV

Record Policy

choose record policy, there are 2 options on data

recording

- Once : Record one time without overwriting.

- Overwrite : Overwrite recording data on installed

HDD

Record data Retention

Select record data retention date from „Disable‟ to

„365‟ days.

This feature only works when „overwrite‟ option

selected on Record policy.

Data retention feature works as following

conditions

- When boots system, changes setup, every

midnight

- When changes TIME or GMT System log keeps the record data which deleted by Data retention feature.

 Once deleted data by Data retention feature never can be recovered. Before you proceed this, please double check you recording data status and features.

Once you set Data retention data as 5, search available recorded data will be max. 5days 23hours 59minutes 59seconds.

Data retention data can‟t be over than the

HDD capacity which installed in your system.

RECORD

Set up specific record type per each camera.

RESOLUTION

Set up resolution.

-360*240(CIF)

-720*240(HALF-D1)

-720*480(D1)

RECORD MODE

Set up record type. NORMAL+EVENT is focused record mode.

NORMAL/EVENT RECORD FPS

Set up how many frames to record.

NORMAL/EVENT RECORD QUALITY

Set up record quality.

SCHEDULE

Set each week‟s schedule.

Chapter IV

EVENT

This is for the control of all event items such as MOTION, SENSOR.

MOTION SENSOR VIDEO LOSS SYSTEM

Chapter IV

MOTION SETUP

Set up the MOTION area & sensor.

Click mouse right or MENU KEY button to see motion area window

RECORD

Set pre& post record mode.

ACTION

Setting up list for how to act after EVENT.

- POPUP CAMERA/DWELL

:Set popup channel & time.

- ALARM/BUZZER DWELL

:Set alarm & buzzer time.

- E-MAIL

:Select EVENT info to be sent by e-mail.

- CALLBACK

:Select EVENT info to be sent to AGENT.

- WRITE LOG

:Select to write LOG info.

When record frames are less, PRE/POST RECORD need to be set a lot more for correct record search.

Chapter IV

SENSOR

SETUP

Set the SENSOR name & TYPE. NORMAL OPEN : Normally it opens

and sends signals when detects sensors. NORMAL CLOSE : Normally it closes,

and it sends SIGNAL when detects sensors.

RECORD

Set Connecting camera, Pre, post record.

ACTION

Setting up list for how to act after EVENT.

- POPUP CAMERA/DWELL

:Set popup channel & time.

- ALARM/BUZZER DWELL

:Set alarm & buzzer time.

- E-MAIL

:Select EVENT info to be sent by e-mail.

- CALLBACK

:Select EVENT info to be sent to AGENT.

- WRITE LOG

:Select to write LOG info.

Chapter IV

When record frames are less, PRE/POST RECORD need to be set a lot more for correct record search.

VIDEO LOSS

VIDEO LOSS can be an event type and can set camera record and action.

RECORD

Set connecting camera Pre& post record.

SETUP

Select whether you want VIDEO LOSS Function or not.

Chapter IV

ACTION

Setting up list for how to act after EVENT.

- POPUP CAMERA/DWELL

:Set popup channel & time.

- ALARM/BUZZER DWELL

:Set alarm & buzzer time.

- E-MAIL

:Select EVENT info to be sent by e-mail.

- CALLBACK

:Select EVENT info to be sent to AGENT.

- WRITE LOG

:Select to write LOG info.

When record frames are less, PRE/POST RECORD need to be set a lot more for correct record search.

SYSTEM

Sets how to operate event related with DISK mainly.

DISK FULL

Sets when HDD is full of record.

S.M.A.R.T

Enables the system to prevent possible malfunction of HDD by interfacing

between system and HDD.

Chapter IV

If you found “BAD HDD” mark in the

S.M.A.R.T function, please exchange HDD as soon as possible

DISK ERROR

Sets when there is an error on HDD.

Chapter-V. SEARCH

Playback Screen : Record Playback Playback Time : Playback Time Display Display Status

Playback Icon

Pause (Ⅱ) Playback (▶) Multiple Playback(▶ ▶, ▶ ▶ ▶, ▶ ▶ ▶ ▶)

1 2

It randomly shows the first searched record file when it goes to SEARCH MODE. This type is the same as on event search , so it is possibly not to shows The exact record file searched .

Chapter V

DISPLAY

Select screen division mode. (1,4 spirit)

CALENDAR SEARCH

Select date , hour, minutes, seconds in turn on calendar search. When you click MINUTE, you can find specific record status as right below.

SEARCH MENU

Chapter V

EVENT SEARCH

It shows all EVENT record list. If you click related EVENT, It plays that event promptly.

SEARCH KEY

Can be selectable on EVENT search.

-START/END

:Set EVENT search start, end time.

-MOTION/SENSOR/VIDEO LOSS

:Selectable per each camera

Chapter V

It may not be the same channel image as shown on EVENT LIST because it shows the first display image recorded at that time zone.

Section is Generated and maintained recording data that occurs duplicating data returning previous time by any cause during DVR operating

Section#1:

Sectoin#2:

Time progress

FIRST

Move to first part of recorded DATA.

LAST

Move to last part of recorded DATA.

BOOKMARK

Sets automatically starting time during back up. It is useful to set a bookmark as starting time while search the data.

Chapter V

PLAYBACK USER INERFACE

Playback buttons appears when locate the mouse pointer at the bottom of screen

DATE/TIME SEARCH

Search data by Date/Time . You can search the event promptly When you know the exact event time.

LOCAL DEVICE

Search the data of internal DISK.

DEVICE

Search internal or external SYSTEM DISK .

Chapter V

Play Mode Expansion

Expand Playback Mode. Low speed Play mode is activated when use this Function. If you don‟t want to use Low-speed Play, uncheck this function.

How to use “Low-speed Play Mode”

Choose “FF”

-> Low-speed 3 steps + speed rate 3 steps

Choose “REW”

-> Low-speed 3 steps + speed rate 3 steps

In case of Low-speed mode, please adjust from 1 ms to 125ms between each Frame.

BACKUP DEVICE

Search backup device (Select when you play the backup data.) If there are various back up devices , you can select a specific one .

Chapter V

Chapter-VI. Client program

<REMOTE PROGRAM IS?> With connected to DVR remotely, it is to perform Remote Monitoring, Remote Search, Remote Backup etc. (Please install remote program from the program CD)

1. INTEL P-4

2. 256M or higher main memory(512M recommend)

3. WINDOWS O/S(WIN 2000, XP, Vista(32bit))

4. 32MB VGA card supports RGB (ATI series recommend)

5. At least 10Mbps network speed (Max 100Mbps support)

Environment conditions for Remote Program

Please note that some buttons and graphics may not be activated at this moment. Those inactivated buttons will be used later when system upgrades and expands

Chapter VI

REMOTE

8 9

DVR name : Specify a name that you can easily

identify.

Address : Specify assigned IP address to

connect DVR (Type the Host name of REAL IP or DDNS.)

Connection information and Button

Shows DVR‟s name, IP address and connection status.

DVR connection button.

Add

Modify

Delete

: Enter IP address and user authentication

to connect DVR

: Modify IP address and user authentication

of the existing list

: Delete existing use.

Chapter VI

Program Information :

Shows Remote Program‟s

information.

Program Setup : Sets up Remote Program. ( Language, Display Output, Resolution, Save Path, Network

Speed Etc)

<What is IP address?> A set of address system that is used to find out destination in network access via Internet or LAN. IP address is divided into REAL IP and VIRTUAL IP, and REAL IP must be sent on DVR for the access from remote site via internet. You can be assigned with REAL IP Or DDNS service ID (Hostname of Dynamic Domain Name Server).

Service Port :Set this the same as the service port assigned to DVR.

Function to make the virtual IP available to the devices such PC or DVR with Automatic connection to the specified service port when remote access is made To router via the router or IP Share of one REAL IP. (But this function is available Only when router or IP Share supports it.)

User Name : Type the user name authorized in DVR Password : Type the password authorized in DVR Save Authentication Information :Save Authentication Information

Chapter VI

Program Information and Set up

Status Icon

Status icon of connected DVR

Language :

To choose program‟s language.

Video Display : YUV mode : According to your PC

graphic card ability, the support can be decided. This mode shows faster,

clear ability of image transmission than

RGB mode. RGB mode : It is widely compatible

with most graphic cards, and select this when YUV mode is not supported..

Resolution from 1024X768 starts :

It always shows 1024 x768 when you check..

※ Above setting value will apply after restart of the program.

Data Save Place :Sets ups basic path of AVI file to save. AVI Saving time : Sets up saving time of AVI file from remote. Network Speed :

High Speed : System sends off images at high speed possible. Low Speed : System sends off images at normal speed in consideration of stability.

ATI series : Radeon7000series (More then 32M), RADEON series… NVIDIA series : M64series(More then 32M), GEFORCE series…

Etc : VGA card to support YUV mode YUV…

Chapter VI

Shows DVR‟s event status and you can

check the status of Motion, Sensor, Video Loss at real time.

You can On/Off the DVR‟s alarm if you press

the Alarm control button.

Shows the connected DVR HDD status. You can check temperature and status

at real time.

Shows and check the recording status

REMOTE SEARCH Execution and Set Up

REMOTE SEARCH Execution

Set Up Execution

Pressing each button operates REMOTE SEARCH or Set Up.

REMOTE (LIVE) and REMOTE SEARCH are made up in separate program.

Chapter VI

Remote Set Up <Camera>

Enable : Selection item to use camera, Removing the check stops using that channel.

No : Item to select camera No

To set up all the camera equally, Choose “select all”

Security : When checked, It displays „Hidden‟ on monitor. (though it keeps recording)

Title : Item to revise/type the camera name.

PTZ address: Item to assign PAN TILT address per camera.

Name :Item to check PTZ Camera‟s model name.

ID : Item to select PTZ address per camera.

Port bit rate : Item to select the PTZ‟s port bit rate.

Data bit :Item to select data bit. Stop bit : Item to select Stop bit. Parity : Item to select Parity.

Link PTZ : Sets up PTZ camera.

Audio : Item to select which audio channel to be used among total 4 audio inputs.

Chapter VI

Remote Setup <Alarm>

No : Item to select Alarm No.

To set up all the camera equally, Choose “select all”

Enable : Item to select to use Alarm, Removing the check stops using that channel.

Title : Item to type Alarm‟s name.

Type : Item to select Alarm‟s type.

- Normal Open : Type of alarm open in general situation.

- Normal Close : Type of alarm close in general situation.

Chapter VI

Remote Setup <Main Monitor>

Chapter VI

Sequence Dwell : Time setting for “screen change”

Popup Event : You can choose whether you use “Popup Event” or not.

Remote Setup <Spot Monitor>

Chapter VI

Spot Number: You can select Spot Monitor Channel.

Please choose Spot Monitor number which you want to set.

Enable Spot Sequence: You can choose “Fix” or “Change” of Spot Monitor.

YES : Change NO : Fix

Fixed Camera : If you choose the enable Spot Sequence as “NO”, the selected camera‟s output is fixed. Sequence Dwell : If you choose the enable Spot Sequence as “YES”, the output time for each

channel can be selected.

Sequence Camera : Can be activated when you check “Enable Spot Sequence as “:YES”. the output time for each channel can be selected.

Remote Set Up <Record>

No : Item to select Camera No.

To set up all the camera equally, Choose “select all”

Resolution : Item to change the resolution.

- NTSC : 720X480, 720X240, 360X240

- PAL : 720X576, 720X288, 360X288

Normal Record Frame :Item to select normal record frame. Normal Record Quality : Item to select normal record quality.

Event Record Frame :Item to select Event (Motion + Sensor + Video Loss) record speed. Event Record Quality : Item to select Event (Motion + Sensor + Video Loss) record quality.

Schedule : Item to select record schedule.

- Normal : Always Record

- Event : Motion, Sensor, Video Loss

- N + E : Always + Event Record

- Clear : Delete the current record schedule.

Chapter VI

Remote Set Up <Record (Timetable)>

1. Select the Record Mode

2.Select Day/Time

< Schedule of Record> It is the list of selection in which schedule to use in operating the relevant camera channel.

First select the item you need among Normal time, Event and Normal time + Event.

Then drag mouse from the wanted position

on time line.

※ To edit schedule record,

you need to set record as schedule mode.

Schedule Indication by color

Normal(N) : (Blue)

Event(E) : (Red)

Normal(N) + Event(E) : (Green)

Clear (No Record) : (White)

Chapter VI

Record Policy: Item to select record policy

Remote Set Up <Record Policy>

Overwrite : When HDD capacity is almost consumed, It erases old data and record new. Single Record : To stop recording on 100% of HDD capacity.

Record Data Retention : Please choose “Record Data Retention “ from “Non-use” to “365”. Please refer to page 61 for more detailed explanation.

Chapter VI

Please ask the agency and store about exact usage because you can‟t recover the deleted data by “Record Data Retention”

Camera No : Item to select Camera No.

To set up all the camera equally, Choose “select all”

Enable : Selects to use motion sensor, Removing the check stops using that channel.

Sensitivity : Adjusts the sensitivity in motion detection. There are 5 steps and as the number increase, it gets more sensitive.

Area : Item to select motion area.

Area is selected when drag the mouse on the image.

Area Draw button

Area Clear Button

Remote Set Up <Motion>

3 4

Chapter VI

Remote Set Up <Motion (Link Record)>

Pre Record : Sets pre-event recording time. (Max 5 second) Post Record : Sets post-event recording time. (Max 60 second)

Link Camera : Selects which channel to record when motion is detected on the relevant channel.

※ Multiple selection possible

Remote Set Up <Motion (Link Action)>

Popup Camera : Selects which channel to Popup when motion is detected on the relevant channel.

※ It works when the Popup setting is

„Yes‟ on DVR.

Popup Time : Sets Popup time

Link Alarm : Select Alarm to be linked when motion Is detected.

※ Multiple selection possible

Alarm Time : Sets Alarm output time. (Max 30 second) Buzzer Time : Sets buzzer output time in DVR. (Max 30 second)

Mail : When motion is detected, the log is sent to the selected e-mail. Call Back : When motion is detected, the log is sent to the selected IP address.

Log : Item to save Log writing when motion detected. (It is not recorded on the system Log but used for event search.)

Motion detection function is a mode to detect in accordance with the amount of color Changes of image. So, please be careful that DVR keeps recording as continuous motion when the image of camera is blinking caused by light problem or camera Auto Iris problem.

Chapter VI

Remote Set Up <Sensor>

Sensor No : Sets sensor No.

To set up all the camera equally, Choose “select all”

Enable : Selects to use sensor, Removing the check stop using relevant sensor.

Title : Item to select sensor‟s name.

Type : Item to select sensor type.

- Normal Open : Type of Alarm open in general situation.

- Normal Close : Type of Alarm close in general situation.

2 3

Chapter VI

Remote Set Up <Sensor (Link Record)>

Remote Set Up <Sensor (Link Action)>

Link Camera :

Selects which channel to record when sensor is detected on the relevant channel.

※ Multiple selection possible

Pre Record : Sets up pre recording time. (Max 5 second) Post Record : Sets up post recording time. (Max 60 second)

Popup Camera :

Selects which channel to Popup when sensor is detected on the relevant

channel.

※ It works when the Popup setting is

‘Yes’ on DVR.

Popup Time : Selects Popup time.

Link Alarm :

Selects Alarm to be linked when sensor is detected.

※ Multiple selection possible

Alarm Time : Selects Alarm output time. (Max 30 second)

Buzzer Time : Selects buzzer output time. (Max 30 second)

Mail : When sensor is detected, the log is sent to the selected e-mail. Call Back : When sensor is detected, the log is sent to the selected IP address

Log : Item to save Log writing when sensor detected (It is not recorded on the system Log but used for event search.)

Chapter VI

Remote Set Up <Video Loss>

Camera No : Item to select camera No.

To set up all the camera equally, Choose “select all”

Enable : Item to enable the Video Signal Loss function

2 3

Chapter VI

Remote Set Up <Video Loss( Link Record)>

Remote Set Up <Video Loss (Link Action)>

Link Camera : Selects which channel to record when video loss is detected on the relevant channel.

※ Multiple selection possible

Pre Record : Sets up pre recording time. (Max 5 second) Post Record : Sets up post recording time. (Max 60 second)

Popup Camera : Selects which channel to Popup when video loss is detected on the relevant channel.

※ It works when the Popup setting is

„Yes‟ on DVR.

Popup Time : Selects Popup time.

Link Alarm : Selects Alarm to be linked when video loss.

※ Multiple selection possible

Alarm Time : Selects Alarm output time (Max 30 second) Buzzer Time :Selects buzzer output time (Max 60 second)

Mail : When video loss occurred, the log is sent to the selected e-mail Call Back : When video loss occurred, the log is sent to the selected IP address.

Log : Item to save Log writing when video loss occurred. (It is not recorded on the system Log but used for event search.)

Chapter VI

Remote Set Up <System>

DISK FULL : List for all installed HDD disks.

Disk Full Notice Enable : Activate Disk Full Notice when installed disks are full.

Remote Set Up <Disk Full (Link Action)>

Popup Camera : Not available as of now

Popup Time : Not available as of now

Link Alarm : Selects which Alarm to be linked when all installed HDD disks are full.

※ Multiple selection possible

Alarm Time : Selects Alarm output time. (Max 30 second) Buzzer Time : Selects buzzer output time (Max 30 second)

Chapter VI

Mail : When all installed HDD disks are full, the log is sent to the selected e-mail Call Back : When HDDs are full, the log is sent to the selected IP address.

Log : Selects to save Log writing when installed HDDs are full. (It is not recorded on the system Log, but used for event search.)

SMART

Enable SMART : Select to use SMART feature.

SMART Function??

It checks the physical errors and observes the HDD disk continuously such as

Temperature, I/O device errors and general conditions of the HDD disk.

Chapter VI

Remote Set Up <SMART (Link Action)>

Popup Camera : Not available at this moment

Popup Time :

Not available at this moment

Link Alarm : Selects which alarm to be linked

※ Multiple selection possible

Alarm Time : Sets Alarm output time (Max 30 second) Buzzer Time : Sets Buzzer output time (Max 30 second)

Mail : When smart related problem occurs, the log is sent to the selected e-mail. Call Back : When problem occurs, the log is sent to the selected IP address.

Log : Selects to save Log writing when smart related problem occurs (It is not recorded on the system Log but used for event search.)

Chapter VI

Remote Set Up <DDNS>

DDNS : Select to enable DDNS function.

Enables the network access from Dynamic IP environment.

Server : Select Server for DDNS

EZDDNS : DDNS server operated by the manufacturer (recommended) 

www.ezddns.com

DYNDNS: DDNS public server

Host name : The name used in the Dynamic IP environment instead of IP Address.

To input the Hostname registered on the DDNS Server.

(Ex. dvr-xq.ezddns.com)

User Name / Password : Input the ID and Password created while signing up to the DDNS Service.

Router: To select the Network Environment when using Router or IP Sharer.

Chapter VI

Remote Set Up <E-Mail>

E-mail : To be selected for activating E-mail notification function

E-mail : Register the E-mail(s) authorized for the receipt of information.

List of Registered E-mails: The list of the registered e-mails authorized to receive information .

The unnecessary items can be deleted.

SMTP Server : To register the SMTP Server that manages the mail notification.

ID/ Password : Enter the ID and Password.

Chapter VI

Remote Set Up <Callback>

1 2

Callback : Select to activate CALLBACK function.

Function that enables delivery of the various Events occurring in the System to the Agent

Programs set in the PC.

Add Callback: Select to register IP Address of computer that will use CALLBACK function.

Registered Callback List: The Registered Callback list authorized to receive information .

The unnecessary items can be deleted.

PORT : Adjusts DVR and PORT.

Chapter VI

Remote Set Up <LAN>

Connection Type: Static, DHSP, ADSL(PPPoE).

1 2

Regardless of the number of Client connections only one Client will be able to connect to XQ Search. Therefore if once Client PC is using XQ Search the other Client PC can only connect to XQ Live.

STARIC

DHCP ADSL(PPPoE)

LAN : LAN Setting. Maximum User Number : Indicates the maximum number of CLIENTS that can be connected. (Max. 7)

PLAY & PAUSE

Starts to play when pressed.

Starts or stops image transmission on the Remote Live screen. This starts automatically when search or set in the setup menu.

Stops to play when pressed.

AUDIO Transmission

Controls Audio volume. ※Audio signal is sent on full screen mode only.

Mute Button :

Stops audio transmission.

Sound volume control gauge

Right Mouse Click Action

When the right button is clicked on Remote Live, the following menu below appears and the following functions can be used.

Whole Screen : Hides the function button and shows the image full screen.

AVI Saving Begins : Starts AVI saving of the channel Selected.

※Audio signal is saved on full screen mode only.

Image Saving.. : Save image file of channel selected (Save JPEG or BMP) Printing.. : Print current image of the channel.

Chapter VI

Channel Button

Moves to the channel selected and it has the same function as double click the left mouse button on the selected channel.

Layout Modify Button

Screen Division Button : Selects desirable screen division. Whole Screen : All buttons are hidden and the screen displays full.

※ Left double click of mouse returns to the previous screen from whole screen.

Chapter VI

PTZ Operation

A camera supporting PTZ can be used on Remote Viewer program.

※ Refer to PTZ support list

Direction Button :

Button to move top, bottom, left, right Channel Indication :

Indicate current channel

Speed Control Button : Button to control moving speed

Image Control Button : Button to adjust Zoom, Focus, Iris

Preset Move: Move to saved preset No. Preset Save : Save preset No.

Chapter VI

Pre set move button

Pre set save button

Camera Menu Mode Button

Use of Camera Menu Mode Button

The above function can be used only if

it‟s supported by PTZ camera.

Camera Name

Recorded Date/Time

Green Border Line : Display the selected camera.

Playback Display

SECTION

Selects section Section is created when Date/Time is changed to former times.

Former Date/Time will be kept in section 0.

Newly set Date/Time will be kept in section 1……

Remote Search

Chapter VI

100

Move & Event Search

Move Button : Move to selected time

Event Search Button : Popup the event search window

Shows start and end time of recorded data.

Moves to the time to search and press OK button.

Select the time to event search

Select events in detail.

Select the camera to search. Start event search. Click below Import

button to list events.

Shows current searched event lists. Hotkey :Play the searched event.

Click Stop button first and select a certain event list and click Hotkey to play the event.

Import : Search the next event list.

※ 10 lists are shown every time clicks import buttton

Please make sure to select “WRITE LOG” of the system. If not, event lists aren‟t searched.

Chapter VI

Optiview DVRTT PRO Operation Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
