Page 1
Solar Hybrid Inverter
SP5000 Brilliant Plus Series
Version: 1.0
User Manual
Page 2
Table Of Contents
ABOUT THIS MANUAL ..................................................................................................................... 1
Purpose ............................................................................................................................................. 1
Scope ................................................................................................................................................ 1
SAFETY INSTRUCTIONS .................................................................................................................. 1
INTRODUCTION .............................................................................................................................. 2
Features ............................................................................................................................................ 2
Basic System Architecture ................................................................................................................... 2
Product Overview ............................................................................................................................... 3
INSTALLATION ................................................................................................................................ 4
Unpacking and Inspection ................................................................................................................... 4
Preparation ........................................................................................................................................ 4
Mounting the Unit ............................................................................................................................... 4
Battery Connection ............................................................................................................................. 5
AC Input/Output Connection................................................................................................................ 7
PV Connection .................................................................................................................................... 8
Final Assembly ................................................................................................................................... 9
Communication Connection ................................................................................................................. 9
Dry Contact Signal .............................................................................................................................. 9
OPERATION ................................................................................................................................... 10

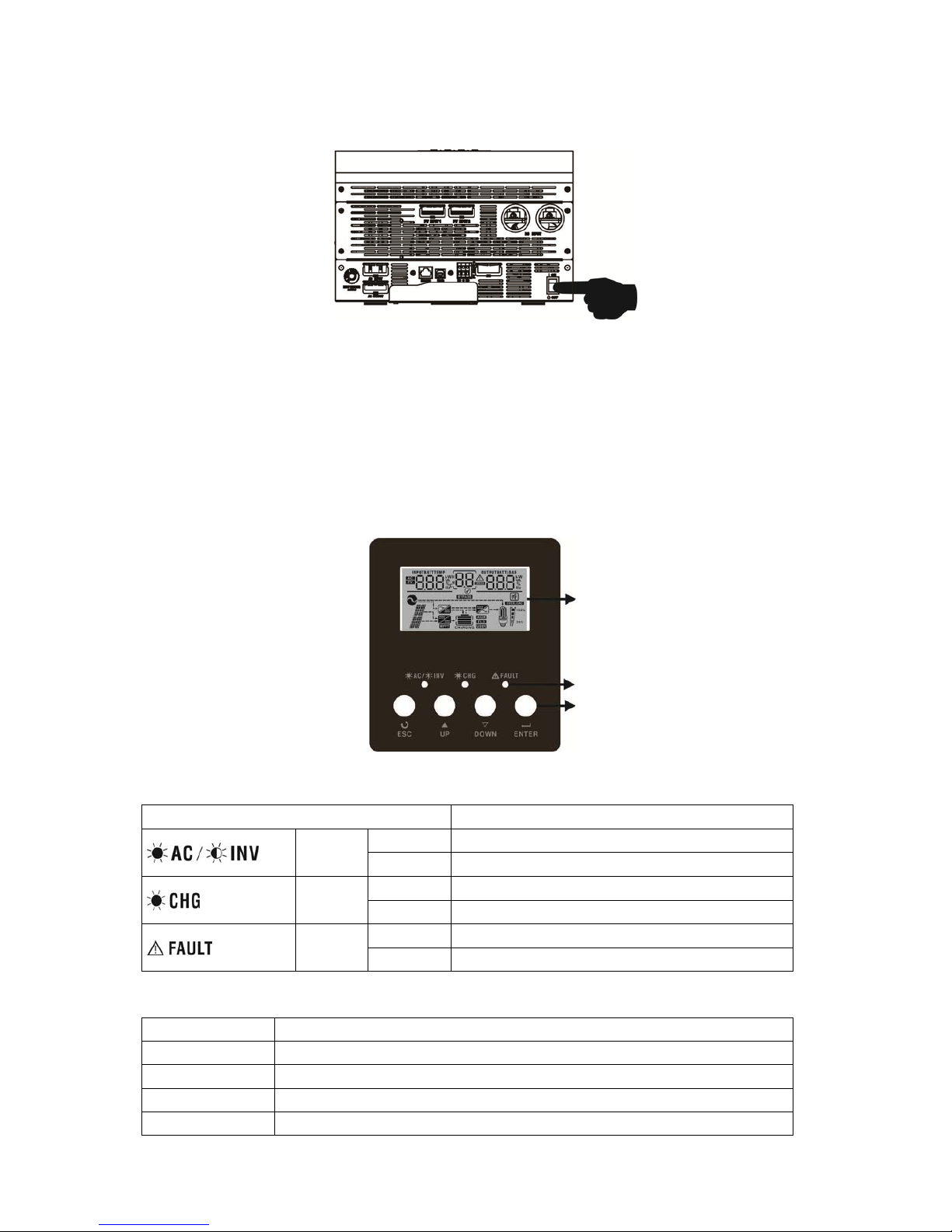

Power ON/OFF ................................................................................................................................. 10
Operation and Display Panel .............................................................................................................. 10

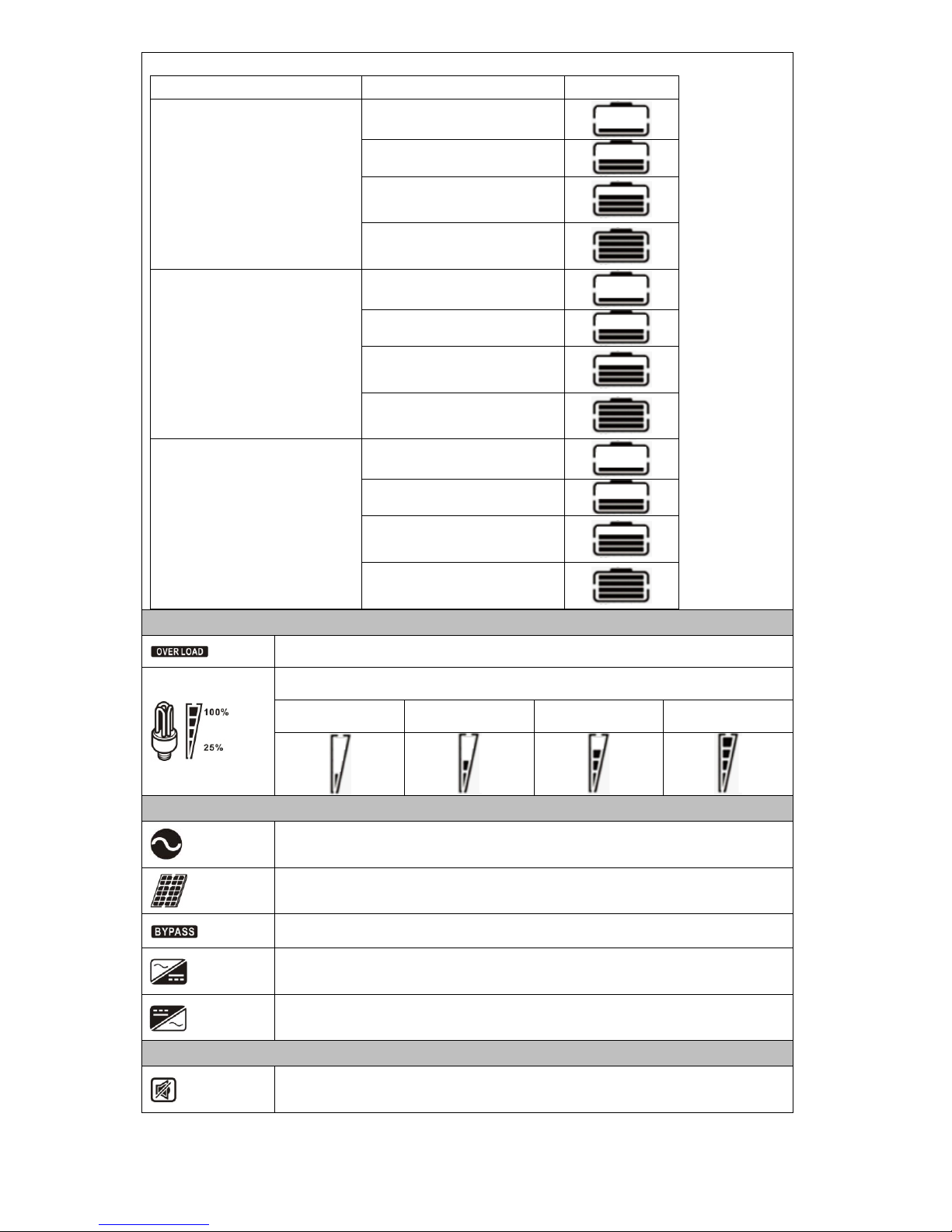

LCD Display Icons ............................................................................................................................. 11

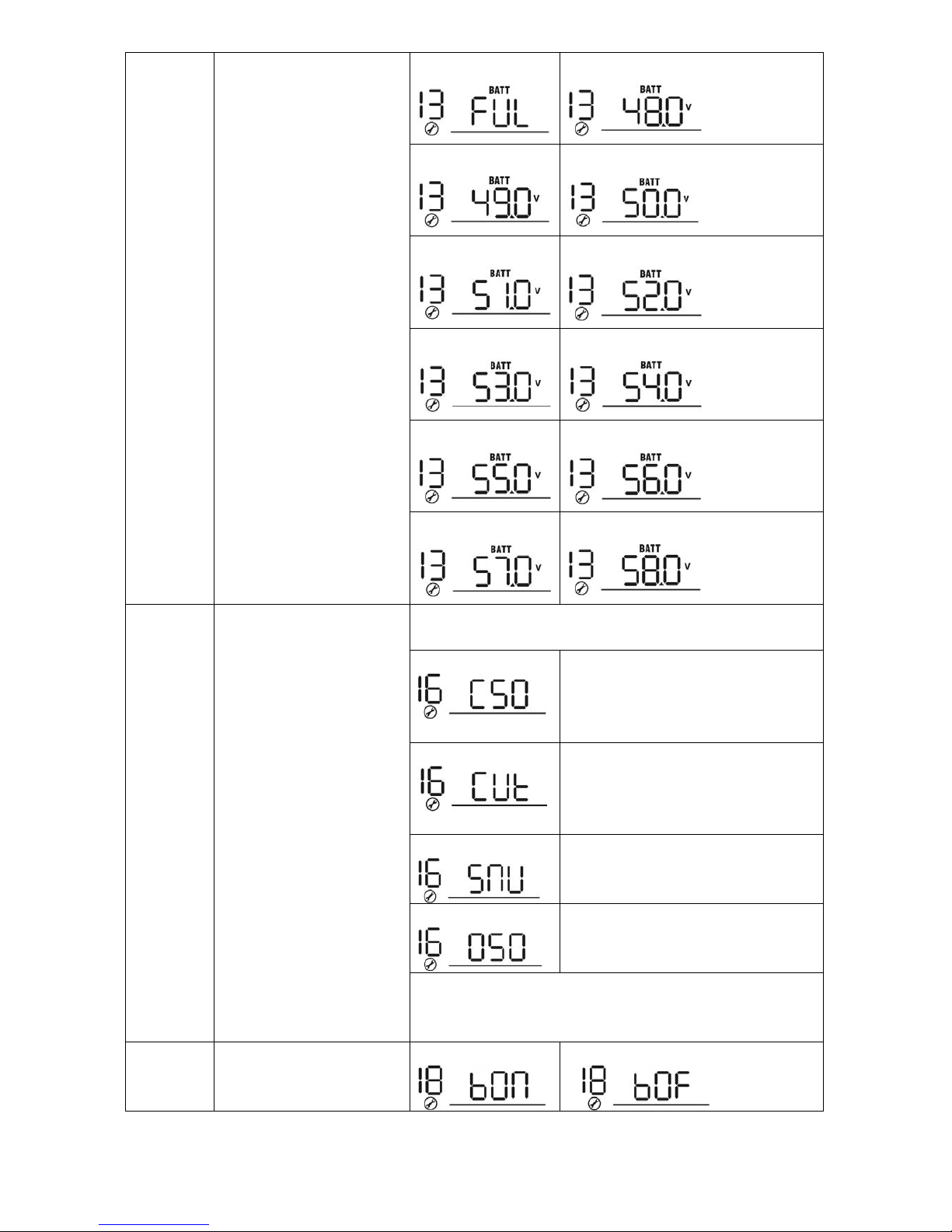

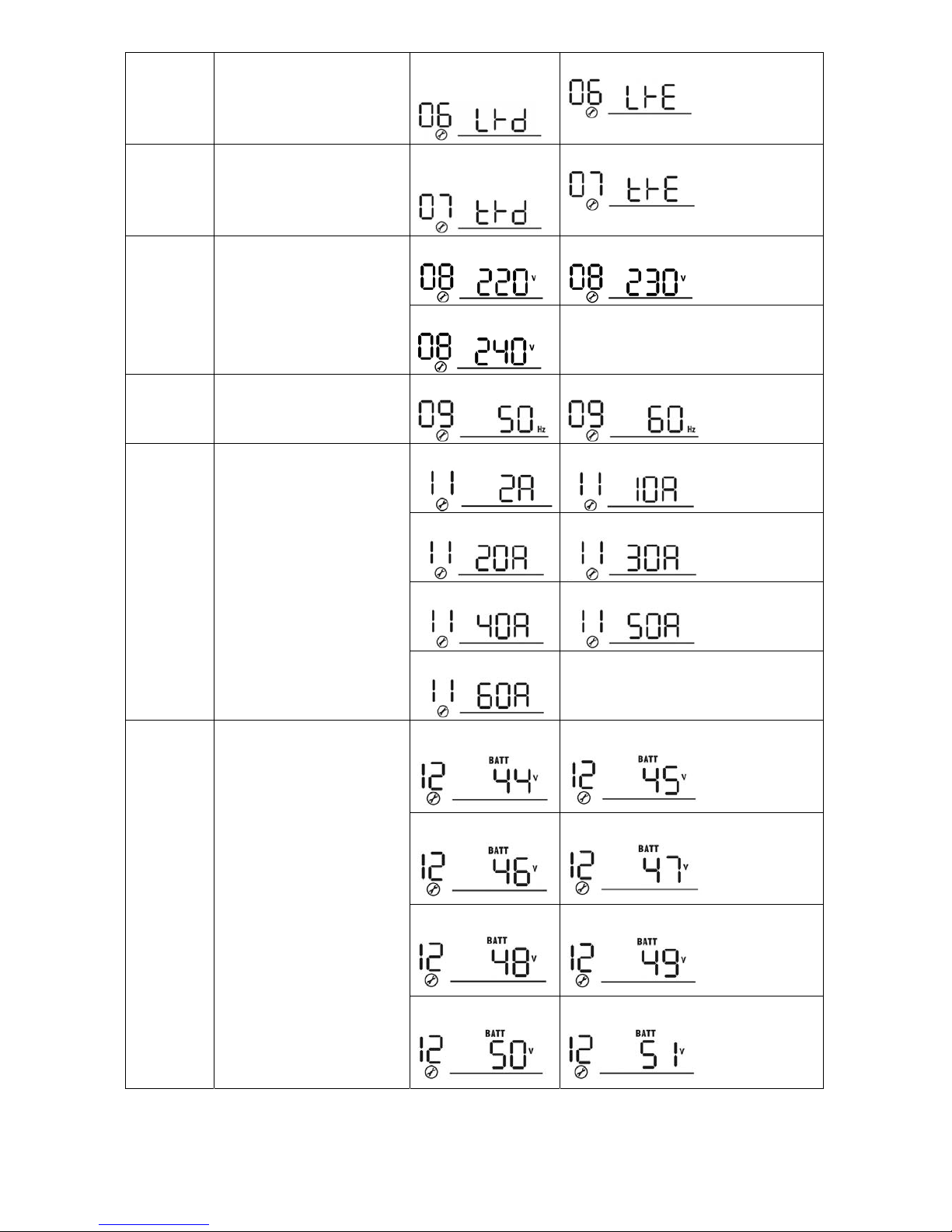

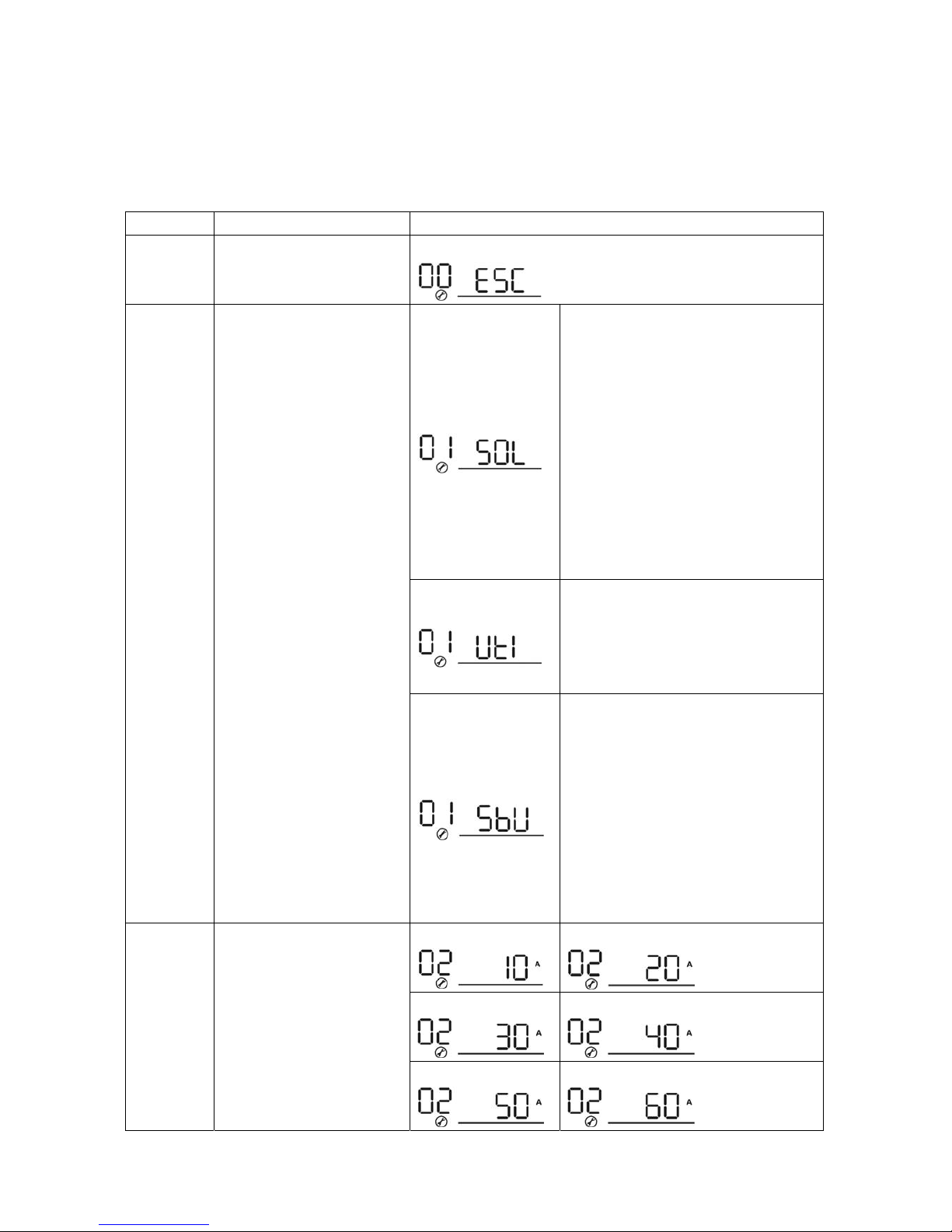

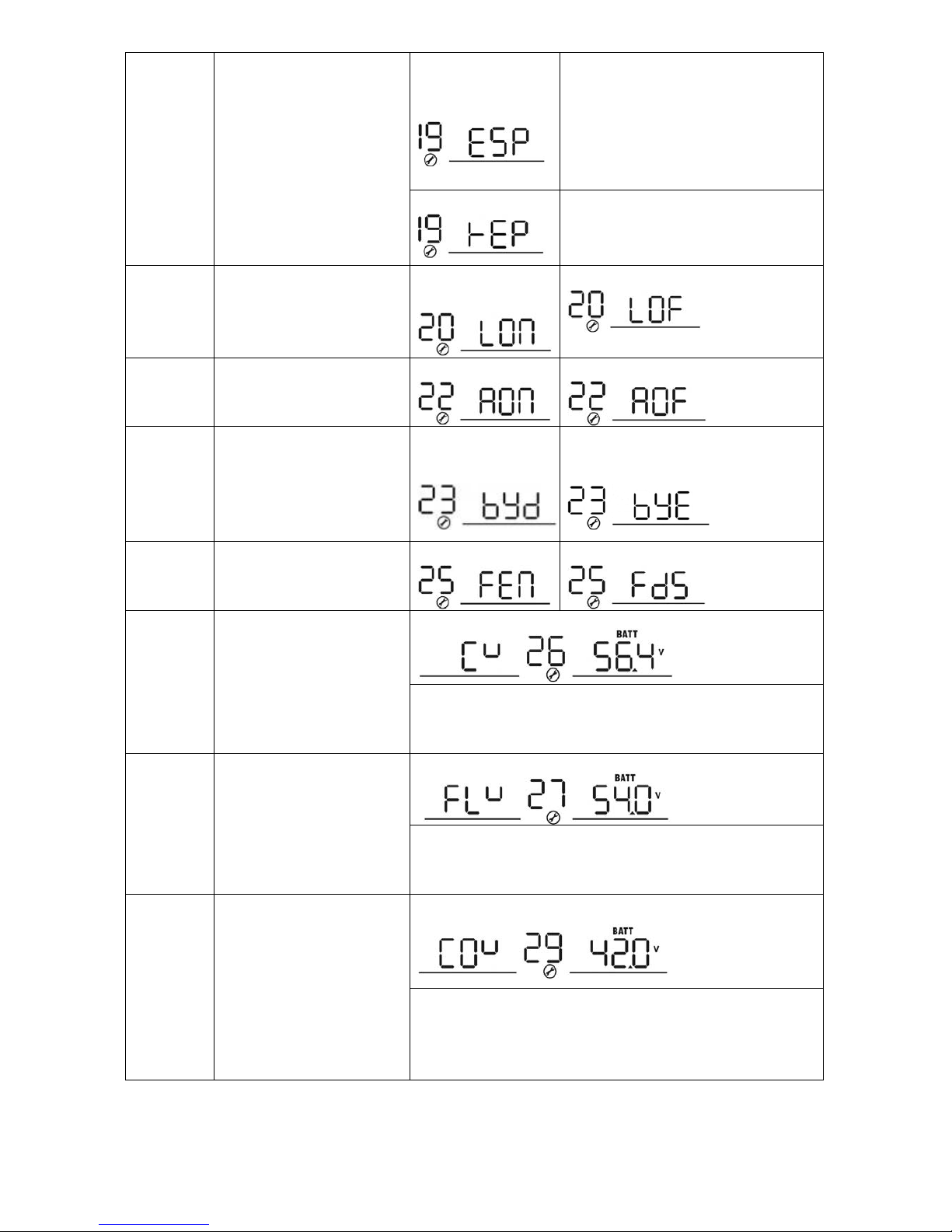

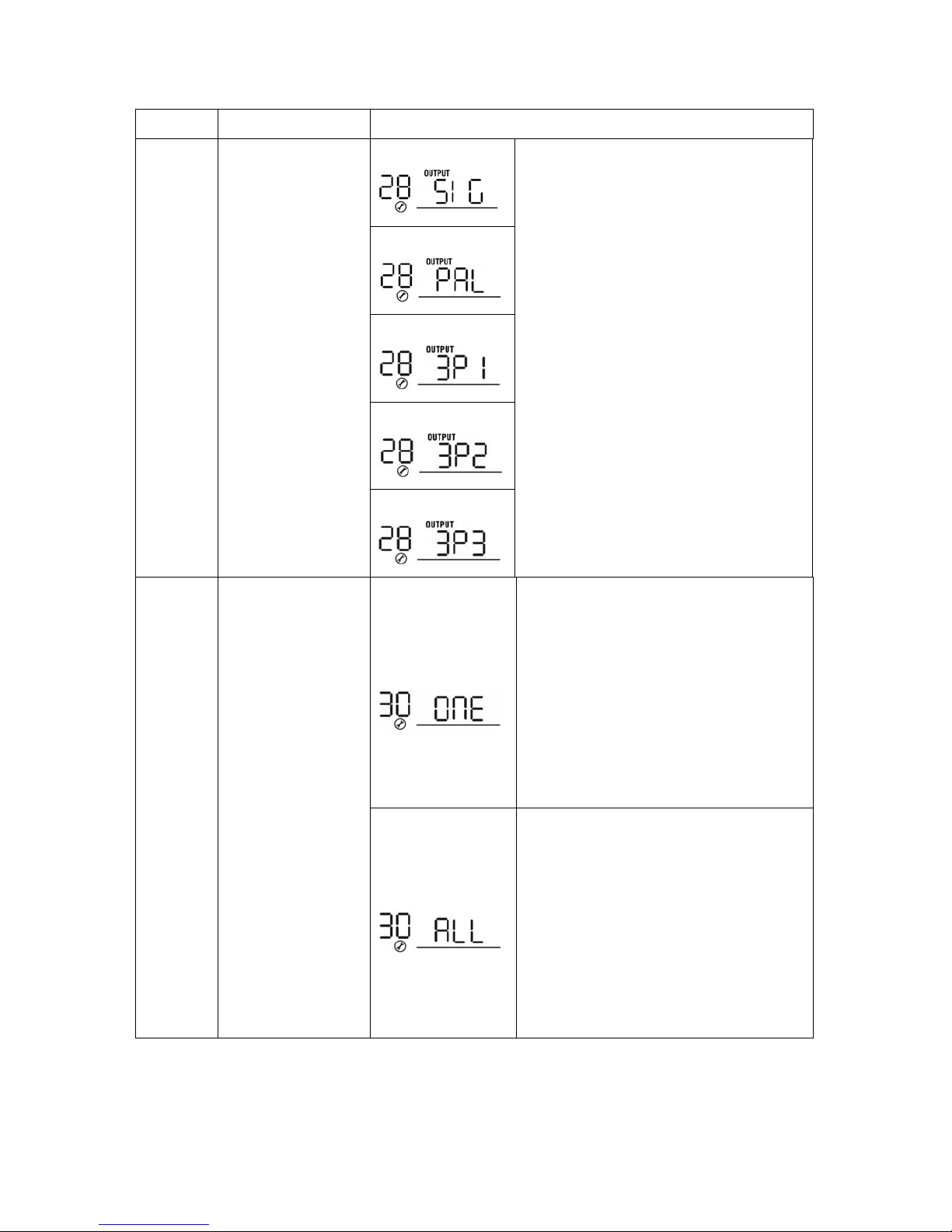

LCD Setting ...................................................................................................................................... 13

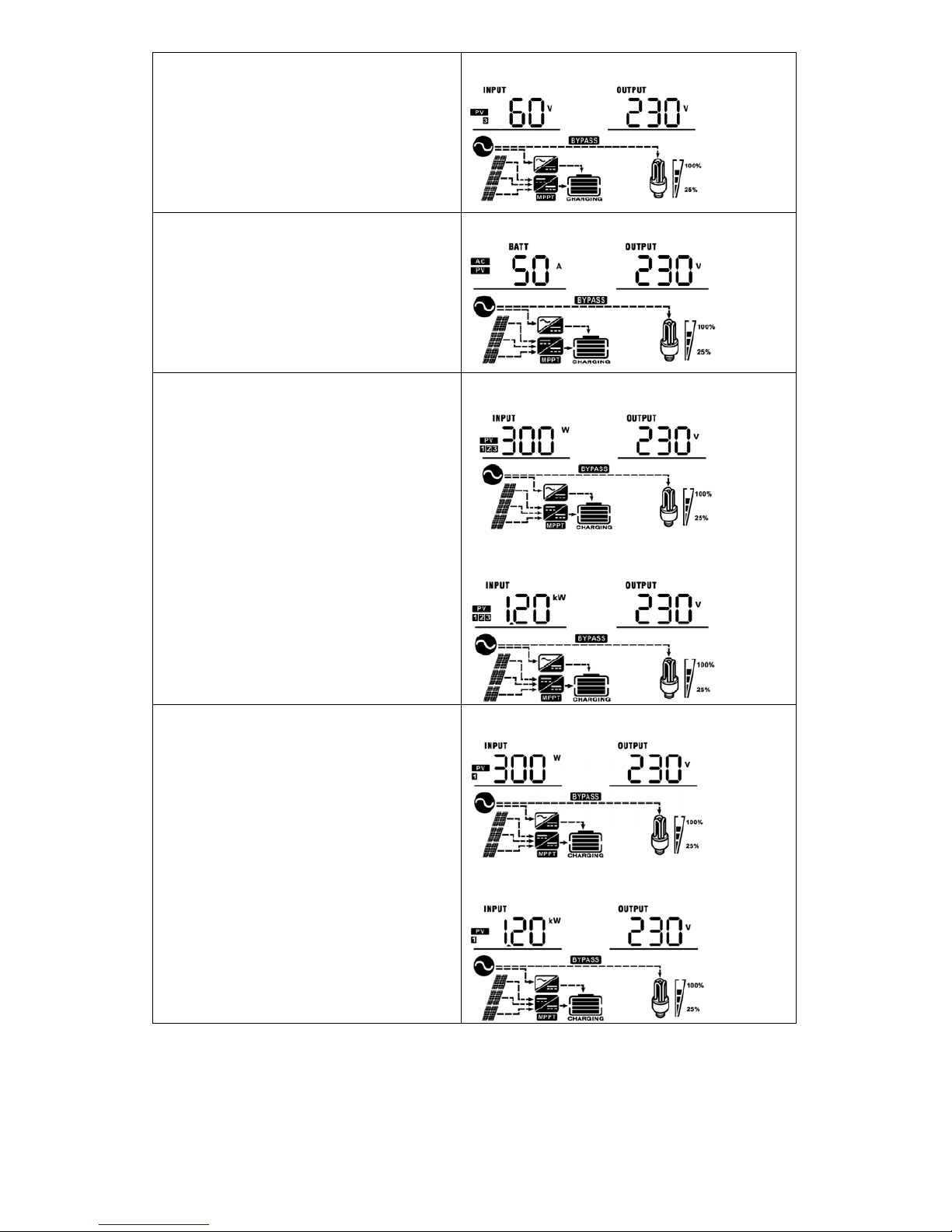

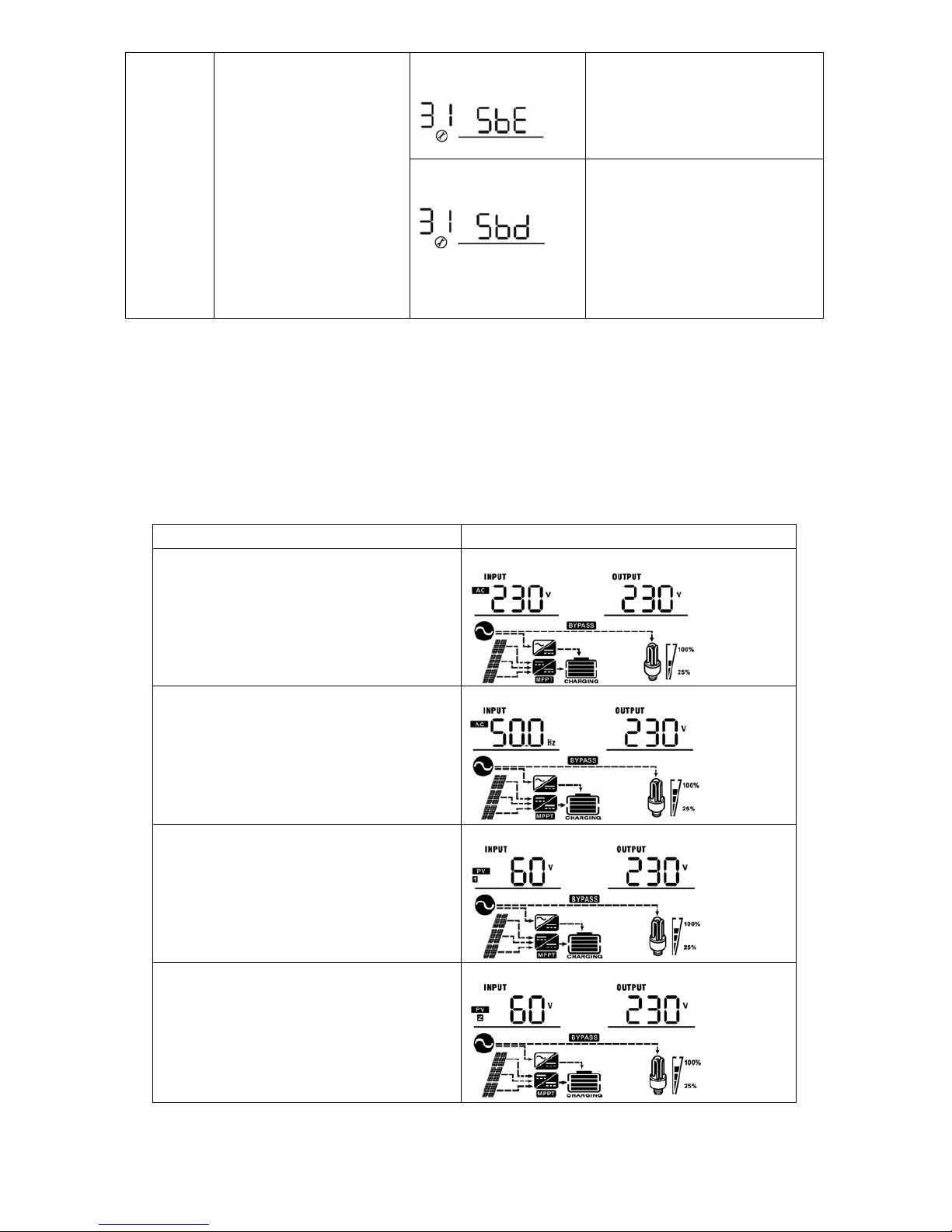

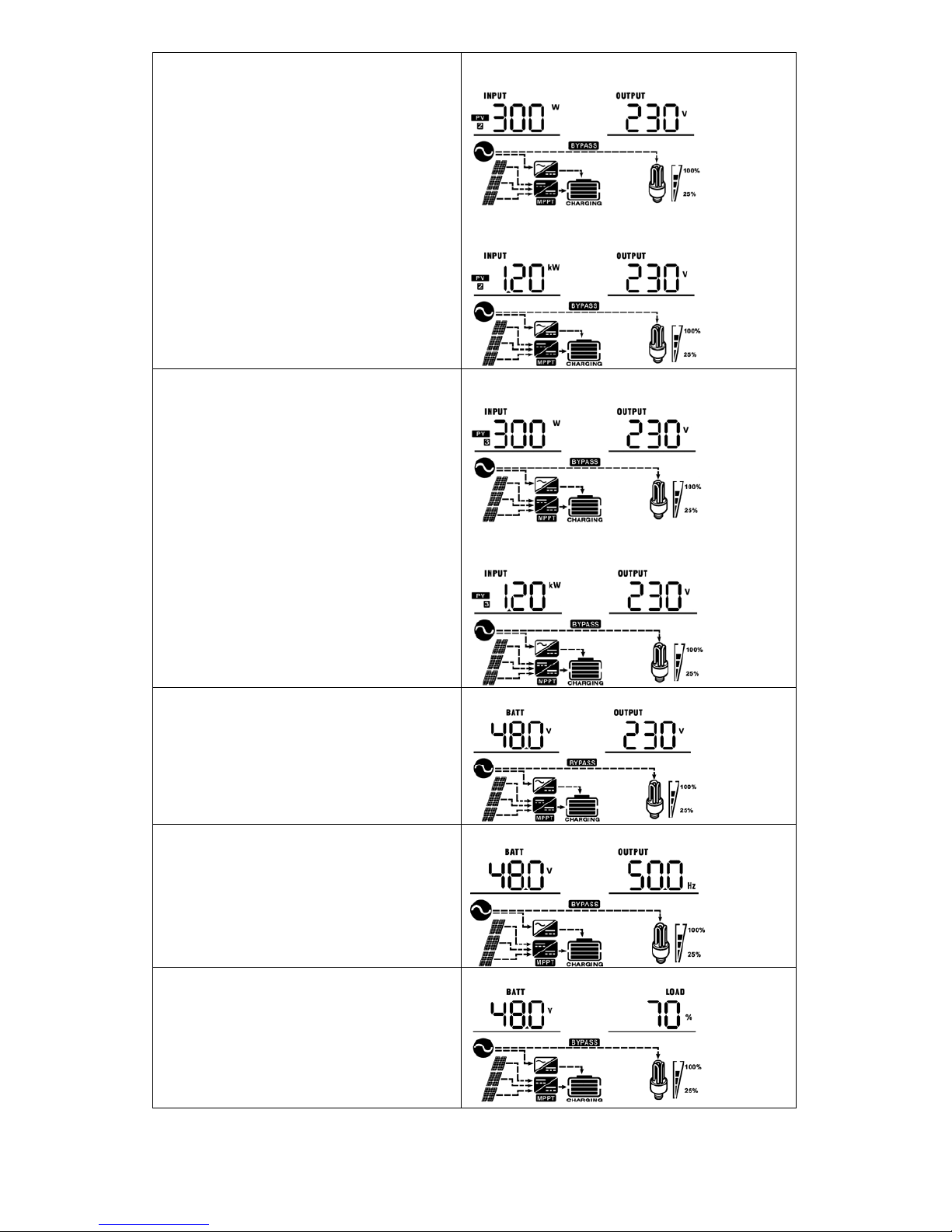

Display Setting ................................................................................................................................. 18

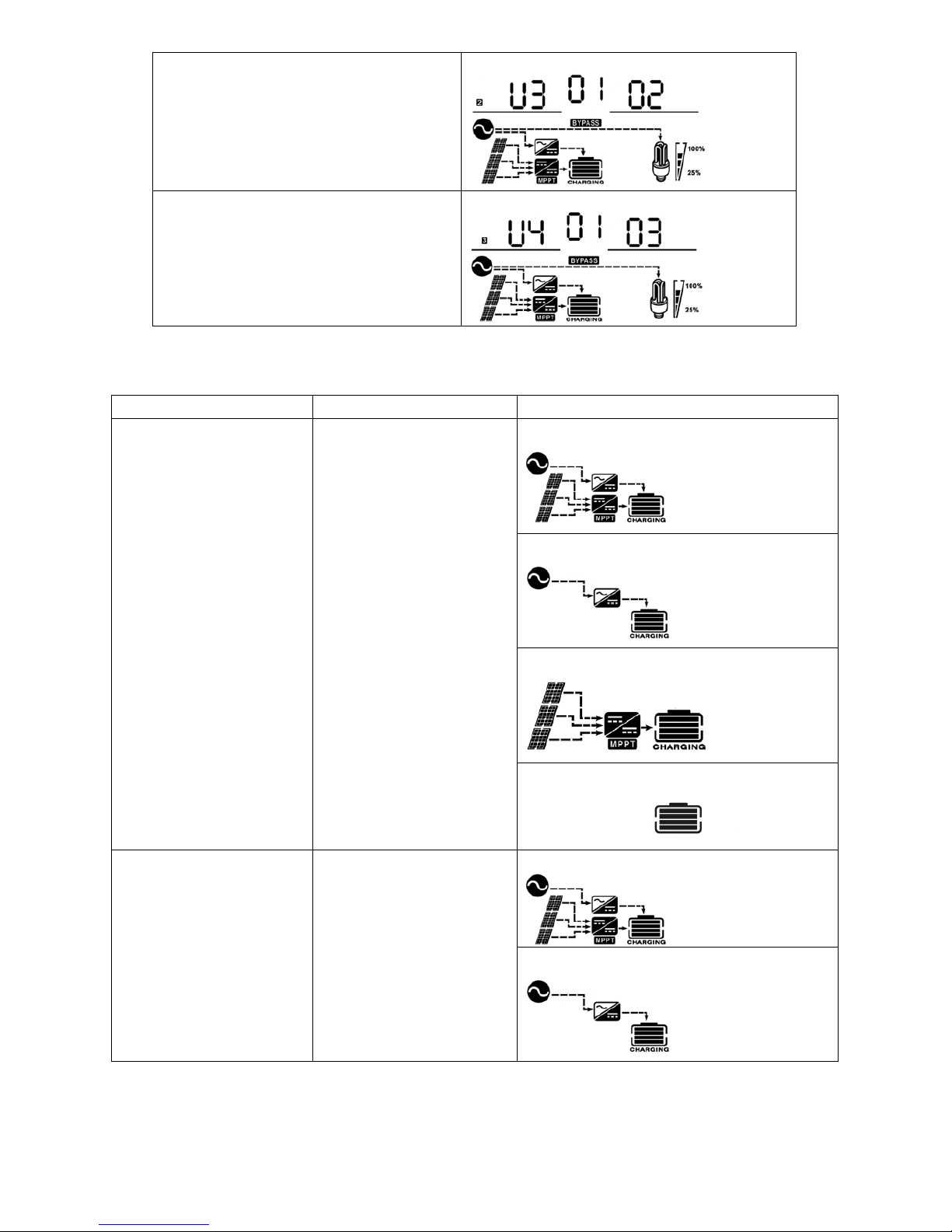

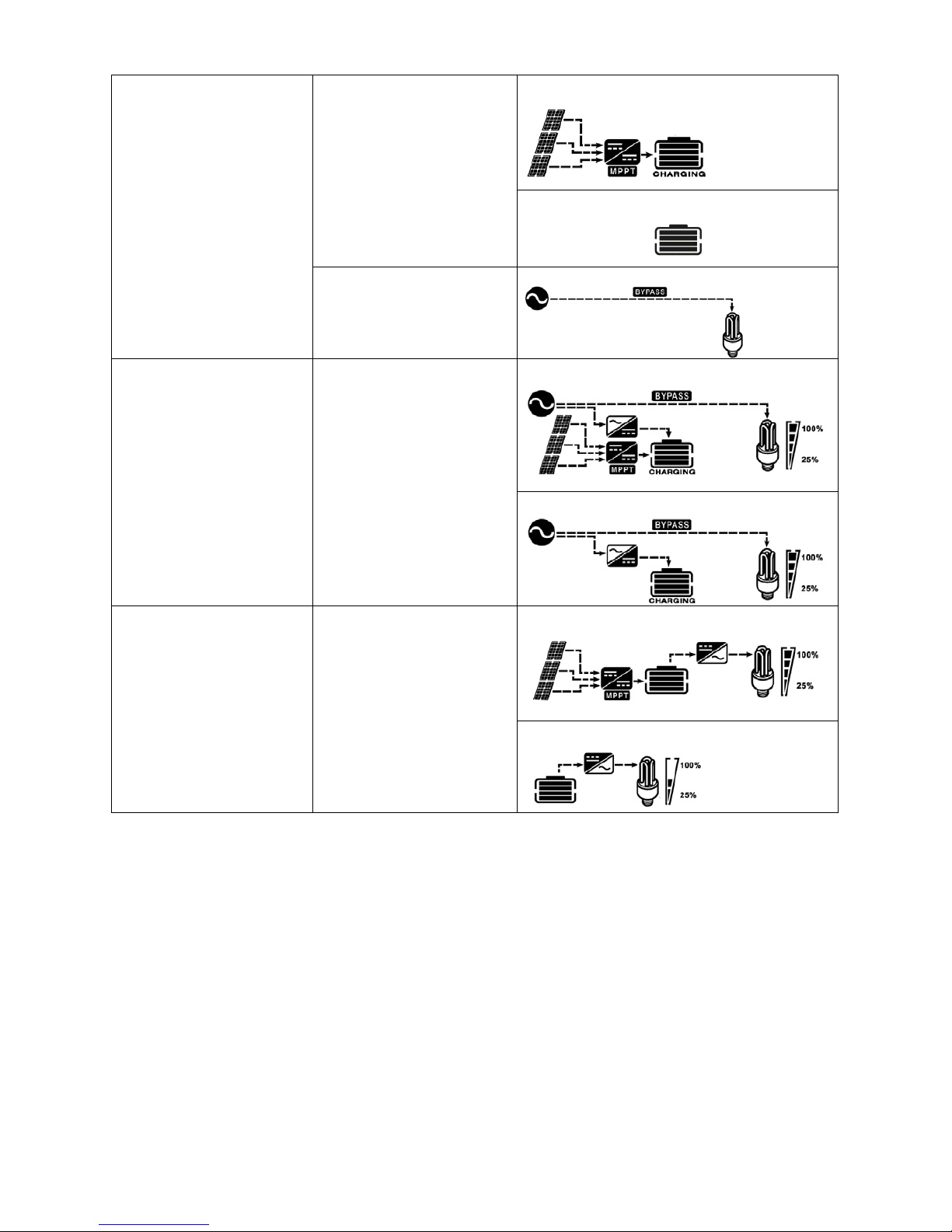

Operating Mode Description .............................................................................................................. 22

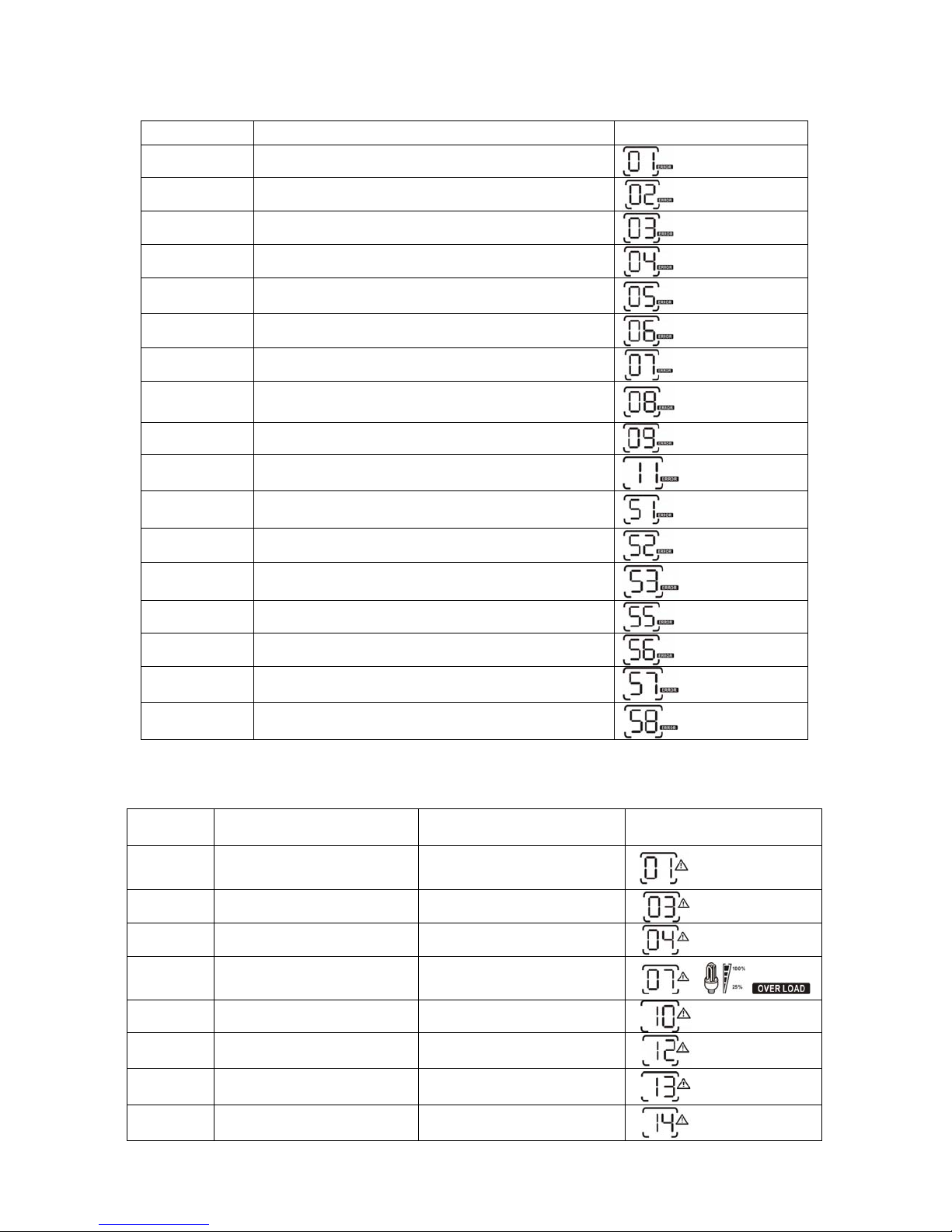

Fault Reference Code ........................................................................................................................ 24
Warning Indicator ............................................................................................................................. 24
SPECIFICATIONS ................................................................................................................ .......... 25
Table 1 Line Mode Specifications ........................................................................................................ 25

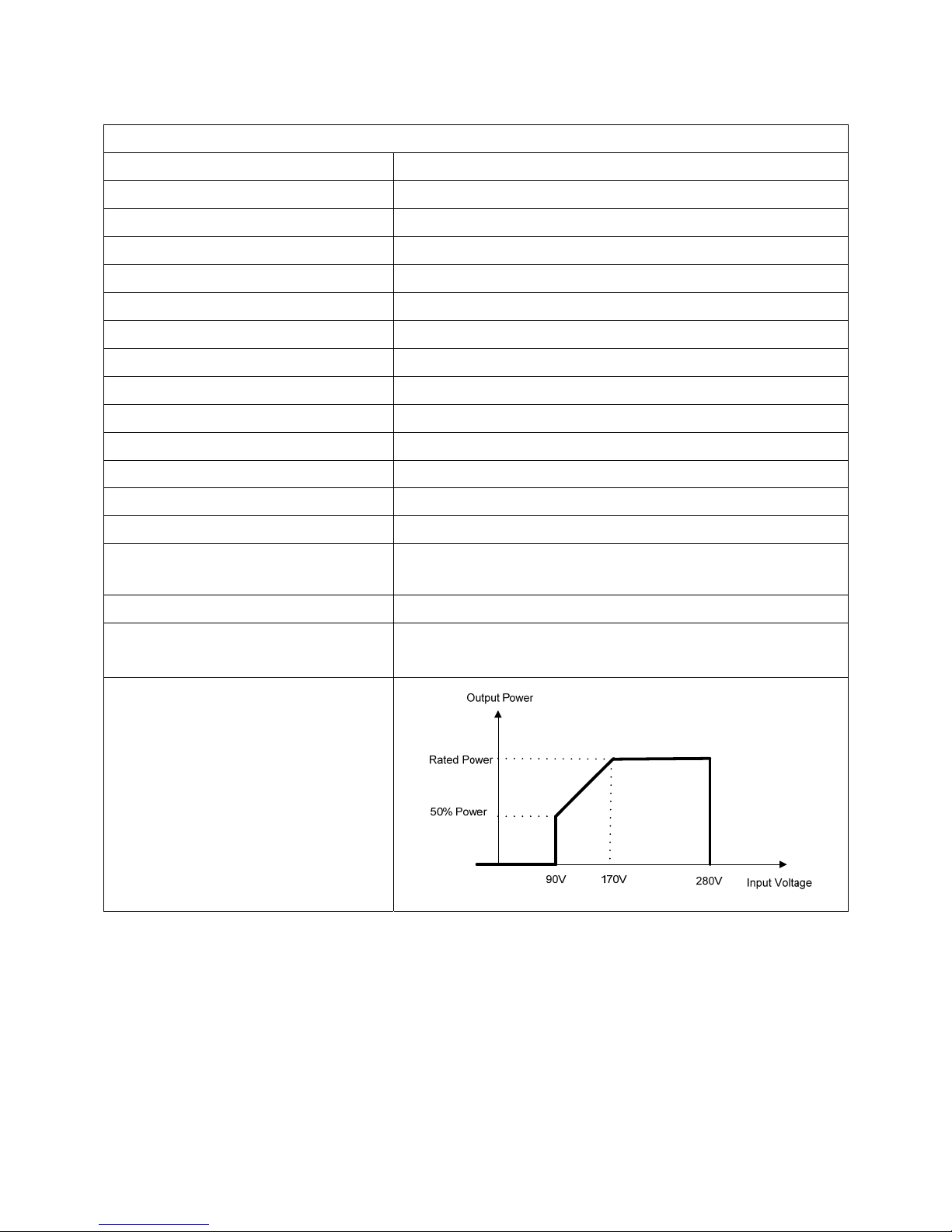

Table 2 Inverter Mode Specifications .................................................................................................. 26
Table 3 Charge Mode Specifications ................................................................................................... 27
TROUBLE SHOOTING .................................................................................................................... 29
Appendix I: Approximate Back-up Time Table ............................................................................. 30

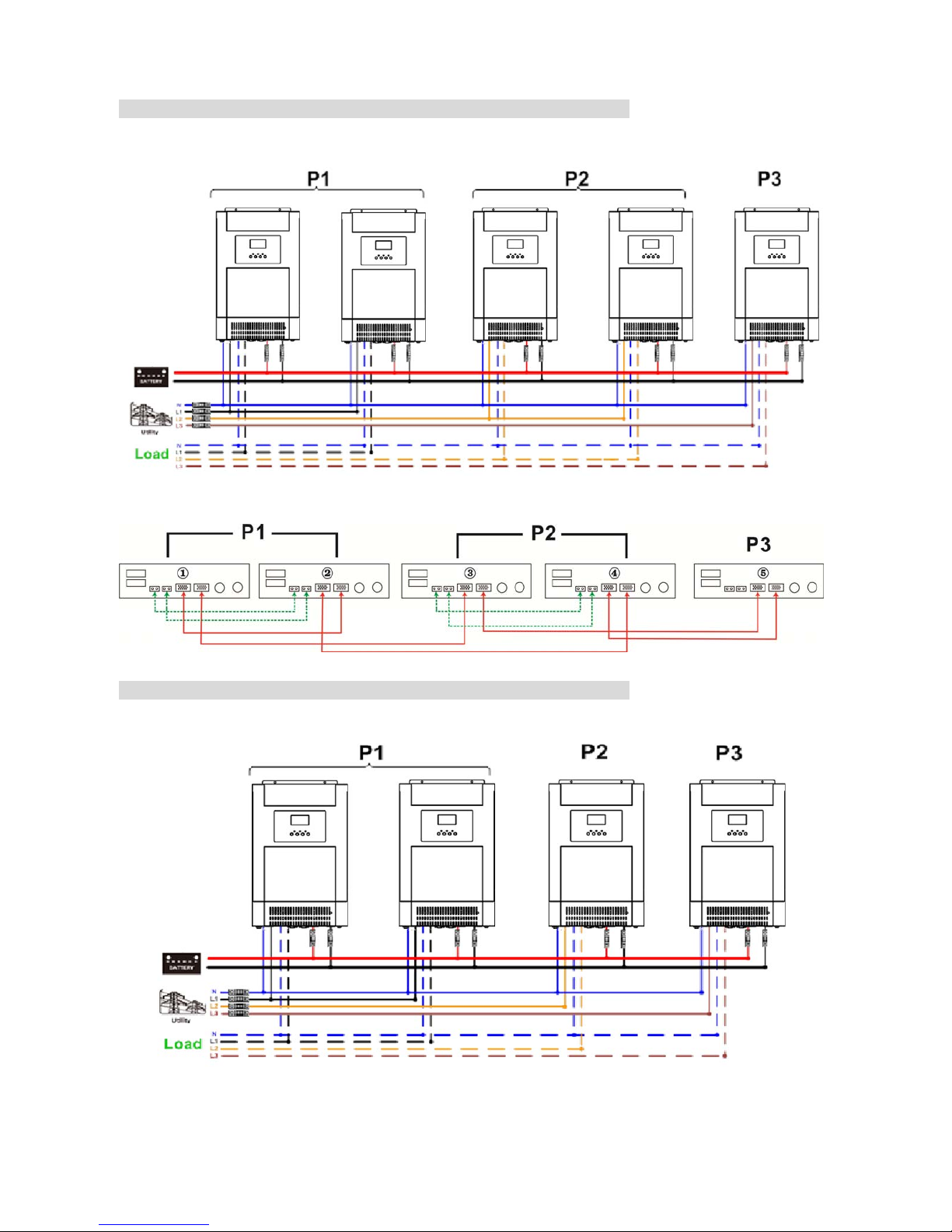

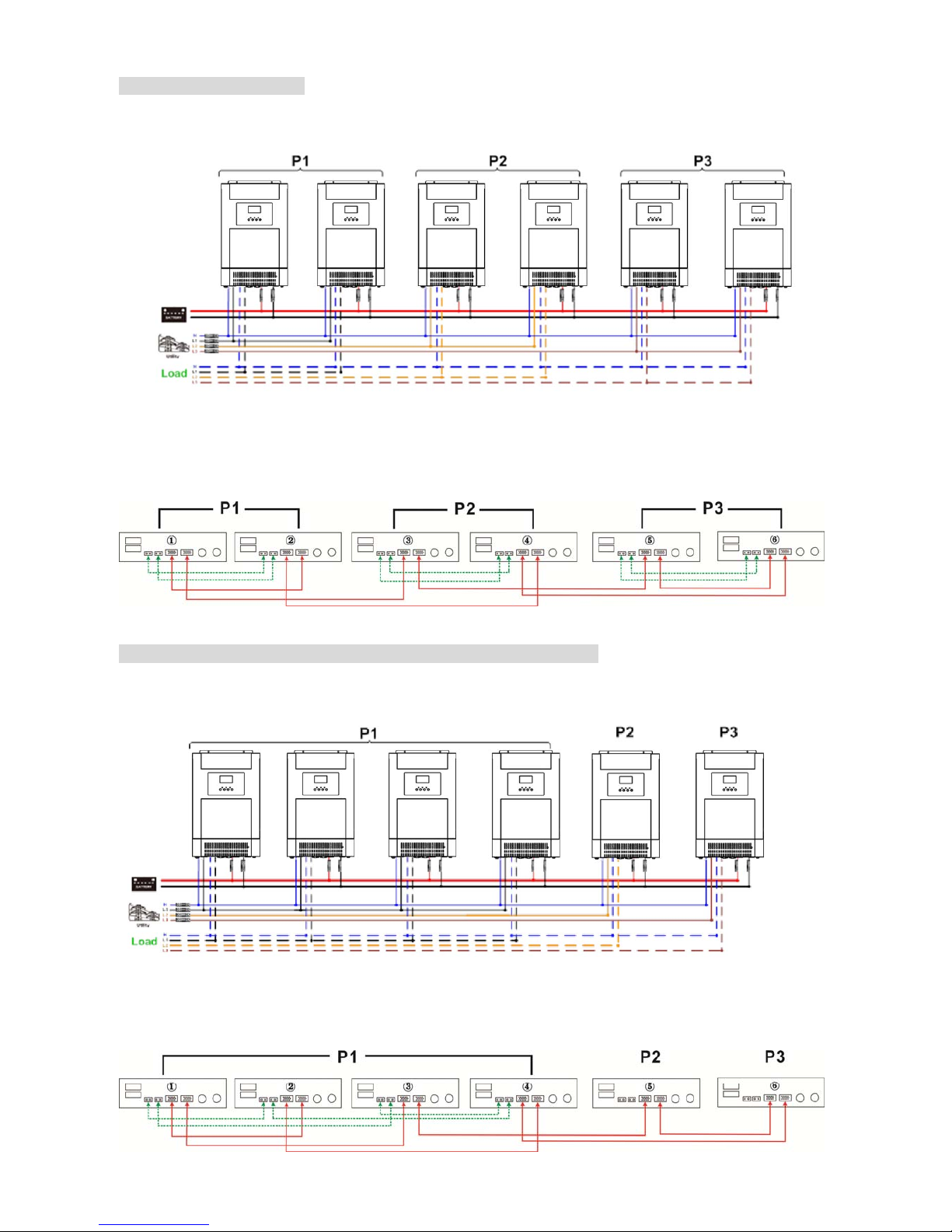

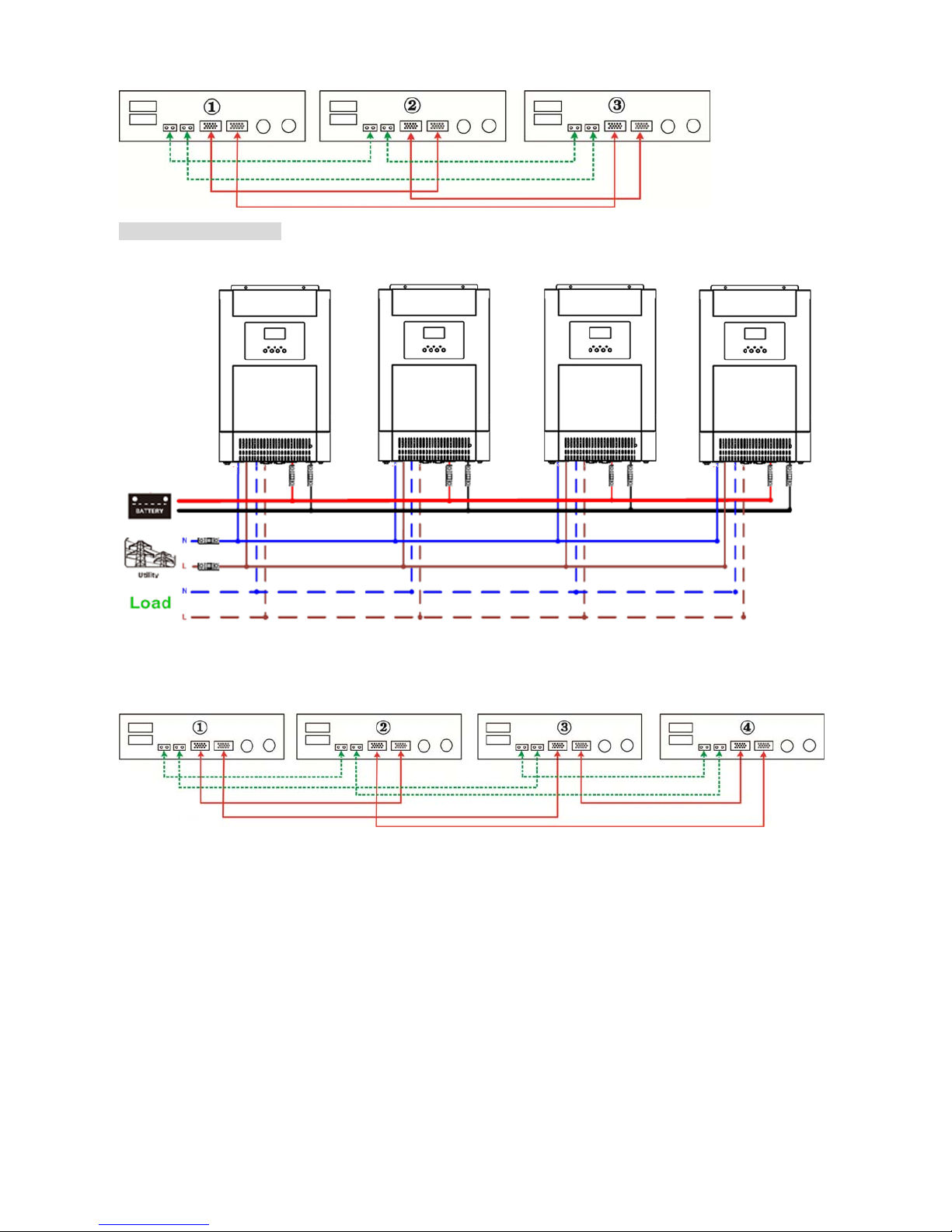

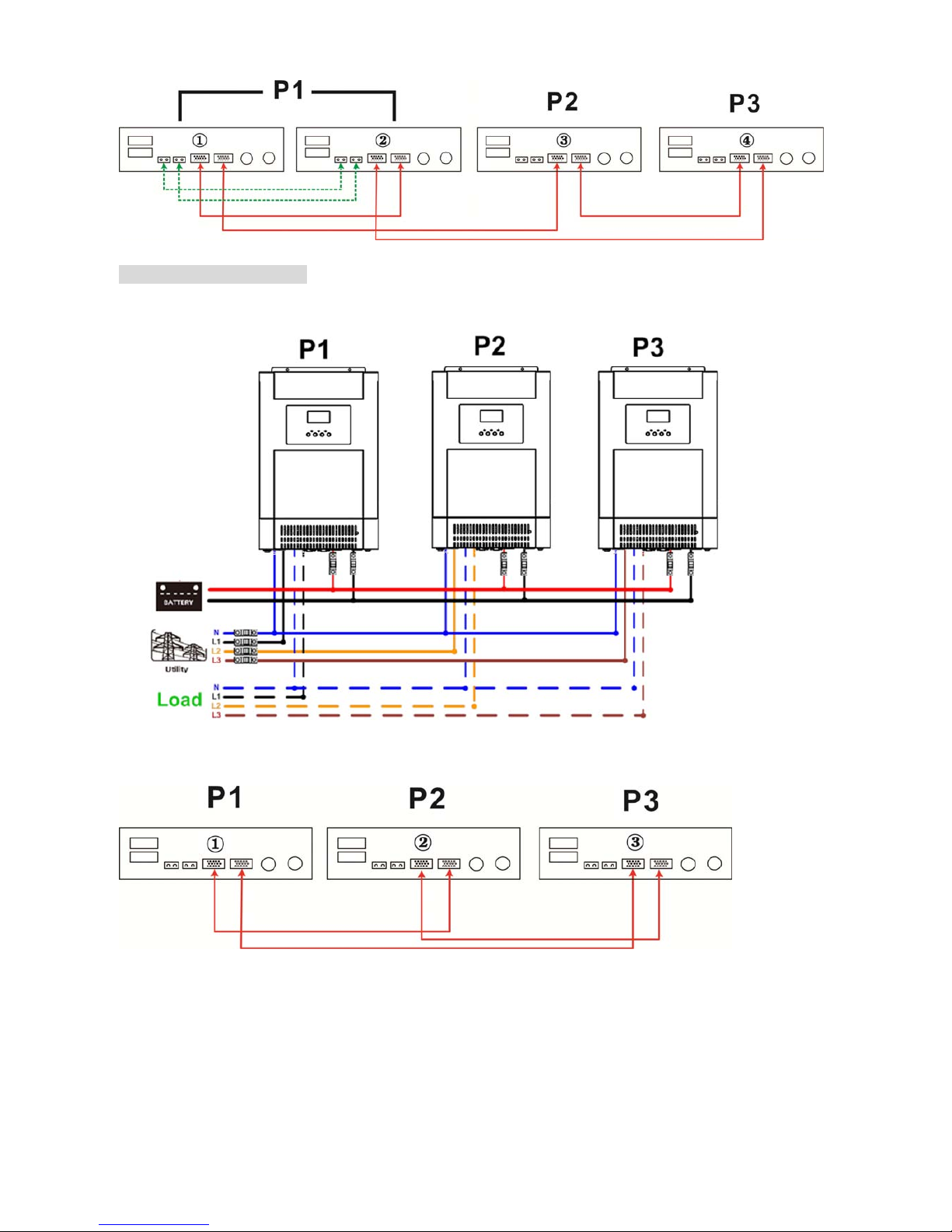

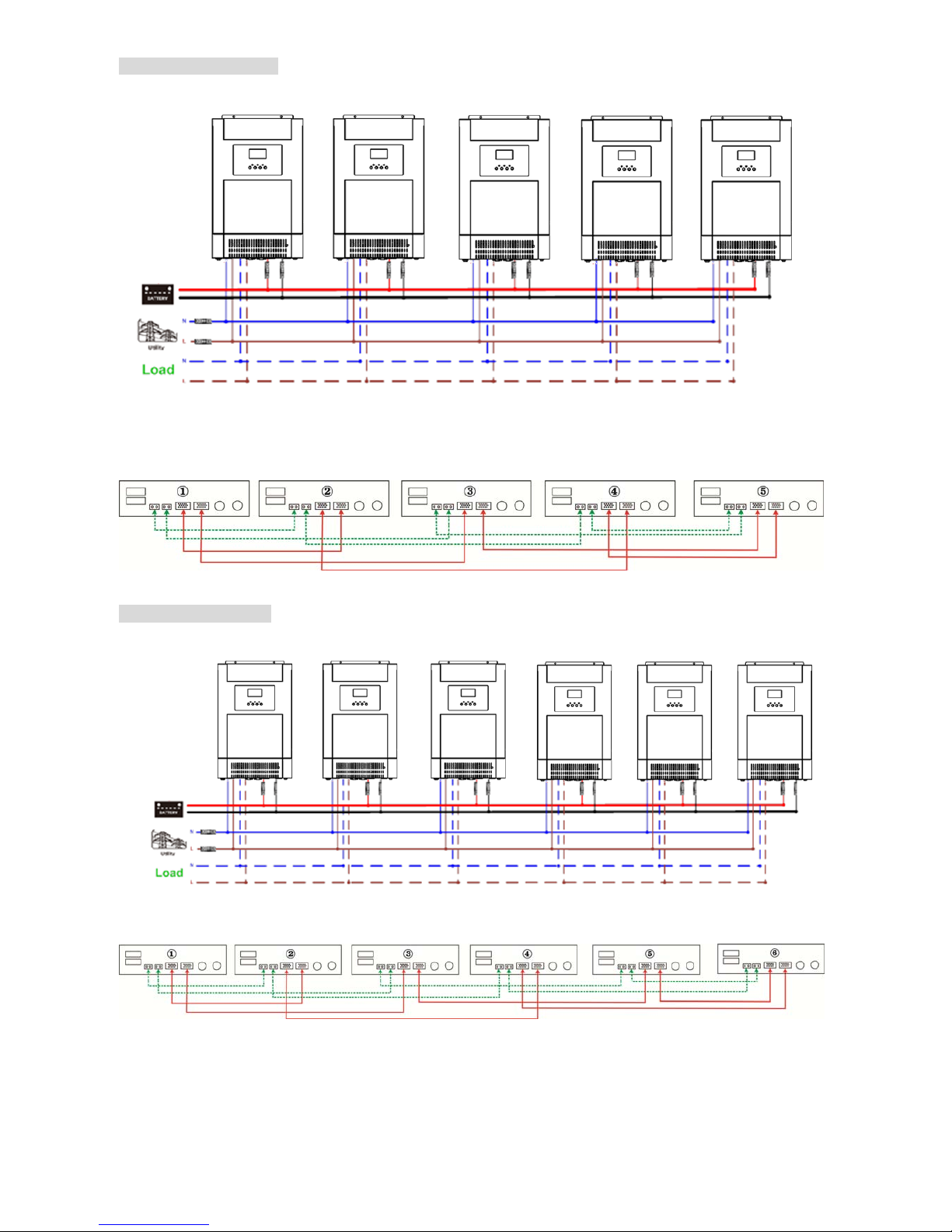

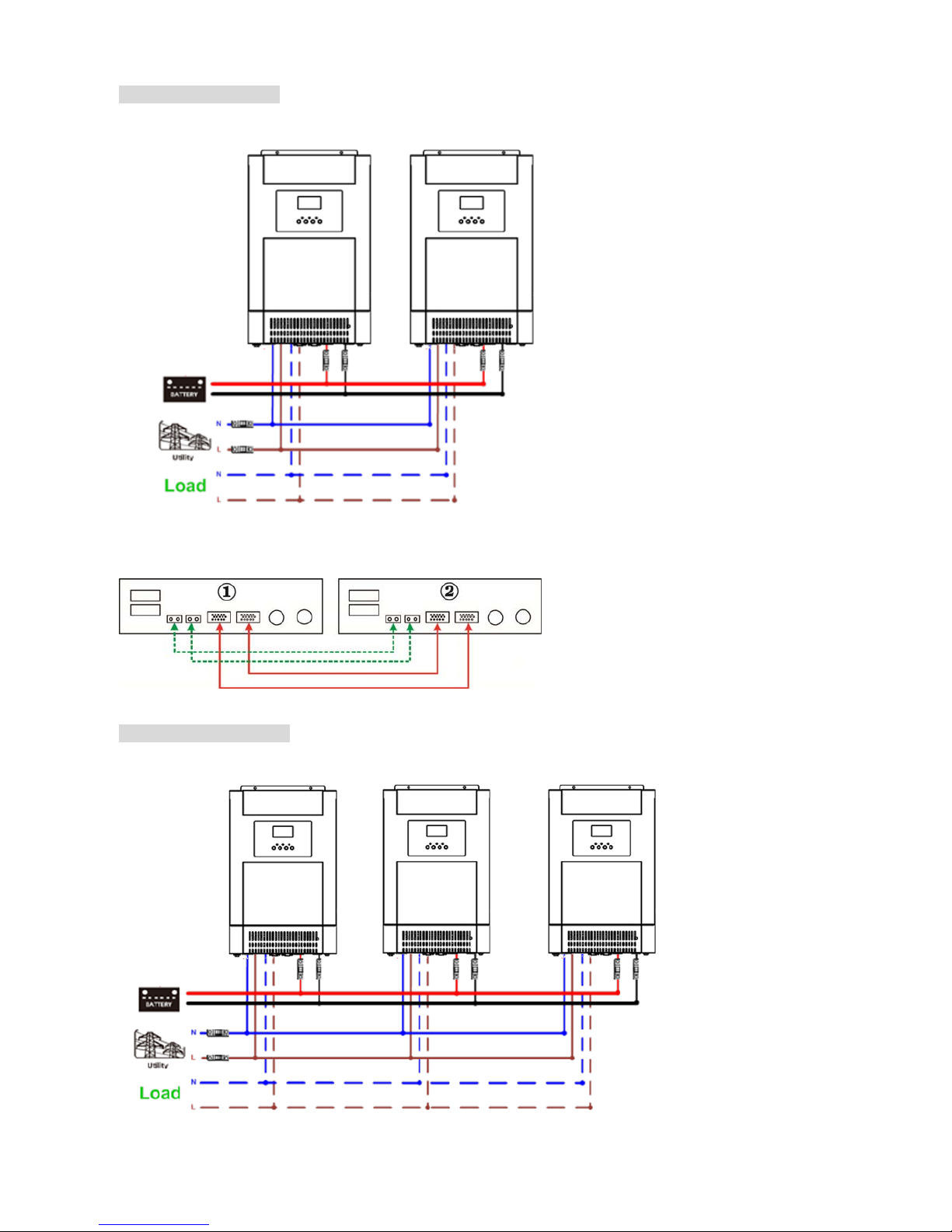

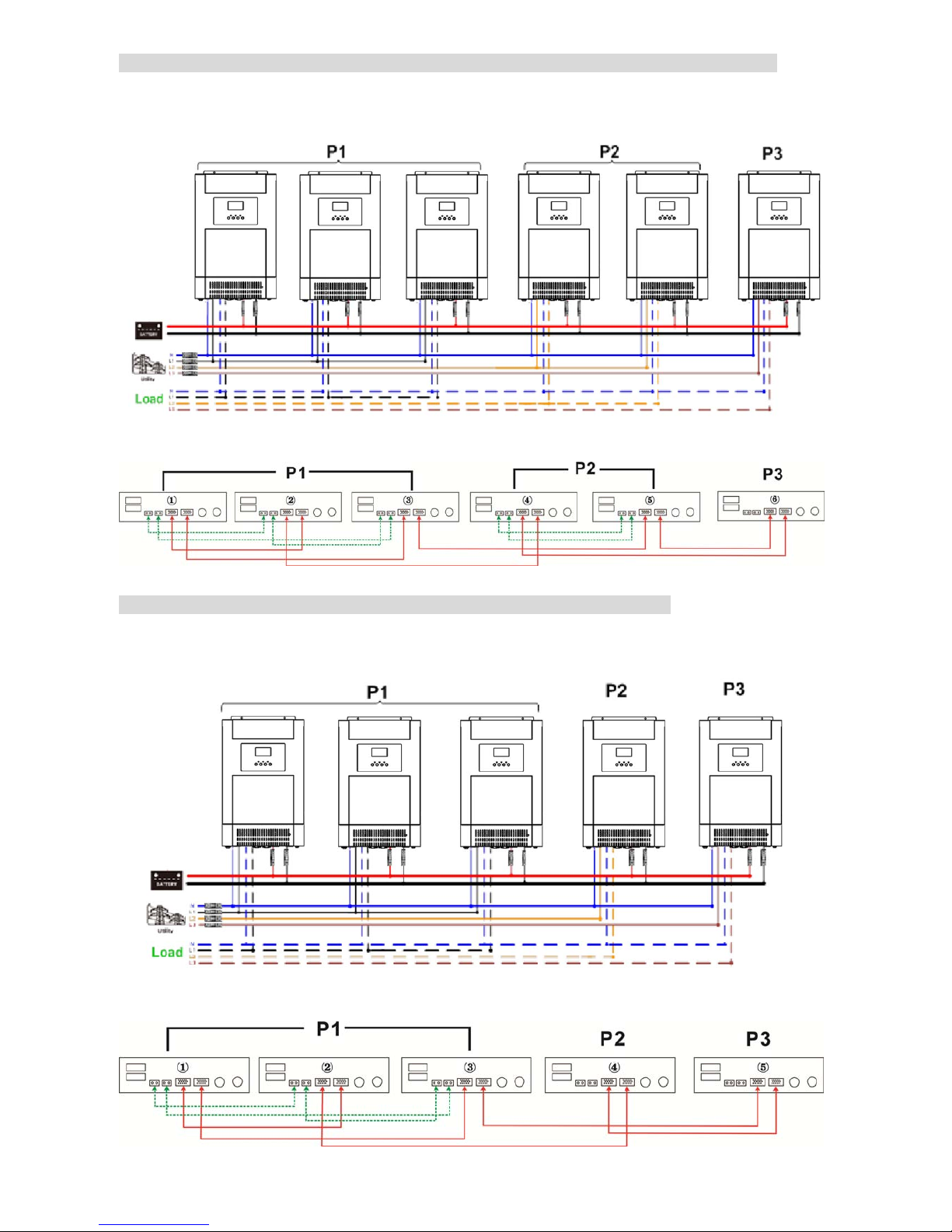

Appendix II: Parallel function (Only for parallel model) .............................................................. 31
Page 3
1
ABOUT THIS MANUAL
Purpose
This manual describes the assembly, installation, operation and troubleshooting of this unit. Please read
this manual carefully before installations and operations. Keep this manual for future reference.
Scope
This manual provides safety and installation guidelines as well as information on tools and wiring.
SAFETY INSTRUCTIONS
WARNING: This chapter contains important safety and operating instructions. Read and
keep this manual for future reference.
1. Before using the unit, read all instructions and cautionary markings on the unit, the batteries and all
appropriate sections of this manual.
2. CAUTION --To reduce risk of injury, charge only deep-cycle lead acid type rechargeable batteries.
Other types of batteries may burst, causing personal injury and damage.
3. Do not disassemble the unit. Take it to a qualified service center when service or repair is required.
Incorrect re-assembly may result in a risk of electric shock or fire.
4. To reduce risk of electric shock, disconnect all wirings before attempting any maintenance or cleaning.
Turning off the unit will not reduce this risk.
5. CAUTION – Only qualified personnel can install this device with battery.
6. NEVER charge a frozen battery.
7. For optimum operation of this SP5K Brilliant Plus, please follow required spec to select appropriate
cable size. It’s very important to correctly operate this SP5K Brilliant Plus.
8. Be very cautious when working with metal tools on or around batteries. A potential risk exists to drop
a tool to spark or short circuit batteries or other electrical parts and could cause an explosion.
9. Please strictly follow installation procedure when you want to disconnect AC or DC terminals. Please
refer to INSTALLATION section of this manual for the details.
10. Fuses are provided as over-current protection for the battery supply.
11. GROUNDING INSTRUCTIONS -This SP5K Brilliant Plus should be connected to a permanent grounded
wiring system. Be sure to comply with local requirements and regulation to install this inverter.
12. NEVER cause AC output and DC input short circuited. Do NOT connect to the mains when DC input
short circuits.
13. Warning!! Only qualified service persons are able to service this device. If errors still persist after
following troubleshooting table, please send this SP5K Brilliant Plus back to local dealer or service
center for maintenance.
Page 4
2
INTRODUCTION
This is a multi-function SP5K Brilliant Plus, combining functions of inverter, MPPT solar charger and battery
charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers
user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger
priority, and acceptable input voltage based on different applications.
Features
Pure sine wave inverter
Built-in MPPT solar charge controller
Configurable input voltage range for home appliances and personal computers via LCD setting
Configurable battery charging current based on applications via LCD setting
Configurable AC/Solar Charger priority via LCD setting
Compatible to mains voltage or generator power
Auto restart while AC is recovering
Overload/ Over temperature/ short circuit protection
Smart battery charger design for optimized battery performance
Cold start function
Basic System Architecture

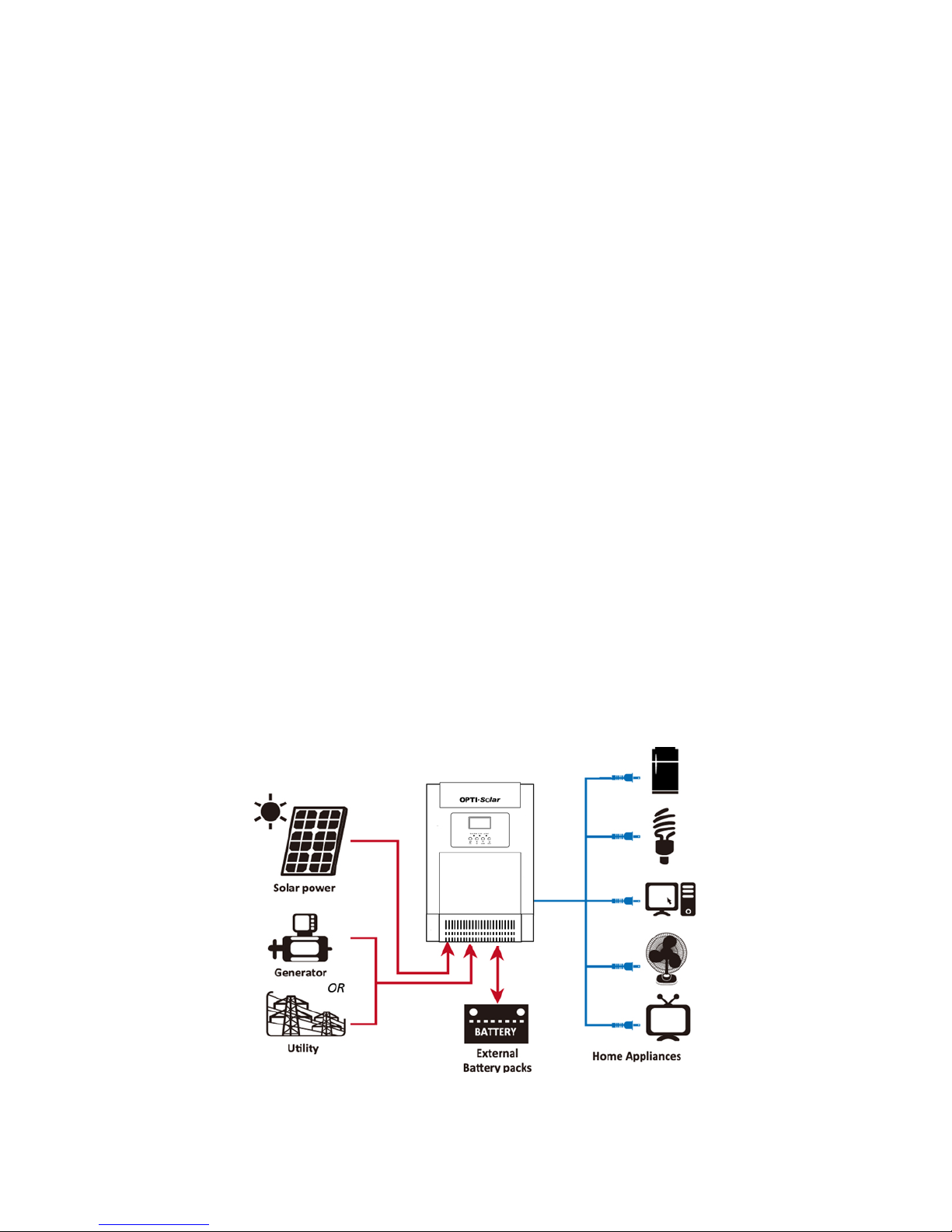

The following illustration shows basic application for this SP5K Brilliant Plus. It also includes following devices
to have a complete running system:
Generator or Utility.
PV modules
Consult with your system integrator for other possible system architectures depending on your requirements.
This inverter can power all kinds of appliances in home or office environment, including motor-type appliances
such as tube light, fan, refrigerator and air conditioner.
Figure 1 Hybrid Power System
Page 5
3

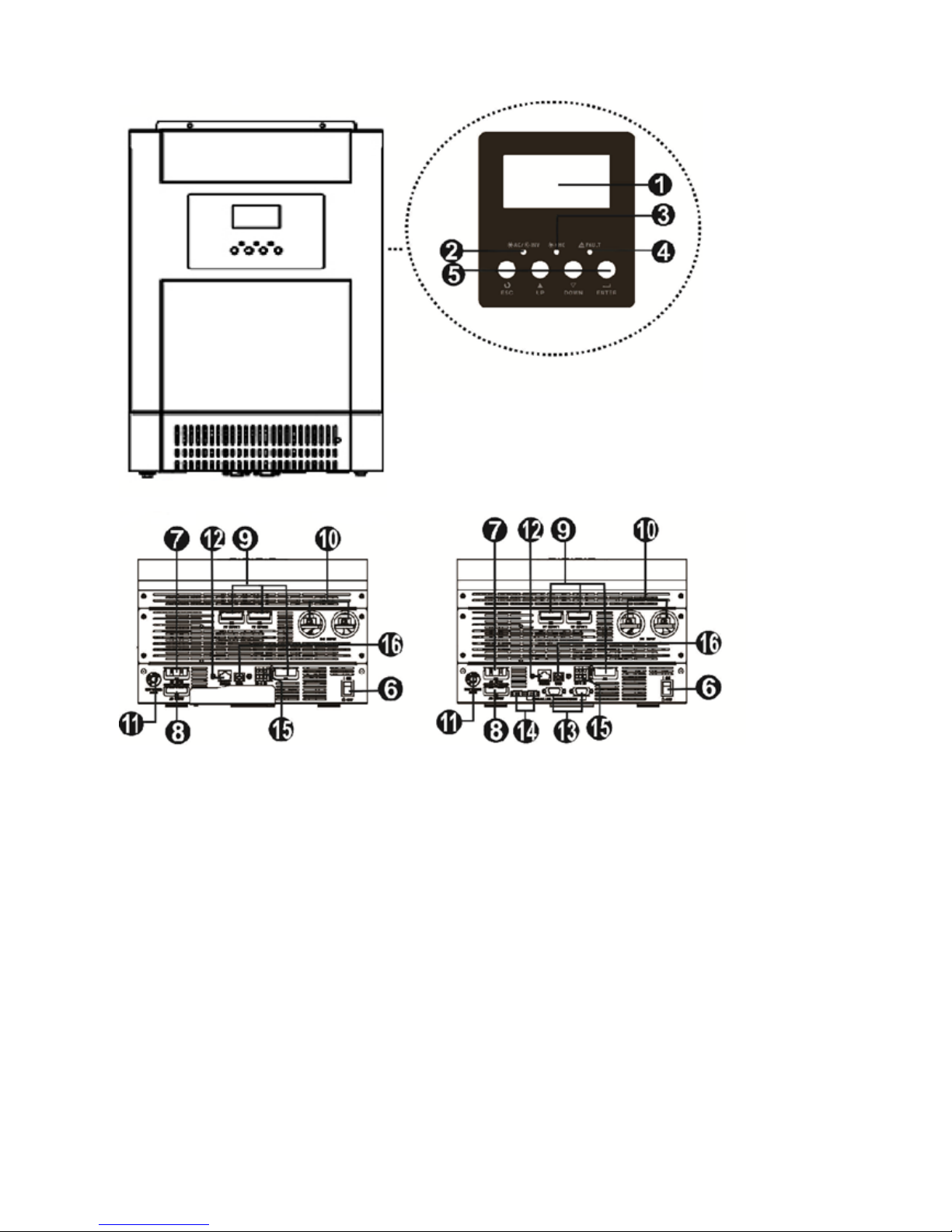

Product Overview
Single Model Parallel Model
1. LCD display
2. Status indicator
3. Charging indicator
4. Fault indicator
5. Function buttons
6. Power on/off switch
7. AC input
8. AC output
9. PV input
10. Battery input
11. Circuit breaker
12. RS232 communication port
13. Parallel communication cable (only for parallel model)
14. Current sharing cable (only for parallel model)
15. Dry contact
16. USB communication port
NOTE: For parallel model installation and operation,
please check separate parallel installation guide for
the details.
Page 6
4
INSTALLATION
Unpacking and Inspection
Before installation, please inspect the unit. Be sure that nothing inside the package is damaged. You should
have received the following items inside of package:
The unit x 1
User manual x 1
Communication cable x 1
Software CD x 1
Preparation

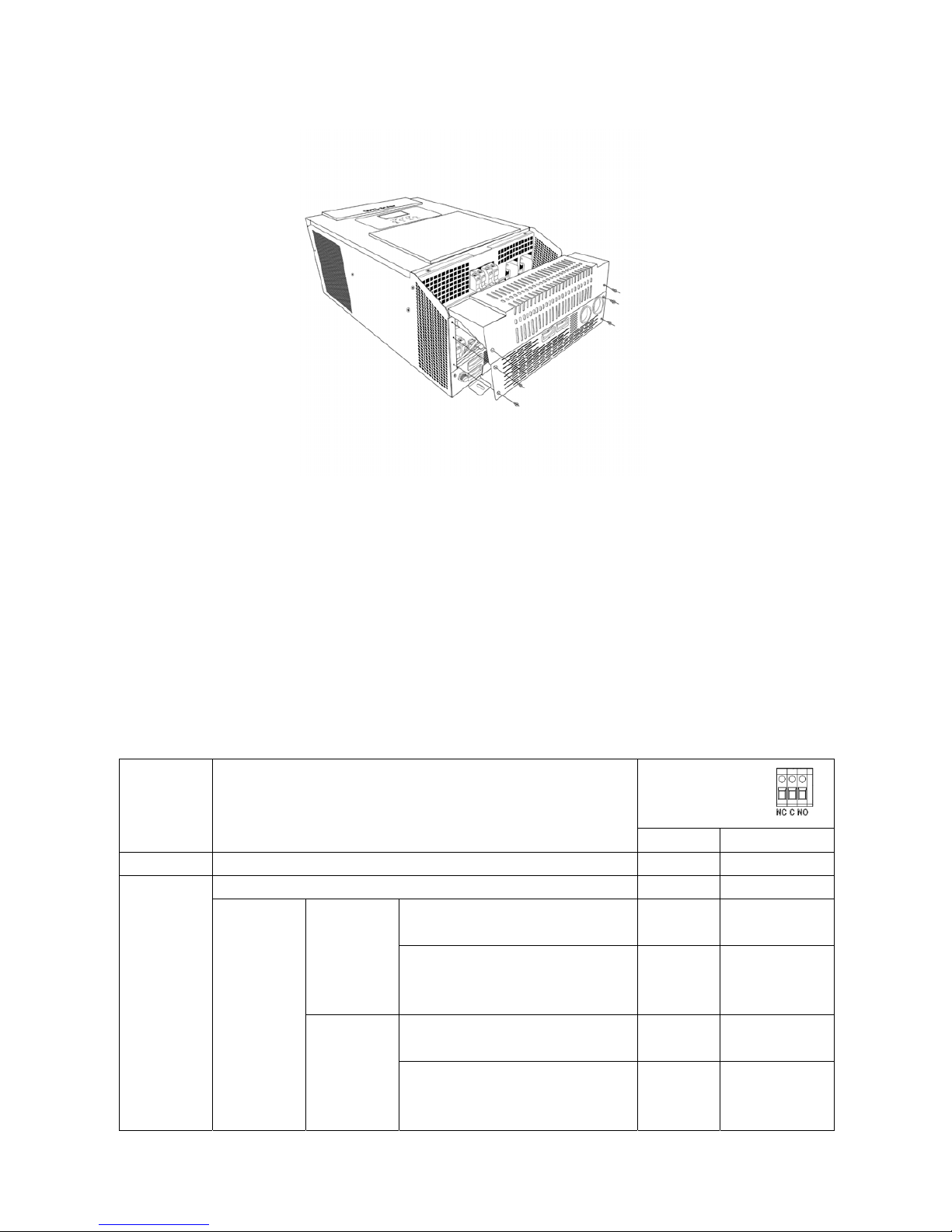

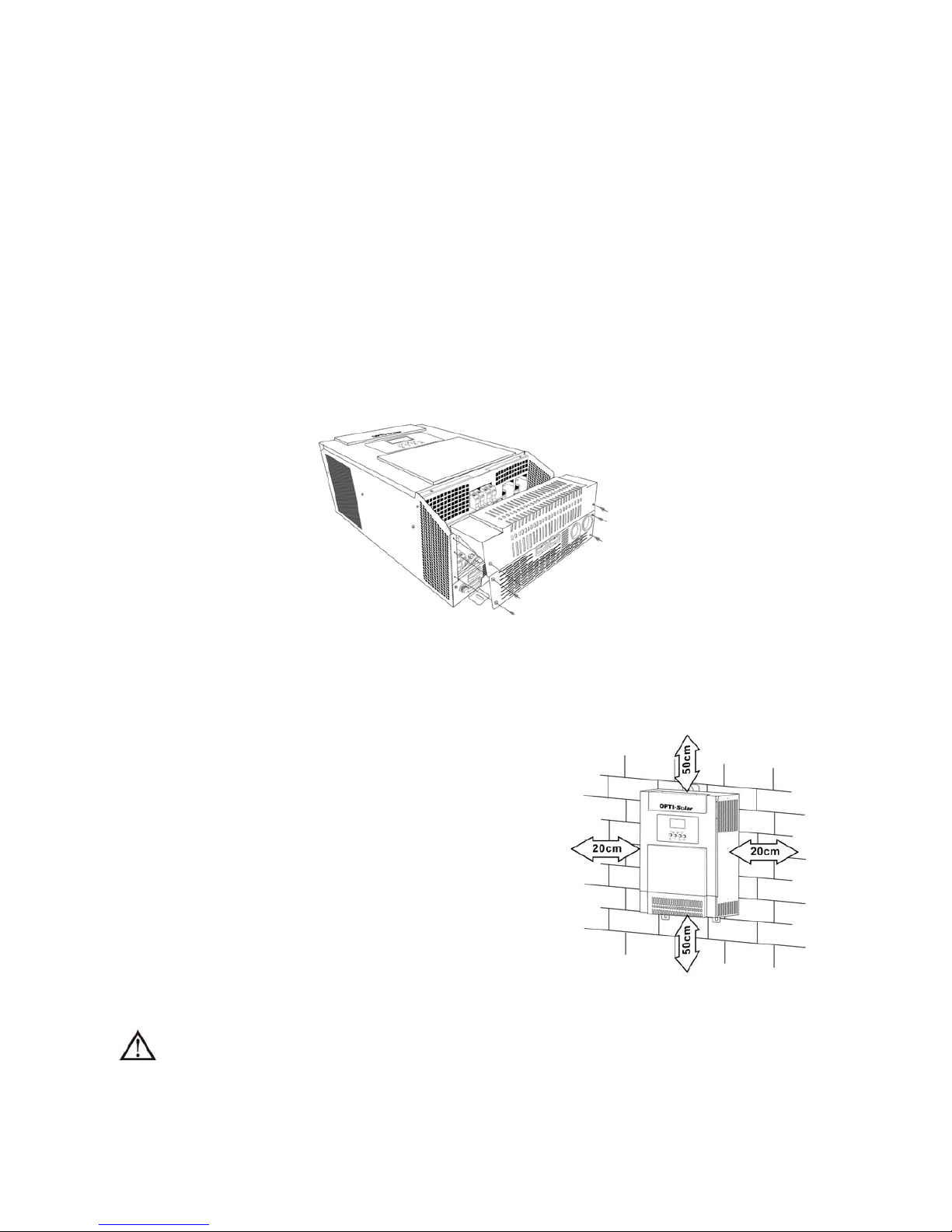

Before connecting all wirings, please take off bottom cover by removing two screws as shown below.
Mounting the Unit
Consider the following points before selecting where to install:
Do not mount the inverter on flammable construction
materials.
Mount on a solid surface
Install this inverter at eye level in order to allow the LCD
display to be read at all times.
The ambient temperature should be between 0°C and 55°C
to ensure optimal operation.
The recommended installation position is to be adhered to
the wall vertically.
Be sure to keep other objects and surfaces as shown in the
right diagram to guarantee sufficient heat dissipation and
to have enough space for removing wires.
SUITABLE FOR MOUNTING ON CONCRETE OR
OTHER NON-COMBUSTIBLE SURFACE ONLY.
Page 7
5

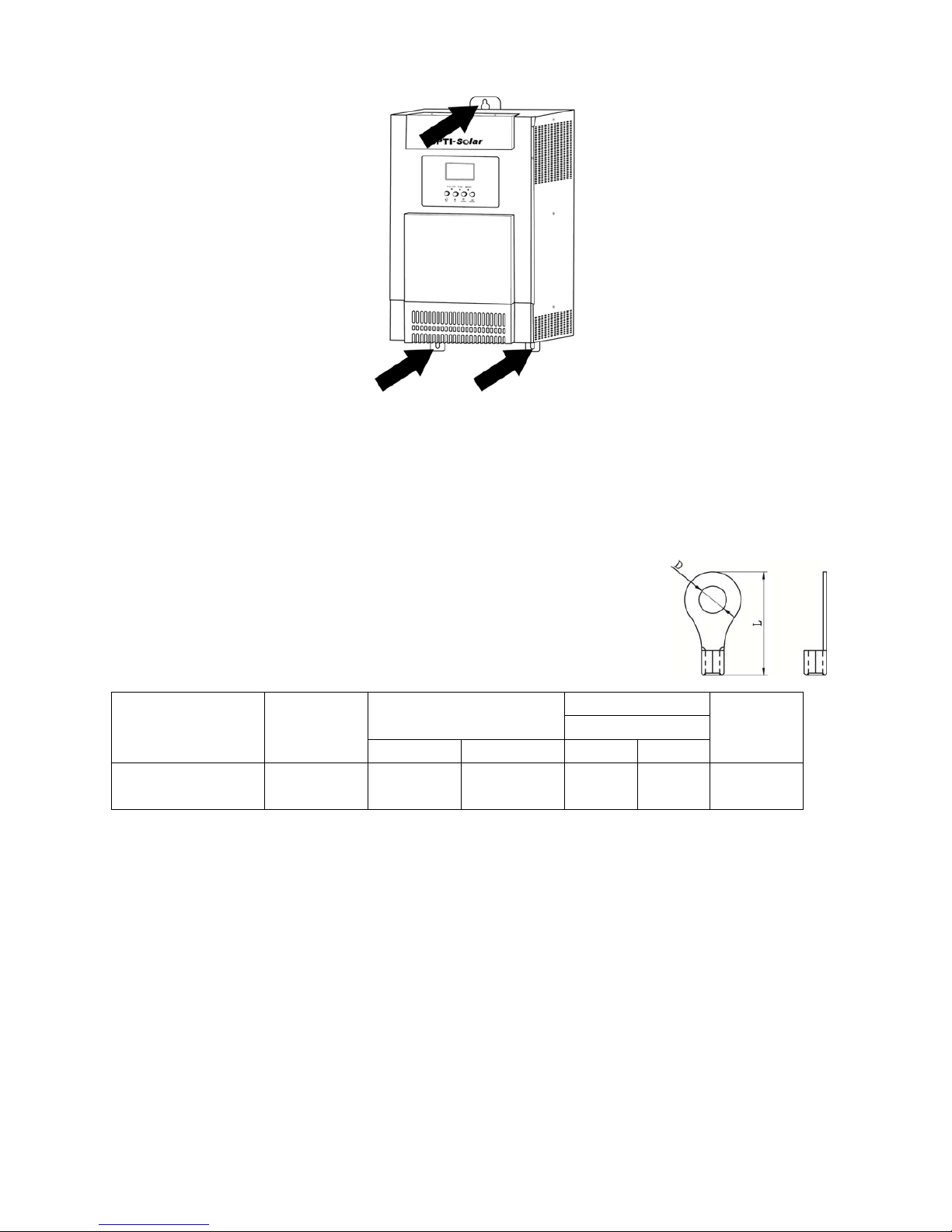

Install the unit by screwing three screws. It’s recommended to use M5 screws.
Battery Connection
CAUTION: For safety operation and regulation compliance, it’s requested to install a separate DC over-current
protector or disconnect device between battery and inverter. It may not be requested to have a disconnect
device in some applications, however, it’s still requested to have over-current protection installed. Please refer
to typical amperage in below table as required fuse or breaker size.
WARNING! All wiring must be performed by a qualified personnel.
WARNING! It's very important for system safety and efficient operation to use
appropriate cable for battery connection. To reduce risk of injury, please use the
proper recommended cable and terminal size as below.
Recommended battery breaker, cable and terminal size:
Model
Breaker
Size
Wire Size
Ring Terminal
Torque
Value
Dimensions
AWG mm2 D (mm) L (mm)
SP5000 Brilliant Plus 250A/60VDC 2 * 2AWG 72 10.5 55 10~ 12 Nm
Please follow below steps to implement battery connection:
1. Assemble battery ring terminal based on recommended battery cable and terminal size.
2. Connect all battery packs as the unit requires. It’s suggested to connect at least 600Ah capacity battery.
3. Insert the ring terminal of battery cable flatly into battery connector of inverter and make sure the bolts are
tightened with torque of 10-12 Nm. Make sure polarity at both the battery and the inverter/charge is
correctly connected and ring terminals are tightly screwed to the battery terminals.
Ring terminal:
Page 8
6
WARNING: Shock Hazard
Installation must be performed with care due to high battery voltage in series.
CAUTION!! Do not place anything between the flat part of the inverter terminal and the ring
terminal. Otherwise, overheating may occur.
CAUTION!! Do not apply anti-oxidant substance on the terminals before terminals are
connected tightly.
CAUTION!! Before making the f inal DC connection or closing DC breaker/disconnector, be sure
positive (+) must be connected to positive (+) and negative (-) must be connected to negative
(-).
Page 9
7
AC Input/Output Connection
CAUTION!! Before connecting to AC input power source, please install a separate AC breaker between
inverter and AC input power source. This will ensure the inverter can be securely disconnected during
maintenance and fully protected from over current of AC input. The recommended spec of AC breaker is 50A.
CAUTION!! There are two terminal blocks with “IN” and “OUT” markings. Please do NOT mis-connect input
and output connectors.
WARNING! All wiring must be performed by a qualified personnel.
WARNING! It's very important for system safety and efficient operation to use appropriate cable for AC input
connection. To reduce risk of injury, please use the proper recommended cable size as below.
Suggested cable requirement for AC wires
Model
Wire Size
Torque Value
AWG mm2
SP5000 Brilliant Plus 1 * 8 AWG
8.4
1.4~ 1.6Nm

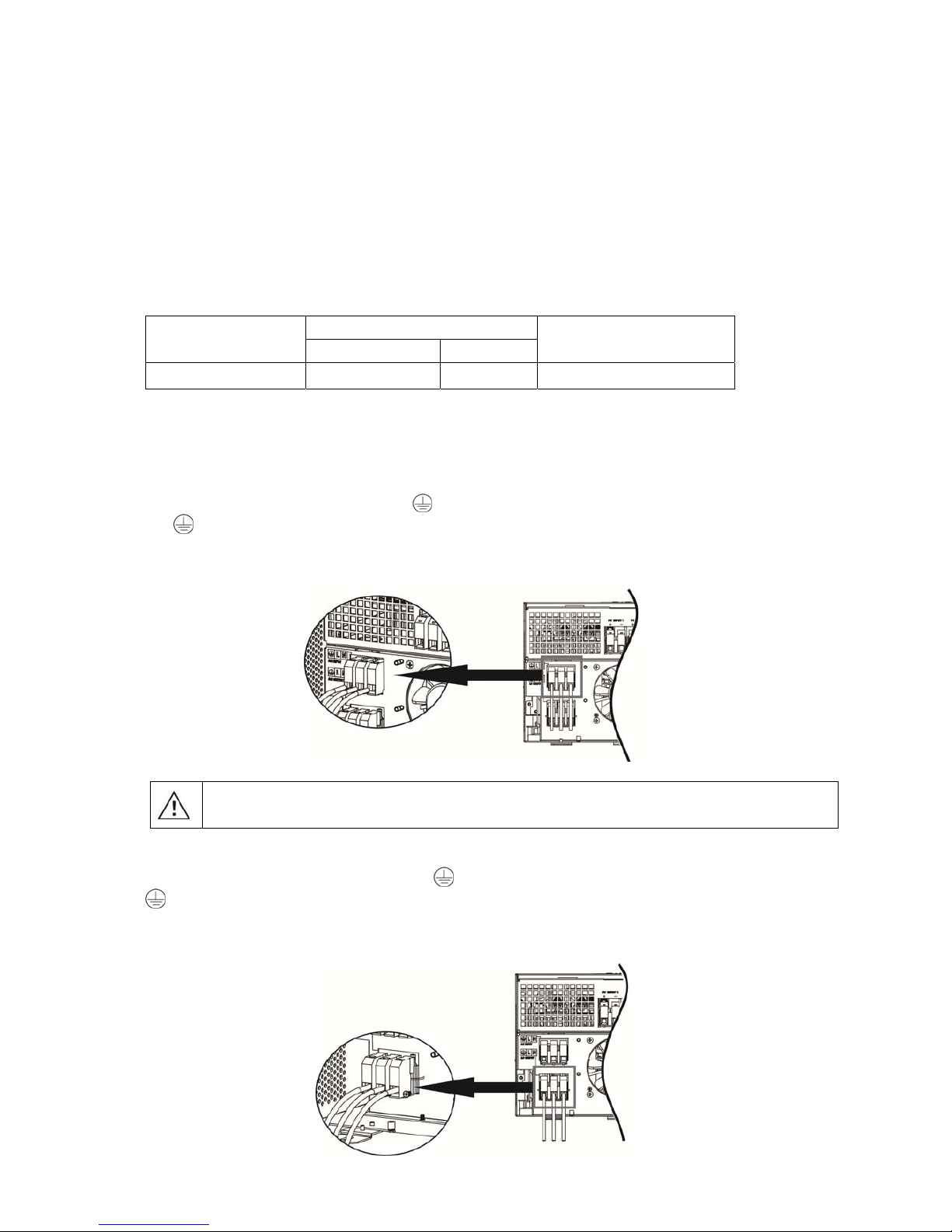

Please follow below steps to implement AC input/output connection:
1. Before making AC input/output connection, be sure to open DC protector or disconnector first.
2. Remove insulation sleeve 10mm for six conductors. And shorten phase L and neutral conductor N 3 mm.
3. Insert AC input wires according to polarities indicated on terminal block and tighten the terminal screws. Be
sure to connect PE protective conductor (
) first.
→Ground (yellow-green)
L→LINE (brown or black)
N→Neutral (blue)
WARNING:
Be sure that AC power source is disconnected before attempting to hardwire it to the unit.
4. Then, insert AC output wires according to polarities indicated on terminal block and tighten terminal screws.
Be sure to connect PE protective conductor (
) first.
→Ground (yellow-green)
L→LINE (brown or black)
N→Neutral (blue)
Page 10
8
5. Make sure the wires are securely connected.

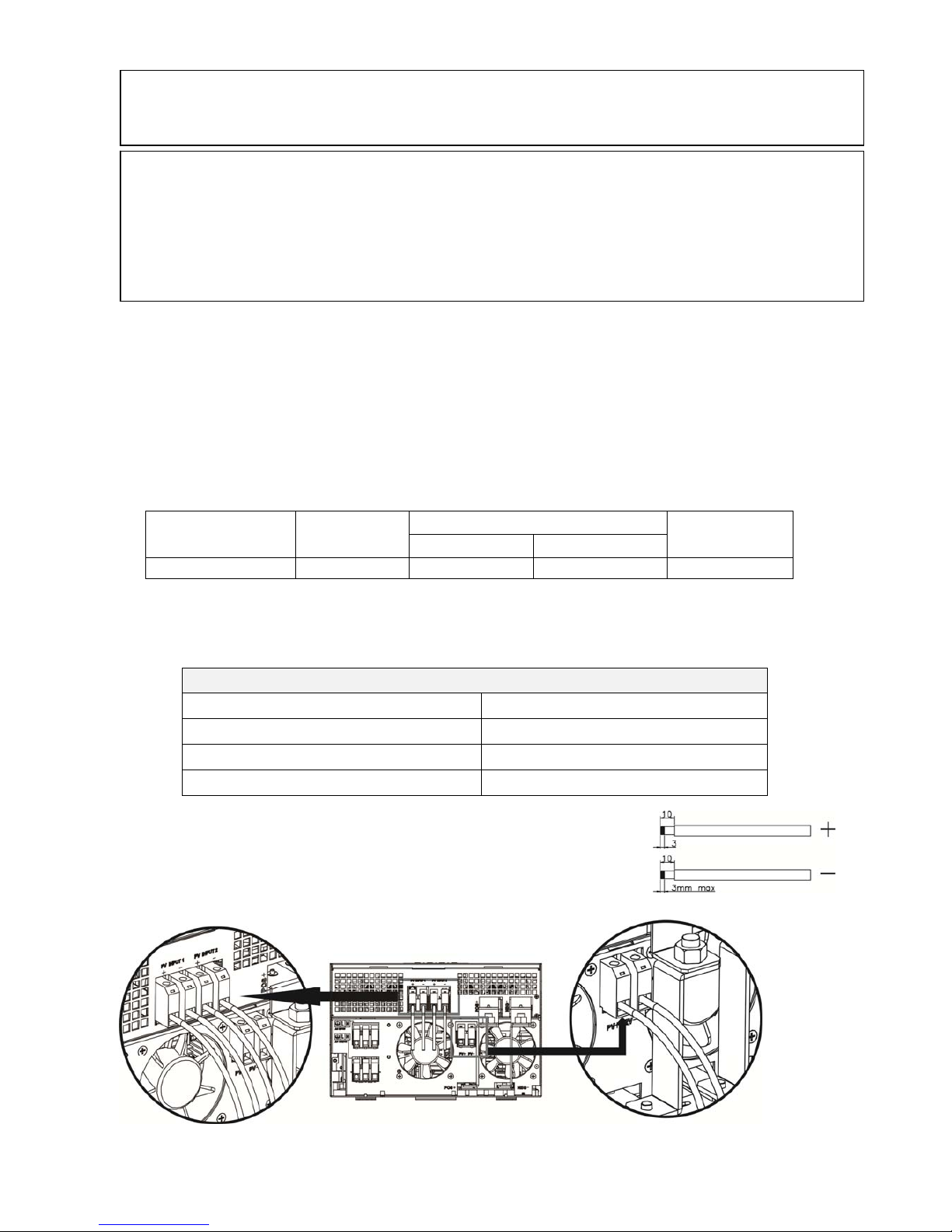

PV Connection
CAUTION: Before connecting to PV modules, please install separately a DC circuit breaker between inverter
and PV modules.
WARNING! All wiring must be performed by a qualified personnel.
WARNING! It's very important for system safety and efficient operation to use appropriate cable for PV
module connection. To reduce risk of injury, please use the proper recommended cable size for each PV input as
below.
Note! Each PV input connection is independent. Please connect to PV modules separately.
Note! If users only use one PV input, please choose one from PV1 or PV2 input.
Model Breaker size
Wire Size
Torque
AWG mm2
SP5000 Brilliant Plus 60A/150VDC 1 * 8 AWG 8.4 1.4~1.6 Nm
PV Module Selection:
When selecting proper PV modules, please be sure to consider below parameters:
1. Open circuit Voltage (Voc) of PV modules not exceeds max. PV array open circuit voltage of inverter.
2. Open circuit Voltage (Voc) of PV modules should be higher than min. battery voltage.
Solar Charging Mode
INVERTER MODEL SP5000 Brilliant Plus
Max. PV Array Open Circuit Voltage 145Vdc
PV Array MPPT Voltage Range 60~115Vdc
Min. battery voltage for PV charge 34Vdc
Please follow below steps to implement PV module connection:
1. Remove insulation sleeve 10 mm for positive and negative conductors.
2. Check correct polarity of connection cable from PV modules and PV input
connectors. Then, connect positive pole (+) of connection cable to positive
pole (+) of PV input connector. Connect negative pole (-) of connection
cable to negative pole (-) of PV input connector.
Only for the model with 3 MPPTs
3. Make sure the wires are securely connected.
CAUTION: Important
Be sure to connect AC wires with correct polarity. If L and N wires are connected reversely, it may cause utility
short-circuited when these inverte
r
s are worked in parallel operation.
CAUTION: Appliances such as air conditioner are required at least 2~3 minutes to restart because it’s required
to have enough time to balance refrigerant gas inside of circuits. If a power shortage occurs and recovers in a
short time, it will cause damage to your connected appliances. To prevent this kind of damage, please check
manufacturer of air conditioner if it’s equipped with time-delay function before installation. Otherwise, this
inverter/charger will trig overload fault and cut off output to protect your appliance but sometimes it still causes
internal damage to the air conditioner.
Page 11
9

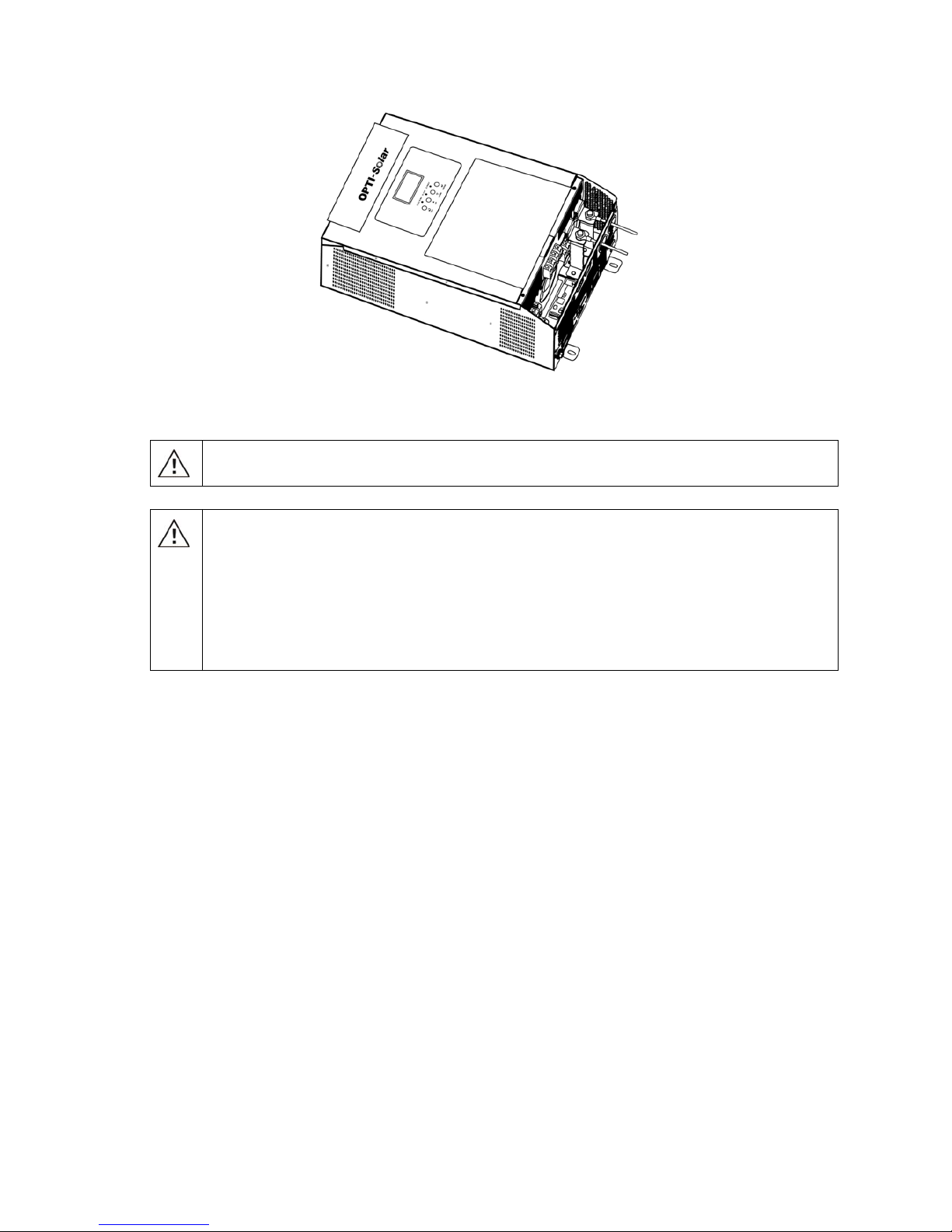

Final Assembly
After connecting all wirings, please put bottom cover back by screwing two screws as shown below.
Communication Connection
Please use supplied communication cable to connect to inverter and PC. Insert bundled CD into a computer and
follow on-screen instruction to install the monitoring software. For the detailed software operation, please
check user manual of software inside of CD.
Dry Contact Signal
There is one dry contact (3A/250VAC) available on the rear panel. It could be used to deliver signal to external
device when battery voltage reaches warning level.
Unit Status Condition
Dry contact port:
NC & C NO & C
Power Off Unit is off and no output is powered. Close Open
Power On
Output is powered from Utility. Close Open
Output is
powered
from
Battery or
Solar.
Program 01
set as Utility
Battery voltage < Low DC warning
voltage
Open Close
Battery voltage > Setting value in
Program 13 or battery charging
reaches floating stage
Close
Open
Program 01
is set as
SBU or
Solar first
Battery voltage < Setting value in
Program 12
Open
Close
Battery voltage > Setting value in
Program 13 or battery charging
reaches floating stage
Close Open
Page 12
10
OPERATION
Power ON/OFF
Once the unit has been properly installed and the batteries are connected well, simply press On/Off switch
(located on the button of the case) to turn on the unit.
Operation and Display Panel
The operation and display panel, shown in below chart, is on the front panel of the inverter. It includes
three indicators, four function keys and a LCD display, indicating the operating status and input/output
power information.
LED Indicator
LED Indicator
Messages
Green
Solid On Output is powered by utility in Line mode.
Flashing Output is powered by battery or PV in battery mode.
Green
Solid On Battery is fully charged.
Flashing Battery is charging.
Red
Solid On Fault occurs in the inverter.
Flashing
Warning condition occurs in the inverter.
Function Keys
Function Key Description
ESC To exit setting mode
UP To go to previous selection
DOWN To go to next selection
ENTER To confirm the selection in setting mode or enter setting mode
LCD display
LED indicators
Function keys
Page 13
11

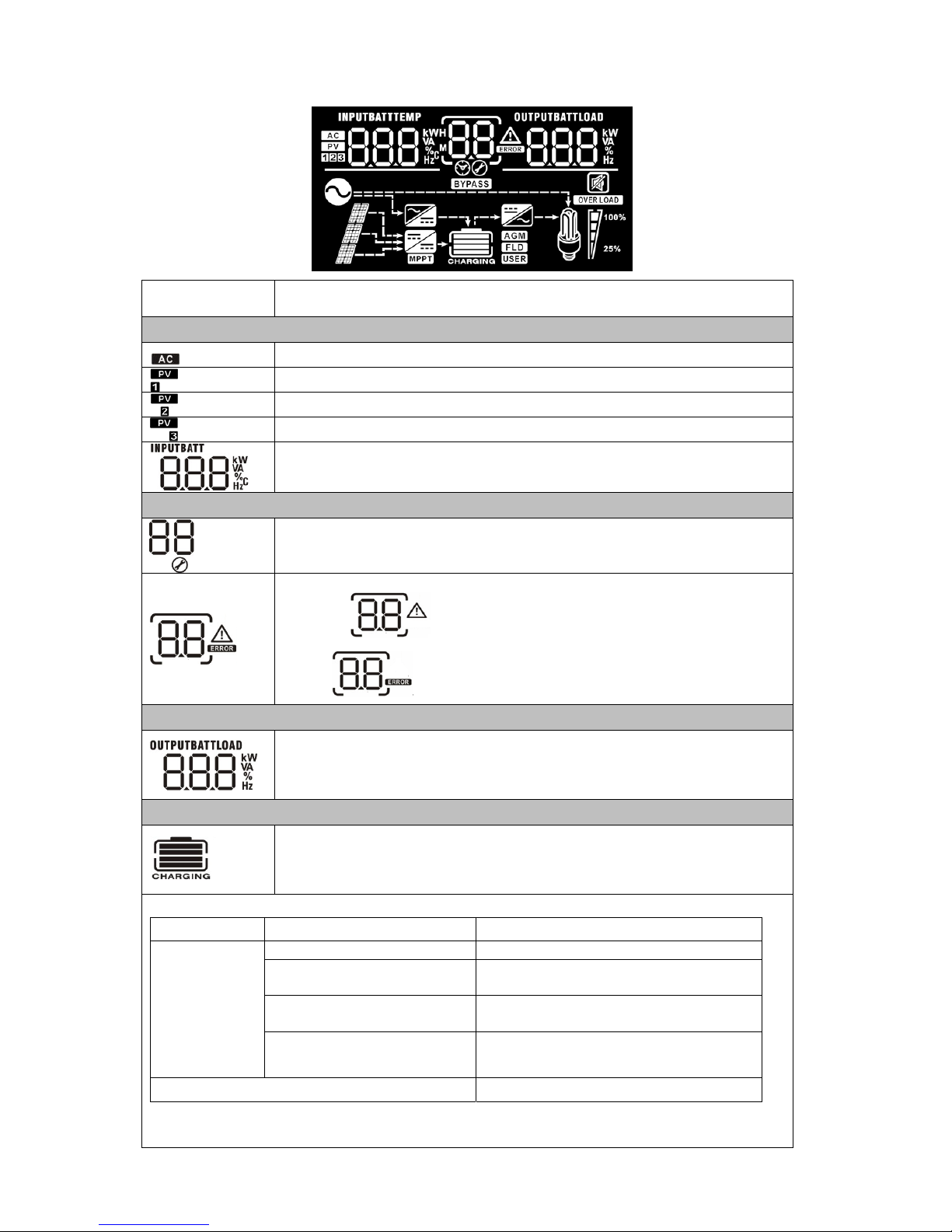

LCD Display Icons
Icon Function description
Input Source Information
Indicates the AC input.
Indicates the PV1 input
Indicates the PV2 input
Indicates the PV3 input
Indicate input voltage, input frequency, PV voltage, battery voltage and
charger current.
Configuration Program and Fault Information
Indicates the setting programs.
Indicates the warning and fault codes.
Warning:
flashing with warning code.
Fault:
lighting with fault code
Output Information
Indicate output voltage, output frequency, load percent, load in VA, load in
Watt and discharging current.
Battery Information
Indicates battery level by 0-24%, 25-49%, 50-74% and 75-100% in battery
mode and charging status in line mode.
In AC mode, it will present battery charging status.
Status Battery voltage LCD Display
Constant
Current mode /
Constant
Voltage mode
<2V/cell 4 bars will flash in turns.
2 ~ 2.083V/cell
Bottom bar will be on and the other three
bars will flash in turns.
2.083 ~ 2.167V/cell
Bottom two bars will be on and the other
two bars will flash in turns.
> 2.167 V/cell
Bottom three bars will be on and the top
bar will flash.
Floating mode. Batteries are fully charged.
4 bars will be on.
Page 14
12
In battery mode, it will present battery capacity.
Load Percentage Battery Voltage LCD Display
Load >50%
< 1.717V/cell
1.717V/cell ~ 1.8V/cell
1.8 ~ 1.883V/cell
> 1.883 V/cell
50%> Load > 20%
< 1.817V/cell
1.817V/cell ~ 1.9V/cell
1.9 ~ 1.983V/cell
> 1.983
Load < 20%
< 1.867V/cell
1.867V/cell ~ 1.95V/cell
1.95 ~ 2.033V/cell
> 2.033
Load Information
Indicates overload.
Indicates the load level by 0-24%, 25-50%, 50-74% and 75-100%.
0%~25% 25%~50% 50%~75% 75%~100%
Mode Operation Information
Indicates unit connects to the mains.
Indicates unit connects to the PV panel.
Indicates load is supplied by utility power.
Indicates the utility charger circuit is working.
Indicates the DC/AC inverter circuit is working.
Mute Operation
Indicates unit alarm is disabled.
Page 15
13
LCD Setting
After pressing and holding ENTER button for 3 seconds, the unit will enter setting mode. Press “UP” or “DOWN”
button to select setting programs. And then, press “ENTER” button to confirm the selection or ESC button to
exit.
Setting Programs:
Program Description Selectable option
00 Exit setting mode
Escape
01
Output source priority:
To configure load power
source priority
Solar first
Solar energy provides power to the
loads as first priority.
If solar energy is not sufficient to
power all connected loads, battery
energy will supply power the loads at
the same time.
Utility provides power to the loads only
when any one condition happens:
- Solar energy is not available
- Battery voltage drops to either
low-level warning voltage or the
setting point in program 12.
Utility first (default)
Utility will provide power to the loads
as first priority.
Solar and battery energy will provide
power to the loads only when utility
power is not available.
SBU priority
Solar energy provides power to the
loads as first priority.
If solar energy is not sufficient to
power all connected loads, battery
energy will supply power to the loads
at the same time.
Utility provides power to the loads only
when battery voltage drops to either
low-level warning voltage or the
setting point in program 12.
02
Maximum charging current:
To configure total charging
current for solar and utility
chargers.
(Max. charging current =
utility charging current +
solar charging current)
10A
20A
30A 40A
50A 60A (default)
Page 16
14

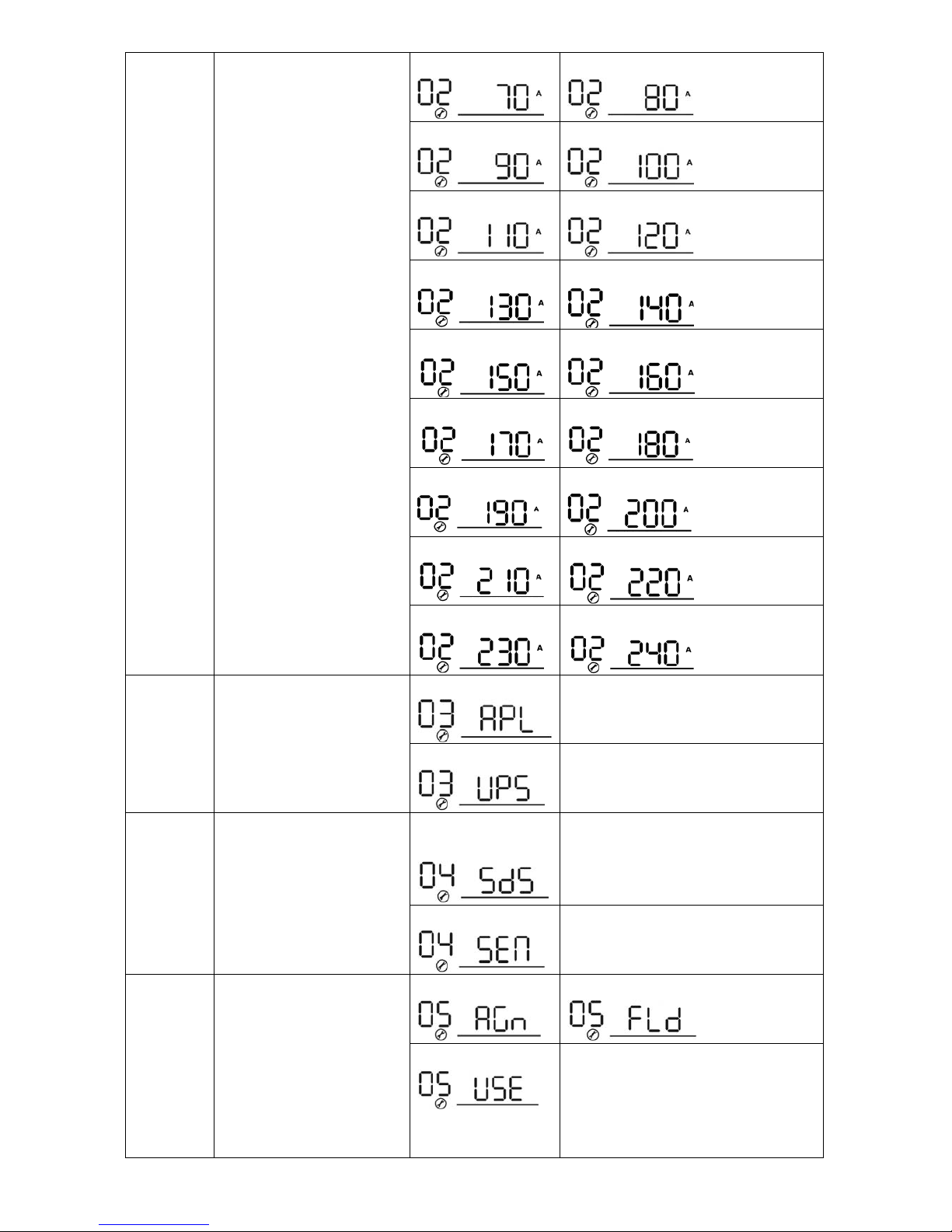

70A 80A
90A 100A
110A
120A
130A 140A
150A 160A
170A 180A
190A 200A
210A 220A
230A 240A
03 AC input voltage range
Appliances (default)
If selected, acceptable AC input
voltage range will be within
90-280VAC.
UPS If selected, acceptable AC input
voltage range will be within
170-280VAC.
04
Power saving mode
enable/disable
Saving mode disable
(default)
If disabled, no matter connected load
is low or high, the on/off status of
inverter output will not be effected.
Saving mode enable If enabled, the output of inverter will
be off when connected load is pretty
low or not detected.
05 Battery type
AGM (default)
Flooded
User-Defined
If “User-Defined” is selected, battery
charge voltage and low DC cut-off
voltage can be set up in program 26,
27 and 29.
Page 17
15
06
Auto restart when overload
occurs
Restart disable
(default)
Restart enable
07
Auto restart when over
temperature occurs
Restart disable
(default)
Restart enable
08 Output voltage
220V
230V (default)
240V
09 Output frequency
50Hz (default)
60Hz
11
Maximum utility charging
current
2A
10A
20A 30A (default)
40A 50A
60A
12
Setting voltage point back
to utility source when
selecting “SBU priority” or
“Solar first” in program 01.
44V
45V
46V (default)
47V
48V 49V
50V
51V
Page 18
16
13
Setting voltage point back
to battery mode when
selecting “SBU priority” or
“Solar first” in program 01.
Battery fully charged
48V
49V 50V
51V 52V
53V 54V (default)
55V 56V
57V 58V
16
Charger source priority:
To configure charger source
priority
If this SP5K Brilliant Plus is working in Line, Standby or Fault
mode, charger source can be programmed as below:
Solar first
Solar energy will charge battery as
first priority.
Utility will charge battery only when
solar energy is not available.
Utility first
Utility will charge battery as first
priority.
Solar energy will charge battery only
when utility power is not available.
Solar and Utility
Solar energy and utility will charge
battery at the same time.
Only Solar Solar energy will be the only charger
source no matter utility is available or
not.
If this SP5K Brilliant Plus is working in Battery mode or Power
saving mode, only solar energy can charge battery. Solar
energy will charge battery if it's available and sufficient.
18 Alarm control
Alarm on (default)
Alarm off
Page 19
17
19
Auto return to default
display screen
Return to default
display screen
(default)
If selected, no matter how users
switch display screen, it will
automatically return to default display
screen (Input voltage /output voltage)
after no button is pressed for 1
minute.
Stay at latest screen
If selected, the display screen will stay
at latest screen user finally switches.
20 Backlight control
Backlight on
(default)
Backlight off
22
Beeps while primary source
is interrupted
Alarm on (default)
Alarm off
23
Overload bypass:
When enabled, the unit will
transfer to line mode if
overload occurs in battery
mode.
Bypass disable
(default)
Bypass enable
25 Record Fault code
Record enable Record disable (default)
26
Bulk charging voltage
(C.V voltage)
56.4V (default)
If self-defined is selected in program 5, this program can be
set up. Setting range is from 48.0V to 58.4V. Increment of
each click is 0.1V.
27 Floating charging voltage
54.0V (default)
If self-defined is selected in program 5, this program can be
set up. Setting range is from 48.0V to 58.4V. Increment of
each click is 0.1V.
29 Low DC cut-off voltage
42.0V (default)
If self-defined is selected in program 5, this program can be
set up. Setting range is from 40.0V to 48.0V. Increment of
each click is 0.1V. Low DC cut-off voltage will be fixed to
setting value no matter what percentage of load is connected.
Page 20
18
31
Solar power balance:
When enabled, solar input
power will be automatically
adjusted according to
connected load power.
Solar power balance
enable (Default):
If selected, solar input power will
be automatically adjusted
according to the following formula:
Max. input solar power = Max.
battery charging power +
Connected load power.
Solar power balance
disable:
If selected, the solar input power
will be the same to max. battery
charging power no matter how
much loads are connected. The
max. battery charging power will
be based on the setting current in
program 02.
(Max. solar power = Max. battery
charging power)
Display Setting
The LCD display information will be switched in turns by pressing “UP” or “DOWN” key. The selectable
information is switched as below order: input voltage, input frequency, PV1 voltage, PV2 voltage, PV3 voltage,
charging current, total PV charging power, PV1 charging power, PV2 charging power, PV3 charging power,
battery voltage, output voltage, output frequency, load percentage, load in VA, load in Watt, DC discharging
current, main CPU Version, second CPU Version, third CPU version and fourth CPU version.
Selectable information LCD display
Input voltage/Output voltage
(Default Display Screen)
Input Voltage=230V, output voltage=230V
Input frequency
Input frequency=50Hz
PV1 voltage
PV1 voltage=60V
PV2 voltage
PV2 voltage=60V
Page 21
19
PV3 voltage
PV3 voltage=60V
Charging current
Charging current =50A
Total PV charging power
When total PV charging power is lower than 1kW,
it will present xxxW like below chart.
When total PV Charging power is larger than 1kW
(≧1KW), it will present x.xkW like below chart.
PV1 charging power
When PV1 charging power is lower than 1kW, it
will present xxxW like below chart.
When PV1 Charging power is larger than 1kW (≧
1KW), it will present x.xkW like below chart.
Page 22
20
PV2 charging power
When PV2 Charging power is lower than 1kW, it
will present xxxW like below chart.
When PV2 Charging power is larger than 1kW (≧
1KW), it will present x.xkW like below chart.
PV3 charging power
When PV3 Charging power is lower than 1kW, it
will present xxxW like below chart.
When PV3 charging power is larger than 1kW (≧
1KW), it will present x.xkW like below chart.
Battery voltage
Battery voltage=48.0V
Output frequency
Output frequency=50Hz
Load percentage
Load percent=70%
Page 23
21

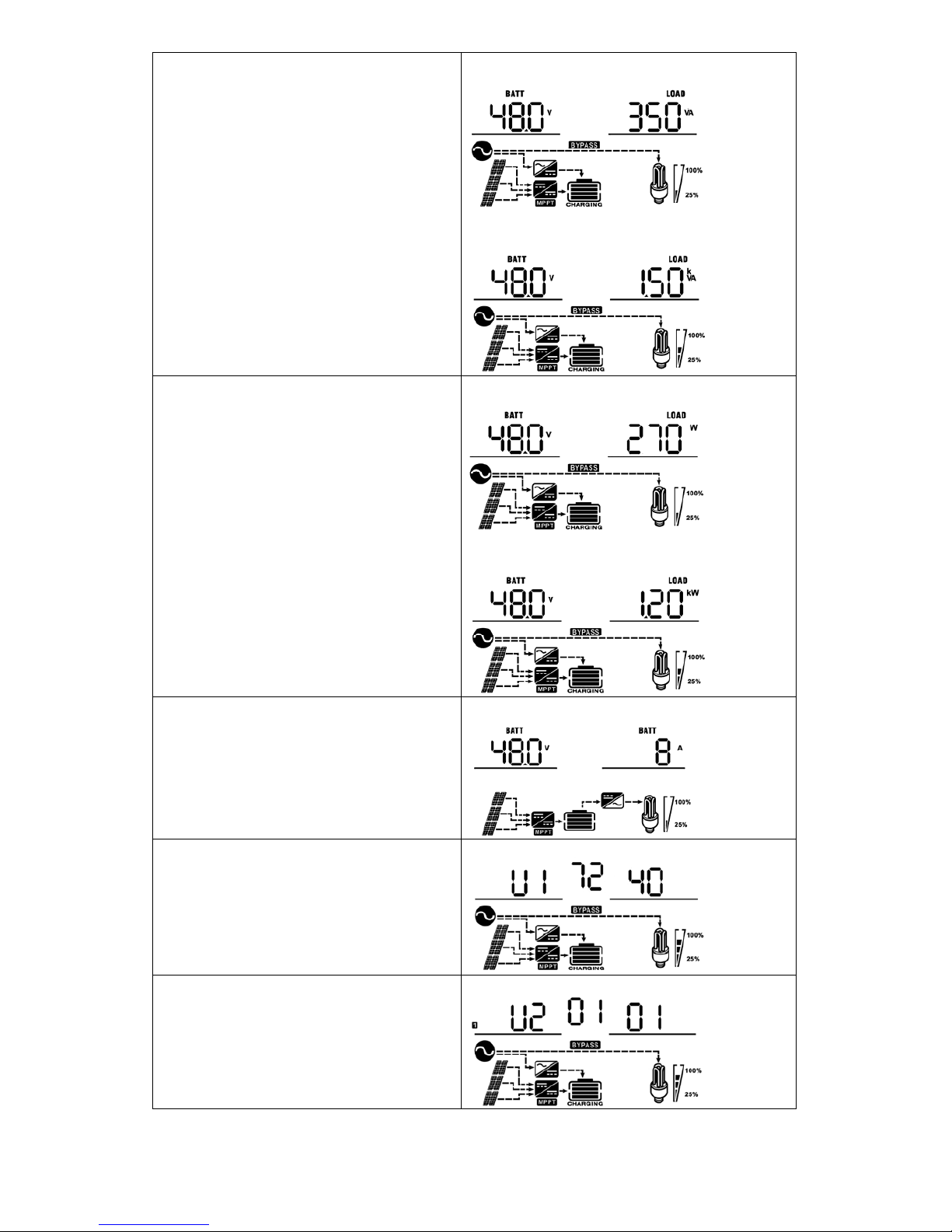

Load in VA
When connected load is lower than 1kVA, load in
VA will present xxxVA like below chart.
When load is larger than 1kVA (≧1KVA), load in VA
will present x.xkVA like below chart.
Load in Watt
When load is lower than 1kW, load in W will
present xxxW like below chart.
When load is larger than 1kW (≧1KW), load in W
will present x.xkW like below chart.
DC discharging current
DC discharging current=8A
Main CPU version checking
Main CPU version 00072.40
The second CPU version checking
The second CPU version 00001.01
Page 24
22
The third CPU version checking
The third CPU version 00001.02
The fourth CPU version checking
The fourth CPU version 00001.03
Operating Mode Description
Operation mode Description LCD display
Standby mode / Power
saving mode
Note:
*Standby mode: The inverter is
not turned on yet but at this
time, the inverter can charge
battery without AC output.
*Power saving mode: If
enabled, the output of inverter
will be off when connected load
is pretty low or not detected.
No output is supplied by the
unit but it still can charge
batteries.
Charging by utility and PV energy.
Charging by utility energy.
Charging by PV energy.
No charging.
Fault mode
Note:
*Fault mode: Errors are caused
by inside circuit error or external
reasons such as over
temperature, output short
circuited and so on.
PV energy and utility can
charge batteries.
Charging by utility and PV energy.
Charging by utility energy.
Page 25
23
Fault mode
Note:
*Fault mode: Errors are caused
by inside circuit error or external
reasons such as over
temperature, output short
circuited and so on.
PV energy and utility can
charge batteries.
Charging by PV energy.
No charging.
Utility can power loads when
the unit starts up without
battery. (Only available in
single model)
Power from utility energy.
Line Mode
The unit will provide output
power from the mains. It will
also charge the battery at
line mode.
Charging by PV energy.
Charging by utility energy.
Battery Mode
The unit will provide output
power from battery and PV
power.
Power from battery and PV energy.
Power from battery energy only.
Page 26
24
Fault Reference Code
Fault Code Fault Event Icon on
01 Fan is locked when inverter is off.
02 Over temperature
03 Battery voltage is too high
04 Battery voltage is too low
05
Output short circuited or over temperature is detected
by internal converter components.
06 Output voltage is too high.
07 Overload time out
08 Bus voltage is too high
09 Bus soft start failed
11 Main relay failed
51 Over current or surge
52 Bus voltage is too low
53 Inverter soft start failed
55 Over DC voltage in AC output
56 Battery connection is open
57 Current sensor failed
58 Output voltage is too low
Warning Indicator
Warning
Code
Warning Event Audible Alarm Icon flashing
01
Fan is locked when inverter is
on.
Beep three times every
second
03 Battery is over-charged Beep once every second
04 Low battery Beep once every second
07 Overload Beep once every 0.5 second
10 Output power derating Beep twice every 3 seconds
12
Battery voltage is too low to
be charged by PV charger.
Beep once every second
13
High loss on PV charger
voltage
Beep once every second
14
PV charger stops due to
overload.
Beep once every 0.5 second
Page 27
25
SPECIFICATIONS
Table 1 Line Mode Specifications
Line Mode (Utility Bypass Mode)
Model SP5000 Brilliant
Input Voltage Waveform Sinusoidal (utility or generator)
Nominal Input Voltage 230Vac
Maximum input current 40A
Low Loss Voltage 170Vac±7V(UPS); 90Vac±7V(Appliances)
Low Loss Return Voltage 180Vac±7V(UPS); 100Vac±7V (Appliances)
High Loss Voltage 280Vac±7V
High Loss Return Voltage 270Vac±7V
Max AC Input Voltage 300Vac
Nominal Input Frequency 50Hz / 60Hz (Auto detection, 55Hz as boundary)
Low Loss Frequency 40±1Hz
Low Loss Return Frequency 42±1Hz
High Loss Frequency 65±1Hz
High Loss Return Frequency 63±1Hz
Output Short Circuit Protection Line mode: Circuit Breaker
Battery mode: Electronic Circuits
Efficiency >95% (Rated R load, battery full charged)
Transfer Time 10ms typical, 12ms maximum @50Hz (UPS);
20ms typical, 25ms maximum @50Hz (Appliances)
Power Limitation
Page 28
26
Table 2 Inverter Mode Specifications
Inverter Mode
Model SP5000 Brilliant Plus
Rated Output Power 5000VA/4000W
Output Voltage Waveform Pure Sine Wave
Output Voltage Regulation 230Vac±5%
Output Frequency 50Hz
Peak Efficiency 90%
Overload Protection 5s@≥150% load; 10s@110%~150% load
Surge Capacity 2 x rated power for 5sec
Nominal DC Voltage 48Vdc
Cold Start Voltage 46.0Vdc
Low DC Warning Voltage
@ load < 20% 44.0Vdc
@ 20% ≤ load < 50% 42.8Vdc
@ load ≥ 50% 40.4Vdc
Low DC Warning Recovery Voltage
@ load < 20% 46.0Vdc
@ 20% ≤ load < 50% 44.8Vdc
@ load ≥ 50% 42.4Vdc
Low DC Cut-off Voltage
@ load < 20% 42.0Vdc
@ 20% ≤ load < 50% 40.8Vdc
@ load ≥ 50% 38.4Vdc
High DC Recovery Voltage 58Vdc
High DC Cut-off Voltage 60Vdc
DC Voltage Accuracy +/-0.3%V@ no load
THDV <3% for linear load,
<5% for non-linear load @ nominal voltage
DC Offset
≦100mV
No Load Power Consumption <50W
Saving Mode Power Consumption <15W
Enter Saving Mode level <50W
Leave Saving Mode level >100W
Page 29
27

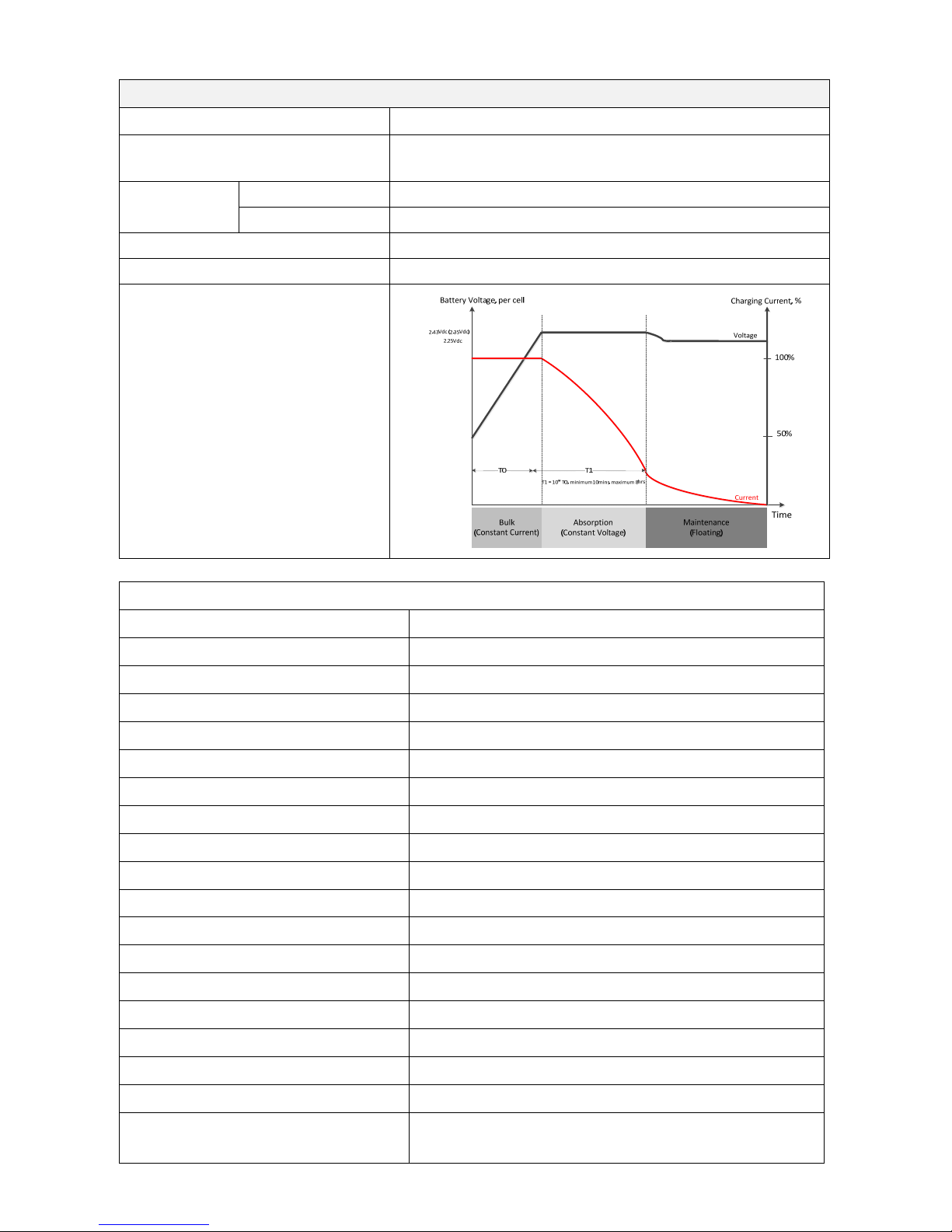

Table 3 Charge Mode Specifications
Utility Charging Mode
Model SP5000 Brilliant Plus
Charging Current (UPS)
@ Nominal Input Voltage
2A/10A/20A/30A/40A/50A/60A
Bulk Charging
Voltage
Flooded Battery 58.4
AGM / Gel Battery 56.4
Floating Charging Voltage 54Vdc
Charging Algorithm 3-Step
Charging Curve
Solar Charging Mode
Model SP5000 Brilliant Plus
MPP tracker numbers 3
Charging Current 3 x 60 Amp
Max. PV Array Open Circuit Voltage 145Vdc
PV Array Voltage High Loss 145Vdc
PV Array Voltage High Comeback 140Vdc
PV Array Voltage Low Loss Battery voltage + 1V
PV Array Voltage Low Back Battery voltage + 2V
PV Array MPPT Voltage Range 60~115Vdc
Min. PV Voltage 34Vdc
System Voltage 48Vdc
Standby Power Consumption 2W
DC Voltage Accuracy +/-0.3%
PV Voltage Accuracy +/-2V
Charging Algorithm 3-Step
DC Reverse Polarity Protection Yes
Over-temperature Protection Yes
Overload, DC short-circuit Protection Yes
Prevents reserve current from
battery at night
Yes
Page 30
28
Joint Utility and Solar Charging
Model SP5000 Brilliant Plus
Max Charging Current 240 Amp
Default Charging Current 60 Amp
Table 4 General Specifications
Model
SP5000 Brilliant Plus
Operating Temperature
Range
0°C to 55°C
Storage temperature -15°C~ 60°C
Dimension
(D*W*H), mm
507.6 x 295 x 186.2
Net Weight, kg
16
Page 31
29
TROUBLE SHOOTING
Problem LCD/LED/Buzzer Explanation / Possible cause What to do
Unit shuts down
automatically
during startup
process.
LCD/LEDs and buzzer
will be active for 3
seconds and then
complete off.
The battery voltage is too low
(<1.91V/Cell)
1. Re-charge battery.
2. Replace battery.
No response after
power on.
No indication.
1. The battery voltage is far too
low. (<1.4V/Cell)
2. Battery polarity is connected
reversed.
1. Check if batteries and the
wiring are connected well.
2. Re-charge battery.
3. Replace battery.
Mains exist but the
unit works in
battery mode.
Input voltage is
displayed as 0 on the
LCD and green LED is
flashing.
Input protector is tripped
Check if AC breaker is tripped
and AC wiring is connected
well.
Green LED is flashing.
Insufficient quality of AC power.
(Shore or Generator)
1. Check if AC wires are too
thin and/or too long.
2. Check if generator (if
applied) is working well or if
input voltage range setting is
correct. (UPSAppliance)
Green LED is flashing.
Set “Solar First” as the priority of
output source.
Change output source priority
to Utility first.
When the unit is
turned on, internal
relay is switched on
and off repeatedly.
LCD display and LEDs
are flashing
Battery is disconnected.
Check if battery wires are
connected well.
Buzzer beeps
continuously and
red LED is on.
Fault code 07
Overload error. The inverter is
overload 110% and time is up.
Reduce the connected load by
switching off some
equipment.
Fault code 05
Output short circuited.
Check if wiring is connected
well and remove abnormal
load.
Temperature of internal converter
component is over 120°C. (Only
available for 1-3KVA models.)
Check whether the air flow of
the unit is blocked or whether
the ambient temperature is
too high.
Fault code 02
Internal temperature of inverter
component is over 100°C.
Fault code 03
Battery is over-charged. Return to repair center.
The battery voltage is too high.
Check if spec and quantity of
batteries are meet
requirements.
Fault code 01 Fan fault Replace the fan.
Fault code 06/58
Output abnormal (Inverter voltage
below than 190Vac or is higher
than 260Vac)
1. Reduce the connected
load.
2. Return to repair center
Fault code
08/09/53/57
Internal components failed. Return to repair center.
Fault code 51 Over current or surge.
Restart the unit, if the error
happens again, please return
to repair center.
Fault code 52 Bus voltage is too low.
Fault code 55 Output voltage is unbalanced.
Fault code 56
Battery is not connected well or
fuse is burnt.
If the battery is connected
well, please return to repair
center.
Page 32
30
Appendix I: Approximate Back-up Time Table
Model Load (VA) Backup Time @ 48Vdc 600Ah (min) Backup Time @ 48Vdc 1200Ah (min)
SP5K Brilliant
Plus
500 3678 7728
1000 1608 3678
1500 948 2412
2000 666 1626
2500 540 1290
3000 456 1092
3500 390 846
4000 300 672
4500 264 600
5000 240 540
Note: Backup time depends on the quality of the battery, age of battery and type of battery.
Specifications of batteries may vary depending on different manufacturers.
Page 33
31
Appendix II: Parallel function (Option)
1. Introduction
This inverter can be used in parallel with two different operation modes.
1. Parallel operation in single phase with up to 6 units. The supported maximum output power is
24KW/30KVA.
2. Maximum six units work together to support three-phase equipment. Four units support one phase
maximum. The supported maximum output power is 24KW/30KVA and one phase can be up to
16KW/20KVA.
NOTE: If this unit is bundled with share current cable and parallel cable, this inverter is default supported
parallel operation. You may skip section 3. If not, please purchase parallel kit and install this unit by following
instruction from professional technical personnel in local dealer.

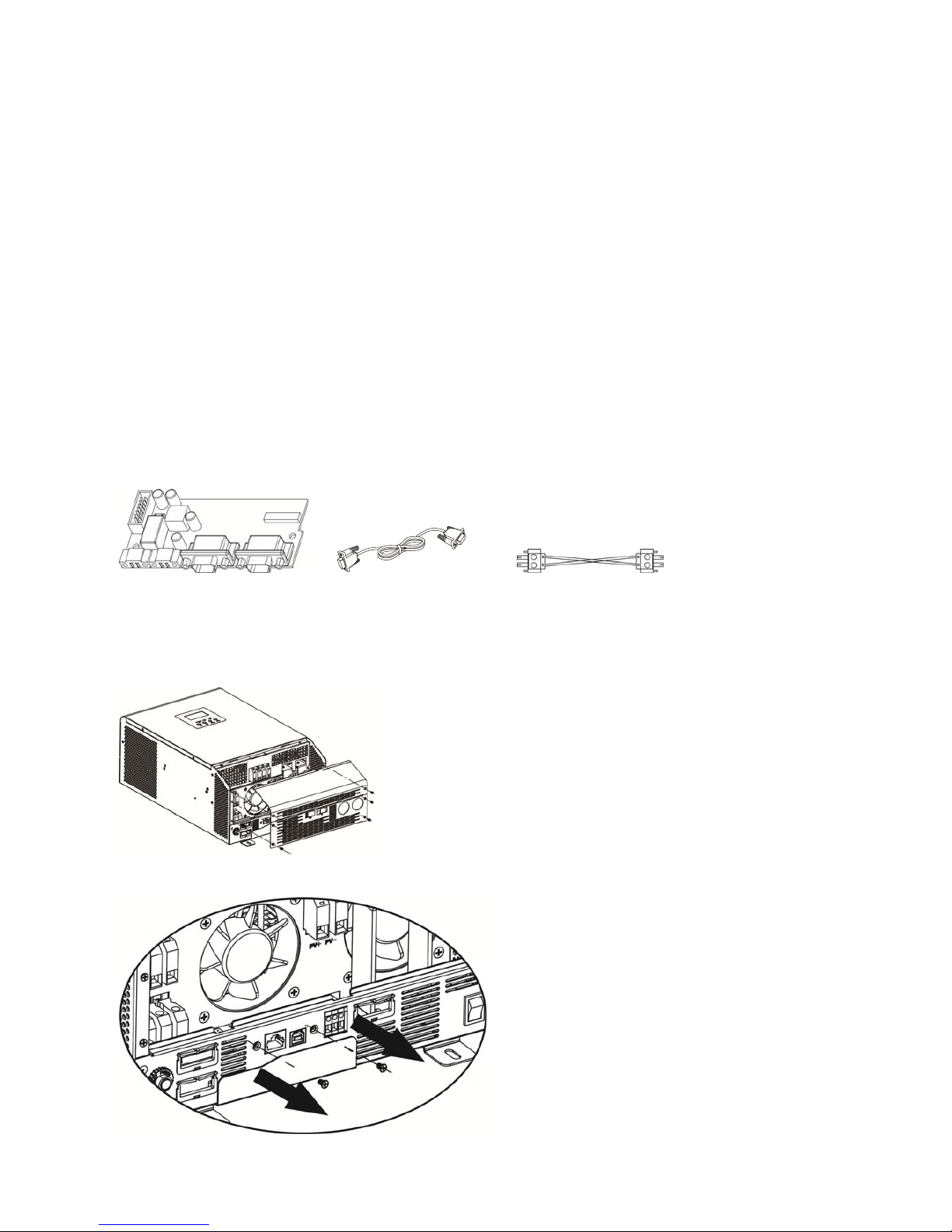

2. Package Contents
In parallel kit, you will find the following items in the package:
Parallel board Parallel communication cable Current sharing cable
3. Parallel board installation
Step 1: Remove wire cover by unscrewing all screws.
Step 2: Remove communication board by unscrewing two screws as below chart.
Page 34
32

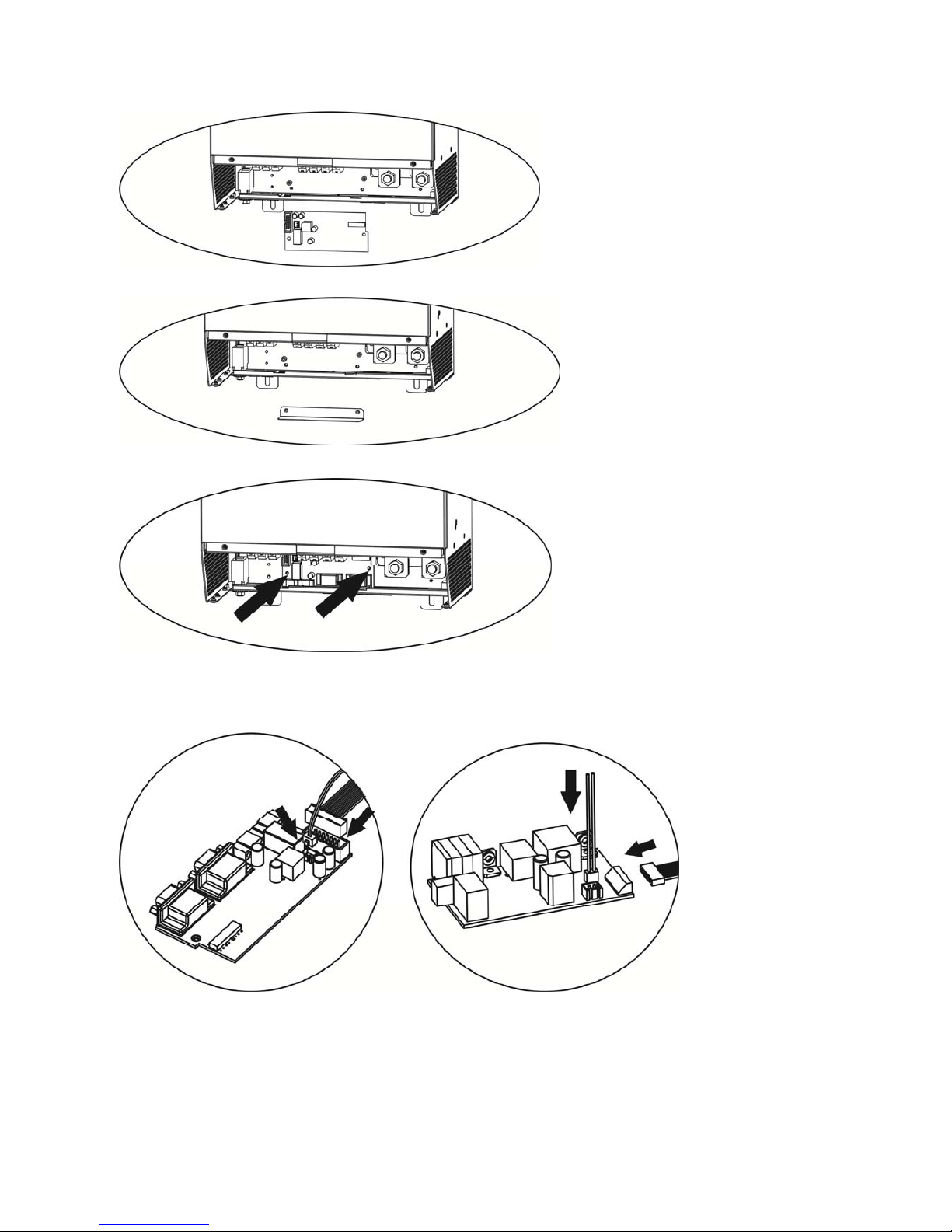

Step 3: Remove two screws as below chart and remove 2-pin and 14-pin cables. Take out the board under the
communication board.
Step 4: Remove two screws as below chart to take out cover of parallel communication.
Step 5: Install new parallel board with 2 screws tightly.
Step 6: Re-connect 2-pin and 14-pin to original position.
Parallel board Communication board
Page 35
33

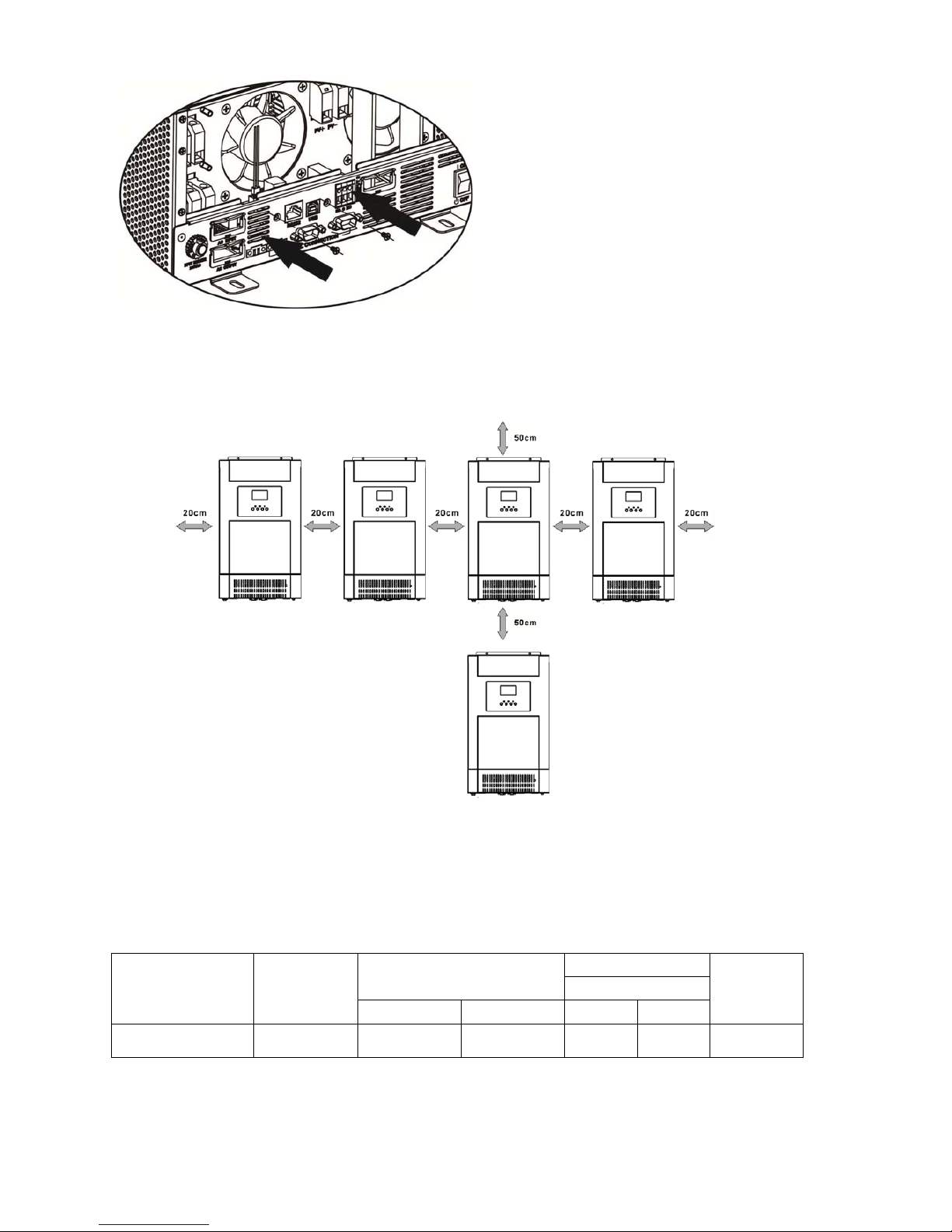

Step 7: Put communication board back to the unit.
Step 8: Put wire cover back to the unit. Now the inverter is providing parallel operation function.
4. Mounting the Unit
When installing multiple units, please follow below chart.
NOTE:
For proper air circulation to dissipate heat, allow a clearance of approx. 20 cm to the side and approx.
50 cm above and below the unit. Be sure to install each unit in the same level.
5. Wiring Connection
The cable size of each inverter is shown as below:
Recommended battery breaker, cable and terminal size for each inverter:
Model
Breaker
Size
Wire Size
Ring Terminal
Torque
Value
Dimensions
AWG mm2 D (mm) L (mm)
SP5K Brilliant Plus 250A/60VDC 2 * 2AWG 72 10.5 55 10~ 12 Nm
WARNING: Be sure the length of all battery cables is the same. Otherwise, there will be voltage difference
between inverter and battery to cause parallel inverters not working.
Page 36
34
Recommended AC input and output cable size for each inverter:
Wire Size
Torque Value
AWG mm2
1 * 8 AWG
8.4
1.4~ 1.6Nm
You need to connect the cables of each inverter together. Take the battery cables for example: You need to use
a connector or bus-bar as a joint to connect the battery cables together, and then connect to the battery
terminal. The cable size used from joint to battery should be X times cable size in the tables above. “X” indicates
the number of inverters connected in parallel.
Regarding AC input and output, please also follow the same principle.
CAUTION!! Please install the breaker at the battery and AC input side. This will ensure the inverter can be
securely disconnected during maintenance and fully protected from over current of battery or AC input. The
recommended mounted location of the breakers is shown in the figures in 5-1 and 5-2.
*If you want to use only one breaker at the battery side for the whole system, the rating of the breaker should
be X times current of 1 unit. “X” indicates the number of inverters connected in parallel.
Recommended breaker specification of AC input with single phase:
Model
2 units 3 units 4 units 5 units 6 units
SP5K Brilliant Plus 100A/230VAC 150A/230VAC 200A/23VAC 250A/23VAC 300A/23VAC
Note 1: Also, you can use 50A breaker for only 1 unit, and each inverter has a breaker at its AC input.
Note 2: Regarding three phase system, you can use 4 poles breaker, the rating is up to the current of the
phase which has the maximum units. Or you can follow the suggestion of note 1.
Recommended battery capacity
Inverter parallel numbers 2 3 4 5 6
Battery Capacity 1200AH 1800AH 2400AH 3000AH 3600AH
WARNING! Be sure that all inverters will share the same battery bank. Otherwise, the inverters will transfer to
fault mode.
Page 37
35
5-1. Parallel Operation in Single phase
Two inverters in parallel:
Power Connection
Communication Connection
Three inverters in parallel:
Power Connection
Page 38
36
Communication Connection
Four inverters in parallel:
Power Connection
Communication Connection
Page 39
37
Five inverters in parallel:
Power Connection
Communication Connection
Six inverters in parallel:
Power Connection
Communication Connection
Page 40
38
5-2. Support 3-phase equipment
Two inverters in each phase:
Power Connection
Communication Connection
Four inverters in one phase and one inverter for the other two phases:
Power Connection
Note: It’s up to customer’s demand to pick 4 inverters on any phase.
P1: L1-phase, P2: L2-phase, P3: L3-phase.
Communication Connection
Page 41
39
Three inverters in one phase, two inverters in second phase and one inverter for the third phase:
Power
Connection
Communication Connection
Three inverters in one phase and only one inverter for the remaining two phases:
Power Connection
Communication Connection
Page 42
40
Two inverters in two phases and only one inverter for the remaining phase:
Power Connection
Communication Connection
Two inverters in one phase and only one inverter for the remaining phases:
Power Connection
Page 43
41
Communication Connection
One inverter in each phase:
Power Connection
Communication Connection
WARNING: Do not connect the current sharing cable between the inverters which are in different phases.
Otherwise, it may damage the inverters.
6. PV Connection
Please refer to user manual of single unit for PV Connection.
CAUTION: Each inverter should connect to PV modules separately.
Page 44
42
7. LCD Setting and Display
Setting Program:
Program Description Selectable option
28
AC output mode
*This setting is only
available when the
inverter is in standby
mode (Switch off).
Single:
When the units are used in parallel with
single phase, please select “PAL” in program
28.
It is required to have at least 3 inverters or
maximum 6 inverters to support
three-phase equipment. It’s required to
have at least one inverter in each phase or
it’s up to four inverters in one phase. Please
refers to 5-2 for detailed information.
Please select “3P1” in program 28 for the
inverters connected to L1 phase, “3P2” in
program 28 for the inverters connected to
L2 phase and “3P3” in program 28 for the
inverters connected to L3 phase.
Be sure to connect share current cable to
units which are on the same phase.
Do NOT connect share current cable
between units on different phases.
Besides, power saving function will be
automatically disabled.
Parallel:
L1 phase:
L2 phase:
L3 phase:
30
PV judge condition
(Only apply for
setting “Solar first”
in program 1: Output
source priority)
One Inverter
(Default):
When “ONE” is selected, as long as one of
inverters has been connected to PV modules
and PV input is normal, parallel or 3-phase
system will continue working according to
rule of “solar first” setting.
For example, two units are connected in
parallel and set “SOL” in output source
priority. If one of two units has connected to
PV modules and PV input is normal, the
parallel system will provide power to loads
from solar or battery power. If both of them
are not sufficient, the system will provide
power to loads from utility.
All of Inverters:
When “ALL” is selected, parallel or 3-phase
system will continue working according to
rule of “solar first” setting only when all of
inverters are connected to PV modules.
For example, two units are connected in
parallel and set “SOL” in output source
priority. When selecting “ALL” in program
30, it’s necessary to have all inverters
connected to PV modules and PV input is
normal to allow the system to provide
power to loads from solar and battery
power. Otherwise, the system will provide
power to loads from utility.
Page 45
43

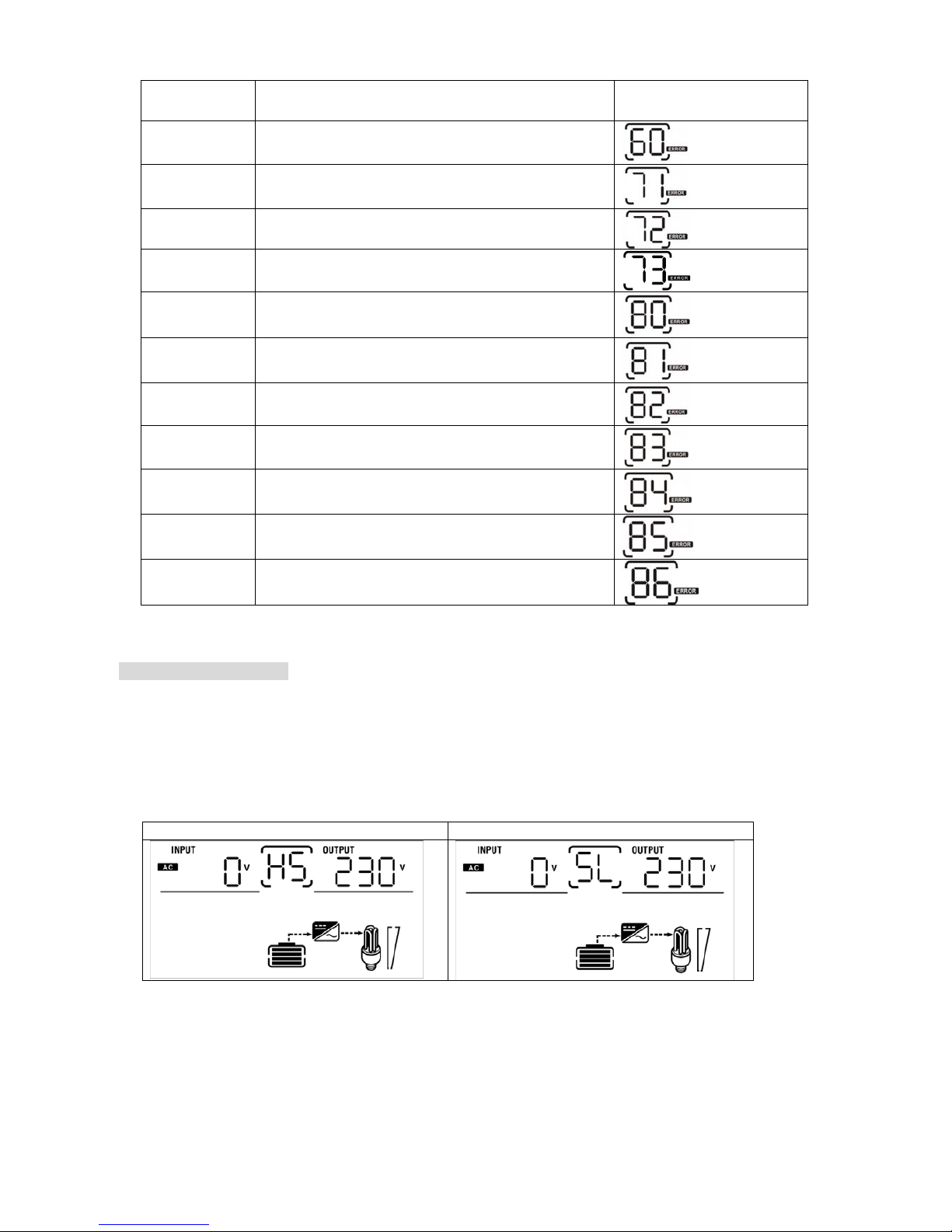

Fault code display:
Fault Code Fault Event Icon on
60 Power feedback protection
71 Firmware version inconsistent
72 Current sharing fault
73 Different setting fault on output voltage
80 CAN fault
81 Host loss
82 Synchronization loss
83 Battery voltage detected different
84 AC input voltage and frequency detected different
85 AC output current unbalance
86 AC output mode setting is different
8. Commissioning
Parallel in single phase
Step 1: Check the following requirements before commissioning:
Correct wire connection
Ensure all breakers in Line wires of load side are open and each Neutral wires of each unit are connected
together.
Step 2: Turn on each unit and set “PAL” in LCD setting program 28 of each unit. And then shut down all units.
NOET: It’s necessary to turn off switch when setting LCD program. Otherwise, the setting can not be
programmed.
Step 3: Turn on each unit.
LCD display in Master unit LCD display in Slave unit
NOTE: Master and slave units are randomly defined.
Page 46
44

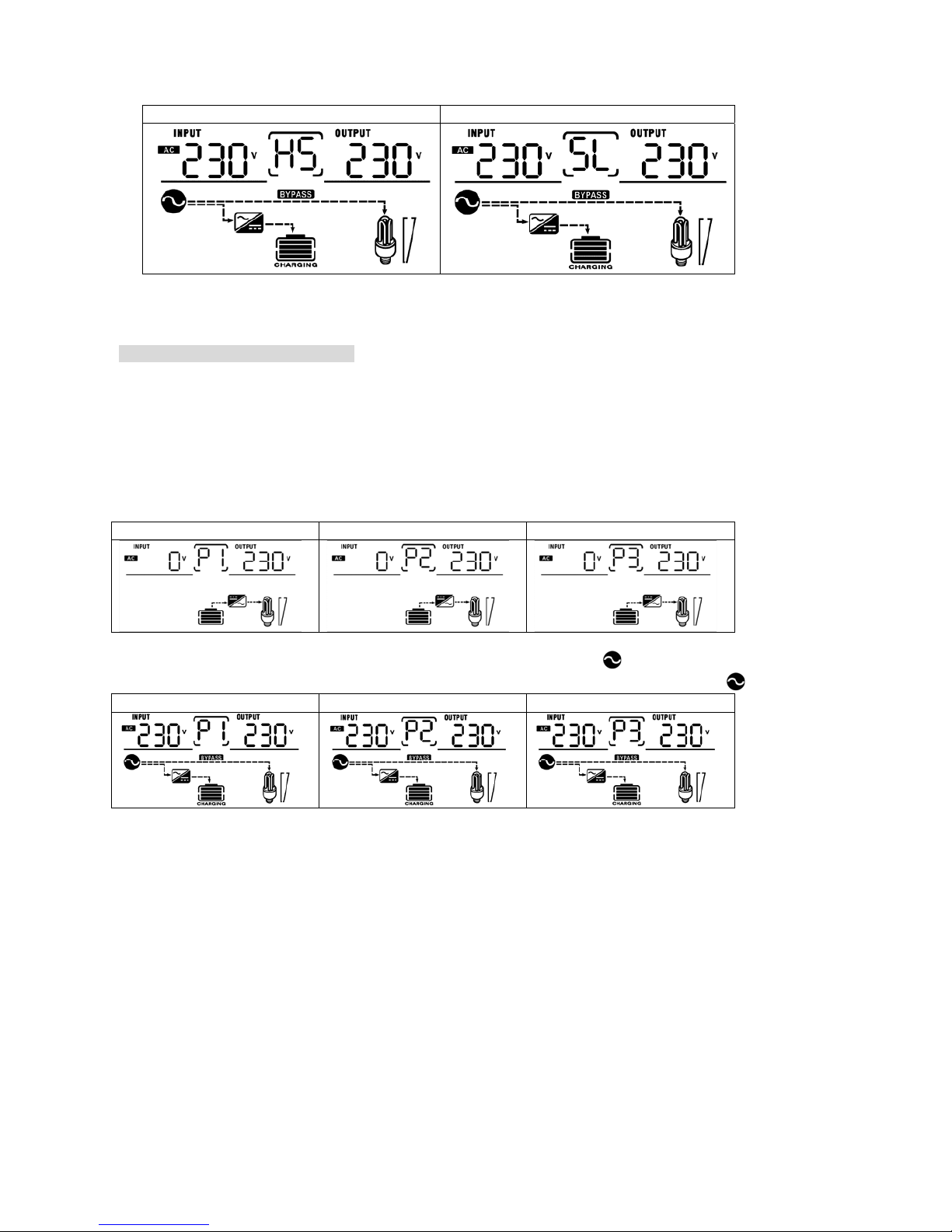

Step 4: Switch on all AC breakers of Line wires in AC input. It’s better to have all inverters connect to utility at
the same time. If not, it will display fault 82 in following-order inverters. However, these inverters will
automatically restart. If detecting AC connection, they will work normally.
LCD display in Master unit LCD display in Slave unit
Step 5: If there is no more fault alarm, the parallel system is completely installed.
Step 6: Please switch on all breakers of Line wires in load side. This system will start to provide power to the
load.
Support three-phase equipment
Step 1: Check the following requirements before commissioning:
Correct wire connection
Ensure all breakers in Line wires of load side are open and each Neutral wires of each unit are connected
together.
Step 2: Turn on all units and configure LCD program 28 as P1, P2 and P3 sequentially. And then shut down all
units.
NOET: It’s necessary to turn off switch when setting LCD program. Otherwise, the setting cannot be
programmed.
Step 3: Turn on all units sequentially.
LCD display in L1-phase unit LCD display in L2-phase unit LCD display in L3-phase unit
Step 4: Switch on all AC breakers of Line wires in AC input. If AC connection is detected and three phases are
matched with unit setting, they will work normally. Otherwise, the AC icon
will flash and they will not work
in line mode. Please exchange the AC input sequences or exchange the setting if the AC icon
is flashing.
LCD display in L1-phase unit LCD display in L2-phase unit LCD display in L3-phase unit
Step 5: If there is no more fault alarm, the system to support 3-phase equipment is completely installed.
Step 6: Please switch on all breakers of Line wires in load side. This system will start to provide power to the
load.
Note 1: To avoid overload occurring, before turning on breakers in load side, it’s better to have whole system in
operation first.
Note 2: Transfer time for this operation exists. Power interruption may happen to critical devices, which cannot
bear transfer time.
Page 47
45
9. Trouble shooting
Situation
Solution
Fault
Code
Fault Event Description
60
Current feedback into
the inverter is
detected.
1. Restart the inverter.
2. Check if L/N cables are not connected reversely in all inverters.
3. For parallel system in single phase, make sure the sharing are
connected in all inverters.
For supporting three-phase system, make sure the sharing cables are
connected in the inverters in the same phase, and disconnected in the
inverters in different phases.
4. If the problem remains, please contact your installer.
71
The firmware version
of each inverter is not
the same.
1. Update all inverter firmware to the same version.
2. Check the version of each inverter via LCD setting and make sure the
CPU versions are same. If not, please contact your instraller to provide
the firmware to update.
3. After updating, if the problem still remains, please contact your installer.
72
The output current of
each inverter is
different.
1. Check if sharing cables are connected well and restart the inverter.
2. If the problem remains, please contact your installer.
73
Output Voltage setting
different fault
1. Check if the output voltages setting of all inverters are same. If setting is
different, please set up to the same.
2. After setting, please restart all inverters.
3. If the problem remains, please contact your installer.
80 CAN data loss
1. Check if communication cables are connected well and restart the
inverter.
2. If the problem remains, please contact your installer.
81 Host data loss
82
Synchronization data
loss
83
The battery voltage of
each inverter is not the
same.
1. Make sure all inverters share same groups of batteries together.
2. Remove all loads and disconnect AC input and PV input. Then, check
battery voltage of all inverters. If the values from all inverters are close,
please check if all battery cables are the same length and same material
type. Otherwise, please contact your installer to provide SOP to calibrate
battery voltage of each inverter.
3. If the problem still remains, please contact your installer.
84
AC input voltage and
frequency are detected
different.
1. Check the utility wiring conncetion and restart the inverter.
2. Make sure utility starts up at same time. If there are breakers installed
between utility and inverters, please be sure all breakers can be turned
on AC input at same time.
3. If the problem remains, please contact your installer.
85
AC output current
unbalance
1. Restart the inverter.
2. Remove some excessive loads and re-check load information from LCD
of inverters. If the values are different, please check if AC input and
output cables are in the same length and material type.
3. If the problem remains, please contact your installer.
86
AC output mode
setting is different.
1. Switch off the inverter and check LCD setting #28.
2. For parallel system in single phase, make sure no 3P1, 3P2 or 3P3 is set
on #28.
For three-phase system, make sure no “PAL” is set on #28.
3. If the problem remains, please contact your installer.
Loading...
