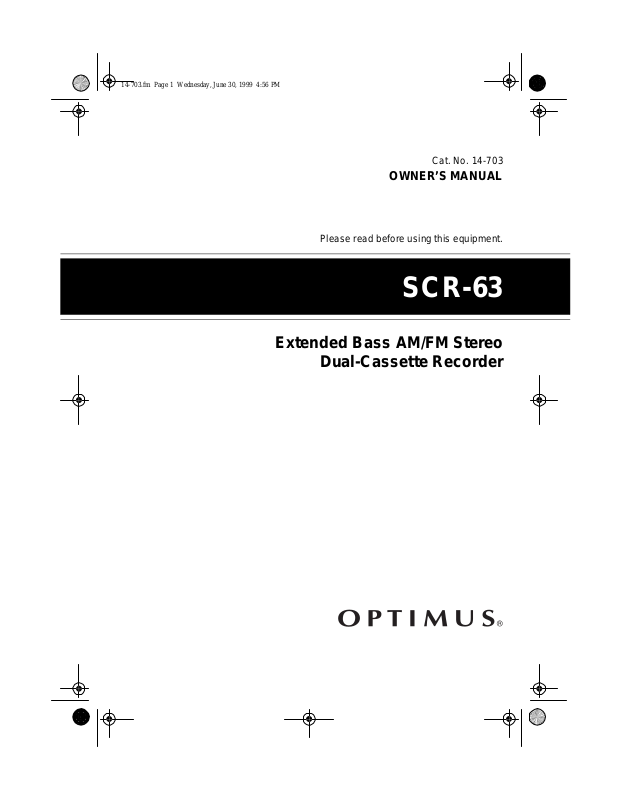

Page 1
14-703.fm Page 1 Wednesday, June 30, 1999 4:56 PM
Cat. No. 14-703
OWNER’S MANUAL
Please read before using this equipment.
SCR-63
Extended Bass AM/FM Stereo
Dual-Cassette Recorder
Page 2
y
g
g
CAUTION
14-703.fm Page 2 Wednesday, June 30, 1999 4:56 PM
FEATURES
Your Optimus SCR-63 Extended Bass
AM/FM Stereo Dual-Cassette R ecorder is a versatile, easy-to-use music
system. Its compact design and convenient carrying handle let you take it
almost anywhere. Your system’s features include:
—
automatically
Consecutive Pla
plays one side of a cassette tape in
Deck 2 when one side of another cassette tape in Deck 1 ends.
Hi
h-Speed Dubbing
— copies a
cassette tape at twice the normal
speed.
Auto Stop
— the tape deck stops automatically when it reache s the end of
a tape.
Built-In Microphone
— lets you
make live recordings.
Beatcut
— eliminates the whistling
sound sometimes heard in recorded
AM broadcasts.
E-Bass
— lets you emphasize low
bass sounds.
Warnin
: To prevent fire or shock hazard, do not expose t his product to rain
or moisture.
RISK OF ELECTRIC SHOCK.
DO NOT OPEN.
CAUTION
ELECTRIC SHOCK, DO NOT REMOVE
COVER OR BACK. NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED PERSONNEL.
!
: TO REDUCE THE RISK OF
This symbol is intended to aler t you
to the p r es en c e o f un in su lated d an gerous voltage within the product’s
enclosure that might be of suf ficient
magnitude to constitute a risk of
electric shock. Do not open the
product’s case.
This symbol is intended to inform
you that important operating and
maintenance instructions are included in the literature accompanying this product.
!
The graphical symbols with supplemental markings are on the back of
the recorder.
Two Power Sources
— let you power
your system from stand ard AC power
or with internal batteries (not supplied).
© 1996 Tandy Corporation.
Optimus is a registered trademark used by Tandy Corporation.
RadioShack is a trademark used by Tandy Corporation.
All Rights Reserv ed .
2
Page 3
14-703.fm Page 3 Wednesday, June 30, 1999 4:56 PM
CONTENTS
Connections.......................................................................................................... 4
Connecting Power............................................................................................ 4
Using AC Power .......................................................................................... 4
Installing Batteries ....................................................................................... 4
Using Headphones .......................................................................................... 5
Listening Safely ........................................................................................... 5
Traffic Safety ............................................................................................... 5
Operation............................................................................................................... 6
Playing the Radio............................................................................................. 6
Loading a Cassette Tape ................................................................................. 6
Playing a Cassette Tape .................................................................................. 7
Consecutive Play......................................................................................... 8
Recording......................................................................................................... 8
Recording Tips ............................................................................................ 8
Recording from the Radio............................................................................ 9
Making a Live Recording.............................................................................. 9
Dubbing (Copying) a Cassette Tape.......................................................... 10
Tape Tips............................................................................................................. 12
Erasing a Cassette Tape ................................................................................ 12
Preventing Accidental Erasure....................................................................... 12
Restoring Tape Tension and Sound Quality ................................................... 12
Care and Maintenance....................................................................................... 13
Cleaning the Tape-Handling Parts...................................... ....... .......... .. ....... . 13
The FCC Wants You to Know ........................................................................ 14
Specifications..................................................................................................... 15
3
Page 4
14-703.fm Page 4 Wednesday, June 30, 1999 4:56 PM
CONNECTIONS
CONNECTING POWER
You can power yo ur system using either AC power or six D batteries (not
supplied).
Using AC Power
The supplied power cord stored inside
the battery c om partm ent lets you power
the system from a sta ndar d AC outlet.
1. While pressing down both tabs on
the battery compartment cover in
the direction of the arrow, pull the
cover down to remove it.
2. Remove the power cord from its
storage area in the battery compartment, then replace the cover.
3. Plug the small end of the power
cord into the
of the system. Then plug the cord
into a standard AC outlet.
AC
jack on the back
• Always plug the power cord into
the system before you plug it into
a standard AC outlet. Always
unplug it from the AC outlet before
you unplug it from the system.
Installing Batteries
You can power the system with six D
batteries (not supplied). For the best
performance, we recommend alkaline
batteries, such as Cat. No. 23-550.
Cautions:
• Use only fresh batteries of the
required size and type.
• Never leave dead or weak batteries in the system.
• If you do not plan to use the system for several days, or if you plan
to power the system using only
AC power, remove the batteries.
• Dispose of batteries promptly and
properly; do not bury or burn
them.
Follow these steps to install batteries.
Cautions:
• To prevent electric shock, one
blade on the power cord’s plug is
wider than the other and the plug
fits only one way. If you cannot
easily insert the plug, turn it over
and try again. Do not force it.
4
1. While pressing down both tabs on
the battery compartment cover in
the direction of the arrow, pull the
cover down to remove it.
Page 5
14-703.fm Page 5 Wednesday, June 30, 1999 4:56 PM
2. Remove the power cord from its
storage area in the battery compartment.
3. Install the batteries as indicated
by the polarity symbols (+ and
–
marked inside the compartment.
4. Replace the battery compartment
cover.
If the system’s sound becomes weak
or distorted, replace the batteries.
USING HEADPHONES
To listen to the system without dist urbing others, plug a pair of stereo headphones with a
supplied) into the system’s
jack. This mutes the system’s speakers. Your local RadioShack st ore sell s
a wide selection of headphones.
1
/8-inch plug (not
PHONES
Listening Safely
To protect your hearing, follow these
guidelines when you use headphones.
)
• Set the volume to the l owest setting before you begin listening.
After you put on the headphones,
adjust the volume to a comfortable
level.
• Do not listen at extremely high
volume levels. Extended highvolume listening can lead to permanent hearing loss.
• Once you set the volume, do not
increase it. Over time, your ears
adapt to the volume level, so a
level that does not cause disc omfort might still damage your hearing.
Traffic Safety
Do not wear headphones while operating a motor vehicle or riding a bicycle. This can create a traffic hazard
and is illeg al in s ome areas.
Even though some headphones are
designed to let you hear some outsi de
sounds when listening at normal volume levels, they s till present a traffic
hazard.
5
Page 6
14-703.fm Page 6 Wednesday, June 30, 1999 4:56 PM
OPERATION
PLAYING THE RADIO
1. Set
2. Set
3. Adjust
4. Set
5. To turn off the radio, set
Notes:
TAPE (POWER OFF)/RADIO
RADIO
.
AM/FM/-STEREO
sired band and rotate
to the de-
TUNING
tune to the desired station.
VOLUME
to a comfortable
listening level.
E-BASS
bass effect or to
to ON to enhance the
OFF
for normal
bass effect.
(POWER OFF)/RADIO
(POWER OFF)
.
to
• The SCR-63’s AM/FM radio has
two antennas. The AM antenna i s
built-in. For the best AM reception,
turn the system. For the best FM
reception, fully extend and adjust
the telescoping antenna.
• If you set
-STEREO
AM/FM/-STEREO
and a station is received
in stereo, the FM STEREO indicator on the front of the system
lights steadily.
to
to
TAPE
TAPE
to
LOADING A CASSETTE
TAPE
Your system has two cassette decks.
You can use Deck 1 (PLAYBACK) for
normal playback and consecutive
play. You can use De ck 2 (RECORD/
PLAYBACK) for normal playback,
consecutive play, and dubbing (recording).
The control buttons for each d eck are
located over the deck.
Before playing or rec ording any
Note:
cassette tape, take up any slack in the
tape by turning one of the cassette’s
hubs with a pencil. If you do not remove excess slack, the tape might become tangled in the record/playback
mechanism.
1. Press
cassette compartment door.
STOP/EJECT
to open the
• To im prove the reception of a weak
FM station, set
FM
. The signal changes from ste-
AM/FM/ - STER E O
reo to monaural, but the reception
should improve.
6
to
Page 7
14-703.fm Page 7 Wednesday, June 30, 1999 4:56 PM
2. Load the cassette tape with its
open edge up, the desired side
facing out, and the f ull reel to the
right.
3. Gently close the cassette compartment door.
PLAYING A CASSETTE
TAPE
• To fast-forward or rewind the
tape, press
STOP /EJEC T
(if the
tape is playing), then press
FAST-F
STOP/EJECT
or
REWIND
. Press
when the tape
reaches the desired location.
You can play a casset te tape in e ither
Deck 1 or Deck 2, or you can load
tapes in both decks and play them
consecutively.
1. Load a cassette tape.
2. Set
3. Press
TAPE (POWER OFF)/RADIO
TAPE (POWER OFF)
PLAY
.
on the deck you are
to
using. The tape plays until it
reaches the end of the side, then
automatically stops.
Notes:
• To temporarily stop playback,
PAUSE
press
are using. Press
on the deck you
PAUSE
again
to continue playback.
4. Adjust
VOLUME
to the desired lis-
tening level.
5. Set
E-BASS
bass effect or to
to ON to enhance the
OFF
for normal
bass effect.
6. Press
tape. Press
STOP/EJECT
STOP/EJECT
to stop the
again to
open the cassette compartment
door, then remove the tape.
7
Page 8
14-703.fm Page 8 Wednesday, June 30, 1999 4:56 PM
Consecutive Play
You can set the system to play one
side of a tape in Deck 1, then automatically play one side of a tape in
Deck 2.
1. Load the cassette tape you want
to hear first in Deck 1, then load
the other cassette tape in Deck 2.
2. Gently close both cassette compartment doors.
3. Set
4. Press
5. Press
TAPE (POWER OFF)/RADIO
TAPE (POWER OFF)
PLAY
on Deck 1.
PAUSE
then
.
PLAY
2. The tape in Deck 1 plays until it
reaches the end of the side, then
the tape in Deck 2 plays until it
reaches the end of the side.
to
on Deck
(copy) from one cassette tape t o another.
Notes:
• The recording level is preset.
Adjusting
VOLUME
or
E-BASS
does not affect the recording level.
• Most material on compact discs
and prerecorded tapes is copyrighted. Unauthorized duplication
of copyrighted material is a violation of the c opyright laws of most
countries and such duplication
may result in fines a nd/or imprisonment. Note, however, that in the
United States, it is not a violation
of U.S. copyright laws for a consumer to use an audio recording
device to duplicate musical
recordings for noncommercial
(personal) use.
Recording Tips
To stop consecutive play before the
tape in Deck 2 reaches the end and
automatically stops, press
EJECT
on the deck that is playing.
STOP/
RECORDING
You can record onto a cassette tape
from the radio, use the bui lt-in microphone to make a live recording, or dub
8
• Tape quality greatly affects the
quality of the recording. We recommend extended-range or lownoise type 1 regul ar le ngt h (60- or
90-minute) normal-bias cassette
tapes. We do not recommend
long-play cassette tapes such as
C-120s because they are thin and
can easily tangle.
• Before recording, be sure the tape
you are recording on has its
erase-protection tabs in place
(see “Preventing Accidental Erasure” on Page 12).
Page 9
14-703.fm Page 9 Wednesday, June 30, 1999 4:56 PM
Recording from the Radio
1. Load a blank tape, or one you
want to record over, into Deck 2.
2. Set
3. Set
4. Press
TAPE (POWER OFF)/RADIO
RADIO
.
AM/FM/-STEREO
sired band and rotate
to the de-
TUNING
tune to the desired station.
Note:
Sometimes, AM broadcasts produce a whistling sound
that you can hear while playing a
recording. If you hear this sound,
DUBBING MIC/NORM/HIGH
set
HIGH
(AM BEAT CUT) to help
reduce or eliminate it.
RECORD
RECORD
and
on Deck 2.
PLAY
both lock
down.
to
to
to
5. When you are finished, press
STOP/EJECT
tape.
Note:
RECORD
The deck automatically stops
on Deck 2 to stop the
PLAY
and
release.
when the tape reaches the end.
Making a Live Recording
You can use the built-in microphone to
make a live recording.
1. Load a blank tape, or one you
want to r e cord o ver, into De c k 2.
2. Set
3. Set
4. Place the system 2-3 feet from the
DUBBING MIC/NORM/HIGH
MIC
.
TAPE (POWER OFF)/RADIO
T APE (POWER OFF)
.
live recording source.
to
to
Note:
Press
PAUSE
on Deck 2 to
temporarily stop recording. Press
PAUSE
again to resume recording.
5. Press
RECORD
down.
RECORD
and
on Deck 2.
PLAY
both lock
9
Page 10
14-703 .fm Page 10 Wednesday, June 30, 1999 4:56 PM
Note: Press
PAUSE
on Deck 2 to
temporarily stop recording. Press
PAUSE
again to resume recording.
6. When you are finished, press
STOP/EJECT
RECORD
tape.
on Deck 2 to stop the
PLAY
and
release.
Note: The deck automatically stops
when the tape reaches the end.
Dubbing (Copying) a
Cassette Tape
You can easily copy a tape by playing
it in Deck 1 and recording it onto a nother tape in Deck 2.
Follow these steps to copy a cassette
tape .
1. Load a blank tape, or one you
want to record over, into Deck 2.
2. Load the tape you want to copy
into Deck 1.
3. Set
DUBBING MIC/NORM/HIGH
NORM
(to record at normal speed)
HIGH
or
normal speed).
(to record at twice the
to
5. Press
Deck 2.
PAUSE
RECORD
then
RECORD
and
PLAY
lock down.
6. Press
copying.
PLAY
on Deck 1 to begin
PAUSE
on Deck 2 auto-
matically releases.
Notes:
• You can listen to the tape play-
ing in Deck 1 as you copy it.
Adjust
VOLUME
to the desired
listening level. (Adjusting
UME
does not affect the record-
ing level).
• The tape’s sound is distorted if
you set
HIGH
DUBBING MIC/NORM/
HIGH
to
and listen to the
tape playing in Deck 1 as you
copy it.
on
both
VOL-
4. Set
TAPE (POWER OFF)/RADIO
TAPE (POWER OFF)
10
• To temporarily stop recording
on the tape loaded in Deck 2,
PAUSE
to
.
press
tape in Deck 2 stops, and the
tape in Deck 1 continues to
play. Press
on Deck 2. The
PAUSE
on Deck 2
again to resume recording.
Page 11
14-703 .fm Page 11 Wednesday, June 30, 1999 4:56 PM
7. To stop copying before the tape
ends, press
RECORD
2.
release. Press
STOP/EJECT
PLAY
and
STOP/EJECT
on Deck
on Deck 2
Deck 1 to stop that tape.
on
11
Page 12
14-703 .fm Page 12 Wednesday, June 30, 1999 4:56 PM
TAPE TIPS
ERASING A CASSETTE
TAPE
To record over a cassette tape, simply
record as usual. The system records
over the previous recording.
You can quickly erase both sides of a
cassette tape using a bulk tape eraser, such as Cat. No. 44-232.
PREVENTING
ACCIDENTAL ERASURE
Cassette tapes have two erase-protection tabs — one for each side.
When a tab is in place, you can record
on that side. To protect a recording
from being accidentally recorded over,
use a screwdriver to remove one or
both of the cassette tape’s erase-protection tabs. This prevents
from being pressed.
If you later decide t o record on a tape
side after you have removed the
erase-protection tab for that side,
place a piece of strong plastic tape
over that side’s erase-prot ection hole.
Be sure you cover only the hol e originally covered by the eras e-protection
tab.
RECORD
Caution:
tion tabs does not prevent a bulk eraser from erasing a cassette tape.
Removing the erase-protec-
RESTORING TAPE
TENSION AND SOUND
QUALITY
After you play a cassette tape several
times, the tape might become tightly
wound on the reels. This can cause
playback sound quality to deteriorate.
To restore the sound qu ality, fast-forward the tape from the beginning to
the end of one side, then completely
rewind it. Then loosen the t ape reels
by gently tapping each side of the cassette’s outer shell on a flat surface.
Caution:
the cassette when tapping it. Do not
touch the exposed tape or allow any
sharp objects near the cassette.
Be careful not to damage
12
Page 13
14-703 .fm Page 13 Wednesday, June 30, 1999 4:56 PM
CARE AND MAINTENANCE
Your Optimus SCR-63 Extended Bass
AM/FM Stereo Dual-Cassette R ecorder is an example of superior design
and craftsmanship. The following suggestions will help you care for the system so you can enjoy it for years.
Keep the system dry. If it
gets wet, wipe it dry immediately. Liquids can contain
minerals that can corrode
the electronic circuits.
Handle the system gently
and carefully. Dropping it
can damage circuit boards
and cases and can cause
the system to work improperly.
Use and store the system
only in normal temperature
environments. Temperature
extremes can shorten the
life of electronic devices,
damage batteries, and distort or melt plastic parts.
Keep the system away from
dust and dirt, which can
cause premature wear of
parts.
Use only fresh batteries of
the required size and type.
Always remove old or weak
batteries. They can leak
chemicals that can destroy
electronic circuits.
Modifying or tampering with the system’s internal compon ents can cause
a malfunction and might invalidate t he
system’s warranty and void your FCC
authorization to operate it. If your system is not performing as it should,
take it to your local RadioShack store
for assistance.
CLEANING THE TAPEHANDLING PARTS
Dirt, dust or particles of the tape’s
coating can accumulate on the tape
heads and other parts that the tape
touches. This can greatly reduce the
performance of the cassette recorder.
Use the following cleaning pro cedure
after every 20 hours of tape player operation.
1. Remove the batteries and disconnect the AC power cord.
2. Open the cassette compartment
doors on Deck 1 and Deck 2.
Wipe the system with a
damp cloth occasionally to
keep it looking new. Do not
use harsh chemicals, clea ning solvents, or strong detergents to clean it.
3. Press
PLAY
on Deck 1 to expose
Deck 1’s tape-handling parts.
13
Page 14
14-703 .fm Page 14 Wednesday, June 30, 1999 4:56 PM
4. While pressing an d holding down
the erase-protection tab sensor
inside Deck 2, press
Deck 2.
Deck 2 both lock down. This
exposes Deck 2’s record/playback
head and erase head.
5. Use a cotton swab dipped in
denatured alcohol or tape head
cleaning solution to clean the
record/play heads, tape guides,
pinch rollers, capstans, and e rase
head.
RECORD
RECORD
PLAY
and
on
on
THE FCC WANTS YOU
TO KNOW
Your system might cause TV or radi o
interference even when it is operating
properly. To determine whether your
system is causing the interference,
turn off your system. If the interference goes away, your system is causing the interference. Try to eliminate
the interference by:
• Moving your system away from
the receiver.
• Connecting your system to an ou tlet that is on a different electrical
circuit from the receiver.
• Contacting your local RadioShack store for help.
If you cannot eliminate the interference, the FCC requires that you stop
using your system.
6. When you finish cleaning, press
STOP/EJECT
2, then close both cassette compartment doors and reconnect
power.
Your local RadioShack store has a
complete line of cassette deck cleaning supplies.
14
on Deck 1 and Deck
Page 15
14-703 .fm Page 15 Wednesday, June 30, 1999 4:56 PM
SPECIFICATIONS
RADIO
Frequency Range:
FM...................................................................................................88
AM..............................................................................................530
Antenna:
FM.................................................................................................Rod Antenna
AM.......................................................................................F errite Bar Antenna
CASSETTE PLAYER
Track System:
Magnet Head ................................................... ..... ....... ....... ..... ....... ....... .2-Track
Tape.......................................... ..............................................................4-Track
Tape Speed ....................................................................................................1
Recording System............................................................................AC Bias 85 kHz
Erasing System . ..........................................................................................Magnetic
Wow and Flutter (WTD RMS).......................................................................... 0.4 %
Tape Type. ........................................................................Type-1, Normal-Bias Only
108 MHz
–
1710 MHz
–
7
/8 ips
GENERAL
Power Source........................................................AC 120V, 60 Hz; or 6 D Batteries
Maximum Output Power .......................................................................2 x 1.2 Watts
Power Consumption..............................................................................Approx. 8 W
Dimensions (HWD)...............................................................6
5
/8 x 205/8 x 61/8 Inches
(168 x 524 x 156 mm)
Weight .......................................................................................................... 81.1 oz
(2.3 kg)
Specifications are typical; individual units m ight vary. Specifications are subj ect to
change and improvement without notice.
15
Page 16
14-703 .fm Page 16 Wednesday, June 30, 1999 4:56 PM
RadioShack Limited Warranty
This product is warranted against defects for 90 days from date of purchase from
RadioShack co m pany-o w ne d s tor e s and auth or i ze d R a dio S h ac k f ran chisee s and de alers. Within this period, we will repair it without charge for parts and labor. Simply
your Rad ioShack sales slip
ranty does not cover transportation costs. Nor does it cover a product subjected to misuse or accidental damage.
EXCEPT AS PROVIDED HEREIN, RadioShack MAKES NO EXPRESS WARRANTIES
AND ANY IMPLIED WARRANTIES ARE LIMITED IN DURATION TO THE DURATION
OF THE WRITTEN LIMITED WARRANTIES CONTAINED HEREIN. Some states do
not permit limitation or exclusion of implied warranties; therefore, the aforesaid limitation(s) or exclusion(s) may not apply to the purchaser.
This warran ty gives you speci fic legal right s and you may als o have other rig hts which vary from
state to state.
as proof of purchase date to any RadioShack store. War-
We Service What We Sell
bring
10/95
RadioShack
A Division of Tandy Corporation
Fort Worth, Texas 76102
8A6 Printed in Hong Kong
Loading...
