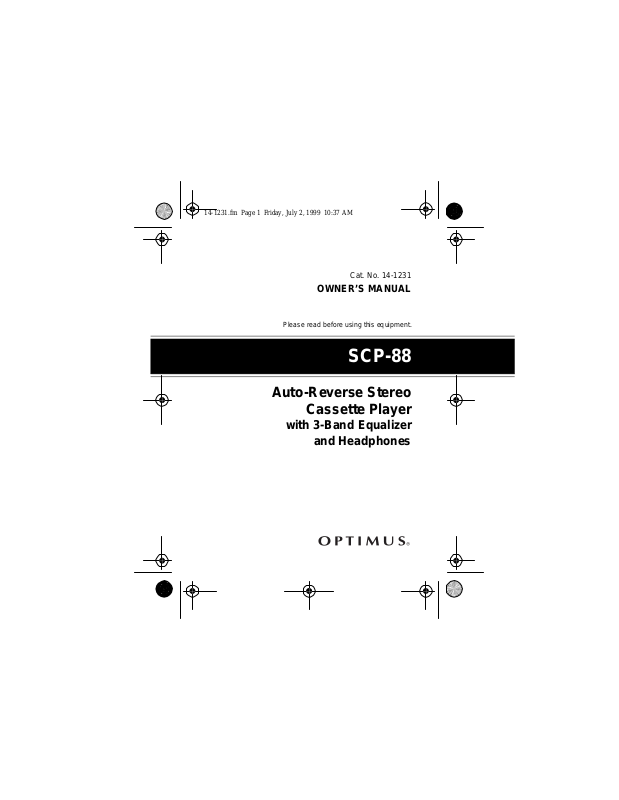

14-123 1.fm Page 1 Friday, July 2, 1999 10:37 AM
OWNER’S MANUAL
Please read before using this equipment.
Auto-Reverse Stereo
Cassette Player
with 3-Band Equalizer
and Headphones
Cat. No. 14-1231
SCP-88
14-123 1.fm Page 2 Friday, July 2, 1999 10:37 AM
FEATUR ES
Your Optimus SCP-88 Auto-Reverse Stereo Cassette Player with 3-Band Equalizer and Headphones
is a lightweight, portable cassette player that delivers
great sound qual ity through the s upplied headphones
or an amplified speaker system. You can carry your
SCP-88 with you, so you can listen to cassette tapes
anywhere.
Its features include:
Auto-Reverse Play
— automatically plays the other
side of the tape whe n the side currently playing ends,
for continuous pl ayback.
Bass Boost
DIRECTION Switch
— provides richer, fuller bass.
— lets you change the tape’s direction to play the other side without removing the
tape from the cassette player.
©
1997 Tandy Corporation.
Optimus is a registered trademark used by Tandy Corporation.
RadioShack is a trademark used by Tandy Corporation.
All Rights Reserved.
2
14-123 1.fm Page 3 Friday, July 2, 1999 10:37 AM
3-Band Equalizer — lets you adjust the tone to suit
your listening preferences.
Fast-Forward and Rewind — lets you quickly find a
desired segment on a cassette tape.
PHONE Jack — lets you connect headphones for
private listening, or speakers to share music with
your friends.
Removable Belt Clip — allows hands-free carrying
so you can take the SCP-88 anywher e you go.
Note: You need two AA batteries to power your SCP-
88.
Read this manual completely to learn about all the
features of your SCP-88.
3
14-123 1.fm Page 4 Friday, July 2, 1999 10:37 AM
CONTENTS
Preparation ........................................................... 5
Installing Batteries ........................................... 5
Connecting Headphones ........................ .. ...... 7
Listening Safely ....................................... 7
Traffic Safety ........................................... 8
Connecting Optiona l Speakers ............... .. ...... 9
Using the Belt Clip .......................................... 9
Cassette Operation ............................................. 11
Playing a Cassette Tape ................................ 11
Using the 3-Band Equalizer Contr ols ........... 16
Using Fast-Forward and Rewind .................. 17
Tape Tips ........... .................... .. .......... .. ......... 18
Tape Quality ........... .................... .. ......... 18
Restoring Tap e Tension and
Sound Quality .................... .. .......... .. ...... 18
Cleaning the Tape-Handling Parts ......... 19
Maintenance ....................................................... 21
Specifications .................................................... 22
4
14-123 1.fm Page 5 Friday, July 2, 1999 10:37 AM
PREPARATION
INSTALLING BATTERIES
You need two AA batteries to power the SCP-88. For
the best performance and longest life, we recommend alkaline batteries, such as RadioShack Cat.
No. 23-552. Follow these steps to install batteries.
1. Press down on the battery compartment cover
and slide it off in the direction of the arrow
marked on the cover.
2. Install the batteries as indicated by the polarity
symbols (+ and –) marked beside the compartment, with the batteries over the ribbon.
Cautions:
• Use only fresh batteries of the required size
and type.
5
14-123 1.fm Page 6 Friday, July 2, 1999 10:37 AM
• Do not mix old and new batteries, different
types of batteries (standard, alkaline, or
rechargeable), or rechargeable batteries of
different capacities.
• Always dispose of old batteries promptly and
properly.
Note: Pull the ribbon to lift out the batteries.
3. Replace the cover.
Notes:
• If the sound gets weak or distorted, replace the
batteries.
• If you do not plan to use the SCP-88 for a week
or more, remove the batteri es. Batteries can leak
chemicals that corrode or damage electronic circuits.
6
14-123 1.fm Page 7 Friday, July 2, 1999 10:37 AM
CONNECTING HEADPHONES
Connect the supplied stereo headphones to the
SCP-88’s
the headphones and adjust the headband for a snug
fit.
Listening Safely
To protect your hearin g, foll ow these gui delin es when
you use headphones.
• Set the volume to the lowest setting before you
PHONE
jack for stereo sound. Then put on
begin listening. After you begin listening, adjust
the volume to a comfortable level.
7
14-123 1.fm Page 8 Friday, July 2, 1999 10:37 AM
• Do not listen at extremely high volume levels.
Extended high-volume listening can lead to permanent hearing loss.
• Once you set the volume, do not increase it.
Over time, your ears adapt to the volume level,
so a volume le vel that does not cause discom fort
might still damage your hearing.
Traffic Safety
Do not wear headphones whil e operating a motor vehicle or riding a bicycle. This can create a traffic hazard and could be illegal in some areas.
Even though some headphones let you hear some
outside sounds when listening at normal volume levels, they still can present a traffic hazard.
8
14-123 1.fm Page 9 Friday, July 2, 1999 10:37 AM
CONNECTING OPTIONAL
SPEAKERS
Instead of headphones, you can connect amplified
speakers with a
Your local RadioShack store sells a wide variety of
amplified speak ers.
1
/8-inch mini plug to the
PHONE
jack.
USING THE BELT CLIP
The belt clip lets you keep your hands free while you
listen to the SCP-88.
9
14-123 1.fm Page 10 Fr iday, July 2, 1999 10:37 AM
To attach the belt clip, place it in the recessed area
on the cassette player and slide it in the direction of
the arrow until it clicks into place.
If you need to remove the belt clip, push down on the
tab and slide it off in the direction of the arrow.
10
14-123 1.fm Page 11 Fr iday, July 2, 1999 10:37 AM
CASSETTE OPERATION
PLAYING A CASSETTE TAPE
1. Connect the SCP-88 to a pair of headphones or
an amplified speaker system (see “Connecting
Headphones” on Page 7 or “Connecting
Optional Speakers ” on Page 9).
2. Take up any slack in the tape by turning the cassette’s hub with a pencil. Do not touch the
exposed tape.
3. Pull open the cassette compartment door.
11
14-123 1.fm Page 12 Fr iday, July 2, 1999 10:37 AM
4. With its open edge facing up, insert the cassette
tape i n to the c asset te gui d es.
Note: With
DIRECTION
with the full reel to the left. With
set to , position the tape
DIRECTION
, position the tape with the full reel to the right.
5. Close the door .
12
set to
14-123 1.fm Page 13 Fr iday, July 2, 1999 10:37 AM
6. Press
PLAY
until it clicks. The entire cassette
tape repeatedly plays.
Notes:
• The tape automatically plays the other side
when the current side ends. To manually
change the tape side, set
DIRECTION
other position.
• You can press or to fast-forward or
rewind the tape to the desired segment (see
“Using Fast-Forward and Rewind” on Page
17).
to its
13
14-123 1.fm Page 14 Fr iday, July 2, 1999 10:37 AM
7. Adjust
BASS BOOST
8. Set
effect. Set it to
14
VOLUME
to the desired listening level.
to ON for an enhanced bass
OFF
for normal bass sound.
14-123 1.fm Page 15 Fr iday, July 2, 1999 10:37 AM
9. Use the 3-band equalizer to adjust the tone to
the desired level (see “Using the 3-Band Equalizer Controls” on Page 16) .
10. To stop playback, press
STOP
.
15
14-123 1.fm Page 16 Fr iday, July 2, 1999 10:37 AM
USING THE 3-BAND
EQUALIZER CONTROLS
You can adjust the 3-band equalizer controls to customize the SCP-88’s tone.
TREB
— increases or decreases the treble or higher
frequency sounds
MID
— increases or decreases t he mid- range sounds
BASS
— increases or decreases the bass
16
14-123 1.fm Page 17 Fr iday, July 2, 1999 10:37 AM
USING FAST-FORWARD
AND REWIND
To fast-forward the tape, press or (whichever
is the same direction as the
rewind the tape, press or (whichever is the
opposite direction of the
When the tape reaches the end, you must press
STOP
to release or .
To stop fast-forwarding or rewinding the tape before
it reaches the end, press
DIRECTION
DIRECTION
STOP
.
switch). To
switch).
17
14-123 1.fm Page 18 Fr iday, July 2, 1999 10:37 AM
TAPE TIPS
Tape Quality
For the best performance, use only regular length
(60- or 90-minute) cassette tapes. We do not recommend long-playing cassette tapes, such as C-120s,
because they are extremely thin and can easily tangle in the playback mechanism.
Restoring Tape Tension and Sound
Quality
After y ou pl ay a ca s s ette tap e se v e ra l times, the t a pe
might become tightly wound on the reels. This can
cause playback sound quality to deteriorate.
To restore the sound quality, fast-forward the tape
from the beginning to the end of one side, then completely rewind it. Then loosen the tape reels by gently
tapping each side of the cassette’s outer shell on a
flat surface.
18
14-123 1.fm Page 19 Fr iday, July 2, 1999 10:37 AM
Caution: Be careful not to damage the cassette
when tapping it. Do not to uch the exposed tape or allow any sharp objects near the cassette.
Cleaning the Tape-Handling Parts
Dirt, dust, or particles of the tape’s coating can accumulate on the tape head and other parts t hat the tape
touches. This can reduce the SCP-88’s performance.
Follow these steps to clean the tape-handling parts
after about every 20 hours of tape player operation.
1. Remove the batterie s.
2. Open the cassette compartment door.
3. Press
to expose the tape-hand li ng parts.
PLAY
19
14-123 1.fm Page 20 Fr iday, July 2, 1999 10:37 AM
4. Use a cotton swab dipped in denatured alcohol
or tape head cleaning solution to clean the playback head, pinch rollers, capstans and tape
guides.
5. When you finish cleaning, press
STOP
the compartment, then reinstall the batteries.
Note:
Your local RadioShack store has a complete
line of cassette d eck cleaning accessories.
20
and close
14-123 1.fm Page 21 Fr iday, July 2, 1999 10:37 AM
MAINTENANCE
Your Optimus SCP-88 Auto-Reverse Stereo Cassette Player is an example of superior design and
craftsmanship. The following suggestions will help
you care for the SCP-88 so you ca n enjoy it for years.
• Keep the SCP-88 dry. If it gets wet, wipe it dry
immediately.
• Use and store the SCP-88 only in normal tem-
perature environm ents.
• Handle the SCP-88 gently and carefully. Don’t
drop it.
• Keep the SCP-88 away from dust and dirt.
• Occasionally wipe the SCP-88 with a damp c lot h
to keep it looking new.
Modifying or tampering with the SCP-88’s internal
components can cause a malfunction and might invalidate its warranty. If your SCP-88 is not performing as it should, take it to your local RadioShack
store for assis tance.
21
14-123 1.fm Page 22 Fr iday, July 2, 1999 10:37 AM
SPECIFICATIONS
Power Requirements ............................... 3 Volts DC
Two AA Batteries (Cat. No. 23-552)
Typical Cassette Playing Time
with Two AA Alkaline Batteries....12 Hours (Approx.)
Tape System ........ .................... .. ...... 4-Track, Stereo
Tape Speed ........................... ......1
Frequency Response......... ......125 Hz–8 kHz (±6dB)
Signal-to-Noise Ratio .......................................42 dB
Wow and Flutter .... .. .. ............ ........... ............ .. 0.25%
Dime nsions ..... ............ ....... 4
Weight (Without Batteries) .............................. 7.7 oz
Specifications are typical; individual units might vary.
Specifications are subject to change and improvement without notice.
7
/8 ips (4.75 cm/s)
3
13/16
x 3
/4
x 1
7
(122 ¥ 95 ¥ 37 mm)
/16
Inches
(217 g)
22
14-123 1.fm Page 23 Fr iday, July 2, 1999 10:37 AM
NOTES
23
g
14-123 1.fm Page 24 Fr iday, July 2, 1999 10:37 AM
Limited Ninety-Day Warranty
This product is warranted by RadioShack against manufacturing defects in material
and workmanship under normal use for ninety (90) days from the date of purchase
from RadioShack company-owned stores and authorized RadioShack franchisees
and dealers. EXCEPT AS PROVIDED HEREIN, RadioShack MAKES NO EXPRESS WARRANTIES AND ANY IMPLIED WARRANTIES, INCLUDING THOSE
OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE
LIMITED IN DURATION TO THE DURATION OF THE WRITTEN LIMITED WARRANTIES CONTAINED HEREIN. EXCEPT AS PROVIDED HEREIN, RadioShack
SHALL HAVE NO LIABILITY OR RESPONSIBILITY TO CUSTOMER OR ANY
OTHER PERSON OR ENTITY WITH RESPECT TO ANY LIABILITY, LOSS OR
DAMAGE CAUSED DIRECTLY OR INDIRECTLY BY USE OR PERFORMANCE
OF THE PRODUCT OR ARISING OUT OF ANY BREACH OF THIS WARRANTY,
INCLUDING, BUT NOT LIMITED TO, ANY DAMAGES RESULTING FROM INCONVENIENCE, LOSS OF TIME, DATA, PROPERTY, REVENUE, OR PROFIT OR ANY
INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES, EVEN IF
RadioShack HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
Some states do not allow the limitations on how long an implied warranty lasts or the
exclusion of incidental or consequential damages, so the above limitations or exclusions may not apply to you.
In the event of a product defect during the warranty period, take the product and the
RadioShack sales receipt as proof of purchase date to any RadioShack store. RadioShack will, at its option, unless otherwise provided by law: (a)correct the defect
by product repair without charge for parts and labor; (b) replace the product with one
of the same or similar design; or (c) refund the purchase price. All replaced parts
and products, and products on which a refund is made, become the property of RadioShack. New or reconditioned parts and products may be used in the performance
of warranty service. Repaired or replaced parts and products are warranted for the
remainder of the original warranty period. You will be charged for repair or replacement of the product made after the expiration of the warranty period.
This warranty does not cover: (a) damage or failure caused by or attributable to acts
of God, abuse, accident, misuse, improper or abnormal usage, failure to follow instructions, improper installation or maintenance, alteration, lightning or other incidence of excess voltage or current; (b) any repairs other than those provided by a
RadioShack Authorized Service Facility; (c) consumables such as fuses or batteries; (d) cosmetic damage; (e) transportation, shipping or insurance costs; or (f) costs
of product removal, installation, set-up service adjustment or reinstallation.
This warranty gives you speci fic legal rights, and you may also have other rights
which vary from state to state.
RadioShack Customer Relations, Dept. W, 100 Throckmorton St., Suite
600, Fort Worth, TX 76102
We Service What We Sell
3/97
A Division of Tandy Corporation
RadioShack
Fort Worth, Texas 76102
4A7 Printed in Hong Kon
Loading...
