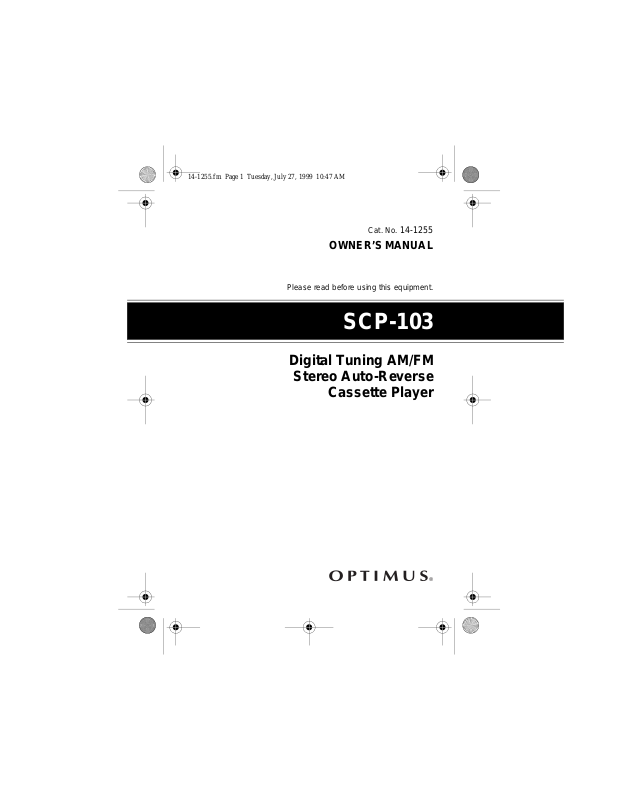

OWNER’S MANUAL
Please read before using this equipment.
Digital Tuning AM/FM
Stereo Auto-Reverse
Cassette Player
14-1255
Cat. No.
SCP-103
14-1255.fm Page 2 Tuesday, July 27, 1999 10:47 AM
FEATURES
Your Optimus SCP-103 Digital Tuning AM/FM Stereo AutoReverse Cassette Player delivers excellent sound from its
built-in radio or your favorite cassette tapes, using your
speakers or stereo headphones (not supplied). You can set
the time on the cassette player's display, set an alarm to
sound, and store up to 20 radio stations in memory. The tuner's PLL (Phase-Lock ed Loop ) circuitry gi ves yo u preci se tuning and drift-free reception.
Its features include:
Auto-Reverse Cassette Deck
— lets you continuously play
a cassette tape.
AM/FM Radio with 20-Station Memory
— lets you stor e up
to 20 radio stations (10 FM and 10 AM) in memory so you
can quickly tune to your favorite stations.
LCD with Clock and Alarm
— display s t h e cu r ren t ti me a nd
lets you set the SCP- 103 to soun d an alar m at the ti me you
select.
Seek Tuning
— searches forward or backward to the next
strong station in the selected band so you can quickly find
new stations.
BASS ON/OFF Switch
— lets you emphasize bass sounds
to suit your listening preferences.
©
1999 Tandy Corporation.
RadioShack and Adaptaplug are registered trademarks used by Tandy Corporation.
All Rights Reserved.
2
14-1255.fm Page 3 Tuesday, July 27, 1999 10:47 AM
— lets you connect headphones for private listen-
Jack
ing, or speakers to share the sound with others.
Three Power Options
— let you powe r th e SCP-10 3 from internal batteries, standard AC power (with an optional AC
adapter), or your vehicle's cigarette-lighter socket (with an
optional DC adapter).
Removable Belt Clip
— lets you attach the SCP-103 to your
belt for hands-free carrying when you are on the go.
Key Lock
— lets you lock any of the other front panel keys,
to prevent you from accidentally turning the radio on or off,
resetting the clock time, or losing radio stations stored in
memory.
You need a pair of headphones or amplified speakers
Note:
(neither supplied) with a
1
/8-inch plug to operate your SCP-
103. Your local RadioShack store sells a wide variety of
headphones and speakers.
3
14-1255.fm Page 4 Tuesday, July 27, 1999 10:47 AM
CONTENTS
Preparation ........................................................................ 5
Using the Belt Clip ........................................................ 5
Powering the SCP-103 ................................................. 5
Using Batteries ..................................................... 6
Using AC Power .................................................... 8
Using Your Vehicle's Cigarette-Lighter Socket ...... 9
Setting the Clock ........................................................ 10
Connecting Headphones or Amplified Speakers ....... 11
Listening Safel y ..................... ...... ..... ...... ...... ....... 11
Traffic Safety .................................... ...... ...... ..... .. 12
Using the Radio ............................................................... 13
Listening to the Radio ................................................ 13
Storing Stations in Memory ........................................ 14
Using Lock ................................................................. 16
Using the Cassette Player .............................................. 17
Playing a Cassette Tape ............................................. 17
Using the Alarm ............................................................... 19
Setting the Alarm Time .............................................. 19
Turning the Alarm Off ................................................. 20
Care and Maintenance .................................................... 21
Cleaning the Tape-Handling Parts ............................. 22
Restoring Tape Tension and Sound Quality ............... 23
The FCC Wants You to Know ..................................... 24
Specifications .................................................................. 25
4
14-1255.fm Page 5 Tuesday, July 27, 1999 10:47 AM
PREPARATION
USING THE BELT CLIP
To attach the belt clip, align the
tab on the back of the clip with
the recess on the back of the
case, then slide the cl ip up until
it snaps into place.
To remove the belt clip, press
the upper part of the clip and
slide it down.
POWERING THE SCP-103
You can power your SCP-103 from an y of th ree pow er s our ces:
• internal batteries (not supplied)
• standard AC power (with an optional AC adapter)
• your vehicle's cigarette-lighter socket (with an optional
DC adapter)
Connecting an optional adapter disconnects internal
Note:
batteries.
5
14-1255.fm Page 6 Tuesday, July 27, 1999 10:47 AM
Using Batteries
You can power your SCP-103 fro m two AA ba tteries (not su pplied). We recommend RadioShack alkaline batteries. You
can also use rechargeable nickel-cadmium batteries. If you
use rechargeable batteries, you also need a battery charger
(not supplied, available at your local RadioShack store).
Cautions:
• Do not mix old and new batter ies, dif ferent type s of bat teries (standard, alkaline, and nickel-cadmium), or
rechargeable batteries of different capacities in the SCP-
103.
• Use only fresh batteries of the required size and type.
Follow these steps to install batteries.
1. Press down on the battery
compartment cover and
slide it in the direction of the
arrow, then lift it up on its
hinge to open it.
2. Install the batteries as indicated by the polarity symbols (+ and –) marked
inside.
3. Replace the cover.
If your SCP-103 locks up, remove one of the batte ries ,
Note:
then reinstall it.
6
14-1255.fm Page 7 Tuesday, July 27, 1999 10:47 AM
Replace th e batteries when the low battery icon fla shes on
the display, the sound distorts, or the volume weakens.
Warning:
Dispose of old bat ter ie s promp tly and p rop erly . Do
not burn or bury them.
Caution:
If you do not plan to use the SCP-103 for a month
or more, remove the batteries. Batteries can leak chemicals
that can destroy electronic parts.
Important:
At the end of a nickel-cadmium battery’s useful
life, it must be recycled or disposed of properly. Contact your
local, county, or state ha za rdou s w as te ma nagement authorities for information on recycling or disposal programs in your
area. Some options that might be available are: municipal
curbside collection, drop-off boxes at retailers such as your
local RadioShack store, recycling collection centers, and
mail-back programs.
7
14-1255.fm Page 8 Tuesday, July 27, 1999 10:47 AM
Using AC Power
You can power the SCP-103 using a 3V, 300 mA AC adapter
and a size H Adaptaplug
able at your local RadioShack store.
Cautions:
Y ou must use a Class 2 power source that sup-
plies 3V DC and delivers at least 300 mA. Its
!
center tip must be set to positive and its plug
must fit the SCP-103's
does not meet these specifications could damage the
SCP-103 or the adapter.
• Always connect the AC adapter to the SCP-103 before
you connect it to AC power. When you finish, disconnect
the adapter from AC power before you disconnect it from
the SCP-103.
Follow these steps to con nect an AC adap ter to the SCP-103.
1. Set the adapter's voltage switch to 3V.
2. Insert the Adaptaplug into the AC
adapter's socket. Line up TIP on
the plug with +POS on the socket.
3. Insert the barrel plug into the
SCP-103's
4. Plug the AC adapte r into a standard AC outlet.
DC 3V
®
(neither supplied). Both are avail-
DC 3V
jack. Using an adapter that
jack.
8
14-1255.fm Page 9 Tuesday, July 27, 1999 10:47 AM
Using Your Vehicle's Cigarette-Lighter Socket
You can power the SCP-103 from a vehicle’s 12V power
source (such as cigarette-lighter socket) using a 3V, 300-mA
DC adapter and a size H Adaptaplug® (neither supplied).
Both are available at your local RadioShack store.
Cautions:
You must use a power source that supplies 3V
DC and delivers at least 300 mA. Its center tip
!
must be set to positive and its plug must fit the
SCP-103
meet these specifications could damage the
the adapter.
• Always connect the DC adapter to the SCP-103 before
you connect it to the power source. When you finish, disconnect the adapter from the power source before you
disconnect it from the SCP-103.
Follow these steps to power the SCP-103 from your vehicle's
cigarette-lighter socket.
1. Set the adapter's voltage
switch to 3V.
2. Insert the Adaptaplug into the
DC adapter's so cket. Line up
positive (+) on the plug with
TIP on the socket.
's
DC 3V
jack. Using an adapter that does not
SCP-103
or
9
14-1255.fm Page 10 Tuesday, July 27, 1999 10:47 AM
3. Insert the plug into the SCP-103's
DC 3V
jack.
4. Plug the adapter into the vehicle's cigarette-lighter
socket.
If the SCP-103 does not operate when you turn it on,
Note:
remove the DC adapter from your vehicle's cigarette-lighter
socket and check the socket for debris. Also, check the fuse
in the adapter and your vehicle's fuse block.
SETTING THE CLOCK
MIN HOUR
MEMORY/
CLOCK
1. In the ti me mode, press
MEMORY/CLOCK
set time flashes.
If you do not press
Note:
HOUR
or
the currently set time stops flashing. If that happens,
repeat this step.
2. Repeatedly press
until the display shows the cor-
HOUR
rect hour. To rapidly advance the hours, hold down
.
HOUR
. The currently
within 5 seconds,
MIN
10
14-1255.fm Page 11 Tuesday, July 27, 1999 10:47 AM
3. Repeatedly press
minute. To rapidly advance the minutes, hold down
until the displ ay shows the cor re ct
MIN
MIN
4. When the display shows the correct time, either press
MEMORY/CLOCK
or wait until t he display stops flashing.
CONNECTING HEADPHONES OR
AMPLIFIED SPEAKERS
To listen to the SCP-103 , you n eed a
pair of headphones or amplified
speakers with a
plug. Your local RadioShack store
carries a wide selection of headphones and amplified speakers.
Insert the headphones' or speakers'
1
/8-inch plug into the SCP-103's
jack.
Listening Safely
To protect your hearing, follow these guidelines when you
use headphones.
• Set the volume to the lowest setting before you begin listening. After you begin listening, adjust the volume to a
comfortable level.
1
/8-inch (3.5-mm)
.
11
14-1255.fm Page 12 Tuesday, July 27, 1999 10:47 AM
• Do not listen at extremely high volume levels. Extended
high-volume listening can lead to permanent hearing
loss.
• Once you set the volume, do not increase it. Over time,
your ears adapt to the volume level, so a volume level
that does not cause discomfort might still damage your
hearing.
Traffic Safety
Do not wear headphones while operating a motor vehicle or
riding a bicycle. This can create a traffic hazard and can be illegal in some areas.
Even though some headphones let you hear some outside
sounds when listening at normal volume levels, they still can
present a traffic hazard.
12
14-1255.fm Page 13 Tuesday, July 27, 1999 10:47 AM
USING THE RADIO
LISTENING TO THE RADIO
Important:
speakers to the SCP-103. See “Connecting Headphones or
Amplified Speakers” on Page 11.
1. Press
2. Adjust
3. Hold down
4. Tune to the desired station using manual or seek tuning.
Make sure you have connected headphones or
DOWN RADIO ON/OFF
UP
RADIO ON/OFF
VOLUME
BAND
AM
or FM).
band (
Manual Tuning:
up or down the selected band. To rapidly tune the band,
hold down UP or
to turn on the radio.
to a comfortable listening level.
until the display shows the desired
Repeatedly press
.
DOWN
UP
or
DOWN
to tune
13
14-1255.fm Page 14 Tuesday, July 27, 1999 10:47 AM
Seek Tuning:
Hold down
UP
or
for about 1 sec-
DOWN
ond. The SCP-103 tunes up or down the selected band,
then stops at the next higher or lower station that has a
strong signal.
Notes:
• The SCP-103 has a built-in AM antenna, and the
headphones' or speakers' cord serves as an FM
antenna. For the best AM recepti on, rotate the S CP-
103. For the best FM reception, fully uncoil the headphones' or speakers' cord.
• If FM stereo reception is poor or noisy, switch
REO/MONO
to
. The sound is not in stereo, but
MONO
STE-
reception should improve.
5. Set
BASS ON/OFF
to ON for e x tr a bass effe ct, or to
OFF
to
leave the bass sound unchanged.
6. To turn off the radio, press
RADIO ON /O FF
.
STORING STATIONS IN MEMORY
You can store up to 20 radio stations (10 FM and 10 AM) in
memory, then quickly tune to a stored station by pressing a
memory button (or +5 and a memory button).
Follow these steps to store stations in memory.
1. Press
RADIO ON/OFF
to turn on the radio.
14
14-1255.fm Page 15 Tuesday, July 27, 1999 10:47 AM
2. Repeatedly press
desired band (
Memory
Location
Buttons
MEMORY/
CLOCK
AM
or FM).
until the display shows the
BAND
Memory
Location
Buttons
BAND
3. Tune to the first station you want to store. The display
shows the frequency.
.
4. Press
MEMORY/CLOCK
flashes on the display for
MEMO
about 5 seconds.
If you do not press a memory location button or
Note:
within about 5 seconds,
disappear s from the d is-
MEMO
+5
play. Start again from Step 4.
5. To store stations into memory locations 1–5, press a
memory location button (
CLOCK
again.
MEMO
disappears.
To store stations into memory locations 6–10, press
then one of the memory location buttons (
example, if you press
+5
selected frequency into memory location
ORY/CLOCK
again.
), then press
1–5
MEMORY/
+5
). For
1–5
then 1, the stereo stores the
. Press
6
MEM-
6. Tune to the next station you want to store, then repeat
Steps 4 and 5.
,
15
14-1255.fm Page 16 Tuesday, July 27, 1999 10:47 AM
To replace a station you stored, store a new station in that
memory locati on.
USING LOCK
This button helps prevent you from accidentally turning the
radio on or off, resetting the clock time, or losing radio stations stored in memory.
Press
To deactivate the lock function, press
icon disappears.
to activate this function. The lock icon appears.
LOCK
again. The lock
LOCK
LOCK
16
14-1255.fm Page 17 Tuesday, July 27, 1999 10:47 AM
USING THE CASSETTE PLAYER
PLAYING A CASSETTE TAPE
Important:
or speakers to the SCP-103. See “Connecting Headphones
or Amplified Speakers” on Page 11.
Caution:
They are very thin and can easily become tangled in the
tape-handling parts.
1. Press
2. Take up any slack in the cassette tape by turning its hub
3. Pull open the cassette compartment door.
4. Slide the cassette tape into the guides in
Make sure that you have connected headphones
We do not recommend usin g C- 12 0 c as se tte ta pes .
RADIO ON/OFF
with your finger or a pencil. If you do not remove excess
slack, the tape might become tangled in the play mechanism. Avoid touching the tape.
the door with the tape's open edge facing
up, the side you want to hear facing out,
and the full reel to the left. Then close the
door.
to turn off the radio.
17
14-1255.fm Page 18 Tuesday, July 27, 1999 10:47 AM
5. Press to play the tape.
Notes:
• After playing to the end of a side, the tape changes
direction to play the othe r side.
• To reverse the tape direction during playback, slide
< DIRECTION >
to the other setting.
• To fast-forward or rewind the cassette tape, press
or . When you reach the desired section of
tape, press then to resume play.
6. Adjust
7. Set
BASS ON/OFF
VOLUME
to a comfortable listening level.
to ON for e x tr a bass effe ct, or to
leave the bass sound unchanged.
8. Press to stop the tape.
OFF
to
18
14-1255.fm Page 19 Tuesday, July 27, 1999 10:47 AM
USING THE ALARM
You can set the SCP-103 to automatically sound a beeping
alarm at a time you select.
SETTING THE ALARM TIME
1. Press
2. Press
3. Repeatedly press
4. Repeatedly press
5. When the display shows the desired alarm time, wait
RADIO ON/OFF
shows the currently set time.
.
ALARM
flash.
If you do not press
Note:
ALARM
this happens, repeat Step 2.
desired hour.
minute.
until
the SCP-103 to store the setting.
and the currently set alarm time stop flashing. If
and the set alarm time stop flashing to allow
ALARM
to turn off the radio. The display
and the currently set alarm time
ALARM
or
HOUR
until the display shows the
HOUR
until the display shows the des ired
MIN
within 5 seconds,
MIN
ALARM
19
14-1255.fm Page 20 Tuesday, July 27, 1999 10:47 AM
TURNING THE ALARM OFF
At the pres et alarm ti me, the alar m be eps , ev en if a ca sse tte
or the radio is playing. Press any key on the front panel to silence the alarm. The alarm will sound again the next day at
the set time.
To turn off the alarm so it does not sound again the next day,
press
ALARM
twice so
disappears from the display.
ALARM
20
14-1255.fm Page 21 Tuesday, July 27, 1999 10:47 AM
CARE
To enjoy your cassette player for a long time:
• Keep the cassette player dry. If it gets wet, wipe it dry
immediatel y.
• Use and store the cassette player only in normal temper-
ature environments.
• Handle the cassette player gently and carefully. Don’t
drop it.
• Keep the cassette player away from dust and dirt.
• Wipe the cassette player with a damp cloth occasionally
to keep it looking new.
Modifying or tampering with the cassette player’s internal
components can cause a malfunction and invalidate its warranty. If your cassette player is not performing as it should,
take it to your local RadioShack store for assistance.
21
14-1255.fm Page 22 Tuesday, July 27, 1999 10:47 AM
CLEANING THE TAPE-HANDLING
PARTS
Dirt, dust, or par ticles of the tape' s co ating can a ccumula te on
the tape heads and other parts that the tape touches. This
can greatly reduce the performance of the SCP-103. Follow
these steps after every 20 hours of operation.
Play Head
Pinch Roller
1. Remove the batteries and disconnect any other power
source.
2. Open the cassette compartment door.
3. Press to expose the tape-handling parts.
4. Use a cotton swab dipped in denatured alcohol or tape
head cleaning solution to clean the play head, pinch
roller, capstan, and tape guides.
5. When you finish cleaning, press and close the cassette compartment door. Then reconnect power.
Tape Guide
Capstan
Your local RadioShack store carries a full line of cassette
player cleaning supplies.
22
14-1255.fm Page 23 Tuesday, July 27, 1999 10:47 AM
RESTORING TAPE TENSION AND
SOUND QUALITY
After you play a cassette several times, the tape might become tightly wound on the reels. This can cause playback
sound quality to deteriorate.
To restore the sound quality, fast-forward the tape from the
beginning to the end of one side, then completely rewind it.
Then loosen the tape reels by gently tapping each side of the
cassette's outer shell on a flat surface.
Caution:
ping it. Do not touch the exposed tape or allow any sharp objects near the cassette.
Be careful not to damage the cassette when tap-
23
14-1255.fm Page 24 Tuesday, July 27, 1999 10:47 AM
THE FCC WANTS YOU TO KNOW
This equipment complies with the limits for a Class B digital
device as specifie d in Part 15 of
vide reasonable protection against radio and TV interference
in a residential area. However, your equipment might cause
TV or radio interference even when it is operating properly.
To eliminate interference, you can try one or more of the following corrective measures:
• Reorient or relocate the receiving antenna.
• Increase the distance between the equipment and the
radio or TV.
• Use outlets on different electrical circuits for the equipment and the radio or TV.
Consult your l ocal Ra dio Shack store if the prob lem st ill e xists.
FCC Rules
. These limits p ro-
24
14-1255.fm Page 25 Tuesday, July 27, 1999 10:47 AM
SPECIFICATIONS
GENERAL
Power Requirements .................................................. DC 3V
Power Sources ............................................... 2 AA Batteries,
AC Adapter, DC Adapter
Battery Life ............................... Approx. 14 Hours (Nominal)
Dimensions (HWD) ............................... 4.53
(115
Weight .......................................................................... 6.9 oz
CASSETTE DECK
7
Tape Speed ............................. 1
Tape System ............................................ Four Track, Stereo
Frequency Response (at –6dB)........................ 125-8,000 Hz
S/N Ratio ..................................................................... 44 dB
Motor .......................................... 3 Volt Motor with Governor
RADIO
AM Sensitivity at 20 dB S/N .................................. 2000 µv/m
AM Selectivity (±10 kHz) ............................................. 15 dB
FM IHF Usable Sensitivity ........................................... 10 µV
FM Selectivity (±400 kHz) ............................................ 15 dB
10% THD Output Power .......................... 10 mW (32 Ohms)
Specifications are typical; individual units might vary. Specifications are subject to change and improvement without notice.
/8 ips (4.75 cm Per Second)
3.46 × 1.5 in
×
88 × 38 mm)
×
(200 mg)
25
14-1255.fm Page 26 Tuesday, July 27, 1999 10:47 AM
NOTES
26
14-1255.fm Page 27 Tuesday, July 27, 1999 10:47 AM
27
14-1255.fm Page 28 Tuesday, July 27, 1999 10:47 AM
Limited Ninety-Day Warranty
This product is warranted by RadioS hack a gainst manu factur ing defects in material and
workmanship under normal use for ninet y (90) da ys from th e date of pu rchase from RadioShack company-owned stores and authorized RadioShack franchisees and dealers.
EXCEPT AS PROVIDED HEREIN, RadioShack MAKES NO EXPRESS WARRANTIES
AND ANY IMPLIED WARRANTIES, INCLUDING THOSE OF MERCHANTABILITY
AND FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED IN DURATION TO
THE DURATION OF THE WRITTEN LIMITED WARRANTIES CONTAINED HEREIN.
EXCEPT AS PROVIDED HEREIN, RadioS hack SHALL HAVE NO LIABILITY OR RESPONSIBILITY TO CUSTOMER OR ANY OTHER PERSO N OR ENTITY WITH RESPECT TO ANY LIABILITY, LOSS OR DAMAGE CAUSED DIRECTLY OR
INDIRECTLY BY USE OR PERFORMANCE OF THE PRODUCT OR ARISING OUT
OF ANY BREACH OF THIS WARRANTY, INCLUDING, BUT NOT LIMITED TO, ANY
DAMAGES RESULTING FROM INCONVENIENCE, LOSS OF TIME, DATA, PROPERTY, REVENUE, OR PROFIT OR ANY INDIRECT, SPECIAL, INCIDENTAL, OR
CONSEQUENTIAL DAMAGES, EVEN IF RadioShack HAS BEE N ADVISED OF THE
POSSIBILITY OF SUCH DAMAGES.
Some states do not allow the limitations on how long an implied warranty lasts or the
exclusion of incidental or consequential damages, so the above limitations or exclusions may not apply to you.
In the event of a product defect during the warranty period, take the product and the
RadioShack sales receipt as proof of purchase date to any RadioShack store. RadioShack will, at its option, unless otherwise provided by law: (a)correct the defect by
product repair without charge for p arts a nd lab or; ( b) r eplace the pr oduct with one of the
same or similar design; or (c) refund the purchase price. All replaced parts and products, and products on which a refund is made, become the property of RadioShack.
New or reconditioned parts and products may be used in the performance of warranty
service. Repaired or replaced par ts and pro ducts a re warranted for the remainder of the
original warranty period. You will be charged for repair or replacement of the product
made after the expiration of the warranty period.
This warranty does not cover: (a) damage or failure caused by or attributable to acts of
God, abuse, accident, misuse, improper or abnormal usage, failure to follow instructions, improper installation o r mainte nance, alter ati on, lightn in g o r other incidence of excess voltage or current; (b) any repairs other than those provided by a RadioShack
Authorized Service Facility; (c) consumables such as fuses or batteries; (d) cosmetic
damage; (e) transportation, shipping or insuran c e costs; or (f) costs of product remova l,
installation, set-up service adjustment or reinstallation.
This warranty gives you specific legal rights, and you may also have other rights which
vary from state to state.
RadioShack Customer Relations, 200 Taylor Street, 6th Floor, Fort Worth, TX 76102
We Service What We Sell
04/99
RadioShack
A Division of Tandy Corporation
Fort Worth, Texas 76102
07A99 Printed in China
Loading...
