Page 1
OPTIMUM
MASCHINEN - GERMANY
15.6.11 Page 1 Digital position display DP A 2000/ DPA 2000S ; Version 2.1.2
© 2011
GB
Version 2.1.2

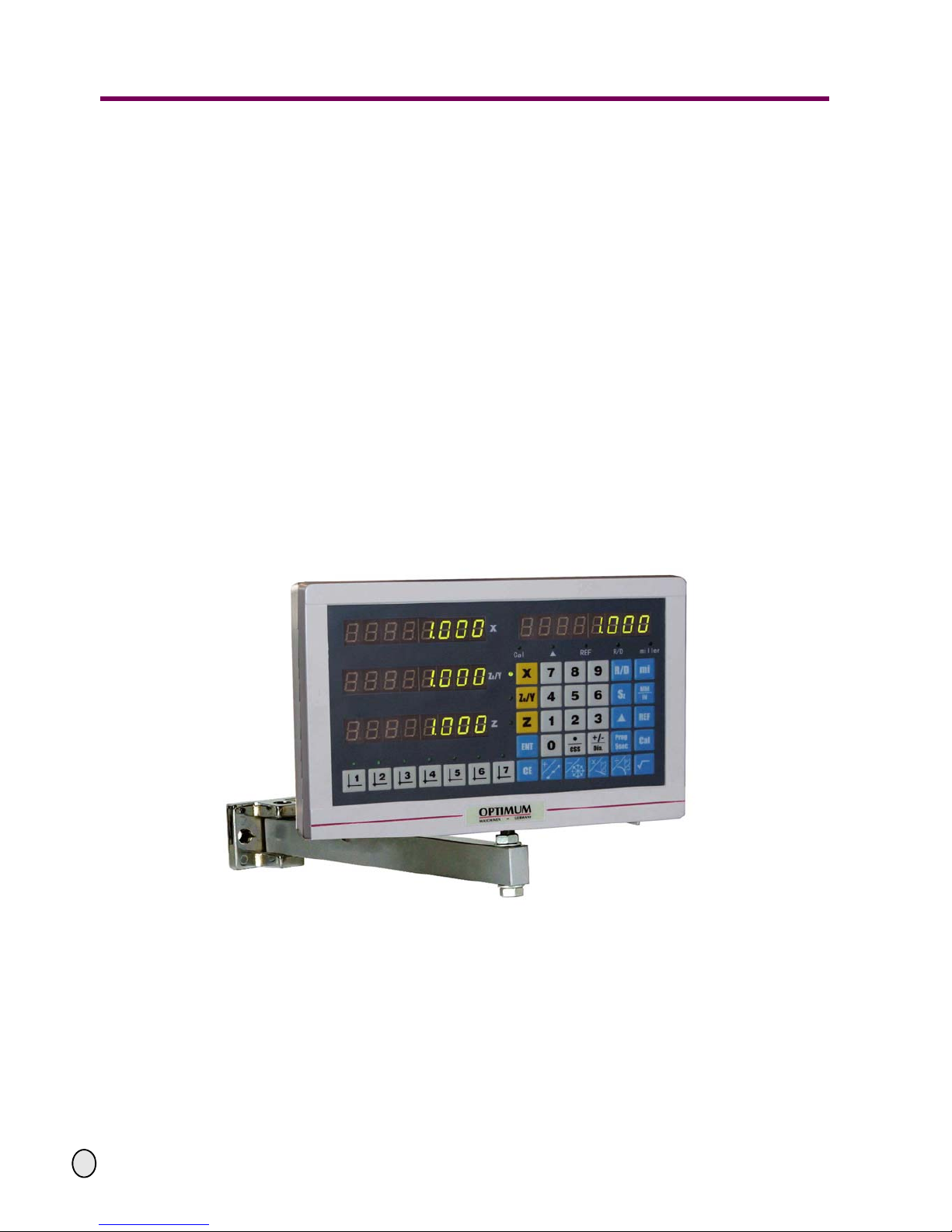

Digital position display
DPA 2000/ DPA 2000S
Operating manual
Keep for future reference!
Page 2
Table of contents
OPTIMUM
MASCHINEN - GERMANY
15.6.11Page 2 Table of contents Digital position display DPA 2000/ DPA 2000S ; Version 2.1.2
© 2011
GB
Table of contents
1 Safety
1.1 Target group ........................................................................................................... 3
1.2 Proper use .............................................................................................................. 3
1.3 Invalid modification of the device ................................ .... ... ... ... ............................... 4
1.4 Possible dangers caused by machine tools ........................................................... 4
1.5 Possible dangers caused by the device ................................................................. 4
1.6 Authorized personnel ............................................................................................. 4
1.7 Additional qualification requirements ...................................................................... 5
1.8 Obligations of the operator ..................................................................................... 5
1.9 Obligations of the user ........................................................................................... 5
1.10 Safety during operation .......................................................................................... 5
1.11 Safety during maintenance ..................................................................................... 5
1.11.1 Disconnecting and making it safe ................................................. 5
1.12 Accident report ....................................................................................................... 5
1.13 General instruction ............................... ... ... .... ... ... ... ... .... ........................................ 6
1.13.1 Technical data .............................................................................. 6
1.13.2 Working conditions ....................................................................... 6
1.13.3 Precautions ................................................................................... 6
1.13.4 Regular maintenance ................................................................... 6
2 The front panel and rear panel

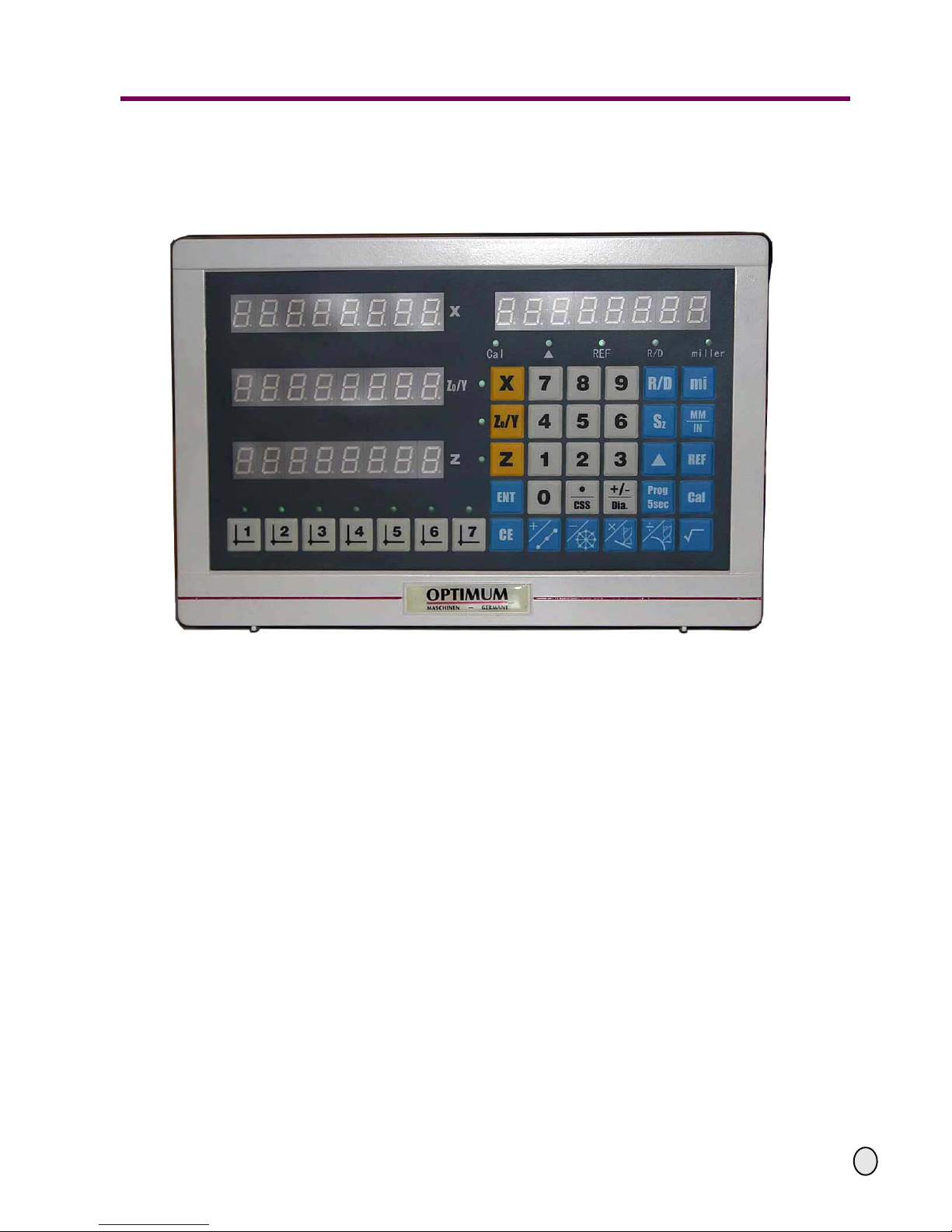

2.1 The front panel and a description of the keys ......................................................... 7

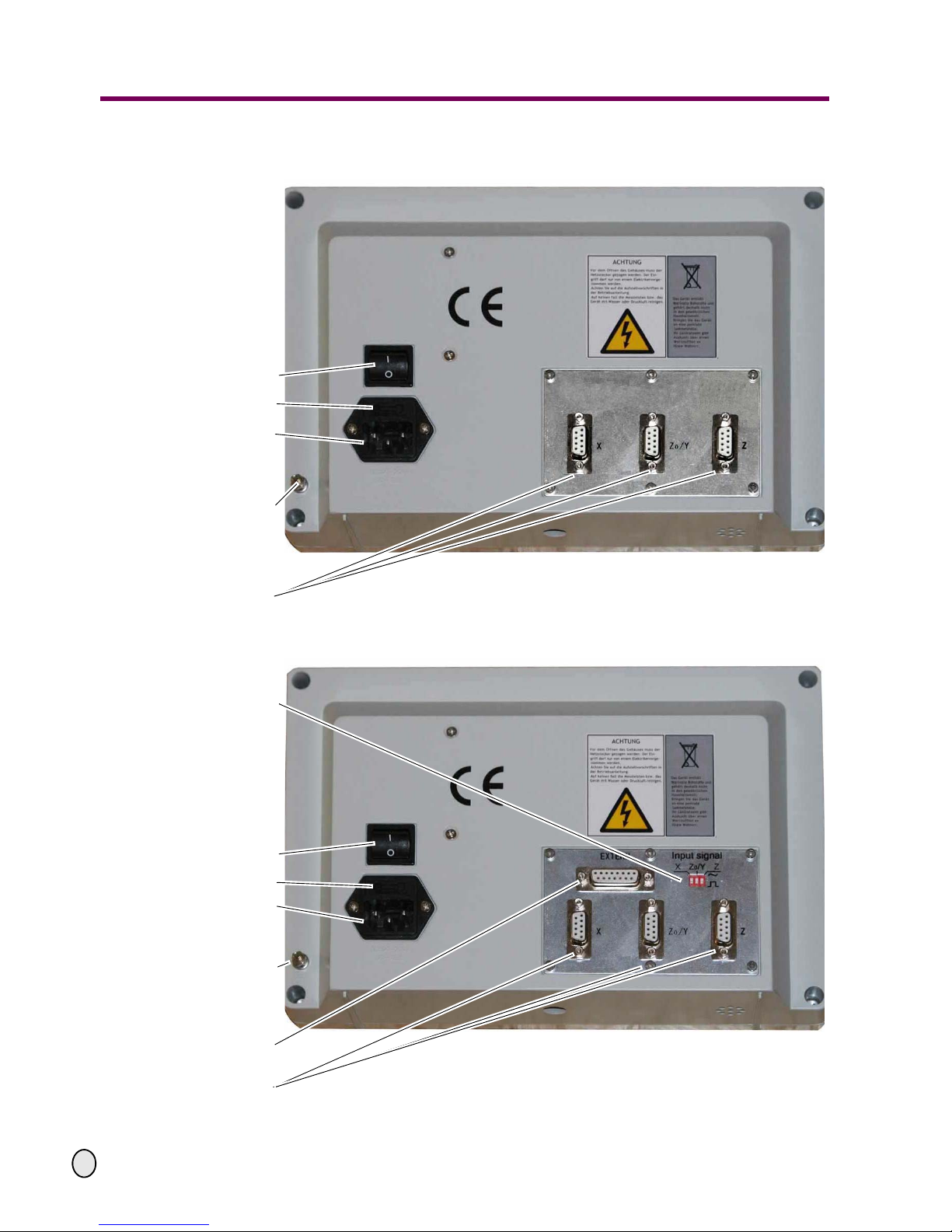

2.2 The rear panel ........................................................................................................ 8

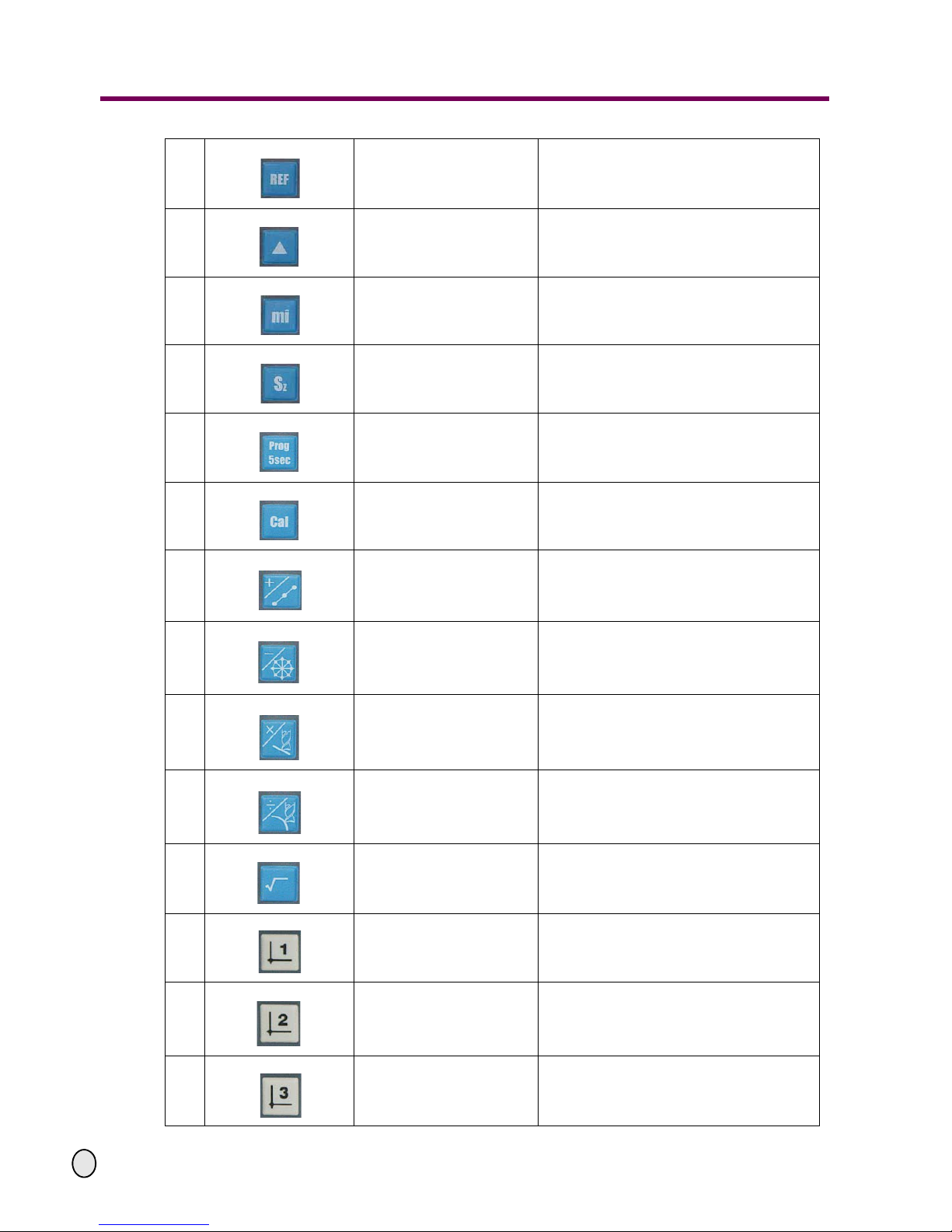

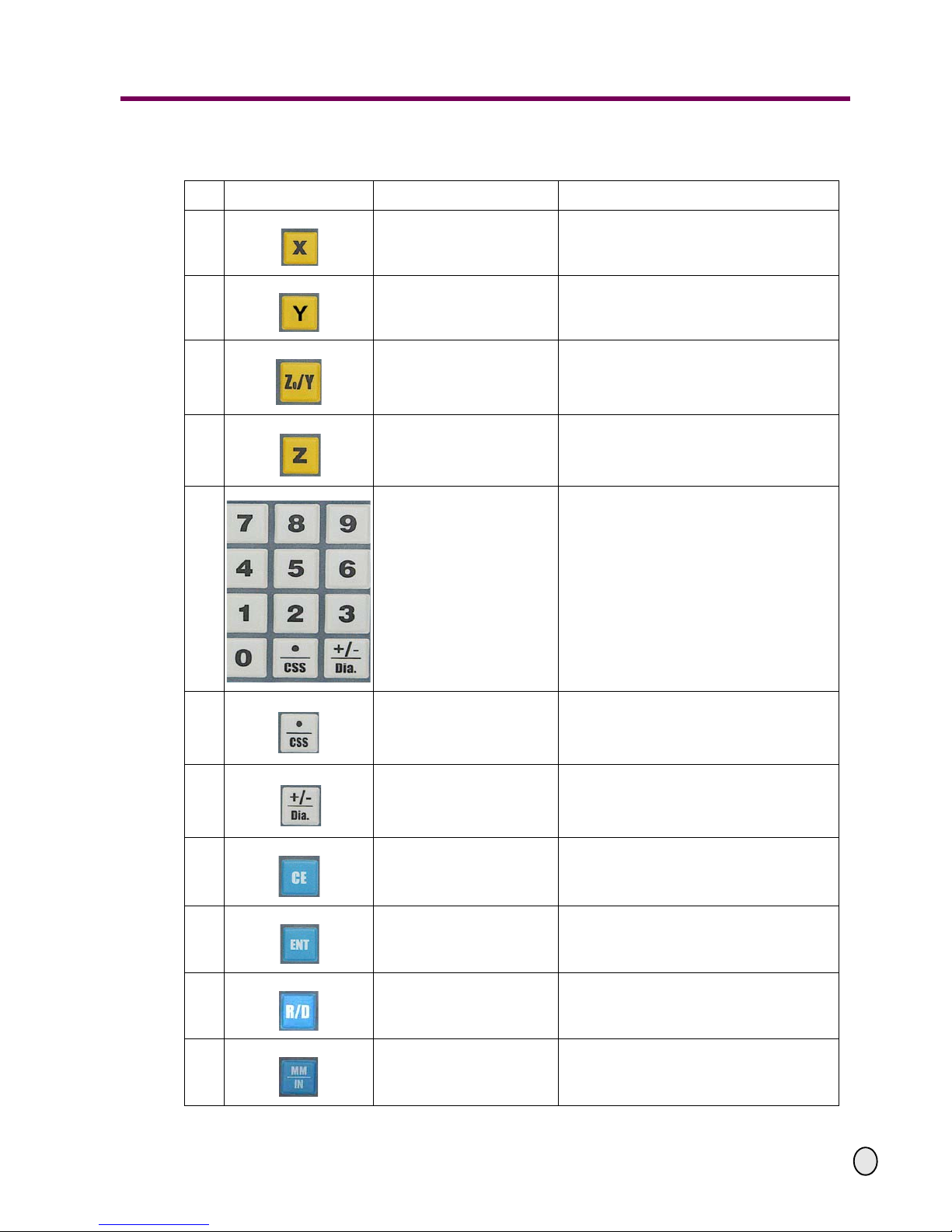

2.3 Description of the keys ........................................................................................... 9

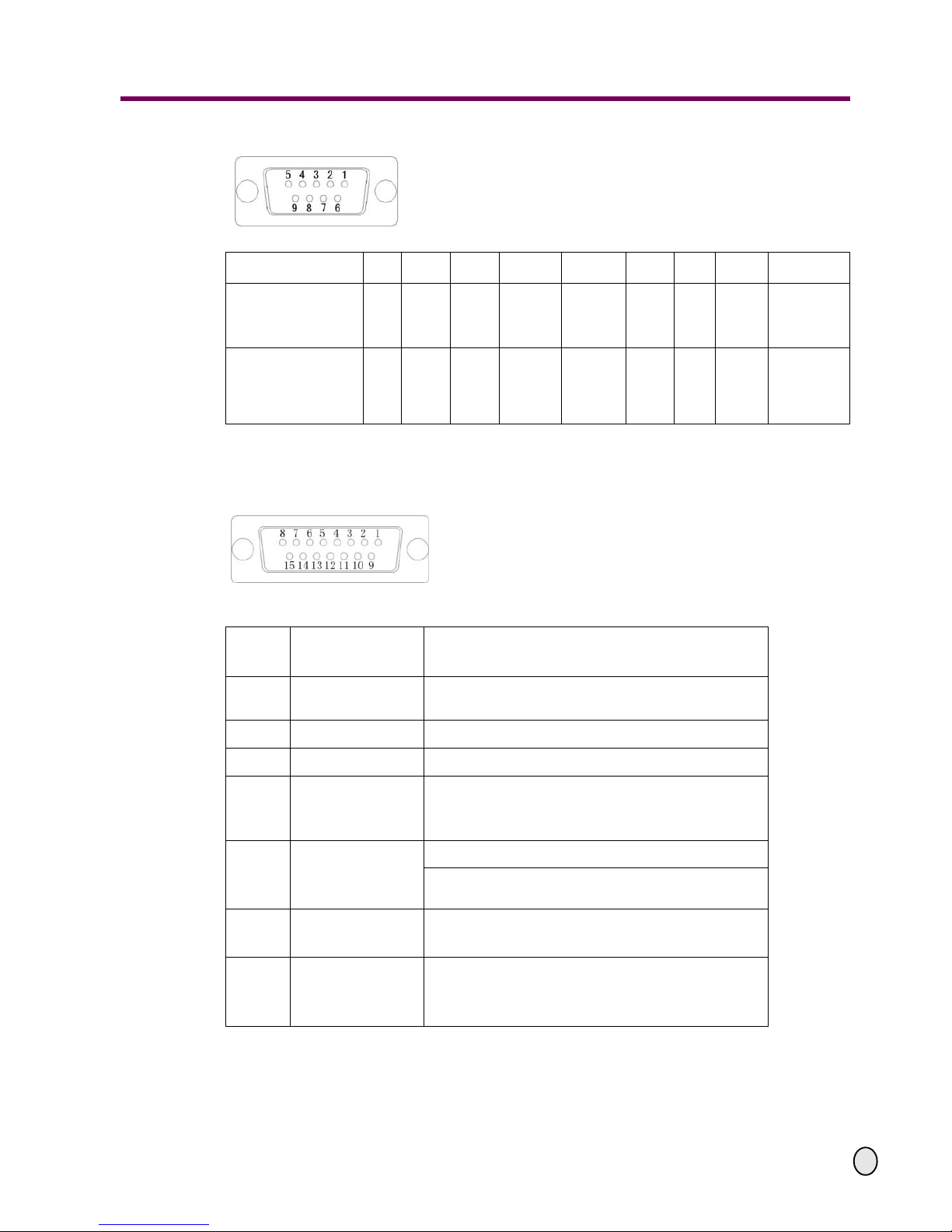

2.4 Measuring device - Pin Assignment at DPA 2000 ................................................ 12
2.5 Measuring device - Pin Assignment at DPA 2000S ............................................. 12
2.6 Input/output connection ........................................................................................ 13
2.7 Available accessories (only for DPA 2000S) ........................... ............................. 14
3 Assembly and commissioning
3.1 Delivery volume ................................................. ................................................... 15
3.2 Storage ....................................... ............................................................. ............. 15
3.3 Adding the device ................................................................................................. 15
3.3.1 Requirements for the installation site ......................................... 15
3.3.2 Installing the device .................................................................... 15
3.3.3 Assembling the measuring gauges ............................................ 15
3.3.4 Assembly of the reading head .................................................... 16
3.4 Linking the position display to a frequency converter ..................... ... ... ... .... ... ... ... 16
3.4.1 System requirements: ................................................................. 16

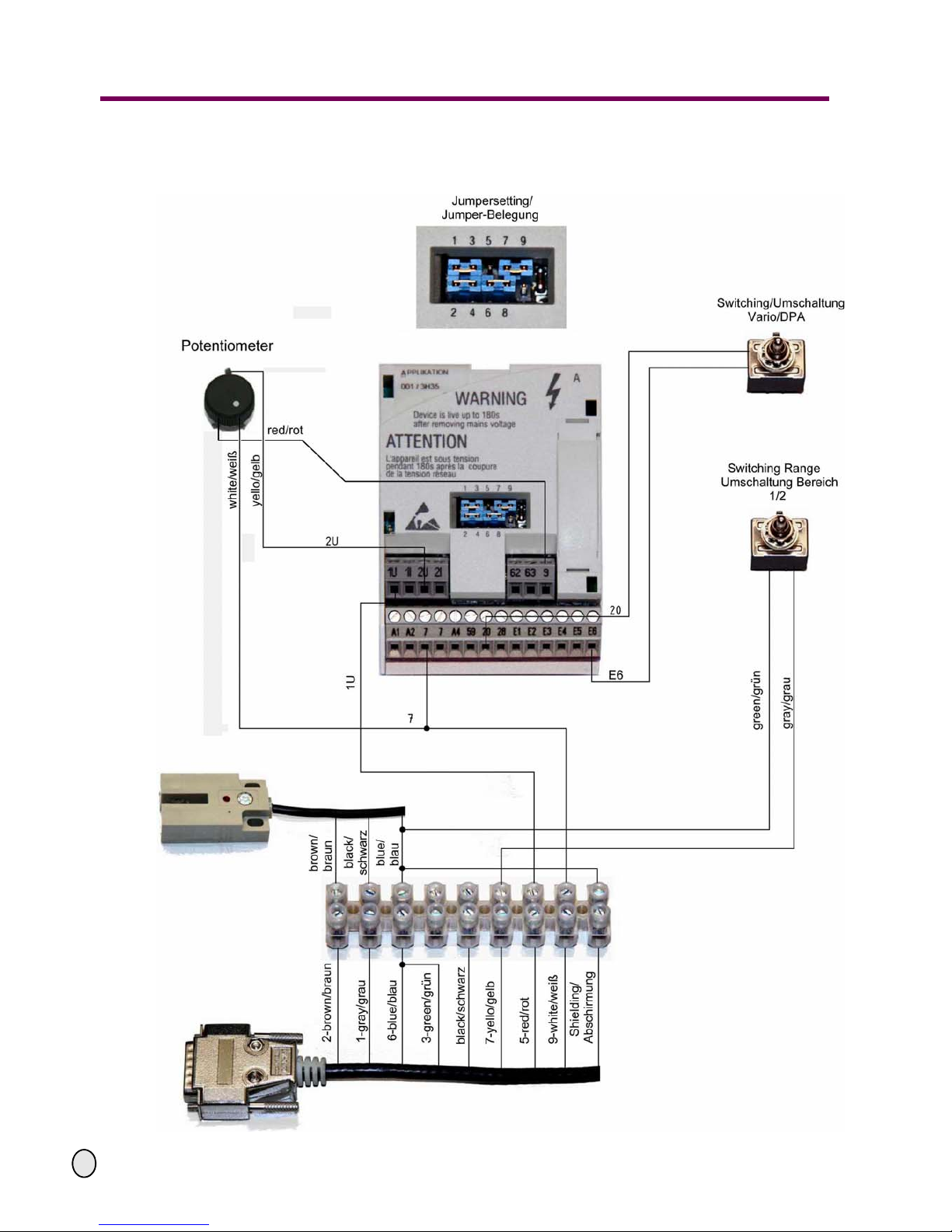

3.4.2 Electrical connection: .................................................................. 17
3.4.3 Programming the DPA 2000S .................................................... 19
3.5 First commissioning .............................................................................................. 20
3.5.1 Connecting the measuring gauges ............................................. 20
3.5.2 Connecting the power supply ..................................................... 20
3.5.3 Switching on the device .............................................................. 20
4 Description of the basic operation
4.1 Initiation ................................................................................................................ 21
4.2 Deleting ................................................................................................................ 21

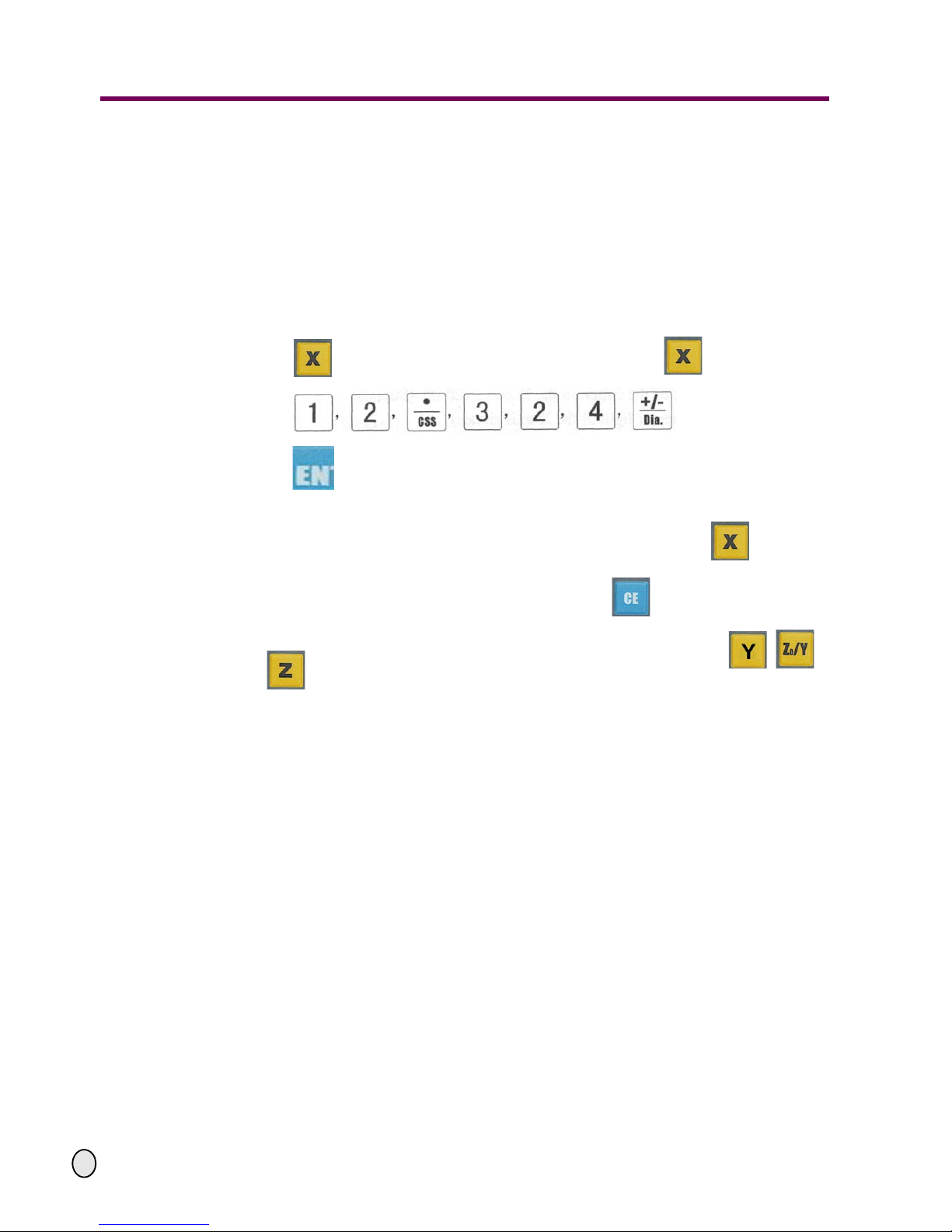

4.3 Preset current coordinate value of the axis ....... ... ... ... .... ... ... ................................ 22
4.4 Radius/Diameter conversion of the X-axis ........................................................... 23
4.5 Switching the functions turning/milling .................................. ... .... ... ... ... ... .... ......... 23

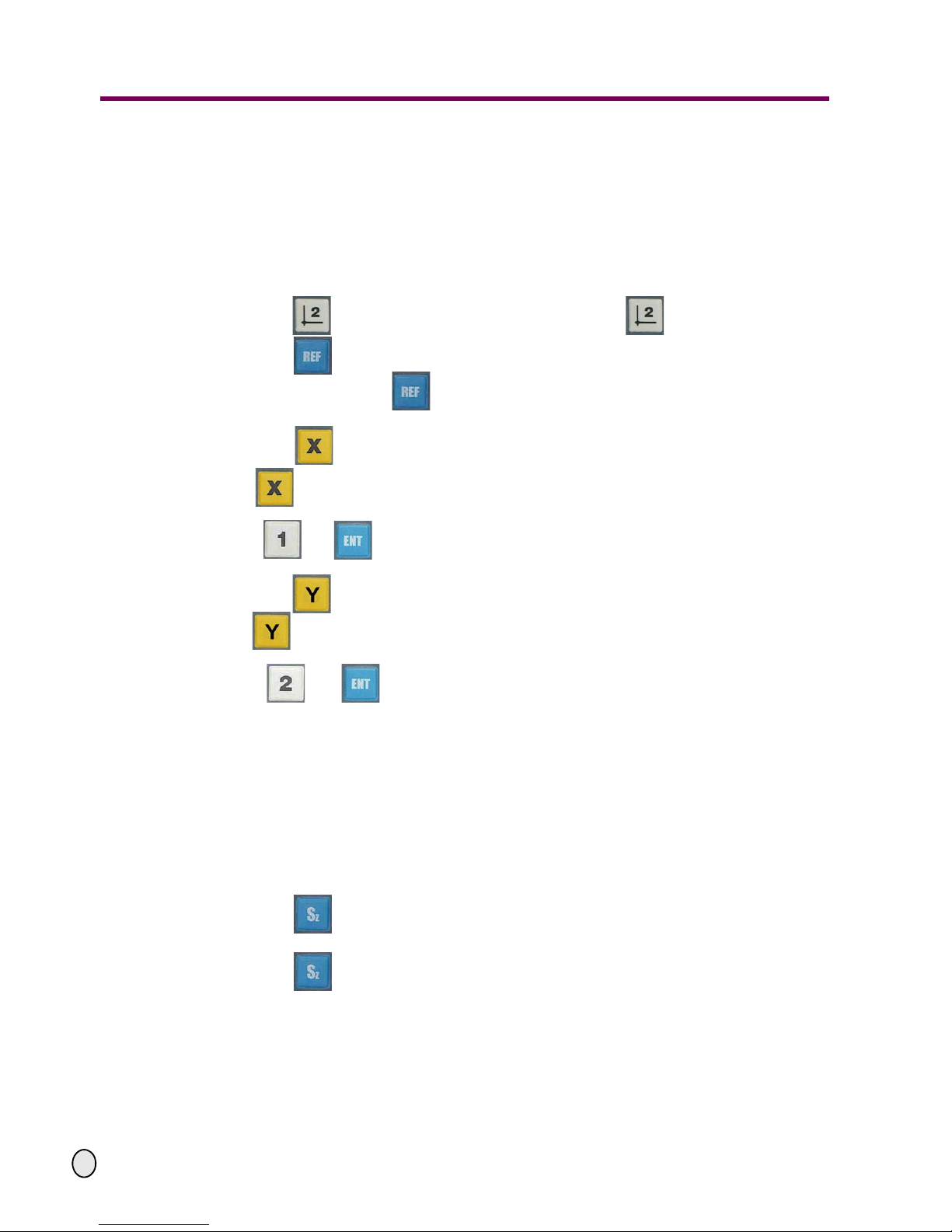

4.6 Setting machine datum of operation ..................................................................... 23
4.7 Tool data function ................................................................................................. 24
4.8 Display Z+Z0 value (3-axes) ................................................................................ 24
4.9 Metric/inch conversion .......................................................................................... 25
4.10 Function of the reference mark (zero position) of the reading device .................. 25

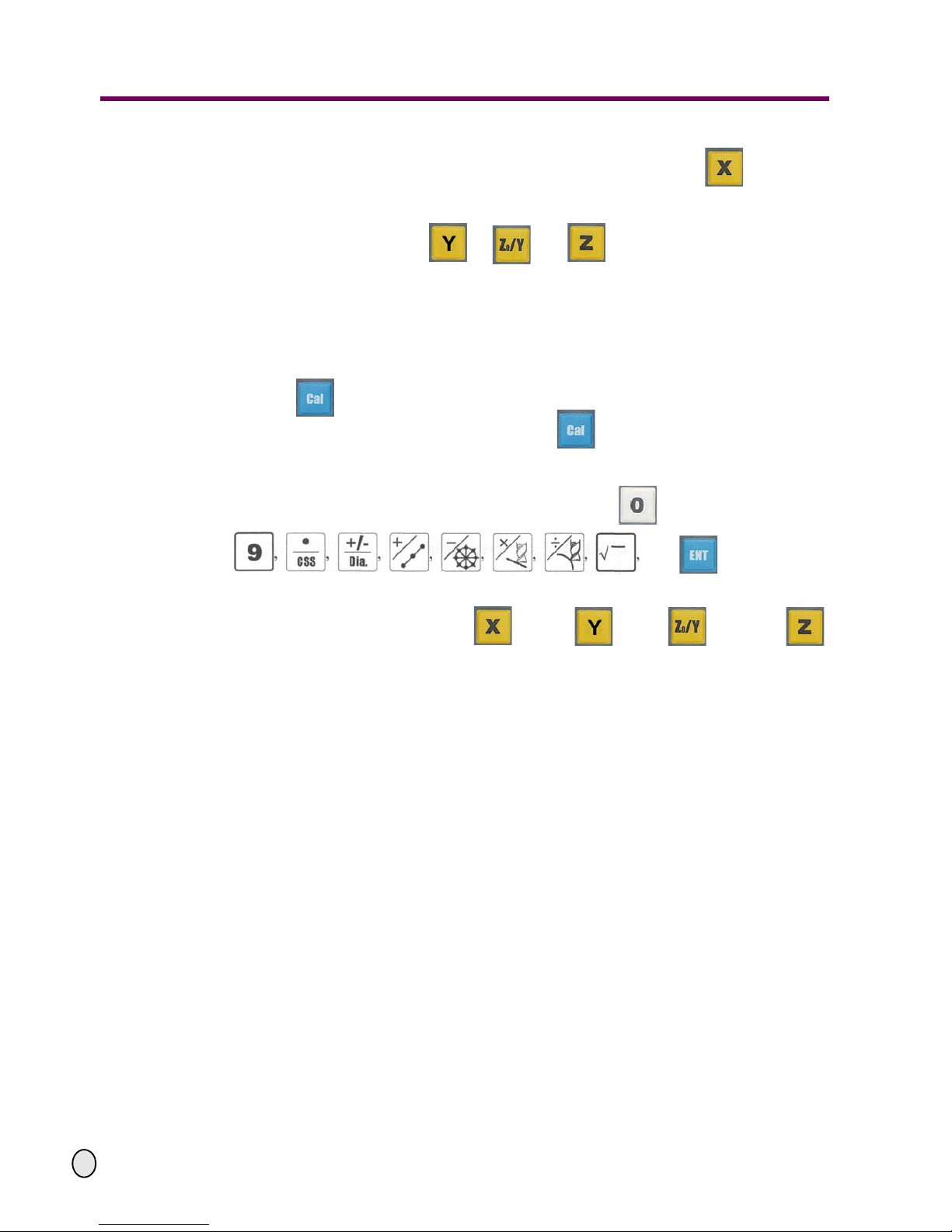

4.11 Calculator function ................................................................................................ 26
Page 3
OPTIMUM
MASCHINEN - GERMANY
Table of contents
15.6.11 Page 3Table of contents Digital position display DPA 2000/ DPA 2000S ; Version 2.1.2
© 2011
GB
4.12 Dividing hole along an oblique line function ......................................................... 26
4.13 Dividing hole on the circle function ....................................................................... 28
4.14 Machining along the oblique line function ............................................................ 30

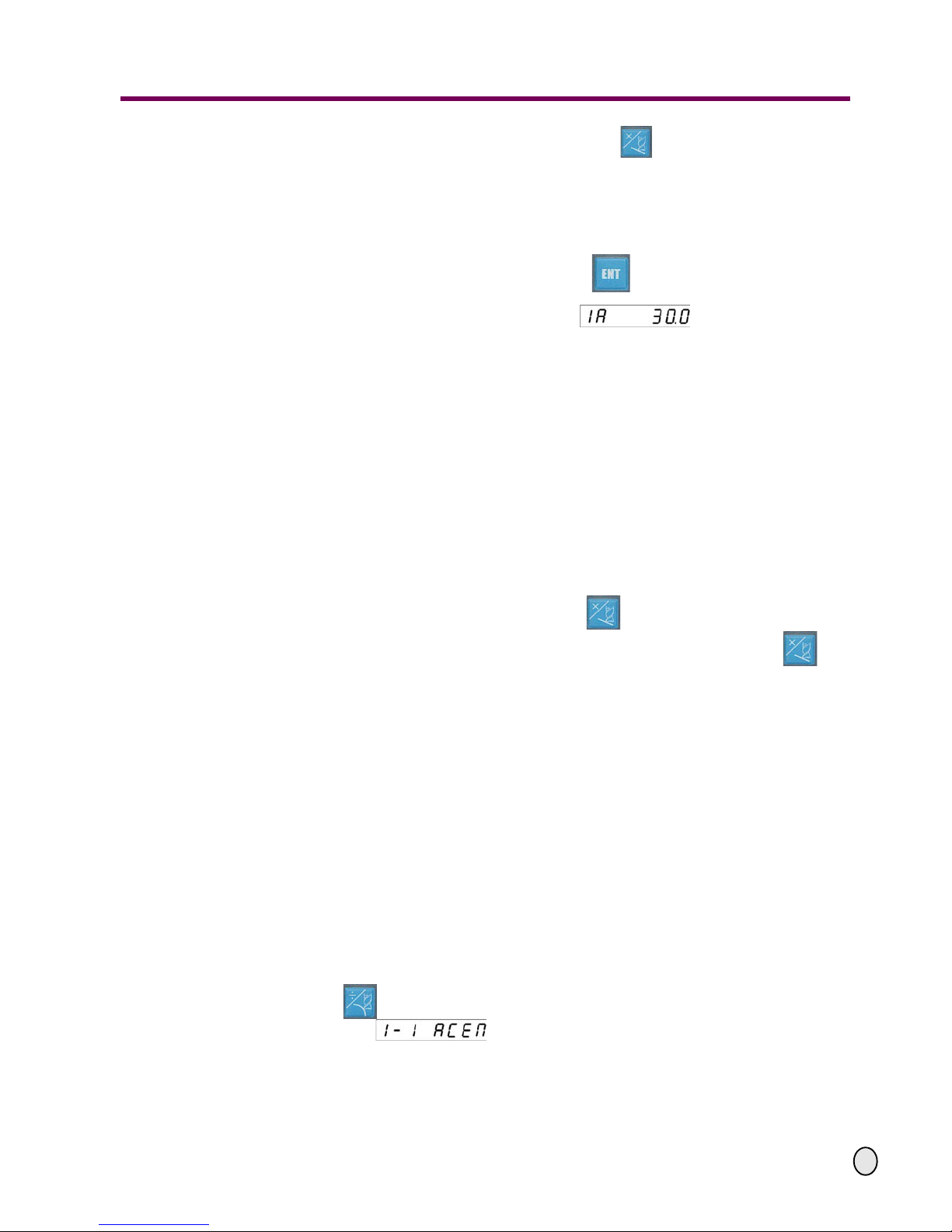

4.15 Arc machining function ......................................................................................... 31
5 Internal parameter setting

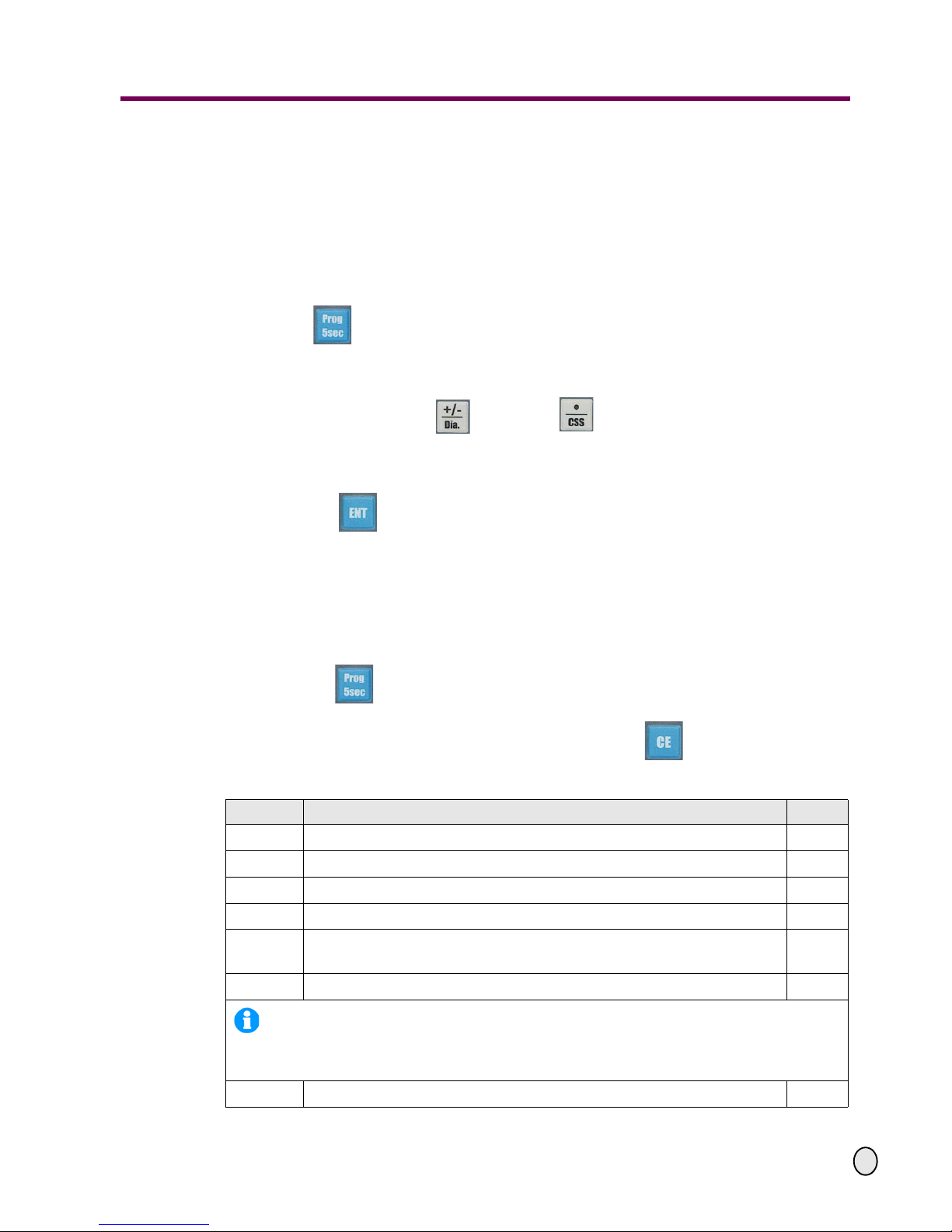

5.1 Programming function .......................................................................................... 35
5.2 Setting the cutting linear speed and the workpiece diameter ............................... 37

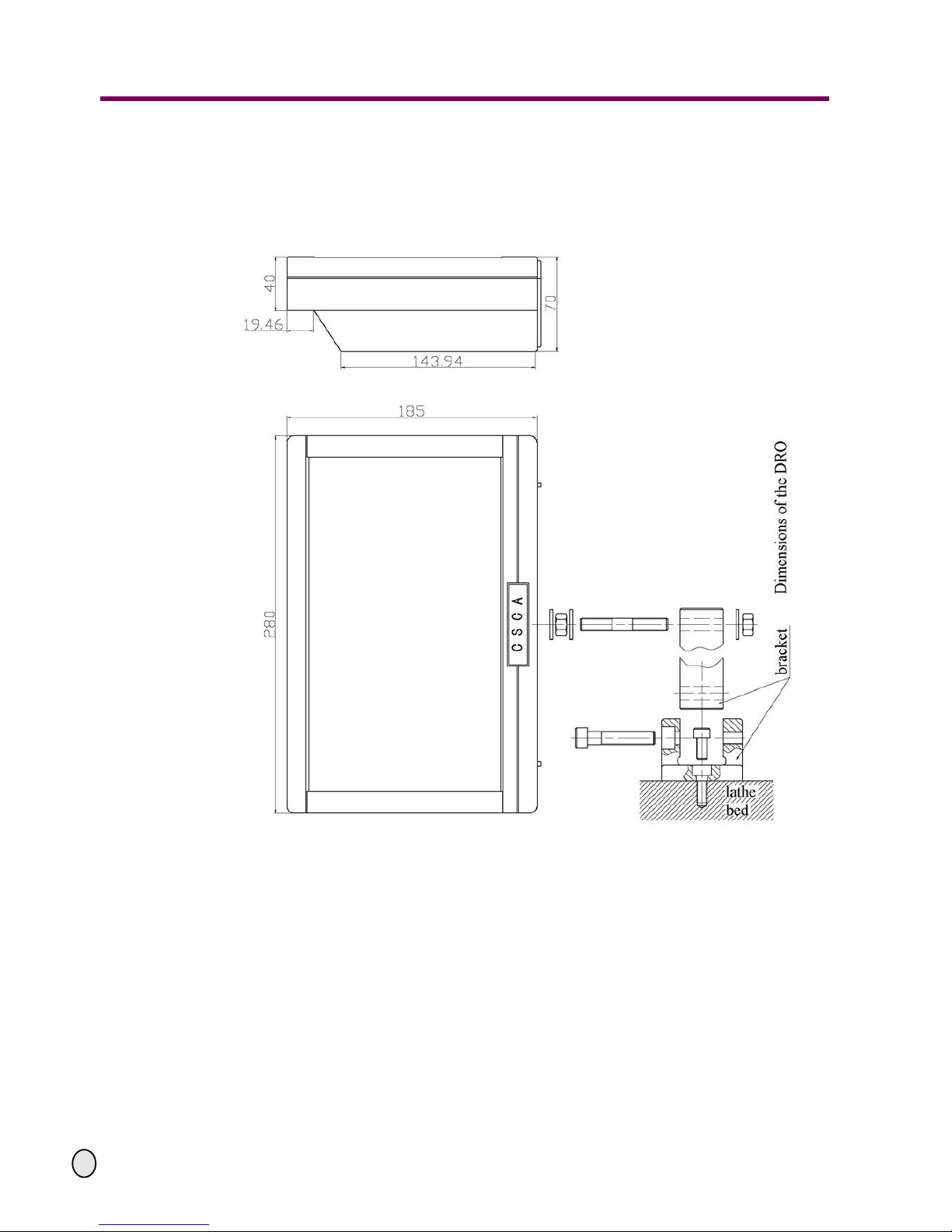

6 Dimensions and mounting
7 Troubleshooting
8 Appendix
8.1 Copyright ............................................ ................................................................. . 43
8.2 Warranty .......................................... ....................................... .............................. 43
8.3 Disposal ............................................................................................................... 44
8.4 Product follow-up ................................................................................................. 44
8.5 EC Declaration of Conformity ............................................................................... 45
Page 4
Safety
OPTIMUM
MASCHINEN - GERMANY
15.6.11Page 4 Safety Digital position display DPA 200 0/ DPA 2000S ; Version 2.1.2
© 2011
GB
1 Safety
Glossary of symbols
This part of the operating manual
explains how to use the device properly,
points out dangers which might come into existence when disregarding this operating
manual,
informs you about how you can avoid dangers.
In addition to this operating manual please observe
the applicable laws and regulations,
the legal regulations for accident prevention,
the prohibition, warning and mandatory signs as well as the warning notes on the device.
Dring installation, operation, maintenance and repair of the device the applicable standards and
country-specific regulations of each country need to be observed.
ALWAYS KEEP THIS OPERATING MANUAL CLOSE TO THE DEVICE.
INFORMATION
If you are not able to solve a problem by using this manual, please contact us under:
Optimum Maschinen Germany GmbH
Dr. Robert-Pfleger-Str. 26
D- 96103 Hallstadt
E-Mail: info@optimum-maschinen.de
Technical Hotline: 09 00 - 19 68 220 (0.49 €/min if you call from the German fixed network,
this information is dated at the time of printing)
1.1 Target group
This operating manual is addressed to operation organizations, the operators and the maintenance staff.
1.2 Proper use
WARNING!
In the event of improper use, the digital position display
• will endanger personnel,
• will endanger the device and other material property of the operator,
• may affect proper operation of the device.
The device provided for the position display of traveling tools respectively tool slides on lathes,
milling machines, etc. The device is designed and manufactured to be used universally in
environments where there is no potential danger of explosion. For the operation, additionally
absolute or incremental measuring systems for the position acquisition are required.
gives additional indications
calls on you to act
enumerations
Page 5
OPTIMUM
MASCHINEN - GERMANY
Safety
15.6.11 Page 5Safety Digital position display DPA 2000/ DPA 2000S ; Version 2.1.2
© 2011
GB
If the device is used in any way other than described above or modified without the authorisation
of Optimum Maschinen Germany GmbH, then it is being used improperly.
We cannot be held liable for any damage caused by improper use.
It is also part of proper use that the operating manual and inspection and maintenance instruc-
tions are observed.
1.3 Invalid modification of the device
WARNING!
Very serious injury.
It is forbidden to make any modifications or alterations to the operating values of the
device! They could endanger personnel working on the device and cause damage to the
device.
We would like to emphasize that any modifications to the construction, or technical or technological modifications that have not been authorized by Optimu m Maschinen Germany GmbH will
also render the guarantee null and void.
1.4 Possible dangers caused by machine tools
The device is operated in immediate proximity of machine tools.
Always switch off the device and pull the mains plug when performing cleaning or main-
tenance work on the device or on the machine tool.
WARNING!
Machine tools must only be used with activated safety devices. Disconnect the lathe
whenever you detect a failure in the safety devices or when they are not fitted !
1.5 Possible dangers caused by the device
The operating safety of digital position display has been tested. It has been designed and built
using the latest technological advances.
Nonetheless, there remains a residual risk, since the device operates with electrical voltages
and currents.
We have used construction resources an d safety techniques to minimize the health risk to personnel resulting from this hazard.
Nonetheless, if the device is operated or maintained by personnel who are not duly qualified,
there may be a risk resulting from incorrect operation or improper maintenance.
1.6 Authorized personnel
The only personnel authorized to operate and maintain this machine are trained and instructed
technical staff working for the operator and manufacturer.
All personnel involved in assembly, commissioning, operation and maintenance need to be duly
qualified and follow this operating manual.
Page 6
Safety
OPTIMUM
MASCHINEN - GERMANY
15.6.11Page 6 Safety Digital position display DPA 200 0/ DPA 2000S ; Version 2.1.2
© 2011
GB
1.7 Additional qualification requirements
Work on electric components or equipment must only be carried out by qualified electricians.
1.8 Obligations of the operator
The operator must instruct the staff on all safety standards that apply to the device and to the
operation.
1.9 Obligations of the user
The user has to
read and understood the operating manual,
be familiar with all safety devices and regulations,
be capable of operating the device.
1.10 Safety during operation
Check the digital position display at least once per shift. Inform the pers on re spon sible im medi ately of any damage, defect or change in operating function.
WARNING!
Before activating the device, double-check that this will, even in combination with the
machine tool, not
• lead to any danger with respect to people,
• cause any damage to equipment.
Avoid any unsafe working practices:
Do not work on the device or the machine if your concentration is reduced, for example,
because you are taking medication.
Observe the rules for preventing accidents issued by your association for the prevention of
occupational accidents and safety at the workplace or other inspection authorities.
1.11 Safety during maintenance
Inform operators timely on maintenance and repair work.
Report all safety-relevant changes or performance details of th e device. Document a ll changes,
have the operating manual changed accordingly and train the machine oper ators.
1.11.1 Disconnecting and making it safe
Switch off the device before starting any maintenance or repair work.
Pull the mains plug.
Place a warning sign on the machine tool.
1.12 Accident report
Inform your superiors and Optimum Maschinen Germany GmbH immediately in the event of
accidents, possible sources of danger and any actions which almost led to an accident (near
misses) that are connected with the digital position display and the machine tool.
Page 7
OPTIMUM
MASCHINEN - GERMANY
Safety
15.6.11 Page 7Safety Digital position display DPA 2000/ DPA 2000S ; Version 2.1.2
© 2011
GB
1.13 General instruction
This manual explains the installation, the operation and the maintenance of the position display
DPA 2000S in detail, which is widely used as add-on to axis-driven machine tools.
1.13.1 Technical data
Mains voltage: AC 230V + - 10 %, 50 - 60Hz
Power consumption: about 5W , fuse 2A
Weight: about 2.5kg
Display: X, Y/Z
0
, Z-axis with 8-digit LED display each, at which the first figure stands for the
sign.
1.13.2 Working conditions
Avoid exposing the device direct solar radiation or high temperatures , and it should be used
in temperatures ranging from 0°C to 40°C;
Environment temperature for storage must be ranging from -30°C to 70°C;
Environmental relative humidity: <90% (at 20°C± 5°C);
Keep away from high voltage, strong electric current and strong magnetic field;
Signal cable of the grating should be far away from the power cable;
Avoid working in environments with scrap iron, oil, water, dust and strong vibration;
Do not expose the position display to corrosively acting chemicals and highly corrosive acids
or bases.
1.13.3 Precautions
When unpacking, perform a visual check if the positi on d isplay is in g ood orde r. If anything is
out of order, please immediately contact our company or the distributor . Do not dismantle
the device by yourself in order to repair it;
Please do not connect the position display to any readers of other trademarks, otherwise it
may cause display errors or damages on the position display;
Please do not open the cover of the position display, do not remove the reader before having
disconnected the whole measuring system;
Make sure that the position display is well grounded.
1.13.4 Regular maintenance
Switch off the power before cleaning the position display;
Polish the cover with soft and dry cloth;
Do not clean the cover using abrasive cleaning agents or agents which would change the
surface of plastic materials;
Clean the display window at the front side of the position display using an neutral and anti-
statically acting cleaning agent.
Page 8
The front panel and rear panel
OPTIMUM
MASCHINEN - GERMANY
15 / 06 / 2011Page 8 The front panel and rear panel Digital position display DPA 2000/ DPA 2000S ; Version 2.1.2
© 2011
GB
2 The front panel and rear panel
2.1 The front panel and a description of the keys
Abb.2-1: DPA 2000S front side
Page 9
OPTIMUM
MASCHINEN - GERMANY
The front panel and rear panel
15 / 06 / 2011 Page 9The front panel and rear panel Digital position display DPA 2000/ DPA 2000S ; Version 2.1.2
© 2011
GB
2.2 The rear panel
Abb.2-2: DPA 2000 rear side
Abb.2-3: DPA 2000S rear side
Power switch
Fuse
Power socket
Grounding screw
Interface for data transfer
Signal selection for grating input
Up: Sine 1Vpp signal
Down: TTL square wave signal
The setting is depending on the
type of the used measuring system.
Power switch
Fuse
Power socket
Grounding screw
Photo-elektrical input for schwitch
Transducer for signal input
Interface for data transfer
Page 10
The front panel and rear panel
OPTIMUM
MASCHINEN - GERMANY
15 / 06 / 2011Page 10 The front panel and rear panel Digital position display DPA 2000/ DPA 2000S ; Version 2. 1.2
© 2011
GB
2.3 Description of the keys
No. Sign on the key Name of the key Function description
1
the X-axis key
To select the X coordinate axis
(the indicator light is located on its left)
2
the Y-axis key
To select the Y coordinate axis
(the indicator light is located on its left)
3
the Z0/Y-axis key
(3 axes)
To select the Z0/Y-coordinate axis
(the indicator light is located on its left)
4
the Z axis key
(3 axes)
To select the Z coordinate axis
(the indicator light is located on its left)
5
Numeric keys For numeric entry
6
The decimal point/linear cut-
ting speed setting key
For decimal point input or linear cutting speed
setting
7
The plus and minus signs /
initial (max.) work piece
diameter setting
For input of plus and minus numbers or set-
ting of initial (max.) work piece diameter
8
Delete key
To clear displayed value of a specific axis or
give up the current operation
9
Enter key To confirm the data input
10
Radius/diameter conversion
key
Radius/Diameter conversion
(the indicator light is located above it)
11
The metric/inch conversion
key
Metric/Inch conversion
(the indicator light is located above it)
Page 11
OPTIMUM
MASCHINEN - GERMANY
The front panel and rear panel
15 / 06 / 2011 Page 11The front panel and rear panel Digital position display DPA 2000/ DPA 2000S ; Version 2.1.2
© 2011
GB
12
The grating reference mark
key
To put the grating to zero po si ti o n
(the indicator light is located above it)
13
The machining datum mark
setting key
For machining datum mark setting
(the indicator light is located above it)
14
The lathe/miller function swit-
ching key
For lathe/miller function switching
(the indicator light is located above it)
15
Z+Z0 key (3 axes) For display of the Z+Z0 value
16
Programming key For internal parameter settings
17
The calculator function key
Calculator functions
(the indicator light is located above it)
18
The addition / dividing hole
along oblique line key
The addition operation of the calculator or
dividing hole along oblique line
19
The subtraction / dividing
hole on the circle key
The subtraction operation of the calculator or
dividing hole on the circle
20
The multiplication /
machining along oblique line
key
The multiplication operation of the calculator
or machining along oblique line
21
The division / arc machining
key
The division operation of the calculator or arc
machining
22
The square root key The square root operation of the calculator
23
The cutter 1 key
To display the datum mark coordinates of
cutter 1 (the indicator light is located above it)
24
The cutter 2 key
To display the datum mark coordinates of
cutter 2 (the indicator light is located above it)
25
The cutter 3 key
To display the datum mark coordinates of
cutter 3 (the indicator light is located above it)
Page 12
The front panel and rear panel
OPTIMUM
MASCHINEN - GERMANY
15 / 06 / 2011Page 12 The front panel and rear panel Digital position display DPA 2000/ DPA 2000S ; Version 2. 1.2
© 2011
GB

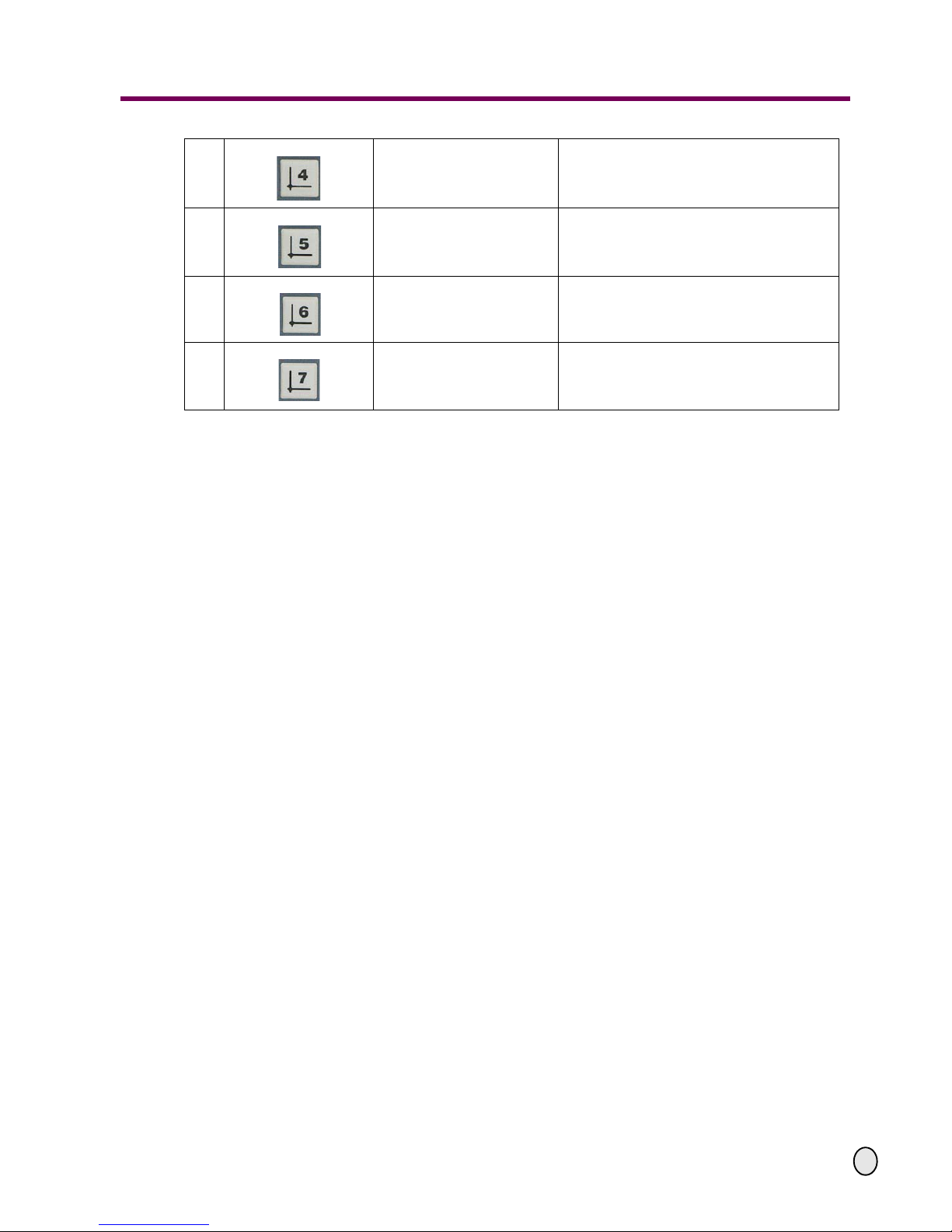

26
The cutter 4 key
To display the datum mark coordinates of
cutter 4 (the indicator light is located above it)
27
The cutter 5 key
To display the datum mark coordinates of
cutter 5 (the indicator light is located above it)
28
The cutter 6 key
To display the datum mark coordinates of
cutter 6 (the indicator light is located above it)
29
The cutter 7 key
To display the datum mark coordinates of
cutter 7 (the indicator light is located above it)
Page 13
OPTIMUM
MASCHINEN - GERMANY
The front panel and rear panel
15 / 06 / 2011 Page 13The front pa nel and rear panel Digital position display DPA 2000/ DP A 2000S ; Version 2.1.2
© 2011
GB

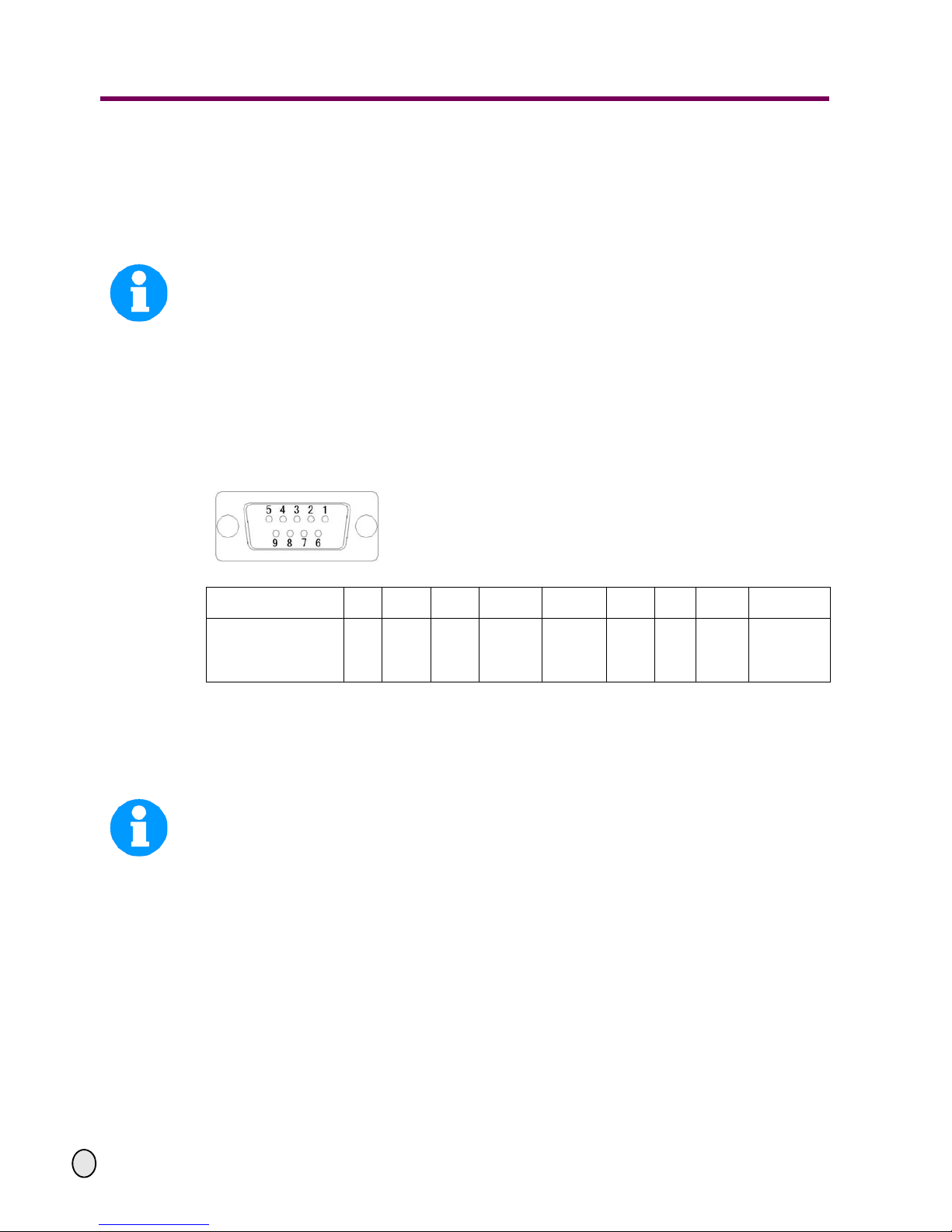

2.4 Measuring device - Pin Assignment at DPA 2000
The functional designation of the wires, that each pin at the 9-Pin-SubD-plug is allocated, must
have the same assignment as the connector at the dig ital display.
The assignment is shown in the following tables.
INFORMATION
The DPA 2000 is designated for the operation with measuring devices, that provides a
Sine 1Vpp output signal (= voltage between the upper and lower peak of the wave is 1 Volt).
NFORMATION
We are recommending the application of original OPTIMUM measuring gibs, because this will
ensure a quick and failure-free operation.
If it is indented to operate the digital display with measuring devices from other manufacturers,
pay attention that this measuring gib is providing an output signal from the type „Sine 1Vpp“ and
the pin assignment is consistent to the following table.
2.5 Measuring device - Pin Assignment at DPA 2000S
INFORMATION
The DPA 2000S is designated for the operation with measuring devices, that provides a
Sine 1Vpp output signal or a TTL square wave output signal.
NFORMATION
We are recommending the application of original measuring gibs and magnetic measuring systems from OPTIMUM, because this will ensure a quick and failure-free operation.
If it is indented to operate the digital display with measuring devices from other manufacturers,
pay attention that this measuring gib is providing one of the supported output signal types and
the pin assignment is consistent to the following table.
PIN No.
12 3 4 5 67 8 9
sine 1Vpp signal
for OPTIMUM mea-
suring gibs ML
0° 180° +5V 0V 90° 270° Z Blank Shielding
Page 14
The front panel and rear panel
OPTIMUM
MASCHINEN - GERMANY
15 / 06 / 2011Page 14 The front panel and rear panel Digital position display DPA 2000/ DPA 2000S ; Version 2. 1.2
© 2011
GB
2.6 Input/output connection
The meanings of the prong signal of a 15-pin D-type socket are listed in the following table:
PIN No.
12 3 4 5 67 8 9
sine 1Vpp signal
for OPTIMUM mea-
suring gibs ML
0° 180° +5V 0V 90° 270° Z Blank Shielding
TTL square wave
signal, for
OPTIMUM magnetic
measuring system
A+ A- +5V 0V B+ B- Z+ Z- Shielding
PIN
No.
Meaning Destination
1
Photoelectric switch
Plus
Tachometer photoelectric switch pulse output
2 +12V Tachometer photoelectric switch power supply Plus
3 Initial signal SIN External switch initial signal
5
Speed adjustment
output
ADJ
Transducer frequency setting terminal
6
Digital grounding
DGND
Tachometer photoelectric switch power supply Minus
External switch common cable
7
Low speed state
LIN
External switch low speed signal
9
Analog grounding
AGND Transducer analog signal common terminal
Page 15
OPTIMUM
MASCHINEN - GERMANY
The front panel and rear panel
15 / 06 / 2011 Page 15The front pa nel and rear panel Digital position display DPA 2000/ DP A 2000S ; Version 2.1.2
© 2011
GB
2.7 Available accessories (only for DPA 2000S)
Designation Item No.
Perforated disk for speed sensor,
lathes to including D360
3383926
Perforated disk for speed sensor,
lathes more largely D360
3383927
Magnetic tape MB 100 3383941
Read head activated 3383932
Page 16
Assembly and commissioning
OPTIMUM
MASCHINEN - GERMANY
15 / 06 / 2011Page 16 Assembly and commissioning Digital position display DPA 2000/ DPA 2000S ; Version 2.1.2
© 2011
GB
3 Assembly and commissioning
The digital position display DPA 2000S is preassembled.
INFORMATION
If you want to use the digital position display you need at least one measuring gauge. Measuring
gauges are not part of the delivery volume of the digital position display.
The position display DPA 2000S offers you the option to connect absolutely measuring as well
as incrementally measuring position sensors.
Only use original OPTIMUM path-measuring systems, since the position display is only adjusted to such path-measuring system and this way will guarantee a safe functioning.
3.1 Delivery volume
Upon delivery immediately check if the device had been damaged during transport. Compare
the delivery volume with the data on the delivery note.
3.2 Storage
CAUTION!
In case of improper storage it is possible that important components are being damaged
and destroyed.
Store the packed or a lready unpacked device only at dry environmental conditions at a
temperature from 0 °C to 40 °C.
If you need to store the device or any accessory parts for more than three months and under
other environmental conditions than those prescribed by this manual, contact the company
Optimum Maschinen Germany GmbH.
3.3 Adding the device
3.3.1 Requirements for the installation site
CAUTION!
When choosing the installation site , please take into account the length of t he connect ion
lines for the measuring gauges.
The installation site needs to be dry and vibration-free and comply with the ergonomic requirements of a working place. Observe the safety instructions for working nearby machine tools.
The working area for the operation, maintenance and repair works must not be hindered by
adding the position display.
3.3.2 Installing the device
The device needs to be positioned freely at an appropriate place or be mounted to a horizontal
subsurface or to a wall using the attached fixing material.
3.3.3 Assembling the measuring gauges
Measuring gauges are linear measuring systems which collect the position of mobile machine
parts via a sensor and forward them coded to the position display.
Page 17
OPTIMUM
MASCHINEN - GERMANY
Assembly and commissioning
15 / 06 / 2011 Page 17Assembly and commissioning Digital position display DPA 2000/ DPA 2000S ; Version 2.1.2
© 2011
GB
CAUTION!
Only use path-measuring systems recommended by OPTIMUM. When assembling the
path-measuring systems imperatively follow the instructions of the manufacturer.
Before mounting it on the machine, check the operability of the measuring gauges. To do so,
use the digital position display DPA 2000S or a similar device.
Install the measuring gauge in a way that it will not be damaged by cutting tools or coolants.
If required, mount a cover.
If possible, mount the enclosed measuring gauges with the sealing lips showing downward.
If possible, place the reading head stationary in order to avoid damages of the connection
lines by its movements.
CAUTION!
The path-measuring system and its add-on pieces can cover important components on the machine tool (e.g. lubricating nipples).
Before mounting the path-measuring systems, please note such limitations in functions and
make arrangements accordingly.
3.3.4 Assembly of the reading head
Mount a fixture for the reading head.
Fix the reading head to the fixture.
Remove possibly existing assembly aids from the reading head.
Check the orientation of the reading head using a dial gauge
(refer to the tolerances for the assembly given by the manufacturer).
Check if all components are moving freely.
3.4 Linking the position display to a frequency converter
The position display DPA 2000S is equipped with the function „cutting constant“ which allows to
influence the spindle speed of a lathe in a way that the same cutting speed will result at the working point of the tool independent from the workpiece radius.
To do so, the control of the DPA 2000S will directly influence the frequency converter (FC).
We mainly use frequency converters of the manufacturer LENZE for OPTIMUM lathes.
Therefore, we will explain the linking of the DPA 2000S to this frequecy converter in detail below.
3.4.1 System requirements:
To operate only using the function „cutting constant“ a frequency converter (FC) having an
analog input 0 V - 10 V DC is required.
For an operation using the function „cutting constant“ for remaining options of the manual speed
regulation, a frequency converter with two analog inputs is required:
0 V - 10 V DC for speed control via DPA 2000S (cutting constant control)
0 V - 05 V DC for speed control via the potentiometer
The following items are required in addition:
ON/OFF switch to switch over between the manual speed setting and the cutting constant
control
Page 18
Assembly and commissioning
OPTIMUM
MASCHINEN - GERMANY
15 / 06 / 2011Page 18 Assembly and commissioning Digital position display DPA 2000/ DPA 2000S ; Version 2.1.2
© 2011
GB
ON/OFF switch to switch over between the working ranges 1 and 2 for cutting consta nt opera-
tion (refer to commissioning)
Potentiometer for the manual speed setting (e.g. 1kΩ for frequency converters made by the
manufacturer LENZE)
Application module made by LENZE (type E 82 ZAFAC 001)
Perforated disk for the speed recording (with 8 holes for small and 16 holes for large lathe
chuck seats)
Fork light barrier for speed recording
Please refer to the current OPTIMUM main catalog for optional accessories.
3.4.2 Electrical connection:
The connection to the DPA 2000S is performed via the cable included in the delivery volume
using SubD plugs - 15 pins (refer to page 11 paragraph 2.5)
1. Connect the grey cable (1) from the SubD plug to the black cable of the fork light barrier.
2. Connect the brown cable (2) to the brown cable of the fork light barrier.
3. Connect the blue cable (6) to the blue cable of the fork light barrier.
4. Bridge over the green (3) and the blue cable (6).
5. Connect the red cable (5) to the frequency converter at the input for the control voltage
(0 V - 10 V)
6. Connect the yellow cable (7) via the switch (NO switch) to the blue cable (6).
7. Connect the white cable (9) for analog grounding GND to GND at the frequency converter
(for LENZE FU terminal 7).
Wiring diagram to connect the DPA 2000S on the following page
You need to set the maximum admissible speed of the lathe using the FC.
Danger!
Do not exceed the maximum speed of the clamping devices. You can only make sure the
limitation of the maximum speed by using the FC.
Set the frequency converter in a way that the maximum admissible speed of the clamping
device will not be exceeded for both working ranges of the DPA 2000S.
In order to achieve the maximum possible speeds for the „cutting constant control“ which is
resulting of the combination of your lathe with the position display it might be necessary to use
clamping devices of a higher maximum speed.
If it is required to change over to manual speed setting an allpication module with two analog
inputs will be additionally required. For programming data please refer to the attached manual.
Page 19
OPTIMUM
MASCHINEN - GERMANY
Assembly and commissioning
15 / 06 / 2011 Page 19Assembly and commissioning Digital position display DPA 2000/ DPA 2000S ; Version 2.1.2
© 2011
GB
Wiring diagram to connect the DPA 2000S
Page 20
Assembly and commissioning
OPTIMUM
MASCHINEN - GERMANY
15 / 06 / 2011Page 20 Assembly and commissioning Digital position display DPA 2000/ DPA 2000S ; Version 2.1.2
© 2011
GB
3.4.3 Programming the DPA 2000S
When using the function „cutting constant“ th e following settings of the parameters need to be
programmed:
(
„Internal parameter setting“ on page 5-36)
P19: Please enter the number of switchings on the fork light barrier per revolution (e. g.
perforated disk with 8 holes = 8 switchings)
P20: Enter the value „1“ (recommended)
NOTE:
The DPA 2000S supports two gear levels. Determine the two gear levels of your lathe in which
you want to use the cutting constant functions. All control values which you have set on the DPA
2000S are this way only referring to this gear level. For another gear level the modified transformation will lead to deviations between the target value and the actual value, in particular for
spindle speeds.
DANGER!
If the lathe is operated in another gear level, the admissible maximum speed can be
exceeded. This way, the retention force of the clamping devices will be reduced when the
centrifugal force is increasing. In doing so, the workpiece might get loose and fly off the
machine.
For your own safety use the cutting constant function only for the two selected gear
levels for which you have specified and entered the parameters.
To do so, determine the minimum and maximum speed of the selected gear levels.
Example:
Nominal speed of the gear level: 900 1/min
Set frequency range on the FC from 10 Hz to 50 Hz
Minimum speed for 10 Hz 180 1/min
Maximum speed for 50 Hz 900 1/min
P21: Enter the value of the maximum speed for the selected gear level 1.
P22: Enter the value of the minimum speed for the selected gear level 1.
P23: Enter the value of the maximum speed for the selected gear level 2.
P24: Enter the value of the minimum speed for the selected gear level 2.
When you have executed the above steps the commissioning of the DPA 2000S is terminated.
Switch over between the manual speed setting and the cutting constant control using the corresponding ON/OFF switch. The two switch settings need to be marked by the function markings
which are being switched.
Page 21
OPTIMUM
MASCHINEN - GERMANY
Assembly and commissioning
15 / 06 / 2011 Page 21Assembly and commissioning Digital position display DPA 2000/ DPA 2000S ; Version 2.1.2
© 2011
GB
3.5 First commissioning
WARNING!
When first commissioning the device by inexpert personal you will endanger persons or
the device.
We do not take any liability for damages caused by a commissioning which is not being
performed correctly.
3.5.1 Connecting the measuring gauges
The measuring gauges are firmly connected to the rear side of the device using couplings.
Slightly press the plug of the path-measuring system on the coupling.
In doing so, turn the plug until the inner guiding pin of the plug has cammed in the groove of
the coupling.
Firmly bolt the screw cap of the plug on the coupling.
3.5.2 Connecting the power supply
The device is connected using a power cable. The coupling for the power cable is at the rear
side of the device.
The plug of the power cable is provided for shock-proof sockets.
Please observe the technical indications regarding the electrical connection of the device.
„The rear panel“ on page 9
3.5.3 Switching on the device
The device will be switched on using the main switch at the rear side.
CAUTION!
Only switch on the device by using the main switch if the measuring gauges are con-
nected and the power cord is connected to the electrical power supply.
Page 22
Description of the basic operation
OPTIMUM
MASCHINEN - GERMANY
15 / 06 / 2011Page 22 Description of the basic operation Digital position display DPA 2000/ DPA 2000S ; Version 2.1.2
© 2011
GB
4 Description of the basic operation
Description:
Standard display mode:
Refers to the situation when only one display light on the left of the display window is
illuminated, all display lights on the right side of the display window are switched off and all axes
displays do not flash in their current position respectively the display lights beside the keys
, , and and the display light of the selected axes is illumiated.
4.1 Initiation
Function introduction: Switch on position display using the ON/OFF switch, the position display
will start the self-test mode and during this process the LED will show the following items:
A. The position display serial number;
B. Company name;
C. Software version;
After finishing the self-test, the position display
switches to the normal display mode.
While working normally, the position display will memorize:
A. The position of the position display when it had been
last switched off;
B. The selected coordinates and the selected cutter
when the position display had been last switched off;
C. The mm-/inch system the position display has used.
4.2 Deleting
Function introduction: When the position display is in the normal display mode, to delete the
value displayed on the coordinate axis.
Operation procedures:
Return to the normal display mode;
Press the key, select the X-axis, then press the
key, delete the X-axis;
Press the key, select the Y-axis, then press the
key, delete the Y-axis;
Press the key, select the Z0/Y-axis, then press the key, delete the Z0/Y-axis;
Press the key, select the Z-axis, then press the
key, delete the Z-axis.
Serial number
Software version
Company name
0000
0
0000
0000
Page 23
OPTIMUM
MASCHINEN - GERMANY
Description of the basic operation
15 / 06 / 2011 Page 23Description of the basic operation Digital position display DPA 2000/ DPA 2000S ; Version 2.1.2
© 2011
GB
Note: The position display cannot be deleted when another stat us is selected. You have to go
back to the normal display mode first.
4.3 Preset current coordinate value of the axis
Function introduction: When the position display is in the normal display mode, present the display value of the current position.
Example: Preset the current position of the X-axis as to -12.324.
Operation procedures:
Return to the normal display mode;
Press the key to select the X-axis (the indicator light beside the key is illuminated);
Input the keys;
Press the key and the X window will display -12.324, indicating that the operation had
been successful, and exit the preset operation automatically.
Note:
- During the process of entering numerals, the indicator light besides the key will
flash.
- During the process of entering value, you can press the key to cancel the operation.
- If the current positions of the Y or Z axes need to be preset, press the key ,
or in step (2).
Page 24
Description of the basic operation
OPTIMUM
MASCHINEN - GERMANY
15 / 06 / 2011Page 24 Description of the basic operation Digital position display DPA 2000/ DPA 2000S ; Version 2.1.2
© 2011
GB

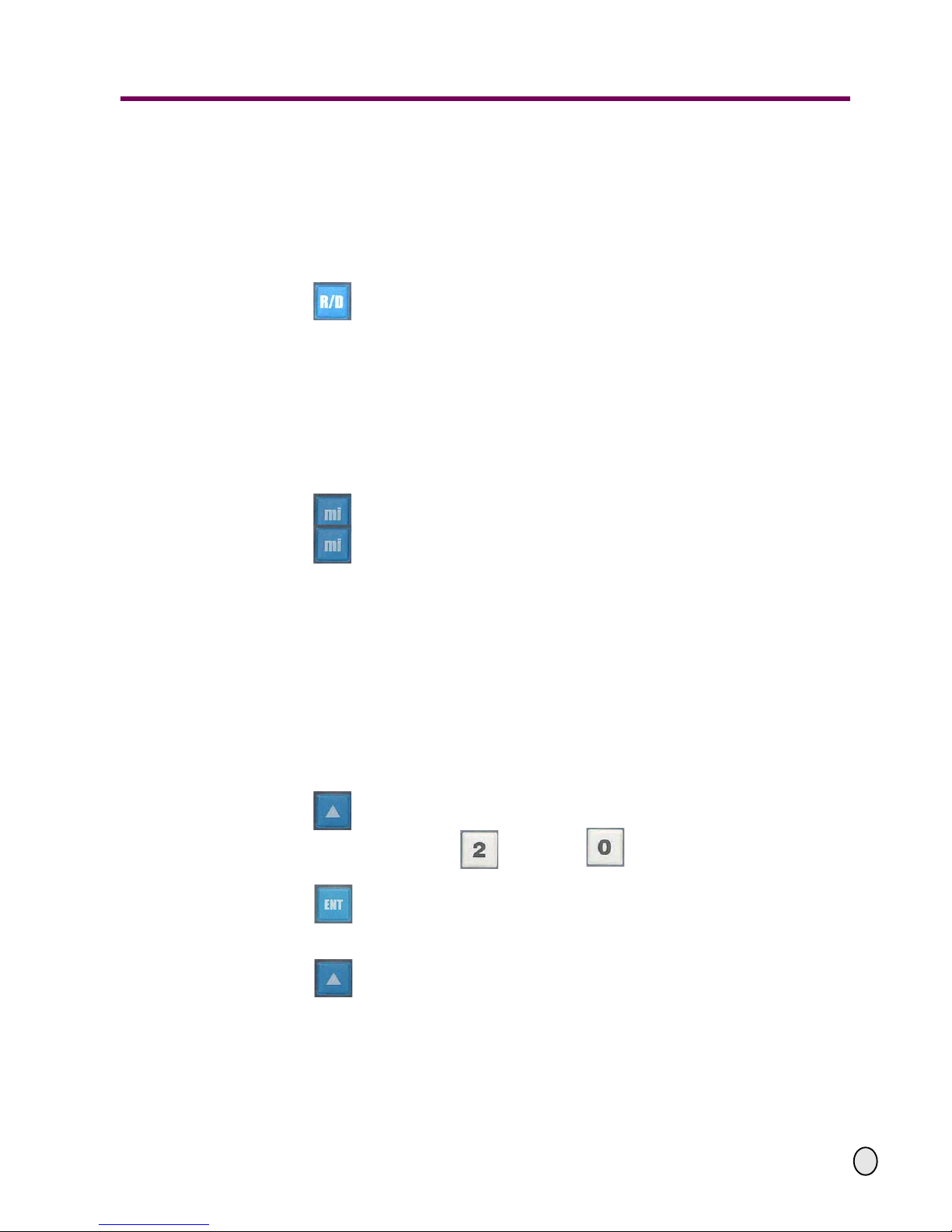

4.4 Radius/Diameter conversion of the X-axis
Function introduction: When the position display is switched to the standard display you can
change the radius/diameter conversion of the displayed value of the X-axis.
Example: Change the radius/diameter display of the X-axis.
Operation procedures:
Return to the standard display;
Press the key, if the R/D indicator light is illuminated, e.g. the value
displayed on the X-axis is the diameter; and if the R/D indicator light is off, e.g. the value displayed on the X-axis is the radius.
4.5 Switching the functions turning/milling
Function introduction: To switch the status of the machine tool.
Operation procedures:
Return to the standard display;
Press the key, the mi indicator light is illuminated. I.e. the function milling is activated;
Press the key again; the mi indicator light is off. I.e.the function turning is activated.
When the function turning is activated, the radius/diameter conversion function, the function
of displaying the Z+Z0 value on the Z-axis and the CSS function are available.
4.6 Setting machine datum of operation
Function introduction: To set the coordinates to the machining datum mark in order to set the
absolute measuring position to zero.
Example: Set the coordinates of the tool data on the X-axis to 20.00. (Admitting that the tool is
positioned at X=10’000 the display light of the X-axis is illuminated)
Operation procedures:
Return to the standard display;
Press the key, the corresponding indicator light flashes, the displayed value is zero;
Enter the value 20 using the key and the key ;
Press the key, the X-axis will display -10.000. Move the cutter change the display
value to 0.000;
Press the key and the indicator light will be off. The actual position which is now dis-
played for
the X-axis is 20.000.
Page 25
OPTIMUM
MASCHINEN - GERMANY
Description of the basic operation
15 / 06 / 2011 Page 25Description of the basic operation Digital position display DPA 2000/ DPA 2000S ; Version 2.1.2
© 2011
GB
4.7 Tool data function
Function introduction: The displayed values are all relative to the selected data. The use of the
data allows to establish a certain relationship between the grating displacement and the displayed value. It is possible to set 7 data for this type of position display.
Example: To set the datum mark coordinates for cutter 2 (X=1.000, Y=2.000)
Operation procedures:
Return to the standard display;
Press the key, select cutter 2 (the indicator light on the key is illuminated);
Press the key, recall the initial values of the two axes
(the indicator light on the key is illuminated);
Press the key, select the X- coordinates axis (the indicator light beside
the key is illuminated);
Input and ;
Press the key, select the Y-coordinates axis (the indicator light beside
the key is illuminated);
Input and ;
Now, the X-axis will display 1.000 and the Y-axis will display 2.000 .
Note: The memory function for the setting of the datum mark only works when the reference
mark status is activated on the position display and when it has undergone a power break.
4.8 Display Z+Z0 value (3-axes)
Function introduction: The Z-axis displays the Z+Z0 value.
Operation procedures:
Return to the standard display of the lathe function;
Press the key, the Z0-axis will display "- - - - - - - - " , the Z-axis will display the sum for
Z+Z0;
Press the key again, and the Z- and Z0-axes go to the standard display.
Page 26
Description of the basic operation
OPTIMUM
MASCHINEN - GERMANY
15 / 06 / 2011Page 26 Description of the basic operation Digital position display DPA 2000/ DPA 2000S ; Version 2.1.2
© 2011
GB

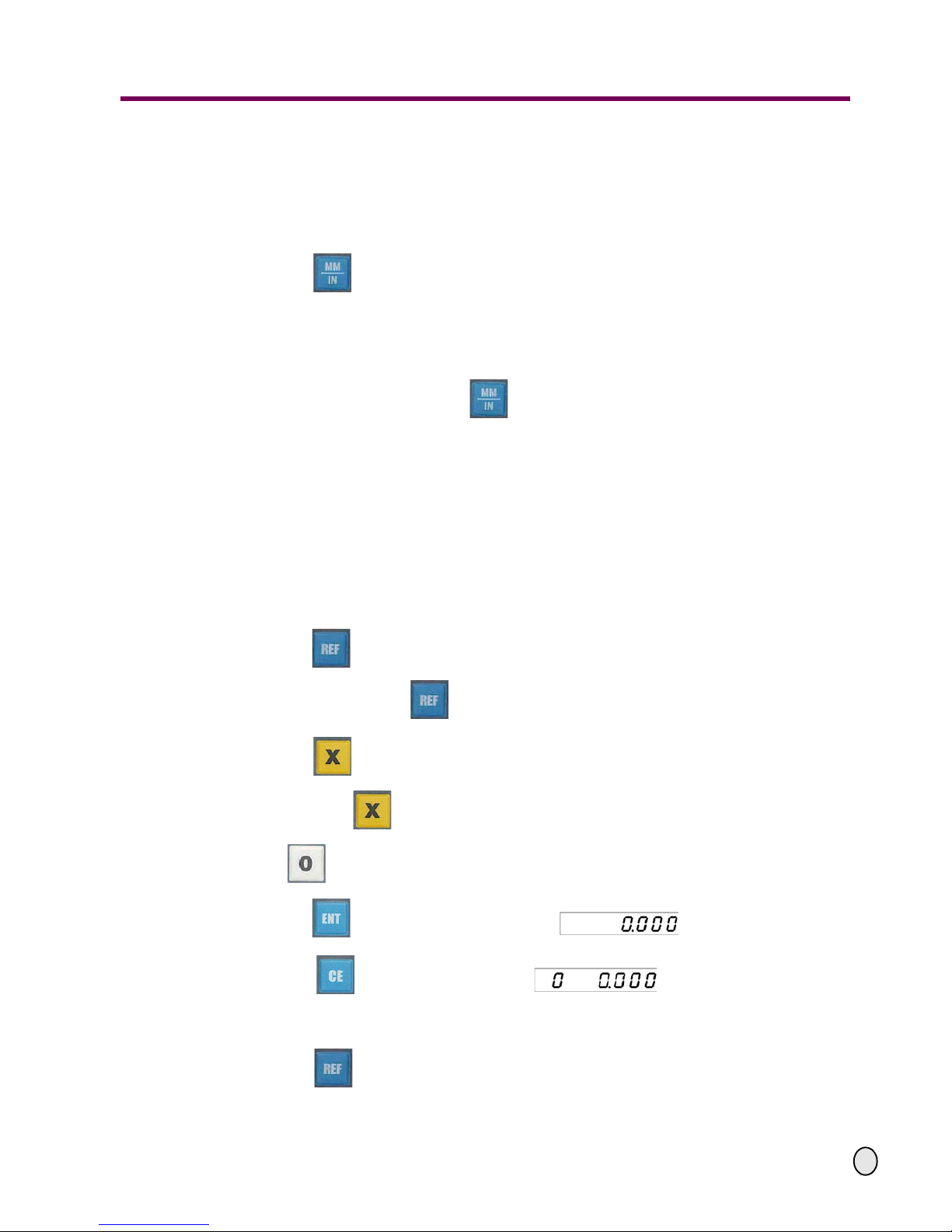

4.9 Metric/inch conversion
Function introduction: To switch the unit of the displayed measures between the metric system
(mm) and the British system (inch).
Operation procedures:
Return to the standard display;
Press the key to complete the change-over.
Note:
- When other modes are activated on the position display, you cannot change over. First
you have to return to the standard display.
- When the indicator light on the key is illuminated, i.e. the display measure unit
is inch, and the LEDs will display 5 decimal digits.
4.10 Function of the reference mark (zero position) of the reading device
Functional introduction: Start counting from the preset initial value when the reading device passes the reference mark of the reading device.
Example: In order to find out the reference mark of the reading device when the preset initial
value of the X-axis is 0.000.
Operating procedure:
Return to the standard display;
Press the key to find the initial values of the two axes
(the indicator light on the key is illuminated);
Press the key to select the X coordinate axis (the indicator
light beside the key is illuminated);
Enter ;
Press the key, and the X-axis will display ;
Press the key, the X-axis will display and it will stop;
Move the machine axis and therefore the length measuring device. When it passes the refe-
rence mark, it begins to count from the preset initial value 0.000;
Press the key, the REF indicator light turns off and the display returns
to the standard display.
Page 27
OPTIMUM
MASCHINEN - GERMANY
Description of the basic operation
15 / 06 / 2011 Page 27Description of the basic operation Digital position display DPA 2000/ DPA 2000S ; Version 2.1.2
© 2011
GB
Note:
- During the process of inputting numerals, the indicator light beside the key flashes;
- In order to perform the same function on the Y or Z and Z0 axes, repeat the same
procedures by pressing the or and keys respectively in step 2;
- If you do not need to change the initial values of the axis, then omit steps 4 and 5;
- By the above procedures, the reference mark position of the reading device can be taken
as the origin of the selected coordinates.
4.11 Calculator function
Operation procedures:
Press the key an d ente r th e ca lcula to r function. The „Calculation“
indicator light on the upper right flashes. Press the key again to exit the calculator
function.
In the calculator function status, you can enter operations such as addition, subtraction, mul-
tiplication, division, squaring root and numerals, and display the calculation results on the
display window at the upper right by pressing the keys from to
and respectively.
Transferring the calculation results:
By pressing any of the axes keys (the key, the key the key and the
key), you can transfer the value of the calculation result to the corresponding axis.
The following functions are performed when the position display is in the milling function (the
milling indicator light is illuminated) and the display is at the standard display.
4.12 Dividing hole along an oblique line function
Function introduction: To perform the dividing hole along an oblique line operation on the
selected coordinate layer.
A description for the parameters needs to be defined:
The angle of the oblique line (L-A): The inclination between the line segment to be divided
equally and the X-axis along the positive direction (on the X-Y plane, an inclination between
it and the Y-axis along the positive direction).
The length of the oblique line (L-d): The length of the line segment will be divided to equal
parts.
Number of holes to be divided (LNo. H): The number of points to divide the line segment to
equal parts, n points to divide the line segment into n-1 equal segments.
Page 28
Description of the basic operation
OPTIMUM
MASCHINEN - GERMANY
15 / 06 / 2011Page 28 Description of the basic operation Digital position display DPA 2000/ DPA 2000S ; Version 2.1.2
© 2011
GB

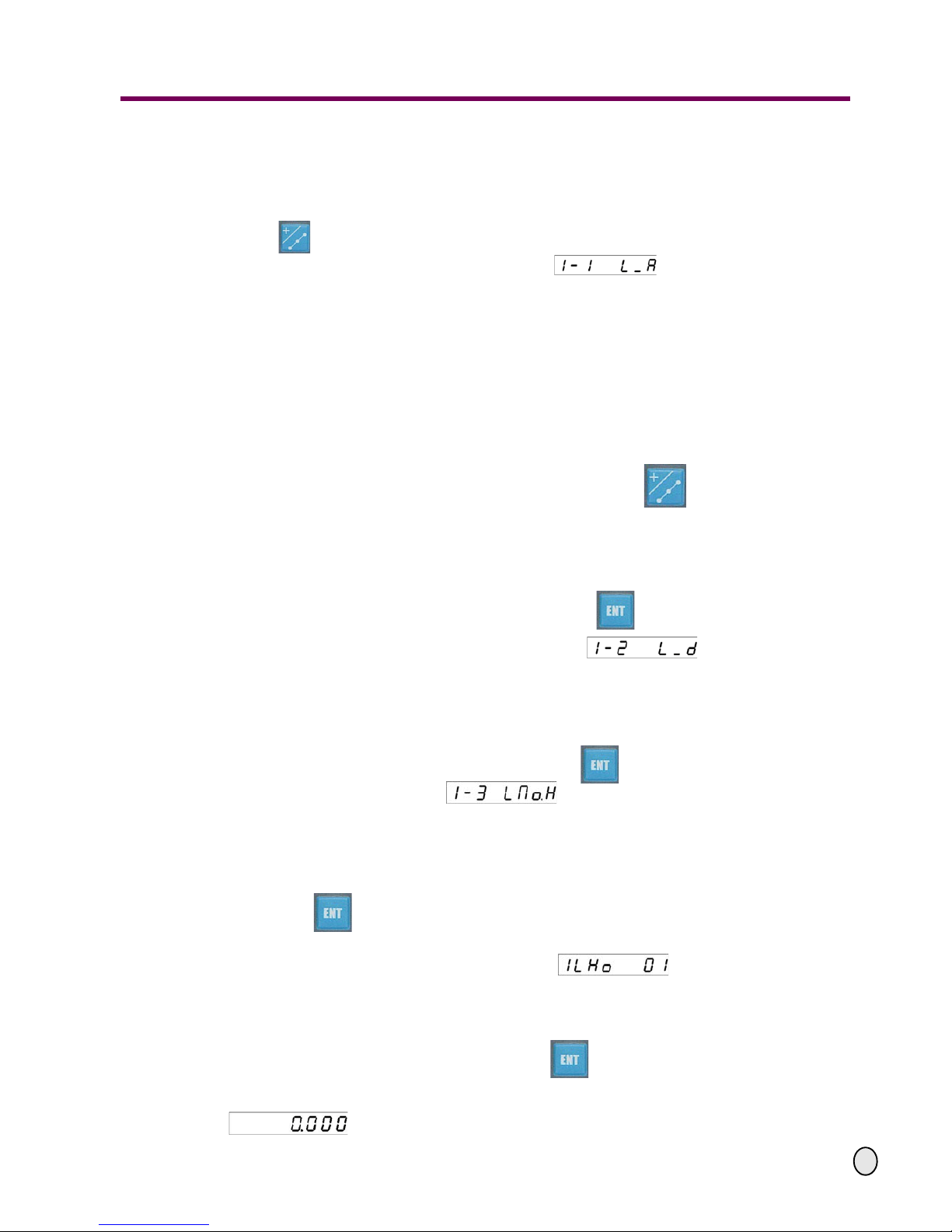

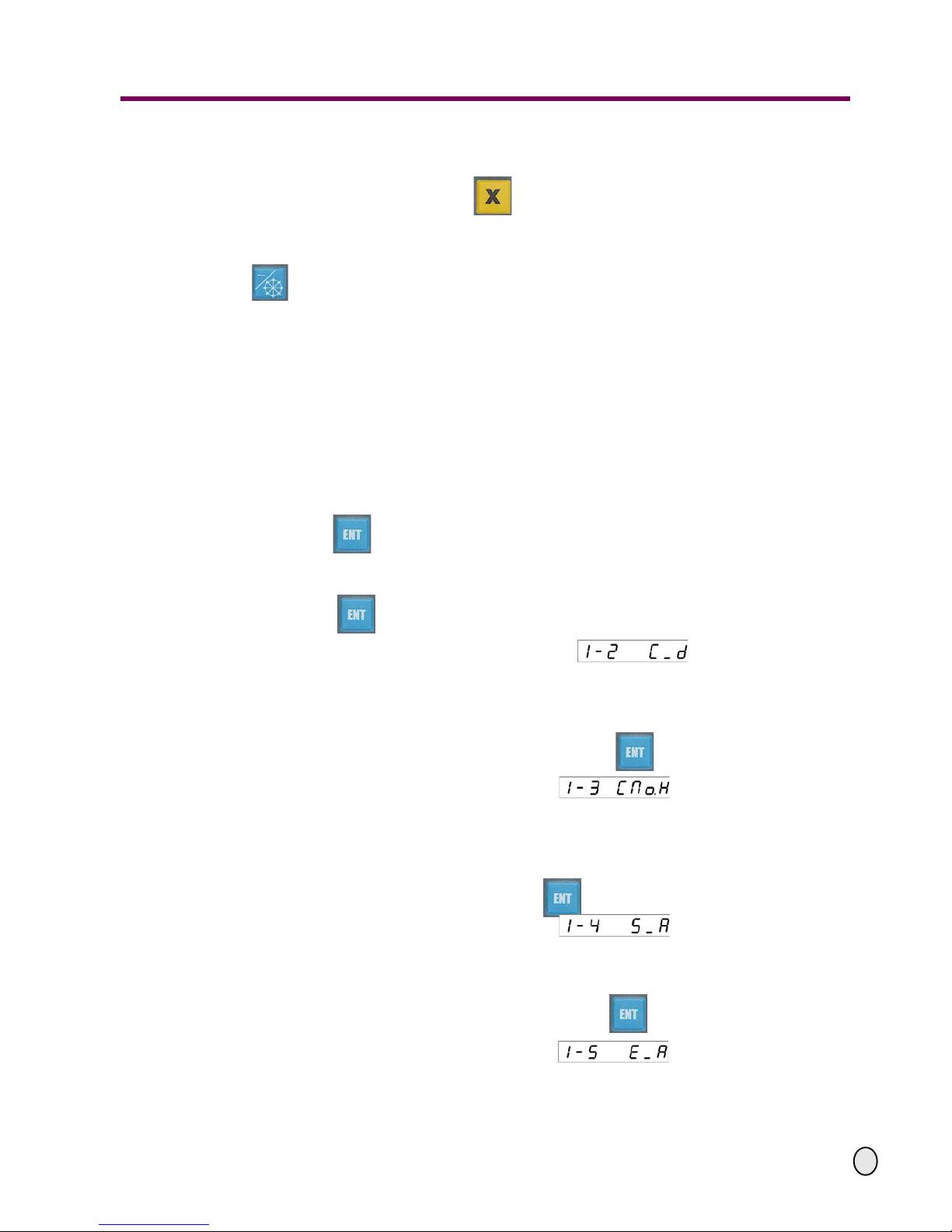

Operation procedures:
I. Parameter input:
Move the cutter of the machine tool to align the first poin t of the hole of the oblique line, press
the key and enter the dividing hole along an oblique line function.
The display screen on the upper right appears indicating that the angle of
the oblique line can now be entered. The furthest "1" to the left indicates the selected default
XY-coordinate layer .
The LEDs on the X-axis display the last value of the angle of the oblique line. The last entered value will be displayed on the LEDs for the Y-axis.
Note: While performing the functions of dividing hole along the oblique line, dividing hole on the
circle, machining along oblique line and the arc machining, the display screen on the upper right
always shows the selected coordinate plane by the furthest digit on the left:
1---the XY-plane, 2-the YZ-plane, 3-the XZ-plane.
We only take the XY-layer as an example to explain the operation procedures.
If you want to change the coordinate plane, just press the key several times, the
coordinate plane will change according to the following sequences:
- To change from the XY coordinate to the YZ coordinate layer;
- To change from the YZ coordinate plane to the XZ corrdinate layer;
- After exiting the dividing hole along the oblique line function, the digital display returns to
the standard display.
Enter the angle of the oblique line and then press the key to confirm your entry
The display screen on the upper right will change to indicating that you
can now enter the length on the oblique line.
The LEDs on the X-axis will display the previous value of length of the oblique line, and the
last entered value will be shown on the LEDs for the Y-axis.
Enter the length of the oblique line, and then press the key to confirm. The display screen
on the upper right will change to indicating that you can enter the number of
holes to be divided on the oblique line.
The LEDs on the X-axis will display the last value of the number of holes divided on the oblique
line, and the last entered value will be displayed on the LEDs for the Y-axis.
Enter the number of holes to be divided on the oblique line, and
press the key to confirm.
After having input all parameters, enter the status for automatic machining.
The display screen on the upper right will show indicating that the
sequence number of the hole being currently mach in ing is 01.
The two axes related to the selected coordinate layer will display the coordinate values relative to the position of the hole being currently machined. The other axis will display normally.
II. During the machining status, after pressing the key in order to select the number of the
hole,
you may move the machine tool until the two axes of the selected layer are all displayed
. And this is the position of the corresponding hole.
Page 29
OPTIMUM
MASCHINEN - GERMANY
Description of the basic operation
15 / 06 / 2011 Page 29Description of the basic operation Digital position display DPA 2000/ DPA 2000S ; Version 2.1.2
© 2011
GB

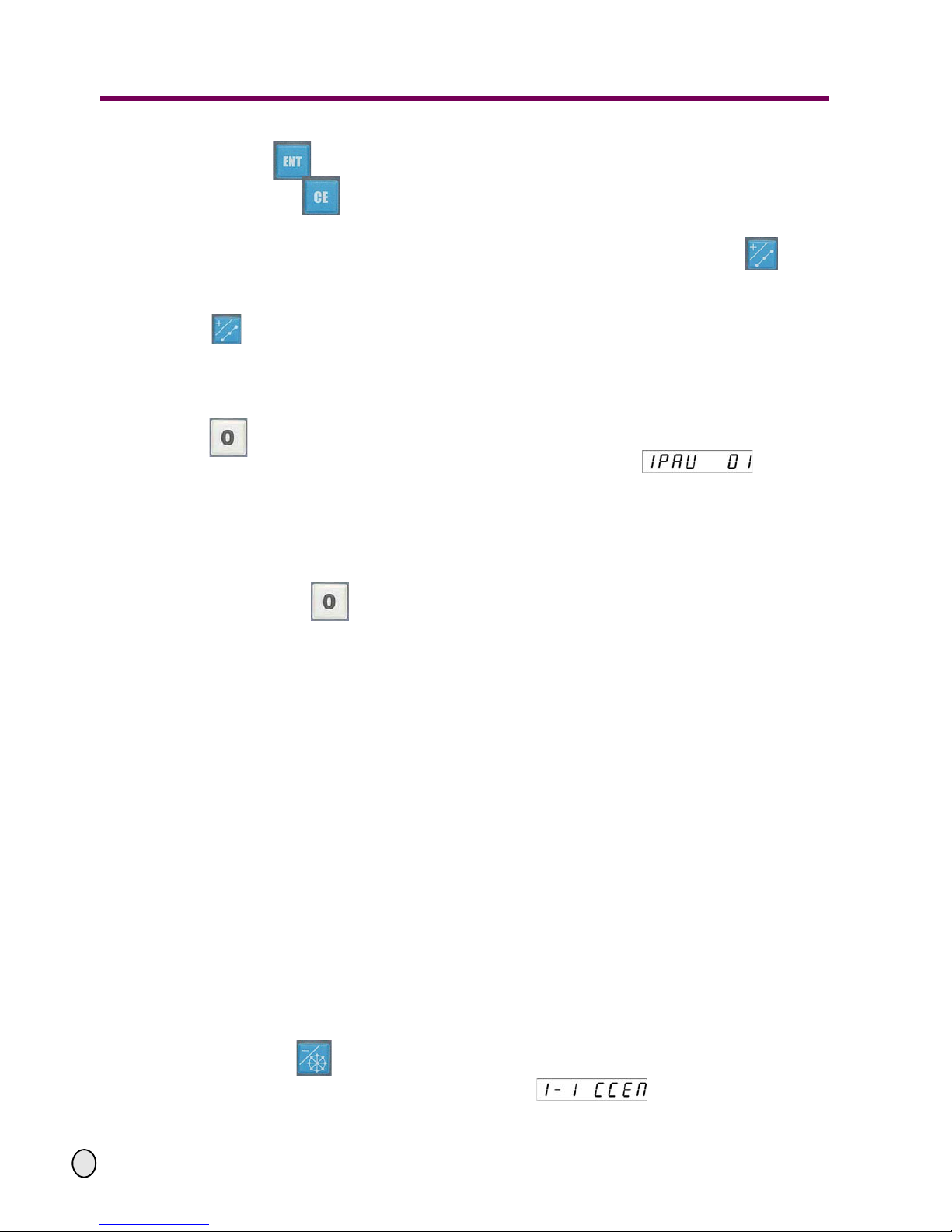

Press the key to select the next hole and the sequence number of the hole ascends.
Press the key , in order to return to the position of the previous hole and the sequence
number will be reduced by one counter number.
III. After completing the dividing hole along the oblique line machining, press the key to
return to the standard display.
While in the dividing hole along the oblique line machining status, by pressing the
key you can interrupt the function and return to the normal display except for the cases
stated above.
Note: While using the functions dividing hole along the oblique line, dividing hole on the circle,
machining along oblique line and the arc machining, by pressing the
key you may temporarily leave this state and go back to the normal coordinate display .
In doing so, the display screen on the upper right will indicate and flash,
indicating that you have come to a break in machining.
Using the functions of dividing hole along the oblique line and dividing hole on the circle, the
number on the right of the display screen is the sequence number of the hole when you came to
a halt just now; in the state of machining alon g t he ob liq ue line, this number is the angle value of
the oblique line; using the function of arc machining, this number is the sequence number of the
machining point.
By pressing the key again, you may go back to the dividing hole along
the oblique line state, and proceed with the machining process.
4.13 Dividing hole on the circle function
Function introduction: Dividing hole on the circle of the selected coordinated plane. The
explanation for the parameters need to be defined:
- Position of center of a circle (CCEN): I.e. the position of arc center relative to the cutter
center in a cutter releasing position.
- Diameter of the circle (C _ d): The diameter of the arc to be equally divided.
- The number of holes to be divided (CNo.H): The number of points to equally divide the
arc. A number of points (n) subdivides the sector of the arc equally in to (n-1) segments.
- Starting point angle (S _ A): Angle of the starting point of the arc to be equally divided .
- Ending point angle (E _ A): Angle of the endingpoint of the arc to be equally divided .
- The starting point and ending point angles of the arc all calculated in counterclockwise
direction. On the XY or XZ layers, positive direction of the X axis is taken as the direction
of 0 degree and the positive direction of another a xis t a ken as th e direction of 90 degr ees.
On the YZ plane, positive direction of the Y axis is taken as the direction of 0 deg re e,
positive direction of the Z axis taken as the direction of 90 degrees.
Operation procedures:
I. Parameter input:
Press the key to enter the dividing hole on the circle function;
The display screen on the upper right will show indicating that you can
enter the coordinates of the position of the center. The XY coordinate layer is the default
layer. The position of the current coordinate is taken as the default center coordinates and
Page 30
Description of the basic operation
OPTIMUM
MASCHINEN - GERMANY
15 / 06 / 2011Page 30 Description of the basic operation Digital position display DPA 2000/ DPA 2000S ; Version 2.1.2
© 2011
GB
displayed on the corresponding coordinate axis. The axes which do not associate with the
selected coordinate layer will not be displayed.
The indicator light to the left of the key is illuminated, indicating that the X-axis is the
default axis.
If you want to change the coordinate layer, just press the
key several times, the coordinate plane will change according to the following
sequences:
To change from the XY coordinate layer into the YZ coordinate;
To change from the YZ coordinate layer into the XZ coordinate layer;
After quitting the dividing hole on the circle function, the position display resumes the
standard display.
Entering the position of the center of the circle:
- Select coordinate axis and the indicator light of this axis is illuminated;
- Enter a new coordinate value;
- Press the key to confirm the value;
- Repeat the above three ste ps to finish enter ing the tw o coo r din at es for th e cen te r;
- Press the key to prepare the entry of the following parameter.
The display screen on the upper right will show indicating that you may
now enter the diameter value.
The LEDs on the X-axis will display the diameter value of the last input. The last entered value
will be displayed on the LEDs on the Y-axis.
Enter the diameter value of the circle and then press the key to confirm the value.
The display screen on the upper right will show indicating that you can
enter the number of holes to be divided now.
The LEDs on the X-axis will display the last entered number of holes divided. The last entered value will be displayed on the LEDs on the Y-axis.
Enter the number of divided holes. Press the key to confirm the entry.
The display screen on the upper right will show indicating that you may
now start entering the value of the starting point angle.
The LEDs on the X-axis will display the value of the starting point angle of the last entry. The
last entered value will be displayed on the LEDs on the Y-axis.
Enter the value of the starting point angle and press the key to confirm the value.
The display screen on the upper right will show indicating that you may
enter the value of the end point angle.
The LEDs on the X-axis will display the last entered value of the end point angle. The last
entered value will be displayed on the LEDs on the Y-axis.
Page 31
OPTIMUM
MASCHINEN - GERMANY
Description of the basic operation
15 / 06 / 2011 Page 31Description of the basic operation Digital position display DPA 2000/ DPA 2000S ; Version 2.1.2
© 2011
GB
Enter the value of the end point angle and press the key to confirm the value.
After completing the entry of the parameters, it will switch to the function automatic
machining. The display screen on the upper right will show indicating that
the sequence number of the hole being machining currently is 01.
The two axes related to the selected coordinate layer will display the coordinate values relative to the position of the hole being machined currently. The other axis will be displayed normally.
II.While in the dividing hole on the circle machining state, afte r pressing the key to
select the number of the hole, you may move the machine tool until the
X and Y axes display . This is the position of the hole on the circle.
Press the key to select the next hole and the sequence number of the hole ascends.
When the entered sequence number of the hole is the same as the entered number of the
divided holes, press the key to return to the No. 01 hole.
Press the key to return to the position of the preceding hole and the sequence number
of the hole descends. When the entered number of the hole switches over to 01, press the
key again to return to the position of the last hole.
III. After completing the dividing hole on the cir cle machinin g, press the key to return to
the standard display.
If it is in the dividing hole on the circle state, press the
key to interrupt the function and to return to the standard display except for the cases mentioned
above.
4.14 Machining along the oblique line function
Function introduction: To perform the inclined line machining operation on the selected
coordinate layer and can be used in machining inclined slots or inclined layers.
A description to the parameter needs to be defined:
- Inclined angle of the inclined line (CL-A): The inclination between the inclined line
segment to be machined and the X-axis along the positive direction (on the YZ layer an
inclination between the layer and the Y-axis along th e po sitiv e dir ec tion ) .
Operation procedures:
I. Parameter entry:
Move the cutter of the machine tool to align the first point of the inclined line to be machined,
press the key and enter machi ning function for the inclined line. The display screen
on the upper right appears indicating that the angle o f the in clined line can
now be entered.
The X-Y coordinate layer is the default layer.
The LEDs on the X-axis display the last value of the angle of the inclined line. The last entered value will be displayed on the LEDs on the Y-axis.
Page 32
Description of the basic operation
OPTIMUM
MASCHINEN - GERMANY
15 / 06 / 2011Page 32 Description of the basic operation Digital position display DPA 2000/ DPA 2000S ; Version 2.1.2
© 2011
GB
If you want to change the coordinate layer, just press the key several times, the
coordinate layer will change according to the following sequences:
- To change from the XY coordinate layer into the YZ coordinate layer;
- To change from the YZ coordinate layer into the XZ coordinate layer;
- After quitting the inclined line machining function, the position display will go back to the
standard display.
- Enter the angle of the inclined line, then press the key to confirm the value.
If the entered value of the angle is feasible, it will go to the function automatic machining.
The display screen on the upper right will show in which the „30.00" to
the right is the angle value of the inclined line (one decimal fraction is reserved);
The first axis of the two axes associated with the selected coordinate layer will display the
coordinate value relative to the current position. The left second digit of the second axis
will display "A", and the right side will display the inclination value relative to the inclined
line. When this value is zero, then the cutter is being machined on the inclined line. The
remaining axis which does not concern to the selected coordinate layer will be displayed
normally.
If the entered value of the angle equals to 0°, 90° or their integer-multiples, then the entry
will be ineffective. Now you have to enter the correct value of the angle again.
II. In the machining function, the operator may modify the first axis, the value displayed by the
first axis on the digital display will change accordingly. The operator may use his other hand to
modify the second axis to ensure that the value displayed by the digital display second axis (i.e.
the value after „A") to approach zero so that the cutter will move along the inclined line determined by the entered angle.
III. After finishing the inclined line machining, press the key to return to standard display.
In the inclined line machining state, this function will be interrupted by pressing the key
and you will go back to standard display except for the cases described above.
4.15 Arc machining function
Function introduction: To carry out the arc machining operation on the selected co ordina te layer.
A description of the parameters needs to be defined:
- Center position (ACEN): I.e. the position of the arc center relative to the cutter center
when it is being aligned and released.
- Arc radius (SE-d): The radius of the arc to be machined.
- Outer/inner arc (OU-S): To point out the arc to be machined is an outer or inner arc.
- Cutter diameter (CU-D): The diameter of the cutter used to machine the arc.
- Starting point position (S Po): Coordinates of the starting point of the arc to be machined.
- Ending point position (E Po): Coordinates of the ending point of the arc to be machined.
- Maximum cutting volume (CUT): Maximum cutting volume of each machining.
Operation procedures:
I. Parameter entry:
Press the key by which you can enter the arc processing function and the display at
the top right shows and indicates that you can enter the coordinates of the
center. The XY coordinate layer is the default layer. The position of the current coordinates is
taken as the default center coordinates and will be displayed on the corresponding
coordinate axis. The axes that do not associate with the selected coordinate layer will not be
displayed.

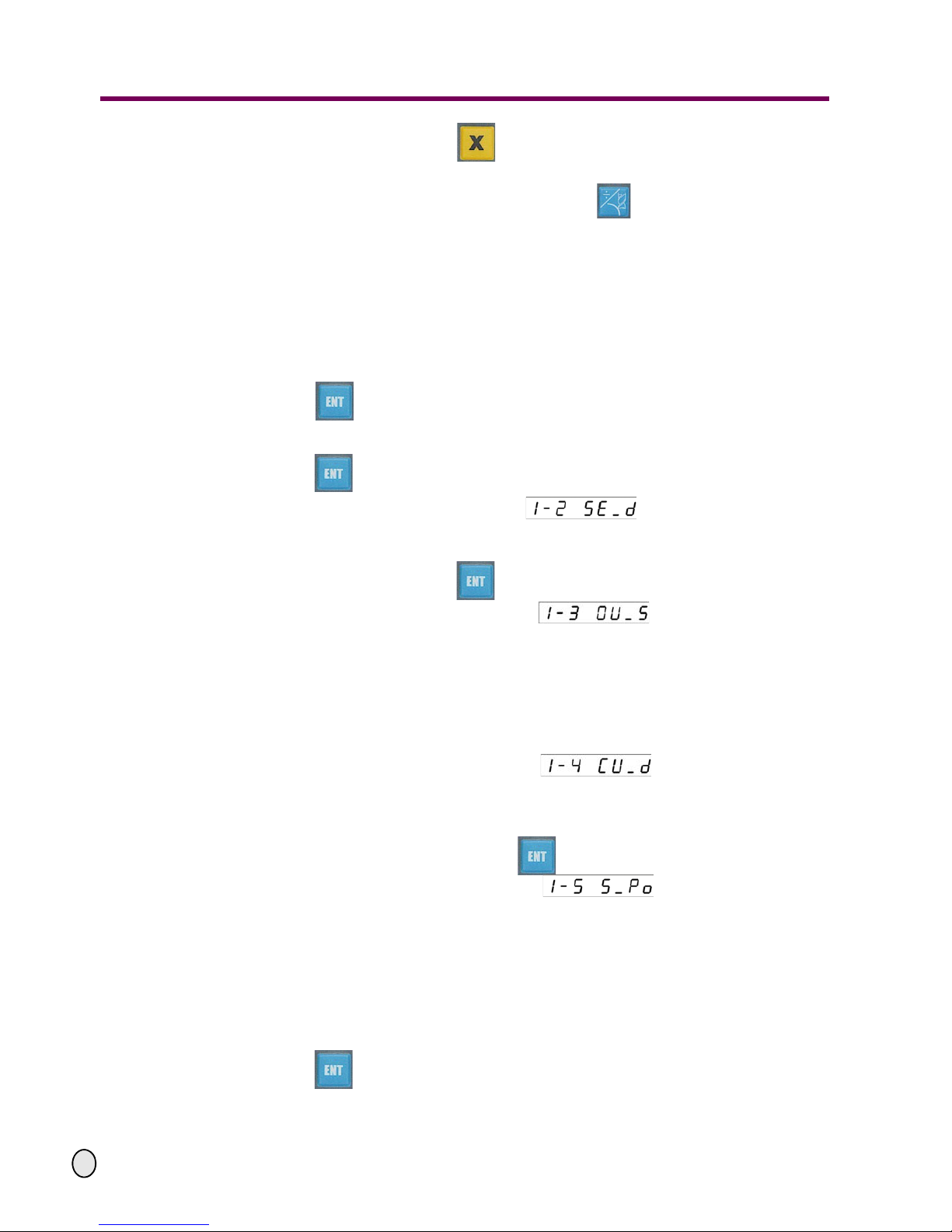

Page 33
OPTIMUM
MASCHINEN - GERMANY
Description of the basic operation
15 / 06 / 2011 Page 33Description of the basic operation Digital position display DPA 2000/ DPA 2000S ; Version 2.1.2
© 2011
GB
The indicator light on the left of the key is illuminated and the X-axis is the default
axis.
If you want to change the coordinate layer , just press the key several times, the
coordinate layer will change according to the following sequences
- To change from the XY coordinate layer into the YZ coordinate layer;
- To change from the YZ coordinate layer into the XZ coordinate layer;
- After quitting the arc machining function, the position display will go back to the standard
display.
Input the position of the center:
- Select coordinate axis and the indicator light of this axis is illuminated;
- Enter new coordinate values;
- Press the key to confirm;
- Repeat the above three steps to finish the entry of the two coordinates for the center;
- Press the key to prepare the entry for the following parameter.
The display screen on the upper right will show indicating that you may now
enter the radius value of the arc.
The LEDs on the X-axis will display the last entered radius value of the arc. The last entered
input value will be displayed on the LEDs on the Y-axis.
Enter the arc radius and press the key to confirm.
The display screen on the upper right will show indicating that you may
now select the machining of inner or outer arc.
The LEDs on the X-axis will display the last entered function. The last entered function will be
displayed on the LEDs on the Y-axis, with "0" represents inner arc machining and "1" the
outer arc machining.
Select machining outer arc (input "0") or inner arc (input numera ls other than zero) then
press the ENT key to confirm.
The display screen on the upper right will show indicating that you may
now enter the cutter diameter.
The LEDs on the X-axis will display the last input value of cutter diameter. The last entered
value will be displayed on the LEDs on the Y-axis.
Input the cutter diameter and then press the key to confirm.
The display screen on the upper right will show indicating that you may
enter the position of the starting point.
The two axes related to the selected coordinate layer will display the last entered coordinates
of the starting point position. The other axis which does not concern the selected coordinate
layer will not display anything.
Enter the position of the starting point:
- Select coordinate axis and the indicator light of this axis is illuminated;
- Enter new coordinate value;
- Press the key to confirm;
- Repeat the above three steps to finish the entry of the two coordinates for the starting
point;

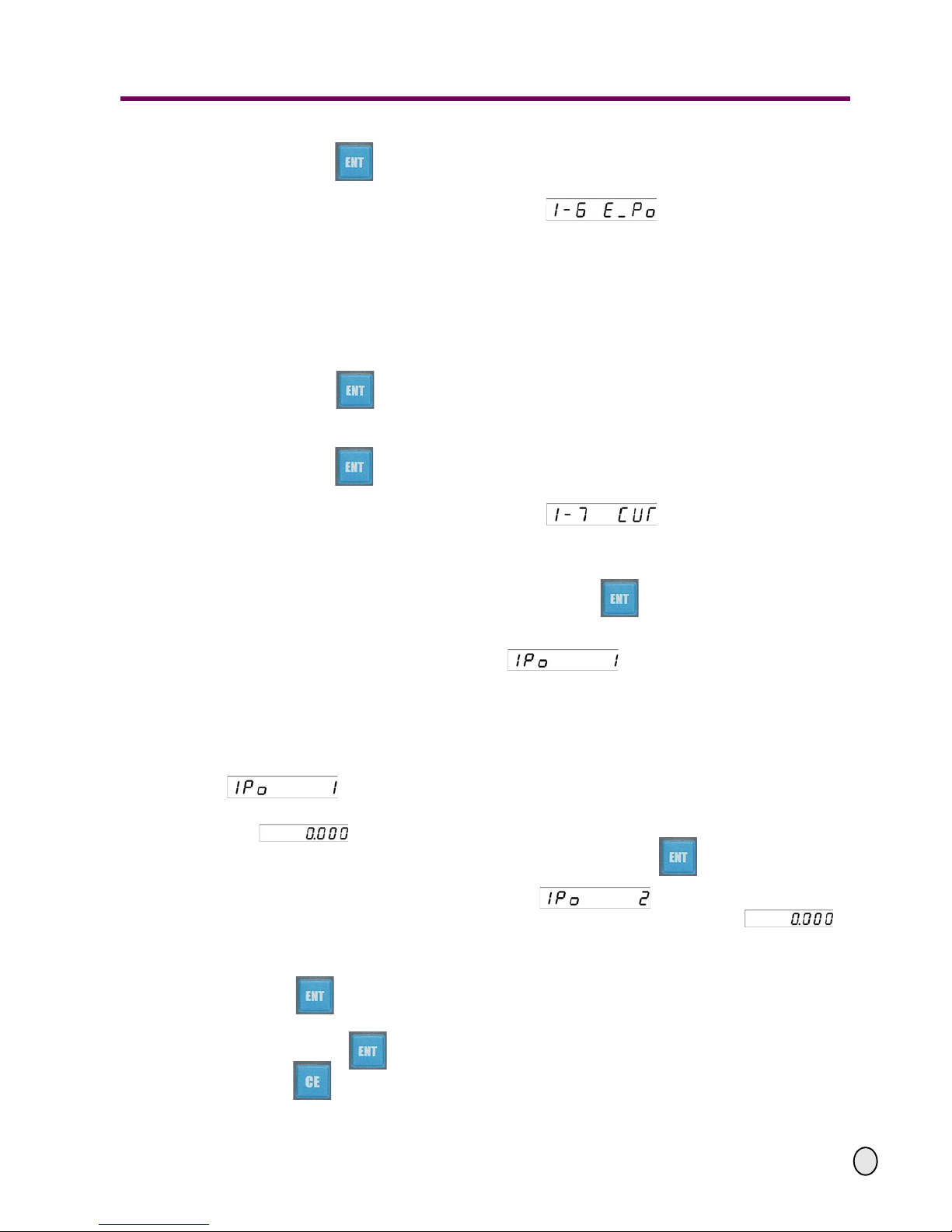

Page 34
Description of the basic operation
OPTIMUM
MASCHINEN - GERMANY
15 / 06 / 2011Page 34 Description of the basic operation Digital position display DPA 2000/ DPA 2000S ; Version 2.1.2
© 2011
GB
- Press the key to prepare the entry of the following parameter.
The display screen on the upper right will show indicating that you may now
enter the position of the ending point.
The two axes related to the selected coordinate layer will display the last entered coordinates of
the ending point position. The other axis that has no co ncern with the selected coordin ate layer
will not display anything.
Enter the position of the end point:
- Select coordinate axis and the indicator light of this axis is illuminated;
- Enter new coordinate value;
- Press the key to confirm;
- Repeat the above three steps to finish the input of the two coordinates for the end point;
- Press the key to prepare the entry of the following parameter.
The display screen on the upper right will show indicating that you may now
enter the maximum cutting volume.
The LEDs on the X-axis will display the last entered cutting volume and the last entered value
will be displayed on the LEDs on the Y-axis.
Enter the maximum cutting volume and then press the key to confirm.
After completing the entry of parameters, it will go back to the function automatic machining. The
display screen on the upper right will show indicating that the sequence
number of the point being machined currently is No. 1.
The two axes related to the selected coordinate layer will display the coordinate values relative
to the position of the point being machined currently. The other axis will display normally.
II.After entering the function arc machining, the display screen on the upper right will show
.
Move the machining tool so that the LEDs on the two axes of the selected coordinate layer display .
After completing the machining on this point of the arc, press the key to select the following machining point.
The display screen on the upper right will show . Then move the machine tool
again so that the LEDs on the two axes of the selected coordinate layer display .
Then complete the machining on this point of the arc. Repeat the above procedures until
completing the machining of the whole arc.
Press the key to select the next point and the sequence number will ascend. When the
sequence number of the point equals to the calculated maximum point number (the last point on
the arc), press the key to select point 1 again.
Press the key to return to the position of the preceding point, and the sequence number
of the point will descend.
Page 35
OPTIMUM
MASCHINEN - GERMANY
Description of the basic operation
15 / 06 / 2011 Page 35Description of the basic operation Digital position display DPA 2000/ DPA 2000S ; Version 2.1.2
© 2011
GB
When the sequence number of the point equals to 1, press the key to return to the position of the last point on the arc.
III. After completing the arc machining, press the key to return to the standard display.
While the function arc machining, the function can be interrupted by pressing the key and
return to the standard display except for the cases stated above.
Page 36
Internal parameter setting
OPTIMUM
MASCHINEN - GERMANY
15.6.11Page 36 Internal parameter setting Digital position display DPA 2000/ DPA 2000S ; Version 2.1.2
© 2011
GB
5 Internal parameter setting
5.1 Programming function
Function introduction: To set the counting direction, linear error compensation coefficient and the
resolution of the axes.
Operation procedures:
Return to the standard display;
Press the key for 5 seconds until the X-axis displays "P-10", which indicates
that it has switched to the programming mode. Now the Z-axis (the Y-axis for 2-axes position
display) displays "0", which means that it is in the counting direction setting mode currently.
Press the numeral keys, the key and the key to input new programming
values (= parameters). If there is no change for the indicated parameter, you can skip this
step;
Press the key to switch over to the following parameter. by pressing this key, the pre-
vious parameter value respectively its modification will be confirmed at the same time. After
the first switching over the X-axes value "P-11" would be displayed. The Z-axis (respectively
the Y-axis for the 2-axes position display) will indicate the following programming value which
had been assigned to the parameter „P-11“.
Repeat the above steps and enter all the programming values in sequence.
Note:
- Press the key at any time to exit the programming mode.
- During the parameter entry processes, you may press the key to cancel the entry.
The meanings of the parameters and adjustments:
Parameter Specification Value
7 X axis display accuracy 50
8Z
0
axis display accuracy 50
9 Z axis display accuracy 50
10 the counting direction of the X -axis 0/1
11
the counting direction of the Z0-axis (respectively of the Y-axis for the 2-
axes position display)
0
12 the counting direction of the Z-axis 1
INFORMATION!
The counting directions can be set as "0" or "1", the first value represent s the positive co unting
whereas the last values represents the negative counting.
13 the counting resolution of the X-axis 50

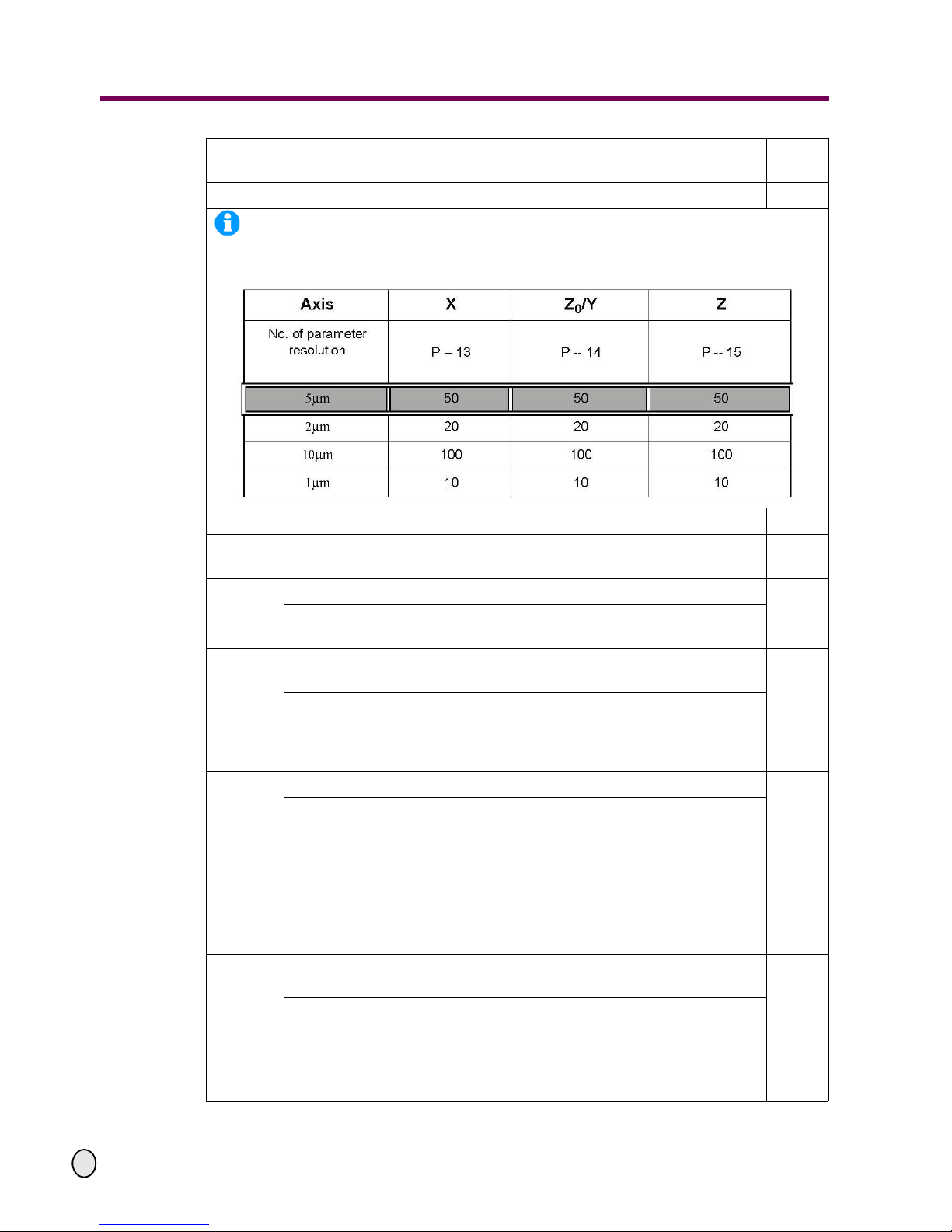

Page 37
OPTIMUM
MASCHINEN - GERMANY
Internal parameter setting
15.6.11 Page 37Internal parameter setting Digital position display DPA 2000/ DPA 2000S ; Version 2.1.2
© 2011
GB
14
the counting resolution of the Z0-axis (respectively of the Y-axis for the 2-
axes position display)
50
15 the counting resolution of the Z-axis 50
INFORMATION!
The unit of set resolution value is 0.1 mm. The following table is the correspo nding relationsh ip
between the resolution and the set value in common use:
16 the linear error compensation coefficient of the X-axis 0
17
the linear error compensation coefficient of the Z0-axis (the linear er ror
compensation coefficient of the Y-axis for 2-axes position display)
0
18
the linear error compensation coefficient of the Z-axis
0
The value range of the linear error compensation coefficient r anges from
-9.999 to 9.999 mm, denoting the modified value per meter.
19
the set value of the pulse number per revolution of the revolution speed
signal
12/24
The pulse number per revolution of the revolution speed signal is
depending on the output pulse number per revolution of the transducer
used. The greater this value is, the higher will be the resolution of the
revolution speed. The range of value setting: 1 to 3600.
20
the set value of the time for speed measurement
1-10
The unit of the time for speed measurement is 0.1 second. The
maximum set value can be 10 (i.e. 1 second) and the minimum set value
can be 1 (i.e. 0.1 second). The greater this value is, the higher will be the
resolution of the revolution speed and the slower will be updated this
value.
The displayed resolution of the revolution speed (R.P.M.) = 600/ the
pulse number per revolution the set value of the time for speed measurement.
21
the set value of the upper limit of the principal axis low gear speed (top
gear)
2000
The unit of the principal axis revolution speed is revolutions per minute
(R.P.M.). The maximum set value amount to 3.000 and the minimum set
value amount to 30.
When the external switch low speed signal is effective, the D/A will output the principal axis speed corresponding to 10 V , 10 V = max. rpm.
Page 38
Internal parameter setting
OPTIMUM
MASCHINEN - GERMANY
15.6.11Page 38 Internal parameter setting Digital position display DPA 2000/ DPA 2000S ; Version 2.1.2
© 2011
GB
5.2 Setting the cutting linear speed and the workpiece diameter
Setting of cutting linear speed:
Operation procedures:
- Return to the standard display;
- Press the key, the X-axis will display S-U, the Z-axis (the Y-axis for
2-axes positon display) will display the set value of the cutting linear speed;
- Enter the new set value of the cutting linear speed (unit: mm per second);
- Press the key to confirm.
Setting the initial (maximum) work piece diameter:
Operation procedures:
- Return to the standard display;
- Press the key, the X-axis will display S-d, the Z-axis (the Y-axis for
2-axes position display) will display the set value of the initial (maximum) work piece
diamter;
- Enter the new set value of the initial (maximum) work piece diameter (unit: mm);
- Press the key to confirm.
Note: When the value of the current cutter position is greater than the value of the initial
(maximum) work piece diameter, the principal axis will keep the speed value corresponding to
the value of the initial (maximum) work piece diameter set value.
A description of the constant linear speed cutting principle:
N=V / (π x D)
In the above formula N is the revolution speed of the principal axis; V is the set value of the
cutting linear speed; D is the current value of the work piece diameter, the maximum value
can be selected as the set value of the initial work piece diameter; the X-axis displays the
current value of the work piece diameter (or radius).
22
the set value of the lower limit of the principal axis low gear speed
200
When the external switch low speed signal is effective the D/A will output the principal axis speed corresponding to 0V.
23
the set value of the upper limit of the principal axis high gear speed
770
When the external switch low speed signal is ineffective, the D/A will output the principal axis speed corresponding to 10V.
24
the set value of the lower limit of the principal axis high gear speed
77
When the external switch low speed signal is ineffective, the D/A will output the principal axis speed corresponding to 0V.
Page 39
OPTIMUM
MASCHINEN - GERMANY
Dimensions and mounting
15.6.11 Page 39Dimensions and mounting Digital position display DPA 2000/ DPA 2000S ; Version 2.1.2
© 2011
GB
6 Dimensions and mounting
Page 40
Troubleshooting
OPTIMUM
MASCHINEN - GERMANY
15.6.11Page 40 Troubleshooting Digital position display DPA 2000/ DPA 2000S ; Version 2.1.2
© 2011
GB
7 Troubleshooting
Failures Failure causes Troubleshooting
The digital display
does not display
anything
1. Make sure that the power cable
is well connected.
2. Make sure that the power switch
is on.
3. Make sure that the voltage is
suitable.
4. Short circuit inside the reading
device.
5. Make sure that the fuse is working.
1. Make sure that the power cable is well
connected. Then switch on the power supply.
2. Switch on the power switch.
3. The voltage should be 230V +/ - 10 %.
4. Pull out the plug of the reading device.
5. Check and replace the fuse if
necessary.
1. Make sure that the machine tool
and the position display cover are
well grounded.
2. Make sure that the 230V power
supply is available
1. The machine tool and the position
display cover must be well grounded.
2. Check the 230V +/- 10 % power supply .
One position dis-
play axis does not
count
1. Check if the position display still
does not count after you have
exchanged the reading device with
the other axis.
2. The position display is in a
deviating function range.
1. If the position display counts normally, it
may be a failure of the reading device,
otherwise, it is is a failure of the position
display.
2. Leave the deviation function range.
Page 41
OPTIMUM
MASCHINEN - GERMANY
Troubleshooting
15.6.11 Page 41Troubleshooting Digital position display DPA 2000/ DPA 2000S ; Version 2.1.2
© 2011
GB
Position display
miscounting, dis-
played distance
does not agree with
the actual distance.
1. Make sure that the machine tool
and the position display cover are
well grounded.
2. Bad precision of the machine
tool equipment.
3. Exceeding operation speed of
the machine tool equipment.
4. Mounting precision of the
reading device does not correspond to requirement.
5. Position display resolution does
not correspond to the resoltion of
the reading device.
6. Operating measures do not
match metric/inch display.
7. Unsuitable setting of the position display, linear error compensation.
8. Reading device exceeds the
length range, which is causing
damage to the reading head.
9. Screws fixing the reading head
or the reading device bed become
loose.
1. The machine tool and the position display cover must be well grounded.
2. Check and repair machine tool equipment.
3. Reduce the operation speed of the
machine tool equipment.
4. Remount the reading device according
to the requirement.
5. Reset the position display resolution.
6. Convert metric/inch display.
7. Reset the position display linear error
compensation.
8. Adjust the machine tool or the reading
device, repair or replace the reading
device.
9. Retighten all the fixing screws.
Reading device
does not count or
sometimes does
not count
1. Reading device exceeds the
length range, which is causing
damage to the reading head.
2. There is accumulated dirt inside
the reading device.
3.Short circuit or open circuit inside
the reading device.
1. Adjust the machine tool or the reading
device, repair or replace the reading
device.
2. Repair the reading device and improve
ambient conditions.
3. Repair the reading device.
Weak shielding per-
formance of the
position display
1. Make sure that the machine tool
and the position display cover are
well grounded.
2. Make sure that the shielding
wire between the reading device
and the metal cover is well connected.
1. The machine tool and the position display cover must be well grounded.
2. Reconnect the shielding wire to the
reading device.
Page 42
Appendix
OPTIMUM
MASCHINEN - GERMANY
15 / 06 / 2011Page 42 Appendix Digital position display DPA 2000/ DPA 2000S ; Version 2.1.2
© 2011
GB
8 Appendix
8.1 Copyright
© 2011
This document is copyright. All derived rights are also reserved, especially those of translation,
re-printing, use of figures, broadcast, reproduction by photo-mechanical or similar means and
recording in data precessing systems, whether partial or total.
The company reserves the right to make technical alterations without prior notice.
8.2 Liability claims for defects / warranty
Beside the legal liability claims for defects of the customer towards the seller the manufacturer
of the product, OPTIMUM GmbH, Robert-Pfleger-Straße 26, D-96103 Hallstadt, does not grant
any further warranties unless they are listed below or had been promised in the frame of a single
contractual agreement.
The processing of the liability claims or of the warranty is performed as chosen by OPTIMUM
GmbH either directly or through one of its dealers. Any defective products or components of
such products will either be repaired or replaced by components which are free from defects.
The property of replaced products or components passes on to OPTIMUM GmbH.
The automatically generated original proof of purchase which shows the date of purchase,
the type of machine and the serial number, if applicable, is the precondition in order to assert
liability or warranty claims. If the original proof of purchase is not presented, we are not able
to perform any services.
Defects resulting of the following circumstances are excluded from liability and warranty
claims:
- Using the product beyond the technical options and proper use, in particular due to overstraining of the machine
- Any defects arising by one's own fault due to faulty operations or if the operating manual
is disregarded
- Inattentive or incorrect hand lin g an d us e of impr op e r eq uipm en t
- Non-authorized modifications and repairs
- Insufficient installation and safeguarding of the machine
- Disregarding the installation requirem en ts and cond itio ns of use
- Atmospheric discharges, overvoltage and lightning strokes as well as chemical influences
The following items are as well not subject to the liability or warranty claims:
- Wearing parts and component s wh ich ar e sub ject to a standard wear as intended such as
e.g. V-belts, ball bearings, illuminants, filters, sealings, etc.
- Non reproducible software errors
Any services which OPTIMUM GmbH or one of its agents performs in order to fulfill in the
frame of an additional guarantee are neither an acceptance of the defects nor an acceptance of its obligation to compensate. Such services do neither delay nor interrupt the warranty period.
Place of jurisdiction among traders is Bamberg.
If one of the above mentioned agreement s is tot a lly or p artially inefficient and/or null, it is
considered as agreed what is closest to the will of the warrantor and which remains in the
framework of the limits of liability and warranty which are predefined by this contract.
8.3 Note regarding disposal / options to reuse:
Please dispose of your device environmentally friendly by disposing of scrap in a professional
way.
Page 43
OPTIMUM
MASCHINEN - GERMANY
Appendix
15 / 06 / 2011 Page 43Appendix Digital position display DPA 2000/ DPA 2000S ; Version 2.1.2
© 2011
GB
Please neither throw away the packaging nor the used machine later on, but dispose of them
according to the guidelines established by your city council/municipality or by the corresponding
waste management enterprise.
8.3.1 Decommissioning
CAUTION
Used devices need to be decommissioned in a professional way in order to avoid later
misuses and endangerment of the environment or persons
• Pull off the mains plug.
• Disconnect the connection cable.
• Remove all environmentally hazardous operating fluids from the used device.
• If applicable remove batteries and accumulators.
• Disassemble the machine if required into easy-to-handle and reusable
assemblies and component parts.
• Supply the machine components and operating fluids to the provided disposal routes.
8.3.2 Disposal of the packaging of new devices
All used packaging materials and packaging aids of the machine are recyclable and generally
need to be supplied to the material reuse.
The packaging wood can be supplied to the disposal or the reuse.
Any packaging components made of cardboard box can be chopped up and supplied to the
waste paper collection.
The films are made of polyethylene (PE) and the cushion parts are made of polystyrene (PS).
These materials can be reused after reconditioning if they are forwarded to a collection station
or to the appropriate waste management enterprise.
Only forward the packaging materials correctly sorted to allow a direct reuse.
8.3.3 Disposing of the old device
INFORMATION
Please make sure in your own interest and in the int erest of th e environme nt that all c omponent
parts of the machine will be disposed of in the provided and admitted ways.
Please note that the electrical de vices include lots of reusable m aterials as we ll as environm entally hazardous components. Account for separate and professional disposal of the component
parts. In case of doubt, please contact your municipal waste management. If appropriate, call on
the help of a specialist waste disposal company for the treatment of the material.
8.3.4 Disposal of electrical and electronic components
Please make sure that electrical components are disposed of in a professional way according to
the legal requirements.
The device includes electric and electronic components and must not be disposed of with the
rubbish. According to the European directive 2002/96/EG regarding electrical and electronic
used devices and the execution of national rights used electrical tools and electrical machines
need to be collected separately and be supplied to an environmentally compatible reuse.
Being the machine operator you should obtain information regarding the authorized collection or
disposal system which applies for your company.
Please make sure that the batteries and/or accumulators are disposed of in a professional way
according to the legal regulations. Please only throw discharged batteries in the collection boxes
in shops or at municipal waste management companies.
Page 44
Appendix
OPTIMUM
MASCHINEN - GERMANY
15 / 06 / 2011Page 44 Appendix Digital position display DPA 2000/ DPA 2000S ; Version 2.1.2
© 2011
GB
8.3.5 Disposal of lubricants and coolants
ATTENTION
Please imperatively make sure to dispose of the used coolant and lubricants in an envi-
ronmentally compatible way. Observe the disposal notes of your municipal waste management companies.
INFORMATION
Used coolant emulsions and oils should not be mixed up since it is only possible to reuse used
oils which had not been mixed up without pre-treatment.
The disposal notes for the used lubricants are made available by the manufacturer of the lubricants. If necessary, request the product-specific data sheets.
8.4 Disposal
Disposal of used electric and electronic machines
(Applicable in the countries of the European Union and other European countries with a separate collecting system for those devices).
The sign on the product or on its packing indicates that the product must not be handles as common household waist, but that is needs to be delivered to a central collection point for recycling.
Your contribution to the correct disposal of this product will protect the environment and the
health of your fellow men. The environment and the health are endangered by incorrect disposal. Recycling of material will help to reduce the consumption of raw materials. Your District
Office, the municipal waste collection station or the shop where you have bought the product will
inform you about the recycling of this product.
8.5 RoHS , 2002/95/CE
The sign on the product or on its packing indicates that this product complies with the European
guideline 2002/95/EC .
Page 45
OPTIMUM
MASCHINEN - GERMANY
Appendix
15 / 06 / 2011 Page 45Appendix Digital position display DPA 2000/ DPA 2000S ; Version 2.1.2
© 2011
GB
8.6 Product follow-up
We have a follow-up service for our products which extends even beyond shipment.
We would be grateful if you could send us the following information:
Modified settings
Experiences with the DPA 2000S, which could be important to other users
Recurring failures
Optimum Maschinen Germany GmbH
Dr.-Robert-Pfle ger-Str. 26
D-96103 Hallstadt
Fax +49 (0) 951 - 96822 - 22
E-Mail: info@optimum-maschinen.de
Page 46
Appendix
OPTIMUM
MASCHINEN - GERMANY
15 / 06 / 2011Page 46 Appendix Digital position display DPA 2000/ DPA 2000S ; Version 2.1.2
© 2011
GB
8.7 EC - declaration of conformity
The manufacturer /
retailer:
Optimum Maschinen Germany GmbH
Dr.-Robert-Pfleger-Str. 26
D - 96103 Hallstadt
hereby declares that the following product,
Type of machine: DPA 2000/ DPA 2000 S
Designation of the
machine:
Digital position display
Serial number: _ __ __ __ __
Year of manuf acture: 20__
The machnine continues to comply with all provisions of the Directives Electrical equipment
(2006/95/EC) and electromagnetic compatibility (2004/108/EC).
Responsible for documentation: Kilian Stürmer, Tel.: +49 (0) 951 96822-0
Address: Dr.-Robert-Pfleger-Str. 26
D - 96103 Hallstadt
Hallstadt, 15.6.11
Kilian Stürmer
(Manager)
Loading...
