C8K Series User Manual

Flexible Linear Lighting System
The versatile indoor and outdoor water resistant lighting solution.

IMPORTANT SAFETY INSTRUCTIONS

WARNING: A WARNING alerts you to the possibility of serious injury or death if

!

you do not follow the instructions.

CAUTION: A CAUTION alerts you to the possibility of damage to or destruction

!

of the equipment if you do not follow the instructions.

IMPORTANT: An IMPORTANT alerts you to follow the instructions listed to

avoid the possibility of installation error or possible damage to or destruction of the

!

product.

READ AND FOLLOW ALL SAFETY INSTRUCTIONS

ELECTRICAL RATING

To avoid any malfunctions of the system, and to protect against electrical shock,  re or physical
injury, please observe the following:

• This system has been designed to work with 100-240 volt AC current. Connection to a line
voltage other than that may create a safety and  re hazard and may damage the system. If you
are unsure of the type of power supply to your home, consult your local power company or a
quali ed service technician.

When using electrical products, basic precautions should always be followed including the
following electrical ratings for models listed below:

C8K-18-CW / C8K-18-WW : 120 V, 0.5 A
C8K-30-CW / C8K-30-WW : 120 V, 0.5 A

C8K-60-CW / C8K-60-WW : 120V, 1.0 A

GROUNDING INSTRUCTIONS

• This product must be grounded. If it should malfunction or breakdown, grounding provides a
path of least resistance for electric current to reduce the risk of electric shock. This product is
equipped with a cord having an equipment-grounding conductor and a grounding plug. The
plug must be plugged into an appropriate outlet that is properly installed and grounded in
accordance with all local codes and ordinances.

• WARNING – Improper connection of the equipment-grounding conductor is able to result in a
risk of electric shock. Check with a quali ed electrician or serviceman if you are in doubt as to
whether the product is properly grounded.

WARNING – When using outdoor use portable lighting products, basic safety precautions should

always be followed to reduce the risk of  re, electric shock, and personal injury, including the following:

Read all instructions.

• Ground Fault Circuit Interrupter (GFCI) protection should be provided on the circuits or outlet
to be used for the outdoor use  exible lighting product. Receptacles are available with built­in GFCI protection for this measure of safety. If you are unsure of the type of outlet, consult a
quali ed service technician to install a GFCI receptacle.

• Use only outdoor extension cords, such as types SW, SOW, STW, STOW, SJW, SJOW, SJTW,
or SJTOW.

Model Numbers: C8K-18-CW

2 cabled.optiled.com

, C8K-30-CW, C8K-60-CW, C8K-18-WW, C8K-30-WW, C8K-60-WW.

IMPORTANT SAFETY INSTRUCTIONS

WARNING: Risk of  re and electric shock. Uncoil  exible CabLED light

!

strip prior to plugging into receptacle.

POWER SOURCE

• Do not modify the plug provided with the product – If it will not  t the outlet, have a proper
outlet installed by a quali ed electrician.

Damaged or deformed power cords are hazardous and should be replaced immediately by a
quali ed service technician.

OPERATION

• Do not operate with the  exible light tightly coiled.

• Unplug the unit and the AC power adapter from the electrical outlet during electrical storms
or when unused for long periods of time to prevent damage.

• For outdoor use units, make sure that all connections and the end cap in the last segment are
tightly secured to preclude the entry of water.

• Do not exceed the recommended length of CabLED strip listed for each power supply.

• Do not look directly into the LED lights when lit. They are powerful and could damage your
vision.

LOCATION

• Place power supply well above the ground or in an area they will NOT be submerged in water
or other liquids.

• The CabLED strip and components are rated IP65, weather proof only. Do not submerge the
CabLED strip or components in liquids, or use the product in the vicinity of standing water or
other liquids.

• Keep all components away from extreme heat sources such as heating vents, radiators, electric
heaters and  re pits.

• Do not cover this product as the covering may cause the strip to overheat and melt or ignite.

• Do not submerge the  exible light in liquids, or use the product in the vicinity of standing
water or other liquids.

• Do not route the cord or  exible lighting through walls, doors, windows or any like part of the
building structure.

• Place CabLED strip so it will not shine directly into people's eyes.

INSTALLATION

Safety measures must be observed at all times during the installation of this product. Use proper
safety gear and tools during the installation process to prevent physical injury.

• Products should be installed in accordance with the user manual, current electrical codes and/
or the current National Electric Code (NEC). Improper installation may cause a possible shock
or  re hazard.

• To avoid electrical shock and/or damage to the system, do not handle the components with wet
hands.

• Always make sure the CabLED strip is disconnected from the power source before cutting,
connecting, mounting or modifying in any way. Do NOT dismantle the CabLED strip itself.

• Do not coil the strip into a tight circle with a diameter less than 8 inches (20cm) or bend it in
half as it may damage the LEDs embedded in the strip.

• Do not subject the  exible CabLED strip to continuous  exing.

cabled.optiled.com 3

IMPORTANT SAFETY INSTRUCTIONS

IMPORTANT: BEFORE YOU BEGIN, MAKE SURE YOU CAREFULLY READ

!

AND UNDERSTAND THE INSTRUCTIONS IN THIS MANUAL.

INSTALLATION (CONTINUED)

• Do not use if there is any damage to the CabLED strip, power cord or any of the components.
Inspect periodically.

• CabLED strip can only be cut at every 7.09 inches (18cm) and must be cut exactly on the
indicated mark.

• Do not puncture, shorten, or splice the  exible lighting. Only cut the CabLED strip where
indicated.

• Create a layout plan before installation. Follow steps to locate power supply and determine
suitable mounting methods and required connectors and accessories. Measure and calculate
the required length of CabLED before beginning installation.

• CabLED connectors have sharp pins inside. Follow instructions when handling.

• Use only CabLED connectors, mountings and power supply. Carefully follow the instructions to
install and mount.

• Secure this  exible strip using only the CabLED connectors and mounting solutions provided.
Do not secure this product or its cord with staples, nails, or like means that may damage the
insulation.

CLEANING

• Clean only with a dry or slightly damp cloth. Do not use any acid or alkaline liquids, cleansing
agents or solvents. Unplug the system from the wall outlet before cleaning.

NON-USE PERIODS

When left unused for long periods of time, the system should be unplugged from the
AC outlet.

SERVICE

Always remove the AC power adapter from the electrical outlet before adjusting or inspecting
the system. Inspect your system periodically.

• Do not open, dismantle or attempt to repair the CabLED strip or the bottom half of the
connectors. There are no user-serviceable parts.

• Do not open the cabinets of accessories or power supply. There are no user-serviceable parts.
Opening the cabinets may present a shock hazard, and any modi cation to the product will
void your warranty.

• Do not attempt to service the components yourself. If water or any metal objects such as
paper clips, wire or staples accidentally fall inside, then disconnect from the power source
immediately and consult an authorized service center.

SAVE THESE INSTRUCTIONS

CabLED is a registered trademark. All the information in this document is copyrighted © 2010,

OPTILED Lighting International Limited, All rights reserved.

4 cabled.optiled.com

Table of Contents

Important Safety Information 2-3

About This Manual
Table of Contents
About CabLED™ 8000 Series
Possible Applications

Kitchen Cabinets

........................................................................................................................................

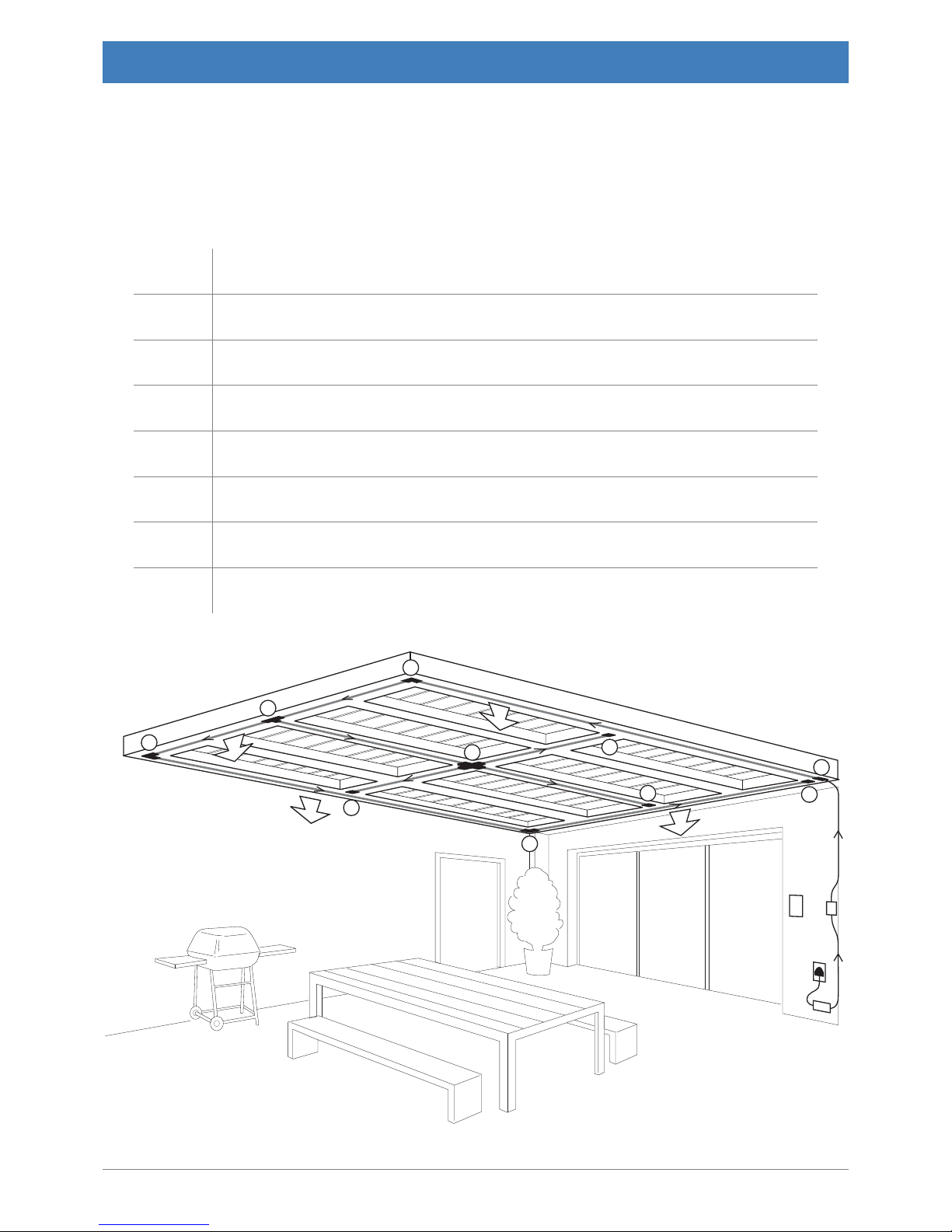

Patios

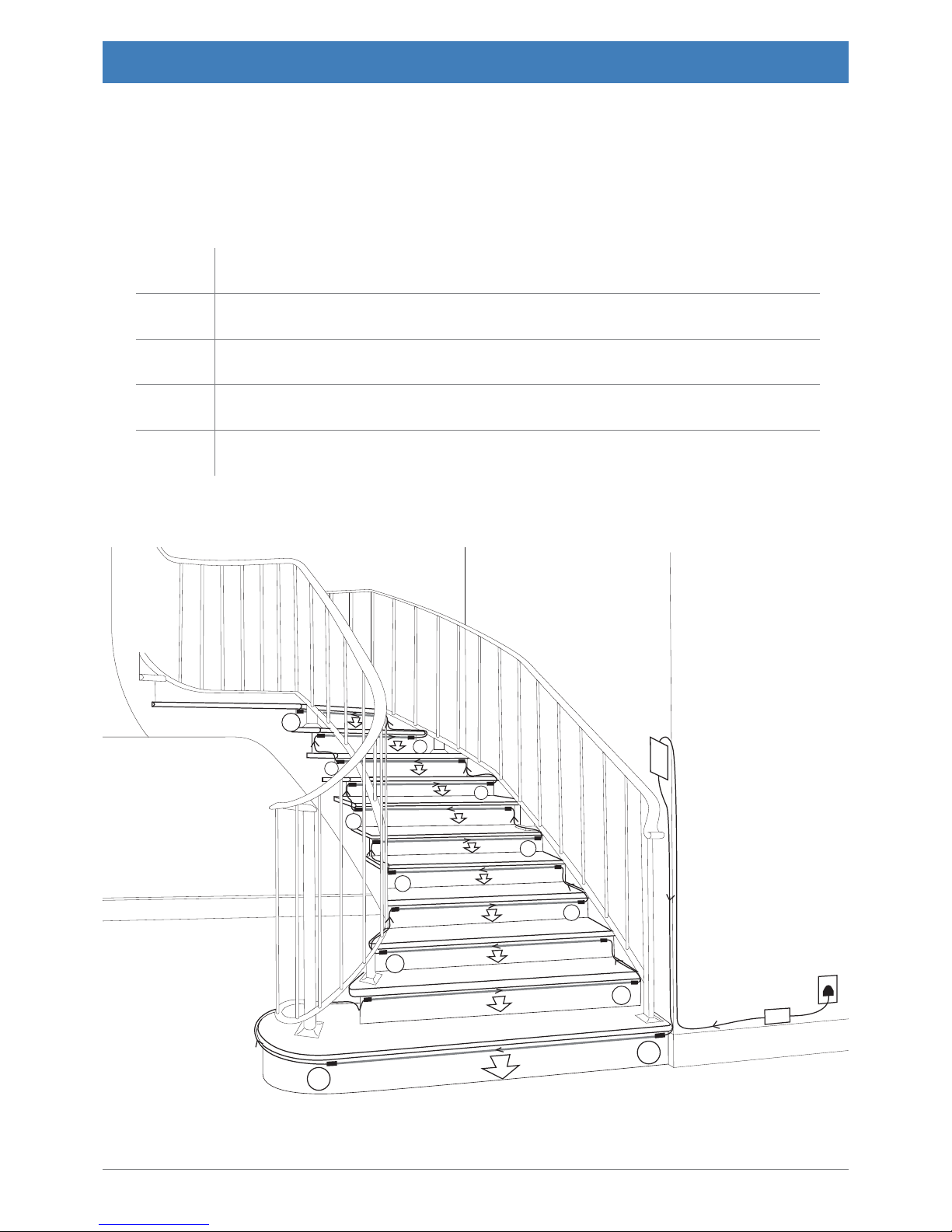

Indoor Stairs

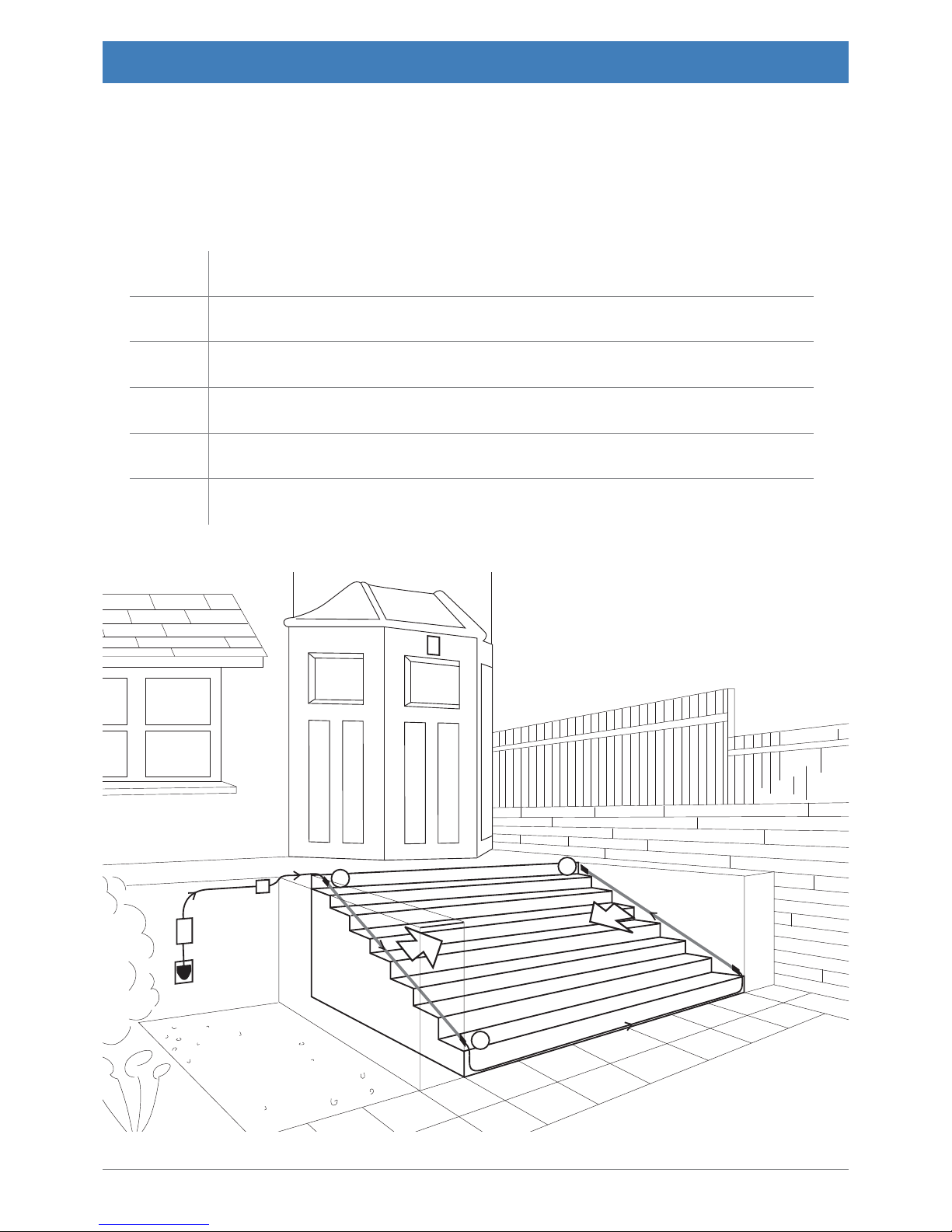

Outdoor Stairs

Walkways
Design Guidelines

................................................................................................................................

12

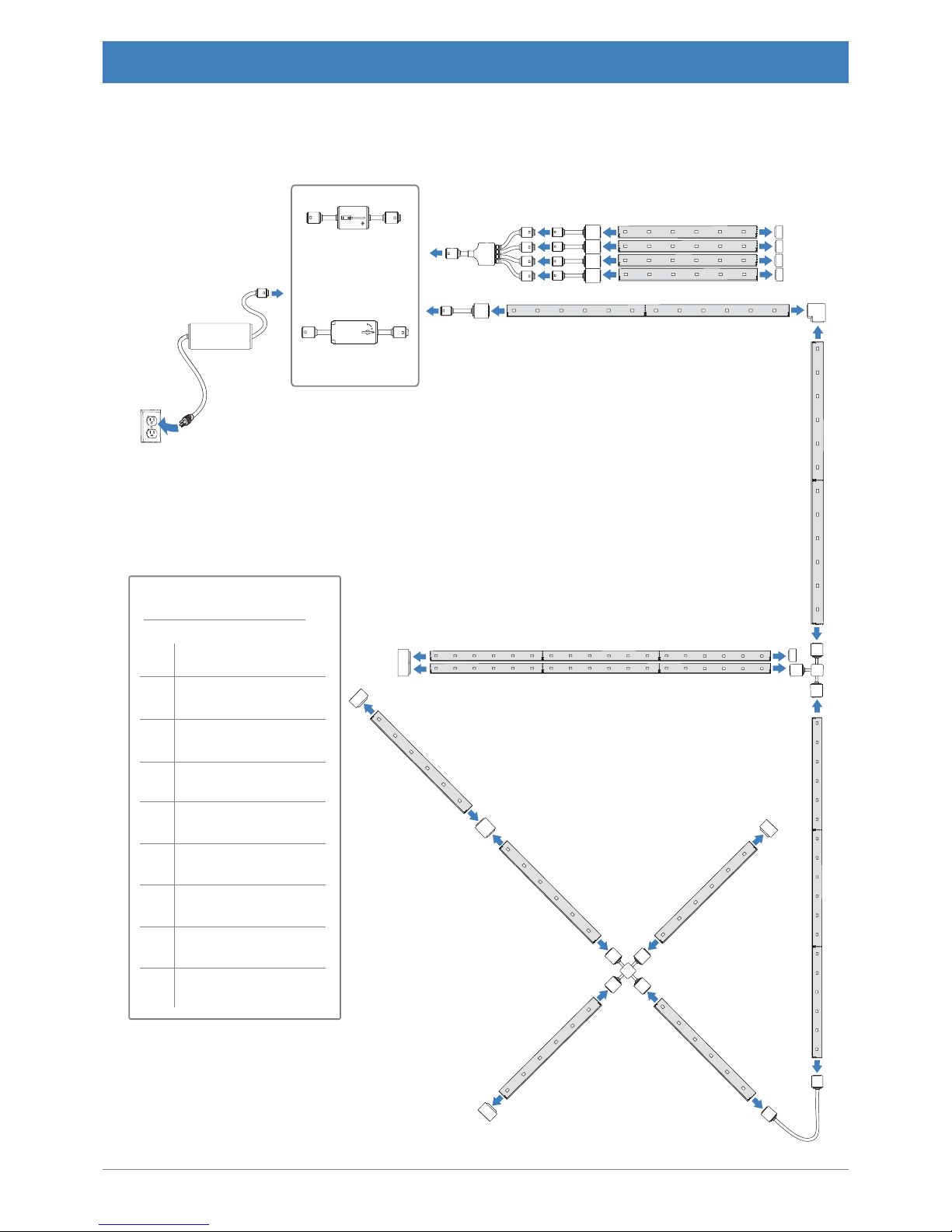

CabLED™ Component Layout
CabLED™ Component Overview

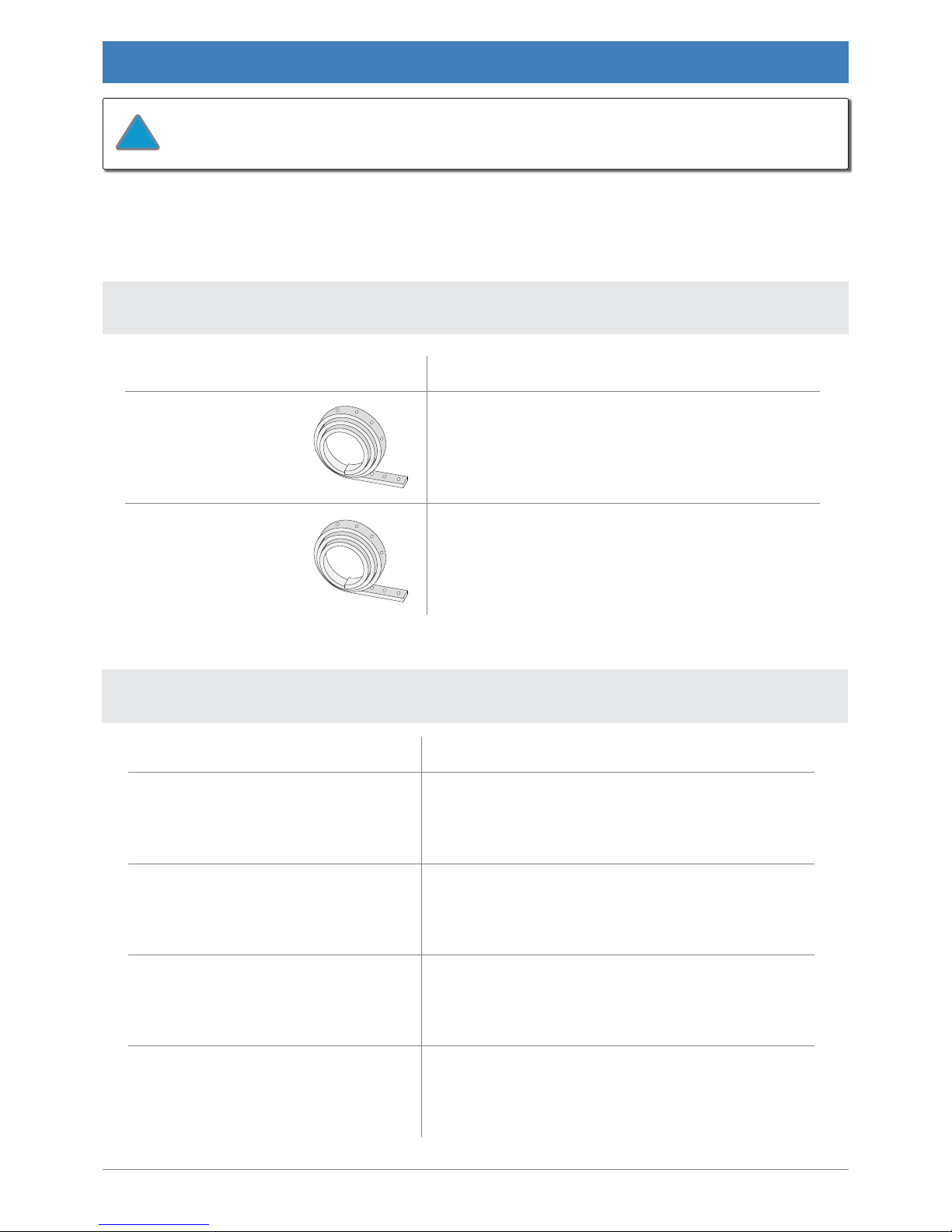

CabLED™ Strip

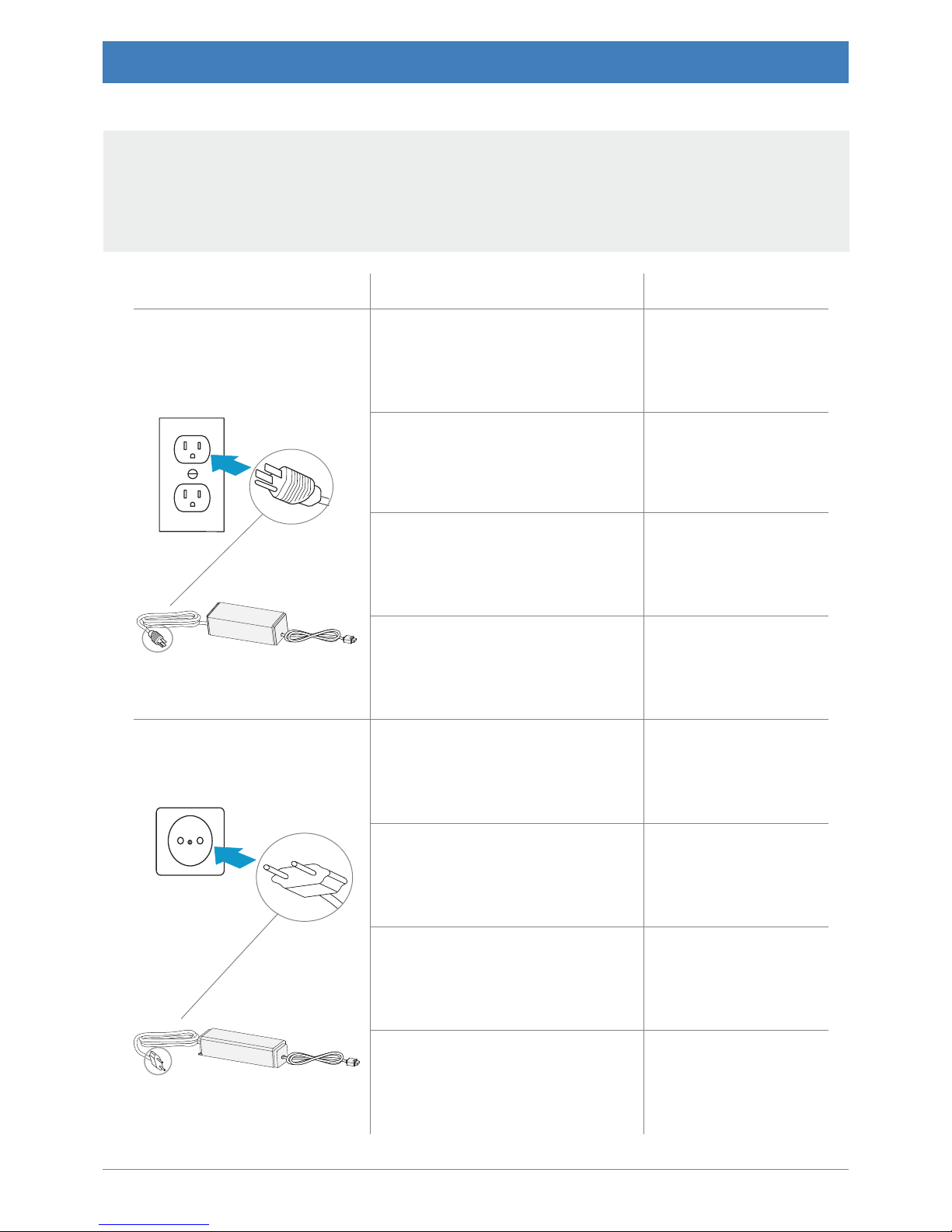

Power Supplies

Accessories

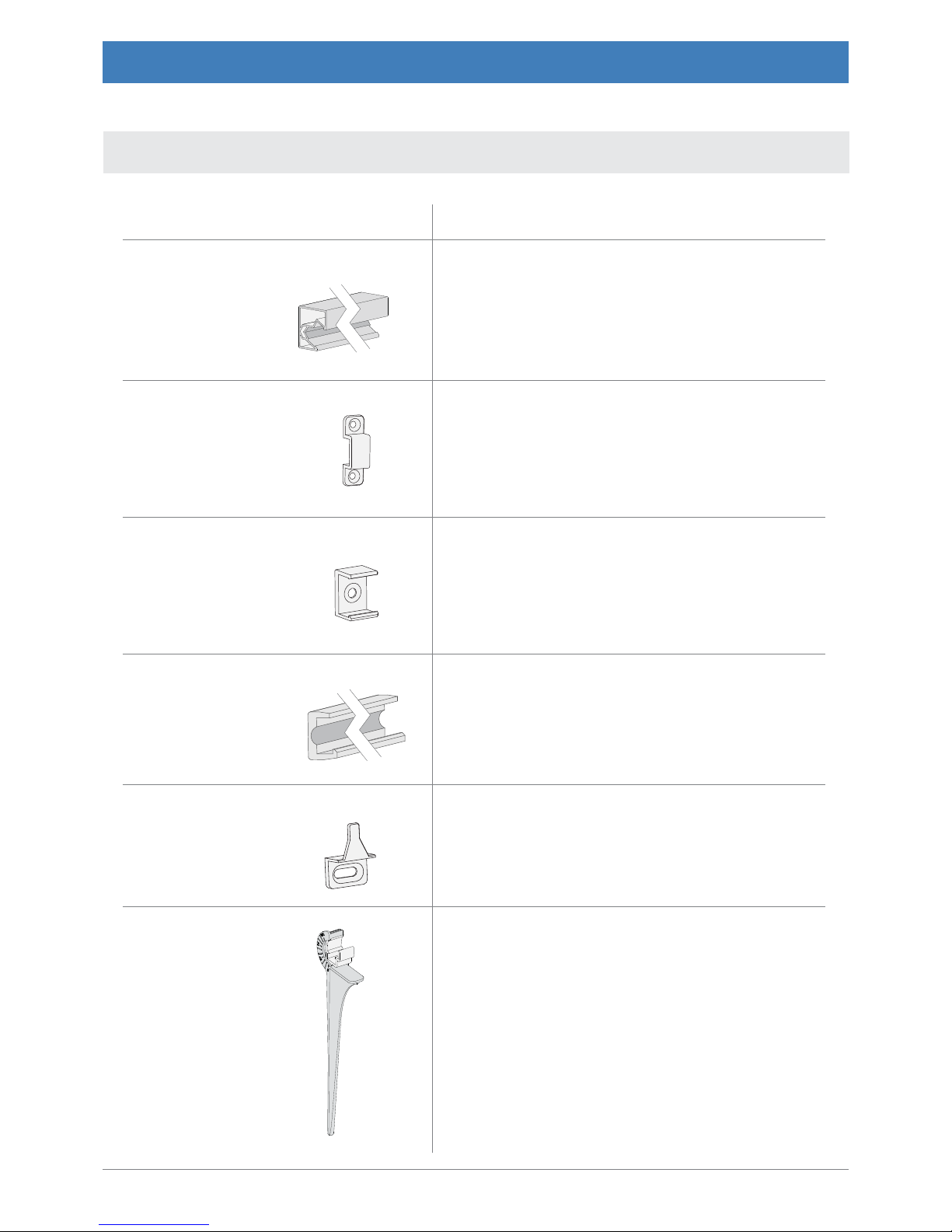

Mounting Options

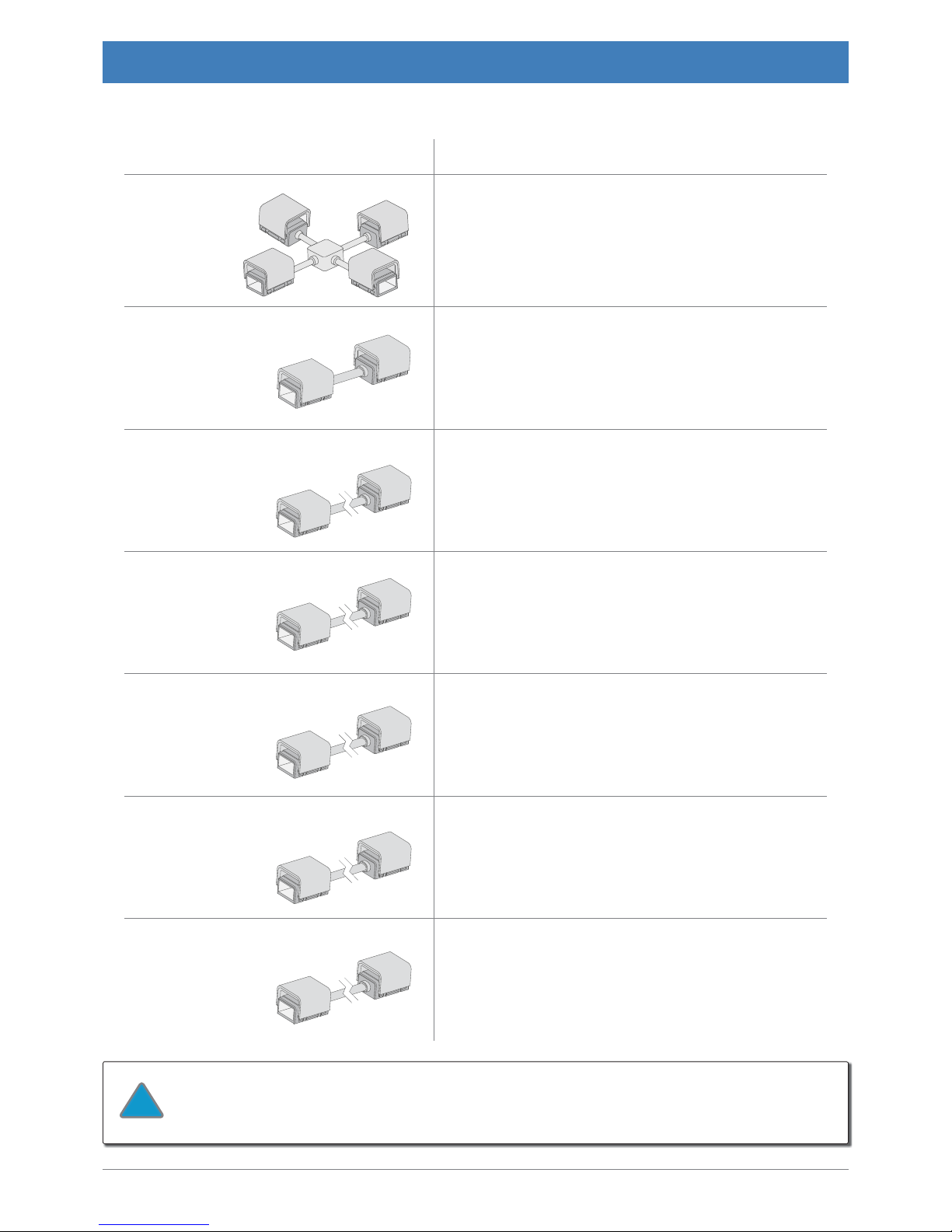

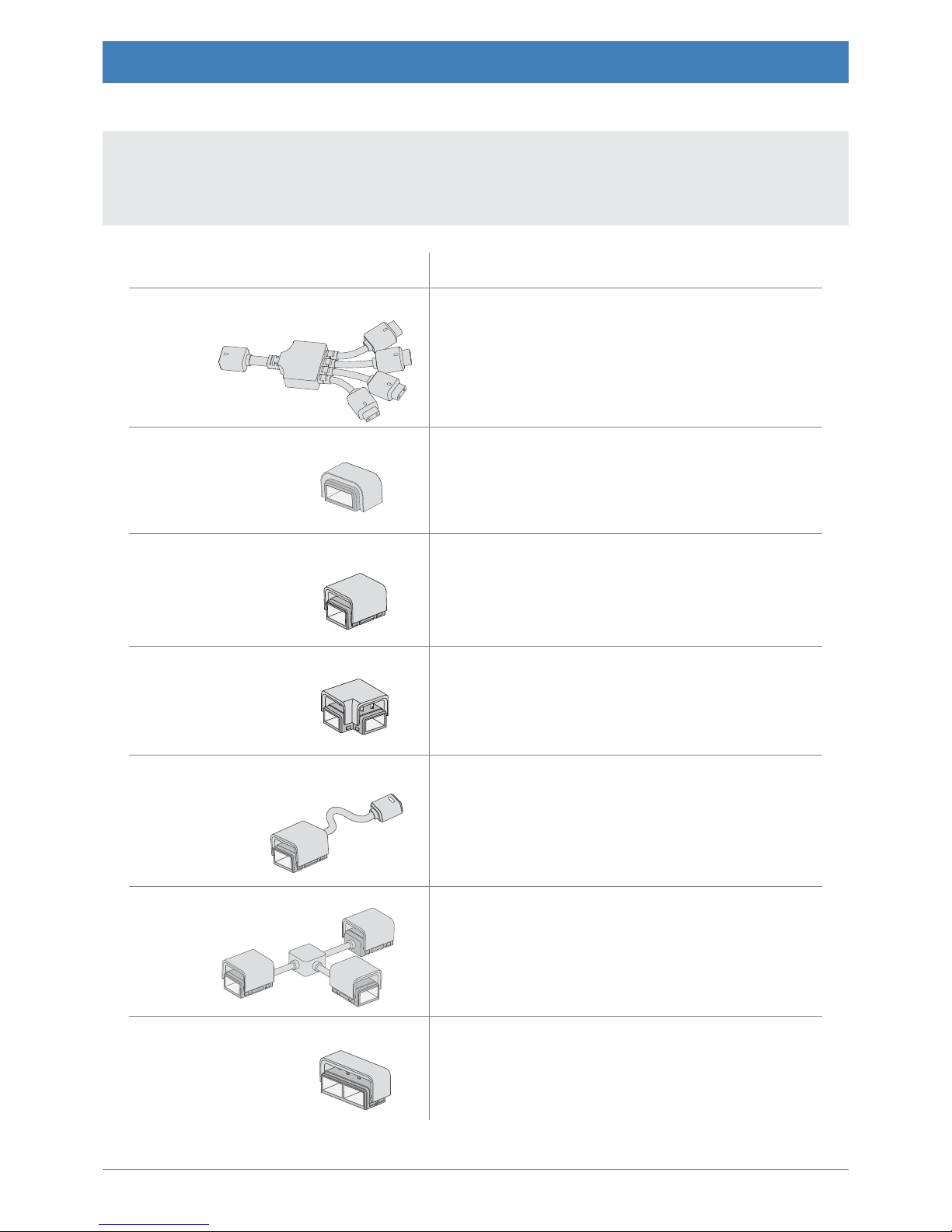

Connectors

........................................................................................................................

Step 1: Plan Installation

Plan Your Project

What is the Purpose of Your Project?

Warm White or Cool White?

Which Accessories to Use?
Step 2: Prepare for Installation

2.1 Determine Components Needed

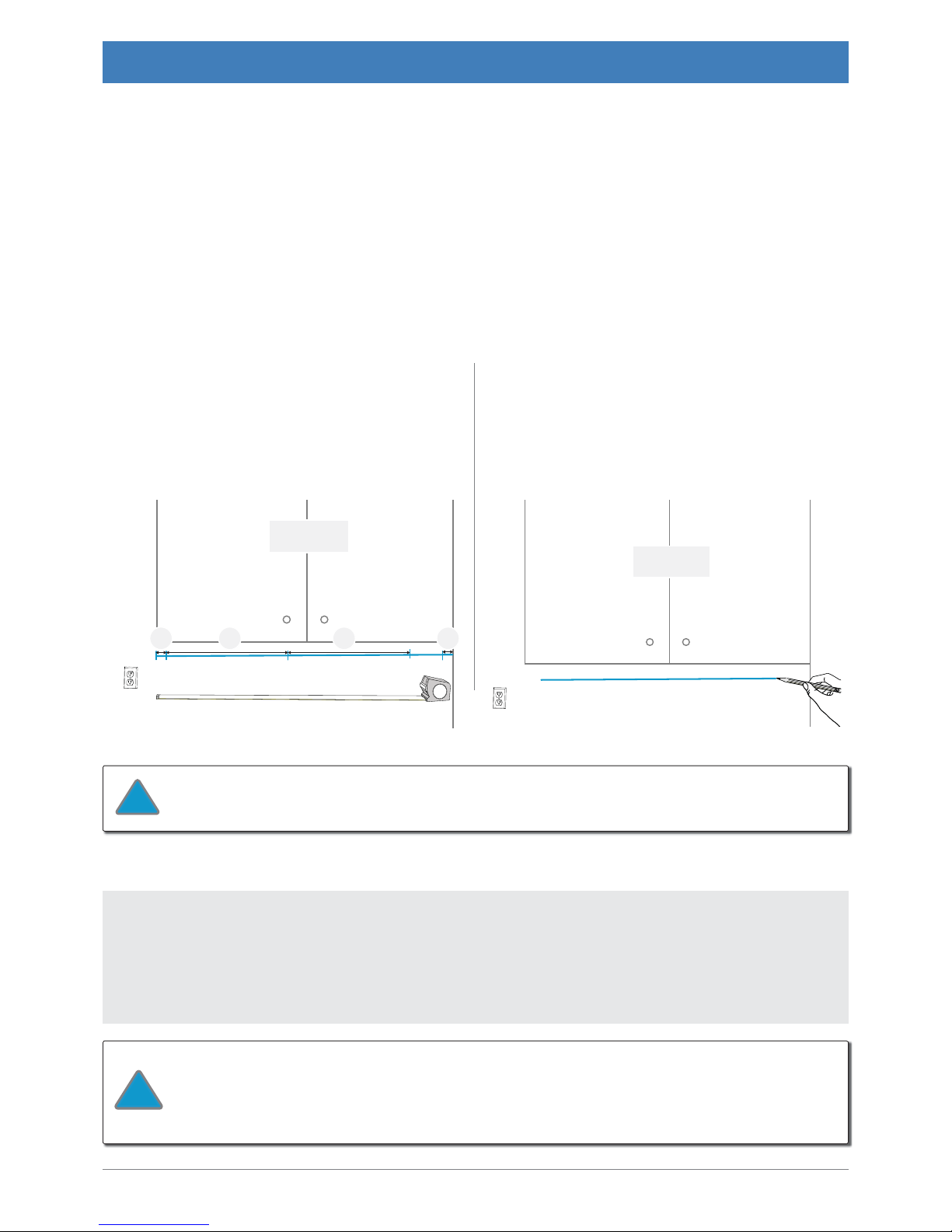

2.2 Measure and Mark the Area

2.3 Select Power Supply

2.4 Mounting Options

Step 3: Begin Installation

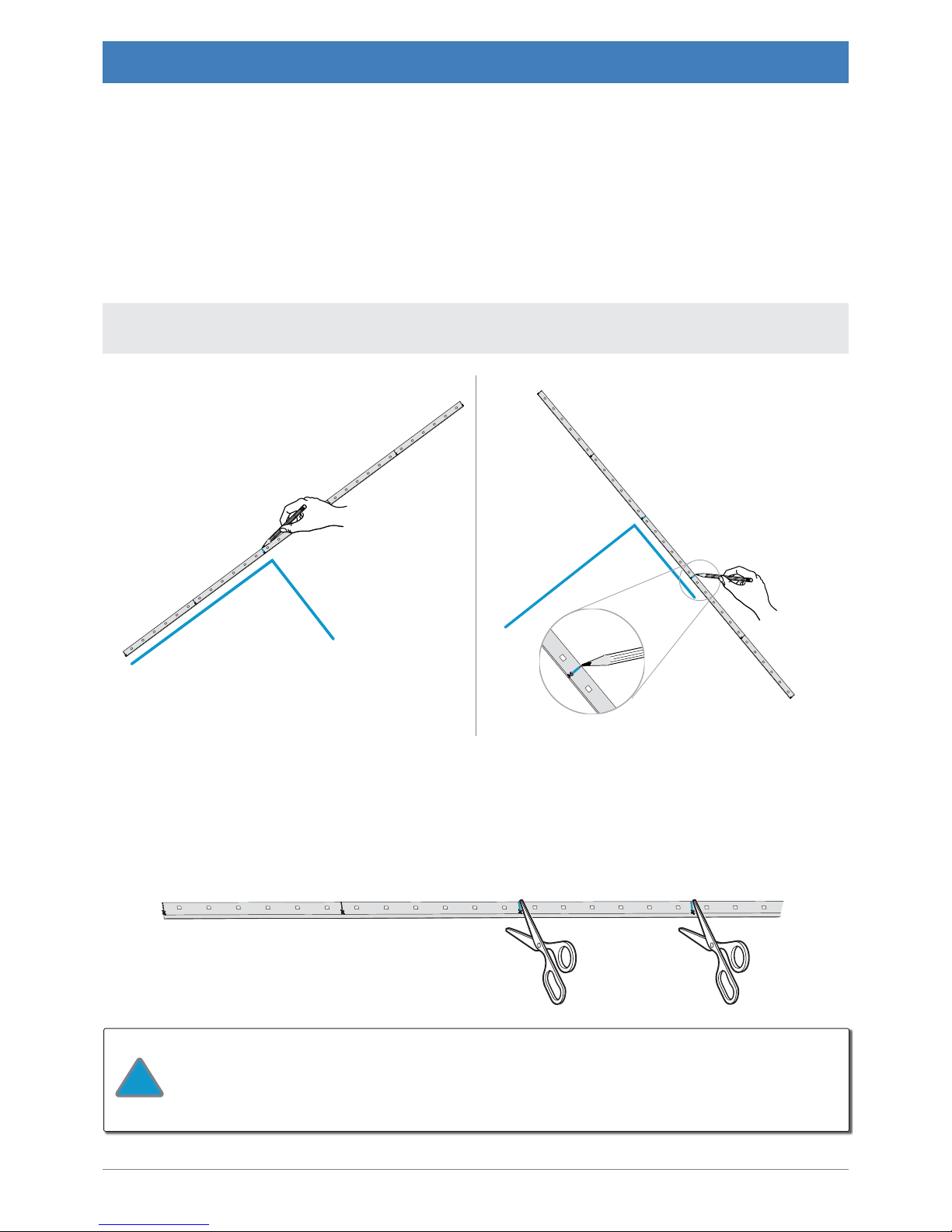

3.1 Measure, Mark and Cut CabLED™

3.2 Mark CabLED™

3.3 Cut CabLED™

Step 4: Install Connectors

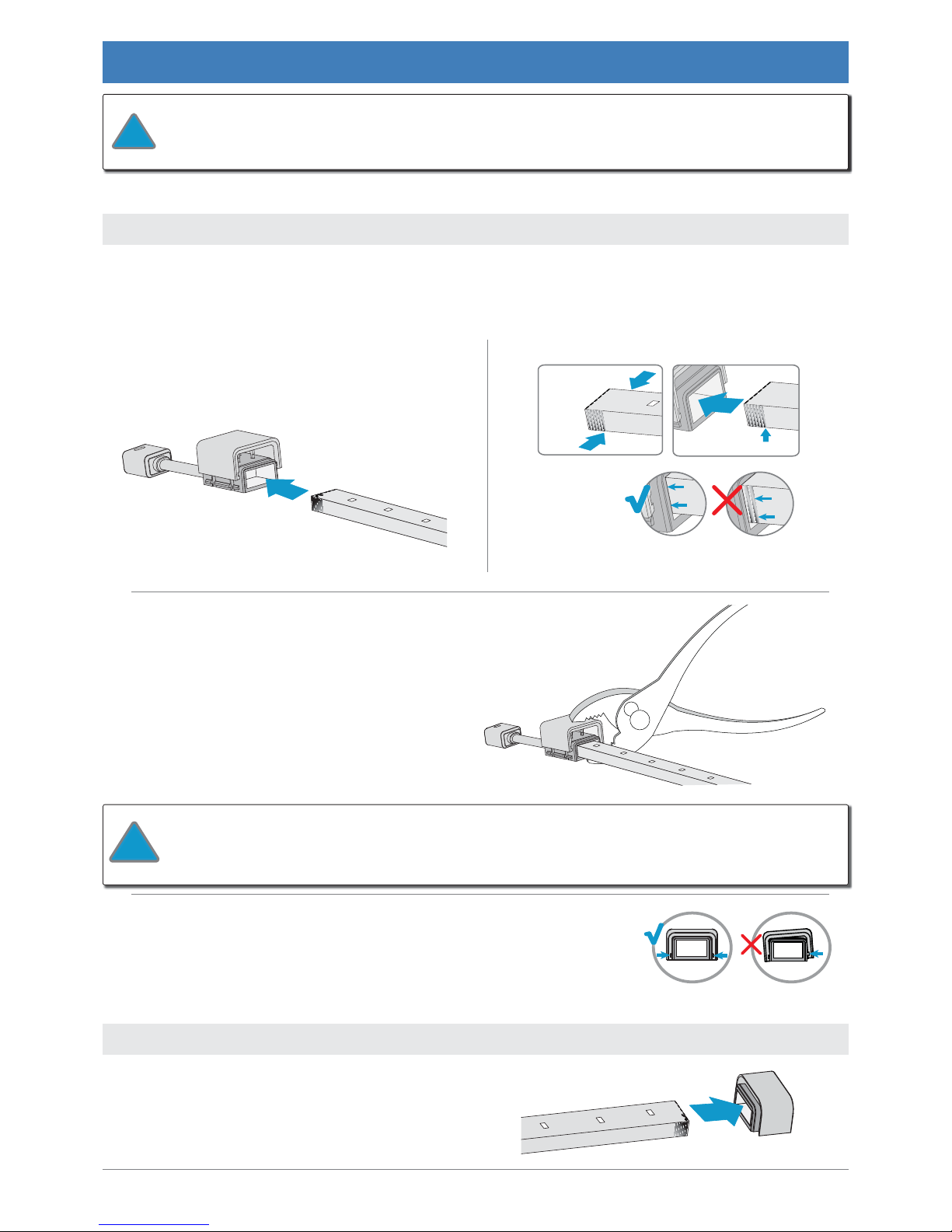

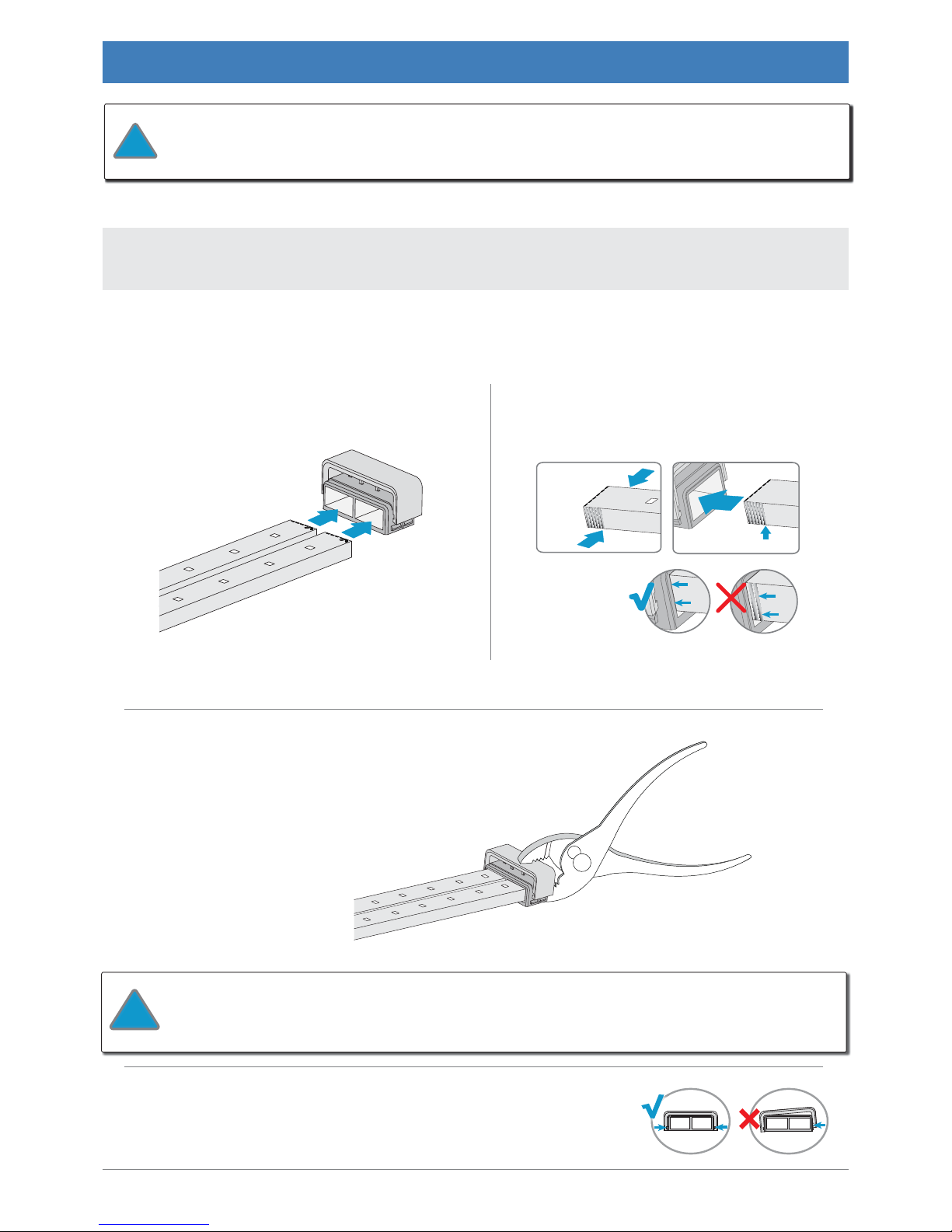

4.1 Install PS-Link Connector

4.2 Install End Cap

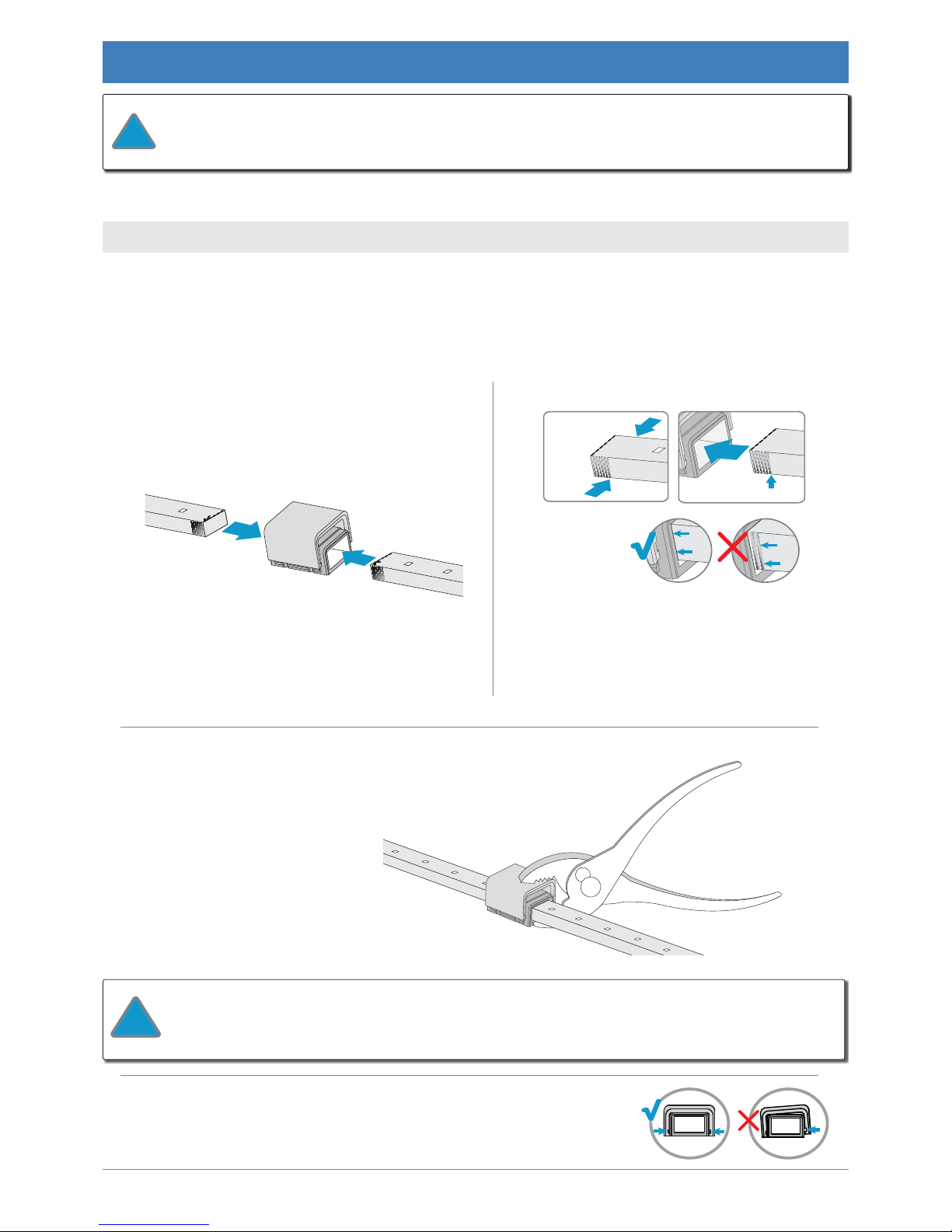

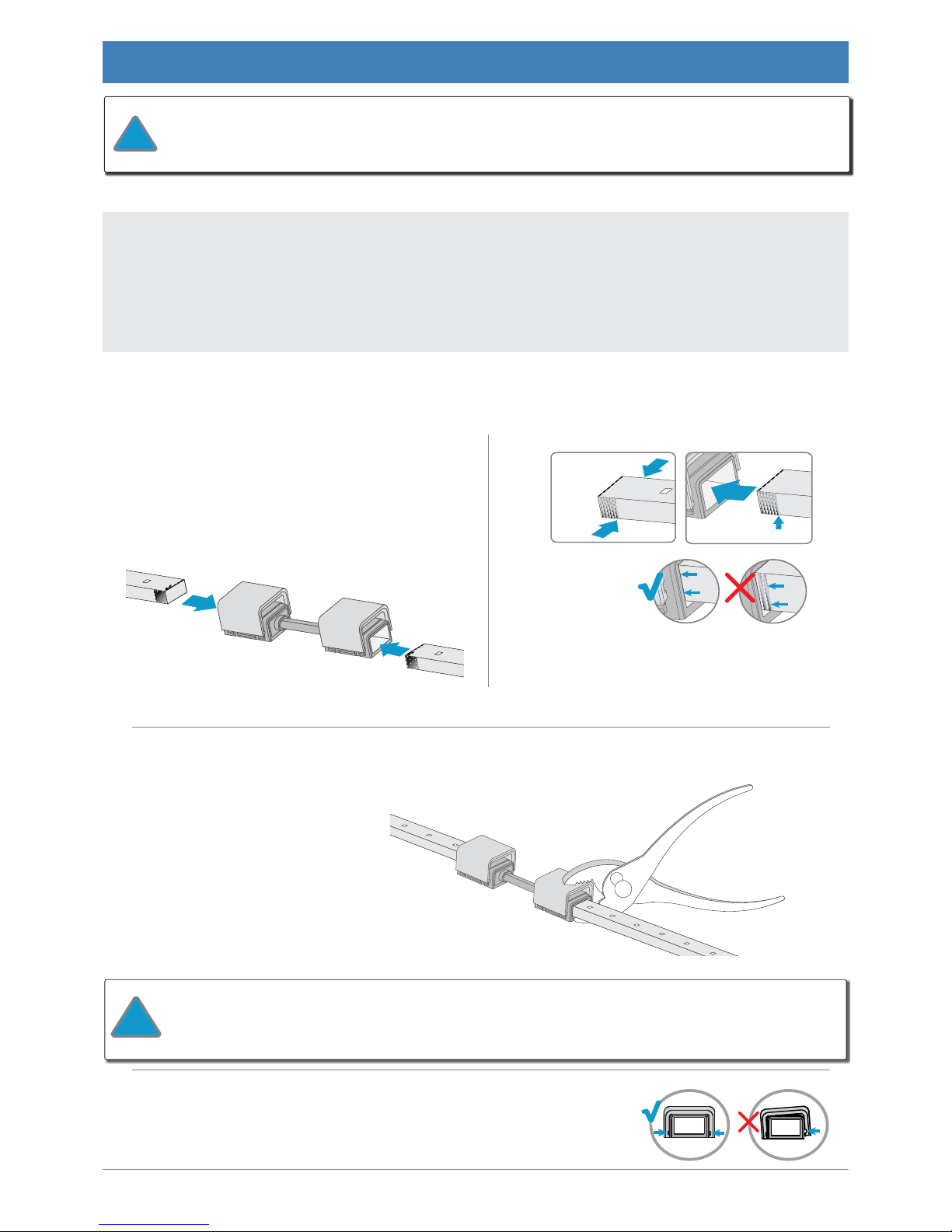

4.3 Install I-Connector

4.4 Install Jumper Cable

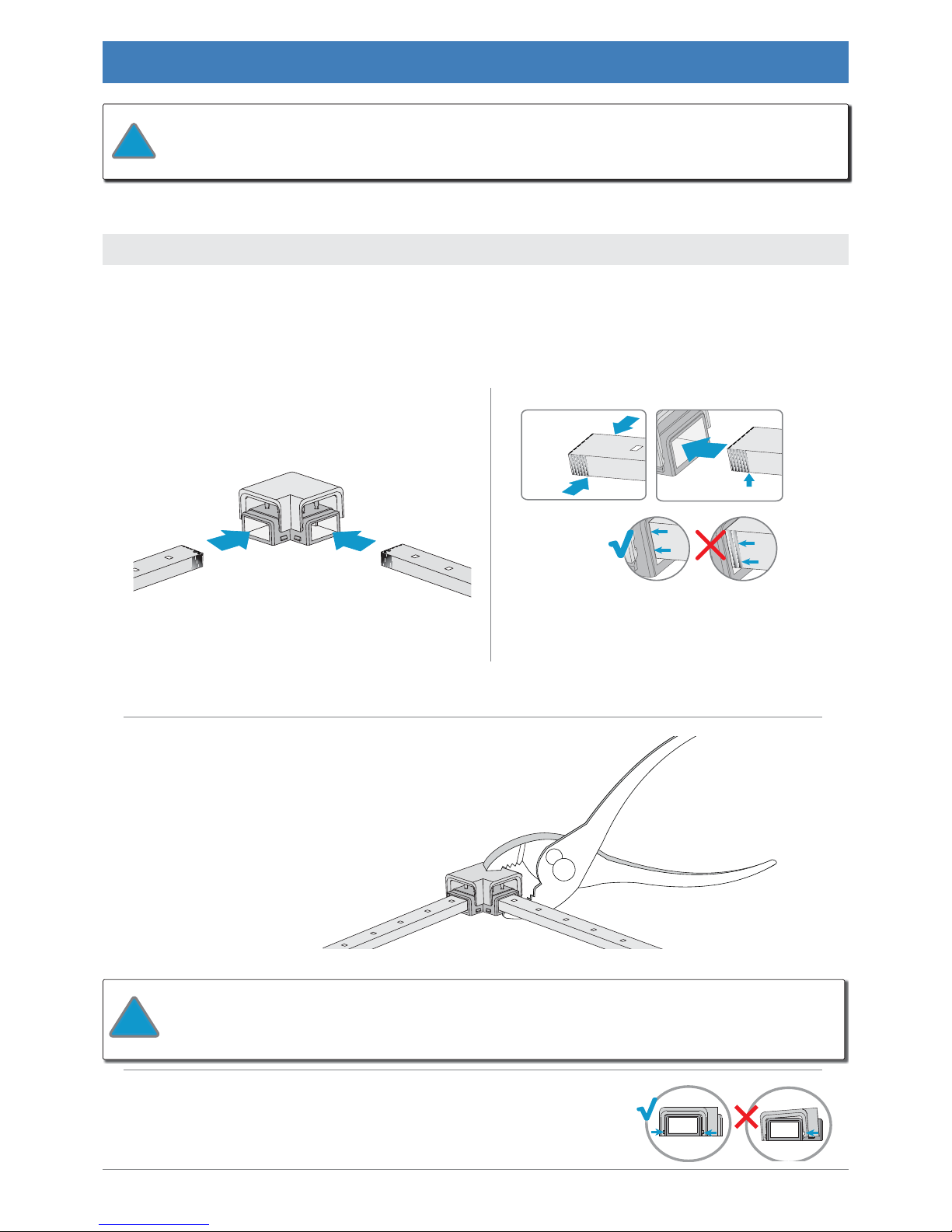

4.5 Install L-Connector

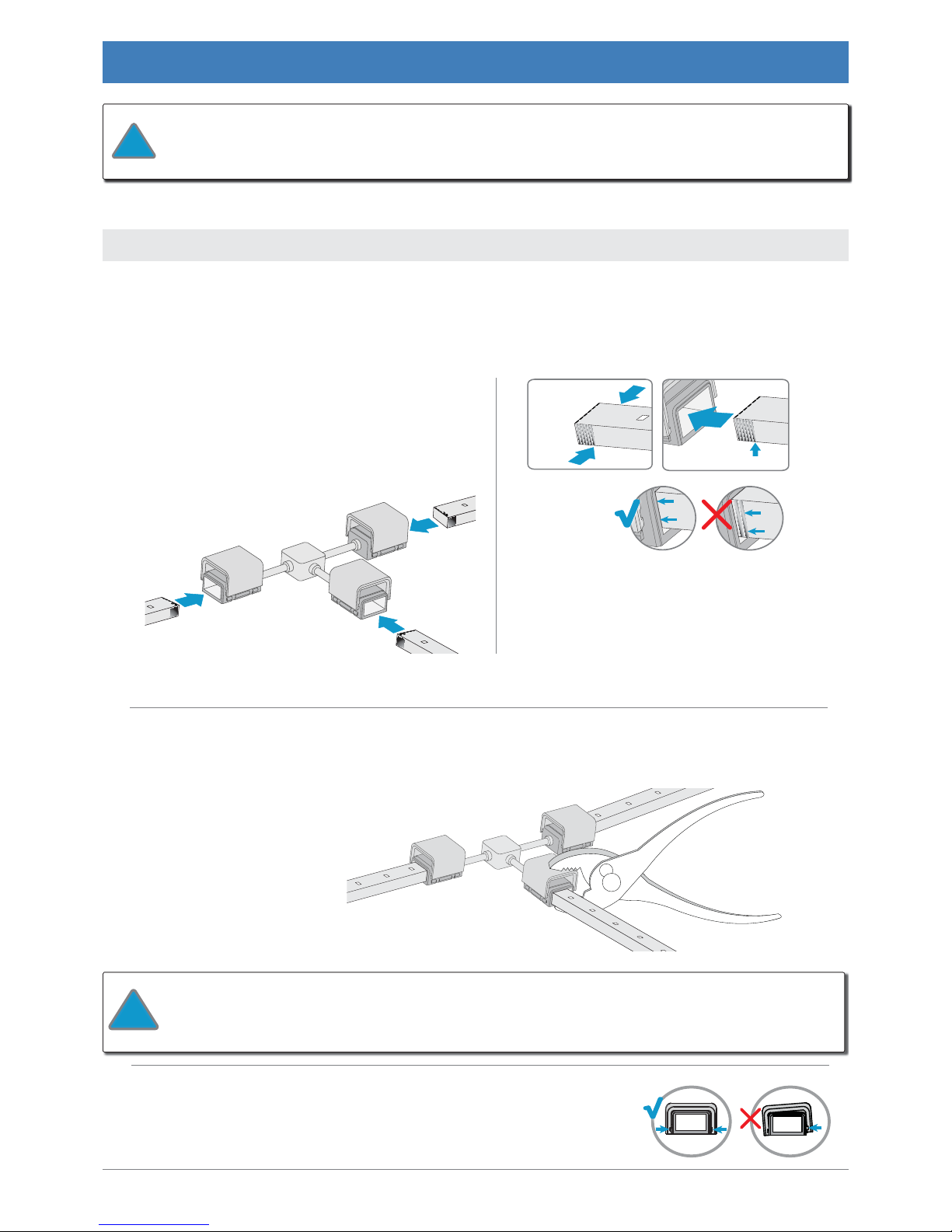

4.6 Install T-Connector

4.7 Install U-Connector

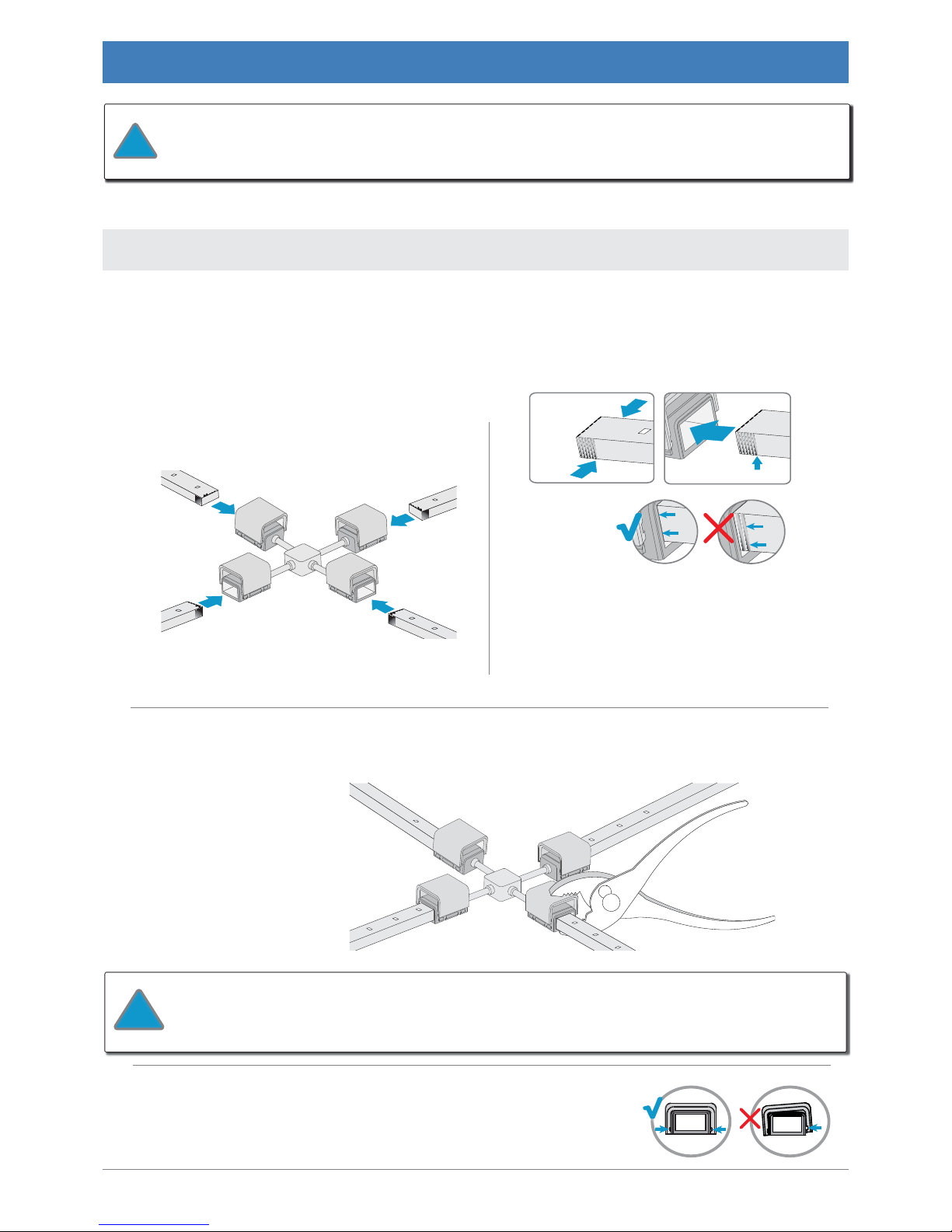

4.8 Install X-Connector

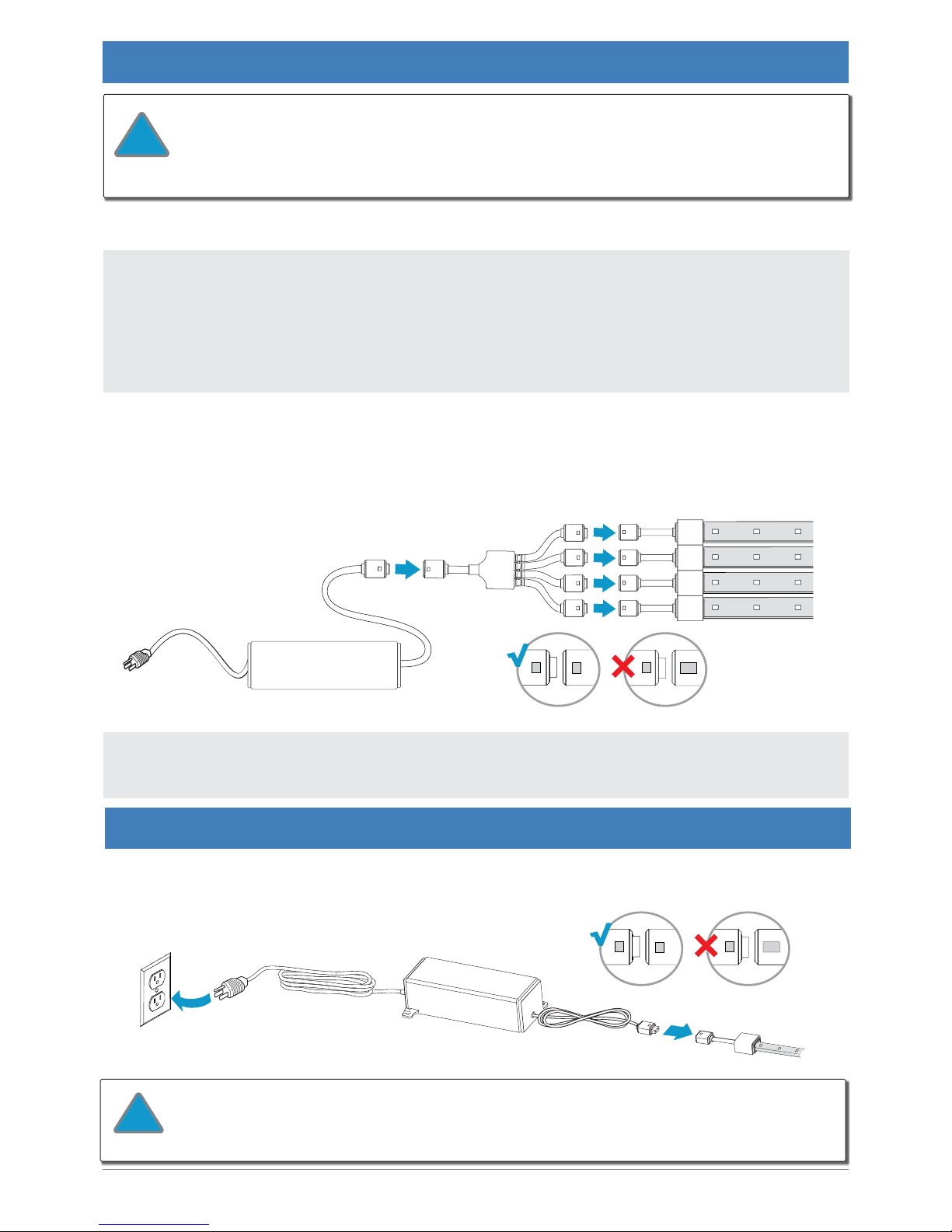

4.9 Install 4 Way Power Splitter

Step 5: Test

32

Step 6: Install Optional Accessories

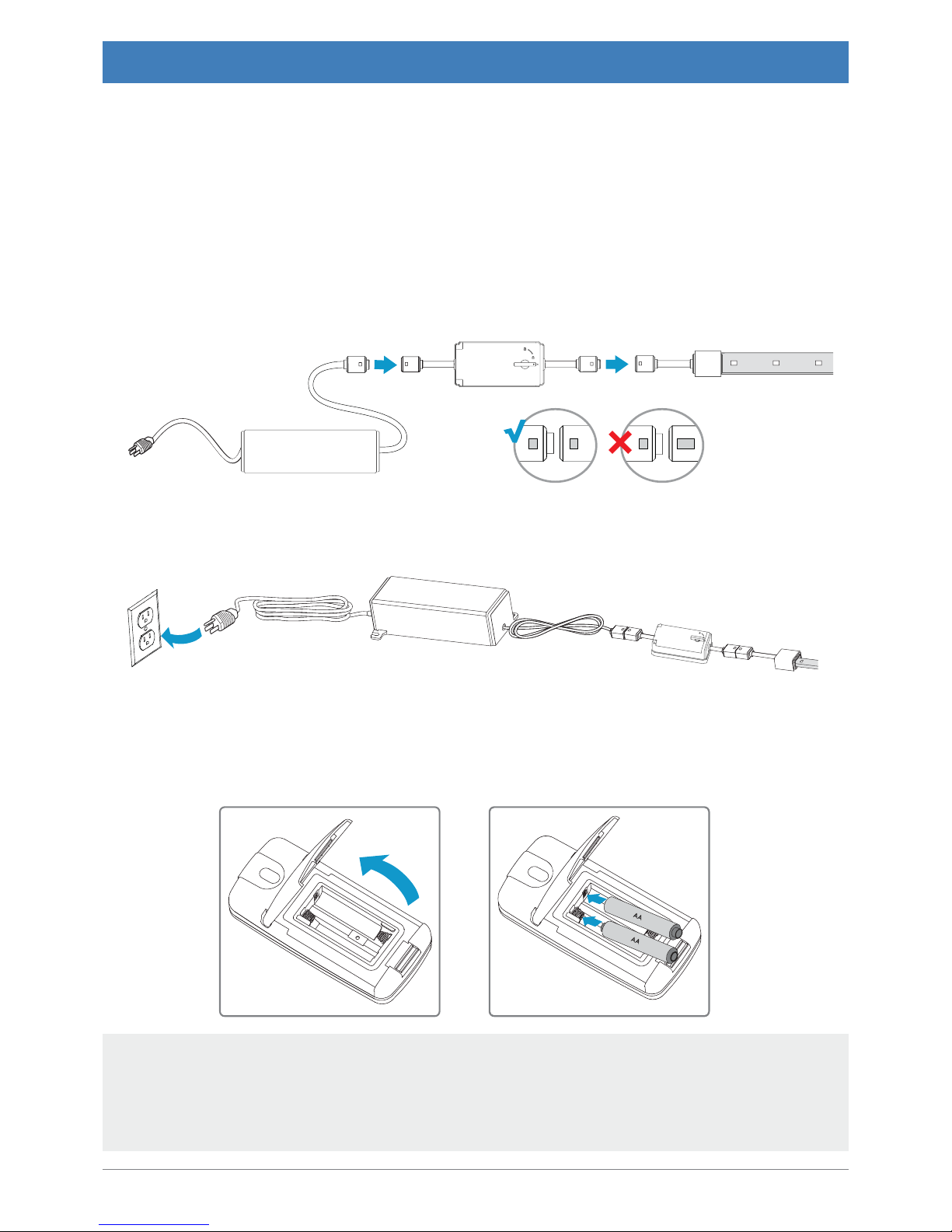

6.1 Install Inline On/Off Dimmer Switch

6.2 Install RF Light/Motion Sensor

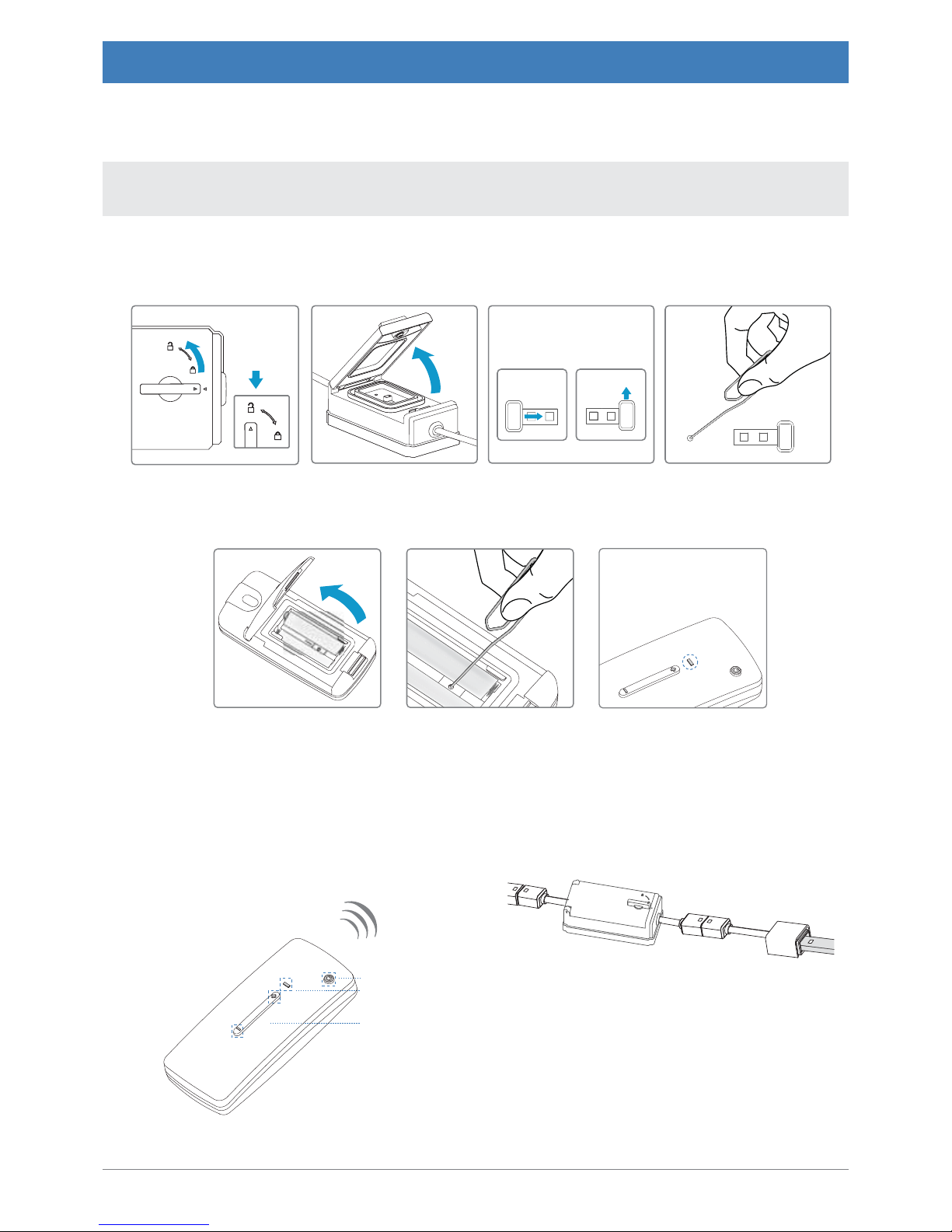

6.3 Install RF Remote Dimmer

Step 7: Mount CabLED™

7.1 Mark Placement for Brackets

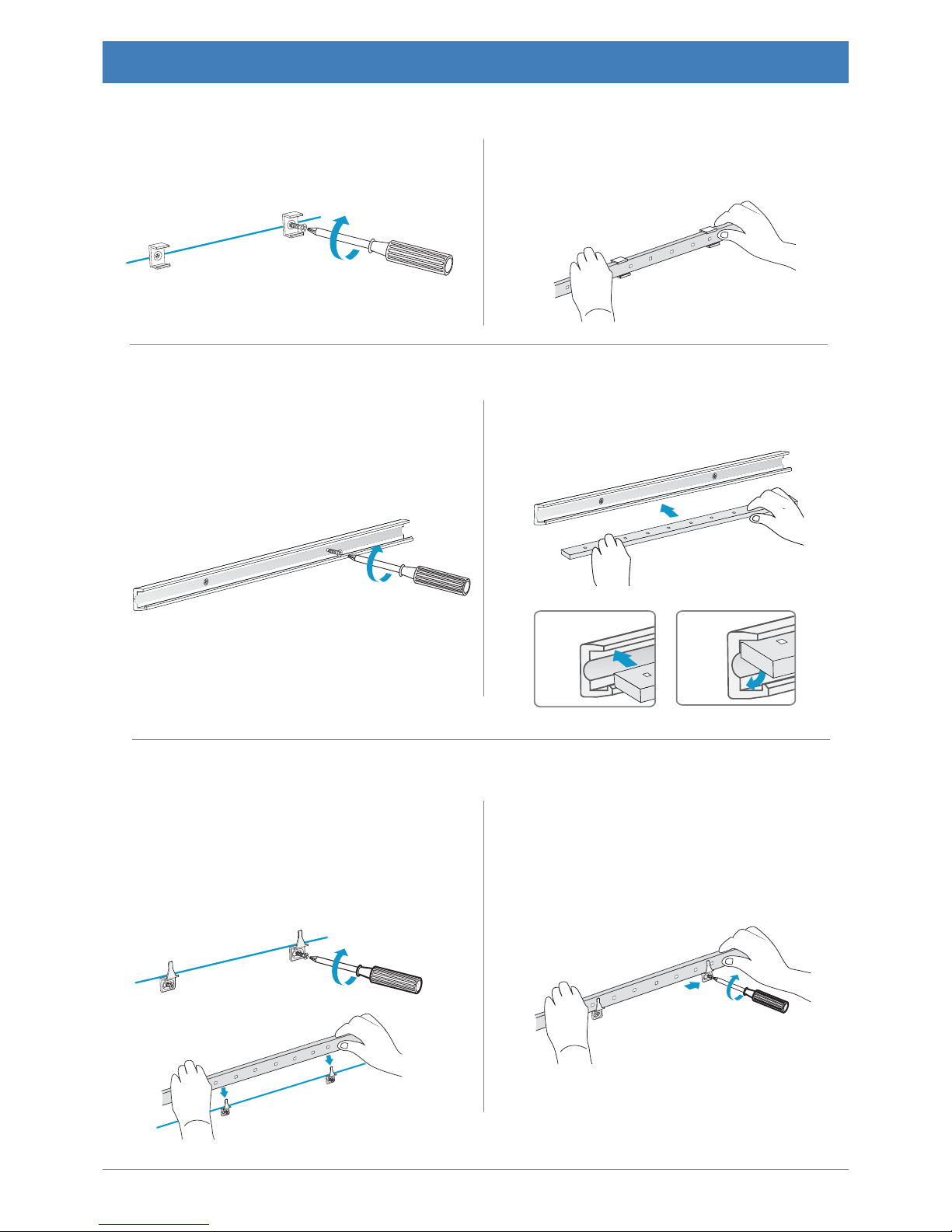

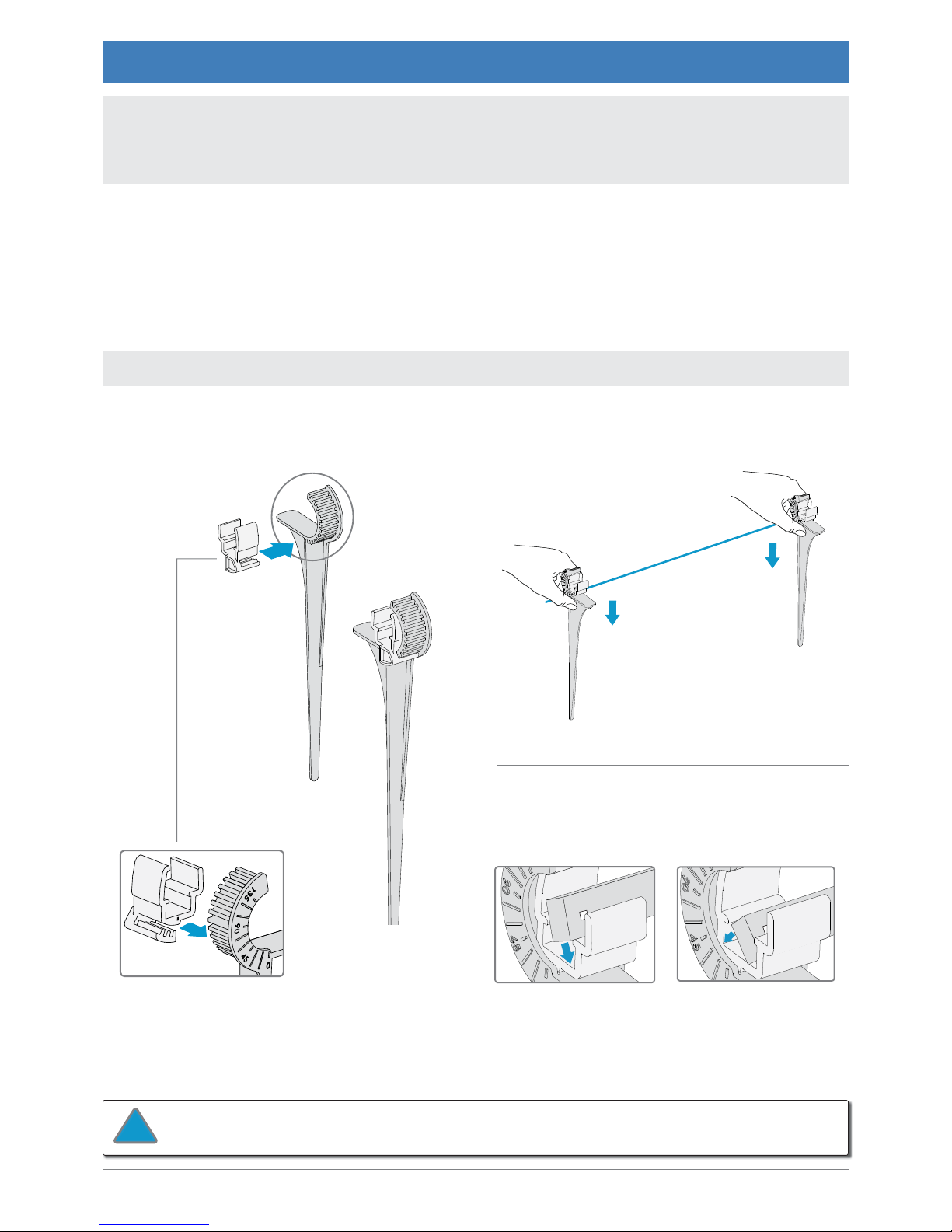

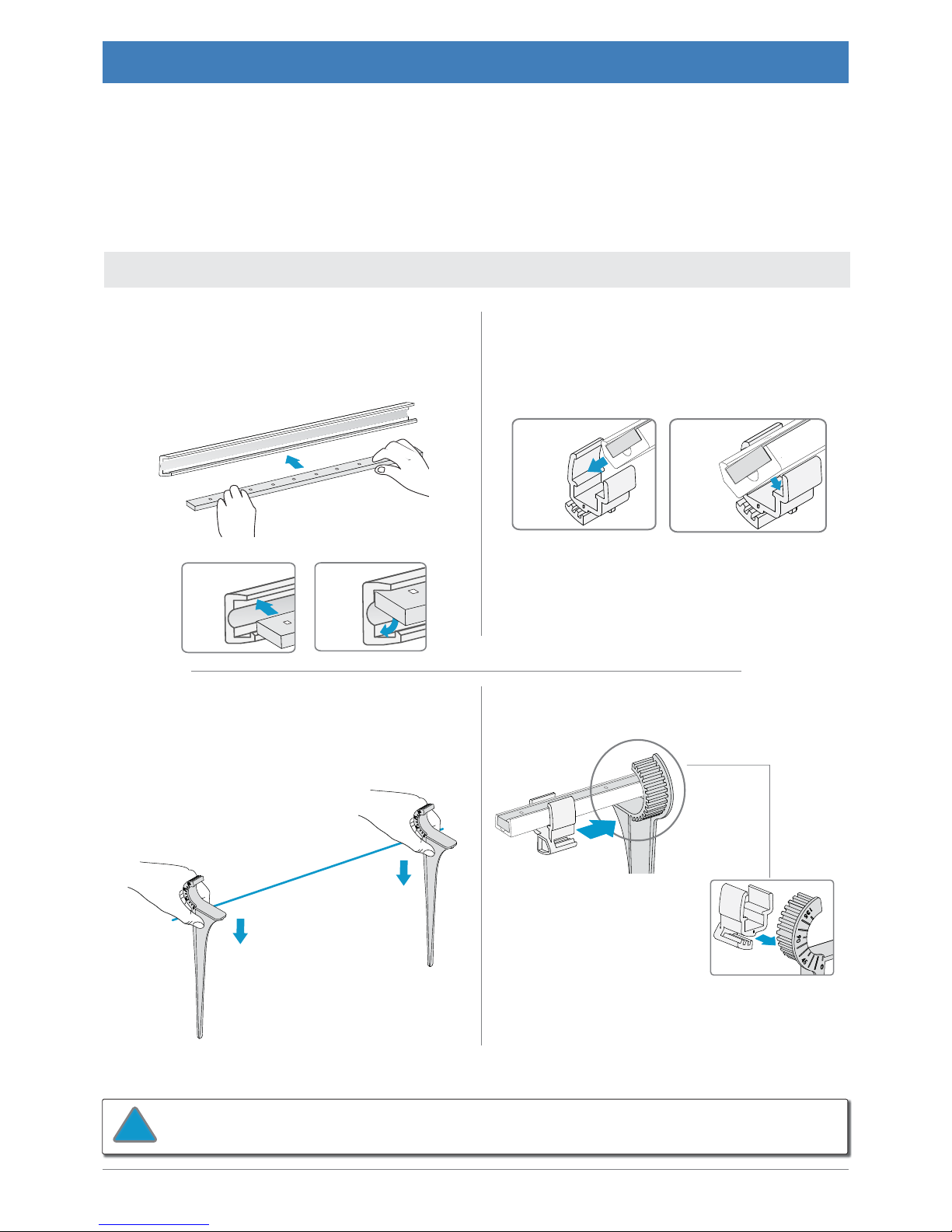

7.2 Use One of the Following Six Methods to Mount CabLED™
Step 8: Mount Power Supply
Step 9: Mount Optional Accessories

9.1 Mount Inline Dimmer

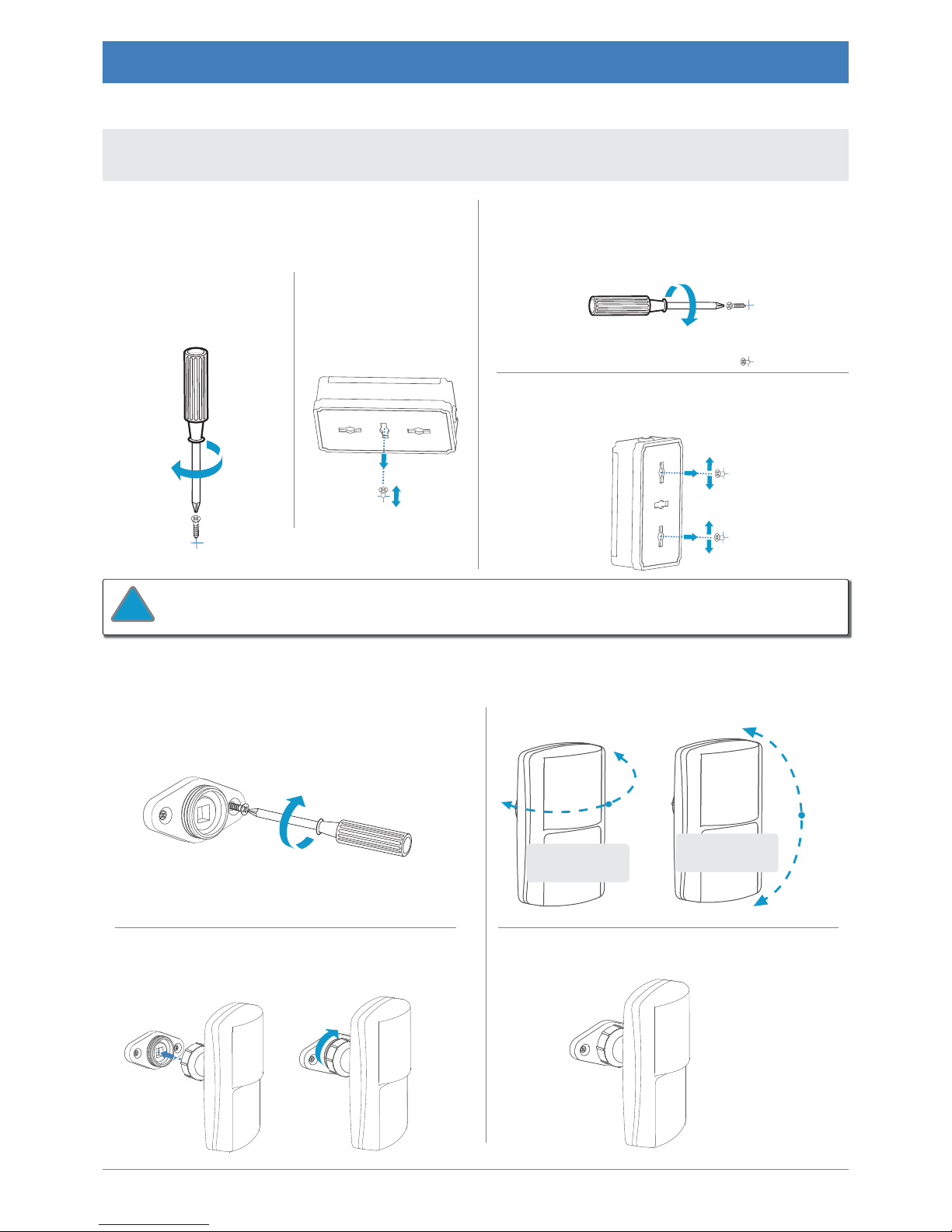

9.2 Mount RF Receiver

9.3 Mount RF Light/Motion Sensor

9.4 Mount RF Remote Dimmer

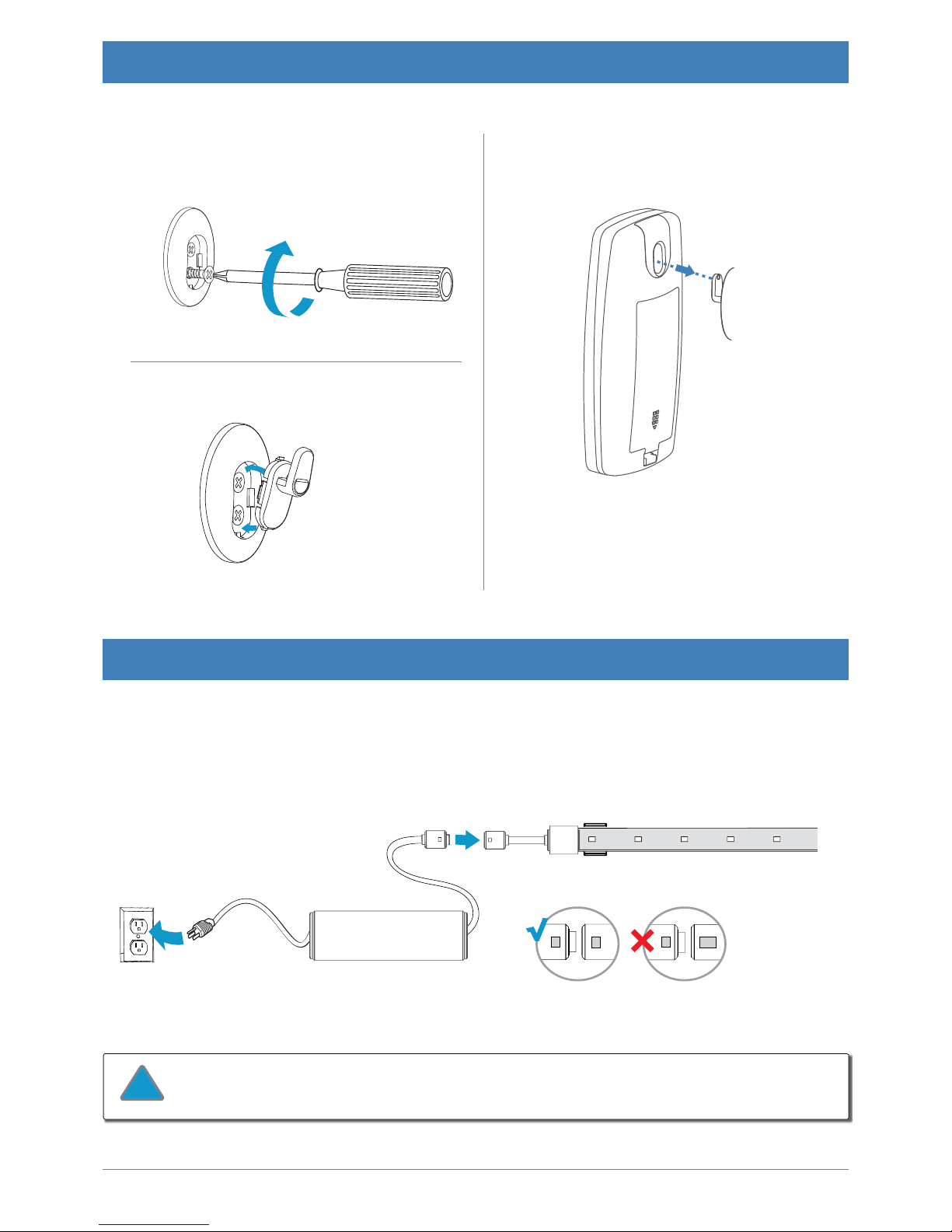

Step 10: Connect to Power

10.1 Connect Without Accessories

10.2 Connect With Optional Accessories
Tro ubleshooting

46-47

....................................................................................................................

7-11

.......................................................................................................................

..............................................................................................................................

.........................................................................................................................

10
11

13

.......................................................................................................................

...................................................................................................................

.............................................................................................................................

14-2 0

14-16

...................................................................................................................

14

17
18

19-20

21

.....................................................................................................................

........................................................................................

.....................................................................................................

.......................................................................................................

22-23

........................................................................................

................................................................................................

...........................................................................................................

..............................................................................................................

24

......................................................................................

.................................................................................................................

....................................................................................................................

25-31

....................................................................................................

...................................................................................................................

..............................................................................................................

...........................................................................................................

.............................................................................................................

.............................................................................................................

............................................................................................................

.............................................................................................................

.................................................................................................

33-37

....................................................................................

.......................................................................................

............................................................................................

38-41

...............................................................................................

...........................................

42

42-44

..........................................................................................................

.............................................................................................................

...........................................................................................

..................................................................................................

44-45

...........................................................................................

..................................................................................

21
21
21
21

22
22
23
23

24
24
24

25
25
26
27
28
29
30
31
32

33
33-35
36-37

38
38-41

42

43

43

44

44

45

4
5
6

7
8
9

cabled.optiled.com 5

Introduction

IMPORTANT: BEFORE YOU BEGIN, MAKE SURE YOU CAREFULLY READ

!

AND UNDERSTAND THE INSTRUCTIONS IN THIS MANUAL.

About CabLED™ 8000 Series

The CabLED 8000 Series consists of  ve components, which may be combined to customize
each application. All components are rated IP65, suitable for indoor or outdoor installations.

LED Strip

Connectors

Accessories

The  exible CabLED strip uses CREE High Brightness LED lights. They are
set every inch and can be cut every 7.09 inches (18cm) up to lengths of 82
feet (25m). The strips are available in Cool White (6500K), a bright, bluish
white generally used for task lighting and Warm White (3500K) a yellowish
white more commonly used in living spaces.

A variety of easy-to-use connectors are designed for speci c uses
in different installations. The connectors are used to attach sections
of CabLED strip together at virtually any angle to form endless
con gurations, as well as connect the strip to the power supply.

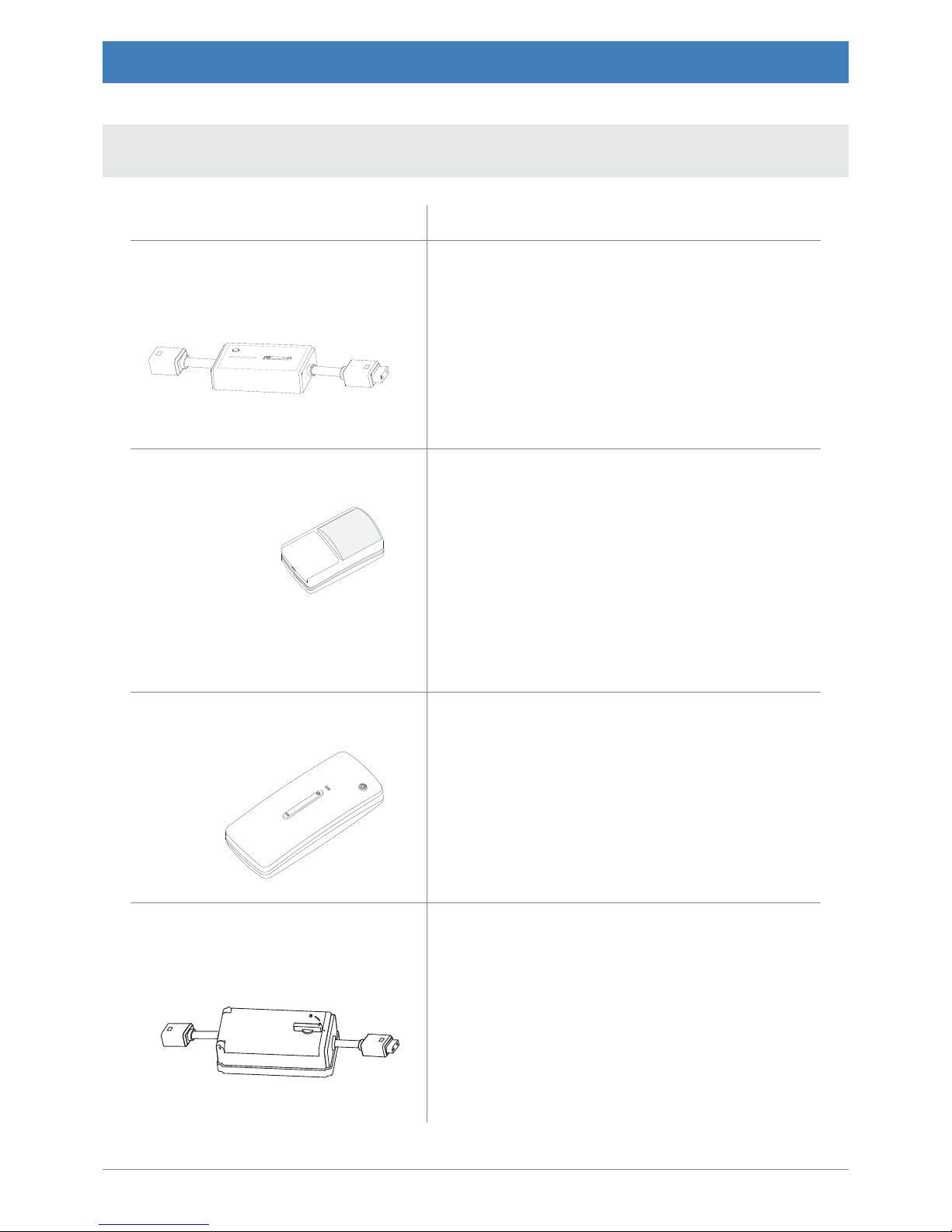

• The Inline On/Off Dimmer Switch is mounted with your system,
adding dimmer and power functions when connecting to an outlet
not controlled by a light switch. It offers full dimming range, fades the
CabLED system on and off, and retains last dimming level selected with
a simple push of buttons.

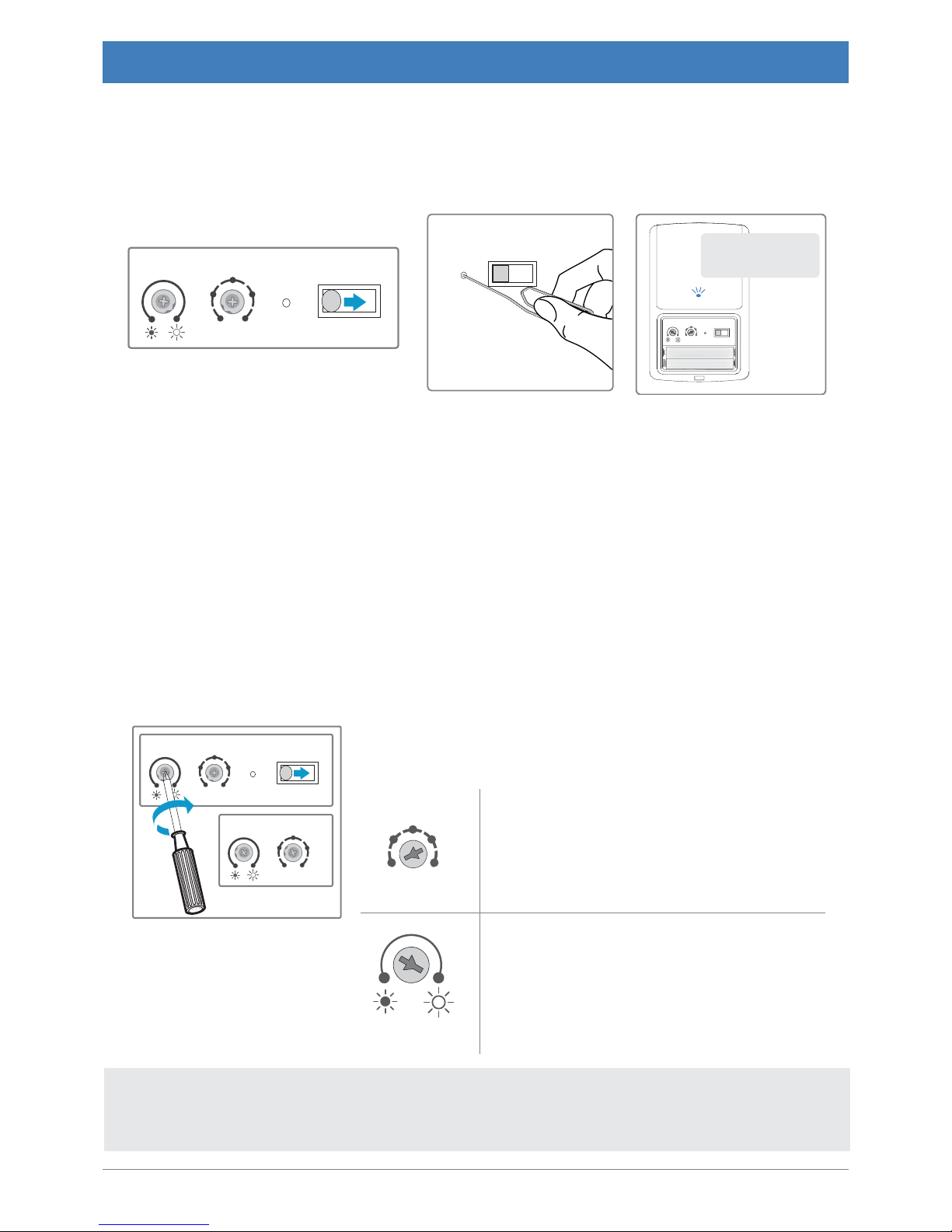

• The RF Light/Motion Sensor has a fully weather-resistant case to
protect it from the elements. It automatically activates the CabLED
system when something moves within 50 feet (15m) of the sensor. It
is also equipped with a photocell that detects light and can be set to
turn the system on when it’s dark or only when it detects motion. The
system will automatically turn off when it no longer detects motion for
the length of time you specify, between 30 seconds and 30 minutes. It
comes with a receiver.

• The RF Remote Dimmer offers full dimming range, fades the CabLED
system on and off, and retains last dimming level selected with a simple
push of buttons on the remote unit. It comes with a receiver with a
range of 65 feet (20m).

Power

Mounting

6 cabled.optiled.com

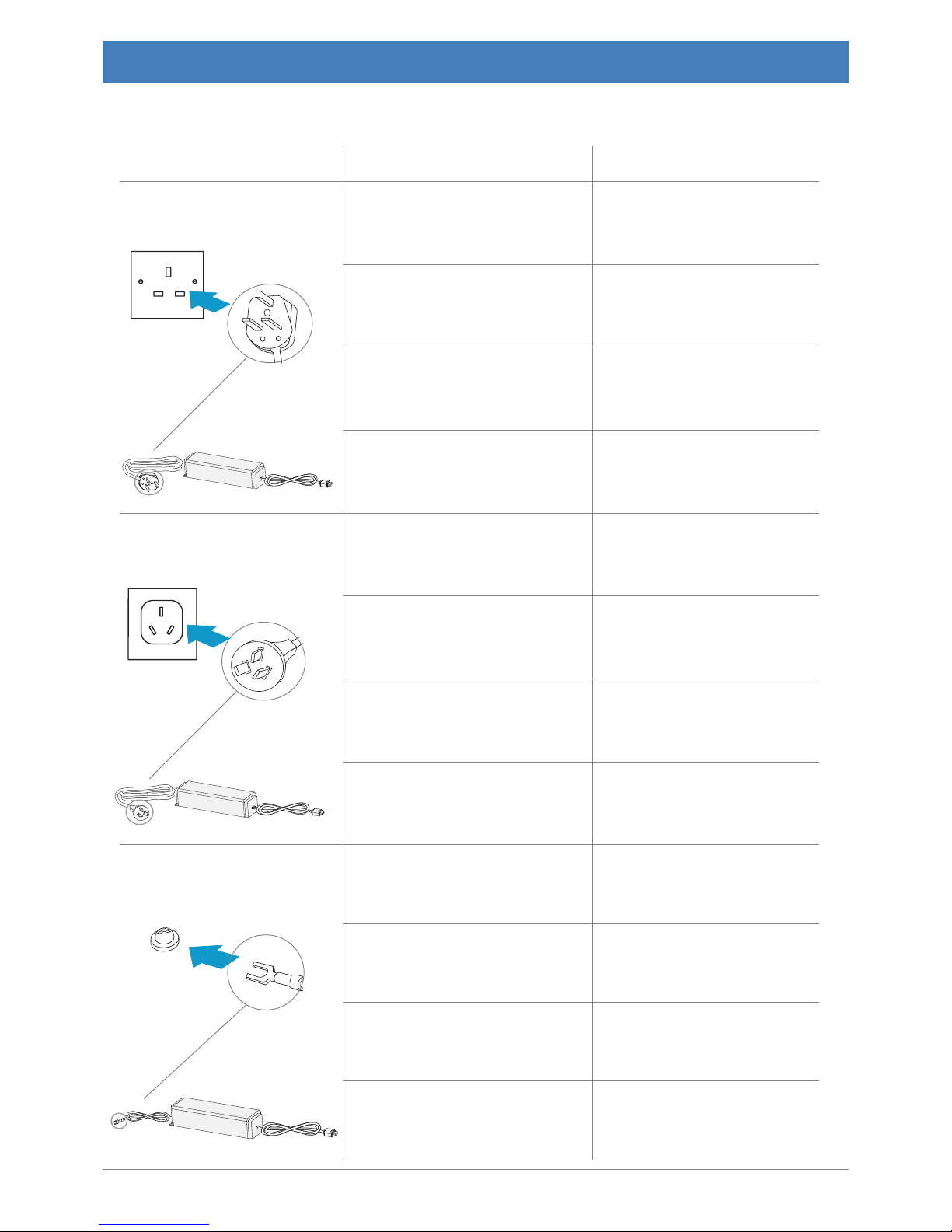

Every installation requires a CabLED power supply. There are twenty 24
volt power supplies available for installations worldwide. The available
power supplies are separated by suitable plugs for each region. After
identifying the correct region, determine the length of CabLED strip
needed to select the correct power supply for each installation. If you
are unsure of the correct voltage, contact a quali ed electrician.

A choice of six mounting solutions are available.

Possible Applications

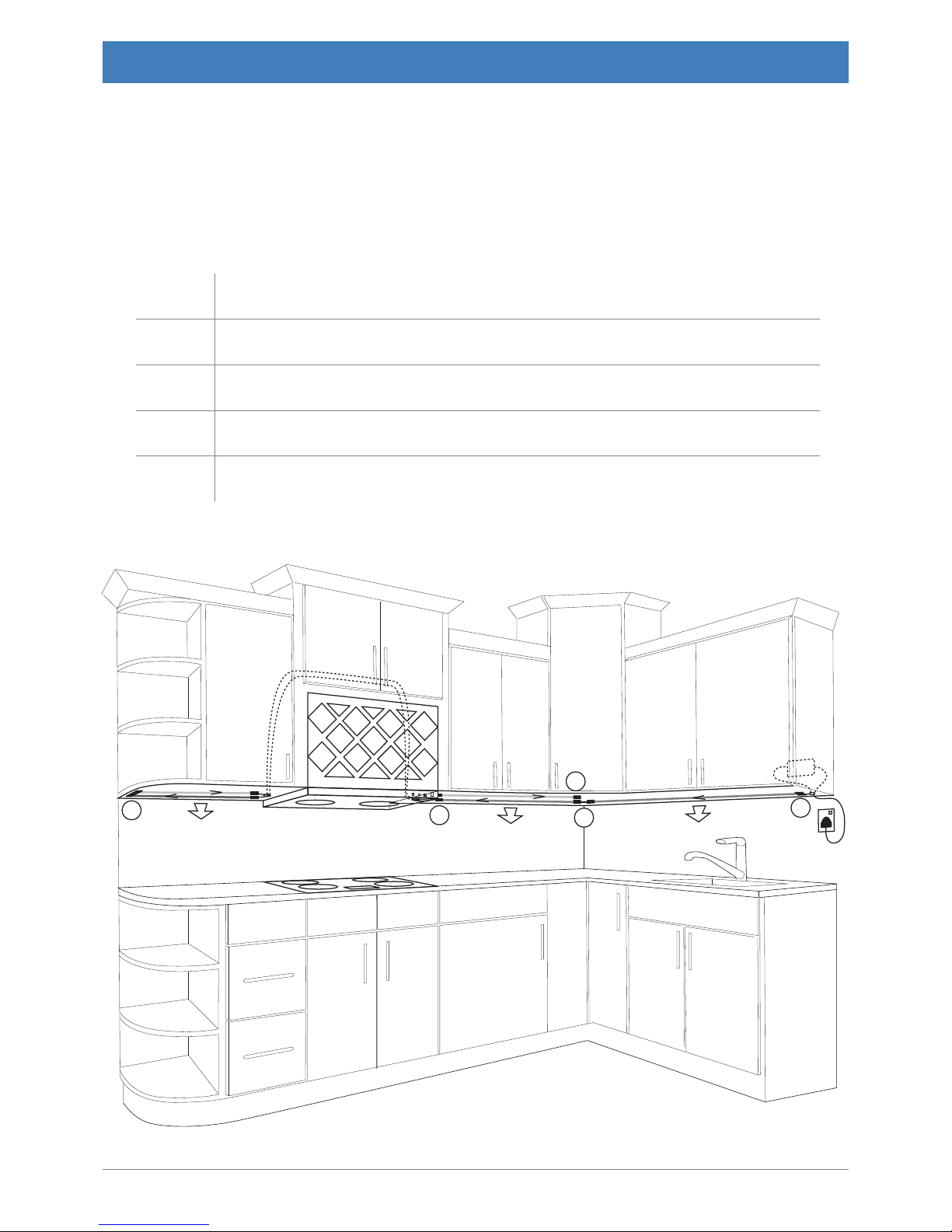

Kitchen Cabinets

In this scenario, the power supply is connected to an AC outlets connected to a light switch. We
have used two strips in work areas that require more light joined with a U-Connector at one end
and a short Jumper Cable on the other. A longer Jumper Cable is hidden in the cabinet above
the stove. The following chart lists the components used for this scenario.

Components

E

J

P

PS

U

End Cap

Jumper Cable (There are two lengths used here)

PS-Link Connector

Power Supply

U-Connector

U

E

J

J

cabled.optiled.com 7

PS

P

Possible Applications

Patios

This scenario turns your patio into the perfect entertainment area. Adjust the light using the
Remote Dimmer. The power supply is mounted well above the ground so it cannot be submerged
in water. The following chart lists the components used for this scenario.

Components

D

E

L

P

PS

R

T

X

Remote Dimmer

End Cap

L-Connector

PS-Link Connector

Power Supply

Receiver

T-Connec tor

X-Connector

L

T

L

8 cabled.optiled.com

X

E

L

E

P

E

E

D

R

PS

N

PS

P

J

J

J

J

J

J

J

J

J

J

E

Possible Applications

Indoor Stairs

The CabLED strips are mounted under the lip on each step, shining the light down on the step.
Use the Inline Dimmer to adjust the light level to keep your stairway softly lit. The Jumper Cables
are hidden behind the steps. The following chart lists the components used for this scenario.

Components

E

J

N

P

PS

End Cap

Jumper Cable

Inline Dimmer

PS-Link Connector

Power Supply

cabled.optiled.com 9

Possible Applications

Outdoor Stairs

In this scenario, we have mounted the Motion Sensor above the door so the stairs will be lit as
someone approaches them. The power supply is mounted well above the ground so it cannot be
submerged in water. The following chart lists the components used for this scenario.

Components

E

J

P

PS

R

S

End Cap

Jumper Cable

PS-Link Connector

Power Supply

Receiver

Motion Sensor

S

R

PS

10 cabled.optiled.com

P

J

E

Possible Applications

Walkways

In this scenario, the Motion Sensor at the entrance of the walkway so as guests arrive, their path
will be lit. We have used directional Garden Stakes to mount and angle the CabLED to shine the
light where it is needed, on the path. The power supply is mounted well above the ground so it
cannot be submerged in water. The following chart lists the components used for this scenario.

Components

E

J

P

PS

R

S

End Cap

Jumper Cable

PS-Link Connector

Power Supply

Receiver

Motion Sensor

s

PS

R

P

E

J J

cabled.optiled.com 11

Design Guidelines

Plan Your
Project

Accessories

Power

Connectors

All CabLED components are rated IP65 and are designed for both
indoor and outdoor use.

Decide whether to use Warm or Cool White CabLED or a combination
of both colors.

Measure the length of each section, rounded off to the nearest 7.09
inch (18cm) interval to determine how much CabLED you will need.

Do NOT cut the CabLED or push the connectors together before you
are ready to install.

For dimming or motion sensor features, select one of the three
accessories: the Inline On/Off Dimmer Switch, RF Remote Dimmer or
RF Light/Motion Sensor.

The Remote Dimmer and Light/Motion Sensor can control up to ten RF
Receivers.

Refer to the power supply chart to determine correct power supply.
NOTE: Using an insuf cient power supply will not light the system to its
full potential or may cause it to  icker.

Measure each section and adjust your project to determine the
connectors you will use. Each connector has been designed for a
speci c purpose, but you may have a few choices for your particular
needs. Use the "Component Layout" section for an overview of the
connectors and how they can be used.

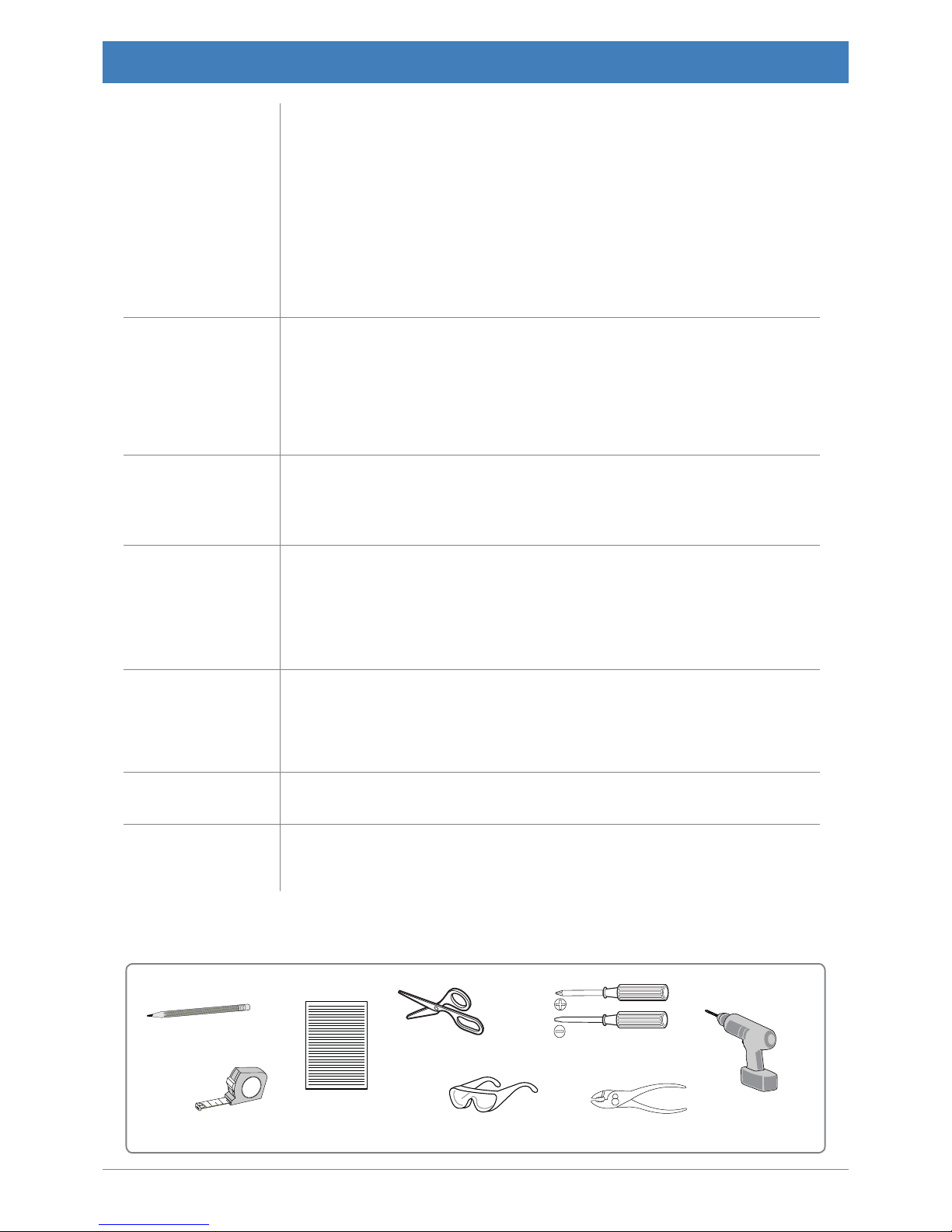

Installation

Mounting

Tips

Tools Needed

Pencil Scissors

2

1

Follow the instructions carefully when cutting CabLED and attaching
the connectors.

Test your installation before mounting.

Use one of the six mounting solutions.

Use the Trouble Shooting section when you have problems or contact
our Customer Service Department.

Screw Drivers

Note Pad

Safety Goggles PliersTape Measure

Power Drill

12 cabled.optiled.com

CabLED™ Component Layout

This diagram illustrates possible layouts for the CabLED 8000 Series. Refer to the Component
Overview for additional information.

Optional Accessories

Power
Supply

AC Outlet

Connectors

E

End Cap

Inline On/Off
Dimmer Switch

OR

RF Receiver

P

S

OR

P

U

P
P
P

E

E

E

E

L

E

T

I

I-Connector

J

Jumper Cable

L

L-Connector

P

PS-Link Connector

S

4 Way Power Splitter

T

T-Connector

U

U-Connector

X

X-Connector

E

I

X

E

E

J

J

cabled.optiled.com 13

CabLED™ Component Overview

IMPORTANT: The CabLED 8000 system is designed to work ONLY with the
power supplies, connectors, mounting options, and accessories listed. Do NOT

!

substitute other products as they may damage your system.

CabLED 8000 Series consists of the following  ve components, which may be combined to
customize each application:

CabLED™ Strip

The  exible LED strip uses CREE High Brightness LED lights set every inch and can be cut every

7.09 inches (18cm).

Model Name/Number Description

Cool White (6500K)

4037060105

Warm White (3500K)

4037050105

The Cool White (6500K) LED strip, a bright, bluish
white, is often used for task lighting. Each strip
is 164 feet (50m) long and may be cut every 7.09
inches (18cm).

The Warm White (3500K) LED strip, a yellowish
white, is commonly used in living areas. Each strip
is 164 feet (50m) long and may be cut every 7.09
inches (18cm).

DIY CabLED™ System Kits

Each of the DIY (Do It Yourself) kits include a PS-Link Connector, End Cap, Channel Brackets and a
power supply suitable for the length of CabLED strip.

Model Name/Number Description

System 4.5 WW

C8K-18-WW

This kit includes 14.7 feet (4.5m) Warm White
CabLED strip, an 18W power supply, PS-Link
Connector, End Cap and 15 Channel Brackets.

System 7.5 WW

C8K-30-WW

System 15 WW

C8K-60-WW

System 25 WW

C8K-90-WW

14 cabled.optiled.com

This kit includes 24.6 feet (7.5m) CabLED Warm
White strip, a 30W power supply, PS-Link
Connector, End Cap and 25 Channel Brackets.

This kit includes 49.2 feet (15m) Warm White
CabLED strip, a 60W power supply, PS-Link
Connector, End Cap and 50 Channel Brackets.

This kit includes 82 feet (25m) Warm White CabLED
strip, a 90W power supply, PS-Link Connector, End
Cap and 85 Channel Brackets.

CabLED™ Component Overview

Power Supplies

Every installation requires a CabLED power supply. There are twenty 24 volt power supplies
available for installations worldwide. The available power supplies are separated by suitable plugs
for each region. After determining the correct region, determine the length of CabLED strip
needed to select the correct power supply for each installation.

Region/Plug Model Name/Number Description

US

Polarized

EU

Grounded

18 Watt 24V Power Supply

5428101817

30 Watt 24V Power Supply

5429103017

60 Watt 24V Power Supply

5430106017

90 Watt 24V Power Supply

5 43 1110 017

18 Watt 24V Power Supply

5432101817

Provides power
for CabLED strip
measuring up to 14.7
feet (4.5m)

Provides power
for CabLED strip
measuring up to 24.6
feet (7.5m)

Provides power
for CabLED strip
measuring up to 49.2
feet (15m)

Provides power
for CabLED strip
measuring up to 82
feet (25m)

Provides power
for CabLED strip
measuring up to 14.7
feet (4.5m)

30 Watt 24V Power Supply

5433103017

60 Watt 24V Power Supply

5434106017

100 Watt 24V Power Supply

5435110017

Provides power
for CabLED strip
measuring up to 24.6
feet (7.5m)

Provides power
for CabLED strip
measuring up to 49.2
feet (15m)

Provides power
for CabLED strip
measuring up to 82
feet (25m)

cabled.optiled.com 15

CabLED™ Component Overview

Power Supplies (Continued)

Region/Plug Model Name/Number Description

UK

Grounded

AU

Grounded

18 Watt 24V Power Supply

5420101817

30 Watt 24V Power Supply

5421103017

60 Watt 24V Power Supply

5422106017

100 Watt 24V Power Supply

5423110017

18 Watt 24V Power Supply

5424101817

30 Watt 24V Power Supply

5425103017

Provides power for CabLED
strip measuring up to 14.7
feet (4.5m)

Provides power for CabLED
strip measuring up to 24.6
feet (7.5m)

Provides power for CabLED
strip measuring up to 49.2
feet (15m)

Provides power for CabLED
strip measuring up to 82 feet
(25m)

Provides power for CabLED
strip measuring up to 14.7
feet (4.5m)

Provides power for CabLED
strip measuring up to 24.6
feet (7.5m)

EU

Open/Grounded

60 Watt 24V Power Supply

5426106017

100 Watt 24V Power Supply

5427110017

18 Watt 24V Power Supply

5440101817

30 Watt 24V Power Supply

5441103017

60 Watt 24V Power Supply

5442106017

100 Watt 24V Power Supply

5443110017

Provides power for CabLED
strip measuring up to 49.2
feet (15m)

Provides power for CabLED
strip measuring up to 82 feet
(25m)

Provides power for CabLED
strip measuring up to 14.7
feet (4.5m)

Provides power for CabLED
strip measuring up to 24.6
feet (7.5m)

Provides power for CabLED
strip measuring up to 49.2
feet (15m)

Provides power for CabLED
strip measuring up to 82 feet
(25m)

16 cabled.optiled.com

CabLED™ Component Overview

Accessories

Four IP65 rated accessories are available to enhance your system for either indoor or outdoor use.
The RF Light/Motion Sensor and RF Remote Dimmer require at least one RF Receiver to function.

Model Name/Number Description

Inline On/Off Dimmer Switch

6401403105

RF Light/Motion Sensor

6401403205

Connects to PS-Link Connector. Offers full dimming
range, fades the CabLED system on and off at last
selected dimming level.

Wireless 2.4 GHz Light/Motion Sensor activates
CabLED system by sensing motion, light or both.
Must be used with at least one RF Receiver and can
be synchronized with up to ten RF Receivers.

RF Remote Dimmer

6401403305

RF Receiver for Dimmer OR
Sensor

6401403405

Wireless 2.4 GHz Remote Dimmer fades CabLED
system on/off, offers full dimming range and retains
last dimming level. Must be used with at least one
RF Receiver and can be synchronized with up to ten
RF Receivers.

2.4 GHz RF Receiver connects to PS-Link Connector
and can be synchronized with either the Remote
Dimmer OR the Light/Motion Sensor.

cabled.optiled.com 17

CabLED™ Component Overview

Mounting Options

A choice of six types of mounting options are available.

Model Name/Number Description

Angle Channeling

6401402905

Bridge Bracket

6401500205

Channel Bracket

6401500105

Channeling

6401402805

Angle Channeling  ts into the corner of two
surfaces and directs the light at a 30 degree
angle. You may install it so the light points up or
down. CabLED strip snaps securely into Angle
Channeling that runs the length of the installation.

Holds CabLED strip securely in place using two
screws.

NOTE: This bracket is NOT UL approved for USA
installations.

Used in most applications. It installs easily with one
screw and is barely visible after CabLED strip is
snapped into place.

CabLED strip lies  ush and snaps securely into
Channeling that runs the length of the installation.

Edge Bracket

6401500305

Garden Stake

6401403005

18 cabled.optiled.com

Use for  ush mount installations such as along a
baseboard. Suitable for use in high traf c areas.

Use for outdoor ground installations. Holds the
CabLED above ground so it will not be submerged
in water and adjusts to direct the angle of
light from 0 to 135 degrees. May be used with
Channeling.

CabLED™ Component Overview

Connectors

A variety of connectors are designed for speci c uses in different installations. Connectors are
used to attach sections of LED strip together at various angles and connect the strip to the power
supply. Of the available connectors, the PS-Link Connector and End Cap are required for every
installation. All connectors are rated IP65 for use indoors or outdoors.

Model Name/Number Description

4 Way Power Splitter

6401403905

End Cap

6401400805

I-Connector

6401400205

L-Connector

6401400605

Connects four CabLED strips to one power
supply. Install between power supply and four PS­Link Connectors.

Used in ALL installations.

Protects end of CabLED strip that is not
connected to a connector.

Connects two lengths of CabLED strips in a
straight line. Use to extend a length of CabLED
strip.

Connects two CabLED strips at a right angle.

PS-Link Connector

6401400105

T-Connector

6401401705

U-Connector

6401400305

Used in ALL installations.

Connects CabLED strip to power supply.

Connects three CabLED strips in a  exible T shape.

Connects two CabLED strips parallel to each other
for twice the brightness or a balance of warm and
cool colors.

cabled.optiled.com 19

CabLED™ Component Overview

Connectors (Continued)

Model Name/Number Description

X-Connector

6401401805

2" Jumper Cable

6401402605

4" Jumper Cable

6401400905

6" Jumper Cable

6401400705

Connects four CabLED strips at  exible right
angles.

Connects two CabLED strips with a 2 inch (5cm)
 exible cable.

Connects two CabLED strips with a 4 inch (10cm)
 exible cable.

Connects two CabLED strips with a 6 inch (15cm)
 exible cable.

12" Jumper Cable

6401401005

24" Jumper Cable

6401401105

40" Jumper Cable

6401402705

IMPORTANT: The connectors consist of two parts, a top and bottom, which are
partially assembled at the factory. DO NOT push the connectors together before

!

you are ready to install.

Connects two CabLED strips with a 12 inch (31cm)
 exible cable.

Connects two CabLED strips with a 24 inch (61cm)
 exible cable.

Connects two CabLED strips with a 40 inch (101cm)
 exible cable.

20 cabled.optiled.com

Step 1: Plan Installation

Plan Your Project

The 8000 series offers great  exibility so when you are designing your own projects, it is very
important to plan each installation thoroughly before you begin. Begin planning your own
installation by considering the following:

What is the Purpose of Your Project?

Think about what you want to accomplish in order to determine the best CabLED color,
accessories and installation method to use.

Warm White or Cool White?

Warm White
(3500K)

Cool White
(6500K)

A yellowish white more commonly used in living spaces because it
is  attering to skin tones. It is often paired with décor dominated by
wood tones and warm colors and is also popular outdoors for general
garden/plant lighting.

A bright, bluish, white generally used for lighting areas where seeing
well is essential because it produces higher contrast. These include
some counter areas in kitchens, reading lamps, closets and entry ways
and is also popular for outdoor security lighting and walkways.

Which Accessories to Use?

Inline On/Off
Dimmer Switch

RF Light/
Motion Sensor

The Inline On/Off Dimmer Switch is designed to be mounted next to
the CabLED system, providing easy access to full dimming range and
power on/off function. Use when the system is connected to an AC
outlet not controlled by an on/off or dimmer switch.

The wireless 2.4 GHz Light/Motion Sensor has a fully weather-resistant
case to protect it from the elements. It automatically activates the
CabLED system when something moves within 50 feet (15m) of the
sensor. Equipped with a photocell that detects light, it can be set
to turn the system on when it’s dark or only when it detects motion.
Use to activate system only when required, either for security along
walkways and driveways, or for convenience, by lighting areas before
someone enters. Can be set to control up to ten RF Receivers.

RF Remote
Dimmer

RF Receiver for
Dimmer OR
Sensor

The wireless 2.4 GHz Remote Dimmer offers full dimming range,
fades the CabLED system on and off, and retains last dimming level
selected with a simple push of buttons. Use in any con guration where
you would like to adjust the amount of light in the area or turn it on or
off remotely. Works within 50 feet (15m) with each receiver. Can be set
to control up to ten RF Receivers.

2.4 GHz RF Receiver connects to PS-Link Connector and must be
synchronized with either the RF Remote Dimmer OR the RF Light/
Motion Sensor. You can use up to ten RF Receivers with each Remote
Dimmer or Light/Motion Sensor.

cabled.optiled.com 21

Step 2: Prepare for Installation

2.1 Determine Components Needed

Now you should have a few things listed on your note pad. Such as what color you have decided
to use, and the accessories you will use. It's time to map out the installation to determine
everything else you will need.

2.2 Measure and Mark the Area

Locate the AC outlet and plan to mount the power supply nearby. Mount the power supply well
away from areas where it can be submerged in water and at least one foot above the ground if
mounted outdoors.

A Measure carefully. The CabLED strip

may ONLY be cut every 7.09 inches (18cm)
and requires a half inch (1.3cm) on either
side of the  nal length to allow for the
connectors.

Section 1

½”

!

7.09” 7.09”

Measure to the nearest 7.09” (18cm)

Allow ½” (1.3cm) on each side

IMPORTANT: Place power supply near outlet and off the ground so there is no
chance of it being submerged in water.

B Center the CabLED strip in each

section. After determining the maximum
length, adjust the placement so you will have
balanced light.

Section 1

½”

Center maximum length

Mark area

Helpful Tips

Adjust your layout plan. After measuring each section, determine the best solution for the whole

project. Review the "Component Layout" and "Possible Applications" sections for ideas on
planning your project.

As you are measuring, draw you plan on paper as well. This will help you see your options and
keep track of the amount of CabLED required and which connectors you will need.

IMPORTANT: The CabLED strip may ONLY be cut every 7.09 inches (18cm),
indicated by a cut line on the LED side of the strip. When you are measuring for your

!

installation, if the total length in inches is not a multiple of 7, then adjust the plan of
your layout to use the nearest cut line marked on the strip.

22 cabled.optiled.com

Step 2: Prepare for Installation

2.3 Select Power Supply

Add up the amount of CabLED in each color to give you the total amount required. Using the
following chart select the power supply equal to or greater than your total length so the LEDs will
perform to their full capability.

Voltage-VDC Length of CabLED Appropriate Power Supply

24V 14.7 feet (4.5m) 18 Watt 24V Power Supply

24V 24.6 feet (7.5m) 30 Watt 24V Power Supply

24V 49.2 feet (15m) 60 Watt 24V Power Supply

24V 82 feet (25m) 90-100 Watt 24V Power Supply

NOTE: The power supplies are available with different plugs for various regions worldwide.
When determining the correct model number for your installation, check the region as well
as the strength.

2.4 Mounting Options

When installing the CabLED strip, select one of the six mounting solutions designed for the
8000 Series. The number of brackets or length of channeling depends upon the total quantity of
CabLED in the installation. Plan on using a bracket next to each connector in all sections and then
spaced evenly between 12 to 16 inches (31 to 41cm) apart.

NOTE: For best effect, mount CabLED at least 1.5 inches (4cm) away from the wall.

Under Cabinets

When mounting under cabinets, position CabLED strip to get the desired lighting effect.

Back Mount

CabLED

Center Mount

CabLED

Front Mount

CabLED

Mounting Options:

Channel Bracket

or

Channeling

Cove Lighting

When utilized for cove lighting, position CabLED so it indirectly lights the area.

Cove Angled Back

Cove Angled Out

Curved Cove

Mounting Options:

Angle Channeling

or

CabLED

CabLED

CabLED

Channeling

Path Lighting

When mounting along paths, use the Garden Stake and adjust light at an angle. Use with
Channeling for additional support.

Angled Down

(135 degrees)

CabLED

Angled Out

(90 degrees)

CabLED

Angled Up

(45 degrees)

CabLED

Mounting Options:

Garden Stake

with or without

Channelling

cabled.optiled.com 23

Step 3: Begin Installation

3.1 Measure, Mark and Cut CabLED™

Now that you have planned where the CabLED will be placed in each section of your installation,
it is important to double check before you cut each strip.

3.2 Mark CabLED™

CabLED can ONLY be cut every 7.09 inches (18cm) and must be cut EXACTLY on the cut line.
Hold the strip up to the surface you marked in Step 2, locate nearest cut line and mark it on the
strip. Repeat for each section.

NOTE: If there is a large discrepancy in your measurements, make sure you have selected
the correct components to complete your installation.

AB

cutting point

one

cutting point

one

cutting point

two

3.3 Cut CabLED™

Use a pair of sharp scissors to cut the CabLED strip EXACTLY on the cut lines you have marked.

cutting point

one

cutting point

two

IMPORTANT: The CabLED strip may ONLY be cut every 7.09 inches (18cm),

indicated by a cut line on the LED side of the strip. When you are measuring for your

!

installation, if the total length in inches is not a multiple of 7, then adjust the plan of
your layout to use the nearest cut line marked on the strip.

24 cabled.optiled.com

Step 4: Install Connectors

IMPORTANT: The connectors consist of two parts, a top and bottom, which are
partially assembled at the factory. DO NOT push the connectors together before you

!

are ready to install.

4.1 Install PS-Link Connector

The PS-Link Connector attaches the CabLED system to the power supply.

A Find the end of the LED strip that will be

installed nearest to the power. Remove the
protective piece from the PS-Link Connector.
With LED side facing up, slide the strip into
the opening in bottom half of the connector
until it reaches the end.

B Push the strip completely into the connector.

The ridges on each side of the strip will be
covered when the strip is properly installed.

look for ridges
on
each
side
of strip

C Using pliers, apply even pressure to the bottom and top halves of the

connector to push connector together, securing CabLED strip inside.

slide until

all ridges are covered

IMPORTANT: When using pliers that do not cover the entire surface of the connector, hold the
connector and strip steady so the CabLED strip remains in position. Carefully rotate the pliers

!

and apply pressure to each side of the connector, pushing the top and bottom together.

D Make sure both sides of the bottom half of the connector snap

into the top half. Gently pull the LED strip to make sure you have
installed it properly.

4.2 Install End Cap

The End Cap protects the side of the CabLED strip not attached to a connector.

Slide End Cap onto LED strip that will have no connector.
The End Cap protects the strip.

cabled.optiled.com 25

Step 4: Install Connectors

IMPORTANT: The connectors consist of two parts, a top and bottom, which are
partially assembled at the factory. DO NOT push the connectors together before you

!

are ready to install.

4.3 Install I-Connector

Connects two lengths of CabLED strips in a straight line. Use to add extra length to the main strip.

A

Remove the protective piece from
I-Connector. With the LED side of each strip
facing up, insert one strip into one side of the
I-Connector and push to the end. Insert the
other strip into the other side and push it to
the end.

B Push the strips completely into the connector.

The ridges on each side of the strip will be
covered when the strip is properly installed.

look for ridges
on
each
side
of strip

all ridges are covered

slide until

C Using pliers, apply even pressure to the bottom and top connector to

push connector together, securing CabLED strips inside.

IMPORTANT: When using pliers that do not cover the entire surface of the connector, hold
the connector and strip steady so the CabLED strip remains in position. Carefully rotate the

!

pliers and apply pressure to each side of the connector, pushing the top and bottom together.

D Make sure both sides of the bottom half of the connector snap into

the top half. Gently pull the CabLED strips to make sure you have
installed it properly.

26 cabled.optiled.com

Step 4: Install Connectors

IMPORTANT: The connectors consist of two parts, a top and bottom, which are partially
assembled at the factory. DO NOT push the connectors together before you are ready

!

to install.

4.4 Install Jumper Cable

The Jumper Cable connects two CabLED strips with a  exible cable. They are available with 2",
4”, 6”, 12”, 24” and 40” cables. Use the shorter lengths for connecting two CabLED strips at any
angle, or when the strips do not meet at 90 degree angles after being centered to a section.
The medium lengths are often used for stairs, running strips parallel with each other with space
between them. The longer lengths are useful when running strips under sections of kitchen
cabinets with an appliance between them, extending the system behind a larger area.

A Remove the protective piece from both sides

of the Jumper Connector. With LED side
facing up, slide one CabLED strip into the
opening in bottom half of one side of the
connector until it reaches the end. Repeat
with the other CabLED strip in the other side
of the connector.

B Push the strip completely into the connectors.

The ridges on each side of the strip will be
covered when the strip is properly installed.

look for ridges
on
each
side
of strip

C Using pliers, apply even pressure to the bottom and top halves of each

connector to push them together, securing the CabLED strips inside.

slide until

all ridges are covered

IMPORTANT: When using pliers that do not cover the entire surface of the connector, hold
the connector and strip steady so the CabLED strip remains in position. Carefully rotate the

!

pliers and apply pressure to each side of the connector, pushing the top and bottom together.

D Make sure both sides of the bottom half of the connector snap into

the top half. Gently pull the CabLED strips to make sure you have
installed it properly.

cabled.optiled.com 27

Step 4: Install Connectors

IMPORTANT: The connectors consist of two parts, a top and bottom, which are
partially assembled at the factory. DO NOT push the connectors together before you

!

are ready to install.

4.5 Install L-Connector

Connects two CabLED strips at a 90 degree angle to form a corner.

A Remove the protective piece from

L-Connector. With the LED side of each strip
facing up, insert one strip into one side of the
L-Connector and push it to the end. Insert the
other strip into the other side and push it to
the end.

B Push both strips completely into the

connector. The ridges on each side of the
strip will be covered when the strip is properly
installed.

look for ridges
on
each
side
of strip

C Using pliers, apply even pressure to the bottom and top halves of

each connector to push them together, securing the CabLED
strips inside.

slide until

all ridges are covered

IMPORTANT: When using pliers that do not cover the entire surface of the connector, hold
the connector and strip steady so the CabLED strip remains in position. Carefully rotate the

!

pliers and apply pressure to each side of the connector, pushing the top and bottom together.

D Make sure both sides of the bottom half of the connector snap into

the top half. Gently pull the CabLED strips to make sure you have
installed them properly.

28 cabled.optiled.com

Step 4: Install Connectors

IMPORTANT: The connectors consist of two parts, a top and bottom, which are
partially assembled at the factory. DO NOT push the connectors together before you

!

are ready to install.

4.6 Install T-Connector

Connects three CabLED strips in a  exible T shape.

A Remove the protective piece from each side

of the T-Connector. With LED side facing
up, slide one CabLED strip into the opening
in bottom half of one side of the connector
until it reaches the end. Repeat with the
other CabLED strips in the other sides of the
connector.

B Push the strips completely into the connector.

The ridges on each side of the strips will be
covered when the strip is properly installed.

look for ridges
on
each
side
of strip

C Using pliers, apply even pressure to the bottom and top halves of each

connector to push them together, securing the CabLED strips inside.

slide until

all ridges are covered

IMPORTANT: When using pliers that do not cover the entire surface of the connector, hold
the connector and strip steady so the CabLED strip remains in position. Carefully rotate the

!

pliers and apply pressure to each side of the connector, pushing the top and bottom together.

D Make sure both sides of the bottom half of the connector snap into

the top half. Gently pull the CabLED strips to make sure you have
installed them properly.

cabled.optiled.com 29

Step 4: Install Connectors

IMPORTANT: The connectors consist of two parts, a top and bottom, which are
partially assembled at the factory. DO NOT push the connectors together before you

!

are ready to install.

4.7 Install U-Connector

Connects two CabLED strips parallel with each other for twice the brightness or to achieve a
balance of warm and cool colors.

A Remove the protective piece from

U-Connector. With the LED side of each strip
facing up, insert each CabLED strip into the
U-Connector and push to the end.

B Push both strips completely into the

connector. The ridges on each side of the
strips will be covered when the strip is
properly installed.

look for ridges
on
each
side
of strip

C Using pliers, apply even pressure to the bottom and top connector to

push connector together, securing CabLED strips inside.

slide until

all ridges are covered

IMPORTANT: When using pliers that do not cover the entire surface of the connector, hold
the connector and strip steady so the CabLED strip remains in position. Carefully rotate the

!

pliers and apply pressure to each side of the connector, pushing the top and bottom together.

D Make sure both sides of the bottom half of the connector snap into

the top half. Gently pull the CabLED strips to make sure you have
installed them properly.

30 cabled.optiled.com

Step 4: Install Connectors

IMPORTANT: The connectors consist of two parts, a top and bottom, which are
partially assembled at the factory. DO NOT push the connectors together before you

!

are ready to install.

4.8 Install X-Connector

Connects four CabLED strips at  exible right angles.

A Remove the protective piece from each side

of the X-Connector. With LED side facing
up, slide one CabLED strip into the opening
in bottom half of one side of the connector
until it reaches the end. Repeat with the
other CabLED strips in the other sides of the
connector.

B Push the strips completely into the connector.

The ridges on each side of the strips will be
covered when the strip is properly installed.

look for ridges
on
each
side
of strip

all ridges are covered

slide until

C Using pliers, apply even pressure to the bottom and top halves of each connector to

push them together, securing the CabLED strips inside.

IMPORTANT: When using pliers that do not cover the entire surface of the connector, hold
the connector and strip steady so the CabLED strip remains in position. Carefully rotate the

!

pliers and apply pressure to each side of the connector, pushing the top and bottom together.

D Make sure both sides of the bottom half of the connector snap into

the top half. Gently pull the CabLED strips to make sure you have
installed them properly.

cabled.optiled.com 31

Step 4: Install Connectors

IMPORTANT: There is only one way to connect the 4 Way Power Splitter to the
power supply and PS-Link Connectors. Make certain the icons match before

!

connecting. Connect the 4 Way Power Splitter to the PS-Link Connectors and to the
power supply BEFORE plugging the power supply into the AC outlet.

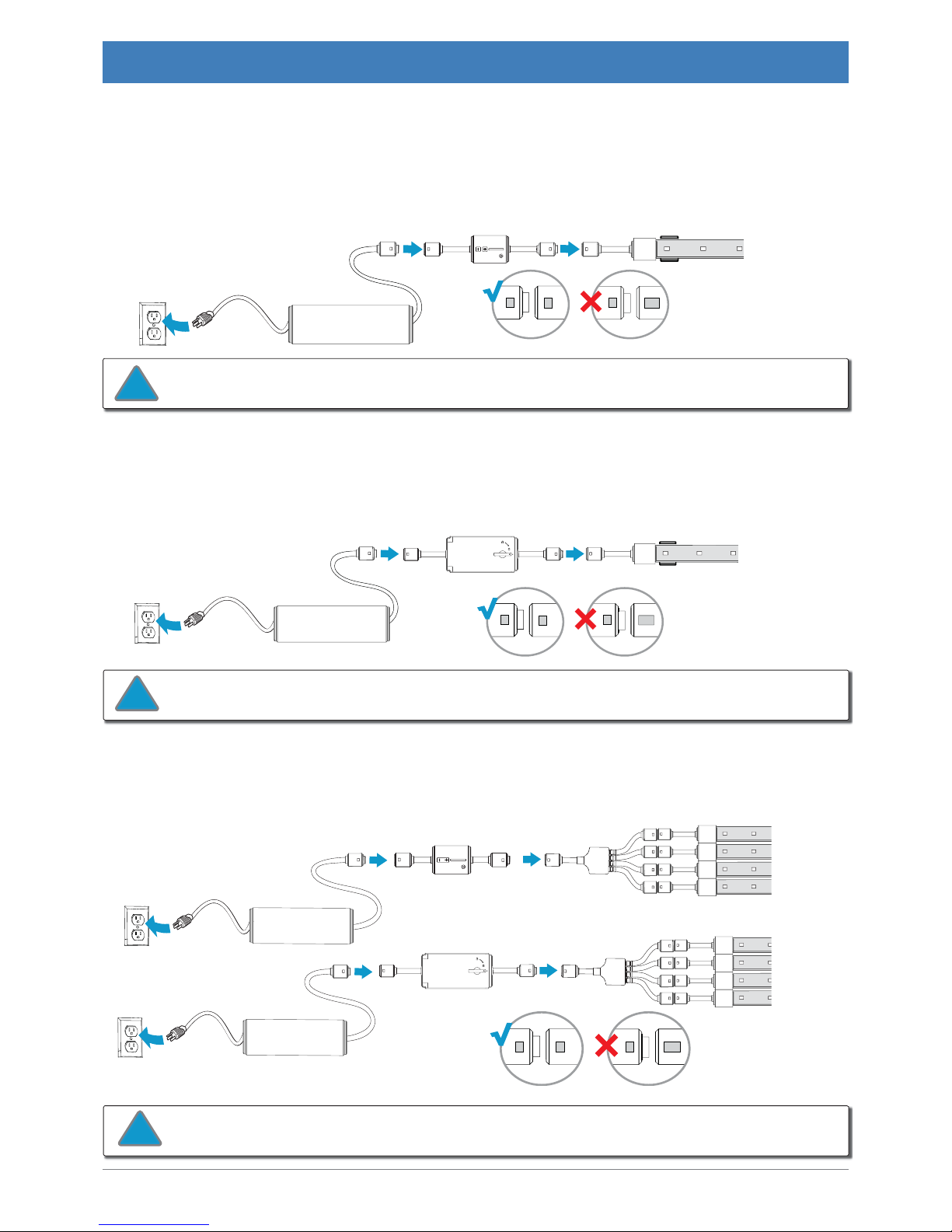

4.9 Install 4 Way Power Splitter

The 4 Way Power Splitter connects four strips of CabLED to one power supply and  ts between
the power supply and the PS-Link Connectors.

NOTE: Select the power supply according to the combined length of CabLED connected
to the 4 Way Power Splitter. Each of the strips function independently, can be different
lengths or combined with other connectors, but the maximum combined length of
CabLED strip must not exceed 82 feet (25m).

Follow the instructions in Step 4.1 to connect each strip to a PS-Link Connector. The 4 Way Power
Splitter  ts between the power supply and the PS-Link Connectors.

Unplug the power supply from the AC outlet before connecting. Match the icons on each PS-Link
Connector with the icons on the 4 Way Power Splitter. Match the icons on the power supply with
the icons on the other side of the 4 Way Power Splitter.

NOTE: If you are using the 4 Way Power Splitter with the accessories, the Inline On/Off
Dimmer Switch or the Receiver will be installed between the power supply and the 4 Way
Power Splitter.

Step 5: Test

Matching the icons, connect the PS-Link Connector to the power supply. Plug the power supply
into the AC outlet. If it works properly, unplug it and continue. If not, see the Troubleshooting
section.

IMPORTANT: There is only one way to connect the PS-Link Connector to the power
supply. Make certain the icons match before connecting. Connect the power supply

!

to the PS-Link Connector BEFORE plugging the power supply into the AC outlet.

32 cabled.optiled.com

Step 6: Install Optional Accessories

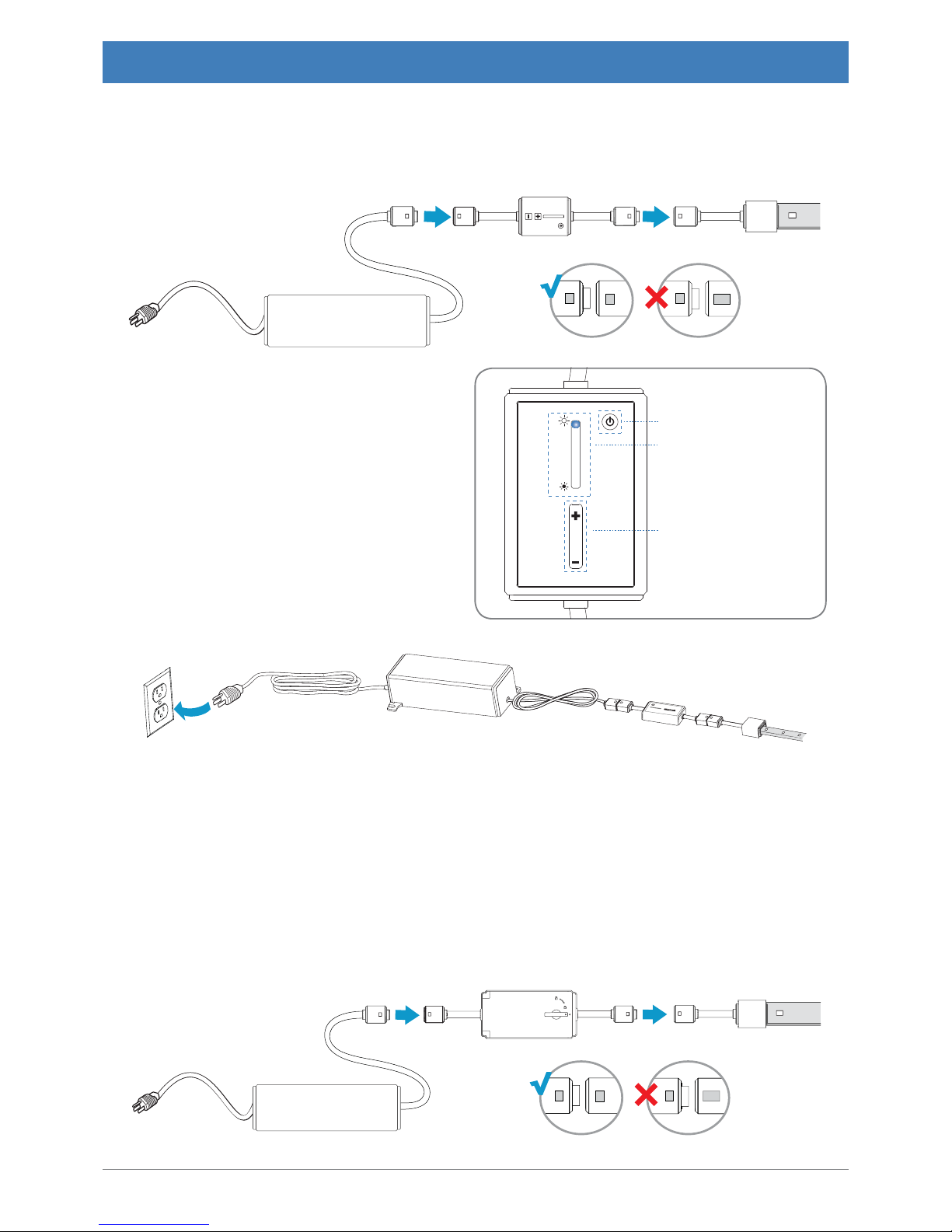

6.1 Install Inline On/Off Dimmer Switch

The Inline On/Off Dimmer Switch  ts between the PS-Link Connector and the power supply.
Unplug the power supply from the AC outlet before connecting. Match the icons on the PS-Link
Connector with the icons on the Inline Dimmer.

Power Button: On/Off

Light Bar Indicator:

Level 5 (max) (shown)
Level 4

Test

Plug the power supply back into the AC
outlet and press the power button on the
Inline Dimmer to test.

Level 3
Level 2
Level 1 (min)

Dimming Bar:

+: Increase light level

- : Decrease light level

If it works properly, unplug it and continue. If
not, see the Troubleshooting Section.

6.2 Install RF Light/Motion Sensor

The wireless Motion Sensor works only with CabLED Receivers. Both the Sensor and Receiver
are rated IP65, completely weather resistant but not to be submerged in water. You may use one
Sensor to control up to twenty CabLED systems, each connected to its own CabLED Receiver.
The Sensor MUST be synchronized with each Receiver.

Install RF Receiver

Unplug the power supply from the AC outlet before connecting. Install the receiver between the
power supply and the PS-Link Connector by matching the icons on the plugs.

cabled.optiled.com 33

Step 6: Install Optional Accessories

6.2 Install RF Light/Motion Sensor (Continued)

Plug the power supply into the AC outlet to synchronize it to the Remote Dimmer.

Install Batteries in the RF Light/Motion Sensor

A Open the front battery compartment cover using a  at screw driver. Insert 2 AAA batteries

matching the polarity (+ and -) markings on the batteries with the indicators in the battery
compartment and turn on to test.

OnOff

AAA

AAA

Turn ON

to test

Synchronize One RF Receiver with RF Light/Motion Sensor

IMPORTANT: The Light/Motion Sensor must be synchronized with at least one CabLED

Receiver. The Receiver  ts between the PS-Link Connector and the power supply.

Unlock the receiver case and open it to access the sync switch. Move the power button to

A

AUTO. Use a pin or straightened paper clip to push the sync button.

strip lights brie y when you push the sync button.

unlocked

position

Push switch to AUTO

Off AutoOn

Off AutoOn

NOTE: The CabLED

Auto

On

Sync

Off

IMPORTANT: After the receiver is successfully synchronized, make sure it is set it to AUTO.
Setting the receiver to ON overrides the Light/Motion Sensor, and the CabLED will be lit
continuously. Setting it to OFF, turns the power off and setting it to AUTO allows it to be
activated only by the Motion Sensor.

34 cabled.optiled.com

Sync

OffOn

Step 6: Install Optional Accessories

6.2 Install RF Light/Motion Sensor (Continued)

B

With the battery compartment on the front of the Light/Motion Sensor, access the controls.

Turn the power ON. Use a pin or straightened paper clip to push the sync button.

10

mins

520

mins

30

sec

30

mins

mins

Reset

OnOff

for one minute

10

mins

520

OffOn

mins

mins

Sync

30

30

sec

mins

The red LED on the front of the Light/Motion Sensor will blink for approximately one minute
during synchronization. When it stops blinking the Motion Sensor is successfully synchronized
with the Receiver.

Test

red LED blinks

Walk in front of the Light/Motion Sensor to test.

If it works properly, unplug the power supply from the AC outlet and continue mounting. If not,
see the Troubleshooting Section.

Set the RF Light/Motion Sensor

Adjust the time delay and ambient light settings by using a  at screw driver. Turn each dial until
the arrow points to desired setting.

10

mins

520

sec

mins

Reset

30

30

mins

mins

OnOff

10

mins

520

sec

mins

30

30

mins

mins

10

mins

520

mins

30

sec

30

mins

mins

The time delay will determine how long the
strip will be lit after the sensor is activated.
There are  ve settings, between 5 seconds
and 30 minutes.

The ambient light photocell setting detects
the amount of natural light and can be set
so motion activates the strip only when it is
needed. When setting it to minimum it will
be activated only when it is completely dark
outside.

NOTE: The ambient light control can be set between complete darkness (minimum) and
sunset (maximum). Adjust the setting and test it outside until you have reached the desired
level of darkness needed before the strip is activated by motion.

cabled.optiled.com 35

Step 6: Install Optional Accessories

6.3 Install RF Remote Dimmer

The wireless Remote Dimmer works only with CabLED Receivers. Both the Dimmer and Receiver
are rated IP65, completely weather resistant but not to be submerged in water. You may use one
Dimmer to control up to ten CabLED systems, each connected to its own CabLED Receiver. The
Dimmer MUST be synchronized with each Receiver.

Install RF Receiver

Unplug the power supply from the AC outlet before connecting. Install the receiver between the
power supply and the PS-Link Connector by matching the icons on the plugs.

Plug the power supply into the AC outlet to synchronize it to the Remote Dimmer.

Install Batteries in the RF Remote Dimmer

Open the back cover of the Remote Dimmer and Insert 2 AAA batteries matching the polarity (+
and -) markings on the batteries with the indicators in the battery compartment.

Sync

IMPORTANT: After the receiver is successfully synchronized, make sure it is set it to AUTO.
Setting the receiver to ON overrides the Remote Dimmer, and the CabLED will be lit
continuously. Setting it to OFF, turns the power off and setting it to AUTO allows it to be
activated only by the Remote Dimmer.

36 cabled.optiled.com

Reset

Step 6: Install Optional Accessories

6.3 Install RF Remote Dimmer (Continued)
Synchronize One RF Receiver with RF Remote Dimmer

IMPORTANT: The Remote Dimmer must be synchronized with at least one CabLED

Receiver. The Receiver  ts between the PS-Link Connector and the power supply.

Unlock the receiver case and open it to access the sync switch. Move the power button to

A

AUTO. Use a pin or straightened paper clip to push the sync button.

strip lights brie y when you push the sync button.

NOTE: The CabLED

unlocked

position

Push switch to AUTO

Off AutoOn

Off AutoOn

Sync

Auto

On

Off

B Open the battery compartment on the back of the Remote Dimmer to access the sync switch.

Use a pin or straightened paper clip to push the sync button.

blue LED blinks
for one minute

The blue LED on the front of the Remote Dimmer will blink for approximately one minute during
synchronization. When it stops blinking the Remote Dimmer is successfully synchronized with the
Receiver.

Test

Within 50 feet (15m) of the receiver, point the remote
in its general direction and test.

If it works properly, unplug the power supply from the AC outlet and continue mounting. If not,
see the Troubleshooting Section.

Power Button: On/Off
Blue LED: Lights when in use

Dimming Bar:
+: Increase light level

- : Decrease light level

cabled.optiled.com 37

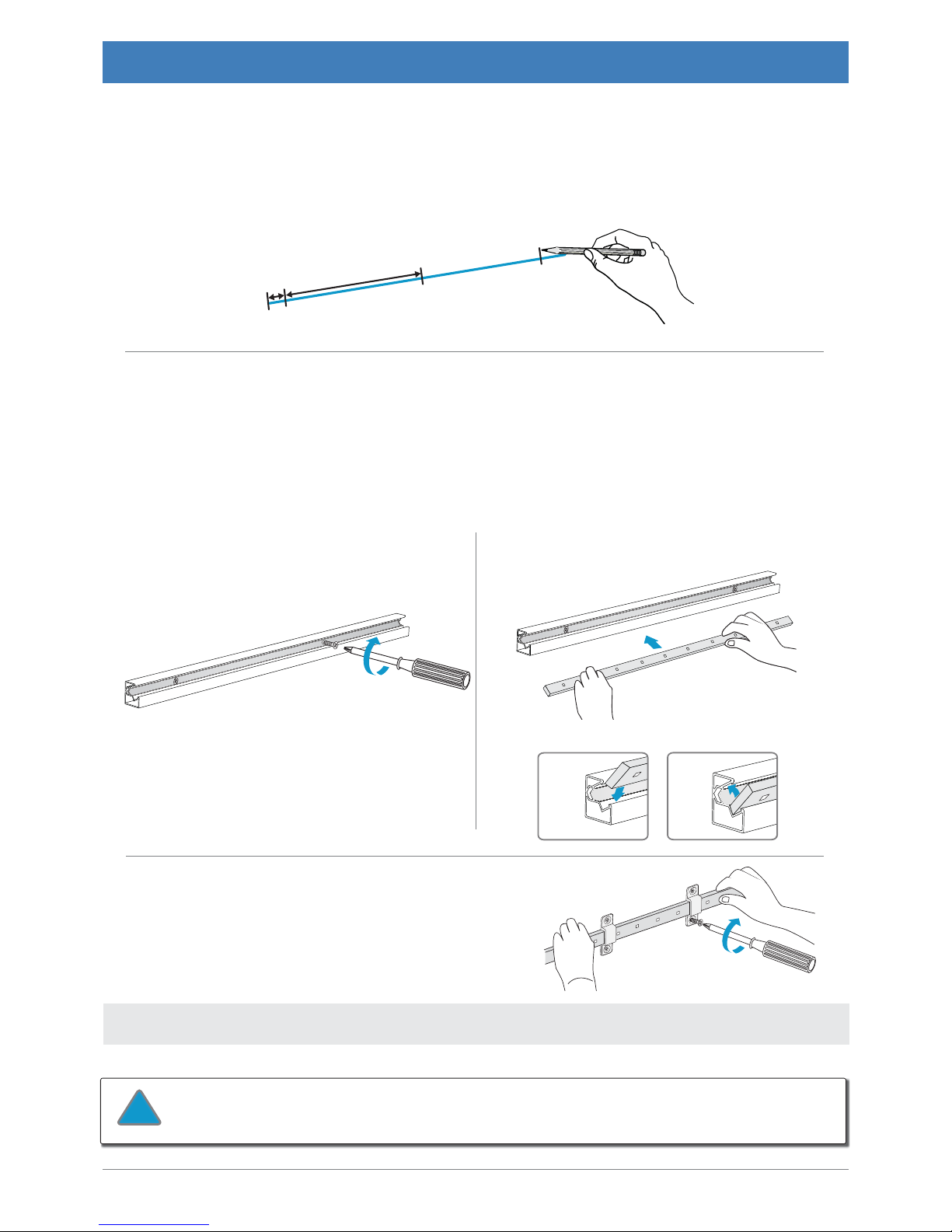

Step 7: Mount CabLED™

7.1 Mark Placement for Brackets

When installing the CabLED strip, select one of the six IP65 mounting solutions designed to be
used with the 8000 Series for either indoors or outdoors. Plan on using a bracket next to each
connector on the end of each strip in each section and then spaced evenly between 12 to 16
inches (31-41cm) apart. Allow a half inch to clear each connector.

1.3cm

½"

31-41cm

12"-16"

7.2 Use One of the Following Six Methods to Mount CabLED™

Install Angle Channeling

Angle Channeling  ts into the corner of two surfaces and directs the light at a 30 degree angle.
You may install it so the light points up or down. The example shows the light pointing down.

A Determine the desired direction of the light

and hold Angle Channeling against surface.
Secure with screw every 12 to 16 inches (31­41cm).

B Slide CabLED at an angle into the longer side

of the Angle Channelling, and then push down
to snap strip into place.

Install Bridge Bracket

Hold CabLED strip against surface. Making certain
strip lies  at, secure each bracket with
a screw through top and bottom of Bridge Bracket.

NOTE: Do NOT place brackets so they cover the LEDs in the strip.

IMPORTANT: If you are installing CabLED in the USA, the Bridge Bracket is

!

NOT UL approved. All  exible lighting must NOT be permanently installed.

38 cabled.optiled.com

slide
into

bottom

snap
into

lip

Step 7: Mount CabLED™

Install Channel Bracket

A Screw Channel Brackets into surface. B Starting from PS-Link Connector, press

CabLED strip  rmly into each channel bracket.
Make certain strip
lies  at in bracket.

Install Channeling

A Position Channeling so lip is at bottom when

installed. Hold Channeling against surface.
Secure with screw every 12 to 16 inches (31­41cm).

Install Edge Bracket

A Screw Edge Brackets partially into surface.

Start from PS-Link Connector. Slide CabLED
between bracket and surface making sure
it lies  at and the bracket doesn't cover the
LEDs.

B Slide CabLED straight into top of Channeling,

and then push down to snap strip into place.

slide into
top

snap
into
lip

B Adjust placement if necessary when

tightening screws.

cabled.optiled.com 39

Step 7: Mount CabLED™

The Garden Stakes are two-piece mounts designed to hold the CabLED strips along pathways and
can be set so the light is directed at an angle between 0 and 135 degrees at 11.25 degree intervals.
The mounting clip is designed with two cavities to either hold the strip alone, or for added
support, with the Channeling.

Install Garden Stake

The Garden Stake consists of two pieces, the mounting clip and the stand, which are assembled
to angle the direction of the light between 0 and 135 degrees at 11.25 degree intervals.

The mounting clip, is designed with two cavities. Install the CabLED strip alone in the bottom or
the CabLED strip with the Channeling into the top. Follow the instructions for each method for
the easiest installation.

NOTE: Installation shown at 0 degree angle.

A Set the angle by  tting the mounting clip

into the stand at the desired angle.

B Push the stakes  rmly into the ground spaced

from 12 to 16 inches (31-41cm) apart.

C Insert CabLED strip into one side of bottom

channel and snap into place.

Angle marked on
outside stand

IMPORTANT: Use Garden Stakes where CabLED will be installed on the ground

!

outside. Install so CabLED or connectors will NOT be submerged in water.

40 cabled.optiled.com

Position so strip lays  at and LEDs are NOT
covered when strip is installed. Reposition
stake if necessary.

Step 7: Mount CabLED™

Install Garden Stake With Channeling

The Garden Stake consists of two pieces, the mounting clip and the stand, which are assembled
to angle the direction of the light between 0 and 135 degrees at 11.25 degree intervals.

The mounting clip, is designed with two cavities. Install the CabLED strip alone in the bottom or
the CabLED strip with the Channeling into the top. Follow the instructions for each method for
the easiest installation

NOTE: Installation shown at 0 degree angle.

A First install the CabLED into the Channeling

by sliding the strip straight into top of
Channeling, and then push down to snap
strip  rmly and smoothly into Channeling.

slide into
top

snap
into
lip

C Push the stakes  rmly into the ground spaced

from 12 to 16 inches (31-41cm) apart.

B Install Channeling into upper cavity of

mounting clip. Slide in at an angle with high
lip into tall side of mounting clip until it sits on
ledge and then snap other end into place.

slide
into
top

Repeat to install the mounting clips spaced the
same distance you are installing the stands,
between 12 to 16 inches (31-41cm) apart.

snap
in
place

D Fit each mounting clip into the stake at the

desired angle.

IMPORTANT: Use Garden Stakes where CabLED will be installed on the ground

!

outside. Install so CabLED or connectors will NOT be submerged in water.

Angle marked on
outside stand

Adjust Channeling if LEDs are blocked by the
stand.

cabled.optiled.com 41

Step 8: Mount Power Supply

IMPORTANT: Do not plug into outlet until power supply is secured. Place power supply

!

near outlet and off the ground so there is no chance of it being submerged in water.

8.1 Mount Power Supply in USA

NOTE: The power supplies for use in the United States are designed to be easily mounted

and removed to comply with UL standards.

Position power supply near the AC outlet. Use the two strips of industrial-grade Velcro® shipped
with the power supply to install. The Velcro is suitable for indoor or outdoor installations, and
allows the power supply to easily be removed easily when necessary.

8.2 Mount Power Supply in Other Regions

NOTE: The power supplies for other regions worldwide comply with CE standards.

Position power supply near power outlet. Hold it in place using two M4 screws. The power supply
has been designed to be removed easily. Tighten screws just enough so they hold the unit in
place, but have enough space so the unit can easily be slid to the side to remove.

Step 9: Mount Optional Accessories

9.1 Mount Inline On/Off Dimmer Switch

Position Inline On/Off Dimmer Switch between power supply and PS-Link Connector. The Inline
Dimmer uses a keyhole mounting system designed to be mounted vertically

A Screw M4 screw partially into surface, leaving

1/4 inch to hang the Inline Dimmer.

IMPORTANT: Disconnect Inline Dimmer from power supply before mounting. Mount near

!

power supply and off the ground so there is no chance of it being submerged in water.

B Fit center of keyhole in back of Inline Dimmer

over screw and slide down to mount.

42 cabled.optiled.com

Step 9: Mount Optional Accessories

9.2 Mount RF Receiver

Follow these instructions to mount each RF Receiver to be used with either the Remote Dimmer or
the Light/Motion Sensor.

Mount Horizontally

Screw two M4

A

screw partially into
surface, leaving 1/4
inch to mount the
receiver.

B Fit center of

keyholes in back of
receiver over each
screw and slide to
one side to secure.

Mount Vertically

Screw one M4 screw partially into surface,

A

leaving 1/4 inch to mount the receiver.

B Fit center of keyhole in back of receiver over

screw and slide to one side to secure.

IMPORTANT: Disconnect receiver from power supply before mounting. Mount near

!

power supply, off the ground so there is no chance of it being submerged in water.

9.3 Mount RF Light/Motion Sensor

Position base for Motion Sensor at the

A

entrance of the area to be lit. Secure with two
M3 screws.

B Fit ring on back of Motion Sensor onto base

and partially screw together.

C Adjust to Sensor to desired angle.

tilt side to side

+/- 65º

tilt up or down

+/- 65º

D Tighten ring completely to secure.

cabled.optiled.com 43

Step 9: Mount Optional Accessories

9.4 Mount RF Remote Dimmer

A

Secure base with two M3 screws. Insert hook
into base at an angle and then push to snap
into place.

B Insert hook at angle

snap into
place

C Hang remote onto hook.

Step 10: Connect to Power

10.1 Connect Without Accessories

Matching the icons, connect the PS-Link Connector to the power supply. Plug the power supply
into the AC outlet.

IMPORTANT: Connect the power supply to the PS-Link Connector BEFORE

!

plugging the power supply into the AC outlet.

44 cabled.optiled.com

Step 10: Connect to Power

10.2 Connect With Optional Accessories

Inline On/Off Dimmer Switch

The Inline On/Off Dimmer Switch  ts between the PS-Link Connector and the power supply.
Matching the icons, connect the Inline On/Off Dimmer Switch to the PS-Link Connector and the
power supply. Plug the power supply into the AC outlet.

IMPORTANT: Connect Inline On/Off Dimmer Switch to power supply BEFORE

!

plugging power supply into the AC outlet.

RF Receiver for Remote Dimmer or Light/Motion Sensor

The RF Receiver for either the Remote Dimmer or the Light/Motion Sensor  ts between the PS­Link Connector and the power supply. Matching the icons, connect the receiver to the PS-Link
Connector and the power supply. Plug the power supply into the AC outlet.

IMPORTANT: Connect RF Receiver to power supply BEFORE plugging power supply

!

into the AC outlet.

Using 4 Way Power Splitter

When using the 4 Way Power Splitter with any of the accessories connect the RF Receiver or Inline
On/Off Dimmer Switch to the power supply and then connect it to the 4 Way Power Splitter.

Inline On/Off Dimmer Switch

OR

RF Receiver

IMPORTANT: Connect RF Receiver or Inline On/Off Dimmer Switch to power supply

!

BEFORE plugging power supply into the AC outlet.

cabled.optiled.com 45

Troubleshooting

Systems Installed Without Accessories

Most of the problems you may encounter will be caused by improper assembly. If you have any
questions or need to purchase additional parts, please contact our Customer Service Department.

Issue Go Through the Solutions

None of the LED
strip is lit

Only part of the
LED strip is lit

LED strip is
 ashing On and
OFF

LED strip not cut
exactly on cut
line

• Make sure power supply is plugged in and the AC power outlet is
receiving power.

• Check connection from PS-Link Connector to the power supply.

• Check the connection on the PS-Link Connector to the CabLED strip.
Pull the strip. If it comes out of the connector, you will need a new
connector.

• Check all connectors attached to the part of the strip that is not lit. Pull
the CabLED strip. If it comes out of the connector, you will need a new
connector.

• Check the speci cations for the power supply to ensure it supports the
length of CabLED you are using. Select the appropriate strength or
install an additional power supply to support your installation.

• Depending on how you cut the strip, you may still be able to save that
section. The cutting tolerance is about +/-3 mm (+/- 1/8 inch) on either
side of the cut line. Cutting in a straight line is crucial and the two wires
inside the strip must be pushed to the very end inside the connector to
make contact with the pins.

• Go to the cut line before the cut line you incorrectly cut and make the
section shorter. You may be able to adjust your layout by rearranging the
sections.

• Contact our Customer Service Department to purchase additional
CabLED strip. You can use an I-Connector to connect the additional
strip.

Connectors
pushed
together before
installation

46 cabled.optiled.com

• If you pushed the connector top into the bottom before installation
or if the CabLED strip was not pushed completely to the end of the
connector and did not secure the strip, you may be able to save the part.
Use a  at screw driver to gently widen the sides of the top connector and
push the bottom connector apart. NOTE: This may not  x the connector
and you will need to use a new connector.

• Contact our Customer Service Department to purchase additional
connectors.

Troubleshooting

Systems Installed With Accessories

Most of the problems you may encounter will be caused by improper assembly. Check the
Troubleshooting solutions for "Systems Installed Without Accessories" for issues not listed below.
If you have any questions or need to purchase additional parts, please contact our Customer
Service Department.

Issue Go Through the Solutions

None of the LED
strip is lit

(With Inline On/
Off Dimmer
Switch attached)

None of the LED
strip is lit

(With Motion
Sensor attached)

The strip doesn't
light when
walking by
Motion Sensor

• Go through solutions listed for "None of the LED strip is lit with no
attached accessories".

• Check connections on Inline On/Off Dimmer Switch to power supply and
to PS-Link Connector.

• Make sure the light switch connected to the AC outlet is turned on.

• Press the power button on the Inline On/Off Dimmer Switch to make
sure it is on.

• Adjust the dimming level to the maximum.

• Go through solutions listed for "None of the LED strip is lit with no
attached accessories".

• Set the receiver to the ON position and check connection from PS-Link
Connector. With the power supply plugged into the AC outlet, if the strip
lights, set the receiver to AUTO.

• Go through the solutions above, if the strip is lit, make sure the receiver
is set to AUTO.

• Make sure the Motion Sensor is turned ON and the ambient light setting
is set to minimum, so that it will be activated in the dark when testing.

• Make sure fresh batteries are properly installed in the Motion Sensor.
Set the ambient light setting to minimum and turn the Motion Sensor
ON. The red LED under the lens on the front of the Motion sensor will
blink after 30 seconds indicating it is warmed up and synchronized to the
receiver.

• If the red LED doesn't blink, follow the instructions for "Synchronize
Receiver".

None of the LED
strip is lit

(Using Remote
Dimmer)

Motion Sensor or
Remote Dimmer
LED is blinking
continuously

• Go through solutions listed for "None of the LED strip is lit with no
attached accessories".

• Set the receiver to the ON position and check connection from PS-Link
Connector. With the power supply plugged into the AC outlet, if the strip
lights, set the receiver to AUTO.

• Make sure fresh batteries are properly installed in the Remote Dimmer.
Point the Remote Dimmer in the direction of the receiver and press
power button to turn on.

• If the blue LED doesn't blink, follow the instructions for "Synchronize
Receiver".

• Replace the batteries.

cabled.optiled.com 47

OPTILED Lighting International Limited

Headquarters

Address: 2301-02, 23/F Landmark East Tower 1, 102 How Ming Street, Kwun Tong, Hong Kong
Tel: [phone] Fax: [phone] Email: [email protected]

Regional Offi ces

China
Shanghai Tel: [phone] Fax: [phone]

Beijing Tel: [phone] Fax: [phone]
Guangzhou Tel: [phone] Fax: [phone]
Huizhou Tel: [phone] Fax: [phone]
Shenzhen Tel: [phone] Fax: [phone]

Asia Pacifi c

Hong Kong Tel: [phone] Fax: [phone]
Australia & New Zealand Tel: [phone] Fax: [phone]
Japan Tel: [phone] Fax: [phone]

N. & S. America Tel: [phone] Fax: [phone]

ww w.optiled.com
