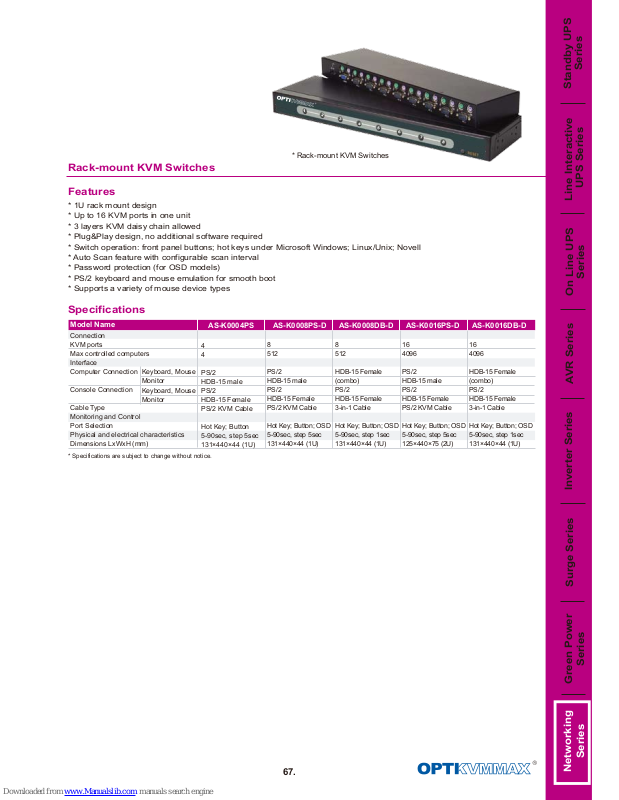

OPTIKVMMAX AS-K0004PS, AS-K0008DB-D, AS-K0008PS-D, AS-K0016DB-D, AS-K0016PS-D Specification Sheet
Page 1
67.
Line Interactive
UPS Series
On Line UPS
Series
AVR Series
Inverter Series
Surge Series
Green Power
Series
Standby UPS
Series
Networking
Series
Features
* 1U rack mount design
* Up to 16 KVM ports in one unit
* 3 layers KVM daisy chain allowed
* Plug&Play design, no additional software required
* Switch operation: front panel buttons; hot keys under Microsoft Windows; Linux/Unix; Novell
* Auto Scan feature with configurable scan interval
* Password protection (for OSD models)
* PS/2 keyboard and mouse emulation for smooth boot
* Supports a variety of mouse device types
Rack-mount KVM Switches
* Specifications are subject to change without notice.
Model Name
Connection
KVM ports
Max controlled computers
Interface
Computer Connection
Console Connection
Cable Type
Monitoring and Control
Port Selection
Physical and electrical characteristics
Dimensions LxWxH (mm)
Keyboard, Mouse
Monitor
Keyboard, Mouse
Monitor
4
4
PS/2
HDB-15 male
PS/2
HDB-15 Female
PS/2 KVM Cable
Hot Key; Button
5-90sec, step 5sec
131×440×44 (1U)
8
512
PS/2
HDB-15 male
PS/2
HDB-15 Female
PS/2 KVM Cable
Hot Key; Button; OSD
5-90sec, step 5sec
131×440×44 (1U)
8
512
HDB-15 Female
(combo)
PS/2
HDB-15 Female
3-in-1 Cable
Hot Key; Button; OSD
5-90sec, step 1sec
131×440×44 (1U)
16
4096
PS/2
HDB-15 male
PS/2
HDB-15 Female
PS/2 KVM Cable
Hot Key; Button; OSD
5-90sec, step 5sec
125×440×75 (2U)
16
4096
HDB-15 Female
(combo)
PS/2
HDB-15 Female
3-in-1 Cable
Hot Key; Button; OSD
5-90sec, step 1sec
131×440×44 (1U)
AS-K0004PS AS-K0008PS-D AS-K0008DB-D AS-K0016PS-D AS-K0016DB-D
Specifications
* Rack-mount KVM Switches
