Optika SFX-33 Booklet [EN]

OPTIKA

MICROSCOPES

®

ITALY

ECOVISION / B-150 / B-190 / SFX/STEREO / LAB Series

EDUCATIONAL Microscopes

2

EDUCATIONAL Microscopes

Biological Microscopes

ECOVISION SERIES - Entry Level Biological Microscopes For Students page 5

B-150 SERIES - Biological Microscopes For Students page 17

B-190 SERIES - Advanced Biological Microscopes For Students And Teachers page 37

Stereomicroscopes

SFX/STEREO SERIES - Entry Level Stereomicroscopes For Students page 53

LAB SERIES - Stereomicroscopes For Students And Teachers page 65

3

1

Icons

Monocular

Anti-fungus treatment

A

Automatic light control

2

Binocular

3

Tri nocular

--°

Inclined head

Field number

--

360°

Rotating head 360°

--x

Max. magnification

-- LED

1WLED

-

X-LED

Incident light

Transmitted light

Polarized light

LED illuminator

1W LED illuminator

X-LED illuminator

Rechargeable battery

USB

USB connection

--’’

Tablet screen size

--

Camera resolution

MP

Software included

Calibration slide

OPTIKA

MICROSCOPES

®

ITALY

ECOVISION Series

Entry Level Biological Microscopes For Students

B-20R / B-20CR / B-50 / B-50B / M-100FX / M-100FLed

A Range Of Quality Microscopes For Students

DESIGNED FOR NOVICE USERS

» Extremely reliable microscopes for education
» Particularly recommended for primary school
» Get impressive images and live videos with cameras

BIOLOGICAL EDUCATIONAL MICROSCOPES

» Choose among monocular and binocular heads
» 18mm field number represents a good observation area
» Achromatic lenses for common applications

6

Attention To Detail

HANDY, YET EXTREMELY STABLE

» Compact, practical and intuitive to use
» Optics ensuring good quality images
» Easy to handle, also by the youngest students

EASY TO TAKE CARE OF

» Sturdy, durable for extended lifetime
» No maintenance required
» Dust cover (included) protects from environmental contaminants

7

ECOVISION Series

Easy To Carry Solutions

This series is characterized by extreme compactness and portability.
The instrument can be moved easily in the classroom or even outdoors.
The body of the microscope is slim and, according to the model, provided with a useful handle:
the teaching activity will be facilitated and more enjoyable.

Extremely Easy And Fast Vision

You find here the basic controls of an optical microscope and all you need to start learning to use
a scientific instrument. Pre-aligned illumination and condenser simplify the operation and make
necessary just the focusing of the specimen by using the dedicated knobs.

LED - Optimized Illumination

Money & energy saving thanks to LED long lifetime (50.000 hours, 20 years in case of 8 hours/
day) which is more than 20 times compared to a standard halogen bulb.
Versions with LED have either internal or external rechargeable battery for many hours of
outdoor use.

B-50 and B-50B models have a special condenser with a settable, built-in LED light source that

guarantees a very bright illumination in a compact and pre-aligned system.

8

Entry Level Biological Microscopes For Students

1 2

4

3

Legend

1. Mechanical stage of B-20CR.

2. Ascaris female, with B-50 and 10x objective.

3. Dust mite, with B-20 and 40x objective.

4. Special condenser of B-50 with settable built-in 1W LED light source for bright illumination in a compact, pre-aligned system.

9

ECOVISION Series - Overview

OPTIKA ECOVISION Series includes monocular and binocular biological microscopes, designed especially for students attending primary
school. Slim and easy to carry solutions, it is equipped with all the basic controls of an optical microscope and all you need to start learning
to use a scientific instrument: 18 mm field of view, up to 400x maximum magnification (1000x as optional), several options concerning stages,
focusing, condenser and illumination system.

Observation mode:

Brightfield.

Head:

Monocular and binocular, 30° and 45° inclined, 360° rotating.

Eyepieces:

WF 10x/18.

Nosepiece:

Triple and quadruple revolving nosepiece, rotation on ball bearings.

Objectives:

Achromatic (4x, 10x, 40x) with an anti-fungus treatment.

Specimen stage:

B-20R:

Round, 360° rotating, 90 mm diameter, with sample clips.

B-20CR:

Double layer, 105x95 mm, moving range 50x15 mm.

B-50 / B-50B / M-100FX / M-100FLed models:

Fixed, 120x110 mm, with sample clips.

Focusing:

B-20R / M-100FX / M-100FLed:

Separate coarse and fine focusing mechanism with limit stop to
prevent the contact between objective and specimen.

B-20CR / B-50 / B-50B:

Coaxial coarse and fine focusing mechanism with limit stop to
prevent the contact between objective and specimen.

Condenser:

B-20R:

Diffusing filter with rotating diaphragm wheel.

B-20CR / B-50B / M-100FX / M-100FLed models:

N.A. 0.65, fixed, iris diaphragm.

B-50:

N.A. 0.65, fixed.

Illumination:

B-20R:

0.3 W LED, manual brightness control, rechargeable batteries.

B-20CR:

0.5 W LED, manual brightness control, rechargeable batteries.

B-50 / B-50B:

1 W LED built-in in the condenser, manual brightness control.
M-100FX:
1 W LED.

M-100FLed:

0.5 W LED, manual brightness control, rechargeable batteries.

10

ECOVISION Series - Range

1

45°

18

360°

400x

0.3W LED

B-20R

B-20CR

1

45°

18

360°

400x

0.5W LED

Equipped with efficient LED illumination with rechargeable batteries
and comfortable handle, being ideal even for the youngest students.

Complete of mechanical stage, condenser, coaxial focus knobs and
LED illumination with rechargeable batteries.

B-50 B-50B

1

45°

18

360°

400x

1WLED 1WLED

2

30°

18

360°

400x

The condenser with built-in LED illumination system ensures
ultra-bright light and great contrast. Light intensity is freely

settable by the dedicated adjustable knob. Optional 60x and 100x
objectives available.

Binocular version of B-50, equipped with 3 objectives and 4-position
nosepiece for an additional objective. The condenser offers a built-in,
settable LED illumination system for ultra-bright light and great
contrast. Optional 60x and 100x objectives available.

11

ECOVISION Series - Range

1

45°

18

360°

400x

1WLED

M-100FX

M-100FLed

1

45°

18

360°

400x

0.5W LED

Equipped with LED illumination, 45° inclined and 360° rotating head.
Optional 60x and 100x objectives available.

Equipped with efficient LED illumination and internal rechargeable
batteries which provides up to 8 hours of outdoor use.
Optional 60x and 100x objectives available.

12

ECOVISION Series - Comparison chart

Model Head Eyepieces Nosepiece Objectives Stage Focusing Condenser Illuminator

B-20R

B-20CR

B-50

B-50B

M-100FX

M-100FLed

Monocular,
45° inclined,
360° rotating

Monocular,
45° inclined,
360° rotating

Monocular,
45° inclined,
360° rotating

Binocular,
30° inclined,
360° rotating

Monocular,
45° inclined,
360° rotating

Monocular,
45° inclined,
360° rotating

WF 10x/18 Triple,

Reversed

WF 10x/18 Triple,

Reversed

WF 10x/18 Triple Achromatic

WF 10x/18 Quadruple Achromatic

WF 10x/18 Triple Achromatic

WF 10x/18 Triple Achromatic

Achromatic
4x, 10x, 40x

Achromatic
4x, 10x, 40x

4x, 10x, 40x

4x, 10x, 40x

4x, 10x, 40x

4x, 10x, 40x

Round, 360° rotating,
90 mm diameter, with
sample clips

Double layer, 105x95
mm, moving range
50x15 mm

Fixed, 120x110 mm,
with sample clips

Fixed, 120x110 mm,
with sample clips

Fixed, 120x110 mm,
with sample clips

Fixed, 120x110 mm,
with sample clips

Separate coarse
and fine

Coaxial coarse
and fine

Coaxial coarse
and fine

Coaxial coarse
and fine

Separate coarse
and fine

Separate coarse
and fine

Diusing lter

with rotating
diaphragm wheel

N.A. 0.65, xed,

iris diaphragm

N.A. 0.65, xed 1 W LED built-in in the

N.A. 0.65, xed,

iris diaphragm

N.A. 0.65, fixed,
iris diaphragm

N.A. 0.65, fixed,
iris diaphragm

0.3 W LED,
manual brightness control,
rechargeable batteries

0.5 W LED,
manual brightness control,
rechargeable batteries

condenser,
manual brightness control

1 W LED built-in in the
condenser,
manual brightness control

1 W LED

0.5 W LED,
manual brightness control,
rechargeable batteries

ECOVISION Series - Zoom comparison

Ascaris female - B-50 - 4x objective Ascaris female - B-50 - 10x objective Ascaris female - B-50 - 40x objective

13

ECOVISION Series - Accessories

ACCESSORIES FOR B-20R / B-20CR
M-002 Eyepiece WF 10x/18 mm.
M-008 Eyepiece with pointer WF 10x/18 mm.
M-727 Achromatic objective 4x/0.10.
M-728 Achromatic objective 10x/0.25.
M-729 Achromatic objective 40x/0.65.
DC-001 Plastic dust cover, small.
M-005
15104 Cleaning kit.

ACCESSORIES FOR B-50 / B-50B
M-001 Eyepiece H5x.
M-002.1 Eyepiece WF 10x/18 mm.
M-003 Eyepiece WF 16x/12 mm.
M-004 Eyepiece with micrometer WF 10x/18 mm, 10mm/100um.
M-008 Eyepiece with pointer WF 10x/18 mm.
M-131 Achromatic objective 4x/0.10.
M-132 Achromatic objective 10x/0.25.
M-133 Achromatic objective 20x/0.40.
M-134 Achromatic objective 40x/0.65.
M-135 Achromatic objective 60x/0.80.
M-136 Achromatic objective 100x/1.25 (oil).
M-040 Attachable mechanical stage.
M-099 Polarizing set (filters and rotating table).
DC-001 Plastic dust cover, small.
M-069 Solar battery pack.
M-005
15104 Cleaning kit.

Micrometer slide for software calibration, 1mm/10um, 10mm/100um.

Micrometer slide for software calibration, 1mm/10um, 10mm/100um.

M-069 - Solar battery pack

Included battery: rechargeable – Lithium-Poly. Capacity: 2600 mAh.
Output voltage: 5.5Vdc. - Dimensions: 120x73x10 mm.
Autonomy: over 6 hours at medium intensity (X-LED³).
Charging modes: with solar panel (12h),
with external USB power supply (not included)
or from PC USB port (5h).

15104 - Cleaning kit

It cleans glass quickly and effectively,
without leaving residue or odor.
Ideal for precision lens or prism cleaning.

ACCESSORIES FOR M-100FX / M-100FLed
M-001 Eyepiece H5x.
M-002 Eyepiece WF 10x/18 mm.
M-003 Eyepiece WF 16x/12 mm.
M-004 Eyepiece with micrometer WF10x/18mm,
M-008 Eyepiece with pointer WF 10x/18 mm.
M-131 Achromatic objective 4x/0.10.
M-132 Achromatic objective 10x/0.25.
M-133 Achromatic objective 20x/0.40.
M-134 Achromatic objective 40x/0.65.
M-135 Achromatic objective 60x/0.80.
M-136 Achromatic objective 100x/1.25 (oil).
M-040 Attachable mechanical stage.
M-099 Polarizing set (filters and rotating table).
M-971 Plane-concave mirror, with base.
DC-001 Plastic dust cover, small.
15008 OPTIKA immersion oil 10ml.
M-069 Solar battery pack (only for M-100FLed).
M-005
15104 Cleaning kit.

Micrometer slide for software calibration, 1mm/10um, 10mm/100um.

How to connect the cameras to our microscopes.

Please refer to the Adapter reference list on Digital section.

10mm/100um

.

Headquarters and Manufacturing Facilities

OPTIKA S.r.l.

®

Via Rigla, 30 - 24010 Ponteranica (BG) - ITALIA - Tel.: [phone] - Fax: [phone]

Optika Sales branches

OPTIKA Spain
OPTIKA China
OPTIKA India

® ®

®

®

[e-mail]
[e-mail]
[e-mail]

- [e-mail]

OPTIKA USA
OPTIKA Hungary

®

[e-mail]
[e-mail]

OPTIKA

MICROSCOPES

®

ITALY

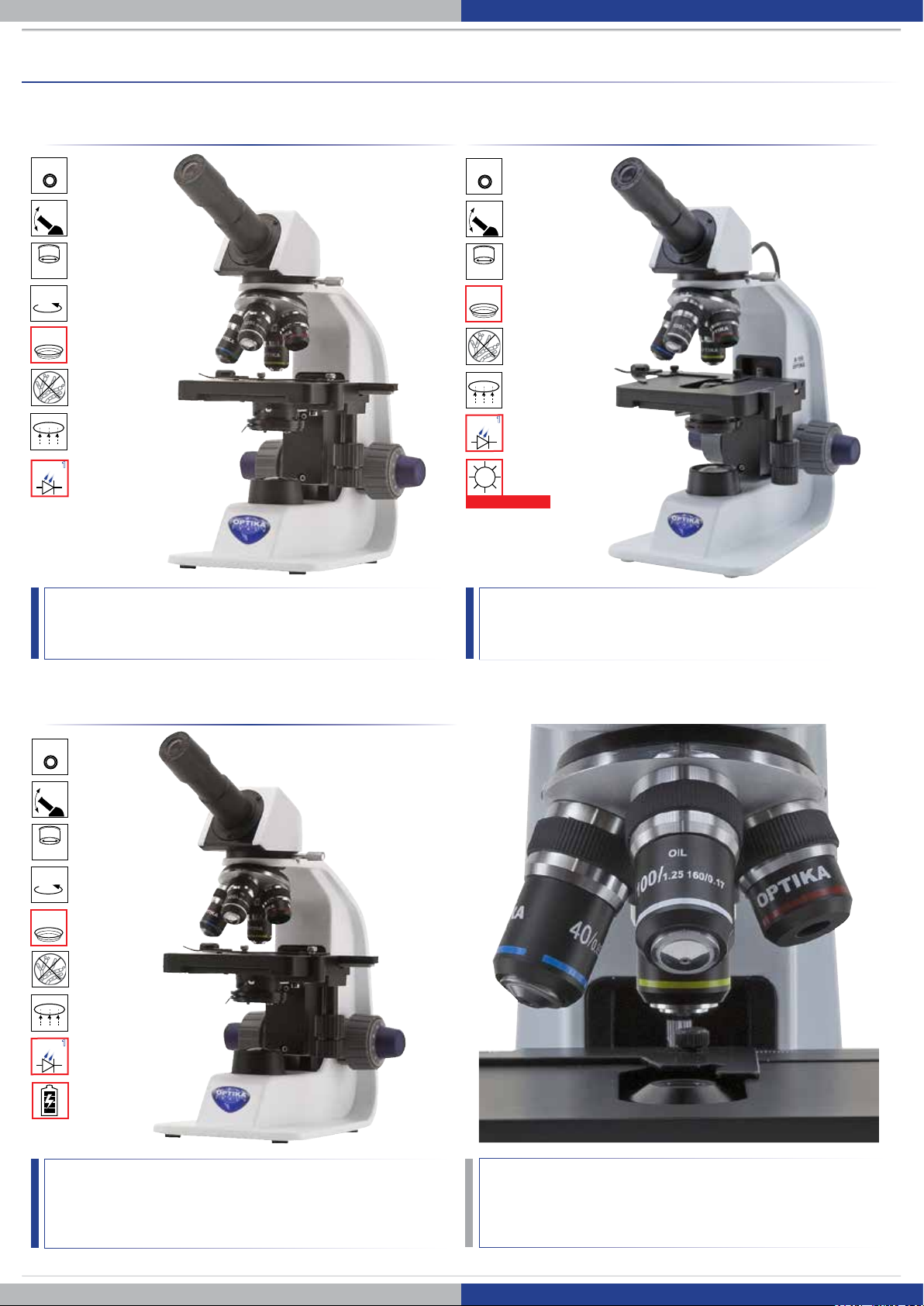

B-150 Series

B-151 / B-151ALC / B-151R / B-153 / B-153ALC / B-153R / B-155 / B-155ALC / B-155R / B-157 / B-157ALC / B-157R /

B-159 / B-159ALC / B-159R / B-150POL-M / B-150POL-MALC / B-150POL-MR / B-150POL-B / B-150POL-BALC /

Biological Microscopes For Students

B-150POL-BR / B-150DM / B-150DMR / B-150DB / B-150DBR

Perfect For Student’s First Experience With A Microscope

DESIGNED FOR NOVICE USERS

» Extremely reliable microscopes for education
» Cordless, 8-15h operating time (on R models)
» Ideal for biology and material science

BIOLOGICAL EDUCATIONAL MICROSCOPES

» Choose among monocular and binocular heads
» 18mm field number
» Achromatic lenses for standard applications

16

X-LED

1

– Only Available At OPTIKA

POWERFUL AND UNIFORM ILLUMINATION

» Uncomparable light intensity, exclusive lens and collector design
» Constant pure-white colour temperature at all intensity levels

» Unmatched colour fidelity and brightness of your specimen

Halogen

MONEY & ENERGY SAVING

» High energy efficiency at a limited cost
» Incredibly low energy consumptions, only 1W
» LED long lifetime (50.000 hours = 20 years at 8 hours/day usage)

1

X-LED

X-LED

1

17

100x With Water –

A New Frontier In Education

SAME OBJECTIVE FOR OIL AND WATER USE

» Oil represents the best media for high numerical apertures
» Water combines relevant results with convenience
» Water is recommended especially for educational purposes

UNPARALLELED TIME & MONEY SAVINGS

» Save time by forgetting about tedious cleaning
» No time-wasting procedures

No additional expenses due to inappropriate cleaning & maintenance

»

18

100x Water100x Oil

ALC – Only Available At OPTIKA

3-STEPS EASY SETTING

» Choose the light intensity you prefer
» Press the button and set the light
» Change the objectives or close the diaphgram aperture: the
microscope will keep the same light intensity!

STEP 1

Set the brightness according
to your prefences.

AUTOMATIC LIGHT CONTROL & ADJUSTMENT

» When another objective is used
» When the aperture diaphragm changes
» When processing another sample with different opacity

STEP 2

Press the ALC button to save
the brightness level.

STEP 3

Forget about the illumination!

The microscope will automatically adjust the brightness for you, in case of:

• Another objective is used

• The diaphragm aperture is changed

• Another specimen with different opacity is processed

Regulation of diaphragm aperture

19

B-150 Series

Incorporating The Most Wanted Features In A Student Microscope

Get all the controls and features common to higher level microscopes: translating stage,
binocular head, coaxial focus knob, adjustable condenser, and 1000x maximum magnification.
An extremely simple but well-equipped solution, in a modern and ergonomic design.

The Most Comprehensive Series Dedicated to Students

B-150 comes in a variety of models to meet your needs. Standard brightfield, models with internal
rechargeable batteries (R Models), with automatic light control (ALC Models), a version ready
for polarization analysis (POL Models), and models with built-in camera (D Models) for image
acquisition.

LED With Rechargeable Battery - Optimized Illumination

Money & energy saving thanks to LED long lifetime (50.000 hours, 20 years in case of 8 hours/
day) which is more than 20 times compared to a standard halogen bulb.

R Models have internal rechargeable battery for up to 15 hours (at medium intensity) of outdoor

use. All other models can be equipped with the optional external solar battery pack.

20

ALC - Automatic Light Control, Only Available At OPTIKA

Incomparable Comfort With The Exclusive Automatic Light Control (ALC)

The intensity of the light is automatically adjusted by the microscope itself in order to maintain
the same level as the one the user has previously chosen. No matter if the aperture of the
diaphragm changes, if another objective is used, and if the opacity of the sample is different...
the microscope will set the light for you according to your preferences.
On ALC Models.

Biological Microscopes For Students

1

4 5

32

Legend

1. Polarized light observation of quartzite with B-150POL-M and 10x objective.

2. Monocular polarizing microscope B-150POL-M during on-site use.

3. B-150 adjustable condenser to concentrate light from the illumination source.

4. Three achromatic objectives (4x, 10x, 40x) of B-151 ensuring great viewing experience.

5. Brightfield observation of tilia three-year stem with B-159 and 20x objective.

21

B-150 Series - Overview

The B-150 series has been designed to fulfill all requirements of educational laboratories.
Obtain clear images at three (40x, 100x and 400x) or four (40x, 100x, 400x and 600x or 1000x) magnifications with 18mm field number.
All in a compact and easy to carry size. The entire series is equipped with 1W LED illumination for bright and uniform light.
If a cordless microscope is needed, the R Models are is your choice as they come with a rechargeable battery.

Observation mode:

Brightfield, polarization.

Heads:

Monocular and binocular, 30° inclined.
360° rotating heads on all the models, except for ALC ones.

Interpupillary distance:

Adjustable between 48 and 75 mm.

Dioptric adjustment:

On the left eyepiece.

Eyepieces:

WF10x/18 mm.

Nosepiece:

Quadruple revolving nosepiece, rotation on ball bearings.

Objectives:

HC - High Contrast (different magnifications available) with an
anti-fungus treatment.

Specimen stage:

B-151 models: Fixed stage, 130x120 mm.
B-153 / B-155 / B-157 / B-159 and B-150D models:

Mechanical stage, 126x116mm, 70x30 mm X-Y movement range.
Vernier scale on the two axes, accuracy: 0.1mm.
B-150POL models: Rotatable round stage, 120 mm diameter.

Focusing:

Coaxial coarse and fine focusing mechanism with limit stop to
prevent the contact between objective and specimen.
Adjustable tension of coarse focusing knob.

Condenser:

B-151 models:

N.A. 0.65, pre-centered, fixed with iris diaphragm.

B-153 / B-155 / B-157 / B-159 models:

N.A. 1.2, pre-centered, adjustable height with iris diaphragm.

B-150POL models:

N.A. 1.2, pre-centered, fixed with iris diaphragm.

B-150D models:

N.A. 1.2, pre-centered, adjustable height with iris diaphragm.

Illumination:

X-LED1 with white 1 W LED and light intensity control.
Color temperature: 6,300 K.

22

HC

OPTIKA HC objectives ensure a versatile and reasonably priced entry-level

lenses for brightfield and simple polarization applications.
They are specifically designed to achieve optimal contrast and thus maximize
yield on an instrument intended for education on F.N. 18.
Learn on how the 100x/1.25 (oil) operates by using water instead of oil at page 18.

B-150 Series - Range

B-151 B-151ALC

1 1

30° 30°

18 18

360°

400x

1

X-LED

400x

1

X-LED

A

Automatic Light Control

Entry level model with fixed stage and efficient X-LED1 illumination.

B-151R

1

30°

18

360°

400x

1

X-LED

Entry level model with the exclusive ALC technology for Automatic
Light Control, fixed stage and efficient X-LED

1

illumination.

Entry level model with rechargeable battery for very long outdoor

operation up to 15 hours. Equipped with fixed stage and efficient
X-LED1 illumination.

Three achromatic objectives included for a great viewing experience:

4x, N.A. 0.10, W.D. 18 mm
10x, N.A. 0.25, W.D. 7 mm
40x, N.A. 0.65, W.D. 0.53 mm

23

B-150 Series - Range

1

30°

18

360°

600x

X-LED

B-153

B-153ALC

1

30°

18

600x

1

X-LED

1

A

Automatic Light Control

Up to 600x total magnification with a precise and accurate positioning of
the slide thanks to smooth movement of the mechanical stage.

B-153R

1

30°

18

360°

600x

1

X-LED

Equipped with the exclusive ALC technology for Automatic Light
Control, it allows up to 600x total magnification. Precise and accurate

positioning of the slide thanks to smooth movement of the stage.

Entry-level model with monocular head and double-layer mechanical
stage. Up to 600x total magnification.
Internal rechargeable battery guarantees a very long time (up to 15
hours) of outdoor use.

24

Four achromatic objectives included for a great viewing experience:

4x, N.A. 0.10, W.D. 18 mm 10x, N.A. 0.25, W.D. 7 mm
40x, N.A. 0.65, W.D. 0.53 mm 60x, N.A. 0.85, W.D. 0.45 mm

B-150 Series - Range

1

30°

18

360°

1000x

1

X-LED

B-155

1

30°

18

1000x

1

X-LED

A

Automatic Light Control

B-155ALC

Up to 1000x total magnification with a precise and accurate positioning of
the slide thanks to smooth movement of the mechanical stage.

B-155R

1

30°

18

360°

1000x

1

X-LED

Equipped with the exclusive ALC technology for Automatic Light
Control, it allows up to 1000x total magnification. Precise and accurate

positioning of the slide thanks to smooth movement of the stage.

Equipped with rechargeable battery for very long outdoor operation
of up to 15 hours. It allows precise and accurate positioning of the slide
thanks to smooth movement of the mechanical stage and 1000x as
maximum magnification.

Four achromatic objectives included for a great viewing experience:

4x, N.A. 0.10, W.D. 18 mm 10x, N.A. 0.25, W.D. 7 mm
40x, N.A. 0.65, W.D. 0.53 mm 100x (oil), N.A. 1.25, W.D. 0.13 mm

25

B-150 Series - Range

B-157

2 2

30° 30°

18 18

360°

600x

1WLED

X-LED

1

Automatic Light Control

600x

X-LED

A

B-157ALC

1

Up to 600x total magnification with a precise and accurate positioning of the
slide thanks to smooth movement of the mechanical stage.

B-157R

2

30°

18

360°

600x

1

X-LED

Equipped with the exclusive ALC technology for Automatic Light
Control, it allows up to 600x total magnification. Precise and accurate

positioning of the slide thanks to smooth movement of the stage.

Equipped with rechargeable battery for very long outdoor operation of
up to 15 hours. It allows precise and accurate positioning of the slide thanks
to smooth movement of the mechanical stage and 600x as maximum
magnification.

26

Four achromatic objectives included for a great viewing experience:

4x, N.A. 0.10, W.D. 18 mm 10x, N.A. 0.25, W.D. 7 mm
40x, N.A. 0.65, W.D. 0.53 mm 60x, N.A. 0.85, W.D. 0.45 mm

B-150 Series - Range

2 2

30° 30°

18 18

360°

1000x

1

X-LED

1000x

1

X-LED

A

Automatic Light Control

B-159ALCB-159

Up to 1000x total magnification with a precise and accurate positioning
of the slide thanks to smooth movement of the mechanical stage.

B-159R

2

30°

18

360°

1000x

1

X-LED

Equipped with the exclusive ALC technology for Automatic Light
Control, it allows up to 1000x total magnification. Precise and accurate

positioning of the slide thanks to smooth movement of the stage.

Equipped with rechargeable battery for very long outdoor operation of
up to 15 hours. It allows 1000x as maximum magnification and precise,
accurate positioning of the slide thanks to smooth movement of the stage.

Four achromatic objectives included for a great viewing experience:

4x, N.A. 0.10, W.D. 18 mm 10x, N.A. 0.25, W.D. 7 mm
40x, N.A. 0.65, W.D. 0.53 mm 100x (oil), N.A. 1.25, W.D. 0.13 mm

27

B-150 Series - Range

B-150POL models are suitable for common observations with polarized light in the educational field, the microscopes are designed for
simple polarization analysis, with swing-out polarizer, slide-out analyzer and rotating stage. Entry-level instruments for polarization analysis of
birefringent samples, such as rock sections, minerals, fibers, transparent plastics, biological samples (e.g. bone sections).

Brightfield observation of Quartzite with

B-150POL-M and 10x objective

B-150POL-M

1

30° 30°

18 18

360° 360°

400x 400x

2

Polarized light observation of Quartzite

with B-150POL-B and 10x objective

B-150POL-B

1

X-LED

Monocular standard configuration, equipped with all you need for an
accurate polarizing analysis.

28

1

X-LED

Binocular standard configuration, equipped with all you need for an
accurate polarizing analysis.

B-150 Series - Range

B-150POL-MALC B-150POL-BALC

1

30° 30°

18 18

2

400x 400x

1

X-LED

A

Automatic Light Control

Monocular microscope with ALC technology for Automatic Light
Control and equipped with all you need for accurate polarizing analysis.

X-LED

A

Automatic Light Control

1

Binocular microscope with ALC technology for Automatic Light
Control and equipped with all you need for accurate polarizing analysis.

B-150POL-MR

1

30° 30°

18 18

360° 360°

400x 400x

1

X-LED

2

X-LED

B-150POL-BR

1

Monocular polarizing microscope with rechargeable battery for long
outdoor operation of up to 15 hours.

Binocular polarizing microscope with rechargeable battery for long
outdoor operation of up to 15 hours.

29

B-150 Series - Range

B-150D models provide the best solution for interactive trainings, with the integration of a digital camera and everything necessary in a
ready to use solution. If a cordless microscope is needed, the R Models are your choice as they come with a rechargeable battery.
These microscopes allow to easily capture pictures and videos of all kinds of sample prepared on standard glass slides.

B-150DM

1 1

30° 30°

18 18

360° 360°

400x 400x

1

X-LED

X-LED

Brightfield observation of dicotyledonous leaves

with B-150DB and 100x objective

B-150DMR

1

USB USB

1.3

MP

Entry-level model with monocular head and double-layer mechanical
stage. Built-in camera with 1.3 MP resolution.

30

1.3

MP

Entry-level model with monocular head and double-layer mechanical
stage. Built-in camera with 1.3 MP resolution. Internal rechargeable

battery guarantees a very long time (up to 15 hours) of outdoor use.

B-150 Series - Range

B-150DB

22

30° 30°

18 18

360° 360°

1000x 1000x

1

X-LED

USB USB

3

MP

X-LED

3

MP

1

B-150DBR

Equipped with built-in camera with 3 MP resolution, double-layer
mechanical stage and efficient X-LED

1

illumination.

Rechargeable battery ensures very long outdoor operation of up to
15 hours, with built-in camera with 3 MP resolution, double-layer
mechanical stage and efficient X-LED

1

illumination.

31

B-150 Series - B-150D Camera specifications

B-150DM B-150DB

Resolution 1280x1024 pixels (1.3 MP) 2048x1536 pixels (3.14 MP)

Sensor 1/3.2”CMOS 1/2.5”CMOS

Pixel size 2.8x2.8 μm 2.2x2.2 μm

1280x1024 - 15 fps 2048x1536 - 4 fps

Resolution
& Frame Rate

Sensitivity 1.0 V/Lux-sec 1.0 V/Lux-sec

White Balance Auto / Manual Auto / Manual

S/N Ratio ≥ 42 dB ≥ 40 dB

Dynamic Range ≥ 71 dB ≥ 66 dB

Digital Port USB 2.0 USB 2.0

Imaging Software OPTIKA Vision Lite OPTIKA Vision Lite

System Requirements Operating system: Windows XP, Vista, Win7, Win8, Win10, 32-64 bit

640x480 - 30 fps 1280x1024 - 8 fps

640x480 - 30 fps

B-150 Series - Optical performance

Eyepiece 10x (M-002.1) 16x (M-003)

Field number (mm) 18 12

Objective N.A. W.D. (mm) Total magnication Field number (mm) Total magnication Field number (mm)

4x

10x

20x

40x 0.65 0.53 400x 0.45 640x 0.3

60x 0.8 0.45 600x 0.3 960x 0.2

100x 1.25 (oil) 0.13 1000x 0.18 1600x 0.12

0.1 18

0.25 7 100x 1.8

0.4 2 200x 0.9

40x

4.5 64x 3

160x 1.2

320x 0.6

B-150 Series - Zoom comparison

Monocot and dicot - B-157 - 4x objective Monocot and dicot - B-157 - 10x objective Monocot and dicot - B-157 - 40x objective

32

B-150 Series - Comparison chart

Model Head Eyepieces Nosepiece Objectives Stage Focusing Condenser Illumination

B-151

B-151ALC

B-151R

B-153

B-153ALC

B-153R

B-155

B-155ALC

B-155R

B-157

B-157ALC

B-157R

B-159

B-159ALC

B-159R

B-150POL-M

B-150POL-B

B-150POL-MALC

B-150POL-BALC

B-150POL-MR

B-150POL-BR

B-150DM

B-150DMR

B-150DB

B-150DBR

Monocular,
30° inclined,
360° rotating

Monocular,
30° inclined

Monocular,
30° inclined,
360° rotating

Monocular,
30° inclined,
360° rotating

Monocular,
30° inclined

Monocular,
30° inclined,
360° rotating

Monocular,
30° inclined,
360° rotating

Monocular,
30° inclined

Monocular,
30° inclined,
360° rotating

Binocular,
30° inclined,
360° rotating

Binocular,
30° inclined

Binocular,
30° inclined,
360° rotating

Binocular,
30° inclined,
360° rotating

Binocular,
30° inclined

Binocular,
30° inclined,
360° rotating

Monocular,
30° inclined,
360° rotating

Binocular,
30° inclined,
360° rotating

Monocular,
30° inclined

Binocular,
30° inclined

Monocular,
30° inclined,
360° rotating

Binocular,
30° inclined,
360° rotating

Monocular,
30° inclined,
360° rotating

Monocular,
30° inclined,
360° rotating

Binocular,
30° inclined,
360° rotating

Binocular,
30° inclined,
360° rotating

WF 10x/18 Quadruple HC

(high contrast)
4x, 10x, 40x

WF 10x/18 Quadruple HC

(high contrast)
4x, 10x, 40x

WF 10x/18 Quadruple HC

(high contrast)
4x, 10x, 40x

WF 10x/18 Quadruple HC

(high contrast)
4x, 10x, 40x, 60x

WF 10x/18 Quadruple HC

(high contrast)
4x, 10x, 40x, 60x

WF 10x/18 Quadruple HC

(high contrast)
4x, 10x, 40x, 60x

WF 10x/18 Quadruple HC

(high contrast)
4x, 10x, 40x, 100x

WF 10x/18 Quadruple HC

(high contrast)
4x, 10x, 40x, 100x

WF 10x/18 Quadruple HC

(high contrast)
4x, 10x, 40x, 100x

WF 10x/18 Quadruple HC

(high contrast)
4x, 10x, 40x, 60x

WF 10x/18 Quadruple HC

(high contrast)
4x, 10x, 40x, 60x

WF 10x/18 Quadruple HC

(high contrast)
4x, 10x, 40x, 60x

WF 10x/18 Quadruple HC

(high contrast)
4x, 10x, 40x, 100x

WF 10x/18 Quadruple HC

(high contrast)
4x, 10x, 40x, 100x

WF 10x/18 Quadruple HC

(high contrast)
4x, 10x, 40x, 100x

WF 10x/18 Quadruple HC

(high contrast)
4x, 10x, 40x

WF 10x/18 Quadruple HC

(high contrast)
4x, 10x, 40x

WF 10x/18 Quadruple HC

(high contrast)
4x, 10x, 40x

WF 10x/18 Quadruple HC

(high contrast)
4x, 10x, 40x

WF 10x/18 Quadruple HC

(high contrast)
4x, 10x, 40x

WF 10x/18 Quadruple HC

(high contrast)
4x, 10x, 40x

WF 10x/18 Quadruple HC

(high contrast)
4x, 10x, 40x

WF 10x/18 Quadruple HC

(high contrast)
4x, 10x, 40x

WF 10x/18 Quadruple HC

(high contrast)
4x, 10x, 40x, 100x

WF 10x/18 Quadruple HC

(high contrast)
4x, 10x, 40x, 100x

Fixed, 130x120 mm, with
sample clips

Fixed, 130x120 mm, with
sample clips

Fixed, 130x120 mm, with
sample clips

Double layer, 125x116
mm, moving range
76x30 mm

Double layer, 125x116
mm, moving range
76x30 mm

Double layer, 125x116
mm, moving range
76x30 mm

Double layer, 125x116
mm, moving range
76x30 mm

Double layer, 125x116
mm, moving range
76x30 mm

Double layer, 125x116
mm, moving range
76x30 mm

Double layer, 125x116
mm, moving range
76x30 mm

Double layer, 125x116
mm, moving range
76x30 mm

Double layer, 125x116
mm, moving range
76x30 mm

Double layer, 125x116
mm, moving range
76x30 mm

Double layer, 125x116
mm, moving range
76x30 mm

Double layer, 125x116
mm, moving range
76x30 mm

Round, 360° rotating,
120 mm diameter, with
sample clips

Round, 360° rotating,
120 mm diameter, with
sample clips

Round, 360° rotating,
120 mm diameter, with
sample clips

Round, 360° rotating,
120 mm diameter, with
sample clips

Round, 360° rotating,
120 mm diameter, with
sample clips

Round, 360° rotating,
120 mm diameter, with
sample clips

Double layer, 125x116
mm, moving range
76x30 mm

Double layer, 125x116
mm, moving range
76x30 mm

Double layer, 125x116
mm, moving range
76x30 mm

Double layer, 125x116
mm, moving range
76x30 mm

Coaxial coarse

and ne, limit

stop
Coaxial coarse

and ne, limit

stop
Coaxial coarse

and ne, limit

stop
Coaxial coarse

and ne, limit

stop

Coaxial coarse

and ne, limit

stop
Coaxial coarse

and ne, limit

stop

Coaxial coarse

and ne, limit

stop
Coaxial coarse

and ne, limit

stop
Coaxial coarse

and ne, limit

stop
Coaxial coarse

and ne, limit

stop
Coaxial coarse

and ne, limit

stop
Coaxial coarse

and ne, limit

stop
Coaxial coarse

and ne, limit

stop
Coaxial coarse

and ne, limit

stop
Coaxial coarse

and ne, limit

stop
Coaxial coarse

and ne, limit

stop
Coaxial coarse

and ne, limit

stop
Coaxial coarse

and ne, limit

stop
Coaxial coarse

and ne, limit

stop
Coaxial coarse

and ne, limit

stop
Coaxial coarse

and ne, limit

stop
Coaxial coarse

and ne, limit

stop
Coaxial coarse

and ne, limit

stop
Coaxial coarse

and ne, limit

stop
Coaxial coarse

and ne, limit

stop

N.A. 0.65,
iris diaphragm,

xed

N.A. 0.65 xed,

with diaphragm

N.A. 0.65 xed,

with diaphragm

N.A. 1.2,
iris diaphragm,
focusable

N.A. 1.2,
iris diaphragm,
focusable

N.A. 1.2,
iris diaphragm,
focusable

N.A. 1.2,
iris diaphragm,
focusable

N.A. 1.2,
iris diaphragm,
focusable

N.A. 1.2,
iris diaphragm,
focusable

N.A. 1.2,
iris diaphragm,
focusable

N.A. 1.2,
iris diaphragm,
focusable

N.A. 1.2,
iris diaphragm,
focusable

N.A. 1.2,
iris diaphragm,
focusable

N.A. 1.2,
iris diaphragm,
focusable

N.A. 1.2,
iris diaphragm,
focusable

N.A. 1.2,
iris diaphragm,
fixed

N.A. 1.2,
iris diaphragm,
fixed

N.A. 1.2,
iris diaphragm,
fixed

N.A. 1.2,
iris diaphragm,
fixed

N.A. 1.2,
iris diaphragm,
fixed

N.A. 1.2,
iris diaphragm,
fixed

N.A. 1.2,
iris diaphragm,
focusable

N.A. 1.2,
iris diaphragm,
focusable

N.A. 1.2,
iris diaphragm,
focusable

N.A. 1.2,
iris diaphragm,
focusable

1 W X-LED1,
manual brightness control

1 W X-LED1,
manual and automatic
brightness control

1 W X-LED1,
manual brightness control,
rechargeable batteries

1 W X-LED1,
manual brightness control

1 W X-LED1,
manual and automatic
brightness control

1 W X-LED1,
manual brightness control,
rechargeable batteries

1 W X-LED1,
manual brightness control

1 W X-LED1,
manual and automatic
brightness control

1 W X-LED1,
manual brightness control,
rechargeable batteries

1 W X-LED1,
manual brightness control

1 W X-LED1,
manual and automatic
brightness control

1 W X-LED1,
manual brightness control,
rechargeable batteries

1 W X-LED1,
manual brightness control

1 W X-LED1,
manual and automatic
brightness control

1 W X-LED1,
manual brightness control,
rechargeable batteries

1 W X-LED1,
manual brightness control

1 W X-LED1,
manual brightness control

1 W X-LED1,
manual and automatic
brightness control

1 W X-LED1,
manual and automatic
brightness control

1 W X-LED1,
manual brightness control,
rechargeable batteries

1 W X-LED1,
manual brightness control,
rechargeable batteries

1 W X-LED1,
manual brightness control

1 W X-LED1,
manual brightness control,
rechargeable batteries

1 W X-LED1,
manual brightness control

1 W X-LED1,
manual brightness control,
rechargeable batteries

33

B-150 Series - Accessories

ACCESSORIES FOR B-150 SERIES
M-002.1 Eyepiece WF10x/18mm.
M-003 Eyepiece WF16x/12mm.
M-004 Eyepiece micrometer WF10x/18mm, 10mm/100um.
M-008 Eyepiece with pointer WF10x/18mm.
M-137 HC (high contrast) objective 4x/0.10.
M-138 HC (high contrast) objective 10x/0.25.
M-139 HC (high contrast) objective 20x/0.40.
M-141 HC (high contrast) objective 40x/0.65.
M-142 HC (high contrast) objective 60x/0.80.
M-143 HC (high contrast) objective 100x/1.25 (oil).
M-040 Attachable mechanical stage (only for B-151 models).
M-155 Polarizing set (filters only).
M-972 Plane-concave mirror, with base.
DC-002 Plastic dust cover, medium.
M-069 Solar battery pack.
M-005
15008 OPTIKA immersion oil 10ml.
15104 Cleaning kit.

Micrometer slide for software calibration, 1mm/10um, 10mm/100um.

How to connect the cameras to our microscopes.

Please refer to the Adapter reference list on Digital section.

M-069 - Solar battery pack

Included battery: rechargeable – Lithium-Poly. Capacity: 2600 mAh.
Output voltage: 5,5Vdc. - Dimensions: 120x73x10 mm.
Autonomy: over 6 hours at medium intensity (X-LED³).
Charging modes: with solar panel (12h),
with external USB power supply (not included)
or from PC USB port (5h).

Not compatible with R models.

15104 - Cleaning kit

It cleans glass quickly and effectively,
without leaving residue or odor.
Ideal for precision lens or prism cleaning.

Headquarters and Manufacturing Facilities

OPTIKA S.r.l.

®

Via Rigla, 30 - 24010 Ponteranica (BG) - ITALIA - Tel.: [phone] - Fax: [phone]

Optika Sales branches

OPTIKA Spain
OPTIKA China
OPTIKA India

® ®

®

®

[e-mail]
[e-mail]
[e-mail]

- [e-mail]

OPTIKA USA
OPTIKA Hungary

®

[e-mail]
[e-mail]

OPTIKA

MICROSCOPES

®

ITALY

B-190 Series

Advanced Biological Microscopes For Students

B-191 / B-191s / B-192 / B-192s / B-193 / B-190TB

Fulll the Next Generation Learning Challenges

FOR SKILLFUL STUDENTS AND CLASSROOM USE

» Extremely reliable microscopes
» Particularly recommended for primary school
» Ideal for education and biology

YOUR FAVOURITE EDUCATIONAL MICROSCOPES

» Choose among monocular, binocular and trinocular heads
» 18mm field number
» Achromatic lenses for standard brightfield applications.

36

B-190TB - A Completely New, Revolutionary Experience

HANDY, YET EXTREMELY STABLE

» Get accurate, dependable results in one click
» Equipped with the most reliable OS, Windows 10
» Holding solution for open discussion, 360° rotating and tilting

OPTIMUM AND UNPARALLELED COMFORT IN USE

»

Large touch screen of 10.1” with fast, responsive and smooth control

»

Simultaneous camera and power connection for long-term operation

» Easily detachable, can be used as a laptop (keyboard included)

37

X-LED

2

– Only Available At OPTIKA

POWERFUL AND UNIFORM ILLUMINATION

» Uncomparable light intensity, exclusive lens and collector design
» Constant pure-white colour temperature at all intensity levels

» Unmatched colour fidelity and brightness of your specimen

Halogen

MONEY & ENERGY SAVING

» High energy efficiency at a limited cost
» Incredibly low energy consumptions, only 3 W
» LED long lifetime (50.000 hours = 20 years at 8 hours/day usage)

2

X-LED

X-LED

2

38

100x With Water –

A New Frontier In Education

SAME OBJECTIVE FOR OIL AND WATER USE

» Oil represents the best media for high numerical apertures
» Water combines relevant results with convenience
» Water is recommended especially for educational purposes

UNPARALLELED TIME & MONEY SAVINGS

» Save time by forgetting about tedious cleaning
» No time-wasting procedures

No additional expenses due to inappropriate cleaning & maintenance

»

100x Water100x Oil

39

B-190 Series

Original, Compact And Robust

The original design of B-190 series is based on robustness, yet keeping the extreme portability
of the instrument, with a dedicated handle on the back. The built-in LED illuminator and the
patented version with Windows tablet improve the reliability of one of the best-sellers of OPTIKA
in the educational field.

40

Incorporating The Most Wanted Features In A Student Microscope

Get all the controls and features common to higher level microscopes: translating stage,
binocular or trinocular head, coaxial focus knob, adjustable condenser, and 1000x maximum
magnification (standard). An extremely simple but well equipped solution, in a modern and
ergonomic design.

X-LED2 Exclusive Lighting Source

A special design of the lens in front of the LED gives
a very high light intensity, while ensuring optimal
uniformity of illumination on the whole field number.
Relevant money & energy saving thanks to the
incredibly low energy consumptions allow you to
cut the electricity bills by 90%!
The electric consumption (3 W only) proves the
high efficiency of this system: incredibly high light
intensity combined with low consumption.

X-LED

2

Halogen

Advanced Biological Microscopes For Students And Teachers

Optimum And Unparalleled Comfort In Use

The B-190TB offers you a unique, incomparable solution.
It includes a built-in camera of 3Mp and a Windows tablet with
large touch screen, for a responsive and smooth control.
Simultaneous camera and power connection ensure long-term
operation, with dependable results in one click.
It provides a reliable and comfortable solution
for open discussion: 360° rotating and tilting tablet, easily
detachable, that can be used as a laptop.

Get the most out of our accessories

ANALYZER

M-190 - Polarizing set

Set for simple polarization

analysis. Upgrade your

B-190 to a polarizing

microscope and look at

birefringent samples.

POLARIZER

41

B-190 Series

Applications

Some application examples showing the extreme versatility
of B-190 Series. Application in education, biology, botany and
simple material analysis, where all the samples are prepared on
standard glass slides.

Legend

2

1. B-190 Series lens containing X-LED

2. B-190 Series WF10x/18mm eyepieces for large specimen
view and interpupillary adjustment.

3. B-191 pre-centered condenser with achromatic
objectives.

4. Frog Blood Smear, with B-192 and 10x objective.

5. Frog Blood Smear, with B-192 and 40x objective.

6. Frog Blood Smear, with B-192 and 100x objective.

7. Frog Blood Smear, with B-192 and 100x objective with water.

8. B-190 Series handle for easy transportation.

9. B-190TB digital microscope with 10.1” Widows tablet PC.

10. B-190 Series adjustable condenser in height.

illumination system.

2

3

42

1

4

5

8

9

6

7

100x Objective with water

10

43

B-190 Series - Overview

B-190 is the result of a perfect fusion between years of experience in microscopy and a refined design study.
It represents our product philosophy at its best: quality, reliability and innovation, all in one.
B-190 Series, the answer of OPTIKA Microscopes to the challenge of the future in the educational field.

Observation mode:

Brightfield.

Heads:

B-191 models:

Monocular, 360° rotating and 30° inclined.

B-192 models:

Binocular, 360° rotating and 30° inclined.

B-193:

Trinocular, 360° rotating and 30° inclined.

B-190TB:

Digital model binocular with camera and 10.1” tablet, 360° rotating
and 30° inclined.

Interpupillary distance:

B-190TB/B-192 models: Adjustable between 48 and 75 mm.
B-193 model: Adjustable between 55 and 75 mm.

Dioptric adjustment:

On the left eyepiece.

Eyepieces:

WF 10x/18 mm.

Nosepiece:

Quadruple revolving nosepiece, rotation on ball bearings.

Objectives:

HC - High Contrast (different magnifications available)
with an anti-fungus treatment.

Specimen stage:

Double layer mechanical sliding stage, 125x115 mm, 70x30 mm X-Y
movement range. Vernier scale on the two axes, accuracy: 0.1mm.

Focusing:

Coaxial coarse and fine focusing mechanism with limit stop to prevent
the contact between objective and specimen.
Adjustable tension of coarse focusing knob.

Condenser:

N.A. 1.25, pre-centered, adjustable height with iris diaphragm.

Illumination:

X-LED² with white 3 W LED and light intensity control.
Color temperature: 6,300 K.

44

HC

OPTIKA HC objectives ensure a versatile and reasonably priced entry-level

lenses for brightfield, darkfield and simple polarization applications.
They are specifically designed to achieve optimal contrast and thus maximize
yield on an instrument intended for education on F.N. 18.
Learn on how the 100x/1.25 (oil) operates by using water instead of oil at page 39.

B-190 Series - Range

1

30°

18

360°

1000x

2

X-LED

B-191

1

30°

18

360°

600x

X-LED

B-191s

2

Entry level model with monocular head up to 1000x total magnification,
mechanical stage and exclusive X-LED2 for unmatchable performance,

powerful and uniform illumination.

B-192

2 2

30°

18

360°

1000x

2

X-LED

Entry level model with monocular head up to 600x total magnification,
without using immersion oil. The exclusive X-LED2 provides unmatchable

performance for powerful and uniform illumination.

B-192S

30°

18

360°

600x

2

X-LED

Binocular head with up to 1000x total magnification, mechanical stage
and exclusive X-LED2 for unmatchable performance, powerful and

uniform illumination.

Binocular head with up to 600x total magnification without using immer­sion oil. The exclusive X-LED2 provides unmatchable performance for

powerful and uniform illumination.

45

B-190 Series - Range

B-193 B-190TB

3

30°

18

360°

1000x

2

X-LED

Trinocular head with up to 1000x total magnification, mechanical stage
and exclusive X-LED2 for unmatchable performance for powerful and
uniform illumination.
All the OPTIKA cameras can be easily mounted and used straight away.

2

10.1’’

30°

3

MP

HDMI

18

360°

MICRO

SD

1000x

PATENTED

2

X-LED

3 MP Built-in camera and 10.1” Windows tablet PC up to 1000x total
magnification, mechanical stage and exclusive X-LED2 for unmatchable

performance for powerful and uniform illumination.

46

B-190TB - Digital microscope with camera and tablet

The latest OPTIKA digital microscopes with Windows tablet PC open new microscopy horizons, combining high-end optics with innovative
digital technology for microscopic imaging. B-190TB includes a 3 MP camera with a 10.1” Windows tablet.
View, capture, analyze and share your images with simplicity and reliability.

Intuitive, Yet

Powerful Software

PATENTED

Simple and user-friendly, ideal for

students and experienced users.

Unique Features

> Simultaneous camera & power connection
> Equipped with the latest Windows OS & Intel processor

Easily detachable, can be used as a laptop (keyboard included)

>

360° Rotating & Tilting

Detachable

BREAK NEW GROUND WITH TABLET PC

» Get accurate, dependable results in one click
» Holding solution for open discussion, 360° rotating and tilting
» Large touch screen of 10.1” with fast, responsive and smooth control

47

B-190TB - Digital microscope with camera and tablet

TABLET TECHNICAL SPECIFICATIONS

Tilting

Model

Operating System

Language

Image capturing software

CPU

CPU speed

Graphics Card

Memory

LCD display

LCD resolution

Storage

Network

Input/output ports

Control Buttons

Battery Technology

Tablet 10.1”

Windows 10 32-bit

Multilanguages already installed

OPTIKA Vision lite

Intel® Atom™ Z3735F, Quad core

1,83 GHz

Intel® HD Graphics 3D Accelerator

Ram 2,048 GB DDR3L

LED 10.1” IPS Multi Touch Screen

1280 x 800, 16/10 (WXGA)

HDD 32GB

Wireless, Bluetooth 4.0

Micro USB-B - USB - Microphone - MicroSD card reader - Mini HDMI - Head-phone

Auto rotate o, volume control

Lithium-ion battery, 2x cell

Battery capacity

Max load

Dimensions

Weight

Cables included

Also included

CAMERA TECHNICAL SPECIFICATIONS

Digital camera resolution

Signal output

Sensor Size

Sensor technology

Image format

Full Image size

Pixel size

Frame rate full resolution

6000 mAh

18 W

Thickness 10,5 mm, Height 17,4 cm, Width 25,7 cm

600 g

OTG cable (Micro USB-B to USB-A)

Instruction manual, Keyboard with touchpad, touch pen.

3 MP

USB 2.0

1/2.5”

CMOS

4\3

2048 x 1536

2.2 x 2.2 micron

5 frames\sec

48

Frame rate other resolutions

Automatic White Balance

Automatic Gain Control

Automatic Back light control

Exposure control

8 FPS (1280x1024) - 30FPS (640x480)

Auto - Man

Auto - Man

Auto - Man

Auto - Man

B-190 Series - Optical performance

Eyepiece 10x (M-002.1) 16x (M-003)

Field number (mm) 18 12

Objective N.A. W.D (mm) Total magnication Field of View (mm) Total magnication Field of View (mm)

4x

10x

20x

40x 0.65 0.53 400x 0.45 640x 0.3

60x 0.85 0.45 600x 0.3 960x 0.2

100x 1.25 (oil) 0.13 1000x 0.18 1600x 0.12

0.1 18

0.25 7 100x 1.8

0.4 2 200x 0.9

40x

4.5 64x 3

160x 1.2

320x 0.6

B-190 Series - Zoom comparison

Frog small intestine - B-193 - 10x HC objective

Frog small intestine - B-193 - 40x HC objective

Frog small intestine - B-193 - 100x Oil HC objective

B-190 Series - Comparison chart

Model Head Eyepieces Nosepiece Objectives Stage Focusing Condenser Illuminator

B-191

B-191s

B-192

B-192s

Monocular,
360° rotating,
30° inclined.

Monocular,
360° rotating,
30° inclined.

Binocular,
360° rotating,
30° inclined.

Binocular,
360° rotating,
30° inclined.

Wide Field
10x/18mm

Wide Field
10x/18mm

Wide Field
10x/18mm

Wide Field
10x/18mm

Quadruple,
reversed

Quadruple,
reversed

Quadruple,
reversed

Quadruple,
reversed

HC Achromatic
4x, 10x, 40x, 100x

HC Achromatic
4x, 10x, 40x, 60x

HC Achromatic
4x, 10x, 40x, 100x

HC Achromatic
4x, 10x, 40x, 60x

Double layer,
125x115 mm with
70x30mm X-Y moving
range

Double layer,
125x115 mm with
70x30mm X-Y moving
range

Double layer,
125x115 mm with
70x30mm X-Y moving
range

Double layer,
125x115 mm with
70x30mm X-Y moving
range

Coaxial

coarse and ne

focusing

Coaxial

coarse and ne

focusing

Coaxial

coarse and ne

focusing

Coaxial

coarse and ne

focusing

N.A. 1.25
Abbe type
with adjustable
height and iris
diaphragm

N.A. 1.25
Abbe type
with adjustable
height and iris
diaphragm

N.A. 1.25
Abbe type
with adjustable
height and iris
diaphragm

N.A. 1.25
Abbe type
with adjustable
height and iris
diaphragm

3 W X-LED2 system with
adjustable intensity

3 W X-LED2 system with
adjustable intensity

3 W X-LED2 system with
adjustable intensity

3 W X-LED2 system with
adjustable intensity

B-193

B-190TB

Trinocular,
360° rotating,
30° inclined.

Binocular, digital
360° rotating,
30° inclined.

Wide Field
10x/18mm

Wide Field
10x/18mm

Quadruple,
reversed

Quadruple,
reversed

HC Achromatic
4x, 10x, 40x, 100x

HC Achromatic
4x, 10x, 40x, 100x

Double layer,
125x115 mm with
70x30mm X-Y moving
range

Double layer,
125x115 mm with
70x30mm X-Y moving
range

Coaxial

coarse and ne

focusing

Coaxial

coarse and ne

focusing

N.A. 1.25
Abbe type
with adjustable
height and iris
diaphragm

N.A. 1.25
Abbe type
with adjustable
height and iris
diaphragm

3 W X-LED2 system with
adjustable intensity

3 W X-LED2 system with
adjustable intensity

49

B-190 Series - Accessories

ACCESSORIES FOR B-190 SERIES

M-001 Eyepiece H5x.
M-002.1 Eyepiece WF 10x/18 mm.
M-003 Eyepiece WF 16x/12 mm.
M-004 Eyepiece with micrometer WF 10x/18 mm, 10mm/100um.
M-008 Eyepiece with pointer WF 10x/18 mm.
M-137 HC (high contrast) objective 4x/0.10.
M-138 HC (high contrast) objective 10x/0.25.
M-139 HC (high contrast) objective 20x/0.40.
M-141 HC (high contrast) objective 40x/0.65.
M-142 HC (high contrast) objective 60x/0.80.
M-143 HC (high contrast) objective 100x/1.25 (oil).
M-190 Polarizing set (filters only).
DC-002 Plastic dust cover, medium.
M-069 Solar battery pack.
M-974 Blue filter, 32 mm diameter.
M-976 Green filter, 32 mm diameter.
M-978 Yellow filter, 32 mm diameter.
M-988 Frosted glass filter, 32 mm diameter.
M-971 Plane-concave mirror, with base.
M-114 C-Mount adapter for 1/2” sensor.
M-115 C-Mount adapter for 1/3” sensor.
M-116 C-Mount adapter for 2/3” sensor.
M-173 Photo adapter for APS-C and Full Frame Reflex cameras.
15008 OPTIKA immersion oil 10ml.
M-005
15104 Cleaning kit.
VP-190 IQ/OQ/PQ Validation Protocols.

Micrometer slide for software calibration, 1mm/10um, 10mm/100um.

M-069 - Solar battery pack

Included battery: rechargeable – Lithium-Poly. Capacity: 2600 mAh.
Output voltage: 5,5Vdc. - Dimensions: 120x73x10 mm.
Autonomy: over 6 hours at medium intensity (X-LED³).
Charging modes: with solar panel (12h),
with external USB power supply (not included)
or from PC USB port (5h).

B-192 Powered by solar battery pack (M-069)

15104 - Cleaning kit

It cleans glass quickly and effectively,
without leaving residue or odor.
Ideal for precision lens or prism cleaning.

Headquarters and Manufacturing Facilities

OPTIKA S.r.l.

®

Via Rigla, 30 - 24010 Ponteranica (BG) - ITALIA - Tel.: [phone] - Fax: [phone]

Optika Sales branches

OPTIKA Spain
OPTIKA China
OPTIKA India

® ®

®

®

[e-mail]
[e-mail]
[e-mail]

- [e-mail]

OPTIKA USA
OPTIKA Hungary

®

[e-mail]
[e-mail]

OPTIKA

MICROSCOPES

®

ITALY

SFX/STEREO Series

MS-2 / STX / SFX-31 / SFX-32 / SFX-33 / SFX-34 / SFX-51 / SFX-52 / SFX-91 / SFX-91D / ST-30FX / ST-50Led

Entry Level Stereomicroscopes For Students

Designed For Simplicity & The Youngest Users

DESIGNED FOR NOVICE USERS

» Extremely reliable microscopes
» Particularly recommended for primary school
» Ideal for education, biology and material science

EDUCATIONAL STEREOMICROSCOPES

» Choose among monocular and binocular heads
» Generally, 20 mm field number
» Equipped with high performance LED illumination

52

Attention To Detail

HANDY, YET EXTREMELY STABLE

» Compact, practical and intuitive to use
» Optics ensuring good quality images
» Get impressive images and live videos with cameras

EASY TO TAKE CARE OF

» Sturdy, durable for extended lifetime
» No maintenance required
» Dust cover (included) protects from environmental contaminants

53

Suitable for Field Use

CORDLESS, EASILY TRANSPORTABLE

» Stable, yet compact and light weight
» Long-lasting, up to 8 hours from a single charge
» Fast recharging time

NO NEED FOR POWER CONNECTION

» Powered by rechargeable batteries (SFX models)
» Can be transported for being used on site
» Always ready to work

54

A New Frontier In Illumination Adjustment

HIGH COMFORT TOUCH CONTROL

» Light intensity settable via a simple click
» 5 pre-set intensity levels
» On transmitted and incident light

FULFILL ALL THE LEARNING CHALLENGES

» Turnable objective with up to 3 magnifications
» Precision stand for accurate focusing
» 3 MP integrated digital camera (on SFX-91D)

55

GREENOUGH

SFX/STEREO Series

Greenough Optical System

The V-shape optical path of Greenough allows us to design a very compact and a slim unit,
highly versatile and appreciated for the 3D viewing. Vertical heads or 45° inclined to grant
comfortable posture to the user even after several hours of operation.

Incorporating the Most Wanted Features in a Student Microscope

These instruments are the best way to enter the world of magnified 3D vision of objects such as
insects, rocks, plants, and many other samples. The binocular head ensures a comfortable view.
Optional eyepieces and objectives allow to increase even further the maximum magnification.

360°

LWD

LONG WORKING DISTANCE

LED with Rechargeable Batteries - Optimized Illumination

Money & energy saving thanks to LED long lifetime (50.000 hours, 20 years
in case of 8 hours/day) which is more than 20 times compared to a standard
halogen bulb. All the SFX Series has internal rechargeable batteries for up to 8
hours (at medium intensity) of outdoor use.

360° Rotating heads

SFX-51 and SFX-52 have a 360° rotating head, for the most comfortable teaching experience.

The head, through rotation, can be shared among different users or adjusted to the user position.

LWD - Long Working Distance

ST-50Led has a special objective with long working distance that allows you to inspect bulky

samples, thanks also to its overhanging arm stand and LED flexible incident light.

56

Entry Level Stereomicroscopes For Students

1

6

2 5

4

3

6

Legend

1. Transport handle, SFX-91.

2. Fly eyes, with SFX-91D and 4x objective.

3. Mineral rock, with ST-30FX and 4x objective.

4. Mineral rock, with SFX-51 and 4x objective.

5. Transmitted and incident light setting, in recharging mode, SFX-52.

6. Coin, with SFX-91 and 4x objective.

57

SFX/STEREO Series - Overview

OPTIKA SFX/STEREO Series includes a wide selection of stereomicroscopes designed to satisfy every need in both teaching and amateur fields.
Slim and easy to carry solutions, it is equipped with all you need to start learning to use a scientific instrument: 20 mm field of view, up to 40x
maximum magnification, several options concerning illumination (including rechargeable batteries), objectives, and stands.

Observation mode:

Brightfield.

Heads:

Binocular heads (except for monocular MS-2 model).
45° inclined (except for STX: vertical head).

SFX-51, SFX-52 and MS-2:

360° rotating heads.

Interpupillary distance:

Adjustable (for binocular heads).

Dioptric adjustment:

ST-30FX and ST-50Led: On the left eyepiece.
All SFX models: on both eyepieces.
MS-2 and STX: without dioptric adjustment.

Eyepieces:

MS-2 and STX: WF 10x/16 mm.
All other models: WF 10x/20 mm.

Objective:

Achromatic different magnifications available with an anti-fungus treatment.

Stand:

SFX-31, SFX-32, MS-2, ST-30FX and STX:

Pillar stand with focus.

SFX-33, SFX-34, SFX-51 and SFX-52:

Fixed stand with focus and handle.

SFX-91 and SFX-91D:

Precision fixed stand with focus and handle.
ST-50Led:
Overhanging stand with focus.

Illumination:

SFX-31 and SFX-32: Incident: 1W LED, transmitted: 1W LED, dial
brightness control, rechargeable batteries.

SFX-33, SFX-34, SFX-51, SFX-52, SFX-91 and SFX-91D:

Incident: 1W LED, transmitted: 1W LED, touch brightness control,
rechargeable batteries.

MS-2:

Without illumination.

STX:

Incident: 0.1W LED, powered by 2 AA batteries (not included).

ST-30FX:

Incident: 1W LED, transmitted: 1W LED.

ST-50Led:

Incident: 1W LED on flexible arm.

58

SFX/STEREO Series - Range

MS-2 STX

1

45°

16

360°

20x

Entry-level monocular stereomicroscope with fixed objective (2x) that can be
combined to external illuminators, in case some light is required.

2

16

20x

0.1W LED

Binocular stereomicroscope equipped with fixed objective (2x) and LED
incident illumination, combining bright and uniform illumination with
low consumption. Powered by AA batteries (not included).

SFX-31

2 2

45° 45°

20 20

40x 30x

1WLED 1WLED

SFX-32

Binocular stereomicroscope equipped with turnable objective (2x-4x),
pillar stand, and incredibly bright and uniform illumination (transmitted
and incident) with rechargeable batteries.

Binocular stereomicroscope equipped with turnable objective (1x-3x), pillar
stand, and incredibly bright and uniform illumination (transmitted and
incident) with rechargeable batteries.

59

SFX/STEREO Series - Range

SFX-33 SFX-34

2

45°

20

40x

1WLED

Binocular stereomicroscope equipped with turnable objective (2x-4x),
fixed arm with handle, and incredibly bright and uniform illumination
(transmitted and incident), settable through the exclusive touch control.
Powered by rechargeable batteries.

2

45°

20

30x

1WLED

Binocular stereomicroscope equipped with turnable objective (1x-3x),
fixed arm with handle, and incredibly bright and uniform illumination
(transmitted and incident), settable through the exclusive touch control.
Powered by rechargeable batteries.

2

45°

360°

20

40x

1WLED

SFX-51

2

45°

360°

20

30x

SFX-52

1WLED

Binocular stereomicroscope equipped with turnable objective (2x-4x),
360° rotating head, fixed arm with handle, and incredibly bright and
uniform illumination (transmitted and incident), settable through the
exclusive touch control. Powered by rechargeable batteries.

60

Binocular stereomicroscope equipped with turnable objective (1x-3x),
360° rotating head, fixed arm with handle, and incredibly bright and
uniform illumination (transmitted and incident), settable through the
exclusive touch control. Powered by rechargeable batteries.

SFX/STEREO Series - Range

SFX-91 SFX-91D

2

45°

20

40x

1WLED

Binocular stereomicroscope equipped with turnable objective with
3 magnifications (1x-2x-4x), precision fixed arm with handle, and
incredibly bright and uniform illumination (transmitted and incident),

settable through the exclusive touch control.
Powered by rechargeable batteries.

2

45°

20

40x

1WLED

3

MP

USB

Digital binocular stereomicroscope equipped with turnable objective
with 3 magnifications (1x-2x-4x), precision fixed arm with handle, and
incredibly bright and uniform illumination (transmitted and incident),

settable through the exclusive touch control.
Powered by rechargeable batteries.

2

45°

20

40x

1WLED

ST-30FX

ST-50Led

2

45°

20

20x

1WLED

Binocular stereomicroscope equipped with turnable objective
(2x-4x), pillar stand, and incredibly bright and uniform illumination
(transmitted and incident).

Binocular stereomicroscope equipped with fixed objective (2x),
swiveling LED incident illumination on an overhanging, flexible arm.
Ideal for long working distance (119 mm with standard 2x objective, 165
mm with ST-025, 124 mm with ST-026).

61

SFX/STEREO Series - Comparison chart

Model Head Eyepieces Objective Working Distance Stand Illumination

MS-2

Monocular,
45° inclined,
360° rotating

WF 10x/16

2x xed

57 mm Pillar with focus

Without illumination

STX

SFX-31

SFX-32

SFX-33

SFX-34

SFX-51

SFX-52

SFX-91

SFX-91D

ST-30FX

Binocular,

vertical, xed

Binocular,
45° inclined,

xed

Binocular,
45° inclined,

xed

Binocular,
45° inclined,

xed

Binocular,
45° inclined,

xed

Binocular,
45° inclined,
360° rotating

Binocular,
45° inclined,
360° rotating

Binocular,
45° inclined,

xed

Binocular,
45° inclined,
3 MP integrated
camera

Binocular,
45° inclined,

xed

WF 10x/16

WF 10x/20

WF 10x/20

WF 10x/20 2x – 4x selectable 57 mm Fixed with focus and

WF 10x/20

WF 10x/20

WF 10x/20

WF 10x/20

WF 10x/20

WF 10x/20 2x – 4x selectable 57 mm Pillar with focus Incident: 1 W LED

2x xed

2x – 4x selectable

1x – 3x selectable

1x – 3x selectable

2x – 4x selectable

1x – 3x selectable

1x – 2x – 4x
selectable

1x – 2x – 4x
selectable

67 mm Pillar with focus Incident: 0.1 W LED

57 mm Pillar with focus Incident: 1 W LED

57 mm Pillar with focus Incident: 1 W LED

handle

57 mm Fixed with focus and

handle

76 mm Fixed with focus and

handle

76 mm Fixed with focus and

handle

60 mm Precision xed with

focus and handle

60 mm Precision xed with

focus and handle

Powered by 2 AA batteries (not
included)

Transmitted: 1 W LED
Dial brightness control
Rechargeable batteries

Transmitted: 1 W LED
Dial brightness control
Rechargeable batteries

Incident: 1 W LED
Transmitted: 1 W LED
Touch brightness control
Rechargeable batteries

Incident: 1 W LED
Transmitted: 1 W LED
Touch brightness control
Rechargeable batteries

Incident: 1 W LED
Transmitted: 1 W LED
Touch brightness control
Rechargeable batteries

Incident: 1 W LED
Transmitted: 1 W LED
Touch brightness control
Rechargeable batteries

Incident: 1 W LED
Transmitted: 1 W LED
Touch brightness control
Rechargeable batteries

Incident: 1 W LED
Transmitted: 1 W LED
Touch brightness control
Rechargeable batteries

Transmitted: 1 W LED

ST-50Led

62

Binocular,
45° inclined,

xed

WF 10x/20 2x xed 119 mm Overhanging with

focus

Incident: 1 W LED on exible arm

63

SFX/STEREO Series - Accessories

ACCESSORIES FOR STX AND MS-2
DC-001 Plastic dust cover, small.
ST-015 Glass stage, 60 mm diameter.
M-005
15104 Cleaning kit.

ACCESSORIES FOR OTHER MODELS OF SFX SERIES
ST-001 Eyepieces (pair) WF 5x/22 mm.
ST-002 Eyepieces (pair) WF 10x/20 mm.
ST-003 Eyepieces (pair) WF 15x/15 mm.
ST-004 Eyepieces (pair) WF 20x/13 mm.
ST-005 Eyepiece micrometer WF 10x/20 mm, 10 mm/100 um.
ST-025 1x Objective (ST-50Led).
ST-026 3.5x Objective (ST-50Led).
ST-041 Sample clip.
ST-032 Eyecups (pair).
ST-011 White/black object-plate, diameter 60 mm.
ST-012 White/black object-plate, diameter 95 mm (for ST-30FX).
ST-014 Glass stage, diameter 95 mm (for ST-30FX).
ST-015 Glass stage, diameter 60 mm.
DC-001 Plastic dust cover, small (for all, except ST-50Led).
DC-002 Plastic dust cover, medium (for ST-50Led).
M-005
15104 Cleaning kit.

Micrometer slide for software calibration, 1mm/10um, 10mm/100um.

Micrometer slide for software calibration, 1mm/10um, 10mm/100um.

15104 - Cleaning kit

It cleans glass quickly and effectively,
without leaving residue or odor.
Ideal for precision lens or prism cleaning.

ST-041 - Sample clip

How to connect the cameras to our microscopes.

Please refer to the Adapter reference list on Digital section.

Headquarters and Manufacturing Facilities

OPTIKA S.r.l.

®

Via Rigla, 30 - 24010 Ponteranica (BG) - ITALIA - Tel.: [phone] - Fax: [phone]

Optika Sales branches

OPTIKA Spain
OPTIKA China
OPTIKA India

® ®

®

®

[e-mail]
[e-mail]
[e-mail]

- [e-mail]

OPTIKA USA
OPTIKA Hungary

®

[e-mail]
[e-mail]

OPTIKA

MICROSCOPES

®

ITALY

LAB Series

Stereomicroscopes For Students And Teachers

LAB-10 / LAB-20 / LAB-30

A Range Of Quality Microscopes

DESIGNED FOR STUDENTS AND TEACHERS

» Extremely reliable microscopes for education
» Particularly recommended for schools
» Ideal for biology, zoology and material science

COMPLETE STEREOMICROSCOPES

» Dual magnification or continuous zoom available
» 20 mm field number
» High-efficiency LED for incident and transmitted light

66

Attention To Detail

HANDY, YET EXTREMELY STABLE

» Compact, practical and intuitive to use
» Optics ensuring good quality images
» Sturdy rack-and-pinion focusing stand

EASY TO TAKE CARE OF

» Durable for extended lifetime
» Only simple lens cleaning is required time to time
» Dust cover protects from environmental contaminants

67

LAB Series

Greenough Optical System

The V-shape optical path of Greenough allows us to design a very compact and a slim unit,
highly versatile and appreciated for the 3D viewing. Samples with significant depth can be quickly
inspected.

6.4:1 Zoom Ratio

LAB-20 and LAB-30 have 0.7x-4.5x zoom range (6.4:1 zoom ratio), being purposely designed
for routine inspections. This zoom ratio enables most samples to be observed at the appropriate
magnifications. When combined with proper accessories (1.5x additional lens and 20x eyepieces),
LAB-20 can reach 135x maximum magnification, an excellent result in this class.

LED - Optimized Illumination

Money & energy saving thanks to LED long lifetime (50.000 hours, 20 years in case of
8 hours/day) which is more than 20 times compared to a standard halogen bulb.
LED illumination is available as transmitted and incident illuminators.

68

Comfortable And Easy Carrying

Integrated handle is extremely useful when lifting and carrying the microscope from one shelf
to another. The microscope itself is also very light to be easy handled even by the youngest
students.

Stereomicroscopes For Students And Teachers

1

4

2 3

5

6

7

Legend

1. LAB Series handle for easy and comfortable transportation.

2. Freislebenite with LAB-20 and 3x zoom.

3. Jute bag section with LAB-10 and 4x zoom.

4. Garment processing with LAB-20 and 4.5x zoom.

8

5. Nut section with LAB-20 and 4.5x zoom.

6. Plastic satin finish with LAB-10 and 4x zoom.

7. LAB-20, LED incident light, zoom and objective.

8. Red plastic sample with LAB-20 and 4.5x zoom.

69

LAB Series - Overview

The LAB Series is ideal for educational purposes in primary and secondary school, providing an exclusive and attractive design combined with
premium quality components and optics. Obtain clear stereoscopic view and comfortable and ergonomic operation.

Observation mode:

Brightfield.

Heads:

Binocular and trinocular 360° rotating and 45° inclined.

Interpupillary distance:

Adjustable between 51 and 75 mm.

Dioptric adjustment:

LAB-10:

Dioptric compensation adjustable on left eyepiece tubes.

LAB-20 and LAB-30:

Dioptric compensation adjustable on both eyepiece tubes.

Eyepieces:

WF 10x/20 mm.

Objectives:

LAB-10:

With double selectable magnification (2x-4x) that can be selected by
rotating the lens unit. Working distance 80mm.

LAB-20 and LAB-30:

Continuous zoom 0.7x ...4.5x. (6.43:1 zoom factor).
Working distance: 85 mm.

Stand:

Fixed arm type with focusing mechanism.

Focusing:

Rack and pinion controlled by a pair of knobs placed on both sides
of the stand.

Illumination:

Double illuminator for incident and transmitted light fitted with two
high-efficiency LED light sources with light intensity adjustment.
The angle of the incident illuminator is adjustable.
Color temperature: 6.300K.

70

LAB Series - Range

LAB-10

2 2

45°

20

360°

40x 45x

3W LED

45°

20

360°

3W LED

LAB-20

Dual selectable magnification (2x and 4x) with LED incident
and transmitted illumination, combining bright and uniform
illumination with low consumption.

LAB-30

3

45°

20

360°

45x

(

Continuous zoom magnification

incident and transmitted illumination, combining bright and
uniform illumination with low consumption.

0.7x ....4.5x

)

with LED

3W LED

(

Continuous zoom magnification

incident and transmitted illumination, combining bright and
uniform illumination with low consumption.

0.7x ....4.5x

)

with LED

71

LAB Series - Optical performance

Optical performance LAB-10

Eyepiece 5x (ST-001.1) 10x (ST-401) 15x (ST-402) 20x (ST-403)

Field number (mm) 22 20 15 10

Additional lens

None

Total

magnication

10x – 20x 11 - 5.5

Field of View (mm)

Total

magnication

20x – 40x

Field of View (mm)

10 – 5 30x – 60x 7.5-3.75

Total

magnication

Field of View (mm)

Total

magnication

40x – 80x

Optical performance LAB-20 - LAB-30

Eyepiece 5x (ST-001.1) 10x (ST-401) 15x (ST-402) 20x (ST-403)

Field number (mm) 22 20 15 10

Additional lens

0.5x

None

1.5x

Total

magnication

1.75x – 11.25x

3.5x – 22.5x 31.43-4.89

5.25x – 33.75x 20.95-3.26

Field of View (mm)

62.86-9.78 3.5x – 22.5x

Total

magnication

7x – 45x

10.5x – 67.5x

Field of View (mm)

57.14 – 8.89 5.25x – 33.75x 42.86-6.67

28.57 – 4.44 10.5x – 67.5x 21.43-3.33

19.05 – 2.96 15.75x – 101.25x 14.29-2.22

Total

magnication

Field of View (mm)

Total

magnication

7x – 45x

14x – 90x

21x – 135x

LAB Series - Optical path

Field of View (mm)

5-2.5

Field of View (mm)

28.57-4.44

14.29-2.22

9.52-1.48

Greenough Optical System

Brain and eyes work together to produce a “stereoscopic vision”, which provides spatial,
3D images of the objects surrounding us. When the image is transmitted to the brain,
the resulting image is fused together. Stereo microscopes take advantage of this depth
perception ability by transmitting twin images that are inclined (usually between 10°-12°)
to yield a true stereoscopic effect.

LAB Series - Zoom comparison

Vesuviana - LAB-20 - 2x zoom

72

Azurite - LAB-20 - 1x zoom Azurite - LAB-20 - 2x zoom Azurite - LAB-20 - 4.5x zoom

LAB Series - Comparison chart

Model Head Eyepiece Objectives Working Distance Stand Illuminator

LAB-10

LAB-20

LAB-30

Binocular,
45° inclined,
360° rotating

Binocular,
45° inclined,
360° rotating

Trinocular,
45° inclined,
360° rotating

WF 10x/20

WF 10x/20 0.7x – 4.5x zoom

WF 10x/20 0.7x – 4.5x zoom

2x – 4x selectable 80 mm

85 mm

85 mm

Fixed with focus and
handle

Fixed with focus and
handle

Fixed with focus and
handle

Incident: 3 W LED
Transmitted: 3 W LED
Manual brightness control

Incident: 3 W LED
Transmitted: 3 W LED
Manual brightness control

Incident: 3 W LED
Transmitted: 3 W LED
Manual brightness control

LAB Series - Get the most out of our accessories

Actinolite - LAB-20 - 4.5x zoom

Actinolite - LAB-20 - 4.5x zoom

with additional 1.5x lens (ST-086)

73

LAB Series - Accessories

ACCESSORIES FOR LAB SERIES

ST-001.1 Eyepieces (pair) WF 5x/22 mm.
ST-401 Eyepieces (pair) WF 10x/20 mm.
ST-402 Eyepieces (pair) WF 15x/15 mm.
ST-403 Eyepieces (pair) WF 20x/10 mm.
ST-405 Eyepiece micrometer WF 10x/20 mm, 10mm/100um.
ST-085 Additional lens 0.5x (w.d. 165mm) (Only for LAB-20 and LAB-30.)
ST-086 Additional lens 1.5x (w.d. 47mm) (Only for LAB-20 and LAB-30.)
ST-415 Eyecups (pair).
DC-002 Plastic dust cover, medium.
ST-092 Protective glass for stereohead.
ST-417 White/black stage-plate, 60mm diameter for LAB Series.
M-114 C-Mount adapter for 1/2” sensor.
M-115 C-Mount adapter for 1/3” sensor.
M-116 C-Mount adapter for 2/3” sensor.
M-173 Photo adapter for APS-C and Full Frame Reflex cameras.
M-113.1 Ring adapter, 30 mm (for monocular and binocular microscopes).
ST-418 Focusable C-Mount adapter for 1/3” sensor.
ST-419 Focusable C-Mount adapter for 1/2” sensor.
M-005
15104 Cleaning kit.
VP-LAB IQ/OQ/PQ Validation Protocols.

Micrometer slide for software calibration, 1mm/10um, 10mm/100um.

How to connect the cameras to our microscopes.

Please refer to the Adapter reference list on Digital section.

15104 - Cleaning kit

It cleans glass quickly and effectively,
without leaving residue or odor.
Ideal for precision lens or prism cleaning.

74

75

v 3.0 2017 - OPTIKA reserves the right to make corrections, modications, enhancements, improvements and other changes to its products at any time without notice.

Headquarters and Manufacturing Facilities

Headquarters and Manufacturing Facilities

®

OPTIKA S.r.l.

OPTIKA S.r.l.

Optika Sales branches

Optika Sales branches

OPTIKA Spain

OPTIKA Spain
OPTIKA China

OPTIKA China
OPTIKA India

®

® ®

® ®

®

® ®

®

Via Rigla, 30 - 24010 Ponteranica (BG) - ITALIA - Tel.: [phone] - Fax: [phone]

Via Rigla, 30 - 24010 Ponteranica (BG) - ITALIA - Tel.: [phone] - Fax: [phone]

[e-mail]

[e-mail]
[e-mail]

[e-mail]
[e-mail]

- [e-mail]

- [e-mail]

OPTIKA USA

OPTIKA USA
OPTIKA Hungary

OPTIKA Hungary

®

[e-mail]

[e-mail]
[e-mail]

[e-mail]
