Optika IM-3LD2 Booklet [EN]

®

OPTIKA

MICROSCOPES

ITALY

IM-3 Series

Routine Lab Inverted Microscopes

2

Your Preferred Inverted Microscope for Routine

ROUTINE IN UNIVERSITIES, LABS & INDUSTRIES

» Wide range to fullfil specific lab requirements
» Valuable solutions for life and material sciences
» Compliant with several observation methods

Laboratory

AN AFFORDABLE PARTNER WITH HIGH-END FEATURES

» IOS LWD W-PLAN objectives for flat images on 22 mm FN
» Fast, efficient investigation with no particular sample prep
»

Trinocular port with beam splitter for most light-demanding

needs

Optically Impressive

MAINTAINING GOOD EYESIGHT

» 10x/22 eyepieces for large specimen view
» Comfortable rubber cup to get rid of annoying external light
»

High eye-point for glasses wearers, dioptric adjustment (left eyepiece)

IM-3 & IOS W-PLAN: THE PERFECT COMBINATION

» IOS Infinity corrected optical system
» Full planarity optics on 22 mm (W-PLAN) according to ISO 19012-1
» High-grade Semi-Apo lens available ideal for fluorescence

194

194

$Q([WHQVLYH5DQJHRI'LHUHQW&RQÀJXUDWLRQV

2

OBSERVE EVEN THE MOST COMPLEX SAMPLES

»

Phase contrast lens for transparent sample examination

»

LED and HBO fluorescence available for specific purposes

»

High quality no cover glass objectives for material science

CONCEPTUAL INNOVATION IN LED FLUORESCENCE

Choose the lowest operational cost, LED lifetime of 65,000 hours

»
»

Immediate operation, eliminating warm-up/cool-down times

»

Forget about lamp centering, adjustment and maintenance

Laboratory

RPC - Relief Phase Contrast

RPC system is designed to increase visibility and contrast in unstained and living material by
detecting optical gradients (or slopes) and converting them into variations of light intensity.
Typical applications are transparent specimens, bacteria, tissue culture work, spermatozoa, cells
in glass containers, protozoa, mites, fibers, etc.
When viewed under modulation contrast optics, transparent objects that are essentially invisible
in ordinary brightfield microscopy take on an apparent three-dimensional appearance dictated
by phase gradients in the specimen. There are also no halos exhibited in the image, unlike the
images produced with phase contrast optics.
RPC is recommended over DIC technique in case of specimens like crystals (with effects upon
polarized light), or contained in specimen carriers such as plastic culture vessels, Petri dishes, etc.

195

Multi-plug power supply

2

X-LED8 - Only Available at OPTIKA

STATE-OF-THE-ART ILLUMINATION SYSTEM

» Uncomparable light intensity, exclusive lens & collector design
» Constant pure-white color temperature at all intensity levels
» Unmatched color fidelity, uniformity and brightness

Laboratory

Halogen

Halogen

CUT ELECTRICITY BILLS BY 90%

» Money & energy saving, 8 W
» More efficient brightness than a 100 W halogen lamp
» LED long lifetime (65,000 hours = 22 years at 8 hours/day usage)

8

X-LED

X-LED

X-LED

3

196

196

Multi-plug power supply

2

Go Digital - Vivid Colors & Contrast For Stunning Images

STAY CONNECTED WITH YOUR SPECIMEN, EASILY

» Trincular port to be always updated with the latest
technology cameras, even in the future
» Wide range of cameras matching all the needs, including
the more specific ones
» Modern C-mount focusable professional adapters for

all kinds of cameras

PROFESSIONAL IMAGE ANALYSIS

» Multi-language software for live-view, picture and video
in different file formats
» Advanced functions for pictures processing

(EDF, stitching, multi-fluorescence combine)
» Powerful tools to perform measurements and generate
custom reports

Laboratory

Multiple Observation Methods

BRIGHTFIELD METALLOGRAPHY

FLUORESCENCE PHASE CONTRAST

197

2

Laboratory

IM-3 Series

Inverted microscopes are useful for observing living cells or organisms at the bottom of a large
container (e.g., a tissue culture flask) under more natural conditions than on a glass slide, as
it occurs with a conventional microscope. IM-3 Series is engineered and designed to be your
ideal solution for fast and reliable routine inspections, with the exclusive, state-of-the-art X-LED
illumination system. A particularly simple and ingenious optical design allows stable alignments
and smooth and accurate movements. OPTIKA provides different configurations, including the
innovative LED fluorescence technology for a new, enhanced experience.

X-LED8 Exclusive Lighting Source

Special technology able to double the light intensity for incomparable performance, ensuring
constant pure-white colour temperature (6,300K colour temperature).
Relevant money and energy saving thanks to the incredibly low energy consumptions which
allows you to cut the electricity bills by 90%!
The electric consumption (8 W only) proves the high efficiency of this system: incredibly high light
intensity combined with low consumption.

8

22mm FN

20mm FN

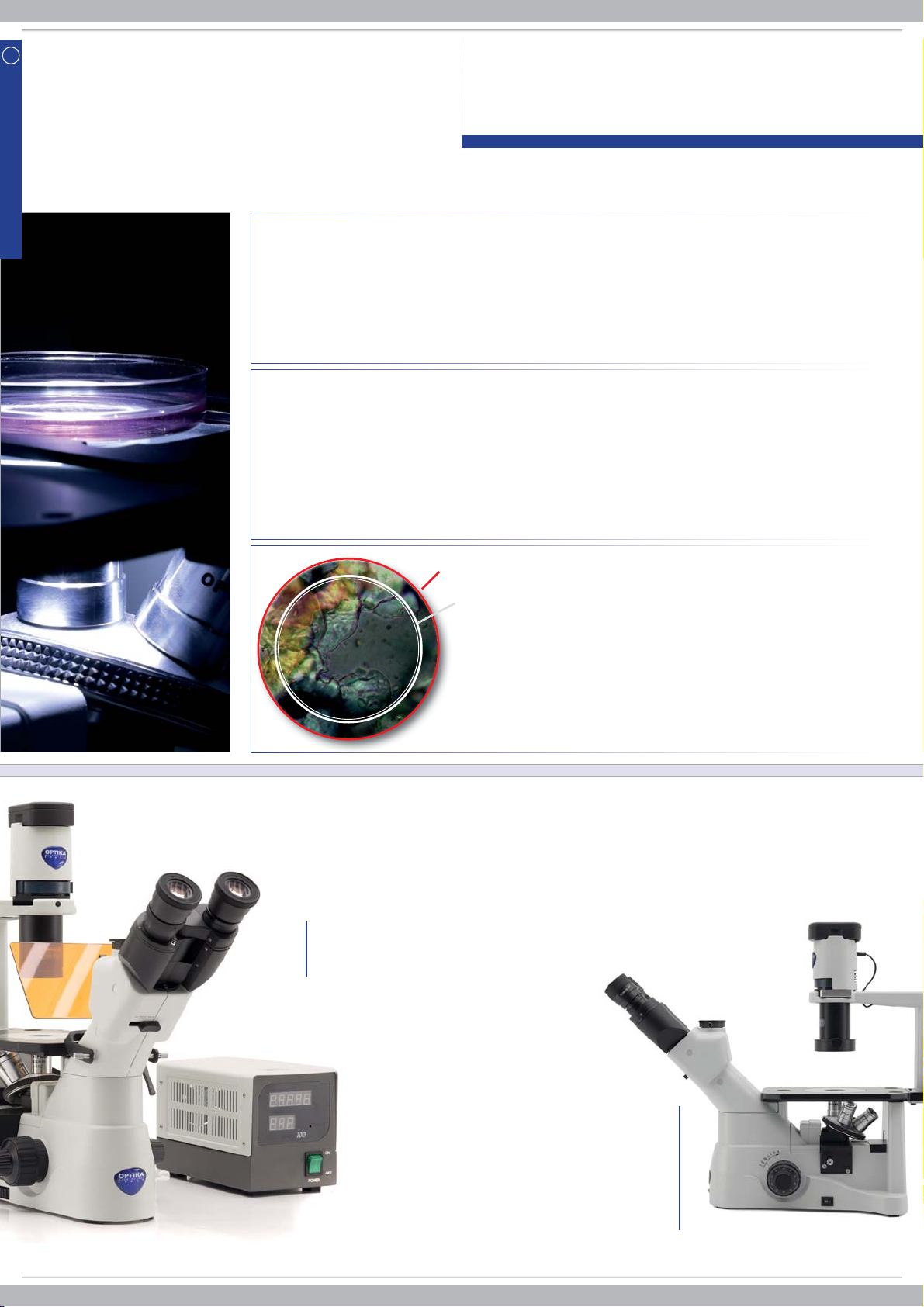

In fluorescence we can offer several options.

According to your application and to the fluorochromes you
are using, we can help you to identify the best light source.

Traditional, HBO Fluorescence

» The most used and diffused method, worldwide
» Wide spectrum range for future upgrades

Large Specimen View (22 mm Field Number)

The F.O.V. (field of view) is based on a comfortable
diameter of 22 mm.
This means that an extra wide area of the sample
can be inspected and allows a natural and easy view,
particularly needed in a laboratory environment.

198

Innovative, LED Fluorescence

» Recommended for routine applications

» Cost-effective, money saving technology

» Ready for immediate operation

» Eliminate warm-up/cool-down times

» Forget lamp replacement & centering

Routine Lab Inverted Microscopes

2

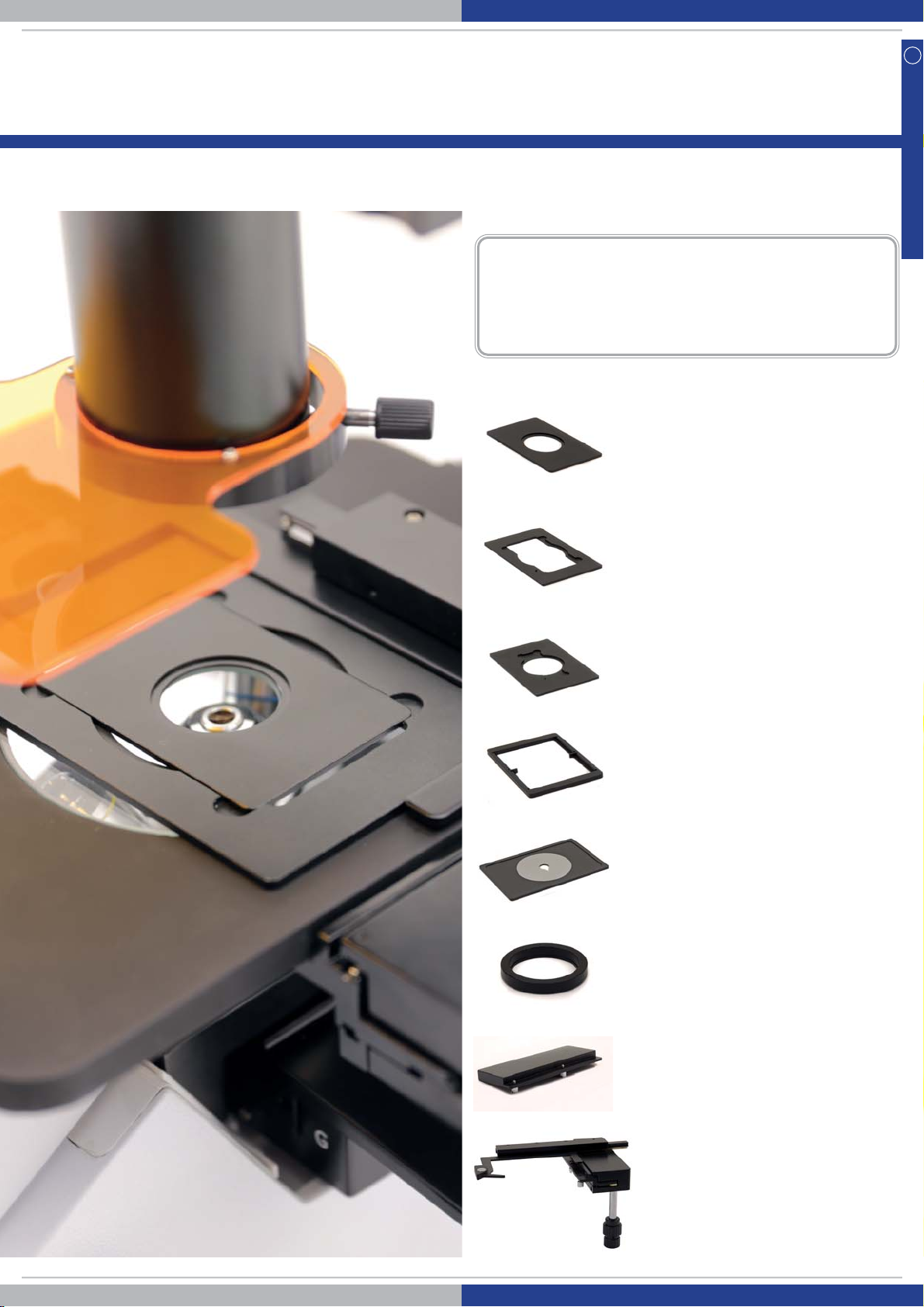

Get the most out of our accessories

DESIGNED TO FACILITATE YOUR DAILY ROUTINE

» Removable condenser to increase the working distance
»

Mechanical stage and side extensions for great comfort (as optional)

»

Different inserts available according to the container used (as optional)

M-793.1

Holder for Petri diameter 38mm

M-793.2

Holder for Terasaki and Petri diameter 65mm.

(M-793.2 needed).

Laboratory

M-793.3

Holder for slide and Petri diameter 54mm.

M-793.4

Holder for 2+2 slides.

M-793.5

Holder for metallurgical samples
(only for IM-3MET).

M-793.6

Holder for Utermöhl-Chamber

M-793.7

Load-bearing side extension.

(M-793.3 needed).

M-792 (M-792.2 for IM-3LD2 only)

Mechanical stage.

199

8

PH

2

IM-3 - Brightfield & Phase Contrast Microscope

IM-3 looks at the challenge of the future with confidence, offering first-class optical quality and mechanical versatility, to extend its use with several accessories.
Ensuring top-level brightfield and phase contrast observation, as it comes with a set of 3 IOS LWD W-PLAN PH objectives (10x, 20x and 40x).
The high-efficiency
For a more complete solution, choose among the several accessories available (objectives, translating stage, side extensions, holders and stage inserts).

22

Laboratory

X-LED

IOS



W-PLAN

PH

X-LED

8

makes it reliable for all transmitted light observations.

IVD

AVAILABLE

AB030

Part Description

Observation mode: Brightfield, phase contrast.
Head: Trinocular (2-position 100/0, 50/50), 45° inclined.

Interpupillary distance:

Adjustable between 50 and 75 mm.

Part Description

Specimen stage:
Focusing: Coaxial coarse (adjustable tension) and fine focusing

Dioptric adjustment: On the left eyepiece tube.

Eyepieces: WF10x/22 mm, high eye-point and with rubber cups.
Nosepiece:

Quintuple revolving nosepiece, rotation on ball bearings.

Condenser: LWD pre-centered condenser, N.A. 0.30, W.D. 72 mm.

Objectives: IOS LWD W-PLAN PH 10x/0.25

IOS LWD W-PLAN PH 20x/0.40
IOS LWD W-PLAN PH 40x/0.65

Transmitted
illumination:

All with anti-fungus treatment.

200

Fixed stage, 250x160 mm, with glass and metal stage inserts.

mechanism with limit stop to prevent the contact
between objective and specimen.

With 4x/10x, 20x/40x phase contrast slider and
brightfield. Removable to extend the working distance
up to 150 mm.

8

X-LED

with white 8 W LED (6,300K) with brightness
control.
With aperture diaphragm.
Multi-plug 100-240Vac/6Vdc external power supply.

8

PH

IM-3F - HBO Fluorescence Microscope

Routine inverted fluorescence microscope for transmitted brightfield, phase contrast and fluorescence observations with IOS LWD W-PLAN objectives.
The HBO fluorescence illuminator is combined with blue and green excitation filter set for the visualization of the following fluorochromes: Acridine Yellow,
Acridine Orange, Auramine, DiO, DTAF, FITC, GFP, YFP, etc. (blue) plus Rhodamine, Texas Red and TRITC (green).
Transmitted light through the exclusive

22

X-LED

IOS



W-PLAN

FL

X-LED

8

to ensure great-looking, rich and high-quality specimen view.

2

Laboratory

PH

AB030

Standard filtersets

Name Excitation

ÀOWHUQP

B (Blue) 450 – 490 495 520LP

G (Green)

527 – 553 565 575LP

Dichroic mirror

FXWR෇QP

Emission

ÀOWHUQP

Part Description

Observation mode: Brightfield, phase contrast, HBO fluorescence.
Epi-illumination and

filter:
Head:

Trinocular (2-position 100/0, 0/100), 45° inclined.

Interpupillary distance:
Dioptric adjustment: On the left eyepiece tube.

Eyepieces: WF10x/22 mm, high eye-point and with rubber cups.
Nosepiece:
Objectives: IOS LWD W-PLAN 4x/0.13

HBO 100 W high pressure mercury lamp.
3-position filter holder; blue & green included.

Adjustable between 50 and 75 mm.

Quintuple revolving nosepiece, rotation on ball bearings.

IOS LWD W-PLAN PH 10x/0.25
IOS LWD W-PLAN PH 20x/0.40

IOS LWD W-PLAN 40X/0.60
All with anti-fungus treatment.

Part Description

Specimen stage:
Focusing:

Condenser:

Transmitted
illumination:

Fixed stage, 250x160 mm, with glass and metal stage inserts.
Coaxial coarse (adjustable tension) and fine focusing

mechanism with limit stop to prevent the contact

Name Excitation

B Blue

G Green

between objective and specimen.

ÀOWHUQP

LWD pre-centered condenser, N.A. 0.30, W.D. 72 mm.
With 4x/10x, 20x/40x phase contrast slider and brightfield.

460 - 490 500 520LP

Removable to extend the working distance up to 150 mm.

480 - 550 570 590LP

X-LED8 with white 8 W LED (6,300K)
control

. With aperture diaphragm.
Multi-plug 100-240Vac/6Vdc external power supply.

Standard filterset

Dichroic mirror

FXWR෇QP

Emission

ÀOWHUQP

with brightness

201

8

2

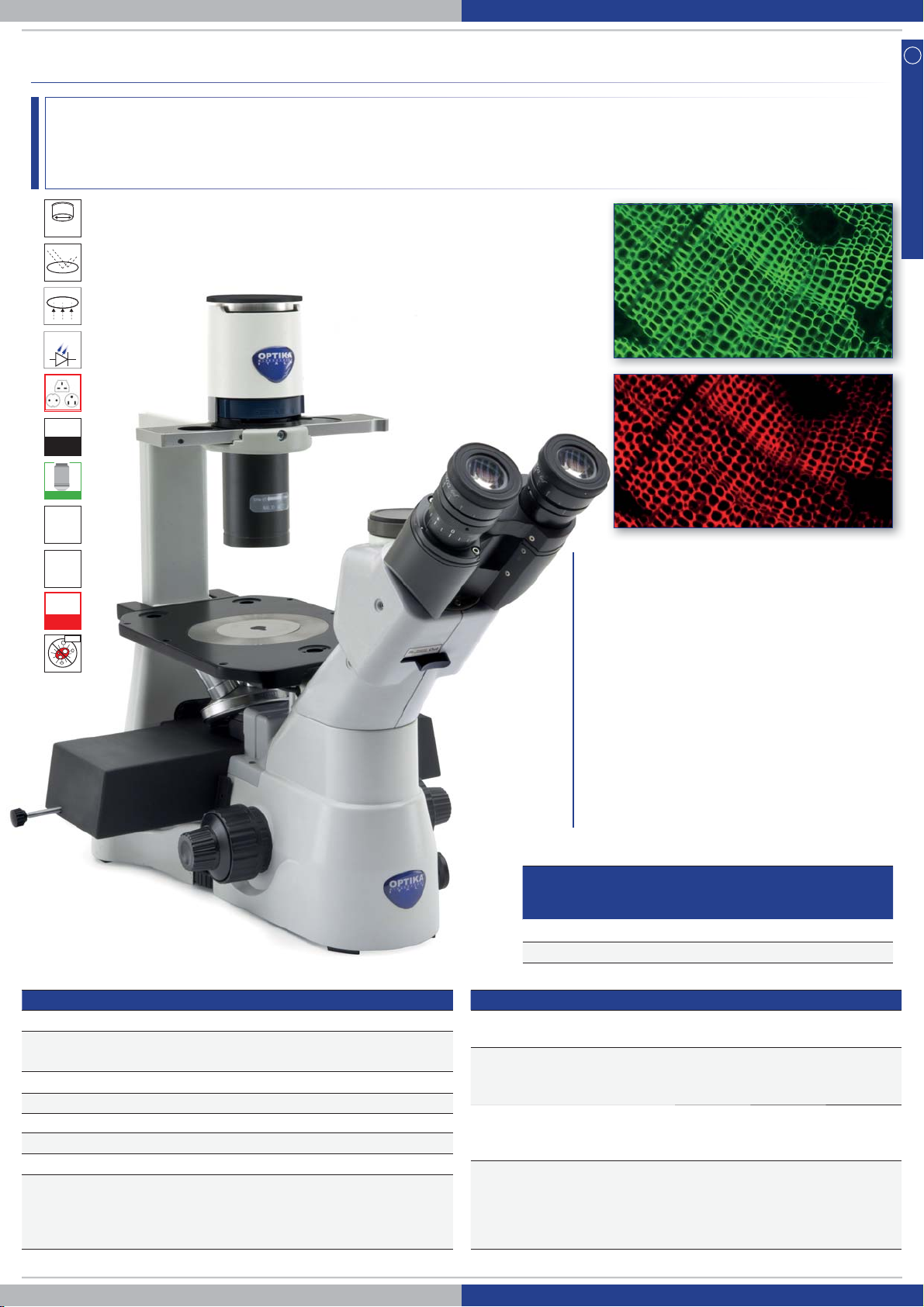

IM-3FL4 - HBO Fluorescence Microscope

Advanced inverted microscope for brightfield and fluorescence observations with Semi-Apo IOS LWD U-PLAN F objectives to enhance the visibility of the sample
and increase the overall contrast. The HBO fluorescence illuminator provides an outstanding flexibility of use, standing the blue and green filter sets (supplied as
standard) for Auramine, FITC, GFP and YFP (with blue filter set) plus Rhodamine, Texas Red and TRITC (with the green one), yet giving the possibility to combine any
other specific filter sets for future upgrade. Transmitted light through the exclusive

22

Laboratory

X-LED

IOS



U-PLAN

FL

AB030

X-LED

8

to ensure great-looking, rich and high-quality specimen view.

Standard filterset

Name Excitation

ÀOWHUQP

B Blue

G Green

460 - 490 500 520LP
527 – 553 565 575LP

Dichroic mirror

FXWR෇QP

Additional filterset (optional)

Name Excitation

ÀOWHUQP

V

(Violet)

UV

390 - 420 440

325 - 375 415

Dichroic mirror

FXWR෇QP

Emission

ÀOWHUQP

Emission

ÀOWHUQP

455LP

435LP

Part Description

Observation mode: Brightfield, HBO fluorescence.
Epi-illumination and

filter:

HBO 100 W high pressure mercury lamp.
4-position filter holder; blue & green included.

Part Description

Specimen stage: Fixed stage, 250x160 mm, with glass and metal stage

Focusing:
Head: Trinocular (2-position 100/0, 0/100), 45° inclined.
Interpupillary distance:

Dioptric adjustment: On the left eyepiece tube.

Adjustable between 50 and 75 mm.

Condenser:

Eyepieces: WF10x/22 mm, high eye-point and with rubber cups.
Nosepiece:

Quintuple revolving nosepiece, rotation on ball bearings.

Objectives: IOS LWD U-PLAN F 10x/0.30

Transmitted

illumination:

IOS LWD U-PLAN F 20x/0.45
IOS LWD U-PLAN F 40x/0.65
All with anti-fungus treatment.

202

inserts.
Coaxial coarse (adjustable tension) and fine focusing

mechanism with limit stop to prevent the contact
between objective and specimen.

LWD pre-centered condenser, N.A. 0.30, W.D. 72 mm.
Removable to extend the working distance up to 150 mm.

X-LED8 with white 8 W LED (6,300K)
control

. With aperture diaphragm.

with brightness

Multi-plug 100-240Vac/6Vdc external power supply.

PH

IM-3LD2 - LED Fluorescence Microscope

8

Routine inverted fluorescence microscope for transmitted brightfield, phase contrast and fluorescence observations with IOS LWD W-PLAN PH objectives.
The LED fluorescence illuminators are combined with blue and green excitation filter set for the visualization of the following fluorochromes: Acridine Yellow, Acridine Orange,
Auramine, DiO, DTAF, FITC, GFP, YFP, etc. (blue) plus Rhodamine, Texas Red and TRITC (green). LED fluorescence ensures unparalleled convenience eliminating warm-up/cool­down times and all the inconveniences related lamp replacement and adjustment. Transmitted light through the exclusive
quality specimen view.

22

X-LED

IOS



W-PLAN

8

X-LED

to ensure great-looking, rich and high-

2

Laboratory

FL

PH

IVD

AVAILABLE

AB030

A new milestone achieved in Fluorescence
Microscopy

» 10% higher light intensity than HBO
» 35% higher light intensity than Metal-Halide
» Adjustable light intensity
» The selection of filtersets automatically

involves the switching on of the

corresponding LEDs
» Recommended for routine applications
» Cost-effective, money saving technology
» Ready for immediate operation
» Eliminate warm-up/cool-down times
» Forget lamp replacement & centering

LED Fluorescence Cubes (LED + Filterset) included

Name LED

emission

Blue

Green

(nm)

460 455 - 495 500 510LP

523 510 - 550 570 575LP

Excita-

WLRQÀOWHU

(nm)

Dichroic

mirror

FXWR෇QP

Emission

ÀOWHUQP

Part Description

Observation mode: Brightfield, phase contrast, LED fluorescence.
Epi-illumination and

filter:
Head: Trinocular (2-position 100/0, 50/50), 45° inclined.
Interpupillary distance:

Dioptric adjustment: On the left eyepiece tube.
Eyepieces: WF10x/22 mm, high eye-point and with rubber cups.

Nosepiece:
Objectives: IOS LWD W-PLAN PH 10x/0.25

High-power LED with brightness control. 3-position
filter holder; blue and green filtesets included.

Adjustable between 50 and 75 mm.

Quintuple revolving nosepiece, rotation on ball bearings.

IOS LWD W-PLAN PH 20x/0.40
IOS LWD W-PLAN PH 40x/0.65
All with anti-fungus treatment.

Part Description

Specimen stage: Fixed stage, 250x160 mm, with glass and metal stage

Focusing:

Condenser:

Transmitted
illumination:

inserts. Mechanical stage as option.
Coaxial coarse (adjustable tension) and fine focusing

mechanism with limit stop to prevent the contact
between objective and specimen.

LWD pre-centered condenser, N.A. 0.30, W.D. 72 mm.
With 4x/10x, 20x/40x phase contrast slider and brightfield.
Removable to extend the working distance up to 150 mm.

X-LED8 with white 8 W LED (6,300K)
control

.
With aperture diaphragm.
100-240Vac/12Vdc external power supply.

with brightness

203

8

2

IM-3LD4 - LED Fluorescence Microscope

Advanced fluorescence inverted microscope for transmitted brightfield and fluorescence observations with IOS LWD U-PLAN F objectives.
The extremely powerful LED Fluorescence Illuminators are combined with corresponding excitation filter sets for the visualization of most fluorochromes. LED
fluorescence ensures unparalleled convenience eliminating warm-up/cool-down times and all the inconveniences related lamp replacement and adjustment.
Transmitted light through the exclusive

22

Laboratory

X-LED

8

to ensure great-looking, rich and high-quality specimen view.

X-LED

IOS



U-PLAN

FL

IVD

AVAILABLE

AB030

A new milestone achieved in Fluorescence
Microscopy

» Full-modular Fluorescence System
» Interchangeable LED-Filtersets
» 4 LED-Filtersets slots
» 10% higher light intensity than HBO
» 35% higher light intensity than Metal-Halide
» Adjustable light intensity
» The selection of filtersets automatically

involves the switching on of the

corresponding LEDs
» Recommended for research applications
» Cost-effective, money saving technology
» Ready for immediate operation
» Eliminate warm-up/cool-down times
» Forget lamp replacement & centering

LED Fluorescence Cubes available (LED + Filterset)

Name

M-1230 - Blue

M-1230.1 - Blue (pass band)

M-1231 - Green

M-1231.1 - Green (pass band)

M-1232 - Violet

M-1233 - UV

M-1233.1 - UV (pass band)

M-1234 - Red 1

M-1235 - Red 2

M-1236 - Deep Red

M-1237 - Far Red

M-1238 - Amber

LED

emission (nm)

460 455 - 495 500 510LP

460 455 - 495 500 518-542

523 510 - 550 570 575LP

523 510 - 550 570 585-625

405 390 - 420 440 450LP

365 325 - 375 415 435LP

365 340 - 390 405 420-470

623 590 - 650 660 665LP

623 595 - 645 655 665 - 715

660 623 - 678 685

740 720 - 760 770 780LP

590 582 - 603 610 615 - 645

Excitation

ÀOWHUQP

Dichroic mirror

FXWR෇QP

Emission

ÀOWHUQP

690 - 750

Part Description

Observation mode: Brightfield, LED fluorescence.
Epi-illumination and

filter:

High -Power LED with brightness control.
4-position filter holder; none included.

Part Description

Specimen stage: Mechanical stage, 250x290 mm, with glass and metal

Focusing:
Head: Trinocular (2-position 100/0, 50/50), 45° inclined.

Interpupillary distance:
Dioptric adjustment: On the left eyepiece tube.

Adjustable between 50 and 75 mm.

Condenser: LWD pre-centered condenser, N.A. 0.30, W.D. 72 mm.

Eyepieces: WF10x/22 mm, high eye-point and with rubber cups.
Nosepiece:
Objectives: IOS LWD U-PLAN F 10x/0.30

Quintuple revolving nosepiece, rotation on ball bearings.

Transmitted

illumination:

IOS LWD U-PLAN F 20x/0.45
IOS LWD U-PLAN F 40x/0.65
All with anti-fungus treatment.

204

stage inserts for slides and 54mm dia. Petri dishes.
Coaxial coarse (adjustable tension) and fine focusing

mechanism with limit stop to prevent the contact
between objective and specimen.

Removable to extend the working distance up to 150
mm.

X-LED8 with white 8 W LED (6,300K)
control

. With aperture diaphragm.

with brightness

Multi-plug 100-240Vac/12Vdc external power supply.

IM-3LD4D - LED Fluorescence Microscope

8

Advanced fluorescence inverted microscope for transmitted brightfield and
fluorescence observations with IOS LWD U-PLAN F objectives. The extremely
powerful LED Fluorescence Illuminators are combined with corresponding
excitation filter sets for the visualization of most fluorochromes. LED fluorescence
ensures unparalleled convenience eliminating warm-up/cool-down times and all

22

the inconveniences related lamp replacement and adjustment. Transmitted light
through the exclusive
specimen view. This model is equipped with an Intel micro PC, a 12” screen, a
6Mpx high-sensitivity color camera, Optika ProView image analisys software for
fluorescence and wireless mouse and keyboard.

X-LED

8

to ensure great-looking, rich and high-quality

2

Laboratory

X-LED

IOS



U-PLAN

FL

IVD

AVAILABLE

AB030

A new milestone achieved in Fluorescence
Microscopy

» Full-modular Fluorescence System
» Interchangeable LED-Filtersets
» 4 LED-Filtersets slots
» 10% higher light intensity than HBO
» 35% higher light intensity than Metal-Halide
» Adjustable light intensity
» The selection of filtersets automatically

involves the switching on of the

corresponding LEDs
» Recommended for research applications
» Cost-effective, money saving technology
» Ready for immediate operation
» Eliminate warm-up/cool-down times
» Forget lamp replacement & centering

LED Fluorescence Cubes available (LED + Filterset)

Name

M-1230 - Blue

M-1230.1 - Blue (pass band)

M-1231 - Green

M-1231.1 - Green (pass band)

M-1232 - Violet

M-1233 - UV

M-1233.1 - UV (pass band)

M-1234 - Red 1

M-1235 - Red 2

M-1236 - Deep Red

M-1237 - Far Red

M-1238 - Amber

LED

emission (nm)

460 455 - 495 500 510LP

460 455 - 495 500 518-542

523 510 - 550 570 575LP

523 510 - 550 570 585-625

405 390 - 420 440 450LP

365 325 - 375 415 435LP

365 340 - 390 405 420-470

623 590 - 650 660 665LP

623 595 - 645 655 665 - 715

660 623 - 678 685

740 720 - 760 770 780LP

590 582 - 603 610 615 - 645

Excitation

ÀOWHUQP

Dichroic mirror

FXWR෇QP

Emission

ÀOWHUQP

690 - 750

Part Description

Observation mode: Brightfield, LED fluorescence.
Epi-illumination and

filter:

High -Power LED with brightness control.
4-position filter holder; none included.

Part Description

Specimen stage: Mechanical stage, 250x290 mm, with glass and metal

Focusing:
Head: Trinocular (2-position 100/0, 50/50), 45° inclined.

Interpupillary distance:

Adjustable between 50 and 75 mm.

Condenser:

Dioptric adjustment: On the left eyepiece tube.

Eyepieces: WF10x/22 mm, high eye-point and with rubber cups.
Nosepiece:

Quintuple revolving nosepiece, rotation on ball bearings.

Transmitted

illumination:

Objectives: IOS LWD U-PLAN F 10x/0.30

IOS LWD U-PLAN F 20x/0.45

Digital equipment:

IOS LWD U-PLAN F 40x/0.65
All with anti-fungus treatment.

stage inserts for slides and 54mm dia. Petri dishes.
Coaxial coarse (adjustable tension) and fine focusing

mechanism with upper limit stop.

LWD pre-centered condenser, N.A. 0.30, W.D. 72 mm.
Removable to extend the working distance up to 150 mm.

X-LED8 with white 8 W LED (6,300K)
control

. With aperture diaphragm.

with brightness

Multi-plug 100-240Vac/12Vdc external power supply.

Intel micro PC with Image analisys software for Fluorescence.
12” screen; 6Mpx high-sensitivity color camera. Supplied
with wireless mouse & keyboard.

205

POL

CAST IRON

POLARIZED LIGHT

CAST IRON

BRIGHTFIELD

2

IM-3MET- Metallurgical Microscope

Routine inverted microscope with IOS LWD U-PLAN MET objectives for material science and metallographic applications, combining a sturdy yet compact structure
with dedicated components required in this field, like the NCG (no cover glass) objectives working without cover slide ideal for metallographic samples and other
opaque specimens. A particularly simple and ingenious optical design allows stable alignments and smooth and accurate movements.

22

Laboratory

IOS



U-PLAN

MET

AB030

Part Description

Observation mode: Brightfield, simple polarized light on incident light.
Epi-illumination and

polarizing filters:

Head: Trinocular (2-position 100/0, 50/50), 45° inclined.

Interpupillary
distance:

Dioptric adjustment: On the left eyepiece tube.

Eyepieces: WF10x/22 mm, high eye-point and with rubber cups.
Nosepiece:

Halogen 12 V/50 W with brightness control.
With aperture and field (centrable) diaphragms.
With polarizer and analyzer.

Adjustable between 50 and 75 mm.

Quintuple revolving nosepiece, rotation on ball bearings.

Part Description

Objectives: IOS LWD U-PLAN MET 5x/0.15

Specimen stage: Fixed stage, 250x160 mm, with metal stage insert.

Focusing: Coaxial coarse (adjustable tension) and fine focusing

CAST IRON

BRIGHTFIELD

CAST IRON

POLARIZED LIGHT

IOS LWD U-PLAN MET 10x/0.30
IOS LWD U-PLAN MET 20x/0.45
IOS LWD U-PLAN MET 50x/0.55
All with anti-fungus treatment.

mechanism with limit stop to prevent the contact
between objective and specimen.

206

IM-3METLD- Metallurgical Microscope

POL

CAST IRON

POLARIZED LIGHT

CAST IRON

BRIGHTFIELD

8

LED routine inverted microscope with IOS LWD U-PLAN MET objectives for material science and metallographic applications, combining a sturdy yet compact
structure with dedicated components required in this field, like the NCG (no cover glass) objectives working without cover slide ideal for metallographic samples and
other opaque specimens. A particularly simple and ingenious optical design allows stable alignments and smooth and accurate movements.
This model is equipped with an 18W LED lighting system.

22

IOS



U-PLAN

MET

AB030

X-LED

2

Laboratory

Part Description

Observation mode: Brightfield, simple polarized light on incident light.
Epi-illumination and

polarizing filters:

Head: Trinocular (2-position 100/0, 50/50), 45° inclined.
Interpupillary

distance:
Dioptric adjustment: On the left eyepiece tube.
Eyepieces: WF10x/22 mm, high eye-point and with rubber cups.
Nosepiece:

LED 18 W with brightness control.
With aperture and field (centrable) diaphragms.
With polarizer and analyzer.

Adjustable between 50 and 75 mm.

Quintuple revolving nosepiece, rotation on ball bearings.

Part Description

Objectives: IOS LWD U-PLAN MET 5x/0.15

Specimen stage: Fixed stage, 250x160 mm, with metal stage insert.

Focusing: Coaxial coarse (adjustable tension) and fine focusing

CAST IRON

BRIGHTFIELD

CAST IRON

POLARIZED LIGHT

IOS LWD U-PLAN MET 10x/0.30
IOS LWD U-PLAN MET 20x/0.45
IOS LWD U-PLAN MET 50x/0.55
All with anti-fungus treatment.

mechanism with limit stop to prevent the contact
between objective and specimen.

207

2

IM-3 Series - Comparison chart

Common features:

- Head:

- Eyepieces:

- Nosepiece:

- Stage:

- Focusing mechanism:

Trinocular (2-position), 45° inclined.

WF10x/22mm, high eye-point.

Quintuple, reversed, on ball bearings.

Fixed, 250x160 mm (mechanical stage and side extension available as accessories).

Coaxial coarse (adjustable tension) and fine focusing mechanism with limit stop to prevent the contact between objective and specimen.

Model Type Objectives Condenser

Laboratory

IM-3

IM-3F

IM-3FL4

IM-3LD2

IM-3LD4

IM-3LD4D

IM-3MET

IM-3METLD

BF, PH

BF, FL, PH

BF, FL

BF, FL, PH

BF, FL

BF, FL

MET

MET

IOS LWD W-PLAN PH
10x, 20x, 40x

IOS LWD W-PLAN 4x,
10xPH, 20PH, 40x

IOS LWD U-PLAN F
10x, 20x, 40x

IOS LWD W-PLAN PH
10x, 20x, 40x

IOS LWD U-PLAN F
10x, 20x, 40x

IOS LWD U-PLAN F
10x, 20x, 40x

IOS LWD U-PLAN MET
5x, 10x, 20x, 50x

IOS LWD U-PLAN MET
5x, 10x, 20x, 50x

LWD, N.A. 0.30,
iris diaphragm

LWD, N.A. 0.30,
iris diaphragm

LWD, N.A. 0.30,
iris diaphragm

LWD, N.A. 0.30,
iris diaphragm

LWD, N.A. 0.30,
iris diaphragm

LWD, N.A. 0.30,
iris diaphragm

-

-

Incident
illumination

-

FL HBO with blue and

JUHHQÀOWHUVHWV

FL HBO with blue and

JUHHQÀOWHUVHWV

FL LED with blue and

JUHHQÀOWHUVHWV

LED Fluorescence
Cubes as optional

LED Fluorescence
Cubes as optional

Halogen bulb,
12 V/50 W, brightness
control

LED 18 W, brightness
control

IM-3 Series - Optical performance

Fluorescence
slider

- 8 W X-LED8, brightness control

2-position +BF 8 W X-LED8, brightness control

3-position +BF 8 W X-LED8, brightness control

2-position +BF 8 W X-LED8, brightness control

4-position 8 W X-LED8, brightness control

2-position 8 W X-LED8, brightness control

--

-

Transmitted
illumination

-

IM-3 / IM-3LD2 / IM-3F

Eyepiece 10x (M-780)

Field number (mm) 22

Objective N.A. W.D. (mm) 7RWDOPDJQLÀFDWLRQ Field of view (mm)

4x

10x PH
20x PH
40x PH

60x

0.13 10.40

0.25 7.30 100x 2.20

0.40 6.80 200x 1.10

0.60 3.00 400x 0.55

0.70 1.70 600x 0.37

40x

5.50

IM-3FL4 / IM-3LD4 / IM-3LD4D

Eyepiece 10x (M-780)

Field number (mm) 22

Objective N.A. W.D. (mm) 7RWDOPDJQLÀFDWLRQ Field of view (mm)

4x

10x
20x
40x 0.65 1.61 400x 0.55
60x 0.75 1.04 600x 0.37

0.13 18.52

0.30 7.11 100x

0.45 5.91 200x 1.10

40x

5.50

2.20

IM-3MET / IM-3METLD

Eyepiece 10x (M-780) 15x (M-601)

Field number (mm) 22 16

Objective N.A. W.D. (mm) 7RWDOPDJQLÀFDWLRQ Field of view (mm) 7RWDOPDJQLÀFDWLRQ Field of view (mm)

5x
10x
20x
50x 0.55 7.90 500x 0.44 750x 0.32

100x 0.80 2.10 1000x 0.22 1500x 0.16

208

0.15 10.80

0.30 10 100x 2.20

0.45 4 200x 1.10

50x

4.40 75x 3.20
150x 1.60
300x 0.80

Cleaning kit

l

IM-3 Series - Accessories

2

Eyecups & Eyepieces

M-601 WF15x/16 eyepiece, high eyepoint
M-780 PL10x/22 eyepiece, high eyepoint, with rubber cup
M-781 PL10x/22 micrometric eyepiece, high eyepoint, with rubber cup

Objectives

IOS W-PLAN

M-1049 IOS W-PLAN objective 2x/0.08
M-782 IOS LWD W-PLAN objective 4x/0.10
M-773 IOS LWD W-PLAN objective 40x/0.60
M-786 IOS LWD W-PLAN objective 60x/0.70

IOS W-PLAN PH

M-782.1 IOS LWD W-PLAN PH objective 4x/0.13
M-783N IOS LWD W-PLAN PH objective 10x/0.25
M-784N IOS LWD W-PLAN PH objective 20x/0.40
M-785 IOS LWD W-PLAN PH objective 40x/0.65

IOS U-PLAN F

M-800 IOS LWD U-PLAN F objective 4x/0.13
M-801 IOS LWD U-PLAN F objective 10x/0.30
M-802 IOS LWD U-PLAN F objective 20x/0.45
M-803 IOS LWD U-PLAN F objective 40x/0.65
M-804 IOS LWD U-PLAN F objective 60x/0.75

IOS U-PLAN F PH

M-1177 IOS LWD U-PLAN F PH objective 20x/0.45
M-1178 IOS LWD U-PLAN F PH objective 40x/0.65

IOS U-PLAN MET

M-1100 IOS LWD U-PLAN MET objective 5x/0.15
M-1101 IOS LWD U-PLAN MET objective 10x/0.30
M-1102 IOS LWD U-PLAN MET objective 20x/0.45
M-1103 IOS LWD U-PLAN MET objective 50x/0.55
M-1104 IOS LWD U-PLAN MET objective 100x/0.80 (dry)

IOS LWD U-PLAN RPC

M-861 IOS LWD U-PLAN RPC objective 4x/0.13
M-862 IOS LWD U-PLAN RPC objective 10x/0.25
M-863 IOS LWD U-PLAN RPC objective 20x/0.40
M-864 IOS LWD U-PLAN RPC objective 40x/0.65

Attachments

M-797 HBO fluo attachment, 2-pos. (B & G filter set), EU (only for IM-3)
M-798 HBO fluo attachment, 4-pos. (B & G filter set), EU (only for IM-3)

Stages

M-792 Mechanical stage
M-792.2 Mechanical stage (for IM-3LD2 only)

Condensers & Filters

M-676 Empty fluorescence filterblock (only for IM-3F)
M-677 Fluorescence filter set V (filterblock included) (only for IM-3F)
M-677.1 Fluorescence filter set V (filterblock NOT included) (only for IM-3F & IM-3FL4)
M-677ND Neutral density filter, 25% transmission (only for IM-3F & IM-FL4)
M-678 Fluorescence filter set UV-DAPI (filterblock included) (only for IM-3F)
M-678.1 Fluorescence filter set UV-DAPI (filterblock NOT included) (only for IM-3F & IM-3FL4)
M-678ND
M-1230 Blue LED Fluorescence Cube (LED+Filterset), for IM-3LD4
M-1230.1 Blue (pass band)LED Fluorescence Cube (LED+Filterset), for IM-3LD4
M-1231 Green LED Fluorescence Cube (LED+Filterset), for IM-3LD4
M-1231.1 Green (pass band) LED Fluorescence Cube (LED+Filterset), for IM-3LD4
M-1232 Violet LED Fluorescence Cube (LED+Filterset), for IM-3LD4
M-1233 UV LED Fluorescence Cube (LED+Filterset), for IM-3LD4
M-1233.1 UV (pass band) LED Fluorescence Cube (LED+Filterset), for IM-3LD4
M-1234 Red 1 LED Fluorescence Cube (LED+Filterset), for IM-3LD4
M-1235 Red 2 LED Fluorescence Cube (LED+Filterset), for IM-3LD4
M-1236 Deep Red LED Fluorescence Cube (LED+Filterset), for IM-3LD4
M-1237 Far Red LED Fluorescence Cube (LED+Filterset), for IM-3LD4
M-1238 Amber LED Fluorescence Cube (LED+Filterset), for IM-3LD4

Neutral density filter, 50% transmission

(only for IM-3F & IM-3FL4)

Camera Adapters

M-113.1 Ring adapter, 30mm (for monocular and binocular microscopes)
M-115 0.35x C-Mount projection lens
M-114 0.5x C-Mount projection lens
M-118 0.75x C-Mount projection lens
M-173
M-620 0.35x focusable C-Mount adapter (biological microscopes)
M-620.1 0.5x focusable C-Mount adapter (biological microscopes)
M-620.2 0.65x focusable C-Mount adapter (biological microscopes)
M-620.3 1x focusable C-Mount adapter (biological & stereomicroscopes)
M-699 Universal adapter for C-Mount projection lens (trino)

Miscellaneous

15104 Cleaning kit
DC-004 TNT dust cover, large, 700(l)x550(h) mm
M-005
M-151 HBO 100W high-pressure mercury bulb for fluorescence

M-151.1 HBO 100W high-pressure mercury bulb for fluorescence

M-622 Halogen bulb 12V/50W (only for IM-3MET)
M-785.2N
M-793.1 Holder for Petri 38mm diameter (M-793.2 needed)

M-793.2 Holder for Terasaki and Petri 65mm diameter (except for IM-3MET)
M-793.3 Holder for slides and Petri 54mm diameter (except for IM-3MET)
M-793.4 Holder for 2+2 slides (except for IM-3MET)
M-793.5 Holder for metallurgical samples (only for IM-3MET)
M-793.6 Holder for Utermohl-Chamber (M-793.3 needed) (except for IM-3MET)
M-793.7 Load bearing side extension
M-860 Slider with rotating 10x-20x-40x OPTIKA Modulation Contrast slit
M-860.1 Slider with rotating 4x OPTIKA Modulation Contrast slit
M-1004.N Centering telescope, 30mm diameter
VP-IM3 IQ/OQ/PQ manual for IM-3 series
AB-030

C-Mount projection lens for APS-C/full frame reflex cameras (trino)

Micrometric slide, 26x76mm, with 2 scales (1mm/100 & 10mm/100)

(only for IM-3F & IM-3FL4)

(OSRAM) (only for IM-3F & IM-3FL4)

Slider with phase rings (4x/10x, 20x/40x, BF) (except for IM-3MET)

(except for IM-3MET)

Antibacterial surface treatment, only for newly purchased microscope

15104 - Cleaning kit

It cleans glass quickly and effectively,
without leaving residue or odor.
Ideal for precision lens or prism cleaning.

Laboratory

glass quickly and effectively,

eaving residue or odor.

r precision lens or prism cleaning.

How to connect the cameras to our microscopes.

Please refer to the Adapter reference list on Digital section.

209

2

Laboratory

v6.7-OPTIKAreservestherighttomakecorrections,modifications,enhancements,improvementsandotherchangestoitsproductsatanytimewithoutnotice.

Headquarters and Manufacturing Facilities

OPTIKA S.r.l.

®

Via Rigla, 30 - 24010 Ponteranica (BG) - ITALY - Tel.: [phone]

- [e-mail]

Optika Sales branches

OPTIKA
OPTIKA
OPTIKA

® ®

Spain

®

China

®

India

[e-mail]

[e-mail]

[e-mail]

OPTIKA
OPTIKA

USA

®

Central America

[e-mail]

[e-mail]
