Opticum ACTUS MINI User Manual

Full HD Digital Satellite Receiver
Digital Innova tion Life

User's Manual

ACTUS MINI

INDEX

Precautions............................................................................................................................... 5

1. Important Safety Instructions .................................................................................................... 5

2. Notice ....................................................................................................................................... 5

3. Copyright .................................................................................................................................. 6

4. Disclaimer................................................................................................................................. 6

Before You Begi n ..................................................................................................................... 7

1. Main Features .......................................................................................................................... 7

2. Accessories .............................................................................................................................. 8

Hardware Descripti on .............................................................................................................. 9

1. Front Panel Configuration ........................................................................................................ 9

2. Rear Panel Configuration ....................................................................................................... 10

3. Remote Control Unit ................................................................................................................11

Connecting diagram .............................................................................................................. 14

1. Receiver to Adaptor ................................................................................................................ 14

2. Receiver to TV with Digital A/V Output ................................................................................... 14

3. Receiver to TV with Analog A/V Output .................................................................................. 15

4. Connecting to Antenna Cable ................................................................................................. 15

5. Guide to mounting an STB on TV back panel (Optional) ........................................................ 17

Guide of Functi ons ................................................................................................................ 18

1. Selecting a Service ................................................................................................................. 18

1.1 Using CH UP/DOWN buttons ............................................................................................ 18

1.2 Using Service List.............................................................................................................. 18

1.3 Using Simple Service List .................................................................................................. 18

1.4 Using Recent Service List ................................................................................................. 19

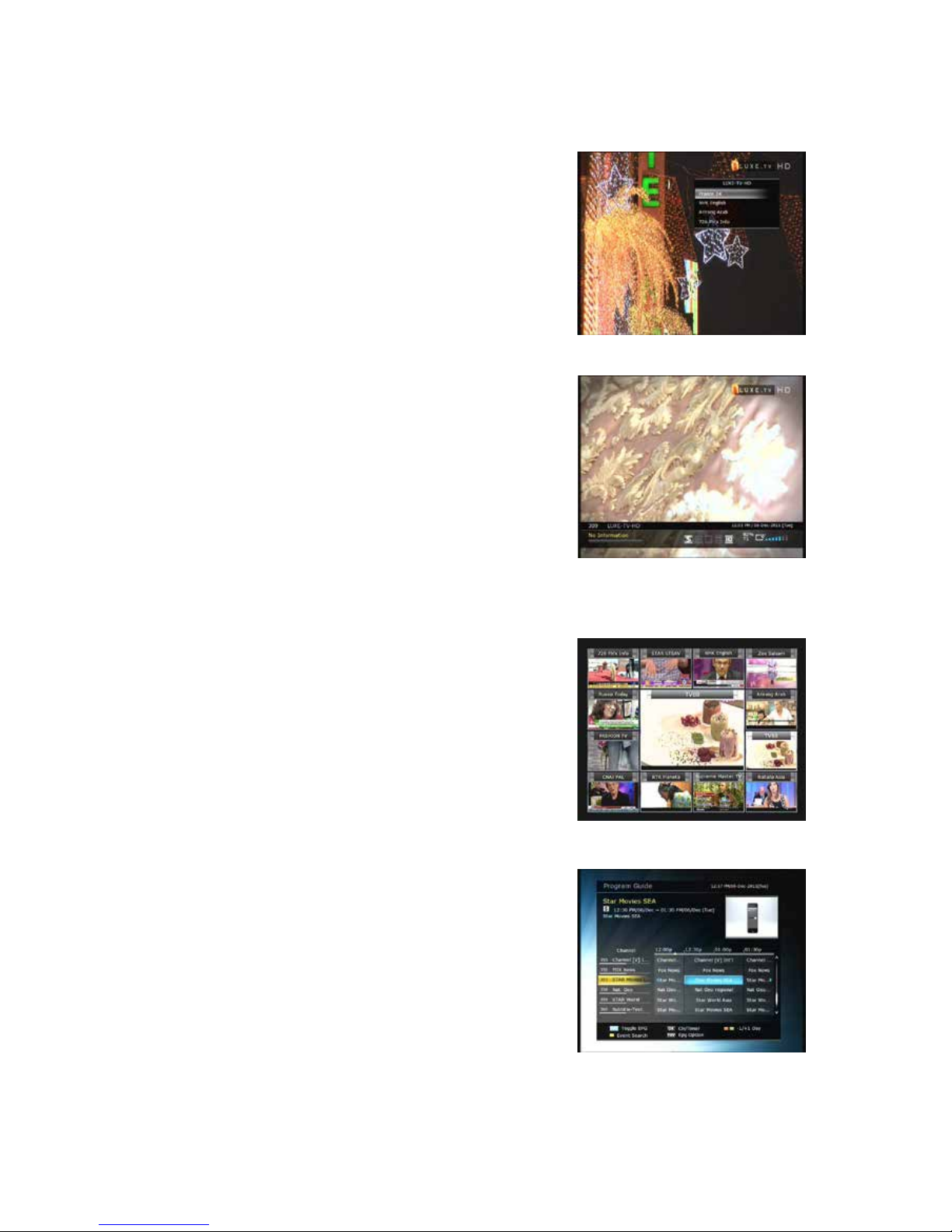

2. Information Window ................................................................................................................ 19

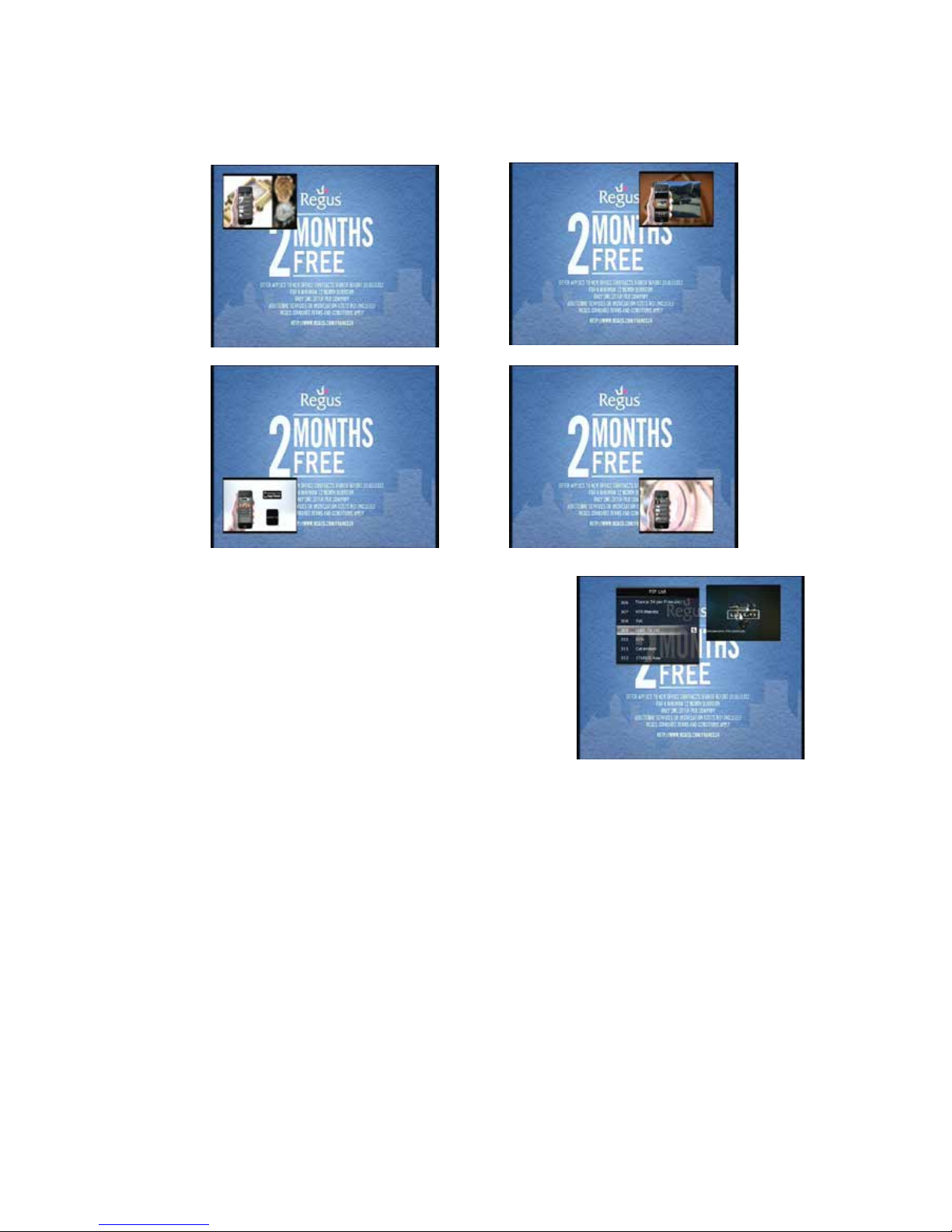

3. Multi-Picture Display. .............................................................................................................. 19

4. Electronic Program Guide (EPG) ........................................................................................... 19

5. Favorite Group ....................................................................................................................... 20

6. Volume Control ....................................................................................................................... 20

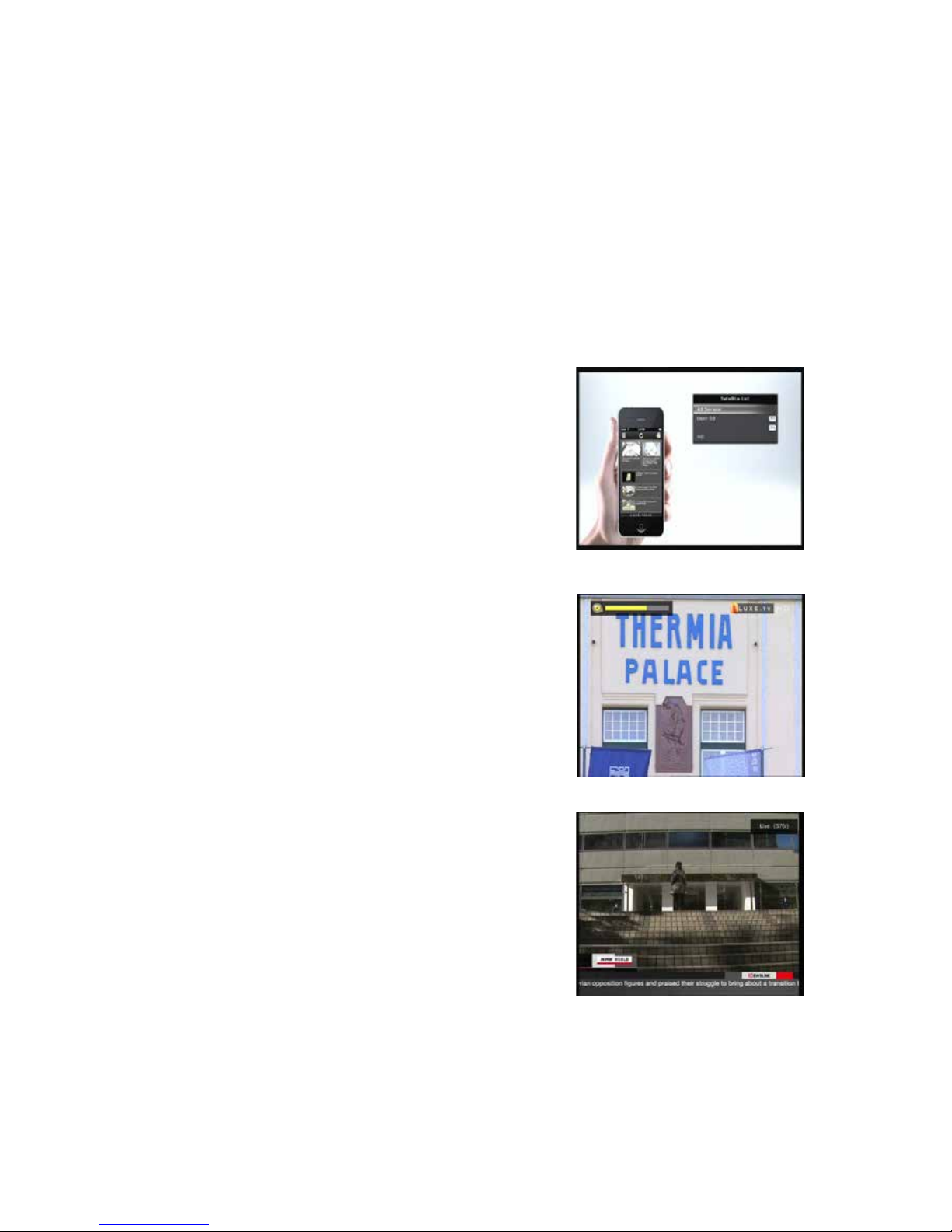

7. Pause ..................................................................................................................................... 20

8. Subtitle ................................................................................................................................... 21

9. Audio Control.......................................................................................................................... 21

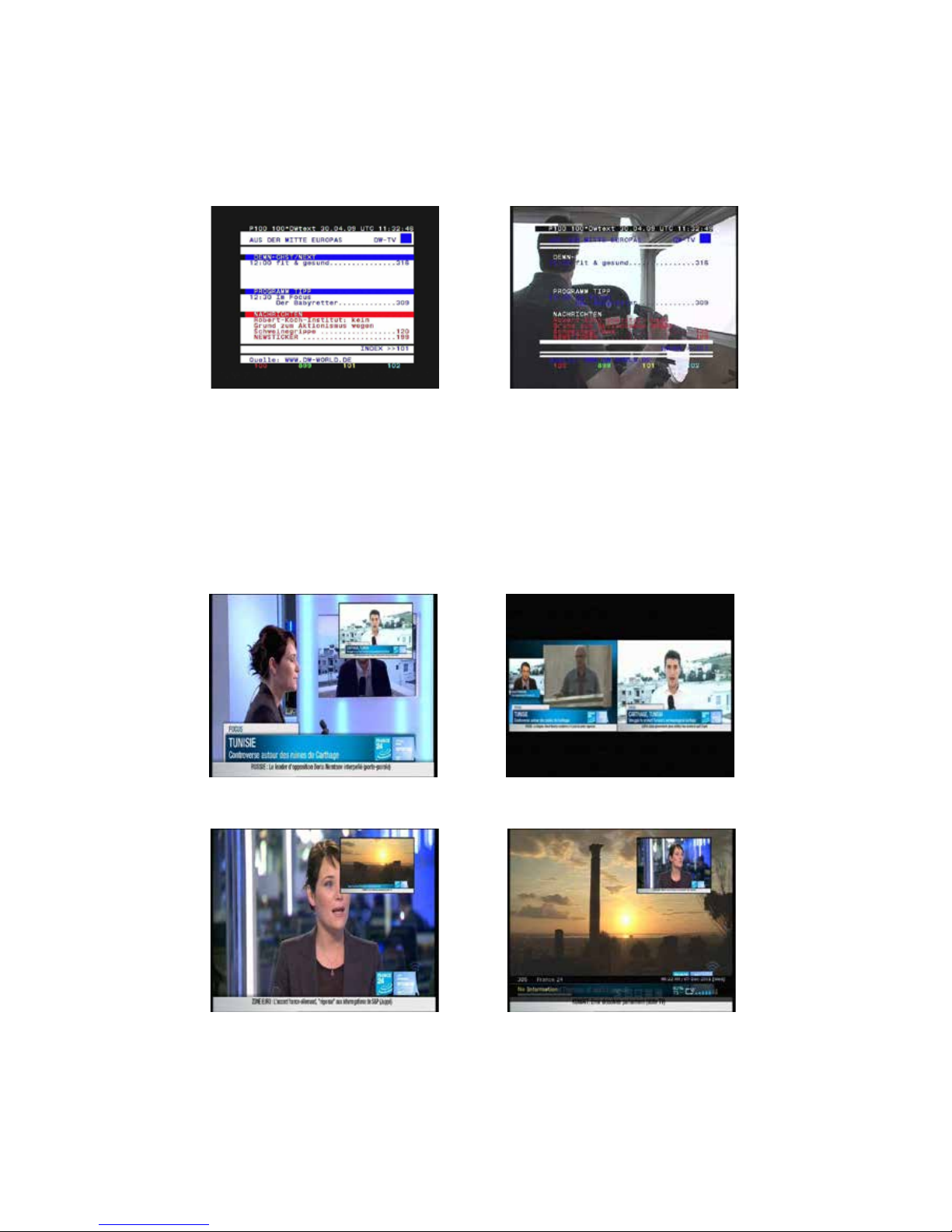

10. Teletext ................................................................................................................................... 22

11. PIP (Picture in Picture) ........................................................................................................... 22

PVR (Personal Video Recorder) Function........................................................................... 24

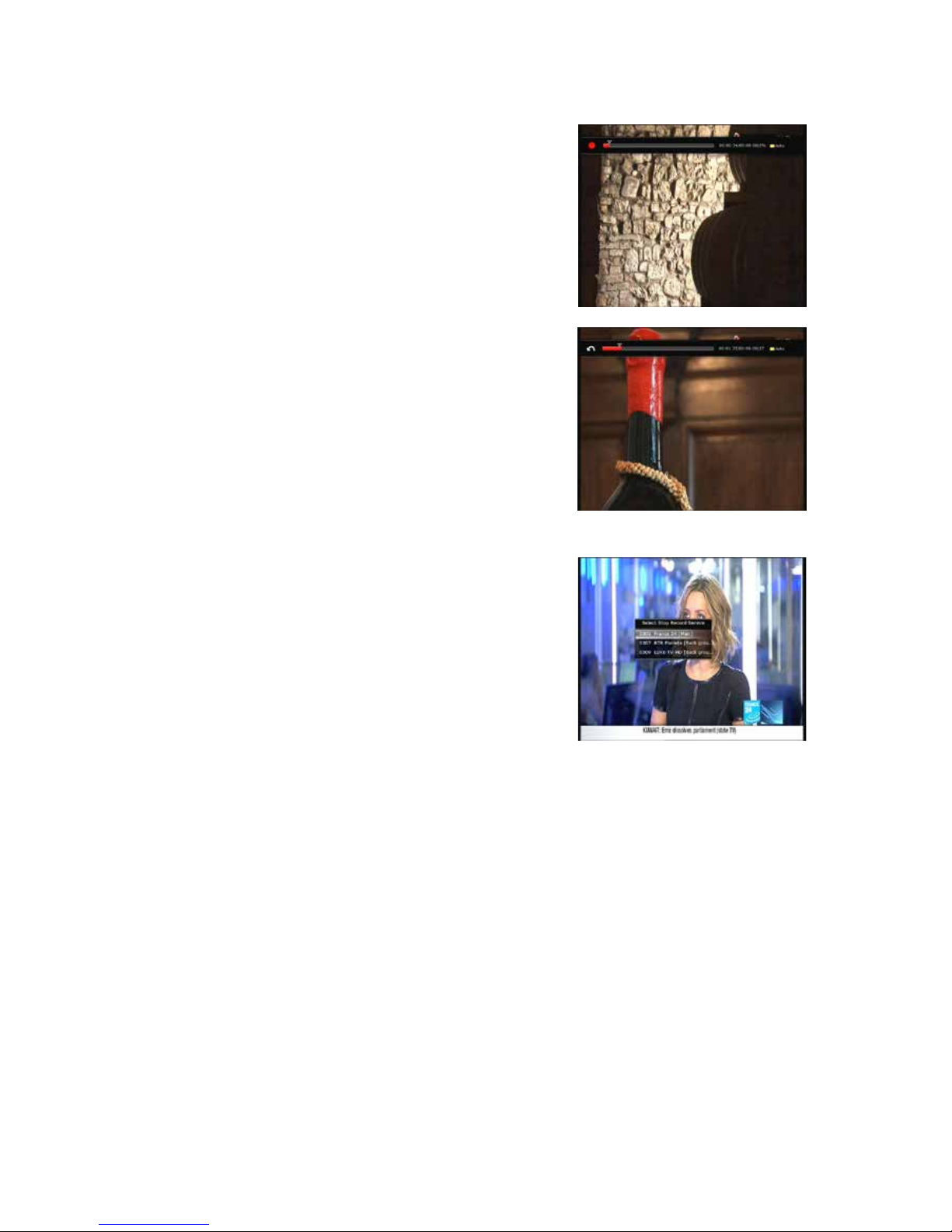

1. Recording ............................................................................................................................... 24

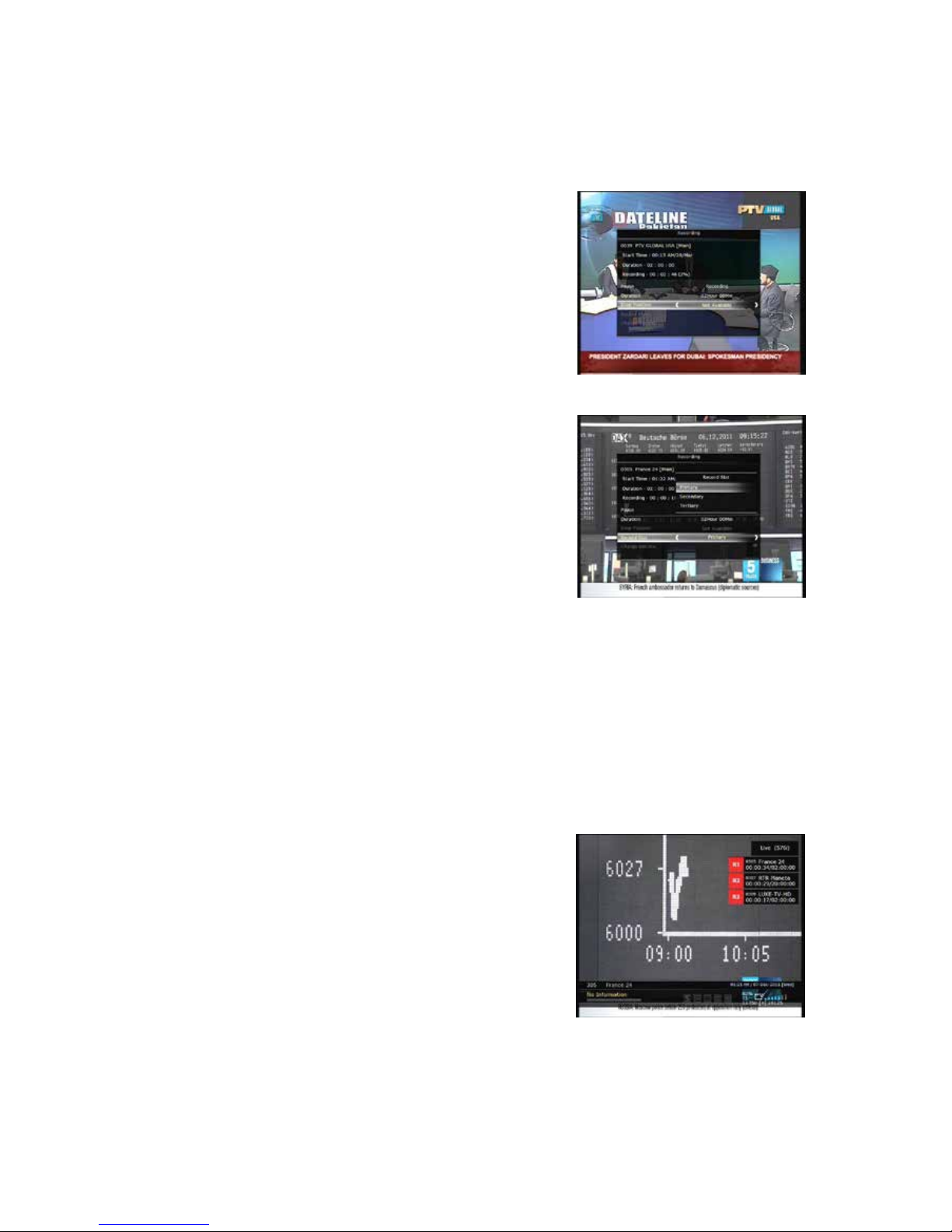

1.1 Recording methods ........................................................................................................... 24

1.2 Recording Edit ................................................................................................................... 26

1.3 Long Tim e recording.......................................................................................................... 26

1.4 Pause during recording ..................................................................................................... 26

2. Time Shifting........................................................................................................................... 28

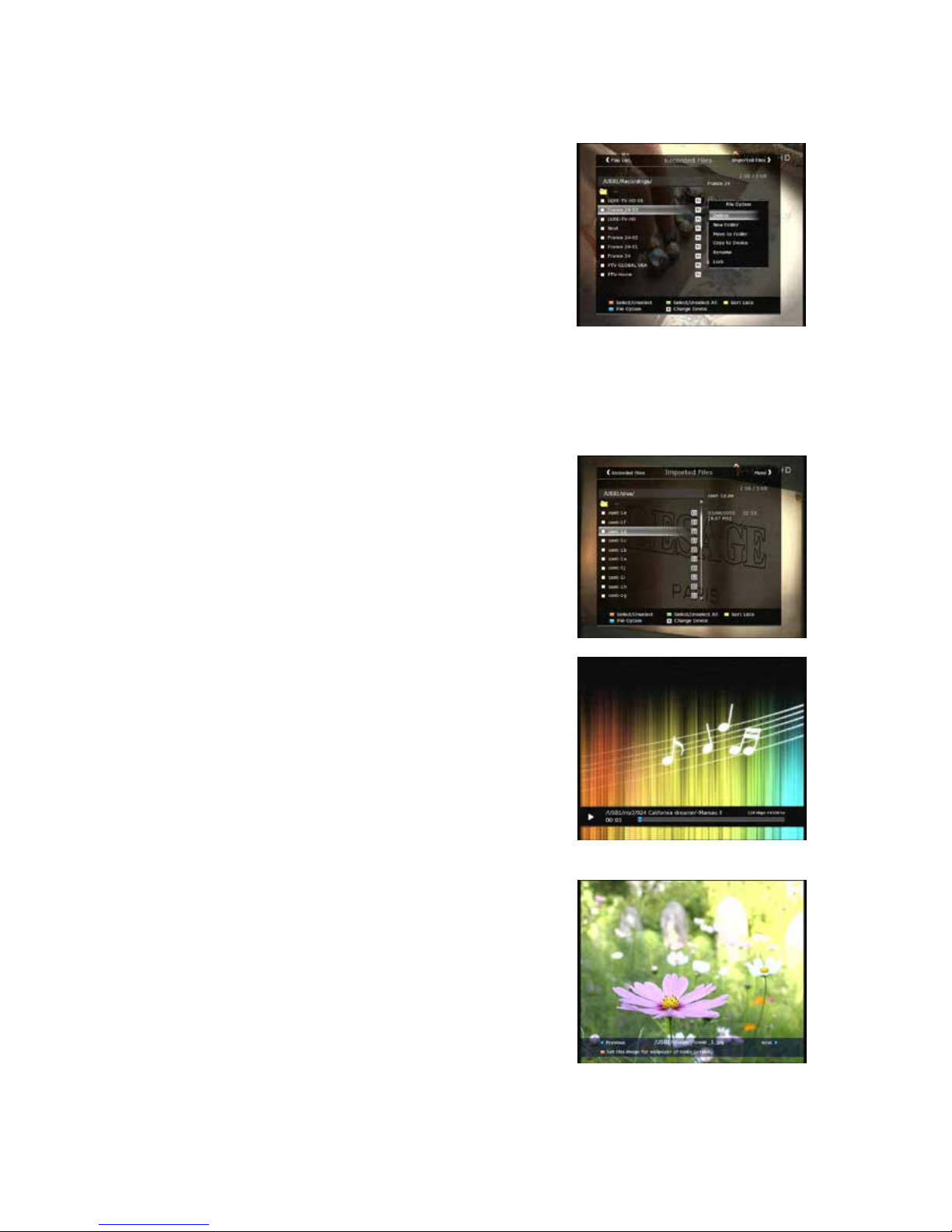

3. Playback (Play List) ................................................................................................................ 29

3.1 Recorded Files .................................................................................................................. 29

3.2 Imported Files ................................................................................................................... 30

3.3 Music ................................................................................................................................. 30

3.4 Photo ................................................................................................................................. 30

4. Bookmark ............................................................................................................................... 31

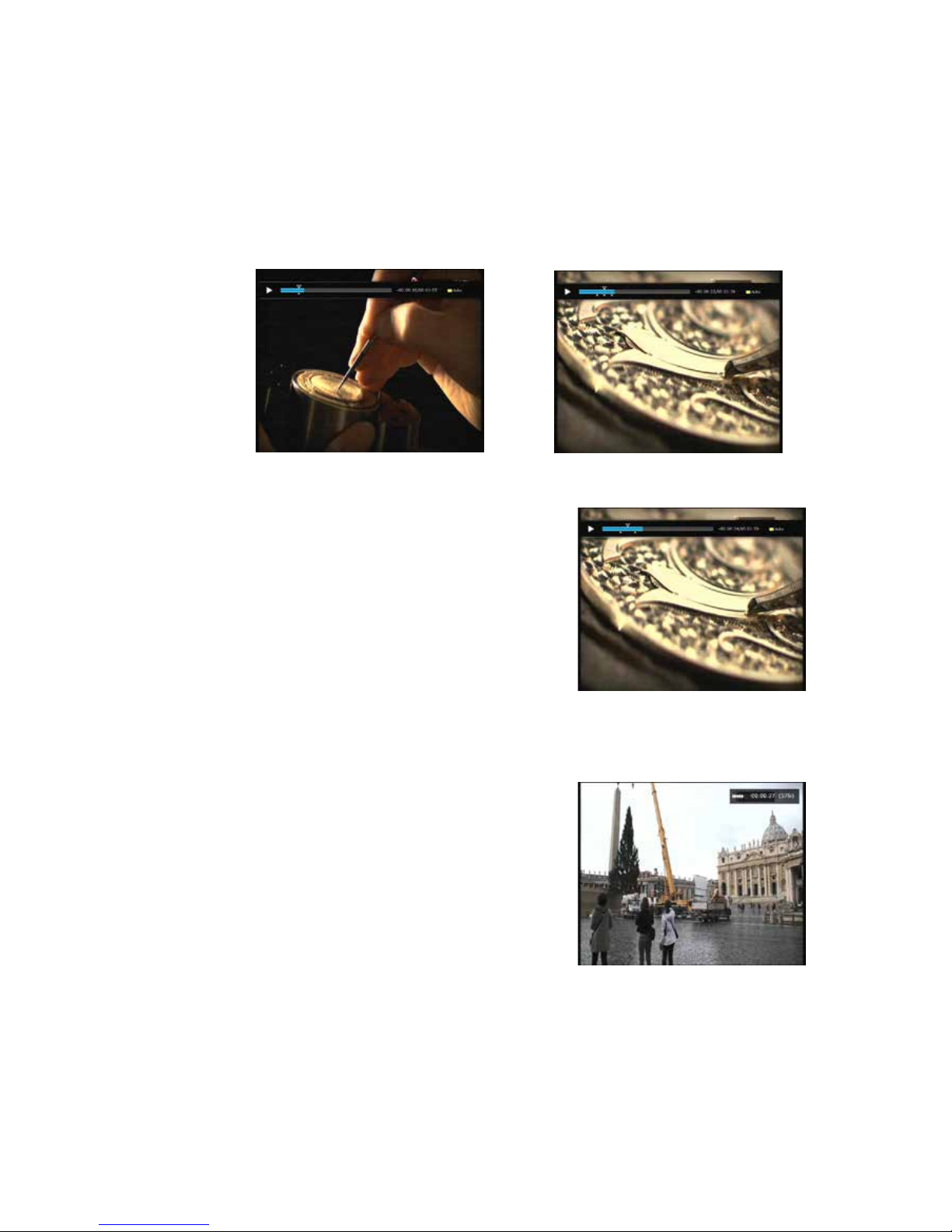

5. Trick mode .............................................................................................................................. 31

Menu Map ................................................................................................................................ 32

Main Menu of G uide ............................................................................................................... 33

1. System Tools .......................................................................................................................... 33

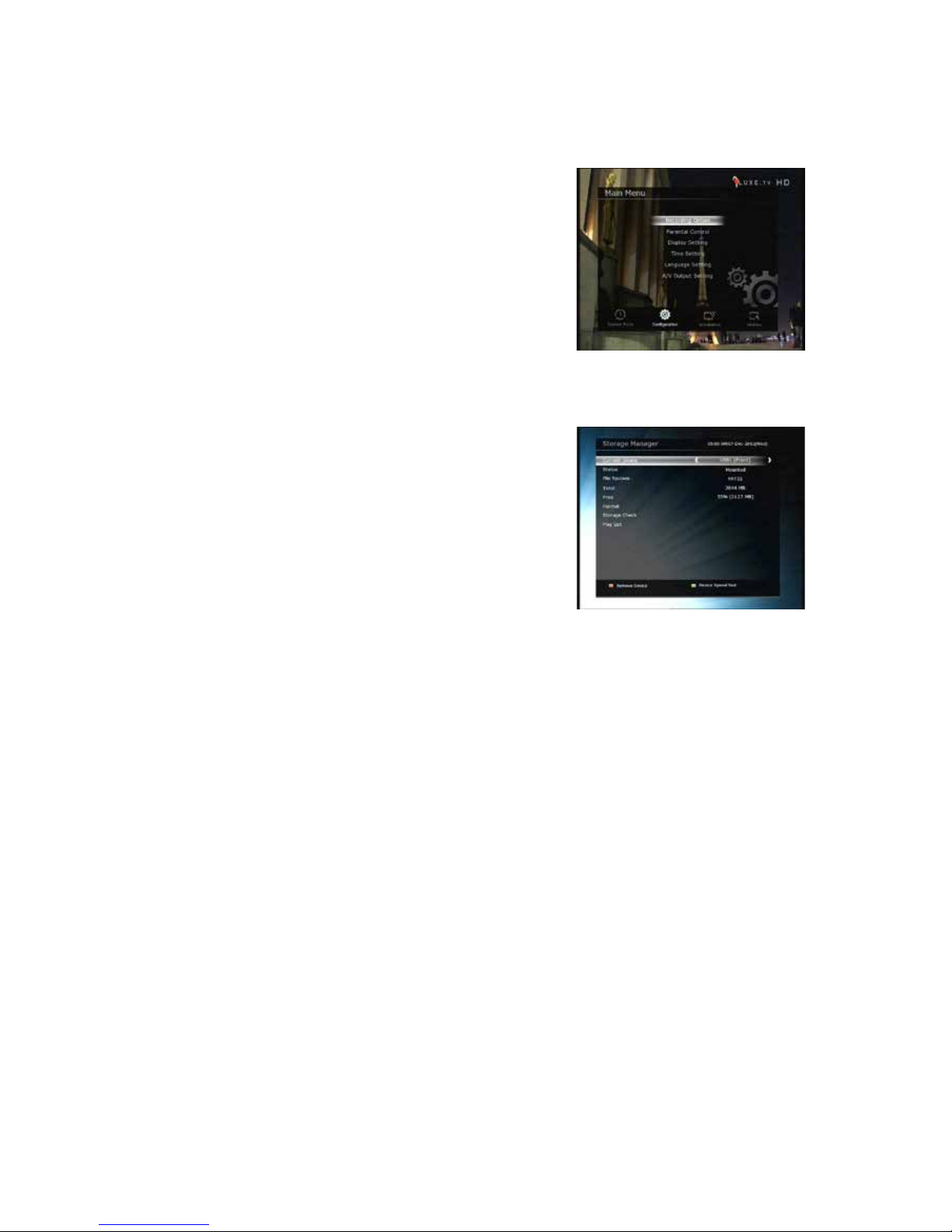

1.1 Storage Manager ............................................................................................................... 33

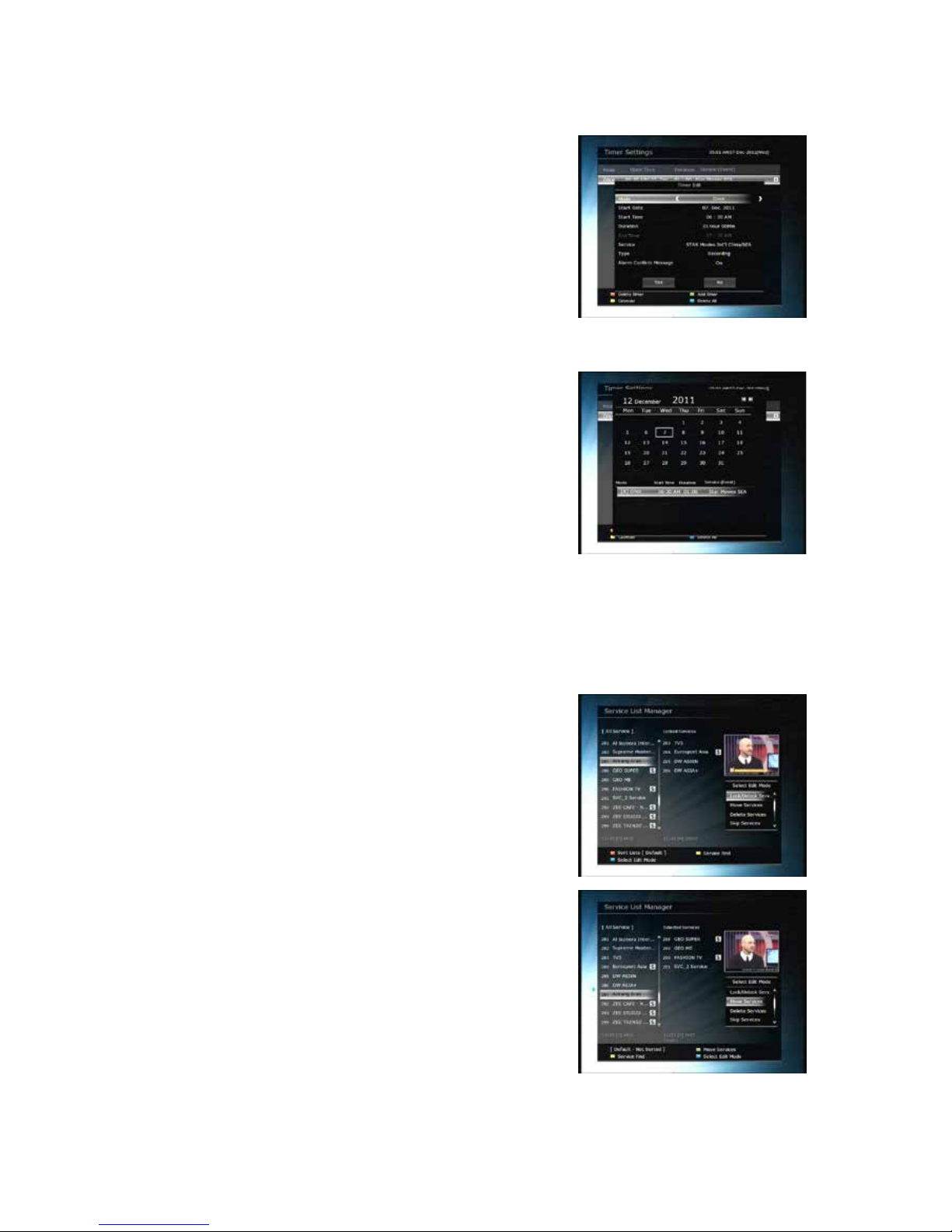

1.2 Timer Settings ................................................................................................................... 34

1.3 Service List Manager......................................................................................................... 34

1.4 Data Transfer..................................................................................................................... 36

2. Configuration .......................................................................................................................... 36

2.1 Recording Option .............................................................................................................. 36

2.2 Parental Control ................................................................................................................ 37

2.3 Display Setting .................................................................................................................. 37

2.4 Time Setting ...................................................................................................................... 38

2.5 Language Setting .............................................................................................................. 38

2.6 A/V Output Setting............................................................................................................. 39

3. Installation .............................................................................................................................. 40

3.1 Dish Setting ....................................................................................................................... 40

3.2 Positioner Setting .............................................................................................................. 40

3.3 Service Search .................................................................................................................. 41

3.4 Network Setting ................................................................................................................. 42

3.5 System Recovery .............................................................................................................. 43

3.6 System Information ........................................................................................................... 44

4. Utility ...................................................................................................................................... 44

4.1 Calculator .......................................................................................................................... 44

4.2 Calendar ............................................................................................................................ 44

4.3 CAS (Conditional Access System) .................................................................................... 44

4.4 Plugin ................................................................................................................................ 45

4.5 Free TV+ ........................................................................................................................... 46

4.6 Internet TV+ ...................................................................................................................... 47

Troubleshooting ..................................................................................................................... 48

Specifications ......................................................................................................................... 49

Precautions

1. Important Safety Instructions

l Read these ins tructions.
l Keep these instructions.
l Heed all warnings.
l Follow all instructions.
l Do not use this apparatus near water.
l Clean only with dry cloth.
l Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
l Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus

(including amplifiers) that produce heat.

l Do not revers e the sa fety purpos e of th e polarized or g roundin g-type plu g. A polari zed plug h as two

blades with one wider than the other. A grounding type plug has two blades and a third grounding
prong. The w ide bla de or thir d prong is provided f or your safety. I f the provi ded plu g does n ot fit into
your outlet, consult an electrician for replacement of the obsolete outlet.

l Protect the power cord from being walked on or pinched particularly at plugs, convenience

receptacles, and the point where they exit from the apparatus.

l Only use attachments/accessories specified by the manufacturer.
l Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the

apparatus. When a cart is used, use caution when moving the cart/apparatus combinati on to avoid
injury from tip-over.

l Unplug t hi s apparatus during lightn ing storms or when unused for long period s of time.
l Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been

damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or object s
have fal len i nto th e apparat us, t he appara tus has bee n expose d t o rain or mois ture , does n ot oper ate
normally, or has been d roppe d .

WARNING : To Prevent fire or shock hazard do not expose the s et to rain or moisture.

2. Notice

l These servicing instructions are for use by qualified service personnel only. To reduce the risk of

electric shock, do not perform any servicing other than that cont ained in t he operating instruct ions
unless y ou a re q ualified to do so.

l The apparat us shall not be exposed t o dripping or splash ing and that no objects fi lled with liquids,

such as vases, shall be placed on the apparatus.

l The mains plug is used as the disconnect device. The disconnect device shall remain readily operable.

To reduce the risk of electric shock, do not remove
the cover (or ba ck).
No user serviceable parts are inside.
Refer servicing to qualified service personnel.

The Lightning Flash with arrowhead symbol
within an equilateral triangle, is intended to
alert the user to the presence of un-insulated
"dangerous voltage" within the product
enclosure that may be of sufficient magnitude

to constitute a risk of sh ock to persons

The exclamation point within an
equilateral triangle is intended to alert
the user to the presence of important
operating and maintenance
(servicing) instructions in the

literature accompanying the product

3. Copyright

This manual is protected by copyright laws.
Copy, use and reproduction of this man ual in part or whole with out Manufacturer’s prior written
approval are prohibited.

NOTE : Contents of this m anual and features/specifications of the STB are subjected to

change without prior notice.

4. Disclaimer

The manufacturers, distributors and agents are not liable to any kind of damage c aused by the
use of the information contained in this manual.
The instruction and descriptions which this manual contains are based on the time of this
manual's production.
The manufacturer constantly updates it with new functi ons and technology.
All the specifications are subject to change without prior n oti c e.

Before You Begin

1. Main Features

ü Full HD Satellite PVR receiver
ü HDMI Video & Audio Output ( 576i, 576p, 720p, 1080i , 1080p)
ü H.264 / MPEG4 - HD,SD / DVB-S2 Compliant
ü Recording & Playback with External USB 2.0 Devices
ü Recording and Time Shifting Simultaneously
ü Event Recording by EPG
ü USB 2.0 Host ports (MP3 Player & JPEG Viewer)
ü Various Media File Format Playback (Xvid file Playback)
ü 10/100 Base-Tx RJ-45 port
ü 4-Digit Alphanumeric LED Display

ü Fully compliant with DVB-S2
ü Blind scan
ü Multi-LNB Controlle d by DiSEqC Control Version 1.0, 1.1, 1.2 a nd USALS
ü Multi-Satellite Search
ü Support EPG (Electronic Program Gui de)
ü On-Screen Display with Full C olor & Re s ol ution
ü Favorite Service Groups
ü Powerful Service Control by Favorites, Lock , Skip, Move and Delete
ü Service Sorting by Alphabet, Transponder and CAS
ü Multi-langua ge Suppor ted ( OSD & Menu )
ü Teletext Support
ü Maximum 10,000 Services Programmable
ü PIP(Picture in Picture)
ü Parental Lock / Sys tem L ock / Installation Lock
ü CVBS Video & Audi o Output via RCA
ü Optical Output for Digital Audio(SPDIF)
ü Software & Service Database update via USB and Ethernet port

2. Accessories

NOTE : If any accessories listed above are missing, contact the sales representative where you

purchased this unit.

It is ready to be mounted behind of the TV. Use the screws provided to hold the components

in place.

User's Manual

AAA size Batteries X2

ADAPTOR

Remote Control

HDMI Cable

RCA cable (Option)

Hardware Description

1. Front Panel Configuration

1. Display :

The 4-digit shows channel number or menu state in normal mode, shows local time in standby
mode.

2. POWER Button:

Press to switch between STANDBY and POWER ON mode s.

3. CH Up/Down Button:

Press to change services in normal mode, to move the highlighted-bar UP/DOWN in menu mode.

4. STANDBY / REMOTE Indication LED (RED / GREEN):

The LED (RED) lights on in standby mode. / The LED (GREEN) lights on whe n a key on the Remote
Control i s pressed.

5. Remote Sensor:

Receives signal from remote control l er.

2. Rear Panel Configuration

1. IR extension : The 2.5mm mini plug is connected to the “IR Rec” jack to use IR extension when HS 7110
is mounted with optional bracket. (Front remote sens or will not be operated wh en IR Extension is
connected)

2. PCMCIA : To receive other pay-tv service you need a CA-Module( Viaccess, Irdeto, Nagravison, etc.)
and a smart card from the service provider.

3. SMART CARD READER : Insert smart card for encrypted service access.

4. LNB IN: Use to connect a satellite antenna.

5. LNB OUT: Use it when connec ting to another STB for loop-through.

6. RS-232C : Serial port for firmware update and data transfer.

7. Ethernet : Local area network port for direct computer con nection.

8. USB : Use it when connecting to external USB storage device.

9. HDMI : Connects to the TV by using a HDMI cable for the best quality picture and audio.

10. A/V OUT : Connec ts to th e TV or V CR using a opti onal RCA cable (Stereo audio output / White, Red,

Composite video output / Yellow )

11. SPDIF : Connects to the audio system using a S/PDIF cable. (digital audio)

12. D/C power socket : Connects the adaptor

3. Remote Control Unit

1. POWER : Tu rns the STB On/Off.

2. MUTE / Resolution : Turns the sound On/Off. / To select the resolution format press and hold

Resolut ion butt on. You will see the resolution menu. Each time you press the Resolution button, t he
resolution changes in the following sequence: 576i > 576p > 720p > 1080i > 1080p by pressing th e
Exit button it turns the sound On/Off again.

3. Numeric : Controls the numerical operation and service numbers directly.

4. Subtitle : To show multilingual subtitle.

5. Teletext : To show the digital teletext.

6. OK or Service List : Show t he service list in non-menu mode and selec t an item or confirm in menu

mode.

7. ARROW Buttons

a. Up & Down Buttons : To change t he val u e of a selected item with preprogrammed values in menu.
b. Left & Right Buttons : To move the curs or left and right in menu.

8. Menu : To enter the main menu or to move to the previous m e nu.

9. EXIT : Exit from the menu or pop-up window.

10. Play List : To show the file list in the USB Storage Device or Network Storage Device.

11. Favorite : To display the satellite group and the fa vorite groups.

12. EPG(Electronic Program Guide) : Show the TV/Radio progra m guide.

13. Recall : Moves t o previous service.

14. Volume Up & Down : To change the Volume.

15. Play / Time shift : Display the progress bar of playback when no progress bar is displayed. Start
playback wi th normal speed. Return to normal speed from trick mode.

16. Channel Up & Down: To change service channel.

17. Pause : This key is used to pause the video. Press once more t o resume the video.

18. Rewind : Rewinds at high speed. E a c h time you press this button the rewind speed is increased.

19. STOP : To stop time sh ifting, play back or re c ording.

20. Fast Forward : Fasts forward at h i gh speed. Each time you press this button the speed is increased.

21. Previo us File : To pla y the previou s MP3 fi le in MP3 play mode. This button i s also use d to jump back
to beginning of recording durin g a playback.

22. Recording : To start R e cording.

23. Next File : To play the next file. This button is a l so used to jump to end of recording during a playback.

24. Color Buttons

a. RED : Used for special fun cti on i n menu . RED ke y is used to s or t lists in service list or go t o previous

day search in EPG or make/delet e th e curren t position as a bookmark.

b. GREEN : Us ed for special fu nction in menu. Green key is used to set favorites settin g in service list

or go to the ne xt bookmar k pos ition.

c. YELLOW : Used for special function in menu. Yellow key is used to find service in service list or

change the audio t rack.

d. BLUE : Used for special function in menu. Blue key is used to set ser vice list option in service list or

display Multi-Picture.

25. Page Up& Down : Move to the nex t or previous page if m ore than one page are available. This butt on
also is ch a nge the locati on of sub picture in PIP.

26. TV/RADIO : Switches between TV and Radio.

27. Information : Shows the information of the current program. If you press one more, detail
information box will be sh ow n.

28. PIP Buttons

a. PIP(Picture in Picture) : To set PIP window.
b. PIP Swap : Switching between main-picture and sub-picture
c. PIP(Picture in Picture) Service List : To shown the sub-picture service list.

Connecting diagram

1. Receiver to Adaptor

l Connect the adaptor to D/C power socket of receiver.

2. Receiver to TV with Digital A/V Output

l Connect the HDMI Cable to the HDMI Connector of the TV.
l Connect SPDIF to Digital audio input of the equipment(Digita l Audio)

NOTE : Depending on the A/V equipment you own, there are various ways you can connect

the STB. To choose the best connection option, please refer to the manual of the
equipment you would like to conn ect to. To get High Definition playback of High
Definition content, we recommend that you connect your high definition display
with a HDMI cable. HDMI supports standard, enhanced or high-definition video
and multichannel audio in a single cable.

3. Receiver to TV with Analog A/V Output

l Connect the VIDEO and AUDIO L, R to VIDEO IN and AUDIO L, R IN of TV.

NOTE : The composite connection(RCA cable) is recomm en ded for analogue TV

You cannot view high definition video with th e com po site vi deo connecto r.

4. Connecting to Antenna Cable

l Using Single DISH : Connect the Satellite Antenna cable to LNB IN.

l Using DiSEqC switch : Connect the cabl e of DiSEq C s witch to LNB IN.

l Using DiSEqC motor : Connect the ca ble of DiSEq C m otor to L NB IN.

Guide to mounting an STB on TV back panel

l Instal l t he mount bracket on back panel of T V using the screws provided

l Mount your STB on the bracket.

l Connect IR Extension to the IR Rec Jack on the rear panel.

l PLACEMENT : The IR receiver should be located so that it is not directly facing a light source such as

lamps or displays. When mounted near a display, it should be flush to the display and away from light
reflections that may occur.

Guide of Functions

1. Selecting a Service

To select the desired service (channel), please refer to the instr uc ti o ns below.

1.1 Using CH UP/DOWN buttons

You can navigate between services by pressing CH UP/DOWN buttons. Whenever you press the CH
UP(DOWN) button, current service will be changed to next/previous service. Please press CH UP or CH
DOWN button until you fine the service you want to watch.

1.2 Using Service List

To select the desired service in the service list, you should firstly
display the service list by pressing the OK button.
Use the ARROW buttons t o select a desired service and press
the OK button.
You can see that the service is changed in the small screen on
the top-right.
To watch that service, press the OK button once more.
To watch the previous service, press the EXIT button.
In the Service List window, you can also select additional
functions with the COLOR buttons. Press th e RED butt on, and
you can s ort th e servi ces by the A lphabe t, Tran sponde r(TP), Grou p, Tun er and CAS (C ondit iona l Acces s
System).
Press the GREEN button, and you can add the services to one of 10 Favorite List.
Press the YELLOW button, and you can search & find the service via a virtual keyboard.
Press the BLUE button, a n d you can adjus t s e rv ice list option.

1.3 Using Simple Service List

l

If you press NU MERIC buttons or UP/DOWN ARROW button,
instant service list will be displayed.

l Select the desired service by using the ARROW button, and

press OK button to w a tc h.

l You can also enter the service number directly by using the

NUMERIC button.

1.4 Using Recent Service List

l

To display recent service list, press the RECALL button for a
short time.

l To return to the previous service that you were watching, press

RECALL butt on twice or for a lon g e r time.

l Choose the service from the recent service list, use the ARROW

button to select, and then press the OK button.

l Press EXIT button to exit from the recent service list.

2. Information Window

If you want to view the information of the current service that
you are watching, press INFO button. Then the Information
window will be displayed.
This Information window is automatically displayed when
changing between the services.
This window contains much useful information such as service
number, service name, scrambled types of service, teletext,
subtitl e, A udi o indi cat ion for Dol by Di gi tal, Time duration of the
service and so on.
By pressing INFO button once a gai n, y ou can get m ore de ta il ed
information about t he service.

3. Multi-Picture Display.

Press the BLUE button to display multiple pictures and use the
RED button to select the display options for 9 or 12 multiple

pictures.

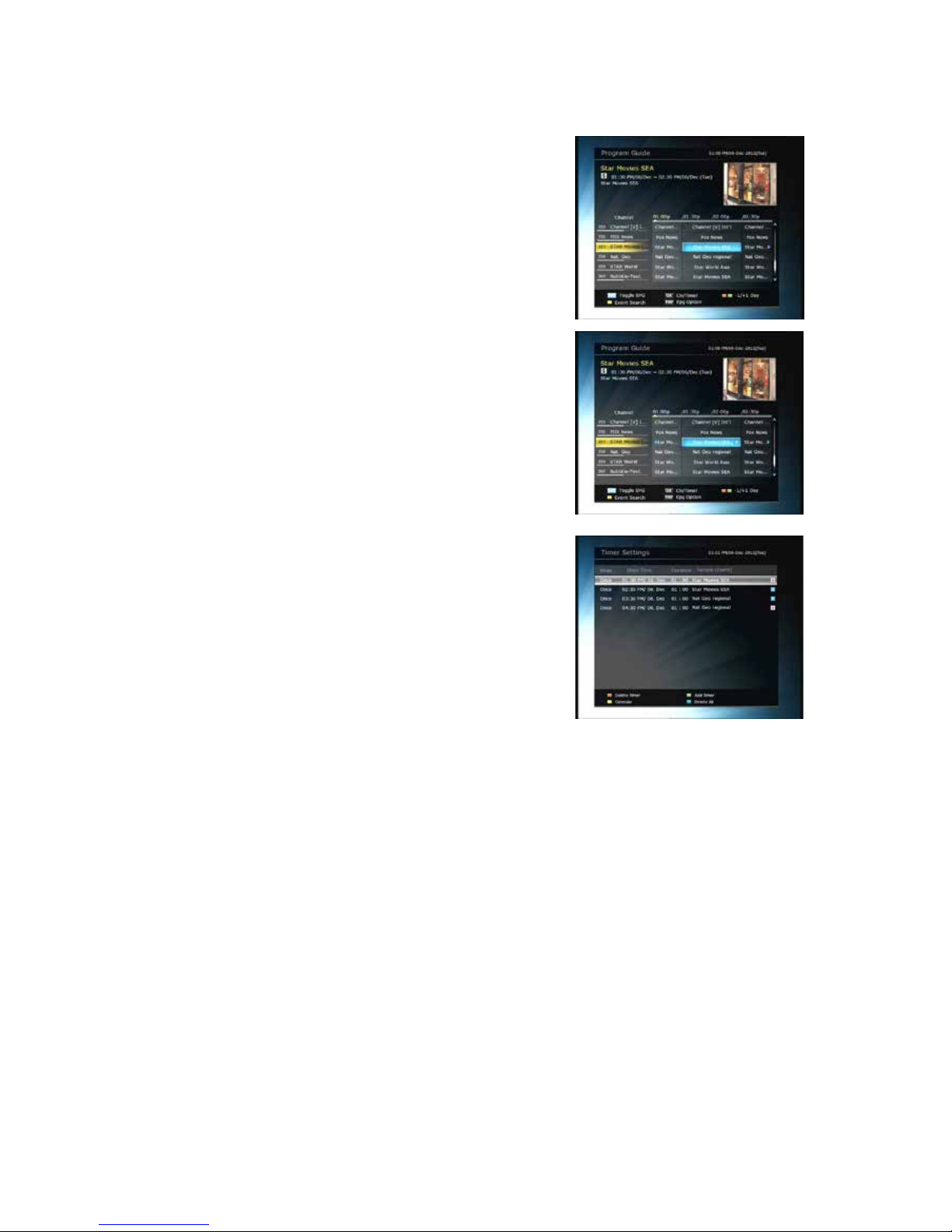

4. Electronic Program Guide (EPG)

Electronic Program Guide (EPG) allows you to see program
schedule and program information from the service which
includes this data as part of their transmission. Multiple services
will be shown with a time line of programming events. The EPG
supplies additional information of channel service, such as
program listings, start/end times and detailed information about
the program listings for all available services. The availabilit y and
details of information of these program details can be varied,
depending on the particular broadcasters, individual services.

l Press the EPG button, then the EPG menu will be displayed.
l Use the ARROW buttons to move to other service s or to see previous/n ext guide.
l Press the EPG button once to view full EPG with multi service list, and press it twice to view the

additional EPG information of a specific channel service. Keep pressing the EPG button to toggle
between the full and detailed menus of EPG.

l Press the GREEN button to view next day EPG and the RED button to view EPG for a previous d a y.
l Select the program by using the ARROW buttons then set the event timer by pressing OK.

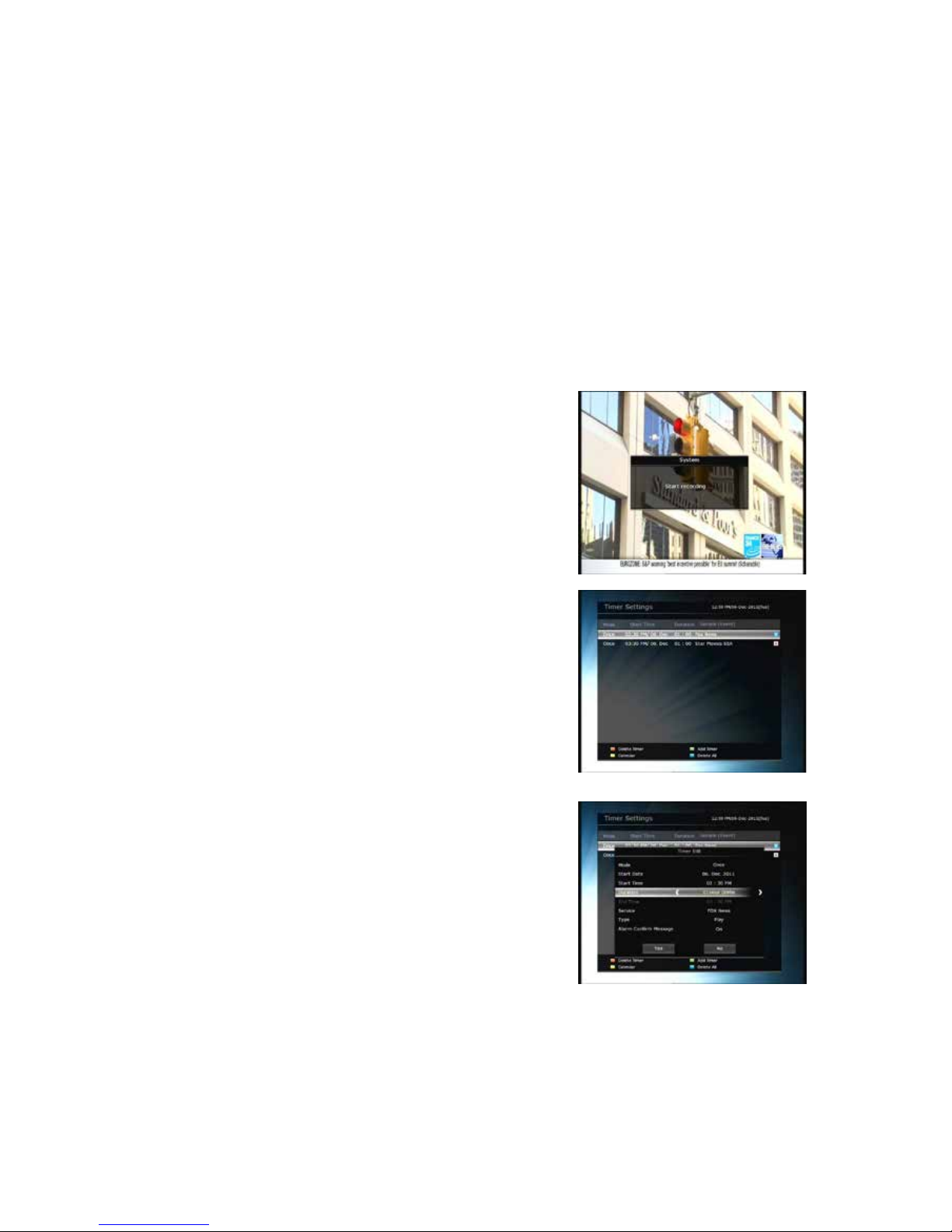

l You can schedule a recording with the EPG menu as follows.

- Press RECORD button to schedule the event. This schedule can be checked in the menu of Timer
Settings, in the System tool menu.

- To cancel the schedule of the recording, press the OK button for the appoint e d e v e nt.

- To edit the schedule of the recording, press the RECORD butt on for the appointed event .

5. Favorite Group

Press the FAV(Favorite ) button t o view all favori te groups such as
sports, mov ie, d rama , sat el li t e group an d s o on. Scrol l t hrou gh the
various f avorit e grou p usin g the UP/DOWN ARROW buttons, and
select the desired favorite group by pressing OK button.

6. Volume Control

l To adjust the audio volume, press the VOL UP/ DOWN

buttons.

l Audio vol ume control bar will be displayed at the top of the

screen and disappear after 4 seconds.

l When necessary, press the MUTE button to turn on/off the

audio sou nd.

NOTE : The mute function remains set while you change

services.

7. Pause

PAUSE button is used to freeze the video. Press PAUSE button

once more to resume the video.

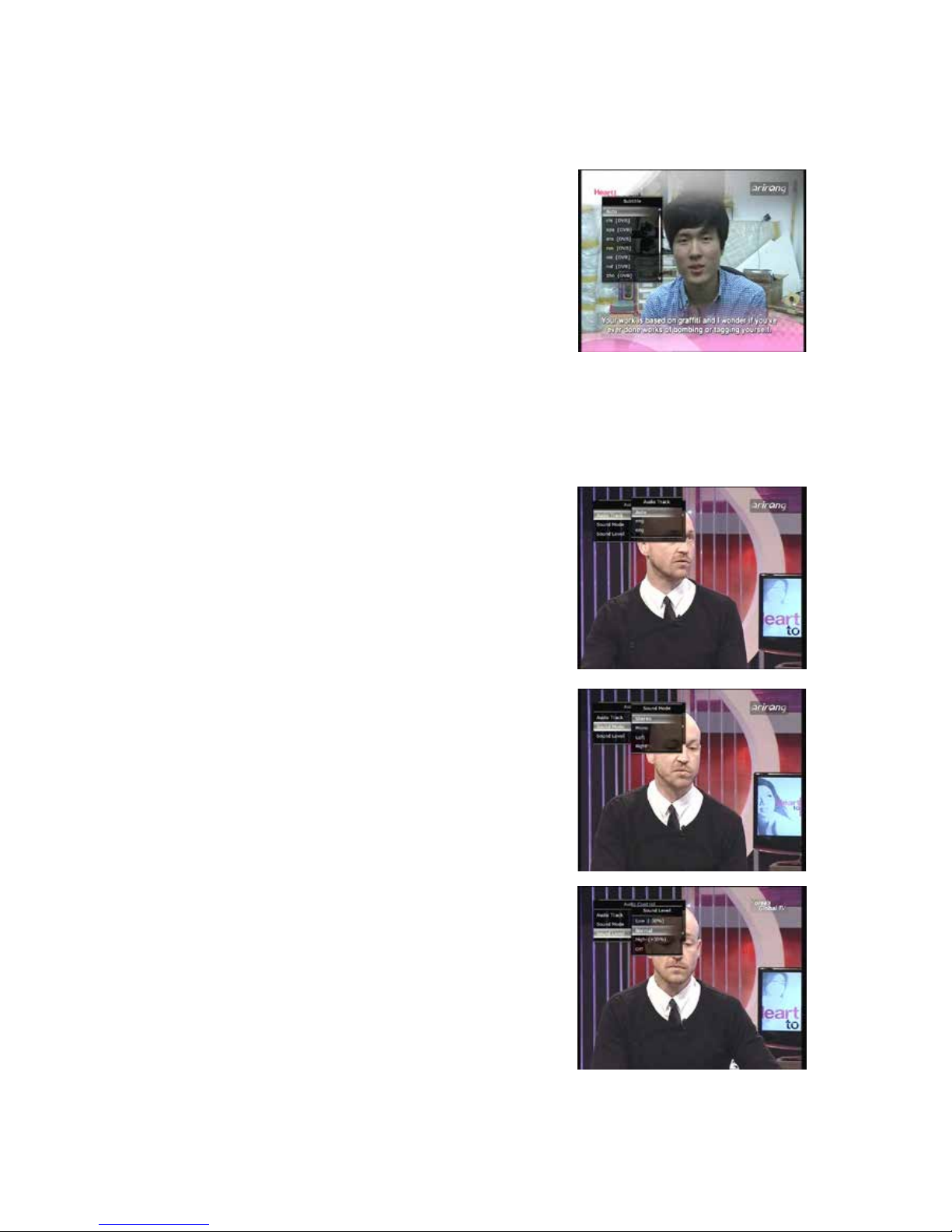

8. Subtitle

You can select the language for a Subtitle, if the program
provides subtitle information.

l Press the SUBTITLE button on your remote control unit.
l Select the desired subtitle language then press OK button.
l The subtitle will be displayed in the selected language at the

bottom of the screen.

l To turn OFF the subtitle from the screen, Select ‘Off’ from t he

subtitle language list .

NOTE : When program does not provide subtitle inf ormation,

SUBTITLE button will not be active.

9. Audio Control

Press YELLOW button on live TV service to display Audio Control menu. You can set Audio Track /
Sound Mode / Sound Level.

l Audio Track :

You can see all the audio track of the service you are w atching.
Use the A RR OW butt ons t o choos e th e pre fe rred au dio t rack. If
you select Auto, audio track will play as what you set for audio
language in language setting menu.

l Sound Mode :

To set soun d mode, Stereo / Mono / Left / Right.

l Sound Level :

To set sound level, Low(-30%) / Normal / High(+30%) / Off.

10. Teletext

When the TELETEXT i co n on the INFO Ba n ner, press the TELETEXT button to view the teletext.

11. PIP (Picture in Picture)

l When you press the PIP button, a sub picture screen will appear on the main screen view.

If you press the PIP button one more time, the primary picture and the sub picture will appear
together side-by-side with the same size. The picture of the left side is the primary and the picture on
the right side is sub. If you press the PIP button one more time, the su b picture will disappear.

l In the P IP mode, you can change primary and sub with the PIP SWAP button.

l If you press the PAGE UP/DOWN button, the location of the sub picture is changed.

l If you press the PIP SER VIC E LIS T button, you can see the list

of service s of sub pictur e .
You can change the service of the sub picture from the
service list shown.

NOTE : Changing services of sub the picture could be

limited by the condition of the tuner connection or
a recording event ongoing.

PVR (Personal Video Recorder) Function

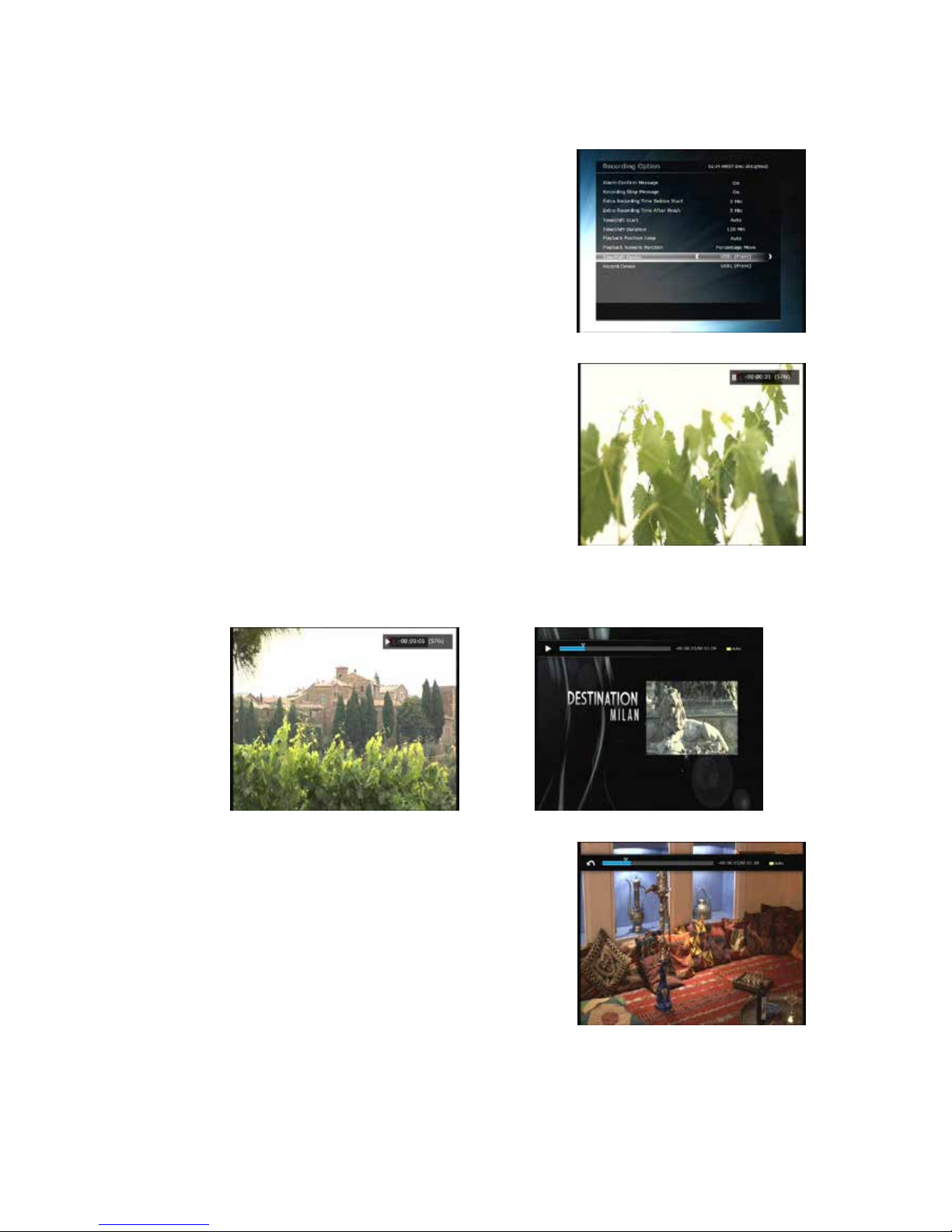

1. Recording

You can select a recording storage device with the following sequence :

Menu > Configuration > Recording Option > Record Device.
Default is set to ‘USB’.

1.1 Recording methods

There are 3 type recording methods.

(Instant Recording / Time Scheduled Recording / Event Scheduled Recordin g).

l Instant Recording :

You may press the RECORD button to start your recording
insta ntly at anyt ime.

l Time Scheduled Recording :

- In Timer Settings menu, you m ay set the time & program to
record your des ired service program.

(Go to Main Menu > System Tools > Timer Settings)

- Press the GREEN button to activate the new timer edit

screen.

- In the Timer Edit screen, you may choose start date/time,
duration, service, mode, t ype (Recording/Play) then simply
press the Yes button to schedule your recording event.
Please note that the minimum offset time of 3 minutes is
required from the Start time & current t ime for approp riate
recording pr oce s s to take pla ce .

l Event Scheduled Recording via EPG

- In the EPG menu screen, you can choose the event you

wish to schedule or record.

- While watching the LIVE TV screen, press the EPG button to

access the EPG menu screen.

- Choose the event you wish to reserve to play or record,
then press OK to view option menu. You can select Once
record / Series record / Play.

- Once Record : Res erve to record once.

- Series Record : Res erve to record the series.

- Play : Reserve to view liv e TV.

- When you set an event for scheduled recording via the EPG
menu. It automatically sets a Timer Event in the Main

Menu > System Tools > Timer Settings.

Note :
Series recording may not completely perform the recording the same series according to the

condition of EPG information from the service.

1.2 Recording Edit

Press the REC button while recording to see the recording message window.

l Pause : Select Pause Recording then press OK to pause the

current recording process.

l Duration : Set recording dura tion. Press LEFT/RIGHT ARROW

button to change recording duration.

l Stop Position :

Set the finishing time of recording.

- End of cur rent event : fini sh recording at the end of current
event

- End of next event : finish recording at the end of next event.

- Not Available : EPG is not available.

l Record Slot : When you are recording 3 services, you can

select Prim ary / Second ary / Terti ary by pressing Left/Right
Arrow button, th en go to Change Service and press OK button
to show that recording service.

1.3 Long Time recording

During lengthy time recording processes of 4GB(Giga Byte) or more, additional files may be created per
every 4GB. (For example; aaa.ts, aaa.ts1, aaa.ts2… and so on) .
You must remember not to delete any of duplicated file. These files are only able to be viewed with
your PC not with the receiver (STB).

1.4 Pause during recording

l

When the PAUSE button is pressed durin g recor din g, only the
live video is paused, but recording is continued at the selected
recording device.

(Menu > Configuration > Recording Option > Record Device)

l Press PAUSE button once again and event will resume from

the pause time.

l During recording, press the PLAY/TIMESHIFT button to show

the Play bar screen.

l While the P lay ba r is sh own on you r screen, you may use the

LEFT/RIGHT Arrow button to move (forward & backward)
freely within recorded time.

l If you pre ss YELLOW button in the Play bar, you can set the

Position Jump time at Auto / 10sec / 3 0sec / 1m in / 2min / 4min
/ 10min. Then press L E FT/ RI GHT Arrow button to jump as you

set the time.

l If you press the STOP button, it will go to LIVE and you m ay

press PREV FILE button to view the recorded file from the
beginning.

l STB can record up to 3 different services simultaneously.
l When recording 3 services at the same time, you can press the

STOP button to see a messag e window of current recording
status / information.
If you select one of the 3 or 2 recordings and press the OK
button, that recording service will be stopped.
If you press the STOP button during recording 1 service, a
recording stop message window will appear. Then select YES
to stop recording.

NOTE : If If you want the recording up to 3 services, please format the storage devise with

‘NTFS’ or 'Journaled(JFS)' file system.
Menu > Storage Manager > Format > File System > select ‘NTFS’ or
'Journaled(JFS)'..

2. Time Shifting

You can select a storage device for a te mporary file of the Time
shifting with the following sequence:

Menu > Configuration > Recording Option > TimeShift Device.
Default storage device is set to ‘USB’

l If pressing the PAUSE button during Time shift, the live video

is paused but the temporary recording for time shift is
continued at the selected storage device.

l Press the PAUSE button once again, then the event will resume from the paused time.
l While watching live TV, press the PLAY/TIMESHIFT button t o sh ow the play bar on your screen.

l When the play bar is displayed on your screen, you may use

the LEFT/RIGHT Arrow buttons to move freely through the
recorded times bar.

l If you pre ss YELLOW button in the Play bar, you can set the

Position Jump time at Auto / 10sec / 30sec / 1mi n / 2min / 4min
/ 10min. Then press LEFT/RIGHT Arrow button to jump as you

set the time.

l If you press the STOP button while time-shifting, the screen

will be turned to a live TV channel. You can also use PR EV FI L E
button to move to a start locatio n of the Time-shifted file.

3. Playback (Play List)

You can play back many files with the P la yli s t which you access by
the PLAYLIST button.
In the Playlist, you can check and playback recorded files,
multimedia movie files, MP3 music files, and image files. With the

LEFT/RIGHT ARROW bu tton, go to the Recorded Files, Imported
Files, Musi c and Photo category and check & for playback files in

each category.
If press the PLAYLIST button, you can see all playable files. In
this mode, Green button i s not in operat ion (not worki ng). And
when you select the file, you will not be able t o select the different
types of fi le format fil es tog e ther at once.
You can press LEFT/RIGHT Arrow button to move to Recorded Files / Imported Files / Music / Photo /
Play List menu.

3.1 Recorded Files

l

If you press RIGHT Arrow button in Play List, you can go to
Recorded Files menu.

l Locate the recorded file(s) you wish to play with the UP/DOWN

button and press the OK button to playback the recorded
file(s).

l To choose a particular selection of fi les, select a desired file and

press the RED button. Press the OK button to begin the
selected files.

l Select Devi ce : Press PLAYLIST button one more time in the

Playlist mode to see “Sel ect Device” window, and select the
device which has the file you want to play.

NOTE : “Select Device” window shows devices which are

currently connected to the STB.

l Sorting : If you press the YELLOW button, you can sort the

files by Time / Name / Size / Type.

l File Option :

If you press the BLUE button, you can select a option for

Delete, New Folder, Move to Folder, Copy to Device, Rename,
Lock/Unlock. You can select multiple files together and delete

or move all of them at once.

- Delete : To delete file(s)

- New Folder : To make new folder. Default name of the
folder is “Group#”.

- Move to Folder : To move the selected fil e(s) to a folder y ou
want. This option is available if there is no folder.

- Copy to Devic e : To copy t he file(s) to other storage device.
This opt ion is not available if only one storage device is conne c ted.

- Rename : To rename th e folde r or file.

- Lock / Unlock : To lock and/or u nlock the file with your PIN Code. You must select a file to do this
option.

3.2 Imported Files

l

If you pre ss RIGHT ARROW bu tton in Recorded Files, you can
go to Import e d F ile menu.

l Locate the file(s) you wish to play with the UP/DOWN button

and press the OK button to enjoy the movie.

l To choose a particular selection of files, select a desired file and

press the RED button. Press the OK button to begin the
selected files.

l You can use the same ‘Select Device’, ‘Sorting’ and ‘File Option’

features as in the Recorded Files.

3.3 Music

l

If you pre ss the RIGHT ARROW button in Imported File s, you
can go to Music menu.

l If you press the RECALL button, you can enjoy music with

Shuffl e playback and repeat.
You can use the same ‘Select Device’, ‘Sorting’ and ‘File
Option’ features as in the Recorded Files.

3.4 Photo

l

If you pre s s the RIGHT ARROW button in Music, you can go to
the Image Photo menu.

l If you press the RED button or OK button, you can start the

slide show of image files. Pres s the EXIT button to stop slide

show.

- RED button : Auto Slide show

- OK button : Manual S l i de show

l If you pre ss the GREEN button, you can adjust the Slide Time,

Repetit ion, Title, D ow n-scale.

l You can use the same ‘Select Device’, ‘Sorting’ and ‘File

Option’ features as in the Recorded Files.

4. Bookmark

l When the Play bar is displayed, you m ay move to des ired time and book m ark it by pres sing t he RED

button. Bookmark(s) are indicate d with a Green line on the play bar. Also, you may pres s the RED

button to activ a te the play bar to ma rk your bookmark(s).

l When the play bar is on, user can move / jump between the bookmarks by pressing the GREEN

button.

l If you wish to delete any Bookmarks, go t o that bookm ark by

pressing the GREEN button, then press the RED button to
delete t he current bookma r ks .

5. Trick mode

l The user can change the speed of a fast forward play with

FF(Fast Forward) button. Press FF button to change the
speed to x2, x4, x6, and x8. If you once again press FF
button in its x8 mode, it re turns to norma l(x1) speed play.

l You can also change rewind speed with the REWIND button.

Press REWIND but ton to change the speed t o x2, x4, x6, and

x8. If you press the REWIND button again in it is at the x8

mode, it returns to normal speed.

l You may press the PAUSE button at any ti me to pause a pre-

recorded event. Press the PAUSE button once again to resume

play of the recorded event.

Menu Map

Main Menu

System Tools

1. Storage Manager

2. Timer Settings

3. Service List Manager

4. Data Transfe r

Configuration

1. Recording Option

2. Parental Control

3. Display Setting

4. Time Setting

5. Language Setting

6. A/V Output Setting

Installation

1. Dish Setting

2. Positioner Setting

3. Serv ice Search

4. Network Setting

5. System Recovery

6. System Information

Utilities

1. Calculator

2. Calendar

3. CAS

4. Plugin

5. Free TV +

6. Internet TV+

Main Menu of Guide

To display the menu , pres s the MENU button at any time. You can
select the sub menus by using the ARROW buttons.
The selected sub menu becomes highlighted. After selecting
(highlighting) the sub menu you want to access, press the OK
button. If you want to return to the previous menu, press the

MENU bu tton. And if you want to exi t from the me nu, press the
EXIT button.

1. System Tools

1.1 Storage Manager

The items in this menu allow you to access and control the
storage devices that you want.

l Current Device : Select the storage device you want t o access

with the ARROW/OK buttons.

l Status : You can see the information of current connected

devices, such as ‘Mounted’, ‘Not Available’

l File System : It shows the file system of the current device.

You can also select desired file system that you want when

you forma t the device.

NOTE : NTFS is the recommended file system to format, and it will be also recognized in

Windows system

l Total : Displays total size of current device.
l Free : Displays free size of current device.
l Format : If you pres s the OK button t o format current device, the device will be formatt ed with above

file system.

NOTE : When file system is ‘ Unknown’, the device will be formatted with ‘NTFS’.

l Storage Check : Check the current connected device.
l Play List : Press OK button to mov e to ‘Play List’ menu directly.

1.2 Timer Settings

Insert a new timer entry or modify an existing timer entry.

l To add new ti m er entr y : Press the GREEN button. Ti mer E dit

window wil l popup. You ca n set the specific start date, time,

duration and service for its reservation. An d you can choose

one of Timer Modes as 'Once' or 'Daily' or 'Weekly'. Y ou c an

choose timer operation type as ‘Recording’ or just to 'Play'.

- If you choose 'Recording', it will start recording at that time.

- If y ou choose 'Play', it will change and tun e to the service
that you wish to watch.

- If you set Alarm Confirm Messa ge to ‘On’, alarm message will activate. Or choose ‘Off’ to disable.

l To modify existing timer en try : Choose the t imer en try which you wish to modify and pres s the OK

button.

l To delete an existing timer entry : Choose the tim er entry

that you want to delete and press the RED button.

l Press YELLOW button to enter to Calend a r.
l Press BLUE button if you want to delete all the event(s).

NOTE : If you reserve one or more event through the EP G

menu, the reserved event(s) will be a dded to Timer
Settings automatically.

1.3 Service List Manager

Service List Manager menu will appear when you press the OK button.
You can select Edit Mode by pressing the BLUE button.

l Lock Services : All service lis t s wil l be sh ow n o n the lef t side of

the window, the middle will show the list of service to be
locked. By using the ARROW and OK buttons, you may move
the chosen service to th e middle window to lock t hat service.
Services can also be moved back from t he middle to th e left
side to un-lock them.

l Move Services : All service lists will be shown on left side of

the window, services to be moved will be shown on the
middle window. Move the service to the middle wi ndow by
using the ARROW and OK buttons, then the middle window
service will be moved to a specified loca ti on wh en the desired
location is selected from the left window.

l Delete Serv ices : All service lists will be shown on le ft side of

the window. By using the ARROW and OK buttons you may
select services to be deleted by placing them in the middle
window. The press the GREEN button to delete the selected
services.

l Skip Services : All services will be shown on left side of the

window, the middle window will only show the services that
are chosen to be skipped. By using the ARROW and OK
buttons you may move the selected services from the left to
middle window to s kip them.

l Set Favorite Serv ices : Use t he ARROW and OK buttons to

select your desired favorite group. Once, favorite group is
chosen, the left side window will show all service lists and the
middle window will only show the selected services of the
favorite group selected. By using the ARROW and OK
buttons, you may ADD the desired services to a favorite g r oup
or DELETE any from the favorite group. The name of the
favorite group can be edited by pressing the GREEN button.

l You can go to Select Favorite Group by pressing GREEN

button. In this mode, you can select Lock Group / Edit Group
Name / Add Group / Delete Group.

l Edit Services : All services name will be shown on the left side

of the window.
Move the highlighted bar to the service where you want to
edit its name and press the OK button f or Edit Service menu.
Then move the highlighted bar which you want to edit.
You can edit Service Name, Video Stream Type, Video PID,
Audio Stream Type, Audio PID, PCR PID.

1.4 Data Transfer

l Transfer all System data to USB storage : If you want to

transfer an d use BOTH of the current system parameters and

service data in the future, this menu will allow you to st ore all

data to your USB device. Pres s OK button t o store all current

data to an external USB storage.

l Transfer Service data to USB storage : If you want to transfer

and u se ONLY the service data in the future, this menu allows
you to store current service data. Press the OK button to store
the current service data to your external USB storage. The
service data can also be viewed and edited on a PC wit h an appropriate editor (DrEdit) for the file
saved.

l Data downlo ad from USB s torage device : This menu allows you to download the saved data from

the externa l USB st orag e to your STB. Press OK button to download data.

NOTE : If no USB device is connected USB slots, then a Menu item will not be available.

2. Configuration

2.1 Recording Option

l Alarm Confirm Message : Turn ‘ON’ this Alarm message to

indicate and show the alert pop-up message when there is a
reserved recording event. The alert message will show 3
minutes before the starting time of the reserved recording
event.

l Recording Stop Message :

- Set ' On' : When y ou press the STOP button w hile recor ding ,

then a confirmation window is displayed.

- Set ' Off' : When you press the STOP but ton wh ile reco rdi ng, th e S TB w ill s t op th e record in g pro c ess

immediately / instantly without asking the a d d i tion a l confirmation from the use r.

l Extra Recording Time Before(Start) & After(Finish) :

- You can add an extra recording time before start / after finish (1min /2min /3min /4min /5min/

10min/ 15min/ off) to scheduled recording events. If y ou set an ext ra recordin g time by us ing the

ARROW and OK buttons, the scheduled recording event will have a ‘Start’ / ‘Finish’ time of
additional recording t ime added to the basic event. Th is option only w orks for real tim e events.
But, when you schedule a service recording in the Timer Settings menu, this option has no affect.

l TimeShift Start : You can choos e the method of TimeShift function.

- Auto : TimeShift function is automatically activated.

- Off : TimeShift function will be disabled.

- Manual : TimeShift will be activated when the Pause key is pressed.

l TimeShift Du ration : You can adjust TimeShift duration in 30 minute intervals. (Off /30min /60min

/90min /120min). This duration defines the maximum time length of the TimeShift as long as the

storage device has enough memory space left.

l Playback Position Jump : W hen y ou use LEFT/RIGHT ARROW button to move back/forward through

the recorded time bar, You can select the time intervals. (10 Sec / 30 Sec / 1Min / 2 Min / 4 Min / 10

Min / Auto).

l Playback N umeric Functio n : This sele ction of funct ion defines t he operation t ype of the NUMERIC

buttons of your remote control unit (RCU) while the ‘Playbar’ is displayed on the screen.

- Comm ercial Skip : When the NUMERIC buttons (1 to 9) are pressed the video will move forward

according t o t he NUMERIC buttons pressed. For example ; wh en ‘1’ i s pres sed , 1m in move forward ,
‘5’ is press ed, 5m in mov e forward f rom cu rrent posi ti on. Whe n ‘0’ is pressed, it will move back for
1minute.

- Percentage Mov e : When the NUMERIC buttons are pressed, the video will move to the location of

that % percentage of numbers pressed. For example ; if you press ‘10’, you will move t o the 10%
location of the total video length. If you press ‘99’, you will move to the end of the video clip
recorded.

l TimeShift Device : You can select the TimeShift Device you wish to use.

- USB Network Drive.

l Record Device : You can select the Recordin g d evi ce you wish to use.

- USB Network Drive.

2.2 Parental Control

User’s access rights to a service and program s are con trolled by
a 4-digit secret code that is defined by t he user. Whenever you
attempt to access the parental control menu, a pop-up w indow
will ask you t o input a PIN code. (If necessary, you can change
it.)

NOTE : The default PIN code is ‘0000’

l Censorship : S et the parental guidance rating of highlighted

censorship classification. The parental level is given as an age­based number.

l Change Pin co de : To change your PIN code, input the new

PIN cod e using the NUMERIC button s. To verify the new PIN
code, input the new PIN code again.

l System : Set the access rights to the System menu.
l Installation : Set the access rights to the Installation menu.
l Configuration :

Set the ac c e s s rights to the Configuration menu.

l Edit Service : Set the access rights to the Edit menu.
l Plugin : Plugin Set the access rights to the Plugin menu.

2.3 Display Setting

l

Info Box position : Set a position of the information window.

l Info Box Display Time : Set the time duration of the

information window being displayed on the screen after
changing services.

l Info Box Ev ent Type : S et the event type that display in left

bottom part of the informa tion window .

- Present Event with Time :

Display the present event name with time. (Default)

- Present and Follow Event :

Display the present and following event name.

l Volume Bar D isplay Tim e : Set the time duration of the volume bar being dis played on the screen

after changing audio volumes.

l Zapping Mode : You can s e t the zapping mode as follows (zapping mode is when changing services).

- Black screen : Display a black screen when changing between services.

- Freeze : Display the last still picture when changing services.

l Simple Service List : To set the simple service list ‘On’ to display or ‘Off ‘.

- On : Press UP/DOWN ARROW button to display the simple service list while watching live TV.

- Off : If you set Off, channel Up/Down when you press UP/DOWN ARROW button.

2.4 Time Setting

l

Time Setting : To set the current time, you can use two

modes; Auto or Manual.

l Local Of fset : E nter the offset value by using the standardized

informat i on of current servi ce a rea .

l Daylight Sav ing : If you want to apply daylight saving, select

the counter by using the ARROW buttons.

l Clock Mode : S elect the type of clock display(1 2 Hours or 2 4

Hours) using ARROW buttons.

l Wake Up Mode : Enter the time for the receiver to

automatically power ON. And you ca n choose one of Wake Up Mode as ‘off’ or ‘Once’ or ‘Daily’ or
‘Weekly’.

- Wake Up Date : Select the date when the STB is turn on. Press the OK button to display calen d a r.

- Wake Up Days : Select a day of the week when the STB is turn on.

- Wake Up Time : Enter the wake u p time of the STB us i ng the NUMERIC buttons.

- Wake Up S ervice : Select the service when the ST B is turn on. Press the OK button to display the

service list.

l Sleep Mode : Enter the time for the receiver to automatically switch OFF a nd go to sta ndby mode.

And you can choose one of the Wake Up Mode as ‘off’ or ‘Once’ or ‘Daily’ or ‘Weekly’.

- Sleep Date : Select t h e date when the STB is turn off. Press the OK button to display the calendar.

- Sleep Days : Select a day of the week when STB is turn off.

l Sleep Time : Enter the turn-off time of the ST B using the NUMERIC buttons.

2.5 Language Setting

l

Menu Langu age : Select the desired menu language by using
the ARROW buttons.

NOTE : The menu and operation languages can be

changed depending on the country sold. Available
languages are subject to change without prior
notice.

l Audio L anguage : Select the default languag e for the audio

when changing services. If no other language is provided,
then the default language of current will be automatically
selected.

l Subtitle Language : Select the def ault language for subtitle when changing service.
l Teletext Language : Select the default language for Teletext.
l User Font file : Select a font you want to use.

NOTE : To show and use the User Font, please install a desired font file(*.ttf) to the

/Var/Font directory(folder) in yo u r P C which is connected wit h your receiver(STB)
by network. Then press LEFT/RIGHT button to select a font and press OK button.

2.6 A/V Output Setting

l

TV Type : Select the TV types.(PAL/NTSC/Auto) In Auto
mode, the STB is automatically selected to NTSC or PAL
accordingly to the service played.

l TV Aspect Ratio : Select the aspect ratio of TV which is

connected t o the STB (4:3/16:9). This menu must be set prior
to selecting the Display Forma t function.

l Display Resolution : Select the Display Resolution of the

screen by using ARROW or OK button. You can also change
the resolution with Resolution button in the remote. Each
time you press the Resolution button, the resolution changes in the following sequence: 576i > 576p

> 720p > 1080i > 1080p.

NOTE : Please note that your TV may not show a picture depending on the Display Resolution set by

your STB as well as if set to PAL when NTSC is required or vice v ersa. If you set the Display
Resolution as HD(more than 576p), your TV cannot display anything when the TV is
connected to the Composite Video output of the STB. In case of HDMI, your TV can display a
picture for all of the resolution settings of the STB. But it is also possible that your TV may n ot
display a pic tur e with 576i, because som e HDTV’s does not support 576i.

l Display Fo rmat : In case of a 4:3 ratio TV set, you can select Letter Box or Pan&Scan. In case of a 16:9

ratio TV set, you can select Pillar Box or Full Screen. In case of a 14:9, 16:10 ratio TV set, you can select
Pillar Box , Pan&Scan or Full Screen.

l HDMI Dolby Digital : Set the Dolby Digital mode 'On' or 'Off' in status of HDMI output.
l Dolby Di gital Defau lt : Set the Dolby Digital Default mode 'On' or 'Off'. If you set 'On', Dolby Audio

will play on the service that support Dolby Aud io.

l Sound Mode : Set the audio mode output among the RCA jack, optical SPDIF and HDMI

(Stereo/Mono/Left/Right).

l Power Saving in Standby Mode : You can sel ect the Power Saving in standby Mode.
l Audio Sync Delay : To adjust Audio Sync. You can adjust from 0ms to 400ms.

3. Installation

3.1 Dish Setting

Select the satellite/antenna and LNB settings for service sear
ch. The values that are set in this menu will be available fo
r selection in other service searching menus.

l Satellite : Select the satellite which y ou want to do a search

for.

- Press the LEFT/RIGHT ARROW button to select the satellite.

- If you press the OK button, the entire satellite list will be

displayed.

- Select the desired satellite name to search.

- If the desired satellite name is not listed then select User

Defined.

l Frequency : Select the satellite frequency which you want to use for checking the signal.
l LNB Power : Select the LNB power on or off.
l LNB Type : S el ect the LNB type.
l LNB Frequency : Select the local oscillator (L.O.). frequency that is specified for the LNB used..

- Use the LEFT/RIGHT ARROW buttons to select the LNB fr e q ue ncy.

- If the required LNB frequency is not listed, then enter the frequency manually using the NUMERIC

buttons.

- When you sel ect Universal LNB type, both 9750 and 10600 are supported at the same time. And

then the LNB 22KHz setting is disabled.

l LNB 22K Hz : When you use a s eparate coax 22 KHz tone switc h box, make the 22 KHz tone swit ch

enabled or disabled to select the input you desire of the tone switch.

l DiSEqC Switch : If you use DiSEqC 1.0 or DiSEqC 1.1 switch, select one of the DiSEqC inputs.
l Service Search : P ress the OK button to move to the Search Menu

3.2 Positioner Setting

l Satellite : Select the satellite which you w ant to sear ch for the

Service.

- Press the LEFT/RIGHT ARROW button to select the satellite.

- If y ou press the OK button, a com plete satellite list will be

displayed.

- Select the wanted satellite name.

- If the desired satellite name is not listed then select User

Defined.

l Frequency : Select the satellite frequency you want to use to

check for a si gnal.

l Positioner : Select the positioner.

- None : (No Positioner)

- Using DiSEqC 1.2 :

Move : To move the dish, press LEFT/RIGHT button.
Fine Move : To move the dish in smaller steps, press the

LEFT/RIGHT ARROW button.

Step : Se t to position e r moving steps as 1, 2, 3, 4
Positioner Command : To use various positioner

commands, press the OK button. Then, available posit ioner
commands will appear.

- Using USALS :

Dish Longitude : Enter the longitude position of the

antenna using the NUMERIC buttons.
Dish Latitude : Enter the latitude using the NUMERIC
buttons.
Go To : Press the OK button to rotate the dish to the
selected antenna position.
Positioner Command : To use various positioner
commands, press the OK button. T hen, avail able positi oner
commands will appear.

l Dish Settin g : Press the OK button to move to Dish Setting m enu directly .
l Service Search : Press the OK button to move to Service Search menu directly.

3.3 Service Search

l Auto Search Mode :

- Satellite : Press the OK button to select the target satellite

to be searched.

- Search Type : Sel ect the search type.

- Network Search : You can sel ect Off or On . When you s ele ct

‘On’, you can find more transponders using the home
network. As i t refers to NI T during sea rching, if there is the
frequency informat ion of ot her tra nsponder, i t search es th e
other transponder besides the transponder that the user
inputs.

- Time Ca libration : You can select ‘Simple’, ‘Full’ and ‘Off’ to

get TDT(Time Data Table) from each TP

- Dish Setting : Press the OK button to move to Dish Setting menu directly.

- Positioner Setting : Press the OK button to move to the Positioner Setting menu directly.

- Start Search : Press the OK button to start search.

l Manual Search Mode :

- Satellite : Press the OK button to select the target satellite

for search.

- Frequency : Select the frequency from the list to search.

- Symbol rate : Enter the symbol rate using the NUMERIC

buttons.

- Polarity : Select the pola r ity. (Vertical/Horizontal)

- Search Type : Sel ect the search type.

- Network Search : You can sel ect Off or On . When you s ele ct

‘On’, you can find more transponders using the home
network. As i t refers to NI T during sea rching, if the re is the
frequency information of other transponder, it searches the other transponder besides the
transpo nd e r that the use r inputs.

- Dish Setting : Press the OK button to move to the Dish Setting menu directly.

- Transmission : You can select ‘DVB’ and ‘DVB-S2’

- Start Search : Press the OK button to start a search

l Blind Search Mode :

- Satellite : Press the OK button to selec t multiple satellites.

- Frequency : Set Auto to search whole frequency, Set

Manual to search only desired frequency.

-

Polarity :

Select the polarity.

(

All Polarity/Vertical/Horizontal

)

- Search Type : Sel ect the search type.

- Dish Setting : Press the OK button to move to the Dish

Setting menu directly.

- Start Search : Press the OK button to star t a search.

l Advanced Search Mode :

- Satellite : Press the OK button to select the target satellite

for search.

- Frequency : Select the frequency from the list to search.

- Symbol rate : Enter the symbol rate by using the NUMERIC

buttons.

- Polarity : Select the pola r ity. (Vertical/Horizontal)

- Video PID : E nter th e video PID using the NUMERIC buttons.

- Audio PID : Enter the audio PID using the NUMERIC

buttons.

- PCR PID : Ent er the PCR PID using the NUMERIC buttons.

- Transmission : You can select ‘DVB’ and ‘DVB-S2’

- Start Search : Press the OK button to start a search.

3.4 Network Setting

To use a Network connected to the STB Ethernet port, you
have to prepare the STB Network settings. When the STB and a
PC are connected via a network, you can access the files of the
STB storage device such as USB storage device.

NOTE : If you use DHCP function of router, you can set

easily network configuration.

l DHCP : You can select On/Off for the Dynamic Host Configuration Protocol (DHCP) to get the all

configuration from the rout e r.

- If you s elect ‘On’ : You will obt ain the conf iguration from network and be s et up autom atically. In

this case, the remaining item (IP Address, Subnet Mask, Gateway, First DNS, Second DNS) are
automatically set and you don’t have to configure them manually.

- If you select ‘Off’ : You have to input the IP address manually together with the following data.

- IP Address, S ubnet Mask, G atewa y, F irst DNS, Second DNS : You can input the address with the OK

button, NUMERIC buttons and the LEFT/RIGHT buttons. You can move to the next item of Subnet
Mast with the DOWN button and y ou can configure the following items in the same way.

l MAC Address : This will display the MAC address of the STB Ethernet interface and is a fixed

assignmen t unique to each STB.

l Firmware Upgrade Server : To upgrade the firmware by downl oa ding from a int ernet server.

NOTE : Server installation and settings must be controlled by expert server manager. A

storage device must be connected with your receiver(STB) when firmware
upgrade from server.

l Proxy Server : This will allow you to access the blocked websites indirectly (like detour path).

NOTE : However, due to the indirect method of access, the slow loading speed and

failure of data reception can happen.

l Control of the files via the network and your PC :

- Check the IP Address of the STB on the Network Setting

menu.

- Press Enter button on your PC, after writing IP Address on

the web browser address line. Ex.) \\168.158.10.146\storage

- You can see the folder name of USB in the Storage folder.

- USB : USB Storage Device

- You may be able to load and retrieve data between the PC

and the STB via the browser

l Dynamic settings (RED key)

- You can make your DDNS setting in this menu by pressing

the RED colored button.

- For more details about your DDNS settings, please ask your

local DDNS service provider.

l Wireless LAN can be support e d by using t he ‘USB to Wi-Fi’ module connected (*Option)

- By pressing the BLUE colored button, you can automatically find and do the settings for AP.

- For the details of Wireless Wi-Fi settings, please refer to the additi onal AP manual.

NOTE : The speed of Wireless LAN is slower than the Wired LAN. So, it could take much more

time when a file copy / move function s are perform ed.

NOTE : Inevitably, only the limited types of Wireless LAN modules are supported. So, you

MUST check for the compatible / supported types BEFORE you purchase.
Currently supported types are : RT73 series, RT3070 series, RT2870 series.

3.5 System Recovery

l

System restore to factory default : Restore the factory set

values in case the user has encountered some problems after

changing any new parameters of service data and other

parameters which may be in error. Press the OK button to

erase all services and restore default setting.

l Reset Configuration data : Maintain the service data and

reset the configuration data.

l Reset Service data : Maintain configuration data and reset

the service data.

l System restore to stored position : Restore the stored values

including service data and system parameters. Press the OK button to restore all data.

l Store system da ta : If you want to use system parameters and service data in the future, this menu

allows you to store current state. Press the OK button to store current state.

l Delete st o re position : Delete stored system data.

3.6 System Information

This menu displays general information about the hardware and softw are versi on of your receiver.

4. Utility

4.1 Calculator

To use the calculator, highlight the calculator and press
the OK button.

4.2 Calendar

To display the calendar, highlight the calendar and press the OK
button. Utilize the ARROW buttons to choose the date. If y ou
press PAGE UP/DOWN button, you can see the past/next
month of the calendar.

4.3 CAS (Conditional Access System)

l

Smart Card Slot

- Conax smart card me nu :

To watch scrambled services, you need to have an
appropriate Conax smart card from the service providers.
Insert a valid smart card into smart card slot (only the
bottom slot of the two is active). The message of ‘Smart
card Initializing…’ will appear on the screen. After the
message disappears, you can watch the service you want.

- Smart card information :

You can view the current status of smart card. Select the slot
which you want to view using the ARROW buttons. And
press the OK button.

l CAM Initializing

To watch scrambled services, you need to have a Common Interface Conditional Access Module(CAM)
and an appropriat e smart card from the provider . Ins ert the CAM together with a valid smart card into
CI slot (two slots available). The message of ‘CI Initializing…’ will appear on the screen. After the
message disappears, you can watch the service you want.

l CAM information

You can view the current status of CAM. Select the slot which you want to view using the ARROW
buttons, and press the OK button. If the CAM is ava ilable, you c an view inform ation about each slot.

NOTE : The displayed information of each CAMs may be different depending on the CAM used.

l CI message

- On : To display the CI message on live TV service.

- Off : To disable the CI m essage on live TV service.

4.4 Plugin

If you have the program file for Plugin, you can download the file(s) to Plugin then enjoy the program.

l Download Plugin File

- In the USB storage, please create a new folder name

‘plugin’ and in this ‘plugin’ folder, create a folder name
‘bin’. (plugin > bin)

- St ore ( C opy) the plugin file in the ‘bin’ folder.

- Connect the USB storage to the receiver. When Software

Download menu is appeared, then press LEFT/RIGHT
ARROW buttons to move to User Data Down load mode.

- Press RED button to start download the plugin file that you

want.

NOTE : You can also download by Menu > System Tools

> Data Transfer > Data download from USB storage.

l Plugin Menu

- RED button : To set the plugin Start Type. You can select

Auto or Manual.

- GREEN button : To Start the plugin. You will see ‘Started’ in

State if the plugin is started.

- BLUE button : Press BLUE button if you want to delete the

plugin file.

l We provide a special feature called WebZeal which is for Web-

Browsing. You can simply enjoy the WebZeal when you want
web surfing.

l WebZeal Option

- Recall Button : Press to access website you have visited

recently.

- GREEN button : P re s s to display vi rtual keyboard.

- FAV Button : Press to add the current web page to favorite.

- YELLOW/BLUE button : Press to adjust the page Zoom In

and Zoom Ou t as you want.

- MEN U bu tton : Press MENU button to sh ow simple internet

menu.

4.5 Free TV+

l What is Free TV+?

- Free TV + is a unique feature that enables you to play & enjoy FR EE web med ia contents li ke Youtube

and other free (but premium) contents from various internet websites such as documentary and
more.
So, you can enjoy watching and also downloading various free web contents with our HD receiver.

l Required settings

- To en j oy your great Free TV+ feat ure, please make sure to che ck for the foll ow ing conditi ons.

- STB (Set-top-box) shou ld be connect ed wit h Ethernet cable, with proper network settings. (Please

refer to the menu of “Network setting”, and its operating instructions).

- USB or H DD storage requi rement

Mode

USB or HDD storage

connection

Remark

Playing Not Required

For playing function, no additional storag

e connection is

required.

The internal Flash memory in the STB will be used automatically

for the bu ffering of the contents bei ng played.

Downloading Required

The available web contents can also be downloaded to your
USB or HDD storage connected.

If more than one storage devices are connected wit h the STB at
the same time, then the Downloaded files will be saved at the
faster and bigger storage device automatically.

NOTE
a) Problems in network environment : Problems such as flickering and f reezing of the screen can

occur while you are watching the YouTube service. These kind of problems can often
occur due to the lagging and poor network status from your local internet service provider
at hom e. This may also cause the STB to be halted, then we kindly recomm end you to
reboot your STB by resetting Power.

l Control part.

Ÿ Play: Select the media content you wish to play, and press

OK button .

Ÿ Settings (Red button): You can set Picture quality, Unit seek

time and Parental lock options.

- Country : You can change the available contents area where

you would like to watch (this option is only valid for
YouTube).

- Picture Quality: High – Medium – Low

- Unit Seek Time: Set Forward and Backward seeking time

inte rval for 10 / 20 / 30 / 60 sec.

- Pare ntal Lock: You ca n lock each contents and video downloadi ng function with password.

Ÿ Category (Yellow button) : Press this Yellow button to view the list of categories, then choose the

one you prefer to watch in the list of contents.

Ÿ Service (Green button): You can select among various free contents provided from web-site.

- Note: Each web-site is removable by pressing Green key on the list.

Ÿ Download (Recording button): Web contents are av a ilable for download into USB or HDD stor age.

- Note: If more than one storage devices are connected with the STB at the same time, then the

Downloaded files will be saved at the faster and bigger storage device automatically.

Ÿ Backward and Forward (Rewind and Fast forward button) playing

- Note : Forw ard and Backward see ki ng interval ca n be s e t f or 10 / 20 / 30 / 60 sec at Settings menu.

Ÿ Full Screen: Press OK button to view in full screen size.

4.6 Internet TV+

l

What is Inter net TV + ?

- Internet TV+ feature enables you to watch the ‘Media contents’ being served from the Internet

through a s pecific URL. It is just like a web-browsin g but watching TV i nstead of web conte nts.
This feature is not only supporting the streaming of the live broadcast service, but also supports
FMS (Flash Media Server) an d Wowza s erver (R T MP )

l Required settings

- All users are requi red to do the below settings before you can enjoy the Internet TV+ feature with

your set-top-box (STB).

- STB should be connected with Ethernet cable, with proper network settings. (Please refer to the

menu of “Network setting”, and its operating instructions).

l Control part

Ÿ Play: Select the service which you wish to play, and press OK button.
Ÿ Add : User can add the URL of the specific site which they want to watch. And they can add more

sites continuously.

- Install Type: You can define the type of URL. (default : Input URL)

- T itle : You can input the name of the media contents here.

- URL You can input the URL address that you would like to watch.

- Description : You can define the description of contents here.

- Media Ty pe : You can choose the type of Media service between the “File” and “Live”.

Note : Supported protocols are RTM P, RTMPT, HTTP only.

The codec types supp orted in t his Internet TV+ feat u re are ;

§ Video : MP1V, MP2V, MPEG4P2(MP4), H.264, VC1.

§ Audio : MP1A, MP 2 A, MP 3 A, AC3, AAC, PCM

Ÿ Edit : You can edit the existing content s that you have.
Ÿ Delete : You can delete contents you have with this function.
Ÿ Full Screen : You can watch the contents with full screen size with this function.

Troubleshooting

Problem Solution

Does not display any message

on the front panel.

ü Check the main power cable an d che ck that it is plu gge d int o a

suitable power outlet.

ü Check the STB main power switch ‘ON’ at the rear of the STB.

No Picture

ü See ‘Does not display any message on the front panel’ above.
ü Check the video output port is firmly connected to the TV or

VCR.

ü Check that you have selected the Video Input on your TV.
ü Press the STB button on the remote to assure you are

controlling the STB and no other device with the remote.

ü Check the brightness level of the TV.
ü Check the resolution th at your T V support s, and set the proper

resolution with the remote Resolution button to obtain a
picture.

Poor picture quality

ü See ‘No Picture’ above.
ü Check the signal level, if this is low then tries adjusting the

alignment of your dish.

No Sound

ü See ‘No Picture’ above.
ü Check the volume level of the TV and STB.
ü Check the Mute status of the TV and STB.

Remote Control does not

operate

ü Point remote control direc tly towards the STB.
ü Check that the STB button lights up when you press any

button

ü Check and replace batteries.

No or Bad Signal

ü Check the LNB ; Replace the LNB if necessary.
ü Check the cable from the LNB.
ü Check the position of th e dish; realign dish if necessary.
ü If you are using a DiSEqC 1.0 switch, check that you have

connected and programmed the LNBs to the correct
connections on the switch.

ü Check the ‘Signal Level’ and the ‘Signal Quality’.

Specifications

Tuner & Channel Decoder

Input Conn e ctor

Loop through ou t

Frequency Range
Input Impedance

Signal Level

LNB Power

22KHz Tone

DISEqC Control

Demodulation

Input Sy mbol Rate

FEC Decoder

F-type, IEC 169-24, Female

F-type, IEC 169-24, Female
950MHz ~ 2150MHz
75Ω, unbalanced

-65 to -25dBm
13/18VDC, max.400mA
(22±2)KHz, (0.6±0.2)V
V1.0/1.2/USALS Compatible
QPSK / 8PSK
2 ~ 67.5 Ms/s(QPSK of DVB-S)
2 ~ 52.5 Ms/s(8PSK of DVB-S2)
1/2, 2/3, 3/4, 5/6 and 7/8 with Constraint Length K=7(DVB-S)
3/5, 2/3, 3/4, 4/5, 5/6, 8/9 and 9/10 (DVB-S2)

MPEG T ransport Stream A/V Decoding

Transport Stream

Profile Level

Input Rate

Video Formats

Video Resolution

Audio Decoding

Audio Mode

Sampling Rate

H.264(MPEG-4 part 10, MPEG-4/A VC and H26L)

MPEG-II ISO/IEC 13818-2/11172-2
MPEG-4/AVC MP@L4, MPEG-II MP@H L
Max. 80Mbit/s
4:3 Letter Box, 4:3 PanScan, 16 : 9
720 x 576i, 720 x 576p, 720 x 480i, 720 x 480p
1280 x 720p, 1920 x 1080i, 1920 x 1080p(HDMI Only)
Dolby Digi tal, MPEG-1 Layer 1,2 and 3
Stereo/Joint stereo/Mono, Dolby AC-3

32KHz, 44.1KHz and 48 KHz(According to input)

Main System

Main Processor

Memory

STi chipset

Flash-ROM : 256 Mbyte
SDRAM : 256 Mbyte

EEPROM : 256 byte

Audio / Video & Data IN/OUT

RCA

HDMI

OPTIC

RS-232C

USB

Ethernet

IR extension

CVBS Video Output, Audio L/R Output

Video & Audio Output
AC-3 Dolby Digital ( SPDI F)
9-pin D-SUB (Ma l e ) type, Transfer rate 115K bps
USB 2.0 H ost Support
10/100 Base-Tx RJ-45 port

Removable IR Extension

Front / Rear Panel

Slot

Display

Buttons

Indicators

1 Common In terface & 1 Smart Card Slot

7-Segment (Channel No. or Time)
3 Button s (Standby, CH UP/DOWN)

1 Dual-Color L ED for Standby & On/Remote

Power Supply

Input Vo ltage

Type

Power Consumption

Protection

AC 100 ~ 250V, 50/60Hz

ADAPTOR (12V,2A)
Max.24W

Separate Internal Fuse & Lighting protection

Physical Specification

Siz e (W x H x D )

Weight (Net)

Operating T emp.

Storage T emp.

220mm X 35mm X 145mm

0.6 Kg
0°C ~ +45°C

-10°C ~ +70°C

Memo

V.12081 (Eng)

Full HD Digital Satellite Receiver

ACTUS MI NI
