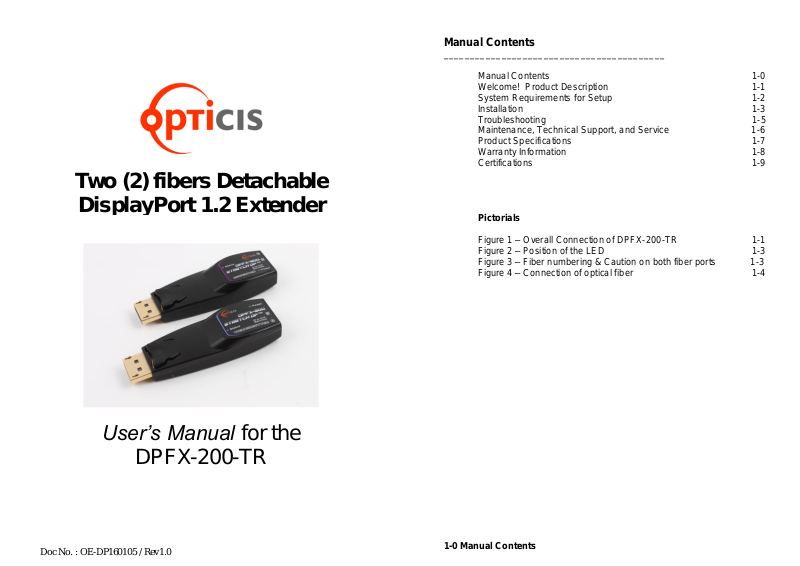

Optics DPFX-200-TR User Manual

Manual Contents

__________________________________________

Manual Contents 1-0
Welcome! Product Description 1-1
System Requirements for Setup 1-2
Installation 1-3
Troubleshooting 1-5
Maintenance, Technical Support, and Service 1-6
Product Specifications 1-7
Warranty Information 1-8
Certifications 1-9

Pictorials

Figure 1 – Overall Connection of DPFX-200-TR 1-1
Figure 2 – Position of the LED 1-3
Figure 3 – Fiber numbering & Caution on both fiber ports 1-3
Figure 4 – Connection of optical fiber 1-4

1-0 Manual Contents

Two (2) fibers Detachable

DisplayPort 1.2 Extender

User’s Manual for the

DPFX-200-TR

Doc No. : OE-DP160105 / Rev1.0

Welcome!

Congratulations on your purchase of the two (2) fibers DisplayPort extender,
DPFX-200-TR. This manual contains information that will assist you in
installing and operating the product.

Product Description

New compact optical DisplayPort extender, DPFX-200-TR enables to transmit
WQUXGA (3840x2160) at 60Hz signal up to 100m (328feet), avoiding any
tricks like scaling or data compression for lessening a burden of data
transmission. It provides total data throughput 21.6Gbps (5.4Gbps per lane).

The OM3 fiber connection by two (2) LC fibers connector between transmitter
and receiver, gives clean, secure and easy installation with perfect electrical
isolation, but without electrical hazard and interference. The DPFX-200-TR can
be operated by either USB power by plugging the USB cable or 3.3V from pin
#20 of DisplayPort interface.

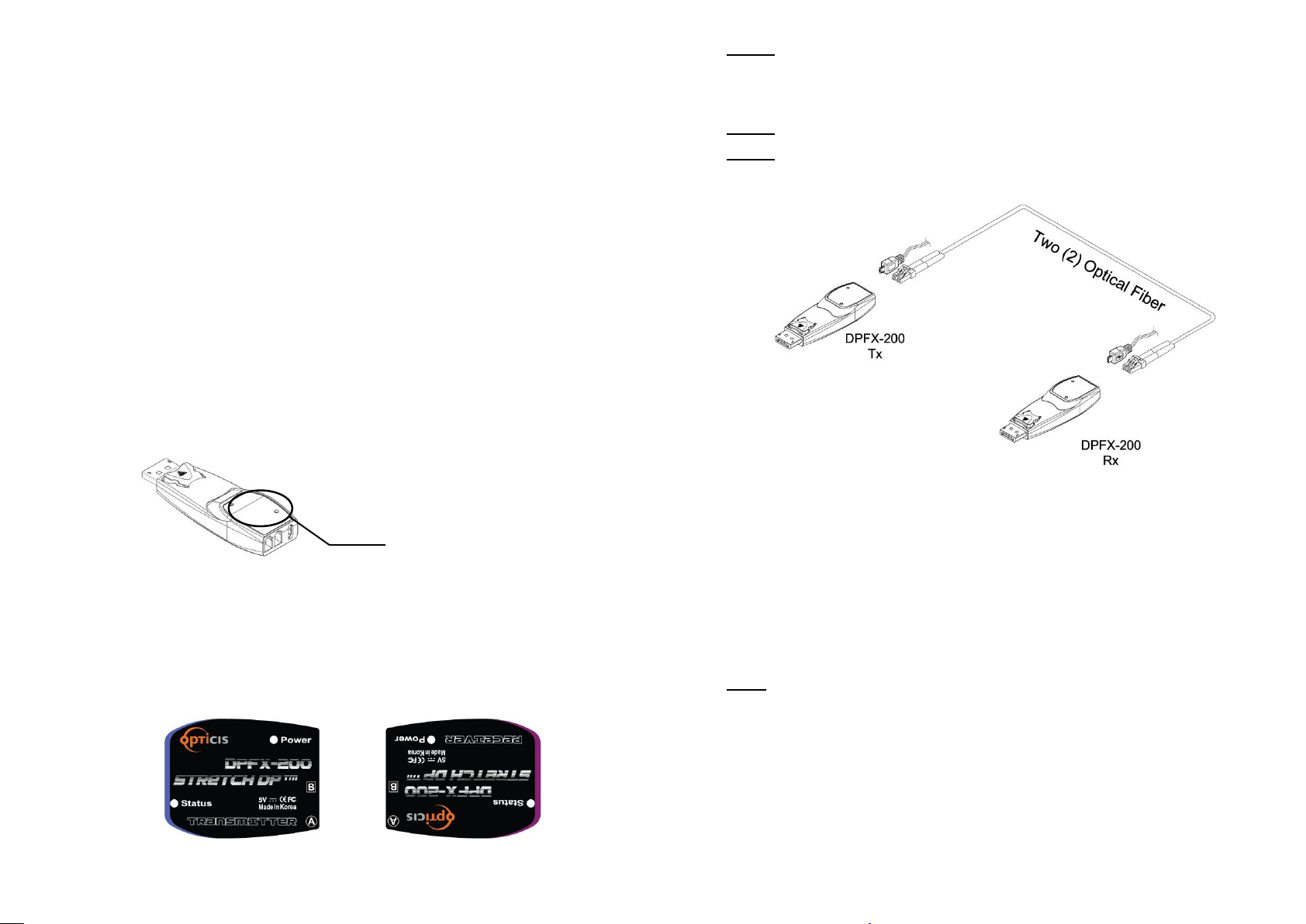

Figure 1 – Overall Connection of DPFX-200-TR

1-1 Welcome, Product Description

System Requirements for Setup

□ Hardware requirements

▪ You have to have a DisplayPort source and display. It should

support the maximum graphic resolution feature of displays to
be connected.

▪ No special requirements of memory size, CPU speed and

chipsets, if you’ve already properly installed your DisplayPort
systems or graphic cards.

▪ Proper initial trial of the entire platform with its application using

a short length copper cable is recommended prior to installation
with the optical link.

□ Software requirements

▪ No special restrictions, if you’ve already properly installed your

DisplayPort systems.

□ Power Technical Advisory

▪ Enclosed Power Adaptors and USB cables supply power to both

Transmitter and Receiver.

□ Connection Advisory

▪ It is highly recommend that DisplayPort source is directly

connected into DisplayPort display output via DPFX-200-TR
without connection to incompatible distributor, switcher
and selector.

1-2 System Requirements for Setup
