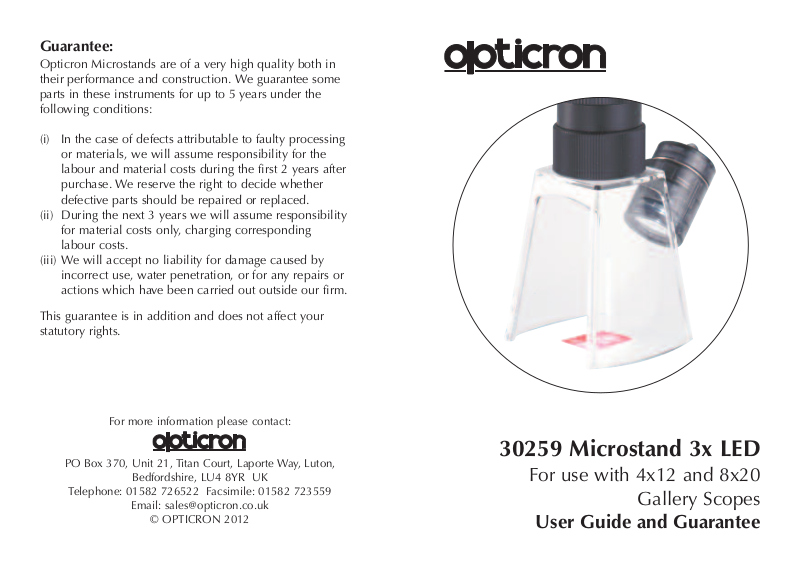

Opticron LED Microstand User Manual

Guarantee:

Opticron Microstands are of a very high quality both in
their performance and construction. We guarantee some
parts in these instruments for up to 5 years under the
following conditions:

(i) In the case of defects attributable to faulty processing

or materials, we will assume responsibility for the
labour and material costs during the first 2 years after
purchase. We reserve the right to decide whether
defective parts should be repaired or replaced.

(ii) During the next 3 years we will assume responsibility

for material costs only, charging corresponding
labour costs.

(iii) We will accept no liability for damage caused by

incorrect use, water penetration, or for any repairs or
actions which have been carried out outside our firm.

This guarantee is in addition and does not affect your
statutory rights.

For more information please contact:

PO Box 370, Unit 21, Titan Court, Laporte Way, Luton,

Telephone: [phone] Facsimile: 01582 723559

Bedfordshire, LU4 8YR UK

Email: [e-mail]

© OPTICRON 2012

30259 Microstand 3x LED

For use with 4x12 and 8x20

Gallery Scopes

User Guide and Guarantee

Microstand conversions increase basic
monocular magnification by a factor of 3.

Instructions:

(1) Screw the microstand into the objective lens

end of the gallery scope
(2) Attach the LED unit to the microstand
(3) Place the microstand centrally over the

object to be viewed
(4) Rotate the focusing band on the gallery

scope to bring the object into sharp focus

Focusing band

Objective lens

Specifications:

30259 3x Microstand with LED illuminator

Base area 62x55mm
Height 88mm. Weight 68g

LED (Light Emitting Diode)

Power source: CR2016 lithium batteries
Battery life: 16 hours
ø26mm x 34mm. Weight 13g

How to replace the battery:

(1) Unscrew knob from top of unit
(2) Remove the retaining spring clip from the

LED light unit
(3) Separate the unit into two pieces
(4) Replace both batteries
(5) Close the unit and retain it with the

spring clip

(6) Replace knob
