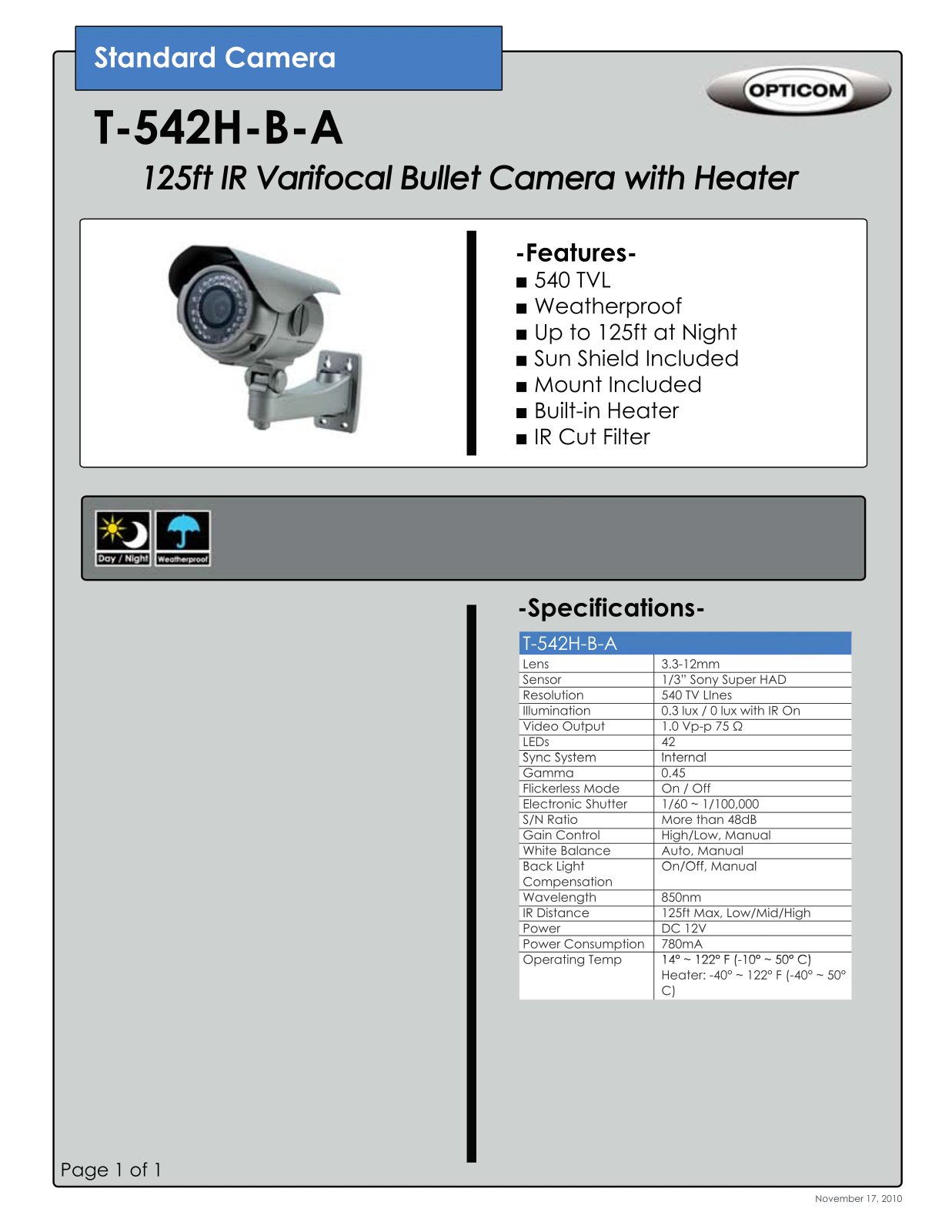

Opticom T-542H-B-A DATASHEET

Standard Camera

T-542H-B-A

125ft IR Varifocal Bullet Camera with Heater

-Features-

■ 540 TVL

■ Weatherproof

■ Up to 125ft at Night

■ Sun Shield Included

■ Mount Included

■ Built-in Heater■ Built-in Heater

■ IR Cut Filter

-Specifications-

T-542H-B-A

Lens
Sensor
Resolution
Illumination
Video Output
LEDs
Sync SystemSync System
Gamma
Flickerless Mode
Electronic Shutter
S/N Ratio
Gain Control
White Balance
Back LightBack Light
Compensation
Wavelength
IR Distance
Power
Power Consumption
Operating Temp

3.3-12mm
1/3” Sony Super HAD
540 TV LInes

0.3 lux / 0 lux with IR On

1.0 Vp-p 75 Ω
42
Internal Internal

0.45
On / Off
1/60 ~ 1/100,000
More than 48dB
High/Low, Manual
Auto, Manual
On/Off, ManualOn/Off, Manual

850nm
125ft Max, Low/Mid/High
DC 12V
780mA
14° ~ 122° F (-10° ~ 50° C) 14° ~ 122° F (-10° ~ 50° C)
Heater: -40° ~ 122° F (-40° ~ 50°
C)

Page 1 of 1

November 17, 2010
