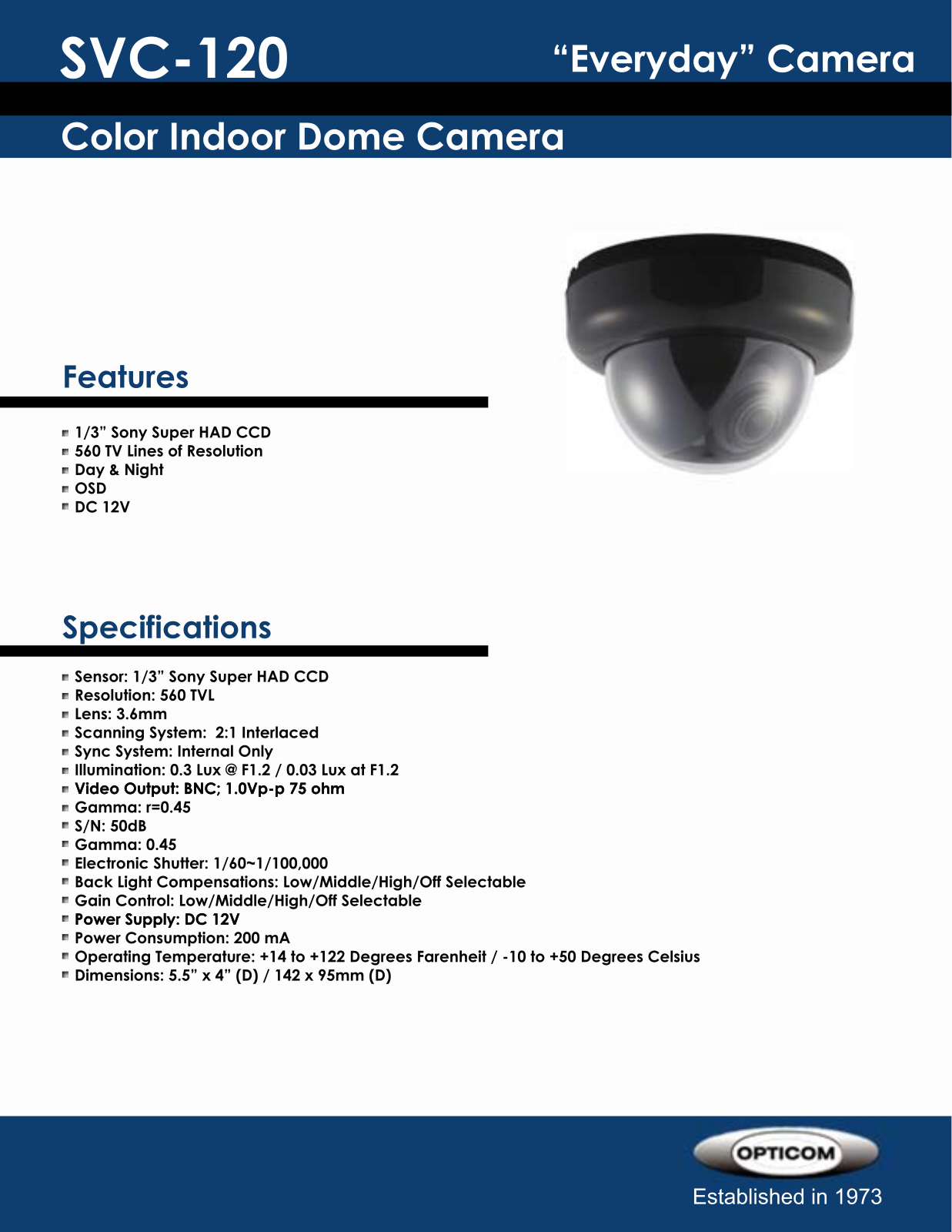

Opticom SVC-120 DATASHEET

SVC-120

“Everyday” Camera

Color Indoor Dome Camera

Features

1/3” Sony Super HAD CCD
560 TV Lines of Resolution
Day & Night
OSD
DC 12V

Specifications

Sensor: 1/3” Sony Super HAD CCD
Resolution: 560 TVL
Lens: 3.6mm
Scanning System: 2:1 Interlaced
Sync System: Internal Only
Illumination: 0.3 Lux @ F1.2 / 0.03 Lux at F1.2
Video Output: BNC; 1.0Vp-p 75 ohmVideo Output: BNC; 1.0Vp-p 75 ohm
Gamma: r=0.45
S/N: 50dB
Gamma: 0.45
Electronic Shutter: 1/60~1/100,000
Back Light Compensations: Low/Middle/High/Off Selectable
Gain Control: Low/Middle/High/Off Selectable
Power Supply: DC 12V Power Supply: DC 12V
Power Consumption: 200 mA
Operating Temperature: +14 to +122 Degrees Farenheit / -10 to +50 Degrees Celsius
Dimensions: 5.5” x 4” (D) / 142 x 95mm (D)

Established in 1973
