Page 1

User’s Manual

DIGITAL VIDEO RECORDER

SDVR 4000/8000/1600 SERIES

NET VIEW SOFTWARE

CAUTION

Read all precautions and

instructions in this manual

Disclaimer

DisclaimerDisclaimer

before using FX Series DVR

Server. Save this manual for

future reference.

Page 2

Disclaimer

DisclaimerDisclaimer

This manual has been reviewed thoroughly in order to provide a guide for SDVR Series DVR systems. All statements, technical information, and recommendations in this manual and in any guides or related documents are believed reliable, but the accuracy and completeness thereof are not guaranteed or warranted. They are not intended to be, nor should they be understood to be, perfect representations or warranties concerning the products described.

SDVR Series DVR server and the software included with your system are subject to the limited warranty set forth in the warranty and license agreement enclosed with the respective products. All software is licensed AS IS, as described in the license agreement enclosed with the software disk. Further, we reserve the right to make changes in the specifications of the products described in this manual at any time without notice, and without obligation to notify any person of such changes.

Cautions

This product has multiple-rated voltages (110v and 220v). See installation instructions before connecting to the power supply. This product uses a Lithium battery. To avoid of risk of explosion, do not replace the battery on the main board by anything other than a Lithium battery. Dispose of used batteries according to the manufacturer’s instructions. This equipment and all communication wirings are intended for indoor use only. To reduce the risk of fire or electric shock, do not expose the unit to rain or moisture.

Warnings

Installation and servicing should be performed only by qualified and experienced personnel. Turn off DVR when connecting cameras, audio or sensor cables. The manufacturer is not responsible for any damage caused by improper use of the product or failure to follow instructions for the product. The manufacturer is not responsible for any problems caused by or resulting from the user physically opening the DVR for examination or attempting to fix the unit. The manufacturer may not be held liable for any issues with the unit if the warranty seal is removed.

Page 3

Contents of DVR package

The package contains the main unit and its components as specified below. When you purchase the unit, please check to ensure the components specified below are included.

DVR Set

Client Software CD

(Including Manual)

Remote Controller

Battery1.5V (AAA x 2EA)

Adaptor and Power cable

IDE HDD Cable

HDD Screws and Rubber rings

Page 4

Specifications

ENVIRONMENTAL

SDVR-4000 SDVR-8000 SDVR-1600

VIDEO

OUTPUT (Selectable)

ALARM INPUT & OUTPUT 4 & 1

OS RTOS

RECORD

RECORDING SPEED MAX. 120 fps at 1CIF 352x240

MULTI TASK TRIPLEX Record, playback and transfer

CONTROL UNIT IR Type Remote Control and Front keys

SERIAL PORT CONSOLE 1 RS-232C

INPUT 4 composite BNC

(NTSC/PAL) – 1.0Vp-p

1 composite BNC (NTSC/PAL) – 1.0Vp-p

COMPRESSION MPEG-4 VIDEO FORMAT NTSC PAL

RESOLUTION 352x240, 704x480 352x288, 704x576

MAX. 30 fps at D1 704X480

MODE Manual, Motion, Sensor, and Schedule

METHOD By Resolution, fps & Quality

8 composite BNC

(NTSC/PAL) – 1.0Vp-p

1 VGA

MAX. 100 fps at 1CIF 352x288

MAX. 25 fps at D1 704X576

16 composite BNC

(NTSC/PAL) – 1.0Vp-p

NETWORK

HDD CAPACITY 1EA Max. 750GB

SPECIFICATION

SIZE

DYNAMIC IP Supported by DDNS

LAN PORT 1 10/100-base T Ethernet

FUNCTIONS Live, Search, P/T/Z/F

NETWORK Still Image & Video data BACKUP

USB STICK Still Image & Video data

ADAPTOR Input: AC100-240V, 50/60Hz, 3A ELECTRONICAL CONSUMPTION About 25W TEMPERATURE 5°C ~ 40°C

HUMIDITY 30% ~ 90%

DIMENSION 340(W) X 250(D) X 60(H)mm

Page 5

INDEX

1. FRONT PANEL AND REMOTE CONTROLLER.............................................................8

2. REAR PANEL AND CONNECTIONS............................................................................10

3. SETTING UP THE DVR................................................................................................. 11

3-1. Setup - Main Screen ................................................................................................................................11

3-2. Setup – Live Mode...................................................................................................................................13

3-3. Setup – Recording Mode........................................................................................................................14

3-3-1. Motion Zones......................................................................................................................................15

3-3-2. Recording Schedules .........................................................................................................................16

3-4. System......................................................................................................................................................17

3-5. Network ....................................................................................................................................................20

3-5-1. Ports....................................................................................................................................................21

3-5-2. Network types.....................................................................................................................................22

3-5-2-1. LAN..................................................................................................................................................22

3-5-2-2. DHCP ..............................................................................................................................................22

3-5-2-3. ADSL (PPPOE)................................................................................................................................23

3-6. Storage .....................................................................................................................................................24

4. LIVE & SEARCH........................................................................................................... 26

4-1. Live Window.............................................................................................................................................26

4-2. SEARCH window .....................................................................................................................................28

4-2-1. EVENT Search ...................................................................................................................................28

4-2-2. TIME LINE Search..............................................................................................................................29

4-2-3. GO TO ................................................................................................................................................30

4-2-4. GO FIRST...........................................................................................................................................30

Page 6

4-2-5. GO LAST ............................................................................................................................................30

4-2-6. LOG List..............................................................................................................................................30

4-2-7. ARCHIVE Search................................................................................................................................31

4-3. Playback mode ........................................................................................................................................32

5. ARCHIVING AND BACKUP..........................................................................................33

5-1. Archiving Still images or Video..............................................................................................................33

5-2. Backup still images or videos on USB memory stick .........................................................................34

5-3. Playing backup file..................................................................................................................................34

6. NETWORK – BY AN EXCLUSIVE VIEWER.................................................................35

6-1. Overview...................................................................................................................................................35

6-2. Minimum PC requirements.....................................................................................................................36

6-3. Installing the program.............................................................................................................................36

6-4. Live viewer ...............................................................................................................................................37

6-5. Search and Playback Viewer..................................................................................................................39

6-5-1. Backup................................................................................................................................................40

6-6. PC System configuration........................................................................................................................40

6-6-1. General...............................................................................................................................................40

9-6-2. Site......................................................................................................................................................41

9-6-3. Event...................................................................................................................................................41

9-6-4. Record ................................................................................................................................................42

9-6-5. Disk.....................................................................................................................................................42

7. NETWORK – BY AN WEB-BROWSER VIEWER.........................................................43

7-1. Download Web Brower Viewer and Connection ..................................................................................43

7-2. Main Features ..........................................................................................................................................44

7-2-1. Live .....................................................................................................................................................44

Page 7

7-2-2. Search and Playback..........................................................................................................................45

APPENDIX ........................................................................................................................46

1. How to register DDNS (Dynamic Domain Name Server) ........................................................................46

1-1. Setting of NETWORK Setup menu.........................................................................................................46

1-2. Checking Mac address on the rear panel of DVR and Registration No.............................................47

1-3. Registration at DDNS. .............................................................................................................................47

2. Network access using Domain name.......................................................................................................49

Page 8

1. Front Panel and Remote controller

The following information will help you operate the front panel controls.

Figure 1.1 Front panel

Table 1.1. Front LED and Port

Name Description

POWER

HDD

USB port

LED light is on when power is applied to the system. LED light is on when the system is recording video data. There is a USB port located on the left side of the front panel. This USB port is used to archive footage into a USB storage device. (USB 2.0 connector)

Page 9

F/REW

Jump 60 seconds backward

PLAY/PAUSE F/ADV

FF SETUP

SEQ RECORD SEARCH DIRECTION SELECT ID

ESC NUMBER

Play/Pause Jump 60 seconds forward

Fast Forward Setup menu screen

Sequence of Full or Quad view Manual recording Search menu screen Direction or number 1 to 4 Enter DVR ID (ID Button + DVR ID number) Esc Channel 0 to 9

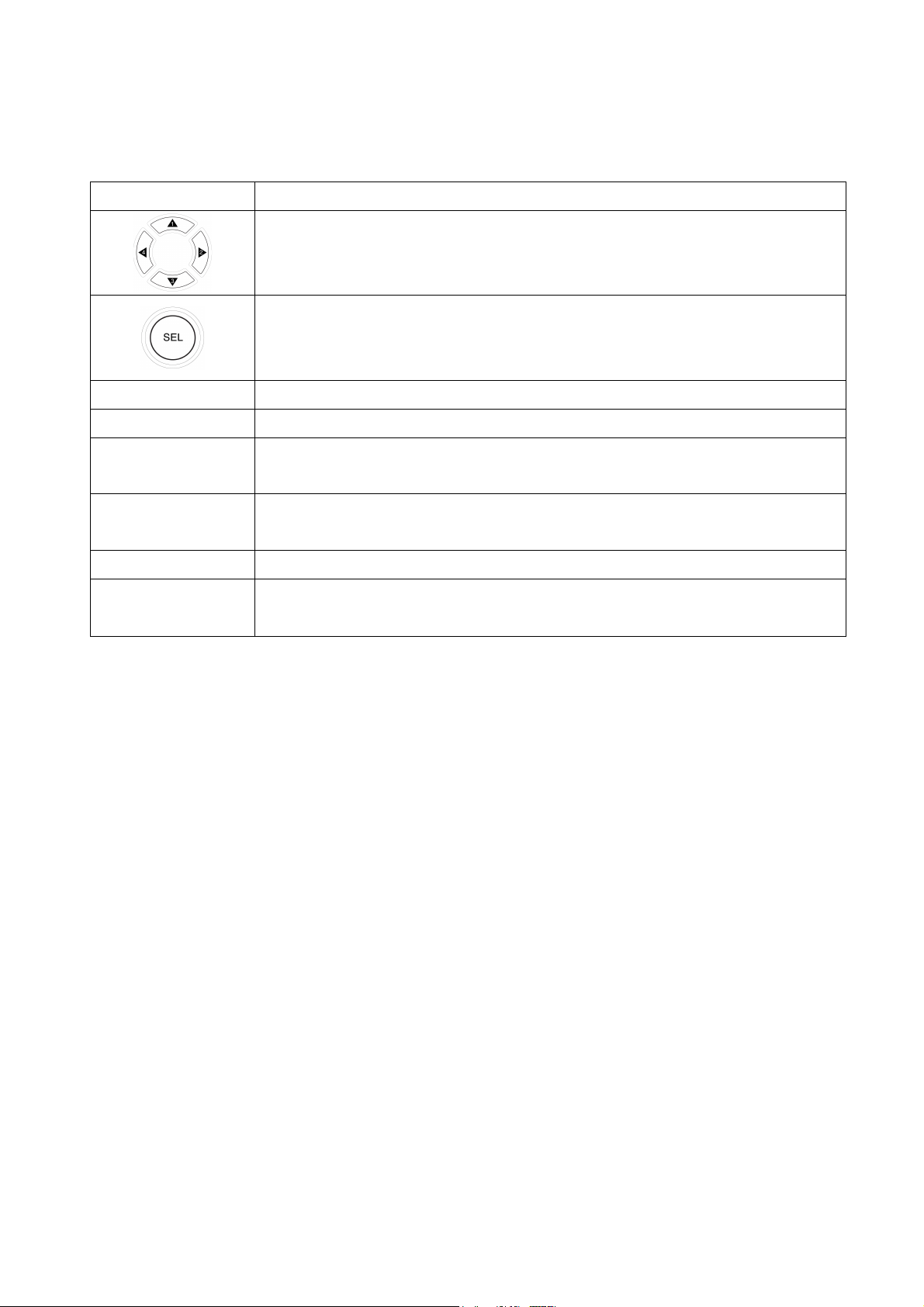

Figure 1.2 Remote controller Table 1.2. Description of remote controller

Page 10

2. Rear Panel and Connections

Figure 2.1. Rear Panel

Table 2.1. Rear panel connections

Connection Purpose

VIDEO IN

Four connectors for video input. Connect camera output to Video-in (NTSC/PAL)

VIDEO OUT

VGA

RS-232

SENSOR IN

ALARM OUT

LAN

DC 12V

Composite video output in NTSC or PAL format Connector for VGA monitor For engineering use only Connector for sensor device connection. 4 sensors can be connected to the equipment sensor 1, 2, 3, 4 are dedicated to Video channel 1, 2, 3, 4, respectively. Either normal open (NO) or normal close (NC) sensor can be selected for each sensor. Simple On/Off switching. Connect two signal wires of sensor to the desired sensor number. (You can set the type-NC or NO- of sensor at “Setup” mode).

NOTICE

SENSOR inputs need dried contact only. Do not input any electric signal.

Connector for alarm device connection. Provides simple On/Off switching using relay. 0.5A/125V, 1A/30V RJ45 connector for LAN connection Apply 12V DC using the DC adaptor supplied with the equipment. Select VGA monitor or CVBS (Composite Video Blanking Sync) monitor.

SWITCHES

When the position of the switch is changed, the DVR should be rebooted to apply the new setting.

Do not change the setting when the power is on.

Page 11

3. Setting up the DVR

The following sections detail the initial setup of the DVR

3-1. Setup - Main Screen

When you press the SETUP button, the DVR will ask for a password. The default password is 1111, which can be entered by pressing the up button ( ) 4 times and then pressing the SEL button. We recommend you protect the system by assigning a new password immediately.

Figure 3.1.1. Setup menu screen

Page 12

SETUP LIVE OSD

RECORD RESOLUTION CHANNEL Frame rate, Quality, Recoding, Motion zone, Motion sensitivity, Sensor

SYSTEM DVR ID

SEQUENCE SEQ-DWEL TIME EVENT BEEP OSD CONTRAST CHANNEL DISPLAY, SEQ LIST, BRIGHTNESS, CONTRAST, HUE, SATURATION VGA SCREEN MODE ERROR ALARM

type, Pre-Record, Post-Event Record, Alarm, Alarm Duration, Schedule

DESCRIPTION LOAD DEFAULT ADMIN PASSWORD NETWORK PASSWORD DATE FORMAT SET DATE & TIME LANGUAGE REMOTE CONTROLLER ID DLS

NETWORK PORT

STORAGE OVERWRITE

CLIENT ACCESS BANDWIDTH SAVING NE TWORK TYPE DDNS SEND E-MAIL

FORMAT USB UPGRADE SAVE SETUP TO A USB LOAD SETUP FROM A USB VDEO DELETE DELETE VIDEO AFTER

Table 3.1.1. Setup menu configuration

Page 13

3-2. Setup – Live Mode

Item Description

Table 3.2.1. Menu items in LIVE mode setup

OSD

SEQUENCE

SEQ-DWELL TIME

EVENT BEEP

OSD CONTRAST

CHANNEL

DISPLAY

SEQ LIST

BRIGHTNESS

CONTRAST

HUE

SATURATION

VGA SCREEN

MODE

ERROR ALARM

Enable/disable on-screen-display. Enable/disable sequential display of video channels in full screen mode Dwell time for each cannel display in sequential display mode Enable/Disable internal beep alert sound. Set the visibility level of the On Screen Display (OSD) Select the channel for applying the following settings. Enable/disable display of the video channel in live display mode Enable/disable the specified channel to be included in sequential display mode. Change the brightness value for the specified channel Change the contrast value for the specified channel Change the hue value for the specified channel Change the saturation value for the specified channel Select VGA screen mode as either FULL or Normal. NOTE: If the mode is changed, the system will reboot. Enable/Disable alarm for video loss or HDD fail.

Figure 3.2.1. Live mode setup screen

Page 14

3-3. Setup – Recording Mode

Table 3.3.1. Menu items in Recording mode setup

Menu item Description

RESOLUTION

CHANNEL

FRAME RATE

QUALITY

RECORDING

MOTION ZONE

MOTION

SENSITIVITY

Set resolution to either 704x480(NTSC)/704X576(PAL) or 352x240(NTSC)/352X288(PAL). Select the channel for applying the following settings. Set the frame rate for the specified channel. The sum of the frame rate values from each channel cannot exceed maximum frame rates for a particular recording resolution. Typical values of the maximum frame rate for NTSC

video are 120/100fps for 352x240(NTSC)/352X288(PAL) and 30/25 fps for 704x480(NTSC)/704X576(PAL)

Select the recording quality for the specified channel from normal, high, and superior. Assign the recording mode for each channel. Recording modes: Continuous, Motion, Sensor, Schedule, and Disable. Select Full Zone or Partial Zone for motion sensing. If the Partial Zone is selected, screen will be change as shown in figure 3.3.2. Set the motion sensitivity for the specified channel. Control the motion sensitivity from 1 to 9.

SENSOR TYPE

PRE RECORD

POST EVENT

RECORD

ALARM

ALARM DURATION

SCHEDULE

Set the type of sensor for the specified channel from none, N/O (normal open), and N/C (normal closed). Enable/disable pre-event recording. Pre-event recording time is 5 sec and only intra-frames are recorded for pre-event recording. Set post event recording time duration for the specified channel

Enable/disable alarm generation for the specified channel. Set alarm time duration for the specified channel. Set recording schedule. If this menu item is selected, screen will change as shown in figure 3.3.3.

Page 15

Figure 3.3.1. Recording mode setup screen

3-3-1. Motion Zones

By selecting Partial Zone in the Motion Zone menu, users can set-up the motion sensing zones in the screen shown in figure 3.3.2. Move around each rectangular zone using 4 direction key buttons and press SEL button to include the rectangular region as part of the motion sensing zone. The rectangular blocks included as part of the motion zone are indicated by changing the color of the blocks.

Figure 3.3.2. Motion Zone selection screen

Page 16

3-3-2. Recording Schedules

To set up a recording schedule, select SCHEDULE in the RECORD menu. Use the arrow buttons to navigate through the items and set the recording.

[ALL]: Selected recording mode using the SEL button is applied to the entire time zone and all channels. [SUN to SAT]: Selected recording mode using the SEL button is applied to the entire time zone for the

specified channel.

[Vertical Bar]: Selected recording mode using the SEL button is applied to the entire channel for the selected

time zone. Each vertical bar “|” corresponds to one hour.

[- Individual Block of Time]: Selected recording mode using the SEL button is applied to the selected 1-hour

increment for the selected channel. [SEL]: The recording mode can be selected using the SEL button. [COPY FROM to COPY TO]: Setup values of recording mode for the selected channel can be copied for

another channel setup.

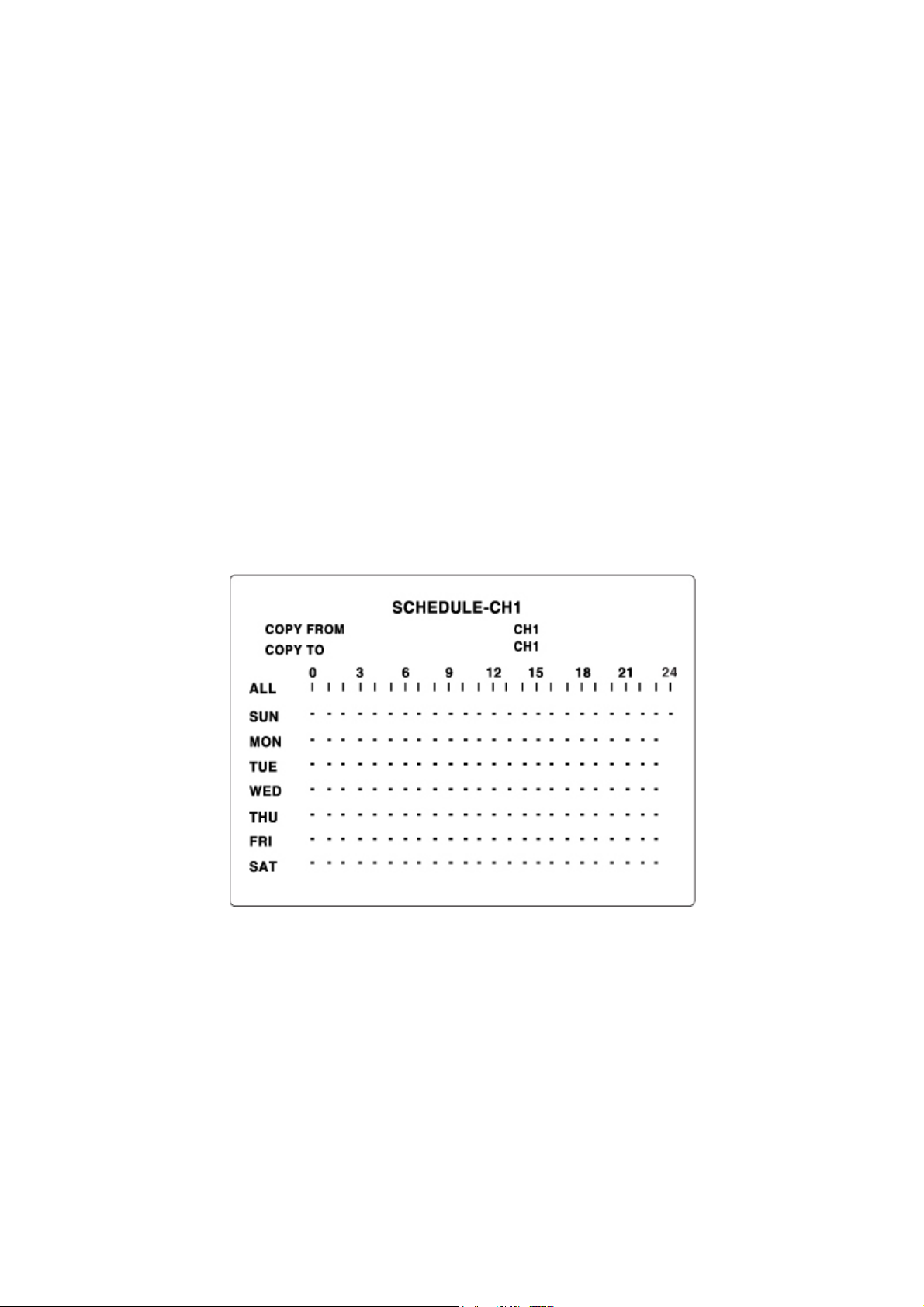

Figure 3.3.3. Schedule recording setup screen

Page 17

3-4. System

Item Description

Table 3.4.1. Menu items in System Setup screen

DVR ID

DESCRIPTION

LOAD DEFAULT

ADMIN

PASSWORD

NETWORK

PASSWORD

DATE FORMAT

SET DATE &

TIME

The name of the system. Press the SEL button and move through the position for each alphanumeric character by pressing the LEFT and RIGHT buttons. UP/DOWN buttons are used to change character for each location. Press SEL to see system information. Choose OFF or ON. If selecting ON, press the SEL button to load defaults. Set the password for the administrator. Once this menu is selected, the DVR will ask you current password and new password. Follow the procedure provided by the DVR. The password numbers (1,2,3,4) can be input by using direction keys. The default password is 1111. Set the password of network client. Once this menu is selected, the DVR will ask you current password and new password. The DVR will guide you through the entire process of setting up the user password. The password numbers (1,2,3,4) can be input by using direction keys. The default password is 1111. Select the preferred date and time display. Set the present date and time. If DLS function is ON, user can not enter into this menu and change data and time.

LANGUAGE

REMOTE

CONTROLLER ID

DLS

Select a language. Select ID of remote controller.

1. Select ID from 1 to 9.

2. Press the same number as ID set in DVR on a remote controller

3. Then icon will be displayed on Live screen of DVR that respond to the remote controller.

User can set to ON or OFF for DLS (Daylight Saving) by using LEFT or RIGHT button. After selecting ON, move the cursor to BEGIN (MM/DD/HH)field and press the SELECT button to set the start time of DLS. And move to END(MM/DD/HH)field to set the stop time of DLS by using UP or DOWN button.

CAUTION:

-DLS can’t start from 23:00

-DLS can’t be applied, if the date of BEGIN and END is same.

Page 18

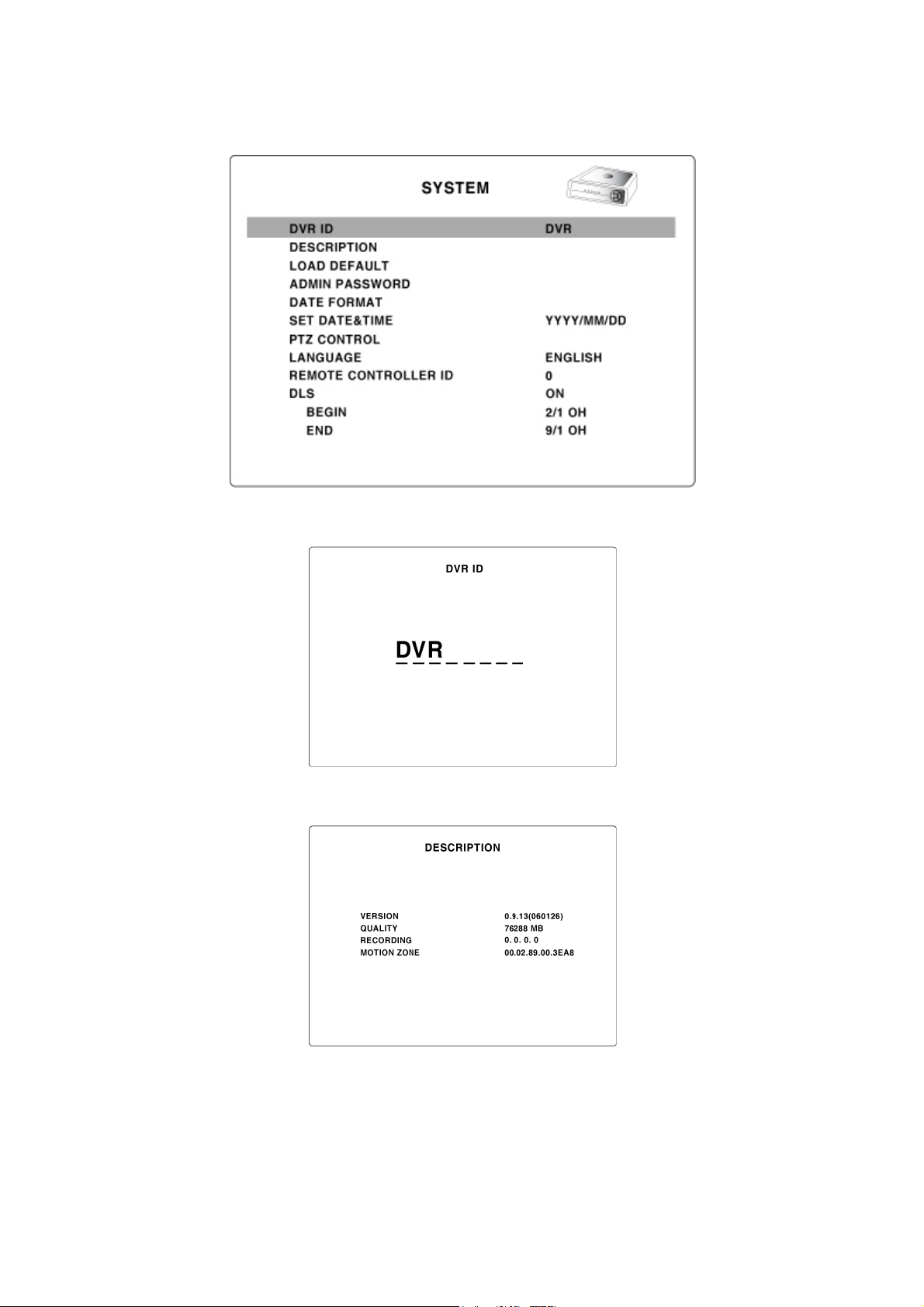

Figure 3.4.1. System setup screen

Figure 3.4.2. DVR ID setup screen

Figure 3.4.3. DVR information display screen

Page 19

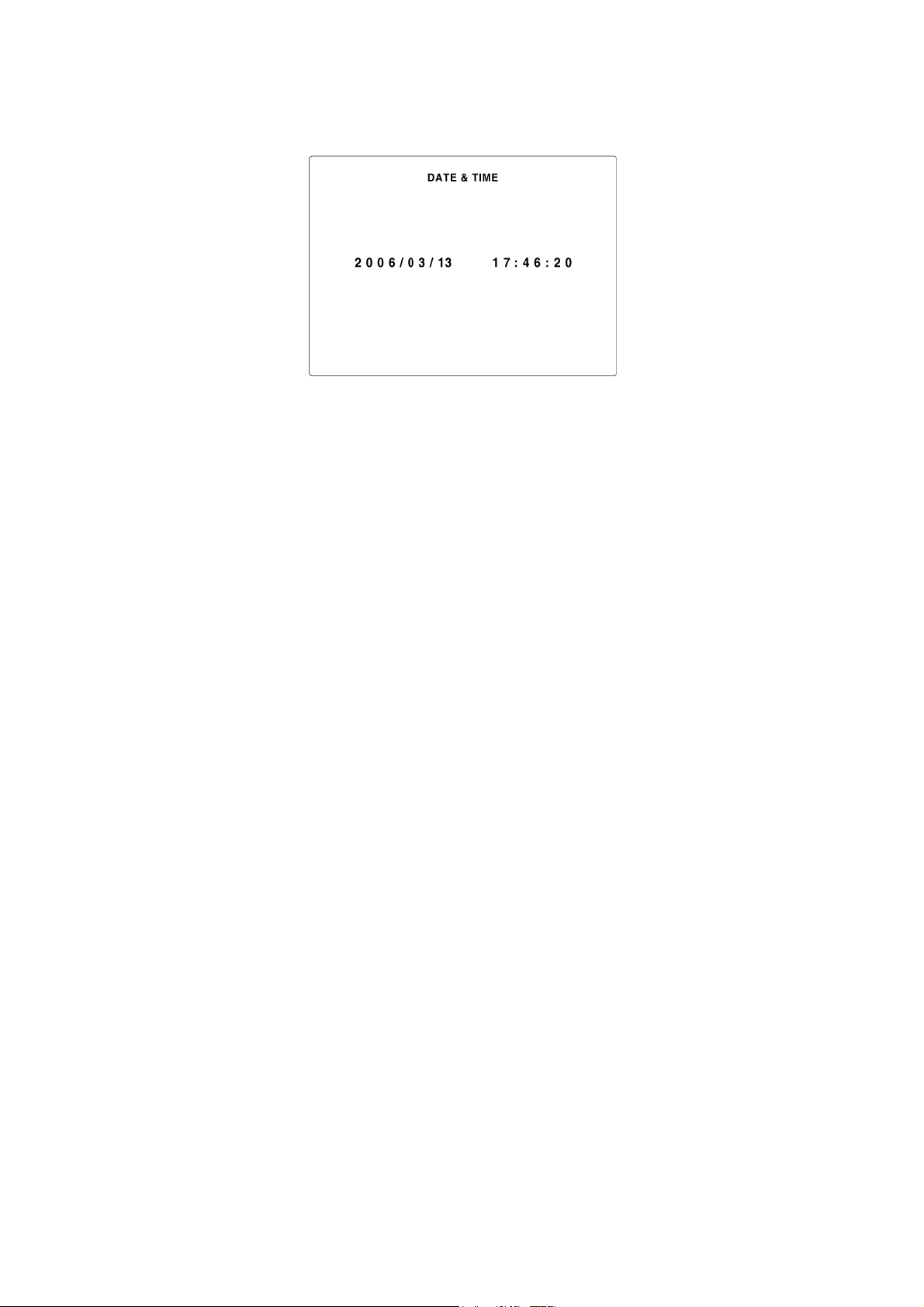

Figure 3.4.4. Date & Time setup screen.

Page 20

3-5. Network

Set up your network parameters on the Network Setup screen.

Table 3.5.1. Menu items in Network Setup screen

Item Description

PORT

CLIENT ACCESS

BANDWIDTH SAVING

NETWORK TYPE

DHCP

ADSL (PPPoE)

LAN

DDNS

Port number (Default: 5445) Enable/Disable remote access through client software. Enable/Disable only key frame transmission. “ON” mode is favorable for use of low network bandwidth. Mostly, set “OFF” for normal use. Set the type of network connection. Options are: LAN, DHCP, ADSL Note. Other parts of the Network Setup screen change depending on what network type you select. Sets to use HDCP (If this is selected, DVR automatically get IP varying from time to time from network.) ID: Registered ID is necessary for ADSL connection. Password: Registered password is necessary for ADSL connection. IP: Register IP address that is assigned for DVR. Gateway: Register Gateway that is assigned for DVR. Subnet Mask: Register Subnet Mask that is assigned for DVR. Enable/disable using domain name address through DDNS server. “ON” mode, DDNS server name appears for domain registration. The DDNS sever name is ns.standalone4ch.com. CAUTION: Do not change this sever name. If this is changed, the DDNS service cannot be used.

Registration

Check the MAC address of DVR from Setup>System>Description. Please contact a distributor or an installer to register your DVR on a DDNS Server. Register the domain name on DDNS Server. After the domain name and MAC address of the DVR are registered on a DDNS server, user can access the network with their own domain name.

Page 21

]

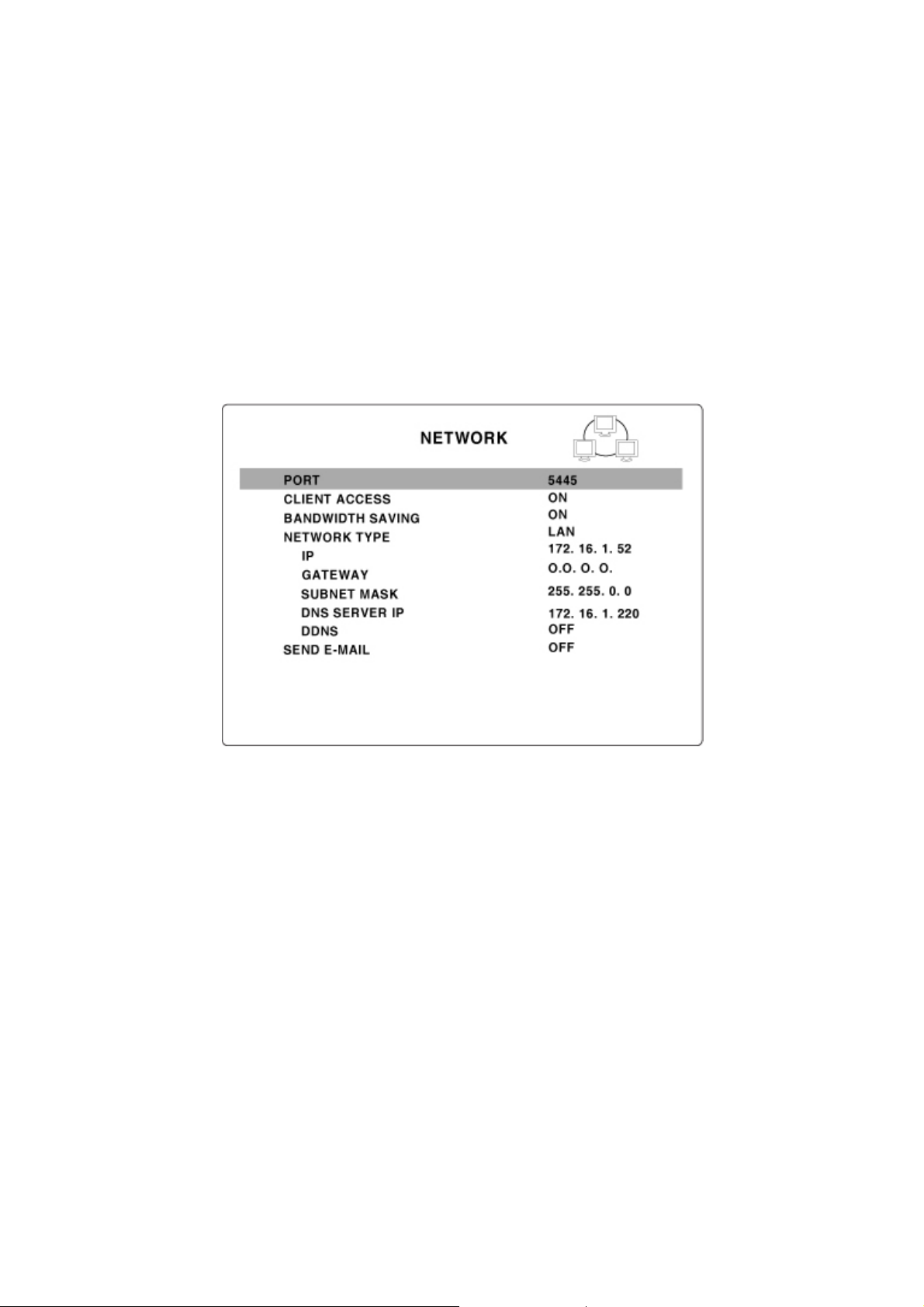

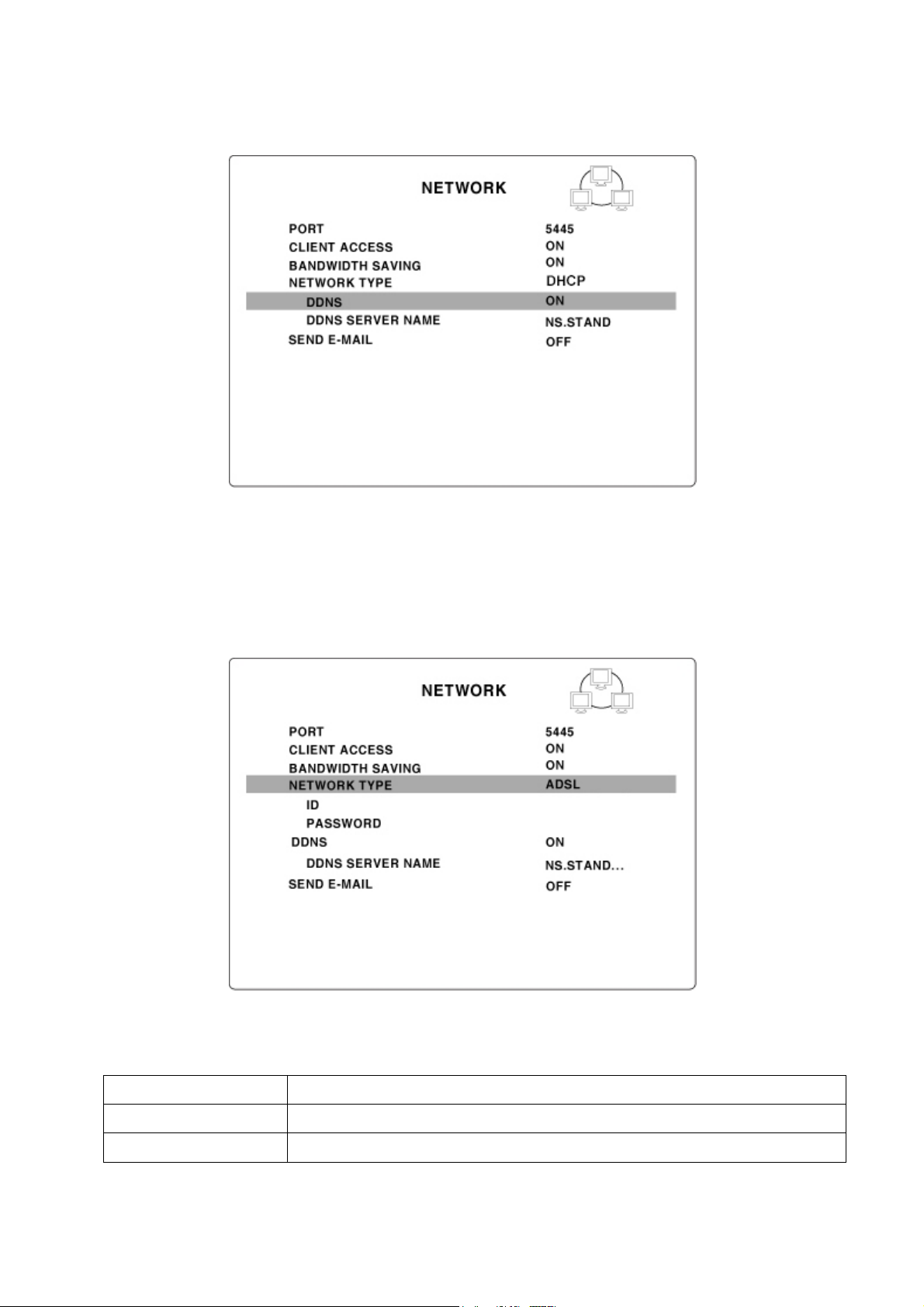

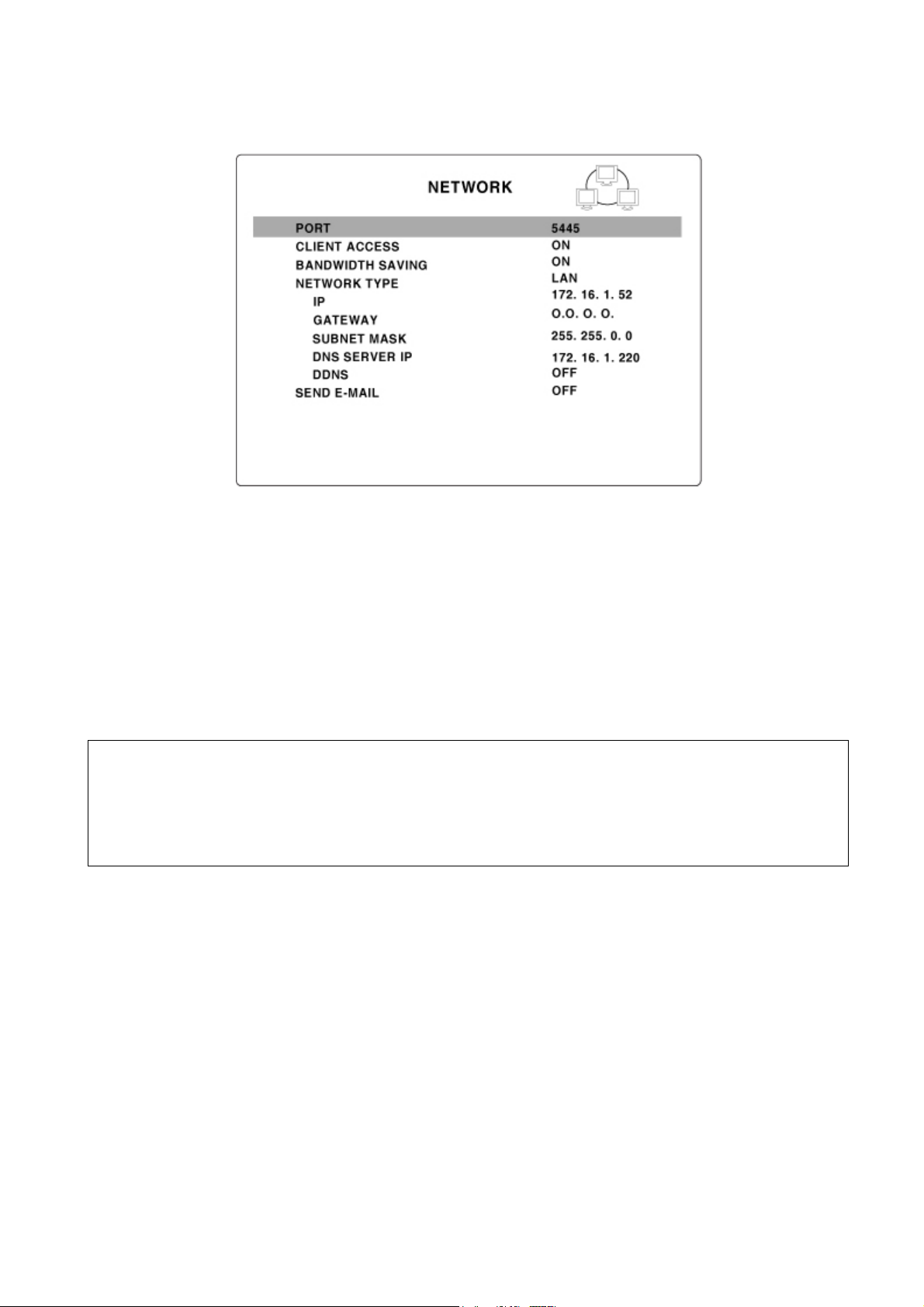

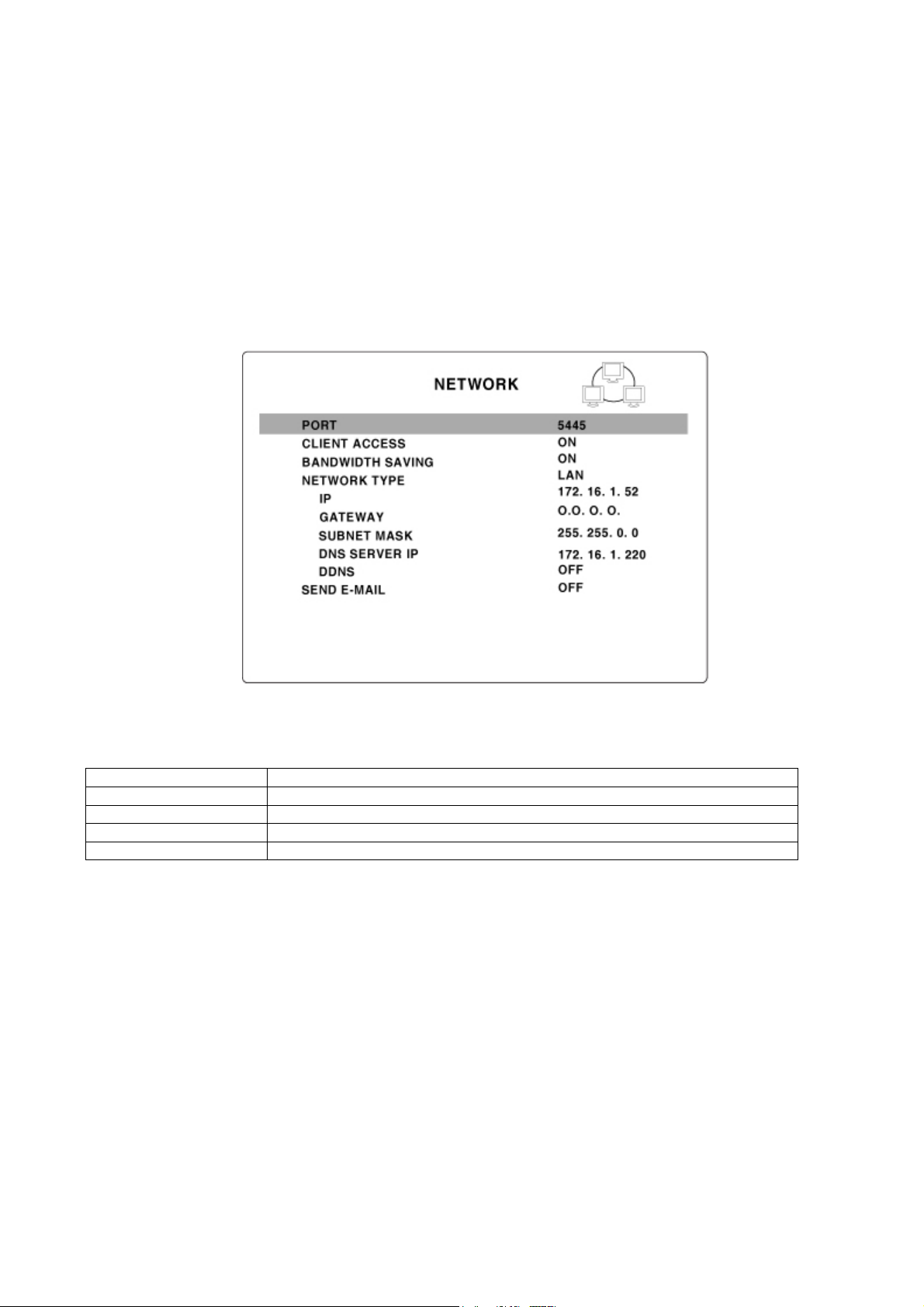

Figure 3.5.1. Network setup screen

3-5-1. Ports

When you connect one or more DVRs to a network through an IP sharing device, each device must have a unique TCP port number for access to each unit from outside the LAN. Also, the IP sharing device must be configured for port forwarding so when each port is accessed on the IP sharing device, it will forward to the appropriate DVR. Note: This port number is listed next to the Port menu option in the Network Setup screen. If you plan to access the DVR units only from within the same LAN, the TCP port does not have to be changed.

Network access beyond Router

In order to access beyond Router (Firewall), user must open 1 TCP port for Command level, Live channels, and Storage channels. If this port is not opened properly, user can not access DVR beyond a router. If DVR sets port number with 5445, user has to open 1 TCP port of 5445.

Page 22

3-5-2. Network types 3-5-2-1. LAN

1. for the use of fixed IP. (See your network administrator if you do not have this information.)

2. When DVR is installed in IP sharer that is connected with ADSL, a user can assign fixed IP to DVR from IP sharer itself using “DMZ” function out of such sharer.

3. Input IP set in DMZ on “IP” field and Gateway of ADSL modem on “Gateway” field. Similarly, for Subnet Mask, DNS address, input relevant values in IP sharer.

Figure 3.5.2. Network setup screen - LAN

Table 3.5.2. LAN

Item Description

GATEWAY

SUBNET MASK

DNS

3-5-2-2. DHCP

An IP address is automatically assigned by the DHCP server, which automatically assigns IP address and other parameters to new devices. When ADSL or other network being used adopts variable IP method, not fixed IP. This option is used as a way to automatically get IP address. .

The fixed IP address of the DVR unit The IP address of the Gateway The subnet mask for the LAN The address for the DNS server

Page 23

Figure 3.5.3. Network setup screen - DHCP

3-5-2-3. ADSL (PPPOE)

Use ADSL (PPPoE) function when the network type is connecting through direct PPPoE method. If ADSL type is not using inputting IP and Password like VDSL or DVR is installed in IP sharer, a user can not select this function. In this case, a user should select DHCP or LAN.

Figure 3.5.4. Network setup screen - ADSL

Table 3.5.3. ADSL

Item Description

PASSWORD

The user ID for ADSL connection The password for ADSL connection

Page 24

3-6. Storage

User can set recording mode in the hard disk drive or initiate format of the hard disk drive.

Table 3.6.1. Storage setup

Item Description

OVERWRITE

FORMAT

USB UPGRADE

SAVE SETUP TO A

USB

LOAD SETUP FROM A

Overwrite existing material when hard disk drive is full Format hard disk drive The firmware of DVR can be upgraded through USB port. In order to upgrade, the upgrade firmware must firstly be downloaded and copied into the USB device. Create a new folder in the USB memory stick and copy the upgrade firmware “app.bin” into the folder. (This folder name should

be “upgrade”. )

After the upgrade firmware is copied into the USB memory stick, do the following;

1. Connect USB memory stick onto the USB port.

2. Go to the STORAGE>USB UPGRADE.

3. Select CONFIRM and then the upgrading will start automatically.

4. After the upgrade is completed, DVR will reboot automatically. User can save the current configuration of DVR to the USB memory stick. Put the USB stick on the front panel and press SEL to start the saving process User can upload the configuration of DVR to another DVR using the USB

USB

VIDEO DELETE DELETE VIDEO

AFTER

Memory stick. Put the USB stick on the front panel and press SEL to start the loading process. After upgrade is completed, DVR will reboot automatically and setup value will be applied. Enable/disable recording limit. Set the limit days for recording to the hard disk drive from 1 to 60 days.

Page 25

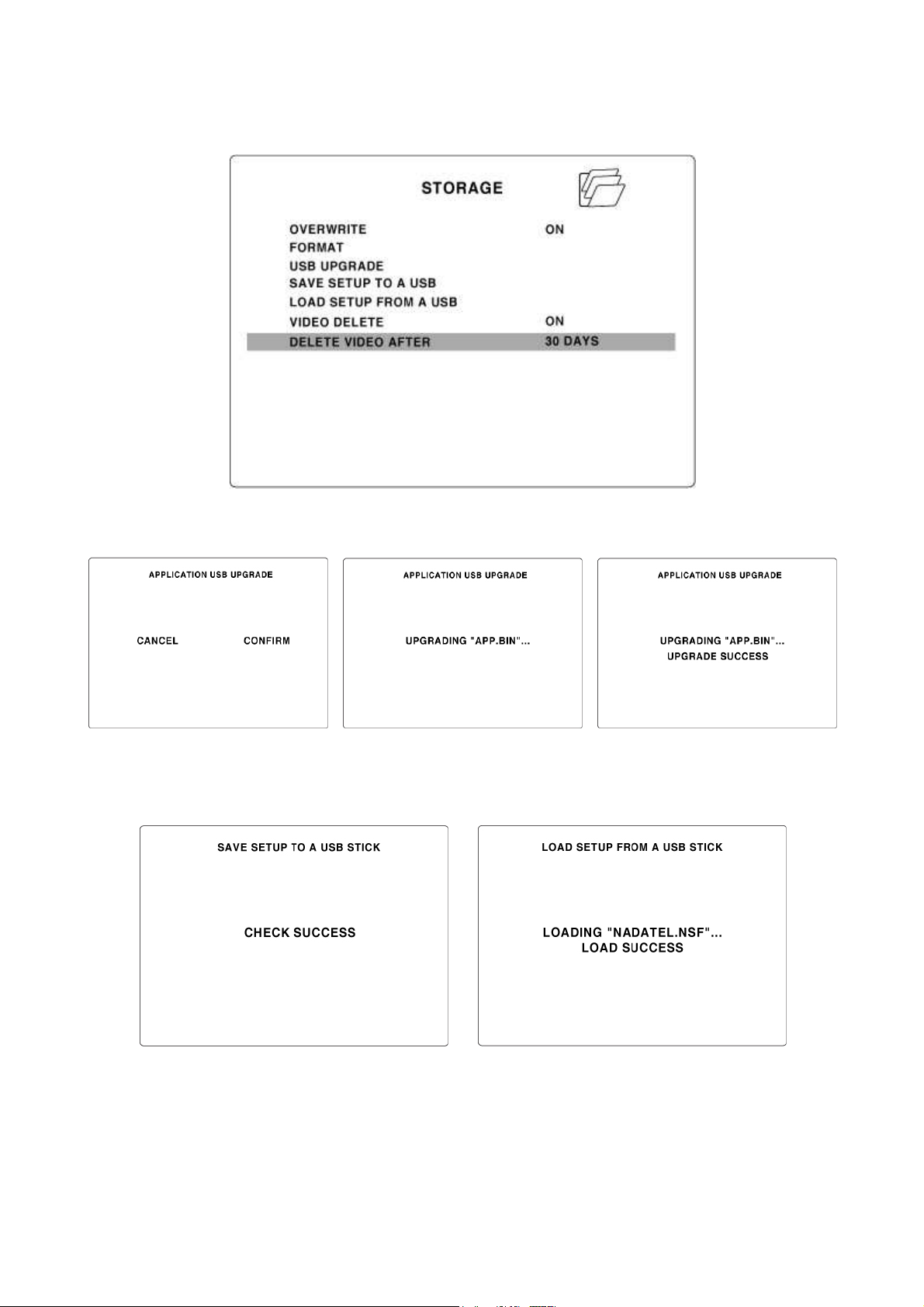

Figure 3.6.1. Storage setup screen

Figure 3.6.2. Storage setup –USB UPGRADE

Figure 3.6.3. Storage setup – SAVE SETUP TO A USB & LOAD SETUP FROM A USB

Page 26

4. LIVE & SEARCH

4-1. Live Window

In the Live window, video inputs from the cameras are displayed on the configuration of the live setup. Figure 4.1.1 shows the layout of the live screen. Various indicators showing the status of the DVR are shown as OSD symbols. Refer to Table 4.1.1 for the meanings of the indicators.

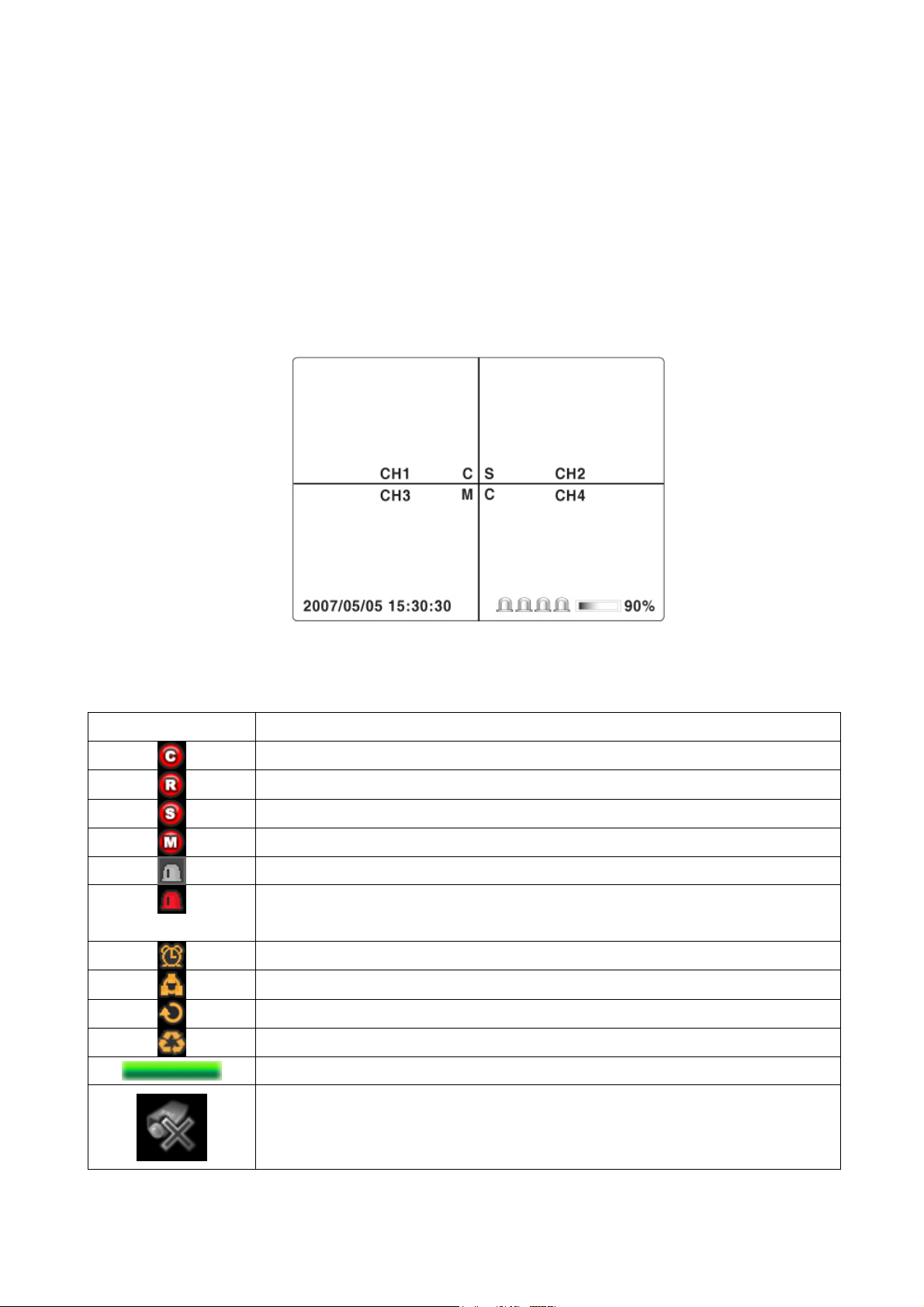

Figure 4.1.1. Live display screen

Table 4.1.1. Indicator ICONS in Live window

Indicator Description

Continuous recording in progress Manual recording in progress Sensor alarm recording in progress Motion alarm recording in progress Indicates no alarm event Alarm indicator. When there is an alarm (sensor alarm or motion alarm) in the video channel, this icon will be highlighted in bright red. Indicates that alarm output is activated. Indicates that a network client is connected to the DVR. Indicates that sequencing mode is enabled. Indicates the HDD is being recycled Indicates the percentage of recorded data into HDD Indicates there is no video signal input

Page 27

Table 4.1.2. Button functions of remote controller in Live window

Button Description

Select channel to be displayed in full screen mode.

Switch between full screen and quad display mode.

SEQ

RECORD

ARCH

SETUP

ESC

Press to start auto sequencing of the screen in full screen mode. (Toggle) Press to start and stop manual recording. Press to go to the search menu. Event search /Time line search /Log /Archive search Press to capture a still image. The still image will be stored into hard drive. It can be transferred to the USB device. Press to launch SETUP menu. Press for temporal storage of the changed value or to return to the previous menu screen.

Page 28

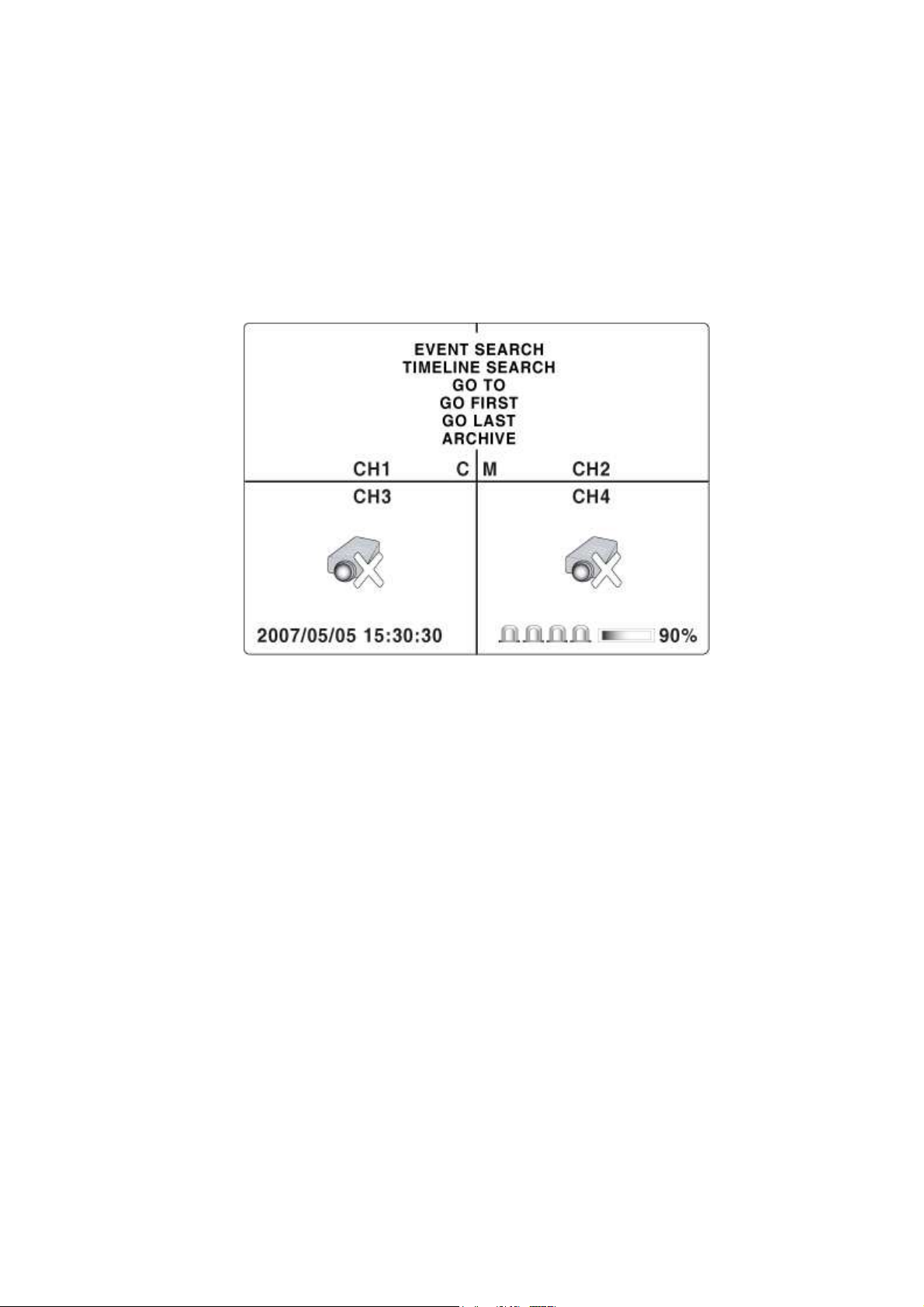

4-2. SEARCH window

Press SEARCH in live mode to enter the Search screen. When you press the Search button, DVR asks for a password as in Figure 4-2-1. Enter the password using the arrow controls. There are 7 ways of search menu such as TIMELINE, EVENT, GO TO FIRST TIME, GO TO LAST TIME, GO TO SPECIFIC TIME, LOG, and ARCHIVE on the screen.

Figure 4.2.1. Search window

4-2-1. EVENT Search

The Event Search window is used to find stored video. Three categories of search filters can be applied: DATE, CHANNEL and TYPE. Press SEL to select a value and move down to the next category and use the UP arrow button to move up to the categories you have previously entered. The ESC button will return the user to the previous screen.

1. Select the date of the video to begin searching. Use the LEFT, RIGHT, UP, and DOWN buttons to navigate through the days.

2. Once you have selected the date, press SEL to move to the CHANNEL selector.

3. Use LEFT and RIGHT buttons to change the channel selection from ALL to any of the available channels.

4. Once you have selected the channel, press SEL to move to the TYPE selector.

5. Use the LEFT and RIGHT buttons to change the type of recording to ALL, MOTION, SENSOR, MANUAL, or CONTINUOUS.

6. Once you have selected the type of recording to search for, press SEL to produce a list of instances that fit your search criteria.

Page 29

7. Use the UP and DOWN buttons to scroll through the on-screen listings.

8. Use the LEFT and RIGHT buttons to display a list of events that happened previous to or after the current selection.

9. Once the desired event has been selected, press SEL to start playing back the selected video.

10. Press the BACKUP button to launch the archiving function in playback mode.

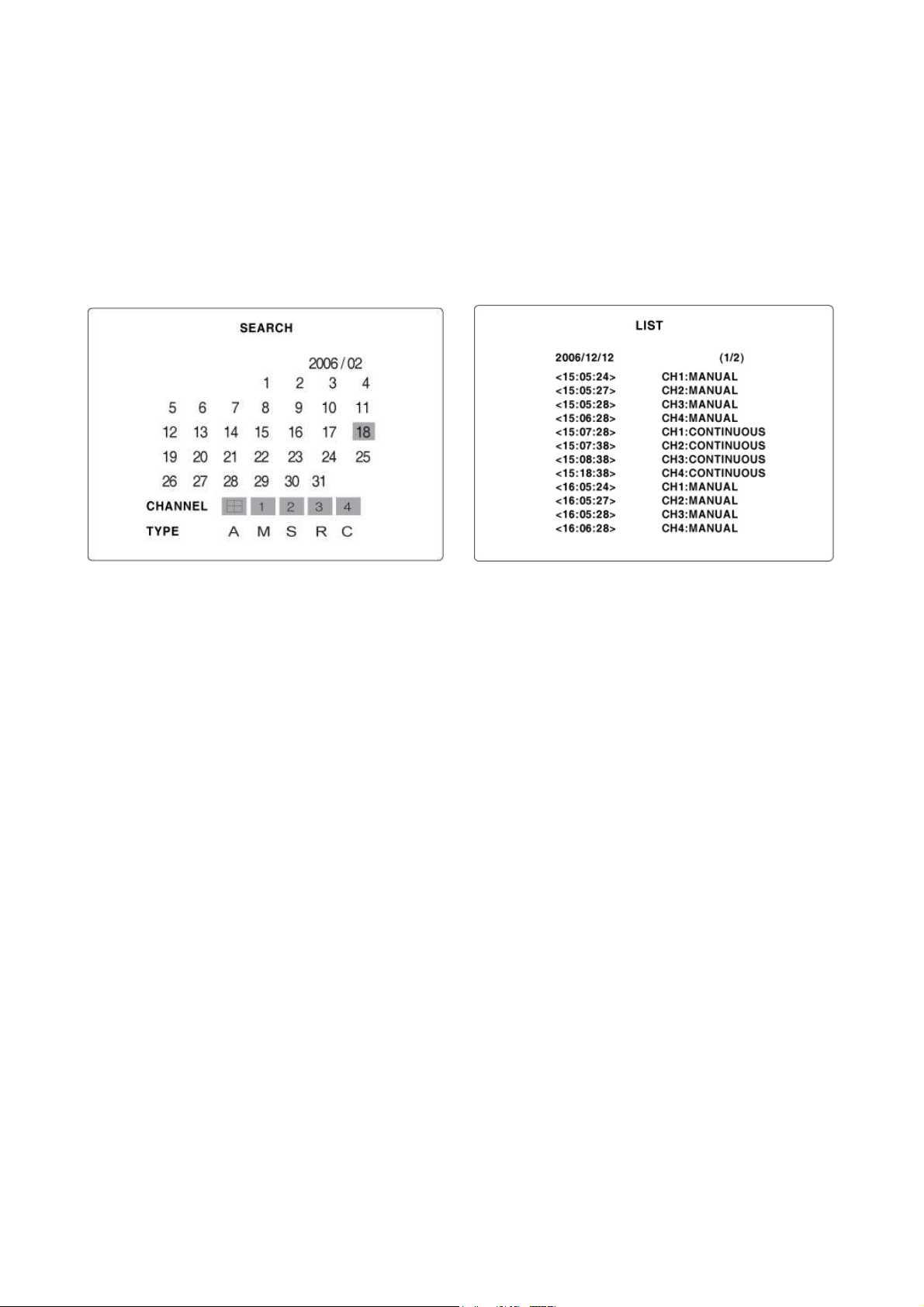

Figure 4.2.2. Event search screen

4-2-2. TIME LINE Search

The TIME-LINE search window is used to find the stored video by using the time line bar.

1. Select the date of the video to begin searching by using the LEFT, RIGHT, UP and DOWN buttons to navigate through the days.

2. Once you have selected the date, press the SEL button to move to the time line search window.

3. Use LEFT / F/ADV or RIGHT/ F/REW buttons to select a time zone on the 24 hours time table.

: The recording mode is indicated on the screen as below.

Note C: Continuous-Green M: Motion-Yellow S: Sensor-Red R: Manual -Purple

1. Once you have selected the time zone, press the SEL button to move to the 60 minutes time table.

2. Select All or a specific channel to search by using the UP and DOWN arrow buttons.

3. Once you select the channel, use the LEFT / F/ADV or RIGHT/ F/REW arrow buttons to move the time line select bar (blue) to the point you wish to start playing the video clip.

4. Press the SEL button to playback the recorded video.

Page 30

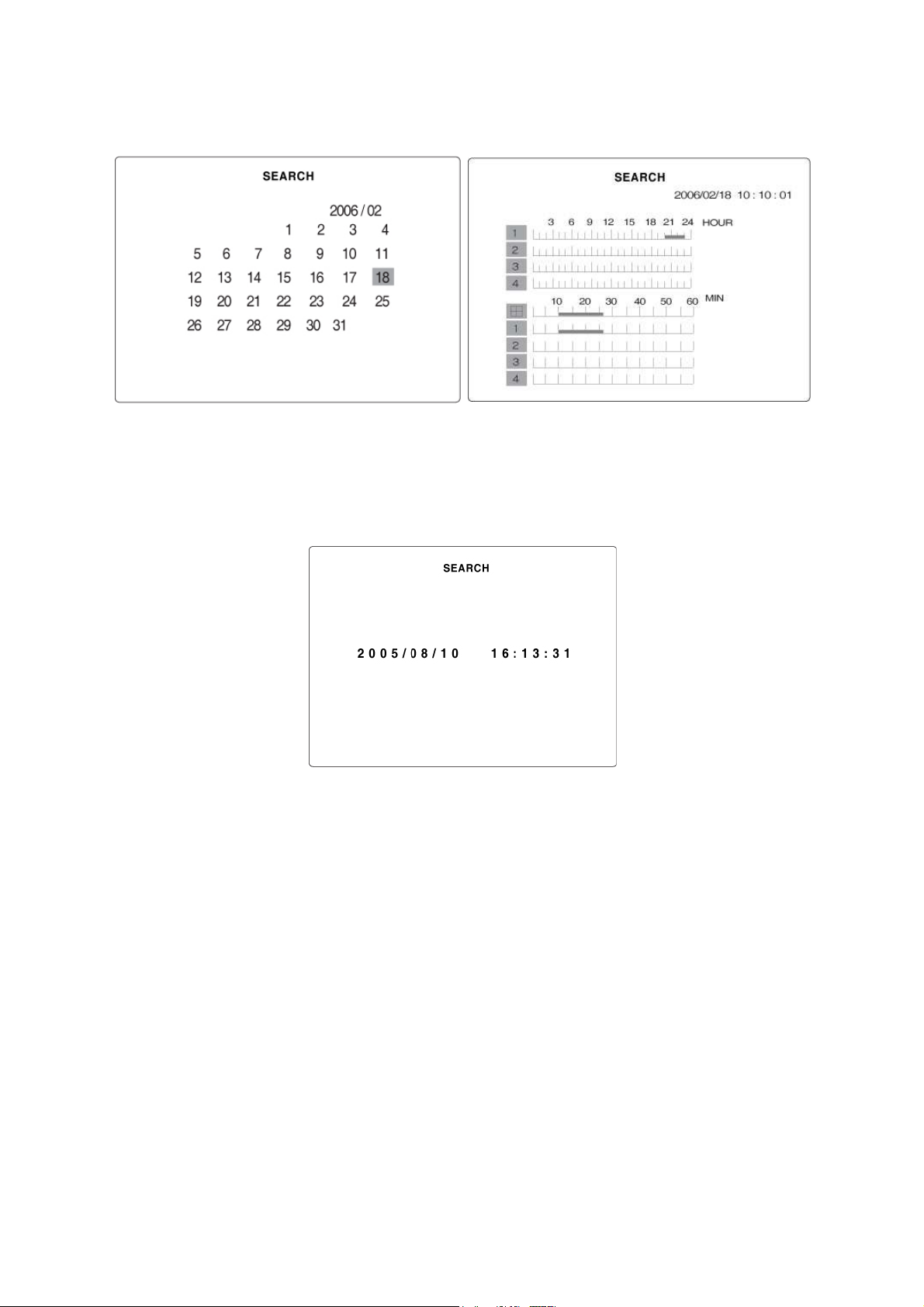

Figure 4.2.4. Time line search screen

4-2-3. GO TO

You can search for specified data by setting the time and date in this menu. Use the LEFT or RIGHT button to move from left to right in this menu. Use the UP or DOWN button to set the date and time.

Figure 4.2.5. GO TO search screen

4-2-4. GO FIRST

You can access to the first data which has been recorded into the HDD disk by pressing this menu.

4-2-5. GO LAST

You can access to the last data which has been recorded into the HDD disk by pressing this menu.

4-2-6. LOG List

User can see the log list by selecting this item.

Page 31

Figure 4.2.6. Log list screen

4-2-7. ARCHIVE Search

The ARCHIVE SEARCH window is used to find the stored video.

1. Select the date on the calendar to begin searching by using the LEFT or RIGHT button.

2. Once you have selected the date, press the SEL button to move to the list of recording data.

3. Use the UP or DOWN button to scroll through the onscreen listings.

4. Once the desired event has been selected, press the SEL button to see the selected video in paused mode.

5. Press the ARCH button to archive the video into USB memory stick.

Figure 4.2.7. Archive search screen

Page 32

4-3. Playback mode

During the playback of a recorded event, the mode changes from SEARCH to PLAY. While in PLAY mode, you may return to SEARCH LIST by pressing the ESC button. Playback starts in quad mode with channel 1 highlighted by default. If audio is enabled, it will only play from the highlighted channel.

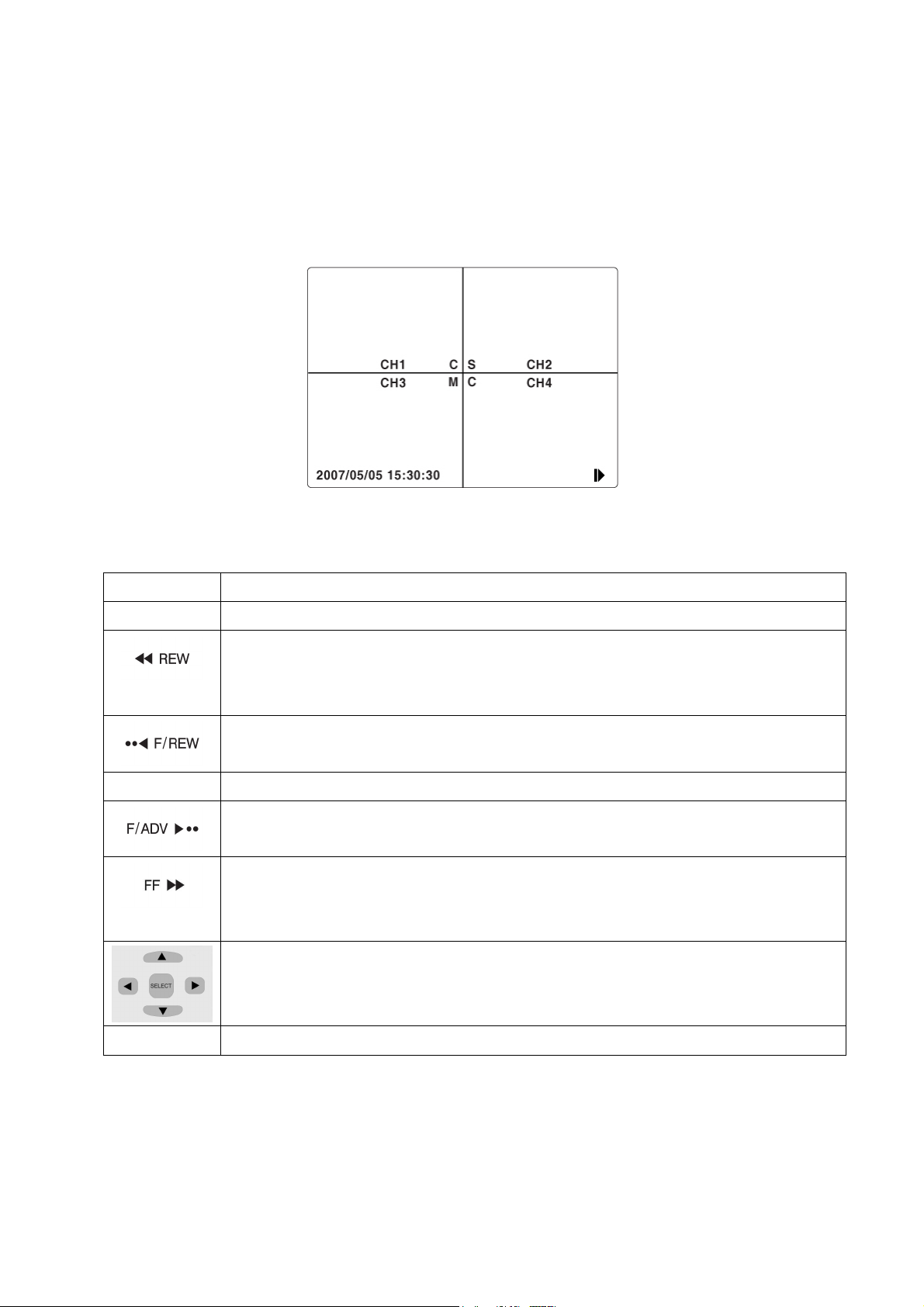

Figure 4.4.1. Playback mode screen

Table 4.4.1. Button functions of remote controller in Playback mode

Button Description

ESC

PLAY/PAUSE

Return to the previous menu screen, search list, or exit menu Press to rewind the footage at 1x, 2x, and 4x speeds. Reverse playback speed is shown as -1x (normal), -2x (2 times normal), and -4x (4 times normal) at the bottom right of the screen.

Jump/Step backward. – The playback position moves 60 seconds backward.

Press to play or pause recorded video.

Jump/Step forward –Playback position moves 60 seconds forward.

Press to fast forward the footage at 1x, 2x, and 4x speeds. Playback speed is indicated as +1X, +2X, and +4X for normal, twice, and 4 times of the regular speed at the bottom right of the screen. UP: 1CH, RIGHT: 2CH, DOWN: 3CH, and LEFT: 4CH to be highlighted UP: NO. 1, RIGHT: NO. 2, DOWN: NO. 3, and LEFT: NO. 4CH to input password

ARCH

Press the ARCH button to archive the video into HDD.

Page 33

5. Archiving and Backup

To backup a still image or video to a USB storage device, user must firstly archive a still image or video to the hard drive.

5-1. Archiving Still images or Video

Still images can be captured and archived into the hard drive in live mode or while playing back.

1. In live mode, press ARCH button to capture and archive the still image. Once you press the ARCH button, the screen will be displayed as shown in Figure 5.1.1.

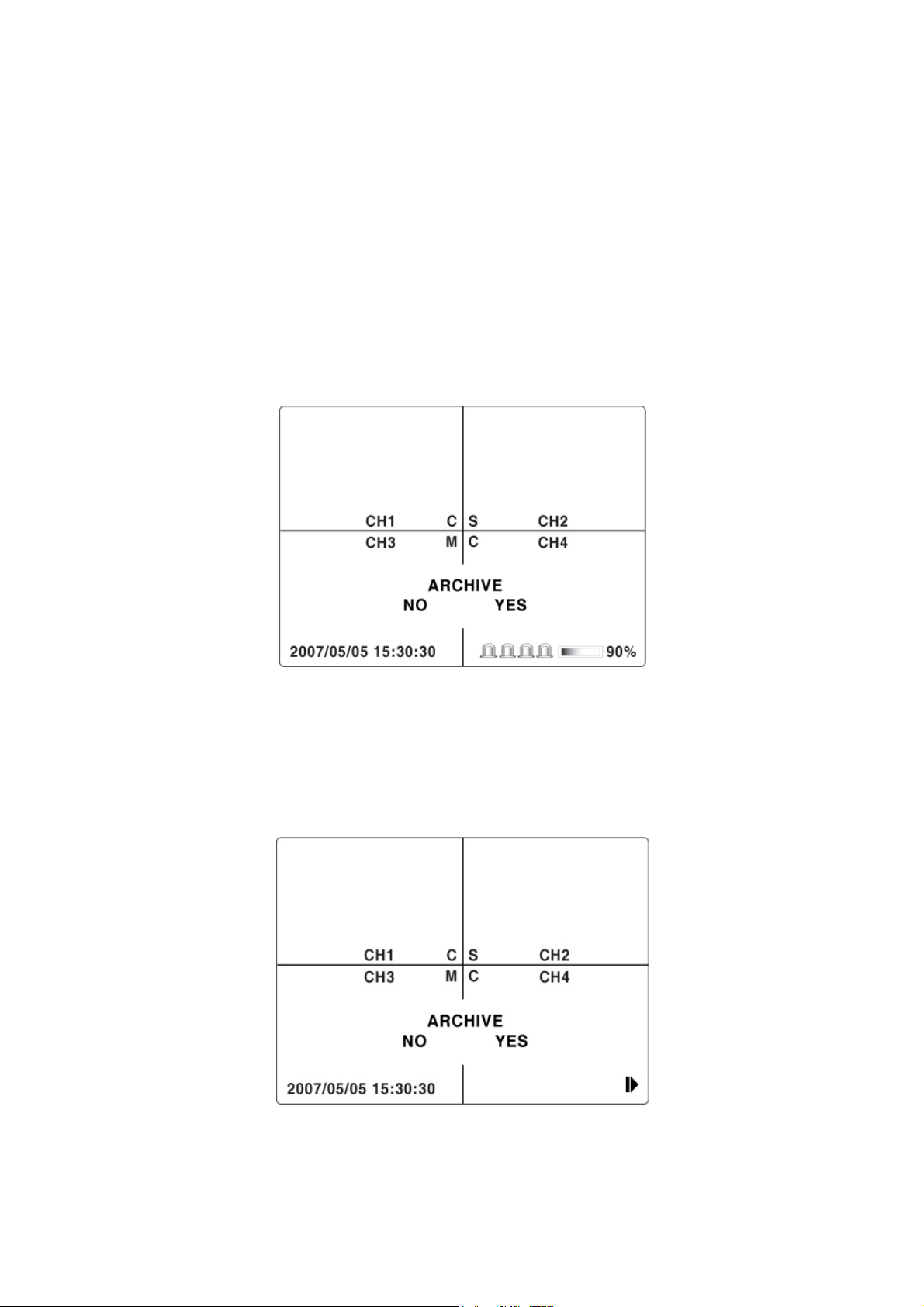

Figure 5.1.1. Archive screen in Live mode

2. In playback mode, the DVR will ask whether to store still image or video. If the user selects still image or

video, it will store captured image or video into the HDD. User can find the list of archived data in ARCHIVE search menu.

Figure 5.1.2. Archive screen in Playback mode

Page 34

5-2. Backup still images or videos on USB memory stick

1. To begin transferring stored image or video into a USB memory stick, connect a USB memory stick.

2. Press the SEARCH button to bring up the ARCHIVE search screen which will allow you to specify a date and time to search for stored images or videos.

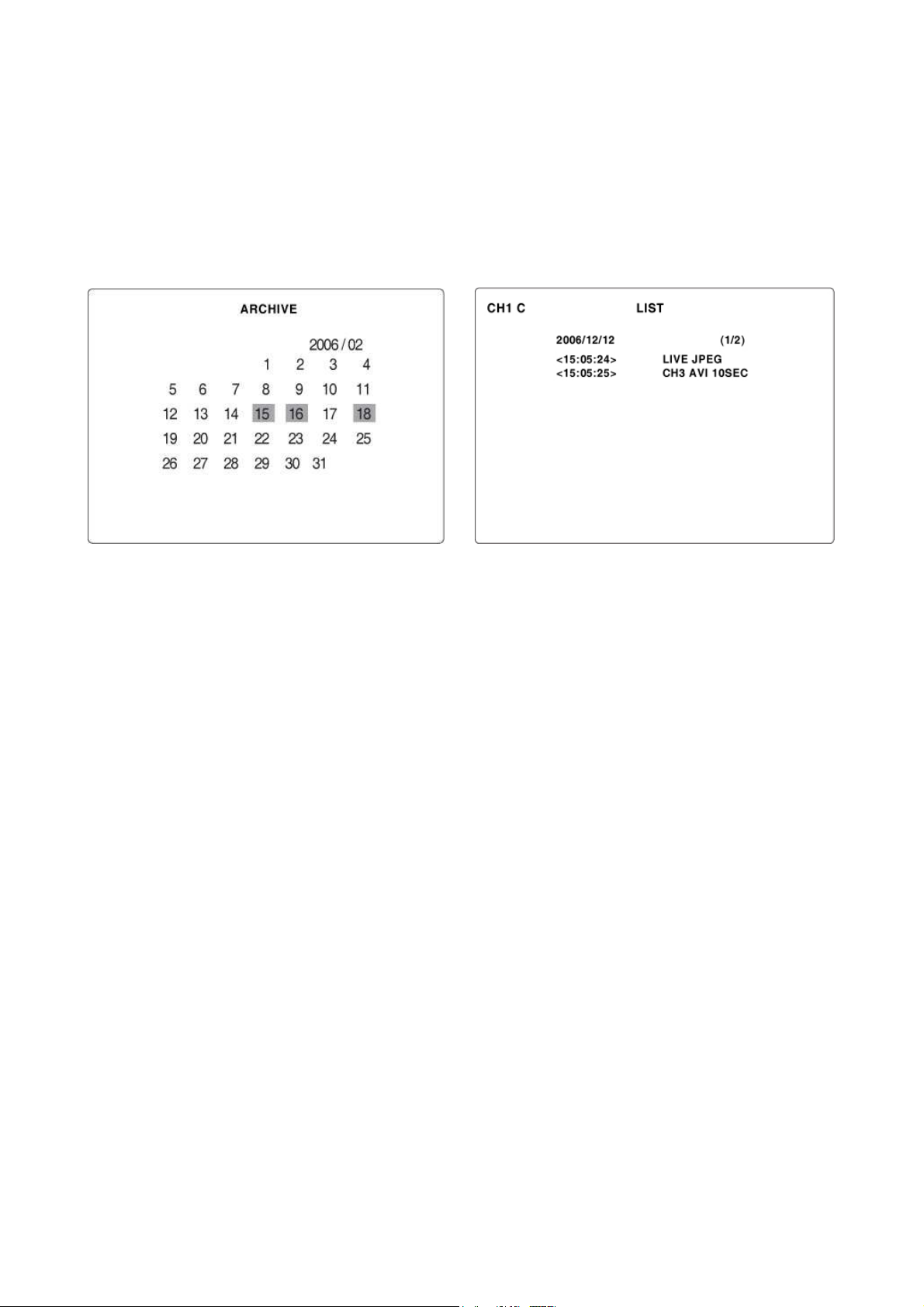

Figure 5.2.1.Archive search screen

3. Press the SEL button to retrieve lists of archived image or video.

4. Select and display one of the files on the screen in the archived list by using the UP or DOWN button.

5. And then press the ARCH button to transfer the data into the USB memory stick.

6. If there is NO enough space in the USB memory stick, the DVR will popup the message that there is no space in the USB memory stick.

5-3. Playing backup file

If a proper CODEC is not installed in PC, it is possible that backup data can not be played. You must install ‘ffdshow’ CODEC that is supplied on Network Client S/W CD.

Page 35

6. Network – By an exclusive viewer

The DVR provides a live remote monitoring feature. Remote monitoring requires installation of a software client program on your PC.

NOTICE

In a high bandwidth network, a maximum of four users can access one DVR simultaneously. In a low bandwidth network it is recommended that only one user access the DVR at a time. For remote viewing, the frame rate is limited to 1 frame/sec when there is no recording operation in the DVR. When the DVR is recording, the video frame rate for remote live monitoring will follow the recording frame rate on the DVR.

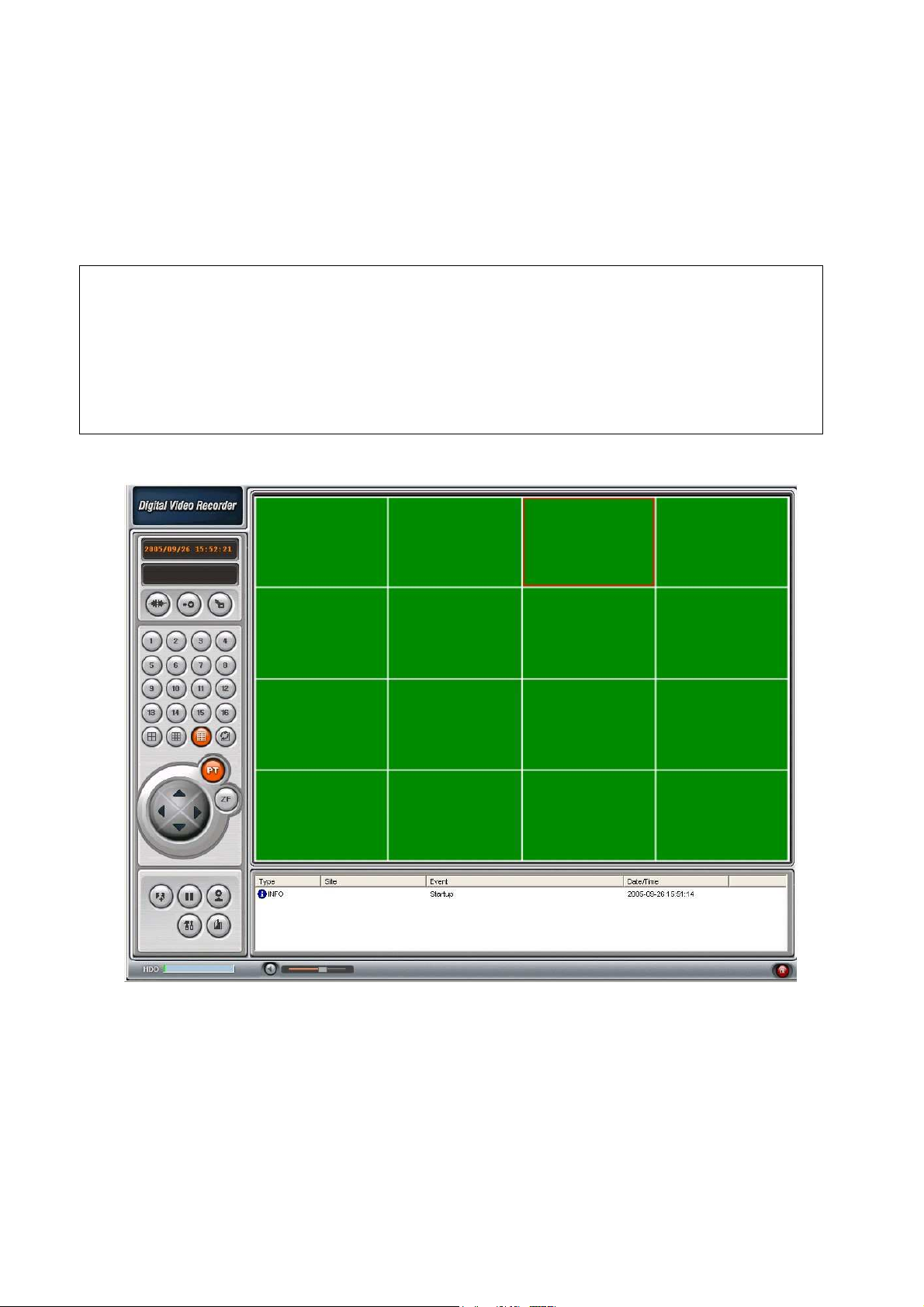

Figure 6.1. Main user interface

6-1. Overview

The remote software supports remote live viewing, search, playback and system configurations. By installing the Network Client Viewer on a Windows PC, you can monitor real-time and recorded images via optional Ethernet network.

Page 36

6-2. Minimum PC requirements

PC Specification Minimum Requirement Recommended CPU

500Mhz 2Ghz Memory 128MB 256MB VGA 16MB 64MB Resolution 1024x768 1024x768 Disk space 10MB 10MB OS Windows 2000 Windows 2000, Professional, XP, Vista Network 10/100Base T 10/100Base T Others Direct X 8.1 Direct X 9.0 or Higher

Before installing the program, check the PC specifications. The Network Client Viewer may not perform correctly if the PC does not meet the minimum requirements.

Intel Pentium Ⅲ Intel Pentium Ⅳ

6-3. Installing the program

1. Insert the provided CD into the CD-ROM drive of your PC.

2. Run to start the installation process. (It may be in different name such as NView)

3. Follow the on-screen directions.

4. Double click the icon to start the program.

Page 37

6-4. Live viewer

When installation is complete, double click the icon on your desktop to start the program.

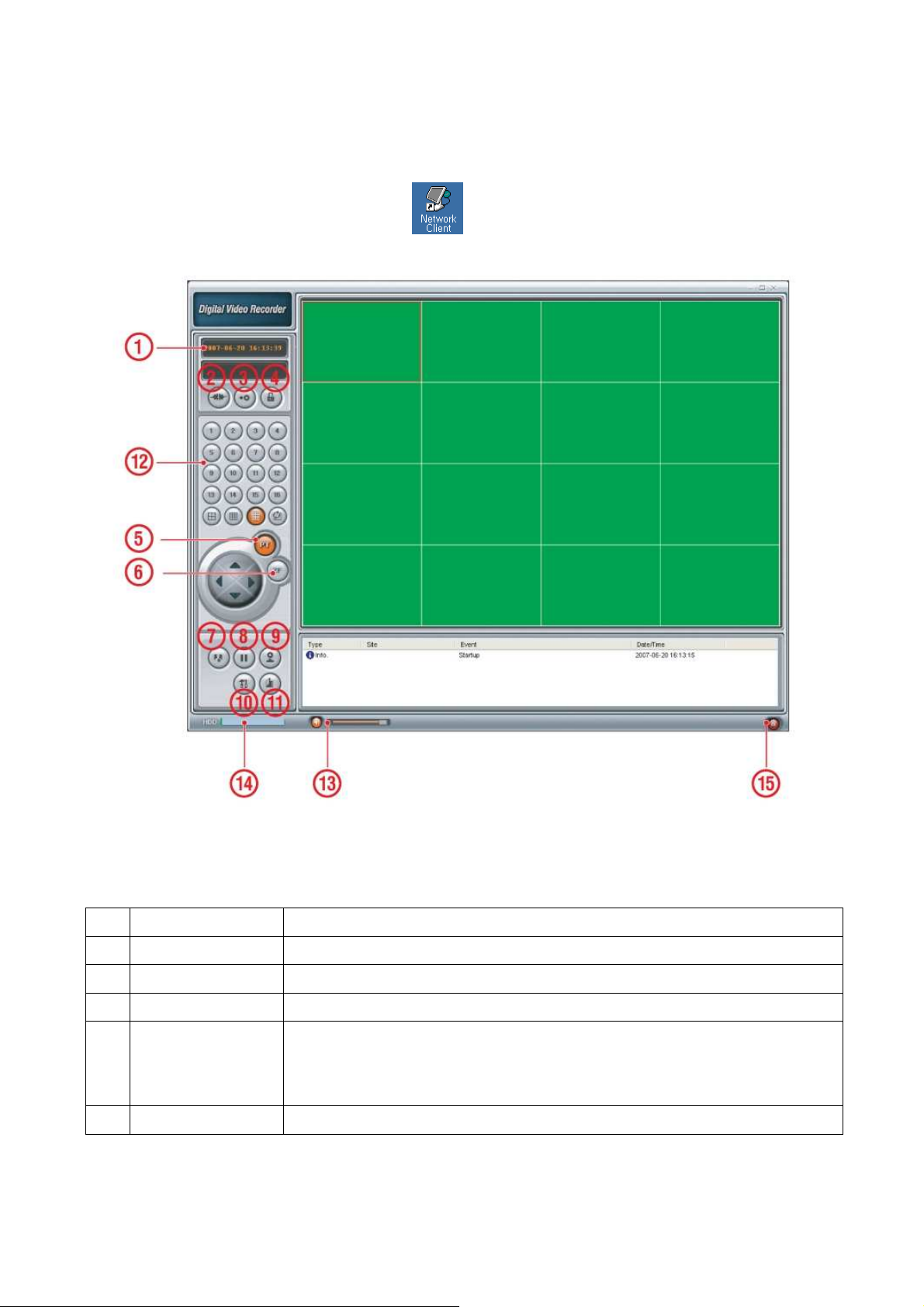

Figure 6.4.1. Main user interface

Table 6.4.1. Main controls in Live

NO Button Description

DATE & TIME

CONNECT

LOCK/ UNLOCK

PAN/TILT

Displays the current date and time. Click this icon to connect to the DVR Click this icon to search for recorded video. Click this icon to lock/unlock all operations of the client software. Once the lock or unlock icon is clicked, this pop up window appears. Remember the password and enter it when you operate the client software. Use these buttons to control the PAN/TILT features on the remote camera.

Page 38

ZOOM/ FOCUS

CAPTURE

PLAY/PAUSE

RECORD

SETUP

EXIT

DISPLAY MODE

AUDIO

Use these buttons to control the ZOOM/ FOCUS features on the remote camera.

Click this icon to capture a still image. Once the capture icon is clicked, this pop-up window appears. The still image is captured in either jpeg or bmp file format.

Click this icon to play/pause live video. Enable or disable recording of live video to local disk. Click this icon to setup configuration of client software. Click this icon to exit the client software. Click these icons to select display mode. Use the volume control bar to set the audio level.

14 15

HDD USAGE ALARM

The audio can be turned on or off by clicking the audio icon. DVR HDD storage Indicator. The alarm output indicator lights up for 5 seconds if alarm output is activated

on the DVR.

Page 39

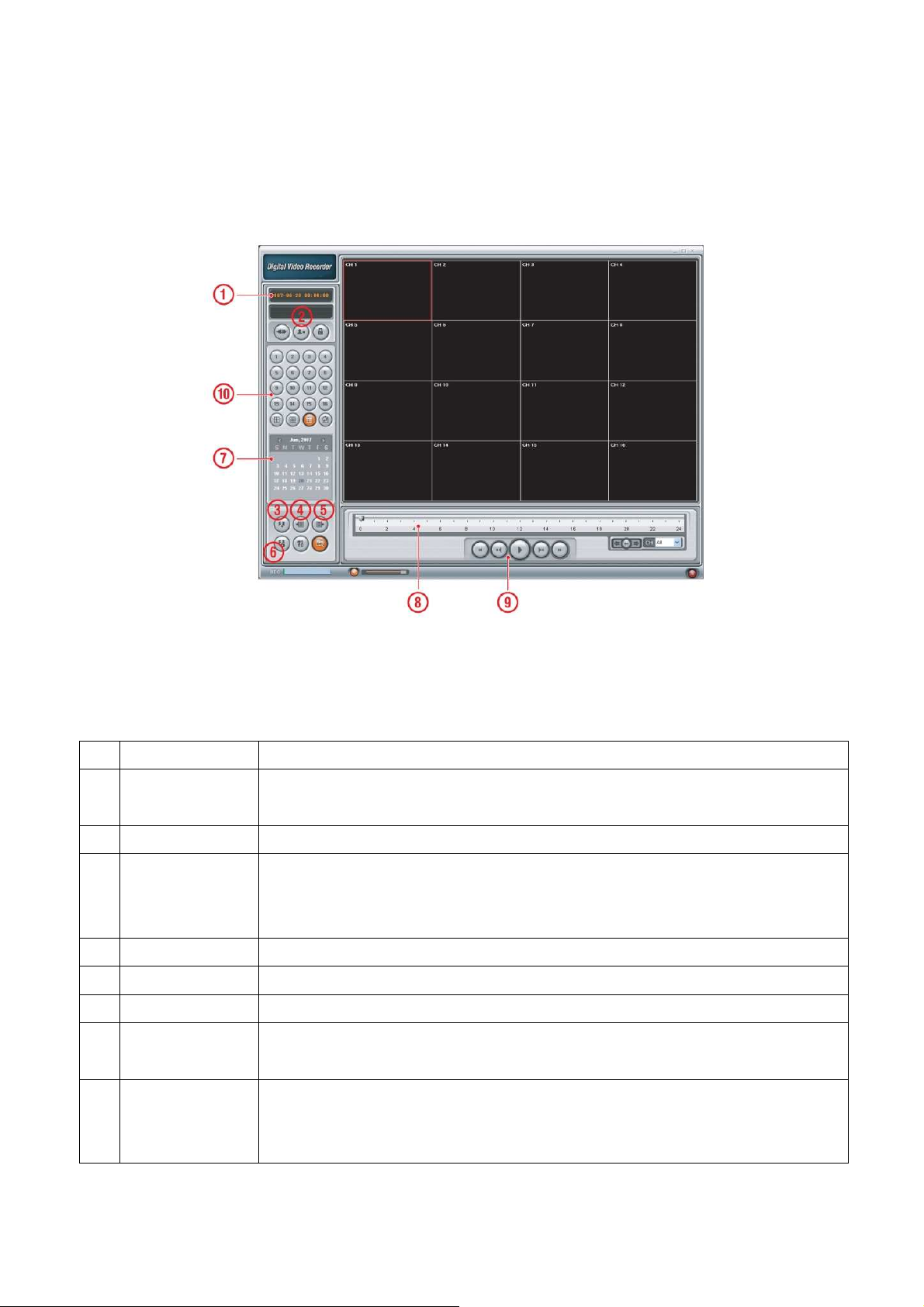

6-5. Search and Playback Viewer

The search window can be accessed by clicking the search icon on the upper right of the main user interface.

Figure 6.5.1. Main user interface

Table 6.5.1. Main controls in Search

No Button Description 1 DATE & TIME

2 LIVE 3 CAPTURE

4 MARK IN 5 MARK OUT 6 BACKUP 7 SEARCH

CALENDAR

Displays the recording time of the data selected on the time bar at the bottom of the main user interface. Click this icon to see live video. Click this icon to capture a still image of recorded video. Once the capture icon is clicked, this pop up window appears. The still image is captured in either jpeg or bmp file format. Click this icon to set the start time for video backup. Click this icon to set the ending time for video backup. Click this icon to backup the selected recorded video in AVI format. The calendar shows dates with recorded video in a light blue and the selected date in dark blue.

8 TIMELINE BAR

The timeline shows recorded data in dark blue on the bar. You can adjust the timeline scale and move it to the time you wish to play back. Click the play icon to display the recorded video.

Page 40

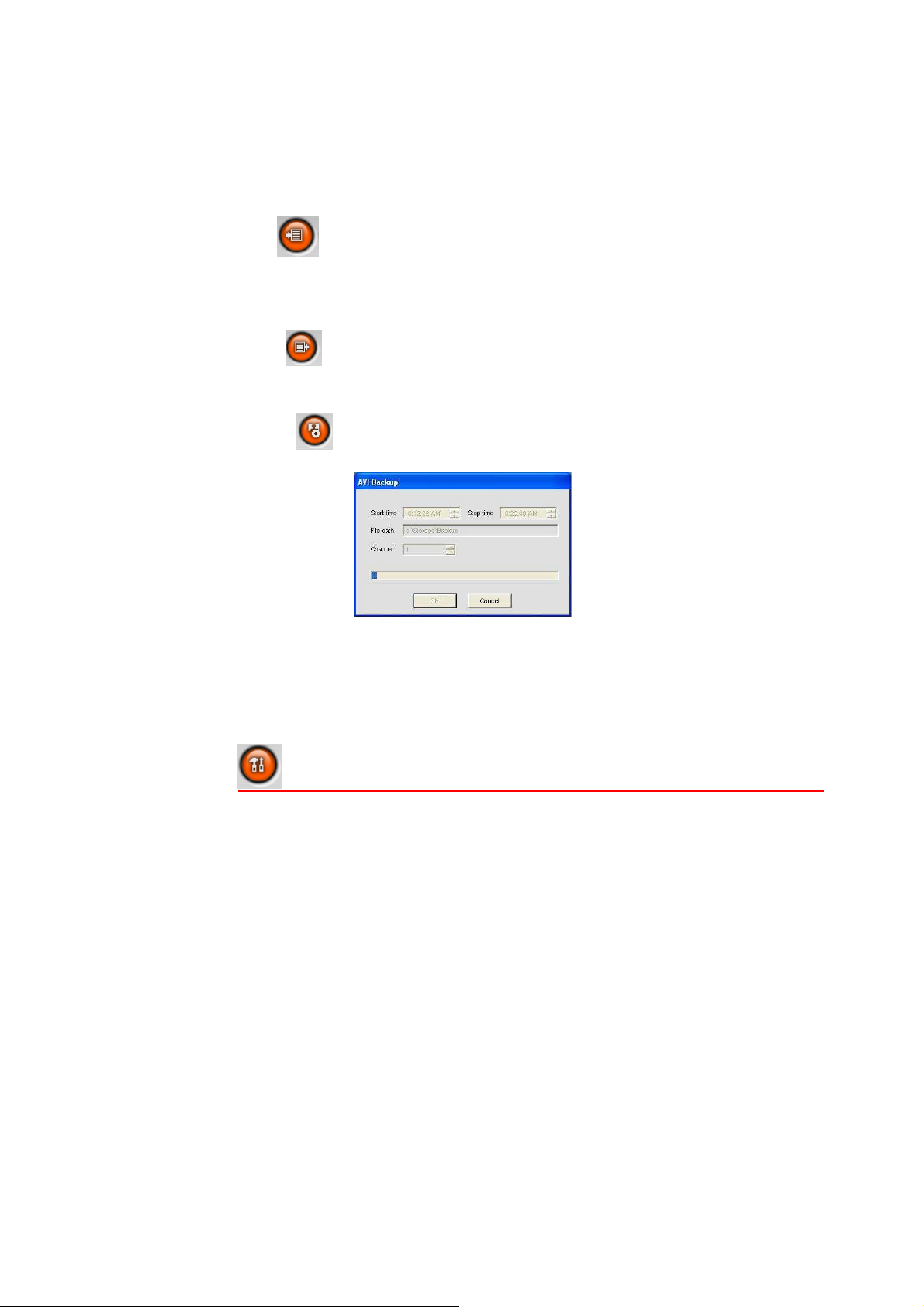

6-5-1. Backup

You can back up recorded video in AVI format from the search viewer.

1. Click the MARK IN icon when the scale on the blue timeline is on the time you wish to the backup file to begin.

2. Set the ending time on the blue timeline by dragging the scale to the ending time for the backup file and

clicking the MARK OUT icon . The color of the timeline between the beginning time and ending time will change to dark green.

3. Next, click the backup icon and the pop up window appears as below.

The beginning and ending time can also be set on this window. After selecting a channel for backup, click the OK button. The backup will begin.

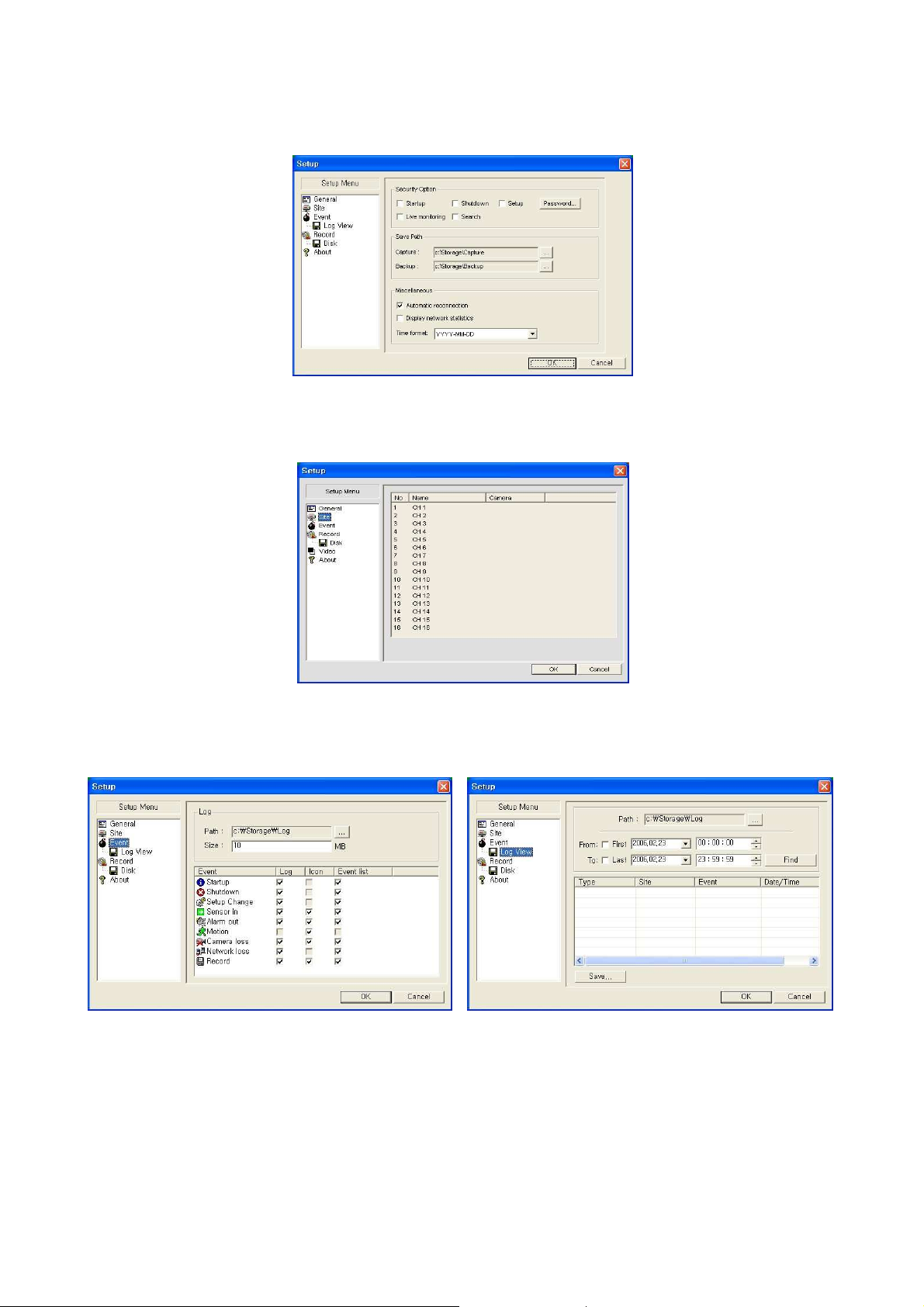

6-6. PC System configuration

Click the setup icon to setup the configuration of PC that the network client S/W is installed.

6-6-1. General

Once you click the setup icon, this pop up window appears. Select security options and set a password. When you access any of the selected functions, you will need to enter the password. You can also set the save path for capturing and backup.

Security Option: Set a password for security options. Save Path: Specify the location to record the receiving video for Backup and still image for Capture. Automatic reconnection: If a user selects this function, the client S/W will automatically try to connect to the

previously connected IP address if the network connection is lost. Display network statistics: If a user selects this function, the client S/W will display network status, Bit rate and Frame rate. Time Format: Change the way the Client software displays the time.

Page 41

9-6-2. Site

This option shows the channel information of the DVR and allows you to change the channel title.

9-6-3. Event

You can set event items, the amount of local disk space you want to allow and the save path for the log file.

 LOG – Select to save event log into ‘log file’.  ICON – Select to display the event on live video.  EVENT LIST – Select to show the event in the ‘Event List” window of live mode.

You can search and check the recorded log data.

Page 42

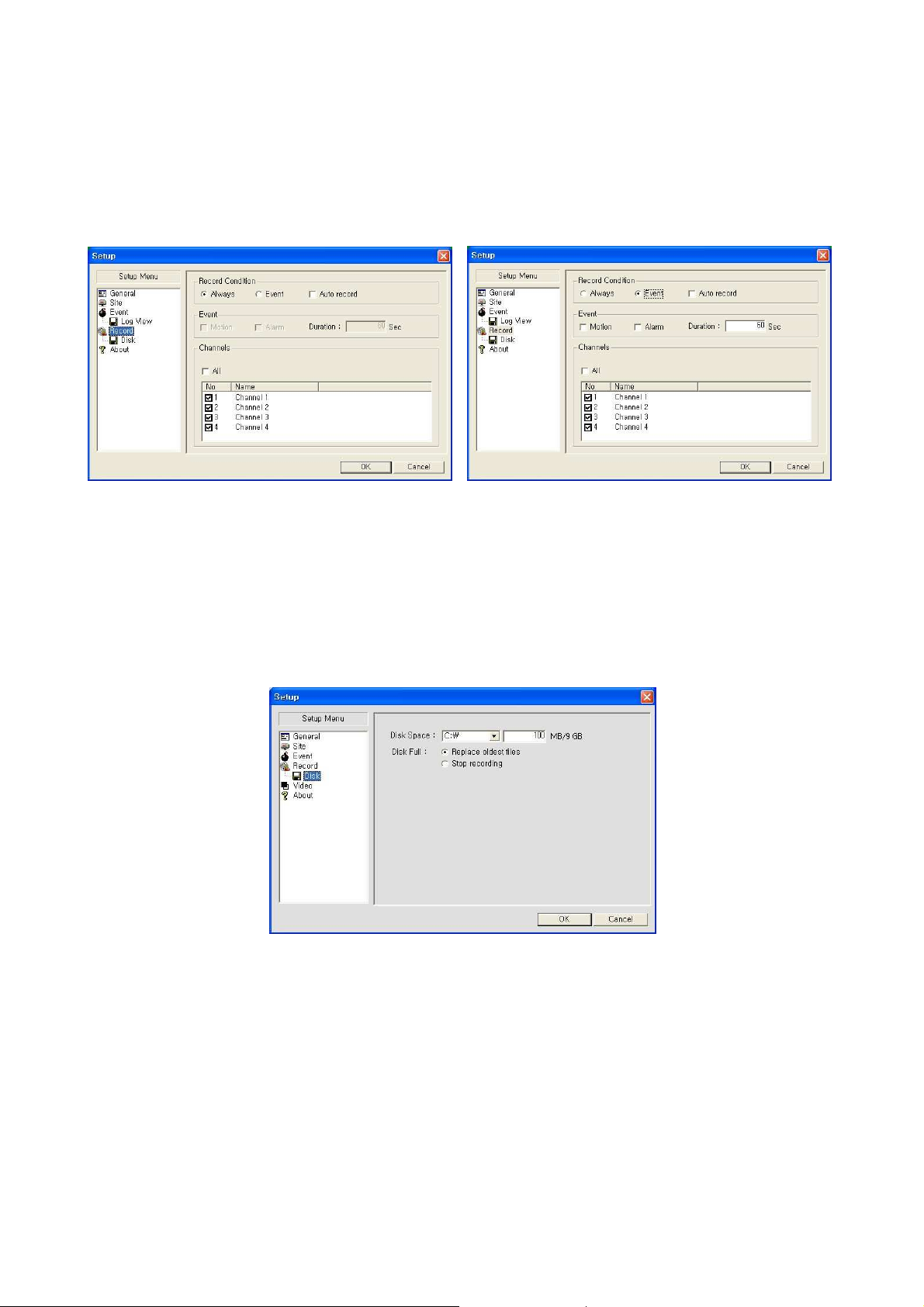

9-6-4. Record

You can set the recording conditions for Always, Event, or Auto recording. You can also select individual channels or all channels to record.

When you set the recording condition to Event, you can set event for motion or alarm with duration. You can also set each or all channels to record.

9-6-5. Disk

You can select which local disk to use and the amount of disk space you want to allow the program to use for recording. You can also choose to overwrite data or stop recording when the maximum amount of disk space is full.

Page 43

7. Network – By an web-browser viewer

The DVR provides a live remote monitoring feature by web-browser viewer.

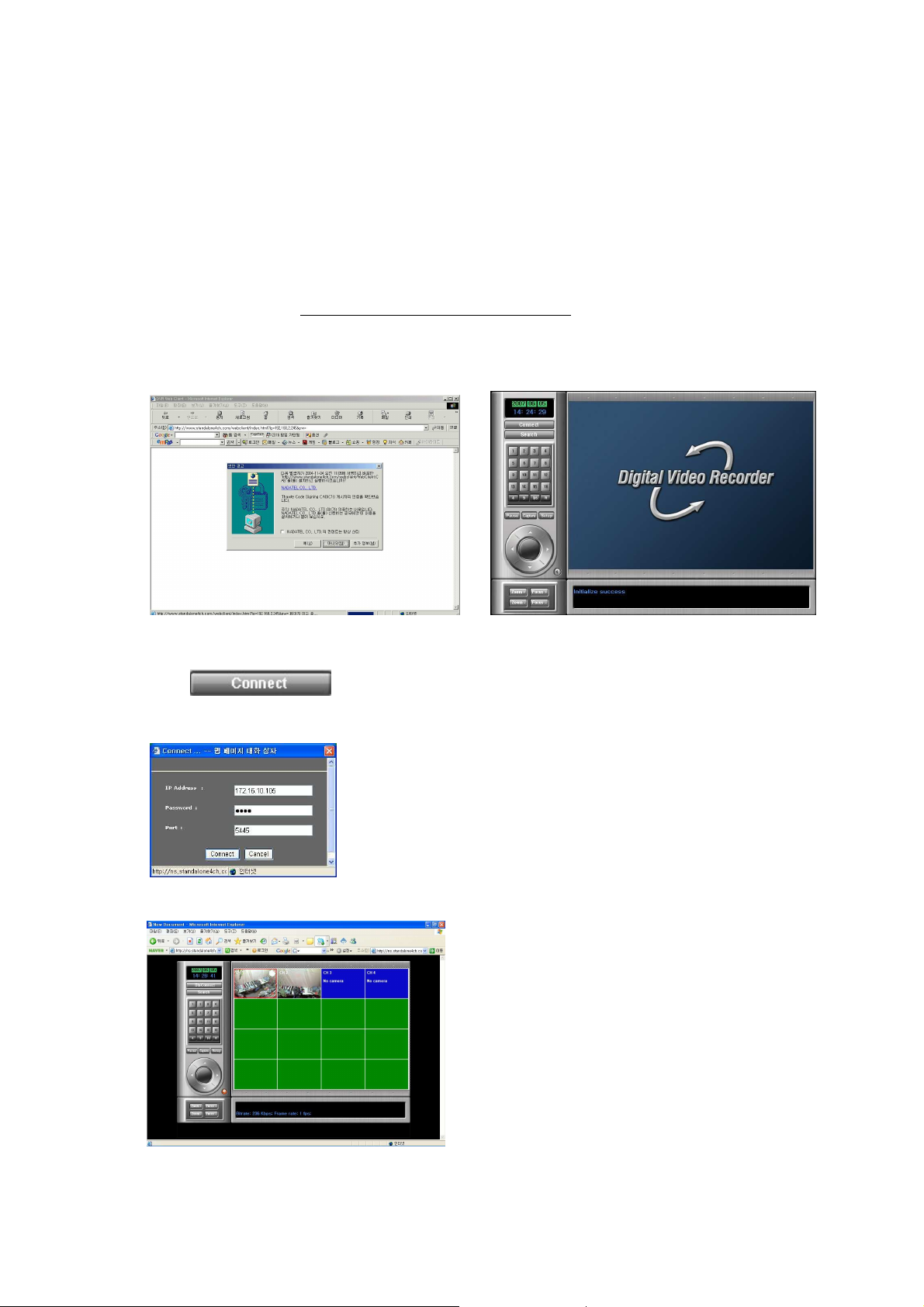

7-1. Download Web Brower Viewer and Connection

1. User needs to access http://ns.standalone4ch.com/webview2/ to get a web browser viewer. Then the window will appear as bellow. Click “YES” to download Web Browser Viewer from the server run by the manufacturer.

2. Web Browser Viewer will be downloaded and installed.

3. Click button and enter IP address (or Domain name using DDNS), the password, and Port number.

4. Then user can access DVR.

Page 44

7-2. Main Features

7-2-1. Live

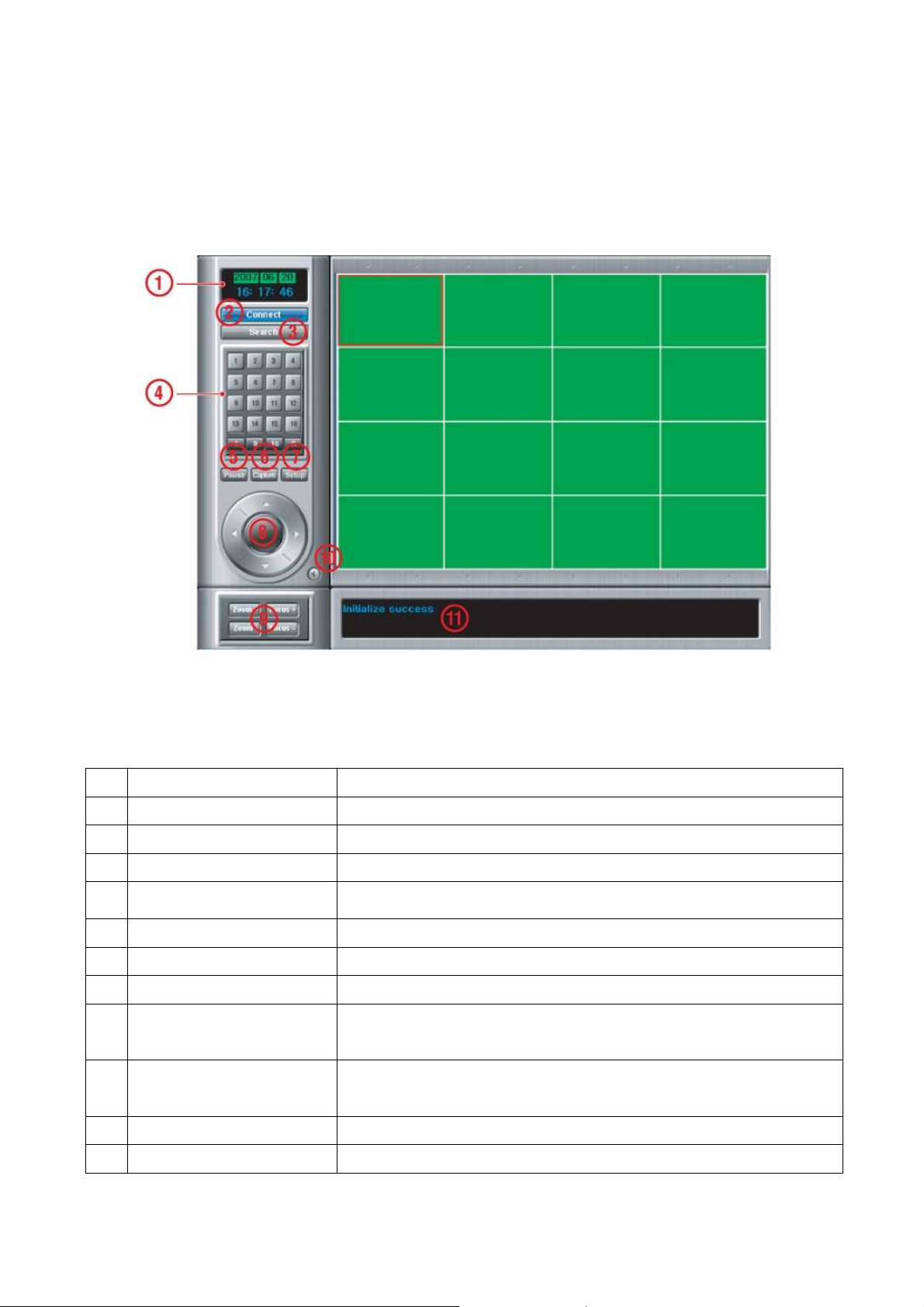

Figure 7.2.1. Main user interface - Live

Table 7.2.1. Main controls in Live

No Name Description

DATE & TIME

CONNECT

LIVE DISPLAY MODE

PAUSE

CAPTURE

SETUP

PAN/TILT

ZOOM/FOCUS

Displays the current date and time. Click this icon to connect to the DVR Click this icon to search for recorded video. Click these icons to select display mode.

Click this icon to pause the display screen. Click this icon to capture the image from live display. Click this icon to control remotely the setting of DVR. Use these buttons to control the PAN/TILT features on the remote camera. Use these buttons to control the ZOOM/ FOCUS features on the remote camera.

AUDIO

CONNECTION STATUS

The audio can be turned on or off by clicking the audio icon. Shows the client connection information.

Page 45

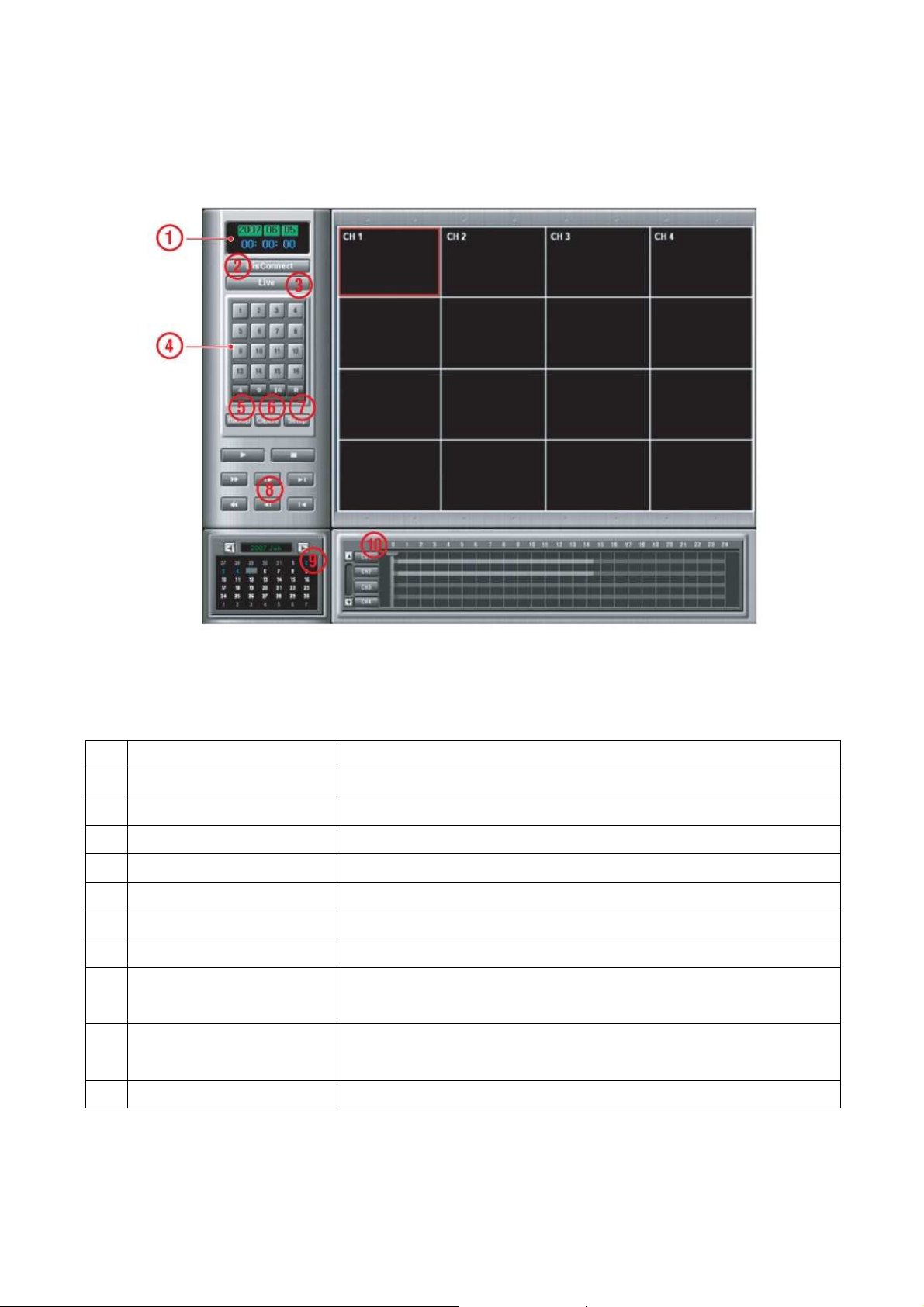

7-2-2. Search and Playback

Figure 7.2.2. Main user interface – Search & Playback

Table 7.2.2. Main controls – Search & Playback

No Name Description

DATE & TIME

Connect/Disconnect

LIVE

DISPLAY MODE

BACKUP

CAPTURE

SETUP

PLAYBACK BUTTONS

Displays the current date and time. Click this icon to connect to the DVR Click this icon to search for recorded video. Click these icons to select display mode. Click this icon to pause the display screen. Click this icon to capture the image from playback. Click this icon to control remotely the setting of DVR. Use these buttons to control the PAN/TILT features on the remote camera.

SEARCH CALENDAR

Use these buttons to control the ZOOM/ FOCUS features on the remote camera.

Timeline Search Window

The audio can be turned on or off by clicking the audio icon.

Page 46

APPENDIX

1. How to register DDNS (Dynamic Domain Name Server)

If DVR is installed in network using dynamic IP addressing and user want to access DVR with domain name instead of IP address, user should register DVR and domain name with DDNS.

1-1. Setting of NETWORK Setup menu

A. Please go to SETUP>NETWORK. There are three network types such as DHCP, ADSL, and LAN.

B. Please select proper network type and set DDNS as ON.

DHCP: Select when DVR is installed in Local Network with router or IP sharer and IP address is automatically assigned by the DHCP server.

LAN: Select when DVR is installed in Local Area Network with router or IP sharer and IP address is static and private IP address.

ADSL (PPPoE): To use this ADSL (PPPoE) function when the network type connecting the DVR is using PPPoE method.

If ADSL type is not using inputting IP and Password like VDSL or DVR is installed in IP sharer, a user can not select this function. In this case, a user should select DHCP or LAN.

C. Please make sure DDNS SERVER NAME is “www.ddnscenter.com”.

Page 47

***** Network setup with Dynamic IP service *****

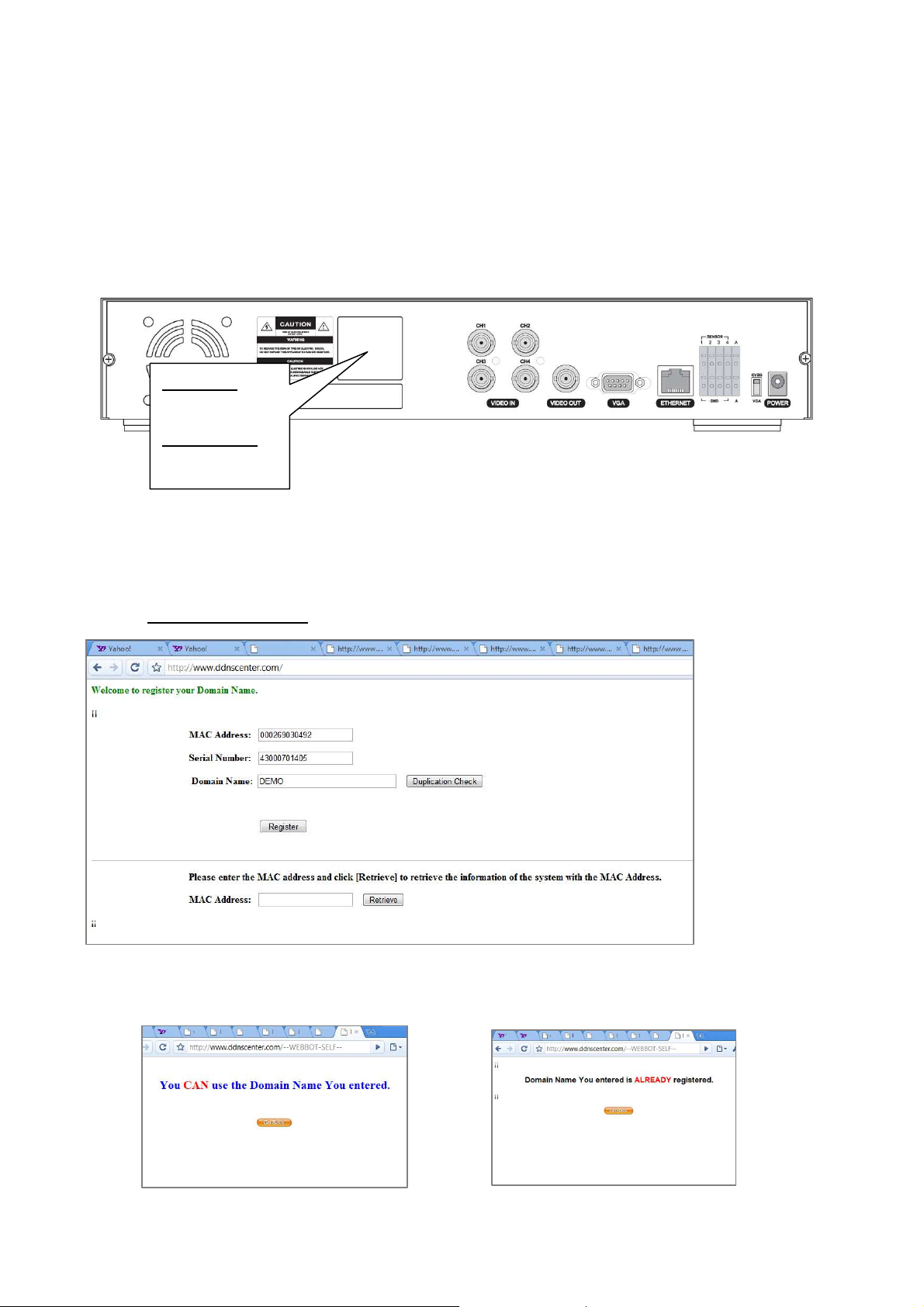

1-2. Checking Mac address on the rear panel of DVR and Registration No.

Get Mac address and Serial Number on the rear panel of the system.

Mac address

000269030492 (i.e.)

Registration No.

43000701405 (i.e.)

NOTE: If there is not registration No. on the system, please contact the distributor or manufacturer.

1-3. Registration at DDNS.

1. Go to www.ddnscenter.com

2. Type in MAC Address and Serial Number.

3. Create Domain Name, and click on [Duplication Check]. Make sure it is a unique name that has not been used.

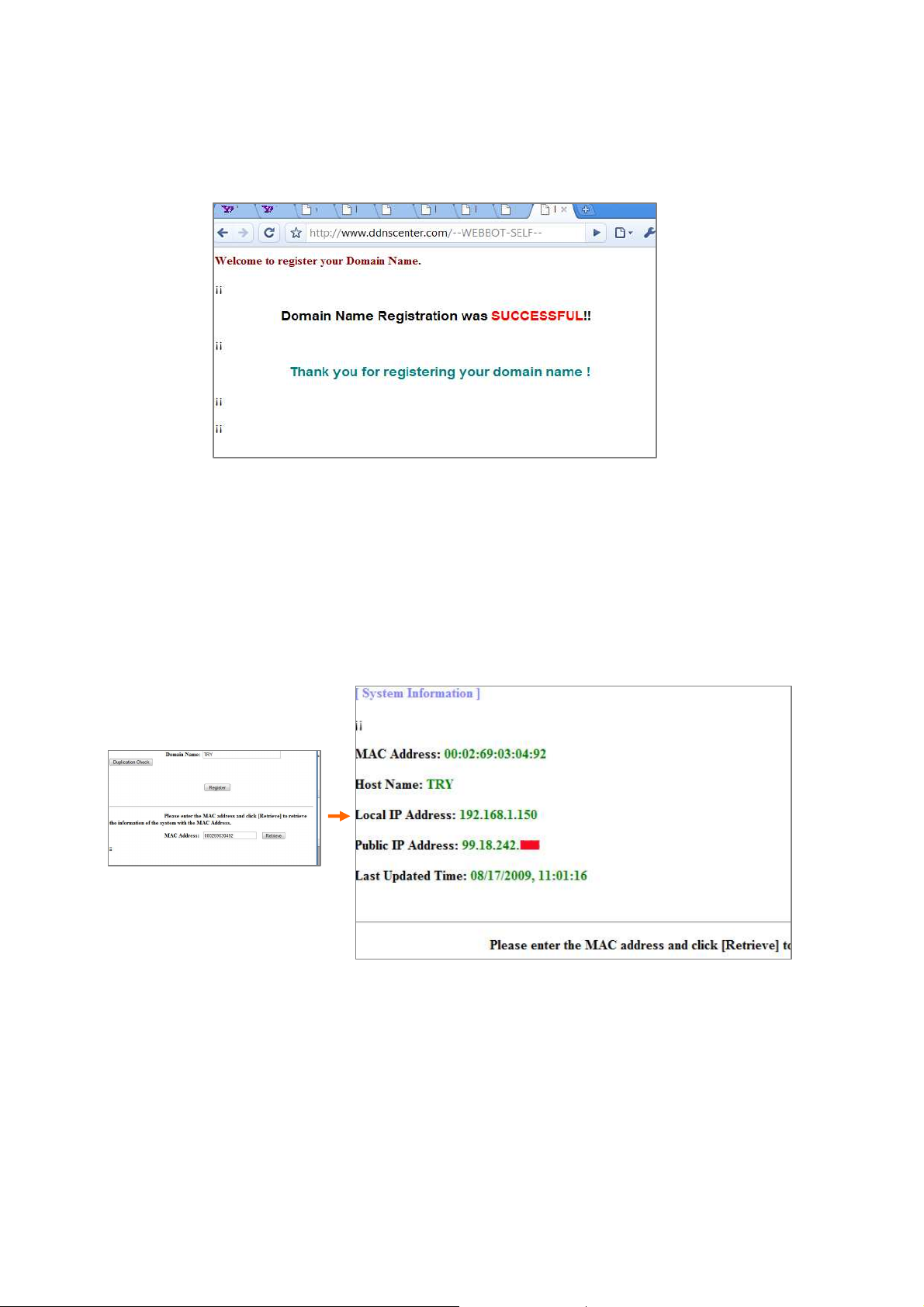

Domain name successfully registered

Domain name already exists.

Page 48

4. Click on [Register] button.

5. Your IP address is

[domain name].ddnscenter.com

i.e. If your domain name was registered as ‘demotest’, you can connect to your site with ‘demotest.ddnscenter.com’ as IP address in client software or in Internet Explorer.

6. You can look at your site’s network information by clicking on [Retrieve] button with Mac address.

Go to www.ddnscenter.com, and type in MAC address to retrieve network information.

Page 49

2. Network access using Domain name

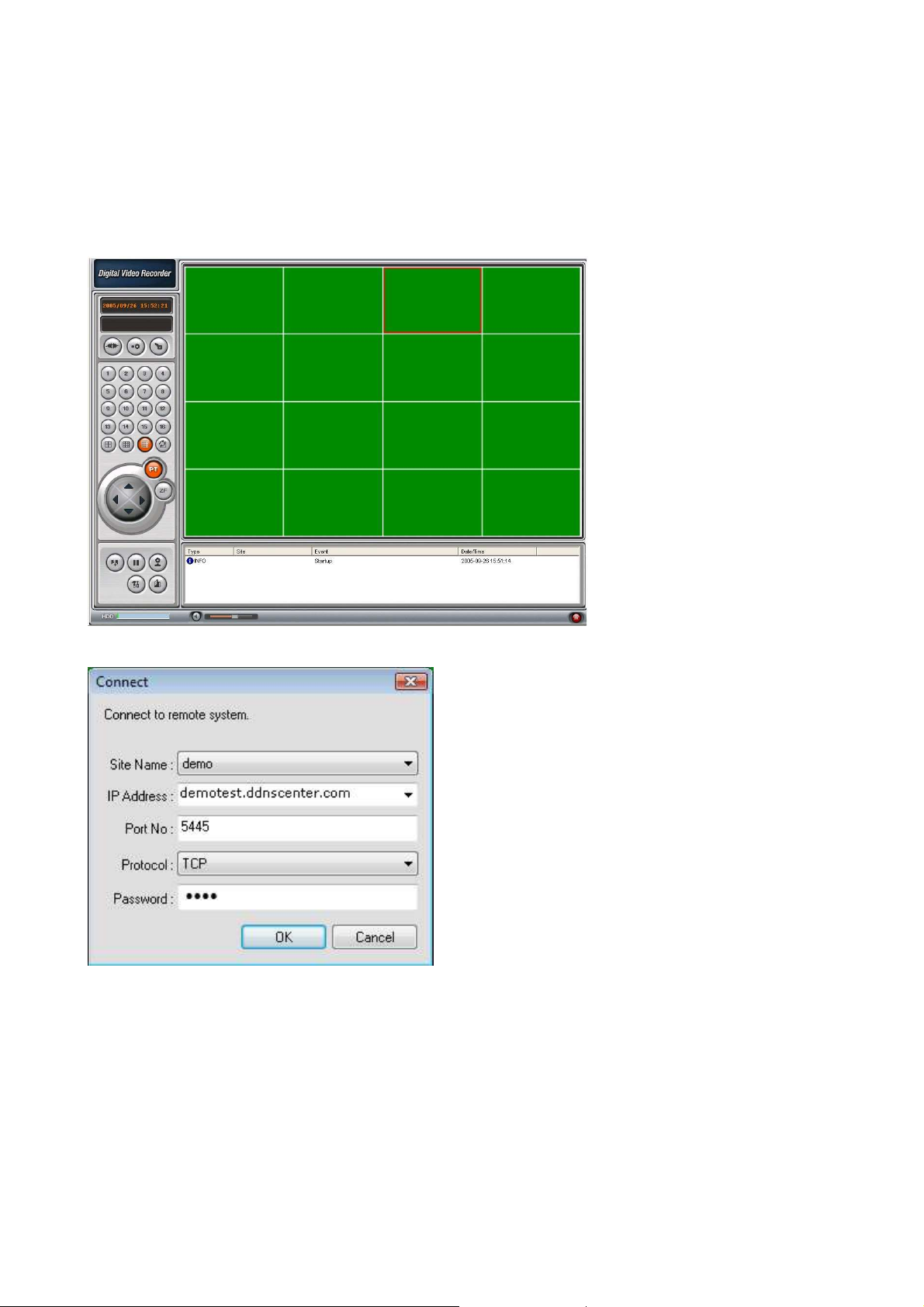

If DDNS registration is successful, you can access your DVR via the provided Network Client S/W. A. Run Network Client S/W program and click the “connect” button.

B. Enter your domain name instead of IP address in the “IP Address” field.

C. Enter the Port Number, Protocol, and Password in each filed. D. Press OK, then you can access to the remote DVR.
