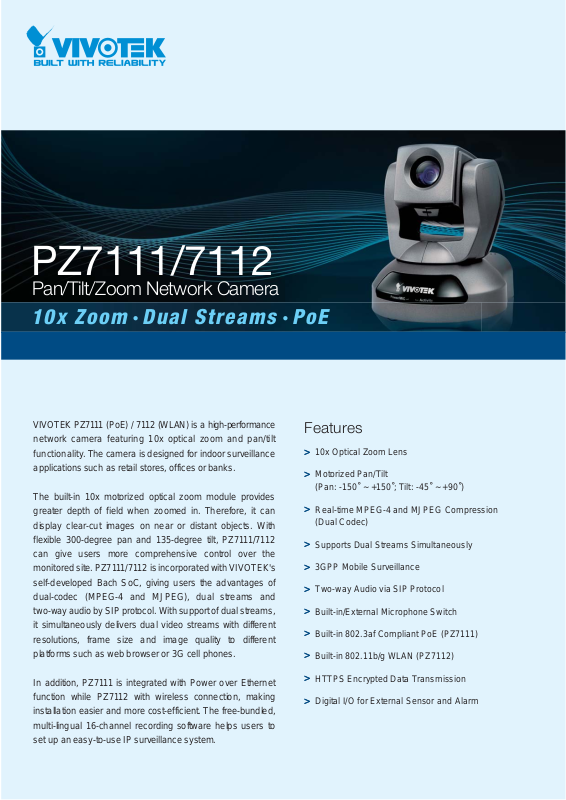

PZ7111/7112

Pan/Tilt/Zoom Network Camera

10x Zoom Dual Streams PoE

VIVOTEK PZ7111 (PoE) / 7112 (WLAN) is a high-performance
network camera featuring 10x optical zoom and pan/tilt
functionality . The camera is designed for indoor surveillance
applications such as retail stores, offices or banks.

The built-in 10x motorized optical zoom module provides
greater depth of field when zoomed in. Therefore, it can
display clear-cut images on near or distant objects. With
flexible 300-degree pan and 135-degree tilt, PZ7111/7112
can give users more comprehensive control over the
monitored site. PZ71 1 1/71 12 is incorporated with VIVOTEK's
self-developed Bach SoC, giving users the advantages of
dual-codec (MPEG-4 and MJPEG), dual streams and
two-way audio by SIP protocol. With support of dual streams,
it simultaneously delivers dual video streams with different
resolutions, frame size and image quality to different
platforms such as web browser or 3G cell phones.

In addition, PZ7111 is integrated with Power over Ethernet
function while PZ7112 with wireless connection, making
installation easier and more cost-efficient. The free-bundled,
multi-lingual 16-channel recording software helps users to
set up an easy-to-use IP surveillance system.

Features

> >

10x Optical Zoom Lens

> >

Motorized Pan/Tilt
(Pan: -150˚ ~ +150˚; Tilt: -45˚ ~ +90˚)

> >

Real-time MPEG-4 and MJPEG Compression
(Dual Codec)

> >

Supports Dual Streams Simultaneously

> >

3GPP Mobile Surveillance

> >

Two-way Audio via SIP Protocol

> >

Built-in/External Microphone Switch

> >

Built-in 802.3af Compliant PoE (PZ7111)

> >

Built-in 802.11b/g WLAN (PZ7112)

> >

HTTPS Encrypted Data Transmission

Digital I/O for External Sensor and Alarm

> >

Specifications

Models

System

Pan/Tilt/Zoom

Lens

Ang

le of View

Shutter Time

Image sensor
Minimum

Illumination
Video

Image Settings

Audio

Networking

Alarm and
Event Management

Security

Users
Dimension

Weight

LED Indicator

Distributed by:

．PZ7111 (NTSC CCD, PoE)
．PZ7121 (PAL CCD, PoE)
．PZ7112 (NTSC CCD, WLAN)
．PZ7122 (PAL CCD, WLAN)

．CPU: Bach SoC
．Flash: 8MB
．RAM: 64MB + 32MB
．Embedded OS: Linux 2.6

．Pan range: 300° (-150° ~ +150°)
．Tilt range: 135° (-45° ~ +90°)

．10x optical zoom, 10x digital zoom
．Auto pan mode
．Auto patrol mode

．10x optical zoom lens, f=4.2 ~ 42 mm, F1.8 (wide),

F2.9 (tele), auto iris, auto focus

．4.9° ~ 46° (horizontal)
．3.6° ~ 35° (vertical)

．1/60 sec. to 1/10000 sec. (PZ7111/PZ7112)
．1/50 sec. to 1/10000 sec. (PZ7121/PZ7122)

．1/4” CCD sensor in D1 resolution

．1.5 Lux / F1.8 (typical)
．0.05 Lux / F1.8 (low light mode)

．Compression: MJPEG & MPEG-4
．Streaming:

Simultaneous dual-streaming
MPEG-4 streaming over UDP, TCP, HTTP or HTTPS
MPEG-4 multicast streaming

MJPEG streaming over HTTP or HTTPS
．Supports 3GPP mobile surveillance
．Frame rates:

MPEG-4: Up to 30/25 fps 704x480/704x576

MJPEG: Up to 30/25 fps 704x480/704x57

．Adjustable image size, quality, and bit rate
．Time stamp and text caption overlay
．Flip & mirror
．Configurable brightness, contrast, saturation,

sharpness and white balance
．ATW, AWB, AES, ALC
．Backlight compensation (BLC)

．Compression:

GSM-AMR speech encoding, bit rate:

4.75 kbps to 12.2 kbps

MPEG-4 AAC audio encoding, bit rate:

16 kbps to 128 kbps
．Interface:

Built-in microphone

External microphone input

Audio output

External/Internal microphone switch
．Supports two-way audio via SIP protocol
．Supports audio mute

．10/100 Mbps Ethernet, RJ-45
．Built-in 802.11b/g WLAN (PZ7112/PZ7122)
．Protocols: IPv4, TCP/IP, HTTP, HTTPS, UPnP, RTSP/

RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS,

DDNS, and PPPoE

．Triple-window video for motion detection
．One D/I and one D/O for external sensor and alarm
．Event notification using HTTP, SMTP, or FTP
．Local recording of MP4 files

．Multi-level user access with password protection
．IP address filtering
．HTTPS encrypted data transmission
．Wireless: WEP, WPA-PSK, WPA2 (PZ7112/PZ7122)

．Camera live viewing for up to 10 clients

．Ø 105 mm x 120 mm

．Net: 391 g (PZ7111/PZ7121)
．Net: 408 g (PZ7112/PZ7122)

．System power and status indicator
．System activity and network link indicator

Power

Approvals
Operating Environments

Viewing System
Requirements

Installation, Management,
and Maintenance

Applications

Warranty

．12V DC
．Power consumption: Max. 12 W

(PZ7111/7121)

．Power consumption: Max. 13 W

(PZ7112/7122)

．802.3af compliant Power-over-Ethernet

(PZ7111/PZ7121)

．CE, LVD, FCC, VCCI, C-Tick

．Temperature: 0 ~ 50 °C (32 ~ 122 °F)

．Humidity: 20% ~ 80% RH

．OS: Microsoft Windows 2000/XP/Vista
．Browser: Internet Explorer 6.x or above
．Cell phone: 3GPP player
．Real Player: 10.5 or above
．Quick Time: 6.5 or above

．Installation Wizard 2
．16-CH recording software
．Supports firmware upgrade

．SDK available for application development

and system integration
