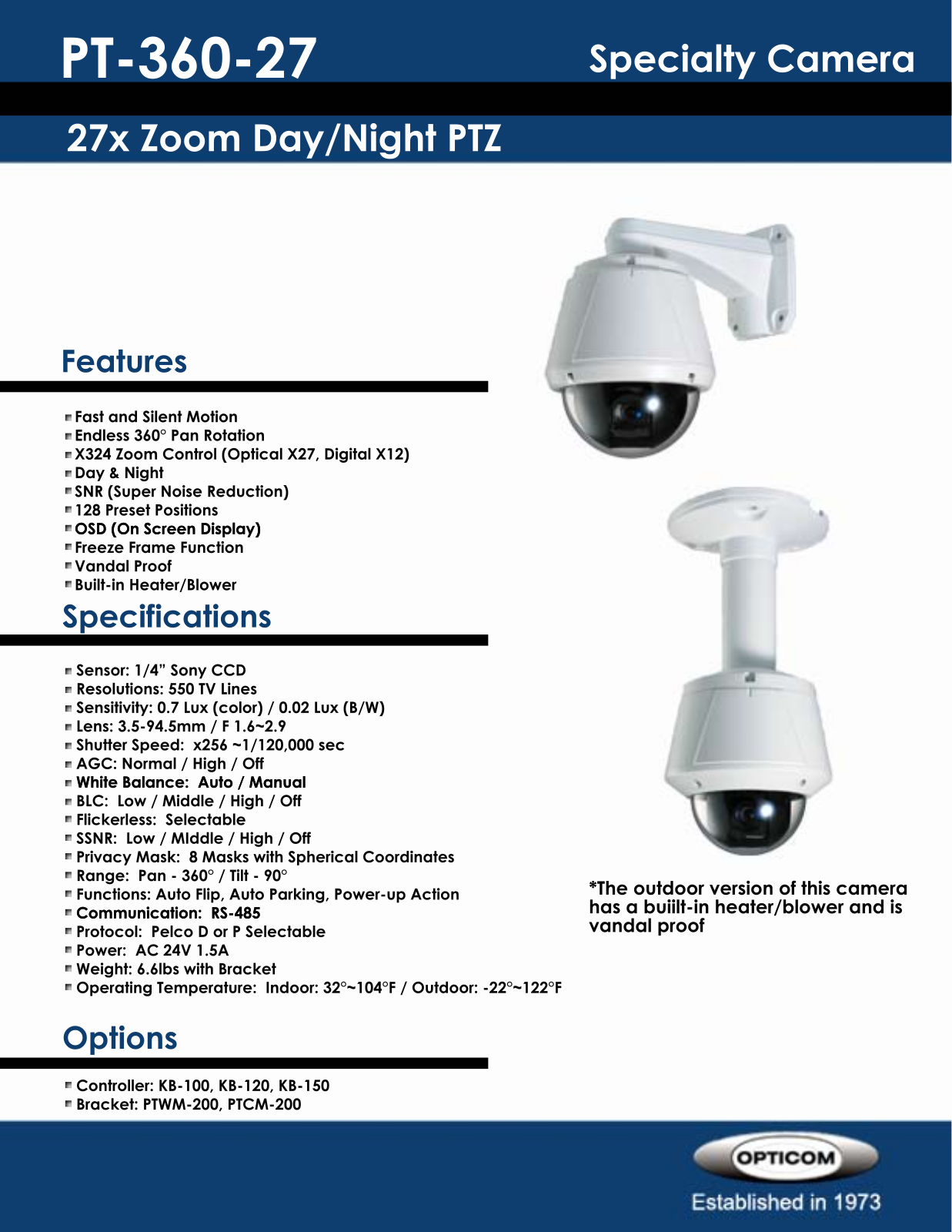

Opticom PT-360-27 SPECIFICATION DATA

PT-360-27

10X Zoom Day/Night PTZ Camera

27x Zoom Day/Night PTZ

Specialty Camera

Features

Fast and Silent Motion
Endless 360° Pan Rotation
X324 Zoom Control (Optical X27, Digital X12)
Day & Night
SNR (Super Noise Reduction)
128 Preset Positions
OSD (On Screen Display)OSD (On Screen Display)
Freeze Frame Function
Vandal Proof
Built-in Heater/Blower

Specifications

Specifications

Sensor: 1/4” Sony CCD
Resolutions: 550 TV Lines
Sensitivity: 0.7 Lux (color) / 0.02 Lux (B/W)
Lens: 3.5-94.5mm / F 1.6~2.9
Shutter Speed: x256 ~1/120,000 sec
AGC: Normal / High / Off
White Balance: Auto / ManualWhite Balance: Auto / Manual
BLC: Low / Middle / High / Off
Flickerless: Selectable
SSNR: Low / MIddle / High / Off
Privacy Mask: 8 Masks with Spherical Coordinates
Range: Pan - 360° / Tilt - 90°
Functions: Auto Flip, Auto Parking, Power-up Action
Communication: RS-485Communication: RS-485
Protocol: Pelco D or P Selectable
Power: AC 24V 1.5A
Weight: 6.6lbs with Bracket
Operating Temperature: Indoor: 32°~104°F / Outdoor: -22°~122°F

Options

*The outdoor version of this camera
has a buiilt-in heater/blower and is
vandal proof

Controller: KB-100, KB-120, KB-150
Bracket: PTWM-200, PTCM-200
